Catalytic wet oxidation of phenol with Fe–ZSM-5 catalysts

Abstract

Fe–ZSM-5 and Fe₂O₃/ZSM-5 zeolite catalysts were prepared and tested for catalytic wet oxidation of phenol. First, Fe–ZSM-5 and Fe₂O₃/ZSM-5 zeolite catalysts were prepared by the hydrothermal synthetic and incipient wetness impregnation method and characterized to determine the framework and extra-framework Fe³⁺ species. Second, the catalytic properties of Fe–ZSM-5 in the oxidation of phenol were systematically studied to determine the optimum technological parameters by investigating the effects of reaction temperature, pH, catalyst concentration and stirring rate on the conversion of phenol. In addition to the phenol conversion, selectivity to CO₂ and concentration of aromatic intermediates in the oxidation of phenol with the two catalysts were analyzed under the same optimum conditions. Leaching of iron from the catalysts, as well as the catalytic stability of Fe–ZSM-5, was also tested. Finally, the kinetics of catalytic wet oxidation of phenol with Fe–ZSM-5 was studied. The experimental results showed that both the framework and extra-framework Fe³⁺ species were present in Fe–ZSM-5. The oxidation reaction with Fe–ZSM-5 was performed well at a temperature of 70 °C, pH of 4, catalyst concentration of 2.5 g L⁻¹, stirring rate of 400 rpm and reaction time of 180 min. The conversion of phenol reached 94.1%. From the catalytic results of the two catalysts, it can be concluded that the framework Fe³⁺ species may be more efficient in phenol oxidation than the extra-framework Fe³⁺ species, the stability of Fe–ZSM-5 was better and a relatively low decrease in activity could be found after three consecutive runs. The activation energy of 27.42 kJ mol⁻¹ was obtained for phenol oxidation with Fe–ZSM-5.

---

1. Introduction

Phenol is a typical pollutant from industrial processes that appears especially in wastewater from refineries, and petrochemical plants, pharmaceutical plants.^1,2 Moreover, how to efficiently eliminate phenol from water and wastewater is still a focus of many researchers.

Various techniques, such as biological, physical and chemical treatments, have been used to purify the abovementioned industrial organic wastewaters.^3–5 However, the conventional biological method is not widely used to treat highly non-biodegradable wastewater and also requires considerably long residence time for micro-organisms to degrade the pollutants.⁶ Physical treatments, for example, adsorptive processes, which are useful in the purification of diluted wastewaters, need a further destructive post-treatment.⁷ Advanced oxidation processes are much more effective in decomposing a wide range of organic pollutants, especially for high concentration phenolic wastewater (>1000 mg L⁻¹), among the chemical treatment technologies.⁸ There are a lot of different available oxidants, such as ozone, oxygen, and hydrogen peroxide as well as some combinations, such as H₂O₂/UV or H₂O₂/O₂, can be used in advanced oxidation processes. Catalytic wet peroxide oxidation, based on the Fenton-type process, is considered a relatively low cost and highly efficient process for organic pollutants;⁹ however, the use of metallic salts as catalysts is precipitated as Fe(OH)₃, which results in an additional pollutant. To avoid additional pollution, heterogeneous catalysis is a good choice to minimize the concentration of transition metal ions generated during the reaction, and these heterogeneous catalysts are always in the form of active iron over supports.¹⁰ Zeolites, as the porous material, have been widely used as an effective catalyst support in the environment, in industries and in other important areas.^11–13 Recent studies have demonstrated the preparation of a series of Fe-bearing solid catalysts such as iron-supported meso-structured silica supports,^14,15 activated carbon impregnated with iron,¹⁶ iron modified zeolites,^17,18 and other iron catalysts¹⁹ for use in catalytic wet peroxide oxidation of phenolic wastewater. Among these iron catalysts, Fe–ZSM-5 as a heterogeneous catalyst earlier used in NO_x reduction²⁰ and catalytic wet peroxide oxidation of phenol wastewater was studied synthetically and for catalytic activity,^21,22 including the synthesis process, catalytic activity and deactivation. Although Fe–ZSM-5 has been studied as a catalyst in the oxidation of phenol in recent years, to the best of our knowledge, there are few works on the systematic research of catalytic wet oxidation of phenol with Fe–ZSM-5.

The purpose here is to study the catalytic properties of the framework and extra-framework Fe³⁺ species in two types of iron zeolite catalysts for wet oxidation of phenol with H₂O₂ as the oxidant. In addition, a systematic work on the characterization, technological parameters, selectivity to CO₂, aromatic intermediates, stability and activation energy will be presented in this study.

2. Experimental

2.1 Materials

Phenol was purchased from the Guangzhou Chemical Reagent Factory. Hydrogen peroxide (H₂O₂, 30 wt% aqueous) was purchased from the Shanghai Qiangshun Chemical Reagent Factory. Tetrapropylammonium hydroxide (TPAOH) was purchased from the Tianjin Guangfu Fine Chemical Research Institute. Tetraethoxysilane (TEOS) was purchased from the Tianjin Fuchen Chemical Reagent Factory. Sodium aluminate (NaAlO₂) was purchased from the Sinopharm Chemical Reagent Co., Ltd. Fe(NO₃)₃·9H₂O was purchased from the Tianjin Damao Chemical Reagent Factory. ZSM-5 zeolites (Si/Al = 50) with an average particle diameter of 1 mm were purchased from the Nankai University Catalyst Factory. Catechol, hydroquinone, resorcinol and benzoquinone purchased from the Sinopharm Chemical Reagent Co., Ltd. were all used as standard samples for the test. Deionized water was used in all synthetic processes. All the chemical reagents used in this study were analytical grade.

2.2 Preparation of Fe–ZSM-5 catalysts

Fe–ZSM-5 zeolite catalyst was synthesized by hydrothermal synthesis from a mixture with the molar ratio 5000 H₂O : 100 TEOS : 10 TPAOH : 2 NaAlO₂ : 2 Fe(NO₃)₃·9H₂O. The mixture was aged 24 h and treated hydrothermally in a 50 mL Teflon lined autoclave at 170 °C for 48 h. The resulting white solid was filtered, ultrasonically washed by deionized water for 20 min and dried at 100 °C, then calcined at 550 °C under air for 4 h.

Fe₂O₃/ZSM-5 zeolite catalyst was prepared by the incipient wetness impregnation method, involving the impregnation of ZSM-5 with the proper amount of Fe(NO₃)₃·9H₂O. After impregnation, the catalyst was dried at 110 °C for 24 h and then calcined at 550 °C under air for 8 h. The Fe load was adjusted to 1.5 wt% in both of the prepared catalysts.

2.3 Catalyst characterization

Different techniques were used for the characterization of the catalysts. X-ray diffraction (XRD) using a D8 ADVANCE (Bruker Co.) diffractometer with Cu Kα radiation (40 kV, 40 mA) with 2θ range of 5–60° was used to determine the crystalline phases present in both the catalysts and the supports. The structure properties of the catalysts were analyzed by Fourier transform infrared (FTIR, Spectnlm2000, Perkin Elmer, USA) spectrometry with a resolution of 4 cm⁻¹ in the range from 400 to 4000 cm⁻¹ at room temperature. A typical pellet containing 1 wt% of sample was prepared by mixing 1 mg of sample with 100 mg KBr. Temperature programmed reduction (TPR) tests were performed on Quantachrome Automated Chemisorption Analyzer in a flowing H₂ reduction system with a TCD detector. 50 mg of each sample was loaded into the reactor and purged with Ar at a rate of 50 mL min⁻¹ at 350 °C for 30 min to eliminate contaminants and then cooled down to 50 °C. The temperature was increased to 900 °C at a heating rate of 10 °C min⁻¹ with a flowing gas mixture of 10% H₂ and 90% Ar. The structure modifications involving Fe³⁺ species were identified by UV-Vis reflectance spectra carried out on a UV spectrophotometer (U-3010, Hitachi, Japan) in the 200–700 nm wavelength range employing BaSO₄ as the blank.

2.4 Catalytic wet oxidation of phenol

The oxidation of phenol was carried out in a 250 mL stoppered glass flask in a water bath with a condenser, thermocouple and pH electrode at a certain stirring rate. A volume of 200 mL of a 2500 mg L⁻¹ aqueous phenol solution and a certain weight of Fe–ZSM-5 zeolite catalyst were transferred into the flask. The experiments were carried out at different temperatures between 40 and 80 °C, pH = 2–6 and stirring rates between 200 and 600 rpm. The H₂O₂ : phenol molar ratio was fixed at 21, whereas for the complete oxidation of phenol to CO₂ and H₂O, the stoichiometric ratio is 14. The amount of H₂O₂ used was in excess, which was equal to 1.5 times of the H₂O₂ amount necessary to completely oxidize phenol to CO₂ and H₂O. When the desired reaction temperature was reached, H₂O₂ was dropped into the flask, and the reaction was then considered to be started. In addition, the effects of different catalyst loads (0.5–5 g L⁻¹) were also tested in these experiments.

Liquid samples were taken at different time intervals and immediately analyzed. The concentration of phenol and the identification of intermediates were carried out in a HPLC (model 1100, Agilent Technologies, USA) with a HC-C18 reverse phase column (5 μm × 250 mm × 4.6 mm). The total organic carbon (TOC) values were obtained by a TOC Analyzer (Sievers Innov, General Electric, USA).

The calculation method given by Nguyen et al.²³ was applied to determine the conversion of phenol (X_phenol, %) and selectivity to carbon dioxide (S_CO2, %).

2.5 Stability tests

Leaching tests were carried out to investigate whether small amounts of the dissolved iron were responsible for the observed catalytic activity. The ion contents of the reaction solution were measured at different time intervals by atomic adsorption spectroscopy (AA240FS, Varian, USA).

Three consecutive runs were conducted with the same Fe–ZSM-5 zeolite catalyst load at 70 °C and pH of 4 after simply drying at 100 °C. The conversion of phenol was tested at different time intervals to analyze the stability of the zeolite catalyst.

3. Results and discussion

3.1 Characterization of catalysts

To confirm the structure and the crystallinity, different samples were analyzed by using XRD. The XRD patterns of ZSM-5, Fe₂O₃/ZSM-5 and Fe–ZSM-5 are shown in Fig. 1. In the XRD patterns, all the samples give the same diffraction peaks in the ranges of 2θ = 7–9° and 2θ = 23–25°, which match well with the reports on MFI-structure.²⁴ It is known that metal-impregnation affects the structure regularity of zeolites as found by other researchers.^17,25,26 As we can observe in the XRD patterns of Fe–ZSM-5, the higher intensities of diffraction peaks appear at 2θ = 7–9° compared with the other two samples, which suggests that Fe³⁺ may be successfully incorporated into the MFI framework.²⁷ In addition, in the XRD patterns of Fe–ZSM-5 and Fe₂O₃/ZSM-5, there are two weak diffraction peaks for α-Fe₂O₃ at 2θ = 33° and 36°, which infers the presence of isolated extra-framework Fe³⁺ species in both Fe–ZSM-5 and Fe₂O₃/ZSM-5. The intensity decrease of the XRD patterns at 2θ = 23–25° of the Fe–ZSM-5 and Fe₂O₃/ZSM-5 may also confirm the existence of Fe species.

Fig. 1 XRD patterns of different samples (a) ZSM-5, (b) Fe₂O₃/ZSM-5 and (c) Fe–ZSM-5.

Infrared spectroscopy is a tool widely used to characterize the structural properties of zeolites. Useful information can be obtained by exploring the framework (1350–400 cm⁻¹) regions.²⁸ The IR spectra of ZSM-5, Fe₂O₃/ZSM-5 and Fe–ZSM-5 are shown in Fig. 2. IR spectra of all the samples show that the same absorption peaks centered at 1225 cm⁻¹, 1093 cm⁻¹, 790 cm⁻¹, 550 cm⁻¹ and 450 cm⁻¹, are present and match with the skeletal vibrations of the MFI zeolite structure (ZSM-5). The bands at 550 cm⁻¹ are assigned to the vibration of double 5-rings in the MFI lattice and the ratio of band intensities at 500 and 450 cm⁻¹ is often used as an indication of zeolite crystallinity.²³ From the IR spectra of Fe–ZSM-5, there is an absorption peak centered at 980 cm⁻¹. The absorption peak centered at 960 cm⁻¹ is considered as the vibrations of SiO^δ−⋯Tx^δ+, where Tx^δ+ is the heteroatom located in the framework.²⁹ In some reports,³⁰ the bands around 1000 cm⁻¹ can be explained by attributing it to the local structure surrounding the framework Fe³⁺ species. It is described by 4 [O₃Si–O]⁻ units, which can be also used to support the framework Fe³⁺ species present in Fe–ZSM-5.

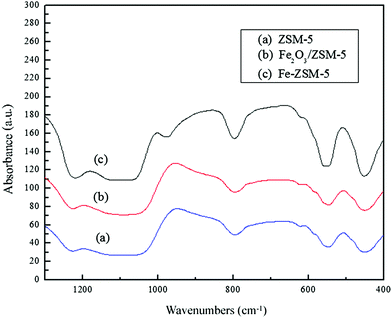

Fig. 2 IR spectra of different samples (a) ZSM-5, (b) Fe₂O₃/ZSM-5 and (c) Fe–ZSM-5.

Temperature-programmed reduction (TPR) experiments were carried out to further study the iron species and their redox properties.^30,31 The TPR curves of ZSM-5 and Fe–ZSM-5 are shown in Fig. 3. The TPR curve of Fe–ZSM-5 clearly shows a maximum centered at 843 °C. The peak observed at this temperature can be ascribed to a residual fraction of the framework Fe³⁺ species with difficult reducibility, because the reduction of framework Fe³⁺ species usually occurs at a temperature higher than 677 °C.³² Moreover, as we can observe in the TPR curve of Fe–ZSM-5, there is a weak signal peak at 353 °C, compared with the TPR curve of ZSM-5. It has been proposed that the iron, mostly in the form of Fe₂O₃, on the surface of Fe–ZSM-5 is reduced from Fe³⁺ to Fe²⁺ at around 400 °C.³³

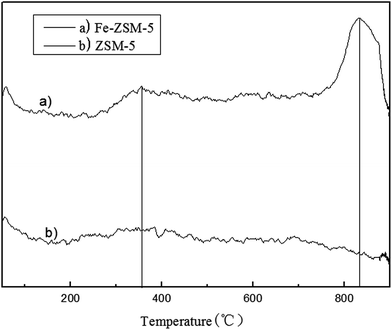

Fig. 3 H₂-TPR profiles of different samples (a) Fe–ZSM-5 and (b) ZSM-5.

UV-Vis spectroscopy is applied to analyze the structural modifications involving the Fe³⁺ species.³⁰ The UV-Vis reflectance spectrum of Fe–ZSM-5 is shown in Fig. 4. Two strong absorption peaks appeared between 200 nm and 300 nm with ligand to metal Fe³⁺ charge transfer character involving isolated framework Fe³⁺. Moreover, the appearance of a weak broad absorption was centered at 380 nm. It can be ascribed to the Fe³⁺ species present in the form of Fe₂O₃ particles.

Fig. 4 UV-Vis reflectance spectrum of Fe–ZSM-5.

From these results, it could be concluded that both the framework and extra-framework Fe³⁺ species are both present in the Fe–ZSM-5, but only the extra-framework Fe³⁺ species in the Fe₂O₃/ZSM-5 was prepared by incipient wetness impregnation.

3.2 Phenol oxidation with Fe–ZSM-5

3.2.1 Effects of reaction temperature. The reaction temperature is one of the most important parameters in the oxidation of phenol. The conversion of phenol was tested over different temperatures from 40 °C to 80 °C and the results are shown in Fig. 5. As can be observed in Fig. 5, an increase in reaction temperature up to 80 °C results in the enhancement of the conversion of phenol from 65.6% to 95.9%. Similar observations have been reported for other iron containing catalysts.^34,35 An increase of temperature results in higher H₂O₂ decomposition into HO· radicals leading to higher phenol conversion.¹⁰ However, high reaction temperature can result in a degradation of H₂O₂ into H₂O and O₂. Thus, in this study, a reaction temperature of 70 °C was chosen as the optimum reaction temperature, because the conversion of phenol can also be 94.1% at this temperature and there was no significant enhancement (95.9%) at 80 °C.

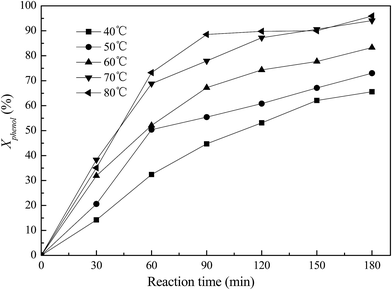

Fig. 5 Effect of reaction temperature on phenol conversion with Fe–ZSM-5 ([phenol]₀: 2500 mg L⁻¹, [H₂O₂]₀: 19 000 mg L⁻¹, catalyst concentration = 2.5 g L⁻¹, pH = 4, and stirring rate = 400 rpm).

3.2.2 Effects of pH. Eisenhauer³⁶ concluded that a pH of 3–4 was the optimum value for phenol oxidation by H₂O₂ with iron as the catalyst. To investigate the optimum initial pH in the oxidation of phenol, the conversion of phenol was tested over different acidities (pH = 2–6), and the results are shown in Fig. 6. As we can observe in Fig. 6(a), the conversion of phenol remarkably increasing with decreasing acidity. Moreover, the rate of conversion of phenol increases rapidly as reaction time increases to 60 min but decreases when the time is further increased to 180 min. It is also known from Fig. 6(b) that an initial pH of 4 is clearly the advisable operating value in the oxidation of phenol. One possible reason is that the leaching of iron cations is enhanced at low pH values.²¹ Another reason for the decrease of phenol conversion at pH 5 and 6 may be the decomposition of H₂O₂ into H₂O and O₂ which likely lead to the accelerated formation of less reactive peroxy radicals (H₂O·) rather than HO· radicals.³⁷ A similar trend was obtained by Zazo³⁸ using Fe/activated carbon as the catalyst in the oxidation of phenol.

Fig. 6 Effect of pH on phenol conversion with Fe–ZSM-5 ([phenol]₀: 2500 mg L⁻¹, [H₂O₂]₀: 19 000 mg L⁻¹, catalyst concentration = 2.5 g L⁻¹, T = 70 °C, and stirring rate = 400 rpm).

3.2.3 Effects of catalyst concentration. The influence of different catalyst concentrations (0.5 g L⁻¹, 1.25 g L⁻¹, 2.5 g L⁻¹, 3.75 g L⁻¹ and 5 g L⁻¹) on oxidation of phenol were investigated and the results are shown in Fig. 7. A significant increase in the conversion of phenol is observed as the catalyst concentration increases. The conversion of phenol dramatically increases from 31.2% to 94.1% with the catalyst concentration increasing from 0.5 g L⁻¹ to 2.5 g L⁻¹. However, the conversion of phenol increases slowly with further increases in catalyst concentration. High catalyst concentration (high Fe³⁺ content) can promote greater H₂O₂ decomposition into HO· radicals. Herein, Fe³⁺ content is different from the iron loading concentration in the catalysts. The report³⁹ on investigating the oxidation of phenol using different iron loading (5 wt%, 10 wt%, 15 wt% and 20 wt%) in the catalyst concluded that high iron loading concentration could actually cause the pores to be blocked, which leads to less Fe³⁺ active sites deep within the catalyst matrix and a lower overall catalytic activity. Thus, more experiments will be performed with a series of iron loading in Fe–ZSM-5 in the future.

Fig. 7 Effect of catalyst concentration on phenol conversion with Fe–ZSM-5 ([phenol]₀: 2500 mg L⁻¹, [H₂O₂]₀: 19 000 mg L⁻¹, pH = 4, T = 70 °C, and stirring rate = 400 rpm).

3.2.4 Effects of stirring rate. The conversion of phenol was tested at different stirring rates varying from 200 to 600 rpm and the results are shown in Fig. 8. Clearly, the conversion of phenol increases from 75.1% to 94.1% with the stirring rate increasing from 200 to 400 rpm. An increase in stirring rate results in violent collision between the molecules of the solid and the liquid, which lead to mass transfer enhancement in the oxidation of phenol. However, the conversion of phenol is not altered significantly with further increases in stirring rate from 400 to 600 rpm.

Fig. 8 Effect of stirring rate on phenol conversion with Fe–ZSM-5 ([phenol]₀: 2500 mg L⁻¹, [H₂O₂]₀: 19 000 mg L⁻¹, catalyst concentration = 2.5 g L⁻¹, pH = 4, and T = 70 °C).

3.3 Catalyst activity with framework Fe

To investigate the contribution of framework and extra-framework Fe³⁺ species in the oxidation of phenol, the conversion of phenol and selectivity to CO₂ with Fe–ZSM-5 and Fe₂O₃/ZSM-5 (1.5 wt% Fe) under the same operating conditions (pH = 4, T = 70 °C and stirring rate = 400 rpm) were analyzed and the results are shown in Fig. 9 and 10, respectively. It can be observed in Fig. 9 that the conversion of phenol over Fe₂O₃/ZSM-5 reaches 100%, which is clearly higher than that over Fe–ZSM-5. In other words, the activity of extra-framework Fe³⁺ species is higher than that of the framework Fe³⁺ species because the extra-framework Fe³⁺ species, present in the form of iron oxide (Fe₂O₃), are located in the pores as well as on the surface of the zeolites, which indicates higher activity. However, as can be observed in Fig. 10, Fe–ZSM-5 shows a better selectivity to CO₂ (90.6%) compared with Fe₂O₃/ZSM-5 (only 77.6%), which indicates that framework Fe³⁺ species can more efficiently catalyze the destruction of the phenol ring and convert it into CO₂ than extra-framework Fe³⁺ species.²³ Two forms of Fe³⁺ species existed in the Fe–ZSM-5, namely, extra-framework and framework Fe³⁺ species, but only the extra-framework Fe³⁺ species existed in the Fe₂O₃/ZSM-5. The extra-framework Fe³⁺ species may have higher catalytic activity but lower stability. The higher activity of extra-framework Fe³⁺ species will decompose the H₂O₂ into O₂ directly, which resulted in lower CO₂ selectivity. However, the Fe–ZSM-5 catalyst can produce more ·OH radicals by catalyzing H₂O₂ with higher utilization efficiencies that resulted in higher CO₂ selectivity when compared with Fe₂O₃/ZSM-5.

Fig. 9 Conversion of phenol with Fe–ZSM-5 and Fe₂O₃/ZSM-5 ([phenol]₀: 2500 mg L⁻¹, [H₂O₂]₀: 19 000 mg L⁻¹, catalyst concentration = 2.5 g L⁻¹, pH = 4, T = 70 °C, and stirring rate = 400 rpm).

Fig. 10 Selectivity to CO₂ with Fe–ZSM-5 and Fe₂O₃/ZSM-5 ([phenol]₀: 2500 mg L⁻¹, [H₂O₂]₀: 19 000 mg L⁻¹, catalyst concentration = 2.5 g L⁻¹, pH = 4, T = 70 °C, and stirring rate = 400 rpm).

To learn more about the potential feasibility of framework and extra-framework Fe³⁺ species in the oxidation of phenol, aromatic intermediate concentrations in the oxidation with Fe–ZSM-5 and Fe₂O₃/ZSM-5 were tested to evaluate the ecotoxicity during this oxidation process. HPLC was used to identify the aromatic intermediates, and the distribution curves of identified aromatic intermediates are shown in Fig. 11. It is known that the most likely pathway for oxidative destruction of phenol includes the primary products corresponding to aromatics resulting from phenol hydroxylation, followed by evolution to simple carboxylic acids and finally completing oxidation to CO₂ and H₂O. From Fig. 11, four aromatic intermediates as well as the TOC values were tested. It was found that lower aromatic intermediate concentrations were generated in the oxidation of phenol over Fe–ZSM-5 compared with that over Fe₂O₃/ZSM-5, which suggests relatively lower values of ecotoxicity in the oxidation of phenol over Fe–ZSM-5. However, the reaction time also plays a very important role in the oxidation, and it must reach sufficiently low concentrations of aromatic intermediates that are much more toxic than phenol itself.⁴⁰ In addition, the TOC reduction over these two zeolites catalysts after 180 min both came to at least 80%. The residual TOC is a contribution from the simple carboxylic acids, which are more resistant to oxidation, evolved by the primary products from phenol ring opening and oxidation of the aromatic intermediates.⁴¹

Fig. 11 Distribution curves of identified aromatic intermediates in the oxidation of phenol: (a) Fe–ZSM-5, (b) Fe₂O₃/ZSM-5 ([phenol]₀: 2500 mg L⁻¹, [H₂O₂]₀: 19 000 mg L⁻¹, catalyst concentration = 2.5 g L⁻¹, pH = 4, T = 70 °C, stirring rate = 400 rpm).

3.4 Stability and reusability of the catalysts

Leaching tests were also carried out over these two catalysts under the same reaction conditions to study much more about the stability of the catalysts in the oxidation process, and the results are shown in Fig. 12. It is observed that iron loading in the Fe–ZSM-5 and Fe₂O₃/ZSM-5 after the leaching tests were 1.32 wt% and 1.24 wt%, respectively. Insignificant reduction in iron loading during the reaction indicates that the two catalysts are not prone to leaching, compared with the iron loading of 1.5 wt% in fresh catalyst. However, a remarkable decrease of iron loading in the Fe₂O₃/ZSM-5 catalyst was still found when compared with the Fe–ZSM-5 catalyst.

Fig. 12 Fe leached in the oxidation of phenol over Fe–ZSM-5 and Fe₂O₃/ZSM-5 ([phenol]₀: 2500 mg L⁻¹, [H₂O₂]₀: 19 000 mg L⁻¹, catalyst concentration = 2.5 g L⁻¹, pH = 4, T = 70 °C, and stirring rate = 400 rpm).

From the results abovementioned, the reusability of Fe–ZSM-5 was carried out over three consecutive runs under the optimum reaction conditions, and the results are shown in Fig. 13. The conversion of phenol decreases from 94.1% at the 1^st run to 85.6% at the 3^rd run. Many reports^10,42,43 concluded that the decrease of catalyst activity cannot be attributed to Fe leaching from the catalyst. One important fact is the presence of residual carbon-containing matter over the surface of the used catalysts due to the absorption of residual organic compounds onto the catalyst. Many methods, such as washing by solvent and calcining at high temperature, are used to recover the catalyst and thus, more experiments will be performed in the future for a better understanding of catalyst regeneration.

Fig. 13 Reusability of Fe–ZSM-5 under optimum reaction conditions.

3.5 Kinetics of catalytic wet oxidation of phenol with Fe–ZSM-5

A plot of initial rate of phenol (r_A0) vs. stirring rate was drawn in the range of 200–600 rpm for the external diffusion elimination; moreover, a plot of initial rate (r_A0) vs. particle size of Fe–ZSM-5 zeolite catalyst was also drawn in the range of 20–120 mesh for the internal diffusion elimination in this kinetic experiment under the optimum experimental conditions, and the results are shown in Fig. 14 and 15. It is easily found that the external diffusion and internal diffusion are eliminated at the stirring rate of 400 rpm and particle size of 80 meshes.

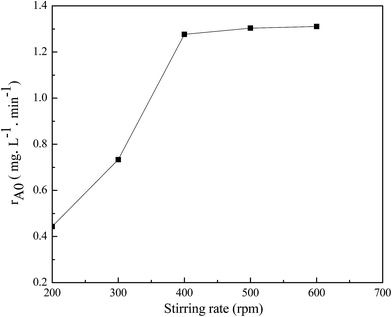

Fig. 14 Effect of stirring rate on the initial rate of phenol conversion ([phenol]₀: 2500 mg L⁻¹, [H₂O₂]₀: 19 000 mg L⁻¹, catalyst concentration = 2.5 g L⁻¹, pH = 4, and T = 70 °C).

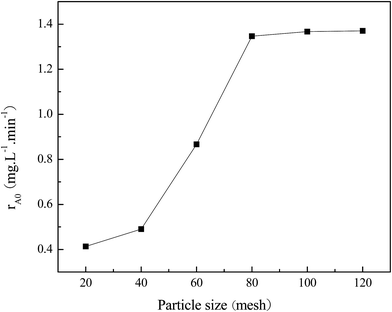

Fig. 15 Effect of catalyst particle size on the initial rate of phenol conversion ([phenol]₀: 2500 mg L⁻¹, [H₂O₂]₀: 19 000 mg L⁻¹, catalyst concentration = 2.5 g L⁻¹, pH = 4, and T = 70 °C).

The catalytic wet oxidation of phenol over Fe–ZSM-5 with excess H₂O₂ can be assumed to be a first-order reaction, and the reaction rate equation is:

where C_A is the phenol concentration at time t in mg L⁻¹, k₀ is pre-exponential factor in min⁻¹, E_a is the activation energy in kJ mol⁻¹ and T is the reaction temperature in K.

The oxidation rates were tested for first-order kinetics by plotting ln(C_A0/C_A) vs. time at different temperatures from 40 °C to 70 °C, as shown in Fig. 16. The slopes of the straight lines were obtained and the values of the first-order rate coefficient are showed in Table 1. These results confirm that the catalytic reactions usually follow first-order kinetics as in related investigation.^25,44

Fig. 16 First-order oxidation of phenol by catalytic wet oxidation over Fe–ZSM-5 ([phenol]₀: 2500 mg L⁻¹, [H₂O₂]₀: 19 000 mg L⁻¹, catalyst concentration = 2.5 g L⁻¹, pH = 4, stirring rate = 400 rpm, and particle size: 80 meshes).

Table 1 Kinetics constants for catalytic wet oxidation of phenol at different temperatures

T/K	k × 10^−3 (min^−1)	R^2
313	6.2	0.9931
323	7.0	0.9548
333	9.8	0.9809
343	15.6	0.9917

---

Fig. 17 presents the Arrhenius plot of ln k vs. 1/T obtained at different temperatures from 40 °C to 70 °C. From the slope of the Arrhenius plot in Fig. 17, the activation energy was calculated to be 27.42 kJ mol⁻¹. Consequently, the initial oxidation rate can be expressed by the following equation:

Fig. 17 Arrhenius plot of ln k vs. 1/T.

Similar results for activation energy of wastewaters by catalytic wet oxidation have been reported. For example, Xu et al.⁴⁵ calculated an activation energy of 25.21 kJ mol⁻¹ in the homogeneous catalytic Fenton oxidation of Reactive Brilliant Blue X-BR azo dye.

4. Conclusions

Fe–ZSM-5 and Fe₂O₃/ZSM-5 zeolite catalysts with 1.5 wt% Fe for catalytic wet oxidation of phenol were prepared by the hydrothermal synthetic and incipient wetness impregnation methods, respectively. Both the framework and extra-framework Fe³⁺ species were present in Fe–ZSM-5, but only extra-framework Fe³⁺ species in Fe₂O₃/ZSM-5. The oxidation reaction with Fe–ZSM-5 performed well under atmospheric pressure, temperature of 70 °C, pH of 4, with a catalyst concentration of 2.5 g L⁻¹, a stirring rate of 400 rpm and reaction time of 180 min. The conversion of phenol reached 94.1%. Both the framework and extra-framework Fe³⁺ species could catalyze the oxidation of phenol; however, the framework Fe³⁺ species can be more efficient at oxidizing phenol completely into CO₂. The Fe–ZSM-5 zeolite catalyst showed better stability than Fe₂O₃/ZSM-5, and a relatively low decrease of activity after three consecutive runs. The activation energy of oxidation with Fe–ZSM-5 zeolite catalyst was calculated to be 27.42 kJ mol⁻¹.

Acknowledgements

The authors gratefully acknowledge the financial support from the National Natural Science Foundation of China (Grant No. 21176086 and Grant No. 21006030) for this study.
