Nanostructured oxyhydroxide niobium (NbO₂OH) as UV radiation protector for polypropylene

Abstract

In this study a novel approach for improving the photo-stabilization of polymers by incorporation of nanoparticles of a new niobium compound is reported. For the first time, this approach uses the electronic properties of niobium oxyhydroxide to absorb UV light efficiently to avoid the decomposition of the polymers. The innovative results of this work consist of preparing nanoparticles of niobium oxyhydroxide and its modification by treatment with hydrogen peroxide to alter their ability to absorb radiation and act as a photo-stabilizer for preventing polypropylene degradation. Synchrotron radiation was employed: (i) to explore the niobium nanoparticle form and (ii) to investigate the macromolecular structure of neat PP and PP/Nb compounds before and after degradation. The results from this research study using FTIR-ATR, DSC and microscopies, as TEM, SEM and OM, indicate that the incorporation of niobium oxyhydroxide nanoparticles into the PP matrix provides stability against the action of ultraviolet radiation.

---

1. Introduction

The properties of polypropylene (PP) are well-known and have been extensively investigated due to its wide applications in industrial and consumer products, medical products, packaging, automotive and electronic appliances. In addition to its excellent mechanical properties, it possesses resistance to chemicals and easy processing. However, this polymer exhibits low resistance to photo-oxidative degradation after prolonged exposure to weather. Solar light and other high-energy radiation are among the main causes of polymer degradation. The photochemical behavior of PP based materials is important because durability is a key factor for outdoor applications.¹ Polymeric photo-degradation can cause premature failure of the polymer during operation, which is primarily due to the appearance of surface cracks.² The study of polymer degradation and stabilization is important to lengthen the service life of the product.^3–7 In recent years, the economic importance of PP along with the development of nanotechnology renewed investigative efforts of the degradation mechanisms and photo-degradation.^8–12

The oxidation mechanism of PP is initiated photochemically by the oxidation of the tertiary carbon atoms, which induces the formation of tertiary hydroperoxide radical.⁵ These radicals are photo-unstable⁴ resulting in autocatalytic degradation reactions. The initiation step involves the formation of an alkyl radical due to the homolytic scission of a C–H bond, and this radical reacts with molecular oxygen dissolved in the polymer to yield peroxide radical. In the propagation and termination steps, the O–O bonds of the hydroperoxides, which have a low bond energy (190 kJ mol⁻¹), undergo homolytic scission to produce a hydroxyl and an alkoxyl radical.⁵ Prior to the termination step, some reactions involving rearrangements occur, which yield different radical species that recombine to terminate the reaction. The products can include compounds containing hydroxyl or carbonyl groups.

Photo-stabilizers are categorized according to their mechanism of action. They can usually deactivate excited species, which can catalyze the decomposition of hydroperoxides, and compounds that can react with free radicals to interrupt degradative chain processes, such hindered amine light stabilizers (HALS).⁸ On the other hand, inorganic particles, such ZnO¹² and organic UV screeners, such as substituted benzophenone and benzotriazole have been employed to block UV irradiation photo-stabilizing PP. However, these organic UV screeners degrade and are subject to migration, which limits their usefulness and often necessitate increased loadings.¹³ Carbon black is commonly used to photo-stabilize PP by acting as an absorption filter of UV radiation. In addition, carbon black acts as a scavenger of free radical deactivating excited species. However, the difficulty of dispersing it into the polymer matrix becomes a drawback to its use as UV screeners.

The materials from niobium may be modified to absorb radiation in the visible and ultraviolet region. Niobium oxide and oxyhydroxide can be used as semiconductors for use in photocatalytic reactions^14,15 to treat contaminated effluent or even as radiation-absorbing filters aimed technological applications. Besides the excellent properties photo-absorbing, Brazil has large niobium ore reserves, which makes the development of great interest.

The current study investigated the novel photo-stabilization of PP using nanoparticles and particles of niobium oxyhydroxide into the polymer matrix. Our group has developed routes to modify the surface of the niobium oxyhydroxide nanoparticles: (i) by a treatment with hydrogen peroxide to alter its light absorption capacity¹⁶ and generating amphiphilic niobium oxyhydroxide modified with a surfactant.¹⁷ These modifications were essential to allow efficient absorption of UV radiation while preserving the integrity of the polymer. Moreover, the SAXS technique has been used to investigated the nanostructure of niobium compounds and PP/niobium compounds before and after UV photo-degradation.

2. Experimental

PP with a melt flow index of 22 g/10 min was supplied in the form of pellets by Borealis S.A. The nanoparticles of niobium oxyhydroxide were prepared by treating 0.26 M NH₄[NbO(C₂O₄)₂(H₂O)]·(H₂O)_n with 1 M NH₄OH (14.0 mL) followed by heating at 60 °C for 72 h NbO₂OH. This material was used as a precursor for the preparation of NbO₂OH/H₂O₂, which was obtained by treating NbO₂OH (300 mg) with 30% aqueous H₂O₂ (4 mL) in H₂O (80 mL) for 30 min. Then, the yellow solid was filtered, washed with distilled water, and dried at 60 °C for 12 h.

After, the surfactant compound cetyltrimethylammonium bromide (CTAB, 4.47 mmol, Vetec) was added to a suspension of NbO₂OH/H₂O₂ in H₂O, and the mixture was refluxed for 4 h to prepare the amphiphilic hybrid material NbO₂OH/amp. The resulting catalyst (yellow powder) was filtered, washed with water and dried at 60 °C.

The reagents, PP and loadings, were mixed together in a torque rheometer (Haake Poly Drive Mixer manufactured by Thermo Fischer Scientific) at 180 °C with a rotor speed of 35 rpm for 5 minutes. All of the samples contain 1 wt% of the niobium compound. Films were obtained using the conventional hot-press method at 180 °C for 5 minutes under 2 MPa of pressure.

An UV accelerated weathering test was performed using an EQUV Equilam equipment. Emitted light with a maximum intensity at a wavelength of 340 nm according to ASTM G154 was employed in the tests. The samples were subjected to alternating cycles with one lamp on at 70 °C for 8 hours and another lamp off with condensation activated at 50 °C for 4 hours, and the exposure times used of 5 and 10 days.

The morphological study of the composite and PP was carried out with a JEOL model 6360LV scanning electron microscope (SEM) operating at 15 kV with backscattered electrons. The samples were immersed in liquid nitrogen and broken. Moreover, the morphological study was carried out with a Tecnai G2-20 Super Twin FEI-200 kV transmission electron microscope (TEM). Surface cracking patterns for the UV irradiation treated samples were observed by using an optical microscope (Leica DM 2500).

Synchrotron radiation was employed: (i) to explore the niobium nanoparticle form and (ii) to investigate the macromolecular structure of neat PP and PP/Nb composites before and after degradation. The niobium compound nanoparticle experiments were performed using a sample holder for solid. For measurement, a thin layer of powder samples was maintained onto the surface of a single Kapton tape. The scattering intensity was registered using a MAR-165 detector (165 mm diameter; 2048 × 2048 pixels) for SAXS. The sample-detector distance used during the measurements was 570 mm. To investigate the polymeric films nanostructure, the MAR-165 detector was employed, as well the sample holder for films placed at two different sample-detector distances. The distances used were: 1981 mm (Distance A) and 570 mm (Distance B). Additionally, to investigate NbO₂OH/H₂O₂ polymeric films nanostructure, the Dectris – Pilatus Multi – 3 stacked modules detector (84 × 107 mm; 487 × 619 pixels) was employed. For this experiment, the sample-detector distance used during the measurement was 3025 mm. The SAXS experiments were performed using the beam line of the National Synchrotron Light Laboratory (LNLS, Campinas, Brazil). The monochromatized wavelength used was λ = 1.55 Å. The data were corrected: for the parasitic scattering intensity produced by the collimating slits, for the non-constant sensitivity of the position sensitive X-ray detector, for the time varying intensity of the direct synchrotron beam and for the differences in sample thickness.

Differential scanning calorimetry (DSC) measurements were performed with the Seiko-sll nanotechnology-inc 7020 model Exaltar equipment in an inert atmosphere. The procedure for this measurement involved a first run scanning environment up to 190 °C followed by cooling to −20 °C and a second run to 200 °C at a heating rate of 20 °C min⁻¹.

The spectra infrared (FTIR-ATR) were obtained for all materials studied including pure PP and composite PP/niobium compounds before and after UV exposure. Fourier transform infrared (FTIR) measurements were performed with a Shimadzu Prestige 21 spectrophotometer with a horizontal attenuated reflection (ATR) accessory in the region from 4000 to 400 cm⁻¹ using the Krs-5 crystal with a scan number 60. The exposed surface of the samples was characterized. Characteristic PP bands were identified in the spectra of all of the materials. The ratio of the area under the doublet at 1720 and 1168 cm⁻¹ from the PP and PP/Nb compounds was calculated to determine the carbonyl index. The carbonyl index was obtained using the ratio of the area under the bands located at 1168 cm⁻¹ (A₁₁₆₈) and 1720 cm⁻¹ (A₁₇₂₀) and eqn (1):

3. Results and discussion

3.1. Morphologic characterization

The dispersion state of the niobium oxyhydroxide in the PP matrix of the unexposed samples was investigated using a SEM (Fig. 1). Fig. 1(a) shows the typical cryogenic fracture of PP, and Fig. 1(b)–(d) show the cryogenic fracture of the PP/Nb compounds. The lighter domains, which are shown in Fig. 1(b)–(d), represent the inorganic phase distributed in the polymeric matrix. Some particles tended to aggregate leading to domains with different sizes, as observed in the PP/NbO₂OH and PP/NbO₂OH/amp.

Fig. 1 SEM micrograph of pure PP and the PP/NbO₂OH, PP/NbO₂OH/H₂O₂ and PP/NbO₂OH/amp.

The SEM images indicate that there was a significant size reduction of the inorganic phases observed in the PP/NbO₂OH/H₂O₂, which led to a better dispersion of the particles in the polymeric matrix. This difference is due to the treatment of niobium oxyhydroxide with hydrogen peroxide, which is capable of promoting the breakage of the particles. The average size of the NbO₂OH/H₂O₂ aggregation is approximately 2.5 μm, as shown by SEM. However, the size of a single nanoparticle of niobium compounds is less than 100 nm, as revealed by TEM, Fig. 2(c). The dark regions observed in the Fig. 2(b) and (c), TEM image of nanocomposite were considered nanoparticles agglomerated. This was not observed in the image for the PP sample (Fig. 2(a)). In the Oliveira et al. used TEM image to show the nanosize of niobium compound in this kind of synthesis.¹⁷ The influence of nanoparticles in the polymer nanostructure was investigated by synchrotron small angle X-ray (SAXS).

Fig. 2 TEM image of pure PP and PP/niobium compounds: PP/NbO₂OH, and NbO₂OH/H₂O₂ in different magnification.

3.2. Synchrotron small angle X-ray scattering (SAXS)

3.2.1. The niobium nanoparticle form. Fig. 3 illustrates SAXS patterns from the niobium nanoparticle. The scattering technique was employed to investigate the niobium nanocomposite shape, surface and compaction. Fig. 4 presents the scattering intensity, I(q), as a function of the scattering vector q. Where q = (4π/λ)sin θ, θ being half the scattering angle.

Fig. 3 SAXS 2D patterns of (a) NbO₂OH/H₂O₂, (b) NbO₂OH and (c) NbO₂OH/amp.

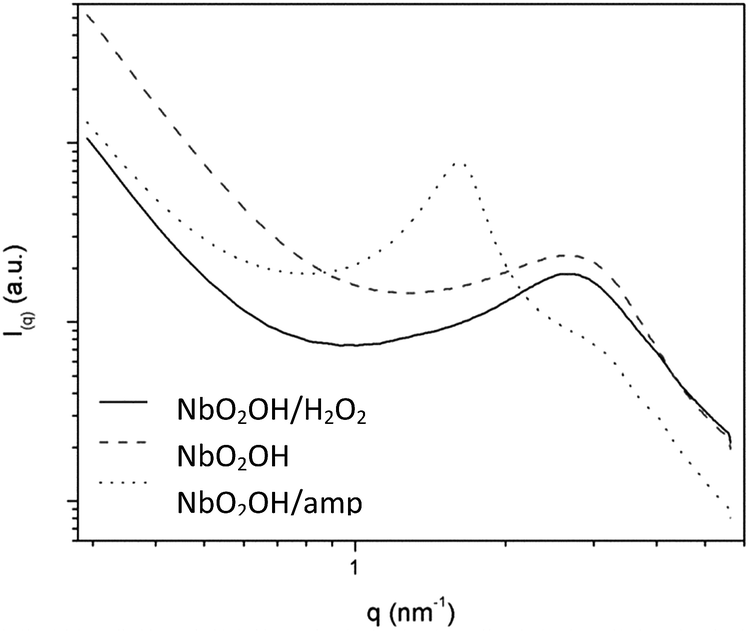

Fig. 4 SAXS scattering intensity of NbO₂, NbO₂OH/H₂O₂ and NbO₂OH/amp.

Fig. 4 scattering data were elaborated with respect to the Lorentz corrected plot and the Porod's plot. The Lorentz corrected plot, Fig. 5, was applied to assess the conformational of the particle. The Porod's plot, Fig. 6, was used to describe de particle surface. The plots presented at Fig. 5 are typical of organized structures. The symmetric maxima observed at NbO₂OH, q_a = 3.023 nm⁻¹, and at NbO₂OH/H₂O₂, q_a = 2.872 nm⁻¹, curves suggest the existence of small spheroid like particles. As observed, the peak position of NbO₂OH/H₂O₂ moves to slightly smaller q values indicating an small increment in the structure size of NbO₂OH.¹⁸ NbO₂OH/H₂O₂ is formed by different hydroxyl groups attached at NbO₂ surface.

Fig. 5 Lorentz corrected plot of NbO₂, NbO₂OH/H₂O₂ and NbO₂OH/amp.

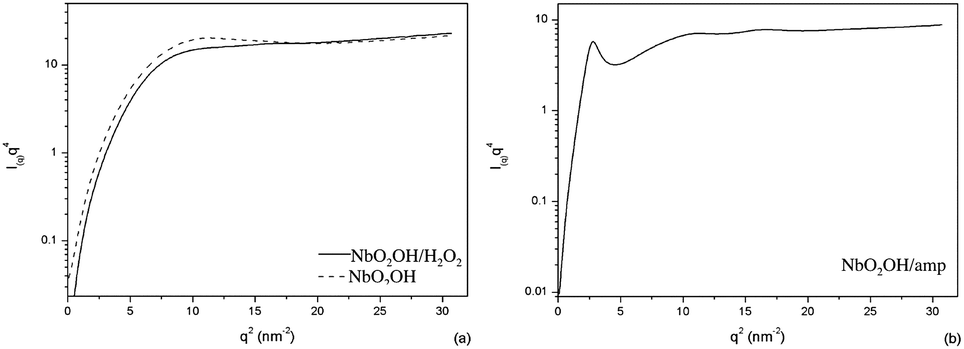

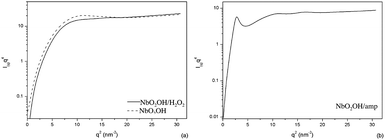

Fig. 6 Porod's plot of (a) NbO₂OH, NbO₂OH/H₂O₂ and (b) NbO₂OH/amp.

The O–H surface groups increase nanoparticle size without altering significantly the particle size. The asymmetric maximum presented on NbO₂OH/amp curve and the second-order peak presented as a ‘bump’ at larger q-values suggests elongated lamellar structure.^18,19 At NbO₂OH/amp, the presence of the surfactant molecule extends the nanoparticle allowing the nanocompound to reorganize in the new shape.

At Fig. 5 the niobium compound plots shows: a well defined bump around q_a = 2.9 nm⁻¹, attributed to NbO₂OH particles, an overlaid bump around q_c = 4.0 nm⁻¹, attributed to O–H surface groups and, observed at NbO₂OH/amp, a defined peak at q_c = 1.658 nm⁻¹ attributed to the surfactant molecule. The contribution of each group were separated according to a deconvolution procedure^20,21 to obtain the Porod invariant, Q_inv is Porod invariant, eqn (2):

Q_inv is an integral parameter that is fully independent of the specific spatial arrangement of particles within the sample, if both the scattering densities and the volume fractions of the particle and the medium are constant.^22,23 For NbO₂OH, NbO₂OH/H₂O₂ and NbO₂OH/amp the obtained values are, respectively, 3.422, 2.580 and 2.458 a.u. Q_inv is proportional to the electronic density, ρ, of the samples,^21,24 thus

ρNbO₂OH < ρNbO₂OH/H₂O₂ < ρNbO₂OH/amp.

For Porod scattering regime, the high-q regime, eqn (3):

lim_q→∞q⁴I_(q) ≡ K_p (3)

K_p is called the Porod limit or the Porod constant, obtained by the Porod plot, Fig. 6. For the suited systems K_p of NbO₂OH and NbO₂OH/H₂O₂ is 6.8 and 4.9 for NbO₂OH/amp.

Eqn (3) is valid for dilute solution of monodisperse particles.²⁵ For a non-ideal two-phase system, Fig. 6, will show linear relation with a negative or a positive slope representing a negative or positive deviation from Porod's law.²⁶ The presence of either thermal electronic movement or compositional heterogeneity within scattering elements causes positive deviations,¹⁹ and the presence of the diffuse phase boundary results in a negative slope of Porod's plot.¹⁴

The minor positive and the negative deviation coexist in NbO₂OH, Fig. 6(a). The reason for the positive deviation is the distorted structure of atoms irregularly distributed around the Nb atoms,¹⁷ which results in fluctuation of electron density. Besides, negative deviation suggests a diffuse boundary. The interphase thickness, σ, can be estimated from [(−slope)/4π²]^1/2. The σ of NbO₂OH is 0.06. On the other hand, NbO₂OH/amp σ is 0.23.

The negative deviation is not observed at NbO₂OH/H₂O₂, apparently, the compact boundary is the result of the hydrogen bonds between the hydrogen atoms of the hydroxyl groups and oxygen atoms. On the other hand, the Porod's plot of NbO₂OH/amp presented at Fig. 6(b) shows more complex information, suggesting that the hybrid system has significantly different surface composition.

At Fig. 6(b), the strong negative deviation is due to the diffuse-boundary and due the electrostatic interaction between the surfactant organic molecular chains and Nb=O, Nb–O or Nb(O–O) groups which leads the interfaces to stimulate the negative deviation.¹⁷

3.2.2. The macromolecular structure of pure PP and PP/Nb composites. As a semi-crystalline polymer, PP contains crystalline lamellae due to chain folding. Although a PP complex and multifaceted crystalline architecture was exhibited to the lamellar (nanoscale) and macroscopic level (micron scale), the SAXS technique is only efficient for determining the structure (i.e., average values of structure parameters) of the fine structures at the nanometer level. Fig. 7 presents the SAXS patterns of pure PP and PP/Nb nanocomposite before and after photo-degradation.

Fig. 7 SAXS patterns: (a) PP, (b) PP/NbO₂OH, (c) PP/NbO₂OH/H₂O₂ and (d) PP/NbO₂OH/amp.

Fig. 7 the patterns and intensity are dependent on the shape, size and distribution of scattering objects, and the scattering arises from the ‘the three-phase system’ built by the crystalline, the amorphous matrix and the particles. It has been assumed that the observed SAXS pattern corresponds to the scattering of αPP, which is the most widely occurring crystal structure of PP.¹⁵

The additives introduced in the matrix modify the structural parameters of the crystals (i.e., size, shape, surface) instead of their type of packing. The SAXS pattern in Fig. 7 displays primarily random distributions of nanostructures in the amorphous polymer matrix.

Fig. 8 presents the scattering intensity, I_(g), as a function of the scattering vector q.

Fig. 8 SAXS curves of: (a) PP, (b) PP/NbO₂OH, (c) PP/NbO₂OH/H₂O₂ and (d) PP/NbO₂OH/amp.

The lamellar structure of pure PP and PP/Nb nanocomposites originates a peak around q₁ = 0.4 nm⁻¹ and a bump next to q₂ = 0.8 nm⁻¹. The peak position of the PP/Nb nanocomposite, in respect to pure PP, slightly shifts to higher q values, which suggests an decrease in the spacing of the periodical lamellar structure and a higher degree of order.²¹ Pure PP peak position and peak intensity are more affected by photo-degradation than PP/Nb nanocomposite, suggesting that the nanoparticles interfere in the degradation process. NbO₂OH/H₂O₂ specimen was investigated with the 3 stacked modules detector which explains the higher scattering intensity and the data q < 0.8 nm⁻¹.

Fig. 9 shows the Lorentz corrected plot of PP and its nanocomposites. To improve visualization, the degraded curves were shifted along the y-axis. The calculation was performed for the not shifted curves.

Fig. 9 Lorentz corrected plot of: (a) PP, (b) PP/NbO₂OH, (c) PP/NbO₂OH/H₂O₂ and (d) PP/NbO₂OH/amp.

In Fig. 9 the scattering caused by lamellae in matrix is represented by a numerical index and nanoparticle scattering peaks is represented by a letter. In Fig. 10(a), every profile shows a very well defined peak at q₁ and a broad peak at q₂. Additionally, before degradation, the PP specimen shows a much weaker peak at q₃ which is less visible for PP/Nb nanocomposites and it is not present at PP degraded specimen. These maximums can be accepted as first-second-and third-order Bragg reflections of a reciprocal lattice. After 10 days of photo degradation, pure PP shows a small shoulder at q₄, the shoulder indicate the βPP presence. The shape of PP/Nb nanocomposite plots is the superimposed on the scattering caused by reciprocal lattice of PP and the scattering caused by the Nb nanoparticle.

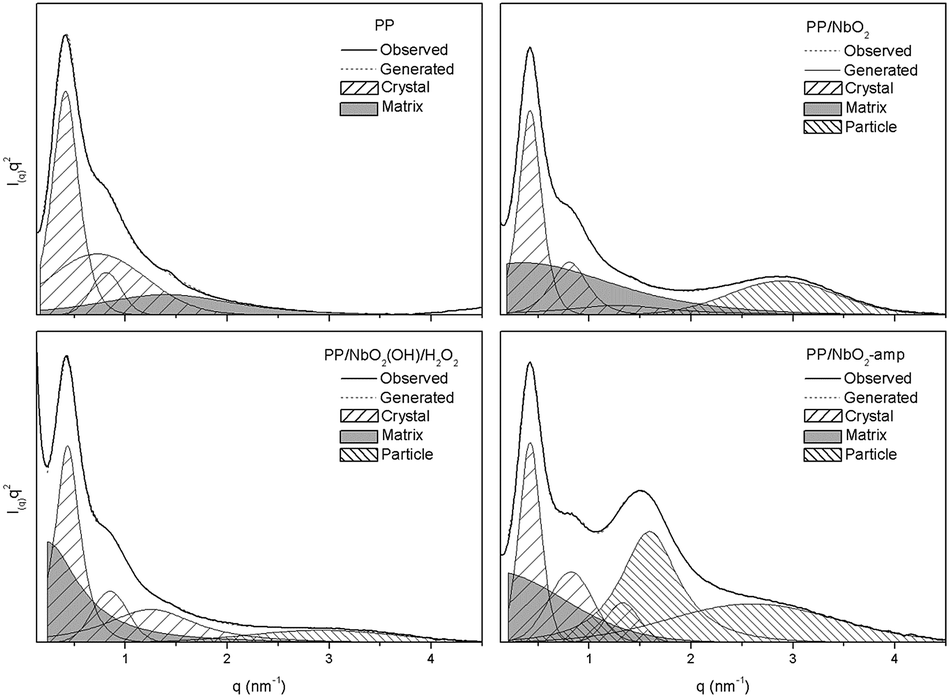

Fig. 10 Deconvoluted Lorentz plot before photo-degradation.

The microstructural periodicity may be obtained from unoriented SAXS patterns assuming the system is globally isotropic but locally lamellar, which is correct for undeformed samples. The inter-domain repeat distance, L, can be estimated, according to Bragg's law, from q_max, which corresponds to the maximum of the first peak (eqn (4)).

L = 2π/q_max (4)

The integrated scattering intensity, Q_inv, eqn (1), was obtained for all specimens. It provides an estimation of the degree of phase separation and it is proportional to the phase electron density and to the phase volume fraction.²³

We are aware of the fact that the use of this correction for semicrystalline polymers reinforced by nanoparticles may be criticized because it might produce an artificial peak and the different phases scattering will be superimposed. As observed in Fig. 9(b–d), the nanoparticle presence affects the shape of the curve, such that invariant Q_inv could not be used for calculations. Nevertheless, in order to obtain information on the overall difference in electron density of the samples, the PP contribution and the nanoparticle contribution to Q_inv were calculated. The contribution of each phase were separated according to a deconvolution procedure,² Fig. 11. Because the scattering from the different phases has been separated, further analysis of data are possible.^26,27 The Table 1 presents the results. At Table 1, the equidistant peaks indicate the presence of lamellar structures in the samples (for lamellar morphology, the q value of the Bragg's show relationships 1 : 2 : 3 : 4 : 5).² After photo-degradation, the peak position of the PP shifts to lower q values, indicating the degradation, i.e. lower degree of order, of the periodical lamellar structure. The PP/nanocomposites present a different behavior. The peak position of PP/NbO₂OH is hardly affect by degradation, so the periodical lamellar structure is kept constant during the process.

Fig. 11 Porod's plot of: (a) PP, (b) PP/NbO₂, (c) PP/NbO₂(OH)/H₂O₂ and (d) PP/NbO₂/amp.

Table 1 Peak position of PP and PP/Nb nanocomposite before and after photo-degradation

	PP			PP/NbO2OH			PP/NbO2OH/H2O2			PP/NbO2OH/amp
nm^−1	0 d	5 d	10 d	0 d	5 d	10 d	0 d	5 d	10 d	0 d	5 d	10 d
q1	0.412	0.399	0.341	0.419	0.412	0.419	0.433	0.488	0.490	0.419	0.419	0.387
q2	0.812	0.812	0.812	0.851	0.851	0.851	0.850	0.980	0.980	0.825	0.812	0.812
q3	1.431	—	—	—	—	—	—	—	—	—	—	—
q4	—	—	0.238	—	—	—	—	—	—	—	—	—
q1	—	—	—	2.950	3.084	3.106	2.950	3.084	3.039	2.950	3.084	3.084
q1	—	—	—	—	—	—	—	—	—	1.498	1.588	1.543
L (nm)	15.24	15.73	18.40	15.00	15.24	15.00	14.51	12.89	12.83	15.00	15.00	16.25
Qinv	6.22	5.74	6.21	6.63	5.20	9.04	4.99	10.79	13.18	20.98	6.41	7.07
Crystal (%)	65.8	68.9	27.9	45.8	45.9	30.5	61.3	58.8	59.7	32.2	31.4	31.4
Particle (%)	0.0	0.0	0.0	21.1	17.3	43.4	10.9	11.4	8.5	51.4	52.8	52.8
Matrix (%)	34.2	31.1	72.1	33.1	36.8	26.0	27.8	29.7	31.8	16.4	15.8	15.8

---

Moreover, PP/NbO₂OH Q^inv_particle results suggest that the phase separation increases because the particle contribution to the scattering intensity rises. These results can be explained by the larger size of the inorganic phase, as shown in the SEM results. The βPP is not detected at PP/NbO₂OH until 10 days. However, Q^inv_crystal suggests the crystal turn into a less compact structure.

PP/NbO₂OH/H₂O₂ results suggest a opposite behavior. The phase separation decreases because the matrix contribution to the scattering intensity rises. During photo degradation, the peak position of the PP/NbO₂OH/H₂O₂ slightly shifts to higher q values and Q^inv_crystal decreases thus results can not be interpreted as a higher degree of order but a crystal distortion. Finally, the phase separation and the periodical lamellar structure PP/NbO₂OH/amp is not affected by after 5 days of photo-degradation, the parameters obtained to the sample after 5 days until 10 days is very similar. Fig. 11 presents Porod's plot of all studied specimen. In order to improve visualization, data were shifted along the y-axis. All specimen present a positive deviation of Porod's law and, therefore, compositional heterogeneity and a sharp interface. As observed, the specimen that presents the most significant differences after photo-degradation is the PP/10 days.

The crystalline structure of the PP and PP/Nb compounds that were unexposed and exposed to UV radiation was investigated by DSC analysis (Fig. 12). The DSC curves shown are second run which are similar to the first run curves. The unexposed pure PP and the PP/Nb compounds exhibited a single endothermic peak with a maximum at approximately 160 °C due to PP melting. However, the DSC profile curves of the UV irradiated samples after 5 and 10 days differ from that of pure PP. These curves were dependent on the added niobium compound, with the exception of the PP/NbO₂OH/amp. A peak with a slight shoulder (double peak) at a low temperature was obtained for all samples after 5 days of exposure becomes more obvious after a longer time (10 days) with the exception of the PP/NbO₂OH/H₂O₂. However, this shoulder is less apparent to PP/NbO₂OH than pure PP. The double peak in the DSC curves of PP was due to the presence of a significant amount of β-phase.

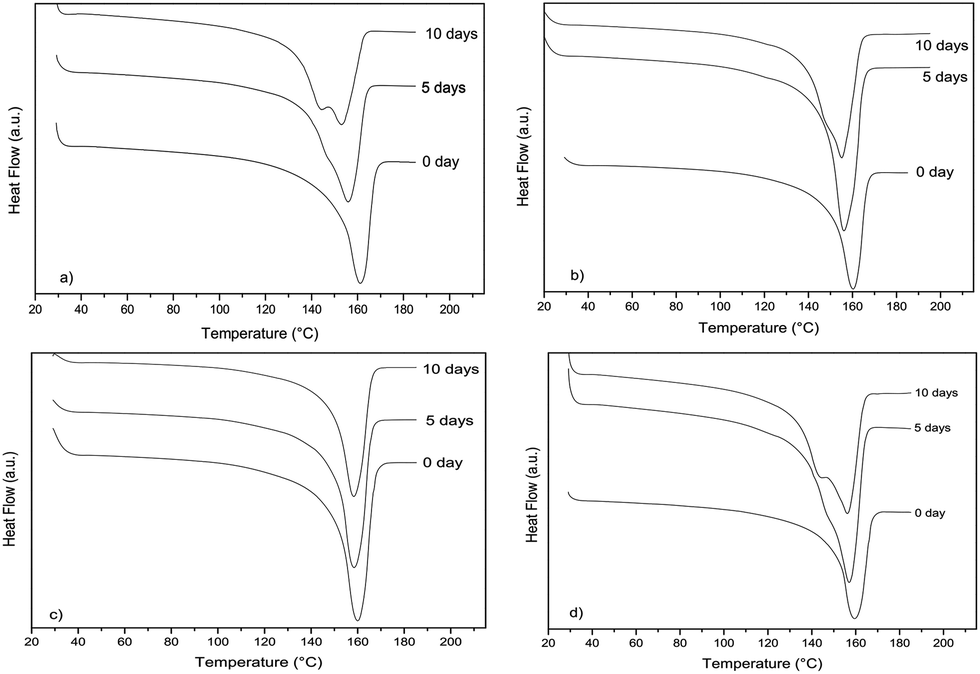

Fig. 12 DSC curves of pure PP (a) and PP/niobium composite materials: PP/NbO₂OH (b), NbO₂OH/H₂O₂ (c) and NbO₂OH/amp (d) unexposed and after 5 and 10 days exposure.

Under standard conditions, polypropylene preferentially crystallizes into the monoclinic α-phase. However, during crystallization of pure PP from melt, the formation of a minute amount of trigonal β-phase is typically observed.²⁸ The α-phase melt appears at a higher temperature than the β-phase. Therefore, the double peak in the DSC curves is due to the coexistence of two phases. However, the absence of a lower temperature peak does not imply the absence of the β-phase in the PP because the β-phase is thermodynamically unstable resulting in recrystallization into α-phase during heating in the DSC cell. The β → α recrystallization is gradually suppressed upon UV exposure,²⁸ which may be due to chain scission and introduction of defects into the crystalline phase. Therefore, the double peak was observed in the DSC curve. In all cases, the presence of NbO₂OH/H₂O₂ and NbO₂OH in PP appears to inhibit the appearance of the double peak after UV exposure. This effect is most pronounced in PP/NbO₂OH/H₂O₂. In addition, this effect was also observed for the PP containing NbO₂OH after 10 days of exposure but to a lesser extent. The NbO₂OH/amp has a behavior that is closer to the pure PP.

To investigate the extent scission chains by exposing the sample surface to UV radiation, the formation of carbonyl groups was studied using ATR infrared spectroscopy. The FTIR-ATR technique provides surface characterization and is sensitive to approximately a few microns into the surface of the samples. According to Zhao,¹² the extent of degradation process in polymer is more pronounced at the surface than in the core region. The FTIR-ATR spectra of pure PP and the PP/Nb compounds (Fig. 13) were obtained and used to calculate the carbonyl index of the samples before and after UV light exposure. The hydroxyl index can also be calculated to investigate the chain photo-degradation of PP.⁵ However, there are hydroxyl groups in the structure of all of the niobium compounds that could interfere in the band area at ∼3500 cm⁻¹ and influence the results invalidating this study. Carbonyl index variations calculated for all of the samples are shown in Fig. 14. This index was based on the ratio of the area under the bands located at 1720 and the 1168 cm⁻¹, which are associated with the C=O stretching and vibrational mode of CH₃ in the PP structure. The last one was used as a reference band because it should be mostly unaffected by photo-degradation according to the proposed mechanisms. For all of the samples, the increase in the carbonyl index from 0 to 10 days of exposure indicated that they were degraded after UV light exposure, which was different for the individual samples. Carbonyl groups were incorporated into the molecular structure of PP during photo-degradation in the presence of oxygen. A larger increase was observed for the pure PP samples compared to those of the PP/Nb compounds, which indicated that it was the most affected by UV light exposure. The carbonyl index is just relative parameter used to comparison between these samples because the FTIR/ATR is not quantitative technique. However, these results indicated that the niobium compounds may stabilize the PP structure delaying the photo-degradation. The carbonyl index is similar for the PP/NbO₂OH and PP/NbO₂OH/H₂O₂. This index to PP/NbO₂OH/amp is biggest of PP/Nb compounds, but shorter than pure PP. All results obtained showed that the NbO₂OH/amp compound, initially is not as effective to retard photo-degradation of the polymer as the others, but prevents significant change in properties after a certain aging time.

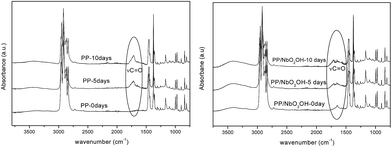

Fig. 13 FTIR spectra PP and PP/NbO₂OH before and after 5 and 10 days irradiation UV.

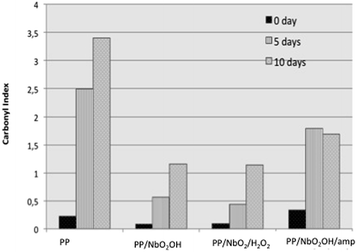

Fig. 14 Comparison between the change in the carbonyl index with the exposure time of pure PP (a) and the PP/niobium composite materials.

The carbonyl index reduced of ∼67% to sample PP/NbO₂/H₂O₂ compared pure PP after 10 days of exposure UV radiation (λ_max = 340 nm). Generally, the evolution of carbonyl band is used for a qualitative description of the extent of photo-oxidation¹² and investigation of relative photostabilization efficiency.²⁹ Zhao et al.¹² investigated the ZnO nanoparticles as photostabilities to PP, to nanocomposite with 1.5% wt of filler appears the reduction of ∼47% of carbonyl index in relation of unfilled PP after 12.5 days of UV radiation exposure (λ_max = 340 nm) on each side. Sun et al.²⁹ studied the photostabilizing efficiency in PP of commercial HALS (Cyabsorb UV-3529) by UV radiation. Considering a time of 6 h irradiation (λ_max = 310 nm), it was observed a reduction of approximately 63% of the absorbance carbonyl band after the addition of the commercial HALS compared to pure PP. Based only on the relation of carbonyl index between filler PP and unfiller PP to a different system it can be concluded that the niobium nanoparticles have a photostabilization efficiency similar to commercial HALS and better than other inorganic particles.

During photo-degradation, tie chain and entanglements of PP molecules are released due to the chain scission reaction, which produces free segments in the amorphous regions that can form crystals due to increase mobility, most likely grown under pre-existing crystals. This process is called chemi-crystallization. Frequently, the extent scission chains are related to the photo-degradation process.

According to Rabello et al.,³⁰ the most important result of chemi-crystallization is the spontaneous formation of surface cracks. The surface morphology of the PP/Nb compounds and pure PP was investigated by optical microscopy (OM) (Fig. 15). Rosa et al.³¹ reported that OM is a quick and simple method for monitoring the degradation of PP. The unexposed surfaces of all of the PP/Nb samples were smooth, and no cracks were observed. In comparison to all of the exposed samples after 5 days, the surface cracks caused by UV irradiation appear in pure PP and PP/NbO₂OH/amp, which is in contrast to PP/NbO₂OH/H₂O₂ and PP/NbO₂OH.

Fig. 15 Optical micrographs showing the surface cracks before and after UV irradiation.

However, there are cracks in all of the samples after 10 days of exposure to UV light, but with a different quantity, thickness and depth. The cracks on the surface of PP/NbO₂OH/H₂O₂ are the thinnest. The surface profile measurements indicate that the severity of the surface cracks was reduced after the addition of the Nb compounds in the following order: PP/NbO₂OH/H₂O₂ < PP/NbO₂OH < PP/NbO₂OH/amp. The results indicate that the addition of Nb compounds to PP leads to a reduction in the extent of photo-degradation. In addition, visible changes in the polymer without the niobium compound were observed.

Finally, the materials were characterized by diffuse reflectance spectroscopy, and the results are shown in Fig. 16. The results showed that the NbO₂OH/amp compound is highest efficient to absorbed incident radiation, followed by NbO₂OH/H₂O₂ and lastly NbO₂OH. However, it is necessary to consider that the tests under UV radiation were performed using a source with energy of 340 nm. Considering that energy and profiles of energy absorption by the materials obtained via diffuse reflectance (Fig. 16) can be seen that the NbO₂(OH)/H₂O₂ has higher absorption capacity in this energy. In fact, even when the PP/NbO₂OH/amp material has a greater absorption capacity for higher energy wavelength in the employed energy the material NbO₂(OH)/H₂O₂ works best as a filter. This result indicates that process of photodegradation of the PP/niobium compounds is explained mainly by UV absorption capacity of nanoparticles. Furthermore, the size of niobium compounds into PP matrix and better dispersion of particles are additional effects that contribute to improve the ability of compounds of niobium absorb UV radiation.

Fig. 16 UV-Vis absorbance spectra obtained via the diffuse reflectance method.

4. Conclusions

The results from this research study indicate that the incorporation of niobium oxyhydroxide nanoparticles into the PP matrix provide stability against the action of ultraviolet radiation. The PP/Nb compounds are less susceptible to photo-degradation than pure PP, even with a higher content of amorphous phase, which is more susceptible to degradation. It has been demonstrated for the first time that compounds niobium modified by H₂O₂ incorporated into the PP polymer have the ability to efficiently absorb radiation and preventing radiation induced polymer degradation. The surface modifications were able to act on the ability of the compounds as PP photo-stabilizers. NbO₂OH/H₂O₂ exhibited the highest efficiency for delaying the photo-degradation process of the PP due to size compared to NbO₂OH and PP/NbO₂OH/amp, which resulted of UV absorption capacity and better dispersion in the polymer matrix. The SAXS technical is efficient to studied structure of nanoparticles after the superficial modifications and analyses the nanostructure polymer after photo-degradation.
