Discovery of a novel binding pocket for CYP 2C9 inhibitors: crystallography, pharmacophore modelling and inhibitor SAR

Abstract

Herein, we describe the discovery of a novel binding pocket for CYP 2C9 inhibitors. Trifluoromethanesulfonamide compounds 1 and 2, identified within a Pfizer progesterone receptor antagonist program, were found to strongly inhibit the drug metabolizing cytochrome P450 enzyme CYP 2C9. Homology modelling and subsequent X-ray co-crystal data have elucidated the binding orientation of compounds 1 and 2 in CYP 2C9. Compound 2 adopts a previously unreported binding mode. Less acidic sulfonamide analogues within these series have reduced CYP 2C9 activity, and we postulate this is due to a reduced hydrogen bonding potential with key interacting residues within CYP 2C9. This work shows that CYP 2C9 has a more flexible active site than previously reported; therefore multiple binding modes and alternative pharmacophore models must be considered when predicting CYP 2C9 affinity.

---

Introduction

The progesterone receptor (PR) is a member of the family of ligand-activated transcription factors that includes the estrogen (ER), androgen (AR), glucocorticoid (GR) and mineralocorticoid (MR) receptors. The use of progesterone antagonists for the treatment of a variety of progesterone-related diseases and disorders, such as endometriosis, is of considerable interest to the pharmaceutical industry. In order to identify chemical matter for the Pfizer progesterone receptor antagonist (PRA) program, a high-throughput screening campaign was performed.¹ From this work, a number of chemotypes were selected for lead optimisation, including a cyclohexyl ether and biaryl ether series. Trifluoromethanesulfonamide analogues made within these series were found to be potent antagonists of the progesterone receptor, however they were also found to inhibit the drug metabolizing cytochrome P450 enzyme, CYP 2C9.² Examples are shown in Fig. 1. Compound 1, from the cyclohexyl ether series, is a potent PR antagonist (PR IC₅₀ 43 nM), but is also a strong inhibitor of CYP 2C9 (77% I in a CYP 2C9 biochemical assay run at a concentration of 3 μM). Compound 2 from the biaryl ether series is also active at the progesterone receptor (PR IC₅₀ of 175 nM) and strongly inhibits CYP 2C9 (95% I in a CYP 2C9 biochemical assay run at a concentration of 3 μM).

Fig. 1 Structure and properties of compounds 1 and 2. The CYP 2C9% I data were generated at a 3 μM concentration.

CYP 2C9 is a member of the P450 enzyme superfamily of membrane-bound heme-proteins that catalyse the oxidative metabolism of structurally diverse molecules.² Of the fifty seven known human P450 isoforms, CYP 2C9 is one of seven isoforms responsible for more than 90% of the metabolism of compounds in current clinical use.³ However, CYP 2C9 has known human polymorphisms that can lead to rapid or very poor metabolism in specific patient populations.^4–6 In addition, the inhibitory binding of molecules to P450 enzymes such as CYP 2C9 can lead to drug–drug interactions, and may cause severe side effects resulting in the early termination of candidates in development, refusal of approval, prescription limitations or withdrawal of drugs from the market.⁷

Theoretical models that can predict for the possible interaction of drugs or drug candidates with P450 enzymes can be valuable tools in the drug discovery process.^8,9 In order to determine the nature of the protein binding site that interacts with a substrate, a three dimensional representation of the entire active site is required. For example, rabbit CYP2C5/3, the first mammalian P450 structure to be solved,¹⁰ became the basis of several CYP 2C9 homology models. The publication of crystal structures of the human P450 2C subfamily (Table 1) over recent years has enabled the scientific community to compare previously reported homology models and establish model validity. For example, CYP 2C8 and CYP 2C9 models have been shown to exhibit α-carbon RMS distances of 1.2 Å and 1.5 Å respectively, demonstrating the utility of the CYP 2C5 crystal structure as a template for generating three-dimensional models for other CYP 2C subfamily enzymes.^11–13 Modelling the 3D structure of P450s to allow docking of potential substrates can be a useful method for predicting and rationalising substrate selectivity. It can however be complicated by the fact that multiple ligand binding modes may be available. Several years ago, evidence began to emerge that CYP 3 A4 could bind multiple substrates simultaneously.¹⁴ This observation was later extended to additional P450 enzymes.¹⁵

Table 1 Available crystal structures of the human P450 2C subfamily

Available crystal structures of the CYP 2C subfamily
CYP	Resolution (Å)	PDB	Substrate/inhibitor
2C5 (rabbit)	3.00	1dt6 (ref. 10)	None
	2.30	1n6B (ref. 16)	DMZ
	2.10	1nr6 (ref. 17)	Diclofenac
2C8 (human)	2.70	1pq2 (ref. 18)	None
	2.60	2nnh	9-cis-Retinoic acid
	2.80	2nni	Montelukast
	2.28	2nnj	Felodipine
	2.70	2vn0	Troglitazone
2C9 (human)	2.60	1og2 (ref. 19)	None
	2.55	1og5 (ref. 19)	S-Warfarin
	2.00	1r9O (ref. 20)	Flurbiprofen
	2.45	4nz2	Inhibitor 2QJ
	2.20	4jnm	NAMPT Inhibitors
2C19 (human)	2.87	4gqs	Inhibitor OVX

---

With the known risks associated with CYP 2C9 inhibition,²¹ the project team sought to design PRA analogues of compounds 1 and 2 with reduced CYP 2C9 liability. To achieve this we desired an understanding of the binding site interactions of compounds 1 and 2 in the CYP 2C9 ligand binding site. In the absence of CYP 2C9 co-crystal structure information, we elected to utilise a CYP 2C9 homology model to guide analogue design.

Results and discussion

CYP 2C9 homology modelling

De Groot et al. previously described a CYP 2C9 homology model based on the rabbit CYP2C5/3 crystal structure.¹¹ This model, and the pharmacophore embedded within, was initially used to predict the potential binding modes of compounds 1 and 2. In order to dock compounds 1 and 2 into the CYP 2C9 model, the assumption was made that they bind at the same location, and with the same orientation, as substrates in the existing model, such as Flurbiprofen. This orientation consists of a polar/acidic region of the substrate interacting with a positively charged region of the protein (Arg¹⁰⁸), a hydrophobic region of the substrate interacting with several hydrophobic protein residues (Phe⁴⁷⁶ and Leu³⁶²), and a site of ligand oxidation in close proximity to the heme.

After superposition, the compounds were relaxed using a Macromodel²² optimization within the confines of the homology model binding pocket. The main binding interactions between compounds 1 and 2 and CYP 2C9 were predicted to be an interaction between the acidic trifluoromethanesulfonamide unit of either compound with CYP 2C9 Arg¹⁰⁸ and Asn²⁰⁴, as well as hydrophobic interactions between the chlorocyano-phenyl moiety and Phe⁴⁷⁶ and Leu³⁶². The binding orientation also directed the chlorocyano-phenyl groups towards the CYP 2C9 heme moiety (Fig. 2).

Fig. 2 Superposition of compound 1 (green), compound 2 (yellow) and flurbiprofen (cyan) in the CYP 2C9 homology model binding pocket. Ligand interactions are predicted to be with hydrophobic amino acids Phe⁴⁷⁶ and Leu³⁶², polar residues Arg¹⁰⁸ and Asn²⁰⁴, and heme group.

CYP 2C9 structure–activity-relationships

It is known that CYP 2C9 preferentially binds to hydrophobic molecules that contain an acidic group.²³ A key binding interaction predicted in the homology modelling of compounds 1 and 2 in CYP 2C9 is a hydrogen bond network between the oxygen atoms of the acidic sulfonamide group and polar residues Arg¹⁰⁸ and Asn²⁰⁴ (Fig. 3, compound 1 highlighted only for clarity).

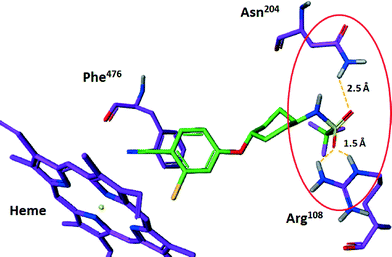

Fig. 3 Predicted hydrogen bonding interactions between sulfonamide oxygens of compound 1 and Arg¹⁰⁸ and Asn²⁰⁴ in the in CYP 2C9 homology model.

Compound analogues were designed to perturb the strength of the hydrogen bond interaction network with the aim of reducing CYP 2C9 inhibition. Specifically, replacement of the trifluoromethanesulfonamide unit with the less acidic methanesulfonamide group was explored (Fig. 4). Compound 3, the methanesulfonamide analogue of compound 1, gratifyingly retained activity at (PR IC₅₀ 107 nM) but, unlike compound 1, was devoid of activity at CYP 2C9 (0% I at 3 μM 2C9). Similarly, compound 4, the methanesulfonamide analogue of compound 2 maintained activity at the PR receptor (PR IC₅₀ 26 nM) and was inactive at CYP 2C9 (9% I at 3 μM 2C9).

Fig. 4 Structure and properties of compounds 3 and 4. The CYP 2C9% I data were generated at a 3 μM concentration.

The difference in CYP 2C9 activity between the trifluoromethanesulfonamide compounds and their methanesulfonamide counterparts is intriguing. Each motif is capable of making hydrogen bonding interactions between the sulfonamide oxygen atoms and CYP 2C9 Arg¹⁰⁸ and Asn²⁰⁴ residues, but we postulate that the difference in affinity may be driven by their disparate pK_a values. For example, the measured pK_a of the trifluoromethanesulfonamide unit in compound 1 is 7.0, whereas the pK_a of the methanesulfonamide group in compound 3 is 10.5. As shown in the electrostatic potential plot (Fig. 5) there is a significant increase in negative electrostatic potential on the sulfonamide oxygen atoms when compound 1 exists in the deprotonated (ionized) form relative to the neutral form, the same is true for compound 3 (electrostatic plot not shown). Hence, the increased propensity of compound 1 to exist in the ionic form at neutral (physiologically relevant) pH relative to compound 3, and drive stronger (charge reinforced) hydrogen bonding with Arg¹⁰⁸ and Asn²⁰⁴, could explain the enhanced CYP 2C9 activity (the CYP 2C9 assay is run at pH 7.4). The pK_a of compounds 2 and 4 are 4.5 and 8.5 respectively.

Fig. 5 Electrostatic potential plot of compound 1 in the neutral and ionised state.¶

CYP 2C9 crystal structures

Co-crystal structures of compounds 1 and 2 with CYP 2C9 were subsequently generated. Compound 1 was shown to bind in a conformation similar to that predicted by the homology model, whereas compound 2 adopted a novel binding conformation. In each case, Arg¹⁰⁸ interacts with the sulfonamide group, but the orientation of the cyanophenoxy moieties differ. The cyanophenoxy motif of compound 1 faces the heme oxy-iron (binding mode 1), a binding mode consistent with homology modelling data. However, in the co-crystal structure of CYP 2C9 and compound 2, the cyanophenoxy motif of compound 2 resides in a newly opened hydrophobic pocket, forming a pi-stacking interaction with Phe⁴⁷⁶ (Fig. 6).

Fig. 6 CYP 2C9 co-crystal structures of compound 1 (green) in binding mode 1 (CYP 2C9 in green) and compound 1 (yellow) in binding mode 2 (CYP 2C9 in yellow).

Comparison of crystal structures with the homology model

The homology model¹² utilised in this work was, in general, in agreement with the CYP 2C9 co-crystal structures generated for compound 2. One difference noted was the location of the B–C loop region, i.e. residues Ile⁸⁸–Ser¹¹⁵,which resided in a more “inward” orientation than in the homology model, and caused by the different conformation of this region in the template used (Fig. 6 shows the location of the BC-loop from crystallographic data). As a consequence, the embedded pharmacophore needed a slight reorientation. This was achieved by a pivot around the site of oxidation along the B–C loop movement vector. Interestingly, despite the movement of the B–C loop, all predicted interactions between the protein and compound 1 were maintained and the results consistent with binding mode 1. As a consequence, the existing homology model could be effectively utilised to predict binding modes of analogues of compound 1, and guide medicinal chemistry efforts within this series. The binding mode of compound 2 was not correctly predicted by the existing homology model, and demonstrates CYP 2C9 has a more flexible active site than previously assumed. However, the availability of crystallographic data for this newly observed binding site should enable orthogonal homology models to generated, and enable additional binding modes to be taken into account when predicting potential CYP 2C9 affinity.

Comparison with available site directed mutagenesis data

The influence of various amino acids on the metabolism of CYP 2C9 substrates has previously been examined using site directed mutagenesis (SDM). Mutagenesis in the region of Arg¹⁰⁵ indicates that this residue is not an important anionic binding site.²⁴ Mutation of Arg⁹⁷ has an influence on diclofenac metabolism, but Arg⁹⁷ is not predicted to reside in the active site. In our crystal structures, Arg⁹⁷ (Fig. 7) is involved in stabilising the heme propionate moieties.^10,24 Mutation of Arg¹⁰⁸ to alanine reduces the formation of 4′-hydroxydiclofenac by 100-fold compared with CYP 2C9 wild type. A recent homology model based on the crystal structure of bacterial CYP 102 suggested Arg¹⁰⁸ is not in the active site,²⁴ however, in the model for CYP 2C9 used in this work, Arg¹⁰⁸ is an essential part of the CYP 2C9 active site.¹² Our current crystal structures confirm that Arg¹⁰⁸ plays a key role in the interaction with the acidic part of the inhibitors used in this study.

Fig. 7 Compound 1 (yellow) bound to CYP 2C9 (green). The CYP 2C9 residues for which site-directed mutagenesis data are available are highlighted in purple.

Recent SDM experiments designed to confer (S)-mephenytoin activity at CYP 2C9 suggested activity is dictated by amino acids that influence the packing of structural elements or influence substrate access to the channel, rather than altering the active site directly (Ile⁹⁹ in the B′-region, Ser²²⁰ and Pro²²¹ in the F–G-loop and Ser²⁸⁶, Val²⁹² and Phe²⁹⁵ in the I-helix, none of which are in direct contact with (S)-mephenytoin).²⁵ Our crystal structures agree that none of these residues seem to be directly interacting with our co-crystallised inhibitors, or the modelled locations of the substrates.

Mutagenesis experiments guided by homology modelling and CoMFA analysis suggest B′–C helix loop residues Phe¹¹⁴ and Val¹¹³ can make hydrophobic interactions with substrates.²⁶ Our crystal structures support these data.

Compound synthesis

The synthetic routes towards compounds 1 and 3 are described in Scheme 1. Deprotonation of cyclohexanol 6 with NaH in THF followed by addition of fluorobenzonitrile 6 furnished cyclohexylamine 7 in good yield. Compound 1 was synthesised by triflation of cyclohexylamine 7 using triflic anhydride and triethylamine in DCM at −60 °C (79% yield). Compound 3 was made by addition of methanesulfonyl chloride and triethylamine to 7 in dichloromethane and pyridine (95% yield).

Scheme 1 Synthesis of ethers 1 and 3. Reagents and conditions: iv) NaH, THF, 25 °C, 79%. v) Tf₂O, Et₃N, DCM, −60 °C, 5 min, 92%; v) MsCl, Et₃N, DCM, 25 °C, 1 h, 95%.

Compounds 2 and 4 were prepared by a three-step sequence as described in Scheme 2. Aniline 8 was derivatized under standard conditions using trifluoromethanesulfonic anhydride to furnish sulfonamide 9 in 76% yield. Regioselective demethylation of 9 with trimethylsilyl iodide afforded phenol 11 in 88% yield.²³ Subsequent etherification of 11via addition of aryl fluoride 5 under basic conditions furnished compound 2 in an 85% yield. Compound 4 was prepared in a similar manner. Mesylation of 8 with methanesulfonyl chloride in triethylamine and DCM afforded sulfonamide 10 in 85% yield. Demethylation of 10 with trimethylsilyl iodide gave phenol 12 (89% yield) and subsequent etherification via addition of aryl fluoride 5 furnished compound 4 (89% yield).

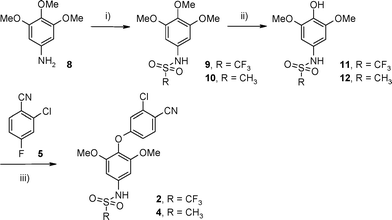

Scheme 2 Synthesis of aryl ethers 2 and 4. Reagents and conditions: where R = SO₂CF₃ i) Tf₂O, Et₃N, DCM, −78 °C, 3 h, 76%. Where R = SO₂CH₃, i) MsCl, Et₃N, DCM, 25 °C, 2 h, 85%; ii) TMSI, DCM, 25 °C, 3 h, 88–89%; iii) Cs₂CO₃, NMP, 120 °C, 10 h, 85–89%.

Conclusions

Trifluoromethanesulfonamide compounds 1 and 2, identified within a progesterone receptor antagonist program, were found to strongly inhibit the drug metabolizing cytochrome P450 enzyme CYP 2C9. In order to design analogues with reduced CYP 2C9 activity, a CYP 2C9 homology model previously described by De Groot et al. was used to predict the potential binding modes of compounds 1 and 2. The modelling predicted a key binding determinant to be a hydrogen bond network made between the two sulfonamide oxygen atoms of the ligands and Arg¹⁰⁸ and Asn²⁰⁴ of CYP 2C9.

Electrostatic mapping showed a significant increase in negative electrostatic potential on the sulfonamide oxygen atoms in the ionized versus the neutral form, and we reasoned the interaction of CYP 2C9 with the ionized form of the sulfonamide group would lead to increased CYP 2CP binding through an enhanced hydrogen bonding interaction. We therefore synthesised less acidic sulfonamide analogues such that, at physiological pH, the propensity of the sulfonamide motif to exist in an ionized form would be reduced. Methanesulfonamide compounds 3 and 4 were synthesised and, gratifyingly, they retained activity at the progesterone receptor but lost their inhibitory effects at CYP 2C9.

Subsequent X-ray crystal structure work fully elucidated the binding orientation of progesterone receptor antagonist compounds 1 and 2 in CYP 2C9. Significantly, the co-crystal structure with compound 2 in CYP 2C9 identified a novel and unpredicted binding mode in which a conformational change is induced, re-ordering Phe⁴⁷⁶, and opening up a hydrophobic pocket. This work shows that CYP 2C9 has a more flexible active site than previously assumed. The crystallographic data for the newly observed binding site should enable orthogonal homology models to be generated, and enable additional binding modes to be taken into account when predicting CYP 2C9 affinity.

Experimental section

All commercially available chemicals and solvents were used without further purification. All temperatures are in °C. Flash column chromatography was carried out using Merck silica gel 60 (9385) or Redisep silica. NMR spectra were obtained on a Varian Mercury (400 MHz) or a Bruker Avance (400 MHz) using the residual signal of the deuterated NMR solvent as the internal reference. Chemical shifts are expressed in parts per million (ppm), multiplicity of the signals are indicated by lower-case letters (singlet s, doublet d, triplet t, quadruplet q, multiple m, broad singlet br s), and deuterated solvents are dimethylsulfoxide d₆, methanol d₄, and chloroform d₁. Mass spectral date were obtained using Waters ZQ ESCI or Applied Biosystem's API-2000.

4-[(trans-4-Aminocyclohexyl)oxy]-2-chlorobenzonitrile (7)

To a stirred suspension of 6 (486 mg, 3.22 mmol) in dry THF (200 mL) was added NaH (170 mg, 7.11 mmol) portion-wise. The resulting mixture was stirred at 25 °C for 10 min after which time 5 (500 mg, 3.22 mmol) was added. The reaction mixture was heated to 70 °C and stirred for 2 h. After cooling to room temperature, the mixture was poured onto ice (100 g) and extracted with EtOAc (3 × 50 mL). The combined organics were washed with 3 N HCl_(aq.) (5 × 50 mL), the combined acidic extracts basified to pH 8 with 3 N NaOH_(aq.) and extracted with EtOAc (3 × 30 mL). The combined organics were washed with water (30 mL), dried over MgSO₄ and concentrated in vacuo to afford the title compound as off-white solid (635 mg, 79% yield). m/z 251 [M + H, ³⁵Cl]⁺, 253 [M + H, ³⁷Cl]⁺.

N-[trans-4-(3-Chloro-4-cyanophenoxy)cyclohexyl]-1,1,1-trifluoromethanesulfonamide (1)

To a stirred solution of 7 (250 mg, 1.00 mmol) and triethylamine (207 μL, 1.50 mmol) in DCM (25 mL) at −60 °C was added triflic anhydride (168 μL, 1.00 mmol). The reaction mixture was stirred for 1 h, then poured onto water (25 mL) and extracted with DCM (2 × 25 mL). The combined organics were washed with water (25 mL), dried over MgSO₄ and concentrated in vacuo. The residue was purified via silica gel column chromatography (eluting with 25% EtOAc/75% hexane) to afford the title compound as a white crystalline solid (211 mg, 79% yield). m/z 383 [M + H]⁺.

N-[trans-4-(3-Chloro-4-cyanophenoxy)cyclohexyl]methanesulfonamide (3)

To a stirred solution of 7 (130 mg, 0.52 mmol) in DCM (5 mL) and pyridine (1 mL) at 25 °C, was added methaneulfonyl chloride (77 μL, 1 mmol). The resulting mixture was stirred at 25 °C for 2 h, poured onto 2 N HCl_(aq.) (10 mL) and extracted with DCM (2 × 10 mL). The combined organics were washed with water (10 mL), brine (10 mL), dried over MgSO₄ and concentrated in vacuo. The residue was purified via silica gel column chromatography (eluting with 45% EtOAc/55% hexane) to afford the title compound as a white solid (162 mg, 95% yield). m/z 346 [M + NH₄]⁺.

1,1,1-Trifluoro-N-(3,4,5-trimethoxyphenyl)methanesulfonamide (9)

To a stirred solution of 8 (1.00 g, 5.46 mmol) and triethylamine (0.93 mL, 6.60 mmol) in DCM (20 mL) at −78 °C was added triflic anhydride (0.11 mL, 6.60 mmol). The reaction mixture was stirred for 1 h and then poured onto water (25 mL) and extracted with DCM (2 × 20 mL). The combined organics were washed with brine (25 mL), dried over MgSO₄ and concentrated in vacuo. The residue was purified via silica gel column chromatography (eluting with 50% EtOAc/50% hexane) to afford the title compound as a white crystalline solid (1.64 g, 79% yield). ¹H NMR (400 MHz, CDCl₃) δ: 3.85 (s, 9H), 6.50 (s, 2H), 6.80 (br s, 1H).

N-(3,4,5-Trimethoxyphenyl)methanesulfonamide (10)

To a stirred solution of 8 (5.00 g, 27.3 mmol) in DCM (10 mL) and pyridine (2 mL) at 25 °C, was added methaneulfonyl chloride (2.1 mL, 27.3 mmol). The resulting mixture was stirred at 25 °C for 2 h, poured onto 2 N HCl_(aq.) (100 mL) and extracted with DCM (2 × 75 mL). The combined organics were washed with water (100 mL), brine (100 mL), dried over MgSO₄ and concentrated in vacuo. The residue was purified via silica gel column chromatography (eluting with 30% EtOAc/70% hexane) to afford the title compound as an off-white solid (6.06 g, 85% yield). ¹H NMR (400 MHz, CDCl₃) δ: 3.00 (s, 3H), 3.90 (s, 9H), 6.40 (br s, 1H), 6.50 (s, 2H).

1,1,1-Trifluoro-N-(4-hydroxy-3,5-dimethoxyphenyl)methanesulfonamide (11)

To a stirred solution of 9 (1.30 g, 4.13 mmol) in DCM (10 mL) at 0 °C was added TMSI (1.76 mL, 12.4 mmol) and the resulting mixture warmed to 20 °C and stirred for 3 h. 20 mL of a 1 : 1 water/acetone mix was then added and the resulting mixture extracted with EtOAc (2 × 30 mL). The combined organics were washed with brine (30 mL), dried over MgSO₄ and concentrated in vacuo to give the title compound as a white solid (3.28 g, 88%). ¹H NMR (400 MHz, CDCl₃) δ: 3.90 (s, 6H), 5.60 (br s, 1H), 6.55 (s, 2H), 6.75 (br s, 1H).

N-(4-Hydroxy-3,5-dimethoxyphenyl)methanesulfonamide (12)

To a stirred solution of 10 (1.59 g, 6.1 mmol) in DCM (10 mL) at 0 °C was added TMSI (2.65 mL, 18.3 mmol) and the resulting mixture warmed to 20 °C and stirred for 3 h. 20 mL of a 1 : 1 water/acetone mix was then added and the resulting mixture extracted with EtOAc (2 × 50 mL). The combined organics were washed with brine (50 mL), dried over MgSO₄ and concentrated in vacuo to afford the title compound as a white solid (1.34 g, 89%). ¹H NMR (400 MHz, CDCl₃) δ: 3.00 (s, 3H), 3.90 (s, 6H), 5.45 (br s, 1H), 6.30 (br s, 1H), 6.55 (s, 2H).

N-[4-(3-Chloro-4-cyanophenoxy)-3,5-dimethoxyphenyl]-1,1,1-trifluoromethanesulfonamide (2)

To a stirred solution of 11 (250 mg, 0.83 mmol) in NMP (5 mL) was added 5 (142 mg, 0.91 mmol) followed by Cs₂CO₃ (809 mg, 2.49 mmol) and the resulting mixture heated to 120 °C for 12 h. After this time the mixture was portioned between water (10 mL) and EtOAc (10 mL). The aqueous layer was further extracted with EtOAc (2 × 20 mL) and the combined organics washed with brine (10 mL), dried over MgSO₄, and concentrated in vacuo. The residue was purified via silica gel column chromatography, eluting with 50% EtOAc/50% pentane) to afford the title compound as a white solid (307 mg, 85% yield). ¹H NMR (400 MHz, DMSO-d₆) δ: 3.72 (s, 6H), 6.64 (s, 2H), 6.83–6.85 (m, 1H), 7.13–7.14 (m, 1H), 7.83–7.85 (m, 1H); m/z 239 [M + H]⁺; m/z 435 [M − H]⁻.

N-[4-(3-Chloro-4-cyanophenoxy)-3,5-dimethoxyphenyl]methane sulfonamide (4)

To a stirred solution of 12 (250 mg, 1.01 mmol) in NMP (3 mL) was added 5 (186 mg, 1.2 mmol) followed by Cs₂CO₃ (715 mg, 2.2 mmol) and the resulting mixture heated to 120 °C for 10 h. After this time the mixture was portioned between water (10 mL) and EtOAc (10 mL). The aqueous layer was further extracted with EtOAc (2 × 10 mL) and the combined organics washed with brine (20 mL), dried over MgSO₄, and concentrated in vacuo. The residue was purified via silica gel column chromatography, eluting with 50% EtOAc/50% pentane) to afford the title compound as a white solid (343 mg, 89% yield). ¹H NMR (400 MHz, CDCl₃) δ: 3.10 (s, 3H), 3.80 (s, 6H), 6.40 (br s, 1H), 6.55 (s, 2H), 6.85 (dd, 1H), 6.95 (d, 1H), 7.55 (d, 1H); m/z 381 [M − H]⁻.

Crystallography

Following the methods of Wester et al. (2004) an engineered construct containing residues 23–489 of the catalytic domain of human 2C9 with the first 22 residues replaced with the sequence MAKKT was over-expressed in E. coli and purified using the two column method previously described.¹⁷ Crystals were grown using the hanging drop vapour diffusion method in conditions essentially equivalent to those reported. The crystals are isomorphous with pdb deposition 1R9O, belonging to space group R3 with a unit cell of a = b = 91.1 Å, c = 169.5 Å and can be produced using a co-crystallization method, with ligands at a concentration of 5 mM incubated with the protein on ice for 30 minutes prior to crystallization set-up. Data were collected at beamline ID23 of the ESRF to a resolution of 2 Å for the complex with compound 1 and on an ‘in house’ Rigaku FRD X-ray source with a Saturn92 CCD camera for the complex with compound 2. Data were reduced and scaled using the XDS and the CCP4 suite of programs,²⁴ iterative rounds of model building preformed in COOT,²⁵ and refined with BUSTER.²⁶ The coordinates and reflection data have been deposited with the PDB with the accession codes: 5a5i and 5a5j respectively.

Acknowledgements

The authors would like to thank Mr. Toby Underwood and Dr. Paul A. Bradley for synthesis of the compounds described in this publication, Dr. Kiyoyuki Omoto for generating the electrostatic potential maps of compounds 2 and 3, Dr. Steve Irving for protein purification and Mr. Alec Tucker for protein crystallization.
