Ionic liquid gel materials: applications in green and sustainable chemistry

Abstract

Ionic liquid gel materials offer a way to further utilise ionic liquids in technological applications. Combining the controlled and directed assembly of gels, with the diverse applications of ionic liquids, enables the design of a heady combination of functional tailored materials, leading to the development of task specific/functional ionic liquid gels. This review introduces gels and gel classification, focusing on ionic liquid gels and their potential roles in a more sustainable future. Ionic liquid gels provide the ability to build functionality at every level, the solid component, the ionic liquid, and any incorporated active functional agents. This allows materials to be custom designed for a vast assortment of applications. This diverse class of materials has the potential to yield functional materials for green and sustainable chemistry, energy, electronics, medicine, food, cosmetics, and more. The discussion of the development of ionic liquid gel materials for applications in green and sustainable chemistry centres on uses of ionic liquid gels in catalysis and energy.

---

Patricia C. Marr

Dr Patricia C. Marr's interest in materials, started while studying for a masters in materials chemistry at the University of Aberdeen. An interest in gels in particular followed during her PhD in St. Andrews. Working with materials and supercritical fluids at the University of Nottingham launched a special interest in green chemistry. This in combination with working on colloids, polymers and interfaces at the University of Bristol and ionic liquids with QUILL, has gelled to form a special research interest in ionic liquids, materials, and ionic liquid gels. Dr P. C. Marr is currently at the School of Chemistry and Chemical Engineering, Queen's University Belfast.

Andrew C. Marr

Dr Andrew C. Marr's interests in organometallic chemistry and catalysis initiated at the University of Aberdeen and sped up while studying for a PhD at the University of St Andrews. With a special interest in green chemistry from his time working at the University of Nottingham, Dr Marr has focussed on bio and chemo catalytic chemical transformations for green chemistry. Dr A. C. Marr is currently at QUILL and the School of Chemistry and Chemical engineering, Queen's University Belfast.

---

1. Introduction

The gel state: gel classification

A substance is described as a gel when there is a liquid phase dispersed in a continuous solid phase. A gel is a colloid, and as such is one of the eight combinations of solid, liquid and gas as defined by the term colloidal system, dispersion or solution.¹

The term gel is thought to come from a contraction of the word gelatine and is often attributed to Thomas Graham, a 19th century Scottish chemist recognised as the founder of colloid chemistry.^2,3 Gels are often difficult to classify because a gel can be soft, solid or liquid-like. In order to qualify as a gel the material must be crafted from two or more components, one of which is a liquid, present in a considerable quantity.^4,5

The term gel is used ubiquitously in daily life to describe a material with behaviour lying somewhere between that of a solid and a liquid, and this rather general description has led to considerable confusion as to what comprises a gel state.⁶ There are some fundamental criteria that have to be met before a material can be considered a gel.

• Heterogeneous – a two (or more) component system composed of a liquid and solid (solid component not visible to the naked eye).

• Solid-like properties – sustain shear stress.

• The presence of a 3D network.

In addition to these qualifying properties often a liquid to gel transition is observed. A gel therefore can be recognised as a two phase heterogeneous mixture of a solid and a liquid which through self-assembly/bond formation (physical or chemical) is organised into a liquid dispersed phase and a solid continuous phase. The continuous solid phase can be a variety of solids from thread-like to spherical. The microstructure of a gel arises from attractive forces between at least one of its components forming a percolated network.⁷ Gels can be classified in many ways, the most common ones being classification according to the nature of the interactions, physical and mechanical properties (rheology), nature of the solvent, and nature of the solid.

Classification of gels

Nature of the interactions (physical and chemical) (Fig. 1). Physical interactions occur when the nature of the interactions between the components are non covalent, including interactions such as hydrogen bonding, π–π interactions or π stacking, and van der Waals, which lead to self-assembly into a 3D network. Chemical interactions involve covalent bonds to form the structure and lead to a more permanent 3D network. Of course as in all classifications there are situations where there are exceptions. In some cases the chemical and physical processes work together to form the final structure. e.g. in sol–gel processing.

Fig. 1 Classisification of gels by nature of interactions.

Mechanical properties/rheology. Rheologically a gel can be defined as an intermediate state between liquid-like rheological behaviour and solid-like rheological behaviour. Since a gel consists of a liquid and solid in varying quantities the mechanical behaviour can rest anywhere between Hookean (solid and elasticity) and Newtonian (liquids and viscosity). But even within this there is variety depending on the elasticity of the solid and the viscosity of the liquid. Kramer and co-workers⁶ gave a rheological description of a gel as a material having a storage modulus, G′(ω), which exhibits a pronounced plateau (in the order of seconds) and a loss modulus, G′′(ω), which is considerably smaller than the storage modulus in the plateau region.^4–6

Nature of the solid. Flory in 1974 distinguished categories of gel based on the nature of the solid phase.⁸ The solid (continuous phase) component of a gel is often referred to as the gelator. Contemporarily gels are often grouped into three categories colloidal, molecular (supramolecular), and polymer (macromolecular) (Fig. 2). Kramer and co-workers⁶ in a personal communication with M. Djabourov postulated that materials “heterogeneous to the naked eye or at low magnification in a microscope cannot be accepted as gels”.

Fig. 2 Gel classification by nature of the continuous (solid) phase.

Colloidal gels. A colloidal particle is an entity larger than a molecule but smaller than the bulk phase, typical size ranges from 10⁻⁹ to 10⁻⁶ m. Soft matter/gel microstructure can be achieved via the dispersion or growth of discrete colloidal particles in a liquid that causes the liquid phase to become dispersed in the solid phase thereby forming a gel. The colloid can be any material polymer, ceramic or atomic, and the colloidal particles can be a variety of shapes commonly, platelets, rod shaped, and spherical (Fig. 3).

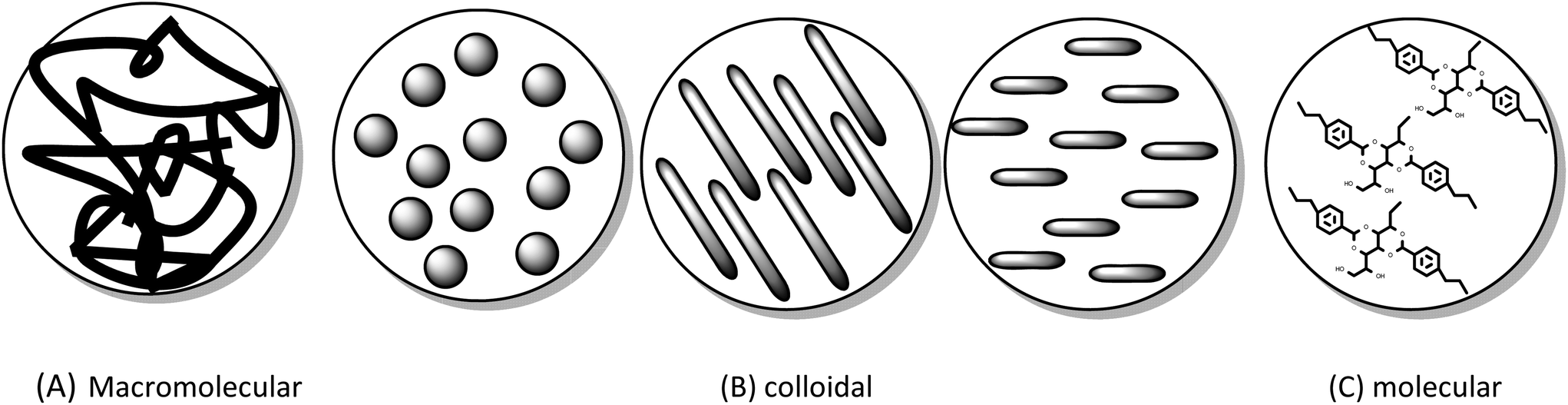

Fig. 3 Types of continuous phase (A) macromolecular (B) colloidal (spheres, rods, discs) (C) molecular.

Molecular/supramolecular gels. This type of gel has been described in many different ways. The nature of the solid component of the gel (the gelator), can be described as molecular.⁹ Examples of low molecular weight gelators (LMWGs), also known as low molecular mass gelators (LMMGs), and low molecular weight organic gelators (LMOGs) for organic solvents^10–15 are plentiful. For a more comprehensive discussion on molecular/supramolecular gels there are a number of recent^16–21 and early reviews,^22,23 and books^24,25 in the area. The field of LMWG specifically for water (hydrogels) has been reviewed specifically.²⁶ In all cases the molecules aggregate/self assemble into the solid (continuous phase) of a gel trapping the liquid (dispersed phase) within the structure. In general gelators that have a molecular mass less than 3000 are considered in this category. Molecular gelators are small molecules which interact with each other in a solvent to form a self assembled 3D network capable of trapping a solvent, thereby forming a gel. The network arises from the supramolecular self-assembly of the low molecular weight molecules by strong non covalent interactions between molecules such as π stacking, hydrogen bonding or van der Waals forces. The solvent can be trapped due to surface tension, physical interaction or a combination of both. The stability of a gel formed in this manner is dependent on the interaction of the molecules with each other and the solvent. Many gelators of this type were initially discovered by chance observation. As more is understood about the nature of supramolecular gel formation, molecules are being designed that have the ability to gel a wide array of solvents. Some interesting hybrid inorganic organic gelators are being discovered, one interesting example is of a ferrocene containing gelator with tunable gelation properties.²⁷ Proteins and peptides are also being investigated as gelators, and an example of the cooperative self-assembly of peptide gelators and proteins²⁸ was reported.

Many initial observations of molecular and low molecular mass gelators were based on chance observations on heating and cooling, but gels of this type are now being studied in a more methodical approach. The design of molecules that can act as gelators and the addition of functionality to existing gelators are exciting directions and challenges. LMMG/LMOGs are being found that can gel solvents under other conditions such as photo irradiation, sonication, chemical or electrical stimuli.²⁹

Polymer (macromolecular) gels. Polymer gels are gels in which the solid component (continuous phase) is formed by a polymer. Distinct from colloidal polymer spheres/shapes in this case the long chains of a polymer can assemble to trap a liquid forming a gel. This can be achieved by either physical or chemical means. Interactions between the chains can occur as a property of the polymer chain itself, forming physical gels. Gels can also be formed on the addition of crosslinkers between the polymer chains which, when in place, cause the liquid phase to become trapped within the crosslinked matrix.³⁰

Nature of the solvent/liquid. Another classification of gels comes from the descriptor determined by the nature of the liquid component (Fig. 4).

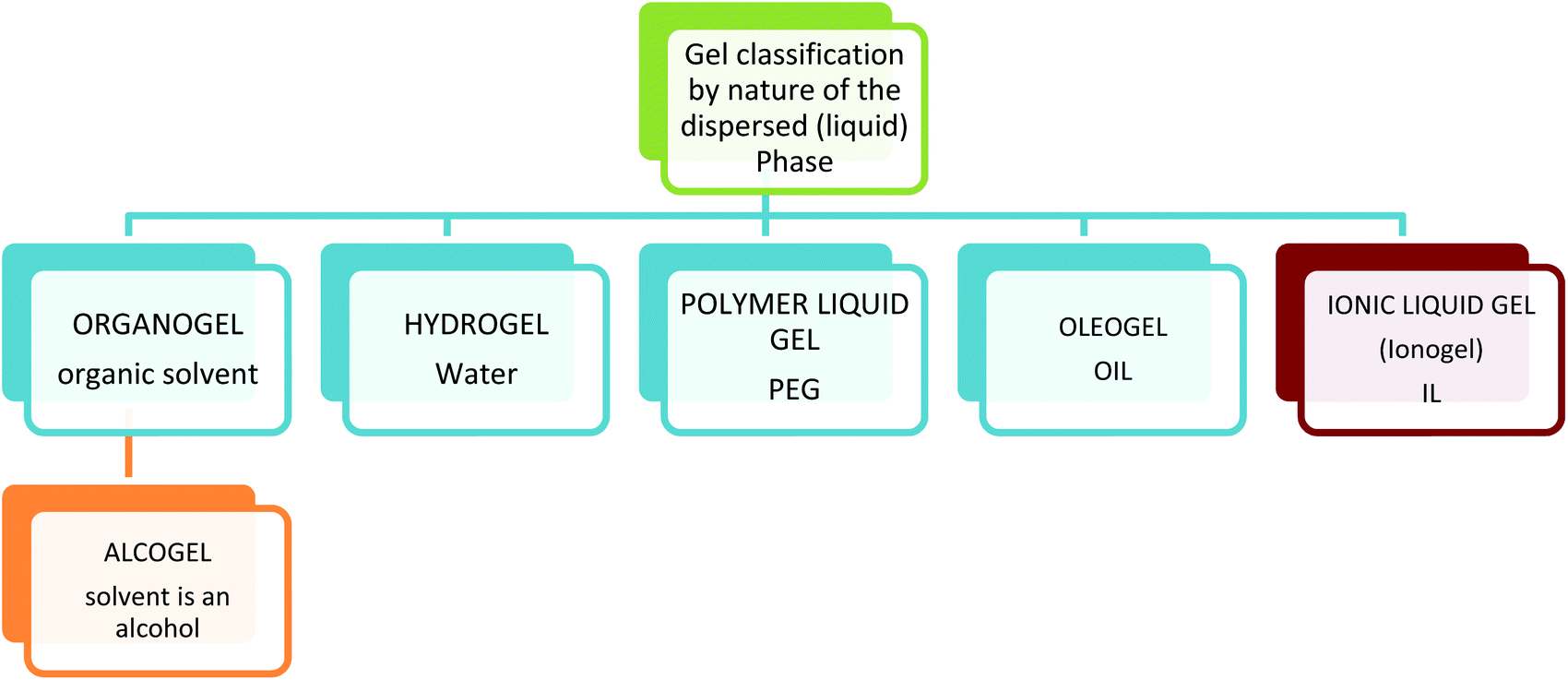

Fig. 4 Gel classification by nature of the dispersed (liquid) Phase.

Gels are termed organogels when the dispersed phase (liquid trapped) is an organic solvent, oleogels when the dispersed phase is oil, polymer liquid gels when the liquid phase is a polymer and hydrogels when the dispersed phase is aqueous. Most hydrogels are formed by polymer networks and crosslinked polymer networks, usually surface modified to enhance hydrogen bonding interactions, thus trapping water in the matrix. These are the most common gel type found in everyday life such as food, cosmetics, and nappies. So ubiquitous are the presence of these materials in daily life that the word gel has become synonymous with polymer hydrogels. More and more hydrogels are being designed and discovered and the level of complexity is increasing.³¹ Hydrogels can range in properties from low to high mechanical strength,³² from low tack to highly adhesive,³³ have shape memory,³⁴ and are capable of converting chemical energy into mechanical energy.³⁵

Sometimes the solid phase is the polymer and sometimes the liquid phase is the polymer, this is a good example of how tricky the classification of gel systems can be. For example a poly(ethyleneglycol) (PEG) hydrogel is where the PEG polymer is the solid continuous phase, and water is the dispersed phase, but a PEG gel can also be where PEG is used as a viscous liquid and solvent for the sol–gel processing of silica,³⁶ (Fig. 5) in this case it is the dispersed liquid phase.^37–39

Fig. 5 Poly(ethyleneglycol) (PEG) silica gels. Materials made with PEG as the liquid (dispersed) phase and silica as the solid (continuous) phase, (sol–gel preparation of TEOS with PEG as the solvent and template). Photo PCM 2004.

Removal of the solvent/liquid. Removal of solvent from the gel structure leads to a further gel classification. Three situations arise with the removal of solvent. These states are well known, and the following names have become the standard to describe materials that were once a gel, but have the liquid (dispersed phase) removed from the solid (Fig. 6). (a) Aerogel, in which the solid network remains in tact post removal of the liquid phase. (b) Xerogel, where removal of the liquid phase causes some internal restructuring due to collapse of the delicate internal structure by evaporation and capillary forces. (c) Ceramic/dense closed structure, where solvent removal leads to the total collapse of any internal structure. The ability of some polymers to expand in solvent allows the solvent to be removed and reintroduced allowing a reversible gel to be formed.

Fig. 6 Structures formed on solvent removal (A) gel, (B) aerogel, (C) xerogel, and (D) ceramic/dense closed structure.

Gel formation. Bond percolation theory,⁴⁰ fractal theory^41,42 and DVLO theory⁴³ have been used to model the formation of different types of gel. Percolation theory is the science of random ordering. In the case of gel formation it defines the random aggregation of the solid phase within the liquid phase which results in the trapping of the liquid phase. At the gelation point an infinite cluster is created that spans the whole system. The gel point is the point at which the aggregated solid phase has trapped in all the liquid phase by the connection of solid with solid spanning the container. At the gel point the liquid to solid transition occurs and a gel is formed. A gel is generally considered to have a low volume fraction of structuring agent or dispersed phase, such that there is an interconnected network structure. Therefore a gel can be considered to be a percolated solid. A gel is often described as a percolated network structure that typically arises due to attractive interactions between at least one of its components.⁴⁴

The sol–gel process. Special mention is made here of the sol–gel process. This method combines both chemical and physical interactions to form a final gel structure. The term sol–gel has come to describe the low temperature processing of inorganic and inorganic–organic hybrid ceramic and glass materials. Sol–gel has been developed since the mid 1800s for the synthesis and formation of colloidal materials through the hydrolysis and polycondensation of alkoxides.^41,45 Typically the precursors are dissolved in a suitable solvent and hydrolysis and condensation reactions are catalysed, typically by the presence of an acid or base in the starting solution. Inorganic and hybrid organic inorganic colloids can be formed using this approach. Colloidal particles are formed through successive hydrolysis and condensation reactions, resulting in a dispersion of colloidal solid in the solvent termed a sol. If the reactions are arrested at this point discrete particles are formed and can be isolated. The sol in turn aggregates to form a solid network which traps in the solvent, resulting in a gel (a sol to gel transition, hence the name sol–gel). This method leads to the formation of a gel state which is made up of a network of colloidal particles in which a liquid is trapped. After this the material is left to age and form a stronger structure (Fig. 7). The sol–gel method has been utilised to create many materials for a wide array of applications. This elegant method allows the bottom up formation of materials by mixing and reacting of precursors, which then leads to secondary gel formation.

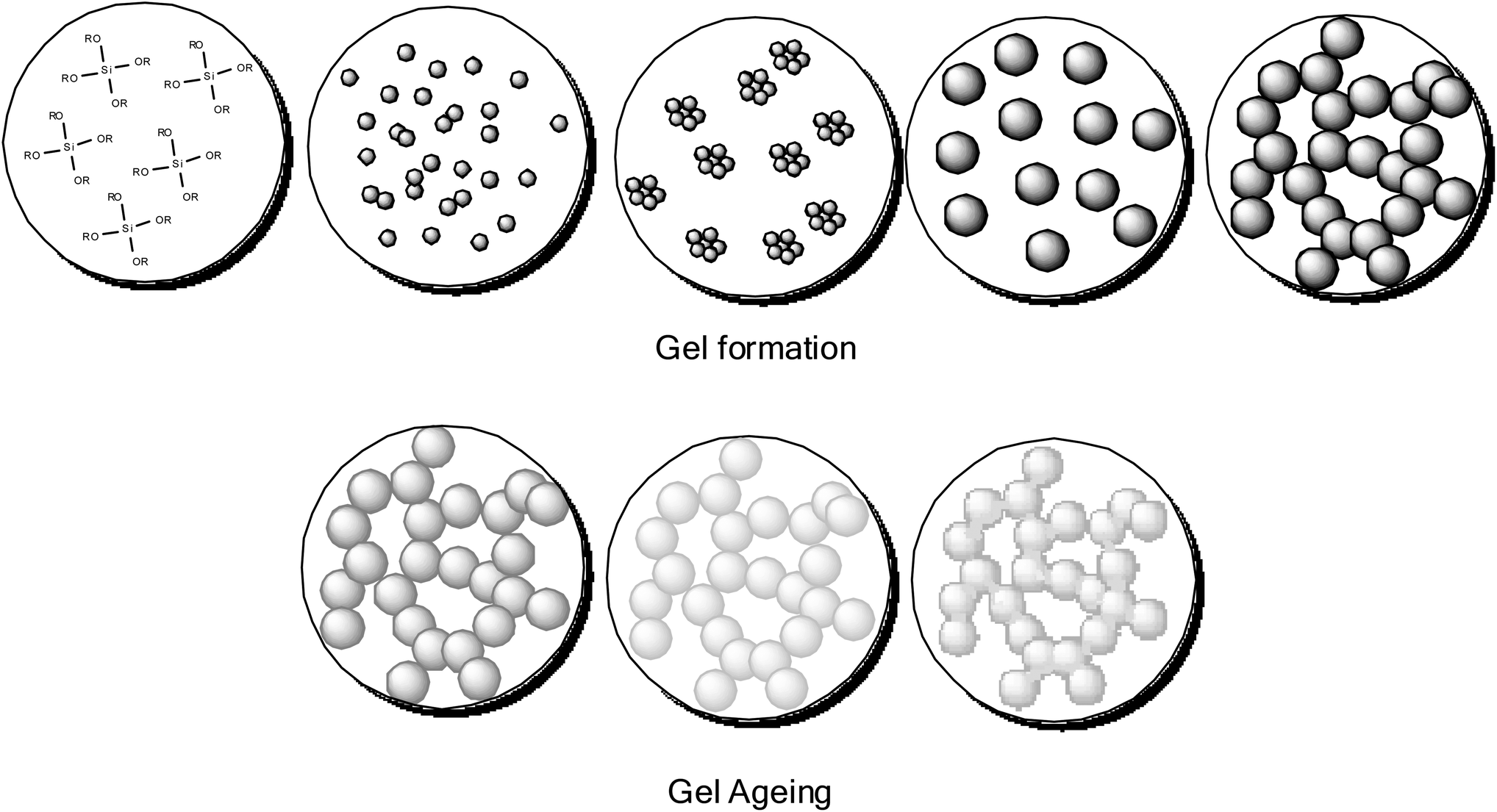

Fig. 7 Sol–gel process (silicon alkoxide precursor) gel formation and gel aging.

For example a typical traditional preparation of a silica gel using this method can be achieved by the dissolution of a silicon alkoxide (e.g. tetraethyl orthosilicate, TEOS) in alcohol (solvent), upon addition of a catalyst (either acid or base), forming a silica sol in alcohol. The sol aggregates and assembles into a gel trapping in the solvent. A gel in this state is an alcogel. The structure and size of the pores of the gel are determined by the solvent used, and the relative concentration of the solid and liquid components. Removal of the alcohol by evaporation leads to the formation of a xerogel. In this state some of the open porous structure is lost and the material becomes denser. Removal of the alcohol by supercritical drying with CO₂ forms an aerogel, as the material retains its porosity. This is possible as drying supercritically allows the removal of the alcohol with minimum capillary forces acting on the internal structure of the solid network, allowing the porosity of the network to remain intact (Fig. 6). Irrespective of the starting alkoxide, the sol–gel process creates colloidal powders with controlled morphology, these colloidal particles exhibit the ability to aggregate to form a gel in a solvent. This low temperature approach to materials preparation is a versatile method and has been applied in many diverse applications. Processing from the sol state can produce many material forms, from fibres through to dense ceramics and aerogels. Percolation theory, and the closely related fractal theory are used to explain the growth and style of gels formed.⁴¹

2. Ionic liquid gels

From the most basic viewpoint ionic liquid gel materials comprise two components, an ionic liquid, and a continuous solid phase.

Ionic liquids

Ionic liquids (ILs) are salts that are liquid. Just like common everyday salts they consist of positive (cation) and negative (anion) charges bound together by electrostatic interactions. However unlike solid salts that pack neatly together to form a crystalline structure, ionic liquids are composed of ions that do not pack well together, allowing a freedom of movement, and thus allowing the salt to take on the property of flow. The ionic liquid can be considered as a sea of charges incapable of organising into a highly regular structure, while still maintaining strong associations with each other (Fig. 8).

Fig. 8 Common ionic liquid cation and anions.

A large combination of salts (10¹⁸ ionic liquids are theoretically possible)⁴⁶ can be combined and functionality can be introduced on the anion or the cation, thus allowing tailored functional ionic liquids. The wide range of possible cations and anions means that the design of ionic liquids for functional applications is a dynamic area.

The beauty of ionic liquids is that virtually anything is possible. Many functional ionic liquids are being developed with a wide array of possible applications in mind. In the literature one can find a diverse range of ionic liquids and ionic liquid applications. Ionic liquids can be tailored to exhibit extremes of behaviour: to support cells and enzymes^47,48 or kill microbes,⁴⁹ have functional pharmaceutical therapeutic ability^50,51 and be used in drug delivery,⁵² or have toxic tendencies,⁵³ facilitate the cleanup and removal of environmental pollutants such as CO₂,^54–56 for metal extraction^57–61 but with misuse can have the potential to cause environmental damage,⁶² designed to be biodegradable^63–65 made from renewable resources such as amino acids⁶⁶ or biomass,⁶⁷ or made to be durable and long lasting. Ionic liquids can be hydrophobic, hydrophilic, acidic or basic. Research in to ionic liquids has led to the design of task specific/functionalised ionic liquids⁶¹ tailored explicitly for many applications, catalysis^68–70 electrochemistry,⁷¹ conductivity,⁷² and perfume delivery.⁷³ The use of ionic liquids in green chemistry was described in 2000⁷⁴ and since then the area has expanded in many directions, both in academia and in industry.^75,76 New ionic liquids are designed daily, and many new directions will continue to be discovered. However liquid is not always the most desirable phase for a given application. The use of ionic liquids in some applications is dependent on the ionic liquid being a liquid, however there are applications which would benefit from the tailored functionality of an ionic liquid, but require that the functional component be a solid. Gel materials allow the functionality of the ionic liquid to be utilized by providing a more solid/semisolid structure (the continuous solid phase) whilst retaining liquid mobility within the dispersed liquid phase. What is now being understood is that the confinement of ionic liquids within pores or on thin films has a direct influence on the ionic liquid. Ionic liquid gels can offer the design of materials with controlled material strength from soft solid to solid and with varying pore sizes/shapes and surface interactions. The mobility of the liquid within the pores, and ordering of the ionic liquid have led to enhancements seen in catalytic activity,⁷⁷ charge transport,⁷⁸ and electrical conductivity.^79,80 When in the gel state ionic liquids can be compelled to order when subjected to a confined space and/or an electric field^80–82 and show bulk liquid dynamics⁸³ or enhanced charge transport in nanoconfinement.^84,85 Confinement in silica can also influence the melting point of the IL.⁸³ This has been proposed to occur because the pore size changes the anion cation distance.⁸⁶ Ionic liquids can show order in the liquid phase, ionic liquids are so varied that all types of liquid structure can exist. Influences such as the strength of charge between the cation and the anion, polarity of the molecules, the nature of any substituent groups, and whether the molecule is amphiphilic or nonamphiphilic, all contribute to the manifestation or absence of structure. Other influences such as temperature, and presence of solvent, can also change the self-assembly in the bulk phase. Ionic liquids can show surfactant behaviour, co-surfactant behaviour and liquid crystallinity,⁸⁷ and show structures from bicontinuous, and micellar to liquid crystal, and transitions from micelles to vesicles or ribbons have been observed.⁸⁸ A recent review on structure and nanostructure in ionic liquids discussed known observed morphologies.⁸⁹ Interaction of an ionic liquid with a charged surface has been observed to further influence the self-assembly of the ionic liquid, by both experimental and theoretical study.^80,90 Ionic liquid gel materials can provide a myriad of ways to confine/entrap and study the organisation of the ionic liquids when confined, and their study will offer new possibilities for ILs in catalysis, energy, and sustainability as these structure function relationships are better understood and controlled.

Ionic liquid gel: classification

Ionic liquid gel materials offer a symbiosis between the dispersed ionic liquid phase and solid continuous phase. The liquid dispersed/trapped inside a solid retains the function of the ionic liquid and therefore the gel can retain the favourable properties of ionic liquid, such as thermal stability and negligible vapour pressure, combined with the practicality of a solid. Generally these confined ionic liquids retain or display enhanced functional properties when contained within a gel material. The ionic liquids can play both a structural and functional role.

This section will overview the different types of gel based ionic liquid material seen in the literature. The papers have been chosen to highlight examples of historical significance, and papers of special interest to catalysis and energy.

Ionic liquid gel: nomenclature

Using the current classification of gels by nature of the solvent, (Fig. 4) gels within which the liquid component is made up entirely of ions (an ionic liquid), can be classified as ionic liquid gels or ion gels.

In the field of ionic liquid materials many naming systems are being adopted simultaneously to refer to ionic liquid gels, and these differences in terminology make this a difficult subject to reference. In many cases these terminologies suffer from the further complication that the same name can be used to describe materials that contain an ionic liquid, irrespective of whether the ionic liquid is immobilised by post treatment of a pre formed solid with an ionic liquid,⁹¹ or contained within a network (gel).⁹² In this review it is our intention to cover as many differently named variants as possible, ionic liquid and gel, ion gel(s), ionogel(s), ion-gel(s), ionic gel(s), confined ionic liquid(s), supported nanoliquid(s), ionic liquid templated material(s), ion jellys and bucky gels, to get a fuller picture of what is being reported. Further complexity comes from the fact that sometimes the newer term ionic liquid is interchanged with the wider term molten salt.^93,94 The use of other closely related materials to ionic liquids such as deep eutectic mixtures/deep eutectic solvents (DES)^95,96 zwitterionic liquids (ZIL)s and alkali metal ionic liquids (AMILs)⁹⁷ can make finding the full range of gel materials made from ions difficult.

The most frequently used term is ionogel, commonly used to describe silica gels containing ionic liquid made by the sol–gel process.⁹⁸ Sol–gel derived ionic liquid gels in which a large percentage (>10%) of the IL remains in the material are termed ionogels.⁹⁹ However the term ionogel is also used more generally to describe any ionic liquid containing material, irrespective of the nature of the gelator,⁹⁸ (colloidal, polymeric or supramolecular). In yet further usages ‘ionogel’ has been used extensively to describe materials that contain an ionic liquid confined within a polymer matrix (polymer gelator),¹⁰⁰ for a gel formed by supramolecular self-assembly with a LMWG,¹⁰¹ and in the preparation of materials where a porous carbon structure is first formed and backfilled with an ionic liquid.¹⁰² The term ionogel has also been used to describe a material generated from an ionic liquid with silicon alkoxide (triethoxysilane) functional groups attached to the imidazolium cation, so that the cation of the ionic liquid is involved in the network formation. The anion is associated with the surface and often an additional silica precursor is added to enhance rigidity.¹⁰³ This has led to different interpretations of the term ‘ionogel’ depending on the research community.

The term ion gel has been used to describe ionic liquid incorporated through the self-assembly of a triblock copolymer in a room temperature ionic liquid¹⁰⁴ or prepared by in situ radical polymerization of vinyl monomers in an ionic liquid¹⁰⁵ to describe the dispersion of colloidal particles in an ionic liquid leading to the formation of a gel such as the dispersion of silica nanoparticles made in ionic liquid.¹⁰⁶ The related term ionic gel was used to describe a quasi-solid state ionic gel for use in a dye sensitised solar cell (DSSC).¹⁰⁷ The term ‘supported nanoliquid’ was coined by Deng and co-workers in a paper which described a material with a sol–gel silica and an ionic liquid.¹⁰⁸ Confined ionic liquids and ionic liquids in confined geometries are described in a number of different communications.⁸⁰ Such confined ionic liquids have shown enhanced charge transport,⁸⁵ bulk liquid-like mobility^77,83,109 and displayed unusual spectroscopic behaviour in FT-IR and FT-Raman.¹¹⁰ In addition to these commonly adopted naming systems, there have been several studies that have adopted rare or one-off names. The term ion jelly was used to describe the formation of ion gels using gelatine as the solid (continuous phase of the gel),^111,112 and the term bucky gels¹¹³ is used to describe gels made by the inclusion of carbon nanotubes into ionic liquids.¹¹⁴ Other examples include zwitterionic liquid compounds (anion and the cation on the same molecule) have been of specific interest in battery applications and polymer gel electrolytes from zwitterionic liquids have been synthesised.¹¹⁵ Gel formation with DES was shown by the use of DES to produce a hierarchical porous carbon monolith through the polycondensation of formaldehyde DES gel and the transformation of this into a porous carbon material 600 m² g⁻¹ a by carbonization.¹¹⁶ Similar techniques were used to form carbon and carbon nanotube composites where the DES was removed after initial templating, therefore the final material was not a gel but the formation of the gel lead to the templating of the porous microstructure.¹¹⁷ These ZIL gels and DES gels will continue to provide further examples of interesting materials for many applications. Similarly alkali metal ionic liquids (AMILs) have been reported as gels with a polymer as the continuous phase.¹¹⁸ Molten salt gel examples are found in the stabilization/solidification of radioactive molten salts.¹¹⁹ Further examples, one off names and acronyms are discussed and treated individually as they arise.

Since the liquid component of the gels in this case are all ionic liquids or ionic liquid variants, a good way to differentiate between ionic liquid gels is by the nature of the solid component. Using the gel classification by nature of the gelator we find examples of each type of ionic liquid gel. The three gel systems are evident in the literature for the formation of ionic liquid gels: macromolecular/polymer, colloidal, and molecular (low molecular weight gelators (LMWG)).

Macromolecular/polymer ionic liquid gels

These Ionic liquid gels can be formed in a number of ways. Gels have been prepared by the in situ polymerization of vinyl monomers in an ionic liquid,^105,120,121 and by dissolution and casting to form flexible membranes.¹²² In one example a gel was formed by in situ polymerisation of poly(ethyleneglycol) diacrylate with an ionic liquid, and the resulting material was referred to as a gelled ionic medium.¹²³ Photoreversible polymer ionic liquid gels¹²⁴ and thermoreversible¹²⁵ polymer ionic liquid gels have been reported. The addition of actives into a polymer ionic liquid gel showed the ability to make magnetic gel materials termed MagIGs.¹²⁶ These gels were prepared from poly(N-isopropylacrylamide) (as the continuous phase), Trihexyl(tetradecyl)phosphonium Dicyanamide (IL), and dispersed iron oxide nanoparticles. Gels can also be formed from natural polymers (biomacromolecules). Kadokowa and co-workers synthesised a gel of chitin with an ionic liquid, (1-allyl-3-methylimidazolium bromide)¹²⁷ and chitin/cellulose¹²⁸ where chitin/cellulose composite gels and films were made by dissolving chitin and cellulose in two ionic liquids, 1-allyl-3-methylimidazolium bromide and 1-butyl-3-methylimidazolium chloride ([BMIM][Cl]). The mixture was heated and left to gel, which took 4 days. Gels have also been prepared using a combination of chitin and agarose as the solid phase.¹²⁹ Ionic liquid gels have also been synthesised based on gelatin (ion jelly).^111,112,130

Colloidal ionic liquid gels

In the initial ionic liquid gels made by the sol–gel method the ionic liquids were used as a template and the ionic liquid was removed after the material was formed.^131,132 In the same vein ionic liquids and DESs have been used successfully as templates in the preparation of mesoporous solids where the IL was removed after the material was prepared.^133–135 As the IL was removed to reveal the intact porous structure, these materials are no longer considered to be in the gel state. The nature and amount of an ionic liquid contained in a silica ionogel has a direct influence on the structure of the solid continuous phase.^136,137 Tin dioxide ionogels have also been formed using a sol–gel approach¹³⁸ The formation of gels from ionic liquids and preformed silica particles gives rise to nanocomposite gel electrolytes,^106,139,140 and similarly TiO₂ spheres were used to prepare self assembled gels with ionic liquid,¹⁴¹ from a mixed system of emulsified [BMIM] bis(trifluoromethane)sulfonimide ([BMIM][NTF₂]) and TiCl₄ in an emulsion using methanol as the solvent and formic acid as the catalyst. Nanocomposite quasi-solid electrolyte containing ionic liquids from hybrid organic inorganic sol–gel precursors known as ormosils (organically modified silica) have also been prepared.^142,143 The inorganic oligomer poly(dimethysiloxane) (PDMS) was synthesized with triethoxysilylethyl terminated end groups. This sol–gel precursor was then used to form gels with 80% 1-ethyl-3-methylimidazolium [NTf₂] ([EMIM][NTf₂])¹⁴⁴ Another example of modification of a sol–gel alkoxide precursor involves the bonding of the cation of the IL to the silicon alkoxide forming a hybrid sol–gel precursor, (the anion is associated) the sol–gel precursor is mixed with TMOS and the sol–gel reaction is initiated. In this case there is no free ionic liquid acting as the dispersed phase and the only liquid present comes as a by-product of the sol–gel reactions (ethanol and methanol).¹⁰³

The ordering of molten salts by the addition of carbon nanotubes has also been employed to form a gel,^113,114 and modified graphene oxide ionic liquid gels have been reported.¹⁴⁵ The sol–gel synthesis of ionic liquid gels have been shown to have an influence on the particle size colour and structure of silica made by the sol–gel process.¹⁴⁶ Gel materials for catalysis will be discussed in section 3.

Molecular/supramolecular low molecular weight gelators (LMWG)

Low molecular weight gelators (LMWG) are most frequently shown to have the ability to gel organic solvents and water creating organogels and hydrogels by self-assembly and physical interactions. The solvent used is volatile and loss of the solvent always results in a loss of structure in such soft systems. Replacing an organic solvent with an ionic liquid creates soft ionic liquid gels with longevity as the low vapour pressure of the ionic liquid stabilises the gel, and extends the possible uses of these LMWG gels. Kimizuka and Nakashima noticed a gelation occurring when they used an ether containing ionic liquid to dissolve amide-group-enriched glycolipids.¹⁰¹ Again gels were formed with a cholesterol based structure with a 2,3,4,6-tetra-O-acetyl-β-D-glucopyranosyl group as a gelator. The formation of a gel by this method requires the LMWG to be soluble in the liquid before the reorganisation and gelation occurs, however in this case the gelator was not soluble in the IL used (N,N′-dialkyl-substituted imidazolium ions and N-alkyl pyridinium) and required a co-solvent (acetone), gelation occurred on evaporation of the acetone from the mixture.¹⁴⁷ Ionic liquid gels as electrolytes will be discussed further in section 4. Quasi-solid-state electrolytes made with LMWGs, were made to combine the benefits of liquid electrolytes and solid electrolytes, and impart enhanced mechanical stability.¹⁴⁸ LMWG ionic liquid gel made from a molecular gelator⁹ for 1-alkyl-3-methylimidazolium iodide (alkyl: C3–C9), were reported which showed temperature stability up to 85 °C.¹⁴⁹ Hanabusa and co-workers¹⁵⁰ also tested twenty-four kinds of ionic liquids with twelve kinds of LMWGs, and found two excellent gelators, both based on aspartame. Both molecules can gel ionic liquids at a minimum concentration of lower than 1 wt%. The ionic conductivities of the ionic liquid gels were very similar to those of the pure ionic liquids. In another example 12-hydroxystearic acid has been observed to act as a LMWG to form a gel with 1-hexyl-3-methylimidazolium [NTf₂] ([HMIM][NTf₂]).¹⁵¹ Tan and co-workers have used bis(4-octanoylaminophenyl) ether, bis(4-octanoylaminophenyl) methane and 2,4-bis(octanureido) toluene to gel ionic liquid, and they found that the electrochemical properties of the ionic liquid gels were similar to those of the pure ionic liquid.¹⁵² Grätzel and co-workers presented quasi-solid-state DSSC using the LMWG 1,3:2,4-di-O-benzylidene-D-sorbitol (DBS)¹⁵³ to gel ILs as an electrolyte for a DSSC.^154–156 LMWG of biological origin (amino acids) have also been shown to form gels with ionic liquids.¹⁵⁷ Metallogelators, LMWGs containing a metal, are a subset of LMWGs.¹⁵⁸ Organometallic LMWG have been prepared from pyridine bridged bis(benzimidazolylidene)–palladium complexes. These carbene complexes have been shown to be efficient low-molecular-mass metallogelators for organic solvents and ionic liquids (such as imidazolium, pyridinium, pyrazolidinium, piperidinium, and ammonium salts) at concentrations as low as 0.5 mg mL⁻¹.¹⁵⁹

Ionic liquids as gelators

There are examples of ionic liquids that have been reported as capable of acting as molecular gelators for organic solvents (organogelators). Organic salts have charge-assisted hydrogen bonds which are stronger than average hydrogen bonds in normal organic compounds¹⁶⁰ and this plays an important role in self-assembly, gel formation, strength, morphology, and longevity. D'Anna, Noto and co-workers investigated the ability of some diimidazolium salts as LMWG for organic solvents.¹⁶¹ The ability of an ionic liquid to gel an organic solvent seems not to be determined by the cation structure, (alteration of the shape and size was investigated). However it was found that the overall properties and structural features of the obtained gel phases seem to be ruled by the anion properties. The gelling ability significantly improved on moving from mono to dianions. This is in agreement with what was found by Hanabusa and co-workers.¹⁵⁰ In their study changing the cation had no effect on the ability of the gelator to form gels when the anion remained the same. Cross-linked polymeric nanogels (CLPNs) have been reported, prepared by one-step cross-linking copolymerization of ionic liquids featuring geminal dicationic monomers and cross-linkers for the preparation of methanol organogels.¹⁶² The copolymerisation and cross-linking of tetrabutylphosphonium styrenesulfonate and tributyl-hexyl phosphonium 3-sulfopropylacrylate, have been shown to form thermoresponsive poly(ionic liquid) hydrogels.¹⁶³ Addition of poly(N-isopropylacrylamide) (PNIPAAM) into the gel enhanced and swelling and shrinking properties of these polymeric ionic liquid hydrogels.¹⁶⁴ In these cases as the ionic liquid is the solid phase, they are not ionic liquid gels as the liquid phase is reported as water (hydrogel) or an organic solvent (organogel). Gels constructed from poly(ionic liquids) as the solid (continuous phase) and ionic liquid as the liquid phase have been shown to have applications as electrolytes.¹⁶⁵ As ionic liquids can self-organise into bulk liquids, surfactants, liquid crystals or semi ordered/solids,^89,166 and we have seen that some ILs have the ability to themselves behave as gelators for solvents, perhaps one ionic liquid could self assemble with another different ionic liquid to form domains where one ionic liquid acts as the liquid phase and the other as the solid continuous phase.

3. Ionic liquid gel catalysts for chemical transformations

Catalytic materials consisting of active catalysts entrapped in ionic liquid gels are discussed in the following sections. Catalysts which comprise ionic liquids layered on solid matrices, or ions covalently bonded to a solid are not covered. These systems, often referred to as SILCs, SILPS and SCILs, have been reviewed elsewhere.^167–172 Also not covered in this section are the use of poly(ionic liquids) as catalysts. This has been also been reviewed elsewhere.¹⁷³ Soft gels used in electrocatalysis will only be briefly mentioned, and will be discussed further in section 4.

The entrapment of an active catalyst inside a solid oxide matrix by sol–gel methods was pioneered by Blum and Avnir¹⁷⁴ in the 1990s.¹⁷⁵ The extension of the method to ionic liquid gels followed the introduction of ionic liquid based methods for the formation of silica gels in 2000.¹³¹ In the subsequent sections the catalysts entrapped have been classified as nanoparticle (supported metal) catalysts, organometallic catalysts, functionalised ionic liquids or biocatalysts.

Nanoparticles entrapped in ionic liquid gels

Following the synthesis of catalysts by the sol–gel entrapment of Pd nanoparticles in silica assisted by supercritical fluids,^176,177 in 2003 P. C. Marr and co-workers combined the facile synthesis of metal nanoparticles in ionic liquids, with the sol–gel method, to prepare catalytic gels.¹³² [Pd(OAc)₂] (OAc = acetate) and PPh₃ were heated in [BMIM][NTf₂] to form a suspension of nanoparticles.¹⁷⁸ These were subsequently entrapped in a stiff gel upon addition of TEOS, and formic acid (as the gelation catalyst). The aged and washed silica contained highly dispersed Pd nanoparticles of a fairly uniform size (approximately 2 nm diameter) at 0.37 wt% loading. The catalytic activity was demonstrated for the Heck coupling of iodobenzene and butyl acrylate and the selective hydrogenation of cinnamaldehyde to hydro cinnamaldehyde (Scheme 1).

Scheme 1 Heck–Mizoroki coupling and hydrogenation catalysed by Pd nanoparticle doped IL gels.

The synthesis of Rh nanoparticles on silica by an analogous method was published by Marr and Marr in 2009 and the catalytic activity demonstrated for styrene hydrogenation (Scheme 2).⁷⁷

Scheme 2 Styrene hydrogenation catalysed by rhodium doped IL gels.

A silica gel doped with Rh nanoparticles was prepared by entrapment of a Rh colloid, prepared by the thermal decomposition of a Rh(I) complex under hydrogen in [BMIM][NTf₂], the material had a high surface area (563 m² g) and was an active hydrogenation catalyst, however lower activities and poorer recycling were observed than that obtained for catalysts prepared by entrapping Rh(I) complexes in analogous ionic liquid gels.⁷⁷ Building on their extensive expertise on the synthesis of metal nanoparticles in ionic liquids, in 2007 Santos, Dupont and co-workers published sol–gel methods for the preparation of silica doped with 0.1 wt% Rh(0) nanoparticles by ionic liquid assisted sol–gel methods.¹⁷⁹

Preformed nanoparticles were added in to mixtures for the preparation of [BMIM][BF₄] silica gels from TEOS. Acid (HF or HCl) and base (NH₄OH) catalysed routes were compared. The resultant gels were used as catalysts for neat 1-decene and cyclohexene hydrogenation. Acid catalysed synthesis was found to yield better catalysts. Catalysts could be recycled at least ten times without significant loss of activity and selectivity. The activity and stability of the catalyst was attributed to a higher quantity of co-entrapped ionic liquid. Later Pt nanoparticles were entrapped for benzene and aliphatic alkene hydrogenation (Scheme 3).¹⁸⁰

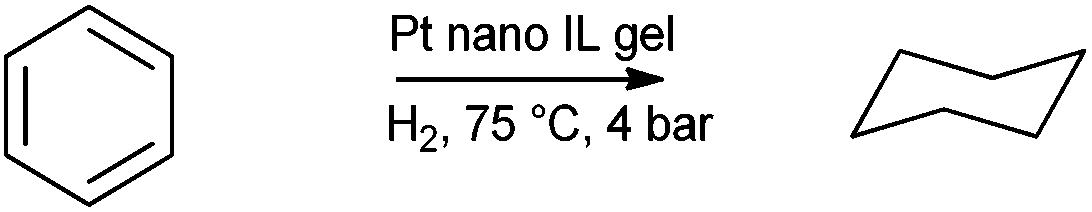

Scheme 3 Benzene hydrogenation catalysed by Pt nanoparticle doped IL gels.

Recently Ru nanoparticles in silica ion gels have been applied to the low temperature Water Gas Shift reaction (WGS) (Scheme 4).¹⁸¹

Scheme 4 Water Gas Shift catalysed by Ru nanoparticles in IL.

The gel preparation method was similar to that employed by Santos, Dupont and co-workers. Ru nanoparticles were prepared by reaction of [Ru(NO)(NO₃)₃] with NaBH₄ in [BMIM][BF₄]. Again the materials prepared in acid were found to outperform those prepared using base. This is a rare example of a gaseous phase application of a gel catalyst. The catalyst, prepared by sol–gel in the presence of HCl, was found to outperform an analogous calcined mesocellular foam silica catalyst. CO conversion of 37.8% was achieved at 140 °C. The catalyst exhibited high stability; after 25 h 36.2% CO conversion was achieved.

Han and co-workers have prepared supported metal catalysts with hierarchical pores by employing a templating procedure.¹⁸² An ionic liquid–water–CaCl₂/MgCl₂ gel was formed using 1-octyl-3-methylimidazolium chloride ([OMIM][Cl]), and used as a template for the formation of silica by sol–gel from TEOS. The chloride gel could be removed, and metal precursor ([HAuCl₄] for gold catalysts and [RuCl₃·3H₂O] for Ru catalysts) reduced in one step using a solution of NaBH₄ in water. The formation of small nanoparticles of narrow size distribution was observed. The unique structure of the CaCl₂ gel was believed to assist the formation of small metal nanoparticles. Metal doping of 1–8 wt% was achieved. Catalytic activity was demonstrated for oxidative esterification (Au), oxidation of benzyl alcohol to benzaldehyde (Pd) (Scheme 5) and hydrogenation of benzene (Ru). High activities, selectivities and stabilities were observed.

Scheme 5 Oxidative esterification catalysed by Au nanoparticles in an IL gel with hierarchical pores.

The use of ionic liquid–water gels to template the formation of a silica supported metal nanoparticle catalysts created materials with unique structures that would be difficult to achieve by other methods. The presence of hierarchical pores maximises mass transfer, helping to create an active catalyst, whilst providing a stable system with low leaching. The entire process, including metal entrapment and silica growth, was performed without intermediate separation; making the catalyst synthesis operationally simple.

Safavi and co-workers¹⁸³ demonstrated the application of nanoparticle doped ionic liquid gels to electrocatalysis. Ionic liquid (octylpyridinum [PF₆] or imidazolium-based phosphinite) and Pd nanoparticle doped gels were coated on a carbon ionic liquid electrode surface by a sol–gel method from TEOS catalysed by HCl. Good electrochemical and electrocatalytic performances were demonstrated. Advantages of this composite coating, compared to conventional silica gel layers, included increased stability and crack resistance, and good mass transport and conductivity.

The success of these methods can be attributed to the unique environment provided by ionic liquid gel materials. The ability of ionic liquids to enable the facile synthesis of metal nanoparticles is well known,¹⁷³ and can be attributed to the stabilisation of the nanoparticles within the ionic liquid phase. The creation of an ionic liquid phase inside a porous solid not only stabilises the nanoparticles, but also creates a heterogeneous catalyst that is simple to separate from the product mixture.

Metal complexes entrapped in ionic liquid gels

In 2005 catalysts prepared by entrapment of metal complexes within ionic liquid–silica gels were introduced by Deng and co-workers,¹⁰⁸ and Marr, Marr and co-workers.¹⁸⁴ These methods were inspired by the catalyst entrapment methods developed by Blum and Avnir in the 1990's.^174,185

Both groups employed acid catalysed gelation methods, and observed the reliable formation of stiff gels containing the metal catalyst precursor. Deng and co-workers reported ionic liquid gel catalysts doped with [RuCl₂(H)(PPh₃)₂], [RhCl(PPh₃)₃], [PdCl₂(PPh₃)₂] and [CoCl₂(PPh₃)₃] for the carbonylation of amines and nitrobenzene (Scheme 6).¹⁸⁶

Scheme 6 Carbonylation of amines and nitrobenzene catalysed by metal phosphine doped IL gels.

A range of ionic liquids were investigated including 1-decyl-3-methylimidazolium [BF₄] ([DMIM][BF₄]), [EMIM][BF₄] and [BMIM][BF₄]. Use of the DMIM cation enabled the ionic liquid to be retained in the gel upon recycling. Deng and co-workers termed this class of catalyst “nanoliquid” catalysts,¹⁰⁸ as the reaction is performed by a dissolved catalyst within the filled pores of a gel. Raman spectra revealed that the confined ionic liquid was affected by the unusual environment (pores). The gel doped with 0.11 wt% Rh and 35 wt% [DMIM][BF₄] was found to be most active, giving up to 93% conversion and >98% selectivity, and turnover frequency of over 11 000 h⁻¹. Activity was enhanced relative to homogeneous operation. Upon recycling some loss of activity was observed. An analogous SILP system gave very poor results.¹⁸⁶ Marr, Marr and co-workers developed a recyclable hydrogenation catalyst by entrapping [RhCl(PPh₃)₃] in an ionic liquid silica gel.¹⁸⁴ The complex was entrapped within silica by employing a formic acid promoted gelation of TEOS in [BMIM][NTf₂]. The catalyst was found to hydrogenate styrene in dichloromethane or toluene, with leach rates lower than the limit of detection. Facile recycling could be achieved without the need for intermediate treatment of the gel catalyst, this set these methods apart from previous gel catalyst systems. Initially the synthesis, catalytic activity and recycling were reported. In a later report⁷⁷ the catalyst was characterised by a range of solid state techniques, including solid state NMR and XPS. This revealed the presence of ionic liquid before and after catalytic activity. The catalytic activity was compared to the parent organometallic catalyst precursor. The average performance (by turnover frequency) was found to be greater in the gel than the initial rate of the homogeneous catalyst. The effects of changing parameters such as particle size were investigated, and the catalyst was shown to be active also for the challenging renewable substrate levoglucosenone.

The unprecedented performance of this class of gel catalyst relative to homogeneous and traditional heterogeneous catalysts may be attributed to the creation of a unique environment inside the gel for catalytic activity. This is analogous to the action of enzymes, within which the active site operates ultra-efficiently due to specific intermolecular interactions in wet soft matter. The addition of ionic liquid to the traditional entrapped system will provide intermolecular forces akin to those provided by the enzyme polypeptide, and the confinement of the ionic liquid within the pores of the matrix provides local ordering effects. For reactions in which ionic liquid solvents provide a particular benefit (such as the carbonylation of aniline¹⁸⁶) incorporation of the ionic liquid within a gel enables liquid like reactivity, whilst employing a much smaller amount of ionic liquid. Furthermore the confinement can have the effect of creating a concentrated ionic liquid reaction environment, leading to enhancement of reactivity beyond that observed in the liquid phase.^108,186 These benefits are in addition to the advantages in separation gleaned from heterogenising the catalyst.

The hydroformylation study of Hamza and Blum is worthy of mention,¹⁸⁷ (although it does not apply the same methodology), as an example of the related tethering procedure for preparing catalytic gels. A recyclable gel catalyst for the hydroformylation of alkenes (styrene and derivatives) was prepared from tetramethyl orthosilicate (TMOS), 1-butyl-3-[3-(trimethoxysilyl)propyl]imidazolium chloride, [Rh(COD)Cl]₂ (where COD is 1,5-cyclooctadiene), and sodium 3-(diphenylphosphanyl)benzenesulfonate dehydrate. High selectivity (>95%) towards branched products was observed (Scheme 7).

Scheme 7 Hydroformylation of vinyl arenes by an ionic liquid tethered gel doped with rhodium and phosphine.

The catalyst could be recycled without leaching for at least 4 runs. The formation of a recyclable catalyst was found to depend on the inclusion of both the silica and ionic components. This investigation highlighted the importance of the ionic component for stabilising and retaining the active metal dopant. Omission of the ionic component led to an unstable system.

Although tethering ions reliably produces a virtually leach-free system, there are major disadvantages over the lifetime of the catalyst. Tethering renders the catalyst more expensive and wasteful to prepare, with many more synthetic steps, and the spent catalyst is much harder to recycle. A major advantage of self-assembled catalytic gels is that the components can be removed and recycled after use. Many ionic liquid gels are stable in one solvent system (such as toluene), but unstable in more polar solvents, leading to facile extraction of the ionic liquid phase for reuse.

In 2009 Pd(OAc)₂ doped ionic liquid gels were reported by Vioux, Lavastre and co-workers.¹⁸⁸ The Heck–Mizoroki coupling of iodobenzene and ethyl acrylate; and 4-vinylpyridine and 4-iodo-N,N-dibutylaniline (in toluene containing NEt₃) was demonstrated, catalysed by Pd [BMIM][Br] ionogels in the presence and absence of PPh₃. For the phosphine promoted system an active catalyst could be prepared with one tenth of the concentration of Pd. The catalyst was shown to be heterogeneous by hot filtration, and exhibited comparable activity to analogous homogeneous systems.

Following on from an ion tethering method detailed by Pagliaro and co-workers¹⁸⁹ a gel catalyst for the oxidation of alcohols was prepared by Tong and co-workers.¹⁹⁰ The CuCl₂/TEMPO catalytic system was dependent on tethering TEMPO to an imidazolium cation, but the bulk material was a [BMIM][PF₆] silica gel prepared from TEOS with the addition of HCl. The oxidation of alcohols (most successfully benzyl alcohols) was affected in n-octane under 1 Atm. of O₂. The gel catalyst was reused 5 times, upon which the conversion gradually reduced, but the high selectivity to the carbonyl product was unaffected.

Entrapped functional ionic liquid catalysts

Early in the evolution of ionic liquid gel catalysts Deng and co-workers¹⁹¹ introduced the concept of entrapped functional ionic liquid catalysts. This premise depends upon the retention of the ionic liquid within the matrix as the ionic liquid acts as the catalyst directly. As such this is the purest form of ionic liquid gel catalyst as it requires only two components, solid matrix and ionic liquid.

Carboxylic acid functionalized imidazolium and pyridinium chloride, bromide, PF₆⁻ and BF₄⁻ ionic liquids were entrapped by a sol–gel method from TEOS catalyzed by HCl. These Brønsted acidic ionic liquid (BAIL) gel catalysts were used to deoximate aliphatic and aromatic oximes in acetone and water (Scheme 8).

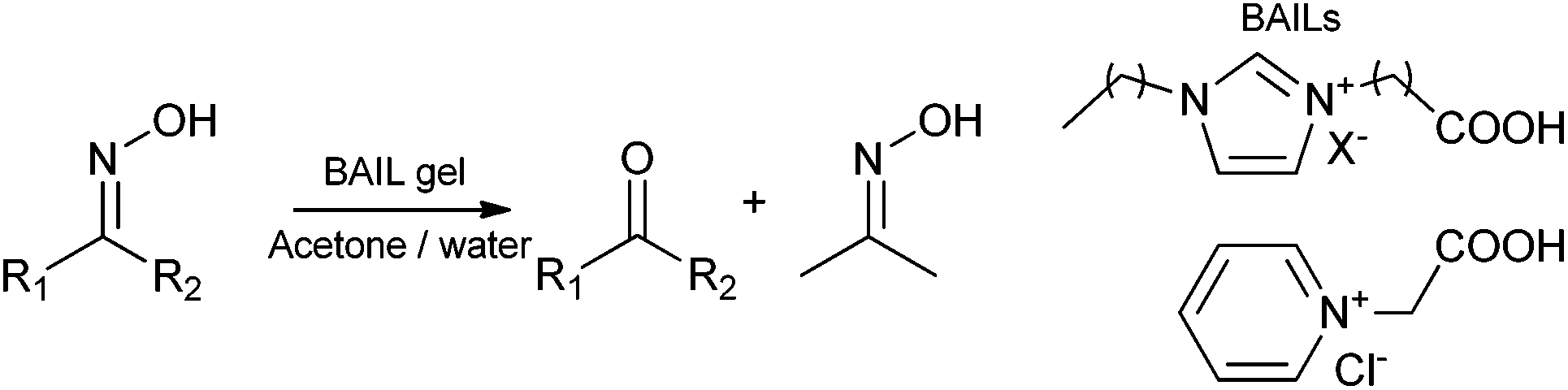

Scheme 8 Deoximation of oximes catalysed by BAIL gels.

In the following decade there followed reports of tethering acidic ionic groups onto silica to form catalytic gels, and acidic ionic liquids absorbed on the surface of silica; but little progress on the synthesis of recyclable ionic liquid gel catalysts.^192–196

It is good practice in green chemistry to attempt to remove reagents that may be superfluous in a synthesis or process, as every material used has an associated legacy of waste and energy consumption. Therefore it was logical to develop the synthesis of a gel catalyst that dispensed with an additional gelation catalyst, such as HCl in the Deng and co-workers syntheses. To this end Marr, Marr and co-workers¹⁹⁷ attempted the gelation of tens of BAILs in the absence of an additional promoter, and found that triethylammonium propanesulfone [NTf₂] ([TEAPS][NTf₂]), treated with TEOS formed stiff reproducible gels, that could be applied to liquid phase catalytic transformations in toluene. The excellent recyclability of the catalyst was demonstrated for the dehydration of rac-1-phenyl ethanol (Scheme 9), and the gel-phase activity was proven by hot filtration test. The excellent retention of the ionic liquid was contrasted to the high leaching observed for an analogous SILP system. Solid state NMR revealed that the sol–gel synthesized ionic liquid gel contained a large proportion of silanol groups, these are able to hydrogen bond to the ionic liquid and assist the retention of the BAIL.

Scheme 9 Dehydration of rac-1-phenyl ethanol catalysed by a BAIL gel.

These systems benefit from being two component catalysts. Their assembly is straightforward and low energy, and subsequent recycling of the ionic liquid involves only extraction using a polar solvent, leaving behind only silica. They have the potential therefore to be some of the “greenest” catalysts available. Panzer and co-workers¹⁹⁸ showed that, in some cases, recovery of a hydrophobic ionic liquid from a silica matrix is achievable by submerging the ion gel in water. This is thought to be because the water competes for the silica surface, pushing the ionic liquid out.

Entrapped biocatalysts

Ionic liquids have been shown to be excellent media for certain classes of enzyme.^199–201

This can be attributed to advantageous protection of the protein structure by the ionic liquid. This was swiftly verified, as merely coating of an isolated enzyme in an ionic liquid can improve the performance of the biocatalyst in organic solvents.²⁰²

The entrapment of isolated enzymes within silica by sol–gel methods has been long established as a method of increasing the stability and making the biocatalyst easier to handle.²⁰³ The combination of ionic liquid coating and silica entrapment is therefore a logical progression for the immobilisation of enzymes. Li and co-workers²⁰⁴ entrapped horseradish peroxidase (HRP) in [BMIM][BF₄] doped silica by treating a TEOS solution with small quantities of an HCl solution. The enzyme was entrapped whilst in phosphate buffer, (pH 6.86). Performance was compared with a gel prepared in the absence of ionic liquid. Compared to the traditional silica matrix, the ionic liquid gel afforded superior activity (specific activity was 30 times higher), and excellent thermal stability.

Koo and co-workers²⁰⁵ demonstrated the stabilizing effect of an ionic liquid doped gel on Candida rugosa lipases. A range of ILs were co-entrapped with the enzyme and tested in esterifications, the best results were observed with [OMIM][NTf₂]. The difference in performance was even more marked, as the conventional sol–gel entrapment virtually killed the activity of the enzyme. Later the same year the group published a modified procedure, employing a mixture of a more hydrophobic ionic liquid and a less hydrophobic one, HCl was still used as the gelation catalyst.²⁰⁶

Highly recyclable enzyme doped gel materials were prepared by Ribeiro and co-workers.²⁰⁷ Naringinase doped gels were prepared containing combinations of different ionic liquids and glycerol as co-dopants. TMOS and HCl were used to generate silica. Co-entrapment of glycerol was found to be beneficial. The stability of the entrapped enzyme depended on the cation used, with hydrophobic cations such as [OMIM]⁺ conferring the best recyclability. Hydrophobic anions such as [BF₄]⁻, [PF₆]⁻ and [NTf₂]⁻ were also necessary to obtain the best performance. Protic ionic liquids (Scheme 10) formed by the combination of monoethanol amine and aliphatic carboxylic acids of various chain lengths were used to stabilize lipase entrapped in silica by Soares and co-workers.²⁰⁸ The group also observed a vast improvement in enzyme performance compared to entrapment without ionic liquid. More hydrophobic ionic liquids were again found to be superior.

Scheme 10 Protic ionic liquids co-entrapped with lipases.

The potential of ionic liquid gel catalysts

The potential of ionic liquid gels has been demonstrated across many fields of catalysis. Ionic liquid gels provide facile nanoparticle entrapment, enhanced homogeneous catalyst performance, contamination free Brønsted acidity, and protective environments for biocatalysis. Clear advantages are apparent when using an ionic liquid gel rather than a liquid phase, heterogeneous or SILP catalyst. Heterogenising catalysts in this way not only improves separation, but also conserves liquid like reactivity; and in some cases confinement enhances liquid reactivity. Ionic liquid gel methods have led to catalysts with unique structure due to templating effects. The absence of volatile solvents in the material synthesis avoids damage to the matrix during catalyst preparation. These advantages combine to provide catalysts with remarkably low leach rates. The range of ionic liquids and catalysts available is constantly expanding, and therefore catalytic ionic liquid gels will continually evolve, providing innovative solutions to the challenges emerging in chemical synthesis.

4. Applications of ionic liquid gels in energy

Ionic liquids have a great potential in energy applications and have been the subject of several highlights and perspectives.^{71,97,209,210}

Applications include use as capacitors²¹¹/supercapacitor materials²¹² and in electrochemistry.^213,214 The production and storage of energy will continue to gain importance over the coming decades, and ionic liquid gels are anticipated to find an increasing number of applications in this field. In this section some examples of ionic liquid gel materials classified by the nature of the gelator, are given, including macromolecular (polymeric), colloidal and molecular LMWG as electrolytes. Specific examples are cited of ionic liquid gel materials in applications such as DSSCs, low energy displays, electrocatalysis, capacitors/supercapacitors, and fuel cells. The drive for energy production to be sustainable and clean is a significant priority. At the heart of a new energy landscape will be versatile materials manufactured in a green way.

Ionic liquid gels as electrolytes

Polymer electrolytes, have changed the face of modern batteries.^215–221 The use of ionic liquids as electrolytes and/or hosts for other electroactive species has enormous potential that has yet to be harnessed.⁷¹ Ionic liquid gels are providing interesting and versatile electrolyte materials from soft solid to solid, and have shown both enhancement and retardation of conductivity.

Macromolecular/polymer ionic liquid gels

Ionic liquid gels made with polymers as the solid phase have been the longest studied IL gel systems applied as electrolytes. In 1996 rubbery gel electrolytes were reported made with N,N,N,N-tetraethylammonium BF₄ ([TEA][BF₄]), polyvinylidene fluoride (PVdF) homopolymer, and propylene carbonate (PC) as the solvent possessing room temperature conductivity of 6.3 mS cm⁻¹. These measurements were made with the PC remaining in the gel.²²² In a later report¹²⁰ the solvent (PC) was removed before the conductivity was measured, in this case the solid continuous phase of these polymer ionic liquid gels was provided by a poly(vinylidene fluoride)-hexafluoropropylene copolymer [PVdF(HFP)]. Two ionic liquids were tested [EMIM][OTf] (where OTf is the triflate anion) and [EMIM][BF₄]. Ratios of polymer to ionic liquid 2 : 1 [EMIM][OTf]–PVdF(HFP) and 2 : 1 [EMIM][BF₄]–PVdF(HFP) gels were prepared having conductivites of 5.6 and 5.8 mS cm⁻¹, respectively, absence of solvent didn't make an appreciable difference to the conductivity.

Another early example of an ionic liquid polymer gel electrolyte was reported by Nakagawa and co-workers.¹²³ The gel was formed by in situ polymerisation of poly(ethyleneglycol) diacrylate with a mixture of [EMIM][BF₄] and LiBF₄. The gelled ionic medium was termed GLiEMIBF₄. (The G prefix denoting the Gel state). The ionic conductivity of the gelled electrolyte, was less than the binary mixture but stability was excellent and 50 charge/discharge cycles were achieved.

Highly flexible elastic non volatile electrolytes were prepared using poly(vinylidene fluoride-co-hexafluoropropylene) (PVdF-HFP). These polymer electrolyte materials were prepared by mixing a conducting salt (Li-TFSA), the polymer PVdF-HFP and the ionic liquid. Many ionic liquids were screened including [EMIM][NTf₂], [EMPyrr][NTf₂] (where EMPyrr is 1-ethyl-1-methylpyrrolidinium), [MPPyrr][NTf₂] (where MPPyrr is 1-methyl-1-propylpyrrolidinium), and [DMMA][NTf₂] (where DMMA is N,N-diethyl-N-methyl-N-(2 methoxyethyl)ammonium).²²³ Of note was the need for solvent, in this case acetone was used to homogenise the mixture. The mixture was then left overnight to remove the acetone. The resulting gel disks in the glass vial were evaporated in vacuum. Conductivities of the gel electrolytes at room temperature were about 1–2 mS cm⁻¹. Xiao-Guang Sun and co-workers²²⁴ showed the copolymerization of polyethylene glycol methyl ether methacrylate with polyethylene glycol dimethacrylate in the presence of the room temperature ionic liquid, methylpropylpyrrolidinium [NTf₂] ([MPPY][NTf₂]), this produced a polymer ionic liquid gel. The monomers and the ionic liquid were mixed and polymerisation was initiated with AIBN. The mixture was cast and left to polymerise at 70 °C. The conductivity was shown to increase with increasing concentration of ionic liquid. Panzer and co-workers²²⁵ reported an ion gel made by the UV-initiated cross-linking of poly(ethylene glycol) diacrylate (PEGDA) in the presence of [EMIM][NTf₂].

Ohno and co-workers¹¹⁵ introduced an example of a polymer gel electrolytes prepared from a ZIL. These polymer gel electrolytes were obtained by the dissolution of the ZIL and the polymer (poly(vinylidene fluoride-co-hexafluoropropylene) in 4-methyl-2-pentanone, and films containing films with zwitterionic liquid of up to 80 wt% were formed on evaporation of the solvent. When the zwitterionic liquid content was 66 wt%, the ionic conductivity of the polymer gel electrolytes was around 0.01 mS cm⁻¹ at 50 °C, at room temperature.¹¹⁵ In collaboration Ohno, MacFarlane and co-workers¹¹⁸ introduced examples of AMIL gel electrolytes where AMIL gels were made by the direct mixing of the AMIL with poly(3-sulfopropyl acrylate) lithium salt or poly(2-acrylamido-2-methylpropanesulfonic acid) lithium salt to form polymer gels. At low polymer concentrations, these gels displayed ionic conductivity of 0.1 to 1 mS cm⁻¹ at room temperature. Gel electrolytes from natural macromolecules have also been reported using gelatine as the continuous phase. A conducting material based on ion jelly (gelatine ionic liquid polymeric gel) was investigated¹¹² and the ionic liquids 1-ethyl-3 methylimidazolium ethylsulfate, ([EMIM][C₂SO₄]), [EMIM][OAc] and trimethyl-ethanolammonium (choline) acetate, ([Ch][OAc]), and [EMIM][C₂SO₄] investigated. The gels were made by heating gelatine and water to 50 °C before the addition of ionic liquid, glycerol, formaldehyde and a cross-linking agent. The ionic conductivities were measured of various polymer electrolytes over the temperature range from 25 to 105 °C. The highest room temperature (T = 30 °C) conductivity of the electrolyte system, was reported as 0.118 mS cm⁻¹, for the gelatine gel based on [EMIM][OAc].¹³⁰ Electrolytes consisting of a poly(ionic liquid) as the solid phase and an ionic liquid as the dispersed phase have been made by various methods and shown to be electrolyte materials. The stabilisation of the IL within the poly(ionic liquid) is thought to be enhanced as the charges can easily interact with each other. A recent review on poly(ionic liquids) outlines the three major ways that poly(ionic liquid) ionic liquid gels are prepared,²²⁶ and a review of polymer based ionic liquid gels for electrochemistry also covering poly(ionic liquid) ionic liquid electrolytes has been published.²²⁷ Two common methods are mentioned for illustrative purposes. The first method is cross-linking and polymerisation: a co-polymer 1-[(2-methacryloyloxy)ethyl]-3-ethylimidazolium [NTf₂] was cross-linked with methacrylate or styrene based cross-linker in the presence of ionic liquid by in situ free radical polymerisation as reported by Ohno and Nakajima.²²⁸ In a simpler casting approach the poly(ionic liquid) was dissolved in an ionic liquid and cast into a flexible material.²²⁹

Colloidal ionic liquid gels

The use of colloidal particles as gelling agents in ionic liquids has been employed to build devices for energy applications. For example silica particles have been studied and modelled,¹³⁹ and the use of this type of colloidal ionic liquid gel as an electrolyte has been shown.^{106,230–232} In this case the conductivity is comparable, or slightly lower, than that of the pure ionic liquids.¹⁰⁶ Titania spheres¹⁴¹ and carbon nanotubes^113,114 have also been used to gel ionic liquids and produce electrolyte materials.^140,141 Ionic liquid gels formed by the sol–gel process using functional ionic liquids have been found to have potential as electrolytes.^233,234

Hybrid inorganic organic sol–gel precursors (ormosils) based on a di-ureasil precursor have been successfully used for the synthesis of ionic liquid gels.^235–237 A protic ionic liquid N-ethylimidazolium trifluoromethanesulfonate ([EIM][OTf]) has been incorporated into a poly(oxyethyelene) (POE)/siloxane hybrid host matrix belonging to the di-ureasil family. These gels were shown to be thermally stable up to 200 °C and showed a conductivity of 3.7 mS cm⁻¹ at 160 °C.²³⁸ Vioux and co-workers report a polymer nanocomposite ionogel using a poly(methyl methacrylate) (PMMA) bearing trimethoxysilane groups which was mixed with TEOS and ionic liquid, this material was flexible and at some compositions the conductivity was very close to the ionic liquid.²³⁹

Molecular/supramolecular/LMWG ionic liquid gels

The use of low molecular weight gelators (LMWG) for the formation of ionic liquid gel electrolytes was reported by Hanabusa and co-workers.¹⁴⁹ Ionic liquid gels were successfully reported for a range of 1-alkyl-3-methylimidazolium iodides (propyl [PMIM][I], [HMIM][I], and nonyl [NMIM][I]) using a LMWG gelator.⁹ In 2005 the same group reported Ionic liquid gels as electrolytes made from the LMWGs cyclo(L-β-3,7-dimethyloctylasparaginyl-L-phenylalanyl) and cyclo(L-β-2-ethylhexylasparaginyl-L-phenylalanyl).¹⁵⁰ These gelators prepared by the esterification of L-asparaginyl-L-phenylalanine methyl ester (aspartame) with 3,7-dimethyl-1-octanol were shown to be capable of gelling the following cations, imidazolium, pyridinium, pyrazolidinium, piperidinium, morpholinium, and ammonium, and gelation occurred irrespective of whether the anion used was [BF₄]⁻ or [NTf₂]⁻. These gels were shown to have ionic conductivities very similar to those of the pure ionic liquids, however the highest conductivity was seen for [BMIM][NTf₂] and [BMIM][BF₄]. Cyclo(L-β-3,7-dimethyloctylasparaginyl-L-phenylalanyl) formed gels at a concentration of less than 1 wt% of the gelator, and it was noted that the strength of the gel material increased with increasing concentration of the solid component. Tan, Dong, Wang and Yang¹⁵² used the LMWGs bis(4-octanoylaminophenyl) ether, bis(4-octanoylaminophenyl) methane and 2,4-bis(octanureido) toluene to gel ionic liquid, and they found that the electrochemical properties of the ionic liquid gels were slightly inferior to those of the parent ionic liquid. Šantić and co-workers²⁴⁰ also showed that high conductivity was not guaranteed in gel materials. They found that a concentration effect was in operation in the gelation of [BMIM][BF₄] with (S,S)-bis(leucinol)oxalamide as the LMWG. There were differences seen in the conductivity depending on the amount of gelator used, with an increasing concentration leading to a drop in conductivity; this is explained by a loss of liquid like mobility on increasing the solid component of the gel.

Ionic liquid gels in fuel cells

Fuel cells can convert a wide variety of fuels to electricity. The conversion of chemical energy into electrical energy is achieved by exploiting many different designs. One common component needed for all fuel cells is an electrolyte. Ionic liquids have been studied as electrolytes for fuel cells. The development of ionic liquid electrolytes for fuel cells has been discussed in detail elsewhere.²⁴¹ In particular protic ionic liquids are of specific interest for fuel cell membranes such as proton exchange membranes.^242,243 Sol–gel processing has always shown potential for the synthesis of membranes in fuel cells, and ionic liquid gel materials have been applied as proton exchange membranes for H₂/O₂ fuel cells.²⁴⁴ An ionic liquid gel made by the sol–gel method, (described as a glass membrane) was shown to have high conductivity. The protic ionic liquid diethylmethylammonium [OTf], [dema][OTf] was used as the liquid phase and the anhydrous proton conductor. The [dema][OTf]/SiO₂ hybrid glass membranes were prepared via a sol–gel process. The stability and ionic conductivity of the glass membrane were investigated. The [dema][OTf]/SiO₂ hybrid glass monoliths exhibited high anhydrous ionic conductivities that exceeded 10 mS cm⁻¹ at 120–220 °C.²⁴⁵ An example of a biofuel cell in which a bucky gel (referred to in this paper as CNTs/IL gel) was used as the bioanode for a glucose/O₂ biofuel cell.²⁴⁶ These devices were made by modifying carbon nanotubes by covalently attaching ferrocenecarboxaldehyde. The modified carbon tubes were then added to the ionic liquid [BMIM][PF₆], glucose oxidase was then added, and the mixture was ground together to form a bucky gel.

Solar cells: ionic liquid gels as electrolytes for DSSCs

A DSSC is an elegant example of a solar cell.²⁴⁷ In a DSSC a photosensitive dye is adsorbed onto the surface of TiO₂. The TiO₂-dye is surrounded by an electrolyte. Light is absorbed by the dye causing excitation of electrons from the ground state to the excited state. The excited electrons are injected into the conduction band of the TiO₂ leaving the dye oxidised. In this state the dye is unable to produce another excitation. The electrons formed from the dye excitation are transferred to the conduction band of the TiO₂ and flow through the TiO₂ to the anode. The electrolyte helps to transfer electrons from the cathode to the dye molecules to replace the lost electron, allowing the whole process to continue.

One of the major limitations of the conventional DSSC is the use of a liquid electrolyte. The use of a gel electrolyte provides a more stable structure, and the use of an ionic liquid gel offers further stability, as the exceptional low volatility of the ionic liquid is combined with the supporting structure afforded by the continuous (solid) phase of the gel. Thus ionic liquids gels could significantly advance the efficiency, longevity and user-friendliness of this class of solar cell. Polymer ionic liquid gels,²⁴⁸ colloidal ionic liquid gels using colloidal silica nanoparticles,²⁴⁹ and sol–gel nanocomposite quasi-solid electrolytes containing ionic liquid from hybrid silica organic materials¹⁴³ have all been applied to DSSCs. Hanabusa used LMWG N-benzyloxycarbonyl-L-valyl-L-valine n-octadecylamide⁹ to prepare ionic liquid gels as gel electrolytes for DSSCs¹⁴⁹ Other examples from Grätzel and co-workers¹⁵⁴ are based on 1,3:2,4-di-O-benzylidene-D-sorbitol (DBS)¹⁵³ derivatives as low molecular weight organic gelators. Grätzel and co-workers observed that the structure of the LMWG had an influence on the structure and the solar conversion efficiency of the DSSC.¹⁵⁵ In this case the LMWGs used were didodecanoylamides of α,ω-alkylidenediamines²⁵⁰ and the IL was 1,2-methyl-3-propylimidazolium iodide ([PMMIM][I]). LMWGs containing odd-numbers of CH₂s between the two amide carbonyl groups in the molecules of the gelators were shown to be different to those with an even-number. The gel constructed containing five CH₂ groups showed a photoelectric conversion efficiency of 7.53%,¹⁵⁵ and further improvements in photoelectric conversion efficiency (9.61%) was seen using a similar LMWG system.¹⁵⁶

Capacitors/supercapacitors/ultracapacitors based on ionic liquid gel electrolytes

Energy storage is essential and will be of increasing importance as energy sources become more diverse and renewable. Capacitors are used to store energy electrostatically in an electric field. The simplest form consists of two conducting plates separated by an insulator. When charged with opposite charges, an electric field exists between the two plates. Supercapacitors and ultracapacitors combine the high energy density of conventional batteries with the high power density of conventional capacitors. Ionic liquid gels have again proven useful. Wen Lu and co-workers²⁵¹ described the preparation and testing of three different materials. In method A) a polymer IL gel with the polymer (polyvinylidene fluoride-co-hexafluoropropylene (PVdF-HFP)), was mixed with N-methyl-2-pyrrolidone (NMP). Gelation occurred on heating and the gel was left under vacuum to remove the solvent. Method B) differed from Method A by the inclusion of a small amount of zeolite to the mixture. In method C) a commercial Teflon membrane was soaked in the IL. The ionic liquids used were [EMIM][BF₄] and [EMIM][NTf₂]. Ionic conductivity of all ionic liquid gel polymer electrolytes (ILGPEs) tested was lower than the pure ionic liquids. Addition of the zeolite to the [EMIM][BF₄] polymer ionic liquid gel led to a drop in conductivity, but made no difference with the equivalent material made with [EMIM][NTf₂].

Flexible supercapacitors were made by coating a carbon nanotube impregnated office paper with an ionic liquid gel made by mixing the ionic liquid with preformed silica spheres (approx 14 nm diameter). These solid-state supercapacitors gave a performance for specific capacitance of 134.6 F g⁻¹, maximum power 164 kW kg⁻¹ and energy density 41 Wh kg⁻¹, and over 4000 charge/discharge cycles.²⁵² Panzer and Visentin²²⁵ prepared UV-initiated cross-linked poly(ethylene glycol) diacrylate (PEGDA) ionic liquid gel. These gels were tested as capacitors. In this study gels were prepared using different ratios of solid and liquid phase. When conductivity was measured at room temperature a decrease in conductivity with increasing concentration solid phase was observed. The same group reported a soft silica based ionogel made from TMOS and high [EMIM][NTf₂] ionic liquid loading. They noted that these materials had ionic conductivity and double layer capacitance values close to those of the neat ionic liquid.²⁵³

Zaumseil and co-workers¹⁰³ report the use of an ionic liquid with silicon alkoxide (triethoxysilane) functional groups attached to the imidazolium cation (3-methyl-1-(3-(triethoxysilyl)propyl)-imidazolium [NTf₂] ([(EtO)₃SiPMIM][NTf₂]) The cation of the ionic liquid is involved in the network formation via the sol–gel process. The cationic sol–gel precursor was mixed with TMOS and the sol–gel process was catalysed with formic acid. A viscous, spin coatable sprayable sticky material was formed with a capacitance of between 10.4 and 18 μF cm⁻² depending on the concentration of the added TMOS. They concluded that more rigid the structure, the lower the measurement, this is in agreement with Panzer and Visentin.²²⁵

Another example of a sol–gel material for capacitors was reported by Negre and co-workers,²⁵⁴ electrical double layer capacitors using sol–gel derived ionic liquid gels were synthesised as solvent free supercapacitors with a high IL content (70%). An increase of both the operating voltage window and the electrolyte ionic conductivity was seen. This gel was made by mixing [EMIM][NTf₂] with a mixture of TEOS and TMOS silica precursors, formic acid was used as the catalyst for the sol–gel reaction. In another study supercapacitor cells were assembled layer by layer using a casting approach. First gold platinum current collectors were coated with an activated carbon based active material film. This carbon layer was formed from a mixture of 95 wt% of PICACTIF SC, (a standard high specific surface area activated carbon), and 5 wt% of PTFE (60 wt% PTFE in water). A few droplets of silane-IL sol were deposited onto the electrodes, which were sandwiched together. The TMOS/TEOS/IL/acid mixture gelled to complete the supercapacitor cell. It has recently been demonstrated that it is possible to gel a silica precursor with an acidic ionic liquid without the need for formic or other additional acid¹⁹⁷ this should lead to a further enhancement and the greener processing of solvent free materials for capacitors.

Ionic liquid gel materials for displays

Ionic liquid gels are finding use in the development of low energy displays and electrochromic windows for energy efficient buildings. Electrochromic devices change colour on the application of an applied electrical field. As such they can be used to regulate the internal temperatures of buildings, leading to reduced energy consumption. The ability of a gel to combine active materials, with an electrolyte within the same material has many uses. As detailed in the catalysis section, nanoparticles and molecular species can show enhanced function within gels. Such synergy would be of great benefit within display and electrochromic materials, as these comprise complex components that must act cooperatively. Conjugated polymers (CPs)²⁵⁵ have many uses. One of the many applications of CPs include their use in electrochromic^256,257 devices. Electrochromism is seen in some conjugated polymers. CPs are also much studied as active materials for many electronic devices such as organic light emitting diodes, solar cells and actuators.

Poly(3,4-ethylenedioxythiophene) (PEDOT) has aroused particular interest as an electrochromic material, it switches between deep-blue and pale-blue hues.^258–261 Electrochromic devices based on PEDOT as the cathodic colouring electrode, and polyaniline (PANI) or Prussian blue as the counter electrode creates a self-supporting transparent polymer ionic liquid gel have been reported by Deepa et al.²⁶² Moon et al.²⁶³ have prepared ion gels composed of polystyrene-block-poly(methyl methacrylate)-block-polystyrene and [EMIM][NTf₂] capable of electrochromism by adding the electrochromic (EC) redox molecule, methyl viologen. Ferrocene was also added to the EC gel as an anodic species. Fundamentally the use of photoluminescent probes can tell us a great deal about how the material is formed. Analyses of a light emitting CP, poly(9,9-dioctylfluorine) (PFO) in an ionic liquid silica gel by photoluminescence and FTIR showed that the conjugated polymer self-organised inside the pores to form an ordered phase through a confinement effect.⁸¹ The self organisation of the ionic liquid within the pores influenced the secondary ordering of the conjugated polymer within the pores leading to the formation of the organised β-phase of the PFO. In a different study phenylene–ethynylene monomer and copolymer with pendant imidazolium groups were synthesized to be soluble in [BMIM][NTf₂]. The ionogels were made using a mixture of TMOS and methyltrimethoxysilane (MTMOS) in the presence of formic acid as the catalyst.²⁶⁴ In other studies lanthanides were incorporated as the luminescent entity.²⁶⁵ The ionogel was formed using [HMIM][NTf₂]and then removed using acetonitrile and then refilled with a lanthanide containing ionic liquid ([HMIM] tetrakis(naphthoyltrifluoroacetonato)europate(III)). In a later study a series of lanthanide ionic liquids were studied [HMIM][Ln(tta)₄], where tta is 2-thenoyltrifluoroacetonate and Ln = Nd, Sm, Eu, Ho, Er, Yb, and [choline]₃[Tb(dpa)₃], where dpa = pyridine-2,6-dicarboxylate (dipicolinate).²⁶⁶ Understanding how to include and control light emitting/harvesting materials and electroactive materials within ionic liquid gels will unlock the great potential of these materials in photovoltaics, low energy displays, sensors and actuators.

Ionic liquid gels in electrocatalysis

An electrocatalyst is a catalyst that increases the rate of an electrochemical reaction at the surface of an electrode. The catalyst can be homogeneous or heterogeneous, chemical or biological. Electrocatalysts are an important part of some fuel cell designs. Materials made for electrocatalysis could also inform the design of catalysts for chemical transformations in the bulk and vice versa. Ionic liquid gels have also been successfully applied to electrocatalysis. This is again supported by the ability to include active molecules within an electrolyte material. Colloidal gels based on carbon nanotubes¹¹³ and are being used to build catalyst materials in the presence of other actives. A multi-walled carbon nanotube ionic liquid bucky gel was prepared with the addition of two additives, cobalt porphyrin and Prussian blue nanoparticles. This mixed material was shown to be active for the 4e-reduction of O₂, and could have potential for use as non-platinum cathode materials for fuel cells.²⁶⁷ Of note is the fact that both catalysts work independently in the same material. First cobalt porphyrin catalyses the 2e-reduction of O₂ into H₂O₂, and the Prussian blue nanoparticles are responsible for the 2e-reduction of the H₂O₂ produced. A similar ionic liquid gel modified glass carbon electrode (termed MWCNTs-RTIL/GCE), was formed by coating an electrode in gel. This material was shown to be active for the electrocatalytic oxidation of venlafaxine (1-2-(dimethylamino)-1-(4-methoxyphenyl)ethylcyclohexanol), a pharmaceutical compound used in the treatment of depression.²⁶⁸ These gel materials were made by grinding carbon nanotubes with an ionic liquid, which was reported to form a gel substance stable enough to be used as an electrode coating.

Some interesting bio-electrocatalytic applications of ionic liquid gels have been reported. Direct electrochemistry and electrocatalysis of myoglobin was shown on a material based on silica-coated gold nanorods/room temperature ionic liquid/silica sol–gel composite films.²⁶⁹ Zeng and co-workers²⁷⁰ described biocatalyst entrapment for electrocatalysis, showing the direct electrochemistry of the enzyme, horseradish peroxidase, in an ion jelly biomacromolecular gelatine based ionic liquid gel. The gel which was made from [OMIM] [PF₆] gelatine hydrogel was found to stabilise the enzyme and the structure of the enzyme was found to remain intact. The gel supported enzyme electrode showed good thermal stability. A bioactive hemoglobin was immobilized in a chitosan based ionic liquid [BMIM][BF₄] gel.²⁷¹ In this system hemoglobin was reported to retain its bioactivity in the ionic liquid gel electrode for the electrochemical reduction of O₂. The conductivity of the IL was also thought to contribute to the electron transfer. These materials could have potential for biosensors and in biocatalysis. The inclusion of catalytically active components (of all types) in ionic liquid gels will continue to gain influence in electrocatalysis and the electrochemical enhancement of photocatalysis.

Choosing an ionic liquid gel for a given application

Choice of solid phase and choice of ionic liquid allow a material to be tailored specifically for a given application. Polymer/macromolecular solid phases can be tailored to work at a specific temperature range. The implicit processability of polymer materials means that they have the ability to be cast into films, rolled up, spun into fibres, coated onto an electrode surface, or indeed be coated with electrodes. Polymers with functional pendant groups can impart further functionality. Polymer/macromolecular ionic liquid gels can be tailored from soft to rigid by changing the ratio of the solid phase to the liquid, and indeed the liquid nature of the gel can also be controlled by the extent of polymer crosslinking.

Colloidal gels can range from soft to glassy and be made from many substances including carbon nanotubes and silica, and thus can be used to coat substrates. Further stability and rigidity can be attained by sol–gel methods. Sol–gel offers a range of metal oxide materials available for ionic liquid gel formation and these solid phases can be utilised when stability and robustness of the gel at elevated temperatures are required. Sol–gel processing can produce thin films, monoliths, powder and coated substrates.

In DSSC devices the liquid nature of the electrolyte is one of the material limitations. The benefits of using molecular ionic liquid gels in DSSCs comes from the ability of the gel to retain the electrolyte. We see evidence that the more liquid like the gel (low solid phase concentration), the closer the conductivity is to that of the parent ionic liquid; and so where ion mobility is of paramount importance, molecular gels are specifically interesting. Molecular gels tend to be softer and the concentration of the solid phase of this type of gel can be very low <1 wt%. This has been seen to have specific benefit in the production of DSSCs where ion mobility and fast ion transport is crucial to the overall efficiency of the cell operation; however, molecular gels can have some thermal and mechanical stability issues, which will need to be overcome for some applications.

Once the type of gel (liquid like, flexible, glassy, ceramic, thermally stable) needed for an application is identified, further complexity can be introduced. Solid phases capable of conductivity or photoluminescence can be produced for polymer, colloidal or molecular gels. Ionic liquid gels have been shown to successfully contain entrapped functional materials such as catalysts (homogeneous and metal nanoparticle), functional polymer and colloidal entities, enzymes and cells. Add to this the ability to dial in functionality into the ionic liquid component of the gel (acidity, basicity, conductivity, metal extraction, biocompatibility, therapeutic pharmaceutical, cell and enzyme support), and a further level of complexity can be utilised. Traditional processing such as casting and coating, and mass printing techniques can be employed to produce gel based electronics; ink jet and gel jet printers are suitable for liquid like gels, and 3D printing is suitable for others.

5. Conclusions

Ionic liquid gels offer an abundance of materials for study and application. The combination of the extensive variety of gel methods, with the myriad of ionic liquids, provides an endless variety of materials for green and sustainable applications. Confinement of ILs within a gel can lead to novel behaviour and open new applications. Highlights of work so far include the confinement of task specific/functional ionic liquids, and the incorporation of active species such as enzymes, metal nanoparticles, molecular species, homogeneous catalysts, and polymers. This buildable system provides the ability to tailor-make a functional material for any of a wide range of applications. Real progress has been made in the application of ionic liquid gels to the fields of catalysis and energy materials, and the vast potential is becoming apparent. In addition to the advantages over liquid systems, such as ease of handling and stability, the gel state provides several advantages over solid systems. In comparison with traditional functional solid synthesis gel preparation is low cost, low energy and straightfoward. Recycling of ionic liquid gel materials is a simple process, and the ionic liquids can be removed from the gel and reused. The continuous phase whether silica, titania, carbon, molecular or macromolecular can be easily disassociated, reclaimed, and reused. From monoliths to thin films the diversity of these materials will continue to offer fascinating insights into ionic liquid behaviour and structure, together with dedicated solutions for catalysis, and sustainable energy.

References

1. IUPAC gold Book, PAC, 2007, vol. 79, p. 1801. (Definitions of terms relating to the structure and processing of sols, gels, networks, and inorganic–organic hybrid materials (IUPAC Recommendations 2007)).
2. T. Graham, Philos. Trans., 1861, 151, 183–224.
3. T. Graham, Proc. R. Soc., 1864, 13, 335–341.
4. K. Kajiwara, Gels Handbook, Academic Press, 2000.
5. Y. Osada and A. Khokhlov, Polymer Gels and Networks, CRC Press, 2001.
6. K. Almdal, J. Dyre, S. Hvidt and O. Kramer, Polym. Gels Networks, 1993, 1, 5–17.
7. J. R. Stokes and W. J. Frith, Soft Matter, 2008, 4, 1133–1140.
8. P. J. Flory, Faraday Discuss. Chem. Soc., 1974, 57, 7–18.
9. K. Hanabusa, J. Tange, Y. Taguchi, T. Koyama and H. J. Shirai, J. Chem. Soc., Chem. Commun., 1993, 390–392.
10. F. Placin, J. P. Desvergne, C. Belin, T. Buffeteau, B. Desbat, L. Ducasse and J. Lasségues, Langmuir, 2003, 19, 4563–4572.
11. N. M. Sangeetha, S. Bhat, G. Raffy, C. Belin, A. Loppinet-Serani, C. Aymonier, P. Terech, U. Maitra, J. P. Desvergne and A. Del Guerzo, Chem. Mater., 2009, 21, 3424–3432.
12. K. J. C. van Bommel, A. Friggeri and S. Shinkai, Angew. Chem., Int. Ed., 2003, 42, 980–999.
13. K. Sugiyasu, S. I. Tamaru, M. Takeuchi, D. Berthier, I. Huc, R. Oda and S. Shinkai, Chem. Commun., 2002, 1212–1213.
14. S. J. Craythorne, C. L. Pollock, A. J. Blake, M. Nieuwenhuyzen, A. C. Marr and P. C. Marr, New J. Chem., 2009, 33, 479–483.
15. J. W. Steed, Chem. Commun., 2011, 47, 1379–1383.
16. P. Dastidar, Chem. Soc. Rev., 2008, 37, 2699–2715.
17. N. M. Sangeetha and U. Maitra, Chem. Soc. Rev., 2005, 34, 821–836.
18. M. O. M. Piepenbrock, G. O. Lloyd, N. Clarke and J. L. Steed, Chem. Rev., 2010, 110, 1960–2004.
19. D. K. Smith, in Organic Nanostructures, ed. J. L. Atwood and J. W. Steed, Wiley VCH, Weinheim, 2008, pp. 111–154.
20. F. Fages, Top. Curr. Chem., 2005, 256, 1–275.
21. S. S. Babu, V. K. Preveen and A. Ajayaghosh, Chem. Rev., 2014, 114, 1973–2129.
22. K. Hanabusa and M. Suzuki, Polym. J., 2014, 46, 776–782.
23. P. Terech and R. G. Weiss, Chem. Rev., 1997, 97, 3133–3160.
24. R. G. Weiss and P. Terech, Molecular Gels: Materials with Self-Assembled Fibrillar Networks, Springer, 2006.
25. Topics in current chemistry, in Low Molecular Mass Gelators, ed. F. Fages, Springer-Verlag, Berlin, Heidelberg, 2005.
26. L. A. Estroff and A. D. Hamilton, Chem. Rev., 2004, 104, 1201–1217.
27. J. Liu, P. He, J. Yan, X. Fang, J. Peng, K. Liu and Y. Fang, Adv. Mater., 2008, 20, 2508–2511.
28. N. Javid, S. Roy, M. Zelzer, Z. Yang, J. Sefcik and R. V. Ulijn, Biomacromolecules, 2013, 14, 4368–4376.
29. K. Liu, P. He and Y. Fang, Sci. China: Chem., 2011, 54(4), 575–586.
30. J. Jagur-Godzinski, Polym. Adv. Technol., 2010, 21, 27–47.
31. J. Elisseeff, Nat. Mater., 2008, 7, 271–273.
32. J. P. Gong, Y. Katsuyama, T. Kurokawa and Y. Osada, Adv. Mater., 2003, 15, 1155–1158.
33. C. Peak, J. J. Wilker and G. Schmidt, Colloid Polym. Sci., 2013, 291, 2031–2047.
34. Y. Osada and A. Matsuda, Nature, 2002, 376, 219.
35. Y. Osada, H. Okuzaki and H. Hori, Nature, 1992, 355, 242–244.
36. C. L. Pollock, K. J. Fox, S. D. Lacroix, J. McDonagh, P. C. Marr, A. M. Nethercott, A. Pennycook, S. Qian, L. Robinson, G. C. Saunders and A. C. Marr, Dalton Trans., 2012, 41, 13423–13428.
37. M. Prokopowicz, Drug Delivery, 2007, 3, 129–138.
38. C. Shende, A. Kabir, E. Townsend and A. Malik, Anal. Chem., 2003, 75, 3518–3530.
39. P. Lesot, S. Chapuis, J. P. Bayle, J. Rault, E. Lafontaine, A. Campero and P. Judeinstein, J. Mater. Chem., 1998, 8, 147–151.
40. D. Stauffer and A. Aharony, Introduction to Percolation Theory, CRC Press, 1994.
41. L. L. Hench and J. K. West, Chem. Rev., 1990, 90, 33–72.
42. P. Pfeifer and D. Avnir, J. Chem. Phys., 1983, 79, 3558.
43. Theory of the Stability of Lyophobic Colloids - The Interaction of Soil Particles Having an Electrical Double Layer, ed. E. J. W. Verwey, J. T. G. Overbeek and K. Van Ness, Elsevier, 1948.
44. J. R. Stokes and W. J. Frith, Soft Matter, 2008, 4, 1133–1140.
45. C. J. Brinker and G. W. Scherer, Sol–Gel Science: The Physics and Chemistry of Sol–Gel Processing, Academic Press, Boston, 1990.
46. R. D. Rogers and K. Seddon, Science, 2003, 302, 792–793.
47. R. A. Sheldon, R. M. Lau, M. J. Sorgedrager, F. Van Rantwijk and K. R. Seddon, Green Chem., 2002, 4, 147–151.
48. F. Van Rantwijk and R. A. Sheldon, Chem. Rev., 2007, 107, 2757–2785.
49. B. F. Gilmore, G. P. Andrews, G. Borberly, M. J. Earle, M. A. Gilea, S. P. Gorman, A. F. Lowry, M. McLaughlin and K. R. Seddon, New J. Chem., 2013, 37, 873–876.
50. J. H. Davis, K. J. Forrester and T. Merrigan, Tetrahedron Lett., 1998, 39, 8955–8958.
51. E. B. Carter, S. L. Culver, P. A. Fox, R. D. Goode, I. Ntai, M. D. Tickell, R. K. Traylor, N. W. Hoffman and J. H. Davis, Chem. Commun., 2004, 630–631.
52. H. D. Williams, Y. Sahbaz, L. Ford, T. Nguyen, P. J. Scammells and C. J. H. Porter, Chem. Commun., 2014, 50, 1688–1690.
53. A. Romero, A. Santos, J. Tojo and A. Rodriguez, J. Hazard. Mater., 2008, 151, 268–273.
54. E. D. Bates, R. D. Mayton, I. Ntai and J. H. Davis Jr., J. Am. Chem. Soc., 2002, 124, 926–927.
55. M. Ramdin, T. W. de Loos and T. J. H. Vlugt, Ind. Eng. Chem. Res., 2012, 51, 8149–8177.
56. M. Smiglak, J. M. Pringle, X. Lu, L. Han, S. Zhang, H. Gao, D. R. MacFarlane and R. D. Rogers, Chem. Commun., 2014, 50, 9228–9250.
57. A. E. Visser, R. P. Swatloski, W. M. Reichert, R. Mayton, S. Sheff, A. Wierzbicki, J. H. Davis Jr. and R. D. Rogers, Chem. Commun., 2001, 135–136.
58. T. Vander Hoogerstraete, S. Wellens, K. Verachtert and K. Binnemans, Green Chem., 2013, 15, 919–927.
59. A. P. Abbott, G. Frisch, J. Hartley and K. S. Ryder, Green Chem., 2011, 13, 471–481.
60. P. Nockemann, B. Thijs, S. Pittois, J. Thoen, C. Glorieux, K. Van Hecke, L. Van, L. Meervelt, B. Kirchner and K. Binnemans, J. Phys. Chem. B, 2006, 110, 20978–20992.
61. A. E. Visser, R. P. Swatloski, W. M. Reichert, R. Mayton, S. Sheff, A. Wierzbicki, J. H. Davis Jr. and R. D. Rogers, Environ. Sci. Technol., 2002, 36, 2523–2529.
62. T. P. T. Pham, C.-W. Cho and Y.-S. Yun, Water Res., 2010, 44, 352–372.
63. N. Gathergood, M. T. Garcia and P. J. Scammells, Green Chem., 2004, 6, 166–175.
64. M. T. Garcia, N. Gathergood and P. J. Scammells, Green Chem., 2005, 7, 9–14.
65. N. Gathergood, P. J. Scammells and M. T. Garcia, Green Chem., 2006, 8, 156–160.
66. H. Ohno and K. Fukumoto, Acc. Chem. Res., 2007, 40(11), 1122–1129.
67. N. Ferlin, M. Courty, S. Gatard, M. Spulak, B. Quilty, I. Beadham, M. Ghavre, A. Haiß, K. Kümmerer, N. Gathergood and S. Bouquillon, Tetrahedron, 2013, 69, 6150–6161.
68. T. Welton, Chem. Rev., 1999, 99, 2071–2084.
69. P. Wasserscheid and W. Keim, Angew. Chem., Int. Ed., 2000, 39(21), 3772–3789.
70. C. Hardacre and V. Parvulescu, Catalysis in ionic liquids, RSC catalysis series, Royal society of chemistry, 2014.
71. M. Armand, F. Endres, D. R. MacFarlane, H. Ohno and B. Scrosati, Nat. Mater., 2009, 8, 621–629.
72. M. C. Buzzero, R. G. Evans and R. G. Compton, ChemPhysChem, 2004, 5, 1106–1120.
73. H. Q. N. Gunaratne, P. Nockemann and K. R. Seddon, Chem. Commun., 2015, 51, 4455–4457.
74. M. Earle and K. R. Seddon, Pure Appl. Chem., 2000, 72, 1391–1398.
75. N. V. Plechkova and K. R. Seddon, Chem. Soc. Rev., 2008, 37, 123–150.
76. A. Mahpuzah, M. P. Atkins, A. Hassan, J. D. Holbrey, Y. Kuah, P. Nokemann, A. A. Oliferenko, N. V. Plechkova, S. Rafeen, A. A. Rahman, R. Ramli, S. M. Shariff, K. R. Seddon, G. Srinivasan and Y. Zou, Dalton Trans., 2015, 44, 8617–8624.
77. S. J. Craythorne, K. Anderson, F. Lorenzini, C. McCausland, E. F. Smith, P. Licence, A. C. Marr and P. C. Marr, Chem. – Eur. J., 2009, 15, 7094–7100.
78. C. Iacob, J. R. Sangoro, W. K. Kipnusu, R. Valiullin, J. Kärger and F. Kremer, Soft Matter, 2012, 8, 289–293.
79. R. Atkin and G. G. Warr, J. Phys. Chem. C, 2007, 111, 5162–5168.
80. S. Perkin, Phys. Chem. Chem. Phys., 2012, 14, 5052–5062.
81. R. C. Evans and P. C. Marr, Chem. Commun., 2012, 48, 3742–3744.
82. Y. Zhou, J. H. Schattka and M. Antonietti, Nano Lett., 2004, 4, 477–481.
83. J. Le Bideau, P. Gaveau, S. Bellayer, M. A. Néouze and A. Vioux, Phys. Chem. Chem. Phys., 2007, 9, 5419–5422.
84. G. Xie, J. Luo, D. Guo and S. Liu, Appl. Phys. Lett., 2010, 96, 043112–043123.
85. C. Iacob, J. R. Sangoro, W. K. Kipnusu, R. Valiullin, J. Karger and F. Kremer, Soft Matter, 2012, 8, 289–293.
86. C. Li, X. Guo, Y. He, Z. Jiang, Y. Wang, S. Chen, H. Fu, Y. Zou, S. Dai, G. Wu and H. Xu, RSC Adv., 2013, 3, 9618–9621.
87. M. A. Firestone, J. A. Dzielawa, P. Zapol, L. A. Curtiss, S. Seifert and M. L. Dietz, Langmuir, 2002, 18, 7258–7260.
88. C. Tourne-Peteilh, B. Cosne, M. In, D. Brevet, J.-M. Devoisselle and A. Vioux, Langmuir, 2014, 30, 1229–1238.
89. R. Hayes, G. G. Warr and R. Atkin, Chem. Rev., 2015, 115, 6357–6426.
90. G. Ori, F. Villemot, L. Viau, A. Vioux and B. Coasne, Mol. Phys., 2014, 112, 1350–1361.
91. R. Göbel, R. J. White, M. M. Titirici and A. Taubert, Phys. Chem. Chem. Phys., 2012, 14, 5992–5997.
92. M. Neouze, J. Le Bideau, P. Gaveau, S. Bellayer and A. Vioux, Chem. Mater., 2006, 18(17), 3931–3936.
93. Molten Salts and Ionic Liquids: Never the Twain?, ed. M. G. Escard and K. R. Seddon, John Wiley and sons, 2010.
94. Molten Salts Chemistry and Technology, ed. M. G. Escard and G. M. Haarberg, John Wiley & Sons, 2014.
95. E. L. Smith, A. P. Abbott and K. S. Ryder, Chem. Rev., 2014, 114, 11060–11082.
96. D. Carriazo, M. C. Serrano, M. C. Gutierrez, M. L. Ferrer and F. del Monte, Chem. Soc. Rev., 2012, 41, 4996–5014.
97. H. Ohno, Electrochemical Aspects of Ionic Liquids, John Wiley & Sons, 2011.
98. J. Le Bideau, L. Viau and A. Vioux, Chem. Soc. Rev., 2011, 40, 907–925.
99. M.-A. Néouse, J. Le Bideau, F. Leroux and A. Vioux, Chem. Commun., 2005, 1082–1084.
100. A. Kavanagh, R. Byrne, D. Diamond and K. J. Fraser, Membranes, 2012, 2, 16–39.
101. N. Kimizuka and T. Nakashima, Langmuir, 2001, 17, 6759–6761.
102. R. Göbel, R. J. White, M. M. Titirici and A. Taubert, Phys. Chem. Chem. Phys., 2012, 14, 5992.
103. S. Thiemann, S. J. Sachnov, M. Gruber, F. Gannott, S. Spieker, P. Wasserscheid and J. Zaumseil, J. Mater. Chem. C, 2014, 2, 2423–2430.
104. H. Yiyong, P. G. Boswell, P. Buhlmann and T. P. Lodge, J. Phys. Chem. B, 2007, 111, 4645–4652.
105. M. A. B. H. Susan, T. Kaneko, A. Noda and M. Watanabe, J. Am. Chem. Soc., 2005, 127(13), 4976–4983.
106. K. Ueno, K. Hata, T. Katakabe, M. Kondoh and M. Watanabe, J. Phys. Chem. B, 2008, 112, 9013–9019.
107. W. Kubo, S. Kambe, S. Nakade, T. Kitamura, K. Hanabusa, Y. Wada and S. Yanagida, J. Phys. Chem. B, 2003, 107, 4374–4381.
108. F. Shi, Q. Zhang, D. Li and Y. Deng, Chem. – Eur. J., 2005, 11, 5279–5288.
109. R. Goebel, P. Hesemann, J. Weber, E. Moeller, A. Friedrich, S. Beuermann and A. Taubert, Phys. Chem. Chem. Phys., 2009, 11, 3653–3662.
110. F. Shi and Y. Deng, Spectrochim. Acta, Part A, 2005, 62, 239–244.
111. N. M. T. Lourenço, A. V. M. Nunes, C. M. M. Duarte and P. Vidinha, Ionic Liquids Gelation with Polymeric Materials: The Ion Jelly Approach in Applications of Ionic Liquids in Science and Technology, ed. S. Handy, InTech, 2011.
112. P. Vidinha, N. M. T. Lourenco, C. Pinheiro, A. R. Bras, T. Carvalho, T. Santos-Silva, A. Mukhopadhyay, M. J. Romao, J. Parola, M. Dionisio, J. M. S. Cabral, C. A. M. Afonso and S. Barreiros, Chem. Commun., 2008, 5842–5844.
113. T. Fukushima, A. Kosaka, Y. Ishimura, T. Yamamoto, T. Takigawa, N. Ishii and T. Aida, Science, 2003, 300, 2072–2074.
114. M. Tunckol, J. Durand and P. Serp, Carbon, 2012, 50, 4303–4334.
115. H. Ohno, M. Yoshizawa and W. Ogihara, Electrochim. Acta, 2003, 2079–2083.
116. D. Carriazo, M. C. Gutierrez, M. L. Ferrer and F. del Monte, Chem. Mater., 2010, 22, 6146–6152.
117. M. C. Gutierrez, F. Rubio and F. del Monte, Chem. Mater., 2010, 22, 2711–2719.
118. W. Ogihara, J. Sun, M. Forsyth, D. R. MacFarlane, M. Yoshizawa and H. Ohno, Electrochim. Acta, 2004, 1797–1801.
119. H. S. Park, I. T. Kim, H. Y. Kim, S. K. Ryu and J. H. Kim, Environ. Sci. Technol., 2007, 15, 345–351.
120. J. Fuller, A. C. Breda and R. T. Carlin, J. Electrochem. Soc., 1997, 144(4), L67–L70.
121. A. Noda and M. Watanabe, Electrochim. Acta, 2000, 45, 1265–1270.
122. R. T. Carlin and J. Fuller, Chem. Commun., 1997, 1345–1346.
123. H. Nakagawa, S. Izuchi, K. Kuwana, T. Nukuda and Y. Aihara, J. Electrochem. Soc., 2003, 150, 6A695–6A700.
124. T. Ueki, Y. Nakamura, R. Usui, Y. Kitazawa, S. So, T. P. Lodge and M. Watanabe, Angew. Chem., Int. Ed., 2015, 127, 3061–3065.
125. Y. Zhang, X. Fan, Z. Shen and Q. Zhou, Macromolecules, 2015, 48, 4927–4935.
126. B. Ziółkowski, K. Bleek, B. Twamley, K. J. Fraser, R. Byrne, D. Diamond and A. Taubert, Eur. J. Inorg. Chem., 2012, 32, 5245–5251.
127. K. Prasad, M. Murakami, Y. Kaneko, A. Takada, Y. Nakamura and J. Kadokawa, Int. J. Biol. Macromol., 2009, 45, 221–225.
128. A. Takegawa, M. Murakami, Y. Kaneko and J. Kadokawa, Carbohydr. Polym., 2010, 79, 85–90.
129. T. Singh, T. J. Trivedi and A. Kumar, Green Chem., 2010, 12, 1029–1035.
130. R. Leones, F. Sentanin, L. C. Rodrigues, R. A. S. Ferreira, I. M. Marrucho, J. M. S. S. Esperança, A. Pawlicka, L. D. Carlos and M. Manuela Silva, Opt. Mater., 2012, 35, 187–195.
131. S. Dai, Y. H. Ju, H. J. Gao, J. S. Lin, S. J. Pennycook and C. E. Barnes, Chem. Commun., 2000, 243–244.
132. K. Anderson, S. C. Fernandez, C. Hardacre and P. C. Marr, Inorg. Chem. Commun., 2004, 7, 73–76.
133. C. J. Adams, A. E. Bradley and K. R. Seddon, Aust. J. Chem., 2001, 54, 679–681.
134. E. R. Cooper, C. D. Andrews, P. S. Wheatley, P. B. Webb, P. Wormald and R. E. Morris, Nature, 2004, 430, 1012–1016.
135. E. R. Parnham, E. A. Drylie, P. S. Wheatley, A. M. Z. Slawin and R. E. Morris, Angew. Chem., Int. Ed., 2006, 45, 4962–4966.
136. L. Viau, M.-A. Neouze, C. Biolley, S. Volland, D. Brevet, P. Gaveau, P. Dieudonne, A. Galarneau and A. Vioux, Chem. Mater., 2012, 24, 3128–3134.
137. B. Coasne, L. Viau and A. Vioux, J. Phys. Chem. Lett., 2011, 2, 1150–1154.
138. S. Bellayer, L. Viau, Z. Tebby, T. Toupance, J. Le Bideau and A. Vioux, Dalton Trans., 2009, 1307–1313.
139. K. Ueno and M. Watanabe, Silica Colloidal Suspensions in Ionic Liquids: Colloidal Stability and Fabrication of Ion Gels on the basis of Colloidal Self-Assembly in Ionic Liquids in From Knowledge to Application Ionic Liquids: From Knowledge to Application, ed. N. V. Plechkova, R. D. Rogers and K. R. Seddon, ACS Symposium Series, 2009, vol. 1030.
140. S. Shimano, H. Zhou and I. Honma, Chem. Mater., 2007, 19, 5216–5221.
141. W. U.-H. Lee, T. Kudo and I. Honma, Chem. Commun., 2009, 3068–3070.
142. E. Stathatos, P. Lianos, U. Lavrencic-Stangar and B. Orel, Adv. Mater., 2002, 14, 354–357.
143. E. Stathatos, P. Lianos, S. M. Zakeeruddin, P. Liska and M. Grätzel, Chem. Mater., 2003, 15, 1825–1829.
144. A. I. Horowitz and M. J. Panzer, Angew. Chem., Int. Ed., 2014, 53, 9780–9783.
145. S. Srinivasan, W. H. Shin, J. W. Choi and A. Coskun, J. Mater. Chem. A, 2013, 1, 43–48.
146. K. Z. Donato, R. K. Donato, M. Lavorgna, L. Ambrosio, L. Matejka, R. S. Mauler and H. S. Schrekker, J. Sol–Gel Sci. Technol., 2015, 76, 414–427.
147. A. Ikeda, K. Sonoda, M. Ayabe, S. Tamaru, T. Nakashima, N. Kimizuka and S. Shinkai, Chem. Lett., 2001, 30, 1154–1155.
148. L. Tao, Z. Huo, X. Pan, C. Zhang and S. Dai, Prog. Chem., 2013, 25, 990–998.
149. W. Kubo, S. Kambe, S. Nakade, T. Kitamura, K. Hanabusa, Y. Wada and S. Yanagida, J. Phys. Chem. B, 2003, 107, 4374–4381.
150. K. Hanabusa, H. Fukui, M. Suzuki and H. Shirai, Langmuir, 2005, 21, 10383–10390.
151. B. A. Voss, J. E. Bara, D. L. Gin and R. D. Noble, Chem. Mater., 2009, 21, 3027–3029.
152. L. Tan, X. Dong, H. Wang and Y. Yang, Electrochem. Commun., 2009, 11, 933–936.
153. S. Yamasaki and H. Tsutsumi, Bull. Chem. Soc. Jpn., 1994, 67, 906–911.
154. N. Mohmeyer, P. Wang, H.-W. Schmidt, S. M. Zakeeruddin and M. Grätzel, J. Mater. Chem., 2004, 14, 1905–1909.
155. L. Tao, Z. Huo, Y. Ding, L. Wang, J. Zhu, C. Zhang, X. Pan, M. K. Nazeeruddin, S. Dai and M. Grätzel, J. Mater. Chem. A, 2014, 2, 9251–9259.
156. L. Tao, Z. Huo, Yo Ding, Y. Li, S. Dai, L. Wang, J. Zhu, X. Pan, B. Zhang, J. Yao, M. K. Nazeeruddin and M. Grätzel, J. Mater. Chem. A, 2015, 3, 2344–2352.
157. L. Tao, Z. Huo, X. Pan, C. Zhang and S. Dai, Prog. Chem., 2013, 25, 990–998.
158. F. Fages, Angew. Chem., Int. Ed., 2006, 45, 1680–1682.
159. T. Tu, X. Bao, W. Assenmacher, H. Peterlik, J. Daniels and K. H. Dötz, Chem. – Eur. J., 2009, 15, 1853–1861.
160. J. Majumder, J. Deb, M. R. Das, S. S. Jana and P. Dastidar, Chem. Commun., 2014, 50, 1671–1674.
161. F. D'Anna, P. Vitale, F. Ferrante, S. Marullo and R. Noto, ChemPlusChem, 2013, 78, 331–342.
162. Y. Xiong, J. Liu, Y. Wang, H. Wang and R. Wang, Angew. Chem., Int. Ed., 2012, 51, 9114–9118.
163. B. Ziolkowski and D. Diamond, Chem. Commun., 2013, 49, 10308–10310.
164. S. Gallagher, L. Florea, K. J. Fraser and D. Diamond, Int. J. Mol. Sci., 2014, 15, 5337–5349.
165. G. B. Appetecchi, G.-T. Kim, M. Montanino, M. Carewska, R. Marcilla, D. Mecerreyes and I. De Meatza, J. Power Sources, 2010, 195, 3668–3675.
166. T. L. Greaves and C. J. Drummond, Chem. Soc. Rev., 2008, 37, 1709–1726.
167. C. P. Mehnert, Chem. – Eur. J., 2005, 11, 50–56.
168. A. Riisager, R. Fehrmann, M. Haumann and P. Wasserscheid, Eur. J. Inorg. Chem., 2006, 695–706.
169. P. Wasserscheid, J. Ind. Eng. Chem., 2007, 13, 325–338.
170. H. Olivier-Bourbigou, L. Magna and D. Morvan, Appl. Catal., A, 2010, 373, 1–56.
171. C. Van Doorslaer, J. Wahlen, P. Mertens, K. Binnemans and D. De Vos, Dalton Trans., 2010, 39, 8377–8390.
172. A. M. Kluwer, C. Simons, Q. Knijnenburg, J. I. van der Vlugt, B. de Bruinc and J. N. H. Reek, Dalton Trans., 2013, 42, 3609–3616.
173. P. Zhang, T. Wu and B. Han, Adv. Mater., 2014, 26, 6810–6827.
174. J. Blum, D. Avnir and H. Schumann, CHEMTECH, 1999, 29, 32–38.
175. A. C. Marr and P. C. Marr, Dalton Trans., 2011, 40, 20–26.
176. K. S. Morley, P. C. Marr, P. B. Webb, A. R. Berry, F. J. Allison, G. Moldovan, P. D. Brown and S. M. Howdle, J. Mater. Chem., 2002, 12, 1898–1905.
177. K. S. Morley, P. Licence, P. C. Marr, J. R. Hyde, P. D. Brown, R. Mokaya, Y. D. Xia and S. M. Howdle, J. Mater. Chem., 2004, 14, 1212–1217.
178. N. A. Hamill, C. Hardacre and S. E. J. McMath, Green Chem., 2002, 4, 139–142.
179. M. A. Gelesky, S. S. X. Chiaro, F. A. Pavan, J. H. Z. dos Santos and J. Dupont, Dalton Trans., 2007, 5549–5553.
180. L. Foppa, J. Dupont and C. W. Scheeren, RSC Adv., 2014, 4, 16583–16588.
181. Y. Ma, B. Liu, Y. Zhang and J. Li, Int. J. Hydrogen Energy, 2015, 40, 9147–9154.
182. X. Kang, J. Zhang, W. Shang, T. Wu, P. Zhang, B. Han, Z. Wu, G. Mo and X. Xing, J. Am. Chem. Soc., 2014, 136, 3768–3771.
183. A. Safavi and A. R. Banazadeh, Electroanalysis, 2011, 23, 1536–1542.
184. S. J. Craythorne, A. R. Crozier, F. Lorenzini, A. C. Marr and P. C. Marr, J. Organomet. Chem., 2005, 690, 3518–3521.
185. H. Sertchook, D. Avnir, J. Blum, F. Joó, A. Kathó, H. Schumann, R. Weimann and S. Wernick, J. Mol. Catal. A: Chem., 1996, 108, 153.
186. F. Shi, Q. Zhang, Y. Gu and Y. Deng, Adv. Synth. Catal., 2005, 347, 225–230.
187. K. Hamza and J. Blum, Eur. J. Org. Chem., 2007, 4706–4710.
188. S. Volland, M. Gruit, T. Régnier, L. Viau, O. Lavastre and A. Vioux, New J. Chem., 2009, 33, 2015–2021.
189. R. Ciriminna, P. Hesemann, J. J. E. Moreau, M. Carraro, S. Campestrini and M. Pagliaro, Chem. – Eur. J., 2006, 12, 5220–5224.
190. L. Liu, J. Ma, J. Xia, L. Li, C. Li, X. Zhang, J. Gong and Z. Tong, Catal. Commun., 2011, 12, 323–326.
191. D. Li, F. Shi, S. Guo and Y. Deng, Tetrahedron Lett., 2004, 45, 265–268.
192. J. Miao, H. Wan and G. Guan, Catal. Commun., 2011, 12, 353–356.
193. M. Erbeldinger, A. J. Mesiano and A. J. Russel, Biotechnol. Prog., 2000, 16, 1129–1131.
194. J. Miao, H. Wan, Y. Shao, G. Guan and B. Xu, J. Mol. Catal. A: Chem., 2011, 348, 77–82.
195. W. Ma, W. Wang, Z. Liang, S. Hu, R. Shen and C. Wu, Kinet. Catal., 2014, 55, 665–670.
196. K. Funabiki, T. Komeda, Y. Sakaida, Y. Kubota and M. Matsui, J. Mol. Catal. A: Chem., 2013, 367, 116–120.
197. Y.-M. Wang, V. Ulrich, G. F. Donnelly, F. Lorenzini, A. C. Marr and P. C. Marr, ACS Sustainable Chem. Eng., 2015, 3, 792–796.
198. A. I. Horowitz, Y. Wang and M. J. Panzer, Green Chem., 2013, 15, 3414–3420.
199. R. M. Lau, F. van Rantwijk, K. R. Seddon and R. A. Sheldon, Org. Lett., 2000, 2, 4189–4191.
200. P. Lozano, T. De Diego, J. P. Guegan, M. Vaultier and J. L. Iborra, Biotechnol. Bioeng., 2001, 75, 563–569.
201. K. W. Kim, B. Song, M. Y. Choi and M. J. Kim, Org. Lett., 2001, 3, 1507–1509.
202. J. K. Lee and M. J. Kim, J. Org. Chem., 2002, 67, 6845–6847.
203. S. Braun, S. Rappoport, R. Zusman, D. Avnir and M. Ottolenghi, Mater. Lett., 1990, 10, 1–5.
204. Y. Liu, M. Wang, J. Li, Z. Li, P. He, H. Liu and J. Li, Chem. Commun., 2005, 1778–1780.
205. S. H. Lee, T. T. N. Doan, S. H. Ha and Y.-M. Koo, J. Mol. Catal. B: Enzym., 2007, 45, 57–61.
206. S. H. Lee, T. T. N. Doan, S. H. Ha, W.-J. Chang and Y.-M. Koo, J. Mol. Catal. B: Enzym., 2007, 47, 129–134.
207. H. Vila-Real, A. J. Alfaia, J. N. Rosa, P. M. P. Gois, M. E. Rosa, A. R. T. Calado and M. H. Ribeiro, Activity and stability studies, J. Biotechnol., 2011, 152, 147–158.
208. R. L. de Souza, E. L. P. de Faria, R. T. Figueiredo, L. dos S. Freitas, M. Iglesias, S. Mattedic, G. M. Zanin, O. A. A. dos Santos, J. A. P. Coutinho, Á. S. Lima and C. M. F. Soares, Enzyme Microb. Technol., 2013, 52, 141–150.
209. D. R. MacFarlane, N. Tachikawa, M. Forsyth, J. M. Pringle, P. C. Howlett, G. D. Elliott, J. H. Davis, M. Watanabe, P. Simon and C. A. Angell, Energy Environ. Sci., 2014, 7, 232–250.
210. D. W. Bruce, D. O'Hare and R. I. Walton, Inorganic Materials Series, John Wiley & Sons, 2011.
211. P. Simon and Y. Gogotsi, Nat. Mater., 2008, 7, 845–854.
212. A. Brandt, S. Pohlmann, A. Varzi, A. Balducci and S. Passerini, MRS Bull., 2013, 38, 554–559.
213. C. Buzzeo, R. G. Evans and R. G. Compton, ChemPhysChem, 2004, 5, 1106–1120.
214. A. A. J. Torriero, Electrochemistry in Ionic Liquids: Volume 1: Fundamentals, Springer, 2015.
215. P. V. Wright, Electrochim. Acta, 1998, 43, 1137–1143.
216. M. B. Armand, J. M. Chabagno, M. Duclot, P. Vashisha, J. N. Mundy and G. K. Shenoy, Fast Ion Transport in Solids, North Holland, 1979.
217. F. M. Gray, Solid Polymer Electrolytes-Fundamentals and Technological Applications, VCH, New York, 1991.
218. J. R. MacCallum and C. A. Vincent, Polymer Electrolyte Reviews-1, Elsevier, London, 1987.
219. J. R. MacCallum and C. A. Vincent, Polymer Electrolyte Reviews-2, Elsevier, London, 1989.
220. D. F. Shriver and P. G. Bruce, in Solid State Electrochemistry, ed. P. G. Bruce, Cambridge Univ. Press, Cambridge, 1995.
221. P. G. Bruce and F. M. Gray, in Solid State Electrochemistry, ed. P. G. Bruce, Cambridge Univ. Press, Cambridge, 1995.
222. M. Ishikawa, M. Morita and Y. Matsuda, The Electrochemical Society Meeting Abstracts, San Antonio, TX, 1996, vol. 96–2.
223. A. Hofmann, M. Schulz and T. Hanemann, Electrochim. Acta, 2013, 89, 823–831.
224. A. Liao, X. Sun and S. Dai, Electrochim. Acta, 2013, 87, 889–894.
225. A. F. Visentin and M. J. Panzer, ACS Appl. Mater. Interfaces, 2012, 4, 2836–2839.
226. A. S. Shaplov, R. Marcilla and D. Mecerreyes, Electrochim. Acta, 2015, 175, 18–34.
227. M. Salsamendi, L. Rubatat and D. Mecerreyes, in Electrochemistry in Ionic Liquids: Volume 1: Fundamentals, ed. Angel A. J. Torriero, Springer, 2015.
228. H. Nakajima and H. Ohno, Polymer, 2005, 46, 11499–11504.
229. S. Jeremias, M. Kunze, S. Passerini and M. Schönhoff, J. Phys. Chem. B, 2013, 117, 10596–10602.
230. J. Gao, R. S. Ndong, M. B. Shiflett and N. J. Wagner, ACS Nano, 2015, 9, 3243–3252.
231. K. Ueno, S. Imaizumi, K. Hata and M. Watanabe, Langmuir, 2009, 25, 825–831.
232. K. Ueno and M. Watanabe, Langmuir, 2011, 27, 9105–9115.
233. T. Mizumo, T. Watanabe and H. Ohno, Polym. J., 2008, 40, 1099–1104.
234. S. A. M. Noora, P. M. Bayley, M. Forsyth and D. R. MacFarlane, Electrochim. Acta, 2013, 91, 219–226.
235. M. Armand, C. Poinsignon, J.-Y. Sanchez and V. de Zea Bermudez, U.S. Patent, 5283310, 1994.
236. V. de Zea Bermudez, C. Poinsignon and M. B. Armand, J. Mater. Chem., 1997, 7, 1677–1692.
237. V. de Zea Bermudez, D. Baril, J.-Y. Sanchez, M. Armand and C. Poinsignon, in Proc. SPIE, ed. A. Hugot-Le Goff, C.-G. Granqvist and C. M. Lampert, Bellingham, Washington, 1992, vol. 1728, pp. 180–182.
238. M. A. Cardoso, M. Fernandes, L. C. Rodrigues, R. Leones, M. M. Silva and V. de Zea Bermudez, Electrochim. Acta, 2014, 147, 288–293.
239. F. Gayet, L. Viau, F. Leroux, S. Monge, J.-J. Robin and A. Vioux, J. Mater. Chem., 2010, 20, 9456–9462.
240. A. Maršavelski, V. Smrečki, R. Vianello, M. Žinić, A. Mogus-Milankovič and A. Šantić, Chem. – Eur. J., 2015, 21, 12121–12128.
241. M. Díaz, A. Ortiz and I. Ortiz, J. Membr. Sci., 2014, 469, 379–396.
242. T. Yasuda and M. Watanabe, MRS Bull., 2013, 38, 560–566.
243. M. A. B. H. Susan, A. Noda, S. Mitsushima and M. Watanabe, Chem. Commun., 2003, 938–939.
244. G. Lakshminarayana and M. Nogami, Electrochim. Acta, 2010, 55, 1160–1168.
245. H. Li, F. Jiang, Z. Di and J. Gu, Electrochim. Acta, 2012, 59, 86–90.
246. L. Sun, X. Zhang, W. Wang and J. Chen, Anal. Methods, 2015, 7, 5060–5066.
247. B. O'Regan and M. Grätzel, Nature, 1991, 353, 737.
248. P. Wang, S. M. Zakeeruddin, I. Exnar and M. Grätzel, Chem. Commun., 2002, 2972–2973.
249. P. Wang, S. M. Zakeeruddin, P. Comte, I. Exnar and M. Grätzel, J. Am. Chem. Soc., 2003, 125, 1166–1167.
250. K. Tomioka, T. Sumiyoshi, S. Narui, Y. Nagaoka, A. Iida, Y. Miwa, T. Taga, M. Nakano and T. Handa, J. Am. Chem. Soc., 2001, 123, 11817–11818.
251. W. Lu, K. Henry, C. Turchi and J. Pellegrino, J. Electrochem. Soc., 2008, 55, A361–A367.
252. Y. J. Kang, H. Chung, C. Han and W. Kim, Nanotechnology, 2012, 23, 289501–289509.
253. A. I. Horowitz and M. J. Panzer, J. Mater. Chem., 2012, 22, 16534–16539.
254. L. Negre, B. Daffos, P. L. Taberna and P. Simon, J. Electrochem. Soc., 2015, 162(5), A5037–A5040.
255. H. Shirakawa, E. J. Louis, A. G. MacDiarmid, C. K. Chiang and A. J. Heeger, J. Chem. Soc., Chem. Commun., 1977, 578–580.
256. S. K. Deb, Appl. Opt., 1969, 8(S1), 192–195.
257. S. K. Deb, Philos. Mag., 1973, 27, 801.
258. L. B. Groenendaal, F. Jonas, D. Freitag, H. Pielartzik and J. R. Reynolds, Adv. Mater., 2000, 12, 481–494.
259. G. Li and P. G. Pickup, Phys. Chem. Chem. Phys., 2000, 2, 1255–1260.
260. S. L. Cho and S. B. Lee, Acc. Chem. Res., 2008, 41, 699–701.
261. S. Bhandari, M. Deepa, A. K. Srivastava, C. Lal and R. Kant, Macromol. Rapid Commun., 2008, 29, 1959–1964.
262. M. Deepa, A. Awadhia and S. Bhandari, Phys. Chem. Chem. Phys., 2009, 11, 5674–5685.
263. H. C. Moon, T. P. Lodge and C. D. Frisbie, Chem. Mater., 2015, 27, 1420–1425.
264. N. Cheminet, T. Jarrosson, J.-P. Lere-Porte, F. Serein-Spirau, L. Cury, J. Moreau, L. Viau and A. Vioux, J. Mater. Chem., 2011, 21, 13588.
265. K. Lunstroot, K. Driesen, P. Nockemann, C. Gorller-Walrand, K. Binnemans, S. Bellayer, J. Le Bideau and A. Vioux, Chem. Mater., 2006, 18, 5711–5715.
266. K. Lunstroot, K. Driesen, P. Nockemann, K. Van Hecke, L. Van Meervelt, C. Gorller-Walrand, K. Binnemans, S. Bellayer, L. Viau, J. Le Bideau and A. Vioux, Dalton Trans., 2009, 298–306.
267. P. Yu, J. Yan, H. Zhao, L. Su, J. Zhang and L. Mao, J. Phys. Chem. C, 2008, 112, 2177–2182.
268. L. Ding, L. Li, W. You, Z.-N. Gao and T.-L. Yang, Croat. Chem. Acta, 2015, 88, 81–87.
269. W.-L. Zhu, Y. Zhou and J. R. Zhang, Talanta, 2009, 80, 224–230.
270. R. Yan, F. Q. Zhao, J. W. Li, F. Xiao, S. S. Fan and B. Z. Zeng, Electrochim. Acta, 2007, 52, 7425–7431.
271. X. B. Lu, J. Q. Hu, X. Yao, Z. P. Wang and J. H. Li, Biomacromolecules, 2006, 7, 975–980.

---
