A comprehensive approach to investigate the structural and surface properties of activated carbons and related Pd-based catalysts

A. Lazzarini a, A. Piovano *b, R. Pellegrini c, G. Leofanti d, G. Agostini e, S. Rudić f, M. R. Chierotti a, R. Gobetto a, A. Battiato g, G. Spoto a, A. Zecchina a, C. Lamberti ah and E. Groppo *a
aDepartment of Chemistry, NIS Centre and INSTM, University of Turin, Via Giuria 7, Turin, I-10125, Italy. E-mail: elena.groppo@unito.it
bInstitut Laue-Langevin (ILL), 71 avenue des Martyrs, 38000 Grenoble, France. E-mail: piovano@ill.fr
cChimet SpA - Catalyst Division, Via di Pescaiola 74, Viciomaggio Arezzo, I-52041 Italy
dConsultant, Via Firenze 43, 20010 Canegrate, Milano, Italy
eEuropean Synchrotron Radiation Facility (ESRF), 71 avenue des Martyrs, 38000 Grenoble, France
fISIS Facility, Rutherford Appleton Laboratory, Chilton, Didcot, Oxfordshire OX11 0QX, UK
gDepartment of Physics, NIS Centre, University of Turin, Via Giuria 1, Turin, I-10125, Italy
hSouthern Federal University, Zorge street 5, 344090 Rostov-on-Don, Russia

Received 21st January 2016 , Accepted 22nd February 2016

First published on 23rd February 2016


Abstract

Activated carbons are widely used as supports for industrial catalysts based on metal nanoparticles. The catalytic performance of carbon-supported catalysts is strongly influenced by the carbon activation method. Notwithstanding this important role, the effect induced by different activation methods has been rarely investigated in detail. This work deals with two carbons of wood origin, activated either by steam or by phosphoric acid, and the corresponding catalysts based on supported Pd nanoparticles. We demonstrate that the catalysts perform in a different way in hydrogenation reactions depending on the nature of the carbon used as a support, being the palladium dispersion the same. We propose a multi-technique approach to fully characterize both carbons and catalysts at the micro- and nanoscale. In particular, we investigate how the activation procedure influences the texture (by N2 physisorption), the morphology (by Scanning Electron Microscopy), the structure (by Solid State Nuclear Magnetic Resonance, Raman spectroscopy and X-ray Diffraction) and the surface properties (by X-ray Photoelectron Spectroscopy, Diffuse Reflectance Infrared Spectroscopy and Inelastic Neutron Scattering) of carbons and of the related catalysts. The comprehensive characterization approach proposed in this work allows the rationalization, at least in part, of the role of activated carbons in enhancing the performance of a hydrogenation catalyst.


1. Introduction

Activated carbons are important modifications of carbon that find a wide use in the field of catalysis, where they are usually employed as supports for noble metal nanoparticles. They consist of carbonized bio-polymeric materials activated in a second step of the synthesis process.1–3 A large number of patents describe numerous ways to activate carbon from several natural sources, such as wood, peat or coconut shells.1–7 Activation is usually performed in the presence of steam or by adding phosphoric acid to the raw product, resulting in activated carbons having different properties in terms of porosity, structure at a micro- and nanoscale, and surface chemistry. All these three factors play a fundamental role in catalysis. The support may have a direct influence on the catalytic reaction because its surface is often active toward reactants and reaction products.8 In addition, the support may exhibit an indirect influence because its physical–chemical properties may affect the properties of the deposited metal nanoparticles (such as shape, size distribution and dispersion), their tendency to aggregate under catalytic conditions (i.e. resistance to sintering), and the accessibility of active sites to reactants.1–3,9–13

Pore size and pore volume are important factors for physical adsorption. Many works in the literature report detailed analysis of the porosity of carbons activated following different routes.5,7,14 It is now well established that in all cases a high specific surface area is obtained (up to 1500 m2 g−1) due to the oxidative generation of micropores of variable size and shape distribution. In the presence of phosphoric acid, a fraction of the additive is incorporated during carbonization into the carbon body and is subsequently removed by leaching; as a consequence, this procedure generally creates pores having a narrower pore size distribution with respect to those obtained by oxidation in steam.15 In terms of local structure, an activated carbon is usually described as composed of significant amounts of graphite-like (or sp2) species depending on the temperature of activation.16 Although all of them are characterized by the same predominant structural unit, activated carbons may differ in terms of their nano-structure, which means the connectivity of the sp2 domains from molecular dimensions up to a few nanometers. Finally, the surface chemistry of carbons plays a key role in specific adsorption and is relevant to all aspects of catalysis. The two most important hetero-elements are hydrogen and oxygen, each of which can undergo a variety of chemically different coordination geometries, creating a rich surface chemistry. Hydrogen is naturally present in activated carbons to terminate sp2 domains. In addition, it is well documented that a large number of oxygen functional groups are created during the activation process by the saturation of dangling bonds with oxygen.17,18

It is evident that activated carbons as catalyst supports (but also as catalysts on their own) offer incomparable flexibility in tailoring catalyst properties to specific needs. However, a comprehensive characterization of the structural and surface properties of activated carbons is fundamental to understanding their role in catalysis. Activated carbons have been widely investigated in the literature.1–3 Conflicting information is often found, along with highly fragmented results, mainly as a consequence of an uncritical use of different methodologies. Due to the intrinsic complexity of activated carbons, no single technique is able to give a complete picture of the overall properties of activated carbons; instead, a range of complementary characterization techniques is needed to characterise these materials at different dimension scales.

In this work we investigate in detail two activated carbons and the corresponding Pd/C catalysts. The two carbons originate from the same raw material (wood) but have been activated either by steam (CW) or by phosphoric acid (CChemi). At first, we explore the catalytic performance of Pd/C catalysts in hydrogenation reactions as a function of the activated carbon used as a support. Then, we systematically characterize the morphological, structural and surface properties of the two activated carbons and of the related catalysts by means of a multi-technique approach. In particular, we apply N2 physisorption to evaluate surface area and porosity, Scanning Electron Microscopy (SEM) to investigate the morphology at a micrometric scale, X-ray Powder Diffraction (XRPD), 1H and 13C Solid-State Nuclear Magnetic Resonance (SSNMR) and Raman Spectroscopy to determine the structural properties at the nanometric scale, X-ray Photoelectron Spectroscopy (XPS), Diffuse Reflectance Infrared Fourier-Transform (DRIFT) spectroscopy and Inelastic Neutron Scattering (INS) to investigate the surface properties. Although some of these techniques are commonly applied to investigate carbon-based materials, to the best of our knowledge this is the first time that such a large number of characterization techniques are simultaneously used to investigate the same activated carbons and related catalysts. In particular, to the best of our knowledge, no other work reports the synergic combination of Raman, DRIFT and INS spectroscopies to achieve a full vibrational characterization of carbon-based materials.

2. Experimental section

2.1 Materials

Two commercial grades of activated carbons, both having wood origin, were provided by Chimet S.p.A.19 CW is activated at high temperature in the presence of steam, whereas CChemi is activated at high temperature after impregnation with phosphoric acid.

Pd/C catalysts (metal loading of 5.0 wt%) were prepared in the Chimet Laboratories on CW and CChemi carbons, following the deposition–precipitation method as reported elsewhere.9 Na2PdCl4 was used as the palladium precursor and Na2CO3 as the basic agent. All the catalysts were water-washed until residual chlorides were removed and dried at 120 °C overnight. No metal was found in the solution after filtration (as determined by ICP). In some cases, pre-reduction was carried out before washing with formate at 65 °C for 1 h.20 Hereafter, Pd/CW and Pd/CChemi will be used to indicate the unreduced Pd-based catalysts prepared on CW and CChemi carbons, respectively. When a pre-reduction is performed, a label indicating the reducing agent is added. Thus, Pd/Cw(F) and Pd/CChemi(F) refer, respectively, to CW and CChemi supported palladium catalysts (5.0 wt% loading) reduced with formate.

2.2 Catalytic performance in hydrogenation reactions

The catalytic performance of the Pd/C catalysts was tested in a transfer hydrogenation21 and a debenzylation reaction.22 Transfer hydrogenation of resorcinol to 1,3-cyclohexanedione23 was carried out in a 300 cm3 glass reactor equipped with a double mantle for water circulation, a magnetic stirrer, a gas inlet and a reflux condenser. Water at the required temperature was circulated inside the reactor mantle by means of a circulation bath. The reactor was charged with 125 ml of water, 55.0 g of resorcinol and 44.2 g of sodium formate. The reaction mixture was heated to 40 °C while stirring and purging the reaction medium with nitrogen gas for 30 minutes. Then, 2.75 g of Pd/C catalyst were added and held for 3 hours. After that, the temperature was raised to 55 °C and maintained for 15 hours. Samples were withdrawn at 2, 3, and 18 hours and analysed by HPLC to determine conversion and selectivity.

Debenzylation of N-benzyl-N-ethylaniline to N-ethylaniline and toluene24 was carried out in a 500 cm3 autoclave equipped with a heating mantle, mechanical stirrer and gas regulation system able to perform the reaction at constant pressure. The autoclave was charged with 300 ml of ethanol, 150 g of N-benzyl-N-ethylaniline and 3.0 g of Pd/C catalyst. The autoclave was closed and purged first with nitrogen and then with hydrogen. Hydrogenation was performed at a temperature of 65 °C, a pressure of 3 bar and a stirring speed of 900 rpm. The automatic recording of the hydrogen consumption allowed plotting of the consumption curve and then the catalytic activity expressed in mmolH2min−1 gcat−1.

2.3 Methods

N2 physisorption. The surface area and pore volume of the carbons were measured by N2 physisorption at 77 K. Measurements were performed on a Micromeritics ASAP 2020 instrument. The adsorption isotherms were analysed according to the procedure described in ref. 9.
SEM. SEM images were collected at a voltage of 20 kV with a Zeiss EVO MA10 instrument equipped with a LaB6 filament. The samples were put on an Al stub covered with a double-layer adhesive disk. EDX analysis was performed with an OXFORD x-act detector using AZtecEnergy analysis software.
XRPD. X-ray powder diffraction patterns were collected with a PW3050/60 X'Pert PRO MPD diffractometer from PANalytical working in the Debye–Scherrer geometry, using as a source a Cu anode filtered by a Ni foil to attenuate the Kβ line and focused by a PW3152/63 X-ray mirror (λ = 1.5409 Å). The samples were measured as powders in a glass capillary. The average dimension (La) of the crystalline domains was obtained by applying the Scherrer equation, La = /βcos(θBragg), where λ is the wavelength of the Cu Kα radiation (1.541 Å), K is the shape factor (fixed to 0.9),25 and β is the FWHM (in 2θ, corrected by the instrumental broadening) of the (100) and (110) reflections.
SSNMR spectroscopy. SSNMR spectra were recorded on a Bruker Avance II 400 instrument operating at 400.23, 162.02 and 100.65 MHz for 1H, 31P and 13C nuclei, respectively. Cylindrical 4 mm diameter zirconia rotors with a sample volume of 80 μl were employed and spun at 12 kHz. All CPMAS experiments employed the Ramp-Amplitude Cross-Polarization pulse sequence (1H 90° pulse = 3.05 μs, contact time = 1.5 ms, relaxation delay 0.2 s) with the Two Pulse Phase Modulation 1H decoupling with an rf field of 75 kHz during the acquisition period. 1H MAS experiments were performed on a 2.5 mm probe. The rotors (12 μl volume) were spun at 32 kHz. A DEPTH sequence (π/2–π–π) for the suppression of the probe background signal was used. 1H, 13C and 31P chemical shifts were referenced with the resonance of adamantane (1H signal at 1.87 ppm), glycine (13C methylene signal at 43.86 ppm) and 85% phosphoric acid (31P signal at δ = 0 ppm) as external standards.
XPS spectroscopy. The XPS measurements were performed in an ultrahigh vacuum (10−7 Pa) system equipped with a VSW Class 100 Concentric Hemispherical Analyzer. The samples were mounted on a copper tape, opportunely degassed and transferred into the analysis chamber. A non-monochromatic Al Kα (VSW TA10) X-ray source of incident energy of 1486.6 eV was applied to generate core excitation. The energy step at the survey spectra was 1 eV, while the energy step at the C 1s spectra was 0.2 eV. Two different modes were employed in the XPS measurements: low resolution (fixed analyzer transmission at a pass energy of 44 eV, FAT 44) for survey spectra and high resolution (fixed analyzer transmission at a pass energy of 22 eV, FAT 22) for core line scans and quantitative surface composition.

The XPS analysis depth in the case of carbon matrix is about 10–15 nm. The spectra were analysed and processed with the use of Unifit2008© software. The background was approximated by a third-order polynomial function combined with the Shirley model for inelastic processes, and the detailed spectra were fitted with a convolution of Gaussian functions.

DRIFT spectroscopy. DRIFT spectra were collected on a Nicolet 6700 instrument equipped with a ThermoFisher Smart accessory and an MCT detector, at 4 cm−1 resolution and averaging 1024 scans. The measurements were performed on powdered samples in air without dilution in KBr. The spectra were collected in reflectance mode and successively converted in Kubelka–Munk units (K.M.).
Raman spectroscopy. Raman spectra were recorded by using a Renishaw inVia Raman microscope with an excitation λ = 514 nm. The laser power was fixed at 0.5% of the total after having checked the sample stability under the laser beam. The photons scattered by the sample were dispersed by a 1800 lines per mm grating monochromator and simultaneously collected on a CCD camera; the collection optic was set at 20× objective. The spectra were obtained by collecting 20 acquisitions (each of 50 s) on samples in the powder form. UV-Raman spectra were collected with a Renishaw Micro-Raman System 1000 equipped with a frequency doubled Ar+ laser operating at 244 nm. The laser power was adjusted to avoid carbon degradation. The photons scattered by the sample were dispersed by a 3600 lines per mm grating and simultaneously collected by a CCD detector; the collection optic was set at 15× objective. The spectra were obtained by collecting 10 acquisitions (each of 30 s) on samples in the powder form.
INS spectroscopy. The INS spectra were recorded using the TOSCA spectrometer at the ISIS spallation neutron source (Rutherford Appleton Laboratory, UK).26 The samples were previously treated in vacuum at 150 °C for a prolonged time in order to remove the physisorbed water. Subsequently, they were inserted in a thin aluminium envelope and then placed into In-wire sealed Al cells. All the manipulations were performed inside a glove-box to prevent contamination by moisture. Finally, the cell was inserted in a duplex CCR cryostat, and the measurements were performed at 20 K. Each INS spectrum was measured with a high statistic by integrating for 1500 μA of the proton current (the proton accelerator was working at about 150 μA per hour). The signals from detectors both in forward and in backward directions were extracted and combined using Mantid software,27 without any sign of degradation of the resolution. The beam size was 40 mm × 40 mm so that a representative macroscopic amount (7.706 g for CW and 7.650 g for CChemi) of samples was measured in each experiment. Since the intensity of the INS signal is proportional to the amount of the corresponding chemical species, the spectra were normalized on sample mass and incoming proton current values in order to allow a quantitative comparison among the samples.
CO chemisorption. The metal dispersion for Pd/C catalysts was evaluated by means of the CO chemisorption method. CO chemisorption measurements were performed at 50 °C using a dynamic pulse method on samples pre-reduced in H2 at 120 °C.28 In a typical experiment, the catalyst (200 mg) is loaded inside the U-tube, heated in He up to 120 °C (heating rate of 10 °C min−1), reduced in H2 for 30 min, and finally cooled to 50 °C in He (cooling rate of 10 °C min−1). A CO/metal average stoichiometry of 1 was assumed to calculate the metal dispersion, as widely documented.29,30

3. Results and discussion

3.1 Catalytic performance of Pd/C catalysts in hydrogenation reactions

The catalytic performance of the Pd/C catalysts in two selective hydrogenation reactions is summarized in Tables 1 and 2. The pre-reduced Pd/CW(F) and Pd/CChemi(F) catalysts were tested in the transfer hydrogenation of resorcinol to 1,3-cyclohexanedione using sodium formate as the hydrogen source (Chart 1 and Table 1). Although the two catalysts have a similar metal dispersion and display a similar conversion as a function of time, they give a different selectivity to 1,3-cyclohexanedione. In particular, Pd/CW(F) is more selective than Pd/CChemi(F), reaching almost 100% selectivity at full conversion.
Table 1 Catalytic performance of Pd/CW(F) and Pd/CChemi(F) catalysts in the hydrogenation of resorcinol with formate. Reaction conditions: T = 40–55 °C, 5 wt% catalyst loading. D (%) indicates the palladium dispersion as evaluated by the CO chemisorption method. Selectivity value is referred at 18 h
Catalyst D (%) Conversion (%) Selectivity (%)
2 h 3 h 18 h
Pd/CW(F) 28.1 30.8 40.2 96.2 98.82
Pd/CChemi(F) 26.3 29.4 38.1 96.8 85.16


Table 2 Catalytic performance of Pd/CW and Pd/CChemi catalysts in the debenzylation of N-benzyl-N-ethylaniline to give N-ethylaniline and toluene. Reaction conditions: T = 65 °C, P = 3 bar, 3 wt% catalyst loading. D (%) indicates the palladium dispersion as evaluated by the CO chemisorption method
Catalyst D (%) Activity (mmolH2min−1 gcat−1)
Pd/CW 23.5 14.6
Pd/CChemi 18.8 31.1



image file: c6cy00159a-c1.tif
Chart 1

The unreduced Pd/CW and Pd/CChemi catalysts were tested in the debenzylation of N-benzyl-N-ethylaniline to give N-ethylaniline and toluene (Chart 2 and Table 2). Also in this case the metal dispersion is quite similar for the two catalysts, but Pd/CChemi is much more active than Pd/CW.


image file: c6cy00159a-c2.tif
Chart 2

These data clearly demonstrate that the catalytic performance (in terms of both activity and selectivity) of Pd/C catalysts in hydrogenation reactions is strongly affected by the nature of the support, being the palladium dispersion similar in the two couples of catalysts. This is well known in industrial practice, but the reasons were never investigated in a systematic way. In most of the cases only the metal phase was characterized in detail, whereas very little attention was devoted to the investigation of the support properties, especially when dealing with carbons whose “black” nature makes the characterization techniques using IR, visible and near-UV photons not straightforwardly applicable.31–33

3.2 Chemical composition, morphology and porous texture of CW and CChemi

The average composition of CW and CChemi was determined by means of Electron Dispersive X-ray (EDX) analysis (Table S1) by averaging the measurements performed on five different carbon granules. Complementary information on the surface composition was obtained by XPS spectroscopy (Fig. S1, Tables S2 and S3). Both carbons contain a substantial amount of oxygen, which is at least in part contained in inorganic insoluble ashes. The ash content in the two carbons was quantitatively determined by calcination and resulted in 0.58 wt% for CW and 1.96 wt% for CChemi. Compositional analysis indicates that they are mainly composed of silico-aluminates. Accordingly, Si is detected by XPS in CChemi and hardly visible in CW. Phosphorus is also present in the inorganic ashes in CChemi (see below). The role of the inorganic ashes in affecting the catalysts' performance is expected to be marginal because of their very low concentration.

In addition, CChemi carbon contains a consistent amount of phosphorus, in agreement with recent literature reporting that activation with phosphoric acid not only develops porosity but also leads to the inclusion of a significant amount of phosphorus into the carbon structure.34–37 The nature and localization of the phosphorus contained in CChemi was clarified by 31P Cross-Polarization Magic Angle Spinning (CP-MAS) Solid-State Nuclear Magnetic Resonance (SSNMR) measurements and X-ray photoelectron spectroscopy. The 31P CPMAS NMR spectrum (Fig. S2) is characterized by two main signals centred around 1.3 and 14.1 ppm. The former is characteristic of phosphates, i.e. phosphorus bound to four oxygen atoms, likely contained in the inorganic ashes. On the contrary, the resonance at 14.1 ppm is attributed to phosphonates, i.e. organo-phosphorus compounds containing one P–C bond, revealing that at least a fraction of phosphorus has functionalized the carbon.34–37 Interestingly, XPS measurements (Fig. S1) do not reveal the presence of phosphorus, indicating that it is not localized at the surface of CChemi, and hence it is not relevant for catalysis. This is in contrast to the findings of Puziy et al.,37 which, however, are related to chemically activated carbons of different origin (polymer- and fruit-stone-based carbons).

Fig. 1 shows a few representative SEM picture of CW (a) and CChemi (b) carbons. In both cases, irregular micro-particles are observed, which resemble the peculiar structures of the pristine wood. In particular, reminiscence of the original vascular bundles and tracheids are clearly observed in CW (see inset in Fig. 1a), whereas they are hardly detectable for CChemi, which shows on average much smaller micro-particles. These morphological differences on a microscale are in good agreement with the average particle size as determined by light scattering, and reflect the harsher activation conditions for CChemi. It is expected that the different micro-structure has an influence on the macroscopic mechanical properties of the two carbons. Finally, the textural properties of the two carbons were investigated by means of N2 physisorption at 77 K. Fig. 1c shows the N2 physisorption isotherms collected at 77 K for CW and CChemi carbons. The activation process substantially affects the textural properties of carbons. The specific surface area is approximately 1000 m2 g−1 for the CW and 1500 m2 g−1 for CChemi, which also displays a significantly larger total pore volume.


image file: c6cy00159a-f1.tif
Fig. 1 Representative SEM images of CW (a) and CChemi (b). (c) N2 physisorption isotherms collected at 77 K for CW (grey) and CChemi (white).

3.3 Structural properties of CW and CChemi at a nanometric scale

3.3.1 XRPD measurements. The structure of the two carbons at a nanometric scale was evaluated at first by means of XRPD technique. The XRPD patterns of both carbons (Fig. 2, inset) do not show distinct sharp diffraction peaks, but only three very broad peaks can be distinguished, more intense for CW than for CChemi. These peaks resemble those typical of crystalline graphite and demonstrate that both carbons are characterized by small graphitic islands, in agreement with literature data.16,38–41 To better appreciate the differences among the two carbons, the background was subtracted from the original patterns (main part of Fig. 2). The first peak (centred around 2θ = 23°) corresponds to the (002) reflection of graphite, which is attributed to the stacking of the graphene layers.16,39,40 The other two peaks (centred around 2θ = 44° and 80°) correspond to the (100) and (111) reflections originating from the in-plane structure of graphitic crystallites.16,39,40 Narrower peaks correspond to crystallites having a larger lateral dimension. These peaks are narrower in the diffraction pattern of CW, suggesting that on average the sp2 islands are larger in CW than in CChemi.
image file: c6cy00159a-f2.tif
Fig. 2 XRPD patterns of CW (grey) and CChemi (black) carbons after subtraction of the background and assignment of the main peaks (λ = 1.5409 Å). The inset shows the patterns as collected.

The lateral size (La) of the sp2-ordered crystallites has been estimated from the width of the (100) and (111) peaks by using the Scherrer equation, resulting in La = 16.5 ± 0.5 Å for CW and La = 12.5 ± 0.5 Å for CChemi. However, it should be noted that several discrepancies are reported in the literature on the exact determination of the average crystallite size according to the different methods of peak profile evaluation and also that defects and strain within the carbon lattice would contribute to the diffraction broadening.16,42–44 For the present discussion, it is sufficient to note that the activation procedure influences the in-plane dimension of the graphitic domains in carbons. In particular, CW is characterized, on average, by sp2 crystallites larger than CChemi, but in both cases the lateral size of regular sp2 islands is smaller than 2 nm. It is worth noting that the presence of defects (such as heteroatoms) is sufficient to remove the aromaticity and hence to disrupt the regularity of the sp2 domains.

3.3.2 1H and 13C SSNMR measurements. The carbon local structure was investigated by 13C CPMAS SSNMR measurements, which offer complementary information to the XRPD data discussed above. Indeed, it is well known that SSNMR techniques can provide structural information on materials that cannot be fully characterized using X-ray crystallography due to the lack of sufficient long-range order.45,46 While diffraction experiments reveal topological data, SSNMR unravels connections and distances on local and intermediate length scales.47 In this sense, it does not require the long-range order needed by diffraction techniques. Furthermore, the usefulness of SSNMR stems also from its ability to non-destructively investigate multicomponent and multiphase systems at the bulk level.

The 13C CPMAS NMR spectra of both CW and CChemi carbons, shown in Fig. 3, are entirely dominated by a broad peak centered around 125 ppm, which is characteristic of sp2-hybridized carbon in condensed aromatic rings. The line width of the signal is much broader for CW (FWHM = 3120 Hz) than for CChemi (FWHM = 1820 Hz). In principle, the observation of broad resonances can be related to the presence of paramagnetic impurities or a distribution of slightly different chemical environments typical of condensed aromatic carbon systems of different size. EPR spectra (not reported) reveal in both cases the presence of a very small amount of carbon-centred radicals (signals with g-value ∼2.0033). Thus, from the very low density of carbon radicals in both samples, we can surmise that the broader resonance in the 13C CPMAS NMR spectrum of CW is associated with a larger distribution of sp2 islands having a different size. In addition to the signal at 125 ppm, in the spectrum of CChemi a very weak peak is observed around 180 ppm (inset in Fig. 3), which is indicative of the presence of a small amount of oxygen-containing surface functional groups. Although the band is weak and broad, its position is characteristic of C[double bond, length as m-dash]O functional groups. A similar trend is observed also in the 1H MAS spectra (Fig. S3). They are characterized by a single broad resonance around 5.5 ppm, with that of CW (FWHM 5600 Hz) broader than that of CChemi (FWHM 2850 Hz).


image file: c6cy00159a-f3.tif
Fig. 3 13C (100.65 MHz) CPMAS NMR spectra of CW (grey) and CChemi (black) recorded at 12 kHz. Asterisks denote spinning sidebands. The inset shows a magnification of the region characteristic of C[double bond, length as m-dash]O functional groups.
3.3.3 Raman spectroscopy. Fig. 4 shows the Raman spectra of both CW and CChemi carbons collected with an excitation λ of 514 nm, whereas Fig. S4 reports the Raman spectra collected with a λ of 244 nm. The former gives information mainly on the microcrystalline graphitic domains because the green laser light has a strong selectivity towards the π states of sp2-hybridized carbon species.48 On the contrary, UV Raman spectroscopy excites both the π and the σ states and hence it is able to probe both the sp2 and the sp3 carbon species.49
image file: c6cy00159a-f4.tif
Fig. 4 Raman spectra of CW (grey) and CChemi (black) carbons (counts as a function of the Raman shift in cm−1), collected with an excitation λ = 514 nm, and assignment of the main bands. The insets show a scheme of the vibrational modes associated with the two main bands.

The two Raman spectra shown in Fig. 4 are both dominated by two intense bands, which are attributed to vibrational modes involving sp2-bonded carbon atoms belonging to disordered microcrystalline domains. In particular, the band centred at 1605 cm−1 (G band) is commonly assigned to the bond stretching of pairs of sp2 carbon atoms (either in aromatic rings or chains),1–3 as schematically shown in the left inset of Fig. 4. For crystalline graphite, the G mode has E2g symmetry and gives a band at about 1580 cm−1. The large shift observed in the present case is common to other disordered graphitic systems and has been explained by considering the overlap of a second band (D2, around 1620 cm−1), which is ascribed to lattice vibrations analogous to that of the G band but involving surface graphene layers, i.e. not sandwiched between two other layers.50–54 Very recently, it has been reported that the C–C stretch Raman fingerprint systematically moves to higher frequency whenever the graphitic molecular nanostructure goes from a planar geometry to a strained geometry.55 On this basis, the position of the G band in the present spectra provides evidence that the graphene stacking order is very low in both carbons, in agreement with XRPD data, and that the graphene layers are at least partially defective.

On the other hand, the origin of the band close to 1350 cm−1 (band D, or D1 in the specialized literature) has been debated for long time; it is usually assigned to a lattice breathing mode with A1g symmetry (right inset of Fig. 4), which is forbidden in ideal graphitic crystals, but becomes Raman active in the presence of structural disorder,1–3,53,54,56 although the theoretical work of Thomsen and Reich ascribes it to a double resonant Raman scattering.57 In particular, it has been suggested to arise from carbon atoms close to the edge of a graphene layer. Hence, the relative ratio between the intensity of the D and G bands – I(D)/I(G) – should correlate with the degree of structural disorder. After the first report of Tuinstra and Koenig,58 who reported that the intensity ratio between the two bands varies inversely with carbon cluster dimension (TK correlation), the I(D)/I(G) value has long been indicative of the size of the graphitic domains in different carbon-based materials. Nevertheless, the extraction of the I(D)/I(G) ratio from the Raman spectra is ambiguous in the literature and large discrepancies are found according to the different evaluation techniques of the Raman spectra. More recently it has been argued that the TK correlation is not applicable for graphitic domains having a lateral dimension smaller than about 2 nm. The argument is based on the fact that the intensity of the D band is proportional to the probability of finding a six-fold ring in the cluster, which is proportional to the cluster area. Therefore, for crystallite sizes below 2 nm the development of a D band in the Raman spectrum indicates ordering, which is exactly the opposite than for graphitic clusters larger than 2 nm.59 It is thus clear that the correlation of the I(D)/I(G) value with structural properties of carbons is not straightforward. In the present case, the Raman spectra of CW and CChemi carbons are clearly characterized by a different I(D)/I(G), the value being higher for CW than for CChemi. According to the XRPD data discussed above, both carbons are characterized by graphitic domains smaller than 2 nm and are more extended for CW than for CChemi. In these conditions the TK correlation is no more valid and the higher I(D)/I(G) value for CW indicates that it is characterized by more ordered sp2 domains with respect to CChemi.

Additional broad absorptions are observed in the Raman spectra of both carbons, around 1450 cm−1 (D3 band, in between the G and the D bands), attributed to a statistical distribution of amorphous carbon on the interstitial position of the graphitic islands60 and around 1150 cm−1 (I band), originating from a coexistence of sp3 and sp2 phases (the last one in the form of conjugated non-aromatic polyenes).61 Both of them have been attributed to stretching vibrations involving the amorphous carbon phase. These bands are relatively more prominent for CChemi, suggesting that the fraction of amorphous carbon is larger than in CW. Finally, in the spectrum of CChemi, a weak but well-resolved band is observed around 1700 cm−1, which indicates the presence of C[double bond, length as m-dash]O groups.62 This observation is in good agreement with the 13C CPMAS SSNMR measurements and confirms that CChemi contains a larger amount of surface oxygen-containing groups.

3.4 Surface properties of CW and CChemi and functional groups

With the aim to investigate in detail the surface properties of the two activated carbons at a molecular level we carried out a thorough investigation by means of three techniques which are sensitive to the surface species: XPS, DRIFT and INS spectroscopy.
3.4.1 XPS spectroscopy. High-resolution XPS spectra of C 1s excitation for both CW and CChemi showed a complex envelope indicative of several carbon species at the carbon surface. For both carbons the spectra were deconvoluted into six Gaussian components as reported in Tables S2 and S3 and shown in Fig. 5. The most intense band (peak B), located around 284.7 eV and presenting an asymmetric tail at high binding energies (BEs), is assigned to graphitic sp2 carbon.63 The other bands witness the presence of several C–O bonds.63 In particular, peak C is usually assigned to carbon species in alcohol (C–OH) or ether (C–O–C) groups, peak D to carbon in carbonyl groups, and peak E to carboxyl and/or ester groups. Finally, band F is a satellite peak of shake-up type due to π–π* transitions in aromatic rings.17
image file: c6cy00159a-f5.tif
Fig. 5 High-resolution XPS spectra of C 1s peak for CW (part a) and CChemi (part b) and corresponding fits with six Gaussian components. For details see Tables S2 and S3.

The relative atomic concentration O/C in CChemi is about double that in CW, indicating that the surface of CChemi is more oxidized than that of CW. As a consequence, the main C 1s band (band B) appears narrower in the spectrum of CW than in CChemi. Table S4 compares the relative amount of the different oxygenated species, as obtained by normalizing the area of the six deconvoluted bands in the XPS spectra to the area of peak B, set arbitrarily to 100. In both carbons, the most abundant oxygenated species are C–OH or C–O–C (band C).

3.4.2 DRIFT spectroscopy. IR spectroscopy has been widely used to characterize the surface species in different carbon-based materials,1–3 including coals, carbon blacks, chars, carbon films,64,65 activated carbons,66–73 and carbon-supported metal nanoparticles.31,32 In general, the IR spectra of carbon materials are difficult to obtain because of problems in sample preparation, poor transmission, and uneven light scattering. More important, the electronic structure of carbon materials results in a complete absorption band through the visible region and the infrared one, which limits the collection of the spectra in the conventional transmission mode. For these reasons, very often IR spectra of carbon-based materials are characterized by unavoidable spectral artefacts or distortions, which complicate the data interpretation. At least part of the problem can be avoided by performing the measurements in diffuse reflectance mode. Fig. 6 shows the DRIFT spectra of CW and CChemi in the 2000–600 cm−1 region. The two spectra are characterized by the same main absorption bands, although the total intensity of the spectra is around one order of magnitude larger for CChemi.
image file: c6cy00159a-f6.tif
Fig. 6 DRIFT spectra of CW (grey) and CChemi (black) carbons (Kubelka–Munk units as a function of the wavenumber in cm−1). The spectra were collected in air, using powdered samples and without dilution.

The assignment of the main absorption bands is not trivial, also because several discrepancies are present in the literature. However, the following assignments seem to be now firmly established:

i) The narrow and prominent absorption band centred around 1600 cm−1, whose assignment has been controversial for a long time, is assigned to ν(C[double bond, length as m-dash]C) vibrational modes of conjugated sp2 bonds belonging to graphitic islands.74 The intensity of this band would be reinforced by the presence of oxygen atoms, most likely because of an increase in the dipole moment associated with these ring vibrations. This band is more intense in the spectrum of CChemi that, according to Raman, XPS and 13C SSNMR data, contains a larger amount of oxygenated species.

ii) The intense and very broad absorption in the 1300–1000 cm−1 region is due to the overlap of many absorption bands difficult to be distinguished and due to many vibrational modes. In-plane C–H bending modes should contribute in this region,74 but they are necessarily strongly coupled with the collective modes of the carbonaceous C–C skeleton, whose frequency range increases with the size of the system. This is the case not only for the C–H vibration, but also for any other modes associated to geometrical distortion of the C–C skeleton.75 This is the main reason why no specific absorption bands are observed in this frequency range. In addition, most of the oxygenated species detected by XPS may give absorption in this region. Finally, it is important to note that the P[double bond, length as m-dash]O stretching vibration of phosphonate groups, which have been detected on the CChemi sample by 31P CPMAS SSNMR technique, should also contribute in this region (1380–1140 cm−1).76 Although it is not possible to exclude that a fraction of the total absorbance in the 1300–1000 cm−1 region for CChemi is due to the presence of surface phosphonates, we are inclined to exclude that this is the main reason for the much higher intensity of the DRIFT spectrum of the CChemi sample.

iii) The series of narrow bands in the 900–750 cm−1 range is characteristic of the IR spectra of many molecules consisting of several condensed rings and are assigned to the out-of-plane vibrations of C–H bonds of condensed ring edges.75 It has been demonstrated that the frequencies of the C–H deformational modes of aromatic species are dependent on the number of adjacent hydrogen atoms. According to the nomenclature proposed by Zander, for substituted benzenes the following values were reported: 860–910 cm−1 for an isolated hydrogen atom (solo), 800–810 cm−1 and 810–860 cm−1 for two adjacent hydrogen atoms (duo), and 750–770 cm−1, 770–800 cm−1 and 800–810 cm−1 for three adjacent hydrogen atoms (trio). In the spectrum of the CChemi sample three well-defined bands are observed at 880 cm−1 (solo), 838–807 cm−1 (duo + trio) and 758 cm−1 (trio), which suggest a large heterogeneity of boundaries. The absorption bands due to C–H out-of-plane vibrations are definitely less intense in the spectrum of CW, as expected because of the larger size of the sp2 domains.

iv) Finally, in the spectrum of CChemi a weak but well-defined absorption band is observed at 1707 cm−1, which is assigned to ν(C[double bond, length as m-dash]O) vibrational mode, in good agreement with 13C CPMAS NMR, Raman and XPS data.

Summarizing, the DRIFT spectra shown in Fig. 6 demonstrate that the surface properties of CW are mainly dictated by terminal C–H bonds, while in CChemi a detectable amount of C[double bond, length as m-dash]O functional groups are clearly identified. The presence of these oxygen-containing surface species (and of others, not easily identified by FT-IR but detected by XPS), as well as the reduced dimension of the sp2 islands (as revealed by the previously discussed techniques), might be the main causes for the much higher intensity of the whole DRIFT spectrum for CChemi than for CW. Indeed, an increase in dipole moment associated with the sp2 ring vibrations is expected in the presence of defect sites, including heteroatoms and island terminations.

3.4.3 INS spectroscopy. Inelastic neutron scattering technique has been widely used for detailed studies on carbon-based materials and carbon-supported catalysts.77–83 This technique is extremely powerful in detecting vibrations involving the terminating hydrogen atoms at the edges of the sp2 domains. Fig. 7 shows the INS spectra of CW and CChemi carbons. The spectra were normalized to the sample mass and to the proton current of the source, integrated along the acquisition time, so that the intensity of each band is directly proportional to the amount of the corresponding species.
image file: c6cy00159a-f7.tif
Fig. 7 Incoming proton current and mass normalised INS spectra of CW (grey) and CChemi (black) carbons (S(Q,ω) as a function of the energy transfer in cm−1). The inset shows a magnification of the 1050–600 cm−1 range.

All the bands observed in the spectra are due to vibrational modes that involve significant hydrogen displacement, since the neutron cross section for the hydrogen nucleus is one order of magnitude higher than that of all the other elements. The two spectra are very similar, although the total intensity is almost two times higher for CChemi than for CW. This means that the type of hydrogen terminations and their relative abundance are basically the same in the two carbons but more abundant in CChemi than in CW. The larger amount of hydrogen termination in the CChemi sample is only partially explained in terms of the higher surface area, which would account only for a factor of 1.5. Hence, we should conclude that in CChemi carbon the sp2 domains are smaller than in CW, in good agreement with previously discussed results. However, it is worth noting that discrepancies between the intensity of the INS spectra and the hydrogen content in carbon materials have been reported in the past. In particular, Fillaux et al.77–83 suggested that a part of the hydrogen species in carbons behave like free protons and therefore they respond in a different way. A clear explanation of this phenomenon is still not available.

The absorption band centred around 3060 cm−1 is assigned to ν(C–H) vibrational modes of aromatic species. At the other extreme of the spectra, the weak bands in the 700–400 cm−1 region are mainly due to C–C torsion modes of the carbon atoms at the edge of the fragment, which indirectly cause a substantial movement of the hydrogen atoms (riding vibrations).83 It is worth noting that also COOH functional groups may weakly contribute in this vibrational region.83 The broad bands around 1200 cm−1 and in the 800–1000 cm−1 region are due to the in-plane and out-of-plane C–H bending modes of hydrogen species belonging to condensed ring edges.78 In particular, in the latter region the most prominent bands are observed at 952, 880, 830, 800 and 760 cm−1. Most of these bands coincide with those observed in the DRIFT spectra and assigned in terms of solo, duo and trio structures. In particular, according to the literature78 and to our recent calculations,83 the most intense band at 880 cm−1 is associated to CH out-of-plane vibrations of solo species which vibrate in phase; hence, it is indicative of extended sp2 domains having regular borders. Curiously, the intense band at 952 cm−1 is absent in the DRIFT spectra and it was rarely commented in the literature. Very recently we have proposed an assignment in terms of CH out-of-plane mode of duo, trio and quatro species vibrating not in phase;83 thus, this band is associated with irregular borders of sp2 domains. The relative intensity of this band with respect to that at 880 cm−1 is greater for CChemi, indicating that the sp2 domains in CChemi present less extended and more defective borders.

In summary, INS measurements allowed the full characterization of the hydrogen terminations at the sp2 domains. It was found that the hydrogen content is about double in CChemi, which means that the average size of the graphitic plates is smaller in CChemi. Moreover, the distribution of the hydrogen termination is similar but not the same in the two carbons, and in particular CChemi presents less extended and more irregular borders.

3.4.4 Vibrational properties of CW and CChemi: a comparison between Raman, DRIFT and INS spectra. In this section we will briefly comment on the complementarity of the Raman, DRIFT and INS techniques. To facilitate the comparison, Fig. S5 shows again the Raman, DRIFT and INS spectra of the CChemi carbon plotted in the same 1900–500 cm−1 wavenumber region, where most characteristic bands appear. Table 3 summarizes the main bands observed in the three spectra and the corresponding assignment. In order for a vibrational mode in a molecule (or a molecular fragment) to be IR or Raman active, it must be associated with changes in the dipole moment or in the polarizability, respectively. The Raman spectrum of CChemi (and of a carbon in general) is dominated by ν(C[double bond, length as m-dash]C) stretching modes involving pairs or rings of sp2 carbons, i.e. collective modes which are strongly related to the structural order of the sp2 domains (G and D bands in Table 3). Hence, Raman spectra convey structural information mainly on the bulk phase of carbon materials, while surface functional groups are rarely observed.
Table 3 Summary of the observed bands (in cm−1) in Raman (λ = 514 nm), DRIFT and INS spectra of CChemi carbon, and corresponding assignment
Raman DRIFT INS
Bands (cm−1) Assignment Bands (cm−1) Assignment Bands (cm−1) Assignment
vw = very weak; w = weak; br = broad; s = strong.
1700 (vw) ν(C[double bond, length as m-dash]O) 1707 ν(C[double bond, length as m-dash]O)
1605 G band ν(C[double bond, length as m-dash]C) of pairs of sp2 C atoms 1600 ν(C[double bond, length as m-dash]C) of sp2 C atoms (enhanced by defects)
1500 (br) D3 band amorphous phase
1350 (br) D band ν(C[double bond, length as m-dash]C) of sp2 C atoms close to the edge 1300–1100 (br) C–H in-plane bending + collective modes of the C–C skeleton + vibration of oxygenated groups
1200 (w) I band amorphous phase 1200 C–H in-plane bending
956 (s) C–H out-of-plane of duo and trio at irregular borders
880 (w) C–H out-of-plane of solo 880 (s) C–H out-of-plane of solo at extended borders
838–807 (w) C–H out-of-plane of duo and trio 830 C–H out-of-plane of duo and trio
758 (w) C–H out-of-plane of duo and trio 760 C–H out-of-plane of duo and trio


On the contrary, the ν(C[double bond, length as m-dash]C) vibrational modes of conjugated double bonds in graphitic sp2 domains are observed in the IR spectrum of a carbon only in the presence of defects (surface terminations, heteroatoms, functional groups, radical carbon species and others), which are responsible for an increase in the dipole moment associated with the ring vibrations. Consequently, IR spectra bring only indirect information on the bulk properties of carbon-based materials, while they contain direct information on the surface species, including both the C–H groups at the periphery of sp2 clusters (usually characterized by weak absorptions) and the functional groups containing heteroatoms such as oxygen (generally giving more intense absorption bands depending on the specific extinction coefficient).

In carbons hydrogen content is limited just to the surface (either in the terminal C–H species or in the oxygen-containing functional groups). This makes INS a technique extremely sensitive to surface species. Most of the bands observed in the INS spectrum of CChemi are also found in the DRIFT spectrum, with a few important differences: i) in the INS spectrum the bands are generally narrower and much more resolved; ii) INS spectra are not subjected to selection rules and then show more bands.

Summarizing, among the three vibrational techniques, Raman spectroscopy (excitation λ = 514 nm) is the only one that gives direct information on the bulk properties of carbons, and structural information on the sp2 domains can be derived provided that XRPD data are available. DRIFT spectroscopy is the technique of choice to qualitatively investigate the presence of functional groups that are usually characterized by high extinction coefficients. However, in some cases different IR absorption bands can overlap, making the interpretation of the spectra difficult; in these cases, coupling FT-IR spectroscopy with XPS might be beneficial for understanding. INS spectroscopy (on carefully dehydrated samples) is definitely the best technique to obtain qualitative and quantitative information on the C–H terminations of the sp2 domains, although it is scarcely informative on the presence of other functional groups. It comes out that the synergic coupling of the three techniques is fundamental to extract from vibrational data also information on the structural properties of activated carbons at a molecular scale.

In order to definitely validate our findings, we have treated the CChemi carbon at 750 °C in inert atmosphere and successively measured the Raman, DRIFT and INS spectra, as shown in Fig. S5 (light grey). In all the three cases, the spectra of the sample treated at high temperature decrease in intensity and become very similar to those of the CW carbon discussed previously. From the discussion above, the much larger intensity of the vibrational spectra of CChemi with respect to CW is attributed to the presence of smaller and more defective sp2 domains in CChemi carbon. Hence, the decrease in the overall spectral intensity upon treatment at high temperature provides evidence that CChemi undergoes a graphitization process. Additional discussion can be found in section S5.

3.5 Vibrational properties of Pd/C catalysts

Raman, DRIFT and INS spectroscopy were applied to investigate the Pd/CW and Pd/CChemi catalysts, with the aim of evaluating whether the catalyst preparation has an influence on the properties of the carbon support. Indeed, during the catalyst synthesis the original support may undergo modifications at the nano- and microscale level,9 although this is often neglected. Preparation of the Pd/C catalysts involves metal deposition in a basic medium, washing, and thermal treatments. In these conditions, activated carbons can release ashes (that can be washed out or can re-precipitate inside the pores),10 may undergo a partial reconstruction involving defective sp2 domains, and a modification of the surface functional groups may also occur. In turn, the modifications of the carbon support during the catalyst preparation may influence its activity towards reactants and products and can affect the availability of the metal particles during the catalytic process.

In a previous work we demonstrated that activated carbons are quite inert toward deposition–precipitation of the active metal phase: only very small variations of surface area and pore volume were observed,9 indicating that catalyst preparation does not involve a large reconstruction of the supports. This is confirmed by the similarity of the Raman spectrum of Pd/CW with that of the pristine CW support, as shown in Fig. 8a, although a slight increase of the absorption band around 1500 cm−1 suggests that in Pd/CW the fraction of amorphous carbon is slightly higher than in CW. Also the DRIFT spectrum of Pd/CW is very similar to that of CW (Fig. 8b), excluding that during catalyst preparation new functional groups are formed at the carbon surface. Finally, in the INS spectrum of Pd/CW the bands associated with C–H out-of-plane vibrations are slightly less intense than for bare CW (Fig. 8c), indicating that a minority of the C–H terminations are involved in the deposition of the active phase. In particular, the band at 880 cm−1, indicative of regular borders, is the most affected one. A similar behaviour was observed for Pd/CChemi.


image file: c6cy00159a-f8.tif

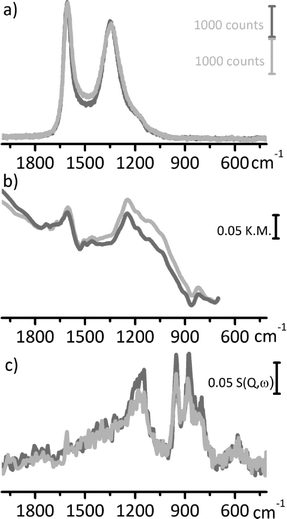

Fig. 8 (a) Raman (λ = 514 nm), (b) DRIFT and (c) INS spectra of CW (dark grey) and of the corresponding Pd/CW catalyst (light grey).

The results shown in Fig. 8 demonstrate that the structural and surface properties of Pd/C catalysts are basically the same as those of the pristine carbons. Hence, a comprehensive characterization of the activated carbons with a multi-technique approach as proposed in this work gives all the information useful to tailor the catalyst for a specific purpose.

4. Conclusions

Two couples of Pd/C catalysts, characterized by the same metal dispersion but a different carbon support (CW and CChemi), were tested in two hydrogenation reactions. We found that the catalytic performance strongly depends on the nature of the support. The two carbons were obtained from the same raw material but activated in the presence of either steam or phosphoric acid. Hence, the activation procedure of the carbons has a relevant consequence on the performance of the catalysts. To understand the origin of this effect, we undertook a comprehensive and systematic characterization of the two carbons and of the Pd/C catalysts by a multitude of techniques with different sensitivity and selection rules.

We were able to fully understand how the activation procedure influences the morphology, composition, texture, structure and surface properties of the two activated carbons, both at the micro- and at the nanoscale. In particular, it was found that activation in the presence of phosphoric acid leads to the formation of micro-particles smaller than those obtained in the presence of steam. The micro-structure is reflected at a nanoscale: both carbons are mainly graphitic in nature, but CChemi consists of graphitic domains smaller than CW. The sp2 domains have a similar morphology in the two carbons, although in CChemi they are more uniform in size. The surface properties of both activated carbons are determined by terminal C–H bonds and by oxygenated species. The distribution of the hydrogen termination is similar but not the same in the two carbons, and in particular CChemi presents less extended and more irregular borders. CChemi contains more oxygenated species, mainly carbonyl (C[double bond, length as m-dash]O) and ethers (C–O–C), which contribute to increasing the dipole moment associated with the sp2 ring vibrations and in rendering the whole surface more polar. Finally, CChemi comprises also a detectable amount of phosphorus (at least partially grafted to the carbon in the form of phosphonate species), which is however localized in the bulk and not at the surface, and hence is not relevant for catalysis.

The comprehensive characterization approach proposed in this work allows the rationalization, at least in part, of the role of activated carbons in enhancing the performance of a hydrogenation catalyst. Pd/CW is more selective than Pd/CChemi in the transfer hydrogenation of resorcinol to 1,3-cyclohexanedione. It is a current opinion that during hydrogenation of an aromatic ring over a heterogeneous catalyst (as for the hydrogenation of resorcinol) the hydrogen molecule is split into hydrogen atoms over the metal active phase, while aromatic substrates are adsorbed onto the supports mainly through hydrogen bonds and electrostatic effects.84,85 The adsorbed aromatic ring is then attacked by the adsorbed hydrogen atoms and the hydrogenation reaction occurs. Selectivity is promoted when the product of interest (1,3-cyclohexanedione in our case) is desorbed from the support before undergoing a successive hydrogenation. It is expected that the adsorption of resorcinol onto the carbon support (which is the preliminary step to its hydrogenation) is favoured in the presence of regular sp2 domains. The results discussed in this work demonstrate that CW has larger and more regular sp2 domains than CChemi, and hence correlate the structure of the carbon with the better catalytic performance in the transfer hydrogenation of resorcinol to 1,3-cyclohexanedione. A similar effect was recently reported for a graphene-supported Pd catalyst, which displays excellent selectivity in the same reaction due to the giant π-conjugate interactions between the graphene nano-sheet and the benzene ring of resorcinol.86

On the other hand, the regularity of the sp2 domains in the carbon support is not required for selective catalytic debenzylation reactions, where a high activity for hydrogenolysis should be combined with a low tendency for the reduction of the aromatic rings. In this class of reactions the polarity of the reaction medium is more important, and indeed debenzylation reactions very often are carried out in alcoholic solvents or in acetic acid.22,24 On this basis, it is not surprising that CChemi (which has a more polar and irregular surface, with a larger amount of surface functional groups, as demonstrated in this work) performs better than CW in the debenzylation of ethyl benzyl aniline.
