Probing the molecular character of periodic mesoporous organosilicates via photoluminescence of Lewis acid–base adducts

Abstract

Photoluminescence decay was used as a structure-sensitive method to compare the distribution of emitting sites in periodic mesoporous organosilicates (PMOs) to their respective molecular analogs. The observed close similarity of PL decays confirms the molecular nature of PMOs and high homogeneity of emitting sites.

---

Combining inorganic and organic fragments allows for the introduction of molecular properties into a functional hybrid material.^1,2 Such materials can be rationally designed due to the modularity of the organic scaffold embedded in a stable inorganic matrix, typically silica.^1,2 One approach relies on a co-condensation of an organosilane such as R–Si(OAlk)₃ with tetraethoxysilane in the presence of a structure-directing agent, yielding mesostructured materials (usually, MCM or SBA-type) that incorporate organic groups (R) in their pores with high regularity.² A related strategy utilizes an organic linker with two trialkoxysilyl groups [(AlkO)₃Si–R–Si(OAlk)₃] that can be condensed to give the so-called periodic mesoporous organosilicas.¹ The latter high surface area hybrid materials feature organic functionalities uniformly distributed within the pores and the walls of an inorganic silica matrix.¹ PMOs derived from aromatic precursors usually feature a 2D hexagonal framework of mesopores resulting in a long-range crystal order detected by XRD. These properties make PMOs attractive platforms for the post-synthetic modification towards molecularly defined heterogeneous catalysts.^3,4

Phenylpyridine units have been previously utilized to form a PMO material (ppy-PMO, Scheme 1) and to subsequently immobilize several transition metal complexes.^3d,e,5,6 In the case of the Cp*Ir^III-ppy-PMO system, dynamic nuclear polarization surface enhanced NMR spectroscopy was used to differentiate between outer and inner layers of phenylpyridine ligands.⁵ Photoluminescence (PL) is another powerful structure-sensitive technique that was recently used to investigate the homogeneity of the environment of surface species.⁷ Encouraged by this result, we sought to extend the molecular level characterization of PMO materials by using PL. As solid molecular adducts of B(C₆F₅)₃ and various O/N Lewis bases were reported to exhibit photoluminescence,⁸ we prepared related B(C₆F₅)₃ adducts with PMO materials and compared their PL properties to respective molecular systems. Here, we demonstrate that PL decay of sites formed by B(C₆F₅)₃ coordination to pyridine units of PMO materials is similar to the molecular analogues, which highlights the homogeneous environment and the molecular character of the organic units in PMO's.

Scheme 1 Synthesis of B-ppy-PMO_pas, B-ppy^Me-PMO_pas and B-biph-PMO_pas materials and their molecular models.

We followed literature procedures to prepare ppy-PMO,^3d,5 and also synthesized its previously unknown, sterically more bulky analogue ppy^Me-PMO (Scheme 1). Material biph-PMO was prepared according to the literature⁹ as a nitrogen-free reference PMO (Scheme 1, see ESI† file for synthetic details). As B(C₆F₅)₃ was anticipated to react with free surface silanols,¹⁰ the residual ≡SiOH groups of all three PMO materials were passivated using TMSBr (PMO_pas), as evidenced by the disappearance of the OH band at 3720 cm⁻¹ (Fig. S15 and 16, ESI†). All materials described herein exhibit a Type II isotherm in the N₂ adsorption/desorption measurement, high surface areas and microporosity (pores < 2.4 nm by BJH analysis, Table 1). Incipient wetness impregnation of the three PMO_pas with a toluene solution of B(C₆F₅)₃ (0.2 equiv. B(C₆F₅)₃ per nitrogen site of the PMOs) gave the respective B-PMO_pas materials (Scheme 1).

Table 1 Surface areas of obtained PMO materials

Organic linker	Surface area [m^2 g^−1]
	PMO	PMOpas	B-PMOpas
ppy	634	436	175
ppy^Me	976	853	372
biph	776	728	176

---

The ¹H magic angle spinning (MAS) NMR spectrum of ppy^Me-PMO_pas has signals at δ 2.0 and 6.9 ppm (Fig. S12, ESI†) that are assigned to aliphatic and aromatic protons of the ppy^Me moiety, respectively, and the ¹³C cross-polarization CP-MAS NMR of ppy^Me-PMO_pas features aliphatic and aromatic peaks as well (Fig. S13, ESI†). The ²⁹Si CP-MAS spectrum of ppy^Me-PMO_pas shows expected signals of T₂ and T₃-sites at −69.3 and −78.6 ppm, respectively (Fig. S14, ESI†). ¹¹B NMR spectra provided insight into the binding of B(C₆F₅)₃ in B-PMO_pas materials. Free, non-interacting B(C₆F₅)₃ gives a broad signal with δ_iso = 58 ppm (η_CS = 0.03 and C_q = 4.3 MHz) due to the quadrupolar boron nucleus and the high symmetry of B(C₆F₅)₃ (Fig. S18, ESI†). A priori, B(C₆F₅)₃ can form adducts with O sites of silica as well as N sites of the phenylpyridine moiety.¹¹ Coordination of a Lewis base (O or N) to B(C₆F₅)₃ results in an upfield shift of the boron signal in the ¹¹B NMR.¹² All impregnated B-PMO_pas materials contain no free B(C₆F₅)₃. 2D ¹¹B multiple quantum (MQ-MAS) experiments allow to distinguish between B–O and B–N interactions in B-PMO_pas materials (Fig. 1). The signal at −2 ppm is ascribed to a B–O surface adduct as it is present in all three materials including nitrogen-free B-biph-PMO_pas. This boron chemical shift is also close to that of molecular B(C₆F₅)₃–O-adducts in solution.¹³ Impregnated pyridine-containing materials feature an additional signal centred around −4 ppm. This signal is attributed to the B(C₆F₅)₃–Py adduct since the molecular B(C₆F₅)₃–lutidine adduct in solution has a chemical shift at −3.9 ppm.¹⁴ Solid state NMR data of the molecular adduct of B(C₆F₅)₃ and phenylpyridine also corroborates this assignment (Fig. S19, ESI†).

Fig. 1 ¹¹B ssNMR MQ-MAS spectra of B-ppy-PMO_pas (A), B-ppy^Me-PMO_pas (B) and B-biph-PMO_pas (C).

While instructive in distinguishing between the N/O boron adducts, the ¹¹B NMR only reveals one, relatively broad signal for a B–N interaction, which is not conclusive in terms of the broadness of the B–N sites distribution. We therefore set about to investigate the photoluminescence properties of B-PMO_pas materials. Previously, coordination of B(C₆F₅)₃ to the pyridine unit of the light emitting polymer was reported to lead to a red shift in the emission spectra, longer excited state lifetimes as well as higher quantum yields.^8b A recent study reported on the photoluminescence properties of solid adducts of B(C₆F₅)₃ with various acetophenone derivatives as well.^8a

DRIFT UV-VIS spectra show a red shift upon impregnation of our PMO_pas materials with B(C₆F₅)₃ (Fig. S21, ESI†). The photoluminescence spectra of all PMO_pas obtained after excitation at 350 nm display no emission. Interestingly, both molecular models of the B-PMO_pas adducts with alkoxy silyl moieties on the aromatic linkers (ppy_Si and ppy_Si^Me, Scheme 1) show no photoluminescence as well, in contrast to the simple B(C₆F₅)₃ adducts with ppy and ppy^Me. The siloxane moieties are likely causing different relaxation pathways and/or compete for boron coordination, thereby suppressing the photoluminescence from the Lewis B–N adduct. No luminescence was observed for the biph-derived materials, pointing towards the necessity of a B–N interaction for photoluminescence. In the case of ppy and ppy^Me systems, the molecular boron adduct as well as the impregnated material show photoluminescence. For the molecular adducts the maximum of emission is at 355 nm and 363 nm, while for the impregnated materials a red shift to 418 and 420 nm, respectively, is observed (Fig. 2A).

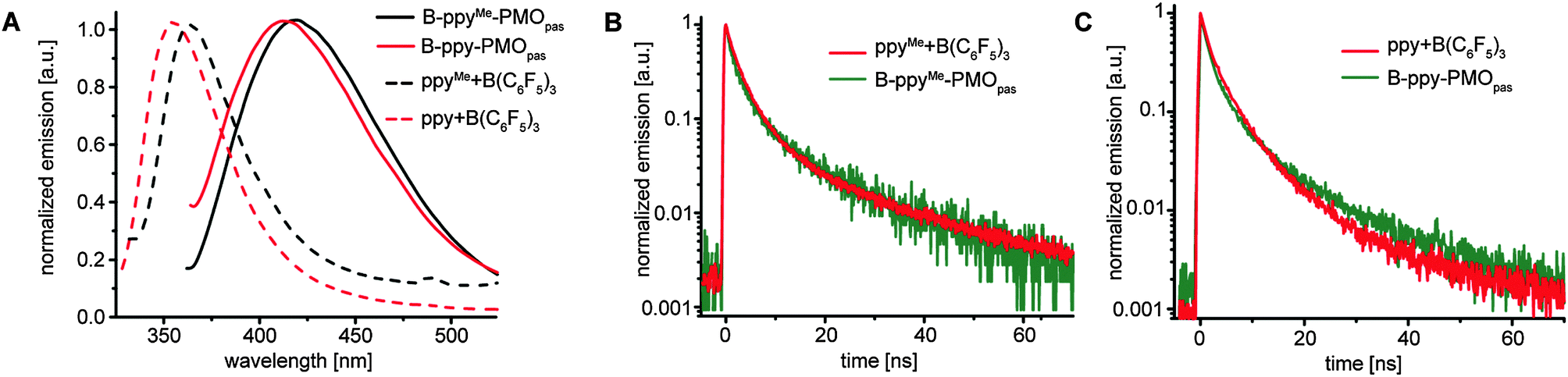

Fig. 2 (A) PL spectra of ppy^Me- and ppy-derivatives; ppy-B(C₆F₅)₃ and ppy^Me-B(C₆F₅)₃ were excited at 300 nm wavelength, B-ppy-PMO_pas and B-ppy^Me-PMO_pas were excited at 350 nm wavelength; (B) PL decay spectra of ppy^Me-derivatives; (C) PL decay spectra of ppy-derivatives.

Photoluminescence decay of the emitting samples described above features a bi-exponential mode (Fig. 2B, C and Table 2). The differences in the fitting parameters between molecular adducts (entries 1, 2) and impregnated materials (entries 3, 4) are relatively small and most likely not attributed to a larger distribution of sites in B-PMO_pas, but caused by the presence of a greater number of deactivation pathways in the solid state that result in the quenching of photoluminescence. Note that a bi-exponential mode was also observed for the PL decay of molecular adducts of B(C₆F₅)₃ with aromatic ketones.^8a

Table 2 Parameters of fitting curves for experimental PL decay according to y(t) = y₀ + A₁ exp^(−t/τ₁) + A₂ exp^(−t/τ₂)

Entry	Sample	A 1	τ 1 [ns]	A 2	τ 2 [ns]
1	ppy-B(C6F5)3	0.53	1.2	0.46	5.0
2	ppy^Me-B(C6F5)3	0.76	1.9	0.21	8.2
3	B-ppy-PMOpas	0.75	1.2	0.27	6.5
4	B-ppy^Me-PMOpas	0.70	1.1	0.29	7.0

---

Conclusions

We reported that PMOs with phenylpyridine moieties impregnated with B(C₆F₅)₃ feature distinct signals for B–N and B–O interactions in ¹¹B ssNMR MQ-MAS spectra. The B–N Lewis acid–base pair provides photoluminescence in the solid state while the B–O pair does not. The comparison of photoluminescence decay featured by molecular adducts in the solid state with respective impregnated materials demonstrates the molecular nature of highly homogeneous surface sites in PMOs.

Acknowledgements

I. T. and A. F. thank the German Academic Exchange Service (DAAD) and the Holcim Stiftung for a postdoctoral and a habilitation fellowship, respectively. The authors acknowledge ScopeM at ETH Zürich for the use of their electron microscopy facilities.
