Extending the halogen-bonded supramolecular synthon concept to 1,3,4-oxadiazole derivatives

Abstract

A series of five crystal structures of 1 : 1 halogen-bonded complexes were obtained from 4-[5-(4-alkoxyphenyl)-1,3,4-oxadiazole-2-yl]pyridine and 1,3,5-trifluorotriiodobenzene. Electronic structure calculations show that the N_(oxadiazole)⋯I interaction in the new synthon is as strong as the classic N_(pyridine)⋯I interaction. Oxygen to sulfur atom subsitution on the oxadiazole ring results in a different supramolecular packing where the N_(pyridine)⋯I interaction is favored, which could be rationalized by the changes in the molecular electrostatic potential predicted from the theoretical calculations.

---

Introduction

The overall goal of crystal engineering is the design and control of molecular packing in crystalline materials with desired properties.¹ This approach has attracted attention in different areas such as biochemistry,² medicinal chemistry,³ and materials chemistry⁴ among others. The precise understanding of intermolecular recognition between molecular building tectons has transformed this field into a multidisciplinary tool with impact in the development of organic devices such as organic conductors⁵ and magnets,⁶ chemical separation agents,⁷ NLO-active materials,⁸ liquid crystals⁹ and porous organic solids.¹⁰ The occurrence of particular properties in crystalline materials is in general the result of the combination of two features, i) the building block (molecular units), and ii) their arrangement in the crystal. The first is relatively simple to control, whereas the second is more difficult given that the crystal packing results from a delicate balance of all the intermolecular synthon interactions present in the crystal while normally adopting the densest accessible packing.⁴

The concept of the supramolecular synthon was introduced into molecular crystal chemistry in 1995 (ref. 11) and involves the defined structural kernel of a crystal structure, which encapsulates the essence of a crystal in terms of molecular recognition.¹² Robust supramolecular synthons, which involve strong intermolecular interactions, can be used successfully for crystal engineering purposes and there is a consensus that the final crystal structure can be analysed easily as a collection of robust synthons formed in the earlier stages of molecular association.¹³ In this context, the introduction of new synthons is relevant for the design of new solid materials with special properties. Because of the prevalence of their monovalent chemistry, halogen atoms are normally located at the periphery of the molecules. Thus, they are ideally positioned to be involved in intermolecular interactions and can play, therefore, a fundamental role in the aggregation of molecules into solids.⁴ In recent years, halogen bonding has grown from a scientific curiosity to one of the most interesting non-covalent interactions for constructing supramolecular assemblies.¹⁴

Halogen bonding (XB) interactions span over a very wide range, from the weak Cl⋯Cl interaction in chlorocarbons to the strong I⁻⋯I₂ interaction in I₃⁻;¹⁵ among them, those employing nitrogen-containing heterocycles are probably the most widely studied. Until now, almost exclusively six-membered rings such as pyridine,¹⁶ pyrazine,¹⁷ phenazine¹⁸ and bipyridine¹⁹ have been used as halogen bond acceptors. In the few cases reported where five-membered N-heterocycles are present in the tectons, they are not directly involved in the halogen bonding.²⁰ In this regard, Aakeröy et al. recently reported the first case of an imidazole ring directly involved in halogen bonding.²¹ In this work, we have synthesised a series of 4-[5-(4-alkoxyphenyl)-1,3,4-oxadiazole-2-yl]pyridines, with hexyloxy- to decyloxy- alkyl chains, which have been co-crystallised with 1,3,5-trifluorotriiodobenzene (Scheme 1). The results reveal that the tri-iodo compound is able to form three halogen bonds simultaneously, with each iodine atom interacting with different nitrogen atoms, two of them with the oxadiazole ring and one with the pyridine ring. As such, this system represents the second example of 1,3,5-trifluorotriiodobenzene forming three N⋯I halogen bonds simultaneously and the second example also where a five-membered nitrogen-containing heterocycle is directly participating.

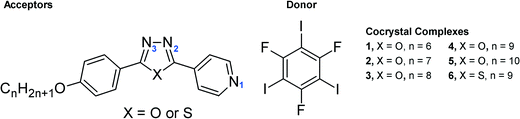

Scheme 1 A series of 4-[5-(4-alkoxyphenyl)-1,3,4-oxadiazole-2-yl]pyridine and 4-[5-(4-nonyloxyphenyl)-1,3,4-thiadiazole-2-yl]pyridine acceptors and the symmetric donor.

Results and discussion

All complexes crystallised in the P1̄ space group and showed a 1 : 1 stoichiometry, despite being obtained from a 3 : 1 mixture of pyridine to tri-iodo compound. Using various pyridines as halogen bond acceptors (e.g. tris(1,3,5-{2-(pyridin-4-yl)vinyl}benzene), van der Boom and co-workers generated 2 : 1 complexes with 1,3,5-trifluorotriiodobenzene and hence argued that strong halogen bond acceptors and donors would be required simultaneously to form three halogen bonds with C₆F₃I₃.²² It was shown later that C₆F₃I₃ could form three halogen bonds simultaneously using chloride, bromide²³ or iodide²⁴ anions as acceptors giving a honeycomb-like structure in which the voids were filled with an appropriate bulky cation. Further work by Roper et al. showed that a 3 : 1 complex was possible with C₆F₃I₃ using DMAP (4-(N,N-dimethylamino)pyridine) as acceptor.²⁵ It seems, therefore, that a crucial aspect to form a 3 : 1 complex is their ability to fill the space effectively. This may be a major handicap to form 3 : 1 cocrystals with C₆F₃I₃ since they tend to form star-like systems that do not pack efficiently. This is a reason for the small number of structures where C₆F₃I₃ is engaged in three I⋯N halogen bond interactions. Remarkably, in cocrystals 1–5 reported here, the 1 : 1 stoichiometry shows a dense crystal packing and, at the same time, the 1,3,5-trifluorotriiodobenzene establishes three I⋯N interactions.

The core motif for co-crystals 1 to 5 (Fig. 1) shows two C₆F₃I₃ units connected through a type I F⋯F interaction, with a separation between fluorine atoms from 2.54 to 2.62 Å (Table S2 and Fig. S1†).²⁶ The iodine para to this fluorine forms a halogen bond to the pyridine nitrogen atom of one oxadiazole molecule while the two ortho iodines bind to the oxadiazole nitrogen atoms of a different molecule. Typically, the donor⋯acceptor separation in one of the oxadiazole N⋯I halogen bonds [mean value of the N(3)⋯I bond distance is 3.019(8) Å; see Table 1] is close to what is observed for the pyridine N⋯I interaction [average value of 2.902(7) Å] while the other is a little longer [mean N(2)⋯I separation is 3.365(9) Å]. This situation represents one in which, in all the cases, the halogen bond distances observed are 12% shorter than the sum of van der Waals' radii.²⁷ Since in the oxadiazole ring the C_ipso does not exist, the analysis of the linearity of the halogen bond was made using the mid-point between the ring C–O bonds. This point corresponds to the best match of the line bisecting the CN̂N angle, which represents the orientation of the lone pair of electrons in a N_sp². In all cases, the CÎN angle and the IN̂C_ipso are approximately linear, with values larger than 160° (see Table 1); also, the oxadiazole and the C₆F₃I₃ rings are close to planarity, supporting the assertion that it is effectively a halogen bond (Table 1 and Fig. S2†). In the whole picture, each pair of 1,3,5-trifluorotriiodobenzene molecules is linked to four oxadiazole molecules, which in turn are linked to two pairs of C₆F₃I₃ groups, building a ribbon-like structure (Fig. S3†). This leads to quite efficient packing and filling of space, and indeed the calculated density for co-crystals 1 to 5 is around 1.9 g dm⁻³.

Fig. 1 1 : 1 Complex between 4-[5-(4-alkoxyphenyl)-1,3,4-oxadiazole-2-yl]pyridine and 1,3,5-trifluorotriiodobenzene.

Table 1 Geometric parameters of the halogen bonds in compounds 1–5

Complex	d(N⋯I)^a/Å	d(C–I)/Å	CÎN/°	IN̂Cipso^b/°	Angle^c/°
a The first value corresponds to the N(pyridine)⋯I distance (N1⋯I) and the next two are the N(oxadiazole)⋯I distances, (N3⋯I) and (N2⋯I), respectively except for 6, where the two values correspond to N(pyridine)⋯I interactions (N1⋯I). b For oxadiazole rings the Cipso was substituted by the mid-point between C–O bonds. c Torsion angle between the plane of C6F3I3 and the pyridine or imidazole plane.
1	2.951(1)	2.102(1)	176.9(3)	167.4(4)	3.4(3)
	3.111(8)	2.104(9)	176.9(3)	167.4(5)	3.1(3)
	3.258(9)	2.101(9)	169.7(3)	164.7(6)	3.1(3)
2	2.842(6)/2.913(6)	2.105(6)/2.108(6)	178.2(2)/177.2(2)	170.9(3)/172.9(3)	6.5(2)/1.7(2)
	3.029(6)/3.009(6)	2.100(6)/2.010(6)	167.6(4)/173.3(2)	168.3(3)/161.7(3)	5.3(2)/4.4(2)
	3.457(6)/3.371(7)	2.094(7)/2.102(7)	160.0(2)/166.3(2)	160.1(3)/172.8(3)	5.2(2)/3.6(2)
3	2.863(5)	2.096(3)	177.0(1)	174.2(2)	4.0(1)
	2.956(3)	2.086(3)	173.7(1)	165.0(2)	2.2(1)
	3.410(4)	2.082(4)	164.0(1)	171.6(2)	2.2(1)
4	2.877(7)	2.092(6)	177.3(2)	173.6(3)	2.1(2)
	2.954(6)	2.078(6)	174.5(2)	166.3(3)	0.9(2)
	3.400(5)	2.093(6)	165.3(2)	172.3(2)	0.9(2)
5	2.965(2)	2.087(1)	177.3(4)	168.7(6)	5.6(4)
	3.049(1)	2.090(1)	176.3(4)	167.8(6)	3.1(3)
	3.293(1)	2.119(1)	169.1(4)	172.2(5)	3.1(3)
6	2.959(4)	2.092(4)	169.7(13)	159(2)	88.5(8)
	2.962(4)	2.097(4)	168.9(13)	165(2)	83.0(8)

---

To rationalise the nature of the nitrogen–iodine interactions, electronic structure calculations were performed for 4-[5-(4-hexyloxyphenyl)-1,3,4-oxadiazole-2-yl]pyridine and 1,3,5-trifluorotriiodobenzene at the B3PW91/6-311G(d) level of theory with the Gaussian 03 package (for details see the ESI†).²⁸ Since intermolecular halogen bonds have a large electrostatic contribution, the molecular electrostatic potential (MEP) mapped on the isodensity surface (isovalue = 0.001 e a₀⁻³) was calculated for each molecule as shown in Fig. 2. Politzer et al.²⁹ chose this surface, V_S, due to its similarity to the van der Waals surface of molecules, which is representative of intermolecular interactions. 1,3,5-Trifluorotriiodobenzene displays the characteristic positive potential on the iodine atom along the extension of the carbon–iodine bond (σ-hole).²⁹ This region of positive potential has been related to the formation of halogen bonds and the maximum value to the interaction energy. In 1,3,5-trifluorotriiodobenzene, the maximum value, I_max, on each iodine atom is +29.8 kcal mol⁻¹, which agrees with previously reported values from Politzer et al.³⁰ To form a halogen bond, the iodine atom has to interact with a nucleophilic site bearing a negative electrostatic potential on the molecule. Fig. 2 shows that the minimum value of the electrostatic potential in 4-[5-(4-hexyloxyphenyl)-1,3,4-oxadiazole-2-yl]pyridine is found on the nitrogen atoms in accordance with the interactions observed in the crystal. The most negative value of I_min, however, is on the N(3) nitrogen of the oxadiazole ring followed by the other ring nitrogen atom [N(2)] with values of −37.2 and −36.8 kcal mol⁻¹, respectively.

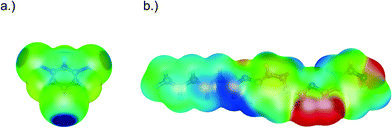

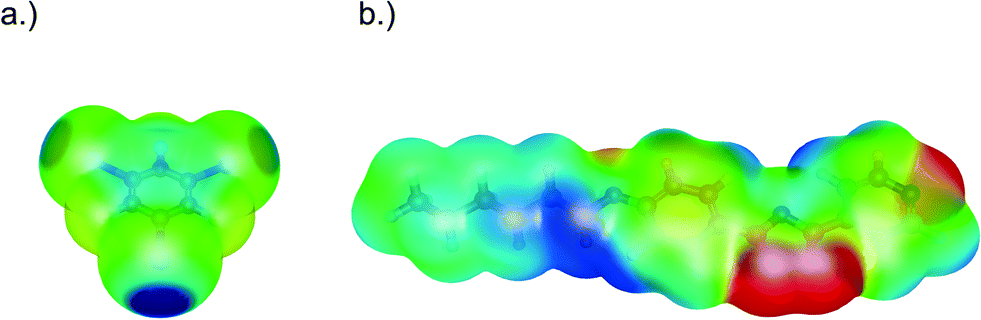

Fig. 2 Molecular electrostatic potential mapped on the isodensity surface (isovalue = 0.001 e a₀⁻³, blue corresponds to +18.8 kcal mol⁻¹ and red to −18.8 kcal mol⁻¹) for a) 1,3,5-trifluorotriiodobenzene and b) 4-[5-(4-hexyloxyphenyl)-1,3,4-oxadiazole-2-yl]pyridine.

The pyridine nitrogen atom [N(1)] has the least negative value of the three nitrogen atoms with I_min = −36.5 kcal mol⁻¹. These results suggest that if the interaction is only electrostatic in nature and no crystal packing effects are considered, the most favourable site for the interaction with the iodine atoms of 1,3,5-trifluorotriiodobenzene would be the N(3) nitrogen atom of the oxadiazole ring (the nitrogen closest to the phenyl ring). The N⋯I bond distances do not change considerably with alkyl chain length (Table 1), in agreement with the electronic structure calculations, which showed that changing the length of the alkyl chain does not alter the relative values of the MEP on the nitrogen atoms (Table S3†). To address the relevance of the N(2) atom as a possible second interaction site, V_s was recalculated once an interaction between the iodine atom and the most nucleophilic N(3) atom was formed in a ‘pair complex’. A ‘pair complex’ results from the separation of the periodic crystal structure into molecule pairs. These pairs are formed by two molecules that interact through the N(3)⋯I halogen bond. In the electronic structure calculation, their geometry is kept fixed representing the one in the crystal structure. We found that the most negative value of the ‘pair complex’ is now on the N(1) atom of the pyridine ring (I_min = −35.6 kcal mol⁻¹) and not on the N(2) atom (I_min = −33.0 kcal mol⁻¹) (see the ESI†). One can conclude that once the most favourable interaction with N(3) is formed, the ‘pair complex’ would favour the interaction over the pyridine nitrogen atom, which is the most nucleophilic site and additionally is sterically more accessible. The energy of this type of interaction was also estimated by calculating the dissociation energy of the ‘pair complexes’ formed by the two molecules interacting through either N(1), N(2) or N(3) atoms. These calculations were performed with the ORCA software package³¹ at the M06-2X/def-TZVP level of theory where the geometry was fixed. This level of theory was shown by Kozuch et al.³² to yield halogen bond interaction energies of model systems with errors below 1 kcal mol⁻¹. It was found that the interaction energy is strongest for the N(1) nitrogen atom due to the short halogen bond distance, followed by the interaction energy involving the N(3) atom, which amounts to 5.7 kcal mol⁻¹. This is in accordance with reported values of halogen bond interaction energies reported recently by Politzer et al.²⁹ Therefore, it seems clear that N(3) and N(1) are the most favourable sites for the halogen bond interaction, however, the differences between the three N sites are small enough to consider that all the interactions can take place simultaneously and thus the driving force that leads to the crystal structure observed is Kitaigorodskii's rule of closest packing.

Considering the initial purpose to construct 3 : 1 star-like molecules where the 1,3,5-trifluorotriiodobenzene interacts with three oxadiazole molecules via the pyridine nitrogen atom, one can envisage several strategies to favour the negative electrostatic potential at the pyridine N(1) atom. The first approach involves the replacement of the alkyl chain by electron withdrawing substituents (such as –CF₃); electronic structure calculations indicate that the order of I_min is reversed and N(1) becomes the preferred interaction site [I_min[N(3)] = −30.3 kcal mol⁻¹, I_min[N(2)] = −30.5 kcal mol⁻¹, I_min[N(1)] = −32.5 kcal mol⁻¹]. The second strategy consists of introducing an electron-donating group onto the pyridyl ring. However, the available 3-position has many synthetic drawbacks that experimentally preclude the preparation of such a molecule. On the other hand, the substitution in the 2-position, even when it is synthetically feasible, faces an inherent steric problem in the formation of the co-crystals.

The third approximation is the substitution of the oxygen atom of the oxadiazole ring by sulfur. In this case, the I_min value at the N(1) atom is −37.5 kcal mol⁻¹, whereas those of N(2) and N(3) are −33.6, and −33.9 kcal mol⁻¹, respectively, showing a significant increase in the electron density of N(1), which should become the preferred interaction site.

To prove this concept, the thiadiazole derivative 4-[5-(4-nonyloxyphenyl)-1,3,4-thiadiazole-2-yl]pyridine (6) was synthesized and the structure was obtained from a crystal prepared from a 3 : 1 mixture of the thiadiazole with 1,3,5-trifluorotriiodobenzene. The resultant co-crystal (6) has a 2 : 1 stoichiometry and it crystallizes in the C2/c space group. In this case, halogen bonding linking both molecules occurs only at the N(1) nitrogen atom of the pyridine ring, with two thiadiazole molecules linked to one 1,3,5-trifluorotriiodobenzene. This situation is in agreement with the theoretical calculations regarding the preference of the halogen bond for the pyridine N atom (N⋯I geometrical parameters are listed in Table 1). The V-shaped adduct is depicted in Fig. 3, the two thiadiazole molecules forming an angle of 68.4(2)°, much less than the 120° expected from the configuration of the iodine atoms. These adducts are arranged in layers, and they are staggered with their neighbours, leading to a less efficient crystal packing with a calculated density of 1.64 g dm⁻³ (Fig. S4†).

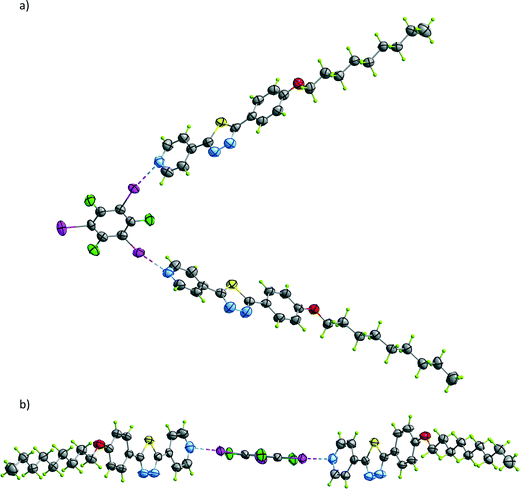

Fig. 3 A view of the asymmetric unit of 6 a) along the c-axis and b) along the b-axis.

The theoretical and experimental data reported here showed that when it comes to the fabrication of co-crystals based on halogen bonding, the archetypal iodine⋯pyridine interaction will not be necessarily the most favoured when acceptors such as oxadiazole are present. Theoretical calculations show that the oxadiazole nitrogen atoms [N(3) and N(2)], not the pyridine nitrogen atom [N(1)], have the highest electrostatic potential values. These results situate the three nitrogen atoms in equal conditions to interact, in agreement with the crystal structures of 1–5, where all the nitrogen atoms are involved in the formation of halogen bonds.

Moreover, there would be a certain degree of tunability and the energetically best acceptor can be changed in terms of the functionality of the substituents or the heteroatom in the diazole ring. The crystal structure of the thiadiazole represents the first step in this direction, where in the 1,3,5-trifluorotriiodobenzene adduct (6) only the pyridine nitrogen atoms participate in halogen bonds. Calculations show that in 4 (the equivalent oxadiazole adduct), the minimum value of the MEP is on the oxadiazole nitrogen N(3), whereas in 6, this value is located on the N(1) pyridine nitrogen atom with a clear difference from the values for N(2) or N(3). This property can be used for the construction of new halogen-bonded co-crystals based on the oxadiazole function as well as other five-membered N-heterocycles; research into this is now in progress.

Acknowledgements

This work has received financial support from FONDECYT N° 11100065, 11121179, 1120092, DIUC 212.23.49-1.0, NC 120082 and the Spanish Ministerio de Economía y Competitividad through projects MAT2013-43101-R, MAT2014-57465-R and CTQ2013-44844-P. J. P. also thanks the project CTQ2013-44844-P for a research contract.

Notes and references

1. (a) G. R. Desiraju, Angew. Chem., Int. Ed. Engl., 1995, 34, 2311–2327; (b) G. R. Desiraju, The Crystal as a Supramolecular Entity, John Wiley & Sons, New York, 1996; (c) J. W. Steed and J. J. Atwood, Supramolecular Chemistry, Wiley, Chinchester, 2000; (d) C. B. Aakeröy, N. R. Champness and C. Janiak, CrystEngComm, 2010, 12, 22–43.
2. P. Auffinger, F. A. Hays, E. Westhof and P. S. Ho, Proc. Natl. Acad. Sci. U. S. A., 2004, 101, 16789–16794.
3. A. R. Voth and P. S. Ho, Curr. Top. Med. Chem., 2007, 7, 1336–1348.
4. G. M. Espallargas, Ideas Chem. Mol. Sci.: Adv. Nanotechnol., Mater. Devices, 2010, 115–138.
5. (a) M. Fourmigué and P. Batail, Chem. Rev., 2004, 104, 5379–5418; (b) M. Brezgunova, K. S. Shin, P. Auban-Senzier, O. Jeannin and M. Fourmigué, Chem. Commun., 2010, 3226–3228; (c) H. M. Yamamoto, Y. Kosaka, R. Maeda, J. Yamaura, A. Nakao, T. Nakamura and R. Kato, ACS Nano, 2008, 2, 143–155.
6. G. R. Hanson, P. Jensen, J. McMurtrie, L. Rintoul and A. S. Micallef, Chem. – Eur. J., 2009, 15, 4156–4164.
7. P. Metrangolo, Y. Carcenac, M. Lahtinen, T. Pilati, K. Rissanen, A. Vij and G. Resnati, Science, 2009, 323, 1461–1464.
8. (a) S. George, A. Nangia, C.-K. Lam, T. C. W. Mak and J. F. Nicoud, Chem. Commun., 2004, 1202–1203; (b) E. Cariati, A. Forni, S. Biella, P. Metrangolo, F. Meyer, G. Resnati, S. Righetto, E. Tordin and R. Ugo, Chem. Commun., 2007, 2590–2592.
9. (a) H. L. Nguyen, P. N. Horton, M. B. Hursthouse, A. C. Legon and D. W. Bruce, J. Am. Chem. Soc., 2004, 126, 16–17; (b) C. Präsang, A. C. Whitwood and D. W. Bruce, Chem. Commun., 2008, 2137–2139.
10. (a) K. Raatikainen, J. Huuskonen, M. Lahtinen, P. Metrangolo and K. Rissanen, Chem. Commun., 2009, 2160–2162; (b) P. Metrangolo, F. Meyer, T. Pilati, G. Resnati and G. Terraneo, Chem. Commun., 2008, 1635–1637; (c) B. K. Saha, R. K. R. Jetti, L. S. Reddy, S. Aitipamula and A. Nangia, Cryst. Growth Des., 2005, 5, 887–899; (d) B. K. Saha and A. Nangia, CrystEngComm, 2006, 8, 440–4403.
11. G. R. Desiraju, Angew. Chem., Int. Ed. Engl., 1995, 34, 2311.
12. K. Merz and V. Vasylyeva, CrystEngComm, 2010, 12, 3989–4002.
13. G. R. Desiraju, J. Am. Chem. Soc., 2013, 135, 9952–9967.
14. P. Metrangolo and G. Resnati, Halogen Bonding: Fundamentals and Applications (Structure and Bonding), Springer, Heidelberg, 2010.
15. P. Metrangolo, H. Neukirch, T. Pilati and G. Resnati, Acc. Chem. Res., 2005, 38, 386–395.
16. D. W. Bruce, P. Metrangolo, F. Meyer, C. Präsang, G. Resnati, G. Terraneo and A. C. Whitwood, New J. Chem., 2008, 32, 477–482.
17. C. A. Aakeröy, P. D. Chopade, C. Ganser and J. Desper, Chem. Commun., 2011, 47, 4688–4690.
18. D. Cinčić, T. Friščić and W. Jones, CrystEngComm, 2011, 13, 3224–3231.
19. R. Liantonio, P. Metrangolo, T. Pilati and G. Resnati, Acta Crystallogr., Sect. E: Struct. Rep. Online, 2002, 58, o575–o577.
20. (a) J. I. Jay, C. W. Padgett, R. D. B. Walsh, T. W. Hanks and W. T. Pennington, Cryst. Growth Des., 2001, 1, 501–507; (b) T. Mukai and K. Nishikawa, X-Ray Struct. Anal. Online, 2010, 26, 31–32.
21. C. B. Aakeröy, T. K. Wijenthunga and J. Desper, J. Mol. Struct., 2014, 1072, 20–27.
22. (a) A. C. B. Lucassen, A. Karton, G. Leitus, L. J. W. Shimon, J. M. L. Martin and M. E. van der Boom, Cryst. Growth Des., 2007, 7, 386–392; (b) M. Vartanian, A. C. B. Lucassen, L. J. W. Shimon and M. E. van der Boom, Cryst. Growth Des., 2008, 8, 786–790.
23. S. Triguero, R. Llusar, V. Polo and M. Fourmigué, Cryst. Growth Des., 2008, 8, 2241–2247.
24. P. Metrangolo, F. Meyer, T. Pilati, G. Resnati and G. Terraneo, Chem. Commun., 2008, 1635–1637.
25. L. C. Roper, C. Präsang, V. N. Kozhevnikov, A. C. Whitwood, P. B. Karadakov and D. W. Bruce, Cryst. Growth Des., 2010, 10, 3710–3720.
26. (a) K. Durka, S. Luliński, K. N. Jarzembska, J. Smętek, J. Serwatowskia and K. Woźniak, Acta Crystallogr., Sect. B: Struct. Sci., Cryst. Eng. Mater., 2014, 70, 157–171; (b) R. B. Kanth Siram, D. P. Karothu, T. N. G. Row and S. Patil, Cryst. Growth Des., 2013, 13, 1045–1049; (c) V. R. Hathwar and T. N. G. Row, Cryst. Growth Des., 2011, 11, 1338–1346; (d) R. Malavé Osuna, V. Hernández, J. T. López-Navarrete, E. D'Oria and J. J. Novoa, Theor. Chem. Acc., 2011, 128, 541–553.
27. A. Bondi, J. Phys. Chem., 1964, 68, 441–451.
28. M. J. Frisch, et al., Gaussian 03, Revision E.01, Gaussian, Inc., Wallingford CT, 2004.
29. P. Politzer, J. S. Murray and T. Clark, Phys. Chem. Chem. Phys., 2010, 12, 7748–7757.
30. F. A. Bulat, A. Toro-Labbe, T. Brinck, J. S. Murray and P. Politzer, J. Mol. Model., 2010, 16, 1679–1691.
31. F. Neese, WIREs Comput. Mol. Sci., 2011, 2, 73.
32. S. Kozuch and J. Martin, J. Chem. Theory Comput., 2013, 135, 19282–19291.

---

Footnote

† Electronic supplementary information (ESI) available. CCDC 1409978–1409983. For ESI and crystallographic data in CIF or other electronic format see DOI: 10.1039/c5ce02154e

---
