Bimetallic porous porphyrin polymer-derived non-precious metal electrocatalysts for oxygen reduction reactions

Abstract

The development of efficient and stable electrocatalysts on the basis of non-precious metals (Co, Fe) is considered as one of the most promising routes to replace expensive and susceptible platinum as the oxygen reduction reaction (ORR) catalyst. Here we report a synthetic strategy for the precursor controlled, template-free preparation of novel mono- (Fe; Co) and bimetallic (Fe/Co) nitrogen-doped porous carbons and their electrocatalytic performance towards the ORR. The precursors are composed of metal–porphyrin based conjugated microporous polymers (M-CMPs with M = Fe; Co; Fe/Co) derived from polymerization of metalloporphyrins by the Suzuki polycondensation reaction, which enables the synthesis of bimetallic polymers with alternating metal–porphyrin units for the preparation of carbon-based catalysts with homogenously distributed CoN₄ and FeN₄ centres. Subsequent pyrolysis of the networks reveals the key role of pre-morphology and network composition on the active sites. ⁵⁷Fe-Mössbauer spectroscopy was conducted on iron catalysts (Fe; Fe/Co) to determine the coordination of Fe within the N-doped carbon matrix and the catalytic activity-enhancing shift in electron density. In acidic media the bimetallic catalyst demonstrates a synergetic effect for cobalt and iron active sites, mainly through a 4-electron transfer process, achieving an onset potential of 0.88 V (versus a reversible hydrogen electrode) and a half-wave potential of 0.78 V, which is only 0.06 V less than that of the state-of-the-art Pt/C catalyst.

---

1 Introduction

Electrochemical energy storage and conversion is of increasing importance to meet the progressive demand for energy, urging the development of new materials applied in many technologies such as batteries, electrolysers and fuel cells. For polyelectrolyte membrane fuel cells (PEMFCs), the common catalyst for the oxygen reduction reaction (ORR) is based on Pt or Pt-alloys that suffer from high costs, scarcity and the lack of stability.^1,2 Versatile classes of materials, including molecular non-noble metal complexes, metal oxides, metal chalcogenides and metal-free heteroatom-doped carbons, have been evaluated as alternatives for Pt-based catalysts over the past several decades.^3–13 In particular, nitrogen-coordinated transition metals have received attention since Jasinski reported the electrocatalytic activity of Co-phthalocyanine in 1964.¹⁴ However, molecular catalysts exhibit neither sufficient catalytic activity nor long-term stability due to decomplexation of the transition metal.¹⁵ To overcome this drawback, porous carbon supports have been impregnated with nitrogen-containing transition metal complexes and subsequently converted into metal–nitrogen-doped carbon upon pyrolysis under an inert atmosphere.^16–21 Thus, the activity and durability of the catalyst during the ORR process can be significantly improved.²²

Although the detailed structure of the catalytically active sites remains elusive, it is commonly accepted that nitrogen-complexed transition metals (MN_4−x, M: Fe, Co, Cr, Mn) incorporated within a carbon matrix play a crucial role in the ORR, particularly in acidic media.^7,23 In addition to nitrogen-containing metal complexes such as phthalocyanines and porphyrins, which are composed of MN₄ centers, much effort has been devoted to the development of highly active ORR catalysts by simply blending individual carbon, nitrogen and metal sources or metal-chelating polymers.^21,23–25 Although MN₄ sites can be created by thermal treatment of such precursor systems, numerous metallic nanoparticles of different sizes are often formed during pyrolysis.^26–28 This undesired agglomeration of metals is commonly observed for the impregnation method, in which the metal complex precursor is weakly bound or physically adsorbed on the carbon support, leading to a decrease in the catalytic activity of these materials.^29,30 For this reason, the optimization of the precursor composition has been intensively studied, and it has been found that a suitable amount of metal within the precursor or sulfur as an additive is capable to limit metal nanoparticle growth.^18,31–34 Additionally, to provide a high density of active sites as well as unhindered mass transport, the carbon support must feature a large surface area and porous structure. Therefore, hard templates, such as ordered porous silicas or metal oxides, have also been used as supports for ORR catalysts.^21,35,36 However, the removal of the costly inorganic template is difficult and increases the number of working steps.

To circumvent such disadvantages, metal–organic frameworks (MOFs) have been recently reported to act as formative soft templates, which can be decomposed during pyrolysis.³⁷ Nevertheless, this fabrication method requires an elaborate heat treatment in a hazardous ammonia atmosphere and is associated with enormous mass loss. In the end, precursor-controlled pyrolysis of porous polymer frameworks has realized the template-free preparation of self-supporting metal–nitrogen-doped carbon materials in a one-step approach.³⁸ Polymer frameworks consisting of conjugated immobilized metal–porphyrins offer an attractive route for the formation of large surface areas with intrinsic micropores and a maximum density of the desired MN₄ units. The fixation of the MN₄-sites within the rigid polymer framework and its high thermal stability further alleviate the formation of metal nanoparticle agglomerates during the pyrolysis process. With respect to this finding, we recently reported the preparation of self-supported cobalt-containing nitrogen-doped carbons as ORR catalysts through pyrolysis of a porous conjugated cobalt porphyrin polymer synthesized by Yamamoto polycondensation, revealing promising electrocatalytic performance in acidic media.³⁹ Numerous comparative and computational studies have indicated that iron-containing and particularly bimetallic catalysts have enhanced activity towards the ORR.^40–42 Consequently, we herein demonstrate a precursor-controlled pyrolysis of iron, cobalt and bimetallic porphyrin-based conjugated microporous polymers that were synthesized by Suzuki polycondensation. This synthetic approach gives easy access to a homogenous distribution of Fe- and/or Co-complexes within a conjugated carbon network which represents a major advantage over typical methods that provide arbitrary coverage onto supports. Furthermore, the Fe- and Co-sites are arranged in an alternating sequence throughout the entire precursor increasing the chance to promote synergetic effects of associated active sites. Another significant feature of this synthetic strategy is the ability to tune the pore characteristics through manipulating the size and connectivity of the monomers, which can lead to an efficient mass transport. Finally, the rigidity and high thermal stability of the porphyrin network confine the formation of metal nanoparticles during the pyrolysis process, providing the retention of catalytically active MN₄-sites. ⁵⁷Fe-Mössbauer spectroscopy indicates a shift of electron density from neighboring CoN₄-sites to FeN₄-sites. This synergetic effect of bimetallic (Fe/Co) nitrogen-doped carbons is reflected by the higher ORR onset potential (0.88 V) in acidic media compared with the catalysts derived from monometallic porphyrin networks.

2 Experimental

2.1 Synthesis of (metal–)porphyrin derivatives

The porphyrin monomers, 5,10,15,20-tetrakis(4′-bromophenyl)porphyrin, 5,10,15,20-tetrakis(4′-benzenediboronic acid bis(pinacol) ester) porphyrin, iron(III) 5,10,15,20-tetrakis(4′-bromophenyl)porphyrin chloride, cobalt(II) 5,10,15,20-tetrakis(4′-bromophenyl)porphyrin and cobalt(II) 5,10,15,20-tetrakis(4′-benzenediboronic acid bis(pinacol) ester) porphine, were synthesized according to the literature or with slight modifications.⁴³ All details regarding the synthesis and the characterization of the compounds are presented in the ESI.†

2.2 Synthesis of CMP

From Suzuki cross-coupling polycondensation following the procedure from the literature, metal-free, monometallic and bimetallic CMPs were obtained.⁴⁴ Metal-free CMP: 5,10,15,20-tetrakis(4′-bromophenyl)porphyrin ([p-Br]₄TPP) and 5,10,15,20-tetrakis(4′-benzenediboronic acid bis(pinacol) ester) porphyrin ([p-BOR]₄TPP); monometallic Fe-CMP and Co-CMP: ([p-Br]₄FeTPP) or ([p-Br]₄CoTPP) and 1,4-benzenediboronic acid bis(pinacol) ester; bimetallic Fe/Co-CMP: ([p-Br]₄FeTPP) and ([p-BOR]₄CoTPP). The schematic polymer structures and their properties are displayed in Fig. 1 and S1.†

Fig. 1 Schematic representation of the synthesis and structure of (a) Fe/Co-CMP, (b) Co-CMP and (c) Fe-CMP and their nanosized morphology imaged by SEM (scale bars 1 μm) and TEM (scale bars 0.1 μm).

2.3 Preparation of pyrolyzed CMP

For the carbonization step, 200–300 mg of the CMP were placed into a quartz boat, which was introduced into a ceramic oven, and pyrolyzed at various temperatures of 700, 800 and 900 °C under flowing nitrogen (300 sccm). First, the temperature was set to 200 °C for 2 h to remove solvents and adsorbed water from the CMP. With a heating rate of 5 K min⁻¹ the oven reached the specific temperature and held for an additional 2 h before being cooled down by natural convection. These samples are denoted as M-CMP-700*, M-CMP-800* and M-CMP-900*. After etching with semi-concentrated hydrochloric acid (6.0 M) for 16 h, the materials were subjected to a second pyrolysis in an inert atmosphere under the same conditions as the first pyrolysis treatment. The metal–nitrogen-doped porous carbons are named M-CMP-700, M-CMP-800 and M-CMP-900 (M: Fe/Co; Co; Fe), respectively. The final catalyst was used as obtained.

2.4 Physicochemical characterization

Field-desorption mass spectra were measured on a VG Instrument ZAB 2-SE-FPD. Matrix-assisted laser desorption ionization time-of-flight (MALDI-TOF) experiments were conducted on a Bruker Reflex II TOF spectrometer equipped with a 337 nm nitrogen laser. Samples were analyzed from the solid state mixed within a matrix of tetracyanoquinodimethane (TCNQ). Solution UV-Vis spectra were recorded on a Perkin-Elmer Lambda 900 spectrophotometer. The spectra were corrected by subtracting the background, which was measured with a cuvette filled with pure solvent. ¹H-NMR and ¹³C-NMR experiments on soluble compounds were performed on the listed deuterated solvents (as internal standards) on a Bruker AMX 300, Bruker DRX 500 or Bruker DRX 700 spectrometer. Solid-state ¹³C [¹H] cross polarization (CP) NMR measurements were recorded on a Bruker ASX 500 spectrometer at 75 MHz and a magic angle spinning (MAS) frequency of 10 kHz. Fourier transform infrared (FTIR) spectra were measured with a Nicolet 730 spectrometer equipped with an attenuated reflection (ATR) module. Thermogravimetric analysis was performed on a Toledo TGA/SDTA 851e (Mettler) with a heating rate of 5 K min⁻¹ in a nitrogen atmosphere. Nitrogen sorption measurements were conducted at 77 K on a TriStar 3020 volumetric analyzer (Micromeritics). All samples were degassed at 200 °C for at least 4 h prior to every measurement. Specific surface areas were determined by the standard Brunauer–Emmett–Teller (BET) method based on the relative pressure between 0.05 and 0.20. The pore size distribution (PSD) was calculated by the Barrett–Joyner–Halenda (BJH) method. Scanning electron microscopy (SEM) was performed on a field emission micro-analyzer (Gemini LEO 1530). Transmission electron microscopy (TEM) was carried out on a JEM-1400 (JEOL Ltd.). The sample was dispersed in ethanol by ultra-sonication and dropped onto a carbon-coated copper grid. High resolution TEM (HRTEM) and energy dispersive X-ray (EDX) measurements were conducted on a Tecnai F20 (FEI) with a beam voltage of 200 kV. X-ray photoelectron spectroscopy (XPS) was carried out on an AXIS Ultra DLD system from Kratos with an Al Kα radiation source. Mössbauer measurements were conducted at room temperature with a CMCA-550 (Wissel) equipped with a constant electronic drive system with a triangular reference waveform (Halder Electronics). The radiation source ⁵⁷Co/Rh was used, and the calibration of the velocity scale and the isomer shift was made with respect to α-iron.

2.5 Electrochemical measurements

All electrochemical measurements were performed in a standard three-compartment cell using a WaveDriver 20 bipotentiostat (Pine Instrument Company, USA) at room temperature. The counter electrode and reference electrode were a platinum wire and an Ag/AgCl (4 M KCl) electrode, respectively. Since all potentials in this work refer to that of the reversible hydrogen electrode (RHE), a potential difference of 0.23 V – arising from the potential difference of the RHE vs. Ag/AgCl – is taken into account. The working electrodes, a rotating disc electrode (RDE) composed of a glassy carbon disc (5.0 mm diameter) and a rotating ring disc electrode (RRDE) constructed of a glassy carbon disc (5.61 mm diameter) surrounded by an outer Pt-ring (6.25 mm inner-diameter and 7.92 mm outer-diameter), served as substrates for the catalyst ink. The catalyst ink was prepared by suspending 10 mg catalyst with 100 μL Nafion solution (5 wt%) and 400 μL ethanol in an ultrasonic bath. A loading of 120 μg catalyst (6 μL) was pipetted onto the glassy carbon surface of the RDE/RRDE and left to dry in air at room temperature. Before a voltammogram was recorded a reduction/oxidation cycle was performed to remove static current and weakly bound electro-active compounds. The linear sweep voltammograms (LSVs) were measured in the cathodic direction using O₂-saturated 0.5 M H₂SO₄ as the electrolyte. The rotation speed was 1600 rpm, and the sweep rate was 5 mV s⁻¹. Since the double layer capacitance contributes to the polarization, oxygen was removed from the electrolyte by bubbling with argon for 30 min, and then a voltammogram in the O₂-free electrolyte was evaluated. The oxygen reduction current was determined from the difference of the voltammograms measured in O₂-saturated and O₂-free electrolytes. To determine the peroxide generated by the ORR-catalysts, a potential of 1.4 V vs. RHE was set on the Pt-ring electrode of the RRDE.

3 Results and discussion

3.1 Characterization of CMP

The porphyrin polymer networks were synthesized via Suzuki cross-coupling polycondensation in the presence of a catalytic amount of tetrakis(triphenylphosphine)palladium(0). Polymerization of monomers 1 and 2 produced bimetallic porphyrin polymer (Fe/Co-CMP) (Fig. 1). The monometallic Co-CMP and Fe-CMP were also prepared under the same reaction conditions from 1,4-benzenediboronic acid bis(pinacol) ester with monomers 3 and 1, respectively (for details see the Experimental section). The mono- and bimetallic CMPs were analyzed by FTIR spectroscopy. The characteristic N–Fe and N–Co vibration bands at 997 cm⁻¹ and 1001 cm⁻¹, respectively, remained after the polymerization (Fig. S1a–h†) indicating the stability of the metal–nitrogen complex under these reaction conditions. The aryl–aryl-bond formation is further indicated by the significantly diminished intensities of the C–Br and B–O stretching bands at 1072 cm⁻¹ and 1348 cm⁻¹, respectively. To gain further insight into the polymerization reaction, solid state ¹³C-NMR spectroscopy was performed on a metal-free CMP, which was obtained from the polymerization of metal-free porphyrins 5,10,15,20-tetrakis(4′-bromophenyl)porphine and 5,10,15,20-tetrakis(4′-benzenediboronic acid bis(pinacol) ester)porphine (Fig. S1i and j†). With increasing reaction time, the MAS ¹³C-NMR-spectra of the metal-free CMP displayed decreasing signal intensity for the peaks corresponding to the carbons C_Ar–Br (119 ppm) and C_Ar–B (121 ppm). Simultaneously, an increase in the peak at ∼140 ppm – characteristic of aromatic quaternary carbons – was observed.⁴⁵ These results indicate successful formation of CMPs with high polymerization degree.

From nitrogen adsorption measurements, the surface area was calculated by the Brunauer–Emmett–Teller method (BET) to be as high as 463, 597, 488, and 352 m² g⁻¹ for Fe/Co-CMP, Co-CMP, Fe-CMP, and metal-free CMP, respectively. These CMPs were categorized as type I isotherms, indicating that the surface area mainly consists of micropores. The absence of any hysteresis in the isotherms at low pressure indicated pore-network effects (e.g., swelling) – a characteristic property of polymers with intrinsic microporosity.⁴⁶ In the case of Fe/Co-CMP and Co-CMP, pores larger than 10 nm also contributed to the surface area (Fig. S1k–n†). The pyrolysis behavior of the metal–porphyrin networks was initially examined by thermal gravimetric analysis (TGA), which demonstrated a significantly elevated decomposition temperature of the rigid metal–porphyrin networks than that of the molecular porphyrins (Fig. S2†). Furthermore, TGA showed that Fe-CMP began to decompose at lower temperatures than the Co-containing networks, Co-CMP and Co/Fe-CMP, both of which exhibiting equal thermal stability and a weight loss of 26% up to 800 °C. This is likely due to the lower stability of the iron complex and the formation of iron nanoparticles, which further catalyze the decomposition of the carbon matrix (see below).

3.2 Characterization of pyrolysed CMP

The morphology and nanoparticle formation in the networks after pyrolysis are shown in Fig. 2. SEM analysis confirmed the retention of the microstructure in all samples after high temperature treatment, thereby demonstrating the unique thermal stability of the polymeric network. TEM analysis revealed that metal nanoparticles of 5–30 nm formed during pyrolysis are decorated on the carbon matrix. Nevertheless, the amount and diameter of the metal nanoparticles are much smaller than those of the previously reported materials based on hard and soft templates.^47,48 High-resolution TEM investigation of Fe-CMP-800* indicated that Fe nanoparticles with diameters between 5 and 15 nm were composed of iron carbide cores encapsulated by an “onion-like” carbon shell (Fig. S3†). The amount and size of metal nanoparticles of Fe-CMP-800* were larger than those of the cobalt containing materials, which can be explained by the lower thermal stability of Fe-CMP. Furthermore, the migration of Fe nanoparticles was facilitated by the microporous, monolithic morphology of Fe-CMP-800* (Fig. 2). By contrast, the morphology of Co-CMP-800* revealed a discontinuous network with a ribbon-like structure composed of fibers with diameters of 20 to 50 nm, which limits the migration of Co nanoparticles. From HRTEM combined with EDX, a uniform distribution of atomic cobalt and iron within a nitrogen-doped carbon matrix could be observed in Fe/Co-CMP-800* (Fig. S4 and S5†). Based on these observations, we assume that the nucleation and diffusion of metal nanoparticles within the carbon matrix is substantially suppressed by two factors: (1) the higher thermal stability of the CoN₄-complex compared with the FeN₄-complex; (2) the microstructure composed of interconnected nanorods found in the cobalt-containing CMPs. Another type of nanoparticle with diameters up to 30 nm was identified by EDX as crystalline palladium, the presence of which is attributed to the confinement of the Pd-catalyst within the polymer networks during Suzuki polymerization. These Pd nanoparticles did not reveal any significant contribution to the ORR as confirmed by the ORR data of the pyrolyzed Fe- and Co-free CMPs (see below).

Fig. 2 SEM (scale bars, 1 μm) and TEM (scale bars, 0.1 μm) images before and after leaching and second pyrolysis and its corresponding BET surface area and pore size distribution of (a) Fe/Co-CMP-800, (b) Co-CMP-800 and (c) Fe-CMP-800.

To expose more active sites, the metal-nanoparticles were leached out of the M-CMP-800* samples and the networks were subsequently subjected to a second heat treatment at 800 °C.⁴² These samples are denoted as Fe/Co-CMP-800, Co-CMP-800 and Fe-CMP-800, respectively. Interestingly, the surface area of Fe/Co-CMP-800 (372 m² g⁻¹), Co-CMP-800 (334 m² g⁻¹) and Fe-CMP-800 (373 m² g⁻¹) independently reached similar values from the initial surface area and morphology. XPS was used to determine the chemical composition of the pyrolyzed networks. Analysis of M-CMP-800 displayed peaks for C1s, N1s, Fe 2p and/or Co 2p in all M-CMP-800 (Fig. 3 and S6†). Additional peaks assigned to boron and oxygen arose from the decomposition products of unreacted boronic acid groups and O₂ or H₂O adsorbed from air. The overall nitrogen content of the monometallic catalysts Co-CMP-800 and Fe-CMP-800 (2.5% N) was lower than that of Fe/Co-CMP-800 (3.7% N). Nevertheless, considering the initial content of nitrogen in the polymers (approximately 5.76% N), a much larger relative fraction of nitrogen remained intact compared with other preparation approaches.⁴⁸ This might be due to the higher intrinsic thermal stability of the M-CMP network. The chemical nature of porphyrinic nitrogen can be transformed into several different species upon pyrolysis, such as graphitic, pyrrolic or pyridinic nitrogen. To analyze the different nitrogen-containing carbon species of the samples, the high-resolution N1s spectra were deconvoluted into their individual signals. Retention of 0.6% metal-coordinated nitrogen (398.7 eV) was revealed for Fe-CMP-800, whereas the ratio in the cobalt containing catalysts Co-CMP-800 and Fe/Co-CMP-800 remained at a higher level of 1.0% and 1.2%, respectively. The ratio of graphitic nitrogen is increasing from Co-CMP-800 over Fe-CMP-800 to Fe/Co-CMP-800. Graphitic nitrogen can enhance the conductivity of the carbon matrix, which can decrease the overall resistance within the material. In all samples pyrrolic and pyridinic nitrogen were formed in minor proportions. Furthermore, the metal content of Fe-CMP-800 and Co-CMP-800 determined by XPS was 0.29% Fe and 0.25% Co, respectively, that is 3 to 7 times higher than that for metal-nitrogen doped carbons obtained from the impregnation method.⁴⁹ Fe/Co-CMP-800 revealed a total metal content of 0.57% (0.31% Fe, 0.26% Co). Because most of the non-coordinated metal – with the exception of encapsulated nanoparticles – was etched out, the higher metal ratio in the bimetallic catalyst Fe/Co-CMP 800 suggests the presence of more active sites.

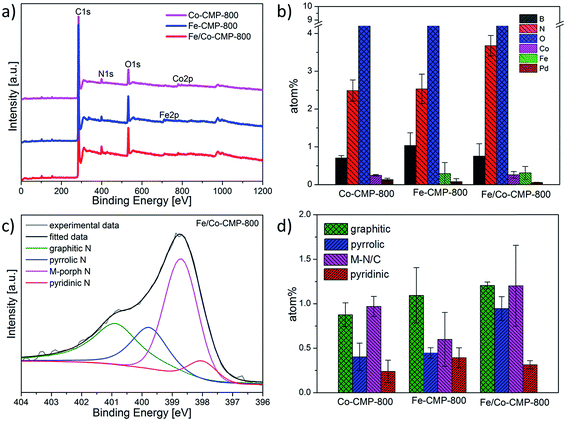

Fig. 3 (a) XPS spectra of M-CMP-800 recorded from 0 to 1100 eV. (b) Elemental composition of M-CMP-800 (excluding carbon). (c) High-resolution N1s XPS spectra of Fe/Co-CMP-800. (d) Content of specific nitrogen-bonding configurations in M-CMP-800.

To evaluate the nature of the active sites, the iron-containing catalysts were subjected to ⁵⁷Fe-Mössbauer spectroscopy studies. Structural transformations due to pyrolysis were already confirmed via high resolution nitrogen XPS. The Mössbauer spectra of both catalysts are given in Fig. 4 and reveal a heterogeneous composition of the catalysts with respect to iron. Both catalysts contain three FeN₄-centers (D1–D3) and a minor amount of iron species without nitrogen coordination that correspond to iron nanoparticles and iron carbide. Mössbauer parameters and assignments for the iron species are summarized in Table 1. The species assignments were made by a comparison of the Mössbauer parameters of our iron sites to values reported in the literature on FeN₄-macrocycles and inorganic iron compounds. Major disparities between the deconvoluted spectra of both catalysts are related to the absorption areas of the different iron sites. Doublet D1 (green) corresponds to ferrous FeN₄ in a low-spin state (S = 0) that was reported to be the active species towards the ORR in other porphyrin-based and alternatively prepared catalysts.^26,28,50 The doublet D2 has Mössbauer parameters similar to those of crystalline iron phthalocyanine (FePc).⁵¹ In its crystalline form, both the square planar nitrogen coordination as well as interactions with nitrogen atoms in the axial direction (from FePc molecules on top or below) contribute to the quadrupole splitting, which is much larger than other Fe(II)N₄ sites with intermediate spin. We assume that a similar pseudo-sixfold coordination of D2 is exclusively realized inside the material and inhibits its contribution to the catalytic activity. Doublet D3 can be assigned to the square planar Fe(II)–N₄ with intermediate spin.⁵² In the bimetallic catalyst Fe/Co-CMP-800 doublet D1 represents the major iron species whereas the monometallic catalyst Fe-CMP-800 primarily consists of the iron species assigned to D2. Such distinct formation of iron species is reasonable in consideration of the discontinuous and the contiguous morphology of Fe/Co-CMP-800 and Fe-CMP-800, respectively. Besides the morphology, the chemical structure of the precursor influences the formation and growth of iron nanoparticles which causes further destruction of active sites during heat treatment.^29,34 Because of the lower solubility of carbon in cobalt than in iron at pyrolysis temperatures, the accumulation of nanoparticles is less pronounced for cobalt containing catalysts.^53,54 These are important points in terms of possible optimization of the synthesis routes. Additionally, the 3d electron density at the iron center of Fe/Co-CMP-800 is more favorable for ORR catalysis, as indicated by the higher isomer shift of D1 (0.46 versus 0.42 mm s⁻¹).²⁶ The slightly higher absorption area of D1 and especially its higher isomer shift of Fe/Co-CMP-800 towards Fe-CMP-800 can explain the higher catalytic activity. The charge transfer from neighboring cobalt sites might be the cause of this higher isomer shift, but a more detailed investigation would be required to confirm this.

Fig. 4 Mössbauer spectra of (a) Fe-CMP-800 and (b) Fe/Co-CMP-800 depicting ratio of assigned iron species.

Table 1 Average Mössbauer parameters of the two catalysts and assignments for the iron species^a

	δ iso	ΔEQ/mm s^−1	fwhm	H o/T	Fe-CMP-800 κ^2 = 0.77 A/%	Fe/Co-CMP-800 κ^2 = 1.01 A/%	Assignment
a δ iso: isomeric shift; ΔEQ: quadrupole splitting; fwhm: full width at half maximum; Ho: intensity of the internal magnetic field; LS: low spin; MS: mediate spin.
	−0.21	—	0.32		2.9	3.4	Fe-nanoparticles
	0.44	0.71	0.7		35.1	42.7	Fe^2+N4/C, LS^26,45
	0.53	2.60	1.2		41.0	16.1	Fe^2+N4, MS, similar to FePc^47,51
	0.35	1.57	0.75		21.0	28.4	Fe^2+N4/C, MS^48
	0.15	0	0.6	20.0	—	4.3	Fe3C
	0.21	0	0.6	17	—	5.1

---

3.3 Electrochemical characterization

To evaluate the ORR activity and selectivity, LSVs were recorded in N₂- and O₂-saturated 0.5 M H₂SO₄ using a RDE with a catalyst loading of 0.6 mg cm⁻². First, the influence of the pyrolysis temperature on the electrocatalytic activity of Fe/Co-CMP was investigated. As displayed in Fig. 5a, 800 °C was found to be the optimized pyrolysis temperature in accordance with temperature-activity trends in carbon-supported porphyrin-based catalysts.⁵⁵ In Fig. 5b, the polarization curves of metal-free CMP-800, Co-CMP-800, Fe-CMP, Fe/Co-CMP-800 and Pt/C are depicted. The onset-potential of the non-precious metal-based catalysts increased in the following order: Co-CMP-800 (0.82 V), Fe-CMP-800 (0.85 V) and Fe/Co-CMP-800 (0.88 V). The metal-free catalyst CMP-800 showed poor activity, verifying the negligible contribution from the Pd-nanoparticles to the ORR. These results also suggest the crucial role of FeN₄- and CoN₄-sites in nitrogen-doped carbons for the electrocatalytic reduction of oxygen in acidic media. In accordance with the intrinsic nature of the active sites, both iron-containing catalysts exhibit a similar onset potential. However, the sharp decline in the polarization curve of Fe/Co-CMP-800 suggests the presence of more exposed active sites and/or a higher turnover frequency for the bimetallic catalyst. This behavior can be explained by the higher electron density at the iron sites, as indicated from the Mössbauer analysis. Furthermore, the half-wave potentials of Co-CMP-800 and Fe-CMP-800 were determined to be 0.74 V that is comparable to other monometallic porphyrin polymer-derived catalysts.^38,39,56 Strikingly, the bimetallic catalyst Fe/Co-CMP-800 demonstrated a more positive half-wave potential of 0.76 V, which is only 0.08 V less than that of Pt/C (20 wt%, BASF).

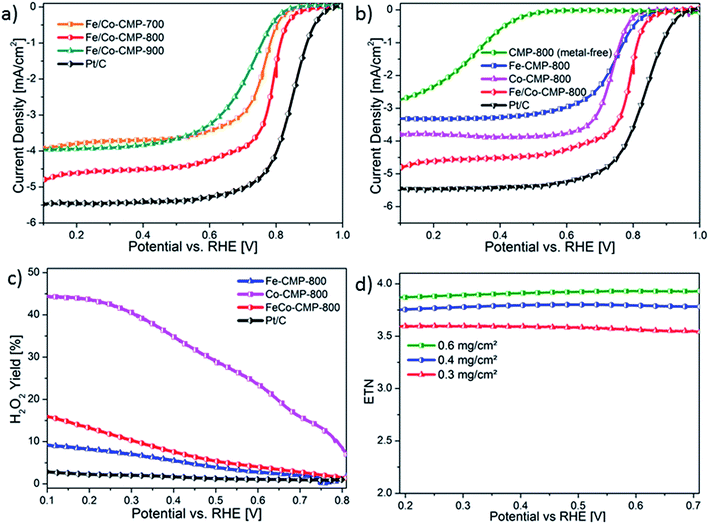

Fig. 5 Electrocatalytic performance of the catalysts. (a) ORR polarization plots of Fe/Co-CMP-700, Fe/Co-CMP-800, Fe/Co-CMP-900 and Pt/C. (b) ORR polarization plots of Fe-CMP-800, Co-CMP-800, Fe/Co-CMP-800, metal-free CMP-800 and Pt/C. (c) H₂O₂ yield of Fe-CMP-800, Co-CMP-800, Fe/Co-CMP-800 with loadings of 0.6 mg cm⁻² and Pt/C. (d) ETN of Fe/Co-CMP-800 in correlation with catalyst loading. RDE and RRDE measurements were conducted in O₂-saturated 0.5 M H₂SO₄ (non-Pt catalysts) and 0.1 M HClO₄ (Pt/C) at 1600 rpm with a sweep rate of 5 mV s⁻¹.

Aside from low overpotential, a selective reduction of oxygen to water is relevant for its application in PEMFCs. Incomplete 2e⁻-reduction releases hydrogen peroxide, which might corrode the cell membrane and the catalyst material itself. Furthermore, the power output would strongly benefit from the complete reduction of oxygen. Therefore, the electron transfer number (ETN) of the electrocatalysts and their corresponding H₂O₂ ratios were determined by RRDE measurements (Fig. 5c). From the data, the H₂O₂ evolution of Co-CMP-800 is significantly higher than that observed for the iron-containing catalysts Fe-CMP-800 and Fe/Co-CMP-800. This result indicates preferential 2e⁻-reduction in Co-CMP-800 with respect to Fe-containing catalysts and is in accordance with previous findings on selectivity in metal–nitrogen-doped catalysts.⁴² Interestingly, the H₂O₂ formation for all three catalysts increased with decreasing potential. For Co-CMP-800, it exceeded 40% at U < 0.25 V, demonstrating less selectivity for cobalt-based electrocatalysts.⁵⁷ For the iron-containing catalysts Fe-CMP-800 and Fe/Co-CMP-800, a 4e⁻-transfer was almost exclusively observed. In particular, in the potential range of 0.6 V to 0.8 V – that is the intended range for fuel cell applications – iron-based Fe-CMP-800 exhibits a high selectivity, generating only 2.8% to 1.3% H₂O₂, respectively. In terms of selectivity, the bimetallic catalyst Fe/Co-CMP-800 behaves more similarly to iron-containing Fe-CMP-800 than to Co-CMP-800. We assume that for Fe/Co-CMP-800, both active sites of FeN₄ and CoN₄ contribute to the ORR. At the FeN₄-sites, oxygen is primarily reduced by a 4e⁻ pathway, whereas CoN₄-sites tend to reduce oxygen by a 2e⁻ pathway. In the bimetallic catalyst, H₂O₂ produced at the CoN₄-sites can be readily reduced to water at neighboring FeN₄-sites resulting in a fast 2 × 2e⁻ pathway as indicated by the catalyst loading correlation (Fig. 5d).⁵⁸ Since Fe/Co-CMP-800 is obtained from a precursor based on Suzuki polymerization, both active sites are located in close proximity, thus realizing the 2 × 2e⁻ pathway with high efficiency. In the case of carbonized catalysts, this pathway is more likely than the proposed mechanism of nanostructured catalysts with geometrically confined active sites consisting of two MN₄ units with face-to-face arrangement of the metal centers.⁵⁹ Additionally, Fe/Co-CMP-800 demonstrates a limiting current density of 4.5 mA cm⁻², while Fe-CMP-800 merely reaches 3.3 mA cm⁻². Considering the similar specific surface areas and the equal H₂O₂ evolution of Fe/Co-CMP-800 and Fe-CMP-800, the bimetallic catalyst contains more catalytic active sites, which is in agreement with the results from the Mössbauer analysis.

Furthermore, the long-term stability of Fe/Co-CMP-800 was demonstrated by performing continuous reduction/oxidation cycles (0.6 V–1.0 V) at 50 mV s⁻¹ in an oxygen-saturated electrolyte before each LSV. Our bimetallic catalyst exhibits similar stability to the commercial Pt/C catalyst, whereas other non-noble metal catalysts cannot compete with Pt/C in terms of long-term stability (Fig. S9†).^4,60

4 Conclusions

In conclusion, we have demonstrated a template-free synthesis of Fe/Co nitrogen-doped carbon catalysts derived from the bimetallic porphyrin based conjugated polymer networks with intrinsic porosity, large surface areas, excellent thermal stability and high densities of precisely connected MN₄ units. The bimetallic catalyst combines the physical properties of the cobalt-based catalyst (discontinuous, ribbon-like structure) with the advantages of the electrochemical properties of iron-based catalysts (high onset potential, low hydrogen peroxide evolution). Therefore, the bimetallic catalyst benefits from the following aspects resulting in an improvement of the electrochemical performance towards the ORR: (1) due to the presence of CoN₄, the formation of catalytically inactive nanoparticles is diminished and the ratio of the catalytically active FeN₄-species is increased; (2) the poor catalytic selectivity of CoN₄ is compensated by the spatial proximity of CoN₄- and FeN₄-sites; and (3) a higher electron density beneficial for the ORR at the FeN₄-sites is achieved. With this enhanced comprehension, we believe that the performance of non-precious metal-based ORR catalysts could be further improved via the rational positioning of active MN₄ sites in the carbon matrix, which would help develop novel electrocatalysts for various electrochemical reactions.

Acknowledgements

This work was financially supported by the Max Planck Society through the program MaxNet Energy, ERC grant on NANOGRAPH, the project INSOLCELL and EC Graphene Flagship (CNECT-ICT-604391). Financial support by the DFG funding of the Excellence Initiative, Darmstadt Graduate School of Excellence Energy Science and Engineering (GSC 1070) is gratefully acknowledged by UIK. We would like to thank Katrin Kirchhoff, Gunnar Glasser and Dr Ingo Lieberwirth for their expert help in taking HRTEM images and Robert Graf for solid-state NMR experiments.
