Sensitive and selective detection of mercury ions based on papain and 2,6-pyridinedicarboxylic acid functionalized gold nanoparticles

Abstract

Here we demonstrate the rational design of a sensitive and selective colorimetric method for mercury ion (Hg²⁺) detection by using papain and 2,6-pyridinedicarboxylic acid (PDCA) functionalized gold nanoparticles (AuNPs). Papain is a protein with seven cysteine residues and 212 amino acid residues, which can combine with Hg²⁺, and PDCA is a chelating ligand, which has a strong affinity for Hg²⁺. Selectivity measurements reveal that the sensor is specific for Hg²⁺ even with interference by high concentrations of other metal ions. This sensor was also used to detect Hg²⁺ ions from real samples of tap water, river water, and pond water spiked with Hg²⁺ ions, and the results showed good agreement with the found values determined by atomic fluorescence spectrometry. The absorbance ratio (A₆₅₀/A₅₂₀) was linear with the Hg²⁺ concentration in the range of 0.01 μM to 14 μM. Under the optimum conditions (1.0 × 10⁻⁷ M papain, 5.0 × 10⁻⁴ M PDCA, pH 6.0 at 30 °C), the detection limit of Hg²⁺ was as low as 9 nM, which met the maximum allowable standard of the Environmental Protection Agency (EPA) set in drinking water. In conclusion, the P-PDCA-AuNPs sensor can be used to detect the concentration of Hg²⁺ with high sensitivity and good selectivity, and it can lead to dramatically improved colorimetric sensors.

---

1. Introduction

Nowadays, the development of industry is increasing rapidly. The pollution of toxic heavy metal ions in the environment is an important issue, especially in aquatic ecosystems.^1–3 As a very important natural element, mercury is widely used in industry, agriculture and manufacture. Due to its strong affinity with fatty tissue in animals, mercury ions tend to biomagnify and bioaccumulate more easily than other metal ions.^4–6 Especially, methyl mercury is extensively present in fish species, and most of its occurrence in human originates from food through the food chain.^7,8 Mercury ions, as an extremely stable form of inorganic mercury, cause the damage of kidneys, brain, and the nervous and endocrine systems.^9,10 Therefore, the detection of mercury levels in water samples is obviously significant.

To date, a series of analytical methods have been developed to detect mercury ions. These analytical methods include flame atomic absorption spectrometry (FAAS),¹¹ atomic fluorescence spectrometry (AFS),¹² inductively coupled plasma mass spectrometry (ICP-MS),¹³ inductively coupled plasma emission spectroscopy,¹⁴ electrochemical methods¹⁵ and fluorescent methods,^16,17 and so on. Although these ways can detect mercury accurately and sensitively, these methods are partly expensive, time-consuming, rely on bulky instrumentation, ungreen, and, in some cases, are intolerant to interferences. To extend the application field of detection, varieties of colorimetric methods based on functionalized gold nanoparticles (AuNPs) have been developed for the simple, rapid and on-line determination of Hg²⁺.^18–23 In recent years, rapid colorimetric sensing methods have attracted more and more interests because of their simple and inexpensive construction, rapid sensing capabilities, and high sensitivity. On the other hand, the aggregation of AuNPs can cause a range of rapid color change from ruby red to deep purple, even blue due to the coupling of interparticle Surface Plasmon Resonance (SPR), with very high extinction coefficients (10⁸–10¹⁰ M⁻¹ cm⁻¹).^24–26 Consequently, several groups had developed colorimetric sensor for the identification of mercury ions.

Colorimetric sensors based on AuNPs have been extensively used as the detection of small concentrations of heavy metal ions such as cadmium, lead, arsenic and mercury.^27–33 In recently, the formation of thymine–Hg²⁺–thymine (T–Hg²⁺–T) was revealed very stably, Lee et al.¹⁸ reported method for colorimetric detection of Hg²⁺ based on DNA-functionalized AuNPs. This method was highly selectivity and sensitivity, but the requirement of electronic heating and read-out unit for detection at elevated temperatures made this sensor costly and impractical for rapid on-site sample analysis. To overcome these challenges, Xue et al.³⁴ developed a colorimetric sensor system for detection of Hg²⁺ using DNA/nanoparticle conjugates. This sensor could operate within an adjustable operating temperature range, but the detection of real samples was not given. Most of aforementioned methods determining mercury used DNA functionalized AuNPs, but few of them used enzymes. Guo et al.³⁵ synthesized P-AuNPs through the Au–S between papain and AuNPs to detect Hg²⁺, the interferences of Pb²⁺ and Cu²⁺ were still inevitably. Thus, a highly sensitivity and selectivity method to detect Hg²⁺ with optics is still needed.

Darbha et al.³⁶ developed the method for detection of Hg²⁺ using functionalized AuNPs based on the strong affinity between 2,6-pyridinedicarboxylic acid (PDCA) and Hg²⁺. Yu et al.³⁷ used PDCA to improve the selectivity toward Hg²⁺. Inspired by these studies, in this paper, we developed a rapid colorimetric sensor to detect Hg²⁺ using papain and 2,6-pyridinedicarboxylic acid (PDCA) functionalized gold nanoparticles (P-PDCA-AuNPs). In the presence of Hg²⁺, the functionalized AuNPs aggregated through metal–ligand interactions. The PDCA ligands bound to the AuNPs species via Au–N bounds, which improved the selectivity towards Hg²⁺ through a cooperative effect.³⁶ Hg²⁺ could be detected by the colorimetric response of AuNPs and UV-Vis spectrophotometer, even by the naked eyes. In the real samples analysis, the results were still satisfactory. The approach allows for sensitive and selective detection of Hg²⁺, which has potential application in real time detection.

2. Materials and methods

2.1. Materials

Chloroauric acid hydrated (HAuCl₄·4H₂O) and sodium citrate were purchased from Sinopharm Chemical Reagent Co., Ltd (Beijing, China). Papain, extracting from the Caria papaya, was purchased from Sigma-Aldrich (USA). 2,6-Pyridinedicarboxylic acid (PDCA) was obtained from J&K Scientific Ltd (Beijing, China). Mercuric nitrate was purchased from Xiya Chemical Industry Co., Ltd (Shandong, China). All the reagents were used without further purification. Other chemicals involving metal ions salts were all of analytical grade and were obtained from Damao Reagent of Tianjin (Tianjin, China). Ultrapure water (18.2 Ω, Milli-Q Millipore) was used in each experimental process. All of the solutions were prepares in Milli-Q water, and Milli-Q water was also used for further dilution.

2.2. Instruments

Colorimetric measurement was recorded by a UV-2007 spectrometer (Shimadzu corporation, Kyoto, Japan) to obtain the absorption spectra of reaction solution using a quartz cuvette (1 cm path length), and the transmission electron microscopy (TEM) images of AuNPs were performed on a TECNAI T20 G² electron microscope instrument operated at an accelerating voltage of 200 kV (FEI, Netherland). The magnification of TEM is 71 000×. The contents of Hg²⁺ in the real samples were measured using the Atomic Fluorescence Spectrometry (AFS).

2.3. Preparation of AuNPs

The approximately 13 nm diameter AuNPs were prepared according to reported method with a little alteration.^19,38 All glassware was soaked with freshly prepared 3 : 1 (v/v) HNO₃–HCl (aqua regia) for 30 min, rinsed with ultrapure water, and dried for several hours before use. An aqueous solution (100 mL) containing 1 mL HAuCl₄ (0.1%) was brought to boil in a conical flask (250 mL) with rapid stirring. Upon boiling, a 38.8 mM freshly prepared sodium citrate solution (10 mL) was added quickly and left to continue boiling under stirring, within this time, the color of the solution changed from light yellow, blue, purple, finally to ruby red. When the solution turned ruby red from light yellow, the resulting solution was stirred for another 15 min at room temperature. Then, stirring was stopped, and the solution was left allowed to cool to room temperature, filtered through a 0.22 μm syringe filter. The resulting spherical AuNPs were stored at 4 °C. The concentration of the prepared AuNPs was about 8.48 nM according to Beer–Lambert's low with an extinction coefficient of 2.78 × 10⁸ M⁻¹ cm⁻¹ at 520 nm for the 13 nm AuNPs.^37,39

2.4. Preparation of P-PDCA-AuNPs

To detect Hg²⁺ selectively, the surface of the AuNPs was functionalized with papain and 2,6-pyridinedicarboxylic acid (PDCA). For the preparation of P-PDCA-AuNPs, solid papain was dissolved in ultrapure water to 1.0 × 10⁻⁷ M and stored in the dark at −20 °C firstly. Then, 2,6-pyridinedicarboxylic acid (PDCA) was dissolved in ultrapure water to 5.0 × 10⁻⁴ M. The pH of AuNPs solutions was adjusted to 6.0 by NaOH or HCl solutions. An excess amount of papain and PDCA was added to ensure the functionalizing completely. The papain solution (0.2 mL, 1.0 × 10⁻⁷ M) was added to AuNPs solutions (2 mL, 2.12 nM). The mixture was shaken for 30 min and incubated for 12 hours in the dark. The P-AuNPs were centrifuged at 12 000 rpm for 20 min. After removing the supernatants, the sediment was resuspended in ultrapure water. PDCA solution (0.2 mL, 5 × 10⁻⁴ M) was added to the prepared P-AuNPs solutions. Finally, the mixture was shaken for another 30 min and was incubated for 6 hours in the dark. The final concentration of P-PDCA-AuNPs solutions was about 2.23 nM.

2.5. Colorimetric detection of Hg²⁺

Colorimetric detection of Hg²⁺ was used to evaluate the range of determination concentration of Hg²⁺ with the P-PDCA-AuNPs system. The pH value was adjusted to 6.0, and then a series of Hg²⁺ solutions (0.2 mL) with different concentrations (0, 0.01, 0.1, 2, 4, 6, 8, 14, 20, 50, 100, 500, 1000, 2000 μM) was added into the P-PDCA-AuNPs solution in a 5 mL sample bottle. After thorough shaking, the solutions were incubated at 30 °C for 15 min. The color change of the mixture was observed and recorded. Then the resulting solution was measured by the UV-Vis absorption spectra over the wavelength range from 200 nm to 800 nm and the absorbance values at 520 nm (A₅₂₀) and 650 nm (A₆₅₀) were also measured. The ratio of A₆₅₀/A₅₂₀ was calculated to indicate the aggregation degree of AuNPs. During the detection process, the final concentration of P-PDCA-AuNPs was 2.23 nM. To explore the selectivity, several commonly ions were tested using the sensing systems including Al³⁺, Ca²⁺, Cd²⁺, Cu²⁺, Fe²⁺, Fe³⁺, K⁺, Mg²⁺, Mn²⁺, NH₄⁺, Pb²⁺, Zn²⁺ and Na⁺ ions. The concentration of these ions in the control experiments was 20 mM and carried out for 15 min at 30 °C. The concentration of Hg²⁺ was 1 mM. UV-Vis spectra of P-PDCA-AuNPs solutions were recorded 15 min after the addition of different kinds of competing ions.

2.6. Analysis of real samples

Analysis of real samples was used to test the applicability of P-PDCA-AuNPs in detection of Hg²⁺. Samples of river water, tap water and pond water were collected from the Hsiang River (Changsha, China), our laboratory and Lake of Peach, respectively. Firstly, the water samples were filtered through a 0.22 μm syringe filter. And then, the pH of the water was adjusted to 6.0. Finally, the samples were prepared by spiking with the standard solutions of Hg²⁺. The final concentration was 5 and 10 μM, respectively. For further verifying the application of this system, 0.01 μM of Hg²⁺ were also added to the real samples.

3. Results and discussion

3.1. Characterization of functionalized AuNPs

Papain, getting from the Caria papaya, is a plant endoprotease belonging to the cysteine endopeptidase family, which has a single polypeptide chain including 212 amino acid residues, including seven cysteine residues, with a molecular weight of 23 400.^40,41 The advantages of wonderful pH span, highly sensitivity, temperature stability, low price and short response time make papain can be used for detection of Hg²⁺.^42,43 Structurally, papain can coat with AuNPs on the surfaces through sulfhydryl group, and it may interact with Hg²⁺ through amino group.⁴¹ Herein, papain can be used to detect Hg²⁺. Guo et al.³⁵ used papain to determine Hg²⁺, but the sensitivity and selectivity was still need to improve. Papain has seven cysteine residues, except for Hg²⁺, Pb²⁺ and Cu²⁺ can bind with cysteine residues. Moreover, as a protein, papain has many functional groups like other proteins, such as amino, carboxyl, hydroxyl and so on. Pb²⁺ and Cu²⁺ can interact with these groups inducing the aggregation of AuNPs. On the other hand, PDCA, as a chelating ligand, has strong affinity with Hg²⁺.³⁷ The stability constants of heavy-metal ions with PDCA are log K = 10.0 (Cd), 8.2 (Pb), 20.2 (Hg), and 8.5 (Mn).^16,44 PDCA can be used as a chelating agent to achieve good selectivity because it can form much more stable complex with Hg²⁺ ions than other metal ions. Moreover, the carboxylic group of PDCA can combine with AuNPs on the surfaces. It could be used to improve the selectivity of Hg²⁺ detection (Scheme 1). As previous studies reported,³⁷ the use of PDCA as co-additive in a sensor system can improve the selectivity and sensitivity for Hg²⁺. Thus, we suppose that if functionalized AuNPs with PDCA and papain, the level of Hg²⁺ could be determined by naked eyes and the sensitivity and selectivity also could be improved.

Scheme 1 Schematic of aggregating process of P-PDCA-AuNPs induced by Hg²⁺.

To demonstrate the feasibility of this assumption, the design was applied to detect Hg²⁺ using papain and PDCA functionalized AuNPs. After centrifuging, a little difference about the color of AuNPs was observed. The UV-Vis absorption spectra of P-PDCA-AuNPs revealed broadening and slight red shift (Fig. 1). P-PDCA-AuNPs had slight polydisperse when comparing with unmodified AuNPs. It is possibly that AuNPs grew in the process of preparation. It has reported that in the citrate protected AuNPs solutions, there may exists Au³⁺ and some amino acids of papain, such as tyrosine, would reduce Au³⁺ to Au (0) in the alkaline aqueous solution. Furthermore, some reported literatures revealed that protein can reduce Au³⁺ into Au (0).^45,46 Therefore, the color change indicated that papain and PDCA were modified on the surface of AuNPs. Moreover, control experiments using the papain were carried out, and 1 mM Hg²⁺ was added (Fig. 1). Upon addition of 1 mM Hg²⁺ to the mixture solution, its color rapidly changed from red to blue (existing in insert of the Fig. 1). Hg²⁺ was combined with papain and PDCA, decreased the distance of AuNPs, which result a shift of the surface plasma resonance peak and red-to-blue color changes. The UV-Vis absorption spectra of this sensor system became broader and shifted to much longer wavelength (650 nm). Transmission electron microscope (TEM) images of functionalized AuNPs (Fig. 2) also proved the aggregation of P-PDCA-AuNPs. The results proved that the papain and PDCA were sensitively responded to Hg²⁺.

Fig. 1 UV-Vis absorption spectra of the AuNPs (13 nm), P-PDCA-AuNPs (13 nm), and P-PDCA-AuNPs (13 nm) in the presence of 1 mM of Hg²⁺. Inset shows the color change versus the (1) AuNPs (13 nm), (2) P-PDCA-AuNPs (13 nm), and (3) P-PDCA-AuNPs (13 nm) in the presence of 1 mM of Hg²⁺.

Fig. 2 TEM images of the (A) AuNPs (13 nm), (B) P-PDCA-AuNPs (13 nm) and (C) P-PDCA-AuNPs (13 nm) in the presence of 1 mM of Hg²⁺.

3.2. Optimal of papain concentration

To obtain the optimum concentration of the sensor system, we studied the effect of papain concentration on the stability of this system. To get excellent sensitivity, we obtained the AuNPs solutions at pH 6.0 and 30 °C. Concentrations of 1.0 × 10⁻⁵, 1.0 × 10⁻⁶, 1.0 × 10⁻⁷, 1.0 × 10⁻⁸ M papain were added to 2.12 nM AuNPs solutions. In order to make the PDCA combine with AuNPs closely, excessive amount of PDCA (5.0 × 10⁻⁴ M) was added to the solutions. When PDCA and papain were added to the solution, the color of AuNPs had a little change. After adding 1 mM Hg²⁺, the color became purple gradually along with the increase of concentration in 15 min (Fig. S-3 and insert of Fig. S-1†). With the decrease of the concentration, the absorbance of P-PDCA-AuNPs increases gradually at 520 nm and correspondingly decreases at 650 nm. But it is opposite to the concentration of 1.0 × 10⁻⁸ M. We use the ratio of the absorbance of P-PDCA-AuNPs at 650 and 520 nm (A₆₅₀/A₅₂₀) to prove the degree of AuNPs aggregation (Fig. S-2†). A higher A₆₅₀/A₅₂₀ value is bound up with the degree of AuNPs aggregation, and a lower A₆₅₀/A₅₂₀ indicates that the AuNPs disperse well in the solution. When the concentration of papain is 1.0 × 10⁻⁷ M, the value of A₆₅₀/A₅₂₀ comes to the highest, which indicates that the aggregation of P-PDCA-AuNPs is completely. Taking into account the response sensitivity and background signal, 1.0 × 10⁻⁷ M papain was selected as the optimized concentration.

3.3. Temperature and pH effects to functionalized AuNPs

Temperature and pH are two crucial factors of the sensitivity in this research. In order to investigate the pH effect of colorimetric responses, different pH (6, 7, 8 and 9) of functionalized AuNPs was obtained. Firstly, the pH of AuNPs solution (0.2 mL) was adjusted to 6, 7, 8 and 9, respectively, then 0.2 mL papain and PDCA were added. The P-PDCA-AuNPs was easily aggregated at acid aqueous solutions (pH ≤ 6.0). When the pH was high (≥6.0), the P-PDCA-AuNPs were stable.^35,40 With the increase of pH values, the P-PDCA-AuNPs were more stable, which was possibly attributed that the electrostatic repulsion between the detection systems increased with the pH value.³⁵ Thus, in the presence of Hg²⁺, the detection solutions exhibited obvious color change and the P-PDCA-AuNPs were easily induced aggregation at pH 6. The ratio value of A₆₂₀/A₅₂₀ at pH 6 was also much greater than that at pH 7, 8, and 9 (Fig. S-4†), which demonstrated the pH of 6 was the optimal pH for this sensor system. Hence, we chose the pH 6 as the optimal condition in this work. In order to demonstrate the temperature effect of functionalized AuNPs on the detection of Hg²⁺, nine different temperatures (10, 20, 30, 40, 50, 60, 70, 80, 90 °C) of P-PDCA-AuNPs were obtained through setting the AuNPs solutions to the refrigerator and water bath, respectively. Then 0.2 mL Hg²⁺ (1 mM) were added. After incubation 15 min, the absorbance at 650 nm of the solutions was measured on a UV-2700 (Shimadzu) spectrophotometer. The ratio of absorbance of the UV-Vis absorption spectra at 650 and 520 nm (A₆₅₀/A₅₂₀) was used to demonstrate the amount of functionalized AuNPs aggregation (Fig. S-5†). In the addition of Hg²⁺ (1 mM), with the increase of temperature to 30 °C, the ratio of A₆₅₀/A₅₂₀ increased too, then it declined very slowly. When it reached 90 °C, the ratio of A₆₅₀/A₅₂₀ decreased sharply. That is because papain has highly sensitivity temperature stability and starts losing its activation at 90 °C.^41,42 Results showed that the best temperature was range from 30 °C to 60 °C. Therefore, 30 °C was selected as the optimal temperature in this work. As a result, the P-PDCA-AuNPs sensor could be used as a colorimetric sensor for Hg²⁺ in a broad temperature range, which is convenient for a practical application.

3.4. Colorimetric detection of Hg²⁺

It is well known that Hg²⁺ tends to interact with carboxylic group and amino such as PDCA^19,47,48 and cysteine.⁴⁹ Thus, a rational strategy to determine Hg²⁺ is to combine P-PDCA-AuNPs and Hg²⁺. Inspired by this theory and under the best optimized detection condition (pH 6.0 for 15 min at 30 °C), the different concentrations of Hg²⁺ were added to P-PDCA-AuNPs to investigate the sensitivity of this sensor. As shown in Fig. 3A, with the increase of Hg²⁺ concentration, a decrease in the intensity of the absorbance at 520 nm and an increase at 650 nm can be observed. It revealed that the P-PDCA-AuNPs aggregation induced deposition with the rising of Hg²⁺ concentration. As envisioned, when different amounts of Hg²⁺ were added to an aqueous solution of P-PDCA-AuNPs, the color change of the solution (from red to blue) was observed by naked eye inspection (Fig. 3B). The lowest detection concentration with the unaided eye is 2 μM. The ratio of A₆₅₀/A₅₂₀ as a function of the concentration of Hg²⁺ is shown in Fig. 4, which increases gradually with the rise of the concentration of Hg²⁺. A linear correlation exists in insert of the Fig. 4. Under the optimum conditions, the detection of Hg²⁺ was linear with A₆₅₀/A₅₂₀ values in the range of 0.01 μM to 14 μM. The calibration equation was obtained by fitting the experimental data obtained:

y = (0.0252 ± 0.0002)x + (0.1139 ± 0.0005)

where y was the ratio of spectral absorbance A₆₅₀/A₅₂₀, and x was the concentration of Hg²⁺ (μM). Additionally, the correlation coefficient of this equation was 0.9959. The sensor exhibited a detection limit of 9 nM (1.8 ppb), which met the MAL (maximum allowable level) of ∼2 ppb in drinking water set by the Environmental Protection Agency (EPA). In the presence of high concentration of Hg²⁺, the UV-Vis absorption spectra became broader and showed red shift and the A₆₅₀/A₅₂₀ value was not in a linear range. Compared with other sensors (Table 1), the sensitivity of this method was also impressive.

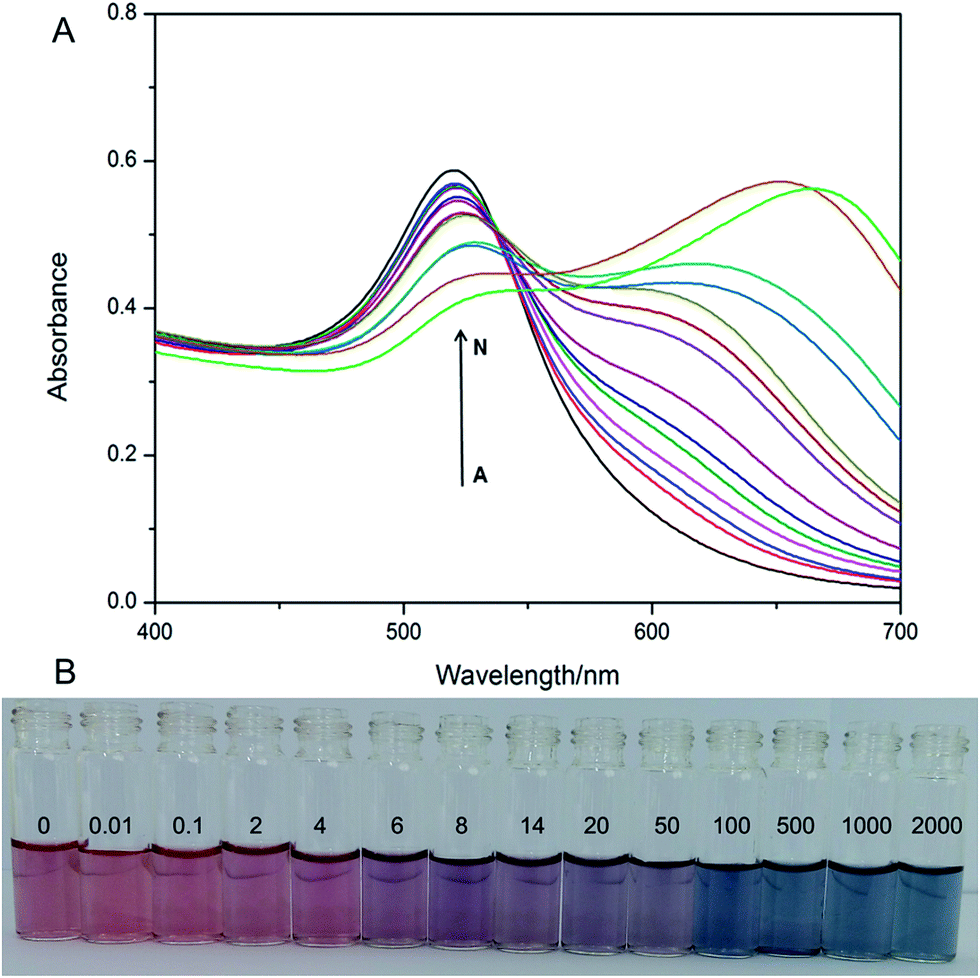

Fig. 3 (A) UV-Vis absorption spectra of P-PDCA-AuNPs were in the presence of different concentrations of Hg²⁺ (A to N express 2000, 1000, 500, 100, 50, 20, 14, 8, 6, 4, 2, 0.1, 0.01, 0 μM, respectively). (B) Images of P-PDCA-AuNPs containing different concentrations of Hg²⁺ (0, 0.01, 0.1, 2, 4, 6, 8, 14, 20, 50, 100, 500, 1000, 2000 μM).

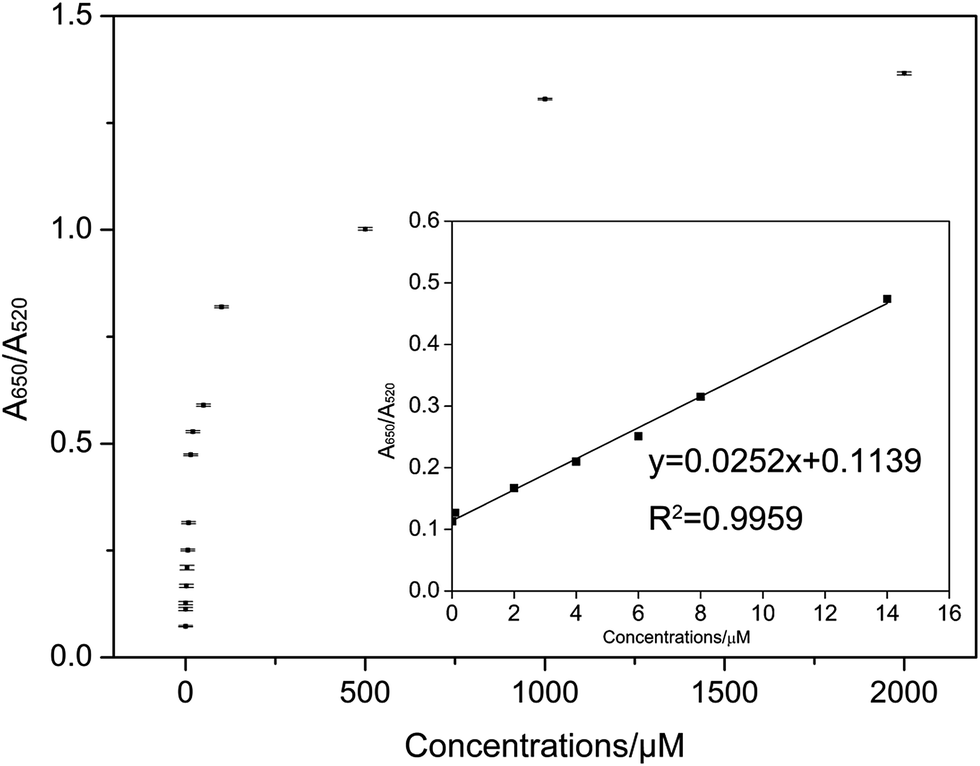

Fig. 4 Ratio values of A₆₅₀/A₅₂₀ for P-PDCA-AuNPs versus the concentrations of Hg²⁺ (0, 0.01, 0.1, 2, 4, 6, 8, 14, 20, 50, 100, 500, 1000, 2000 μM). Image of insert is the linear correlation. Error bars were obtained from three experiments.

Table 1 Functionalized AuNPs probes for detection of Hg²⁺

Technique	Capping agent	LOD (nM)	Linear range (μM)	Reference
a BSA, bovine serum albumin. R6G, rhodamine 6G. MPA, 3-mercaptopropionate acid.b RB, rhodamine B.c NAC-QDs, N-acetyl-L-cysteine functionalized quantum dots.d AMP, adenosine monophosphate.e MSD, 5′-SH(CH2)6A10TTCTTTCTTCCCCTTGTTTGTT-FAM-3′.f CEQC, carboxylethyl quaternized cellulose.g FRET, fluorescence resonance energy transfer.
Fluorescence	^aBSA, R6G and MPA	10	Not given	Chang et al.^50
	^bRB and PDCA	10	0.015–0.25	Huang and Chang^47
^gFRET	^cNAC-QDs and R6G	249	24.9–124.6	Hu et al.^51
	RB6, MPA and ^dAMP	50	0.05–1.0	Yu and Tseng^52
Colorimetry	^eDNA (MSD)	30	0.02–1.0	Tan et al.^53
	^fCEQC	40	3.0–24	You et al.^49
	Papain	4000	Not given	Guo et al.^35
	DNA	1000	Not given	Xue et al.^23
	DNA oligonucleotides	500	0–5	Xu et al.^54
	MPA and AMP	500	0.5–3.5	Yu and Tseng^52
	Thrombin-binding aptamer, PDCA	200	0.39–8.89	Wang et al.^55
	Papain and PDCA	9	0.01–14	This work

---

3.5. Selectivity and interference study

The results above indicate that the P-PDCA-AuNPs sensor is sensitive to the determination of Hg²⁺. As a functional sensor system, there must be high selectivity for Hg²⁺ over other ions. A variety of competitive ions, including Al³⁺, Ca²⁺, Cd²⁺, Cu²⁺, Fe²⁺, Fe³⁺, K⁺, Mg²⁺, Mn²⁺, NH₄⁺, Pb²⁺, Zn²⁺ and Na⁺ ions, were added to the sensing system, the ratios of A₆₅₀/A₅₂₀ were calculated. When only papain was functionalized on the surface of AuNPs, several commonly ions were tested using the papain-AuNPs (P-AuNPs) system. The assay showed negligible responses toward Al³⁺, Ca²⁺, Cd²⁺, Fe²⁺, Fe³⁺, K⁺, Mg²⁺, Mn²⁺, NH₄⁺, Zn²⁺ and Na⁺, but a red-to-blue color change and red shift in the plasmon band energy to longer wavelengths were noted in the presence of Hg²⁺, Cu²⁺ as well as Pb²⁺. It agreed with the findings of Guo et al.³⁵ Further higher selectivity of our sensor toward Hg²⁺ was achieved by adding PDCA. As shown in Fig. 5, except for Hg²⁺, none of these competitive ions can induce the apparent aggregation of P-PDCA-AuNPs. Even though the concentrations of these ions were 20 times higher than that of Hg²⁺, these ions induced negligible changes in comparison with Hg²⁺. When all the other competitive ions were present in a water sample solely, the P-PDCA-AuNPs solutions showed no obvious response. In contrast, when Hg²⁺ existed in the sample, the P-PDCA-AuNPs solutions aggregated and exhibited apparent color change simultaneously. Aggregation in the presence of Hg²⁺ is because of binding with chelating ligands, inducing both shift in the plasmon band energy to longer wavelength and a red-to-blue color change (Fig. S-6B†). In particular, PDCA ligands bound to the functionalized AuNPs system through Au–N bonds can improve the selectivity toward Hg²⁺ via a cooperative effect.^19,36 Hg²⁺ can cause the aggregation of P-PDCA-AuNPs with the obvious increase of A₆₅₀/A₅₂₀ value. The plasma absorbance peak of Hg²⁺ has apparent red shift (Fig. S-6A†). Furtherly, Hg²⁺ and other ions were mixed to form a mixture solution as a sample for the interference study of the sensor. The A₆₅₀/A₅₂₀ value was obviously higher than other samples without Hg²⁺. The results indicated that this sensor system could be utilized to detect Hg²⁺ with high selectivity. The selectivity in the presence of only PDCA was also developed, the results exhibited the selectivity was still not satisfactory. From all the results, it is concluded that functionalized of AuNPs surface with papain and PDCA is very important to increase the selectivity of Hg²⁺. The PDCA ligands bound to the AuNPs species improved selectivity toward Hg²⁺ through the cooperative effect, while it formed complexes with other ions in the bulk solutions, suppressing their interference with the sensors. Moreover, in Fig. S-6B,† a purple-to-red color change can be observed in the presence of Fe²⁺. That is because the PDCA ligands in the solution form complexes with Fe²⁺ and induce the shift in plasmon band energy to shorter wavelength.³⁶

Fig. 5 Ratio values of A₆₅₀/A₅₂₀ for P-PDCA-AuNPs versus the different kinds of ions. Concentration of Hg²⁺ was 1 mM, while others were 20 mM. Error bars were obtained from three experiments.

3.6. Analytical applications

To evaluate our sensor for the detection of Hg²⁺ in real samples, tap water samples from our laboratory, pond water from the Lake of Peach (Changsha, China) and river water samples from Hsiang River (Changsha, China) were used for this sensor. Firstly, we filtered the water samples through 0.22 μm membrane. Then, river water, tap water and pond water were spiked with standard Hg²⁺ solutions (0.01 μM, 5 μM and 10 μM, respectively). The results were summarized in Table 2. As can be observed in Table 2, the recoveries of standard addition were between 0.01 μM and 10 μM. The data were then compared by the AFS measurement. The concentrations of Hg²⁺ in the spiked water samples detected by the P-PDCA-AuNPs sensor system with an external calibration revealed good agreement with those, which was determined with a standard addition calibration. It confirmed that there was no interference encountered in the analysis of these water samples.

Table 2 Levels of Hg²⁺ in real samples were measured using our method and AFS measurement with the range of relative standard deviation from 0.10% to 2.52%

Samples	Added (μM)	Found (μM)	Recovery (%)	RSD^a (%)	AFS^b
a RSD, relative standard deviation.b AFS, atomic fluorescence spectrometry.
Tap water	0.01	0.012	112.00	0.17	0.014
	5	5.03	100.60	1.00	5.13
	10	10.07	100.70	1.53	10.21
River water	0.01	0.013	113.00	0.15	0.016
	5	5.14	102.80	2.08	5.20
	10	10.27	102.70	2.00	10.40
Pond water	0.01	0.011	110.00	0.10	0.013
	5	5.10	102.00	1.75	5.15
	10	10.16	101.60	2.06	10.23

---

4. Conclusions

In conclusion, we describe here a fast, sensitive and selective colorimetric detection of Hg²⁺ based on the principle that Hg²⁺ can induce the aggregation of the P-PDCA-AuNPs. The color of the P-PDCA-AuNPs solutions change from red to blue when different concentrations of Hg²⁺ ions were added, which can be monitored by UV-Vis spectra for the detection of Hg²⁺ in river water, tap water and pond water samples. Different kinds of ions make this detection system show good selectivity to Hg²⁺. Under the optimum conditions (2.23 nM P-PDCA-AuNPs, 15 min, 30 °C to pH 6.0), the detection limit of this system was 9 nM (1.8 ppb), which is lower than the maximum allowable level of ∼10 nM (2 ppb) in drinking water in the USA. The linear range of this sensor was 0.01 μM to 14 μM with a correlation coefficient of 0.9959. The sensor system herein presented has demonstrated to be sensitive and selective for the detection of Hg²⁺. For its sensitivity and selectivity, we believe the detection system will have potential application in the development for monitoring Hg²⁺ in environmental samples. The results demonstrate fundamental understanding of the enzyme biochemistry, and it can lead to dramatically improved colorimetric sensors.
