A NIR-to-NIR upconversion luminescence system for security printing applications

Abstract

A covert print-and-read system is demonstrated based on NIR-to-NIR upconversion luminescence. Inks activated with Yb³⁺/Tm³⁺ doped β-NaYF₄ upconversion nanoparticles were used to print covert features on various substrates, including paper, epoxy resin, and circuit boards. The Yb³⁺/Tm³⁺ doping concentrations were optimized to maximize the brightness of 800 nm upconversion emission excited with 980 nm light, while simultaneously minimizing unwanted blue upconversion. Images printed with the NIR-optimized inks are invisible to the naked eye under ambient lighting or under 980 nm excitation. NIR-to-NIR images are easily captured, however, using an inexpensive, modified point-and-shoot CCD camera, even at modest excitation power densities (1.5 W cm⁻²). It is demonstrated that the latent images can also be read through select hard or soft coatings which are opaque to visible light, such as black inkjet print, or dyed epoxy resin, without significant attenuation of brightness. The ability to protect the printed images with durable, opaque coatings increases the tamper-resistance and the covertness of the system; removes the requirement that the print be invisible on the bare substrate; and blocks any visible emission that might be present, even under very high excitation power densities.

---

Introduction

Counterfeiting is a major concern for corporate, federal and state organizations. Counterfeits compromise the security, identity and value of products, documents, IDs and currency, thereby exerting a strong negative impact on societal financial and social wellbeing. Counterfeiting of integrated circuits (ICs) is a major concern, because of its potential to compromise the performance of a wide range of critical infrastructure, ranging from healthcare devices to military equipment to space hardware.^1,2 Counterfeit ICs are often fraudulent or degraded products that have been either rejected during quality control or recycled from waste. An effective supply-chain management program, supported by strong track-and-trace security features, is an effective deterrence to counterfeiting.¹ A strong security feature embeds information in the product and resists tampering, duplication or destruction without damaging product integrity. In this study, we describe a print-and-read system for security applications based on NIR-to-NIR upconversion inks, in which the security feature is covert, and can be protected from tampering by hard opaque coatings.

Upconversion phosphors emit at wavelengths shorter than that of the excitation light. Lanthanide-ion-doped β-NaYF₄ is recognized for exceptionally efficient near infrared (NIR)-to-visible upconversion upon excitation with 980 nm light.^3–7 The concentrations and combinations of lanthanide dopants influence both the wavelength and the intensity of the upconversion emission. Applications of upconversion nanomaterials include sensors,^8–12 bio-imaging,^13–17 drug delivery^18,19 and security/anti-counterfeiting.^20–29 Our group has conducted seminal work in using upconversion inks for security printing, including the demonstration of ‘invisible QR codes’ for security printing and anti-counterfeiting applications.^20–22 The inks are a formulation of upconversion nanoparticles (UCNPs) dispersed in a polymer base. When used to print text or features (e.g. QR codes) on paper, the upconversion ink is invisible to the eye under ambient conditions or UV excitation, but becomes visible upon excitation with 980 nm light.²¹ We have recently reported an RGB system for full-color printing using primary color red, green and blue upconversion activated with 10% Er³⁺/2% Tm³⁺, 17% Yb³⁺/3% Er³⁺ and 25% Yb³⁺/0.3% Tm³⁺ nanoparticles, respectively.²⁰

Co-doping solid-state systems using Tm³⁺ as an activator and Yb³⁺ as a sensitizer is a common strategy for producing NIR-to-blue upconversion phosphors.^{20,21,30–36} β-NaYF₄ UCNPs doped with Yb³⁺ and Tm³⁺ are well known for NIR-to-blue upconversion emission (440–500 nm).^20,21,30,31 These ‘blue’ UCNPs, however, also emit 800 nm NIR light, which is invisible to the naked eye, but is also much more intense than the visible blue emission.²¹ Doping composition has a significant effect on the absolute and relative quantum efficiency of various emission bands. The 25% Yb³⁺/0.3% Tm³⁺ doping combination is optimized for blue upconversion emission.³⁷ Zhang et al. studied the effect of Tm³⁺ concentration on blue and NIR upconversion efficiency in 18 nm 20% Yb³⁺/(0.3–4% Tm³⁺) doped β-NaYF₄ nanoparticles.³⁸ The group reported that the blue emission is quenched as the Tm concentration increases, but no significant change was observed in 800 nm emission over this doping range. In contrast, Wang et al. reported an increase in 800 nm emission with increasing Tm concentration from 0.2% to 2% Tm³⁺ in α-NaYF₄ UCNPs co-doped with 20% Yb³⁺.³⁹ To date, however, the optimum doping combination for achieving maximally bright and spectrally pure 800 nm emission has not been reported for β-NaYF₄ UCNPs. For our purposes, maximizing the absolute per-particle brightness at 800 nm is of paramount importance.

In this study, we compare the 980-to-800 nm upconversion efficiency for four doping compositions, 25% Yb³⁺/0.3% Tm³⁺ (optimized for blue), 25% Yb³⁺/2% Tm³⁺, 48% Yb³⁺/2% Tm³⁺ and 46% Yb³⁺/4% Tm³⁺ and evaluate the optimum doping for the 800 nm NIR emission. Further, we explore the security printing applications of NIR-to-NIR upconversion emission from Yb³⁺/Tm³⁺ doped UCNPs and strategies for tamper-resistant security applications of these materials. NIR-to-NIR upconversion is very advantageous for anti-counterfeiting, because most common organic materials are transparent to the 980 nm excitation and 800 nm emission. Consequently, printed features can be excited and read through hard polymer or epoxy coatings. Moreover, these coatings can be completely opaque to visible light, as long as the transmittance is high at 800 nm and 980 nm. A system of markings coated with an opaque epoxy layer would be difficult to detect and quite tamper resistant. In this study, we also demonstrate the excitation and capture of NIR-to-NIR images of UCNPs coated with NIR transparent materials that are either transparent or opaque in the visible range. The NIR luminescent images store information that is not visible to the naked eye, but can be captured with an inexpensive CCD camera.

In addition to the security printing applications discussed here, NIR-to-NIR UCNPs show promise for use in bio-imaging,^40–43 because both the excitation (980 nm) and emission (800 nm) wavelengths fall within the biological transparency window.⁴² Therefore, 800 nm emission from UCNPs loaded into biological tissue can be imaged by exciting with 980 nm light.

We propose four scenarios for the use of NIR-to-NIR upconversion inks for security printing, as illustrated in Fig. 1: (A) covert codes printed on a substrate; (B) covert codes embedded within a polymer; (C) covert codes printed on a hard substrate and subsequently coated with a transparent polymer; and (D) covert codes printed on a hard substrate and subsequently coated with an polymer that is opaque to visible light.

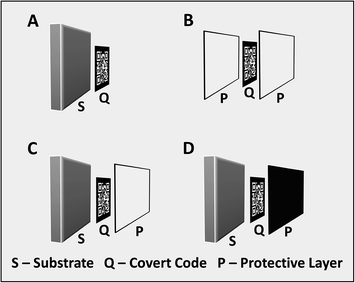

Fig. 1 Four scenarios for application of NIR-to-NIR upconversion inks in security printing. (A) Covert code printed on an opaque substrate. (B) Covert code laminated between transparent laminates. (C) Covert code on a substrate protected by a transparent laminate. (D) Covert code on a substrate protected by an opaque laminate.

Protected codes or symbols encoding critical product information are ideally suited for safeguarding integrated circuits (ICs) and electronic circuit boards from counterfeiting threats. Tampering with markings integrated within the IC packaging without damaging the component would be a difficult task. Integrated circuits are often enclosed in an epoxy case (or mold compound) and electronic circuit boards are frequently coated with polymer films. We choose an epoxy polymer as the protecting layer in our experiments. Epoxy is chemical resistant and insoluble in common solvents, making it difficult to remove in order to reach the embedded code. Moreover, it is highly transmissive in the NIR region. We use electronic circuit boards as an example substrate to demonstrate the potential application of NIR-to-NIR upconversion in security printing and anti-counterfeiting.

Experimental section

Materials

Yttrium oxide (99.99%), ytterbium oxide (99.9%), thulium oxide (99.9%) and oleic acid (90%) were obtained from Alfa Aesar; 1-octadecene (90%) from Aldrich; methyl benzoate (99%), sodium acetate trihydrate (99%) from Acro Organics; sodium fluoride (99%) from Fisher Scientific; acetic acid (glacial, 99.9%) from Pharm Co.; poly(methyl methacrylate) beads (MW 15 000) from Scientific Polymer Products. Black thermo-bubble-jet ink was purchased from Hobbicolors (DJC-45060-0-A). Ready-to-mix epoxy resins were purchased from commercial retailers.

Synthesis of UCNPs

The UCNPs synthesis procedure is similar to the procedure reported by Lin et al. with a few modifications.⁴⁴ Yttrium oleate (Y(OA)₃), ytterbium oleate (Yb(OA)₃) and thulium oleate (Tm(OA)₃) precursor solutions, 25 mL each, were prepared as described by Lin et al.⁴⁴ The resulting Y(OA)₃, Yb(OA)₃, and Tm(OA)₃ solutions have concentrations of 0.2 mmol mL⁻¹ of Y³⁺, 0.1 mmol mL⁻¹ of Yb³⁺, and 0.01 mmol mL⁻¹ of Tm³⁺, respectively.

To prepare UCNPs, CH₃COONa·3H₂O (2 mmol), NaF (4 mmol), 1-ODE (16 mL) and appropriate amounts of Y(OA)₃, Yb(OA)₃, and Tm(OA)₃ precursor solutions were combined in a 50 mL flask. The composition of the precursor solution determines the doping concentration of Yb³⁺/Tm³⁺. For 25% Yb³⁺/0.3% Tm³⁺: 3.74 mL Y(OA)₃, 2.5 mL Yb(OA)₃ and 0.3 mL Tm(OA)₃; for 25% Yb³⁺/2% Tm³⁺: 3.65 mL Y(OA)₃, 2.5 mL Yb(OA)₃ and 2 mL Tm(OA)₃; for 48% Yb³⁺/2% Tm³⁺: 2.5 mL Y(OA)₃, 4.8 mL Yb(OA)₃ and 2 mL Tm(OA)₃; and for 46% Yb³⁺/4% Tm³⁺: 2.5 mL Y(OA)₃, 4.6 mL Yb(OA)₃ and 4 mL Tm(OA)₃ were added. Additional oleic acid was added to bring the total volume of the reaction mixture to 32 mL. The reaction mixture was heated under vacuum at 100 °C for 1 hour to remove volatile solvents and then the vacuum was replaced with a gentle stream of Ar gas. The temperature was increased to 320 °C and reaction was continued for another 2.5 hours. The UCNP product was washed three times by precipitation with acetone, re-dispersing in toluene and precipitating with acetone. The UCNPs were dried under vacuum at 65 °C for 24 hours. The size and morphology of the UCNPs were characterized by TEM (FEI Tecnai, 120 kV) (see ESI, Fig. S1†). The UCNP exhibit a hexagonal morphology with an average size of 112 ± 12 nm. The product UCNPs are phase pure β-NaYF₄ nanocrystals (see ESI, Fig. S2†) as determined by PXRD.

Spectroscopy

Steady-state spectroscopy was performed by exciting 1 wt% dispersions of UCNPs in toluene with a 980 nm CW laser (MDL-N-980, Opto Engine LLC) with power densities between 5–35 W cm⁻². Emission spectra were recorded with a miniature spectrophotometer (BLUE-Wave, StellarNet). An 850 nm short-pass filter (4 OD, Edmund, #64-334), was used to block the excitation light from the spectrophotometer. Emission spectra were corrected for the instrument response to give relative photon flux per wavelength interval.

Epoxy film preparation

Epoxy films of desired thickness were prepared from ready-to-mix epoxy resins. A commercially available epoxy (Loctite Quick Set Epoxy) was used to prepare epoxy films. The epoxy comes in a two-syringe dispenser with epoxy resin in one syringe and hardener in other syringe. A thin coat of epoxy was prepared by mixing the hardener and the epoxy resin and coating the epoxy mixture on a substrate using a glass slide as an applicator. The black epoxy was prepared by mixing 0.06 mL of black inkjet ink (Hobbicolors) to approximately 2 mL of epoxy mixture. Epoxy thin film was prepared by applying a smear of epoxy mixture on a polypropylene sheet and the film was carefully peeled-off after drying.

Preparation of inks and printing

The upconversion inks were prepared as described by Blumenthal et al.²² In brief, 5 wt% of UCNPs were dispersed in a solution of 1 wt% of PMMA in a mixture of toluene/methyl benzoate (9 : 1). The inks were printed on plain paper, an electronic circuit board, and an epoxy film using an Optomec aerosol-jet printer.

NIR imaging

NIR imaging was performed with a point-and-shoot camera modified to detect NIR signal. The NIR filter in front of the CCD chip was carefully removed from a Canon A470 point-and-shoot camera to capture NIR images. Unless specified, all images were captured using a 1 second exposure, ISO 400, f/5.8 exciting with a 980 nm CW laser (1.5 W cm⁻²) in ambient lighting from a low-wattage lamp. An 850 nm short-pass filter was used to block excitation light from entering into the camera.

Results and discussion

Optimization of doping composition for NIR-to-NIR upconversion

Fig. 2 shows the energy level diagram and relevant optical processes for the Yb³⁺/Tm³⁺ doped upconversion system. The Yb³⁺ ion acts as a sensitizer and the Tm³⁺ ion acts as an activator, producing visible and NIR emission. The Yb³⁺ sensitizers absorb 980 nm excitation light and transfer energy to adjacent Tm³⁺ activator ions. Multiple sequential Yb³⁺ → Tm³⁺ energy transfer events promote the Tm³⁺ ions to successively higher energy levels. There is some doubt as to how the ¹D₂ state of Tm³⁺ is populated, so that this excitation pathway is not labelled in Fig. 2 (it has been suggested that the final step to populate ¹D₂ requires Tm³⁺ → Tm³⁺ energy transfer).^45,46 Blue emission is observed from the ¹D₂ and ¹G₄ excited states of Tm³⁺ ion, corresponding to the ¹D₂ → ³F₄ (450 nm) and ¹G₄ → ³H₆ (475 nm) transitions. NIR emission is observed from the ³H₄ and ¹G₄ emitting levels, corresponding to the ³H₄ → ³H₆ (800 nm) and ¹G₄ → ³H₅ (780 nm) transition, the latter of which is not labelled in Fig. 2. Weak red emission is also observed, corresponding to the ¹G₄ → ³F₄ (650 nm) transition.

Fig. 2 Schematic representation of NIR-to-visible and NIR-to-NIR upconversion in Yb³⁺/Tm³⁺ doped β-NaYF₄ UCNPs excited with 980 nm light. Sequential energy transfers from the Yb³⁺ ions (sensitizer) to the Tm³⁺ ions (activator) populate successively higher energy states of Tm³⁺ resulting in NIR (800 nm), red (650 nm) and blue (450 nm, 475 nm) upconversion emission.

Yb³⁺/Tm³⁺-doped β-NaYF₄ nanoparticles have been studied primarily relative to their NIR-to-blue upconversion properties, with the doping levels chosen to optimize the blue upconversion emission. This blue emission is excited via three- and four-photon processes, whereas the NIR-to-NIR ³H₄ → ³H₆ emission at 800 nm is excited via a two-photon process. As a result, the 800 nm NIR-to-NIR emission is much more intense than the NIR-to-blue emission, particularly at modest excitation power densities, P_exc. For example, even for β-NaYF₄: 25% Yb³⁺/0.3% Tm³⁺, which is optimized for blue emission, NIR emission is 400× more intense than blue emission at P_exc = 6.2 W cm⁻² and 100× more intense at P_exc = 35 W cm⁻² (see Fig. 3).

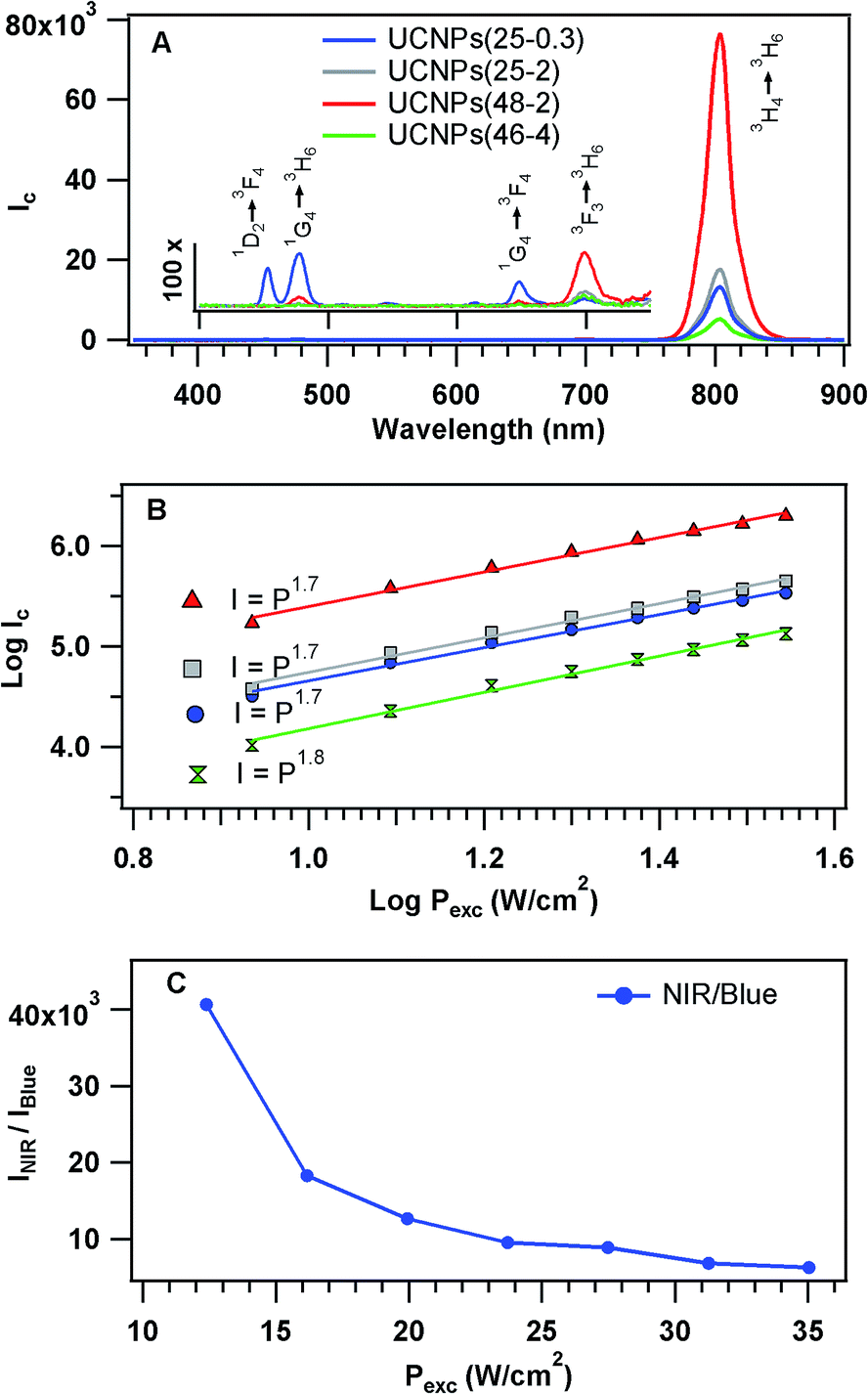

Fig. 3 (A) Comparison of upconversion emission, I_c, spectra of β-NaYF₄ nanoparticles with various Yb³⁺/Tm³⁺ doping levels dispersed in toluene. Excitation was at 980 nm (35 W cm⁻²). The spectra represent a valid comparison of relative brightness of samples (in terms of number photons emitted per constant wavelength interval) corrected to equal number densities of nanoparticles (see eqn (1)). The inset shows a 100× magnification of the visible region of the spectra. (B) log–log plot of the dependence of the 800 nm NIR emission intensity on excitation power density, P_exc. (C) NIR-to-blue emission intensity ratio, I_NIR/I_Blue for UCNPs (48-2) as a function of excitation power density, P_exc.

For the initial phase of this study, we determine the optimum doping levels for maximizing the absolute brightness of 800 nm emission, with the secondary purpose of minimizing the blue emission. The absolute brightness of the 800 nm emission determines the minimum P_exc required to view the NIR-to-NIR upconversion images shown later in this article. For print applications for which no opaque coatings are applied, minimizing the blue emission is necessary in order to maintain the covert nature of the images. When using opaque coatings, only the absolute brightness of 800 nm emission is of interest.

We synthesized UCNPs with four doping combinations of Yb³⁺ and Tm³⁺: 25% Yb³⁺/0.3% Tm³⁺ (UCNPs (25-0.3)), 25% Yb³⁺/2% Tm³⁺ (UCNPs (25-2)), 48% Yb³⁺/2% Tm³⁺ (UCNPs (48-2)), and 46% Yb/4% Tm³⁺ (UCNPs (46-4)). The emission spectra were recorded by exciting the UCNPs with a 980 nm CW laser using a range of excitation power densities, P_exc = 5–35 W cm⁻². Fig. 3A compares the UC emission spectra of the four compounds dispersed in toluene using P_exc = 35 W cm⁻². The inset shows the NIR-to-visible portion of the spectrum magnified by 100×. Clearly, even at the highest P_exc values used, the spectra are completely dominated by the 800 nm emission.

The peak assignments in Fig. 3A are largely consistent with those reported in the literature.^4,46 The NIR emission is dominated by the ³H₄ → ³H₆ transition at 800 nm, which is excited via a two-photon process. At higher excitation power densities (not used here), a significant NIR contribution at 780 nm from the ¹G₄ → ³H₅ transition, excited via a three-photon process, becomes evident, usually appearing as a strong shoulder to the 800 nm peak.⁴⁷ The blue peaks at 450 nm and 475 nm correspond to the ¹D₂ → ³F₄ and ¹G₄ → ³H₆ transitions, excited via four- and three-photon processes, respectively.

There has been some confusion regarding the origin of the red emission at 650 nm, which has been variously assigned in the literature as arising from ³F_3,2 or from ¹G₄. Yan et al. report that the 475 nm and 650 nm emission intensity exhibit similar dependence on excitation power, consistent with both transitions arising from ¹G₄.⁴⁸ Moreover, we observe that the relative intensities of 475 nm and 650 nm emission remain constant at all doping concentrations, indicating that these transitions experience the same quenching effects, and, therefore, originate from the same emitting state. Finally, we also observe that the time profiles of 475 nm and 650 nm emission following pulsed 980 nm excitation are nearly identical, strongly supporting the assignment of the 650 nm emission arising from the ¹G₄ state. Therefore, the 650 nm emission is assigned as being predominately due to the ¹G₄ → ³F₄ transition.

The emission at 700 nm is tentatively assigned to ³F_3,2 → ³H₆ based on the fact that this is the expected wavelength for this emission, and on the fact that this peak shows a power dependence similar to that of the 800 nm emission, ³H₄ → ³H₆ (see ESI†). Referring to Fig. 2, emission from ³F_3,2 and ³H₄ are expected to have similar power dependence, because ³H₄ is fed through the ³F_3,2 states. We note, however, that the 700 nm peak is observed in some spectra reported in the literature, but not in others. The reason for this is unclear to us. We note, however, that the relative intensity of the 700 nm transition will be very sensitive to multi-phonon quenching because the ³F_3,2–³H₄ energy gap is so small. This emission may then vary somewhat from sample to sample due to otherwise minor differences in sample properties.

The spectra in Fig. 3A represent the relative brightness of the different sample dispersions corrected to equal number densities of nanoparticles. Corrected spectra, I_C, were generated from the measured spectra, I_M, using the following formula:

I_C = I_M × %Yb/A (980 nm) (1)

where, %Yb is the doping concentration in the nanocrystals and A (980 nm) is the sample absorbance at 980 nm. A quantitative comparison of the relative brightness of the blue, I_C (blue), and NIR, I_C (NIR), upconversion for the different doping combinations represented in Fig. 3A is summarized below in Table 1. The 48% Yb³⁺/2% Tm³⁺ sample yields both the brightest 800 nm emission and the highest NIR/blue emission ratio. We note that this optimal doping combination holds for the modest excitation power densities (P_exc ≤ 35 W cm⁻²) used in our imaging process. Zhao et al. have shown that the optimal concentration for a given emission wavelength can be different at high excitation power densities.²⁹

Table 1 Relative brightness of the blue and NIR upconversion for different sample dispersions corrected to equal number densities of nanoparticles. Corrected intensities, I_C, were generated from the measured spectra, I_M, using eqn (1)

%Yb	%Tm	Ic (NIR)	Ic (blue) × 10^2	Ic NIR/Ic blue
25	0.3	1.0	0.97	103
25	2	1.3	0.03	4366
48	2	5.8	0.09	6207
46	4	0.4	0.01	3146

---

Referring to Fig. 3A, several important trends are evident. First, blue emission is increasingly quenched with increasing Tm concentration, whereas the NIR (800 nm) emission initially increases marginally, and then drops precipitously. These observations are consistent with a previous study by Quintanilla et al.⁴⁶ that reported strong Tm concentration quenching of both ¹D₂ and ¹G₄ with a more modest effect on emission from ³F_2,3 and ³H₄. Similarly, Zhao et al. also reported a decrease in 800 nm emission with increasing Tm concentration in 20% Yb³⁺/0.2–4% Tm³⁺ doped β-NaYF₄ crystals at 10 W cm⁻² excitation power density.²⁹ Thus, the optimal Tm concentration for our purposes, quenching blue emission while having little or no detrimental effect on 800 nm emission, can be identified as being quite close to the 2% level. With regard to %Yb concentration, over the range of excitation power densities used here, the corrected intensity, I_C, of 800 nm emission continues to increase as Yb concentration is raised beyond 25%. However, we limit the Yb doping to 48% because it becomes increasingly difficult to control the size and phase stability of the nanocrystals at higher doping levels, as discussed by Damasco, et al., and references therein.⁴⁹

Fig. 3C shows the ratio of 800 nm-to-blue emission for UCNPs (48-2) as a function of P_exc over the range of excitation power densities used in this study. Even at the highest P_exc values, 800 nm emission is >6000× more intense than the blue emission. As noted below, 800 nm luminescent images can be read easily with a modified point-and-shoot camera using laser power densities at which little or no visible emission is detectable by eye.

NIR-to-NIR imaging of printed patterns

The NIR-optimized UCNPs (48-2) were formulated into inks and used to print 1 cm × 1 cm QR codes on a variety of substrates. Fig. 4 shows photographs of these QR codes, under ambient lighting and 980 nm excitation, printed on plain paper (Fig. 4A and B), laminated between transparent epoxy films (Fig. 4C and D), and printed on an electronic circuit board (Fig. 4E and F).

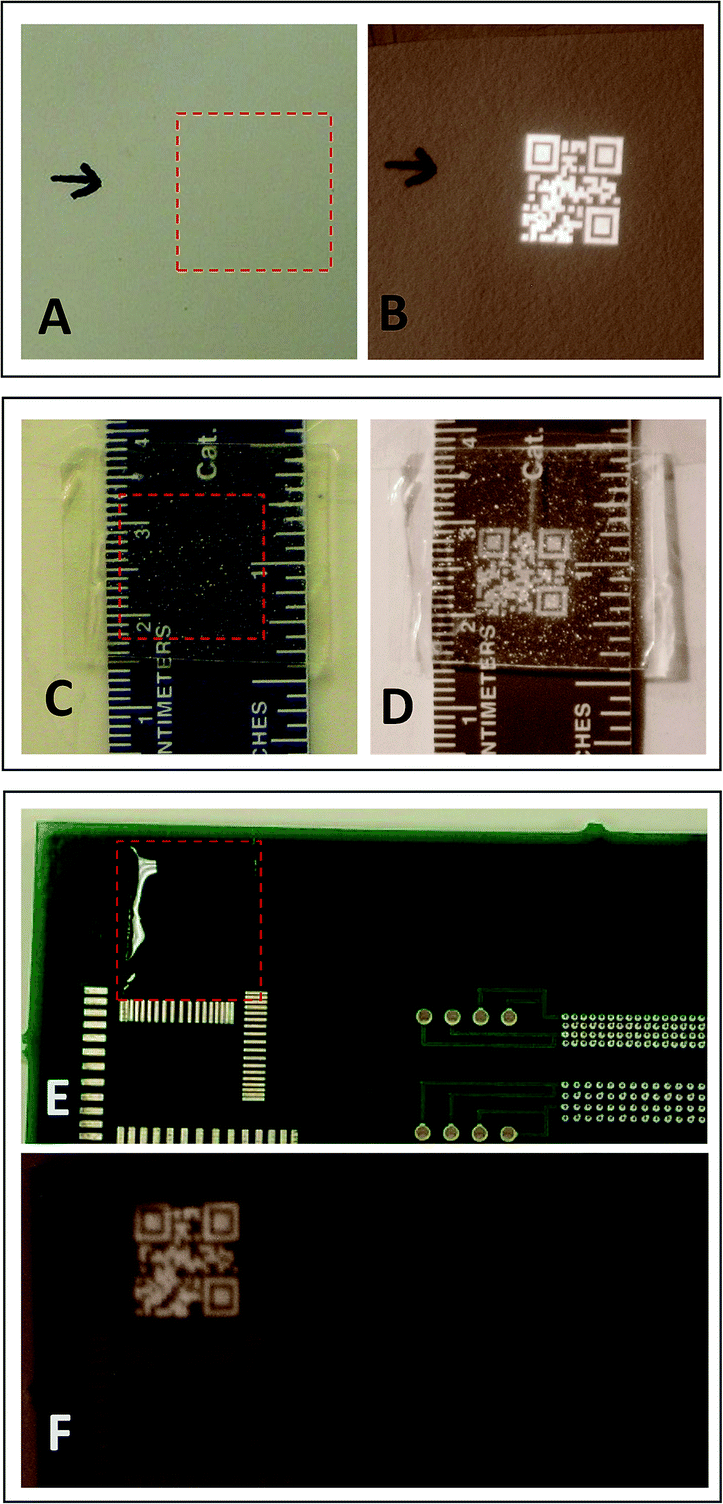

Fig. 4 Ambient light photographs of covert QR codes printed with NIR-to-NIR upconversion ink activated with NIR-optimized nanoparticles (UCNPs (48-2)) on a (A) plain paper; (C) laminated between transparent epoxy films; and (E) on an electronic circuit board and subsequently coated with a protective layer of transparent epoxy. The printed patterns are invisible under ambient conditions. The NIR luminescent images (800 nm) of QR codes in A, C, and E images can be easily captured, corresponding to B, D, and F, respectively, with a NIR sensitive camera using 980 nm illumination (P_exc = 1.5 W cm⁻²).

The locations of the printed areas in the ambient-lighting photographs are indicated by a red dotted box. In all cases, the printed QR codes are invisible to the naked eye under ambient light. The images of the QR codes under ambient light were captured with smart-phone camera (Fig. 4A, C and E), whereas the 800 nm luminescent images generated by 980 nm excitation (Fig. 4B, D and F) were captured with a point-and-shoot camera, modified as described above. At the excitation power densities used to acquire the luminescent images shown in Fig. 4 (P_exc = 1.5 W cm⁻²), blue emission is either undetectable or very faint.

The QR code printed on a plain paper (Fig. 4A) generates a very bright, sharp 800 nm luminescent image (Fig. 4B) even under relatively low excitation flux (P_exc = 1.5 W cm⁻²).

Fig. 4C shows an ambient-light photograph of a sample prepared by printing a QR code on a 0.2 mm thick transparent epoxy layer followed by coating with another 0.2 mm thick transparent epoxy layer. The laminated sample was placed on a ruler to assist the reader in judging its size and optical quality. The NIR luminescent image of the QR code was captured with the NIR sensitive camera using 980 nm excitation P_exc = 1.5 W cm⁻² (Fig. 4D). The image is not as bright or sharp as that of the QR code on paper due to the imperfect optical quality of the epoxy matrix, caused in part by air bubbles entrapped in the epoxy film while mixing the hardener and resin, and by lensing effects arising from the topography of the epoxy surface.

Fig. 4E is a photograph of the upconversion ink printed on an electronic circuit board and then coated with a protective thin film (0.4 mm) of transparent epoxy. The QR code retained its integrity after coating with the epoxy. A distinct NIR luminescent image of QR code was captured by exciting the printed region with 980 nm light, P_exc = 1.5 W cm⁻² (Fig. 4F). The epoxy film has high degree of transparency and does not significantly attenuate the transmission of excitation (980 nm) or emission (800 nm) light. The experiment demonstrates the ability to protect the security feature with durable coatings without adversely affecting functionality.

Imaging printed features through opaque coatings

Because the imaging proposed herein utilizes emission and excitation in the NIR, it is possible to coat and protect these images with materials that are visibly opaque. This strategy strengthens the covert nature of the print/read system and offers some additional advantages over bare prints or transparent-layer protective coatings. First, even if otherwise viewable intensities of visible emission are generated by the NIR excitation, the opaque coating will block these wavelengths. Second, the invisibility of the latent print image on the uncoated substrate is no longer a requirement. This permits the use of higher particle loadings or thicker print coatings, which, in turn, lower the threshold of P_exc required to view and capture the image.

We use two methods to apply opaque coatings to the UC printed features. Both methods use opaque coatings based on commercially available, water-based inkjet-printer ink from Hobbicolor (black). The transmission spectrum of the ink (20 μL of ink in 5 mL of water) measured across 1 cm path length has <1% transmission in the visible region and >95% transmission in the NIR region (see Fig. 5). Also, for this set of experiments, we use inks activated with the UCNPs (25-0.3) taggants, optimized for blue emission, in order to judge the ability of the opaque coatings to block visible emission from the printed images.

Fig. 5 (Blue) Upconversion emission, I_c, spectrum of 1 wt% UCNPs (25-0.3) in toluene excited with a 980 nm laser. Transmission spectra of (black) black inkjet ink solution (20 μL of Hobbicolors ink in 5 mL of water, 1 cm path length); (red) 0.4 mm thick epoxy film and; (orange) 0.4 mm thick epoxy film dyed with black inkjet ink.

In the first method, an inkjet printer loaded with the Hobbicolor black cartridge is used to print over UC print features that were previously applied to the paper. In the second method, a UC print feature is coated with a layer of black epoxy (dyed with 0.03 mL of Hobbicolor ink per 1 mL epoxy). The transmission spectra of a 0.4 mm thick epoxy layer before and after dying with black ink are shown in Fig. 5. The undyed epoxy film has a high degree of transmittance in the visible as well as NIR region. The black epoxy film has <1% transmittance in the visible region, but retains >80% transmittance in the relevant NIR region.

Fig. 6A and B are images of the UCNPs (25-0.3) printed on a plain paper, acquired with a NIR-sensitive camera under ambient lighting. The black arrows indicate the positions of the printed features. The lower-left printed image in Fig. 6A is being illuminated with 980 nm laser excitation, and the UC luminescent image of the QR code is clearly visible. Similarly, the UC luminescent image of University of South Dakota logo was captured in Fig. 6B. For Fig. 6A and B, it is possible to detect very faint blue emission with the naked eye (blue emission becomes visible when excitation power densities in the range of P_exc = 4.0–5.5 W cm⁻² are used).^20,21 This blue emission is not evident in the camera images of Fig. 6A and B, because it is overwhelmed by the intensity of the 800 nm emission. Fig. 6C and D show images corresponding to Fig. 6A and B after the same sheet of paper was passed through an inkjet printer and coated with black ink. The NIR images can be easily captured through the printed coatings with no significant attenuation relative to those obtained prior to coating. The faint blue emission is now, however, completely blocked and no trace of the images are evident to the naked eye, even upon increasing excitation power densities to levels normally used to view blue upconversion (P_exc = 5 W cm⁻²). Fig. 6E and F are magnified images (5×) of the luminescent images shown in the Fig. 6C and D, respectively. The images retain good detail even after coating with black inkjet ink.

Fig. 6 NIR upconversion images from patterns printed on paper using inks activated with UCNPs (25-0.3). Images were captured with a NIR sensitive camera exciting with 980 nm light (P_exc = 1.5 W cm⁻²). The printed patterns are invisible to the naked eye under ambient conditions, but emit blue and 800 nm light upon excitation with NIR laser. Images A and B correspond to images acquired prior to application of a black inkjet overcoating. Images C and D correspond to A and B, respectively, after application of the black inkjet overcoating. Images E and F are magnified sections of the luminescent patterns shown in C and D, respectively.

In the second method, we use a dyed epoxy resin as the opaque protective coating. A 1 cm × 1 cm QR code was printed with blue-optimized upconversion ink on an electronic circuit board. This print was then coated with a 0.4 mm layer of black-ink-doped epoxy overcoat. The transmittance spectrum of this layer is shown in Fig. 5. Fig. 7A shows an ambient-lighting photograph of the epoxy-coated electronic circuit taken with a smartphone. The UCNPs printed region was excited with a 980 nm laser (P_exc = 1.5 W cm⁻²) through the black epoxy layer. Although the printed features are not visible to the naked eye, they are easily captured using a NIR sensitive camera (Fig. 7B). The blue emission, however, was completely blocked by the black epoxy coating, even at P_exc = 5 W cm⁻². The highlighted box in Fig. 7B shows another QR code coated with the black epoxy, which was not excited with 980 nm light, and, therefore, shows no NIR emission.

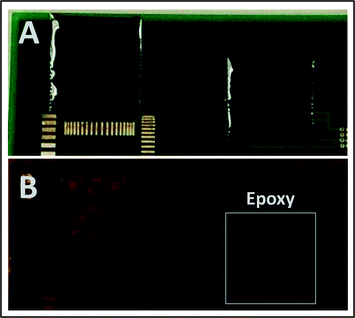

Fig. 7 (A) Upconversion QR code printed on an electronic circuit board with blue (UCNPs (25-0.3)) upconversion ink and subsequently coated with a secondary protective layer of opaque, black epoxy. (B) Under 980 nm excitation (1.5 W cm⁻²), the black epoxy blocks the visible upconversion, but transmits the NIR light. The 800 nm luminescent image was captured with a NIR sensitive camera.

We note that the luminescent images shown in Fig. 6 and 7 are not as bright as those shown in Fig. 4, due to the fact that blue-optimized nanoparticles (UCNPs (25-0.3)) were used to formulate the inks for these samples in order to test the efficacy of the opaque coatings in blocking any visible blue emission.

Fig. 8 shows examples of covert images printed using NIR-optimized inks (UCNPs (48-2)) on a circuit board. The images on the left are coated with black epoxy, whereas the images on the right are coated with transparent epoxy. Bright, distinct, NIR luminescent images from both print areas, produced with modest 980 nm excitation density (P_exc = 1.5 W cm⁻²), are easily captured with our modified point-and-shoot camera. The epoxy coatings do not adversely affect the integrity of the printed images. Moreover, the image acquired through the black epoxy coating is nearly as bright as that acquired through the transparent epoxy.

Fig. 8 (Top) QR codes (1 cm × 1 cm) printed on an electronic circuit with NIR-to-NIR upconversion ink activated with NIR-optimized UCNPs (48-2) and coated with black (upper left) and transparent (upper right) epoxy. (Bottom) Upon 980 nm illumination, the NIR luminescent images are clearly visualized using a modified point-and-shoot camera. The brightness of the image read through the black epoxy (lower left) is comparable to that read through the transparent epoxy. The QR codes show retention of integrity after epoxy coating.

Conclusion

The print-and-read security printing system described herein, based on NIR-to-NIR inks, offers a high level of covertness and can be made tamper-evident when combined with hard, opaque coatings. The inks are activated with Yb³⁺/Tm³⁺ doped β-NaYF₄ UCNPs, and it is determined that the optimal doping levels for maximizing the brightness of 800 nm upconversion and minimizing the undesired blue upconversion is 48% Yb³⁺/2% Tm³⁺. For the NIR-optimized UCNPs, the NIR-to-NIR intensity is greater than 6000× that of the NIR-to-blue emission, even at relatively high excitation power densities (35 W cm⁻²). The upconversion images, generated with 980 nm excitation, cannot be seen with the naked eye, but are easily captured with an inexpensive, modified point-and-shoot digital camera. The 800 nm upconversion emission is near perfect for detection with a digital camera, since this wavelength is at or near the peak sensitivity of the CCD chip. All images tested are easily captured with a modified point-and-shoot camera using modest excitation power densities (1.5 W cm⁻²).

Electronic circuit boards, plain paper, and epoxy-resin films are shown to be suitable substrates to demonstrate the application. Inkjet printing or epoxy coatings applied over the upconversion prints do not erode the print integrity. It is demonstrated that the NIR-to-NIR images can be read through opaque coatings of inkjet printing or black epoxy resin, with no significant loss of brightness. The use of durable opaque coatings offers a significant advantage to the covert print system for three reasons: (1) it deters tampering; (2) it increases the covert nature of the marking, both in terms of the latent image, and in terms of the luminescent image (by blocking visible emission); and (3) it relaxes the requirement that the bare printed image be completely covert.

The ability to read the covert code or symbol across an opaque protective layer makes the current system attractive for numerous security and anti-counterfeiting applications, including electronic circuit boards and high-value integrated circuits.

Abbreviations

UCNPs	Upconversion nanoparticles
UCNPs (25-0.3)	25% Yb^3+/0.3% Tm^3+ doped β-NaYF4 UCNPs
UCNPs (25-2)	25% Yb^3+/2% Tm^3+ doped β-NaYF4 UCNPs
UCNPs (48-2)	48% Yb^3+/2% Tm^3+ doped β-NaYF4 UCNPs
UCNPs (46-4)	46% Yb^3+/4% Tm^3+ doped β-NaYF4 UCNPs
