Operative conversions of 3-carboxy-4-quinolones into 3-nitro-4-quinolones via ipso-nitration: potential antifilarial agents as inhibitors of Brugia malayi thymidylate kinase

Abstract

An efficient, cost effective and green methodology for ipso nitration in the synthesis of the 3-nitro derivative of 3-carboxy 4-quinolones has been developed by the quantitative use of copper acetate and silver nitrate in water. The observed regioselectivity of nitration is explained by the DFT calculations. Three of these compounds with IC₅₀ values (2.9–3.4 μmol) against Brugia malayi thymidylate kinase may be good antifilarial agents as also evidenced by molecular docking studies.

---

Introduction

Quinolones belong to a comparatively large, growing and most fascinating group of antibacterial drugs with major influences on antimicrobial chemotherapy.¹ These molecules are of importance because of their high potency, broad spectrum of activity and low prevalence of side-effects. Introduction of a fluorine atom at position 6 of a quinolone led to the discovery of a novel class of broad spectrum fluoroquinolones including the first one-norfloxacin (1).² The nitro-heterocycles have been reported as potent antibacterial, antiprotozoal and antifungal agents. The exploration of therapeutical aspects of the prototypes nitrofuran, nitroimidazole and nitropyrroles using the stat of art medicinal chemistry led to the discovery of nitrofurantoin (2), metronidazole (3) and pyrrolnitrin (4) respectively.³ Hai-Hong Li et al. has also shown that 3-nitro quinolone 5 is the potent inhibitor of epidermal growth factor receptor (EGFR) (Fig. 1).⁴ Other 3-nitro quinolones derivatives have been also screened for their antihistaminic, antiprotozoal and antimalarial activities.^5–7 The adaptability of the nitro compounds in the medicinal chemistry is basically owing to their easy transformation into a variety of assorted functionalities (Fig. 2).⁸ Thus in search of privileged scaffold in the drug discovery, we focused our attention towards the synthesis of some novel 3-nitro or 3-amino derivatives of chloro, fluoro quinolones.

Fig. 1 Some biological active nitro compounds.

Fig. 2 Schematic representation of possible conversions for nitro into variety of functional group.

Many methods have been developed for the synthesis of 3-nitro quinolones (13): (a) decarboxylation of 12 followed by regioselective nitration at position 3;^9,10 (b) treating isatoic anhydride with esters of 2-nitro carboxylic acid with opening of oxazine ring followed by its cyclization to 2-hydroxy 3-nitroquinoline;¹¹ (c) treatment of nitroacetophenone with triethyl orthoformate and amine followed by cyclization at room temperature with DBU;¹² (d) in situ or separate preparation of metazonic acid (oxime of 2-nitro acetaldehyde) followed by its treatment with isatin or anthranilic acid and subsequent acetic anhydride assisted thermal cyclization.¹³ Although some of these methods are benign, they suffer from practical limitations such as harsh reaction conditions, multistep synthetic processes, problematic starting materials and poor yields. A contemporary one-pot synthesis of 1-alkyl-7-chloro-6-flouro-3-nitro-1,4-dihydro-4-quinolones is attained via nitro-decarboxylation of the respective 4-oxo-1,4-dihydroquinoline-3-carboxylic acid precursor with the help of fuming nitric acid.¹⁴ This novel discovery not only afforded a new route to the synthesis of this class of compounds, but also had the benefits of wide scope of applications. However, this methodology required excess of expensive fuming nitric acid and a special breathing apparatus. In this methodology only two examples have been explored. When we tried to synthesis the 3-nitroquinoline by the routine method using the metazonic acid and substituted anthranilic acid,¹⁵ we obtained very poor yield, then we tried the decarboxylation–nitration using the reported method and we got satisfactory yield. However this methodology involved fuming nitric acid, so in continuation of developing new chemical methodologies,¹⁶ it appeared of interest to develop an environmental benign ipso nitration methodology devoid of fuming nitric acid. The electrophilic nitration, one of the most extensively studied organic reaction, resulted a mixture of isomeric nitrated products.¹⁷ Since the routine nitrating agents are also good oxidants, the nitrated compounds are often accompanied by oxidation products with excessive acid waste streams and thus add to expenses in the isolation of pure nitrated products. In several methods use of Lewis acid in high stoichiometry followed by aqueous quenching leads in liberation of large amounts of strongly acidic by-products.¹⁸ To overcome these problems, alternative methods for the nitration have been reported in literature. Some of these methods include use of NaNO₃/HCl with catalytic La(NO₃)₃ (ref. 19a) Mg(HSO₄)₂ or NaHSO₄·H₂O and NaNO₃/wet SiO₂,^19b montmorillonite KSF/Bi(NO₃)₃,^19c NaNO₂/silica sulfuric acid,^19d Mg(NO₃)₂·6H₂O/alumina sulphuric acid,^19e Cu(NO₃)₂/clay,^19e AgNO₃/NBS^19f and Fe(NO₃)₃·9H₂O/ionic liquid.^19g Other methods for example reaction of metal nitrate/clay combinations activated by acetic anhydride,^19h zirconyl nitrate,¹⁹ⁱp-toluenesulfonic acid/Ni(NO₃)₃,^19j Ca(NO₃)₂, acetic acid in microwave^19k and nitration of phenols with tert-butyl nitrite^19l have also been developed. Recently many methods having C–H bond activation with nitration are drawing attention. The ipso nitration specially decarboxylative nitration appeared to be an important synthetic methodologies in the synthesis of nitro compounds in high regioselectivity.²⁰ Therefore, the development of mild and regioselective ipso nitration methods with minimal or non-environmental hazardous by-products is of significant interest. Hence a mild, cost effective and environmental benign method for the synthesis of 3-nitro quinolone has been developed an applied to a number of substrates to extend its scope in terms of synthetic and medicinal utility. The results of this study are reported in this manuscript.

Results and discussion

The key substrate 6,7-di halo quinolone-3-carboxylate (12) was synthesized by condensing halogenated aniline 7 with diethyl 2-(ethoxymethylene) malonate (EMME, 8) followed by the thermal cyclisation of the condensed product 9 thus obtained in diphenyl ether to give quinolone ester 10. The N alkylation of 10 with K₂CO₃ in DMF followed by hydrolysis by aqueous NaOH of the N-alkylated derivative 11 yielded the required key substrate 3-carboxylic acid 12 (Scheme 1).²¹

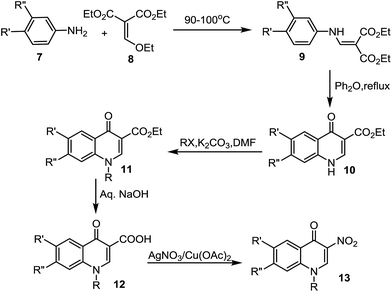

Scheme 1 Synthesis of 3-nitro quinolone by silver nitrate and copper acetate mixture.

This key substrate was used for the environment benign nitration by different methods (Table 1). The investigation started with the use of metal nitrates with acid combination and these methods led to the formation of products in good yield, but methodology required use of high stoichiometric ratio of acids (Table 1, entry 1–7).²² The combination of sulphuric acid with other acids also led to the formation of products with same problem of waste products arises (Table 1, entry 8–12).²³ The others reported mild methods for nitration were also tried but the methodologies were limited to the use of non-green approaches (Table 1, entry 13–15).²⁴ The stabilization of β-keto-esters/acids by metals and a new study by L. Zhang et al. fortified us to use metal as a catalyst in the reaction medium.²⁵ The cost effective metals like copper and magnesium were of the first choice. Initially, the effect of metal nitrating agent, catalyst, and solvent was studied under open atmosphere at 100 °C and reaction time (24 h), using 12a (R′ = F, R′′ = Cl; R = Et) as a model substrate (Table 2).

Table 1 Effect of nitrating reagents on the synthesis of 3-nitro quinolone

Entry	Nitrating mixture	Yield^a (%)	Reaction time (h)
a Isolated yield. b Reagent 12a, (1 mmol) nitrate salt (1.5 mmol) and 10 ml mmol^−1 CH3COOH at 100 °C. c 12a (1 mmol) in 10 ml of nitrating mixture (1 : 2) 120 °C. d Reactions for 13–16 were performed according to reported methods in ref. 24a, 24d, 24c and 24f respectively.
1	Al(NO3)3/CH3COOH^b	60	20
2	Fe(NO3)3/CH3COOH^b	54	20
3	Zn(NO3)2/CH3COOH^b	52	20
4	Mg(NO3)2/CH3COOH^b	61	20
5	Ca(NO3)2/CH3COOH^b	56	20
6	CsNO3/CH3COOH^b	59	20
7	Cu(NO3)2/CH3COOH^b	71	20
8	HNO3 + PPA^c	40	15
9	HNO3 + HClO4^c	45	15
10	HNO3 + triflic acid^c	62	15
11	HNO3 + CH3COOH^c	35	15
12	HNO3 + H2SO4^c	82	8.5
13	TFAA/EtNH2/HNO3^d	79	22
14	t-BuONO/TEMPO/ACN^d	82	20
15	AgNO3/TMSCl/DCM (rt)^d	77	48
16	tert-Butyl nitrite/ACN/rt^d	52	18

---

Table 2 Conditions screened^a

Entry	Lewis acid	Amount (mol%)	MNO3^d	Yield^b (%)
a Reaction condition: 3-carboxy-4-quinolones (13) (1 mmol), Cu catalyst (60 mol%), AgNO3 (1.2 mmol), in water (1 M, with respect to quinolone), at 100 °C. b Isolated yield. c Reaction performed at 120 °C. d Most of the nitrates used in hydrated forms.
1	Cu(OAc)2	10	AgNO3	12
2	Cu(OAc)2	20	AgNO3	35
3	Cu(OAc)2	30	AgNO3	55
4	Cu(OAc)2	40	AgNO3	65
5	Cu(OAc)2	50	AgNO3	87
6	Cu(OAc)2	60	AgNO3	92
7	CuBr2	60	AgNO3	18
8	CuF2	60	AgNO3	22
9	CuMoO4	60	AgNO3	34
10	Cu(BF4)2	60	AgNO3	39
11	CuSO4	60	AgNO3	42
12	Cu(OTf)2	60	AgNO3	26
13	CuOAc	60	AgNO3	72^c
14	Zn(OAc)2	60	AgNO3	22
15	Pd(OAc)2	60	AgNO3	18
16	Mn(OAc)2	60	AgNO3	53
17	Cu(OAc)2	60	Fe(NO3)3	62
18	Cu(OAc)2	60	NaNO3	72
19	Cu(OAc)2	60	La(NO3)3	66
20	Cu(OAc)2	60	Ca(NO3)2	59
21	Cu(OAc)2	100	AgNO3	90
22	—		AgNO3	—

---

Metal catalysts were first screened using AgNO₃ as a nitrating agent and water as a solvent. The 60 mol% Cu(OAc)₂ was found to be essential for an efficient conversion producing 13a in 92% yield within 20 h (Table 2, entries 1–6). Other copper salts led to the formation of 13a in 18–42% yield with the recovery of a bulk of substrate 13 (Table 2, entries 7–12). It is interesting to note the cuprous salt CuOAc, produced the 13a in 72% yield in 24 h (Table 2, entry 13) and other metal acetate produced the same in 18–53% yield (Table 2, entry 14–16) which simply proved the importance of acetate ion. Additionally, the nitrating agents like NaNO₃ and La(NO₃)₃ produced the 13a in 72 and 66% yield respectively (Table 2, entry 17–20). Although use of Fe(NO₃)₃ and Ca(NO₃)₂ yield the product relatively in lesser quantity (Table 2, entry 17 and 20). The high stoichiometric ratio of Cu(OAc)₂ (100 mol%) does not have any effect on the yield (Table 2, entry 21). If no catalyst was added then there was no reaction (Table 2, entry 22).

The reaction was also screened in different solvents. We used a variety of polar and non-polar solvents (Table 3). Under different solvent condition, protic solvents were found to facilitate the formation of 13 in good yield (Table 3, entry 5). The unique property of water²⁶ encouraged us to use this as a solvent and fortunately we got excellent yield (Table 3, entry 8).

Table 3 Effect of solvent on the synthesis of 3-nitro-4-quinolones^a

Entry	Solvent	Yield (%)
a Reaction condition: Cu(OAc)2 60 mol%, 1.2 equivalent AgNO3 at 100 °C. b Reflux condition.
1	DMF	56
2	DMSO	62
3	THF^b	52
4	CH3CN^b	58
5	Ethanol^b	72
6	DCM^b	69
7	1,2-Dichloroethane^b	66
8	H2O	92

---

These satisfactory results led to explore the scope and limitation of this new environmental benign method. Therefore, various biologically important di halo quinolones containing different alkyl (methyl to octyl) groups at N1, were selected for nitration under the optimized reaction conditions to give corresponding 3-nitro derivatives. The results are listed (Table 5). All the reactions were completed within 12–20 h in good to excellent yields. To further explored the utility of the reaction we tried to nitrate the 3-position of the quinolone without putting any substitution on N1- but after refluxing for about 24 h starting material was recovered without the traces of required compound. The recovery of starting material could easily be explained on the basis of 1,3 shift of proton (Scheme 2) coupled with –I effect of the carboxy group leading lesser availability of electron density at position 3, so less favourable reaction.

Table 4 Mullikan charges calculated over the different potions of the following molecules

Entry	C3 (eV)	C5 (eV)	C8 (eV)
A	−0.214	−0.190	−0.143
B	−0.252	−0.187	−0.146
C	−0.270	−0.191	−0.145
D	−0.272	−0.190	−0.154

---

Table 5 Various di halo-3-carboxy-4-quinolone were investigated to be reacted with nitrating mixture to yield 3-nitro-4-qionolone

S. no.	R	R′, R′′	Yield (%)	Time (h)
13a	Et	F/Cl	87	18
13b	Isoprop	F/Cl	96	15
13c	n-Butyl	F/Cl	87	18
13d	sec-Butyl	F/Cl	84	16
13e	Hexyl	F/Cl	80	12
13f	Me	F/F	82	12
13g	n-Propyl	F/F	81	16
13h	Sec-Butyl	F/F	82	15
13i	n-Pentyl	F/F	89	16
13j	n-Octyl	F/F	87	18
13k	Et	Cl/Cl	84	14
13l	cyclo-Prop	Cl/Cl	83	16
13m	n-Butyl	Cl/Cl	91	16
13n	sec-Butyl	Cl/Cl	82	18
13o	Heptyl	Cl/Cl	86	20

---

Scheme 2 Possibility of 1,3 shift which hindered the electrophilic attack over the position 3.

Nevertheless in case of N1 substituted substrate, there is no chance of 1,3 proton shift so availability of electron density at position 3 leads to the formation of desired nitro derivatives (Scheme 3).

Scheme 3 Mechanistic pathway to show the lack of 1,3 shift which facilitate the electrophilic attack over the position 3.

In order to explain the observed results we performed some computational studies where the energy minimized structures using MM2 protocol were subjected to electron density charge calculations in terms of Mullikan charges (Table 4) on C3, C5 and C8 of the molecules shown in Fig. 3 by DFT using B3LYP basic set. This led to the observation that there is plenty of electron density over C3 position with respect of C5 and C8, for facilitating the nitration on this position (Fig. 3).

Fig. 3 Graph chart of the Mulliken charges (electron volts) calculated.

In order to widen the scope of this reaction the nitration of N1 benzylated quinolone 14 was carried out to see the effect of nitration on the aromatic ring of the alkyl aryl (benzyl) and aryl (4-nitro phenyl) group. This reaction led to multi spots on TLC. A detailed analysis based on NMR, IR and mass spectrometry of the reaction products suggested the occurrence of over nitration especially on the phenyl ring as well as on the benzenoide part of the quinolone 14a and 14b (Scheme 4).

Scheme 4 Synthesis of 3-nitro N-aryl quinolone.

A plausible reaction mechanism was proposed for the copper-mediated chelation of β-keto acid assisted decarboxylative nitration of quinolone (Scheme 5). The two carbonyl group chelates with nitrate ion-containing copper(II) formed by an anion exchange between Cu(OAc)₂ and a nitrate salt, then decarboxylative nitration takes place through a concerted mechanism, in which NO₂ is attacked by the charge developed on the C-3 carbon and ionisable proton of acid took by the Cu–O to form Cu(OH)OAc.

Scheme 5 Plausible reaction mechanism.

In order to overcome this problem and for getting the required N-alkyl aryl and aryl substituted 3-nitro-quinolone, the N1-substituted 3-ester was first decarboxylated by Krapcho decarboxylation (LiCl in DMSO) to give corresponding quinolone (15a) which on direct nitration followed by alkylation or arylation of the 3-nitroquinoline thus obtained gave the required N-arylated quinolones (Scheme 6).²⁷ The 15 when treated with Barton condition gives decarboxylated product which under optimized condition gives nitro quinolones in excellent yield.²⁸

Scheme 6 General preparation of N-aryl 3-nitro quinolone via Krapcho decarboxylation.

Biological evaluation

Some marketed antifilarial drugs like nitazoxanide 17 and tizoxanide 18 are known for their activities by the involvement of nitro group in their mode of action (Fig. 4). A very recent example of antifilarial activity of 5-morpholin-4-yl-8-nitro-isoquinoline 19 reveals the importance of nitro group in the antifilarial activity.²⁹ Recently Srivastava et al. reported the quinolones as potential antifilarial agent.³⁰ In view of above we decided to evaluate the synthesised compound as antifilarial agents.

Fig. 4 Some nitro group containing antifilarial agents.

All the synthesized quinolone based molecules (13a–b, 14a and 14b) were evaluated for their Brugia malayi thymidylate kinase (BmTMK) inhibitory activity using a spectrophotometric assay. Some of these hybrid compounds showed significant inhibition of BmTMK. Among the fifteen tested hybrids, compound 14a and 14b were found to be the most potent compound of the series with IC₅₀ value of 3.11 and 2.9 μM.

Docking studies

In order to validate the selectivity of these compounds for filarial BmTMK as compared to human thymidylate kinase (hTK) the comparative docking was carried out. In this experiment all the synthesised compounds showed good binding affinity or selectivity towards BmTMK as compared to hTK enzyme. These compounds were also compared with the standard substrate TMP for validating the docking scores using template docking protocol from Molegro Virtual Docker 4.0. The docking study clearly supported the observations that these compounds selectively inhibit the filarial protein. The compound 14b also showed one hydrogen bond interaction with the Arg-98. The compound also showed hydrogen bond interactions with Gly-103, His-70 and Thr-107 which may contribute its higher binding scores than the remaining molecules. It is also showing “pi–pi” stacking interactions with the Tyr-106, Phe-73, Phe-43 along with the hydrophobic interactions with these amino acids. In case of the 14a it showed important interactions with amino acids viz. Arg-98, Lys-20 and Ser-21 along with the additional hydrophobic interactions with Ser-21, Tyr-106, Phe-73. The phenyl ring on the quinolone part of the molecule also forms “pi–pi” stacking interactions with the amino acids Phe-73 and Tyr-107 these interactions may contribute for the higher binding scores and affinities for filarial enzyme (Fig. 5).

Fig. 5 Molecular interactions of the compound 14a and 14b in the BmTMK active site.

Conclusions

In conclusion, a mild, environmental benign and cost effective one-pot procedure for the synthesis of 1-alkyl-7-chloro-6-fluoro-3-nitro-4-quinolones via decarboxylation nitration method has been developed. The synthesised compounds were tested on the Burgia malayi thymidylate kinase enzyme. Out of all synthesized compounds 14a and 14b were most promising with IC₅₀ values 3.11 and 2.9 respectively. These observed activities were further validated by molecular docking studies.

Acknowledgements

C. S. A. is thankful to CSIR, New Delhi for the award of SRF and acknowledges SAIF-CDRI for providing analytical facilities. The CDRI communication number allotted to this manuscript is 9081.

Notes and references

1. J. M. Domagala, J. Antimicrob. Chemother., 1994, 33, 685.
2. E. N. Padeiskaia, Antibiotiki i khimioterapiia͡ = Antibiotics and chemoterapy [sic]/Ministerstvo meditsinskoi i mikrobiologicheskoi promyshlennosti SSSR, 2003, vol. 48, p. 28.
3. M. Artico, A. Mai, G. Sbardella, S. Massa, C. Musiu, S. Lostia, F. Demontis and P. La Colla, Bioorg. Med. Chem. Lett., 1999, 9, 1651.
4. H. H. Li, H. Huang, X. H. Zhang, X. M. Luo, L. P. Lin, H. L. Jiang, J. Ding, K. Chen and H. Liu, Acta Pharmacol. Sin., 2008, 29, 1529.
5. R. G. Glushkov and N. K. Davydova, Khim.-Farm. Zh., 1992, 26, 43.
6. N. K. Davydova, N. B. Marchenko, R. G. Glushkov, V. V. Peters and E. N. Padeiskaya, Pharm. Chem. J., 1991, 25, 730.
7. A. R. Surrey and R. A. Cutler, J. Am. Chem. Soc., 1951, 73, 2413.
8. N. Ono, The Nitro Group In Organic Synthesis, John Wiley & Sons, New York, 2001.
9. M. M. Maslova, N. B. Marchenko, V. I. Pol'shakov and R. G. Glushkov, Pharm. Chem. J., 1993, 27, 132.
10. R. G. Glushkov and N. K. Davydova, Pharm. Chem. J., 1992, 26, 325.
11. G. M. Coppola and G. E. Hardtmann, J. Heterocycl. Chem., 1979, 16, 1605.
12. S. Radl and K. Chan, J. Heterocycl. Chem., 1994, 31, 437.
13. (a) J. S. Morley and J. C. E. Simpson, J. Chem. Soc., 1948, 12, 2024; (b) H. Schäfer, B. Bartho and U. K. Gewald, Zeitschrift für Chemie, 1973, 13, 294; (c) H. Schaefer, K. Gewald and M. Seifert, J. Prakt. Chem., 1976, 318, 39; (d) Y. Tominaga and Y. Matsuda, J. Heterocycl. Chem., 1985, 22, 937.
14. R. A. Al-Qawasmeh, J. A. Zahra, M. A. Khanfar, Y. M. AL-Hiari, M. M. El-Abadelah and W. Voelter, Lett. Org. Chem., 2009, 6, 511.
15. K. Raghavan, S. A. Lang and M. S. Marshall, J. Heterocycl. Chem., 1986, 23, 1801.
16. (a) C. S. Azad and A. K. Saxena, Tetrahedron, 2013, 69, 2608; (b) I. A. Khan and A. K. Saxena, Adv. Synth. Catal., 2013, 13, 2617; (c) S. Sharma, A. K. Khan and A. K. Saxena, Adv. Synth. Catal., 2013, 355, 673; (d) I. A. Khan and A. K. Saxena, J. Org. Chem., 2013, 78, 11656–11669; (e) C. S. Azad and A. K. Saxena, Org. Chem. Front., 2015, 2, 665–669; (f) C. S. Azad, S. S. Bhunia, A. Krishna, P. K. Shukla and A. K. Saxena, Chem. Biol. Drug Des., 2015 DOI:10.1111/cbdd.12503; (g) C. S. Azad and A. K. Saxena, Curr. Res. Inf. Pharm. Sci., 2014, 15, 2.
17. (a) S. Patai, The Chemistry of Amino, Nitroso, Nitro, and Related Groups. John Wiley & Sons, Chichester, England, 1996; (b) G. A. Olah, R. Malhotra, S. C. Narang, Nitration: Methods and Mechanisms, John Wiley & Sons, New York, 1989; (c) S. J. Kuhn and G. A. Olah, J. Am. Chem. Soc., 1961, 83, 4564–4571; (d) K. Schofield, Aromatic Nitration, University Press, Cambridge, 1980.
18. (a) G. A. Olah, G. K. S. Prakash, Q. Wang and X. Li, in Encyclopedia of Reagents for Organic Synthesis, ed. L. A. Paquette, Wiley, Chichester, 1995, vol. 6; (b) G. S. Prakash, C. Panja, T. Mathew, V. Surampudi, N. A. Petasis and G. A. Olah, Org. Lett., 2004, 6, 2205–2207.
19. (a) M. Quertani, P. Girard and H. Kagan, Tetrahedron Lett., 1982, 23, 4315–4318; (b) M. A. Zolfigol, E. Ghaemi and E. Madrakian, Molecules, 2001, 6, 614–620; (c) S. Samajdar, F. F. Becker and B. K. Banik, Tetrahedron Lett., 2000, 41, 8017–8020; (d) M. A. Zolfigol, E. Madrakian and E. Ghaemi, Molecules, 2002, 7, 734–742; (e) M. Hosseini-Sarvari, Iran. J. Sci. Technol., 2010, 34, 215–225; (f) B. Gigante, A. O. Prazeres, M. J. Marcelo-Curto, A. Cornelis and P. Laszlo, J. Org. Chem., 1995, 60, 3445–3447; (g) N. Nowrouzi, A. M. Mehranpour, E. Bashiri and Z. Shayan, Tetrahedron Lett., 2012, 53, 4841–4842; (h) R. Rajagopal and K. Srinivasan, Synth. Commun., 2003, 33, 961–966; (i) J. Selvam, V. Suresh, K. Rajesh, S. R. Reddy and Y. Venkateswarlu, Tetrahedron Lett., 2006, 47, 2507–2509; (j) V. Anuradha, P. V. Srinivas, P. Aparna and J. M. Rao, Tetrahedron Lett., 2006, 47, 4933–4935; (k) A. K. Bose, S. N. Ganguly, M. S. Manhas, S. Rao, J. Speck, U. Pekelny and E. Pombo-Villars, Tetrahedron Lett., 2006, 47, 1885–1888; (l) D. Koley, O. C. Colón and S. N. Savinov, Org. Lett., 2009, 11, 4172–4175.
20. (a) G. Prakash and T. Mathew, Angew. Chem., Int. Ed., 2010, 49, 1726–1728; (b) S. Manna, S. Jana, T. Saboo, A. Maji and D. Maiti, Chem. Commun., 2013, 49, 5286–5288; (c) K. Ramesh, S. Shylaja, K. C. Rajanna, P. Giridhar Reddy and P. K. Saiprakash, Adv. Phys. Chem., 2013, 2013, 12; (d) S. Maity, T. Naveen, U. Sharma and D. Maiti, Org. Lett., 2013, 15, 3384–3387; (e) T. Naveen, S. Maity, U. Sharma and D. Maiti, J. Org. Chem., 2013, 78, 5949–5954; (f) B. V. Rokade and K. R. Prabhu, J. Org. Chem., 2014, 79, 8110–8117.
21. H. Koga, A. Itoh, S. Murayama, S. Suzue and T. Irikura, J. Med. Chem., 1980, 23, 1358.
22. U. Yadav, H. Mande and P. Ghalsasi, J. Chem. Educ., 2011, 89, 268–270.
23. G. Yan and M. Yang, Org. Biomol. Chem., 2013, 11, 2554–2566.
24. (a) G. Aridoss and K. K. Laali, J. Org. Chem., 2011, 76, 8088–8094; (b) S. Maity, T. Naveen, U. Sharma and D. Maiti, Org. Lett., 2013, 15, 3384–3387; (c) G. S. Prakash, C. Panja, T. Mathew, V. Surampudi, N. A. Petasis and G. A. Olah, Org. Lett., 2004, 6, 2205–2207; (d) S. Manna, S. Jana, T. Saboo, A. Maji and D. Maiti, Chem. Commun., 2013, 49, 5286–5288; (e) S. Maity, S. Manna, S. Rana, T. Naveen, A. Mallick and D. Maiti, J. Am. Chem. Soc., 2013, 135, 3355–3358; (f) M. S. Kumar, K. Rajanna, K. R. Reddy, M. Venkateswarlu and P. Venkanna, Synth. Commun., 2013, 43, 2672–2677.
25. L. Zhang, Z. Liu, H. Li, G. Fang, B.-D. Barry, T. A. Belay, X. Bi and Q. Liu, Org. lett., 2011, 13, 6536–6539.
26. (a) R. N. Butler and A. G. Coyne, Chem. Rev., 2010, 110, 6302–6337; (b) M.-O. Simon and C.-J. Li, Chem. Soc. Rev., 2012, 41, 1415–1427.
27. (a) A. P. Krapcho, E. Jahngen Jr, A. Lovey and F. W. Short, Tetrahedron Lett., 1974, 15, 1091–1094; (b) A. P. Krapcho, J. Weimaster, J. Eldridge, E. Jahngen Jr, A. Lovey and W. Stephens, J. Org. Chem., 1978, 43, 138–147.
28. (a) D. H. Barton, D. Crich and W. B. Motherwell, J. Chem. Soc., Chem. Commun., 1983, 939–941; (b) D. H. Barton, D. Crich and W. B. Motherwell, Tetrahedron Lett., 1983, 24, 4979–4982.
29. P. K. Singh, A. Ajay, S. Kushwaha, R. P. Tripathi and S. Misra-Bhattacharya, Future Med. Chem., 2010, 2, 251–283; R. P. Tripathi, D. Katiyar, N. Dwivedi, B. K. Singh and J. Pandey, Curr. Med. Chem., 2006, 13, 3319–3334.
30. S. K. Srivastava, P. M. Chauhan, A. P. Bhaduri, N. Fatima and R. K. Chatterjee, J. Med. Chem., 2000, 43, 2275–2279.

---

Footnote

† Electronic supplementary information (ESI) available. See DOI: 10.1039/c5ra18036h

---
