Facile fabrication of polycaprolactone/h-MoO₃ nanocomposites and their structural, optical and electrical properties

Abstract

Hexagonal molybdenum oxide (h-MoO₃) nanocrystals with a flower-like hierarchical structure were successfully incorporated into polycaprolactone (PCL) matrix by a simple solution casting technique. Initially, the PCL was prepared by a catalytic ring-opening polymerization (ROP) of ε-caprolactone (ε-CL) under solvent free condition. Thiosemicarbazide and 4-phenylthiosemicarbazide based metal (Zn²⁺ and Cu²⁺) complexes were prepared and employed as catalysts for the ROP of ε-CL. The catalytic reaction conditions were optimized in detail. The resultant PCL was used to fabricate the PCL/h-MoO₃ nanocomposites. The h-MoO₃ with three different weight percentages (1, 3 and 5 wt%) was chosen. The structural, functional and morphological properties of nanocomposites were investigated by various spectroscopic and microscopic techniques. The merit of the PCL/h-MoO₃ nanocomposites was realized from the improved AC conductivity, dielectric and optical properties compared to the pure PCL.

---

1. Introduction

Recently, the study of polymer nanocomposites is one of the most popular areas in the field of material science and it offers new ideas for multifunctional materials suitable for a variety of device applications like magnetic field sensors, multiple state memory elements, transducers, electro-optic devices, magnetically tuned capacitors,¹ etc. In fact the hybrid nanocomposites exhibit outstanding physical, electrical and mechanical properties. Generally, the polymer composites are a new class of organic–inorganic composites that are defined as combination of polymer matrix and additives. The most common additives are nanostructured metal oxides, carbon nanotubes or nanofibers, fullerene and graphene.² The incorporation of inorganic fillers into the polymers matrix can therefore provide materials of low cost, easy processing, and high stability with specific electrical, mechanical and optical properties. The properties of nanocomposites depend on the additive dispersion and interaction at the polymer–filler interface.³ Recently, metal oxides with unique nanostructures as additives have attracted immense attention due to their outstanding and unusual properties. For instance, Zhu et al.,^4a prepared polyaniline–Al₂O₃ nanocomposites from various Al₂O₃ nanostructures and found that the nanocomposites have good electrical and dielectric properties. Alike, core–shell structured poly(glycidyl methacrylate)/BaTiO₃ nanocomposites are prepared and their high energy density dielectric storage is tested by Ejaz and co-workers.^4b In our recent course of investigation, we have prepared hexagonal molybdenum oxide (h-MoO₃) nanocrystals with a flower-like hierarchical structure. We found that the material has an excellent photocatalytic activity towards degradation of organic dyes.⁵

PCL is among the most attractive and commonly used biodegradable polyesters. Since the PCL has versatile properties such as water resistance and eco-friendly nature, it finds a wide range of applications in the field of biology, medicine, agriculture, and material science. These applications create a new interest in their novel synthetic methods.⁶ The PCL is often synthesized by ring opening polymerization (ROP) of ε-caprolactone (ε-CL) using Schiff-base metal complexes as catalysts.⁷ Due to the low cost (compared to Ag, Ru, Pt, Pd and Au) and Lewis acid nature of Zn²⁺ and Cu²⁺ complexes, they have been widely used as catalysts in ROP reactions.⁸ Few research works have been reported on utilizing biodegradable PCL to incorporate the inorganic fillers. Meriakri et al.,^9a prepared PCL–Fe₃O₄ composites by a simple method and studied the dielectric permittivity. Basavaraj et al.,^9b investigated the electric properties of PCL–polyaniline film. Runge and co-workers^9c successfully prepared electrically conductive polymer composites composed of polycaprolactone fumarate and polypyrrole (PCLF-PPy) for nerve regeneration applications. Gupta et al.,^9d have studied polycaprolactone composites with TiO₂ as potential nanomaterials. We presumed that the h-MoO₃ nanocrystals would serve as potential additive for the fabrication of PCL based nanocomposites with improved optical and electrical properties.

In the present study, thiosemicarbazide and 4-phenylthiosemicarbazide based metal (Zn²⁺ and Cu²⁺) complexes were prepared and employed as catalysts for the ROP of ε-CL. The resultant PCL was used to fabricate PCL/h-MoO₃ nanocomposites by using solution casting method. The PCL/h-MoO₃ nanocomposites were characterized by differential scanning colorimetry (DSC), X-ray diffractometer (XRD), scanning electron microscope-energy dispersive spectroscope (SEM-EDS) and Fourier transform infrared spectra (FT-IR) for thermal, structural, morphological and functional studies. Finally, AC conductivity, dielectric and optical properties of PCL/h-MoO₃ nanocomposites were investigated.

2. Experimental

2.1 Materials

Thiosemicarbazide (Sigma Aldrich), 4-phenylthiosemicarbazide (Sigma Aldrich), salicylaldehyde (Merck), copper chloride (Merck), zinc acetate (Merck), hexane (Merck), potassium hydroxide (Rankem) ethanol (Merck), methanol (Rankem), chloroform, (Merck), ε-caprolactone (Sigma Aldrich), Ammonium heptamolybdate (Merck), nitric acid (Merck), deionised water were used as received.

2.2 Characterization

The ¹H and ¹³C nuclear magnetic resonance (NMR) spectra were recorded using Bruker 500 MHz NMR spectrometer in an appropriate solvent (DMSO-d₆ or CDCl₃) using tetramethylsilane (TMS) as an internal standard. FT-IR was recorded using a Thermo IS5 FT-IR spectrophotometer. Shimadzu UV-2600 UV-vis spectrophotometer was used to record UV-visible spectra using quartz cell with 1 cm path length. The Mass spectra were recorded by ESI technique on SYNAPT G2 mass spectrometer instrument. For DSC(DSC6000 Perkin Elmer) analysis, approximately 5–10 mg of the sample was weighed and spread uniformly in a hermetic aluminum pan to ensure proper thermal contact. Silver paste was coated on both sides of the thick pellets for electrical study. The crystalline properties of the as-synthesized samples were determined with Ultima III Rigaku X-ray diffractometer at a scanning rate of 0.2° min⁻¹ in the range between 5° and 80° with Cu Kα1 radiation (1.5406 Å) operated at 40 kV and 35 mA. To study the microstructure of nanocomposites, SEM-EDS were recorded using Hitachi 3000H SEM. The SEM was operated at an accelerating voltage of 5–10 kV. The complex permittivity of nanocomposites was measured using Solatron 1260 gain/phase analyzer at room temperature. The number and weight average molecular weight (M_n and M_w) as well as polydispersity (M_w/M_n) index (PDI) of polymer samples were measured by gel permeation chromatography (GPC) using a Waters HPLC system equipped with a model 515 EF binary pump, model 2707 auto injector, model 2414 refractive index detector (RI), and waters styragel columns (HR 3 and HR 4). THF (HPLC grade) was used as an eluent at a flow rate of 1.0 mL min⁻¹. The sample concentration and injection volumes were 0.25% (w/v) and 50 μL respectively. Empower waters software was used to calculate molecular weights based on a calibration curve generated by the narrow molecular weight distribution of polystyrene standards.

2.3 Synthesis of ligands

Salicylidenethiosemicarbazone (L1) and salicylidene-4-phenylthiosemicarbazone (L2) were synthesized according to the previously reported procedures.¹⁰ The prepared Schiff bases were characterized by ¹H NMR, ¹³C NMR, UV spectral studies (Fig. S1†) and FT-IR analyses.

L1. Yield: 75%. FT-IR (cm⁻¹, KBr): 3600 (m, OH), 3058 (m, NH), 1560 (s, C=S), 1586 (w, C=N), 1535 (m, N–NH), 822 (m, C=S). ¹H-NMR (DMSO-d₆, δ, ppm): 11.39 (s, 1H, N–NH); 9.88 (s, 1H, OH); 8.37 (s, 1H, HC=N); 7.93, 7.91 (2 s, 2H, NH₂); 8.20, 7.21, 6.85, 6.80 (m, 4H, benzene). ¹³C-NMR (DMSO-d₆, δ, ppm): 177.6 (C=S); 156.4 (HC=N); 139.6 (C–OH); 116.0, 131.1, 120.4, 126.7, 118.9 (benzene).

L2. Yield: 72%. FT-IR (cm⁻¹, KBr): 3600 (m, OH), 3060 (m, NH), 1565 (s, C=S), 1586 (w, C=N), 1535 (m, N–NH), 823 (m, C=S). ¹H-NMR (DMSO-d₆, δ, ppm): 11.78 (s, 1H, N–NH); 9.98 (s, 1H, OH); 8.50 (s, 1H, HC=N); 10.06 (1s 1H, –NH); 8.10, 7.22, 6.90, 6.88 (m, 4H, benzene-OH); 7.38, 7.34, 7.34, 7.25, 7.25 (m, 5H-benzene-NH). ¹³C-NMR (DMSO-d₆, δ, ppm): 177.2 (C=S); 157.1 (HC=N); 140.5 (C–OH); 116.5, 131.8, 120.7, 128.5, 118.4 (benzene-OH); 139.6 (C–NH); 127.5, 127.5, 126.1, 126.1, 127.7 (benzene-NH).

2.4 Procedure for the preparation of metal complexes

The metal complexes (CuL1, CuL2, ZnL1 and ZnL2) were prepared according to the previously reported procedure.¹¹ In a typical preparation of CuL1, a mixture of salicylidenthiosemicarbazone (10 mmol) and CuCl₂·2H₂O (10 mmol) was stirred in 25 mL of methanol at 66 °C for 3 h. The green colored solid, which separated on cooling, was filtered, washed with methanol, diethyl ether and dried in air. The complexes of CuL2, ZnL1 and ZnL2 were prepared by using the same procedure. For the preparation of zinc complexes, Zn(oAc)₂ was used as a metal precursor.

CuL1. Yield: 70%. Mass spectra: molecular ion peak at 292 m/z. FT-IR (KBr, cm⁻¹) 3382, 3080, 1627, 1572, 1395, 1288, 1202, 962. Elemental anal. calc. for C₈H₉ClCuN₃OS: C, 32.66; H, 3.08; Cl, 12.05; Cu, 21.60; N, 14.28; O, 5.44; S, 10.90. Found: C, 31.88; H, 3.92; N, 14.04;

ZnL1. Yield: 78%. Mass spectra: molecular ion peak at 318 m/z. FT-IR (KBr, cm⁻¹) 3402, 3326, 3222, 1576, 1477, 1281, 1212, 810. Elemental anal. calc. for C₁₀H₁₂N₃O₃SZn: C, 37.57; H, 3.78; N, 13.14; O, 15.01; S, 10.03; Zn, 20.46 found: C, 36.83; H, 3.12; N, 12.84;

CuL2. Yield: 76%. Mass spectra: molecular ion peak at 370 m/z. FT-IR (KBr, cm⁻¹) 3300, 3130, 2932, 1593, 1406, 1242, 755. Elemental anal. calc. for C₁₄H₁₃ClCuN₃OS: C, 45.40; H, 3.54; Cl, 9.57; Cu, 17.16; N, 11.35; O, 4.32; S, 8.66. Found: C, 45.13; H, 3.11; N, 11.11;

ZnL2. Yield: 72%. Mass spectra: molecular ion peak at 394 m/z. FT-IR (KBr, cm⁻¹) 3300, 3130, 2932, 1593, 1406, 1242, 755. Elemental anal. calc. for C₁₆H₁₆N₃O₃SZn: C, 48.56; H, 4.07; N, 10.62; O, 12.13; S, 8.10; Zn, 16.52 found: C, 47.77; H, 4.14; N, 10.17;

2.5 ROP reaction of ε-CL

0.025 g (0.14 mmol) of catalyst was added to 0.97 mL (1.0 g, 8.8 mmol) of ε-CL and the resulting mixture was heated at 150 °C under N₂ atmosphere for 24 h (Scheme 1). After the completion of the reaction, the product was dissolved in 10 mL of chloroform and centrifuged. The obtained solution was poured into an excess of methanol. Finally, white solid (PCL) was separated, washed with methanol and dried for 8–10 h in vacuum.

Scheme 1 ROP reaction of ε-CL catalyzed by CuL1, ZnL1, CuL2 and ZnL2 complex.

Yield – 0.98 g (98%), M_w = 38 700. IR (KBr disc, cm⁻¹): 1727 (–C=O), 2864 (–CH₂), 2942 (–CH₂), 3433 (–OH). ¹H NMR (CDCl₃, δ ppm): 2.30 (t, 2H, –CH₂), 1.65 (m, 2Hs, –CH₂), 1.40 (m, 2H, –CH₂), 4.04 (t, 2H, –CH₂).

2.6 Synthesis of h-MoO₃

The h-MoO₃ was prepared according to our previously reported procedure.⁵ In a typical process, 0.2 M of ammonium heptamolybdate tetrahydrate (AHM) aqueous solution was prepared using 10 mL of deionized water under magnetic stirring. After stirring for 15 min at room temperature, 5 mL of concentrated nitric acid was mixed slowly into the solution. The solution was placed in a constant temperature bath and heated at 120 °C for 3 h. The residue powders were washed and centrifuged with distilled water for several times and then dried in a vacuum oven at 70 °C for 6 h.

2.7 Synthesis of PCL + 1–5% h-MoO₃ nanocomposites

PCL/h-MoO₃ nanocomposites with different h-MoO₃ (1, 3 and 5%) loading were prepared by a simple solution casting method. PCL (MW 38 600) and h-MoO₃ were separately taken in chloroform (25 mL) and stirred at 27 °C for 30 min to obtain a homogeneous solution. The two solutions were then mixed and stirred for 1 hour to obtain a homogeneous solution. The resultant homogenous solution was poured in a glass Petri dish and air dried to obtain solid. Fig. 1 shows the schematic illustration for the preparation of PCL/h-MoO₃.

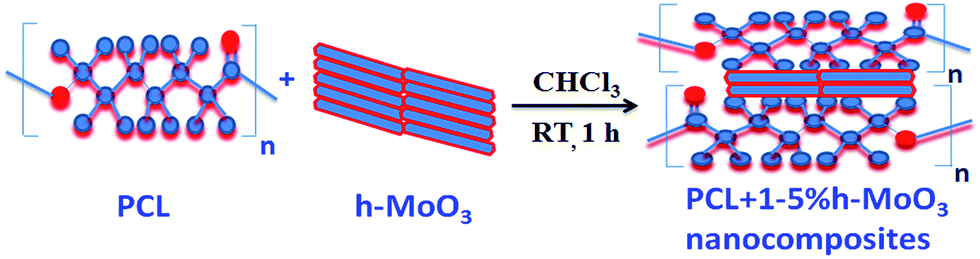

Fig. 1 Schematic illustration for the preparation of PCL/h-MoO₃ sample.

3. Results and discussion

3.1 Optimization of reaction conditions for ROP reaction of ε-CL

The ROP of ε-CL using four kinds of complexes (CuL1, CuL2, ZnL1 and ZnL2) as catalysts in a diverse molar ratio of [M]/[C] were carried out at 125 and 150 °C for 24 h under solvent-free melt conditions. The results obtained for PCL synthesis at different conditions are given in Table 1. When CuL2 was used as catalyst, the optimum conditions of reaction temperature, time and catalyst amount were found to be 150 °C, 24 h and 25 mg (Table 1, entry 2) respectively. PCL with the maximum yield (98%) and molecular weight (M_n = 30 901 g mol⁻¹, M_w = 38 695 g mol⁻¹) (Table 1, entry 2) was obtained when CuL2 was used. The same polymerization reaction carried out with CuL1 (Table 1, entries 3, 5, 7, 9, 11) showed an inferior catalytic performance, the maximum molecular weight of PCL being M_w = 13 256–20 576 g mol⁻¹, M_n = 9686–16 867 g mol⁻¹ as opposed to catalyst CuL2. The inferior catalytic activity of complex CuL1 is comparable to the results of catalyst ZnL1 (salicylidenethiosemicarbazone zinc complex) (Table 1, entries 13, 15, 17, 19 & 21). When catalyst ZnL2 (salicylidene-4-phenylnthiosemicarbazone zinc complex) was used as catalyst, the optimum conditions of reaction temperature, reaction time and catalyst amount was 150 °C, 24 h and 25 mg respectively (Table 1, entry 12). The lowest molecular weight distribution (PDI = 1.10) among catalysts were obtained when catalyst ZnL2 was used. Although the molecular weights of PCL (maximum M_n = 20 608 g mol⁻¹ & M_w = 31 739 g mol⁻¹) was good at 150 °C when ZnL2 was used as catalyst, the molecular weight distribution was broad (PDI = 1.54) at the same temperature. With catalyst ZnL2 and polymerization temperature of 125 °C, well-controlled polymerization was observed which is evident from the narrow molecular weight distributions (PDI = 1.10 & 1.17) (Table 1, entries 18 & 20). ZnL1 (salicylidenethiosemicarbazone zinc complex) (Table 1, entry 13, 15, 17, 19 & 21) showed an inferior catalytic performance (M_n = 7971–16 101 g mol⁻¹, M_w = 10 792–22 674 g mol⁻¹) as opposed to catalyst ZnL2. PDI values of polymers formed using catalyst ZnL1 were found to decrease as the reaction temperature was reduced from 150 °C to 125 °C (Table 1, entries 13, 15, 17, 19 & 21). For the obtained polymeric products by catalysts, a significant increase in molecular weights (M_w or M_n) was observed when CuL2 and ZnL2 were used as catalysts, which suggests that the steric effect from catalyst CuL2 and ZnL2 is in favour of the growth of polymer chains in further insertion for ε-CL monomers.¹² At both polymerization temperatures of 150 °C and 125 °C, the catalytic activities increased with increase in catalyst amount. The increased catalytic activities can be seen from the high molecular weights at maximum [M]/[C] ratio, M_w = 21 641–38 695 g mol⁻¹, M_n = 16 101–30 901 g mol⁻¹ at 150 °C and M_w = 25 848–11 381 g mol⁻¹, M_n = 17 251–9798 g mol⁻¹ at 125 °C. Comparing polymerization reaction with catalysts, for a particular amount of catalyst used, the yield of the reaction was found to decrease with reduction in reaction temperature. For instance, catalyst CuL2 at [M]/[C] a ratio of 130 : 1 rendered 98% yield of PCL at 150 °C but rendered only 93% yield of PCL at 125 °C. It was also observed that the polymerization at 150 °C was more controlled when higher catalyst amounts were used, which is shown by the broadening of molecular weight distribution (PDI increased from 1.25–1.40) as the amount of catalyst used was reduced. Recovery and reusability of the catalysts is one of the major advantages in catalysis, which makes a catalyst economically viable. In a typical procedure of recovery, the catalysts synthesized were recovered from the reaction mixture by simple centrifugation. Then the recovered catalysts were washed well with chloroform, dried in vacuum at 60 °C and reused for further ROP reactions of ε-CL. The results obtained are given in Table S1.† Among the catalysts, CuL2, CuL1 and ZnL2 could not be recovered after the first use due to their solubility in chloroform. However catalyst ZnL1 was recovered and reused with excellent yield of polymer upto 3 cycles. This exceptional reusability of catalyst ZnL1 is ascribed to the Lewis acid nature of Zn²⁺ ions in the metal complex catalyst. The ¹H NMR spectrum of PCL showed a significant signal at 3.66 ppm (triplet) corresponding to the –CH₂–OH end group in PCL. Two signals at 1.35 and 4.2 were also observed for PCL due to the presence of methyl ester end group.^{13 13}C NMR (CDCl₃, δ, ppm): 34.12 (–CH₂), 28.34 (–CH₂), 24.57 (–CH₂), 25.52 (–CH₂), 64.16 (–CH₂), 173.58(–C=O) (Fig. S3†) showed respective number of carbons at appropriate regions.

Table 1 Optimization of reaction conditions for synthesis of PCL

Entry	Catalyst	[M]/[C]^a ratio	Temp (°C)	Time (h)	Mn^b × 10^3 (g mol^−1)	Mw^c × 10^3 (g mol^−1)	Yield^d (%)	PDI^e
a [M]/[C] ratio is the molar ratio of monomer and catalyst.b Mn is the relative number-average molecular weight.c Mw is the relative weight-average molecular weight.d Calculated on the basis of the polymer weight.e PDI = Mw/Mn.
1	—	—	150	24	—	—	—	—
2	CuL2	130 : 1	150	24	30.90	38.69	98	1.25
3	CuL2	217 : 1	150	24	18.40	23.17	95	1.25
4	CuL2	325 : 1	150	24	19.85	27.82	94	1.40
5	CuL2	130 : 1	125	24	17.25	25.84	93	1.49
6	CuL2	217 : 1	125	24	14.02	17.81	92	1.26
7	CuL1	103 : 1	150	24	16.86	21.64	96	1.28
8	CuL1	172 : 1	150	24	16.01	20.57	94	1.28
9	CuL1	258 : 1	150	24	10.08	13.25	92	1.31
10	CuL1	103 : 1	125	24	9.68	15.42	94	1.59
11	CuL1	172 : 1	125	24	13.03	16.74	92	1.28
12	ZnL2	139 : 1	150	24	20.60	31.73	95	1.54
13	ZnL2	232 : 1	150	24	8.55	13.88	93	1.62
14	ZnL2	348 : 1	150	24	9.70	15.62	90	1.61
15	ZnL2	139 : 1	125	24	16.54	18.31	92	1.10
16	ZnL2	232 : 1	125	24	12.47	14.63	91	1.17
17	ZnL1	112 : 1	150	24	16.10	22.67	95	1.40
18	ZnL1	187 : 1	150	24	8.44	12.16	91	1.44
19	ZnL1	280 : 1	150	24	9.08	13.65	90	1.50
20	ZnL1	112 : 1	125	24	9.79	11.38	91	1.16
21	ZnL1	280 : 1	125	24	7.97	10.79	89	1.35

---

3.2 Characterization of nanocomposites

The thermal properties of PCL and its nanocomposites were determined by using differential scanning calorimetric (DSC) studies. The DSC curves of the pure PCL, PCL + 1% h-MoO₃, PCL + 3% h-MoO₃ and PCL + 5% h-MoO₃ nanocomposites at a heating rate of 10 °C are given in Fig. S3.† We can see that the melting temperature (T_m) of nanocomposites decreases slightly with increasing nanofiller (h-MoO₃) concentrations (1, 3 and 5%). This shows that (Fig. S3†) the incorporation of h-MoO₃ has little effect on melting temperature of PCL. This means that the crystallinity of PCL is practically not dependent on the amount of h-MoO₃ intercalated. A similar result was reported by Jimenez et al.,¹⁴ structural and morphology phenomena play an important role in determining the properties of a PCL and PCL/h-MoO₃. The XRD patterns of pure PCL, h-MoO₃, and nanocomposites are shown in Fig. 2. Pure PCL sample shows three crystalline peaks at 21.08°, 21.87°, and 23.34° corresponds to (110), (111), and (200) planes. This demonstrates a highly ordered chain folding characteristics of prepared PCL.¹⁵ In the case of h-MoO₃, the diffraction peaks are indexed to be the pure and single phase of n-hexagonal (JCPDS-21-0569; a = 10.53 Å and c = 14.876 Å) peaks at 16.76°, 19.34°, 25.78°, 29.39°, 35.35°, 45.35° and 56.05° correspond to (110), (200), (210), (300), (310), (410) and (218) planes.⁵ In the XRD pattern of PCL + 1% h-MoO₃, PCL + 3% h-MoO₃ and PCL + 5% h-MoO₃, the intensity of peaks was lesser compared to pure PCL and pure h-MoO₃. The results confirmed that the h-MoO₃ is well dispersed into the PCL matrix. SEM-EDS were recorded to investigate the microstructure and the distribution of h-MoO₃ in the nanocomposites. Fig. 3 shows SEM-EDS results of pure PCL, pure h-MoO₃, PCL + 1% h-MoO₃, PCL + 3% h-MoO₃ and PCL + 5% h-MoO₃ nanocomposites. The SEM images confirmed that the surface morphology of pure PCL is smooth and homogenous (Fig. 3a). Fig. 3b shows a rod shaped structure of pure h-MoO₃. The rods are monodispersed with an average diameter of 300 nm to 350 nm and length in about the micron range. The purity of the PCL and h-MoO₃ was realized from the EDS data that showed only C and O for PCL and Mo and O for h-MoO₃. As seen from Fig. 3c–e, the surface morphology of the nanocomposites different compared to pure PCL which may be due to the incorporation of h-MoO₃ into the PCL matrix. Moreover, the SEM image of nanocomposites reveals the homogenous distribution of the h-MoO₃ into the PCL matrix.¹⁶ In Fig. 3b, the strong peaks at around 2.3 keV correspond to Mo were observed. In the case of nanocomposites, the intensity of the Mo peaks at 2.3 keV was gradually increased with the increasing h-MoO₃ content. In order to investigate the interaction between PCL and h-MoO₃, FT-IR spectra were recorded for pure PCL, as prepared h-MoO₃, PCL + 1% h-MoO₃, PCL + 3% h-MoO₃ and PCL + 5% h-MoO₃ (Fig. 4). The FT-IR peaks observed between 1000 cm⁻¹ and 900 cm⁻¹ are attributed to Mo=O characteristic stretching vibration of the hexagonal phase.⁵ In addition, a broad band at 600 cm⁻¹ was observed which corresponds to the Mo–O vibration of h-MoO₃. As expected, bands at 3000–2800 cm⁻¹ (CH₂ stretching), 1735 cm⁻¹ (C=O stretching vibrations), 1275–1050 cm⁻¹ (C–O–C aliphatic ether stretching), 730 cm⁻¹ (CH₂ long chain rocking motion), and 1450 and 1380 cm⁻¹ (CH₂ and CH bending vibrations) were observed for pure PCL.¹⁷ In comparison to pure PCL, for nanocomposites, the intensity of PCL characteristic peaks reduced with increasing h-MoO₃ content. In addition, the peak at 1735 cm⁻¹ (C=O stretching vibrations) was significantly shifted to higher wavenumber compared to pure PCL. This phenomenon is may be due to the high dispersion of h-MoO₃ into the PCL matrix. Interestingly, the metal–oxygen band was appeared at 590 cm⁻¹ for the nanocomposites. The results indicate an efficient incorporation of pure h-MoO₃ into the PCL matrix.

Fig. 2 X-ray diffraction pattern of pure PCL, as prepared h-MoO₃ and nanocomposites.

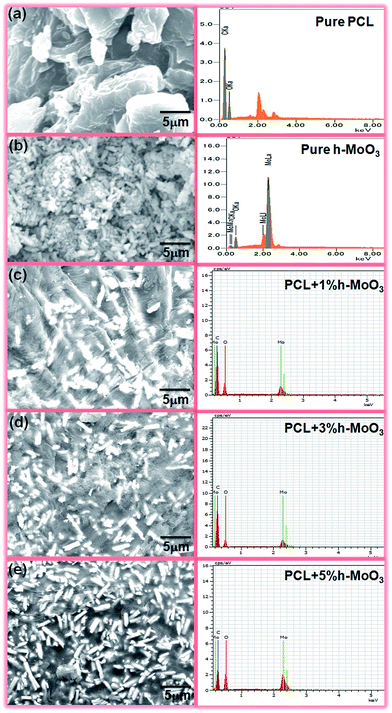

Fig. 3 SEM image and corresponding EDS spectra of (a) PCL, (b) h-MoO₃, (c) PCL + 1% h-MoO₃, (d) PCL + 3% h-MoO₃ and (e) PCL + 5% h-MoO₃.

Fig. 4 FT-IR spectra of pure PCL, pure h-MoO₃, PCL + 1% h-MoO₃, PCL + 3% h-MoO₃ and PCL + 5% h-MoO₃.

3.3 Optical properties

The optical properties of h-MoO₃, pure PCL, PCL + 1% h-MoO₃, PCL + 3% h-MoO₃ and PCL + 5% h-MoO₃ have been studied and are shown in Fig. 5a. It has been observed that the pure PCL which shows a peak at 250–300 nm indicates n → π* transition of the ester carbonyl. However, the absorbance for h-MoO₃ and pure PCL shows a red shift for PCL + 1–5% h-MoO₃ nanocomposites. The red shift observed in pure PCL upon addition of 1–5% of h-MoO₃ is attributed to structural distortion. Similarly, the absorption co-efficient of the corresponding samples was further analyzed by Tauc approach,¹⁸ and the indirect band gap of the corresponding samples was calculated using the following equation:Where α is the absorption coefficient, C is a constant, hν is the photon energy and E^bulk_g is the band gap. Extrapolation of the linear region of Tauc plots (Fig. 5b) gives a band gap of 2.74, 1.67, 1.85, 1.91 and 1.74 for h-MoO₃, pure PCL, PCL + 1% h-MoO₃, PCL + 3% h-MoO₃ and PCL + 5% h-MoO₃ respectively. Here the interesting point to be noted is that the PCL band gap gradually increased from 1.6 (pure PCL) to 1.85 (PCL + 3% h-MoO₃) and 1.74 (PCL + 5% h-MoO₃) by the addition of pure h-MoO₃. In detail, the band gap of PCL + 5% h-MoO₃ was slightly increased compared to the pure PCL but decreased when compared with PCL + 1% h-MoO₃ and PCL + 3% h-MoO₃. This might have caused by the poor interfacial interaction of h-MoO₃ with PCL matrix due to the aggregation of h-MoO₃ at higher loading.¹⁹ The energy band diagram of h-MoO₃ and PCL/h-MoO₃ nanocomposites are schematically illustrated in Fig. 6. The conduction band (CB) and valance band (VB) potentials of the h-MoO₃, PCL + 1% h-MoO₃, PCL + 3% h-MoO₃ and PCL + 5% h-MoO₃ at the point of zero charge can be calculated by the following equation:²⁰

E_VB = χ − E_e + 0.5E_g (2)

where χ is the absolute electronegativity of the h-MoO₃, which is defined as the geometric mean of the absolute electronegativity of the constituent atoms; E_e is the energy of free electrons on the hydrogen scale (ca. 4.5 eV); E_VB is the VB edge potential; and E_g is the band gap of the semiconductor obtained from the equation E_g = 1240/λg (eV). The CB position can be derived from the following equation

E_CB = E_VB − E_g (3)

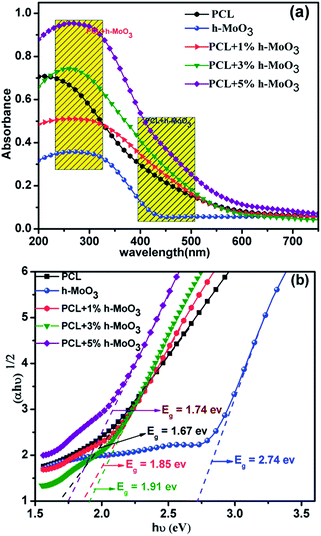

Fig. 5 (a) DRS spectra of PCL, h-MoO₃, PCL + 1–5% h-MoO₃ nanocomposites (b) Tauc plots of PCL, h-MoO₃ PCL + 1–5% h-MoO₃, nanocomposites.

Fig. 6 Band energy diagram illustrate the pure h-MoO₃, PCL + 1% h-MoO₃, PCL + 3% h-MoO₃ and PCL + 5% h-MoO₃.

The χ value for h-MoO₃ is ca. 7.2.²¹ Based on the above equations, the VB and CB values of h-MoO₃, PCL + 1% h-MoO₃, PCL + 3% h-MoO₃ and PCL + 5% h-MoO₃ are calculated to be 4.07, 3.62, 3.65, 3.57 and 1.33, 1.77, 1.74, 1.83 eV, respectively. Among them, the VB value of pure h-MoO₃ is higher. The addition of h-MoO₃ (1–5 wt%) into the PCL gradually decreases the valance band, as a result, the electrons can easily move from h-MoO₃ to PCL interface.

3.4 Impedance spectra and AC conductivity

The AC conductivity (σ) was calculated by using the following equation²²

σ = ε₀ε′ω tan δ (4)

The frequency dependency of AC conductivity at 27 °C for the nanocomposites such as PCL + 1% h-MoO₃, PCL + 3% h-MoO₃ and PCL + 5% h-MoO₃ is shown in Fig. 7a. As expected, the conductivity of the samples (PCL, h-MoO₃, PCL + 1% h-MoO₃, PCL + 3% h-MoO₃ and PCL + 5% h-MoO₃) increased with increasing frequency: a similar trend to that of insulating materials. Particularly, the nanocomposites exhibited better conductivity compared to pure PCL. The pure PCL is non-conducting material; the conductivity of the nanocomposites gradually increased with h-MoO₃ loading. The impedance spectra were recorded for PCL, PCL + 1% h-MoO₃, PCL + 3% h-MoO₃ and PCL + 5% h-MoO₃ nanocomposites; the results are presented in Fig. 8. It was observed that the magnitudes of both imaginary part (Z′′) and real part (Z′) are decreased with increase in frequency. This indicates that the AC conductivity is increased at higher frequency. The impedance spectrum of h-MoO₃ [inset graph (8)] shows a semicircular arc curve over the measured frequency region due to high impedance of pure h-MoO₃ NPs. Only single straight line was noticed at room temperature for PCL, PCL + 1% h-MoO₃, PCL + 3% h-MoO₃ and PCL + 5% h-MoO₃ nanocomposites. The diameter of impedance plots gradually increased with increasing h-MoO₃ loading. The result is well comparable to many other polymer nanocomposites including Fe₃O₄/ENR nanocomposites²³ and WO₃–PANI nanocomposites.²⁴

Fig. 7 Variation of AC conductivity with respect to frequency of pure PCL and PCL + 1–5% h-MoO₃ and insets shows the AC conductivity of pure h-MoO₃ (b) plot of the imaginary part and real part of impedance of pure PCL and PCL + 1–5% h-MoO₃ and insets shows the imaginary part and real part impedance of pure h-MoO_3.

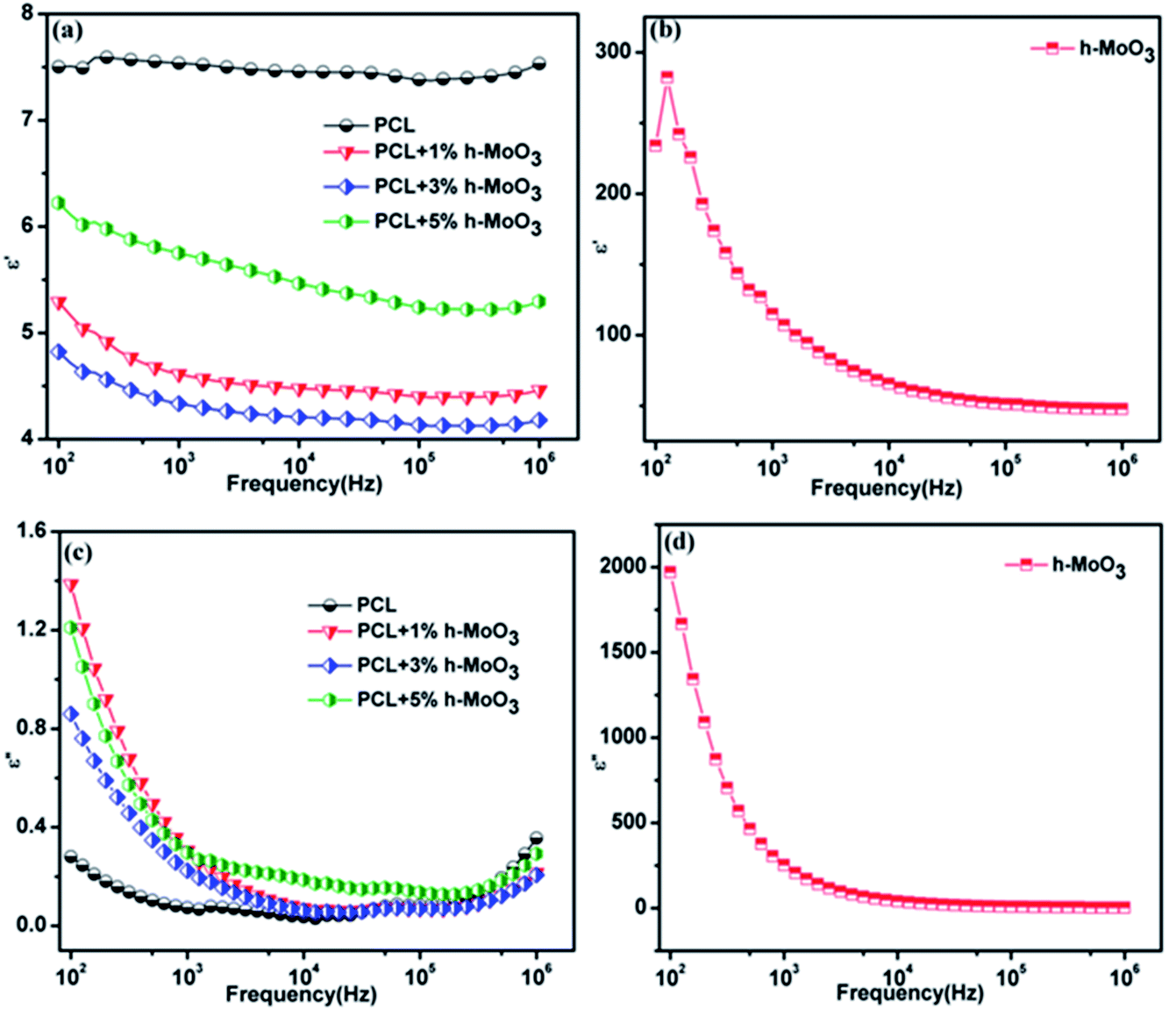

Fig. 8 Frequency dependence of the (a) variation of dielectric constant with frequency for pure PCL and PCL + 1–5% h-MoO₃ nanocomposites (b) variation of Dielectric constant with frequency for pure h-MoO₃ (c) variation of dielectric loss with frequency for pure PCL and PCL + 1–5% h-MoO₃ nanocomposites (d) variation of dielectric loss with frequency for pure h-MoO₃.

Dielectric and electric modulus. The amount of charge that can be stored by polymeric material is evaluated by means of dielectric spectral analysis. In order to confirm the enhancement of ionic conductivity, dielectric study was performed for pure h-MoO₃, pure PCL, PCL + 1% h-MoO₃, PCL + 3% h-MoO₃ and PCL + 5% h-MoO₃ nanocomposites at 27 °C. The frequency dependence of dielectric constant (ε′) and dielectric loss (ε′′) at the frequency range from 100 Hz to 1 MHz was measured and the data are shown in Fig. 8. As expected, the pure h-MoO₃ has higher dielectric constant compared to pure PCL, PCL + 1% h-MoO₃, PCL + 3% h-MoO₃ and PCL + 5% h-MoO₃ nanocomposites. This may be attributed to the space charge polarization near the grain boundary which depends on the high purity and perfections of the sample. For pure PCL, no change in the dielectric constant value was observed at low frequency as well as high frequency. However, the dielectric constant of the nanocomposites was slightly decreased with h-MoO₃ loading upto 3%. Fig. 8c shows the variation of dielectric loss with frequency for pure PCL and PCL + 1–5% h-MoO₃ nanocomposites. It can be seen that the nanocomposites show inherent low loss over a wide range of frequencies (100 Hz to 1 MHz). The dielectric loss of the nanocomposites decreases with the increase in frequency (Fig. 8c). It was found that the nanocomposites have better dielectric loss than the pure PCL. These features were consistent with the dielectric loss result reported in the earlier literature.²⁵ Electric modulus was used to examine the dipole relaxation process, interfacial polarization and long-range conduction process within the nanocomposites. The complex electric modulus was originally introduced by Macedo et al.²⁶ to study the space charge relaxation phenomena. The complex electric modulus was calculated from the complex permittivity. The real (M′) and imaginary (M′′) parts of the electric modulus can be calculated from ε′ and ε′′ as follows:where M′ is the complex modulus, ε′ is the complex dielectric constants and ω(=2πf) is the angular frequency. The frequency dependence of imaginary part of the electric modulus (M′′) of the polymer composites at different concentration is shown in Fig. 9a.

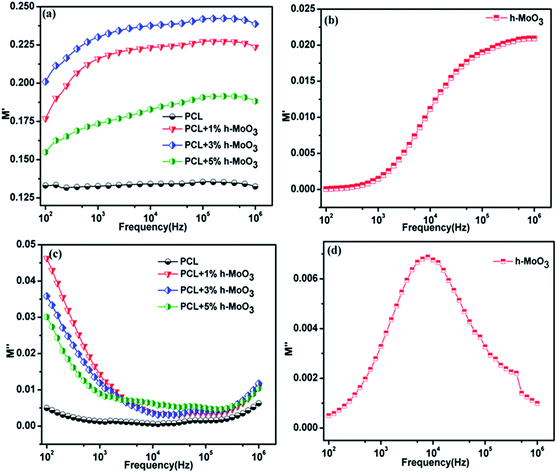

Fig. 9 Frequency dependence of the electric modulus, (a) M′ of pure PCL, PCL + 1% h-MoO₃, PCL + 3% h-MoO₃ and PCL + 5% h-MoO₃ (b) M′ of pure h-MoO₃. (c) M′′ of pure PCL, PCL + 1% h-MoO₃, PCL + 3% h-MoO₃ and PCL + 5% h-MoO₃ (d) M′′ of pure h-MoO₃.

The nature of M′′ spectrum can be explained by the mobility of the charge carriers.²⁷ Generally, the electric modulus formalism is very useful tool to study the interfacial polarization, dipole relaxation process and long-range conduction process within the nanocomposites. Fig. 9a and c shows the frequency dependence of real (M′) and imaginary (M′′) modulus formalism for pure PCL, pure h-MoO₃, PCL + 1% h-MoO₃, PCL + 3% h-MoO₃ and PCL + 5% h-MoO₃ and Fig. 9b and d shows the frequency dependence of real (M′) and imaginary (M′′) modulus formalism for pure h-MoO₃. In order to interpret the relaxation phenomena within the PCL/h-MoO₃ composites, the imaginary part (M′′) of the electric modulus was taken in the form of loss curves. Hence, we have taken the imaginary part (M′′) of the electric modulus for PCL/h-MoO₃ composites and shown in Fig. 9. It was observed that a relaxation process is associated with interfacial polarization in the M′′ curves for the composite samples. Moreover, the relaxation strength diminishes with the h-MoO₃ loading, but no significant change is observed in the relaxation range and relaxation peak frequency. From Fig. 9, it was noticed that the interfacial polarization only appears at low frequencies in PCL/h-MoO₃ composites since the peak loss observed only at low-frequency. The pure PCL and pure h-MoO₃ are high resistivity materials at 27 °C, the mobility of charge carriers must be low within the PCL/h-MoO₃ nanocomposites and, therefore, a considerable time interval is highly required for charge carriers to reach an interface. In the present case, the interfacial polarization might have taken long time to be established; therefore the interfacial polarization appeared at low frequencies.

4. Conclusions

In conclusion, four different kinds of metal complex were successfully prepared and employed as catalysts for the preparation of PCL. Nanocomposites were prepared by incorporating h-MoO₃ into the prepared PCL matrix via solution casting technique. The structural, electrical and optical properties of the nanocomposites were investigated. The merit of the nanocomposites was realized from the enhanced AC conductivity, dielectric and optical properties.

Acknowledgements

The authors gratefully acknowledge funding support from the Council of Scientific & Industrial Research (CSIR) Sanction No. 01(2282)/08/EMR-II. DST (Sanction No. SR/S1/OC-06/2011) for providing GPC facility for molecular weight characterization.

Notes and references

1. (a) T. T. Tung, M. Castro, T. Y. Kim, K. S. Suh and J. F. Feller, J. Mater. Chem., 2012, 22, 21754; (b) T. Hasobe, H. Imahori, P. V. Kamat, T. K. Ahn, S. K. Kim, D. Kim, A. Fujimoto, T. Hirakawa and S. Fukuzumi, J. Am. Chem. Soc., 2005, 127, 1216; (c) B. Wang, Y. Yin, C. Liu, S. Yu and K. Chen, Dalton Trans., 2013, 42, 10042; (d) V. I. Klimov, S. Mikhailovsky, S. Xu, A. Malko, J. A. Hollingsworth, C. A. Leatherdale, H. Eisler and M. G. Bawendi, Science, 2000, 290, 314; (e) J. Azadmanjiri, C. C. Berndt, J. Wang, A. Kapoor, V. K. Srivastava and C. Wen, J. Mater. Chem. A, 2014, 2, 3695.
2. (a) L. Wang, L. Chen, B. Yan, C. Wang, F. Zhu, X. Jiang, Y. Chao and G. Yang, J. Mater. Chem. A, 2014, 2, 8334; (b) D. Zhang, M. A. Kandadai, J. Cech, S. Roth and S. A. Curran, J. Phys. Chem. B, 2006, 110, 12910; (c) E. Badamshina and M. Gafurova, J. Mater. Chem., 2012, 22, 9427; (d) H. Kim, A. A. Abdala and C. W. Macosko, Macromolecules, 2010, 43, 6515.
3. D. K. Pradhan, R. N. P. Choudhary and B. K. Samantaray, Mater. Chem. Phys., 2009, 115, 557.
4. (a) J. Zhu, S. Wei, L. Zhang, Y. Mao, J. Ryu, N. Haldolaarachchige, D. P. Young and Z. Guo, J. Mater. Chem., 2011, 21, 3952; (b) M. Ejaz, V. S. Puli, R. Elupula, S. Adireddy, B. C. Riggs, D. B. Chrisey and S. M. Grayson, J. Polym. Sci., Part A: Polym. Chem., 2015, 53, 719.
5. (a) A. Chithambararaj, N. S. Sanjini, S. Velmathi and A. Chandra Bose, Phys. Chem. Chem. Phys., 2013, 15, 14761; (b) A. Chithambararaj, N. S. Sanjini, A. Chandra Bose and S. Velmathi, Catal. Sci. Technol., 2013, 3, 1405.
6. (a) A. Olivier, J. M. Raquez, P. Dubois and P. Damman, Eur. Polym. J., 2011, 47, 31; (b) D. Ratna and K. Kocsis, J. Mater. Sci., 2008, 43, 254; (c) M. Okada, Prog. Polym. Sci., 2002, 27, 87; (d) A. M. L. Ray, H. Gautier, M. K. Laty, G. Daculsi, C. Merle, C. Jacqueline, A. Hamel and J. Caillon, Antimicrob. Agents Chemother., 2005, 49, 3025; (e) G. Kale, R. Auras and S. P. Singh, Packag. Technol. Sci., 2007, 20, 49; (f) Y. Kim, G. K. Jnaneshwara and J. G. Verkade, Inorg. Chem., 2003, 42, 1437; (g) S. Saravanamoorthy, M. Muneeswaran, N. Giridharan and S. Velmathi, RSC Adv., 2015, 5, 43897.
7. (a) X. Pang, R. Duan, X. Li and X. Chen, Polym. Chem., 2014, 5, 3894; (b) A. P. Dove, Chem. Commun., 2008, 6446; (c) F. M. Kerton, A. C. Whitwood and C. E. Willans, Dalton Trans., 2004, 2237.
8. (a) Y. L. Hsieh, Y. C. Lin, G. H. Lee and C. H. Peng, Polymer, 2015, 56, 237; (b) H. L. Chen, H. J. Chuang, B. H. Huang and C. C. Lin, Inorg. Chem. Commun., 2013, 35, 247; (c) C. T. Chen, C. C. Hung, Y. J. Chang, K. F. Peng and M. T. Chen, J. Organomet. Chem., 2013, 738, 1; (d) P. K. Eckert, I. D. S. Vieira, V. H. Gessner, J. Borner, C. Strohmann and S. H. Pawlis, Polyhedron, 2013, 49, 151.
9. (a) V. V. Meriakri, D. S. Kalenov, M. P. Parkhomenko, S. Zhou and N. A. Fedoseev, Am. J. Mater. Sci., 2012, 2, 171; (b) C. Basavaraj, D. G. Kim, W. J. Kim, J. H. Kim and D. S. Huh, Bull. Korean Chem. Soc., 2011, 32, 927; (c) M. B. Runge, M. Dadsetan, J. Baltrusaitisc, A. M. Knight, T. Ruesink, E. Lazcano, L. Lu, A. J. Windebank and M. J. Yaszemskia, Biomaterials, 2010, 31, 5916; (d) K. K. Gupta, A. Kundan, P. K. Mishra, P. Srivastava, S. Mohanty, N. K. Singh, A. Mishrad and P. Maiti, Phys. Chem. Chem. Phys., 2012, 14, 12844.
10. (a) S. M. E. Khalil, M. Shebl and F. S. Al-Gohani, Acta Chim. Slov., 2010, 57, 716; (b) E. Pahontu, V. Fala, A. Gulea, D. Poirier, V. Tapcov and T. Rosu, Molecules, 2013, 18, 8812.
11. (a) S. I. Orysyk, V. V. Bon, O. O. Obolentseva, Y. L. Zborovskii, V. V. Orysyk, V. I. Pekhnyo, V. I. Staninets and V. M. Vovk, Inorg. Chim. Acta, 2012, 382, 127; (b) J. A. de Bolfo, T. D. Smith, J. F. Boas and J. R. Pilbrow, Aust. J. Chem., 1976, 29, 2583; (c) S. Padhye and G. B. Kauffman, Coord. Chem. Rev., 1985, 63, 127.
12. L. Ding, W. Jin, Z. Chu, L. Chen, X. Lü, G. Yuan, J. Song, D. Fan and F. Bao, Inorg. Chem. Commun., 2011, 14, 1274.
13. L. Jiang, L. Lou, W. Sun, L. Xu and Z. Shen, J. Appl. Polym. Sci., 2005, 98, 1558.
14. G. Jimenez, N. Ogata, H. Kawai and T. Ogihara, J. Appl. Polym. Sci., 1997, 64, 2211.
15. (a) M. Ravi, S.-H. Song, K.-M. Gu, J.-N. Tang and Z.-Y. Zhang, Ionics,  DOI:10.1007/s11581-015-1384-4; (b) A. Elzubair, C. N. Elias, J. C. M. Suarez, H. P. Lopes and M. V. B. Vieira, J. Dent., 2006, 34, 784.
16. Q. Wang, X. Zhang, C. J. Wang, J. Zhu, Z. Guo and D. O'Hare, J. Mater. Chem., 2012, 22, 19113.
17. H. Peng, Y. Han, T. Liu, W. C. Tjiu and C. He, Thermochim. Acta, 2010, 502, 1.
18. M. A. Butler, J. Appl. Phys., 1977, 48, 1914.
19. L. Xie, X. Huang, Y. Huang, K. Yang and P. Jiang, J. Phys. Chem. C, 2013, 117, 22525.
20. N. Tian, H. Huang, Y. Zhang and Y. He, J. Mater. Res., 2014, 29, 641.
21. Y. ChangLin, Y. Kai, S. Qing, Y. Jimmy, C. FangFang, L. Xin and Z. XiaoChun, Sci. China: Chem., 2012, 55, 1802.
22. Z. Peng, Q. Chen, J. Wu, D. Liu, D. Xiao and J. Zhu, J. Alloys Compd., 2012, 541, 310.
23. W. L. Tan and M. Abu Bakar, J. Alloys Compd., 2013, 561, 40.
24. S. M. Hicks and A. J. Killard, Sens. Actuators, B, 2014, 194, 283.
25. M. S. Tamboli, P. K. Palei, S. S. Patil, M. V. Kulkarni, N. N. Maldar and B. B. Kale, Dalton Trans., 2014, 43, 13232.
26. P. B. Macedo, C. T. Moynihan and R. Bose, Phys. Chem. Glasses, 1972, 13, 171.
27. (a) G. Singh and V. S. Tiwari, J. Appl. Phys., 2009, 106, 124104; (b) S. Maity, D. Bhattacharya and S. K. Ray, J. Phys. D: Appl. Phys., 2011, 44, 095403.

---

Footnote

† Electronic supplementary information (ESI) available: Ligand synthesis scheme, UV-visible spectra, catalyst reusability test, and DSC curves are provided. See DOI: 10.1039/c5ra17733b

---
