A series of coordination polymers based on varied polycarboxylates and different imidazole-containing ligands: syntheses, crystal structures and physical properties

Xiao-Feng Wanga, Min Yua and Guang-Xiang Liu*ab
aKey Laboratory of Advanced Functional Materials of Nanjing, Department of Chemistry, Nanjing Xiaozhuang University, Nanjing 211171, P. R. China. E-mail: njuliugx@126.com; Fax: +86-25-8617222; Tel: +86-25-86178131
bState Key Laboratory of Coordination Chemistry, School of Chemistry and Chemical Engineering, Nanjing University, Nanjing 210093, P. R. China

Received 11th August 2015 , Accepted 17th September 2015

First published on 17th September 2015


Abstract

To investigate the effect of organic ligands on the coordination frameworks, seven new nickel complexes with formulae Ni(BDC) (titmb)·3H2O (1), Ni2(BDC)2(bimb)2(H2O)2·3H2O (2), NiZn(BTC)(titmb)Br (3), Ni(TBDC)(titmb)(H2O) (4), Ni(TBDC)(bix)·H2O (5), Ni(TBDC)(mbix)(H2O)·H2O (6) and Ni(TBDC)(obix)(H2O) (7) (titmb = 1,3,5-tris(1-imidazol-1-ylmethyl)-2,4,6-tri-methylbenzene, bimb = 4,4′-bis(imidazol-1-ylmethyl)biphenyl, bix = 1,4-bis(imidazol-1-ylmethyl)benzene, mbix = 1,3-bis(imidazol-1-ylmethyl)benzene, obix = 1,2-bis(imidazol-1-ylmethyl)benzene, H3BTC = 1,3,5-benzenetricarboxylic acid, H2BDC = isophthalic acid, H2TBDC = 5-(tertbutyl)isophthalic acid), have been synthesized and characterized by elemental analyses, infrared spectra (IR), thermogravimetric analysis (TGA) and single-crystal X-ray diffraction. Single crystal structure analysis shows that complex 1 has a three-dimensional (3D) (3,5)-connected network with a topology of (63)(69·8). Complexes 2 and 6 have similar two-dimensional (2D) lamella structures with (4,4) topology. Complex 3 exhibits an interesting 3D (3,6)-connected framework by self-penetration of two sets of (10,3)-a nets. Complex 4 presents an unusual 2D (3,5)-connected framework with a topology of (3·52)(32·53·64·7). Complex 5 features a 3D two-fold interpenetrating framework with (46·64)-bnn hexagonal BN topology, whereas Complex 7 possesses an interesting one-dimensional (1D) independent single-wall metal–organic nanotube. The various dimensions and structural features of seven complexes may be attributed to the different species of functional groups, the number and position of the carboxylic groups in the carboxylates as well as the auxiliary ligands playing a significant role in promoting the diversity of the observed structural motifs. The SHG properties of 1, 3 and 4 as well as the ferroelectric properties for 1 have also been investigated.


Introduction

Rational design and synthesis of coordination polymers (CPs) with tailor-made structures has been one of the most attractive areas in crystal engineering and supramolecular chemistry, because coordination polymers with desired structures possess interesting functionalities and can act as potential materials in the fields of gas storage and separation, magnetism, catalysis, non-linear optics, luminescence and ion exchange.1–6 In the realm of CPs, structure control is fundamental for determining the properties and applications of crystalline materials. Accordingly, numerous intriguing structures and associated interesting properties have been investigated in depth.7,8 Though great progress and developments have been made in the construction of diverse architectures, the prediction of the precise solid-state structures or the control of structural dimensionality of CPs remains a long-term challenge in the field of crystal engineering.9 Many factors affect the structural assembly process of the CPs, such as the metal, the ligand, temperature, pH value of the reaction, the solvent, the counter anions, and the ratio of ligand and metal.10–15 It has been established that the ligands are crucial for the structural architectures and functionalities of CPs as the structures and properties of these complexes are usually influenced by the flexibility, shape, symmetry, length and substituent groups of ligands.16

Polycarboxylates are often used as bridging ligands to prepare CPs due to their versatile coordination modes, high structural stability and the ability to balance the positive charges.17 Moreover, in view of the previous reports, it is found that angular dicarboxylates (isophthalic acid) and its derivatives (5-nitroisophthalic acid) may have an influence on the assembling processes, the structures and even the properties of CPs due to their geometric and electronic effects, while the use of the large hindrance of the derivatives of the dicarboxylate remains largely unexplored. To the best of our knowledge, there have been only a few reported coordination polymers based on the H2TBDC ligand.18 As is well known, the mixed ligand strategy added the scope of the CPs, giving diversified polymeric structures with interesting structures and unusual properties.19 In this regard, bridging imidazole ligands have chance to find their niche in the crystal engineering. Up to now, the bis(imidazole) ligands have been justified as an efficient and versatile organic building unit for construction of coordination polymers by Cui and Zheng et al. groups;20 however, we believe that the CPs of these ligands with varied structures and topologies could still be achieved by changing assembly environments and strategies. As continuous exploration on the study of Ni(II)-CPs with angular dicarboxylate and different imidazole-containing ligands, seven nickel coordination polymers, namely, Ni(BDC)(titmb)·3H2O (1), Ni2(BDC)2(bimb)2(H2O)2·3H2O (2), NiZn(BTC)(titmb)Br (3), Ni(TBDC)(titmb)(H2O) (4), Ni(TBDC)(bix)·H2O (5), Ni(TBDC)(mbix)(H2O)·H2O (6) and Ni(TBDC)(obix)(H2O) (7), have been successfully obtained. They are characterized by elemental analysis and X-ray crystallography. The crystal structures as well as topological analysis of these complexes will be represented and discussed in detail. In addition, their physical properties are also studied (Scheme 1).


image file: c5ra16112f-s1.tif

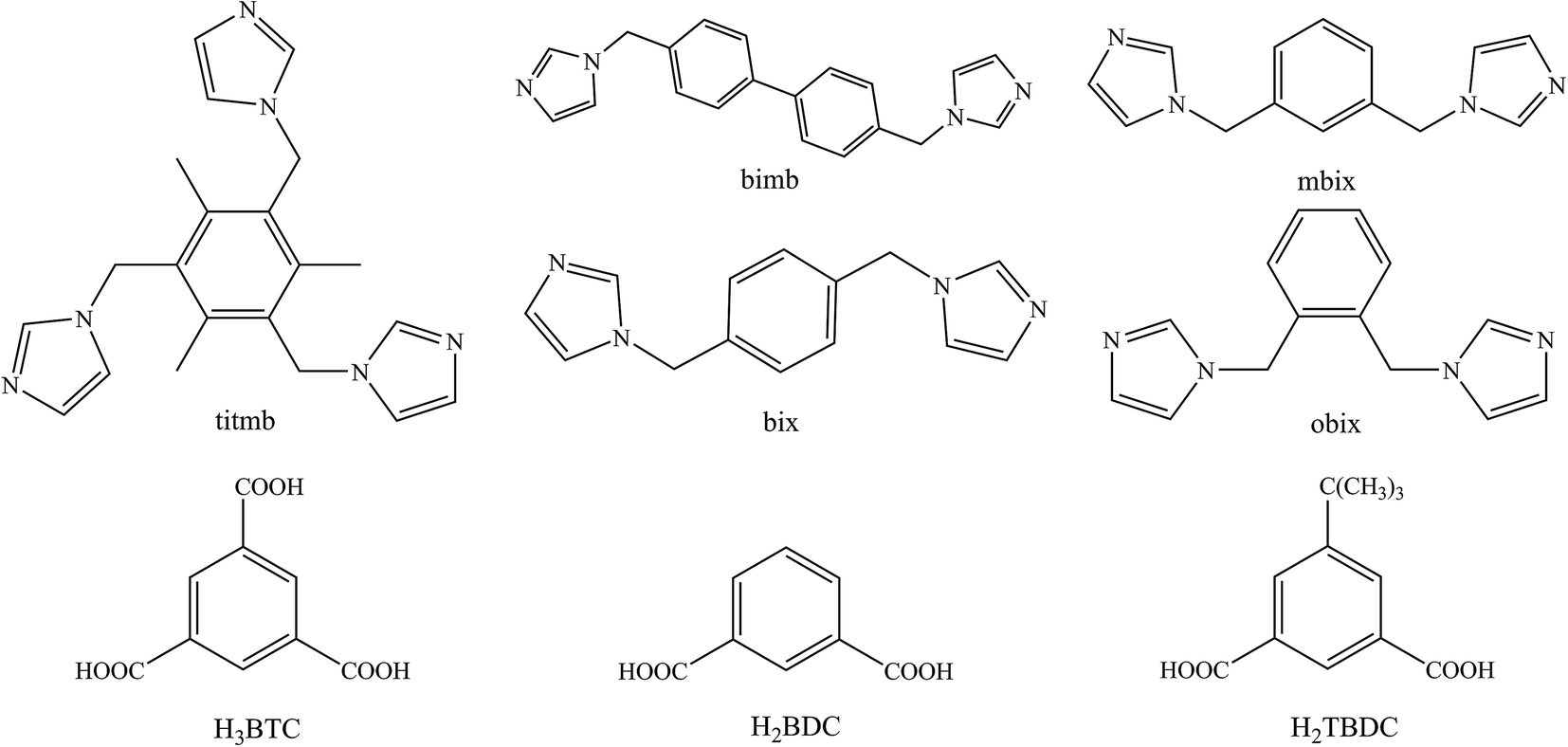

Scheme 1 Structures of imidazole-containing ligands and polycarboxylates used in this work.

Experimental section

Materials and general methods

All the reagents and solvents for syntheses and analyses were purchased from Sigma or TCI and employed as received without further purification. The titmb, bimb, bix, mbix and obix ligands were prepared according to the reported method.21 Elemental analyses (C, H and N) were performed on a Vario EL III elemental analyzer. Infrared spectra were performed on a Nicolet AVATAR-360 spectrophotometer with KBr pellets in the 4000–400 cm−1 region. Thermal gravimetric analysis (TGA) were performed on a Netzsch STA-409PC instrument in flowing N2 with a heating rate of 10 °C min−1. The second-order nonlinear optical intensity was estimated by measuring a powder sample relative to urea. A pulsed Q-switched Nd:YAG laser at a wavelength of 1064 nm was used to generate a SHG signal from powder samples. The backscattered SHG light was collected by a spherical concave mirror and passed through a filter that transmits only 532 nm radiation. The ferroelectric property of the solid-state sample was measured by the Premier II ferroelectric tester at room temperature.
Preparation of Ni(BDC)(titmb)·3H2O (1). A mixture containing Ni(NO3)2·6H2O (58.2 mg, 0.2 mmol), H2BDC (19.3 mg, 0.1 mmol), titmb (36.0 mg, 0.1 mmol) and LiOH·H2O (8.4 mg, 0.2 mmol) in 15 mL deionized water was sealed in a 25 mL Teflon lined stainless steel container and heated at 140 °C for 3 days. Green block crystals of 1 were collected by filtration and washed with water and ethanol several times with a yield of 71%. Anal. calcd for C29H34N6O7Ni: C 54.65; H 5.38; N 13.19; found: C 54.66; H 4.36; N 13.17%. IR(KBr pellet, cm−1): 3459 (br), 3057 (w), 2923 (w), 1607 (s), 1541 (s), 1520 (m), 1444 (w), 1432 (m), 1382 (s), 1282 (w), 1233 (m), 1130 (w), 1109 (m), 1087 (m), 1033 (m), 947 (w), 853 (w), 821 (m), 767 (w), 679 (w), 532 (w).
Preparation of Ni2(BDC)2(bimb)2(H2O)2·3H2O (2). A mixture containing Ni(NO3)2·6H2O (58.2 mg, 0.2 mmol), H2BDC (19.3 mg, 0.1 mmol), bimb (39.2 mg, 0.1 mmol) and NaOH (8.0 mg, 0.2 mmol) in 15 mL deionized water was sealed in a 25 mL Teflon lined stainless steel container and heated at 160 °C for 3 days. Green block crystals of 2 were collected by filtration and washed with water and ethanol several times with a yield of 57% based on H2BDC. Anal. calcd for C56H54N8O13Ni2: C 57.76; H 4.67; N 9.62; found: C 57.74; H 4.68; N 9.61%. IR(KBr pellet, cm−1): 3471 (br), 3057 (w), 2827 (w), 1603 (s), 1585 (s), 1522 (m), 1442 (m), 1383 (s), 1288 (w), 1203 (w), 1091 (m), 933 (w), 837 (m), 753 (m), 631 (w), 562 (w).
Preparation of NiZn(BTC)(titmb)Br (3). A mixture containing Ni(NO3)2·6H2O (29.1 mg, 0.1 mmol), ZnBr2 (22.5 mg, 0.1 mmol), H3BTC (21.0 mg, 0.1 mmol), titmb (36.0 mg, 0.1 mmol) and NaOH (12.0 mg, 0.3 mmol) in 15 mL deionized water was sealed in a 25 mL Teflon lined stainless steel container and heated at 180 °C for 3 days. Pale green cubic crystals of 3 were collected by filtration and washed with water and ethanol several times with a yield of 42%. Anal. calcd for C30H27BrN6O6NiZn: C 46.70; H 3.53; N 10.89; found: C 46.72; H 3.56; N 10.88%. IR(KBr pellet, cm−1): 3452 (br), 3092 (w), 2823 (w), 1610 (s), 1578 (s), 1520 (s), 1446 (m), 1387 (m), 1293 (m), 1250 (m), 1111 (m), 1091 (m), 1013 (m), 945 (m), 867 (w), 810 (w), 773 (m), 759 (m), 674 (w), 587 (m).
Preparation of Ni(TBDC)(titmb)(H2O) (4). Ni(NO3)2·6H2O (29.1 mg, 0.1 mmol), H2TBDC (22.2 mg, 0.1 mmol), timb (36.0 mg, 0.1 mmol), NaOH (8 mg, 0.2 mmol) and 15 mL deionized water in a 25 mL Teflon lined stainless steel container at 160 °C for 4 days produced green block crystals of 4 in 69% yield after washing with water and ethanol several times. Anal. calcd for C33H35N6O5Ni: C 60.29; H 5.83; N 12.78; found: C 60.28; H 5.81; N 12.77%. IR(KBr pellet, cm−1): 3449 (br), 3062 (m), 1609 (s), 1571 (s), 1519 (m), 1383 (s), 1231 (w), 1093 (m), 875 (m), 822 (m), 765 (m), 716 (m), 653 (m), 569 (w), 462 (w).
Preparation of Ni(TBDC)(bix)·H2O (5). A mixture containing Ni(NO3)2·6H2O (29.1 mg, 0.1 mmol), H2TBDC (22.2 mg, 0.1 mmol), bix (23.6 mg, 0.1 mmol) and LiOH·H2O (8.4 mg, 0.2 mmol) in 15 mL deionized water was sealed in a 25 mL Teflon lined stainless steel container and heated at 170 °C for 3 days. Green block crystals of 5 were collected by filtration and washed with water and ethanol several times with a yield of 48%. Anal. calcd for C33H35N6O5Ni: C 60.57; H 5.39; N 12.84; found: C 60.55; H 5.41; N 12.85%. IR(KBr pellet, cm−1): 3453 (s), 3098 (w), 2823 (w), 1609 (s), 1589 (s), 1520 (m), 1442 (m), 1401 (s), 1375 (s), 1298 (w), 1126 (w), 1091 (m), 922 (m), 839 (s), 765 (m), 673 (w), 521 (m).
Preparation of Ni(TBDC)(mbix)(H2O)·H2O (6). The preparation of 6 was similar to that of 5 except that mbix was used instead of bix as auxiliary ligand. Green pillar crystals of 6 were collected in a 57% yield. Anal. calcd for C26H30N4O6Ni: C 56.45; H 5.47; N 10.13; found: C 56.47; H 5.48; N 10.15%. IR(KBr pellet, cm−1): 3466 (m), 3159 (w), 3059 (w), 2829 (w), 1586 (s), 1522 (m), 1447 (m), 1393 (s), 1298 (w), 1103 (m), 1089 (m), 951 (m), 922 (m), 835 (w), 795 (w), 744 (m), 711 (m), 659 (m), 544 (w).
Preparation of Ni(TBDC)(obix)(H2O) (7). Complex 7 was prepared in the same way as that for 5 but using obix instead of bix as auxiliary ligand. Green block crystals of 7 were collected in a 61% yield. Anal. calcd for C26H28N4O5Ni: C 58.35; H 5.27; N 10.47; found: C 58.33; H 5.29; N 10.44%. IR(KBr pellet, cm−1): 3457 (m), 3189 (m), 2826 (w), 1605 (s), 1582 (s), 1520 (m), 1441 (m), 1378 (s), 1256 (m), 1179 (m), 1091 (s), 955 (w), 874 (w), 833 (s), 792 (m), 745 (s), 663 (m), 555 (w).

X-ray crystallography

Crystallographic data collections for complexes 1–7 were carried out on a Bruker Smart Apex II CCD with graphite-monochromated Mo-Kα radiation (λ = 0.71073 Å) at 293(2) K using the ω-scan technique. The data were integrated by using the SAINT program,22 which was also used for the intensity corrections for the Lorentz and polarization effects. An empirical absorption correction was applied using the SADABS program.23 The structures were solved by direct methods using the program SHELXS-97 and all non-hydrogen atoms were refined anisotropically on F2 by the full-matrix least-squares technique using the SHELXL-97 crystallographic software package. The hydrogen atoms of the organic ligands were refined as rigid groups. Some of the water hydrogen atoms in complex 2 could not be positioned reliably. Other hydrogen atoms of water molecules were located from difference Fourier maps. All calculations were performed on a personal computer with the SHELXL-97 crystallographic software package.24 The details of the crystal parameters, data collection and refinement for seven complexes are summarized in Table 1, and selected bond lengths and angles with their estimated standard deviations are listed in Table S1.
Table 1 X-ray crystallographic data for complexes 1–7
Complex 1 2 3
a R1 = Σ‖Fo| − |Fc‖/Σ|Fo|.b wR2 = |Σw(|Fo|2 − |Fc|2)|/Σ|w(Fo)2|1/2.
Formula C29H34N6O7Ni C56H54N8O13Ni2 C30H27BrN6O6NiZn
Formula weight 637.33 1164.49 771.57
Temperature (K) 293(2) 293(2) 293(2)
Crystal system Orthorhombic Triclinic Cubic
Space group Pna21 P[1 with combining macron] P213
a (Å) 18.023(3) 10.1090(14) 14.6382(4)
b (Å) 11.862(2) 11.2544(16) 14.6382(4)
c (Å) 13.824(3) 12.3282(17) 14.6382(4)
α (°) 90 70.576 90
β (°) 90 77.903 90
γ (°) 90 82.210 90
V3) 2955.4(9) 1290.1(3) 3136.63(15)
Z 4 1 4
Dcalc (Mg m−3) 1.432 1.499 1.634
μ (mm−1) 0.713 0.806 2.691
F(000) 1336 606 1560
θ range (°) 2.06–25.50 1.92–25.10 1.97–25.48
Reflections collected 14[thin space (1/6-em)]704 6473 22[thin space (1/6-em)]244
Independent reflections (Rint) 5377 (0.0563) 4500 (0.0663) 1966 (0.0818)
Data/restraints/parameters 5377/1/391 4500/4/371 1966/13/137
Goodness-of-fit 1.070 1.004 1.044
R indices [I > 2σ(I)]a,b R1 = 0.0573 R1 = 0.0413 R1 = 0.0380
  wR2 = 0.1225 wR2 = 0.1097 wR2 = 0.0828
R indices (all data) R1 = 0.0703 R1 = 0.0474 R1 = 0.0545
  wR2 = 0.1284 wR2 = 0.1120 wR2 = 0.0899

Complex 4 5
Formula C33H38N6O5Ni C33H35N6O5Ni
Formula weight 657.40 654.38
Temperature (K) 293(2) 293(2)
Crystal system Orthorhombic Triclinic
Space group P212121 P[1 with combining macron]
a (Å) 10.5786(6) 8.9712(9)
b (Å) 15.8768(8) 10.0571(10)
c (Å) 18.6358(11) 18.3348(19)
α (°) 90 74.5820(10)
β (°) 90 79.4070(10)
γ (°) 90 83.0710(10)
V3) 3130.0(3) 1563.0(3)
Z 4 2
Dcalc (Mg m−3) 1.395 1.390
μ (mm−1) 0.671 0.672
F(000) 1384 686
θ range (°) 2.21–25.10 2.14–25.50
Reflections collected 12[thin space (1/6-em)]615 11[thin space (1/6-em)]104
Independent reflections (Rint) 5336 (0.0224) 5738 (0.0434)
Data/restraints/parameters 5336/2/408 5738/2/409
Goodness-of-fit 1.057 1.065
R indices [I > 2σ(I)]a,b R1 = 0.0381 R1 = 0.0509
  wR2 = 0.1050 wR2 = 0.1029
R indices (all data) R1 = 0.0415 R1 = 0.0785
  wR2 = 0.1081 wR2 = 0.1180

Complex 6 7
Formula C26H30N4O6Ni C26H28N4O5Ni
Formula weight 553.25 535.23
Temperature (K) 293(2) 293(2)
Crystal system Triclinic Triclinic
Space group P[1 with combining macron] P[1 with combining macron]
a (Å) 9.0020(5) 10.2427(9)
b (Å) 10.2280(6) 11.0898(10)
c (Å) 14.9680(9) 11.8660(10)
α (°) 78.7850(10) 105.9120(10)
β (°) 84.2210(10) 94.2520(10)
γ (°) 78.2830(10) 106.0960(10)
V3) 1320.97(13) 1228.84(19)
Z 2 2
Dcalc (Mg m−3) 1.391 1.447
μ (mm−1) 0.781 0.835
F(000) 580 560
θ range (°) 2.07–25.10 2.25–25.50
Reflections collected 16[thin space (1/6-em)]100 9751
Independent reflections (Rint) 4680 (0.1024) 4560 (0.0201)
Data/restraints/parameters 4680/2/345 4560/2/318
Goodness-of-fit 1.055 1.041
R indices [I > 2σ(I)]a,b R1 = 0.0420 R1 = 0.0421
  wR2 = 0.1131 wR2 = 0.1071
R indices (all data) R1 = 0.0528 R1 = 0.0477
  wR2 = 0.1450 wR2 = 0.1109


Results and discussion

IR spectra

For complexes 1–7, the observed bands of 3400–3400 cm−1 characterize water molecules in the structures, while the bands of C–H of aromatic rings at 2830–2820 cm−1. The IR spectra show the absence of the characteristic bands at around 1700 cm−1 attributed to the protonated carboxylate group indicates that the complete deprotonation of the polycarboxylic acids upon reaction with metal ion. The characteristic bands of carboxyl groups are shown in the range of 1540–1620 cm−1 for antisymmetric stretching and 1360–1460 cm−1 for symmetric stretching. The separations (Δ) between νasym (CO2) and νsym (CO2) bands indicate the presence of different coordination modes. The IR spectra exhibit the characteristic peaks of imidazole groups at ca. 1520 cm−1. The bands in the region 640–1310 cm−1 are attributed to the –CH– in-plane or out-of-plane bend, ring breathing, and ring deformation absorptions of benzene ring, respectively. The bands in the region 640–1250 cm−1 are attributed to the –CH– in-plane or out-of-plane bend, ring breathing, and ring deformation absorptions of benzene ring, respectively.25

Crystal structure of Ni(BDC)(titmb)·3H2O (1)

Complex 1 crystallizes in the orthorhombic acentric space group Pna21, the asymmetric unit contains one Ni(II) ion, one BDC2− anion, one titmb ligand and three lattice water molecule. The Ni(II) ion is six-coordinated and close to an octahedron NiN3O3 geometry. As illustrated in Fig. 1a, three oxygen atoms (O1, O2 and O4A) belonging to two different BDC2− anions and one titmb nitrogen atom (N3B) are ligated to the Ni(II) ion in the equatorial plane, with the other two nitrogen atoms (N1C and N5) arising from the titmb ligand situated in the axial position. Each Ni(II) approximately lies in the equatorial position with a maximum deviation (0.024 Å) from the basal plane. In the structure, Ni–O and Ni–N bond distances are in the range of 2.004(3)–2.200(3) and 2.043(4)–2.069(4) Å, respectively. Each titmb ligand in turn connects three Ni(II) ions which form a triangle with edge lengths (Ni⋯Ni) of 9.367, 11.862 and 12.954 Å, respectively. The three imidazolyl rings are inclined to the phenyl ring with angles of 85.98°, 86.25° and 82.17°, respectively. As shown in Fig. 1b, each Ni(II) ion connects three titmb ligands and each titmb ligand connects three Ni(II) ions, such a coordination mode makes the complex a 2D network with honeycomb structure, and a schematic drawing is shown in Fig. 1c. It is obvious that all titmb ligands in the network have cis,trans,trans-conformation with up- and down-orientations alternatively. BDC2− anions adopt monodentate and bidentate chelate coordination modes and connect the Ni-titmb layers as pillars to generate a 3D structure (Fig. 1d). If the Ni(II) ion is considered as a five-connected node (connecting to two BDC2− anions and three titmb ligands), the titmb ligand can be considered as a three-connected node (connecting to three Ni(II) ions), and the structure of 1 can be classified as a rare binodal (3,5)-connected (63)(69·8) topology (Fig. 1e). In addition, the 3D structure of 1 is further stabilized by intermolecular hydrogen-bonding interactions.
image file: c5ra16112f-f1.tif

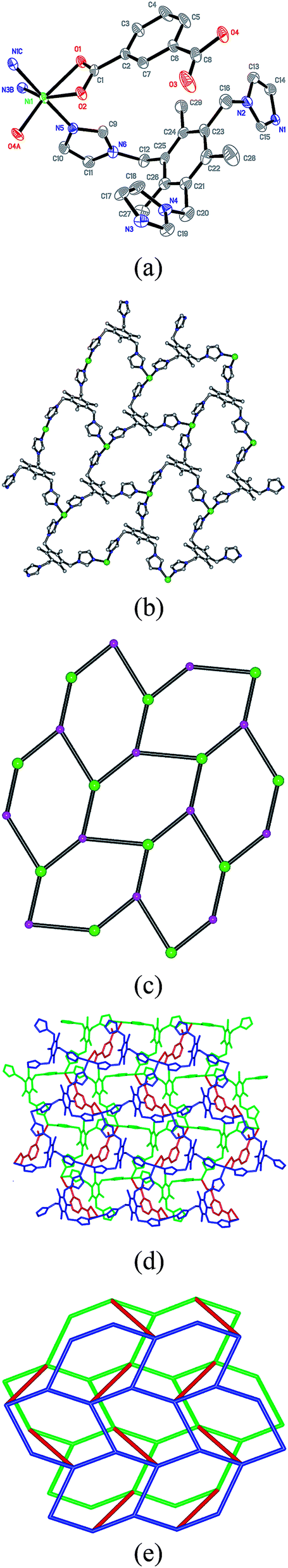

Fig. 1 (a) Coordination environment of Ni(II) ions in 1 with the ellipsoids drawn at the 30% probability level; hydrogen atoms and water molecules were omitted for clarity. Symmetry codes: (A) −x + 3/2, y − 1/2, z − 1/2; (B) x − 1/2, −y − 1/2, z; (C) x, y − 1, z. (b) Ball-stick representation of the Ni-titmb sheet in 1. (c) Schematic representation of the 2D (6,3) framework. (d) Stick representation of a 3D structure of 1 along the c-axis. (e) Schematic view of the (63)(69·8) topology.

Crystal structure of Ni2(BDC)2(bimb)2(H2O)2·3H2O (2)

Employing the bridging bimb ligand in this system, the reaction yielded complex 2 showing a much different structure from 1. Fig. 2a illustrates the coordination environments of the Ni(II) ions. The crystallographically independent Ni(II) ion is six-coordinated by two nitrogen atoms from two different bimb ligands, three carboxylate oxygen atoms from two BDC ligands and one coordinated water molecule to construct a distorted octahedral geometry. The Ni–O bond lengths are in the range of 2.0273(17)–2.1369(17) Å, the Ni–N bond lengths are 2.063(2) and 2.071(2) Å and the coordination angles around Ni(II) ion are in the range of 61.61(7)°–178.79(8)°. The two carboxylate groups of the BDC ligands adopting monodentate and bidentate chelate coordination modes link two Ni(II) atoms to form a one-dimensional chain with Ni⋯Ni distances of 10.11 Å. These chains are further extended by bimb ligands into a 2D framework. It is interesting that the Ni(II) atoms all lie in the same plane, parallel to the ab plane, and are joined through two types of ligands, above the plane by one kind, and below by the other kind. The connection with the BDC2− anions occurs along the a direction, while with the bimb ligands the joining is made along the c direction. So, the 2D structure formed is the 4-connected (4,4)-sql net (Fig. 2b). The undulated layers stack in an interweaving way along the b direction, to generate a 3D structure with open channels (Fig. 2c). After the removal of these free water molecules, PLATON26 calculations show that the volume of the effective void is 5.5% of the unit-cell volumes. In addition, intramolecular O1W–H1WA⋯O3 (2.699(3) Å), O1W–H1WB⋯O2W (2.752(4) Å), O2W–H2WA⋯O3 (2.683(4) Å) and O2W–H2WB⋯O3W (2.680(6) Å) hydrogen-bonding interactions exist among the lattice water molecules and carboxylate oxygen atoms, which further stabilized the 2D structure of 2 (Fig. 2d).
image file: c5ra16112f-f2.tif
Fig. 2 (a) Coordination environment of Ni(II) ions in 2 with the ellipsoids drawn at the 30% probability level; hydrogen atoms were omitted for clarity. Symmetry codes: (A) x − 1, y, z; (B) x + 1, y, z + 1. (b) Molecular packing of the sub-layer in 2. (c) The square-like network of 2. Only the nickel atoms and the connections between them are shown. The orientation of the diagram is along a-axis. (d) View of the 3D hydrogen-bonding network in the packing of 2 along the c axis; O–H⋯O interactions are shown as dashed lines.

Crystal structure of NiZn(BTC)(titmb)Br (3)

X-ray single crystal diffraction analysis reveals that the asymmetric unit of 3 consists of one nickel ion and one unique zinc ion (the Ni[thin space (1/6-em)]:[thin space (1/6-em)]Zn ratio of 1[thin space (1/6-em)]:[thin space (1/6-em)]1 based on ICP analysis) bridged by three carboxylate groups, one crystallographically independent titmb ligand, one individual BTC3− anion and one coordinated bromide ion. As shown in Fig. 3a, each Zn(II) ion is tetrahedral coordinated by three oxygen atoms (O2, O2A and O2B) from three different BTC3− anions and one terminal bromide ion (Br1). Each Ni(II) ion is surrounded by three nitrogen atoms (N1, N1C and N1D) from three distinct titmb ligands and three oxygen atoms (O1, O1C and O1D) from three different BTC3− anions to furnish a distorted octahedral geometry. One Zn(II) ion and one Ni(II) ion are connected by three carboxylate groups in a bidentate-bridging fashion to form a binuclear ZnNi(CO2)3Br unit, as exhibited in Fig. 3b. Each BTC3− anion connect with three Zn ions and three Ni ions from three different binuclear units and each titmb ligand bridges three Ni ions from three individual binuclear units, thus each binuclear unit is linked by six organic ligands (three titmb ligands and three BTC3− anions) to generate a (3,6)-connected network. The overall 3D network is so intricate that it is described in terms of two subnets. For the first subnet, the titmb ligands are omitted, the binuclear units can be considered 3-connected nodes. Each binuclear unit is bridged to three different BTC3− anions. Thus the whole subnet structure can be extended to a slightly distorted (10,3)-a net with left-handedness of helices in the direction of c axis as shown in Fig. 3c. The extended Schläfli symbol of this net is 105·105·105. From another point of view, the BTC3− anions are ignored for the second subnet. Interestingly, a heavily distorted (10,3)-a net with right-handedness of helices is obtained as displayed in Fig. 3d. It is obvious that all titmb ligands in the network have cis,cis,cis-conformation.
image file: c5ra16112f-f3.tif
Fig. 3 (a) Coordination environment of Ni(II) and Zn(II) ions in 3 with the ellipsoids drawn at the 30% probability level; hydrogen atoms were omitted for clarity. Symmetry codes: (A) y, z, x; (B) z, x, y; (C) y, z, x; (D) z, x, y. (b) Heterometallic binuclear ZnNi(CO2)3Br unit observed for 3. (c) Schematic representation of the (10,3)-a net in 3 along the c-axis; the binuclear units are represented by the green balls and the BTC3− anions are represented by the blue nods. (d) Schematic representation of the second (10,3)-a net in 3 along the c-axis; the binuclear units are represented by the purple balls and the titmb ligands are represented by the yellow nods. (e) Schematic representation of the overall network topology in complex 3; titmb and BTC3− ligands are represented by yellow and blue nods, respectively.

To describe the overall topology of complex 3, we add the titmb ligand to the first subnet or add the BTC3− ligand two the second subnet. Thus we get an unprecedented (63)2(612·83) net calculated by the TOPOS program27 (Fig. 3e). To the best of our knowledge, the network represents a novel (3,6)-connected topology which is different from the rutile and rutile-related topology28 by self-penetration of two sets of (10,3)-a nets.

Crystal structure of Ni(TBDC)(titmb)(H2O) (4)

The polymeric structure of 4 was confirmed by X-ray single crystal structure analysis. The complex crystallizes in the orthorhombic space group P212121 and Fig. 4a shows the asymmetric unit of 4 with atom numbering scheme. Each Ni(II) atom is coordinated by three imidazole nitrogen atoms derived from three different timb ligands and three oxygen atoms from two different TBDC2− ligands and one water molecule. The coordination geometry of the Ni(II) center is a slightly distorted octahedron with coordination angles ranging from 85.22(10)° to 175.26(11)° and the Ni–O/N bond lengths varying from 2.040(2) to 2.144(3) Å (Table S1). Each timb ligand in turn connects three Ni(II) atoms which form a triangle with edge lengths (Ni⋯Ni) of 8.01, 10.58 and 13.29 Å, respectively. The three imidazolyl rings are inclined to the phenyl ring with angles of 73.24°, 69.23° and 59.21°, respectively. As shown in Fig. 4b, such a coordination mode makes the compound a 2D network with a honeycomb structure, and a schematic drawing is shown in Fig. 4c. It is obvious that all timb ligands in the network have cis,trans,trans-conformation with up- and down-orientations alternatively. TBDC2− ligands adopt monodentate and chelate coordination modes and connect two Ni(II) atoms of the Ni-timb layers to generate a 2D structure (Fig. 4d). If the Ni(II) atom is considered as a five-connected node (connecting to two TBDC anions and three timb ligands), the timb ligand can be considered as a three-connected node (connecting to three Ni atoms), and the structure of 4 can be classified as a rare (3,5)-connected 2D framework with (3·52)(32·53·64·7) topology (Fig. 4e). In addition, the 3D supramolecular structure of 4 is further extended by C–H⋯π interactions.
image file: c5ra16112f-f4.tif

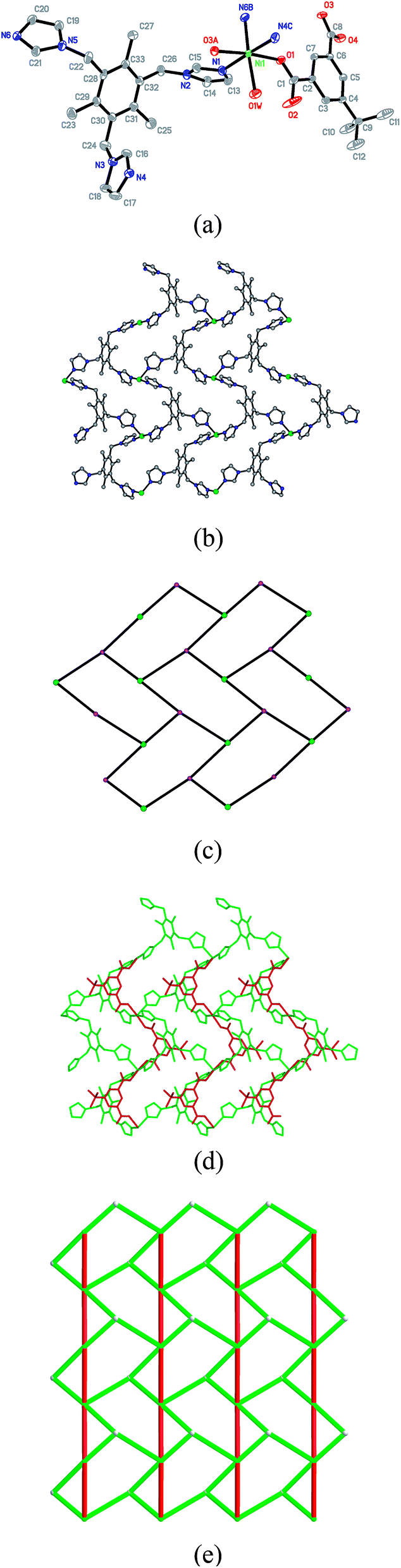

Fig. 4 (a) Coordination environment of Ni(II) ions in 4 with the ellipsoids drawn at the 30% probability level; hydrogen atoms and water molecules were omitted for clarity. Symmetry codes: (A) −x + 1, y − 1/2, −z + 1/2; 2; (B) −x, y + 1/2, −z + 1/2; (C) −x + 1, y + 1/2, −z + 1/. (b) Ball-stick representation of the Ni-titmb sheet in 4. (c) Schematic representation of the 2D (6,3) framework. (d) Stick representation of a 3D structure of 4 along the c-axis. (e) Schematic view of the (3·52)(32·53·64·7) topology.

Crystal structure of Ni(TBDC)(bix)·H2O (5)

Single crystal X-ray diffraction analysis reveals that complex 5 crystallizes in the triclinic space group P[1 with combining macron] and the asymmetric unit of 5 is constructed from one Ni(II) ion, one fully deprotonated TBDC2− ligand, one and a half bix ligands and one lattice water molecule (Fig. 5a). The Ni(II) ion is coordination by three carboxylic oxygen atoms from two different TBDC2− ligands and three imidazolyl nitrogen atoms from three bix ligands in a slightly distorted [NiO3N3] octahedral geometry. The three coordinated carboxyl oxygen atoms together with two imidazolyl nitrogen atoms define the equatorial positions, while the axial positions are occupied by two imidazolyl nitrogen atoms. The Ni–O bond distances are in the range of 2.016(2)–2.234(2) Å while the Ni–N bond distances are in the range of 2.048(3)–2.092(3) Å, which are all in good agreement with those reported for other nickel–oxygen and nickel–nitrogen donor compounds.29 The TBDC2− ligand exhibits η2η1 coordination mode with one of the two carboxylate groups adopts chelating coordination mode while the other one holds a monodentate bridging mode. The Ni(II) atoms are first linked by the TBDC2− linkers to form 1D chain as shown in Fig. 5b. Meanwhile, the Ni(II) centers are also bridged by bix ligands to form 2D layers with (6, 3) topology as shown in Fig. 5c. Then these chains and layers are cross-connected with each other to form five-connected 3D framework with (46·64)-bnn hexagonal BN topology in which the Ni(II) ions act as uninodal center (Fig. 5d). Further investigation into the topology of complex 5 reveals that there are two identical independent 3D networks that interpenetrate with each other (Fig. 5e). The two 3D subunits are related to each other by one translation. In a word, the structure of 5 exhibits a 3D coordination network with two-fold interpenetration of subunits with (46·64)-bnn hexagonal BN topology.
image file: c5ra16112f-f5.tif
Fig. 5 (a) Coordination environment of Ni(II) ions in 5 with the ellipsoids drawn at the 30% probability level; hydrogen atoms and water molecules were omitted for clarity. Symmetry codes: (A) x, y − 1, z; (B) −x, 2 − y, 2 − z; (C) −1 − x, 1 − y, 1 − z; (D) 1 − x, 2 − y, 1 − z. (b) View of the 1D chain of Ni(II) linked by TBDC2− anion in 5. (c) View of the (6, 3) layer of Ni(II) bridged by bix ligands; (d) view of the 3D framework with (46·64)-bnn hexagonal BN topology. (e) Schematic illustration of the two-fold interpenetration network in 5.

Crystal structure of Ni(TBDC)(mbix)(H2O)·H2O (6)

In order to investigate the influence of auxiliary ligand on the structure of the complexes, reactions of Ni(NO3)2·6H2O with H2TBDC in the presence of mbix were carried out and complex 6 was obtained. As displayed in Fig. 6a, the asymmetric unit of 6 contains crystallographically unique Ni(II) ion, one TBDC anion, one mbix ligand, one coordinated water molecule and one lattice water molecule. The Ni(II) center is six-coordinated by three carboxylate oxygen atoms from two individual TBDC anions, two nitrogen atom from two different mbix ligands and one water molecule, displaying a distorted octahedral coordination geometry. Each TBDC anion links two Ni(II) ions with its two carboxylate groups adopting monodentate and bidentate chelating modes. The mbix ligands connected adjacent Ni(II) ions to afford a 1D zigzag chain. If mbix ligands are neglected, Ni(II) ions are bridged by TBDC anions to form a 1D wavelike chain. The two types of chains are linked to generate 2D layers through sharing the central Ni(II) ions. Notably, the network has large rhombic windows with approximate dimensions of 9.00 × 20.60 Å2 built up by four Ni(II) ions, two mbix ligands, and two TBDC anions within the 2D motif (Fig. 6b). For convenience, if Ni(II) ions are viewed as uninodal 4-connected nodes, and TBDC anions and mbix ligands are viewed as linkers, the layer can be described as a 4-connected sql topology with the point symbol of 44·62 (Fig. 6c). In addition, there exist π–π stacking interactions associated with phenyl rings of TBDC anions and phenyl rings of mbix ligands (face-to-face distance of 3.85 Å and centroid-to-centroid distance of 3.63 Å) in the adjacent layers. These π–π interactions among layers led the 2D sheets to a 3D supramolecular architecture (Fig. 6d).
image file: c5ra16112f-f6.tif
Fig. 6 (a) Coordination environment of Ni(II) ions in 6 with the ellipsoids drawn at the 30% probability level; hydrogen atoms were omitted for clarity. Symmetry codes: (A) x, y − 1, z; (B) x + 1, y − 1, z. (b) View of 2D layer constructed by Ni(II) ions, TBDC anions, and mbix ligands. (c) Schematic representation of topology of 6 (the green spheres represent the Ni(II) ions and blue and purple lines represent the mbix ligands and TBDC anions, respectively). (d) The 3D supramolecular network constructed by π–π interactions in 6.

Crystal structure of Ni(TBDC)(obix)(H2O) (7)

The crystallographic analysis reveals that 7 is a one-dimensional tubular structure. As shown in Fig. 7a, the asymmetric unit contains one Ni(II) ion, one TBDC2− anion, one obix ligand and one coordinated water molecule. Each Ni(II) ion is six-coordinated by four oxygen atoms from two different TBDC2− anion and one water molecule, and two nitrogen atoms from two obix ligands to form a distorted octahedral geometry and its basal plane is occupied by four oxygen atoms, while the apical position is occupied by two nitrogen atom. The Ni–O bond lengths are in the range of 2.0227(18)–2.1634(18) Å, the Co–N bond lengths are 2.071(2)–2.086(2) Å and the coordination angles around Co ion are in the range of 61.24(7)–176.82(9)°. Two Ni(II) ions are linked by a couple of obix ligands to form 24-membered {Ni2(obix)2} ring and the distance of neighboring Ni(II) ions is about 5.284 Å as presented in Fig. 7b. The obix ligand adopts a cis-conformation with the dihedral angle between the two imidazole rings of 58.57°. Two carboxylate groups of TBDC2− ligand adopt monodentate and bidentate chelating coordination mode and link to the neighboring {Ni2(obix)2} rings, giving a one-dimensional tubular structure. The separation of neighboring Ni(II) ions is about 10.24 Å as illustrated in Fig. 7c. The packing structure of 7 shows a three-dimensional supramolecular network derived from chains formed via intermolecular C–H⋯O hydrogen bonds and weak π–π stacking interactions (the centroid-to-centroid distance of 4.125 Å between the two adjacent benzene rings of TBDC ligands and benzene rings of obix ligands, and the dihedral angle is 5.302(5)°).
image file: c5ra16112f-f7.tif
Fig. 7 (a) Coordination environments of the Ni(II) atoms in 7 with the ellipsoids drawn at the 30% probability level; hydrogen atoms were omitted for clarity. Symmetry codes: (A) x + 1, y, z; (B) −x + 1, −y + 1, −z. (b) View of 24-membered [Ni2(obix)2] ring in 7. (c) Schematic representation of the 1D tubular structure in 7.

In this work, we selected imidazole-containing ligands and three different aromatic dicarboxylates to construct seven target metal complexes, aiming at examining the effect of substituent groups, the number of the carboxylic groups as well as the auxiliary ligands on the assembly and structures of the resulting products. Compared with related structures in the literature, Co3(BIPA)3(titmb)2]·0.73H2O (8) and Ni(mbix)(BDC)(H2O) (9) (H2BIPA = 5-bromoisophthalic acid).15l,20b In complexes 1, 4 and 8, there exist the same metal coordination geometries and auxiliary ligand, similar aromatic dicarboxylates and entirely different topological structures: a 3D (3,5)-connected binodal (63)(69·8) topology framework for 1, a 2D (3,5)-connected (3·52)(32·53·64·7) topology framework for 4 and a 3D (3,4)-connected coordination framework with the topology of (4·6·8)(4.62·83)(6·85)(62·83·10)(83) for 8, which are attributed to the effect of 5-substituent groups. Whereas complex 6 has a 2D lamella structure with (4,4) topology, complex 9 exhibits a rare (3,5)-connected 3D network with (42·65·83)(42·6) topology. The presence of the noncoordinating groups in dicarboxylate ligands changes their electronic and steric properties, which can generate complexes different from those of the common dicarboxylate ligands. The Ni(II) ions are bridged by 1,3-benzenedicarboxylates to form 1D chains in 1 and the Ni(II) ions are linked through 1,3,5-benzenetricarboxylates to generate 3D network in 3, and the results in the changes of the number of the carboxylic group, finally, causes the difference between the frameworks of 1 and 3. In this study, complexes 4–7 display a diversity of 1D, 2D and 3D frameworks, and the connectivities of the four complexes are strongly related to the imidazole-containing ligands. As described above, the imidazole-containing ligands serve as bridging ligands with nitrogen atoms of the imidazole units coordinating to the metal atoms. In 4, Ni(II) ions are linked by titmb ligands to form a 2D network with a honeycomb structure; in 5, the Ni(II) centers are also bridged by bix ligands to form 2D layers with (6, 3) topology. In 6, Ni(II) centers are bridged by mbix ligands to form zigzag chains and helices simultaneously; in 7, Ni(II) ions are linked by obix ligands to form [Ni(obix)2Ni] dimers.

Thermogravimetric analyses

To estimate the stability of the coordination architectures of complexes 1–7, thermogravimetric analyses (TGA) were carried out. The experiments were performed on samples consisting of numerous single crystals of 1–7 under a N2 atmosphere with a heating rate of 10 °C min−1 (Fig. 8). The TGA curves show that first a weight loss occurs in the range of 40–180 °C (obsd 8.20%, calcd 8.47%) for 1, which corresponds to the free water molecules, and indicating that there exist strong hydrogen-bonding interactions among the water molecules. The second weight loss was observed from 290 to 600 °C (obsd 12.4%, calcd 13.0%), showing the departure of organic ligands. Finally, the remaining weight corresponds to the oxidized metal. Complex 2 loses the two lattice water molecules and three coordinated water molecules in the range of 40–198 °C (obsd 7.4% and calcd 7.7%). The removal of water at a high temperature is attributed to the strong hydrogen-bonding interactions. Further weight loss occurs from 267 to 570 °C (obsd 70.0% and calcd 78.0%), indicating organic ligands loss and complex decomposition. The final residual weight corresponds to that of Ni2O3 (obsd 14.5%, calcd 14.2%). The TGA curve of 3 reveals that no obvious weight loss was observed until the temperature rose to 290 °C. The anhydrous compound decomposes from 290 to 600 °C (obsd 75.8%, calcd 78.3%), indicating the release of organic components. For 4, the weight loss before 160 °C corresponds to the release of coordinated water molecules (obsd 2.89%, calcd 2.74%), and the weight loss between 230 and 620 °C is attributable to the departure of organic components (obsd 78.2%, calcd 84.7%). The residual is oxidized metal (obsd 11.3%, calcd 12.6%). The TG curve for 5 reveals that the first weight loss of lattice water molecules is observed from room temperature to 165 °C (obsd 2.9%, calcd 2.8%), which shows that there exist strong hydrogen-bonding interactions between the water molecules at high temperature. The second weight loss occurs in the range of 250–630 °C (obsd 78.5%, calcd 84.6%), revealing that the compound decomposes. Finally, the residual is Ni2O3 (obsd 13.2%, calcd 12.7%). The first weight loss for complex 6 from 45 to 177 °C corresponds to the elimination of one lattice water and one coordinated water (obsd 6.4% and calcd 6.5%). The second weight loss occurs between 210–620 °C (obsd 76.2%, calcd 78.5%), which may be assigned to the removal of organic ligands. After that, the weight loss is slow, and finally yields the residual oxidised metal at 620 °C (obsd 16.2% and calcd 15.0%). The TGA curve for 7 shows that a weight loss of 3.6% occurs in range of 80–172 °C, which may be attributed to the removal of one coordinated water molecule (obsd 3.1% and calcd 3.4%). Further, a weight loss occurs in the range of 295–620 °C (obsd 76.9%, calcd 82.0%). There is no mass loss from 190 to 290 °C, indicating a relatively higher thermal stability.
image file: c5ra16112f-f8.tif

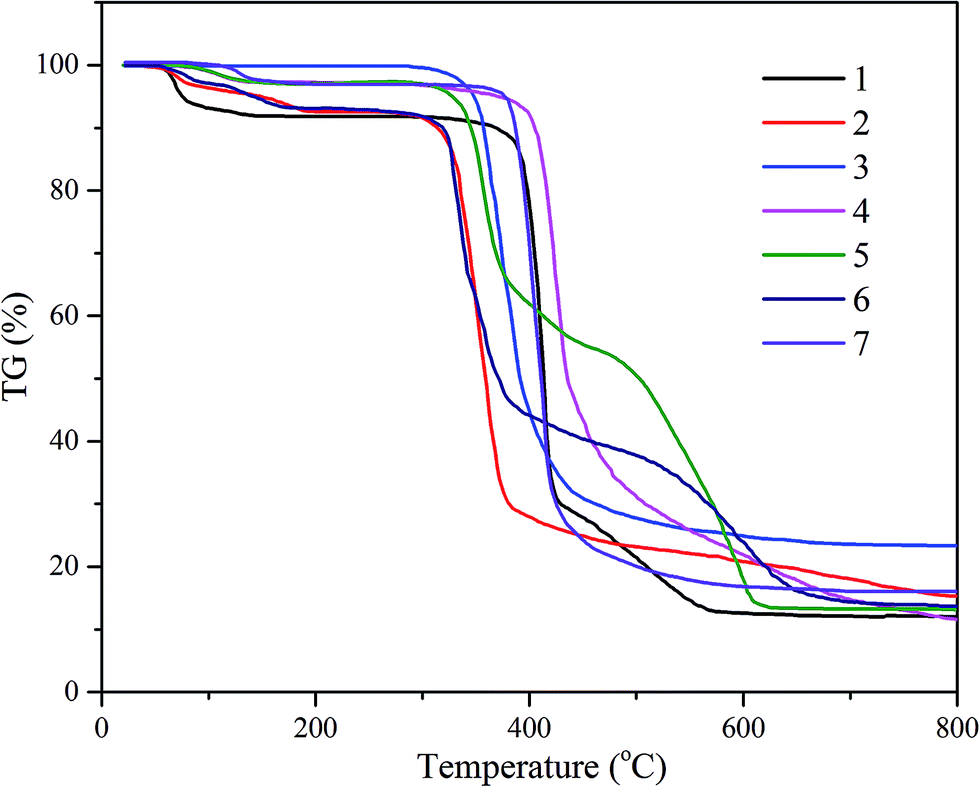

Fig. 8 TGA curves of complexes 1–7.

SHG response

As mentioned in the introduction, CPs show interesting non-linear optical properties (NLO) and second harmonic generation (SHG) responses. SHG is completely dependent on crystal symmetry and SHG materials have been extensively applied to high technique fields such as laser devices and optical communications. Generally, an SHG-active material must require the absence of a symmetric center. Lin, Xiong, Chen and coworkers illustrated that CPs with noncentrosymmetric structures can be rationally designed and prepared by making use of metal ions with specific geometries and high directional coordination bonds.30 Thus, rationally designing and synthesizing CPs with SHG responses has enabled us to understand the relationships between structures and properties. Considering that complexes 1, 3 and 4 crystallize in the acentric space group (Pna21, P213 or P212121), their nonlinear optical properties were studied.31 The strength of the second harmonic generation (SHG) efficiency of complexes 1, 3 and 4 was tested by measuring the microcrystalline powder samples with 61–90 μm in diameters. Preliminary examinations indicate that complexes 1, 3 and 4 are SHG-active and the SHG efficiency is approximately 0.8, 0.6, and 0.7 times that of urea, respectively, which indicates that complexes 1, 3 and 4 have potential application in optical material. The modest powder SHG response of complexes 1, 3 and 4 may be attributed to a comparatively short donor–acceptor system, which is essential for second-order optical nonlinearity.

Recently, a prevalent research has focused on developing ferroelectric materials based on coordination polymers (CPs) and have reported some such materials.32 However, the reported ferroelectric materials are mostly built upon chiral organic tectons, whereas the proper use of achiral ligands by spontaneous are scarce.33 Herein, we describe the preliminary investigation of the possible ferroelectric property of complex 1. Complex 1 crystallizes in the acentric space group Pna21, which belongs to the polar point group C2v, which falls in one of the 10 polar point groups (C1, Cs, C2, C2v, C4, C4v, C3, C3v, C6, C6v) required for ferroelectric materials. Therefore, the ferroelectric behavior of 1 was examined. Fig. 9 clearly shows that there is an electric hysteresis loop that is a typical ferroelectric feature with a remanent polarization (Pr) of ca. 0.049 μC cm−2 and coercive field (Ec) of ca. 850 V cm−1. The saturation spontaneous polarization (Ps) of 1 is ca. 0.21 μC cm−2, which is slightly lower than that of Rochelle salt (NaKC4H4O6·4H2O, Ps = 0.25 μC cm−2).34 The value of Ps is comparable to that of some CPs reported in the literature.35 Furthermore, we also studied the behavior of permittivity (ε) = ε1(ω) − 2(ω), where ε1(ω) and 2(ω) are the real (dielectric constant) and imaginary (dielectric loss) parts, respectively. The results reveal that the frequency dependence of the dielectric constant ε1 at room temperature (20 °C) indicates that ε1 rapidly decreases with the increase of frequency, while dielectric loss remains unchanged.


image file: c5ra16112f-f9.tif
Fig. 9 Electric hysteresis loops of complex 1 under different voltages at room temperature.

Conclusions

In this work, we have successfully fabricated seven novel coordination polymers under hydrothermal condition. Complex 1 shows a three-dimensional (3D) (3,5)-connected network with the topology of (63)(69·8). Complexes 2 and 6 have similar two-dimensional (2D) lamella structure with (4,4) topology. Complex 3 exhibits an interesting 3D (3,6)-connected framework by self-penetration of two sets of (10,3)-a nets. Complex 4 presents a unusual 2D (3,5)-connected framework with the topology of (3·52)(32·53·64·7). Complex 5 features a 3D two-fold interpenetrating framework with (46·64)-bnn hexagonal BN topology, whereas Complex 7 possesses an interesting one-dimensional (1D) independent single-wall metal–organic nanotube. The various dimensions and structural features of the seven complexes may be attributed to the different species of functional groups, the number and position of the carboxylic groups in the carboxylates as well as the auxiliary ligands. Additionally, the ferroelectric and NLO properties of the imidazole and carboxylate system have been investigated, and open up a new avenue to NLO and ferroelectric materials through CPs.

Acknowledgements

This work was supported by the National Natural Science Foundation of China (No. 21271116, 21171097), the Key Project of Chinese Ministry of Education (No. 210102) and the Qing Lan Project of Jiangsu Provincial Department of Education.

References

  1. (a) Y. Kang, F. Wang, J. Zhang and X. Bu, J. Am. Chem. Soc., 2012, 134, 17881 CrossRef CAS PubMed; (b) R. B. Getman, Y. S. Bae, C. E. Wilmer and R. Q. Snurr, Chem. Rev., 2012, 112, 703 CrossRef CAS PubMed; (c) D. S. Li, Y. P. Wu, J. Zhao, J. Zhang and J. Y. Lu, Coord. Chem. Rev., 2014, 261, 1 CrossRef CAS PubMed; (d) L. Q. Ma, C. Abney and W. B. Lin, Chem. Soc. Rev., 2009, 38, 1248 RSC; (e) W. W. Zhou, J. T. Chen, G. Xu, M. S. Wang, J. P. Zou, X. F. Long, G. J. Wang, G. C. Guo and J. S. Huang, Chem. Commun., 2008, 2762 RSC; (f) T. Hang, W. Zhang, H. Y. Ye and R. G. Xiong, Chem. Soc. Rev., 2011, 40, 3577 RSC; (g) Z. G. Guo, R. Cao, X. Wang, H. F. Li, W. B. Yuan, G. J. Wang, H. H. Wu and J. Li, J. Am. Chem. Soc., 2009, 131, 6894 CrossRef CAS PubMed; (h) W. W. Xiong, E. U. Athresh, Y. T. Ng, J. Ding, T. Wu and Q. Zhang, J. Am. Chem. Soc., 2013, 135, 1256 CrossRef CAS PubMed.
  2. (a) W. Xuan, C. Zhu, Y. Liu and Y. Cui, Chem. Soc. Rev., 2012, 41, 1677 RSC; (b) S. R. Batten, N. R. Champness, X. M. Chen, J. Garcia-Martinez, S. Kitagawa, L. Ohrstrom, M. O'Keeffe, M. P. Suh and J. Reedijk, Pure Appl. Chem., 2013, 85, 1715 CrossRef CAS; (c) X. Xi, Y. Liu and Y. Cui, Inorg. Chem., 2014, 53, 2352 CrossRef CAS PubMed; (d) S. M. F. Vilela, J. A. Fernandes, D. Ananias, L. D. Carlos, J. Rocha, J. P. C. Tome and F. A. A. Paz, CrystEngComm, 2014, 16, 344 RSC; (e) S. Freslon, Y. Luo, G. Calvez, C. Daiguebonne, O. Guillou, K. Bernot, V. Michel and X. Fan, Inorg. Chem., 2014, 53, 1217 CrossRef CAS PubMed; (f) C. Zhang, M. Zhang, L. Qin and H. Zheng, Cryst. Growth Des., 2014, 14, 491 CrossRef CAS; (g) Y. X. Tan, Y. P. He and J. Zhang, Chem. Mater., 2012, 24, 4711 CrossRef CAS; (h) Y. Zhao, D. S. Deng, L. F. Ma, B. M. Ji and L. Y. Wang, Chem. Commun., 2013, 49, 10299 RSC.
  3. (a) M. H. Zeng, Y. X. Tan, Y. P. He, Z. Yin, Q. Chen and M. Kurmoo, Inorg. Chem., 2013, 52, 2353 CrossRef CAS PubMed; (b) T. R. Cook, Y. R. Zheng and P. J. Stang, Chem. Rev., 2013, 113, 734 CrossRef CAS PubMed; (c) Q. Zhai, Q. Lin, T. Wu, L. Wang, S. Zheng, X. Bu and P. Feng, Chem. Mater., 2012, 24, 2624 CrossRef CAS; (d) G. Q. Kong, S. Ou, C. Zou and C. D. Wu, J. Am. Chem. Soc., 2012, 134, 19851 CrossRef CAS PubMed; (e) M. I. Bodnarchuk, R. Erni, F. Krumeich and M. V. Kovalenko, Nano Lett., 2013, 13, 1699 CAS; (f) Y. Liu, K. Mo and Y. Cui, Inorg. Chem., 2013, 52, 10286 CrossRef CAS PubMed; (g) V. Bon, I. Senkovska, D. Wallacher, D. M. Többens, I. Zizak, R. Feyerherm, U. Mueller and S. Kaskel, Inorg. Chem., 2014, 53, 1513 CrossRef CAS PubMed; (h) B. Bhattacharya, R. Haldar, R. Dey, T. K. Maji and D. Ghoshal, Dalton Trans., 2014, 43, 2272 RSC.
  4. (a) P. Wang, R. Q. Fan, X. R. Liu, L. Y. Wang, Y. L. Yang, W. W. Cao, B. Yang, W. Hasi, Q. Su and Y. Mu, CrystEngComm, 2013, 15, 1931 RSC; (b) Y. P. He, Y. X. Tan and J. Zhang, Inorg. Chem., 2013, 52, 12758 CrossRef CAS PubMed; (c) J. Li, J. Zhang, M. G. Humphrey and C. Zhang, Eur. J. Inorg. Chem., 2013, 328 CrossRef PubMed; (d) B. Moulton and M. J. Zaworotko, Chem. Rev., 2011, 101, 1629 CrossRef PubMed; (e) G. P. Zhou, Y. L. Yang, R. Q. Fan, W. Cao and B. Yang, CrystEngComm, 2012, 14, 193 RSC; (f) P. Wang, R. Q. Fan, Y. L. Yang, X. R. Liu, W. W. Cao and B. Yang, J. Solid State Chem., 2012, 196, 441 CrossRef CAS PubMed; (g) R. Q. Fan, L. Y. Wang, P. Wang, H. Chen, C. F. Sun, Y. L. Yang and Q. Su, J. Solid State Chem., 2012, 196, 332 CrossRef CAS PubMed.
  5. (a) Y. Liang, Z. M. Zhang, Z. J. Liu, Y. Zhang, J. Zhang and E. B. Wang, CrystEngComm, 2014, 16, 1187 RSC; (b) A. Masello, K. A. Abboud, W. Wernsdorfer and G. Christou, Inorg. Chem., 2013, 52, 10414 CrossRef CAS PubMed; (c) Y. Q. Lan, S. L. Li, X. L. Wang, K. Z. Shao, Z. M. Su and E. B. Wang, Inorg. Chem., 2008, 47, 529 CrossRef CAS PubMed; (d) Y. Z. Zheng, Z. Zheng and X. M. Chen, Coord. Chem. Rev., 2014, 258, 1 CrossRef PubMed; (e) S. Biswas, H. S. Jena, S. Goswami, S. Sanda and S. Konar, Cryst. Growth Des., 2014, 14, 1287 CrossRef CAS; (f) Z. Chen, L. Liu, Y. Wang, H. H. Zou, Z. Zhang and F. Liang, Dalton Trans., 2014, 43, 8154 RSC; (g) A. Kondo, H. Kajiro, H. Noguchi, L. Carlucci, D. M. Proserpio, G. Ciani, K. Kato, M. Takata, H. Seki, M. Sakamoto, Y. Hattori, F. Okino, K. Maeda, T. Ohba, K. Kaneko and H. Kanoh, J. Am. Chem. Soc., 2011, 133, 10512 CrossRef CAS PubMed.
  6. (a) M. D. Zhang, H. G. Zheng, Z. Z. Lu and X. Q. Yao, CrystEngComm, 2013, 15, 9265 RSC; (b) C. Wang, T. Zhang and W. Lin, Chem. Rev., 2012, 112, 1084 CrossRef CAS PubMed; (c) Z. Jin, H. He, H. Zhao, T. Borjigin, F. Sun, D. Zhang and G. Zhu, Dalton Trans., 2013, 42, 13335 RSC; (d) Z. Zhang, L. Zhang, L. Wojtas, M. Eddaoudi and M. J. Zaworotko, J. Am. Chem. Soc., 2012, 134, 928 CrossRef CAS PubMed; (e) Y. Cui, Y. Yue, G. Qian and B. Chen, Chem. Rev., 2012, 112, 1126 CrossRef CAS PubMed; (f) R. Chen, J. Yao, Q. Gu, S. Smeets, C. Baerlocher, H. Gu, D. Zhu, W. Morris, O. M. Yaghi and H. Wang, Chem. Commun., 2013, 49, 9500 RSC; (g) L. Wen, L. Zhou, B. Zhang, X. Meng, H. Qu and D. Li, J. Mater. Chem., 2012, 22, 22603 RSC.
  7. (a) S. D. Han, W. C. Song, J. P. Zhao, Q. Yang, S. J. Liu, Y. Li and X. H. Bu, Chem. Commun., 2013, 49, 871 RSC; (b) Y. Y. Xu, X. X. Wu, Y. Y. Wang, X. M. Su, S. X. Liu, Z. Z. Zhu, B. Ding, Y. Wang, J. Z. Huo and G. X. Du, RSC Adv., 2014, 4, 25172 RSC; (c) Y. L. Hou, G. Xiong, P. F. Shi, R. R. Cheng, J. Z. Cui and B. Zhao, Chem. Commun., 2013, 49, 6066 RSC; (d) G. S. Yang, Z. L. Lang, H. Y. Zang, Y. Q. Lan, W. W. He, X. L. Zhao, L. K. Yan, X. L. Wang and Z. M. Su, Chem. Commun., 2013, 49, 1088 RSC; (e) J. P. Zou, Q. Peng, Z. Wen, G. S. Zeng, Q. J. Xing and G. C. Guo, Cryst. Growth Des., 2010, 10, 2613 CrossRef CAS; (f) X. Zou, H. Ren and G. Zhu, Chem. Commun., 2013, 49, 3925 RSC.
  8. (a) W. Kaneko, S. Kitagawa and M. Ohba, J. Am. Chem. Soc., 2007, 129, 248 CrossRef CAS PubMed; (b) Z. G. Guo, R. Cao, X. Wang, H. F. Li, W. B. Yuan, G. J. Wang, H. H. Wu and J. Li, J. Am. Chem. Soc., 2009, 131, 6894 CrossRef CAS PubMed; (c) T. Hang, W. Zhang, H. Y. Ye and R. G. Xiong, Chem. Soc. Rev., 2011, 40, 3577 RSC; (d) W. W. Zhou, J. T. Chen, G. Xu, M. S. Wang, J. P. Zou, X. F. Long, G. J. Wang, G. C. Guo and J. S. Huang, Chem. Commun., 2008, 2762 RSC.
  9. (a) X. Q. Yao, D. P. Cao, J. S. Hu, Y. Z. Li, Z. J. Guo and H. G. Zheng, Cryst. Growth Des., 2011, 11, 231 CrossRef CAS; (b) J. Y. Lee, C. Y. Chen, H. M. Lee, E. Passaglia, F. Vizza and W. Oberhauser, Cryst. Growth Des., 2011, 11, 1230 CrossRef CAS; (c) J. P. Zhao, B. W. Hu, Q. Yang, T. L. Hu and X. H. Bu, Inorg. Chem., 2009, 48, 7111 CrossRef CAS PubMed; (d) A. Datta, K. Das, J. Y. Lee, Y. M. Jhou, C. S. Hsiao, J. H. Huang and H. M. Lee, CrystEngComm, 2011, 13, 2824 RSC; (e) S. C. Sahoo, T. Kundu and R. Banerjee, J. Am. Chem. Soc., 2011, 133, 17950 CrossRef CAS PubMed.
  10. (a) Y. Chen, L. Li, Z. Chen, Y. Liu, H. Hu, W. Chen, W. Liu, Y. Li, T. Lei, Y. Cao, Z. Kang, M. Lin and W. Li, Inorg. Chem., 2012, 51, 9705 CrossRef CAS PubMed; (b) X. G. Guo, W. B. Yang, X. Y. Wu, K. Zhang, L. Lin, R. M. Yu and C. Z. Lu, CrystEngComm, 2013, 15, 3654 RSC; (c) C. X. Chen, Q. K. Liu, J. P. Ma and Y. B. Dong, J. Mater. Chem., 2012, 22, 9027 RSC; (d) Z. J. Lin and M. L. Tong, Coord. Chem. Rev., 2011, 255, 421 CrossRef CAS PubMed; (e) T. Liu, S. Wang, J. Lu, J. Dou, M. Niu, D. Li and J. Bai, CrystEngComm, 2013, 15, 5476 RSC; (f) X. Bao, P. H. Guo, W. Liu, J. Tucek, W. X. Zhang, J. D. Leng, X. M. Chen, I. Gural'skiy, L. Salmon, A. Bousseksou and M. L. Tong, Chem. Sci., 2012, 3, 1629 RSC; (g) X. L. Zhao, D. Sun, S. Yuan, S. Y. Feng, R. Cao, D. Q. Yuan, S. N. Wang, J. M. Dou and D. F. Sun, Inorg. Chem., 2012, 51, 10350 CrossRef CAS PubMed; (h) S. N. Wang, Y. Q. Peng, X. L. Wei, Q. F. Zhang, D. Q. Wang, J. M. Dou, D. C. Li and J. F. Bai, CrystEngComm, 2011, 13, 5313 RSC; (i) L. M. Fan, X. T. Zhang, D. C. Li, D. Sun, W. Zhang and J. M. Dou, CrystEngComm, 2013, 15, 349 RSC.
  11. (a) X. Zhang, L. Hou, B. Liu, L. Cui, Y. Y. Wang and B. Wu, Cryst. Growth Des., 2013, 13, 3177 CrossRef CAS; (b) Z. Q. Shi, Y. Z. Li, Z. J. Guo and H. G. Zheng, Cryst. Growth Des., 2013, 13, 3078 CrossRef CAS; (c) D. Sun, Z. H. Yan, V. A. Blatov, L. Wang and D. F. Sun, Cryst. Growth Des., 2013, 13, 1277 CrossRef CAS; (d) B. L. Chen, N. W. Ockwig, F. R. Fronczek, D. S. Contreras and O. M. Yaghi, Inorg. Chem., 2005, 44, 181 CrossRef CAS PubMed; (e) S. Yang, X. Lin, A. J. Blake, K. M. Thomas, P. Hubberstey, N. R. Champness and M. Schröder, Chem. Commun., 2008, 6108 RSC; (f) H. S. Choi and M. P. Suh, Angew. Chem., Int. Ed., 2009, 48, 6865 CrossRef CAS PubMed; (g) B. L. Chen, N. W. Ockwig, A. R. Millward, D. S. Contreras and O. M. Yaghi, Angew. Chem., Int. Ed., 2005, 44, 4745 CrossRef CAS PubMed; (h) J. L. Liu, W. Q. Lin, Y. C. Chen, J. D. Leng, F. S. Guo and M. L. Tong, Inorg. Chem., 2013, 52, 457 CrossRef CAS PubMed; (i) P. H. Guo, J. L. Liu, Z. M. Zhang, L. Ungur, L. F. Chibotaru, J. D. Leng, F. S. Guo and M. L. Tong, Inorg. Chem., 2012, 51, 1233 CrossRef CAS PubMed; (j) A. H. Shelton, I. V. Sazanovich, J. A. Weinstein and M. D. Ward, Chem. Commun., 2012, 48, 2749 RSC.
  12. (a) B. Li, L. Q. Chen, R. J. Wei, J. Tao, R. B. Huang, L. S. Zheng and Z. P. Zheng, Inorg. Chem., 2011, 50, 424 CrossRef CAS PubMed; (b) W. G. Lu, D. C. Zhong, L. Jiang and T. B. Lu, Cryst. Growth Des., 2012, 12, 3675 CrossRef CAS; (c) F. L. Yang, J. Tao, R. B. Huang and L. S. Zheng, Inorg. Chem., 2011, 50, 911 CrossRef CAS PubMed; (d) X. J. Zhang, M. A. Ballem, M. Ahren, A. Suska, P. Bergman and K. Uvdal, J. Am. Chem. Soc., 2010, 132, 10391 CrossRef CAS PubMed; (e) J. Ma, F. L. Jiang, L. Chen, M. Y. Wu, S. Q. Zhang, K. C. Xiong, D. Han and M. C. Hong, CrystEngComm, 2012, 14, 4181 RSC; (f) L. Cheng, L. M. Zhang, S. H. Gou, Q. N. Cao, J. Q. Wang and L. Fang, CrystEngComm, 2012, 14, 4437 RSC; (g) P. Cui, L. Ren, Z. Chen, H. Hu, B. Zhao, W. Shi and P. Cheng, Inorg. Chem., 2012, 51, 2303 CrossRef CAS PubMed; (h) W. X. Chen, H. R. Xu, G. L. Zhuang, L. S. Long, R. B. Huang and L. S. Zheng, Chem. Commun., 2011, 47, 11933 RSC; (i) G. X. Liu, H. Xu, H. Zhou, S. Nishihara and X. M. Ren, CrystEngComm, 2012, 14, 1856 RSC; (j) Q. H. Chen, F. L. Jiang, L. Chen, M. Yang and M. C. Hong, Chem.–Eur. J., 2012, 18, 9117 CrossRef CAS PubMed; (k) B. Li, X. M. Dai, X. G. Meng, T. L. Zhang, C. M. Liu and K. C. Yu, Dalton Trans., 2013, 42, 2588 RSC; (l) F. Yu and B. Li, CrystEngComm, 2011, 13, 7025 RSC; (m) Y. Y. Yin, X. Y. Chen, X. C. Cao, W. Shi and P. Cheng, Chem. Commun., 2012, 48, 705 RSC.
  13. (a) X. Zhang, Z. H. Yi, L. Y. Zhao, Q. Chen, X. L. Wang, J. Q. Xu, W. J. Xia and C. Yang, CrystEngComm, 2010, 12, 595 RSC; (b) L. S. Long, CrystEngComm, 2010, 12, 1354 RSC; (c) M. Chen, S. S. Chen, T. A. Okamura, Z. Su, M. S. Chen, Y. Zhao, W. Y. Sun and N. Ueyama, Cryst. Growth Des., 2011, 11, 1901 CrossRef CAS; (d) G. C. Ou, X. L. Feng and T. B. Lu, Cryst. Growth Des., 2011, 11, 851 CrossRef CAS; (e) H. X. Yang, S. Y. Gao, J. Lu, B. Xu, J. X. Lin and R. Cao, Inorg. Chem., 2010, 49, 736 CrossRef CAS PubMed; (f) H. Y. Liu, J. Yang, Y. Y. Liu and J. F. Ma, Dalton Trans., 2012, 41, 9922 RSC; (g) D. Sun, Z. H. Wei, C. F. Yang, D. F. Wang, N. Zhang, R. B. Huang and L. S. Zheng, CrystEngComm, 2011, 13, 1591 RSC; (h) H. Y. Liu, H. Wu, J. Yang, Y. Y. Liu, B. Liu, Y. Y. Liu and J. F. Ma, Cryst. Growth Des., 2011, 11, 2920 CrossRef CAS; (i) A. B. Lago, R. Carballo, S. Rodriguez-Hermida and E. M. Vazquez-Lopez, CrystEngComm, 2013, 15, 1563 RSC; (j) Y. H. Tan, J. J. Wu, H. Y. Zhou, L. F. Yang and B. H. Ye, CrystEngComm, 2012, 14, 8117 RSC; (k) K. P. Rao, M. Higuchi, J. G. Duan and S. Kitagawa, Cryst. Growth Des., 2013, 13, 981 CrossRef CAS.
  14. (a) M. Wriedt, A. A. Yakovenko, G. J. Haider, A. V. Prosvirin, K. R. Dunbar and H. C. Zhou, J. Am. Chem. Soc., 2013, 135, 4040 CrossRef CAS PubMed; (b) C. P. Li and M. Du, Chem. Commun., 2011, 47, 5958 RSC; (c) F. Y. Yi and Z. M. Sun, Cryst. Growth Des., 2012, 12, 5693 CrossRef CAS; (d) B. Li, R. J. Wei, J. Tao, R. B. Huang, L. S. Zheng and Z. P. Zheng, J. Am. Chem. Soc., 2010, 132, 1558 CrossRef CAS PubMed; (e) M. F. Wang, X. J. Hong, Q. G. Zhan, H. G. Jin, Y. T. Liu, Z. P. Zheng, S. H. Xu and Y. P. Cai, Dalton Trans., 2012, 41, 11898 RSC; (f) X. M. Lin, H. C. Fang, Z. Y. Zhou, L. Chen, J. W. Zhao, S. Z. Zhu and Y. P. Cai, CrystEngComm, 2009, 11, 847 RSC; (g) B. Liu, L. Y. Pang, L. Hou, Y. Y. Wang, Y. Zhang and Q. Z. Shi, CrystEngComm, 2012, 14, 6246 RSC; (h) X. Zhu, X. G. Liu, B. L. Li and Y. Zhang, CrystEngComm, 2009, 11, 997 RSC; (i) X. L. Zhao, L. L. Zhang, H. Q. Ma, D. Sun, D. X. Wang, S. Y. Feng and D. F. Sun, RSC Adv., 2012, 2, 5543 RSC; (j) D. Sun, Y. H. Li, H. J. Hao, F. J. Liu, Y. M. Wen, R. B. Huang and L. S. Zheng, Cryst. Growth Des., 2011, 11, 3323 CrossRef CAS; (k) L. Wen, P. Cheng and W. B. Lin, Chem. Commun., 2012, 48, 2846 RSC.
  15. (a) Q. Y. Zhu, L. Yu, Y. R. Qin, L. B. Huo, M. Y. Shao and J. Dai, CrystEngComm, 2011, 13, 2521 RSC; (b) B. Notash, N. Safari and H. R. Khavasi, Inorg. Chem., 2010, 49, 11415 CrossRef CAS PubMed; (c) J. K. Sun, P. Wang, Q. X. Yao, Y. J. Chen, Z. H. Li, Y. F. Zhang, L. M. Wu and J. Zhang, J. Mater. Chem., 2012, 22, 12212 RSC; (d) Z. P. Deng, H. L. Qi, L. H. Huo, H. Zhao and S. Gao, CrystEngComm, 2011, 13, 6632 RSC; (e) U. P. Singh, S. Kashyap, H. J. Singh and R. J. Butcher, CrystEngComm, 2011, 13, 4110 RSC; (f) D. A. Safin, M. G. Babashkina, K. Robeyns and Y. Garcia, Dalton Trans., 2012, 41, 4324 RSC; (g) X. H. Yan, Z. H. Cai, C. L. Yi, W. S. Liu, M. Y. Tan and Y. Tang, Inorg. Chem., 2011, 50, 2346 CrossRef CAS PubMed; (h) I. H. Park, H. J. Kim and S. S. Lee, CrystEngComm, 2012, 14, 4589 RSC; (i) S. H. Zhang, L. F. Ma, H. H. Zou, Y. G. Wang, H. Liang and M. H. Zeng, Dalton Trans., 2011, 40, 11402 RSC; (j) Y. H. Lau, J. R. Price, M. H. Todd and P. J. Rutledge, Chem.–Eur. J., 2011, 17, 2850 CrossRef CAS PubMed; (k) F. J. Liu, D. Sun, H. J. Hao, R. B. Huang and L. S. Zheng, Cryst. Growth Des., 2012, 12, 354 CrossRef CAS; (l) G. X. Liu, H. Xu, H. Zhou, S. Nishiharab and X. M. Ren, CrystEngComm, 2012, 14, 1856 RSC.
  16. (a) S. L. Cai, M. Pan, S. R. Zheng, J. B. Tan, J. Fan and W. G. Zhang, CrystEngComm, 2012, 14, 2308 RSC; (b) P. Manna, S. K. Seth, A. Das, J. Hemming, R. Prendergast, M. Helliwell, S. R. Choudhury, A. Frontera and S. Mukhopadhyay, Inorg. Chem., 2012, 51, 3557 CrossRef CAS PubMed; (c) J. Yang, J. F. Ma, Y. Y. Liu, J. C. Ma and S. R. Batten, Inorg. Chem., 2007, 46, 6542 CrossRef CAS PubMed; (d) R. Feng, F. L. Jiang, L. Chen, C. F. Yan, M. Y. Wu and M. C. Hong, Chem. Commun., 2009, 5296 RSC; (e) J. L. Gulbransen and C. M. Fitchett, CrystEngComm, 2012, 14, 5394 RSC; (f) J. Chen, C. P. Li and M. Du, CrystEngComm, 2011, 13, 1885 RSC; (g) F. Jin, H. Z. Wang, Y. Zhang, Y. Wang, J. Zhang, L. Kong, F. Y. Hao, J. X. Yang, J. Y. Wu, Y. P. Tian and H. P. Zhou, CrystEngComm, 2013, 15, 3687 RSC.
  17. (a) C. L. Zhang, M. D. Zhang, L. Qin and H. G. Zheng, Cryst. Growth Des., 2014, 14, 491 CrossRef CAS; (b) M. L. Han, Y. P. Duan, D. S. Li, H. B. Wang, J. Zhao and Y. Y. Wang, Dalton Trans., 2014, 43, 15450 RSC; (c) L. L. Han, X. Y. Zhang, J. S. Chen, Z. H. Li, D. F. Sun, X. P. Wang and D. Sun, Cryst. Growth Des., 2014, 14, 2230 CrossRef CAS; (d) L. N. Jin, Q. Liu and W. Y. Sun, CrystEngComm, 2014, 16, 3816 RSC; (e) Y. F. Han, X. Y. Li, L. Q. Li, C. L. Ma, Z. Shen, Y. Song and X. Z. You, Inorg. Chem., 2010, 49, 10781 CrossRef CAS PubMed; (f) L. L. Liu, J. M. Du, Y. Y. Liu, F. Zhao and F. J. Ma, J. Coord. Chem., 2014, 67, 136 CrossRef CAS PubMed; (g) W. Wei, H. T. Yu, F. L. Jiang, B. Liu, J. Ma and M. C. Hong, CrystEngComm, 2012, 14, 1693 RSC; (h) X. P. Yang, C. Chan, D. Lam, D. Schipper, J. M. Stanley, X. Y. Chen, R. A. Jones, B. J. Holliday, W. K. Wong, S. C. Chen and Q. Chen, Dalton Trans., 2012, 41, 11449 RSC.
  18. (a) Y. P. Li, Y. Chai, G. P. Yang, H. H. Miao, L. Cui, Y. Y. Wang and Q. Z. Shi, Dalton Trans., 2014, 43, 10947 RSC; (b) X. L. Sun, Z. J. Wang, S. Q. Zang, W. C. Song and C. X. Du, Cryst. Growth Des., 2012, 12, 4431 CrossRef CAS; (c) L. L. Liu, C. X. Yu, Y. Zhou, J. Sun, P. P. Meng, D. Liu and R. J. Sa, Inorg. Chem. Commun., 2014, 40, 194 CrossRef CAS PubMed; (d) X. H. Chang, L. F. Ma, H. Guo and L. Y. Wang, Cryst. Growth Des., 2012, 12, 3638 CrossRef CAS; (e) Y. Yang, P. Du, Y. Y. Liu and J. F. Ma, Cryst. Growth Des., 2013, 13, 4781 CrossRef CAS; (f) T. Liu, S. N. Wang, J. Lu, J. M. Dou, M. J. Niu, D. H. Lia and J. F. Bai, CrystEngComm, 2013, 15, 5467 Search PubMed; (g) L. F. Ma, L. Y. Wang, Y. Y. Wang, S. R. Batten and J. G. Wang, Inorg. Chem., 2009, 48, 915 CrossRef CAS PubMed; (h) L. Pan, B. Parker, X. Y. Huang, D. H. Oison, J. Y. Lee and J. Li, J. Am. Chem. Soc., 2006, 128, 4180 CrossRef CAS PubMed.
  19. (a) F. Guo, B. Zhu, M. Liu, X. Zhang, J. Zhang and J. Zhao, CrystEngComm, 2013, 15, 6191 RSC; (b) L. Zhang, J. Guo, Q. Meng, R. Wang and D. Sun, CrystEngComm, 2013, 15, 9578 RSC; (c) L. Fan, X. Zhang, W. Zhang, Y. Ding, W. Fan, L. Sun, Y. Pang and X. Zhao, Dalton Trans., 2014, 43, 6701 RSC; (d) B. Liu, L. Wei, N. N. Li, W. P. Wu, H. Miao, Y. Y. Wang and Q. Z. Shi, Cryst. Growth Des., 2014, 14, 1110 CrossRef CAS; (e) X. Zhang, L. Fan, W. Zhang, W. Fan, L. Sun and X. Zhao, CrystEngComm, 2014, 16, 3203 RSC.
  20. (a) S. L. Xiao, L. Liu, P. J. Ma and G. H. Cui, Z. Anorg. Allg. Chem., 2014, 640, 1484 CrossRef CAS PubMed; (b) J. M. Hao, Y. N. Zhao, B. Y. Yu, K. V. Hecke and G. H. Cui, Transition Met. Chem., 2014, 39, 741 CrossRef CAS; (c) G. H. Cui, J. R. J. L. Tian, X. H. Bu and S. R. Batten, Cryst. Growth Des., 2005, 5, 1775 CrossRef CAS; (d) Y. Qi, F. Luo, S. R. Batten, Y. X. Che and J. M. Zheng, Cryst. Growth Des., 2008, 8, 2806 CAS; (e) Y. Qi, F. Luo, Y. X. Che and J. M. Zheng, Cryst. Growth Des., 2008, 8, 606 CrossRef CAS; (f) J. H. Qin, L. F. Ma, Y. Hu and L. Y. Wang, CrystEngComm, 2012, 14, 2891 RSC.
  21. (a) J. Fan and B. E. Hanson, Chem. Commun., 2005, 2327 RSC; (b) Y. H. So, Macromolecules, 1992, 25, 516 CrossRef CAS.
  22. SAINT, Version 6.02a, Bruker AXS Inc., Madison, W1, 2002 Search PubMed.
  23. G. M. Sheldrick, SADABS, Program for Bruker Area Detector Absorption Correction, University of Göttingen, Göttingen, Germany, 1997 Search PubMed.
  24. (a) G. M. Sheldrick, SHELXS-97, Program for Crystal Structure Solution, University of Göttingen, Göttingen, Germany, 1997 Search PubMed; (b) G. M. Sheldrick, SHELXL-97, Program for Crystal Structure Refinement, University of Göttingen, Göttingen, Germany, 1997 Search PubMed.
  25. (a) K. Nakamoto, Infrared and Raman Spectra of Inorganic and Coordinated Compounds, Wiley & Sons, New York, 5th edn, 1997 Search PubMed; (b) C. G. Wang, Y. H. Xing, Z. P. Li, J. Li, X. Q. Zeng, M. F. Ge and S. Y. Niu, Cryst. Growth Des., 2009, 9, 1525 CrossRef CAS; (c) R. S. Zhou, X. B. Cui, J. F. Song, X. Y. Xu, J. Q. Xu and T. G. Wang, J. Solid State Chem., 2008, 181, 1565 CrossRef PubMed.
  26. A. L. Spek, J. Appl. Crystallogr., 2003, 36, 7 CrossRef CAS.
  27. (a) V. A. Blatov, IUCr Computing Commission Newsletter, 2006, 7, 4 Search PubMed; (b) V. A. Blatov, TOPOS, A Multipurpose Crystallochemical Analysis with the Program Package, Samara State University, Russia, 2009 Search PubMed.
  28. (a) J. P. Sauvage, Acc. Chem. Res., 1998, 31, 611 CrossRef CAS; (b) C. Qin, X. L. Wang, E. B. Wang and Z. M. Su, Inorg. Chem., 2005, 44, 7122 CrossRef CAS PubMed; (c) B. F. Abrahams, M. G. Haywood and R. Robson, CrystEngComm, 2005, 7, 629 RSC; (d) F. C. Liu, Y. F. Zeng, J. Jiao, X. H. Bu, J. Ribas and S. R. Batten, Inorg. Chem., 2006, 45, 2776 CrossRef CAS PubMed.
  29. (a) N. Zhao, Y. E. Deng, P. Liu, C. X. An, T. X. Wang and Z. X. Lian, Polyhedron, 2015, 85, 607 CrossRef CAS PubMed; (b) L. M. Fan, X. T. Zhang, W. Zhang, Y. S. Ding, W. L. Fan, L. M. Sun, Y. Pang and X. Zhao, Dalton Trans., 2014, 43, 6701 RSC; (c) R. M. Han, J. F. Ma, Y. Y. Liu and J. Yang, CrystEngComm, 2013, 15, 5641 RSC; (d) K. K. Bisht and E. Suresh, Inorg. Chem., 2012, 51, 9577 CrossRef CAS PubMed; (e) B. K. Tripuramallu, P. Manna, S. N. Reddy and S. K. Das, Cryst. Growth Des., 2012, 12, 777 CrossRef CAS.
  30. (a) C. Wang, T. Zhang and W. Lin, Chem. Rev., 2012, 112, 1084 CrossRef CAS PubMed; (b) Y. T. Wang, H. H. Fan, H. Z. Wang and X. M. Chen, Inorg. Chem., 2005, 44, 4148 CrossRef CAS PubMed; (c) Y. T. Wang, H. H. Fan, H. Z. Wang and X. M. Chen, J. Mol. Struct., 2005, 740, 61 CrossRef CAS PubMed; (d) Y. T. Wang, M. L. Tong, H. H. Fan, H. Z. Wang and X. M. Chen, Dalton Trans., 2005, 424 RSC; (e) Q. Ye, Y. Z. Tang, X. S. Wang and R. G. Xiong, Dalton Trans., 2005, 1570 RSC; (f) D. W. Fu, W. Zhang and R. G. Xiong, Cryst. Growth Des., 2008, 8, 3461 CrossRef CAS; (g) D. W. Fu, W. Zhang and R. G. Xiong, Dalton Trans., 2008, 3946 RSC.
  31. S. K. Kurtz and T. T. Perry, J. Appl. Phys., 1968, 39, 3798 CrossRef CAS PubMed.
  32. (a) D. W. Fu, Y. M. Song, G. X. Wang, Q. Ye, R. G. Xiong, T. Akutagawa, T. Nakamura, P. W. H. Chan and S. D. Huang, J. Am. Chem. Soc., 2007, 129, 5346 CrossRef CAS PubMed; (b) T. Okubo, R. Kawajiri, T. Mitani and T. Shimoda, J. Am. Chem. Soc., 2005, 127, 17598 CrossRef CAS PubMed; (c) T. Sivakurnar, H. Y. Chang, J. Baek and P. S. Halasyamani, Chem. Mater., 2007, 19, 4710 CrossRef; (d) D. L. de Murillas, R. Pinol, M. B. Ros, J. L. Serrano, T. Sierra and M. R. de laFuente, J. Mater. Chem., 2004, 14, 1117 RSC.
  33. (a) L. Song, S. W. Du, J. D. Lin, H. Zhou and T. Li, Cryst. Growth Des., 2007, 7, 2268 CrossRef CAS; (b) X. Q. Liang, J. T. Jia, T. Wu, D. P. Li, L. Liu, Tsolmon and G. S. Zhu, CrystEngComm, 2010, 12, 3499 RSC; (c) Z. Su, M. S. Chen, J. Fan, M. Chen, S. S. Chen, L. Luo and W. Y. Sun, CrystEngComm, 2010, 12, 2040 RSC.
  34. (a) Q. Ye, Y. M. Song, G. X. Wang, K. Chen, D. W. Fu, P. W. H. Chan, J. S. Zhu, S. D. Huang and R. G. Xiong, J. Am. Chem. Soc., 2006, 128, 6554 CrossRef CAS PubMed; (b) H. Y. Ye, D. W. Fu, Y. Zhang, W. Zhang, R. G. Xiong and S. P. Huang, J. Am. Chem. Soc., 2009, 131, 42 CrossRef CAS PubMed.
  35. (a) J. H. Wang, G. M. Tang, T. X. Qin, S. C. Yan, Y. T. Wang, Y. Z. Cui and S. W. Ng, J. Solid State Chem., 2014, 219, 55 CrossRef CAS PubMed; (b) F. L. Du, H. B. Zhang, C. B. Tian and S. W. Du, Cryst. Growth Des., 2013, 13, 1736 CrossRef CAS; (c) Y. Z. Tang, M. Zhou, J. Huang, Y. H. Tan, J. S. Wu and H. R. Wen, Inorg. Chem., 2013, 52, 1779 Search PubMed; (d) Y. H. Liu, C. C. Peng, S. H. Lee, P. H. Chien and P. C. Wu, CrystEngComm, 2013, 15, 10333 RSC.
