Surface ionic states and structure of titanate nanotubes

Sesha Vempati*a, Fatma Kayaci-Senirmakab, Cagla Ozgit-Akgunab, Necmi Biyikliab and Tamer Uyar*ab
aUNAM-National Nanotechnology Research Centre, Bilkent University, Ankara, 06800, Turkey. E-mail: svempati01@qub.ac.uk
bInstitute of Materials Science & Nanotechnology, Bilkent University, Ankara, 06800, Turkey. E-mail: uyar@unam.bilkent.edu.tr

Received 20th July 2015 , Accepted 22nd September 2015

First published on 23rd September 2015


Abstract

Here we present an investigation on Zn–Ti–O ternary (zinc titanate) nanostructures which were prepared by a combination of electrospinning and atomic layer deposition. Depending on the ZnO and TiO2 molar ratio, two titanates and one mix phased compound were synthesized by varying the post-annealing temperatures. Specifically Zn2TiO4, ZnTiO3 and ZnO/TiO2 nanostructures were fabricated via thermal treatments (900, 700, 800 °C, respectively). Structural studies unveiled the titanate phase of the nanostructures. Furthermore, the ionic states of the titanate nanostructures on the surface are revealed to be Ti3+ and Zn2+. Spin–orbit splitting of Zn2p and Ti2p doublets were, however, not identical for all titanates which vary from 23.09–23.10 eV and 5.67–5.69 eV respectively. Oxygen vacancies were found on the surface of all titanates. The valance band region was analyzed for Zn3d, Ti3p, O2s and O2p and their hybridization, while the edge (below Fermi level) was determined to be at 2.14 eV, 2.00 eV and 1.99 eV for Zn2TiO4, ZnTiO3 and ZnO/TiO2 respectively.


Introduction

Zinc titanates attract a lot of research attention,1–6 due to their applicability in microwave dielectrics, catalysts,1 pigments,2 lubricants6,7 and other applications. It should be acknowledged that the formation of titanates takes place through the phase transitions of the ZnO–TiO2 system which are relatively complex and of course sensitive to the starting materials and preparation methods.1,5 For instance, the formation of ZnTiO3 is dependent on the initial phase of TiO2 precursor (anatase TiO2 produces ZnTiO3) and grain size (the larger the grain higher the yield).5 Some sol–gel methods were established to produce nanoparticles of titanates (see ref. 1 and references therein, and STab 1 of ESI). Generally, ZnO and TiO2 are mixed (ball milled for 24 h (ref. 4) or 2 h (ref. 5)) in an appropriate stoichiometry and treated at elevated temperatures. In this context atomic layer deposition (ALD) is a very good choice, where ZnTiO3 can be obtained through sequential deposition of ZnO and TiO2 followed by a regular thermal treatment. Furthermore, ALD can yield complex architectures down to nanoscale with an excellent compositional control and high homogeneity at molecular level8–12 in contrast to conventional solid-state or sol–gel methods which essentially yield powder or thin films. Layer-by-layer formation of ALD can inhibit the secondary phase formation/segregation during thermal treatments, which is an essential step for the preparation of titanates. Also it can form conformal coatings on complex shapes, high aspect ratio substrates such as nanofibers mats.10,13–15 By considering these factors it would be very beneficial to investigate the structural details and surface chemical nature of nanotubes. Such investigations are vital in the application point of view, for instance, the catalytic activity depends on the conduction band (CB) edge which in case of titanates is constituted mainly by Ti-centred orbitals. Also, coordination of Ti ions and smaller particle size enhance the catalytic activity.1,3

In order to prepare the nanotubes, here, first we have prepared nanofibers via electrospinning which act as a template. These nanofibers were subjected to ALD of varying ZnO and TiO2 molar compositions. These core–shell structured fibers were subjected to calcination at varying, though selected temperatures. This procedure has yielded zinc titanate nanotubes, namely, zinc orthotitanate (Zn2TiO4), zinc metatitanate (ZnTiO3) and ZnO/TiO2. These nanostructures were subjected to a thorough characterization for their crystal structure and surface chemical composition.

Experimental

Materials

Formic acid (FA, 98–100%) was used as a solvent for nylon 6,6. Diethylzinc (DEZn) and tetrakis (dimethylamido) titanium (TDMAT) were procured from Sigma-Aldrich and HPLC-grade deionized (DI) water was used for the ALD process. All the chemicals were used as received from Sigma-Aldrich.

Electrospinning

Uniform and bead-free nylon 6,6 nanofibers were produced via electrospinning. The polymer solution consists of 8 wt% nylon 6,6 in FA. This mixture was stirred for 3 h at room temperature to obtain a homogeneous and clear solution. This well stirred solution was taken in a syringe fitted with a metallic needle of ∼0.8 mm of inner diameter. Then the syringe with solution was fixed horizontally on a syringe pump (KD Scientific, KDS 101) with a feed rate of 1 mL h−1. A 15 kV high voltage is applied (Matsusada, AU Series) between the metal needle and a grounded electrode which was kept at a distance of ∼10 cm. Grounded electrode was wrapped with an Al-foil to collect the fibers. The electrospinning process was carried out at ∼23 °C and 36% relative humidity in an enclosed chamber.

Atomic layer deposition

Supercycles consisting of ZnO and TiO2 subcycles were deposited on the nanofibers at ∼200 °C in a Savannah S100 ALD reactor (Cambridge Nanotech Inc.). N2 was used as a carrier gas at a flow rate of ∼20 sccm. DEZn and H2O were used at room temperature, whereas TDMAT was heated to ∼75 °C and stabilized at this temperature for 30 min prior to the deposition. Depositions were carried out using ‘exposure mode’ (a trademark of Ultratech/Cambridge Nanotech Inc.) in which dynamic vacuum is switched to static vacuum just before each precursor pulse by closing the valve between the reaction chamber and the pump. This enables the exposure of precursor molecules to the substrate for a certain period of time (i.e., exposure time). This is followed by a purging period, where the chamber is switched back to dynamic vacuum for purging the excess precursors and gaseous byproducts. Three different samples were prepared using 150 supercycles with different ZnO[thin space (1/6-em)]:[thin space (1/6-em)]TiO2 subcycle ratios; i.e., 1[thin space (1/6-em)]:[thin space (1/6-em)]2, 2[thin space (1/6-em)]:[thin space (1/6-em)]5 and 1[thin space (1/6-em)]:[thin space (1/6-em)]3. One ZnO subcycle consists of the following steps: valve OFF/H2O pulse (0.015 s)/exposure (10 s)/valve ON/N2 purge (10 s)/valve OFF/DEZn pulse (0.015 s)/exposure (10 s)/valve ON/N2 purge (10 s). One TiO2 subcycle, consists of the following steps: valve OFF/H2O pulse (0.015 s)/exposure (10 s)/valve ON/N2 purge (10 s)/valve OFF/TDMAT pulse (0.1 s)/exposure (10 s)/valve ON/N2 purge (10 s).

Calcination

Samples of ratios 1[thin space (1/6-em)]:[thin space (1/6-em)]2, 2[thin space (1/6-em)]:[thin space (1/6-em)]5 and 1[thin space (1/6-em)]:[thin space (1/6-em)]3 were subjected to calcination at 900 °C (Zn2TiO4, ZT14), 700 °C (ZnTiO3, ZT13) and 800 °C (ZnO/TiO2, ZT12), respectively. These samples will be referred as abbreviated in the parenthesis.

Characterization

The morphologies of the samples were investigated using a Scanning Electron Microscope (SEM, FEI-Quanta 200 FEG). A nominal 5 nm Au/Pd alloy was sputtered onto the samples prior to the observation under SEM. Also transmission electron microscope (TEM, FEI-Tecnai G2 F30) was employed. For TEM imaging, the samples were dispersed in ethanol and the suspension was collected onto a holey carbon coated TEM grid. X-ray diffraction (XRD) patterns were recorded (2θ = 20°–80°) by employing PANalytical X'Pert Multi Purpose X-ray diffractometer with CuKα radiation (λ = 1.5418 Å). The ionic state of the surface elements were determined via X-ray photoelectron spectroscopy (XPS, Thermo Scientific, K-Alpha, monochromatic AlKα X-ray source, 400 μm spot size, = 1486.6 eV) in the presence of a flood gun charge neutralizer. For the core-level spectra, pass energy and step size were 30 eV and 0.1 eV, respectively. Peak deconvolutions of the XPS spectra were performed through Avantage software.

Results and discussion

Schematic diagram of various steps involved to fabricate the nanotubes is shown in Fig. 1. Initially polymer nanofibers were produced via electrospinning which were then subjected to ALD of ZnO and TiO2 subcycles of varying ZnO and TiO2 content. These core–shell nanofibers were subjected to thermal treatment at 900, 700 or 800 °C yielding three types of nanostructures. i.e. (a) electrospun polymer nanofiber + ALD yields core–shell structure, (b) calcination of (a) at a suitable temperature removes the core polymer and the inorganic coating takes the nanotube form and (c) depending on the calcination temperature a severe reorganization of the crystal structure takes place, then the nanotube structure may collapse yielding grainy fibrous structure.
image file: c5ra14323c-f1.tif
Fig. 1 Schematic diagram depicting electrospinning, ALD and calcination.

The representative SEM images of as deposited and calcined samples are shown in Fig. 2. The first impression is that the ALD did not cause any deterioration to the polymer nanofibers. After calcination apart from the changes in the crystallinity, morphological changes can be expected15,16 which is in contrast to the removal of core by washing.8 From Fig. 2a and b these changes are significant and explicit in the case of ZT14 samples which were calcined at 900 °C, where nanotubes are generally expected. In stark contrast, the morphology is completely altered and nanotubes were not seen nevertheless, we can see the traces of fibrous structure with grains. The average diameter and length were 135 ± 12 nm, 175 ± 5 nm and the distributions of which are shown in SFig. 1a and b of ESI, respectively. The average fiber diameter is about ∼90 nm. It appears to be the case that the average diameter of the fiber determines the width of the crystallites while the length is stimulated by the thermodynamics and mobility of the atoms (ions) at high temperature. This excessively high temperature, although required for crystallization, has caused a complete restructuring of the morphology. Since the dielectric properties and the grain size are interconnected17 the present results are quite interesting as the average diameter of the fiber can be controlled by appropriate choice of the polymer and solvent combination.10,18 Furthermore, relatively higher diameter (0.5–2 μm) can be achieved by selecting non-polymeric system for electrospinning,8 which is proven to be compatible in ALD.8 Notably the uniformity in the grain size reduces the additional dielectric loss.17 Nevertheless, in XRD we will see the formation of a well developed polycrystalline Zn2TiO4. On the other hand, since the ZT13 (Fig. 2c and d) and ZT12 (Fig. 2e and f) samples were derived from the calcination at relatively lower temperature, a stark contrast in the morphology is apparent. For these samples a nanotube-like structure is evidenced after calcination. To emphasize these samples are similar to those when the core region is subjected washing8 while keeping aside the changes in the crystallinity due to thermal treatment. It is interesting to note that the nanotubes are thin enough to be electron transparent (Fig. 2d and f) where the bottom layer is visible.


image file: c5ra14323c-f2.tif
Fig. 2 SEM images of nanotube titanates (a and b) ZT14, (c and d) ZT13 and (e and f) ZT12.

TEM images of titanate samples are shown Fig. 3. SEM images of ZT14 have shown a grainy structure, where the expected tubular morphology is lost during the relatively high temperature calcination (Fig. 2b). Hence local crystal structure analysis on ZT14 sample has evidenced well developed crystalline regions (Fig. 3a and b). The fast Fourier transform (FFT) image of Fig. 3a suggested a single crystalline grain, see insert. Fig. 3b suggests a grain boundary region (see the annotations (i) and (ii) on Fig. 3b). It is interesting to note that majorly region (i) is polycrystalline in contrast to single crystalline region (ii). We will see a polycrystalline nature (XRD) which averages a large sample unlike TEM. It is generally assumed that the grain boundary region is less crystalline than either of the mating parts. However, this is not the case as we can explicitly see a crystalline grain boundary which obviously is an effect of high temperature calcination. The thickness of the ALD coating is estimated from the TEM images of ZT13 nanotubes and annotated on the Fig. 3c and d. ZT13 nanotubes consists of a well developed and uniform sized crystal grains, however the tube like structure sustained its integrity. Furthermore, the diameter of the polymeric nanofiber template plays an important role in the integrity of the tube with respect to grain size.8 As mentioned earlier, the uniformity in the grain size is an important character for dielectric properties.17 ZT12 sample depicted similar character to that of ZT13 sample in terms of grain size uniformity and tube-like structure (Fig. 3e and f).


image file: c5ra14323c-f3.tif
Fig. 3 TEM images of nanotube titanates (a and b) ZT14, (c and d) ZT13 and (e and f) ZT12. Insert of (a) depicts the FFT image of (a) indicating the single crystalline nature.

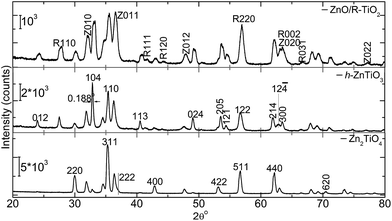

In Fig. 4 we have plotted XRD patterns from ZT14, ZT13 and ZT12 samples along with the reflections identified. In the case of ZT14, it is predominantly cubic (c) phased Zn2TiO4. When the calcination temperature decreased to 700 °C for ZnO and TiO2 ratio of 1[thin space (1/6-em)]:[thin space (1/6-em)]2 hexagonal (h) phased ZnTiO3 emerged (ZT13). For ZT12 sample we can see the reflections from ZnO and rutile TiO2 (R-TiO2) where the calcination temperature is about 800 °C. For this molar ratio, earlier19 when the calcination temperature increased to 800 °C, h-ZnTiO3 and c-ZnTiO3 were the dominant phases. Only trace amount of the R-TiO2 was found.19 However, in the present context it is notable that for calcination temperatures such as 800 to 900 °C, the h-ZnTiO3 is not the dominant phase. At higher temperature the decomposition of h-ZnTiO3 into cubic spine (c-Zn2TiO4) and R-TiO2 is possible1,20 and the peaks related to c-Zn2TiO4 (JCPDS Card no. 25-1164) and R-TiO2 appeared. For a sample that is treated at 800 °C has shown diffraction pattern of ZnO and R-TiO2. For the case of h-ZnTiO3, (104) and (110) reflections have depicted intensity levels which are the highest and the next highest. Preferential (104) growth orientation is attributed to the reduction in the free energy in reaching a stable growth state. The stable growth state is closed packed plane with lowest surface energy (SE). This is well supported by previous DFT simulations studies. (104) and (110) reflections have shown unrelaxed SE of 5.01 and 5.16 J m−2 respectively. This SE is decreased ∼18% upon relaxation which is a considerable quantity.6 Furthermore, the FWHM of (104) is about 2θ = ∼0.188° in the present case. In a previous study ALD grown film6 has shown relatively higher fwhm of ∼1.7° (2θ) which is attributed to growth disorder/defects. i.e. nonuniform strain and/or dislocations, stacking faults and high angle grain boundaries. For instance, stacking faults can be referred to those persist on (104) plane.6 Furthermore, these films6 have depicted condensation of oxygen vacancies (VOs) (Zn[thin space (1/6-em)]:[thin space (1/6-em)]Ti[thin space (1/6-em)]:[thin space (1/6-em)]O: 1[thin space (1/6-em)]:[thin space (1/6-em)]1[thin space (1/6-em)]:[thin space (1/6-em)]2.7) which influences the (104) plane severely such as planar stacking faults,6 i.e. disappearing or introducing an extra (104) plane. Previously,7 a thin film of ZnTiO3 (ilmenite) depicted only (104) and (1[2 with combining macron]4) reflections at 2θ = ∼33.1° (2.7 Å) and ∼62.1° (1.5 Å) respectively. In the present case, these reflections appeared at 32.87°, 62.96°, respectively. This difference can be attributed to the strain due to the nanotube structure, however, note that ref. 7 employs ALD for the synthesis.


image file: c5ra14323c-f4.tif
Fig. 4 XRD patterns of nanotube titanates ZT14, ZT13 and ZT12. For ZnO/R-TiO2 additional planes (104), (110), (113) and (121) from h-ZnTiO3 phase were not annotated.

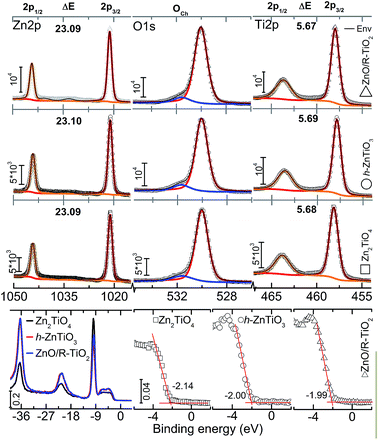

Survey XP spectra for the three compounds are shown in SFig. 2 including atomic percentages. The results suggest that the composition of constituting elements is consistent with the chemical formula. However, other phases should be taken into account as we have seen diffraction peaks corresponding to ZnO and R-TiO2 phases (Fig. 4). Carbon contamination might have been occurred during the calcination in ambient atmosphere and subsequent transfer of samples into the XPS-analyses chamber. Core-level Zn2p spectra indicated a doublet, 2p3/2 and 2p1/2 at ∼1021.5 and ∼1044.5 eV, respectively, which indicates +2 state of Zn. Also two satellite peaks were noticed in the process of deconvolution, however, they were not shown in Fig. 5. The spin–orbit splitting (ΔE) is ∼23.1 eV which is consistent with the literature21 however the variation can be attributed to the differences in the ionic or covalent environments on the surface. O1s spectra depicted two chemically different environments where the major contribution was due to the lattice oxygen (530.01 eV).15,21 The other oxygen contribution can be attributed to chemisorbed oxygen (OCh). OCh appeared at 531.6 eV indicated incorporation of –OH, –CO, adsorbed H2O and/or O2 or O and O2− ions21,22 essentially occupying the VOs. These defects play a critical role in the emission properties and related applications.10,15,22 The OCh fractions were 9.76, 8.88 and 7.67% for ZT14, ZT13 and ZT12, respectively.


image file: c5ra14323c-f5.tif
Fig. 5 XP spectra of ZT14, ZT13 and ZT12 samples. In the deconvolution of Zn2p two satellite peaks were present, however, they were hidden in the figure for brevity. 0 eV on energy scale indicate the Fermi level.

Ti2p spectra indicated a single chemical environment in contrast to the samples synthesized by sol–gel technique1 where Ti2p depicted two chemical environments for ZnTiO3. The second chemical environment in ref. 1 is attributed to Ti ions on the external surface of TiO2 that are partly four or five-coordinated, for particles with size less than 20 nm. Different reactivities and surface properties are expected from these unsaturated coordination.23 In the case of TiO2, the ΔE between 2p3/2 and 2p1/2 is ∼6.2 eV, where the peaks are at 458.50 and 464.70 eV, respectively. The ΔE for all the samples is ∼5.7 eV and attributed to octahedral coordination (Ti3+), although we have seen some XRD reflections corresponding to R-TiO2. Investigation on local atomic structure has indicated ZnTiO3 and Zn2TiO4 have six coordinated Ti4+ ions.4

Valance band (VB) region with normalized intensity is shown in Fig. 5 (bottom). Zn3d is relatively more intense than Ti3p for Zn2TiO4 while the converse is true for h-ZnTiO3 and ZnO/R-TiO2 cases. A closure inspection of VB region indicated onset values of −2.14, −2.00 and −1.99 eV for c-Zn2TiO4, h-ZnTiO3 and ZnO/R-TiO2 respectively (Fig. 5b bottom right). Upper part of the core-state (−19 to −17.3 eV) is occupied by O2s electrons.21 The VB consists of Zn3d, O2p and Ti3d states. Zn3d state is localized at −5.7 eV, while O2p and Ti3d states hybridize in the range −5 eV to Fermi level (0 eV on the energy scale). However, as we noted earlier, the VB edge slightly differs among the samples which is attributed to the variations in the hybridization of the corresponding orbitals. The results are qualitatively similar to experimental studies on mixed cubic/hexagonal phase of the compound.24 To further comment on the band structure, CB composed of Ti3d orbitals. A computed and experimental bandgap of ∼3.18 eV [ref. 3] and ∼3.1 eV [ref. 25] are evidenced for Zn2TiO4, respectively. However, apparently, in the case of spinal structures bandgap values depend on the (dis)ordering of the cations at octahedral sites. This essentially implies that the final gap values are strongly influenced by the details of preparation.

Conclusions

Zinc titanate nanotubes were prepared by a combination of electrospinning and ALD followed by a high temperature thermal treatment. The crystal structure confirmed the phase formation of c-Zn2TiO4, h-ZnTiO3 and mixed phase ZnO/R-TiO2. The surface chemical nature of the transition metal ions were determined to be Ti3+ and Zn2+. Furthermore VOs were detected on the surface, however, with varying OCh content of 7.67–9.76%. ΔE of Zn2p and Ti2p doublets was consistent with the literature, while the slight differences are attributed to the environmental effects. The VB edges are determined to be at 2.14 eV, 2.00 eV and 1.99 eV (below Fermi level) for Zn2TiO4, ZnTiO3 and ZnO/R-TiO2 respectively. This study enhances the understanding of the fundamentally important surface chemical nature of titanate nanotubes in addition to the applicability of this process.

Acknowledgements

S. V. thanks TUBITAK (TUBITAK-BIDEB 2221-Fellowships for Visiting Scientists and Scientists on Sabbatical) for the postdoctoral fellowship. F. K.-S. thanks TUBITAK-BIDEB for a PhD scholarship. N. B. thanks EU FP7-Marie Curie-IRG for funding NEMSmart (PIRG05-GA-2009-249196). T. U. thanks EU FP7-Marie Curie-IRG (NANOWEB, PIRG06-GA-2009-256428) and The Turkish Academy of Sciences – Outstanding Young Scientists Award Program (TUBA-GEBIP) for partial funding. Authors thank M. Guler for technical support for TEM analysis. Authors also thank Dr Z. Ali, Materials Modeling Center, Department of Physics, University of Malakand, Chakdara, Pakistan for providing the computational data of VB and CB for h-ZnTiO2 and Zn2TiO4.

Notes and references

  1. Y. Wang, P.-H. Yuan, C.-M. Fan, Y. Wang, G.-Y. Ding and Y.-F. Wang, Ceram. Int., 2012, 38, 4173–4180 CrossRef CAS.
  2. A. T. McCord and H. F. Saunder, US Pat., 2379019, 1945.
  3. Z. Ali, S. Ali, I. Ahmad, I. Khan and H. A. R. Aliabad, Phys. B, 2013, 420, 54–57 CrossRef CAS.
  4. G. Akgul, J. Mol. Struct., 2013, 1037, 35–39 CrossRef CAS.
  5. Z. Liu, D. Zhou, S. Gong and H. Li, J. Alloys Compd., 2009, 475, 840–845 CrossRef CAS.
  6. W. Sun, A. Ageh, H. Mohseni, T. W. Scharf and J. Du, Appl. Phys. Lett., 2014, 104, 241903 CrossRef.
  7. V. Ageh, H. Mohseni and T. W. Scharf, Surf. Coat. Technol., 2014, 241, 112 CrossRef CAS.
  8. A. Celebioglu, S. Vempati, C. O. Akgun, N. Biyikli and T. Uyar, RSC Adv., 2014, 4, 61698 RSC.
  9. C. O. Akgun, F. Kayaci, S. Vempati, A. Haider, A. Celebioglu, E. Goldenberg, S. Kizir, T. Uyar and N. Biyikli, J. Mater. Chem. C, 2015, 3, 5199 RSC.
  10. F. Kayaci, S. Vempati, C. O. Akgun, I. Donmez, N. Biyikli and T. Uyar, Appl. Catal., B, 2015, 176–177, 646–653 CrossRef CAS.
  11. C. O. Akgun, F. Kayaci, I. Donmez, T. Uyar and N. Biyikli, J. Am. Ceram. Soc., 2013, 96, 916–922 CrossRef.
  12. C. O. Akgun, I. Donmez and N. Biyikli, ECS Trans., 2013, 58, 289–297 CrossRef.
  13. P. Heikkilä, T. Hirvikorpi, H. Hilden, J. Sievänen, L. Hyvärinen, A. Harlin and M. Vähä-Nissi, J. Mater. Sci., 2012, 47, 3607–3612 CrossRef.
  14. E. Santala, M. Kemmel, M. Leskela and M. Ritala, Nanotechnology, 2009, 20, 035602 CrossRef PubMed.
  15. F. Kayaci, S. Vempati, C. Ozgit, I. Donmez, N. Biyikli and T. Uyar, Nanoscale, 2014, 6, 5735 RSC.
  16. F. Kayaci, S. Vempati, C. O. Akgun, N. Biyikli and T. Uyar, Appl. Catal., B, 2014, 156–157, 173–183 CrossRef CAS.
  17. R. K. Sirugudu, R. K. M. Vemuri, S. Venkatachalam, A. Gopalakrishnan and S. M. Budaraju, Journal of Microwave Power and Electromagnetic Energy, 2011, 45, 128–136 Search PubMed.
  18. F. Kayaci, C. O. Akgun, I. Donmez, N. Biyikli and T. Uyar, ACS Appl. Mater. Interfaces, 2012, 4, 6185–6194 Search PubMed.
  19. J. Z. Kong, A. D. Li, H. F. Zhai, H. Li, Q. Y. Yan, J. Ma and D. Wu, J. Hazard. Mater., 2009, 171, 918–923 CrossRef CAS PubMed.
  20. M. R. Mohammadi and D. J. Fray, J. Eur. Ceram. Soc., 2010, 947–961 CrossRef CAS.
  21. A. V. Naumkin, A. K. Vass, S. W. Gaarenstroom and C. J. Powell, Journal, NIST Standard Reference Database 20, Version 4.1, 2012 Search PubMed.
  22. F. Kayaci, S. Vempati, I. Donmez, N. Biyikli and T. Uyar, Nanoscale, 2014, 6, 10224–10234 RSC.
  23. T. Rajh, J. M. Nedeljkovic, L. X. Chen, O. Poluektov and M. C. Thurnauer, J. Phys. Chem. B, 1999, 103, 3515–3519 CrossRef CAS.
  24. P. K. Jain, D. Kumar, A. Kumar and D. Kaur, J. Optoelectron. Adv. Mater., 2010, 4, 299 CAS.
  25. P. H. Borse, C. R. Cho, K. T. Lim, T. E. Hong, E. D. Jeong, J. H. Yoon, S. M. Yu and H. G. Kim, J. Ceram. Process. Res., 2012, 13, 42–46 Search PubMed.

Footnote

Electronic supplementary information (ESI) available. See DOI: 10.1039/c5ra14323c
