A near-infrared chemodosimeter with Pi-selective colorimetric and fluorescent sensing and its application in vivo imaging

Abstract

A near-infrared colorimetric and fluorescent chemosensor for detecting phosphate ion (Pi) has been developed. The chemosensor's sensing mechanism is based on the Pi-driven cleavage of an amide bond which releases a fluorophore. The chemosensor exhibits a rapid response and high sensitivity towards Pi in DMSO–HEPES buffer (0.02 M, pH = 7.0) (v/v = 9 : 1). A colorimetric change with a 70 nm red-shift in the UV-vis absorbance spectrum and a 72-fold enhancement in the ratio of fluorescence intensities at 656 nm and 552 nm were observed. The practical utility of this chemosensor was demonstrated by employing it to detect Pi in Paramecium and C. elegans.

---

In recent years, fluorescence imaging has become one of the most powerful techniques for in vivo monitoring.^1–3 So far, a large number of biomolecule-sensing fluorescent probes have been constructed.^4,5 ATP (adenosine triphosphate), a star molecule, has been a target of these efforts, owing to its fundamental contributions to energy transduction and involvement in multiple metabolic pathways.^6–8 In contrast, the phosphate ion (Pi), an important downstream metabolic product of ATP, has not attract much attention in last decade even though it has also been reported to widely participate in signaling and regulating biological processes.^8–10 To the best of our knowledge, very few Pi sensors have been reported with the exception of the series of Pi-sensing chemodosimeters we published very recently.^11–14

Most of the fluorescence sensors have absorption and emission peaks in the visible range (400–650 nm). By contrast, relatively few near-infrared (NIR) fluorescent sensors (absorption and emission in the 650–900 nm range) have been reported.^15,16 NIR sensors have many advantages over visible-range sensor, such as reduced photodamage to biological samples, deep tissue penetration, and minimal interference from background autofluorescence by biomolecules. Therefore, we set out to develop a highly selective NIR Pi sensor and apply it successfully to in vivo imaging. In signal mode, a ratiometric response was considered as a better choice in our design because they employ the ratio of the emission intensities at two different wavelengths, which could avoid interference from the inhomogeneous distribution of fluorescent indicators in cells.^17,18

We successfully designed a reaction-based NIR sensor, 1, which contains an oxalate moiety as a Pi-responsive trigger. In sensor 1, the reaction site, oxalate group, is linked via an amide bond to a derivative of dicyanomethylene-4H-chromene, well-known red emission dye with an ICT characteristic. According to our experience, we anticipated that Pi would lead to the cleavage of amide bond, bringing about marked ratiometric colorful and fluorescence changes.

This work demonstrated that 1 is a selective NIR Pi sensor which does not appreciably react to other phosphate-containing species including PPi, ATP, TTP, AMP, UTP, and GMP, and which is suitable for in vivo imaging. As expected, only the addition of Pi brought about marked color and fluorescence changes in solutions of 1 (DMSO–HEPES buffer, 0.02 M, pH = 7.0, v/v = 9 : 1). A dramatic solution change from yellow to orange, with a 70 nm red-shift in the UV-vis spectrum and an appearance of a new NIR peak at 664 nm were observed. An 72-fold enhancement in the ratio of fluorescence intensities at 656 nm and 552 nm (F₆₅₆/F₅₅₂) ensure 1 as a ratiometric NIR fluorescence sensor. The probe is also successfully applied to visualize exogenous and endogenous Pi in paramecium and C. elegans.

Probe 1 was successfully synthesized in one step starting from compound 2, which was synthesized as described previously.^19–21 As shown in Scheme 1, compound 2 reacted with ethyl oxalyl chloride in the presence of triethylamine (TEA) in dry dichloromethane at room temperature, giving the target compound 1 with a yield of 35%. Experimental details and corresponding NMR spectra and mass spectra are summarized in the ESI.†

Scheme 1 The synthesis route of compound 1 and the single-crystal of 1.

In order to study the selectivity of probe 1 for Pi ions, spectral changes (UV/vis and fluorescence) of 1 were monitored in the presence of various anions (as sodium salts) in DMSO–HEPES buffer. Absorption and emission spectra were acquired 3 min after addition of anions into the probe solutions. The UV-vis absorbance spectrum of 1 in DMSO–HEPES buffer (pH = 7.0) contains a peak located at 448 nm. As expected, the absorption spectrum of 1 undergoes a dramatic change only when Pi is added. The addition of Pi led to the reduction of the major absorbance peak at 448 nm with one new absorption peak appearing at 518 nm. When other anions and molecules (P₂O₇⁴⁻, GSH, ATP, GMP, TTP, UDP, Pi, TDP, L-Glu, NO₂⁻, S₂O₃²⁻, S₂O₅²⁻, SO₄²⁻, NO₃⁻, Cys) were added at the same levels as Pi (120 equiv.), negligible spectral changes were observed (Fig. 1).

Fig. 1 (a) Absorbance emission titration spectra of 1 (3.0 × 10⁻⁵ M) in DMSO–HEPES buffer (0.02 M, pH = 7.0) (v/v = 9 : 1) with 120 equiv. of selected ions, (b) absorbance of 1 (3.0 × 10⁻⁵ M) at 518 nm after addition of 100 equiv. of selected anions (a: P₂O₇⁴⁻, b: GSH, c: ATP, d: GMP, e: TTP, f: UDP, g: Pi, h: TDP, i: L-Glu, j: NO₂⁻, k: S₂O₃²⁻, l: S₂O₅²⁻, m: Cys).

As demonstrated in Fig. 2, successive addition of Pi into the probe solution of 1 in DMSO–HEPES (0–120 equiv.), led to a decrease in the absorption at 448 and a simultaneous increase in a new peak at 518 nm, with an isoabsorptive point at 464 nm. As predicted, the solution color undergoes a dramatic change when 1 is incubated with 120 equiv. of Pi. The solution changes from yellow to orange, with a 70 nm red-shift in the spectrum. These results indicate that 1 could serve as a “nake-eye” probe for Pi with high selectivity.

Fig. 2 Absorbance emission titration spectra of 1 (3.0 × 10⁻⁵ M) in the presence of varying concentrations of Pi in DMSO–HEPES buffer (0.02 M, pH = 7.0) (v/v = 9 : 1).

The results of fluorescence spectroscopy show that 1 in DMSO–HEPES buffer (0.02 M, pH = 7.0) (v/v = 9 : 1) emits with a maximum at 552 nm upon excitation at 450 nm. (Fig. 3a) Only the addition of 120 equiv. Pi to the solution of 1 caused a simultaneous decrease in the intensity of band at 552 nm and increase in a new band at 656 nm. All the other tested anions could not lead to the increase of the band at 656 nm, as shown in Fig. 4. Concentration dependent titration study showed that in the presence of Pi, a decrease at 552 nm and increase at 656 nm take place simultaneously and reach respective minimum and maximum values at a 120 equiv. of Pi, with a desirable ratiometric type probe feature. It showed that the ratio of fluorescence intensities at 656 nm and 552 nm (F₆₅₆/F₅₅₂) increased linearly with increasing Pi concentration, resulting in a 71-fold enhancement. A detection limit as low as 1.36 × 10⁻⁶ M was established by using 1 with a signal-to-noise ratio of 3 (Fig. S3†).

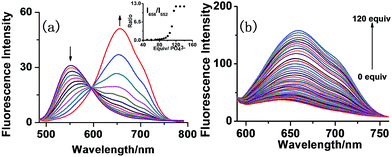

Fig. 3 (a) Fluorescent titration spectra of 1 (3.0 × 10⁻⁵ M) in the presence of varying concentrations of Pi in DMSO–HEPES buffer (0.02 M, pH 7.0) (v/v = 9 : 1) with excitation wavelength was 450 nm. (b) Fluorescent titration spectra of 1 (3.0 × 10⁻⁵ M) in the presence of varying concentrations of Pi in DMSO–HEPES buffer (0.02 M, pH 7.0) (v/v = 9 : 1) with excitation wavelength was 550 nm. Inset: ratiometric calibration curve I₆₅₀/I₅₅₀ as a function of Pi concentration.

Fig. 4 (a) Fluorescence emission spectra of 1 (3.0 × 10⁻⁵ M) in DMSO–HEPES buffer (0.02 M, pH = 7.0) (v/v = 9 : 1) with 120 equiv. of selected ions. (b) Fluorescence intensities of 1 (3.0 × 10⁻⁵ M) at 660 nm after addition of 120 equiv. of selected ions. (a: P₂O₇⁴⁻, b: GSH, c: ATP, d: GMP, e: TTP, f: UDP, g: Pi, h: TDP, i: L-Glu, j: NO₂⁻, k: S₂O₃²⁻, l: S₂O₅²⁻, m: Cys).

The sensing mechanism of 1 was proven by the tests of ¹H NMR titration (Fig. S5†) and HRMS (Fig. S6†), and the proposed sensing mechanism was shown in Scheme 2. According to our prior work,^11–14 Pi initially attacks the carbon atom of C=O, and subsequently reacts with the carbon atom of C–N,^22–25 resulting in the decomposition of 1 into 2 and 6. Therefore, the NIR optical properties of 2 was final released and shown. The ¹H NMR titration spectra of compound 1 (0.5 mM) with Pi in DMSO-d6 was measured. It showed that final product of the sensing process of Pi by 1 was 2 (Fig. S5†). Meanwhile, the HRMS of the mixture of 1 and Pi was tested after the two compounds were mixed over night. According to the data, the peak of 2 became the main peak while that of 1 disappeared. All the data gave the strong supports for the sensing mechanism as we expected.

Scheme 2 The proposed sensing mechanism of 1 with Pi.

Paramecium is a slipper shaped ciliate which is found in oxygenated aquatic environments feeding near vegetative matter.²⁶ This organism is quite common and may easily be obtained from the shallow waters. Paramecia are a key link in detritus-based food webs in aquatic ecosystems. Most paramecia are feed voraciously on bacteria that accompany decaying organic matter. These bacteria-gorged cells are then consumed by other protists and small animals, which are in turn preyed upon by larger organisms.²⁷ Despite its small size, a paramecium has a relative structure compared with single cells. To follow the aggregation of the endogenous and the exogenous Pi in paramecium attracted our attention. For this purpose, paramecia were incubated with 5 mM Pi for 12 h first. The paramecia were observed to display red fluorescence after the incubation of Pi.

Apyrase, a hydrolytic enzyme that converts both ATP and ADP into AMP and Pi, was utilized to evaluate the ability of 1 to measure in vivo endogenous Pi production. In a second group, paramecia were treated with ATP, and then various amounts of apyrase were added to the test solutions. To paramecia preincubated with ATP (1 mM) for 2 h at 37 °C, apyrase was added (0, 1, 5, and 10 U), followed by staining with probe 1 for 2 h. As shown in Fig. 5, no fluorescence could be observed when paramecia were treated only in the presence of ATP. With the addition of apyrase, the fluorescence intensity increased as the concentrations of apyrase increased. The brightest red fluorescence was found with 10 U apyrase. Furthermore, bright fluorescence was observed in both the micronucleus and macronucleus.

Fig. 5 Fluorescent imaging (right) and phase contrast (left) for Pi in paramecium (a) and (b): bright field. (c) Probe 1 (20 μM). (d) Probe 1 (20 μM) and Pi (1 mM).

Fig. 6 Fluorescent imaging (top) and phase contrast (bottom) for Pi in paramecium. (a) Probe 1 (10 μM) ATP (1 mM). (b) Probe 1 (10 μM), ATP (1 mM) and apyrase (1 U). (c) Probe 1 (10 μM), ATP (1 mM) and apyrase (5 U). (d) Probe 1 (10 μM), ATP (1 mM) and apyrase (10 U). (e–h): bright field.

Finally, the use of 1 with fluorescence microscopy to track Pi inside C. elegan larvae at developmental stage 4 (L4) was explored. (Fig. 7) Yellow fluorescence was observed in the nematodes, pretreated with 1 (10 μM) for 2 h. When the Pi was added, a bright red fluorescence is emitted from the whole body of nematodes. These combined results indicated that 1 is cell membrane permeable and that it may be employed as an NIR fluorescence imaging agent for the detection of Pi in both paramecia and C. elegans.^28,29

Fig. 7 Fluorescent imaging (top) and phase contrast (bottom) for Pi in C. elegans. (a) and (c): bright field. (b) Probe 1 (20 μM) only. (d) Probe 1 (20 μM), Pi (1 mM).

Conclusions

In conclusion, a functional NIR fluorescent chemodosimeter 1, bearing an oxalate moiety as a Pi responsive trigger, was developed. The optical properties of 1 were tested, and demonstrated that this sensor has high selectivity and excellent sensitivity towards Pi. The chemosensor exhibited a remarkable colorimetric change and ratiometric fluorescence enhancement in response to Pi. Furthermore, 1 was proven to be capable of imaging endogenously produced Pi as well as exogenous Pi in living Paramecium and C. elegans, demonstrating the value of our compound as an in vivo NIR fluorescent probe.

Acknowledgements

This work was supported by the Natural Science Foundation of China (21262045, 21262050, 21302165, and 21462050), the Foundation of the Department of Science and Technology of Yunnan Province of China (2013HB062, 2014HB008), and training project (XT 412004) of Yunnan University.

Notes and references

1. X. Wang, L. Cui, N. Zhou, W. Zhu, R. Wang, X. Qian and Y. Xu, Chem. Sci., 2013, 4, 2936.
2. Y. Zhou, J. F. Zhang and J. Yoon, Chem. Rev., 2014, 114, 5511–5571.
3. K. P. Divya, S. Sreejith, P. Ashokkumar, K. Yuzhan, Q. Peng, S. K. Maji, Y. Tong, H. Yu, Y. Zhao, P. Ramamurthy and A. Ajayaghosh, Chem. Sci., 2014, 5, 3469–3474.
4. X. J. Zou, Y. C. Ma, L. E. Guo, W. X. Liu, M. J. Liu, C. G. Zou, Y. Zhou and J. F. Zhang, Chem. Commun., 2014, 50, 13833–13836.
5. Y. Zhou and J. Yoon, Chem. Soc. Rev., 2012, 41, 52–67.
6. P. Mahato, A. Ghosh, S. K. Mishra, A. Shrivastav, S. Mishra and A. Das, Inorg. Chem., 2011, 50, 4162–4170.
7. Y. Zhou, Z. Xu and J. Yoon, Chem. Soc. Rev., 2011, 40, 2222–2235.
8. R. K. Pathak, V. K. Hinge, A. Rai, D. Panda and C. P. Rao, Inorg. Chem., 2012, 51, 4994–5005.
9. S. Khoshniat, A. Bourgine, M. Julien, P. Weiss, J. Guicheux and L. Beck, Cell. Mol. Life Sci., 2011, 68, 205–218.
10. A. S. Rao, D. Kim, H. Nam, H. Jo, K. H. Kim, C. Ban and K. H. Ahn, Chem. Commun., 2012, 48, 3206–3208.
11. L. E. Guo, J. F. Zhang, X. Y. Liu, L. M. Zhang, H. L. Zhang, J. H. Chen, X. G. Xie, Y. Zhou, K. Luo and J. Yoon, Anal. Chem., 2015, 87, 1196–1201.
12. H. Wang, L. E. Guo, X. M. Li, L. M. Zhang, Q. L. Xu, G. F. Wu, Y. Zhou and J. F. Zhang, Dyes Pigments, 2015, 120, 293–298.
13. J. F. Zhang, L. E. Guo, T. N. Zang, Y. L. Duan, X. Y. Liu, Z. G. Yang, P. Verwilst, K. J. Luo, G. K. Wang, J. F. Kou, Y. Zhou and J. S. Kim, Chem.–Asian J., 2015, 10, 1165–1169.
14. G. F. Wu, Q. L. Xu, L. E. Guo, T. N. Zang, R. Tan, S. T. Tao, J. F. Ji, R. T. Hao, J. F. Zhang and Y. Zhou, Tetrahedron Lett., 2015, 56, 5034–5038.
15. L. Yuan, W. Lin, Y. Yang and H. Chen, J. Am. Chem. Soc., 2012, 134, 1200–1211.
16. A. Matsui, K. Umezawa, Y. Shindo, T. Fujii, D. Citterio, K. Oka and K. Suzuki, Chem. Commun., 2011, 47, 10407–10409.
17. J. Wang, F. Song, J. Wang and X. Peng, Analyst, 2013, 138, 3667–3672.
18. A. Ajayaghosh, P. Carol and S. Sreejith, J. Am. Chem. Soc., 2005, 127, 14962–14963.
19. W. Sun, J. Fan, C. Hu, J. Cao, H. Zhang, X. Xiong, J. Wang, S. Cui, S. Sun and X. Peng, Chem. Commun., 2013, 49, 3890–3892.
20. W. Zhu, X. Huang, Z. Guo, X. Wu, H. Yu and H. Tian, Chem. Commun., 2012, 48, 1784–1786.
21. Z. Guo, W. Zhu and H. Tian, Chem. Commun., 2012, 48, 6073–6084.
22. X. Wu, X. Sun, Z. Guo, J. Tang, Y. Shen, T. D. James, H. Tian and W. Zhu, J. Am. Chem. Soc., 2014, 136, 3579–3588.
23. B. Tang, Y. Xing, P. Li, N. Zhang, F. Yu and G. Yang, J. Am. Chem. Soc., 2007, 129, 11666–11667.
24. J. Bouffard, Y. Kim, Y. M. Swager, R. Weissleder and S. A. Hilderbrand, Org. Lett., 2007, 10, 37–40.
25. M. M. Pires and J. Chmielewski, Org. Lett., 2007, 10, 837–840.
26. R. Wichterman, The Biology of Paramecium, Plenum Press, New York, 1986.
27. L. Margulis, and K. V. Schwartz, Five Kingdoms-An Illustrated Guide to the Phyla of Life on Earth, W.H. Freeman, New York, 3rd edn, 1998.
28. L. M. Zhang, L. E. Guo, X. M. Li, Y. G. Shi, G. F. Wu, X. G. Xie, Y. Zhou, Q. H. Zhao and J. F. Zhang, Tetrahedron Lett., 2014, 55, 6131–6136.
29. G. K. Wang, Q. L. Mi, L. Y. Zhao, J. J. Hu, L. E. Guo, X. J. Zou, B. Liu, X. G. Xie, J. F. Zhang, Q. H. Zhao and Y. Zhou, Chem.–Asian J., 2013, 9, 744–748.

---

Footnote

† Electronic supplementary information (ESI) available: Synthetic detail, crystal data. CCDC 1032275, job plot, detecting limiting and spectroscopic data. For ESI and crystallographic data in CIF or other electronic format see DOI: 10.1039/c5ra12835h

---
