Bo-Wei Chena,
Yang-Yih Chenbc,
You-Cheng Lina,
Chiung-Yao Huanga,
Chokkalingam Uvaraniad,
Tsong-Long Hwange,
Michael Y. Chiangf,
Ho-Yih Liug and
Jyh-Horng Sheu*ahij
aDepartment of Marine Biotechnology and Resources, National Sun Yat-sen University, Kaohsiung 804, Taiwan. E-mail: sheu@mail.nsysu.edu.tw; Fax: +886-7-525-5020; Tel: +886-7-525-2000 ext. 5030
bDepartment of Marine Environment and Engineering, National Sun Yat-sen University, Kaohsiung 804, Taiwan
cDepartment of Hydraulic and Ocean Engineering, National Cheng-Kung University, Tainan 701, Taiwan
dNational Museum of Marine Biology and Aquarium, Pingtung 944, Taiwan
eGraduate Institute of Natural Products, Chang Gung University, Taoyuan 333, Taiwan
fDepartment of Chemistry, National Sun Yat-sen University, Kaohsiung 804, Taiwan
gDepartment of Biological Sciences, National Sun Yat-sen University, Kaohsiung 804, Taiwan
hDepartment of Medical Research, China Medical University Hospital, China Medical University, Taichung 404, Taiwan
iGraduate Institute of Natural Products, Kaohsiung Medical University, Kaohsiung 807, Taiwan
jDoctoral Degree Program in Marine Biotechnology, National Sun Yat-sen University, Kaohsiung 804, Taiwan
First published on 7th October 2015
A known withanolide steroid cilistol G (1) and six new withanolides, capsisteroids A–F (2–7), were isolated from the EtOAc extract of the leaves of Solanum capsicoides. The structures of compounds 1–7 were elucidated by extensive spectroscopic analysis, including 2D NMR spectroscopy (COSY, HSQC, HMBC, and NOESY). The structure of 1 was further confirmed by a single-crystal X-ray diffraction analysis. These compounds were found not to be cytotoxic toward a limited panel of cancer cell lines. Further, the anti-inflammatory activity of compounds 1–7 was studied by measuring their ability to suppress superoxide anion generation and elastase release in fMLP/CB-induced human neutrophils.
The present study describes the isolation and structural elucidation of a known C28 ergostane-derived steroid cilistol G (1)3 and six new withanolides, capsisteroids A–F (2–7), from the leaves of S. capsicoides. Compound 1 has been previously reported as an epimeric mixture at C-26, whereas we found that 1 was initially obtained as the 26S diastereomer and its structure was further confirmed by X-ray crystallography.
Upon prolonged standing, compound 1 was gradually epimerized to 26S/R diastereomers, with the 26S isomer being the major component. The cytotoxicities of metabolites 1–7 against a variety of human tumor cell lines including human erythro myeloblastoid leukemia (K562), human acute lymphoblastic leukemia (Molt-4) and human promyelocytic leukemia (HL-60) have been studied. The abilities of 1–7 to inhibit superoxide anion generation and elastase release in fMLP/CB-induced human neutrophils were also evaluated.
The HRESIMS spectrum of 1 exhibited a quasimolecular ion peak [M + Na]+ at m/z 497.2874 corresponding to a molecular formula of C28H42O6, possessing eight degrees of unsaturation. The NMR data of 1 were found to be structurally similar to that of cilistol G isolated from S. cilistum,3 whereas we found that 1 existed initially as the 26S diastereomer from its 1H NMR spectrum (Fig. S1 in the ESI†). This is different from the previous report, in which compound 1 was demonstrated to be an C-26 epimeric mixture.3 However, 26S conformer of 1 is not stable for prolonged periods of time, and was gradually epimerized to 26R and finally reached to a 3:
1 ratio of 26S/R disatereomers, as shown in the 1H NMR spectrum (ESI S9†), which revealed the characteristic H-22 epimeric protons resonating at δ 4.32 and 4.99. Moreover, both of the 13C signals due to C-22 and C-26 appeared as split pairs; in this case signals appeared at δ 98.4 and 70.1 ppm for (26S)-1 and δ 99.1 and 74.3 ppm for (26R)-1. Nevertheless, the major 26S isomer was crystallized from MeOH–H2O (4
:

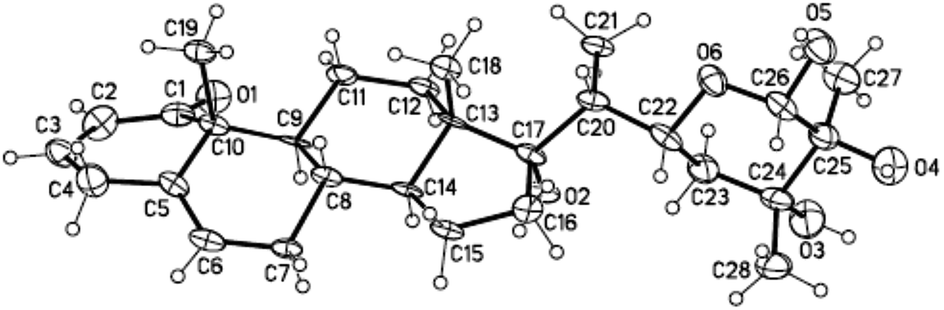

1), and its structure was confirmed by a single crystal X-ray analysis as depicted in Fig. 1.
Capsisteroid A (2) was obtained as colorless gum and its molecular formula was established as C30H44O7 based on HRESIMS, implying nine degrees of unsaturation. The 1H and 13C NMR data of 2 closely resembled those of 1, except that the hydroxyl group at C-24 in 1 was replaced by acetate in 2. This was confirmed by the upfield chemical shift of C-24 (δC 77.4) of 1, relative to that of 2 (δC 89.0). In the NOESY spectrum of 2, the correlations between H-8 with H3-19 and H3-18; H-20 with H3-18 and H-22; H-23β (δ 2.58) with H-22 and H3-28 as well as H3-28 with H-26 suggested that H-8, H3-18, H3-19, H-20, H-22, and H3-28 are β-orientated. Besides, correlations of H-23α (δ 1.76) with H3-21 and H3-27 revealed that H3-21 and H3-27 are α-oriented. Since the absolute structure of 1 has been determined,3 therefore, the structure of compound 2 was elucidated as (22R,24R,25S,26S)-1-oxo-22,26-epoxy-24-acetoxy-17α,24,25,26-tertrahydroxyergost-2,5-diene.
The HRESIMS spectrum of 3 exhibited a pseudomolecular ion peak at m/z 497.2876 [(M + Na)+], consistent with a molecular formula of C28H42O6, indicating the presence of eight degrees of unsaturation. The spectroscopic data of 3 (IR, 1H and 13C NMR) were similar to those of 1, but showed a difference in the double bond position. The HMBC (Fig. 2) correlations from H-2α/H-2β (δ 2.65/3.37) to C-1 (δ 213.3) and H-3 (δ 5.62) to C-1 (δ 213.3) indicated that there was a Δ3,4 double bond in 3 (δH 5.62; δC 122.7 and δH 6.06; δC 130.5), instead of the Δ2,3 double bond in compound 1. The structure of 3 was unambiguously determined by extensive analysis of COSY and HMBC (Fig. 2) correlations. A structurally-related metabolite, capsisteroid C (4), was also isolated as a colorless gum with a molecular formula of C30H44O7, implying nine degrees of unsaturation. The NMR data of compound 4 differed from those of 3, only by the absence of the hydroxy group at C-24 and the presence of additional signals of an acetate functionality (δH 2.03; δC 22.1, and 173.2). This was supported by the upfield shift of C-24 (δC 75.2) and H3-28 (δH 1.32) of 3 relative to that of 4 (δC 88.9, C-24; δH 1.62, H3-28) and the HMBC correlations from H3-28 (δ 1.62, s) to C-23 (δ 38.7, CH2), C-24 (δ 88.9, C), and C-25 (δ 76.5, C). A detailed analysis of the 1H and 13C NMR spectroscopic data and the detected 2D correlations in the COSY and HMBC spectra led to the establishment of the molecular framework of 4.
The molecular formula of capsisteroid D (5) was established as C28H44O8 by HRESIMS (m/z 531.2931 [M + Na]+) which showed the molecule to have seven degrees of unsaturation. Comparison of the NMR data of 5 with those of 1 revealed that in 5 two hydroxy groups have been added across the Δ5,6 double bond in 1. This was further evidenced by the HMBC correlations observed from H-3 (δH 6.64) and H3-19 (δH 1.30) to C-5 (δC 78.4) and COSY correlations from H-6 (δ 3.52) to H2-7 (δ 1.73/1.55). Thus, the planar structure of 5 was established. In the NOESY spectrum of 5 (Fig. 3), the NOE correlations between H3-19 with H-8 and H-4β (δ 3.32) suggested that H-8 and H3-19 are β-orientated. Also, correlations of H-6 with H-4α (δ 2.04) and H-7α (δ 1.73); H-9 with H-7α suggested that 5-OH, H-6 and H-9 are α-oriented. Further analysis of the NOE interactions revealed that 5 possessed the same relative configurations at C-13, C-14, C-17, C-20, C-22, C-24, C-25, and C-26 as those of 1.
Capsisteroid E (6) was obtained as a white powder with a pseudomolecular ion peak at m/z 513.2820 [M + Na]+ in the HRESIMS spectrum, corresponding to a molecular formula of C28H42O7. Comparison of the NMR data of 6 with those of 1 (Tables 1–3) indicated that the Δ5,6 double bond in 1 was migrated to Δ4,5 and the presence of an additional oxygen-bearing methine (δH 4.54; δC 74.7) in 6. The HMBC correlations of H-4 (δ 6.23) to C-6 (δC 74.7) along with the COSY cross peaks of H-3/H-4 and H-6/H-7 enabled the establishment of the Δ4,5 double bond and C-6 hydroxy group, respectively. The relative configuration of 6 was determined from the NOESY spectrum, in which correlations of H-6 with H-7α (δ 1.22) and H-7α with H-9 suggested that H-6 is α-orientated. In addition, the NOE cross peaks of H-8 with H3-19 and H-7β (δ 2.02) with H-8 suggested the β-orientation of H-8. Thus, the structure of 6 was established as shown.
Position | 1a | 1b | 2a | 3a | 4a | 5a | 6a | 7a |
---|---|---|---|---|---|---|---|---|
a 100 MHz in methanol-d4.b 100 MHz in pyridine-d5.c Multiplicities deduced by DEPT.d Chemical shift data correspond to the major epimer (26S). Distinct resonances for the 26R epimer observed in the spectrum of the epimeric mixture are shown in brackets. | ||||||||
1 | 206.9, Cc | 203.9, C | 207.0, C | 213.3, C | 213.0, C | 207.6, C | 208.1, C | 204.4, C |
2 | 128.3, CH | 127.9, CH | 128.4, CH | 40.7, CH2 | 40.7, CH2 | 129.1, CH | 126.7, CH | 133.4, CH |
3 | 148.1, CH | 145.8, CH | 148.3, CH | 122.7, CH | 122.8, CH | 143.8, CH | 142.9, CH | 145.3, CH |
4 | 34.4, CH2 | 33.6, CH2 | 34.6, CH2 | 130.5, CH | 130.4, CH | 36.6, CH2 | 118.6, CH | 71.3, CH |
5 | 137.3, C | 136.4, C | 137.5, C | 142.6, C | 142.6, C | 78.4, C | 160.7, C | 64.9, C |
6 | 125.8, CH | 124.9, CH | 126.0, CH | 128.1, CH | 128.1, CH | 75.3, CH | 74.7, CH | 61.4, CH |
7 | 32.0, CH2 | 31.3, CH2 | 32.2, CH2 | 32.2, CH2 | 32.2, CH2 | 34.2, CH2 | 42.2, CH2 | 32.8, CH2 |
8 | 34.9, CH | 33.7, CH | 35.0, CH | 33.2, CH | 33.3, CH | 31.6, CH | 32.2, CH | 31.6, CH |
9 | 44.4, CH | 43.3, CH | 44.5, CH | 42.3, CH | 42.3, CH | 42.3, CH | 51.1, CH | 45.6, CH |
10 | 51.8, C | 50.8, C | 51.9, C | 53.5, C | 53.4, C | 53.0, C | 55.8, C | 49.8, C |
11 | 37.7, CH2 | 37.4, CH2 | 37.8, CH2 | 37.7, CH2 | 37.7, CH2 | 37.7, CH2 | 37.7, CH2 | 37.9, CH2 |
12 | 33.5, CH2 | 32.9, CH2 | 33.7, CH2 | 33.4, CH2 | 33.4, CH2 | 33.9, CH2 | 33.3, CH2 | 33.2, CH2 |
13 | 49.2, C | 48.2, C | 49.3, C | 49.4, C | 49.4, C | 49.8, C | 49.5, C | 49.8, C |
14 | 51.6, CH | 50.7, CH | 51.8, CH | 51.6, CH | 51.6, CH | 51.0, CH | 51.3, CH | 51.7, CH |
15 | 24.6, CH2 | 24.0, CH2 | 24.8, CH2 | 24.6, CH2 | 24.6, CH2 | 24.6, CH2 | 22.2, CH2 | 22.3, CH2 |
16 | 24.7, CH2 | 24.2, CH2 | 24.8, CH2 | 23.4, CH2 | 23.4, CH2 | 24.3, CH2 | 24.8, CH2 | 24.9, CH2 |
17 | 86.6, C | 85.0, C | 86.6, C | 86.6, C | 86.4, C | 86.7, C | 86.2, C | 86.5, C |
18 | 15.4, CH3 | 15.3, CH3 | 15.6, CH3 | 15.4, CH3 | 15.6, CH3 | 15.8, CH3 | 15.5, CH3 | 15.2, CH3 |
19 | 19.5, CH3 | 19.0, CH3 | 19.3, CH3 | 20.8, CH3 | 20.8, CH3 | 16.2, CH3 | 19.1, CH3 | 17.0, CH3 |
20 | 44.8, CH | 44.2, CH | 45.0, CH | 44.8, CH | 44.8, CH | 44.9, CH | 44.8, CH | 44.9, CH |
21 | 10.3, CH3 | 10.7, CH3 | 10.3, CH3 | 10.3, CH3 | 10.1, CH3 | 10.3, CH3 | 10.3, CH3 | 10.4, CH3 |
22 | 74.9, CH | 70.1 [74.3]d CH | 74.4 [69.9] CH | 74.9 [70.6] CH | 74.3 [69.9] CH | 74.9 [69.4] CH | 74.8 [70.2] CH | 75.0 [70.6] CH |
23 | 40.8, CH2 | 41.1, CH2 | 38.8, CH2 | 40.7, CH2 | 38.7, CH2 | 40.8, CH2 | 40.7, CH2 | 40.9, CH2 |
24 | 77.4, C | 77.3 [75.3] C | 89.0, C | 75.2, C | 88.9, C | 77.4, C | 77.4, C | 77.6, C |
25 | 75.2, C | 77.3 [74.4] C | 76.6, C | 77.5, C | 76.5, C | 75.2, C | 75.2, C | 75.3, C |
26 | 97.7, CH | 98.4 [99.1] CH | 97.2 [99.8] CH | 97.7 [99.3] CH | 97.1 [99.2] CH | 97.7 [99.2] CH | 97.7 [99.2] CH | 97.9 [99.2] CH |
27 | 14.9, CH3 | 16.2, CH3 | 15.7, CH3 | 14.9, CH3 | 15.6, CH3 | 14.9, CH3 | 14.9, CH3 | 15.0, CH3 |
28 | 22.7, CH3 | 22.6 [23.8] CH3 | 19.3, CH3 | 22.7, CH3 | 19.1, CH3 | 22.7, CH3 | 22.7, CH3 | 22.8, CH3 |
24-OAc | 173.4, C | 173.2, C | ||||||
22.3, CH3 | 22.1, CH3 |
Position | 1a | 1b | 2a | 3a |
---|---|---|---|---|
a Spectra recorded at 400 MHz in methanol-d4 at 25 °C.b Spectra recorded at 400 MHz in pyridine-d5 at 25 °C.c J values in Hz in parentheses.d Chemical shift data correspond to the major epimer (26S). Distinct resonances for the 26R epimer observed in the spectrum of the epimeric mixture are shown in bracket. | ||||
2 | 5.80, d (10.0)c | 5.98, dd (9.6, 2.4) | 5.82, dd (10.0, 2.8) | 3.37, d (20.0) |
2.65, dd (20.0, 4.8) | ||||
3 | 6.89, br d (10.0) | 6.73, br d (9.6) | 6.92, ddd (10.0, 5.2, 2.8) | 5.62, dt (8.8, 4.8) |
4 | 3.33, br d (20.8) | 3.22, br d (21.2) | 3.36, br d (22.0) | 6.06, d (8.8) |
2.86, br d (20.8) | 2.72, br d (21.2) | 2.88, dd (22.0, 5.2) | ||
6 | 5.61, br s | 5.49, br s | 5.62, br d (6.0) | 5.67, br d (3.6) |
7 | 2.00, m | 1.87, m | 2.00, m | 2.19, m |
1.57, m | 1.45, m | 1.59, m | 1.65, m | |
8 | 1.47, m | 1.35, m | 1.46, m | 1.57, m |
9 | 1.55, m | 1.78, m | 1.55, m | 1.73, m |
11 | 2.03, m | 2.09, m | 2.17, m | 2.03, m |
1.68, m | 1.96, m | 1.70, m | 1.69, m | |
12 | 1.77, m | 2.22, m | 1.76, m | 1.76, m |
1.64, m | 1.81, m | 1.63, m | 1.63, m | |
14 | 1.74, m | 2.07, m | 1.72, m | 1.76, m |
15 | 1.55, m | 2.52, m | 1.53, m | 1.69, m |
1.16, m | 1.55, dd (12.8, 3.2) | 1.18, m | 1.17, m | |
16 | 2.18, m | 1.66, m | 2.00, m | 1.78, m |
1.71, m | 1.11, dd (12.0, 5.6) | 1.59, m | 1.39, m | |
18 | 0.82, s | 0.83, s [0.82, s]d | 0.82, s | 0.82, s |
19 | 1.24, s | 1.23, s | 1.24, s | 1.38, s |
20 | 2.09, m | 2.44, m [2.41, m] | 2.12, qd (7.2, 2.8) | 2.09, m |
21 | 1.01, d (6.4) | 1.40, d (7.2) | 1.00, d (7.2) | 1.00, d (6.8) |
22 | 3.82, d (11.2) | 4.32, d (12.4) [4.99 d (12.0)] | 3.81, br d (12.4) | 3.82, d (12.0) [4.60, d (12.0)] |
23 | 1.80, m | 2.54, m | 2.58, ddd (13.2, 12.4, 1.6) | 1.83, m |
1.71, m | 2.37, m | 1.76, d (13.2) | 1.69, m | |
26 | 4.61, s | 5.49, s [5.59, s] | 4.63, s | 4.61, s |
27 | 1.21, s | 1.87, s [1.93, s] | 1.22, s | 1.21, s |
28 | 1.32, s | 2.13, s [2.02, s] | 1.62, s | 1.32, s |
24-OAc | 2.04, s |
Position | 4a | 5a | 6a | 7a |
---|---|---|---|---|
a Spectra recorded at 400 MHz in methanol-d4 at 25 °C.b J values in Hz in parentheses.c Chemical shift data correspond to the major epimer (26S). Distinct resonances for the 26R epimer observed in the spectrum of the epimeric mixture are shown in brackets. | ||||
2 | 3.37, d (19.6)b, 2.65, dd (19.6, 4.4) | 5.77, dd (10.0, 2.8) | 5.98, d (9.6) | 6.17, d (10.0) |
3 | 5.62, dd (9.6, 4.4) | 6.64, ddd (10.0, 5.2, 2.0) | 7.09, dd (9.6, 6.0) | 7.06, dd (10.0, 6.5) |
4 | 6.06, d (9.6) | 3.32, dt (20.0, 2.4), 2.04, dd (20.0, 5.2) | 6.23, d (6.0) | 3.65, d (6.5) |
6 | 5.67, br d (3.6) | 3.52, br s | 4.54, br s | 3.16, br s |
7 | 2.19, m | 1.73, m | 2.02, m | 2.12, m |
1.69, m | 1.55, m | 1.22, m | 1.34, m | |
8 | 1.59, m | 1.79, m | 2.08, m | 1.43, m |
9 | 1.72, m | 1.78, m | 1.66, m | 0.83, m |
11 | 2.03, m | 2.00, m | 2.03, m | 2.01, m |
1.70, m | 1.68, m | 1.68, m | 1.68, m | |
12 | 1.77, m | 1.76, m | 1.66, m | 1.58, m |
1.62, m | 1.57, m | 1.55, m | 1.52, m | |
14 | 1.76, m | 1.81, m | 1.64, m | 1.59, m |
15 | 1.72, m | 2.24, m | 1.81, m | 1.69, m |
1.22, m | 1.69, m | 1.54, m | 1.23, m | |
16 | 1.78, m | 1.35, m | 1.68, m | 1.49, m |
1.38, m | 1.19, m | 1.23, m | 1.15, m | |
18 | 0.82, s | 0.84, s | 0.88, s | 0.78, s |
19 | 1.38, s | 1.30, s | 1.46, s | 1.37, s |
20 | 2.12, m | 2.10, m | 2.09, m | 2.06, m |
21 | 1.00, d (6.8) | 1.01, d (7.2) | 0.99, d (6.0) | 0.98, d (7.0) |
22 | 3.81, d (12.4) [4.32, d (11.9)]c | 3.83, d (12.0) [4.33, d (12.0)] | 3.81, dt (12.0, 2.8) [4.30, d (12.1)] | 3.80, m [4.30, m] |
23 | 2.58, ddd (14.0, 12.4, 2.4) | 1.84, m | 1.69, m | 1.78, m |
1.75, m | 1.70, m | 1.79, m | 1.68, m | |
26 | 4.63, s | 4.61, s | 4.60, s | 4.60, s |
27 | 1.22, s | 1.22, s | 1.21, s | 1.20, s |
28 | 1.62, s | 1.33, s | 1.32, s | 1.32, s |
24-OAc | 2.03, s |
Capsisteroid F (7), was also isolated as a white powder with a molecular formula of C28H42O8, as revealed from its HRESIMS (m/z 529.2773 [M + Na]+), implying eight degrees of unsaturation. The NMR spectroscopic data of 7 (Tables 1 and 3) indicated that it is structurally similar to 1, with the difference being the presence of an epoxide in 7, rather than a Δ5,6 double bond in 1. In addition, a hydrogen atom at C-4 in 1 was replaced by a hydroxy group. This suggested structure was further confirmed by the HMBC correlations of H-2 (δ 6.17) to C-4 (δ 71.3), H3-19 (δ 1.37), H-6 (δ 3.16) to C-5 (δ 64.9), C-8 (δ 31.6) and C-10 (δ 49.8), and H-4 (δ 3.65) to C-5, along with the COSY correlations of H-3 (δ 7.06) and H-4, and the epoxy proton H-6 and H-7 (δ 2.12). In the NOESY spectrum, correlations of H-8/H3-19 and H-7β (δ 2.12)/H-8 suggested that H-8 and H3-19 are β-orientated. Besides, NOE correlations of both H-4 and H-6 with H-7α (δ 1.34) suggested that H-4 and H-6 are α-oriented. 1H and 13C NMR spectroscopic data for compound 7 were assigned from the above results and the supporting evidence from DEPT, HSQC, and HMBC spectral studies.
Compounds 2–7 showed characteristic H-22 epimeric protons in the 1H NMR spectrum and the pair of signals observed for C-22 and C-26 in the 13C NMR spectrum revealed that all of these compounds appeared as C-26 epimeric mixtures, similar to that of 1.
The cytotoxicity of compounds 1–7 against the proliferation of a limited panel of cancer cell lines, including human erythro myeloblastoid leukemia (K562), human acute lymphoblastic leukemia (Molt-4) and human promyelocytic leukemia (HL-60), was evaluated. However, none of the compounds showed any appreciable cytotoxicity at 20 μM. The in vitro pro-inflammatory activities of compounds 1–7 were evaluated by suppressing N-formyl-methionyl-leucyl-phenyl-alanine/cytochalasin B (fMLP/CB)-induced superoxide anion (O2−˙) generation and elastase release in human neutrophils. As shown in Table 4, compounds 1, 2 and 6 were found to inhibit superoxide anion generation (20.9 ± 2.3, 21.1 ± 6.8 and 34.0 ± 3.1%, respectively) at a concentration of 10 μM. On the other hand, compounds 1, 2, 5 and 6 showed some inhibition toward elastase release in the same fMLP/CB-stimulated cells at the same concentration.
Compound | Superoxide anion | Elastase release | ||
---|---|---|---|---|
Inha% | Inh% | |||
a Percentage of inhibition (Inh%) at 10 μM concentration. Results are presented as mean ± S.E.M. (n = 3 or 4). *P < 0.05, **P < 0.01, ***P < 0.001 compared with the value.b Positive control. | ||||
1 | 20.9 ± 2.3 | *** | 19.2 ± 5.3 | * |
2 | 21.1 ± 6.8 | * | 15.8 ± 3.7 | * |
3 | 13.2 ± 2.9 | ** | 10.3 ± 5.1 | |
4 | 11.2 ± 5.1 | 11.5 ± 6.1 | ||
5 | 7.4 ± 3.8 | 26.9 ± 6.6 | * | |
6 | 34.0 ± 3.1 | *** | 15.6 ± 5.5 | * |
7 | 7.9 ± 0.3 | *** | 11.1 ± 3.0 | * |
LY294002b | 100.3 ± 2.5% | *** | 90.6 ± 5.1% | *** |
Footnote |
† Electronic supplementary information (ESI) available: NMR spectra data for new compounds 1–7. CCDC 1057315. For ESI and crystallographic data in CIF or other electronic format see DOI: 10.1039/c5ra12014d |
