A tyrosine-rich peptide induced flower-like palladium nanostructure and its catalytic activity

Abstract

A specifically designed peptide, Tyr-Tyr-Ala-His-Ala-Tyr-Tyr (YYAHAYY), induced the formation of a flower-like palladium (Pd) nanostructure by controlling the size and shape of nanoparticles (NPs). The flower-shaped Pd NPs showed excellent catalytic activities in copper-free Sonogashira cross-coupling reaction in water.

---

Nature determines protein structures by arranging amino acid sequences through genetic controls. The protein tertiary structures can control the exquisite sizes and morphologies of inorganic hybrid structures with high reproducibility under physiological conditions.¹ For example, homogeneous iron oxide nanoparticles (NPs) (about 8–9 nm) are formed inside hollow polypeptide ferritin shells.² We speculated that not only the self-assembly of peptides but also the interaction between the peptides and metal ions is a key factor in fabricating organic–inorganic hybrid nanostructures. By mimicking this biological process, various metal (Au,^3–5 Ag,^6–8 Pd,^9–11 Pt ^12–14 and Cu^15,16) NPs have been developed by using peptide templates with controllable geometrical, physical and chemical parameters. However, understanding the design rule for peptide sequences still remains a challenge.

We designed a heptapeptide, Tyr-Tyr-Ala-His-Ala-Tyr-Tyr (YYAHAYY) (Tyr-H7mer), to synthesize Pd NPs under ambient conditions. In our previous study,¹⁷ we reported that Tyr-containing peptides could be assembled into several nanostructures and at least two consecutive Tyrs were necessary for the peptide assembly. The Tyr also has a potential as a bio-catalyst due to its redox active property.¹⁸ To control the size and stability of Pd NPs, His was inserted at the center of the peptide sequence. His can coordinate with several transition metal ions and nucleate the formation of metal NPs.¹⁹ We inserted His between the two Tyrs to control the size of Pd NPs by the peptide folding. As it turned out, Pd NPs (4–5 nm size) with flower shapes can be synthesized by Tyr-H7mer in water.

Among numerous metals, Pd has attracted much interest as an excellent catalyst for C–C cross coupling reactions, which are key reactions to produce fine chemicals such as dyes, pharmaceutical and agricultural intermediates, and so on.²⁰ The Pd catalysts can be used in the form of Pd²⁺ coordinated with ligands or metallic Pd⁰. Regarding Pd NP catalysts in particular, it is essential to precisely control the surface morphology of Pd nanostructures to improve the catalytic activity.²¹ Here, we apply a biomimetic synthesis of Pd NPs using a newly designed peptide template. The resulting Pd NPs were used as eco-friendly heterogeneous catalysts for copper-free Sonogashira C–C cross coupling reactions. The catalytic reaction was performed in an aqueous medium and under mild conditions (65–75 °C) with high conversion.

Fig. 1a illustrates the scheme for the formation of Pd nanoflowers with Tyr-H7mer. Pd²⁺ ions are coordinated with His residues of Tyr-H7mer in water, resulting in peptide folding. We found that the hydrophobic nature of the Tyr-H7mer/Pd²⁺ complex accelerated the peptide assembly and the Pd²⁺ ions were gradually reduced to Pd NPs. During the reduction process by ascorbic acid as a reducing agent, the color of the Tyr-H7mer/Pd solution turned from pale yellow to dark brown. The UV/vis spectra also showed the absorption changes during the formation of Pd NPs by Tyr-H7mer in water (Fig. S1 in ESI†). As shown in Fig. S1,† the absorbance peak of Pd²⁺ at 207 nm gradually decreased and broadened during the formation of the Pd NPs.

Fig. 1 (a) Schematic illustration of the formation of Pd nanoflowers covered by peptides. (b–f) HR-TEM/EDS mapping images of Pd NFs. The homogeneous distributions of palladium (c), nitrogen (d), oxygen (e) and merged one (f). (g) TEM images of Pd nanoflowers obtained by using the Tyr-H7mer as a template without reducing agent.

Transmission electron microscopy (TEM) analysis revealed that uniform sized Pd NPs (4–5 nm) were assembled into flower-like shapes with our heptapeptides (Fig. 1b). The EDS elemental mapping showed the distributions of Pd, N and O on the surface of Pd nanoflowers (NFs) (Fig. 1c–f). Interestingly, the final morphologies of Pd NPs seemed to be dependent on the central amino acid in our peptide sequence. When His was substituted with Ala to produce YYAAAYY (Tyr-A7mer), irregular shaped Pd nano-aggregates were formed (Fig. S2†). His could play an important role in peptide assembly with Pd²⁺ ions because the imidazole group of His can bind strongly with metal ions. Thus, the His residues of the peptides provided the nucleation sites for Pd NFs formation before nucleation and growth of Pd NPs.¹⁰ The sizes of Pd NFs were between 39 and 100 nm, with an average of 66 nm ± 5 nm (Fig. S3†). The Pd NPs could also be formed without adding any reducing agents. However, it took a very long time to form Pd NFs (4 weeks at room temperature) (Fig. 1c). This seems to be related to the weak reducing activity of Tyr residues.²²

The Pd NF was further characterized by high resolution transmission electron microscopy (HR-TEM) and powder X-ray diffraction (XRD) to identify the structure (Fig. 2). The lattice structure of a single Pd particle in the Pd NF indicates the (111) plane of Pd (d-spacing at 0.23 nm) (Fig. 2b and S4†). The Powder XRD pattern shows the crystallinity of Pd NFs. As shown in Fig. 2c, peaks at 40.1°, 46.8°, 68°, 82.2°, and 86.4° correspond to the results indexed to the (111), (200), (220), (311), and (222) lattice planes of face-centered cubic (fcc) Pd.²³

Fig. 2 (a) HR-TEM image of Pd nanoflowers. (b) HR-TEM image recorded from the particle (ca. 4 nm) marked by a red square in (a). (c) PXRD pattern of the Pd nanoflower. Pd peaks are indicated with a star (*).

The assembly mechanism for Tyr-H7mer during the formation of Pd NFs was identified by circular dichroism (CD) and Fourier transform-infrared (FT-IR) spectroscopy (Fig. 3a). The richness of Tyr residues in our peptide sequence affected the entire pattern of the CD spectra.¹⁷ The positive peaks at 202 and 227 nm are originated from the contributions of the phenolic side chains of the Tyr residues. After adding Pd²⁺, the peak at 227 nm increased positively and was slightly red-shifted. The peak shifts of the Tyr residues indicate that Pd²⁺ ions are involved in peptide ordering.^24,25 The negative peak at 190 nm was reduced and shifted to 195 nm. It seems that the alpha helical conformation of Tyr-H7mer is affected by Pd²⁺ mediated peptide assembly. In addition, the amide I band region (Fig. 3b, 1600–1700 cm⁻¹) was analysed to identify any conformational changes of the Tyr-H7mer during the assembly process.^26,27 As shown in Fig. 3b, the alpha helical peak at 1670 cm⁻¹ was shifted to 1633 cm⁻¹, which corresponds to the beta sheet structure. After the reduction of Pd²⁺, the 1633 cm⁻¹ peak was shifted slightly to 1628 cm⁻¹.

Fig. 3 (a and b) Spectroscopic data for confirming peptide structural changes. Peptide, Pd²⁺/peptide complex, and reduced Pd NF produced by using peptide are indicated by line, dotted line, and dash line, respectively. (a) CD spectra of peptide changed by each steps (b) the FTIR spectra of peptide changed by each step. Amide I band peaks are marked with star (*). Histidine-related peaks are marked with circle (●) (c) proposed mechanism based on FTIR data focusing on interaction between Pd²⁺ and histidine residue in peptide.

We could also confirm the interaction between the His residue and the Pd²⁺ ion by analysing FT-IR spectra of various protonated forms of the His side chain (imidazole group).²⁸ The His peak (HisH₂⁺) at 1635 cm⁻¹ of free Tyr-7Hmer in water was shifted to 1578 cm⁻¹ after the formation of Pd NFs, indicating the removal of one proton from HisH₂⁺. Afterward, the reduction of Pd²⁺ caused the peak to further shift to 1562 cm⁻¹. It may be possible that the His residue interacts with the closest His residue in the vicinity to produce dimers connected by hydrogen bonds. Considering all these, we believe that the Tyr-H7mer can act as a template for organizing the Pd²⁺ ions to form Pd NFs.

For atom efficiency and sustainability, a mild reaction condition for the Sonogashira cross-coupling reaction without using Cu(I) co-catalysts and phosphine ligands has been pursued. Fortunately, the Pd NFs have ideal properties as a catalyst for the Sonogashira cross-coupling reaction under ambient aerobic conditions; accelerating oxidative addition of Pd⁰ with aryl halide by peptide ligand having steric and proper electronic property,²⁹ and enhancing the formation of arylalkenylpalladium species.³⁰

As shown in Table 1, a copper-free Sonogashira cross-coupling reaction catalyzed by Pd NFs was successfully performed in an aqueous condition. Coupling reactions of iodobenzene with two different alkynes (1-phenylacetylene and 1-ethyne-1-cyclohexanol) generated the corresponding products in 96% and 81% yields, respectively (entries 1 and 2). The catalyst was reused at least 4 times without structural collapse and significant loss of activity for the reaction with 1-phenylacetylene (Fig. S5†); the yields were over 91% during the recycling. This catalytic system worked very well even though electron withdrawing substituents exist in the phenyl ring for the coupling reaction (entry 3). Three types of aryl iodides were reacted with phenylacetylene, producing the corresponding cross-coupling products in high yields over 93% (entries 1 and 3, 4). Furthermore, the Pd NFs performed well in coupling reactions with heteroatom containing alkyne affording high yield (entry 5). Thus, we proved that the Sonogashira cross-coupling reaction was widely tolerable with various aryl iodides in the water system. These results are in good agreement with the previous report that stabilizer and supporting materials around Pd⁰ can prevent undesired aggregates and improved catalytic performance.³¹ In addition, the Glaser-type oxidative homocoupling side-reaction could be avoided due to not using copper salt.

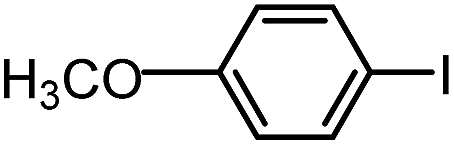

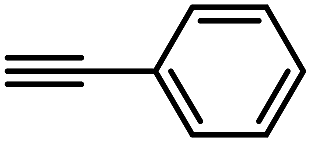

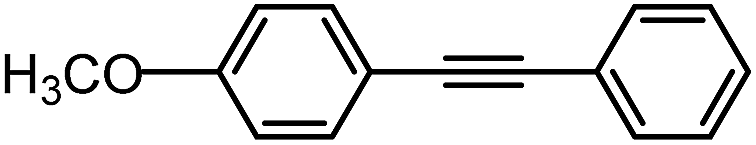

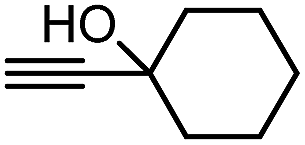

Table 1 Aqueous copper-free Sonogashira cross-coupling reaction using Pd NFs^a

Entry	Aryl halide	Alkyne	Product	Yield^b (%)
a Reactions were performed using 0.5 mmol substrate, 2.5 eq. triethylamine, and 0.5 mol% Pd NFs in water (10 mL).b Determined by GC-MS through the corrected normalization of peak areas.
1				96
2				81
3				97
4				93
5				82

---

In summary, we present a simple method for preparation of Pd nanostructure with a flower-like morphology using the Tyr-H7mer peptide template. The peptide folding and the interaction of Pd ions with His residues in the Tyr-H7mer are crucial for the nucleation and growth of Pd NPs to the Pd NFs. The Pd NFs are very reactive in copper-free Sonogashira cross-coupling reactions in an eco-friendly water solvent system. We demonstrate that controlling the morphology of metal NPs by redox active peptide is a novel method to fabricate a new type of metal–peptide hybrid catalysts.

Acknowledgements

This work was supported by Samsung Research Funding Center of Samsung Electronics under Project Number SRFC-MA1401-01.
