Tuning the oxygen functional groups in reduced graphene oxide papers to enhance the electromechanical actuation

Abstract

The superior mechanical flexibility, mechanical strength, electrical conductivity, high specific surface area, and a special two-dimensional crystalline structure make graphene a very promising building block material for flexible electromechanical actuators. However, graphene papers have exhibited limited electromechanical actuation strain in aqueous electrolyte solution. In this paper, we show an easy approach to significantly improve the electromechanical actuation of reduced graphene oxide (rGO) papers via fine tuning the oxygen functional groups in rGO sheets, which was achieved by careful control of quantity of the reduction agent used in the chemical reduction process of graphene oxide. The actuation strains are enhanced up to 0.2% at an applied voltage of −1 V, which is more than a 2 fold increase compared to the regular pristine rGO paper. Further theoretical and experimental analyses reveal that the change of the capacitance and the stiffness of the rGO papers are two key factors responsible for the observed improvement.

---

1 Introduction

In the past decades, direct conversion of electrical energies into a mechanical output at small length scales has been a topic of great interest and is being investigated along a diverse range of applications, including sensors and switches,^1,2 micromanipulators,³ memory chips,⁴ artificial muscles.^5,6 An ideal actuation material should exhibit a high operation efficiency, namely a large strain output for a low power input, along with the capability of rapidly switching between different modes with a high level of precision and a long life time. Despite their high response rate, the widely used piezoelectric ceramics have drawbacks in the requirement of a high driving voltage⁷ and a limited strain output. In the case of polymer based materials, the limited life cycle and the low response rate^8,9 are the main hurdles for their practical implementations.

Recent studies show that carbon nanotube and graphene based materials are promising actuators in artificial muscles and micro/nano-electromechanical systems.^10–13 Particularly, the actuation performance of graphene has been anxiously studied with expectations of revolutionising the advanced actuator systems along different actuation schemes.^14–20 The studies conducted up to date show promising results. Liang et al. showed that a graphene paper (composed of well aligned multilayers of rGO sheets) was capable of achieving electromechanical strain values close to 0.064% at a low operation voltage (−1 V) due to the formation of the electrical double layer (EDL) in an aqueous electrolyte.¹⁴ They also found that introduction of nanoparticles increased interlayer spacing of the graphene sheets and allowed a better development of the EDLs, hence enhancing the actuation strain to 0.1%.¹⁴ Note that among the available techniques to maintain the interlayer distances, controlling the hydration of the corrugated rGO sheets stands out as it can realise a tunable interlayer spacing without the introduction of any alien particles nor additional synthesis steps. This technique has been developed and successfully applied to synthesis high performance graphene hydrogel papers in supercapacitors.²¹

In addition to the efforts of increasing the interlayer spacing of rGO sheets in the papers, another route to enhance the electromechanical strain is chemical modification. Xie et al.^22,23 modified the surface of rGO papers using oxygen plasma treatment and observed an electromechanical strain value close to 0.4% in aqueous electrolyte. Ab intio simulations reported that some rGO crystal structures had a far greater actuation performance than what has been discovered. A specific ordered rGO crystal structure is predicted to have a strain of up to ∼10%⁶ and an irreversible strain value of 28%.²⁴ A complete understanding of the involved mechanisms and identifying the extent of the influence by the key parameters involved would help us optimize the rGO structure to reach these predicted performance levels. However, the failure to identify the involved mechanisms and parameters has brought the development of rGO actuators and their implementation in MEMS/NEMS to an abrupt stop.

The recent advance of rGO synthesis techniques show that the oxygen content in rGO sheets can be well controlled by using different amounts of reduction agent in the synthesis process without any additional post treatment steps.^25,26 He et al. found that at a weight ratio of hydrazine over graphene oxide (GO) R_w > 0.2, fine tuning of the rGO molecular structures can be achieved without causing any major disruptions to the integrity of the rGO sheets. This method can promote uniformity and integrity of the obtained rGO papers in comparison with those fabricated using the post treatment processes.

In this paper, we used three different weight ratios of hydrazine over GO in the chemical reduction process, i.e., R_w = 1.72, 0.52, and 0.34 to study the effect of oxygen functionality on electromechanical actuation in an aqueous electrolyte. The obtained products are referred to as R_w 1.72 rGO, R_w 0.52 rGO, and R_w 0.34 rGO, respectively. Using these obtained rGO solutions, three types of rGO hydrogel papers were fabricated. A dry graphene paper at R_w = 1.72 was also fabricated as a reference. We observe that electromechanical actuation of the R_w 0.52 and R_w 0.34 rGO hydrogel papers exhibit significantly enhanced actuation strains in comparison with the R_w 1.72 rGO hydrogel and dry papers. An in-depth theoretical analysis and experimental results reveal a relationship among the electromechanical strain, the electrochemical capacitance and mechanical stiffness of the papers. The knowledge gained in this study will be useful for designing of rGO paper actuators to achieve optimal electromechanical actuation performances.

2 Results and discussion

The graphene oxide dispersion was fabricated using methods reported before.^27,28 In the chemical reduction process, the reduction level of the rGO sheets was controlled by managing the quantity of the hydrazine reduction agent, following the procedures reported by He et al.²⁵ To achieve a maximum level of reduction, hydrazine (35 wt% in water) with a weight ratio value of R_w = 1.72 was mixed to GO dispersion and the chemical reduction was conducted at 100 °C for 3 h. Controlled reduction of GO dispersion was conducted at 100 °C for 2 h by using the amount of hydrazine at R_w = 0.52 and R_w = 0.34. Note that the systematic study from He et al. shows similar rGO density (mass remaining percentage) at these three levels of reduction.²⁵ The rGO dry and hydrogel papers at specified reduction levels were synthesised via vacuum filtration following a procedure reported in ref. 21 and 29. To avoid losing water molecules, the hydrogel papers were removed from the filtration chamber when no free dispersion of rGO sheets was visible in the rGO solution, and were immediately immersed in water. A longer filtration time of about 8 hours was used for the R_w 1.72 rGO solution to completely remove water molecules in the system, yielding the R_w 1.72 rGO dry paper. It was reported that trapped water molecules could prevent the re-stacking of rGO sheets in the hydrogel papers, leading to a higher interlayer spacing.³⁰ Three different types of hydrogel papers with varying reduction levels were obtained, i.e., R_w 1.72 rGO, R_w 0.52 rGO, and R_w 0.34 rGO hydrogel papers. Fig. 1 shows the SEM images of the cross-sectional views of hydrogel papers, which were freeze dried prior to being transferred into a vacuum chamber of SEM. The rGO sheets are well aligned in these papers. Some structural corrugations can be seen. Note that there is no visible structural difference for these three types of rGO papers, indicating that the different reduction levels of the rGO sheets have no significant effects on the microstructure of the obtained papers.

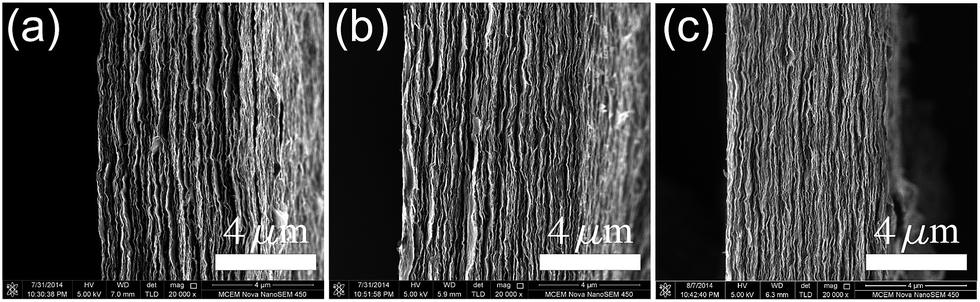

Fig. 1 Cross-section SEM images of (a) a R_w 1.72 rGO hydrogel paper, (b) a R_w 0.52 rGO hydrogel paper, and (c) a R_w 0.34 rGO hydrogel paper. These papers were freeze dried before being transferred into a vacuum chamber of SEM.

To characterise the chemical functional groups in the rGO sheets, five different methods were employed, i.e., contact angle measurement, Fourier transform of infrared spectroscopy (FTIR), X-ray photoelectron spectroscopy (XPS), Raman spectroscopy, and energy-dispersive X-ray spectroscopy (EDX).

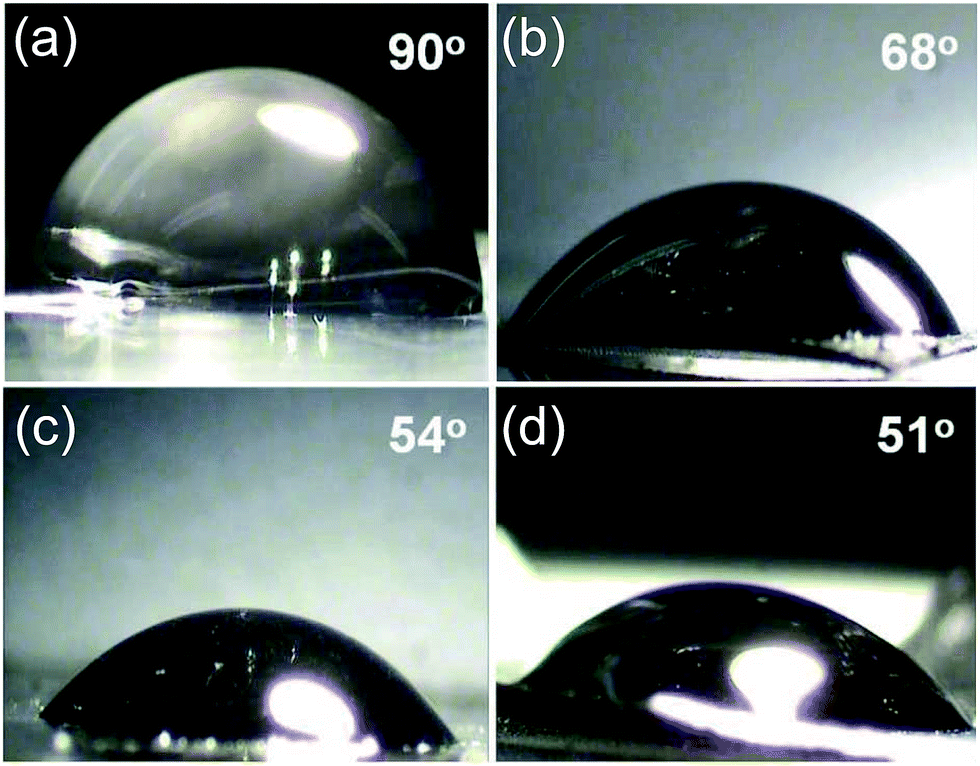

Fig. 2 shows the contact angle of a 10 μl water droplet on the surfaces of as prepared rGO papers. The R_w 1.72 dry paper has a contact angle around 90°, indicating a hydrophobic nature of graphene, which is consistent with previous studies. For the R_w 1.72 hydrogel paper, the contact angle value is reduced to 68°. The excess water in the hydrogel papers should be the reason for this hydrophilic behaviour. For the R_w 0.52 and R_w 0.34 hydrogel papers, the contact angle reduces further to 54° and 51°, respectively. This is reasonable because it is well known that more oxygen functional groups in a graphene sheet can enhance its wettability.²²

Fig. 2 The contact angles of a 10 μl water droplet on (a) R_w 1.72 dry paper, (b) R_w 1.72, (c) R_w 0.52 and (d) R_w 0.34 hydrogel papers.

A comparison of FTIR spectra of the as-prepared hydrogel papers are depicted in Fig. 3(a). Differences in the FTIR spectra of the three types of hydrogel papers are presented in order to detect the differences in functional groups more clearly. The spectrum within the region from 1226 to 1277 cm⁻¹ (highlighted using the dash box) corresponds to the vibrations of epoxy C–O bond.^31–33 Compared with the R_w 1.72 case, the stronger spectrum intensities of the R_w 0.52 and R_w 0.34 hydrogel papers in this region indicate the existence of more C–O groups in the rGO sheets. This comparison also shows that the R_w 0.34 rGO hydrogel paper has more C–O groups than the R_w 0.52 hydrogel paper. This is as expected because more hydrazine reduction agent was used to produce the R_w 0.52 rGO sheets.

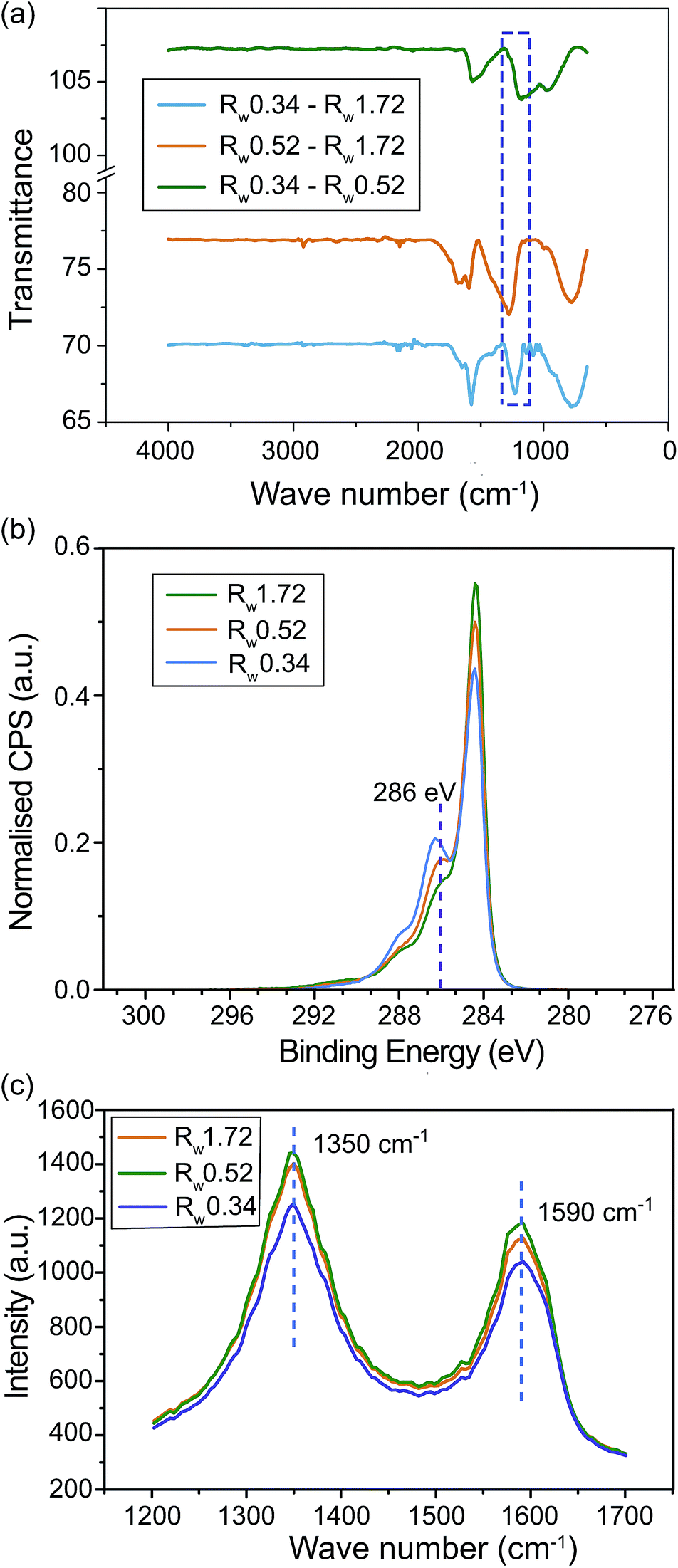

Fig. 3 Characterisation of chemical functional groups in dry and hydrogel papers. (a) FTIR spectra difference analysis. The blue curve represents the FTIR spectra difference between the R_w 0.34 and the R_w 1.72 hydrogel papers. The orange curve is the difference between the R_w 0.52 and the R_w 1.72 hydrogel papers. The green curve denotes the difference between the R_w 0.34 and the R_w 0.52 hydrogel papers. The spectrum region between 1226 and 1277 cm⁻¹, which is highlighted by a dashed box, reflects the epoxy C–O bond vibrations. (b) XPS binding energy analysis for the rGO layers. The dashed line marks the binding energy level associated with C–O bonds at 286 eV. (c) Raman spectra of D band at 1350 cm⁻¹ and G band at 1590 cm⁻¹ for the rGO layers.

Table 1 summarises the quantitative information of atomic percentage of the rGO sheets, which were obtained from the XPS, EDX, and Raman spectroscopy analyses.

Table 1 Atomic percentage of the carbon, oxygen, nitrogen and the ratios of epoxide and hydroxyls to hydrocarbons found from XPS analysis. Atomic percentage of the carbon, oxygen, nitrogen found from EDX analysis. Intensity ratios of the D to G bands in Raman spectra

Material	XPS				EDX			Raman
	C (%)	O (%)	N (%)	C–O/hydrocarbon ratio	C (%)	O (%)	N (%)	D/G ratio
Rw 1.72	80.92	14.17	3.62	0.400	86.62	9.03	4.31	1.32
Rw 0.52	79.02	16.54	3.78	0.531	75.79	16.06	8.14	1.29
Rw 0.34	74.09	20.83	3.78	0.706	76.61	14.13	7.83	1.27

---

The elemental quantification obtained from XPS survey scans presented in Table 1 indicate a trend of decreasing O content with increasing weight ratio of hydrazine, as expected. High resolution C 1s spectral overlay of the three hydrogel paper samples are presented in Fig. 3(b). The overall peak shape is characteristic for partially reduced GO, with the main peak at 284.4 eV as expected for graphitic hydrocarbon and a shoulder at approximately 286 eV associated with C–O (and potentially C–N) groups. At higher binding energies we observe another less intense shoulder at approximately 288 eV associated with (N–)C=O and O–C–O and a tail in the spectra at binging energy >289 eV characteristic of rGO. It is apparent from the spectra overlay that the intensity of the shoulder associated with C–O decreases with increasing weight ratio of hydrazine, as expected and consistent with the elemental quantification results. In an attempt to quantify this trend, the high resolution C 1s spectra were fitted with a number of standard Gaussian–Lorentzian based components and the ratios of the components associated with C–O and hydrocarbon groups are presented in Table 1. As expected, sample R_w 0.34 has the largest ratio indicating it has the largest amount of C–O groups relative to hydrocarbon within the parameter space explored. Note that as only standard Gaussian–Lorentzian based components were used, the component for C–O groups is likely overestimated in all cases as the component related to sp² carbon is lacking a tail that would extend to high binding energy, however the ratios still provide a useful method for comparing the hydrogel paper samples.

The Raman spectra for the three levels of reductions are presented in Fig. 3(c). These spectra display a clear D and G peaks at 1350 cm⁻¹ and 1590 cm⁻¹ respectively for all three samples. This is consistent with the standard spectrum seen for rGO.³⁴ However, as reported in Table 1, slight variations of the D/G intensity ratios can be observed for the studied reduction levels. The slight perceptible decrease of D/G ratios indicate a decrease of sp²/sp³ bond ratios in the carbon structure due to the introduction of extra oxygen molecules to the rGO molecular structure.^34–37 This indicates that the R_w 0.52 and R_w 0.34 has higher amount of carbon and oxygen interactions compared to that of R_w 1.72. This analysis further confirms that the R_w 0.34 samples have slightly more carbon oxygen interactions compared to R_w 0.52.

As summarised in Table 1, the semi-quantitative results obtained from EDX mapping shows a carbon, oxygen and nitrogen content of 86.7%, 9% and 4.3% respectively in R_w 1.72 hydrogel papers. This is consistent with the EDX results of graphene papers reported before.³⁰ Although hydrazine hydrate can remove C–O–C, C=O and O–C=O functional groups efficiently during the reduction process, clear traces of C–OH groups are still found even at high reduction levels such as the case of R_w 1.72.^25,32 The less reduction agent used in the reduction process left more functional groups in the rGO sheets as seen in Fig. 3(c), increasing the oxygen content in R_w 0.34 and R_w 0.52 to 14.13% and 16.06%, respectively. A slightly higher oxygen content in the R_w 0.52 paper (than that in the R_w 0.34 paper) appears contrary to the contact angle measurements as well as the FTIR, XPS, and Raman analysis results, and the fact that more reduction agent was used to produce the R_w 0.52 rGO sheets. We believe that such a discrepancy can be attributed to the limitations of the semi-quantitative EDX analysis. Nonetheless our EDX analysis yields two conclusions: (1) the R_w 0.52 and R_w 0.34 hydrogel papers have more functional groups than the R_w 1.72 papers; (2) there should be a minor difference of the content of oxygen functional groups in the R_w 0.52 and R_w 0.34 hydrogel papers.

Next, to determine the electromechanical response of the graphene papers and to demonstrate their use as potential MEMS actuators, we fabricated a series of bimorph devices using SU8 as a polymer substrate as shown in Fig. 4. In the bimorph design, via tuning the thickness of rGO papers and substrates, the deflection can be enlarged to ensure an easy and accurate measurement. The surface dimensions of the device is 2 mm × 15 mm and the thickness is ∼90 μm for the dry paper devices and ∼220 μm for hydrogel paper devices. The bimorph device was mounted on a holder and immersed in 1 M NaCl aqueous solution. It was connected to an electrochemical station (Bio Logic VMP 300) as the working electrode using a platinum sheet and wires, meanwhile a platinum mesh and a saturated calomel electrode were used as the counter and reference electrodes, respectively. The chronoamperometry technique was employed to apply the square wave voltage starting from ±0.1 V up to ±1 V at increments of 0.1 V. Three charge/discharge cycles (with a period of 100 s) were conducted at a given voltage value. It should be noted that in this study the actuation characterisation was conducted at a low charging frequency of 0.01 Hz, providing sufficient time to achieve saturated actuation strain of the individual papers. Therefore, the electrical conductivity of rGO layers, which influences the actuation at high frequency, should play a minor role in our case. The deflection of the bimorph cantilevers were captured using a CCD camera (Watec; WAT-231S) mounted to a C-mount microscope (Infinity; InfiniVar CFM-2/S). The tip displacement of the bimorph cantilevers were measured using image processing techniques on the captured footage. For each type of rGO papers, the actuation experiments were repeated for 10 times using three to five bimorph devices.

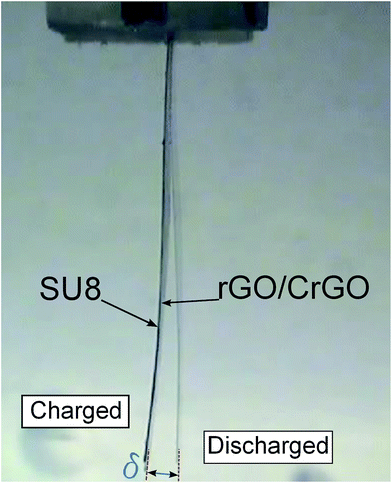

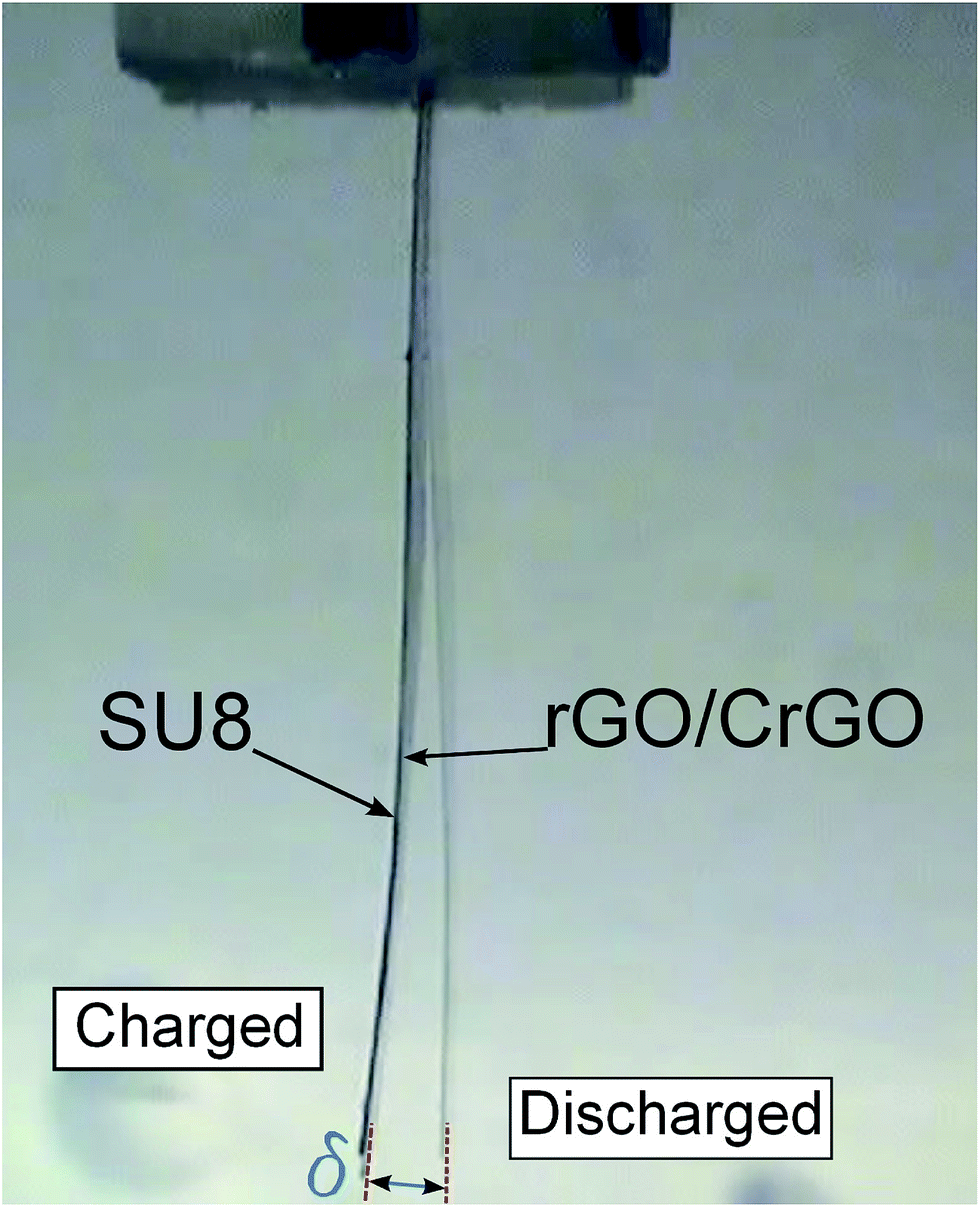

Fig. 4 The electromechanical actuation of a bimorph device immersed in a NaCl aqueous electrolyte being subject to an applied voltage. The rGO paper in the bimorph device elongated under the applied voltage and thus caused a deflection of the cantilever toward the SU8 substrate side. The tip displacement was measured using image processing techniques.

The electromechanical actuation strain, ε of the active rGO papers can be calculated using the measured tip displacement of the bimorph cantilever, δ in the following equation,³⁸

In eqn (1), t₁ and t₂ are the thickness of the rGO paper layer and the SU8+epoxy layer, respectively, E₁ and E₂ are their Young's modulus, and L₀ (15 mm) is the initial length of the cantilever. The value of t₁ is 5 μm for the dry rGO papers and 150 μm for the hydrogel papers while their t₂ values are ∼85 μm and ∼70 μm respectively. The Young's modulus of SU8 is 2 GPa (MICROCHEM, SU8 2000) and that of epoxy is 500 MPa (ref. 39) (Selleys, Aqua Repair). The E₂ is calculated as the averaged Young's modulus of SU8 and epoxy layer based on their thickness: ∼1 GPa. Note that eqn (1) is widely used in micro/nano devices community, e.g., Al/SiO₂, W/SiO₂, Al/Si, Ni/Ni-diamond, SiO₂/Ti bimorph beams.^8,38,40

Fig. 5(a) shows the calculated actuation strain of the rGO papers as a function of an applied periodic square wave voltage at a frequency of 0.01 Hz (ESI†). A nearly quadratic strain–voltage relation was observed for all devices. The R_w 1.72 dry papers have an averaged maximum actuation strain of 0.037% at −1 V. The actuation strain is improved to ∼0.10% at −1 V for the R_w 1.72 rGO hydrogel papers. The 1.7 fold increase indicates that increasing interlayer distances between the rGO sheets in the papers is very important to improve actuation performance. Our R_w 1.72 hydrogel papers have a similar actuation strain to graphene papers from Liang et al.¹⁴ It should be emphasised that in our experiments no alien nanoparticles were used to keep the interlayer distances of our hydrogel papers.

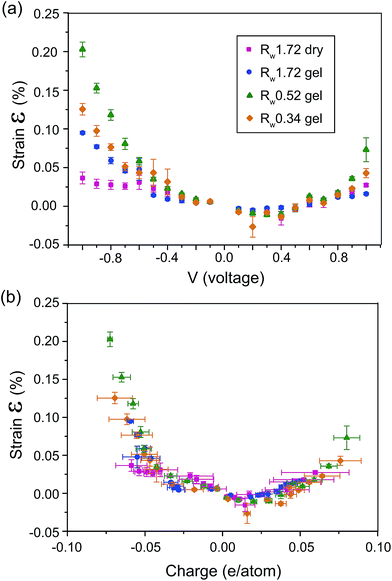

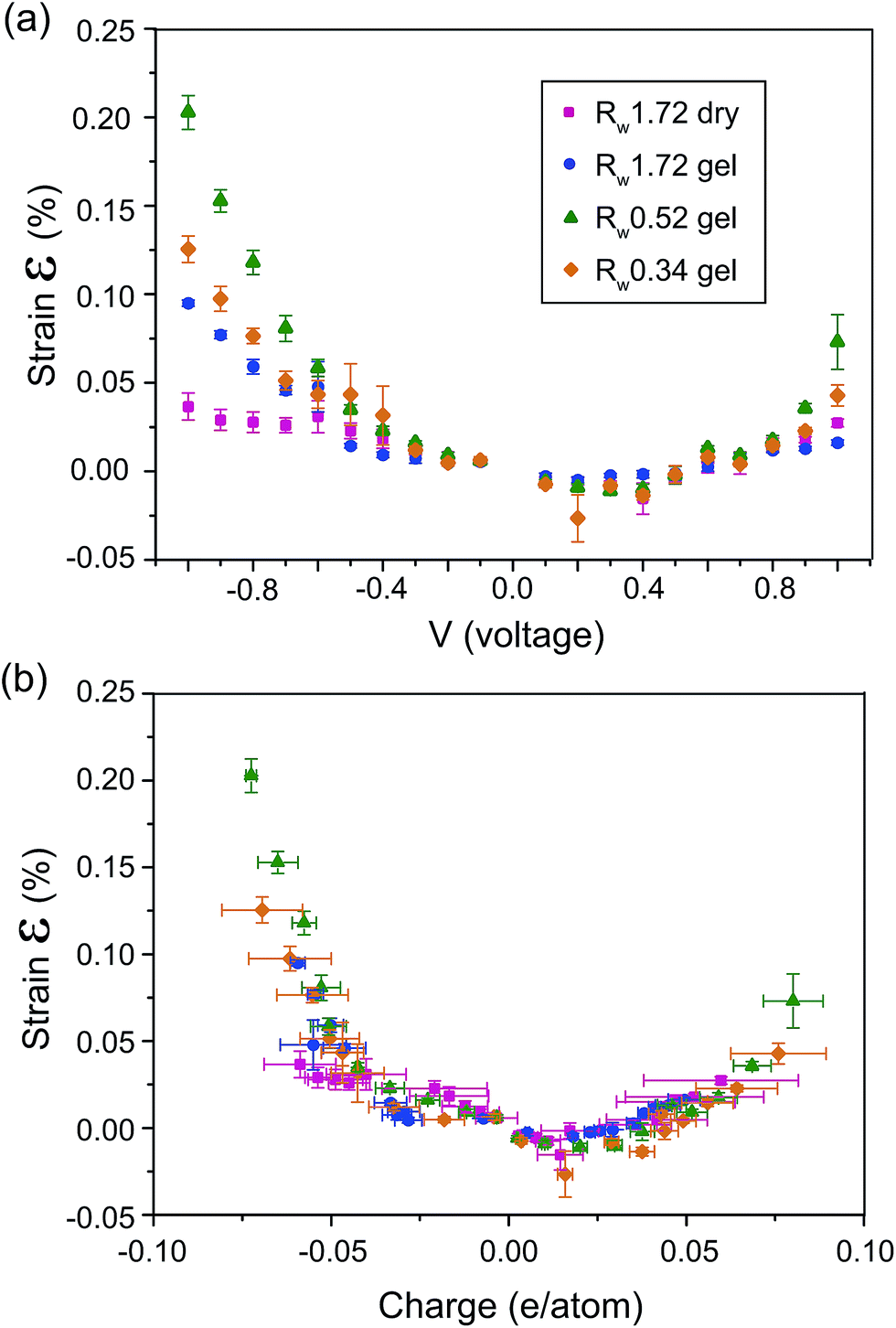

Fig. 5 The electromechanical actuation strain vs. (a) applied voltage and (b) injected charges for the rGO papers.

While following the similar quadratic behaviour against the applied potential, the R_w 0.52 and R_w 0.34 hydrogel papers unveil an averaged maximum strain performance of 0.20% and 0.13%, respectively. This is a profound enhancement in comparison with the highly reduced R_w 1.72 papers. The enhancement is about 100% for R_w 0.52 papers and about 40% for the R_w 0.34 papers compared to the actuation strain of R_w 1.72 hydrogel paper. This evidently proves that controlling the reduction level is indeed a very convenient and effective way to improve the electromechanical actuation performance of rGO papers.

Previous studies have shown that the amount of injected charges dominate the electromechanical strain arising from the EDL effect.^18,41 Hence, we integrated the measured current with respect to time to estimate the charges stored in the papers. Fig. 5(b) illustrates the strain against the respective charge per atom. At a given voltage, the R_w 1.72 dry papers store much less charge than the hydrogel papers do. This can be attributed to the much less accessible surfaces in the dry papers. The more charge accumulation in hydrogel papers enhance the coulomb forces in the EDL, generating a large driving force for mechanical deformation. At −1 V, the R_w 0.52 and R_w 0.34 hydrogel papers store similar charges: −0.072 vs. −0.069 electrons per atom. In spite of a small ∼4.3% difference in the charge values, there is a considerable ∼54% difference in the actuation strain results. This evidence indicates that the amount of injected charges (per atom) is not the only factor that governs the electromechanical actuation of our rGO papers.

The ion intercalation, electric double layer effect and the quantum mechanical effect are reported as the mechanisms of the electromechanical actuation of carbon based materials.^10,18,42 The graphene paper is composed of face-to-face aligned atomically thin graphene layers. Thus the ion intercalation between graphene layers would change the dimension perpendicular to the basal plane.^42,43 The change in the basal plane arising from ion intercalation should be minor. Theoretical studies showed that the quantum mechanical effect should lead to extension upon electron doping and contraction upon hole doping and the overall strain–charge relation exhibited a highly non-parabola shape,^10,18,43 which are clearly different from our experiments. On the contrary, theoretically the EDL effect endows a quadratic strain–charge relation.^18,44 In addition, our previous ab initio simulations indicated that for graphene layers immersed in electrolyte, the EDL effect is much more significant than the quantum mechanical effect. The EDL effect, therefore, is highly likely to be the dominant mechanism in our system.

In an attempt to identify the key physical factors that determine the actuation arising from EDL effect, a theoretical model will be developed in the following. Following Riemenschneider et al.,⁴¹ the energy of the system can be expressed as,

where K is the stiffness of the rGO papers, S is mechanical deformation (i.e., the elongation/expansion of the rGO papers in our bimorph device), q is the injected charge, ϕ is the electrostatic potential, C is the electrochemical capacitance, and F_e is the external force. The first term in eqn (2) represents the mechanical strain energy and the second term is the electric energy stored in the EDL. The thermal energy is assumed negligible, and there is no externally applied force and thus no work term. The internal force (F) can be equated to these terms of the energy equation (eqn (2)) by differentiating it with respect to the deformation (S), givingwhere α is a simplified capacitive coupling coefficient expressed asin which C₀ and C are the system capacitance at the initial and final states, respectively.

Assuming that the change of capacitance C in comparison with the initial value C₀ solely arises from the deformation S, we can make some simplifications for α. The electric capacitance can be estimated as and , in which A₀ or A are the accessible surface area at the initial or final states, ε_r is the dielectric constant, and d is the thickness of the EDL. The surface area A can be expressed by using A₀ and the electromechanical strain ε of the rGO papers as A₀ = A(1 + 2ε). Thus the coefficient α is approximately α ≈ 2ε/C₀S.

Given that at static equilibrium the internal forces (F) reduce to zero, from eqn (3) we obtain,

where c₀ is the volumetric capacitance, Y is the Young's modulus and V is the applied external voltage. Here we consider the elastic deformation S as the elongation of rGO paper layer in the bimorph device along its length direction, i.e., S = L₀ε. It should be aware that our derivation is under the thermodynamic equilibrium condition and the dynamic effect (e.g., the internal damping) is not accounted. This is an appropriate approximation due to the small frequency in our experiments, 0.01 Hz.

To examine the obtained relation eqn (5), we measured the capacitance and the stiffness of our rGO papers. Fig. 6(a) shows the current vs. voltage results of the rGO papers from the CV analysis. The calculated device capacitance are shown in Fig. 6(b). The hydrogel papers always have a higher electrochemical capacitance than the dry paper. This explains why the rGO dry paper bimorph device accumulated less charges at −1 V than those hydrogel papers (Fig. 5). Interestingly the R_w 0.52 rGO hydrogel paper has a slightly higher capacitance than both the R_w 1.72 and the R_w 0.34 hydrogel papers.

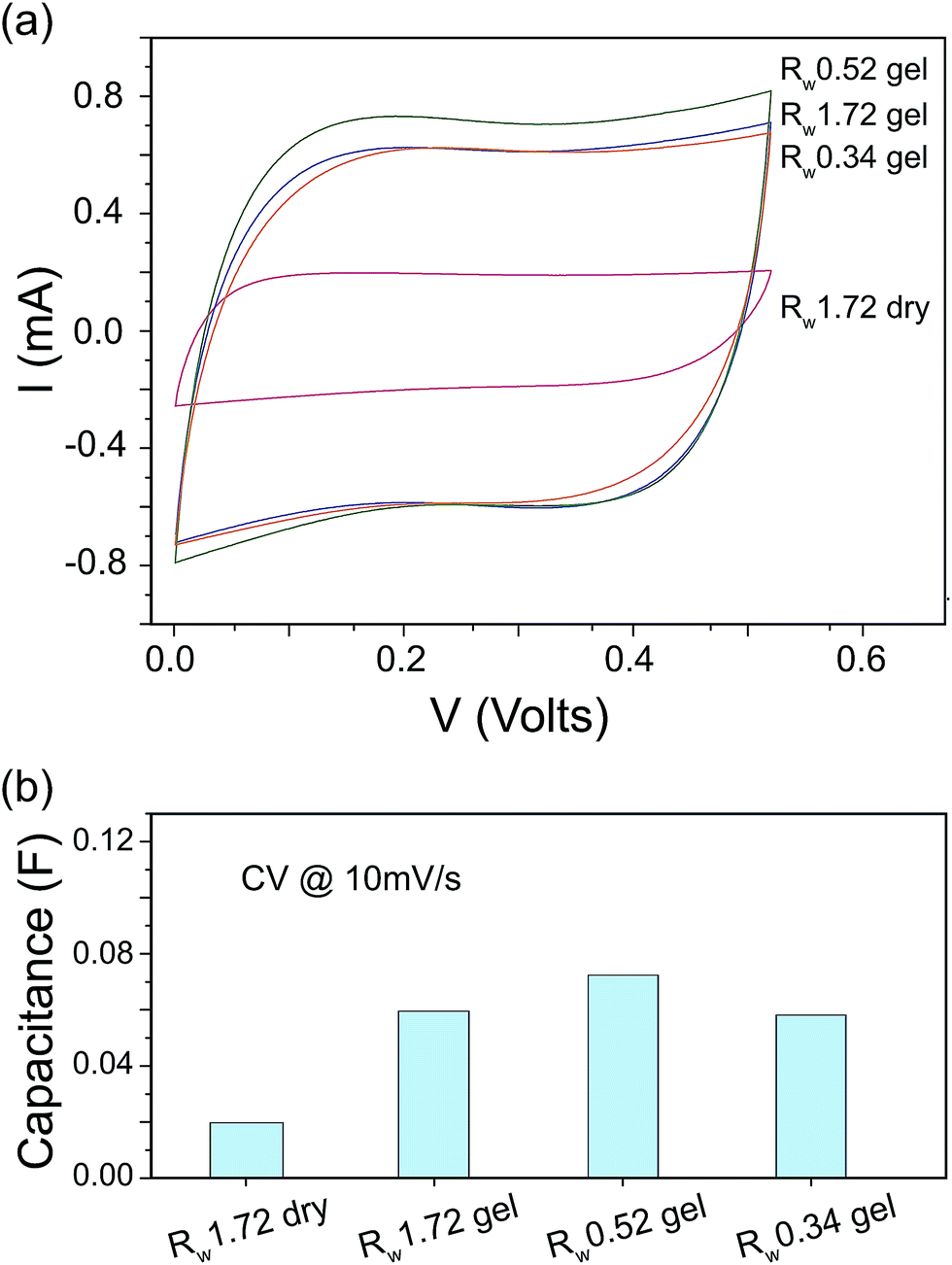

Fig. 6 (a) Cyclic voltammetry curves obtained for rGO dry and hydrogel papers at a scan rate of 10 mV s⁻¹. (b) Calculated electrochemical capacitance values of the rGO papers from the cyclic voltammetry curves.

Fig. 7 depicts the obtained stress vs. strain relations in the tensile test and summarises the Young's modulus and stiffness results that were fitted using the tensile experimental data in Fig. 7(a) with strain values below 0.2%. The R_w 1.72 dry paper has the highest Young's modulus and stiffness, i.e., 2654 MPa and 1770 N m⁻¹. Overall the hydrogel papers have a comparable Young's modulus and stiffness, in which the R_w 1.72 hydrogel paper has the highest values of modulus and stiffness and the R_w 0.52 rGO paper has the lowest ones. The low stiffness implies the lack of hindrance against the in-plane structural deformation, which should benefit the electro-chemical actuation strain output.

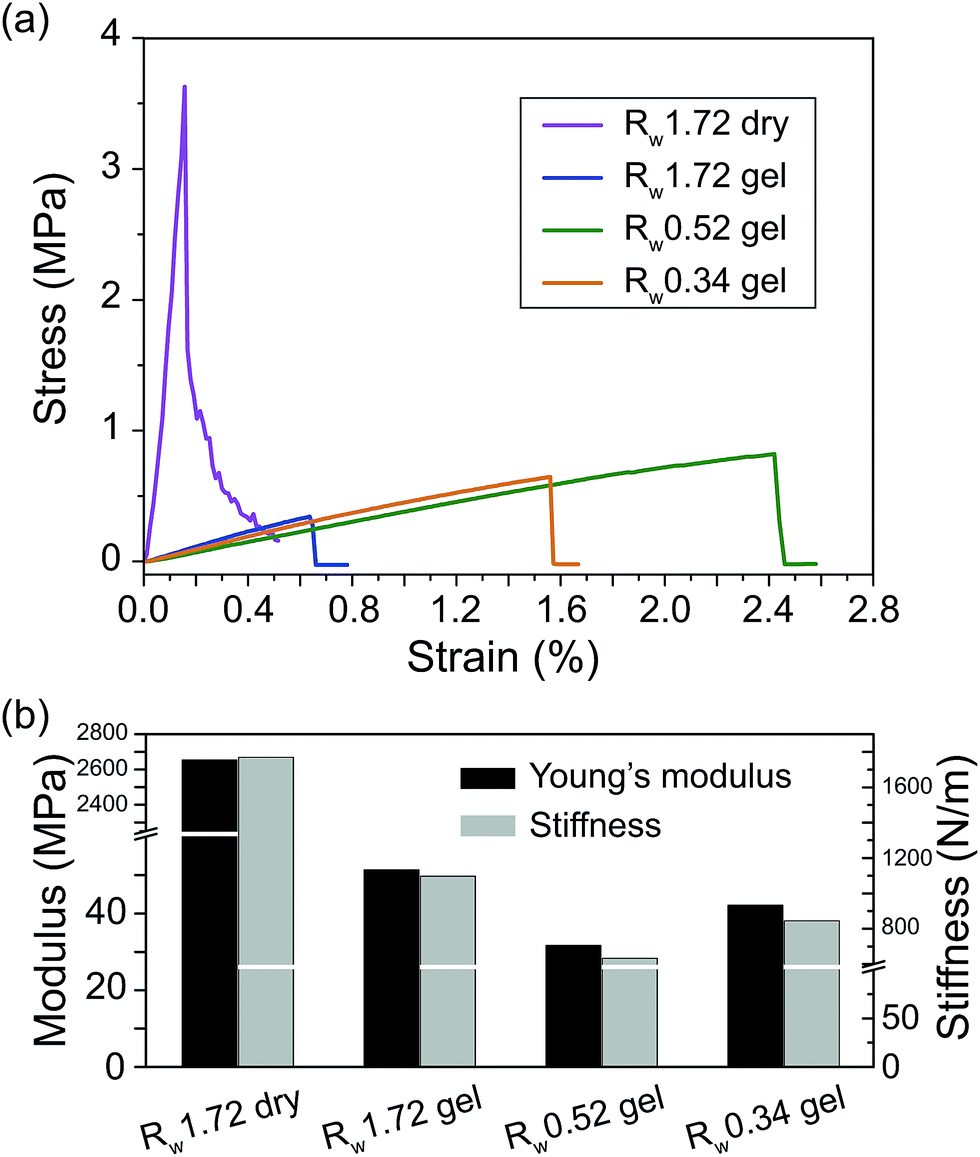

Fig. 7 (a) The stress–strain relation of the rGO papers under a tensile loading. (b) The calculated Young's modulus and stiffness results of the rGO papers.

With the obtained capacitance C and stiffness K results, we plot the calculated electromechanical strain results at −1 V (Fig. 5) against the C/K values in Fig. 8. The results of the all four materials exhibit a very good linear relation, which is consistent with the derived relation eqn (5). Hence, we can conclude that indeed EDL is the dominant actuation mechanism for rGO papers and the capacitance and stiffness are two key parameters in determining the electromechanical actuation performance.

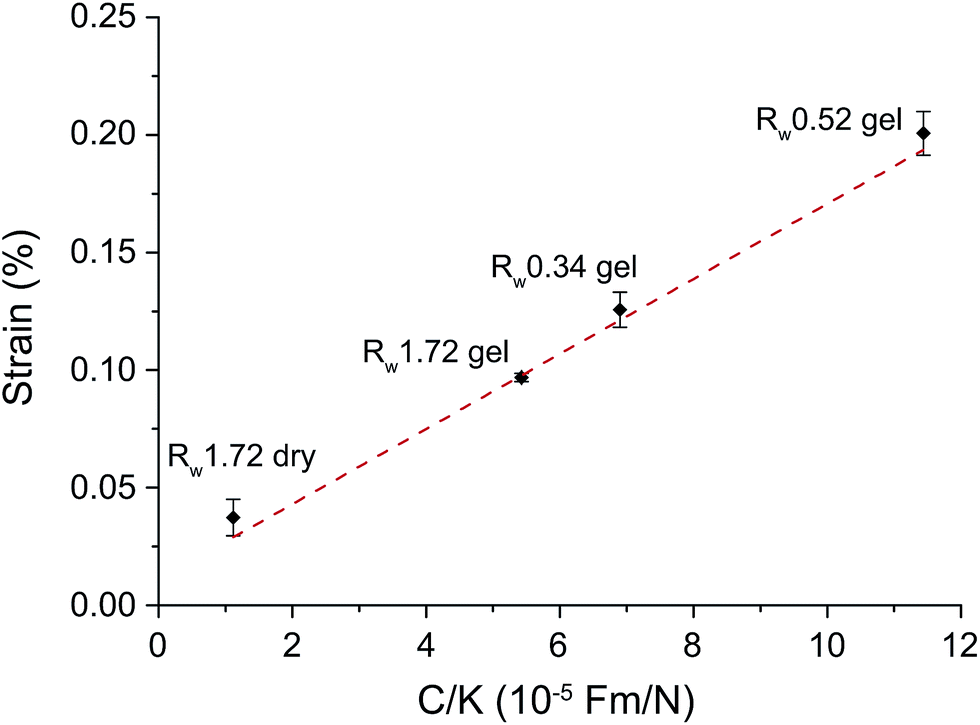

Fig. 8 Demonstrating the linear dependency of the actuation strain (at −1 V at f = 0.01 Hz) against capacitance/stiffness ratios of the rGO paper actuators. The fitted trend line (dashed red line) illustrates the linear trend of C/K vs. strain.

3 Conclusions

In summary, this study is devoted to enhance the electromechanical actuation performance of rGO papers via fine tuning the content of chemical functional groups in the rGO sheets. The effects of controlling the interlayer distance between rGO sheets were investigated as well. Through careful management of the amount of reduction agent in the chemical reduction process, three different types of rGO sheets were fabricated, i.e., R_w 1.72, R_w 0.52, and R_w 0.34 rGO. Three types of rGO hydrogel papers and one rGO dry paper were then produced using the vacuum filtration technique. The electromechanical actuation of some bimorph devices, which is composed of a layer of obtained rGO paper on top of a SU8+epoxy substrate, were then conducted to examine the actuation strains of the rGO papers. A quadratic strain-vs.-voltage relation and a quadratic strain-vs.-charge relation were obtained. We find that the R_w 0.52 and R_w 0.34 rGO hydrogel papers exhibit significantly enhanced actuation strains, suggesting fine tuning oxygen functional groups is a convenient and an effective way to achieve a better actuation performance. In-depth analysis reveals that two key parameters, electrochemical capacitance C and the stiffness K, govern the actuation strains arising from the EDL effect. A theoretical model is derived and its prediction agrees very well with our experimental results. The obtained in-depth understanding could lay a ground for future design and development of graphene based actuators.

4 Experimental section

Material synthesis

Graphite oxide was synthesised from natural graphite (SP-1, Bay Carbon) by a modified Hummers method.^45,46 As-synthesised graphite oxide was dispersed in water and subjected to dialysis to completely remove residual salts and acids. After that, the as-purified graphite oxide dispersion was then mixed in water to create a 0.5 wt% solution. The graphite oxide solution was then exfoliated to produce a GO solution by conducting ultrasonication for 30 min using a Branson Digital Sonifier (S450D, 500 W, 30% amplitude). The resultant GO solution was further diluted to achieve 0.288 mg ml⁻¹ and subjected to 20 min of centrifugation at 4400 rpm to remove any unexfoliated graphite oxide using an Eppendorf 5702 centrifuge with a rotor radius of 14 cm. To achieve a maximum level of reduction, hydrazine with a weight ratio value of R_w = 1.72 (35 wt% in water, Sigma-Aldrich) was mixed to GO dispersion and the chemical reduction was conducted at 100 °C for 3 h. Controlled reduction of GO dispersion was conducted at 100 °C for 2 h by using the amount of hydrazine at R_w = 0.52 and R_w = 0.34. To avoid losing water molecules, the hydrogel papers were removed from the filtration chamber and immediately immersed in aqueous solution once no free dispersion of rGO sheets was visible in the rGO solution. A longer filtration time of about 8 hours was used for the R_w 1.72 rGO solution to completely remove water molecules in the system, yielding a R_w 1.72 rGO dry paper.

Characterisation of rGO papers

FTIR was conducted using 64 scans on each sample. For each paper sample, five different regions in the cross-section were scanned to obtain the EDX mapping results. The standard cyclic voltammetry (CV) technique was conducted from 0 V to 0.5 V at a scan rate of 10 mV s⁻¹ to determine the capacitance of the individual rGO paper (diameter = 5.83 mm) using a three electrode cell configuration. The mechanical tensile experiment was conducted using a dynamic mechanical analyzer (Rheometric Scientific, DMTA IV and software RSI Orchestrator) with a strain accuracy of 0.005% and a stress accuracy of 1 Pa at a strain ramp rate of 0.02% s⁻¹. The rGO paper samples were cut with a blade into rectangular strips of approximately 4 mm × 10 mm. Raman spectroscopy was conducted with samples drop casted on to SiO₂/Si substrates using WITec alpha 300R micro-confocal Raman system. The 532 nm laser was used to illuminate the sample surface through a 100× objective (NA = 0.9). During spectrum acquisition 600 line per mm grating was used at the same level of laser output, spectrum integration and accumulation times (60 second and 30 times per spectrum). XPS analysis was performed using an AXIS Nova spectrometer (Kratos Analytical Inc., Manchester, UK) with a monochromated Al KÎś source at a power of 180 W (15 kV × 12 mA) and a hemispherical analyser operating in the fixed analyser transmission mode. The total pressure in the main vacuum chamber during analysis was typically between 10⁻⁹ and 10⁻⁸ mbar. Survey spectra were acquired at a pass energy of 160 eV. To obtain more detailed information about chemical structure, oxidation states etc., high resolution spectra were recorded from individual peaks at 40 eV pass energy (yielding a typical peak width for polymers of 1.0 eV). Each specimen was analysed at an emission angle of 0° as measured from the surface normal. Assuming typical values for the electron attenuation length of relevant photoelectrons the XPS analysis depth (from which 95% of the detected signal originates) ranges between 5 and 10 nm for a flat surface. As the actual emission angle is ill-defined for rough surfaces (ranging from 0° to 90°), the sampling depth may range from 0 nm to approx. 10 nm. All elements present were identified from survey spectra and data processing was performed using CasaXPS processing software version 2.3.15 (Casa Software Ltd, Teignmouth, UK). The atomic concentrations of the detected elements were calculated using integral peak intensities and the sensitivity factors supplied by the manufacturer. Binding energies were referenced to the main C 1s peak (graphitic carbon) at 284.4 eV.

Device fabrication

SU8 films of a thickness of 20 μm were spin coated on Si wafer covered with a Teflon layer. A set of SU8 cantilevers were then fabricated via photolithography techniques using our designed photo-masks. Next, a thin uniform epoxy layer was applied on top of the SU8 cantilevers using the Dr Blade technique, which enabled good adhesion of the rGO papers on top of it. The obtained bimorph devices have a surface dimension of 2 mm × 15 mm. These bimorph devices were transferred onto a glass slide support in the following electromechanical actuation experiments.

Acknowledgements

The authors are grateful to Monash University Engineering faculty seed grants (2013/2014) for providing funding. The authors thank Dr Adrian Neild and Dr Mainak Majumder for their supports. This work was performed in part at the Monash Centre for Electron Microscopy (MCEM) and the Melbourne Centre for Nanofabrication (MCN) in the Victorian Node of the Australian National Fabrication Facility (ANFF). DL and JZL acknowledge the financial support from ARC Discovery projects.

References

1. P. Kim and C. M. Lieber, Science, 1999, 286, 2148.
2. A. Fennimore, T. Yuzvinsky, W.-Q. Han, M. Fuhrer, J. Cumings and A. Zettl, Nature, 2003, 424, 408.
3. S. V. Ahir and E. M. Terentjev, Nat. Mater., 2005, 4, 491.
4. J. E. Jang, S. N. Cha, Y. J. Choi, D. J. Kang, T. P. Butler, D. G. Hasko, J. E. Jung, J. M. Kim and G. A. Amaratunga, Nat. Nanotechnol., 2007, 3, 26.
5. J. D. Madden, N. A. Vandesteeg, P. A. Anquetil, P. G. Madden, A. Takshi, R. Z. Pytel, S. R. Lafontaine, P. A. Wieringa and I. W. Hunter, IEEE J. Oceanic Eng., 2004, 29, 706.
6. G. W. Rogers and J. Z. Liu, Appl. Phys. Lett., 2013, 102, 021903.
7. T. Mirfakhrai, J. D. Madden and R. H. Baughman, Mater. Today, 2007, 10, 30.
8. Y. Huang, J. Liang and Y. Chen, J. Mater. Chem., 2012, 22, 3671.
9. J. Liang, L. Huang, N. Li, Y. Huang, Y. Wu, S. Fang, J. Oh, M. Kozlov, Y. Ma and F. Li, et al., ACS Nano, 2012, 6, 4508.
10. R. H. Baughman, C. Cui, A. A. Zakhidov, Z. Iqbal, J. N. Barisci, G. M. Spinks, G. G. Wallace, A. Mazzoldi, D. De Rossi and A. G. Rinzler, et al., Science, 1999, 284, 1340.
11. M. Tahhan, V.-T. Truong, G. M. Spinks and G. G. Wallace, Smart Mater. Struct., 2003, 12, 626.
12. M. Hughes and G. M. Spinks, Adv. Mater., 2005, 17, 443.
13. Y. Yun, V. Shanov, Y. Tu, M. J. Schulz, S. Yarmolenko, S. Neralla, J. Sankar and S. Subramaniam, Nano Lett., 2006, 6, 689.
14. J. Liang, Y. Huang, J. Oh, M. Kozlov, D. Sui, S. Fang, R. H. Baughman, Y. Ma and Y. Chen, Adv. Funct. Mater., 2011, 21, 3778.
15. S.-E. Zhu, R. Shabani, J. Rho, Y. Kim, B. H. Hong, J.-H. Ahn and H. J. Cho, Nano Lett., 2011, 11, 977.
16. S. Park, J. An, J. W. Suk and R. S. Ruoff, Small, 2010, 6, 210.
17. J. Oh, M. E. Kozlov, J. Carretero-González, E. Castillo-Martínez and R. H. Baughman, Chem. Phys. Lett., 2011, 505, 31.
18. G. W. Rogers and J. Z. Liu, J. Am. Chem. Soc., 2011, 133, 10858.
19. Z. Chang, W. Yan, J. Shang and J. Z. Liu, Appl. Phys. Lett., 2014, 105, 023103.
20. Y. Zhao, L. Song, Z. Zhang and L. Qu, Energy Environ. Sci., 2013, 6, 3520.
21. X. Yang, L. Qiu, C. Cheng, Y. Wu, Z.-F. Ma and D. Li, Angew. Chem., Int. Ed., 2011, 50, 7325.
22. X. Xie, L. Qu, C. Zhou, Y. Li, J. Zhu, H. Bai, G. Shi and L. Dai, ACS Nano, 2010, 4, 6050.
23. X. Xie, H. Bai, G. Shi and L. Qu, J. Mater. Chem., 2011, 21, 2057.
24. G. W. Rogers and J. Z. Liu, J. Am. Chem. Soc., 2012, 134, 1250.
25. G. He, H. Chen, J. Zhu, F. Bei, X. Sun and X. Wang, J. Mater. Chem., 2011, 21, 14631.
26. X. Yu, H. Cai, W. Zhang, X. Li, N. Pan, Y. Luo, X. Wang and J. Hou, ACS Nano, 2011, 5, 952.
27. D. Li, M. B. Müller, S. Gilje, R. B. Kaner and G. G. Wallace, Nat. Nanotechnol., 2008, 3, 101.
28. H. Chen, M. B. Müller, K. J. Gilmore, G. G. Wallace and D. Li, Adv. Mater., 2008, 20, 3557.
29. C. Cheng and D. Li, Adv. Mater., 2013, 25, 13.
30. X. Yang, C. Cheng, Y. Wang, L. Qiu and D. Li, Science, 2013, 341, 534.
31. S. Park, J. An, I. Jung, R. D. Piner, S. J. An, X. Li, A. Velamakanni and R. S. Ruoff, Nano Lett., 2009, 9, 1593.
32. P.-G. Ren, D.-X. Yan, X. Ji, T. Chen and Z.-M. Li, Nanotechnology, 2011, 22, 055705.
33. V. Loryuenyong, K. Totepvimarn, P. Eimburanapravat, W. Boonchompoo and A. Buasri, Adv. Mater. Sci. Eng., 2013, 1.
34. C. Mattevi, G. Eda, S. Agnoli, S. Miller, K. A. Mkhoyan, O. Celik, D. Mastrogiovanni, G. Granozzi, E. Garfunkel and M. Chhowalla, Adv. Funct. Mater., 2009, 19, 2577.
35. A. C. Ferrari and J. Robertson, Phys. Rev. B: Condens. Matter Mater. Phys., 2000, 61, 14095.
36. C. Gómez-Navarro, R. T. Weitz, A. M. Bittner, M. Scolari, A. Mews, M. Burghard and K. Kern, Nano Lett., 2007, 7, 3499–3503.
37. S. Stankovich, D. A. Dikin, R. D. Piner, K. A. Kohlhaas, A. Kleinhammes, Y. Jia, Y. Wu, S. T. Nguyen and R. S. Ruoff, Carbon, 2007, 45, 1558–1565.
38. Y. Zhang, Y. Zhang and R. Marcus, J. Microelectromech. Syst., 1999, 8, 43.
39. R. E. Robertson and R. J. Buenker, J. Polym. Sci., Part A: Gen. Pap., 1964, 2, 4889.
40. S. Scott, J.-I. Kim, F. Sadeghi and D. Peroulis, J. Microelectromech. Syst., 2012, 21, 161–170.
41. J. Riemenschneider, S. Opitz, M. Sinapius and H. P. Monner, J. Intell. Mater. Syst. Struct., 2009, 20, 245.
42. L. Lu, J. Liu, Y. Hu and W. Chen, Chem. Commun., 2012, 48, 3978–3980.
43. G. Sun, J. KÃijrti, M. Kertesz and R. H. Baughman, J. Am. Chem. Soc., 2002, 124, 15076–15080.
44. L. Pastewka, P. Koskinen, C. Elsässer and M. Moseler, Phys. Rev. B: Condens. Matter Mater. Phys., 2009, 80, 155428.
45. N. I. Kovtyukhova, P. J. Ollivier, B. R. Martin, T. E. Mallouk, S. A. Chizhik, E. V. Buzaneva and A. D. Gorchinskiy, Chem. Mater., 1999, 11, 771.
46. W. S. Hummers Jr and R. E. Offeman, J. Am. Chem. Soc., 1958, 80, 1339.

---

Footnote

† Electronic supplementary information (ESI) available. See DOI: 10.1039/c5ra09743f

---
