Nanonickel catalyst reinforced with silicate for methane decomposition to produce hydrogen and nanocarbon: synthesis by co-precipitation cum modified Stöber method

Abstract

Co-precipitation cum modified Stöber method is a continuous process avoiding application of higher temperature treatment before supporting nanometal with SiO₂, irrespective of pre-preparation methods. We have conducted the co-precipitation process without undertaking calcination under air in order to avoid even a partial particle agglomeration and hence maintained average particle size ∼30 nm after enforcing with SiO₂. This is the first report adopting such an unceasing preparation for preparing metal/silicate nanostructures. Furthermore, n-Ni/SiO₂ nanostructured catalysts were used for thermocatalytic decomposition of methane to produce hydrogen and carbon nanotubes. The catalyst was found to be very stable and the methane transformation activity proceeded for 300 min on methane stream with little deactivation in the temperature range 475–600 °C. We have also successfully extended the catalyst preparation method for Fe and Co metals and conducted preliminary catalyst examinations.

---

Introduction

Nanostructured materials have recently attracted intensive attention by researchers mainly because of their inbuilt characteristics. Biology, optics, electronics, magnetism, sensing, etc. are some fields, chiefly working with nanostructures. Presently, nanostructures produced by applying the Stöber method are scarcely used in catalysis.^1–8 Recent studies have revealed that the enforcement of nanomaterials with inert protective support can enhance the stability of the nanomaterial as well as changing the electron charge, reactivity and functionality of the material.^9–11 Furthermore, nanometal/support composites show dissimilar and advanced properties from those of the individual metal and support materials.¹² Nano-Ni particles have large specific surface area and obviously have large number of active sites which leads to intrinsic surface reactivity, and such nanoparticles tend to aggregate at high temperature, which results in low catalytic stability at higher temperatures. However, shielding of nanoparticles with porous, stable and inert silicates prevents particle agglomeration and gears up the catalyst for higher temperature performance. Silicate supported materials have an advantage of exhibiting a synergetic effect of both metal and support materials. In the case of n-Ni/SiO₂ materials, the Ni phase provides the activity and the porous silica support causes reaction similar to mesoporous silica.

To the best of our knowledge, for the first time we apply n-Ni/SiO₂ catalyst prepared with co-precipitation cum modified Stöber method for thermocatalytic decomposition of methane (TCD) for the co-production of hydrogen and nanocarbon. Establishment of clean hydrogen fuel, which does not produce any greenhouse gases (GHG) upon combustion, can profoundly impact on two major contemporary challenges – amelioration of the energy crisis and reduction of environmental pollution from GHGs. The major resources and preparation methods for hydrogen are schematized in Fig. 1. Cell technology, petroleum refining, food, electronics, metallurgical processing industries and many other fields can be fueled by hydrogen and hence its use has attracted tremendous attention by current researchers.^13–16 Global statistics demonstrate that 48% of hydrogen is produced form natural gas, corresponding to 240 billion cubic meters (Bcm) per year. Of the remainder, 30% (150 Bcm per year) comes from petroleum, and 18% (90 Bcm per year) from coal. Regrettably, only 4% (20 Bcm per year) is obtained through water electrolysis without producing any GHG.^17,18 There are different types of methods that have been developed for hydrogen production, such as bio-hydrogen production, reviewed elsewhere,¹⁹ steam reforming of methane (SRM), partial oxidation (POX), coal gasification, water splitting, biomass gasification and thermochemical processes.^20–23 Water splitting is a clean process as it consumes only renewable solar and wind energy, but is not economical because of its very low efficiency and higher processing cost. Furthermore, gasification and reforming of biomass are extensively explored for producing hydrogen from several biomass resources such as forest residues, wood wastes, crop residues, waste water treatment, biogas, etc.^24,25 However, requirement of additional separation/purification treatments are the major limitations of these technologies which reduces hydrogen selectivity.²⁶ SRM and POX are the normally adopted methods for producing hydrogen from methane gas. Among them, SRM has been considered as the most commonly adopted technique for recent years. However, SRM needs higher processing energy and results in the production of enormous levels of CO_x (at least 1 mol of CO₂ mol⁻¹ of converted methane) irrespective of its comparatively higher process efficiency (50%).¹³ Likewise, the POX process also causes massive GHG emission. Subsequently, thermocatalytic decomposition of methane (TCD) is attractive as a novel technique for eco-friendly hydrogen production. In this moderately endothermic process, methane is thermally decomposed to solid carbon and gaseous hydrogen in a technically simple one-step process as shown in eqn (1).

CH₄ → C + 2H₂: ΔH_{298 K} = 74.52 kJ mol⁻¹ (1)

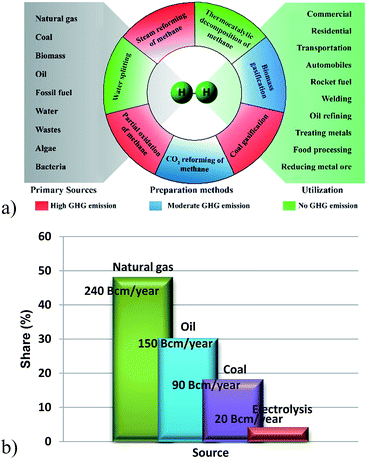

Fig. 1 (a) Schematic representation of the sources, preparation methods and utilization of hydrogen and (b) worldwide hydrogen production by sources (reprinted with permission from Elsevier Limited).¹⁷

Moreover, the TCD process can enhance the production rate of single and multi-walled carbon nanotubes and fibers with high mechanical strength, irrespective of the arc-discharge evaporation to produce single-wall carbon nanotubes.²⁷

In general, catalytic deactivation during the TCD process is mainly because of the substantial carbon deposition over the catalyst with time. This faster deactivation is the major challenge in TCD and studies are continuously being performed to develop catalysts with longer life as well as higher activity. It is well known that Ni-based catalysts are excellent in the TCD process.^28,29 Takenaka et al.³⁰ studied the effect of catalytic supports (MgO, Al₂O₃, SiO₂, TiO₂, ZrO₂ MgO·SiO₂, Al₂O₃·SiO₂, H⁺-ZSM-5, etc.) for Ni for producing hydrogen and carbon nanofibers by TCD process and concluded that SiO₂ is the most efficient catalyst support. Here, we have concentrated to study on SiO₂ as a support to design a nanostructured catalyst with a longer life and higher activity.

In the present study, we report a new approach to prepare nanostructured n-Ni/SiO₂ catalysts with a simple room-temperature processing denoted co-precipitation cum modified Stöber method; a continuous process avoiding application of higher temperature calcination before supporting metal nanoparticles with SiO₂.^1,31 This procedure aimed to produce fine nanoparticles avoiding n-NiO particle agglomeration which occurs if performing calcination before supporting with SiO₂. Additionally, we have conducted TCD in a pilot plant to study its stability and activity at different temperatures with time on stream. We found that the as-prepared n-Ni/SiO₂ catalyst exhibits high catalytic stability in comparison with traditional Ni/SiO₂ catalysts. Furthermore, the co-precipitation cum modified Stöber method was extended to other metals such as iron and cobalt with the same SiO₂ support, and preliminary activity inspection was conducted. Investigation of physicochemical properties of the catalyst was done by means of N₂ adsorption–desorption measurement (BET), X-ray diffraction (XRD), high-resolution transmission electron microscopy (HRTEM), hydrogen temperature programmed reduction (H₂-TPR), ammonia temperature programmed desorption (NH₃-TPD) and thermogravimetric (TGA) analysis. In addition, the characterization of the formed nanocarbon fibers and tubes at various temperatures was made with the help of HRTEM and XRD.

Experimental section

Co-precipitation cum modified Stöber method is a combination of M–OH precipitation and SiO₂ support formation over precipitated M–OH in a consecutive manner. A nanosized M–OH containing suspension was prepared by treating metal nitrate with ammonia solution at room temperature, which prevents agglomeration of metal oxides at comparatively higher temperature. The SiO₂ support was fabricated through hydrolysis of a mixture of tetraethylorthosilicate (TEOS) and octadecyltrimethoxysilane (C18TMS) with aqueous ammonia.³²

Chemicals used

Nickel(II) nitrate hexahydrate (Ni(NO₃)₂·6H₂O), cobalt(II) nitrate hexahydrate (Co(NO₃)₂·6H₂O) and octadecyltrimethoxysilane (C18TMS) were purchased from Acros Organics. Iron(III) nitrate nonahydrate (Fe(NO₃)₃·9H₂O) and tetraethyl orthosilicate (TEOS) were purchased from Aldrich and used as received. NH₃ solution and ethanol bought from R&M solutions. 99.999% hydrogen, 99.995% methane and 99.99% nitrogen were purchased from Linde Malaysia Sdn. Bhd.

Preparation of nano-Ni/SiO₂ catalyst

200 mL of 0.1 molar Ni(NO₃)₂·6H₂O solution was sonicated for 5 min and 6 mL of 30% NH₃ solution added dropwise while sonicating. The solution precipitated the metal hydroxide under sonication for 1 h. The resulting suspension was then stirred for 1 h over a magnetic stirrer at room temperature. Then, the solution was centrifuged at 4000 rpm for 30 min and the precipitate washed twice with deionized water and once with ethanol. The product was transferred to 100 mL of ethanol and magnetically stirred for 15 h. The resulting suspension was sonicated for 10 min and 4 mL of 8 M NH₃ solution added to make the suspension basic. 0.4 mL of TEOS and 0.4 mL of C18TMS were added simultaneously to the dispersion under sonication, and then the resulting mixture was sonicated for a further 60 min at room temperature. The solution was stirred for a further 5 h over a magnetic stirrer. The precipitate was separated by centrifugation and dried in an oven at 100 °C for 15 h. This was then calcined at 450 °C for 3 h to produce n-NiO/SiO₂ (0.02) nanostructures. The produced nanocatalyst was treated with 30% H₂ at 550 °C to reduce NiO before its activity examination and was denoted n-Ni/SiO₂ (0.02). Nanostructures with higher nickel precursor concentrations such as 0.04 mol (n-Ni/SiO₂ (0.04)) and 0.06 mol (n-Ni/SiO₂ (0.06)) were also prepared. In order to prepare n-NiO particles, the suspension after 15 h of stirring (before adding silica precursors in the above procedure) was evaporated at 100 °C and calcined at 350 °C. The preparation method was extended to other metals such as Fe and Co with Fe(NO₃)₃·9H₂O and Co(NO₃)₂·6H₂O precursors, respectively.

Characterization

XRD. X-Ray diffraction (XRD) patterns of the fresh and spent catalysts were collected at room temperature in a PANalytical diffractometer to determine the crystal phase and structure of the metal oxides. The evaluation of the diffractograms was made by X’pert HighScore software. Diffraction patterns of the samples were recorded with a Rigaku Miniflex with Cu-Kα radiation with a generator voltage and a current of 45 kV and 40 mA, respectively. The intensity was measured by step scanning in the 2θ range of 8–80° with a step of 0.026° and a scan rate of 0.0445° s⁻¹. The average crystallite size was obtained using the global Scherrer equation as follows:

In eqn (2), the average crystallite size, peak length, line broadening full width at half-maxima after subtracting the instrumental line broadening (in radians), and the Bragg’s angle are expressed as D_avg (nm), k (1.54056 Å), β, and 2θ, respectively. 0.9 is the Scherrer constant.

Nitrogen adsorption–desorption analysis. Nitrogen adsorption–desorption measurements (BET method) were performed at liquid-nitrogen temperature (−196 °C) with an Autosorb BET apparatus, Micromeritics ASAP 2020, surface area and porosity analyzer to determine the surface area, pore size distribution and structure, pore volume and the mean particle size. Before each measurement, the samples were first degassed at 180 °C for 4 h and thereafter kept at liquid-nitrogen temperature to adsorb nitrogen. The surface area was determined according to the standard Brunauer–Emmett–Teller (BET) method in a relative pressure range of 0.04–0.2 and the total volume was evaluated from the amount of adsorbed N₂ at a relative pressure (P/P₀) of about 0.98. The pore diameter distributions were calculated based on the desorption isotherms by the Barrett–Joyner–Halenda (BJH) method.

HRTEM-EDX analysis. The morphological structure and diameter distribution of the catalysts and produced carbon nanomaterials were estimated with high-resolution transmission electron microscopy (HRTEM) by using a FEI Tecnai™, controlled at an accelerating voltage of 200 keV. The required specimens were fabricated by ultrasonic dispersion in ethanol with a drop of the resulting suspension evaporated onto an electron carbon-supported 300 mesh copper grid.

Temperature-programmed reduction (H₂-TPR). Temperature-programmed reduction measurements were carried out using a Micromeritics TPD/TPR 2720 analyzer. Typically, 0.03 g of catalyst sample was placed in a U-tube holder and the sample was first cleaned at 130 °C for 60 min by flushing with helium gas. Upon cleaning process, the reductive gas mixture consisting of 5% hydrogen balanced with nitrogen at a flow rate of 20 mL min⁻¹ was streamed through the sample. The sample was heated from 175 to 750 °C to obtain the TPR profiles of the sample.

Temperature-programmed desorption (NH₃-TPD). A Micromeritics TPD/TPR 2720 analyzer was used to characterize how NH₃ molecules are strongly conjugated to the acid sites qualitatively. First, 0.03 g of catalyst was heated under helium with a flow rate of 20 mL min⁻¹. The temperature of the system was increased to 600 °C with a temperature ramp of 10 °C min⁻¹ and then the temperature was kept constant for 60 min. Then, a helium flow of 20 mL min⁻¹ was supplied while cooling down the catalyst bed to 225 °C. Thereafter, 10% ammonia balanced with helium was streamed on the samples for 30 min with a flow of 20 mL min⁻¹ to effectively adsorb on the catalyst. Afterwards, physisorbed elements from the samples were removed by purging with helium for 1 h. The chromatograms were recorded from the signal processing of a thermal conductivity detector using a temperature ramp of 10 °C min⁻¹ from 75 to 625 °C.

Thermogravimetric analysis (TGA). The thermogravimetric analysis (TGA) analysis of each catalyst was performed with a Diamond TGA (PerkinElmer) instrument. Quantitative degradation of catalyst was analyzed by heating the catalyst from 30 to 1000 °C at a rate of 10 °C min⁻¹ under a synthetic air flow at 20 mL min⁻¹. Then, the samples were kept at the final temperature for 20 min.

Catalytic activity

Experimental setup. Catalytic tests were carried out in a fixed bed reactor of dimension 6.03 cm outer diameter, 0.87 cm wall thickness and 120 cm height constructed with stainless steel material (SS310S). A quartz tube (3.56 cm internal diameter, 4 cm outer diameter, and 120 cm height), obtained from Technical Glass Products (Painesville, USA), was placed inside the reactor in order to avoid interaction of the feed gas with the stainless steel. A quartz frit (3.5 cm diameter, 0.3 cm in thickness, and 150 μm to 200 μm porosity) placed at the middle of the quartz tube was used as catalyst bed. Temperature control was supplied with a vertically mounted, three-zone tube furnace (model TVS 12/600, Carbolite, UK). Temperature measurements were recorded by using two K-type thermocouples (1/16 in diameter, Omega, USA). The first thermocouple was fixed on the exterior surface of the stainless steel tube. The second thermocouple was inserted into the quartz tube momentarily for calibration and removed afterward from the quartz tube prior to testing because its internal copper material could affect the TCD of methane.³³ In addition, pressure and temperature indicators were placed at different locations to control the operating conditions. A two-differential pressure transducer (0′′ H₂O to 4′′ H₂O) was supplied by Sensocon to measure the pressure drop across the reactor. Mass flow controllers (Dwyer, USA) in the range of 0–2 L min⁻¹ were used to control the gas flow rates. The outflow gas was then cooled down to room temperature by means of an air cooler. Solid particles that had sizes greater than 2 nm and high molecular weight components were separated using two filters (38 M membrane, Avenger, USA). A calibrated Rosemount Analytical X-STREAM (UK) was used as an online analyzer to compute the mole percentage of methane and hydrogen.

Temperature programmed methane decomposition. 1 g of catalyst was homogeneously distributed over the catalyst bed and purged with nitrogen for 30 min at a flow of 1 L min⁻¹ to clean the furnace and catalyst. The bed temperature was increased to 550 °C with a ramp of 20 °C min⁻¹ and passing 30% H₂ in N₂ feed for 2.5 h to reduce the metal oxide catalyst to its metallic form. Then the furnace temperature was decreased to 25 °C under N₂ flow using an air cooler. 99.995% methane with a flow rate of 0.64 L min⁻¹ was used for temperature programmed decomposition from 200 to 900 °C with ramp of 5 °C min⁻¹.

Isothermal methane decomposition. The catalyst bed was uniformly covered with 0.5 g of catalyst. Pure nitrogen was passed for 30 min at a flow rate of 1 L min⁻¹ in order to clean the furnace. Then the system temperature was increased to 550 °C with a ramp of 20 °C min⁻¹. Reduction of catalyst was conducted at 550 °C by passing 30% H₂ in N₂ feed for 2.5 h. Then the temperature was increased/decreased to the reaction temperature under N₂ flow, accordingly. Once the final temperature was reached, N₂ flow was replaced with 99.995% methane with a flow rate of 0.64 L min⁻¹ for evaluating methane conversion at isothermal condition. Influence of flow rate on hydrogen production was analyzed at 550 °C with various flow rates.

Results and discussion

Production of n-Ni/SiO₂ nanocatalysts

Fine nanostructured Ni/SiO₂ catalysts were synthesized by co-precipitation cum modified Stöber method. The Stöber method was adopted in order to safeguard nanometal active phase with SiO₂ like inert materials. No surfactants were used in our method and SiO₂ formation reaction was conducted in alcoholic medium avoiding water (water content may hasten hydrolysis process which results in particle agglomeration and leave free metal and SiO₂ particles).^34,35 Furthermore, free n-NiO particles are nearly eliminated in the final product by increasing the quantity. The overall process constituted of different stages as follows. (i) Precipitation of NiOH nanoparticles from precursor Ni(NO₃)₂·6H₂O with NH₃ solution; (ii) the produced fine nanoparticles were directly supported with SiO₂ by the Stöber method.³² SiO₂ protection was developed uniformly over dispersed NiOH particles with a mixture of C18TMS and TEOS. C18TMS was added to the reaction mixture so as to increase the porosity of SiO₂. (iii) Porosity enhancement on SiO₂ was performed by calcination under air at 450 °C and reduction at 550 °C, which removed all organic moieties and converted metal oxides to metal. It has been reported that aggregation of metal oxide nanoparticles at 450 °C is insignificant.³⁶ The added C18TMS helps to prevent silica polymerization and produce more pores inside the silica network after calcination. Those heat treatments did not lead to metal particle agglomeration because of the silica coating. While the particle size of unprotected n-NiO were increased to large values (48.02 to 12933.53 nm) on reduction treatment, SiO₂ supported structures maintained their mean size with only a minor increase from 32.19 nm to 52.78 nm (detailed BET results provided in Table 2). Different precursor quantities were experimented on in an attempt to enhance the yield without affecting its structure and properties of the catalyst. The major challenge observed in nano-compound processing is the quantity of the product employed in our method in terms of yield. However, the quality of the product in terms of activity (see Fig. S4†) and particle size distribution was found to be invariant (see HRTEM images; Fig. 5, S2 and S3†). Additionally, the method was extended to different active metals such as cobalt and iron. A series of measurements were conducted to characterize the nanostructures. Furthermore, activity and stability were studied for TCD at various temperature and methane feed flow rate in a fixed bed pilot plant.

Characterization of the catalysts before TCD

XRD. The degree of structural order, longevity of catalyst and catalyst activity in fresh and deactivated samples are usually related to the apparent size of the crystallites determined by X-ray diffraction (XRD). Fig. 2 shows the XRD patterns for calcined and reduced (550 °C for 2.5 h in 30% H₂/N₂) n-Ni and n-Ni/SiO₂ nanostructures with different precursor concentrations. All XRD patterns have three major diffraction peaks, which respectively correspond to (111), (200) and (220) reflections of the solid. The crystalline size corresponds to each peak according to the Scherrer equation is given in Table 1. The diffraction peaks located at 2θ = 44.52, 51.87 and 76.40° correspond to d-spacings of 2.033, 1.761 and 1.245 Å, respectively, for completely reduced n-NiO as shown in Fig. 2a. The positions of the diffraction peaks in the sample are in good agreement with those given in JCPDS no.: 98-064-6092 for nickel. It is observed that the addition of SiO₂ diminishes the intensities of XRD peaks corresponding to NiO, showing a reduction of the structural ordering. It is obvious that the reduction with 30% hydrogen for 2.5 h at 550 °C was sufficient to convert calcined n-NiO to n-Ni metallic phases. Hence, the XRD pattern shows metallic Ni phase only (Fig. 2a). By contrast, n-Ni/SiO₂ structures exhibit both metallic and metal oxide phases (Fig. 2b–d) even after H₂ treatment, which indicates that the reduction treatment is insufficient for n-Ni/SiO₂ system, supporting previously conducted experimental reports.³⁷ Despite this, the NiO phases are of reduced intensity in the reduced n-Ni/SiO₂ XRD patterns (Fig. 2b–d).

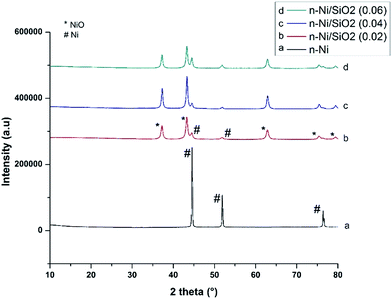

Fig. 2 XRD patterns of (a) n-Ni, (b) n-Ni/SiO₂ (0.02), (c) n-Ni/SiO₂ (0.04) and (d) n-Ni/SiO₂ (0.06). Peaks corresponding to NiO and Ni are indicated.

Table 1 Crystallite sizes of n-Ni and n-Ni/SiO₂ nanostructures with different precursor concentration before TCD process from XRD analysis and crystallite sizes of n-Ni/SiO₂ (0.02) nanostructures after TCD process at different temperature

Sample	Ni(111)/nm	Ni(200)/nm	Ni(220)/nm	Avg./nm
n-Ni	61.18	78.71	72.06	70.65
n-Ni/SiO2 (0.02)	28.54	43.84	29.26	33.88
n-Ni/SiO2 (0.04)	33.97	31.75	47.55	37.75
n-Ni/SiO2 (0.06)	31.14	29.11	29.24	29.83
TCD-600	70.14	45.11	25.84	47.03
TCD-550	70.15	25.77	29.45	41.79
TCD-500	26.98	51.55	29.49	36
TCD-475	26.97	72.11	51.58	50.22

---

In terms of activity, this does not influence the TCD process as methane itself acts as an excellent reducing agent, and no NiO phases were detected in XRD patterns after TCD (Fig. 10). Moreover, existing NiO phases are supposed to interact with porous silicate support resulting in accomplishment of a complex catalysis environment which likely leads to a more stable reaction course during the TCD of methane. However, the average crystallite size of the n-Ni and n-Ni/SiO₂ calculated using the global Scherrer equation (Table 1) is evidently close to the mean particle size obtained from BET analysis (Table 2). The mean crystallite sizes (Table 1) clearly reveal that the protection of SiO₂ over n-NiO prevents agglomeration. Hence, average crystallite size of n-NiO was 70.65 nm is reduced to around half this value when supported with SiO₂. One can observe that the intensity and width of reflections of the NiO peaks in the n-Ni/SiO₂ nanostructures change with precursor concentration. This can be attributed to the variation of the dispersion during silicate formation process accomplished from a mixture of TEOS and C18TMS in basic ethanol solution under sonication. Ultrasonic treatment is supposed to enhance the dispersion, while higher content of TEOS and C18TMS mixture may reduce such an effect.³⁸ Hence, the variation in NiO dispersion at different precursor concentration shows an impact on the intensity and width of reflections of NiO.

Table 2 Physical characteristics of n-NiO, n-NiO/SiO₂ (0.02), n-NiO/SiO₂ (0.04) and n-NiO/SiO₂ (0.06) from N₂ adsorption–desorption analysis

Catalyst	Single point SA^am^2 g^−1	BET SA/m^2 g^−1	Micropore area^b/m^2 g^−1	Mesopore + external area^c/m^2 g^−1	Micropore volume^d/cm^3 g^−1	Total pore volume^e/cm^3 g^−1	Mesoporous volume/cm^3 g^−1	BET pore size/nm	Mean particle size/nm
a Represents the values calculated at a relative pressure (P/P0) of N2 equal to 0.301.b Represents the values calculated from t-plot method.c Represents the values calculated from t-plot method.d Represents the values calculated from t-plot method.e Represents the total pore volume evaluated from nitrogen uptake at a relative pressure (P/P0) of N2 equal to 0.98.
n-NiO	62.22	62.46	5.17	57.28	0.0020	0.2499	0.2479	16.274	48.02
n-NiO/SiO2 (0.02)	91.50	93.18	5.17	88.01	0.0024	0.2301	0.2277	9.987	32.19
n-NiO/SiO2 (0.04)	90.62	92.53	6.24	86.28	0.0030	0.2036	0.2006	8.901	32.42
n-NiO/SiO2 (0.06)	102.64	104.6	6.47	98.21	0.0031	0.2148	0.2117	8.235	28.65

---

Nitrogen adsorption–desorption measurements. Table 2 details the physical characteristics of n-NiO, n-NiO/SiO₂ (0.02), n-NiO/SiO₂ (0.04) and n-NiO/SiO₂ (0.06). The BET mean particle size of NiO (48.02 nm) was found to be smaller after supporting with SiO₂ (32.19 nm). This observation illustrates that the support effectively prevents agglomeration of air-sensitive n-NiO particles during heat treatments such as calcination as well as reduction processes. The silica support not only leads to diminution of average particle size, but also increases the overall surface area and porosity. Compared with the naked n-NiO samples, the n-NiO/SiO₂ samples have higher specific surface areas (Table 2), due to the presence of SiO₂ and its associated porosity. It is found that there is no significant change of physical characteristics such as particle size (∼30 nm) or surface area (∼95 ± 5 m² g⁻¹) upon increasing the precursor concentration. Fig. 3 depicts the N₂ adsorption–desorption isotherms of n-NiO and n-NiO/SiO₂ (0.02). The pore diameter distributions of the samples were considered from the desorption branch of the isotherm by using the BJH method and the corresponding data are shown in Fig. 3 and Table 2. Furthermore, the N₂ adsorption–desorption isotherms and BJH pore diameter distribution of n-NiO/SiO₂ (0.04) and n-NiO/SiO₂ (0.06) are displayed in Fig. S1.† It can be seen that the pore sizes are mainly distributed below 30 nm in both n-NiO and n-NiO/SiO₂. The pores observed in the mesoporous and macroporous region with a pore size of 50 to 150 nm can be attributed to the formation of voids due to inter-nanoparticles in contact.

Fig. 3 Loops of N2-adsorption–desorption isotherms of (a) n-NiO and (b) n-NiO/SiO₂ (0.02) catalyst. The inset plot shows the pore diameter distributions calculated with Barrett–Joyner–Halenda (BJH) method.

HRTEM-EDX. Fig. 4 and 5 show the HRTEM images, particle size distribution measured with ImageJ software, and EDX elemental mapping of n-NiO and n-NiO/SiO₂ (0.02) nanocatalysts, respectively. Most of the unsupported n-NiO exhibit particle size >40 nm. In contrast, the diameters of NiO active phase in the SiO₂ supported sample were found in the range of 0–50 nm and very few particles were above 50 nm. Particle size distribution histograms of n-NiO (Fig. 4b) and n-NiO/SiO₂ (0.02) (Fig. 5b) support the BET analysis results (Table 2) and H₂-TPR results (Fig. 6a). It can be speculated that the structure of particles are not uniform and n-NiO are aggregated in some locations to form combined structures. This agglomeration may result in difficulty in reduction, supporting elongation of the H₂-TPR curve to slightly higher temperature (Fig. 6a). The active n-NiO/SiO₂ samples have fairly uniform average particle size at both lower and higher precursor concentration. However, the particle size distribution of n-NiO/SiO₂ prepared with higher precursor concentration (Fig. S2 and S3†) shows slightly higher percentage of particles with size >50 nm, compared to that of n-Ni/SiO₂ (0.02), which can be attributed to a higher degree of particle agglomeration, possibly in part due to increased importance of the magnetic properties of n-NiO with increased concentration.³⁵ The particle sizes do not exceed 100 nm in the combined structures even at higher concentration. It is thought that there is little diffusion limitation in such a thin and porous SiO₂ support. The elemental composition were confirmed by EDX analysis and is presented in Fig. 4c and 5c. The presence of C and Cu in the EDX mapping can be attributed to the elements in the electron carbon-supported 300 mesh copper grid used for HRTEM analysis and those elements were omitted from elemental percentage composition table.

Fig. 4 (a) HRTEM images, (b) particle size distribution and (c) EDX mapping of n-NiO. 75 nanoparticles were considered to plot the particle size distribution histogram. ImageJ software was used to measure particle size.

Fig. 5 (a) HRTEM images, (b) particle size distribution of n-NiO/SiO₂ (0.02) and (c) EDX mapping of n-NiO/SiO₂ (0.02). 75 nanoparticles were considered to plot the particle size distribution histogram. ImageJ software was used to measure particle size.

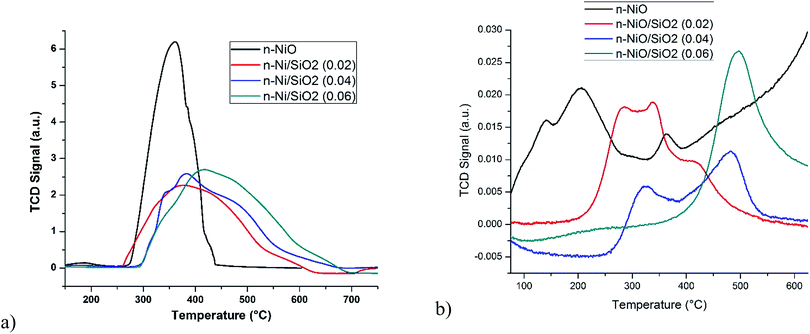

Fig. 6 (a) H₂-TPR and (b) NH₃-TPD profile of n-NiO, n-NiO/SiO₂ (0.02), n-NiO/SiO₂ (0.04) and n-NiO/SiO₂ (0.06).

H₂-TPR and NH₃-TPD. The H₂-TPR and NH₃-TPD profile of n-NiO and n-NiO/SiO₂ with three different nickel precursor concentrations (0.02, 0.04 and 0.06 mol of Ni(NO₃)₂·6H₂O) are reported in Fig. 6. Reduction of stoichiometric n-NiO exhibits a peak from 278 to 440 °C with a maximum at 360 °C in accordance with previous reports.³⁹ It is calculated for H₂-TPR peak that n-NiO consumed 282.8 mL g_cat⁻¹ of H₂ for its reduction. n-NiO reinforced with SiO₂ starts to reduce at the same temperature, though its reduction was extended to a higher temperature range. H₂-TPR profile of n-NiO/SiO₂ samples exhibit a single peak between 280 and 700 °C which can be assigned to the complete reduction of NiO species, supporting previous results.^31,40 The H₂-TPR quantify a H₂ consumption of 330.3 mL g_cat⁻¹ for n-NiO/SiO₂ (0.06), while n-NiO/SiO₂ (0.02) and n-NiO/SiO₂ (0.04) have corresponding values of 250.7 and 277.4 mL g_cat⁻¹ H₂ for complete reduction, respectively. It is of note that n-NiO/SiO₂ could be reduced in the temperature range of 300–550 °C in agreement with previous observation on Ni-based compounds.⁴¹ Only one reduction peak for n-NiO/SiO₂ catalysts reveal a homogenous interaction between metal and support. It was observed that the metal–support interaction is dependent upon metal constitution and the particle size distribution differs from that in the supported systems.³⁸ n-NiO/SiO₂ nanostructured catalysts show a broader H₂-TPR peak irrespective of the conventional metal supported catalysts.⁴² Hence, it is difficult to reduce nanomaterial produced by co-precipitation cum modified Stöber method compared to the conventionally supported Ni/SiO₂ catalysts because of the much stronger interaction between metal and support.³¹ Furthermore, the alteration of the reduction peak towards a higher value can be attributed to the presence of some larger sized n-NiO. Hence, one can note that the H₂-TPR peak of n-NiO/SiO₂ (0.04) slightly extended to higher temperature values compared to that of n-NiO/SiO₂ (0.02). Similarly, n-NiO/SiO₂ (0.06) has a broader peak than that of n-NiO/SiO₂ (0.04). Additionally, the denser SiO₂ support may cause difficulty in hydrogen diffusion and n-NiO reduction.

Fig. 6b shows the NH₃-TPD profile for determining the number of surface Ni sites which adsorb NH₃ per unit mass of catalyst. Because of the diffusional limitations, the acid sites computed with NH₃-TPD is not very accurate in relation to the actual acidity strength measured with quantitative measurements.⁴³ Hence, NH₃-TPD is not commonly accepted as a reliable characterization method for computing the precise quantity of acid sites. However, NH₃-TPD can provide a qualitative indication of the conjugation intensity of NH₃ molecule with acid sites. As shown in Fig. 6b, the NH₃-TPD curves shows that the acidity sites increase with the precursor concentrations. n-NiO reveals only a weak interaction of NH₃ with acid sites with peaks from 100 to 255 °C. However, desorption chromatograms of n-NiO/SiO₂ catalysts start from only above 200 °C, which indicates the occurrence of more strong acid sites after supporting n-NiO with SiO₂.

Catalytic methane decomposition. Temperature programmed methane decomposition was carried out as preliminary experiments in order to determine the temperature ranges where the n-Ni and n-Ni/SiO₂ (0.02) catalysts were active for TCD. The results are shown in Fig. 7. The temperature programmed methane decomposition results reveal that the activity of n-Ni starts above 700 °C only, while n-Ni/SiO₂ (0.02) is active from 450 to ∼700 °C. Hence, n-Ni/SiO₂ (0.02) catalyst having activity in the moderate temperature range was considered for further isothermal studies.

Fig. 7 Temperature programmed methane decomposition over 1 g of n-Ni and n-Ni/SiO₂ (0.02) catalyst. Temperature range 200–900 °C, flow rate 0.64 L min⁻¹.

Based on the results from temperature programmed methane decomposition, it was decided to carry out isothermal catalytic trials in the temperature range of 475–600 °C over n-Ni/SiO₂ (0.02) catalyst. Fig. 8a shows the changes in hydrogen production percentage with time on stream for the TCD over n-Ni/SiO₂ (0.02) catalyst at 475–600 °C. The experiments were conducted to evaluate activity stability of nanostructured catalyst materials as well as its ability to tolerate higher temperature environments. n-Ni/SiO₂ (0.02) catalysts were evaluated with 99.995% methane. During the entire process, methane and hydrogen only were detected as gaseous products according to the reaction CH₄ → 2H₂ + C. In general, hydrogen production is high just after the contact of methane with the catalyst and decreases gradually with time. It is found from temperature programmed methane decomposition (Fig. 7) that n-Ni/SiO₂ (0.02) was undergoing fast deactivation above 700 °C because of its high temperature sensitivity, supporting previous reports,⁴⁴ and hence such high temperature studies were omitted from our analysis. Furthermore, according to Takenaka et al.,⁴⁴ Ni-based catalysts are effective for methane decomposition in the temperature range of 400–600 °C, but deactivated immediately at temperatures above 600 °C. Thermal degradation of the n-NiO/SiO₂ occurring above 600 °C, could be a reason for a rapid deactivation at higher temperature. Hence, a gradual weight loss was observed in thermogravimetric analysis results of n-NiO/SiO₂ as shown in S5,† which might be attributed to thermal degradation. Significantly, n-Ni/SiO₂ (0.02) catalyst maintained its activity even after 300 min with very low catalytic deactivation rate in the temperature range of 475–600 °C. Activity loss of n-Ni/SiO₂ (0.02) catalyst in percentage terms is displayed in Fig. 8b. The initial catalytic activity became higher and catalytic deactivation rate was found to increase with increasing reaction temperature, clearly indicating the influence of temperature on TCD. Throughout the experimental duration of 300 min, n-Ni/SiO₂ (0.02) catalyst showed activity in a wide range between 12 to 40.4% at different temperatures, and no sharp deactivation was observed at any experimented temperatures, indicating relatively stable catalytic activity of the catalysts under the experimental conditions. We found that the minimum deactivation was occurred at 500 °C. We have extended our examination up to 300 min in order to reveal the stability of nanostructured catalyst. One can see that our n-Ni/SiO₂ (0.02) catalysts are significantly more active and stable than the naked counterpart as well as those prepared by conventional methods (see Table 3).

Fig. 8 (a) Isothermal methane decomposition over n-Ni/SiO₂ (0.02) catalyst at different temperature. Flow rate = 0.64 L min⁻¹ and catalyst weight = 0.5 gm. (b) Activity loss in percentage at each temperature after 5 h of activity examination.

Table 3 Comparison of catalytic activity of previously reported metal catalyst with n-Ni/SiO₂ catalyst. Initial activity and activity at time t and deactivation time are listed. Values are taken from reference as such

Catalyst	Reaction parameters			Initial		Time t		t	td
	T	CH4 flow	Total flow	CH4	H2	CH4	H2
a F, flow rate (mL min^−1), conversion (%); t, time (h); td, time of complete deactivation (h); –, not cited in the original reference.b Flow rate (N mL min^−1).
Ni/SiO2 (ref. 48)	650	15^a	–	42	–	5	–	4	–
Ni–Ca/SiO2 (ref. 49)	580	–	100^a	39	–	12	–	3	–
Ni–K/SiO2 (ref. 49)	580	–	100^a	40	–	5	–	2.5	3
Ni–Fe/SiO2 (ref. 48)	650	15^a	–	46	–	27	–	4	–
Ni/MgAl2O4 (ref. 50)	550	–	80^a	34	–	23	–	3	4
Ni–Cu/La2O3 (ref. 51)	600	–	110^b	35	–	60	–	10	–
n-Ni/SiO2 (0.02) (this work)	600	640^a	640^a	57.2	40.4	79.5	19.9	5	–
n-Ni/SiO2 (0.02) (this work)	550	640^a	640^a	68.5	29.4	76.9	22.9	5	–
n-Ni/SiO2 (0.02) (this work)	500	640^a	640^a	74.4	17.2	85.3	14.6	5	–
n-Ni/SiO2 (0.02) (this work)	475	640^a	640^a	90.1	11.5	90.9	9.1	5	–
n-Ni/SiO2 (0.02) (this work)	550	1070^a	1070^a	72.9	25.6	84.2	15.7	2	–
n-Ni/SiO2 (0.02) (this work)	550	1430^a	1430^a	78	21	87.3	11.9	2	–
n-Ni/SiO2 (0.04) (this work)	550	640^a	640^a	69.4	29.3	79.8	20.1	5	–
n-Ni/SiO2 (0.06) (this work)	550	640^a	640^a	72.3	27.6	79.4	20	5	–

---

Furthermore, the isothermal methane conversion percentage as well as the activity range clearly follow the temperature range observed in the temperature programmed methane decomposition (Fig. 7). However, it is worth pointing out that in the temperature range of 475–600 °C, the methane conversions and hydrogen production percentage as well as nanocarbon yield (Fig. 11) over the n-Ni/SiO₂ (0.02) catalyst are considerably superior to previously reported Ni-based catalysts in Table 3. TCD experiments were conducted over n-Ni/SiO₂ (0.04) and n-Ni/SiO₂ (0.06) at 550 °C and the results were compared with that of n-Ni/SiO₂ (0.02) as shown in Fig. S3.† It can be seen that all the prepared catalysts behave in a similar way. The results clearly indicate that the examined nanocatalysts are more stable than that of normally supported or naked catalysts. Hence, n-Ni/SiO₂ (0.02) nanostructured catalyst can be assumed as micro-capsular like reactors^45–47 in which the reactant molecules have sufficient space for catalytic activity within the porous support. Furthermore, the reactant can get adsorbed within the support through highly porous silicate and accordingly results in higher catalytic activity. The very high stability of n-Ni/SiO₂ catalyst can be attributed to effective prevention of aggregation of the active Ni-phase by the silica support.

The effect of methane feed flow rate on hydrogen production in percentage terms with time on stream is shown in Fig. 9. Flow rates of 0.64, 1.07 and 1.43 L min⁻¹ were analyzed at 550 °C over 0.5 g of catalyst. It is observed from Fig. 9 that the initial hydrogen production decreased from 26.8 to 21.04% when the flow rate was increased from 0.64 to 1.43 L min⁻¹. It can be speculated that higher methane flow rate results in the lower contact time with catalyst and hence resulted in the lower hydrogen production.^15,52 Furthermore, it is found that the catalytic deactivation rate is also increases with increasing flow rate.

Fig. 9 Methane decomposition over n-Ni/SiO₂ (0.02) catalyst at different methane feed flow rates; temperature = 550 °C and catalyst weight = 0.5 g.

Characterization of produced nanocarbon

XRD patterns of the produced carbon at 475–600 °C are shown in Fig. 10. The diffraction peaks at 2θ = 26.26 and 44.45 are characteristic of graphite (JCPDS no. 98-005-3781). The peaks at 2θ = 44.5, 51.83 and 76.28° corresponds to Ni-phases showing good agreement with JCPDS no. 01-070-1849. It is found that the graphitization intensity of carbon nanofibers improved on increasing the temperature from 475 to 600 °C which is clear from the alteration of 2θ values corresponding to nanocarbon to higher values in a similar manner to those reported with Ni-supported Y zeolite.⁵³

Fig. 10 XRD patterns of produced nanocarbon over n-Ni/SiO₂ (0.02) at different temperatures. Peaks corresponding to graphite and Ni are indicated.

HRTEM images of n-Ni and n-Ni/SiO₂ (0.02) catalyst after temperature programmed methane decomposition are shown in Fig. (11(a and b)). The unsupported n-Ni particles undergo strong sintering which results in giant agglomerate formation and the particles are covered by a carbon crust which isolates them from the reaction medium and prevents further methane decomposition over n-NiO (Fig. 11a). Hence, such catalysts are incapable to produce longer carbon nanofilaments as well, supporting our temperature programmed methane decomposition results (Fig. 7). Kim et al.⁵⁴ reported the same observation that unsupported nickel powder is not suitable for production of nanofilaments in hydrocarbon media. By contrast, one can see longer nanocarbon filaments formed over n-Ni/SiO₂ (0.02) catalyst after temperature programmed methane decomposition (Fig. 11b) which can be attributed to the stronger protection of n-NiO after supporting with SiO₂.

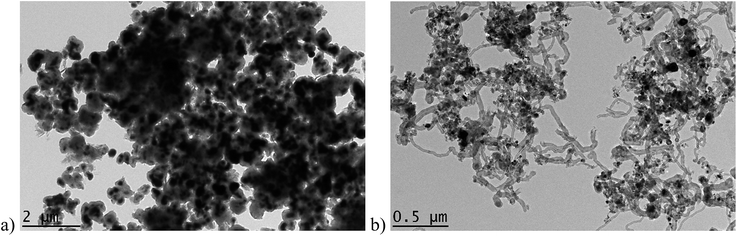

Fig. 11 HRTEM image of (a) n-Ni and (b) n-Ni/SiO₂ (0.02) catalyst after TPD analysis.

Fig. 12a–c show HRTEM images of the produced nanocarbon by TCD over n-Ni/SiO₂ (0.02) at different temperatures of 600, 550 and 500 °C, respectively. Accordingly, external diameter distribution of the nanocarbon at each temperature was also measured using ImageJ software considering 75 nanocarbons for diameter measurement. Large quantities of nanocarbons were deposited in the catalysts during the TCD process. The carbon yield percentage was calculated using eqn (3)^55,56 and the results are shown in Fig. 13. The carbon yield of the catalysts was evaluated based on the extent of methane conversion against time on stream at a CH₄ flow rate of 0.64 L min⁻¹ for 5 h run time.

Fig. 12 HRTEM images of produced nanocarbon and corresponding diameter distribution, (a) 600 °C and (b) 550 °C and (c) 500 °C. 75 nanocarbons were considered to plot the diameter distribution histogram. ImageJ software was used to measure diameter.

Fig. 13 Carbon yield over n-Ni/SiO₂ (0.02) catalyst at different reaction temperatures.

A huge carbon yield of ∼5000% were obtained at 600 °C. Such observed carbon yield is outstanding compared to many other available results over Ni-based catalysts.⁵⁵ The majority of produced nanocarbon is in the form of tubes and very minor quantity can be categorized as very small nanofibers. The main difference between nanotubes and nanofibers is the lack of a hollow cavity for the latter.⁵⁷ Many nickel particles were located at the tip of the nanocarbons. It is apparent from the Fig. 12a–c that the carbon nanotubes are formed with thick walls and an internal cavity are posturing “fish-bone” or “bamboo” morphology. The varieties of nanocarbon found after the decomposition process can be categorized as follows; (i) nanocarbons with opening filled with pear shaped Ni particles (indicated in Fig. 12 with symbol), (ii) fish-bone nanocarbon (), (iii) carbon nanotubes with open end (), (iv) carbon nanotubes with closed end () and (v) carbon nanotube with Ni particle embedded in it (). The diameter distribution illustrates that more than 90% of nanocarbons had an external diameter of less than 100 nm. In addition, it can be speculated that the diameter distribution shifted towards a lower diameter range on lowering the decomposition temperature (Fig. 12d–f). The fraction of carbon nanotubes with diameters above 50 nm is higher when decomposition took place at 600 °C, while it is comparatively lower at lower temperatures of 550 and 500 °C. Furthermore, previously conducted thorough studies on produced nanocarbons reveal that the outer diameter of the carbon nanotubes greatly depends on the size of Ni particles: larger Ni particles lead to carbon nanotubes with larger diameter.⁵⁸ The Ni metal particle found at the tip of the carbon nanotubes are of pear or diamond shape with the sharp tail inserted into the carbon nanotube following tip-growth carbon formation mechanism,⁵⁹ which is reinforcing many previous works.^60–62 It is noted that the Ni particles were spherical or sphere shaped when embedded in SiO₂ before the decomposition process (Fig. 5a). This structural change stipulates the possibility of the existence of Ni particles in the quasi-liquid state during the process, even at lower experimental temperature than its melting point (1452 °C) and Tamman temperature (726 °C). The occurrence of lower temperature quasi-liquid is because of formation of highly unstable, compared to Ni and graphite, Ni₃C metastable compound as an intermediate product in the methane transformation process, which can be decomposed to metallic Ni and graphite at lower temperature of 400 °C. Furthermore, the higher gradient of Ni₃C concentration over Ni particle during the process because of the uninterrupted graphite formation sets up a pressure at the graphitic envelope.⁵⁸ Hence, mass transfer of carbon occurred by diffusion through the bulk particle as a consequence of built up pressure which tries to squeeze out the Ni particle in the quasi-liquid state. The lower temperature Ni₃C to metallic Ni and graphite conversion and internal pressure build up explain the change in the shape of Ni particle after TCD process as well as the manifestation of Ni particles inside the carbon nanotubes.

Extension of method to Fe and Co metals

Co-precipitation cum modified Stöber method to prepare nanostructured catalyst was successfully extended to other metals such as Fe and Co with the same SiO₂ support. HRTEM images of n-FeO/SiO₂ (0.02) and n-CoO/SiO₂ (0.02) are shown in Fig. 14. n-FeO and n-CoO were prepared from iron(III) nitrate nonahydrate (Fe(NO₃)₃·9H₂O) and cobalt(II) nitrate hexahydrate (Co(NO₃)₂·6H₂O), respectively. Partial agglomeration was observed in both n-FeO/SiO₂ (0.02) and n-CoO/SiO₂ (0.02) because of the magnetic coupling of adjacent metallic phases during silica feeding process. Our results reveal that co-precipitation cum modified Stöber method can be used as a general method for preparing silica supported metal nanostructures for high temperature requirements.

Fig. 14 HRTEM images of (a) n-FeO/SiO₂ (0.02) and (b) n-CoO/SiO₂ (0.02).

Preliminary catalytic activity evaluation were conducted over n-Fe/SiO₂ (0.02) and n-Co/SiO₂ (0.02) catalysts. Temperature programmed methane decomposition results are shown in Fig. 15.

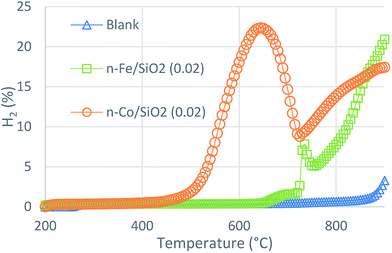

Fig. 15 Temperature programmed methane decomposition over 1 g of n-Fe/SiO₂ (0.02) and n-Co/SiO₂ (0.02) catalysts. Temperature range 200–900 °C, flow rate 0.64 L min⁻¹.

Results disclose that n-Fe/SiO₂ (0.02) and n-Co/SiO₂ (0.02) are active for TCD but not as effective as that of n-Ni/SiO₂. n-Fe/SiO₂ (0.02) is active in the range of 730–760 °C, while n-Co/SiO₂ (0.02) is active at 500 to 650 °C. Both of them give comparatively very less methane conversion than that of n-Ni/SiO₂. Further isothermal activity studies and mechanism have yet to be conducted. It can be concluded that the activity of studied catalysts are in the following order n-Ni/SiO₂ > n-Co/SiO₂ > n-Fe/SiO₂.

Conclusion

n-Ni/SiO₂ catalysts were prepared by co-precipitation cum modified Stöber method and examined for thermocatalytic decomposition of methane. Hydrogen free from GHG was produced over n-Ni/SiO₂ (0.02) catalyst without any significant deactivation at an active temperature range (475–600 °C) for examined duration of 300 min, owing to the fundamental stable nanostructure. Maximum hydrogen production of 40.4% was observed at 600 °C, while minimum deactivation after 300 min of examination was found at 500 °C. Moreover, it was observed that a higher methane flow rate results a lower methane conversion as well as a higher catalytic deactivation rate. Four different types of carbon nanotubes with inner and outer diameter in tens of nm and length in the range of hundreds of nm were observed after the decomposition process. Growth of nanocarbons was found to follow the tip-growth mechanism. Furthermore, the existence of quasi-liquid state of Ni-metal explained the encapsulation of metal particles inside the carbon nanotubes as well as the pear/diamond shape of Ni metal after decomposition. Considering the cheap nickel precursors as well as considerably simple and room-temperature catalyst production method, nanostructured n-Ni/SiO₂ is a promising material for the production of GHG free H₂ through the catalytic decomposition of methane. The extension of the study for nano-Fe and nano-Co active phases with SiO₂ support reveals that n-Ni/SiO₂ is superior to them in terms of activity and stability for thermocatalytic decomposition of methane. The activity and stability of the examined catalysts are in the following order: n-Ni/SiO₂ > n-Co/SiO₂ > n-Fe/SiO₂. It can be predicted that these types of metal/SiO₂ nanostructures with suitable metals could possibly serve as catalysts for many high-temperature reactions.
