Synthesis of novel benzoxaborinin-4-ones and its application in indolin-2-ones synthesis using a Suzuki–Miyaura reaction protocol

Kannan Muruganab, Murugan Chinnapattuab, Fazlur-Rahman Nawaz Khan*b and Pravin S. Iyer*a
aDepartment of Medicinal Chemistry, AstraZeneca India Pvt. Ltd., Bellary Road, Hebbal, Bangalore 560 024, India. E-mail: praviniyer@yahoo.com; Tel: +91 9900081547
bChemistry Division, School of Advanced Sciences, VIT University, Vellore 632014, India. E-mail: Nawaz_f@yahoo.co.in

Received 1st April 2015 , Accepted 15th April 2015

First published on 15th April 2015


Abstract

We herein discuss the synthesis of novel benzoxaborinin-4-one from substituted isatins and 2-acetyl phenylboronic acid. Furthermore, we have demonstrated the application of these boronic acids to synthesize indolin-2-ones (Z isomer) regioselectively using Suzuki–Miyaura reaction.


Introduction

The unique structural features of boron have allowed this class of compounds to have medicinal application in the development of antiviral, antibacterial and anticancer therapy.1 Recently, boron containing compounds such as tavaborole and bortezomib were approved by FDA for diverse indications such as fungal infection and cancer.2 In organic synthesis, boronic acids are used as synthetic intermediates in different metal catalysed cross coupling reactions to construct complex molecules.3

Spiro cyclic compounds are finding increasing application in drug discovery, owing to their conformational restriction and structural novelty.4 Specifically, cyclic spiro 2-oxindole derivatives obtained from isatin, occur in many natural products such as spirotryprostatins A, horsfiline, etc.5 The synthetic spiro 2-oxindole derivative such as NITD605 is currently in clinical development for malaria (Fig. 1).6 In the course of our research, we became interested in the synthesis of a novel spiro boronic acid and its application in the area of medicinal and synthetic organic chemistry.


image file: c5ra05755h-f1.tif

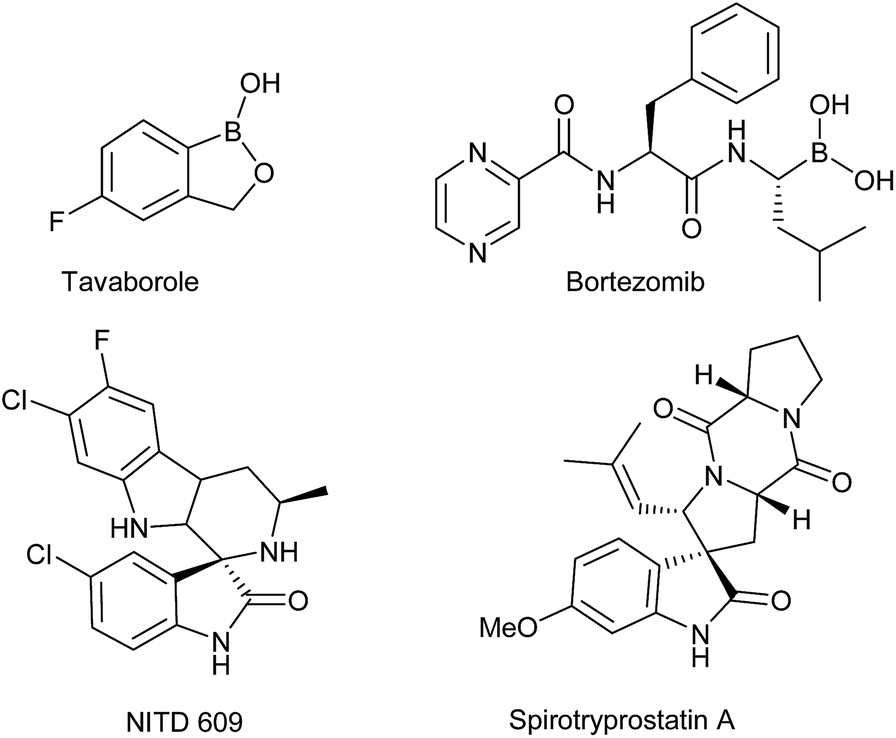

Fig. 1 Biologically active boron derivatives and spiro 2-oxindole derivatives.

We used isatin as the key building block due to its presence in many fused bioactive heterocyclic compounds.7 Benzoxaborole, an important class of boronic acids was synthesized from 2-formylphenylboronic acid.8

The benzoxaborole derivatives were synthesised by reducing the aldehyde group with sodium borohydride and followed by condensation (Fig. 2). We envisioned that spirocyclic boron compounds could be synthesized by the condensation of isatin with acetyl phenyl boronic acid.


image file: c5ra05755h-f2.tif

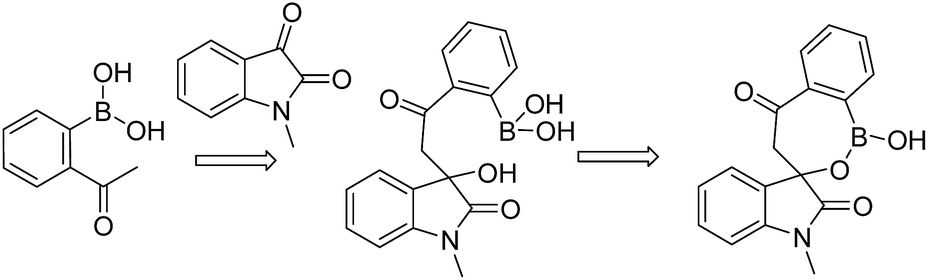

Fig. 2 Design of spirocyclic boron compounds.

Results and discussion

We carried out the condensation of equimolar quantities of 2-acetyl phenyl boronic acid with 5-chloro-1-methylindoline-2,3-dione in ethanol at 90 °C for 16 h (Table 1). We expected a spirocyclic boron compound, but interestingly the reaction exclusively yielded the diastereoisomeric mixture of benzoxaborinin-4-ones (1a) in 20% yield. We isolated both diastereoisomers (1aa and 1ab) using column chromatography and confirmed their structure by NMR spectroscopy. In the 1H NMR spectrum of diastereoisomer 1aa, the proton of C3 in 2-oxaindole and the carbon alpha to the ketone group appear at δ = 4.47 and 5.59 ppm. Further, the structure was confirmed by COSY and HSQC spectra which exhibits ring junction protons attached to two adjacent carbon atoms. Encouraged by the discovery of this reaction that affords a novel benzoxaborinin-4-one, we began optimisation of reaction conditions to improve the yield of diastereoisomers. We screened an array of solvents, pH and temperature condition. Ethanol was found to be the best solvent, methanol and hexanol provided low yields while other solvents yielded no product (Entry 1–7). We optimized for reaction condition and found that 120 °C in sealed vials provided the best yields (Entry 8–10). Addition of acid or base yielded no product (Entry 11–13). This indicated the essentiality of neutral conditions. Next, we explored the scope of this reaction with other isatin substrates (Table 2). 1-Methylisatin and NH-isatin gave the corresponding product 1b and 1c in 56% and 42% yield respectively. Variation of halogen groups at C-5 position of isatin afforded the respective products in the yield order 5-F > 5-Cl > 5-Br (1d, 1a and 1e). Methyl group at the C5 position gave the corresponding product 1f in 45% yield. Varying the substitution in isatin had no effect on diastereoselectivity of these isomers. We isolated portion of major diastereoisomers (Yield 6–9%) from the mixture using column chromatography.
Table 1 Optimization of reaction conditiona

image file: c5ra05755h-u1.tif

Entry Solvent Reagent Temp (°C) Time (h) Yieldb (%)
a 5-Chloro-1-methylindoline-2,3-dione (1 mmol), 2-acetylphenylboronic acid (1.1 mmol) and solvent (4 ml) in Supelco vial.b Isolated yield after column chromatography.
1 EtOH 90 16 20
2 EtOH 90 24 35
3 MeOH 90 24 15
4 Hexanol 120 16 10
5 THF 70 16 0
6 DMF 120 16 0
7 Toluene 110 16 0
8 EtOH r.t 16 0
9 EtOH 100 16 56
10 EtOH 120 16 63
11 EtOH TEA 120 16 0
12 EtOH AcOH 120 16 0
13 EtOH PTSA 120 16 0

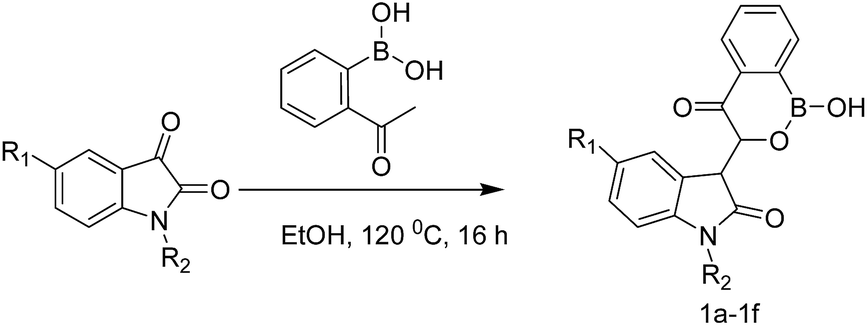

Table 2 Synthesis of benzoxaborinin-4-one derivatives

image file: c5ra05755h-u2.tif

Entry R1 R2 Product Yielda (%) Ratio of diastereoisomersb
a Isolated yield of mixture.b Ratio of diastereoisomers based on H NMR.
1 Cl Me 1a 63 49[thin space (1/6-em)]:[thin space (1/6-em)]51
2 H Me 1b 56 38[thin space (1/6-em)]:[thin space (1/6-em)]62
3 H H 1c 42 42[thin space (1/6-em)]:[thin space (1/6-em)]58
4 F Me 1d 70 47[thin space (1/6-em)]:[thin space (1/6-em)]53
5 Br Me 1e 52 44[thin space (1/6-em)]:[thin space (1/6-em)]56
6 Me Me 1f 45 39[thin space (1/6-em)]:[thin space (1/6-em)]61


Mechanistically, we believe that the reaction begins with the nucleophilic attack of 2-acetyl boronic acid on isatin resulting in the formation of tertiary alcohol intermediate (IV) which upon dehydration affords the intermediate (V). Cyclisation of the boronic acid onto the activated double bond yielded a diastereoisomeric mixture of products (VI). 3-Acetyl boronic acid yielded no product under these conditions, suggesting that boron group at 2 position promotes enolization of the acetyl group (Fig. 3).


image file: c5ra05755h-f3.tif
Fig. 3 Proposed mechanism for synthesis of benzoxaborinin-4-one derivatives.

To explore the applicability of the synthesized boronic acids, we attempted a cross coupling reaction under Suzuki–Miyaura conditions. Initially, we examined the Suzuki coupling reaction of compound 1d with 4-iodochlorobenzene in presence of 2% Pd(PPh3)4, NaHCO3 and DME/water solvent mixture (5[thin space (1/6-em)]:[thin space (1/6-em)]1) at 90 °C (Table 3, Entry 1). Gratifyingly, the reaction afforded the indolin-2-one product 2a in 20% yield. The structure of the coupled product was established by spectroscopic analysis and single crystal XRD study. The structure and conformation (Z isomer) of product 2a were unambiguously determined by single crystal X-ray analysis (Fig. 4). Indolin-2-one compounds have demonstrated useful biological activity as tyrosine kinase inhibitor,9 selective plasmodial CDK inhibitors,10 human transglutaminase-2 inhibitors11 and antifouling/antibacterial agent.12 Interestingly on omission of water, the reaction did not yield any product (Entry 2). The best yield was observed using 10% Pd catalysts at 90 °C in DME/water for 5 min (Entry 3). DME/water proved to be the best solvent (Entry 3–6) and optimum base was NaHCO3 (Entry 3, 7 and 8).

Table 3 Optimisation of Suzuki–Miyaura reactiona

image file: c5ra05755h-u3.tif

Entry Catalyst Base Solvent Temp (°C)/time (min) Yieldb (%)
a All reaction were performed with 1d (1 mmol), 4-iodochlorobenzene (1.3 mmol) and base (1.5 mmol) and solvents (5[thin space (1/6-em)]:[thin space (1/6-em)]1).b Yield of isolated product.
1 5% Pd(PPh3)4 NaHCO3 DME[thin space (1/6-em)]:[thin space (1/6-em)]H2O 90/15 45
2 5% Pd(PPh3)4 NaHCO3 DME 90/120 0
3 10% Pd(PPh3)4 NaHCO3 DME[thin space (1/6-em)]:[thin space (1/6-em)]H2O 90/5 65
4 10% Pd(PPh3)4 NaHCO3 Ethanol[thin space (1/6-em)]:[thin space (1/6-em)]H2O 90/5 27
5 10% Pd(PPh3)4 NaHCO3 THF[thin space (1/6-em)]:[thin space (1/6-em)]H2O 65/5 10
6 10% Pd(PPh3)4 NaHCO3 Dioxane[thin space (1/6-em)]:[thin space (1/6-em)]H2O 100/5 50
7 10% Pd(PPh3)4 Na2CO3 DME[thin space (1/6-em)]:[thin space (1/6-em)]H2O 90/5 55
8 10% Pd(PPh3)4 K2CO3 DME[thin space (1/6-em)]:[thin space (1/6-em)]H2O 90/5 48



image file: c5ra05755h-f4.tif
Fig. 4 Crystal structure of compound 2a.

All cyclic boronic acid derivatives were successfully transformed into the respective products in moderate yields (Table 4). We found that only the Z isomer was formed in the reaction indicating high regioselectivity. Mechanistically, we believe that the reaction first undergoes Suzuki–Miyaura reaction resulting in a boronic acid intermediate that further undergoes E2 elimination reaction leading to indolin-2-one product (Fig. 5). The regioselectivity can be understood from the geometries for E2 elimination reaction. The Z isomer resulting from the less hindered transition state of boronic acid intermediate is the more favoured isomer.

Table 4 Example of Suzuki–Miyaura productsa

image file: c5ra05755h-u4.tif

Entry R1 R2 Ar Product Yieldb (%)
a All reaction were performed with benzoxaborinin-4-one (1 mmol), Ar–X (1.3 mmol) and base (1.5 mmol) and solvents (5[thin space (1/6-em)]:[thin space (1/6-em)]1).b Yield of isolated product.
1 F CH3 image file: c5ra05755h-u5.tif 2a 65
2 F CH3 image file: c5ra05755h-u6.tif 2b 57
3 F CH3 image file: c5ra05755h-u7.tif 2c 46
4 H H image file: c5ra05755h-u8.tif 2d 62
5 H H image file: c5ra05755h-u9.tif 2e 35
6 H CH3 image file: c5ra05755h-u10.tif 2f 65
7 H CH3 image file: c5ra05755h-u11.tif 2g 43
8 Cl CH3 image file: c5ra05755h-u12.tif 2h 55
9 Cl CH3 image file: c5ra05755h-u13.tif 2i 41

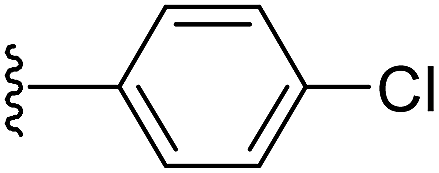

10 Br CH3 image file: c5ra05755h-u14.tif 2j 42

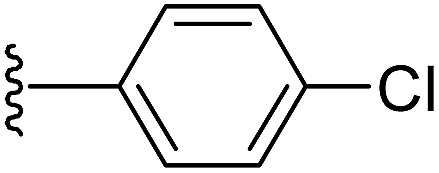

11 CH3 CH3 image file: c5ra05755h-u15.tif 2k 51



image file: c5ra05755h-f5.tif
Fig. 5 Plausible conformation for the elimination reaction in Suzuki Miyaura condition.

Conclusions

In summary, we have synthesized novel cyclic boronic acids from substituted isatins and 2-acetyl boronic acid in good yields. Further, we have demonstrated the application of these boronic acids to regioselectively synthesize (Z) indolin-2-one derivatives in moderate yields.
