Ordering and dynamics of oligo(phenylene ethynylene) self-assembled monolayers on Au(111)

Abstract

Self-assembled monolayers of 4-[4′-(phenylethynyl)-phenylethynyl]-benzenethiolate (PPB-S) molecules on flame annealed Au(111) have been investigated by ultra-high vacuum scanning tunneling microscopy. We have found a hitherto unknown self-assembled monolayer phase. This phase consists of a fine-striped pattern that is aligned along the close packed 〈11̄0〉 directions of the Au(111) surface. The fine-striped pattern has √3 periodicity and is separated by narrow vacancy lines which are oriented perpendicular to the fine-striped pattern. Surprisingly, the herringbone reconstruction of the underlying Au(111) substrate is not fully lifted by the self-assembled monolayer. Spatially resolved current–time scanning tunneling microscopy experiments revealed that the PPB-S molecules at the edges of the vacancy lines exhibit dynamic behavior and frequently jump back and forth between neighboring stripes.

---

Introduction

Self-assembled monolayers (SAMs) have been extensively studied due to their potential applications in molecular electronics.^1–11 SAMs of alkanethiols containing saturated C–C bonds have been used as model systems in many experimental and theoretical studies.^8–14 However, alkanethiols have a rather large HOMO–LUMO (highest occupied molecular orbital–lowest unoccupied molecular orbital) gap resulting in a rather modest molecular conductance, which makes them less suited for molecular electronics applications. Conjugated molecules with delocalized π electrons are much more suitable candidates for electronic devices. Fully conjugated oligo(phenylene-ethynylene) (OPE) molecules with tunable functionalities have attracted great attention because of their potential applications in molecular electronics.^15–17 Owing to the better rigidity and stronger intermolecular interactions of OPE molecules as compared to their aliphatic counterparts, OPE molecules enable the possibility of a much better control over their ordering in SAMs. Compared to alkanethiols, OPE molecules have rather small HOMO–LUMO gaps (∼3 eV),¹⁸ possess synthesis flexibilities,^19–21 and some OPE molecules exhibit even negative differential resistance (NDR) characteristics.^22–24

Characterizing the ordering and packing of conjugated OPE SAMs is essential for understanding the corresponding electronic and optical properties of materials and devices based on these systems. A simple and well-studied OPE monothiol is 4-[4′-(phenylethynyl)-phenylethynyl]-benzenethiol (hereafter referred as PPB-S). The structural and electronic properties of PPB-S have been extensively investigated by scanning tunneling microscopy (STM).^22,25–33 In two previous studies structural models for the PPB-S SAM have been proposed.^30,31 Both articles reported the formation of densely packed SAMs, where the molecules are ordered in several rotational invariant domains.^30,31 Dhirani et al. used STM to resolve the structure of the PPB-S SAM on Au(111).³⁰ These authors found a unit cell with lattice vectors of a = 5.2 ± 0.4 Å and b = 9.7 ± 0.9 Å, respectively. The angle between both lattice vectors was γ = 55° ± 5°. Dhirani et al. pointed out that this unit cell is very close to a (2√3 × √3)R30° periodicity. In a later study Yang et al. showed that there are six different domains and these authors proposed a unit cell (in terms of the lattice vectors of the underlying Au(111) substrate).³¹ The measured domain orientations deviate from the hexagonal symmetry of the Au(111) substrate, suggesting that there is no simple commensurate relationship between the lattices of the SAM and Au(111) substrate.

In this paper, we present a high resolution STM study of PPB-S SAMs on Au(111) substrates. We found that the PPB-S molecules arrange themselves in a hitherto unknown striped phase. Due to an additional substrate treatment step the packing density of this novel phase is slightly lower than the packing density of the already known SAM phases.³¹ The striped pattern is composed of fine stripes and vacancy lines that are oriented perpendicular to these fine stripes. The fine stripes consist on the average of 5 standing up PPB-S molecules, with the actual number fluctuating between 4–6 as the PPB-S molecules or PPB-S molecule complexes at both ends of the fine stripe jump frequently back and forth between fine stripes in neighboring stripes. The surface unit cell involves two fine stripes and exhibits √3a periodicity, where a is the nearest-neighbor distance between the Au atoms.

Experimental

Au substrates (11 × 11 mm², 250 nm Au on 2 nm Cr on borosilicate glass) were purchased from Arrandee (Werther, Germany). Au(111) samples were obtained by annealing these substrates in a high purity H₂ flame for 5–10 minutes.³⁴ After flame annealing the Au substrates were cleaned in a piranha solution (7 : 3 H₂SO₄ : H₂O₂ (30%) by volume), followed by rinsing with Milli-Q water and ethanol and dried in a nitrogen stream.

S-[4-[2-[4-(2-Phenylethynyl)phenyl]ethynyl]phenyl] thioacetate (PPB-SAc, see Fig. 1) was purchased from Sigma-Aldrich and further purified by preparative thin-layer chromatography in dichloromethane–hexane (1 : 1). Solutions of 50 μM of a PPB-SAc were prepared in freshly distilled, deoxygenated tetrahydrofuran (THF) to which 5–10 μL of a 25% aqueous solution of ammonium hydroxide was added. The acetyl groups of PPB-SAc are removed during self-assembly by adding small amount of ammonia. This de-protection activates the thiolate end groups, which then react in situ with the Au(111) surface and form a self-assembled monolayer.²⁵ The thioacetate precursor was used instead of the free thiol to prevent side reactions with functional groups in the SAM precursor backbone.

Fig. 1 Chemical structure of PPB-SAc.

Subsequently Au(111) substrates were placed in the PPB-SAc/THF solution for ∼1 min allowing the conjugated molecules to assemble on the Au surface. After the modification, the substrate was annealed at 40 °C for 5 hours in ethanol solvent to remove any physisorbed and weakly bound molecules from the surface of the substrate. Finally the substrate was rinsed with pure ethanol and dried with N₂ gas. The sample preparation was performed under oxygen-poor conditions to prevent disulfide formation of the PPB-S molecules. The SAMs were immediately inserted into ultra-high vacuum (UHV) for STM measurements.

All STM measurements were performed with an UHV STM (RHK Technology, Inc.) with a base pressure of 1 × 10⁻¹⁰ mbar at room temperature. STM tips were prepared from tungsten wire using electrochemical etching.³⁵ For current–time spectroscopy measurements, the tunneling current was recorded as a function of time (I–t traces), while the feedback loop was switched off. Sampling frequencies in the range of 1–100 kHz were used.

Before the formation of the self-assembled monolayer on the Au(111) substrate we recorded STM images of the bare flame annealed substrate. In Fig. 2a a typical STM image of the bare Au(111) substrate is shown. The Au(111) surface exhibits the characteristic herringbone reconstruction. This herringbone reconstruction has a (22 × √3) unit cell where 23 atoms of the top layer are placed on 22 atoms of the second layer (see Fig. 2b).³⁶ Along the direction of the compression, the stacking sequence changes from fcc to bridge to hcp and again followed by a bridge, with a periodicity of 63 Å.³⁶ The height difference between the fcc domains and the hcp domains is only 15 pm. We have used the Au(111) herringbone reconstruction and the height of the step edges to check the calibration of our Piezo scanner.

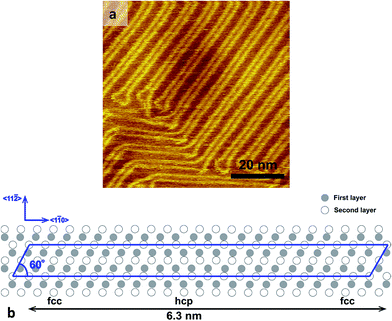

Fig. 2 (a) STM image of bare Au(111) with herringbone reconstruction pattern, setpoints are 200 mV and 300 pA. (b) Schematic of the herringbone reconstruction. Blue parallelogram indicates the (22 × √3) unit cell.

Results and discussions

In contrast to the earlier reported densely packed PPB-S SAM phases on Au(111),^30,31 we have found a striped phase. We want to emphasize here that we have obtained this result for three different samples. As is shown in Fig. 3, the herringbone reconstruction pattern underneath the striped phase of the SAMs is still faintly visible, indicating that the formation of this SAM does not completely lift the Au(111) herringbone reconstruction. It should be pointed out here that the densely packed PPB-S SAM phases reported in ref. 30 and 31 lift the herringbone reconstruction of the underlying Au(111) substrate. Fig. 4a shows a large scale STM image of the PPB-S SAM. There are three aspects that we want to highlight here. Firstly, high quality layers can be observed; i.e., the molecules pack densely and exhibit perfect crystalline packing over large areas, albeit the packing density is not as high as reported in ref. 30 and 31. Secondly, the individual fine stripes of the striped phase are well-resolved. It is clear that the PPB-S SAM exhibits a long range ordering. In addition, the vacancy lines between the adjacent striped domains are not perfectly straight, but wander a little bit. Thirdly, the STM images shown in Fig. 3 and 4a reveal an angle of 30° for orientation of the fine stripes (indicated by red arrow in Fig. 4a) with respect to high ridges of the Au herringbone reconstruction (indicated by blue arrow in Fig. 4a); while the angle between the herringbone reconstruction and the broad stripes (indicated by the purple arrow in Fig. 4a) is 60°. In addition, the fine stripes are always out-of-phase with respect to their neighboring fine stripes at the other side of the vacancy line. Interestingly, Noh et al. recently found that the densely packed c(4 × 2) phase of octanethiol SAM eventually converts to a striped (6 × √3) phase that is very comparable to the striped phase that we found for the PPB-S SAM.³⁷ Fig. 4c and d display the line scans shown in Fig. 4b along lines of A and B, respectively. The spacing between the vacancy lines is 3.46 ± 0.05 nm, which is approximately 12 times the Au(111) lattice constant. It should be pointed out here that slightly different vacancy line separations are found as well. The line scan in Fig. 4c reveals that the apparent depth of the trough between the broad stripes is only ∼20 pm. We should emphasize here that the actual depth of the troughs is much deeper. The vacancy lines are so narrow that the tip of the scanning tunneling microscope is unable to probe the bottom of the troughs. The stripes are composed of fine stripes which aligned in a direction perpendicular to the vacancy lines (see Fig. 4b). The separation between these fine stripes (see Fig. 4d) is 0.50 ± 0.02 nm. As is shown in Fig. 3, the domain boundary (indicated by the area outlined by the dashed green line in Fig. 3) is disordered domain of PPB-S molecules. The vacancy lines (see Fig. 4a and b) exhibit a frizzy appearance, indicating the presence of dynamics.

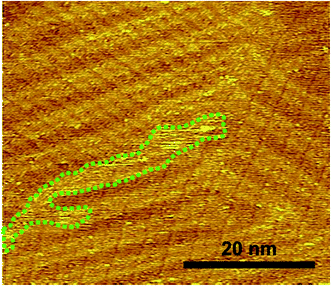

Fig. 3 STM image of PPB-S SAM on Au(111). Image size 50 × 43.4 nm². The tunneling parameters are 191 pA and 1.0 V.

Fig. 4 (a) and (b) STM images of PPB-S SAM on Au(111). Image size is 36.0 × 35.5 nm² (a) and 30.0 × 10.3 nm² (b). The tunneling parameters are 191 pA and 1.0 V. (c) and (d) line scans shown in (b) along lines of A and B, respectively.

I–V measurements were performed by the standard method of switching off the STM feedback loop during the time of the bias voltage sweep. A representative current–voltage spectrum of PPB-S SAM on Au(111) is shown in Fig. 5, for a voltage range of 1.5 V to −1.5 V. As we can see from Fig. 5, a metallic characteristic I–V curve is observed, implying transport through a conductive medium, which in our case is the conjugated PPB-S molecule.

Fig. 5 Current–voltage spectroscopy of PPB-S SAM on Au(111).

Next we propose a unit cell of the SAMs based on our high resolution STM images. We refer to these unit cells in units of a = 0.288 nm, which is the nearest-neighbor distance of bulk Au atoms. Fig. 6a shows the proposed sulfur lattice and the phenyl ring lattice for SAMs of PPB-S on Au(111). The blue oval represents the top view of the phenyl ring lattices of PPB-S, while the orange circles represent sulfur lattices. The size of the phenyl ring, which has van der Waals dimensions of 6.4 Å × 3.3 Å, is substantially larger than that of a sulfur atom.³⁸ Considering this size difference between the S atom and the phenyl ring, it is very likely that the phenyl ring lattice will experience some lateral compressive strain. We believe this strain causes the sulfur atoms to skip a row in order to release the strain at well-defined separations of about 3.0–3.5 nm, resulting in row defects, i.e. vacancy lines, between the striped domains (Fig. 6). We would like to emphasize here that the actual bonding of the S atoms to the Au(111) is more complex than shown in our schematic diagram. By performing low temperature STM experiments and density functional theory calculations, Maksymovych, Sorescu and Yates Jr.³⁹ demonstrated in a convincing way that alkanethiolate species bind to Au adatoms rather than to the regular Au atoms of the Au(111) substrate. The Au adatoms are most probably provided by the pre-existing step edges. Bearing this in mind it is very plausible that also PPB-S molecules bind to Au adatoms. The occurrence of these PPB-S-Au adatom complexes might also explain why the herringbone reconstruction of the underlying Au(111) surface is not fully lifted. For the sake of simplicity, however, we assume that the S atoms are positioned at threefold hollow sites, see Fig. 6a (density functional theory calculations have shown that the Au adatom is not exactly located at a hollow site, but slightly shifted towards a bridge site^40–42). Considering the diameter of the phenyl ring, the PPB-S molecules align themselves in such a fashion that they are standing upright. We would like to emphasize here that we are not able to extract from our STM data the exact orientation or angle of the long axis of the molecule with respect to the normal of the Au(111) substrate.

Fig. 6 (a) The proposed model for SAMs of PPB-S: an example in which each fine stripes contains 4 or 5 molecules. The blue oval represents the top view of the phenyl ring lattices of PPB-S, whilst the orange circles represent sulfur atoms. Regarding the molecular sketch, the grey circles refer to the carbon atoms and the white circles to the hydrogen atoms. (b) Side view (red line in figure a) of the phenyl ring plane and the S plane. The blue rod shape stands for the PPB-S molecule lying parallel to the surface.

We propose that the phenyl rings of the PPB-S molecules within in a fine stripe are aligned in a plane as depicted in Fig. 6b. The phenyl rings of the PPB-S molecules in a stripe are therefore parallel to the phenyl rings of the PPB-S molecules in the adjacent stripes. In this way intermolecular interactions, such as the π–π interactions, can stabilize the fine-stripes of the PPB-S SAM on the Au(111) surface.^43,44 The effective molecular area per PPB-S molecule in the stripe phase is ∼35 Ų.

Our model fits the STM images very well. Firstly, the angle between the herringbone pattern and the fine stripes agrees with the observations. As shown in the STM images, the herringbone reconstruction is aligned along the high symmetry direction of the Au(111) surface. The angle between the fine stripes (orientation indicated by the red arrow in Fig. 4a) and the herringbone reconstruction pattern (orientation indicated by the blue arrow in Fig. 4a) is 30°. Secondly, both the width of the broad stripes and the spacing between the adjacent fine stripes agree with the measured values. In addition, as displayed in Fig. 6a, the fine stripes are out-of-phase with respect to their neighbors locating at the other side of the vacancy line.

As shown in the STM images, some regions exhibit a frizzy appearance. These frizzy features hint to the occurrence of dynamic events during imaging and mainly occur at the edges of the vacancy lines. In order to study the dynamics, current–time (denoted I–t hereafter) spectroscopy is performed on various locations on the surface. The I–t traces are recorded with the feedback loop of the STM electronics disabled resulting in a temporal resolution of about 5–10 μs.⁴⁵ This spectroscopic mode allows us to investigate relatively fast dynamic processes at any predefined position of the surface. Fig. 7 shows a typical example of a I–t trace recorded at a vacancy line. The current flips back and forth between two well-defined levels. The relative current change is substantial, suggesting that a major change takes place at the edges of the vacancy lines. Since the dynamics is only found at the edges of the vacancy lines, we propose that PPB-S molecules locating at the edges of the fine stripes jump back and forth between adjacent stripes. Since the sulfur atom of the PPB-S molecule is most probably bound to an Au adatom, the energy barrier for these rearrangement events is rather low. The latter point combined with the observation that the herringbone structure of the underlying Au(111) surface remains intact provides strong indication in favor of the model that the sulfur atom binds to an Au adatom rather than to an regular Au surface atom as originally proposed by Maksymovych, Sorescu and Yates Jr.³⁹ Interestingly, we recently found a two-level switching behavior for a decanethiol self-assembled monolayer that has a packing density which is somewhat lower than that of the most densely packed standing up phase.⁴⁶

Fig. 7 An exemplary example of I–t trace recorded on the dim line of an PPB-S SAM on Au(111). The set points are 200 pA and 1 V.

Conclusions

SAMs of PPB-S on Au(111) surfaces are investigated in ultrahigh vacuum by STM. The SAM is prepared by immersion in a solution followed by annealing at 40 °C for 5 hours in a pure solvent. By applying this annealing step, a very stable striped phase composed of standing up PPB-S molecules is formed. The width of the stripes is 3.0–3.5 nm, while the distance between the adjacent fine stripes is 0.50 ± 0.02 nm. A tentative model for the striped phase is proposed in which each fine stripe consists of 4–6 upright standing PPB-S molecules. I–t traces recorded at the edges of the vacancy lines reveal a two-level switching process, indicative for dynamics of the PPB-S molecules located at the edges of the vacancy lines. It is very likely that sulfur atoms of the PPB-S molecule form a complex with an Au adatom.
