Mechanism of cytotoxicity of micron/nano calcium oxalate monohydrate and dihydrate crystals on renal epithelial cells

Abstract

Urinary crystals in normal and kidney stone patients often contain a larger proportion of micron/nano calcium oxalate monohydrate (COM) and calcium oxalate dihydrate (COD) crystals. However, the effect of their varying sizes and crystal phases in inducing the formation of kidney stones remains unclear. This study aims to comparatively investigate the cytotoxicity and aggregation capabilities of micron/nano COM and COD in vitro to reveal the mechanism of kidney stone formation. The effects of the exposure of African green monkey renal epithelial (Vero) cells to 50 nm (COM-50 nm and COD-50 nm) and 10 μm (COM-10 μm and COD-10 μm) calcium oxalate crystals were investigated by determining cell viability, cell membrane integrity, cell morphology change, adhesion and internalization, intracellular reactive oxygen species (ROS), mitochondrial membrane potential (Δψ_m), cell cycle progression, and cell death rate by apoptosis and/or necrosis. The cell viability and cytomembrane integrity of Vero cells were significantly decreased, in size- and concentration-dependent manners, after the treatment with micron/nano COM and COD crystals. Cell injury increased with the reduction in crystal size and increase in crystal concentration; COM caused a more serious injury in Vero than COD of the same size. COM-10 μm and COD-10 μm caused mild injury in Vero cells because they could only adhere on the cell surface and could not be completely internalized into cells. Meanwhile, the adhered COM-50 nm and COD-50 nm were internalized into cells, caused severe injury, and the effects were more concentration-dependent. Excessive expression of ROS led to a decrease in Δψ_m and cell cycle dysregulation; a series of cell responses ultimately caused a significant number of necrotic cell deaths and few apoptotic cell deaths. Micron-sized COM and COD crystals induced cell injury by damaging the membrane integrity. Nano-COM and COD crystals could damage membrane integrity by adhering to the cell surface, as well as directly damage the mitochondria via internalized crystals. Thus, nano-sized crystals possess greater toxicity than micron-sized crystals.

---

1. Introduction

Calcium oxalate (CaO_x) is the major crystalline component in kidney stones, including two main hydrates, namely calcium oxalate monohydrate (COM) and calcium oxalate dihydrate (COD).^1,2 Most stones contain COM as the major component, while COD is significantly less prevalent.³

Crystal–cell interactions, including crystal attachment and endocytosis, are important processes in the formation of CaO_x stones.^4,5 Kohjimoto et al.⁶ indicated that crystal–cell interactions may be among the earliest processes in the formation of kidney stones. Khan et al.⁷ also concluded that crystal attachment and endocytosis are essential factors in inducing cell injury and follow the formation of urinary stones. For papillary COM stone formation, the attachment of crystals to a damaged renal tubular epithelial cell is necessary for the initiation of stone formation.⁸

The exposure to COM crystals could activate reactive oxygen species (ROS) production, which originates from the mitochondria in renal epithelial cells, thereby leading to mitochondrial damage.⁵ Mitochondria are significant sources of ROS produced in renal cells.⁹ Meimaridou et al.¹⁰ demonstrated that mitochondrial O₂˙⁻ in COM treated cells was enhanced by three- to four-fold compared with the controls. The intracellular dissociation of COM and the mitochondrial dicarboxylate transporter are important in O₂˙⁻ production. Recent evidence also suggests that COM crystals could cause changes in gene expression and significantly alter the global expression profile of miRNAs in vitro.¹¹

Compared with the extensive amount of research on the injuring effects of COM crystals, that into cell injury induced by COD crystals remains rare.^12–14 Semangoen et al.¹² indicated that the percentage of cell death does not significantly differ between cells with and without COD crystal adhesion. However, COD exposure could alter protein expression, including that of metabolic enzymes, cellular structure proteins, calcium-binding proteins, adhesion molecules, proteins involved in RNA metabolism, and chaperones. Yuen et al.¹³ also found that HK-2 cells displayed mild cellular damage within 18 h post COD exposure; however, prolonged incubation caused significant damage, disrupting the monolayer integrity and increasing the released hyaluronan disaccharides in the harvested medium. The cytotoxicity of COD crystals towards African green monkey renal epithelial (Vero) cells was found to be size-dependent and increases in the order 50 nm > 100 nm > 600 nm > 3 μm > 10 μm.¹⁴

The formation of stones appears to depend on the crystalline form of CaO_x in urine. COM is more likely to adhere on the surface of cells than COD.¹⁵ About 50% more COM than COD appears to bind to inner medullary collecting duct (IMCD) cells for a given amount of added crystals.¹⁶ Studies have shown that the content of COM in calculi patients is higher than in the healthy controls, whereas the content of COD is lower.⁴

The urine of normal persons and kidney stone patients often have varying sizes of COM and COD crystals;^17,18 however, the differences in injury by CaO_x crystals with different sizes and crystal phases toward renal tubular epithelial cells remains unclear. Moreover, the differences in cell injury caused by micron/nano COM and COD in urine have not been reported yet.

We studied the differences in the injury ability of nano-sized (about 50 nm) and micron-sized (about 10 μm) COM and COD crystals in Vero cells comparatively, to elaborate the mechanism of cell injury caused by the varying sizes and crystal phases of CaO_x crystals at the cellular and molecular levels and to provide new insights into the inhibition of kidney stone formation in clinical settings.

2. Materials and methods

2.1 Materials and apparatus

(1) Materials: African green monkey renal epithelial (Vero) cells were purchased from Shanghai Cell Bank, Chinese Academy of Sciences (Shanghai, China). DMEM culture medium was purchased from HyClone Biochemical Products Co., Ltd. (UT, USA). Fetal bovine serum was purchased from Hangzhou Sijiqing Biological Engineering Materials Co., Ltd. (Hangzhou, China). Penicillin and streptomycin were purchased from Beijing Pubo Biotechnology Co., Ltd. (Beijing, China). Cell culture plates were purchased from Wuxi Nest Bio-Tech Co., Ltd. (Wuxi, China).

The cell proliferation assay kit (CCK-8) was purchased from Dojindo Laboratories (Kumamoto, Japan). The lactate dehydrogenase (LDH) kit was purchased from Shanghai Beyotime Bio-Tech Co., Ltd. (Shanghai, China). Annexin V-FITC, 5,5′,6,6′-tetrachloro-1,1′,3,3′-tetraethyl-imidacarbocyanine iodide (JC-1), propidium iodide (PI) and 2′,7′-dichlorodihydrofluorescein diacetate (DCFH-DA) were all purchased from Becton, Dickinson and Company in USA. All conventional reagents used were analytically pure and purchased from Guangzhou Chemical Reagent Factory of China (Guangzhou, China).

(2) Apparatus: the apparatus used includes an X-L type environmental scanning electron microscope (SEM, Philips, Eindhoven, Netherlands), laser confocal microscope (LSM510 Meta Duo Scan, Zeiss, Jena, Germany), enzyme mark instrument (Safire2™, Tecan, Männedorf, Switzerland), flow cytometer (FACS Aria, BD Corporation, CA, USA), Nano-ZS nanoparticle size and zeta potential analyzer (Malvem, UK), D/max2400X X-ray powder diffractometer (Rigaku), and Tristar 3000 surface area and porosity analyzer (Micromeritics, American).

2.2 Experimental methods

2.2.1 Preparation of COM and COD crystals and crystal suspensions. Four kinds of COM and COD crystals (COM-50 nm, COM-10 μm, COD-50 nm and COD-10 μm) were prepared by changing the concentrations of the reactants (CaCl₂ and Na₂O_x), reaction temperature, solvent and stirring speed. For COM-50 nm, 100 mmol L⁻¹ CaCl₂ and K₂O_x solution were each prepared in anhydrous ethanol–water mixture (V_H2O : V_ethanol = 1 : 1). Then, 50 mL of each solution was rapidly mixed under high stirring speed (1250 rpm) for 6 min at 25 °C. For COM-10 μm, 50 mL of 40 mmol L⁻¹ CaCl₂ was added to 300 mL of double-distilled water in a thermostated water bath at 75 °C, and then 50 mL of 40 mmol L⁻¹ K₂O_x was added dropwise to the above solution at a rate of 0.5 drops per s for 45 min. The reaction solution was stirred at 250 rpm for 2 min after complete addition, and incubated overnight at room temperature. For COD-50 nm, 12 mL CaCl₂ solution (4 mol L⁻¹) was added into 200 mL buffer solution (pH = 6.8) at 5 °C, and then directly poured into 50 mL K₂O_x solution (250 mmol L⁻¹), stirring at 1250 rpm for 5 min. For COD-10 μm, 1.56 mL CaCl₂ solution (4 mol L⁻¹) was added into 500 mL buffer solution, and then 12.8 mL K₂O_x solution (0.25 mol L⁻¹) was slowly added into the above solution at a rate of 2 drops/s under low-speed stirring (200 rpm) at 25 °C. The reaction solution was further stirred for 2 min after complete addition, and incubated overnight at room temperature. All the prepared samples were washed twice with anhydrous ethanol under ultrasound treatment, and then the crystals were collected by suction filtration and dried in a drying oven for 24 h.

The morphology, size and crystalline phase of the prepared crystals were characterized by SEM and XRD. Image Pro Plus 5.02 (Media Cybernetics, USA) was used to analyze the size and count the number of crystals. The hydrodynamic sizes and zeta potential of the COM and COD crystals in DMEM culture medium were measured using a nanoparticle size and zeta potential analyzer. Sizes are expressed as Z-average values. The surface area of CaO_x was measured using a Tristar 3000 surface area and porosity analyzer.

For the preparation of micron/nano COM and COD crystal suspensions, a certain amount of COM or COD crystals was UV sterilized for 40 min and dispersed in serum-free DMEM culture medium to form crystal suspensions with concentrations of 100, 300 and 1000 μg mL⁻¹.

2.2.2 Cell culture. Vero cells were cultured in DMEM culture medium containing 10% fetal bovine serum in a 5% CO₂ humidified atmosphere at 37 °C. The trypsin digestion method was adopted for cell propagation. Upon reaching 80–90% confluence, the cells were rinsed twice with PBS. A certain amount of 0.25% trypsin digestion solution was then added and maintained for 3–5 min at 37 °C. Afterward, DMEM containing 10% fetal bovine serum was added to terminate digestion. The cells were then blown gently to form a cell suspension for the following cell experiment.

2.2.3 Cell viability assay. One hundred microliters of cell suspension with a cell concentration of 1 × 10⁵ cells per mL was inoculated per well in 96-well plates and incubated for 24 h. Afterward, the medium was changed to serum-free culture medium and then incubated for another 12 h to achieve synchronization. The culture medium was removed by suction and the cells were washed twice with PBS. The experimental model was divided into two groups: (A) control group, in which only serum-free culture medium was added; (B) treatment group with COM or COD crystals, in which cells were exposed to 50 nm or 10 μm COM and COD with concentrations of 100, 300 and 1000 μg mL⁻¹, prepared with serum-free culture medium. Each experiment was repeated in three parallel wells. After incubation for 6 h, 10 μl CCK-8 was added to each well and incubated for 1.5 h. Absorbance (A) was measured by using the enzyme mark instrument at 450 nm. Cell viability was determined using the equation below.

2.2.4 Lactate dehydrogenase (LDH) release assay. One hundred microliters of cell suspension with a cell concentration of 1 × 10⁵ cell per mL was inoculated per well and incubated for 24 h. Afterward, the medium was changed to serum-free culture medium and then incubated for another 12 h to achieve synchronization. The experimental model was divided into four groups: (A) cell-free culture medium wells (control wells of background); (B) control wells without drug treatment (sample control wells); (C) cells without drug treatment for the subsequent cleavage of the wells (sample maximum enzyme activity control wells); and (D) treated group with 50 nm or 10 μm COM and COD at concentrations of 100, 300 and 1000 μg mL⁻¹ (drug-treated wells). After incubation, the absorbance was analyzed at 490 nm according to the LDH kit instructions.

2.2.5 Scanning electron microscopy observation. The density of the seeded cells and the experimental grouping were the same as those in the LDH release assay. After reaching the adhesion time, the supernatant was removed by suction, the cells washed three times with PBS, fixed in 2.5% glutaraldehyde at 4 °C for 24 h and then fixed with 1% OsO₄, washed three times with PBS, dehydrated in a gradient of ethanol (30%, 50%, 70%, 90% and 100%), dried under the critical point of CO₂, and treated with gold sputtering. Vero cells treated with COD and COM crystals were observed by SEM.

2.2.6 Confocal microscopy observation. A combination of light reflection (to visualize the crystals) and fluorescent-labeled phalloidin and 4′,6-diamidino-2-phenylindole (DAPI) (to visualize the cells) was used to monitor the fate of the cell-associated crystals by confocal microscopy. Approximately 1 mL of cell suspension with a cell concentration of 1 × 10⁵ cells per mL was inoculated per well in 12-well plates for 12 h. The 50 nm and 10 μm non-radiolabeled COM crystals at a concentration of 200 μg mL⁻¹ were incubated with subconfluent cultures at 37 °C. After 6 h of incubation, the supernatant was aspirated and the cells were washed twice with PBS. All non-attached crystals were removed by extensive washing. Afterward, the cells were fixed for 30 min with paraformaldehyde (4%) in PBS, followed by three cycles of membrane permeabilization with 0.1% Triton X-100 in PBS at room temperature for 5 min. The slides were incubated for 60 min with 200 μl fluorescein isothiocyanate (FITC)-conjugated phalloidin and then washed twice with 0.1% Triton X-100. DAPI staining solution was then added to the cells and incubated for 5 min. The cells were again washed three times with PBS for 5 min. Finally, the prepared samples were mounted with anti-fade fluorescence mounting medium and observed in a confocal microscope. 488 nm and 405 nm argon lasers were used to excite the FITC-phalloidin and DAPI nuclear dye, respectively. The extracellularly adhered crystals and intracellularly internalized crystals were visualized by their ability to reflect the light of a Kr-laser at λ 633 nm in red.

2.2.7 Intracellular ROS assay. Two milliliters of cell suspension with a cell concentration of 1 × 10⁵ cells per mL was inoculated per well in six-well plates. After synchronization, the cells were grouped. 300 μg mL⁻¹ micron/nano COD and COM crystals were then added. After 6 h incubation, the supernatant was aspirated and the cells were washed twice with PBS and digested with 0.25% trypsin. Afterward, DMEM supplemented with 10% fetal bovine serum was added to terminate digestion. The cells were suspended by pipetting, followed by centrifugation (1000 rpm, 5 min). The supernatant was aspirated and the cells were washed once with PBS and centrifuged again to obtain a cell pellet. The cells were resuspended by adding and thoroughly mixing 500 μl PBS in a microcentrifuge tube. The samples were then stained with 2′,7′-dichloro-fluorescein diacetate (DCFH-DA) and analyzed.

2.2.8 Measurement of mitochondrial membrane potential (Δψ_m). The density of seeded cells and experimental grouping were the same as in the ROS assay. After 6 h of incubation with micron/nano COD and COM crystals at concentrations of 100, 300 and 1000 μg mL⁻¹, the supernatant was aspirated and the cells were washed twice with PBS and digested with 0.25% trypsin. DMEM supplemented with 10% fetal bovine serum was then added to terminate digestion. The cells were suspended by pipetting, followed by centrifugation (1000 rpm, 5 min). The supernatant was aspirated and the cells were washed with PBS and centrifuged again to obtain a cell pellet. The cells were resuspended by adding and thoroughly mixing 500 μl of PBS in a microcentrifuge tube. Finally, the samples were stained with JC-1 and then analyzed.

2.2.9 Cell cycle progression assay. Two milliliters of cell suspension with a cell concentration of 1.5 × 10⁵ cells per mL was inoculated per well in 6-well plates for 24 h. After synchronization, the cells were incubated with 300 μg mL⁻¹ micron/nano COD and COM crystals for 6 h, and the collected cells were washed twice with PBS and centrifugation (1000 rpm, 5 min), then fixed using 70% ethanol for 12 h at 4 °C. Ethanol was removed by centrifugation (2000 rpm, 5 min), and the cells were washed twice with PBS. Cells were then resuspended in 200 μl propidium iodide and kept at 37 °C for 15 min. The cell cycle was analyzed by measuring the amount of PI-labeled DNA in fixed cells with a flow cytometer.

2.2.10 Cell death assay. Apoptosis and necrosis induced by micron/nano COD and COM crystals in Vero cells was measured by FCM with an Annexin V-FITC/PI double staining assay. Briefly, the cells were harvested after 6 h of exposure to micron/nano COD and COM crystals at concentrations of 100, 300 and 1000 μg mL⁻¹, and then stained using an Annexin V-FITC/PI cell death assay kit according to the manufacturer’s instructions. About 1.5 × 10⁵ cells were collected and washed with PBS (centrifuged at 1000 rpm for 5 min). The cells were resuspended in 200 μl binding buffer. Afterward, 5 μl Annexin V-FITC was added and then incubated in darkness at room temperature for 10 min. The cells were again resuspended in 200 μl binding buffer and stained with 5 μl PI. The prepared cells were then analyzed using a flow cytometer.

3. Results

3.1 Characterization of micron/nano COM and COD crystals

COM and COD crystals of varying sizes (50 nm and 10 μm) were prepared by changing the concentrations of the reactants (Na₂O_x and CaCl₂), reaction temperature, solvent and stirring speed. The morphology, crystal size and crystal phase were detected using SEM and XRD characterization, and all prepared crystals were the target products (Fig. 1). COM-50 nm and COD-50 nm were mainly spheroid, COM-10 μm mainly presented the most common morphology of a hexagonal lozenge, and COD-10 μm was mainly of tetragonal bipyramid form. By measuring the diameters of 100 crystals directly from the SEM images, the size distributions of the four micron/nano COM and COD crystals were determined and are presented in Table 1. Since the average sizes of the four crystals were nearly 50 nm and 10 μm, we used an integer to represent the crystal size for convenience. That is, COM-50 nm, COM-10 μm, COD-50 nm, and COD-10 μm were used to represent these four different-sized crystals.

Fig. 1 SEM images (a–d), XRD spectra (e–h) and hydrodynamic sizes (i and j) of COM and COD crystals of varying sizes. (a, f and i) COM-50 nm; (b and e) COM-10 μm; (c, h and j) COD-50 nm; (d and g) COD-10 μm. Scale bars: (a) 200 nm; (c) 100 nm; (b and d) 5 μm.

Table 1 Physicochemical characterization of micron/nano COM and COD

	Size from SEM	Hydrodynamic size in DMEM/nm	PDI	Specific surface SBET/m^2 g^−1	Zeta potential in DMEM/mV
COM-50 nm	47.7 ± 6.2 nm	1342 ± 131	0.23 ± 0.08	26.3	2.1 ± 0.4
COM-10 μm	9.67 ± 1.76 μm	—	—	0.83	−8.2 ± 1.8
COD-50 nm	44.1 ± 8.7 nm	953 ± 98	0.28 ± 0.05	40.8	6.3 ± 0.9
COD-10 μm	9.58 ± 0.97 μm	—	—	0.31	−12.0 ± 1.2

---

Table 1 also shows the detected specific surface area S_BET, zeta potentials, and hydrodynamic sizes in DMEM. Compared with micron-sized CaO_x, the COM-50 nm and COD-50 nm aggregated more easily in the culture medium because of their low zeta potential and larger specific surface area. The detected hydrodynamic sizes of COM-50 nm and COD-50 nm (1342 ± 131 nm and 953 ± 98 nm, respectively) were also much larger than the sizes from SEM characterization (47.7 ± 6.2 nm and 44.1 ± 8.7 nm, respectively); however, COM-10 μm and COD-10 μm displayed good dispersion and stability (Fig. 1).

3.2 Effects of COM and COD crystal exposure on cellular viability of Vero cells

The CCK-8 assay estimates the number of living cells, depending on the integrity of mitochondrial function. The viability of Vero cells was detected by CCK-8 assay after 6 h exposure to different concentrations (100, 300, and 1000 μg mL⁻¹) of micron/nano COM and COD crystals (Fig. 2a). The four crystals presented concentration-dependent toxicity in Vero cells; cell viability decreased with the increase in crystal concentration. The two nano-sized crystal samples COM-50 nm and COD-50 nm caused the cell viability to decrease more obviously than the two micron-sized crystal samples COM-10 μm and COD-10 μm. Furthermore, COM showed higher toxicity than COD at the same size and crystal concentration.

Fig. 2 Cytotoxicity of micron/nano COM and COD on Vero cells. The cell viability was detected by CCK-8 assay (a) and LDH release assay (b). Vero cells were incubated with different concentrations of micron/nano COM and COD for 6 h. Data were expressed as mean ± SD from three independent experiments. Crystal concentrations: 100 μg mL⁻¹, 300 μg mL⁻¹, 1000 μg mL⁻¹.

3.3 Cytomembrane damage of Vero cells induced by COM and COD crystals

LDH is a stable enzyme of the cytoplasm that is released extracellularly once the cell membrane ruptures. Thus, LDH is considered as a marker of cell membrane integrity. The amount of released LDH caused by COM-50 nm was much higher than COD-50 nm at the same concentration (Fig. 2b), indicating that nano COM caused cell membrane ruptures much easier than nano COD. Compared with the control group, COM-10 μm and COD-10 μm could also increase LDH release; COM-10 μm caused more LDH release than COD-10 μm at low concentration.

3.4 Cell and crystal morphology observation by SEM

For the visual detection of the potential toxicity of CaO_x in Vero cells, the morphology variation of Vero cells was detected by SEM after exposure to 300 μg mL⁻¹ micron/nano COM and COD crystals for 6 h (Fig. 3). The treated cells of the COM-50 nm and COD-50 nm groups were distorted, with a very abnormal morphology, the microvillus ruptured, and a large number of crystals aggregated on the cell surface. Compared with the nano-sized crystal treated groups, only a small number of crystals adhered to the cells treated with COM-10 μm and COD-10 μm; the adhered crystals caused the cell membrane to be sunk and even fractured.

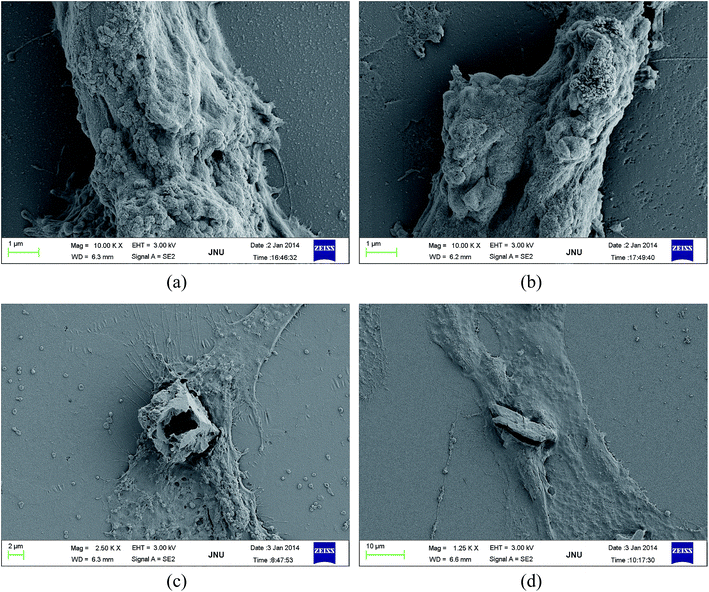

Fig. 3 Morphology detection of Vero cells and co-incubated crystals. SEM images of Vero cells after exposure to 300 μg mL⁻¹ micron/nano COM and COD crystals for 6 h. (a) COM-50 nm; (b) COD-50 nm; (c) COM-10 μm; (d) COD-10 μm.

The exposed crystals, specifically COD-10 μm, in the cell culture medium were observed for obvious corrosion phenomenon, which may be related to the cell membrane being ruptured after cell injury. Several hydrolytic enzymes in lysosomes, such as proteases, lipases, nucleases, glycosidases, phospholipases, phosphatases, and sulfatases,¹⁹ were released extracellularly and caused crystal corrosion.

3.5 Confocal microscopy observation of crystal distribution in Vero cells

COM crystals could be visualized by their ability to reflect light of a Kr-laser at λ 633 nm in red;²⁰ however, COD crystals do not possess such a property. Therefore, to assess the fate of cell surface-associated crystals with sizes of 50 nm and 10 μm, we selected non-radiolabeled and non-fluorescent-labeled COM-50 nm and COM-10 μm to assess the distribution of varying crystal sizes in Vero cells.

Fig. 4 shows the two-dimensional confocal images perpendicular to the surface of the cells. The results confirmed that plain COM crystals could be visualized in red at λ 633 nm (Fig. 4A). Cells presented a smooth plump morphology and mainly showed spindle forms in the control group (Fig. 4B). The cytoskeleton appeared disorganized and nucleus fragmentations were observed in the COM-50 nm treated groups. COM-50 nm could adhere on the cell surface (indicated by the arrowhead in Fig. 4C), as well as pass through the cell membrane and be internalized into cells (indicated by the open arrow in Fig. 4C). Internalized COM crystals are distributed in the cytoplasm and even could directly interact with the cell nucleus. COM-10 μm was only observed on the cell surface (indicated by the arrowhead in Fig. 4D) or partly be embedded in the cell membrane, whereas the cytoskeleton appeared to be severely disorganized in the cells with adhesive crystals.

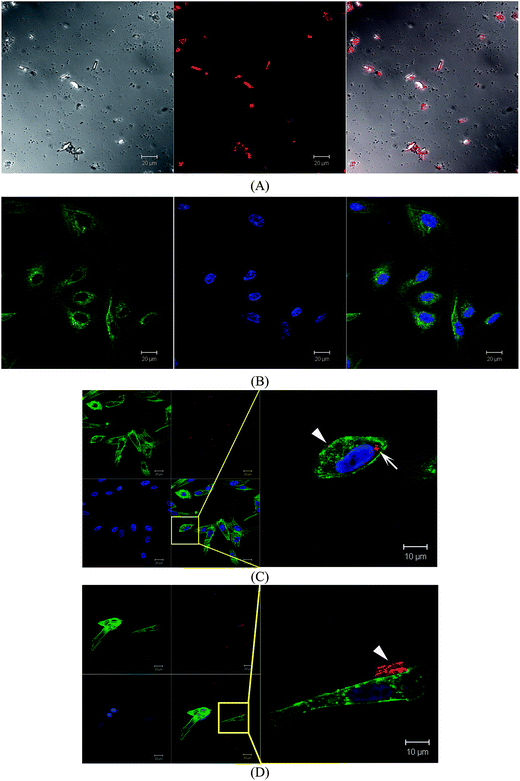

Fig. 4 Confocal laser scanning microscopy (CLSM). Cell nuclei (blue) and cytoskeleton (green, as represented by F-actin) were stained with fluorescein isothiocyanate-conjugated (FITC) phalloidin and (4′,6-diamidino-2-phenylindole) DAPI. COM crystals could be visualized by their ability to reflect light of a Kr-laser at λ 633 nm (red). (A) Light reflection of plain COM crystals in red at λ 633 nm. (B) Control cells without COM crystals. (C) COM-50 nm was incubated with subconfluent Vero for 6 h; extracellular (adherent) and intracellular (internalized) crystals could be observed. (D) COM-10 μm was incubated with subconfluent Vero for 6 h; only adherent crystals were observed. (Arrowhead: adherent crystals; open arrow: internalized crystals).

3.6 Intracellular ROS generation induced by COM and COD crystals

Mitochondria are generally the most common source of superoxide and hydrogen peroxide in most cells and tissues. Membrane-associated nicotinamide adenine dinucleotide phosphate (NADPH) oxidase is also a major source of ROS in the kidneys. When ROS formation overwhelms endogenous and/or exogenous antioxidant capacity, the cellular redox balance becomes altered and oxidative stress ensues.

The intracellular ROS level was determined to further elucidate the mechanisms of cytotoxicity induced by micron/nano COM and COD crystals (Fig. 5A). The generated ROS in the four crystal-treated groups increased compared with the control group. However, the nano-sized crystal treated groups exhibited a more significant increase in ROS than the micron-sized crystal treated groups (Fig. 5B). The ROS increase induced by COM was higher than COD at the same size, specifically in the micron-sized treated groups.

Fig. 5 Detection of intracellular ROS level of Vero cells after exposure to 300 μg mL⁻¹ micron/nano COM and COD crystals for 6 h. (A) Histogram of intracellular ROS level; (B) quantitative fluorescence intensity of intracellular ROS level. Data were expressed as mean ± SD from three independent experiments.

3.7 Decrease in Δψ_m caused by COM and COD crystals

Apoptosis and necrosis are often preceded by mitochondrial dysfunction, in particular, a loss of mitochondrial membrane potential (Δψ_m). Mitochondria have high Δψ_m under normal circumstances, and become depolarized after suffering injury. Calculating the changes in the ratio (R/G) of emitted red fluorescence at 596 nm (high Δψ_m) and green fluorescence at 534 nm (low Δψ_m) provides a qualitative estimate of the changes in Δψ_m.

The JC-1 dye was used to determine the effects of the different concentrations of micron/nano COM and COD exposure on the Δψ_m in Vero cells (Fig. 6). The R/G ratios decreased in size- and concentration-dependent manners. The four crystals could cause a continuous decline in Δψ_m with increasing crystal concentration from 100 μg mL⁻¹ to 1000 μg mL⁻¹, wherein the nano-sized crystals caused a more significant decrease in Δψ_m than the micron-sized crystals. Meanwhile, the decrease in Δψ_m caused by COM was slightly higher than COD at the same size. Nano-sized crystals caused a more significant Δψ_m decrease than the micron-sized crystals at low concentration, whereas all crystals caused the largest decline in Δψ_m, with similar R/G ratios, at high concentration.

Fig. 6 The effects of different concentrations of micron/nano COM and COD exposure on mitochondrial membrane potential (Δψ_m) in Vero cells. (A) Dot plots of Δψ_m after incubation with COD-50 nm and COD-10 μm; (B) dot plots of Δψ_m after incubation with COM-50 nm and COM-10 μm for 6 h; (C) quantitative histogram of Δψ_m. Data were expressed as mean ± SD from three independent experiments.

The decrease in Δψ_m was consistent with the varying patterns of cell viability and LDH release (Fig. 2). The capacity for disrupting the mitochondrial function was ranked in the following order: COM-50 nm > COD-50 nm ≫ COM-10 μm > COD-10 μm.

3.8 Cell cycle arrest of Vero cells caused by COM and COD crystals

The Vero cell cycle was evaluated to continue the investigation into the toxicity of micron/nano COM and COD. Fig. 7 shows the representative experimental results of propidium iodide (PI) fluorescence intensity, which was proportional to the DNA content and indicated the cell cycle phases.

Fig. 7 The effects of exposure to micron/nano COM and COD crystals on cell cycle of Vero cells. (A) Representative images of cell cycle of Vero cells after exposure to COD-50 nm, COD-10 μm, COM-50 nm and COM-10 μm at a concentration of 300 μg mL⁻¹ for 6 h. (B) Quantitative histogram of cell cycle. Data were expressed as mean ± SD from three independent experiments.

Compared with the control group (69.33% G1 phase and 19.67% S phase), the COD-50 nm and COM-50 nm treatment of Vero at 300 μg mL⁻¹ significantly caused the cells with DNA content to decrease in the G1 phase (58.87% and 61.10%, respectively) and increase in the S phase (31.58% and 32.70%, respectively) of the cell cycle. These results indicated that the cell cycle was arrested at the S phase. Moreover, the cell number in the S phase of the COM-50 nm treated group was slightly higher than in the COD-50 nm treated group. The COM-10 μm and COD-10 μm treated groups did not show any obvious change in the G1, S, and G2 phases. The cells of the nano-sized COM and COD treatment groups in the S phase increased more significantly than in the micron-sized crystals treatment group, which may cause easier penetration of the nano-sized crystals through the cell membrane compared with the micron-sized crystals. The internalized crystals could directly interact with the nucleus, and even the DNA in the nucleus, thereby causing the S phase arrest.

3.9 Cell death induced by COM and COD crystals

To assess the nature of crystal-induced cell death, we performed flow cytometric analysis to quantify the apoptotic and necrotic cells using annexin V/PI double staining (Fig. 8). Annexin V staining was applied to reveal the surface exposure of phosphatidylserine (apoptosis), while PI was applied to reveal the loss of plasma membrane integrity (necrosis).

Fig. 8 Flow cytometric data of cell death after Vero cells were exposed to different concentrations of micron/nano COM and COD crystals for 6 h. The representative dot plots (A) and quantitative histogram results (C) of cellular apoptosis and necrosis after exposure to COD-50 nm and COD-10 μm. The representative dot plots (B) and quantitative histogram results (D) of cellular apoptosis and necrosis after exposure to COM-50 nm and COM-10 μm. Quadrants Q1, Q2, Q3, and Q4 denote the ratio of necrotic cells, necrotic and/or late apoptotic cells, normal cells, and early apoptotic cells, respectively.

The cell death rate (Q1 + Q2 + Q4) in the COM-50 nm and COD-50 nm treated groups was higher than in the COD-10 μm and COM-10 μm treated groups; all death rates increased with the increase in crystal concentration. At the same crystal concentration, COM-50 nm caused a much higher death rate than COD-50 nm. The number of necrotic cells (quadrant Q1) in the nano-sized COM and COD treated groups was also much higher than in the micron-sized COM and COD treated groups; the necrosis rate accounted for the largest proportion in the total mortality. Quadrant Q2 shows the cells stained with both Annexin V and PI, which presented the number of necrotic and/or late apoptotic cells; it also showed the same concentration-dependence. The number of early apoptosis cells (Q4) in the four treated groups showed no obvious change compared with the control group; only a small amount of increase occurred at high concentrations.

4. Discussion

The cytotoxicity of micron/nano CaO_x was ranked in the following order: COM-50 nm > COD-50 nm ≫ COM-10 μm > COD-10 μm. The injury mechanism in Vero cells induced by micron/nano COM and COD crystals was significantly different as a result of crystal size, crystal phase, and their distribution in cells.

4.1 Micron-sized COM and COD produce toxicity by damaging the cell membrane integrity

The cells had difficulty in completely internalizing COM-10 μm and COD-10 μm because of their large sizes, thus they could only adhere on the cell surface or be partly internalized (Fig. 4). The toxicity mechanism of the micron-sized COM and COD induced cell death, which could be summarized in the schematic illustration in Fig. 9. Meanwhile, the adhered micron-sized crystals on the cell membrane could directly interact with the subcellular structure, leading to cell membrane damage, cell permeability change, and even membrane fracture (Fig. 3), thereby causing cell necrosis.

Fig. 9 Suggested schematic illustration of cellular mechanism of Vero cell injury after exposure to micron/nano COM and COD crystals. COD-10 μm and COM-10 μm only adhered to the cell surface or were partly internalized, leading to cell membrane dysfunction and even membrane fracture. COD-50 nm and COM-50 nm could not only damage membrane integrity by adhering to the cell surface but could also directly damage mitochondria via internalized crystals, thus leading to cell death.

Moreover, the adhered crystals on the cell membrane could activate cyclophilin D, cause mitochondrial collapse, and produce oxidative stress (Fig. 4), which consequently causes cell injury and even cell death.²¹ The region of the cell membrane where the crystals adhere becomes fragile or even fractured (Fig. 3c and d). The cell membrane in fractured cells lacks protection, hence the cytoplasm flows out and the intracellular environment is destroyed, thereby leading to cell death. After COM and COD adhered to the Vero cell membrane, the LDH levels increased (Fig. 2b), which indicated that all micron/nano COM and COD could damage the cell membrane; however, the membrane injury caused by micron-sized crystals was weaker than the nano-sized crystals.

4.2 Nano-sized COM and COD produce toxicity by damaging the cell membrane and mitochondria

Nano-sized CaO_x crystals (COM-50 nm and COD-50 nm) have two ways to interact with the cells, namely, adhering to the cell membrane and being internalized into the cells (Fig. 4). Both ways could cause cell injury, but the injury mechanism may be different (Fig. 9).

When the nano-sized crystals are internalized into the cells, they could disrupt the oxidant–antioxidant balance^22,23 and stimulate more ROS (Fig. 5). A direct relationship exists between the specific surface area of particles and ROS generation capability.²⁴ Small-sized crystals have a larger specific surface area and more active sites than large-sized crystals at the same concentration; these active sites could capture oxygen molecules and produce superoxide radicals through dismutation or the Fenton reaction.²³ Excessive ROS could destroy large intracellular molecules, such as proteins, lecithin, and nucleic acids, thereby hindering the information transmission line and the modulation of transcription factors.^25,26 Meanwhile, the internalized crystals could directly interact with mitochondria (Fig. 6) and cause a decrease in Δψ_m, mitochondrial membrane permeability, and mitochondrial dysfunction.^21,27 Internalized crystals could also directly interact with the nucleus, and even enter the nucleus through the nuclear pores to injure the DNA, thereby causing cell cycle progression changes and cell arrest in the S phase (Fig. 7). A series of cell responses would finally lead to cell death; nano-sized COM and COD mainly cause necrotic cell death (Fig. 8), and a small amount of cell apoptosis is also observed under high crystal concentration.

The crystal endocytosis process produces numerous intracellular signaling events to regulate cell function and status. Crystal endocytosis also results in disruption of the cell membrane and disorganization of the cell cytoskeleton;²⁸ such membrane injury would cause necrotic cell death.^29,30 Internalized CaO_x crystals of varying sizes and phases may increase the lysosomal membrane permeability to varying degrees. A prevalent assumption is that the reparable damage of lysosomes can initiate apoptosis and a sudden massive destruction of lysosomes leads to necrosis.³¹

Micron/nano COM and COD could cause necrotic cell death to varying degrees and lead to a small amount of cell apoptosis at high concentration. Borges et al.³² demonstrated that the exposure to CaO_x crystals induced necrotic cell death rather than apoptosis in a proximal tubular cell line (LLC-PK1), whereas Ox²⁻ can cause Madin Darby-canine kidney cell apoptosis and necrosis. Schepers et al.³³ demonstrated that CaO_x crystal (1–2 μm) exposure caused acute necrotic cell death rather than apoptosis in renal proximal tubule cells. However, Khan et al.⁷ indicated that the exposure of cells to CaO_x crystals resulted in significant apoptotic changes (condensation and margination of nuclear chromatin, DNA fragmentation) and certain necrotic changes (loss of plasma membrane integrity and release of lactate dehydrogenase). Thus, cell apoptosis and necrosis caused by CaO_x may be related to crystal size, concentration, crystal phase, and cell type.

4.3 Differences in aggregation and damage capacity of COM and COD crystals

In a biological system, crystal size, zeta potential, and crystal phase play an important role in the crystal–cell interaction. With a transit time across the kidney of 5–10 min, the residence time is too short for crystals to nucleate and grow sufficiently large to be trapped. Some researchers have proposed that crystal aggregation is the most important step in stone formation.^34,35 In the present study, the hydrodynamic size of COM-50 nm (1342 nm) is 1.4 times larger than that of COD-50 nm (953 nm), indicating that these nano-sized crystals are seriously aggregated and that COM-50 nm aggregated more seriously than COD-50 nm, whereas micron-sized COM and COD are more stable and are not aggregated as shown in the SEM detection. The absolute value of the zeta potential of COM-50 nm in the culture medium is smaller than that of COD-50 nm; that is, COM-50 nm is more unstable and could aggregate much more easily. Therefore, nano-sized COM aggregates much more easily form bulk crystals and block the flow of urine from the kidney.

Furthermore, a significant difference in the interaction between COM, COD, and Vero cells exists because of the differences in their crystal structures. The Ca²⁺ surface site concentrations in the main (1̄01) face of COM (0.0542 sites per A²) is higher than in the (100) face of COD (0.0439 sites per A²).⁴ Therefore, the adhesion force between the (1̄01) face of COM and an expressed adhesion molecule (such as HA and OPN) on the surface of injured cells is higher than the (100) face of COD. Hence, COM adheres much more easily on renal epithelial cells, and the following aggregation is more serious than in COD crystals, indicating that the numerous COMs present in urine have a higher risk of forming kidney stones than COD.

5. Conclusions

Micron/nano COM and COD could decrease the cell viability and Δψ_m; increase LDH release, ROS level, and S phase arrest; and cause cell morphology changes in Vero cells. Nano-sized crystals cause more serious cell injury than the micron-sized crystals, and their injury mechanisms are different. Micron-sized CaO_x crystals mainly cause cell membrane injury, which leads to cell membrane dysfunction and even membrane fracture. Nano-sized COM and COD crystals could damage the membrane integrity by adhering to the cell surface, as well as directly damage the mitochondria by being internalized, thereby leading to the dysfunction of mitochondria and cell death. The difference in toxicity between COM and COD of the same size is associated with the crystal structure and surface charges. The study of the interaction mechanism between COM, COD, and renal epithelial cells will provide a theoretical basis for clinical prevention and treatment of lithiasis.
