Comparative theoretical study of formic acid decomposition on PtAg(111) and Pt(111) surfaces

Abstract

Pt-based catalysts are known as the best electrocatalysts for formic acid (HCOOH) oxidation. Maximizing their use efficiency and reducing the CO poisoning effect are highly desirable, however, very challenging. Aiming at these interesting issues, this work presents a theoretical study of the catalytic decomposition of HCOOH on an ideal single-atom model catalyst of PtAg nanostructures, which consists of isolated Pt atoms anchored to an Ag(111) surface and is referred to as PtAg(111). The barrier of the rate-determining step of HCOOH decomposition to CO₂ on PtAg(111) is calculated to be 0.38 eV, which is not significantly different from that on a pure Pt(111) surface, 0.35 eV. On the other hand, the barrier of HCOOH decomposing to CO on PtAg(111) is found to be higher than that on pure Pt(111), 0.83 vs. 0.67 eV. These results indicate that the single-atom PtAg(111) (Pt-decorated Ag(111) surface) presents promising catalytic performance for HCOOH oxidation, which promotes HCOOH dehydrogenation to CO₂ as good as pure Pt(111) and inhibits HCOOH dehydration to undesirable CO that poisons the catalyst. The present results rationalize the experimental observation that Pt–Ag alloy electrocatalysts show improved catalytic performance toward HCOOH oxidation, and provide a clue for the rational design of Pt-based single-atom catalysts.

---

1. Introduction

The electrocatalytic oxidation of formic acid (HCOOH) has attracted lots of attention in recent decades due to its relevance to developing efficient direct formic acid fuel cells (DFAFCs).^1–9 Pt and Pd noble metal nanoparticles supported commonly on various carbon materials such as carbon nanotubes^10–14 are known as the most effective anode catalysts for the oxidation of formic acid at the anode of DFAFCs.^15–20 Extensive investigations have been conducted to elucidate the mechanism of HCOOH electro-oxidation on the surfaces of various metals, including Pt,^15,21–23 Pd,^13,20,24,25 Ru,^9,26,27 Au,^28,29 and Ni,^24,30 which have provided fundamental insights into the overall reaction pathways. However, the large scale commercial application of DFAFCs has been hindered by several technical and economical barriers. It is the most severe challenge on how to improve the poor performance of the durability of Pt and Pd catalysts, which is generally attributed to the poisoning effects of CO and CO-like species produced during HCOOH oxidation.^21,31–34 Another big problem is how to maximizing the use efficiency of Pt and Pd catalysts, the most expensive materials. Modification of Pt and Pd catalysts with other metals, non-noble metals in particular, has turned out to be a feasible method to improve both the poisoning effect^35–45 and the use efficiency. Two kinds of effects, the so-called geometrical ensemble effect^35,46,47 and the electronic ligand effect,^35,47–49 have been proposed to understand the improved catalytic performance of bimetal catalysts.

In recent years, Pt-based bimetal catalysts, such as PtRu,^35,50,51 PtPd,^13,52 PtFe,^53,54 and PtBi,^22,38,44,55 have been studied extensively for HCOOH oxidation. Ag has been identified as a promising alloying element to enhance CO-poisoning tolerance of Pt catalysts, and PtAg bimetal nanoparticles have been demonstrated to show remarkable promotion of the CO-poisoning tolerance compared with pure Pt electrocatalysts.^46,56,57

Although much is known about the preparations of different morphological PtAg bimetal catalysts, the mechanism of their improved CO-poisoning tolerance is still not understood well at the molecular level. Herein, this work presents a comparative theoretical study of formic acid decomposition on the bimetallic PtAg(111) and pure Pt(111) surfaces. The (111) surface is known as the most stable crystal plane of the fcc lattice, and thus is expected to contribute the most areas for the surface of bulk metals, alloys, and nanoparticles, and so is chosen for the present study. By performing density functional theory (DFT) calculations, we show the mechanism details of the elementary steps of HCOOH decomposition on two (111) surfaces, from which we hope to provide a reasonable explanation of the CO-poisoning tolerance enhancement of PtAg nanoparticles.

2. Model and computational details

Both the PtAg(111) surface and Pt(111) surface were modeled using a triple-layer p(3 × 3) slab comprising 3 metal layers with 9 atoms per layer and each slab was separated by a vacuum of 15 Å to guarantee the interaction between neighboring cells was negligible in the z direction. The PtAg(111) surface was built based on the Ag(111) surface, where three Ag atoms in the top layer were replaced by three Pt atoms, as shown in Fig. 1. In such a PtAg(111) surface model, the Pt atoms in the top layer were isolated into single Pt atoms and anchored to Ag(111) to follow the idea of maximizing the use efficiency of Pt materials. The water environment on the (111) surfaces was simulated with four explicit water molecules per unit cell. All DFT calculations were performed using the CASTEP code^58,59 and the exchange–correlation effects were described with the generalized gradient approximation (GGA) using the PBE functional proposed by Perdew, Burke, and Ernzerhof.⁶⁰ The electron wave functional was expanded by a plane-wave basis set with a cutoff energy of 400 eV. A 2 × 2 × 1 Monkhorst–Pack k-point grid was used for the integrations of the Brillouin zone. The transition states were searched using the linear and quadratic synchronous transit (LST/QST) procedure.⁵⁸

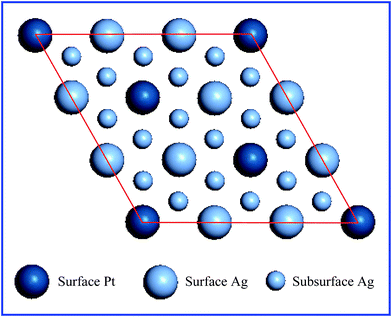

Fig. 1 Top view of the p(3 × 3) unit cell of the PtAg(111) surface, the Pt and Ag atoms are shown in dark blue and light blue, respectively. The red lines are the edges of the unit cell.

The performance of the three-layer slab model and the calculation parameters, including the p(3 × 3) supercell, 2 × 2 × 1 k-point, 15 Å vacuum zone, and the energy cutoff of 400 eV, have been tested extensively in previous studies.^{7,24,30,61,62} Using these parameters, the largest adsorption energy of HCOOH on the Pt(111) surface is calculated to be 0.43 eV. Increasing the slab thickness to 5 atomic layers with the top three layers relaxed, the calculated adsorption energy is improved to 0.39 eV, which is not remarkably different from the result using the three-layer slab model, indicating that the results obtained using the three-layer slab model are of acceptable accuracy. In addition, our main concern in the present work is the relative barriers involved in the different decomposition pathways of HCOOH, which can counteract most of the energy errors resulting from the limited slab thickness as well as the neglect of dipole corrections, spin polarization, and the dispersion effect.^63,64 Thus we consider that the conclusion to be drawn based on relative energies is reliable.

3. Results and discussion

The catalytic decomposition of HCOOH on metal surfaces is generally thought to follow a dual-pathway mechanism^65–69 consisting of indirect and direct pathways. The indirect pathway features adsorbed CO as the intermediate of HCOOH oxidation, and the direct pathway involves HCOOH reacting to CO₂ without the participation of CO species. Clearly, the direct pathway is highly desirable while the indirect one is not wanted because it generates CO poisoning species and hence deactivates catalysts. So it is expected that the catalytic performance of a catalyst of HCOOH decomposition is directly related to the relative ease or difficulty of two pathways, which are generally evaluated using the energy barrier to be overcome to carry out a reaction pathway. In this sense, we calculated and compared the thermal dissociation barriers of HCOOH involved in the pathways forming CO and CO₂ on PtAg(111) and Pt(111) surfaces. Previous studies^7,58 indicated that an applied electrode potential to mimic the electro-catalytic oxidation of HCOOH has little effect on oxidation barriers. Therefore, the results presented in this work can serve as a foundational prototype to understand the complex electrochemical oxidation of HCOOH.

3.1 HCOOH decomposition to CO₂ on AgPt(111) and Pt(111)

The present work located three energetically favorable pathways of HCOOH decomposition on PtAg(111) to form CO₂. Fig. 2 shows the optimized geometries involved along each pathway, and Fig. 3 depicts calculated relative energy diagrams along the three pathways. Initially, HCOOH in its trans configuration prefers to lie parallel to the AgPt(111) surface to form more hydrogen bonds with the adjacent water molecules as illustrated in structure 1, which is the common precursor in pathways I–III. Along pathway I, to perform the subsequent transformation, the trans-HCOOH in 1 is first converted to its cis configuration in 2 via TS_1–2 with a barrier of 0.39 eV. Then the first dehydrogenation step (the O–H bond scission) occurs via TS_2–3, leading to HCOO + H in 3. The barrier involved in this process is calculated to be 0.33 eV. It is noted that the neighboring water molecule plays a substantial role for the O–H bond scission, which acts as a “bridge” assisting the H migration from HCOOH to the surface. In 3, the formate species HCOO is adsorbed on the surface with a C–H down configuration. The second dehydrogenation step (the C–H bond scission) occurs via TS_3–4 with a barrier of 0.39 eV, leading to CO₂ + H and completing the HCOOH decomposition. The overall reaction is calculated to be exothermic by 0.50 eV.

Fig. 2 Optimized structures along the pathways of HCOOH decomposition to CO₂ on the PtAg(111) surface. The distances are in Å. The C, H, O, Pt and Ag atoms are shown in gray, white, red, dark blue and light blue, respectively.

Fig. 3 Calculated relative energy profiles for the HCOOH decomposition to CO₂ on the PtAg(111) surface. The sum energy of HCOOH, four water molecules, and the clean PtAg(111) surface is taken as the zero energy reference.

In pathways II and III, the initially adsorbed HCOOH in 1 is first converted to a suitable configuration in 5 through TS_1–5 with a barrier of 0.16 eV, where the C–H bond and/or O–H bond are geometrically ready for the upcoming scissions. Along pathway II, the first dehydrogenation step involves the C–H bond scission that proceeds via TS_5–6 with a barrier of 0.56 eV, leading to the adsorbed COOH species in 6. The following second dehydrogenation step (the O–H bond scission) is found to be a barrierless process because the transition state (TS_6–7) is located even lower in energy than its precursor (structure 6), indicating that once formed, COOH readily cleaves its O–H bond to form CO₂ in 7. Alternatively, along pathway III, the HCOOH in 5 can cleave its O–H and C–H bonds simultaneously via TS_5–8 with a barrier of 0.38 eV, resulting in the direct formation of CO₂. From the relative energy profile shown in Fig. 3, one can see that pathway III is the dominant pathway for dehydrogenation of HCOOH to CO₂.

From the geometries shown in Fig. 2, it is noted that (i) throughout the entire process of HCOOH decomposition, the reaction occurs at the Pt site rather than the Ag site, indicating Pt is the catalytic active center of the AgPt(111) surface; (ii) water molecules play a substantial role in the dehydrogenation process of HCOOH, and act as a bridge transferring H atoms from HCOOH to the surface.

Similarly, on Pt(111) the dehydrogenation processes of HCOOH to CO₂ are also calculated to make a comparison with that on PtAg(111). For simplification, only the energetically most favorable pathway is given in Fig. 4. The C–H bond scission first occurs followed by the O–H bond scission, and the calculated barriers of these two dehydrogenation steps are 0.26 and 0.35 eV, respectively. These barriers are not remarkably different from the corresponding ones (0.16 and 0.38 eV) on PtAg(111) shown in Fig. 3, implying that the PtAg(111) can perform as well as Pt(111) for the catalytic dehydrogenation of HCOOH to CO₂. The present PtAg(111) model can be described as a Pt-decorated Ag(111), in which Pt atoms were isolated into single Pt atoms and anchored to Ag(111) to follow the idea of maximizing the use efficiency of Pt materials. From an atom-economical point of view, such a catalyst is much more inexpensive than a pure Pt catalyst.

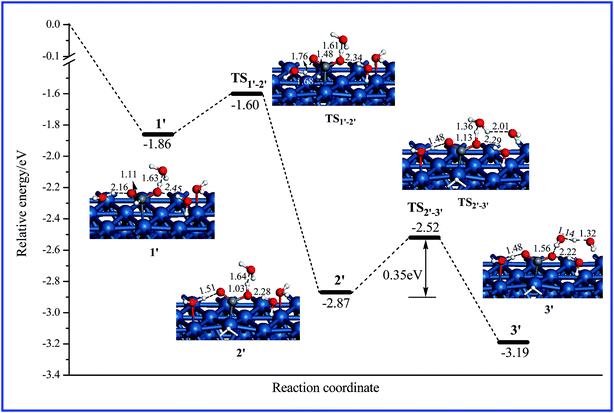

Fig. 4 Optimized structures and calculated relative energy profile along the pathway of HCOOH decomposition to CO₂ on Pt(111). Sum energy of HCOOH, four water molecules, and the clean Pt(111) surface is taken as the zero energy reference.

3.2 HCOOH decomposition to CO on AgPt(111) and Pt(111)

Fig. 5 shows three possible pathways (IV, V and VI) of HCOOH decomposition to CO on PtAg(111), and Fig. 6 gathers optimized geometries involved in these pathways. From the calculated relative energy profiles in Fig. 6, pathway IV is the energetically most favorable. As shown in Fig. 5, the transformation from 1 to 5 is also the initial step of pathways IV and V, like that discussed above for the formation of CO₂. Along pathway IV, the next step is the C–H bond scission via TS_5–9 with a barrier of 0.68 eV, leading to COOH and H. The C–H distance (1.61 Å) in TS_5–9 clearly indicates that the C–H bond is breaking, leading to a bidentate absorbed COOH species in 9. The following transformation from 9 to 10 corresponds to the migration of the H atom adsorbed on the surface to a water molecule. In such a process, the hydroxyl O plays a role of “bridge” transferring H atoms. The barrier from 9 to 10 is calculated as 0.55 eV. The COOH species in 10 serves as the direct precursor for the C–OH bond scission through TS_10–11, where the C–OH distance (2.08 Å) clearly identifies the rupture of the C–OH bond, leading to the formation of CO. The barrier of this process is calculated to be 0.83 eV, which is the highest barrier along pathway IV, implying that the C–OH bond scission is the rate-determining step for the decomposition of HCOOH to CO.

Fig. 5 Optimized structures along the pathways of HCOOH decomposition to CO on the PtAg(111) surface. The distances are in Å. The C, H, O, Pt and Ag atoms are shown in gray, white, red, dark blue and light blue, respectively.

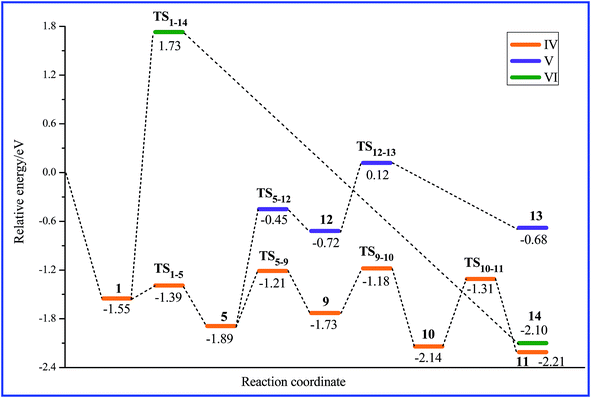

Fig. 6 Calculated relative energy profiles along the pathways of HCOOH decomposition to CO on PtAg(111). The sum energy of HCOOH, four water molecules, and the clean PtAg(111) surface is taken as the zero energy reference.

Along pathway V, the adsorbed HCOOH in 5 first breaks its C–OH bond through TS_5–12 to form CHO and OH species in 12, and then the C–H bond scission of the CHO species leads to the formation of CO. These two processes proceed through TS_5–12 and TS_12–13, respectively, where the C–OH distance (2.06 Å) and C–H distance (1.46 Å) clearly identify the characteristics of the breaking C–OH and C–H bonds. The calculated barrier is 1.44 eV for the C–OH bond scission and 0.84 eV for the C–H bond scission. These values are higher than those in pathway IV, where the C–H bond scission occurs prior to the C–OH bond scission. Pathway VI is an energetically much less favorable pathway for the formation of CO. It is a concerted process of the C–OH bond rupture and C–H bond rupture via TS_1–14. The barrier of this process is calculated to be as high as 3.28 eV, implying an impossible process.

Again, to make a comparison with the results on pure Pt(111), we performed the corresponding calculations and the relevant results along the most favorable pathway are shown in Fig. 7. It is found that the initial C–H scission with a barrier of 0.67 eV is the rate-determining step for the decomposition of HCOOH to CO on Pt(111). Compared to pathway IV in Fig. 6, the most favorable pathway on PtAg(111) with the rate-determining step barrier of 0.83 eV, it is clear that the formation of CO on PtAg(111) becomes more difficult, which is in agreement with the observed reduced CO-poisoning effect of PtAg bimetallic catalysts for HCOOH oxidation.

Fig. 7 Optimized structures and calculated relative energy profile along the pathway of HCOOH decomposition to CO on Pt(111). The sum energy of HCOOH, four water molecules, and the clean Pt(111) surface is taken as the zero energy reference. The distances are in Å. The C, H, O and Pt atoms are shown in gray, white, red and dark blue, respectively.

Comparing Fig. 2 with 5, it is noted that the decomposition of HCOOH to CO₂ generally needs only one single Pt site, while that to CO requires not only Pt but also the neighboring Ag, which is less active than Pt and hence gives PtAg(111) better performance on durability.

4. Conclusions

In summary, by performing periodic DFT calculations, we have presented a comparative theoretical study of HCOOH decomposition on the PtAg(111) and Pt(111) surfaces. The PtAg(111) surface also presents an ideal model of single-atom Pt-based catalysts. The calculated results indicate that on PtAg(111), HCOOH decomposition to CO₂ involves a barrier of 0.38 eV, which is not significantly different from that on pure Pt(111), 0.35 eV, implying the PtAg(111) can perform as well as pure Pt(111) for HCOOH decomposition to CO₂. On the other hand, the calculations confirm that HCOOH decomposition to CO on PtAg(111) becomes more difficult than that on the pure Pt(111) surface, as is shown by the calculated barriers, 0.83 and 0.67 eV, in the two situations, respectively. This is in agreement with the improved catalytic efficiency of PtAg bimetallic alloy nanoparticles towards HCOOH oxidation. The present theoretical results also provide a clue for the rational design of single-atom Pt-based catalysts.
