The preparation of Fe₂O₃ nanoparticles by liquid phase-based ultrasonic-assisted method and its application as enzyme-free sensor for the detection of H₂O₂

Abstract

Iron oxide nanoparticles with high electrocatalytic activity for hydrogen peroxide were developed by liquid phase-based ultrasonic-assisted method using sodium lignosulphonate as surfactant. The influence of the different preparation conditions including addition of sodium lignosulfonate (SLS) and calcining temperature was investigated by X-ray diffraction (XRD), scanning electron microscopy (SEM), transmission electron microscopy (TEM), and Brunauer–Emmett–Teller (BET) specific surface area. Then, the as-prepared Fe₂O₃ with graphene (G) was further fixed on the surface of glassy carbon electrode (GCE) using chitosan (CS) as a crosslinking agent. The electrochemical properties of the prepared G-Fe₂O₃-NPS-CS/GCE senor were estimated by cyclic voltammetry and chronoamperometry. Finally, the G-Fe₂O₃-NPS-CS/GCE (1.0 g SLS, calcined 400 °C) senor showed an excellent electrocatalytic activity towards hydrogen peroxide, which displayed high sensitivity (385.59 μA mM⁻¹ cm⁻²), wide detection range (0.5–7800 μM), low detection limit (0.5 μM) and a fast response time less than 2 s. Furthermore, the sensor also exhibited good anti-interference for ascorbic acid and uric acid, excellent repeatability and long-term stability. These results indicated that the G-Fe₂O₃-NPS-CS/GCE (1.0 g SLS, calcined 400 °C) senor held great potential for the detection of hydrogen peroxide.

---

Introduction

Nanomaterials have become one of the most active research orientations in the areas of physics, chemistry, and engineering since 1990, due to the small particle size, large specific surface area, high surface energy and unique surface effect, small-size effect, and macroscopical quanta tunnel effect, etc.^1–4 In the past several decades, various types of nanomaterials such as Au, Ag, TiO₂, SiO₂, and ZnO etc. have been widely applied as photocatalyst, functional ceramics, sensor, solar cell and biology functional material.^5–9 Among the various kinds of nanomaterials, iron oxide as an important oxide has been studied for a wide range of applications because it is environmentally friendly, non-toxic, heat-resistant, and corrosion-resistant material.^10,11 At the same time, because of the low density, large surface, high stability, and remarkable sensitivity of the conductivity to temperature, humidity and concentration, the Fe₂O₃ semiconductor shows a broad and good prospect for application in the field of sensing materials.

On the other hand, the reliable and rapid determination of hydrogen peroxide (H₂O₂) is of great importance in biology and chemistry fields because it is not only used as an important oxidizing agent in food and chemical industries, but also widely used as a mediator in food, pharmaceutical, clinical, industrial and environmental analysis.^12–15 Many techniques have been successfully used for the detection of H₂O₂, such as titrimetry, spectrophotometry, fluorescence, chemiluminescene and electrochemistry. Compared with other detection methods, electrochemistry has attracted more and more interest of researchers, due to the convenience, high sensitivity, and excellent precision of the technique.^16–18 Some electrochemical sensors with a high sensitivity and specificity for detection of H₂O₂, such as NF/CAT/MWCNTs-COOH/Cys-AuNPs/GC, CAT/MgO-NPs/CPE, GC/MWCNT-NiO/CAT and GC/MWCNTs/[bmim][PF₆]/CAT have been successfully developed.^19–22 Most of the above mentioned electrochemical sensors were constructed based on enzymes or proteins. Enzyme-modified electrochemical sensors can achieve high sensitivity and excellent selectivity, however, there are many defects of enzyme-based electrochemical sensors, such as instability, limited lifetime, high cost and complicated modification procedure. Its activity, meanwhile, can be easily affected by temperature, pH value and oxygen.^23–27 In comparison with the enzyme-modified sensors, the enzyme-free sensor's research becomes very meaningful duo to their long lifetime, high environmental suitability and high durability.

Iron oxide has been a good choice to be used as substrate for enzyme-free sensors due to its good chemical stability, low-cost and narrow band gap (−2.1 eV).²⁸ It is well-known that the excellent performance of the material depends not only on the characteristic of the material itself, but also on the size, crystallinity and morphology of the material particle.²⁹ There are always some problems like agglomeration of particles, large particle size, etc. exist during the preparation of iron oxide. Therefore, control of the size and morphology of Fe₂O₃ has attracted more and more attention of researchers. Up to now, some Fe₂O₃ particles with excellent properties have been synthesized through various methods with the assistance of different surfactants.^30–32

In this paper, a technically simple and cost-effective ultrasonic method for synthesizing Fe₂O₃ nanoparticle in the presence of SLS has been developed in order to obtain the desired sensor materials. Then, the as-prepared Fe₂O₃ nanoparticle and graphene, were immobilized onto the GCE surface by chitosan. Cyclic voltammetry and chronoamperometry are used to determine the electrochemical properties of the sensor. The resulting sensor exhibited high sensitivity, a wide linear range and a lower detection limit for hydrogen peroxide.

Experimental

Materials

Ferric chloride, carbamide, potassium permanganate, flake graphite, hydrazine hydrate and hydrogen peroxide were purchased from Sinopharm Chemical Reagent Co., Ltd. (Shanghai, China). Concentrated hydrochloric acid (36–38%, m m⁻¹) and concentrated sulfuric acid (98%, m m⁻¹) were purchased from Yangzhou Hubao Chemical Reagent Co., Ltd. (Yangzhou, China). SLS of industrial grade was bought from Fei Wong Xinyi Chemical Co., Ltd (Xuzhou, China). All other reagents were of analytical grade and used without further purification. 0.2% (m m⁻¹) chitosan solution was prepared by addition of chitosan in 1% (m m⁻¹) acetic acid solution. 0.1 M of pH = 7.4 phosphate buffer solution (PBS) was adjusted by 0.1 M K₂HPO₄ and KH₂PO₄. All as-prepared solution were stored at 4 °C when not in use.

Preparation of Fe₂O₃ nanoparticle and graphene

Fe₂O₃ nanoparticles were synthesized by liquid phase-based ultrasonic-assisted method in the following way: 4.06 g FeCl₃·6H₂O was dissolved in 250 mL double-distilled water with certain amount of SLS and the mixed solution was sonicated in the water bath of 85 °C until a relatively steady solution system was formed. Then a 50 mL solution of 1.2 M (NH₂)₂CO was added to the system drop by drop, and the reaction system was refluxed for 4 h. The resultant solids were collected by filtration and repeated washing. After that, the solid was dried in oven at 60 °C, and then calcined at 300 °C, 400 °C, 500 °C and 600 °C in furnace for 2 h, respectively. The added amounts of SLS were 0, 0.5, 1.0, 1.5, 2.0 g, respectively.

Graphite oxide was prepared using flake graphite by a modified Hummer's method:³³ first, graphite powder was oxidized by KMnO₄/NaNO₃ and H₂SO₄, and the graphite oxide was exfoliated into graphene oxide by a KQ-250 ultrasonic reactor (Kunshan, China, P = 250 W, f = 40 kHz). Subsequently, the unexfoliated graphite oxide is separated by centrifugation at 2000 rpm for 10 min. Finally, the obtained back suspension of graphene oxide is reduced into graphene using hydrazine. The graphener was washed for several times and stored at 4 °C.

Preparation of the modified electrodes

The preparation of the G-Fe₂O₃-NPS-CS/GCE modified electrode is described as follows: prior to use, the bare glassy carbon electrode (GCE, 4 mm in diameter) was carefully polished to a mirrorlike surface with emery paper and 1.0 μm, 0.5 μm alumina slurry, respectively. Then the polished electrode was rinsed ultrasonically in acetone, absolute ethanol, deionized water for 3 min, respectively. The electrode was activated using repeatedly cyclic voltammetry scanned from −1.0 to 1.0 V at 50 mV s⁻¹ in 1.0 M H₂SO₄ until a stable voltammogram was obtained. To prepare the modified composite, 3 mg of Fe₂O₃ and 2 mg of graphene are mixed in 0.2% (m m⁻¹) chitosan solution, and this mixture was sonicated for 30 min to acquire a homogeneous and well-dispersed black suspension. Whereafter, 3 μL of the suspension was smeared evenly onto surface of the GCE electrode. In order to obtain a more uniform modified films, the as-prepared electrode was slow dried at 4 °C. The obtained G-Fe₂O₃-NPS-CS/GCE modified electrodes was stored at 4 °C. Meanwhile, the Fe₂O₃-NPS-CS/GCE modified electrode was also prepared. Iron oxide and graphene easily fall off from the surface of electrode without the adhesive force of chitosan (CS) for the G-Fe₂O₃-NPS/GCE modified electrode. Therefore, the G-Fe₂O₃-NPS/GCE has not been discussed in this work. The G-Fe₂O₃-NPS-CS/GCE (1.0 g SLS, calcined 400 °C) are denoted as G-Fe₂O₃-CS/GCE-1-400.

Characterizations

Thermogravimetric/differential scanning calorimetry (TG/DSC) analysis was performed using a integrated thermal analyzer (STA449C, NETZSCH) under a nitrogen atmosphere with a heating rate of 5 °C min⁻¹ from 25 °C to 1000 °C. FT-IR spectra of the powders (as pellets in KBr) were recorded using Fourier transform infrared spectroscopy (FT-IR, Nicolet, AVATAR-370MCT) in the range of 4000–400 cm⁻¹. The XRD patterns of the Fe₂O₃ nanoparticles were recorded using a Bruker D8 Advance X-ray diffractometer at a voltage of 40 kV and current of 40 mA with Cu Kα radiation (λ = 0.15406 nm). The specific surface area and pore size data were obtained by surface area and porosity analyzer (NOVA-2000e). The morphology of the nanoparticles was examined with the Field Emission Scanning Electron Microscope (FE-SEM, S4800, HI-9140-0006). All electrochemical experiments were performed by a CHI 660C electrochemical workstation (Chen Hua Instrumental Corporation, Shanghai, China). A conventional three-electrode system (including the modified GCE as the working electrode, a platinum foil as the counter electrode and a saturated calomel electrode (SCE) as the reference) was employed to test electrochemical property of modified electrode.

Results and discussion

TG–DSC measurement was performed to investigate the decomposition behavior and the phase transition temperatures of the as-synthesized precursor (FeOOH) containing 1.0 g SLS. The results are exhibited in Fig. 1.

Fig. 1 DSC–TGA curve for α-FeOOH precursor containing SLS.

The curve of TG shows that the first weight loss was about 3.87% in temperature range of 25 °C to 100 °C, which is attributed to the dehydration of the physical adsorption on the sample surface. The relatively large weight loss of 21.47% occurred from 100 °C to 480 °C, and the corresponding exothermic peak was observed at 298.9 °C in the DSC curve. This is because of the decomposition of the α-FeOOH³⁴ and SLS at high temperature. The third mass loss of 1.44% from 480 °C to 820 °C is attributed to the continued decomposition of SLS surrounded by Fe₂O₃. No obvious weight loss over 820 °C. Subsequently, the DSC curve shows that the small exothermic peak at 599.6 °C is mainly due to the phase transformation from γ-Fe₂O₃ to α-Fe₂O₃.³⁵

The FT-IR spectra as an important analytical technique was used to evaluate the structural changes of the different samples shown in Fig. 2. It can be found that there are large numbers of functional groups of SLS among the as-prepared α-FeOOH containing 1.0 g SLS. The results indicate that the SLS has been successfully embedded in the α-FeOOH precursor. Accompanied by the thermal decomposition of α-FeOOH precursor into Fe₂O₃, the characteristic peaks of SLS almost all disappeared due to the volatilization and decomposition of SLS. The two obvious absorption peaks at 475 cm⁻¹ and 442 cm⁻¹ are attributed to the vibration of the Fe³⁺–O²⁻.

Fig. 2 FT-IR spectra of sodium lignosulphonate, α-FeOOH and Fe₂O₃.

Fig. 3A shows the XRD patterns of the as-prepared samples with varied additions of SLS calcined at 400 °C. The curve with the narrowest and sharpest peaks in Fig. 3A indicates the best crystallized Fe₂O₃ for the addition of no SLS. All XRD peaks at 2θ = 24.1°(012), 33.2°(104), 35.6°(110), 40.9°(113), 49.5°(024), 54.1°(116), 57.4°(018), 62.5°(214), 64.0°(300) and 72.0°(1010) can be clearly indexed to the rhombohedral phase of hematite (JCPDF no. 33-0664). No characteristic peaks of any other impurities are detected. The diffraction peak be gradually weakened at (012), (104), (113), (024), (214), (300) and (1010) with the increasement of SLS. These characteristic peaks almost disappear for the addition of 2.0 g SLS. Meanwhile, it is obvious to compare the JCPDF cards that we can find the transformation of Fe₂O₃ crystalline structure from the rhombohedral symmetry (JCPDS no. 33-0664) to Maghemite (JCPDS no. 39-1346) with the increasing SLS content. In addition, the influence of different calcination temperature was also discussed, as shown in Fig. 3B. The Fe₂O₃ samples calcined at 300 °C showed wider and weaker diffraction peaks, and displayed poorer crystallization than the other Fe₂O₃ samples. As expected, the diffraction peaks' intensity of Fe₂O₃ constantly reinforced with an ever-increasing calcination temperature, accompanied with the gradual growth of Fe₂O₃ nanoparticles. γ-Fe₂O₃ was successfully transformed to α-Fe₂O₃ with the increase in the annealing temperature. The average crystallite dimension (ACD) of all samples was estimated through using Scherrer formula, D = 0.9λ/β cos θ, where D is the average crystalline size, λ is the wavelength of Cu Kα (λ = 0.15406 nm), β is the full width at half maximum of the diffraction peaks, and θ is the Bragg's angle. the results of the computation are shown in Table 1.

Fig. 3 (A) XRD patterns of as-prepared Fe₂O₃ samples with different additions of SLS calcined at 400 °C. (B) XRD patterns of Fe₂O₃ samples prepared with 1.0 g SLS calcined at 300 °C, 400 °C, 500 °C and 600 °C.

Table 1 ACD and BET of different Fe₂O₃ samples

SLS/g	T/°C	ACD/nm	BET/m^2 g^−1	SLS/g	T/°C	ACD/nm	BET/m^2 g^−1
0.0	400	32.03	8.208	2.0	400	9.26	46.311
0.5	400	26.78	27.430	1.0	300		76.196
1.0	400	21.86	81.319	1.0	500	32.13	21.367
1.5	400	10.06	71.912	1.0	600	36.21	11.709

---

The morphology of the as-prepared Fe₂O₃ nanoparticles are shown in Fig. 4. The changes in morphology before and after the addition of sodium lignosulfonate are noticeable. The pure sample without surface modification is shown in Fig. 4A. It can be clearly seen that the particle of Fe₂O₃ is bulky compared to the modified Fe₂O₃ samples, and the primary particle size is between 200 and 500 nm. With the increase of SLS content, the size of the particles of iron oxide decreased rapidly. As shown in the Fig. 4C, the as-prepared Fe₂O₃ samples are composed of fine and uniform particles with the addition of 1.0 g SLS. Fig. 4F is a higher magnification of Fig. 4C, the synthesized Fe₂O₃ nanoparticles showed smallest grain size (ca. 20 nm in diameter) and abundant porous nanostructure. Such structure exhibits a high-developed surface area. Interestingly, the grain size is raised to 30 nm when the quality of SLS increased to 1.5 g, as shown in Fig. 4D. Meanwhile, it can be clearly observed that severe agglomeration has occurred between particles, which indicates that an excessive increase in the addition amount of SLS is detrimental to the preparation of Fe₂O₃. The morphology of the Fe₂O₃ sample added 1.0 g SLS to the reaction system without ultrasound was also investigated (Fig. 4E), The results suggest that the growth of Fe₂O₃ is nearly uncontrolled, and the particle size of Fe₂O₃ is even larger than 500 nm. The calcining temperature affects the final quality and performance of the powders, so it is essential to discuss and research the influence of the temperature on the preparation of nanomaterials. The typical SEM image of Fe₂O₃ annealed at 300 °C is displayed in Fig. 5A. The heavily agglomerated particles and XRD patterns show that the as-prepared precursor is not successfully transformed to Fe₂O₃ crystal under the lower calcination temperature. It can be observed that the particle size show an increasing trend with increase in temperature, and change from smaller than 30 nm at 400 °C (Fig. 4C) to about 60 nm at 500 °C (Fig. 5B). The results showed that the surfactant and the calcining temperature have great influence on the particle size of Fe₂O₃.

Fig. 4 SEM images of Fe₂O₃ samples with different additions of SLS calcined at 400 °C: (A) 0 g, (B) 0.5 g, (C) 1.0 g, and (D) 1.5 g; (E) SEM images of Fe₂O₃ samples adding 1.0 g SLS without assistance of ultrasound; (F) high magnification of (C).

Fig. 5 SEM images of Fe₂O₃ samples with the addition of SLS is 1.0 g calcined at 300 °C (A), 500 °C (B).

Nitrogen isotherm adsorption–desorption experiment was carried out to examine characteristics of the specific surface areas of the as-prepared Fe₂O₃ under different conditions, the results are shown in Table 1. Without the addition of SLS, the Fe₂O₃ nanoparticles show small specific surface area of 8.208 m² g⁻¹. After that, the specific surface areas of the Fe₂O₃ is consistently increasing with the added amount of SLS, and an maximum specific surface areas (81.319 m² g⁻¹) was obtained when the SLS is added to 1.0 g. The Fe₂O₃ calcined at 400 °C display highest specific surface areas than those of 300 °C, 500 °C and 600 °C. By comparing the analysis results of XRD and SEM, we can find that the specific surface areas increases with the decreasing of particle diameter because of the surface effect.

According to the SEM, XRD and BET results mentioned above, the impacts of SLS, ultrasonic and calcining temperature on the formation of Fe₂O₃ can be described as follows: first, from the FTIR spectrograms it is observed that sodium lignosulphonate contains a large amount of carboxylic (3437 cm⁻¹) and sulfonic (1044 cm⁻¹ and 621 cm⁻¹) groups.^36,37 After adding the surfactant SLS to ferric chloride solution, SLS produces the negatively-charged sulfonic and carboxylic groups that could form a covalent bond with Fe³⁺ by electrostatic interactions.³⁸ The appropriate SLS concentration leads to the lower Fe³⁺ concentration, which will decrease the nucleation rate of FeOOH. Meanwhile, these negatively charged groups can be absorbed on the crystal nucleus surface under low nucleation rate. These behaviors will help inhibit the crystal nucleus growth and agglomeration. However, when the excessive addition of SLS, these negatively-charged groups might aggregate with other positively-charged groups by electrostatic interactions, and lose its function to suppress the crystal nucleus growth and agglomeration. On the other hand, higher ultrasonic irradiation can generate more nucleation which leads to smaller grain size and more dispersed particles.³⁹ The influence of temperature, we can speculate that the decomposition of FeOOH gradually increased with the increase in calcination temperature, and the high decomposition rate will speed up the crystal growth. Finally, the Fe₂O₃ grain size also continuously increased with the rapid crystal growth rate.

TEM images of G and G-Fe₂O₃ shown in Fig. 6 provide strong evidence that Fe₂O₃ has been immobilized on the surface of G by a bridge constituted of chitosan (Black spots or gray dots in Fig. 6B). It can be seen from Fig. 6A that the G displays typical semitransparent flakelike and some crumpled shapes, which is attributed to the thin thickness and large surface area of G. This is an advantage for electron transfer on the surface of the electrode. Fe₂O₃ has been tightly stuck to the wrinkled G surface using the chitosan, as shown in Fig. 6B. The average diameter of Fe₂O₃ was estimated to be about 20 nm, which is roughly correspondence with the XRD and SEM analysis results.

Fig. 6 TEM images of G (A) and G-Fe₂O₃-NPS-CS (B).

The electrochemical properties of the as-prepared Fe₂O₃ nanoparticles modified GCE electrode was detected using cyclic voltammetry in [Fe(CN)₆]^3−/4− solution with the scan rate 50 mV s⁻¹ at room temperature. First the bare GCE, Fe₂O₃-NPS-CS/GCE, G-Fe₂O₃-NPS-CS/GCE electrodes were tested in a solution of 5 mM [Fe(CN)₆]^3−/4− containing 0.1 M KCl in the range from −0.1 to 0.6 V, as shown in Fig. 7A. Only the Fe₂O₃ modified GCE electrode shows a low pair of redox peaks compared with bare GCE electrode. This could be due to iron oxide semiconductor hinder the electronic transmission on the surface of GCE. In order to improve electrode properties, graphene was introduced into Fe₂O₃ modified GCE. It is clear that the introduction of graphene gives rise to a sharp increase of the peak current. The cyclic voltammogram of the above three electrodes in 0.1 M PBS of pH 7.4 in the range from −0.8 to 0.8 V with the presence and the absence of 5 mM hydrogen peroxide was shown in Fig. 7B.

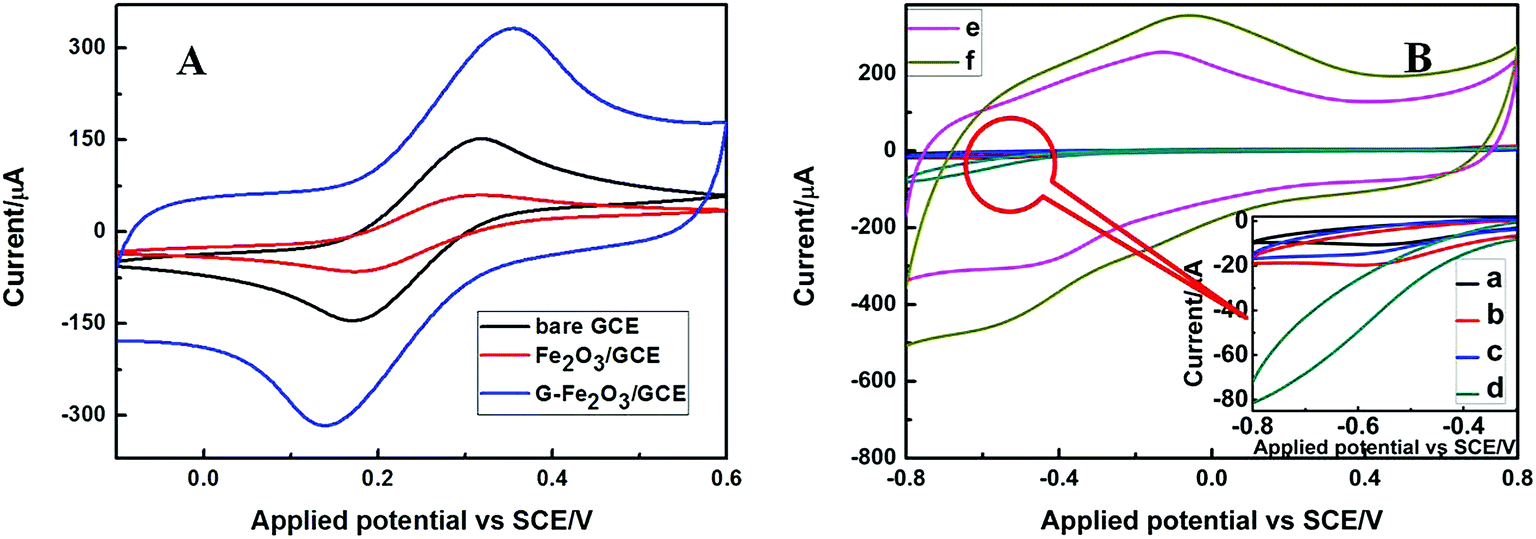

Fig. 7 (A) CVs of the bare GCE, Fe₂O₃-NPS-CS/GCE and G-Fe₂O₃-NPS-CS/GCE in 5 mM [Fe(CN)₆]^3−/4− solution (1 : 1, molar ratio) with 0.1 M KCl. (B) CVs of bare GCE (a and b), Fe₂O₃-NPS-CS/GCE (c and d) and G-Fe₂O₃-NPS-CS/GCE (e and f) in the absence (a, c and e) and presence (b, d and f) of 5 mM H₂O₂ in 0.1 M PBS. Inset: local amplification of the selected area.

At the bare electrode in the absence (curve a) and presence (curve b) of H₂O₂, no obvious current responses were observed. The Fe₂O₃ modified electrode showed an obvious current response at about −0.38 V in the presence of H₂O₂ (curve d). It can clearly be seen that, after adding the graphene into the modified electrode (G-Fe₂O₃-NPS-CS/GCE), the current response of the electrode dramatically increases. The results display that the electron transfer rate of the G-Fe₂O₃-NPS-CS/GCE is much higher than that of the Fe₂O₃-NPS-CS/GCE. Meanwhile, the G-Fe₂O₃-NPS-CS/GCE modified electrode also show excellent sensitivity to H₂O₂ (curve f), which could be attributed to electrochemical signal amplification through the good conductivity and the large surface area of the graphene. It also indicated that the G-Fe₂O₃-NPS-CS/GCE composite sensor was developed successfully.

The electrochemical properties of the as-prepared Fe₂O₃ nanoparticles with different addition amount of SLS calcined under 400 °C are shown in Fig. 8. Fig. 8A depicts the cyclic voltammogram of these modified electrodes in 5 mM [Fe(CN)₆]^3−/4− containing 0.1 M KCl, it is found that all electrodes exhibited a pair of obvious redox peaks, and the current response gradually increased with the addition of SLS. The value of redox peak current reached the maximum at the addition of 1.0 g SLS. However, the redox peak current was accompanied by a dramatical decrease with a further increase of SLS. Fig. 8B shows the CVs of the Fe₂O₃ modified electrode in 0.1 M PBS (pH 7.4) toward the reduction of 5 mM H₂O₂. A similar phenomenon in which the current response increased with the addition of SLS was observed for these electrodes. After added 1.0 g, the sensitivity of the sensor to hydrogen peroxide started to decline gradually with the continuous addition of SLS. Therefore, we can come to the conclusion that it is detrimental for preparation of senor due to an excessive addition of SLS.

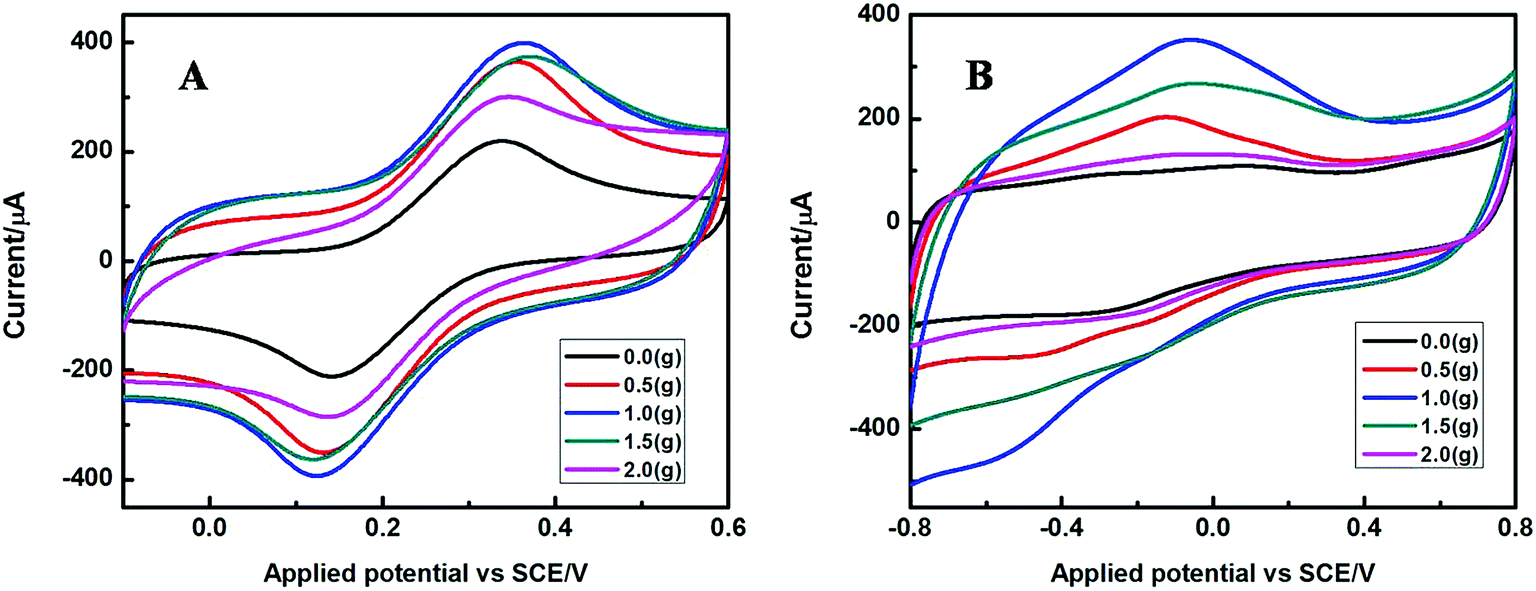

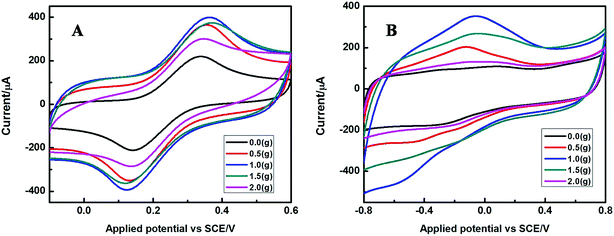

Fig. 8 CVs of G-Fe₂O₃-NPS-CS/GCE in 5 mM [Fe(CN)₆]^3−/4− solution (1 : 1, molar ratio) with 0.1 M KCl (A) and in 0.1 M PBS (pH = 7.4) containing 5 mM H₂O₂ (B), the Fe₂O₃-NPS used in this experiment were calcined at 400 °C, and with the addition of 0 g, 0.5 g, 1.0 g, 1.5 g, and 2.0 g SLS.

Fig. 9 shows the cyclic voltammograms of different G/Fe₂O₃-NPS/CS/CPEs in which the Fe₂O₃-NPS calcined at various temperatures. The electron transfer rate between the G-Fe₂O₃ composite film and electrode surface was studied in 5 mM [Fe(CN)₆]^3−/4− containing 0.1 M KCl, as shown in Fig. 9A. When the Fe₂O₃ was calcined at 400 °C, the electron transfer rate of the G/Fe₂O₃-NPS/CS/CPE is faster than that of the others. Electrochemical properties of the as-prepared modified electrodes are further detected in the presence of 5 mM H₂O₂ in 0.1 M PBS (pH = 7.4). It can be seen from Fig. 9B that the current response of the G/Fe₂O₃-NPS/CS/CPE modified electrode (Fe₂O₃ calcined at 400 °C) at the −0.38 V was improved 10%, 20% and 30% respectively, compared with other three electrodes (Fe₂O₃ calcined at 300 °C, 500 °C and 600 °C). Apparently, the above presented results indicated that calcination temperature is an important influencing factor during the preparation process of Fe₂O₃. Combining with the analyses of XRD, SEM and CVs, it can be found that the sensitivity of the H₂O₂ sensor increases with decreasing of Fe₂O₃ nanoparticle size. We speculate that this may be due to the intense surface force field, lack of particle coordination and elevated defects of the small particles with larger specific surface area, which are beneficial to the absorbance of H₂O₂ in solution.

Fig. 9 CVs of G-Fe₂O₃-NPS-CS/GCE in 5 mM [Fe(CN)₆]^3−/4− solution (1 : 1, molar ratio) with 0.1 M KCl (A) and in 0.1 M PBS (pH = 7.4) with 5 mM H₂O₂ (B), the Fe₂O₃-NPS used in this experiment were doped with 1.0 g SLS, and calcined at 300 °C, 400 °C, 500 °C and 600 °C.

Finally, the sensitivity of G-Fe₂O₃-CS/GCE-1-400 is estimated by chronoamperometry measuring the current response with the gradually addition of H₂O₂ to 0.1 M BPS of pH 7.4 at fixed potential of −0.38 V. As shown in the Fig. 10 the sensor showed a fast amperometric response time less than 2 s, which is greatly shortened compared to the previous literature reported for other H₂O₂ sensors.^13,40,41 Meanwhile, with the increasing of H₂O₂ concentration, the amperometric response of the G-Fe₂O₃-CS/GCE-1-400 electrode increased linearly (Table 2). The linear regression equation was expressed as: I_p (A) = −53.02 − 48.43[H₂O₂] (mM) in the wide calibration range from 0.5 to 7800 μM with a correlation coefficient of 0.999. A low detection limit of 0.5 μM is estimated at the signal to noise of 3. The sensitivity of the G-Fe₂O₃-CS/GCE-1-400 electrode is calculated to be 385.59 (μA mM⁻¹ cm⁻²) by the slope of the linear regression curve. The as-prepared electrode exhibits high sensitivity and a low detection limit compared to other modified electrodes, such as the Ag-nanofibrous membrane/GCE,⁶ heme protein-SWCNT-CTAB electrodes⁴² and CTAB-SAMN/CPE.⁴³ These results demonstrate that H₂O₂ could be easily detected used as-prepared modified electrode.

Fig. 10 Amperometric response of sensor to H₂O₂ concentration in 0.1 M pH = 7.4 PBS at −0.38 V. Inset: linear plot.

Table 2 Comparison of the linear range (LR), sensitivity, detection limit (DL) and response time (RT) of hydrogen peroxide sensors

Electrode materials	LR (μM)	Sensitivity	DL (μM)	RT	Reference
Ag-nanofibrous membrane/GCE	10–16 500	157 μA mM^−1 cm^−2	4		6
Au/graphene/HRP/CS/GCE	5.0–5130		1.7	<3 s	13
AgNPs/Ox-pTTBA/MWCNT	10–260		0.24	<5 s	40
Hb/HMS-modified GCEs	0.4–6.0		1.86 × 10^−3	<5 s	41
α-Fe2O3NR arrays	0.2–5000	135.36 μA mM^−1 cm^−2	0.1		42
CTAB-SAMN/CPE	10–1500	58 μA mM^−1 cm^−2	2.78		43
G-Fe2O3-NPS-CS/GCE	0.5–7800	385.59 μA mM^−1 cm^−2	0.5	<2 s	This work

---

Anti-interference test, being the crucial influence factor, can never be neglected in the determination of any objects by electrochemical method. Therefore, the influence of common interfering substances such as ascorbic (AA) and uric acid (UA) was studied by amperometric method. The results is shown in the Fig. 11, the modified electrode show a weak current response to the addition of 5 mM AA and UA with the 0.1 M BPS of pH 7.4 at fixed potential of −0.38 V. This illustrates the proposed sensor well prevented the influence of interfering substances. Stability and repeatability studies were conducted to further detection the electrochemical performance of G-Fe₂O₃-CS/GCE-1-400 senor. The stability is evaluated by testing the average current response of the modified electrode after prepared 1 day, 1 week, 1 month and 2 month and the biosensor retained over 90% response of its initial sensitivity to the reduction of H₂O₂, demonstrating its good long-term stability. Cyclic voltammetry experiments were repeatedly performed for 15 times with the G-Fe₂O₃-CS/GCE-1-400 sensor in the presence of H₂O₂. The relative standard deviation was approximately 1.89%, which indicated that the reproducibility of as-prepared sensor was excellent.

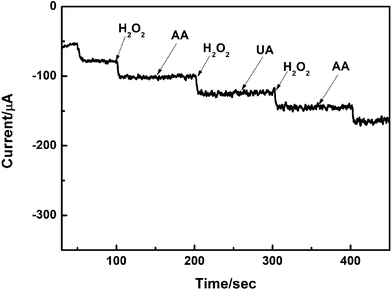

Fig. 11 Amperometric response of sensor to 5 mM H₂O₂, AA and UA in 0.1 M pH = 7.4 PBS at −0.38 V.

Conclusion

In summary, a convenient, economic method for preparing a Fe₂O₃ nanoparticles using SLS as a surfactant by liquid phase-based ultrasonic-assisted method was proposed in this paper. The as-prepared Fe₂O₃ nanoparticles show a small and homogeneous size distribution with a high specific surface area when the addition amount of SLS in the synthetic system was 1 g, and the α-FeOOH precursor was calcined at 400 °C. The G-Fe₂O₃-CS/GCE-1-400 modified electrode showed highest electrocatalytic activity toward the detection of H₂O₂. Chronoamperometry measuring revealed that the prepared senor exhibits high sensitivity, low detection limit, wide linear range, fast response time, good stability and anti-interference ability. Hence, the as-prepared G-Fe₂O₃-CS/GCE modified electrode provides a effective way for the preparation of the high-performance enzyme-free sensor.
