Synthesis of [POCOP]-pincer iron and cobalt complexes via Csp3–H activation and catalytic application of iron hydride in hydrosilylation reactions

Shaofeng Huang , Hua Zhao, Xiaoyan Li, Lin Wang and Hongjian Sun*
School of Chemistry and Chemical Engineering, Key Laboratory of Special Functional Aggregated Materials, Ministry of Education, Shandong University, Shanda Nanlu 27, 250199 Jinan, P. R. China. E-mail: hjsun@sdu.edu.cn; Fax: +86 531 88361350

Received 3rd January 2015 , Accepted 23rd January 2015

First published on 23rd January 2015


Abstract

Csp3–H bond activation in diphosphinito pincer ligand (Ph2PO(o-C6H2-(4,6-tBu2)))2CH2 (1) (POCH2OP) was achieved by Fe(PMe3)4 and CoMe(PMe3)4 to afford complexes (POCHOP)Fe(H) (PMe3)2 (2) and (POCHOP)Co(PMe3)2 (4) under mild conditions. Hydrido iron complex 2 reacted with iodomethane via the elimination of methane to deliver complex (POCHOP)FeI(PMe3) (3). The ligand replacement in Ni(PMe3)4 by 1 gave rise to nickel(0) complex (POCH2OP)Ni(PMe3)2 (5) without Csp3–H bond activation of the pincer ligand (1). It was confirmed that the hydrosilylation of aldehydes and ketones could be effectively catalyzed by hydrido iron complex 2. Complexes 2–5 were characterized by spectroscopic methods and X-ray single crystal diffraction analysis.


Introduction

Owing to high efficiency and atom economy for organic synthesis, C–H bond activation and functionalization has become one of the most attractive areas in organic chemistry. Compared with Csp2–H bond activation, Csp3–H activation is much more difficult due to the high bond energy and weakly coordinating nature. In this field, most of the work has focused on precious metals, such as Pd,1 Ru,2 Rh,3 Ir4 etc. Because of the low cost and toxicity, C–H bond functionalization by iron,5 cobalt6 and nickel7 complexes attracts more and more researchers' attention. Pincer ligands have a double chelation structure. This induces Csp3–H bond activation much easier via double cyclometalation.8 Therefore, pincer complexes of transition metals can be prepared via Csp3–H bond activation.

Hydrido iron complexes as catalysts or key intermediates play important roles in a wide variety of catalytic processes. Nevertheless, these hydrido iron complexes are usually so reactive that they cannot be isolated or even identified.9 To date, few stable hydrido iron complexes have been synthesized and employed as catalysts for a number of reactions, such as hydrogenation,10–13 hydrosilylation,14,15 hydrogen-transfer reaction,16 the oxidation of alcohols.17 The hydrosilylation reaction of aldehydes and ketones generates silyl ethers with Si–H bond addition to carbonyl compounds. The hydrolysis of the silyl ether gives rise to the corresponding alcohol. This process can be used as a convenient alternative to the reduction of unsaturated compounds under mild reaction condition.

In 2009, we reported the Csp3–H bond activation of a [POCOP]-pincer ligand with an aliphatic backbone (Fig. 1(a)) by low-valent iron and cobalt complexes under mild conditions.18 A hydrido [PNCNP]-pincer iron complex was also isolated through Csp3–H bond activation of N,N′-bis(diphenylphosphino)dipyrromethane (Fig. 1(b)).19 When the diphosphine PCP ligand (Ph2P-(C6H4))2CH2 was treated with Fe(PMe3)4, the Csp3–H activation product [(Ph2P-(C6H4))2CH]Fe(H)(PMe3)2 was obtained at room temperature (Fig. 1(c)).20 Recently, Wendt reported a series of new POCsp3OP-supported nickel(II) complexes (Fig. 1(d)).21 On the basis of our early work, we synthesized another (POCH2OP)-pincer ligand having a relatively rigid backbone with two phenyl rings (Fig. 1(1)). An iron hydride was obtained by oxidative addition of the Csp3–H bond of the methylene group to the iron(0) center and its catalytic property in hydrosilylation of aldehydes and ketones was also explored.


image file: c5ra00072f-f1.tif
Fig. 1 [PCP]-pincer ligand.

Results and discussion

Reaction of Fe(PMe3)4 with (POCH2OP) (1)

In most cases, Csp3–H bond activation in a pincer ligand was realized by precious metals, such as Ru,8a Rh,8b Ir,8c,d Pd,8e etc. It is confirmed that even PdCl2(PhCN)2 failed to realize the Csp3–H bond activation in a similar ligand.22 Until now, there have been only a few examples of hydrido iron complexes formed through the activation of the Csp3–H bond of a [PCP]-pincer ligand.18–20

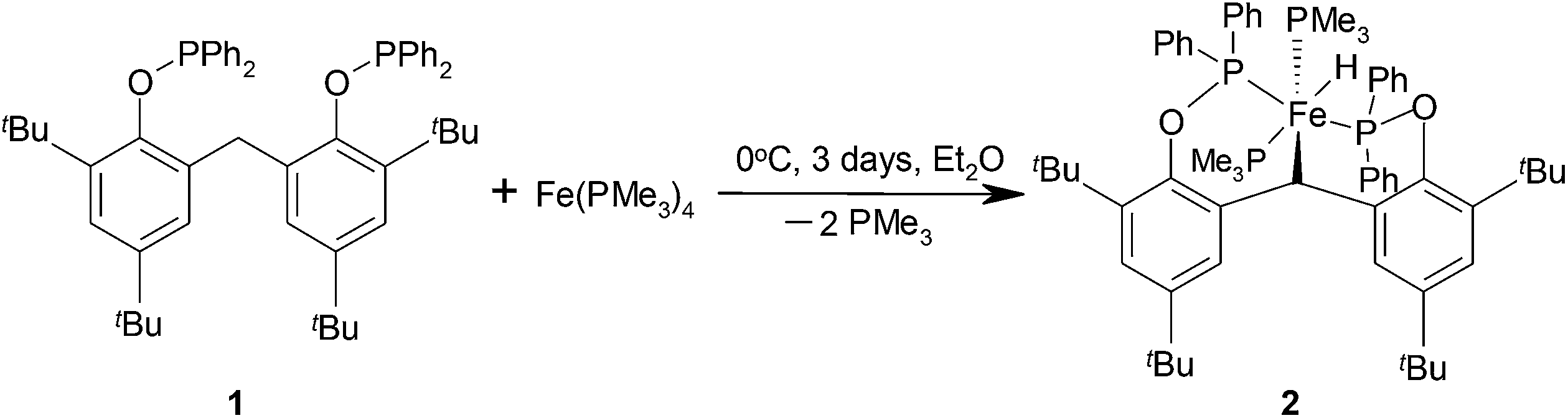

Mixing a diethyl ether solution of (POCH2OP) (1) with Fe(PMe3)4 under an atmosphere of nitrogen afforded hydrido iron complex 2 as yellow crystals in 56% yield after stirring (eqn (1)). Complex 2 is stable more than 48 h when exposed to the air at room temperature.


image file: c5ra00072f-u1.tif(1)

The reaction starts with double replacement of the two trimethylphosphine ligands by two phosphorus atoms of ligand 1. This ligand substitution shortens the distance of the iron(0) atom to the central Csp3–H bonds of the methylene group in 1 and enables the Fe(0) center to activate the Csp3–H bond via oxidative addition by cyclometalation. Hydrido iron(II) complex 2 is formed through double chelation.

A typical ν(Fe–H) stretching band at 1959 cm−1 was found in the IR spectrum of 1. In the 31P NMR spectrum of complex 2, one doublet of doublets (two –PPh2) at 15.1 ppm and two triplets (two PMe3) at 6.7 and 6.4 ppm are consistent with the molecular structure. The resonance of the hydrido hydrogen as a dddd peak in the 1H NMR spectrum is registered at −15.13 ppm with the coupling constants of 2JPH of 69, 48, 38 and 14 Hz (Fig. 2). It is not clear why this coupling is incompatible with those of the 31P NMR. This coupling pattern is also different from our early reports.19,20


image file: c5ra00072f-f2.tif
Fig. 2 Characteristic resonance of the hydrido hydrogen of 2 in 1H NMR.

The configuration of 2 was confirmed by X-ray structure analysis (Fig. 3). Two six-membered metallacycles with a considerable ring bending are formed through two phosphorous atoms of the PPh2 groups and a metalated Csp3 atom. The iron atom is centered in a slightly distorted octahedral geometry. H100 atom was located with the diffraction data of the experiments. Bond angle P3–Fe1–P4 of 142.88(4)° bends towards to the hydrido ligand due to the smaller space requirement of the hydrido hydrogen. The Fe1–C31 distance (2.165(3) Å) is within the range of Fe–Csp3 bonds.23 Both Fe–P1 distance (2.231(1) Å) and Fe–P2 distance (2.269(1) Å) are longer than Fe1–P3 distance (2.142(1) Å) and Fe1–P2 distance (2.141(1) Å), presumably due to the strong trans-influence of the hydrido H and C (sp3) atoms being greater than that of the phosphorus atoms. This result is similar to that of our early report.19 Complex 2 has a low-spin Fe(II) center.


image file: c5ra00072f-u2.tif(2)


image file: c5ra00072f-f3.tif
Fig. 3 ORTEP plot of complex 2 at the 50% probability level (hydrogen atoms except for Fe–H are omitted for clarity). Selected bond lengths (Å) and angles (deg): Fe1–P4 2.141(1), Fe1–P3 2.142(1), Fe1–C31 2.165(3), Fe1–P1 2.231(1), Fe1–P2 2.269(1), Fe1–H100 1.50(3); C31–Fe1–P1 177.67(9), P2–Fe1–H100 170(1), P4–Fe1–C31 81.74(9), P3–Fe1–C31 81.99(9).

The reaction of 2 with iodomethane afforded an unsaturated coordinated complex 3 as red crystals with the release of a methane molecule (eqn (2)) in the yield of 87%.

The 1H NMR spectrum of 3 indicates that complex 3 is paramagnetic. From the results of the magnetization measurements for complex 3 it can be calculated that there are two unpaired electrons in complex 3. This result is in accordance with a paramagnetic iron(II) complex (d6) having a trigonal bipyramidal configuration (see ESI). This result was confirmed by X-ray crystallography. Fig. 4 shows the molecular structure of complex 3. It has a trigonal bipyramidal coordination geometry with P1–Fe1–P2 = 160.6(1)° in the axial direction. The sum of the bond angles (C25–Fe1–I1 = 143.6(2)°, C25–Fe1–P3 = 115.2(2)° and P3–Fe1–I1 = 101.25(8)°) centered at the Fe atom in the equatorial plane is 360.1°. This indicates that the four atoms [Fe1C25I1P3] are almost in one plane.


image file: c5ra00072f-f4.tif
Fig. 4 ORTEP plot of complex 3 at the 50% probability level (hydrogen atoms are omitted for clarity). Selected bond lengths (Å) and angles (deg): Fe1–P1 2.194(2), Fe1–P2 2.239(2), Fe1–P3 2.422(3), Fe1–I1 2.699(2), C25–Fe1 2.095(8); C25–Fe1–I1 143.6(2), C25–Fe1–P3 115.2(2), P3–Fe1–I1 101.25(8), P1–Fe1–I1 91.89(8), P2–Fe1–I1 91.73(8), C25–Fe1–P1 85.8(2), C25–Fe1–P2 80.0(2).

Reaction of CoMe(PMe3)4 with (POCH2OP) (1)

CoMe(PMe3)4 reacted with pincer ligand 1 to form the Csp3–H bond activation product 4 with the elimination of a methane molecule (eqn (3)).

image file: c5ra00072f-u3.tif(3)

The 1H NMR spectrum of complex 4 in C6D6 at 10 °C indicated that the proton resonance of the CH group appear at 6.12 ppm. In comparison with the related resonance at 3.88 ppm in the similar [PNC(H)NP]Co(PMe3)2 complex this is a significant downfield shift.19 The proton resonances of two types of PMe3 groups were recorded as one doublet at 0.78 and a triplet at 0.96 ppm with the coupling constants of 3.0 and 6.0 Hz respectively. The 31P NMR spectrum shows a triplets for two PMe3 at −4.5 ppm with the coupling constants 2J(PP) = 78 Hz and a singlet for the two diphenylphosphanyl groups at 17.7 ppm.

The molecular structure of complex 4 was determined by X-ray single crystal diffraction (Fig. 5). Two six-membered cobaltocycles with a considerable ring bending are formed through two phosphorous atoms of the PPh2 groups and a metalated Csp3 atom. The central cobalt atom is situated in a disordered trigonal bipyramid with C1–Co1–P4 = 175.9(1)° in the axial direction. The Co1–C1 distance (2.133(4) Å) is within the range of Co–Csp3 bonds (2.03–2.15 Å).24 The structure of complex 4 is comparable with that of [PNC(H)NP]Co(PMe3)2.19


image file: c5ra00072f-f5.tif
Fig. 5 ORTEP plot of complex 4 at the 50% probability level (hydrogen atoms are omitted for clarity). Selected bond lengths (Å) and angles (deg): Co1–P3 2.118(1), Co1–C1 2.133(4), Co1–P1 2.144(1), Co1–P4 2.213(1), Co1–P2 2.254(1); P3–Co1–C1 82.1(1), P3–Co1–P1 130.80(4), C1–Co1–P1 81.5(1), P3–Co1–P4 94.73(5), C1–Co1–P4 175.9(1), P1–Co1–P4 98.83(5), P3–Co1–P2 117.80(4), C1–Co1–P2 89.5(1), P1–Co1–P2 108.08(4), P4–Co1–P2 94.24(5).

Reaction of Ni(PMe3)4 or NiMe2(PMe3)4 with (POCH2OP) (1)

Mixing a THF solution of (POCH2OP) (1) with Ni(PMe3)4 afforded nickel(0) complex 5 via ligand substitution (eqn (4)). After all solvents were removed under vacuum, the residual powder was extracted with pentane and diethyl ether. Complex 5 crystallized from diethyl ether at 0 °C in the yield of 87%. No Csp3–H bond activation product could be observed.

image file: c5ra00072f-u4.tif(4)

In the 1H NMR spectrum of complex 5, the resonance of the two hydrogens of the methylene group was shifted to 6.49 ppm from 4.09 ppm in the free ligand 1. This downfield shift can be explained in terms of an increased deshielding of the methylene protons because the formation of a metallacycle results in an additional ring current, which opposes the external field.25 In the 31P NMR spectrum two types of signals with the integral intensity of 1[thin space (1/6-em)]:[thin space (1/6-em)]1 demonstrate two kinds of phosphorus atoms. Both the 1H and 31P NMR indicate that Csp3–H bond activation did not occur. The molecular structure of complex 5 was confirmed by X-ray single crystal diffraction (Fig. 6). A ten-membered metallacycle is formed in 5 and every bond angle of the ring is approximately in 120°. The central nickel atom has a distorted tetrahedron coordination geometry. The bond angles P1–Ni1–P2 (119.50(3)°), P1–Ni1–P3 (106.47(3)°), P1–Ni1–P4 (109.63(3)°), P2–Ni1–P3 (107.91(3)°), P2–Ni1–P4 (101.93(3)°) and P3–Ni1–P4 (111.39(3)°) are approximately close to 109.5°. The four Ni–P bond distances are within the region of literature values.15,19 The distance (3.62 Å) between the Ni and the methylene Csp3 atom indicates that there is no chemical interaction between them. The reaction of ligand 1 with NiMe2(PMe3)4 gave the same product with the elimination of C2H6 (eqn (5)).


image file: c5ra00072f-u5.tif(5)


image file: c5ra00072f-f6.tif

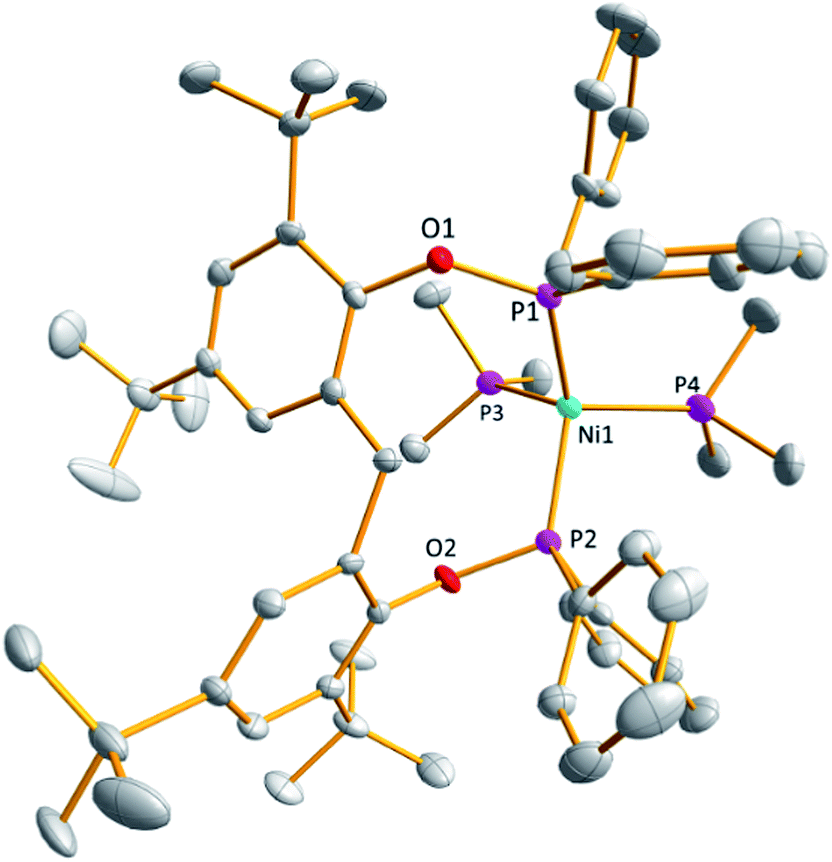

Fig. 6 ORTEP plot of complex 5 at the 50% probability level (hydrogen atoms are omitted for clarity). Selected bond lengths (Å) and angles (deg): Ni1–P1 2.1572(8), Ni1–P2 2.1595(8), Ni1–P4 2.1955(8), Ni1–P3 2.1960(9); P1–Ni1–P2 119.50(3), O1–P1–Ni1 125.69(7), O2–P2–Ni1 117.24(8), C13–O1–P1 127.6(2), C21–O2–P2 129.1(2), P4–Ni1–P3 111.39(3).

Catalytic application of hydrido iron complex 2

Hydrido iron complexes bearing pincer ligands have been utilized in hydrosilylation reactions of aldehydes and ketones.14,15 We found that complex 2 could be used as catalyst in the hydrosilylation of aldehydes (eqn (6)). In the presence of 1 mol% of 2 with (EtO)3SiH as the hydrogen source in THF at 65 °C, aldehydes could be completely converted into the corresponding silyl ether. The related alcohols were obtained by following basic hydrolysis of the silyl ether. Nine aldehydes were investigated (Table 1). Electron-donating group appeared to make the hydrosilylation reactions sluggish (entry 5). On the contrary, electron-withdrawing group at the para-position turned out to accelerate the reduction (entry 6). ortho-Positioned groups hindered the process (entries 2–4).

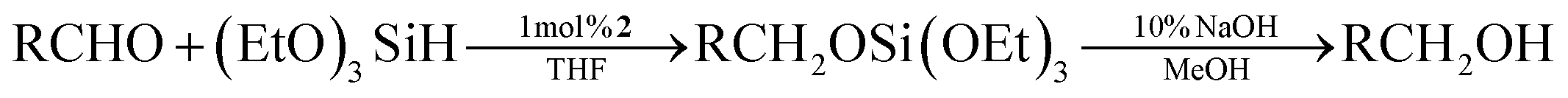

image file: c5ra00072f-t1.tif(6)
Table 1 Catalytic hydrosilylation of aldehydes with 2a
Entry Substrate Time (h) Isolated yields (%)
a Reaction conditions: RCHO (1.0 mmol), (EtO)3SiH (1.2 mmol), complex 2 (0.010 mmol), 1.0 mL THF 65 °C. Under the given conditions, all the aldehydes were completely converted to the corresponding silyl ethers (monitored by TLC and GC).
1 image file: c5ra00072f-u6.tif 2 92
2 image file: c5ra00072f-u7.tif 16 91
3 image file: c5ra00072f-u8.tif 26 87
4 image file: c5ra00072f-u9.tif 18 90
5 image file: c5ra00072f-u10.tif 16 81
6 image file: c5ra00072f-u11.tif 1.5 90
7 image file: c5ra00072f-u12.tif 16 81
8 image file: c5ra00072f-u13.tif 2.5 86
9 image file: c5ra00072f-u14.tif 18 88


Besides aldehydes, different ketones were also tested under these catalytic hydrosilylation conditions (eqn (7)). It was confirmed that acetophenone could be entirely converted into the product even within 5 h with a catalyst loading of 2 mol% of complex 2 (Table 1, entry 1). In some cases, reasonable yields could be obtained with a catalyst loading of 2 mol% (Table 2). In most cases, the ketones are less reactive than the aldehydes. Additionally, several ketones could not be completely converted even after 48 h. Substitutents at the para- or ortho-positions reduced the rate of the reaction for both electron-withdrawing and electron-donating groups (entries 2–4). These results are consistent with Guan's work.14 It is proposed that this catalytic system has a similar mechanism with those of the early reports.26

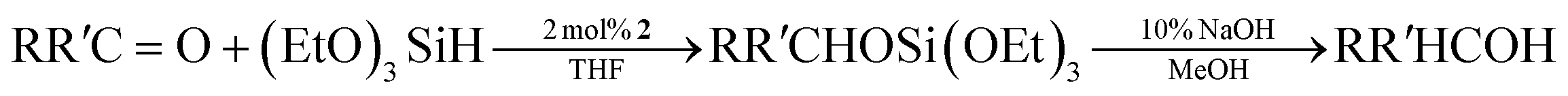

image file: c5ra00072f-t2.tif(7)

Table 2 Catalytic hydrosilylation of ketones with 2a
Entry Substrate Time (h) Conversation by GC (%) Isolated yield (%)
a Reaction conditions: RCOR′ (1.0 mmol), (EtO)3SiH (1.2 mmol), complex 2 (0.020 mmol), 2.0 mL THF 65 °C.
1 image file: c5ra00072f-u15.tif 5 99 88
2 image file: c5ra00072f-u16.tif 48 92 71
3 image file: c5ra00072f-u17.tif 10 99 81

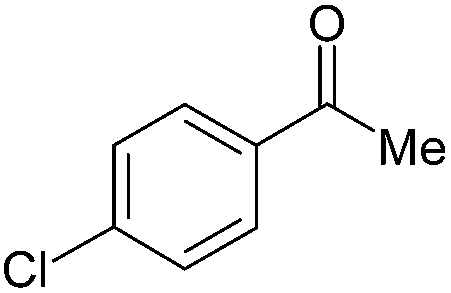

4 image file: c5ra00072f-u18.tif 48 57 43
5 image file: c5ra00072f-u19.tif 48 74 63
6 image file: c5ra00072f-u20.tif 18 99 79
7 image file: c5ra00072f-u21.tif 48 43 37
8 image file: c5ra00072f-u22.tif 18 99 86

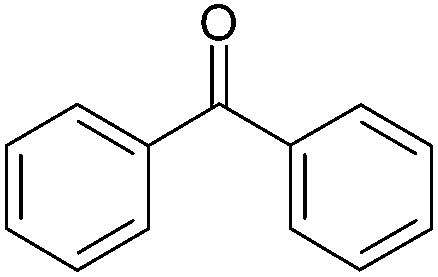

9 image file: c5ra00072f-u23.tif 48 49 39


Conclusion

We investigated the reactions of the diphosphinito pincer ligand (Ph2PO(o-C6H2-(4,6-tBu2)))2CH2 (1) (POCH2OP) with the electron-rich low-valent iron, cobalt, and nickel complexes supported by trimethylphosphine. The Csp3–H bond activation of 1 was achieved by iron(0) complex Fe(PMe3)4 and cobalt(I) complex CoMe(PMe3)4. The hydrido iron complex (POCHOP)Fe(H)(PMe3)2 (2) reacted with iodomethane to give rise to an iodo iron(II) complex. The catalytic property of the hydrido iron(II) complex 2 was explored in hydrosilylation of aldehydes and ketones.

Experimental section

General procedures and materials

Standard vacuum techniques were used in the manipulations of volatile and air-sensitive materials. Solvents were dried by known procedures and distilled under nitrogen before use. Infrared spectra (4000–400 cm−1), as obtained from Nujol mulls between KBr disks, were recorded on a Bruker ALPHA FT-IR instrument. NMR spectra were recorded using Bruker Avance 300 and 400 MHz spectrometers. GC-MS was recorded on a TRACE-DSQ instrument, and GC was recorded on a Fuli 9790 instrument. A 2900 Series AGM Magnetometer was used to measure the magnetic susceptibility. X-ray crystallography was performed with a Bruker Smart 1000 diffractometer. Melting points were measured in capillaries sealed under N2 and were uncorrected. Elemental analyses were carried out on an Elementar Vario ELIII instrument. The compounds (Ph2PO(o-C6H2-(4,6-tBu2)))2CH2 (1),19 Fe(PMe3)4,27a CoMe(PMe3)4,27b,c Ni(PMe3)4,27d NiMe2(PMe3)3,27e were prepared according to literature procedures.

Caution! (EtO)3SiH is flammable and highly toxic by inhalation and may cause skin irritation and blindness.

Synthesis of (POCHOP)Fe(H)(PMe3)2 (2)

(POCH2OP) (1) (0.82 g, 1.03 mmol) in 25 mL of diethyl ether was mixed with Fe(PMe3)4 (0.42 g, 1.15 mmol) in 30 mL of diethyl ether at 0 °C. After 6 h at 0 °C the reaction solution turned brown yellow from tan. After 20 h a small amount of yellow powder precipitated. After 3 days, the volatiles were removed under reduced pressure and the residue was extracted with pentane and diethyl ether. Compound 2 (0.56 g, 0.56 mmol) was isolated as yellow crystals in 56% yield from diethyl ether at 0 °C. Dec. >179 °C. Anal. calcd for C59H80FeO2P4 (1000.96 g mol−1): C, 70.79; H, 8.06. Found: C, 70.68; H, 8.09. IR (Nujol, cm−1): 3046 ν(ArH), 1959 ν(Fe–H), 1573 ν(ArC[double bond, length as m-dash]C), 938 ρ(PMe3). 1H NMR (C6D6, 300 K, ppm): −15.13 (dddd, JP–H = 69, 48, 38 and 14 Hz, 1H, FeH), 0.62 (s, 9H, PMe3), 0.81 (d, 9H, 2J(PH) = 6 Hz, PMe3), 0.99 (s, 9H, p-(CH3)3C), 1.25 (s, 9H, p-(CH3)3C), 1.42 (s, 9H, o-(CH3)3C), 1.85 (s, 9H, o-(CH3)3C), 5.74 (s broad, 1H, CH), 7.07–7.53 (m, Ar, 18H), 8.08–8.33 (m, Ar, 6H); 31P NMR (C6D6, 300 K, ppm): 15.1 (dd, 2J(PP) = 37.5 Hz, 2J(PP) = 12.1 Hz, 2P, PPh2), 6.7 (t, 2J(PP) = 22.0 Hz, 1P, PCH3), 6.4 (t, 2J(PP) = 22.0 Hz, 1P, PCH3); 13C NMR (C6D6, 300 K, ppm): 21.5 (d, 1J(PC) = 9.7 Hz, PCH3), 24.4 (d, 1J(PC) = 8.2 Hz, PCH3), 31.6 (s, p-(CH3)3C) 31.7 (s, p-(CH3)3C), 31.8 (s, o-(CH3)3C), 32.6 (s, o-(CH3)3C), 34.1 (s, p-(CH3)3C), 34.2 (s, p-(CH3)3C), 34.9 (s, o-(CH3)3C), 35.8 (s, o-(CH3)3C), 118.5–152.9 (m, aromatic-C).

Synthesis of (POCHOP)FeI(PMe3) (3)

CH3I (0.05 g, 0.35 mmol) was injected into the solution of 2 (0.30 g, 0.30 mmol) in 20 mL THF and stirred at 30 °C. After 4 days the yellow color disappeared and the solution turned red. After 5 days at 30 °C, the volatiles were removed under reduced pressure and the residue was dissolved in pentane. Compound 3 (0.27 g, 0.26 mmol) was isolated as red crystals in 87% yield from pentane at 0 °C. Dec. >114 °C. Anal. calcd for C56H70FeIO2P3 (1050.78 g mol−1): C, 64.01; H, 6.71. Found: C, 64.13; H, 6.78. IR (Nujol, cm−1): 3030 ν(ArH), 1584 ν(C[double bond, length as m-dash]C), 940 ρ(PMe3); χ (20 °C) = 5.108 × 10−6 emu per g Oe.

Synthesis of (POCHOP)Co(PMe3)2 (4)

At −78 °C, (POCH2OP) (1) (0.67 g, 0.84 mmol) in 25 mL of diethyl ether was treated with CoMe(PMe3)4 (0.35 g, 0.92 mmol) in 30 mL of diethyl ether at 0 °C. After 30 h, the reaction mixture turned dark red. After 3 days, the volatiles were removed under reduced pressure and the residue was dissolved with pentane. All manipulations were finished under 10 °C. Compound 4 (0.35 g, 0.35 mmol) was isolated as red crystals in 42% yield from pentane at 0 °C. Dec. >152 °C. Anal. calcd for C59H79CoO2P4 (1003.03 g mol−1): C, 70.65; H, 7.94. Found: C, 70.58; H, 7.99. IR (Nujol, cm−1): 3034 ν(ArH), 1580 ν(C[double bond, length as m-dash]C), 942 ρ(PMe3). 1H NMR (C6D6, 283 K, ppm): 0.78 (d, 2J(PH) = 3 Hz, 9H, PMe3), 0.96 (vt, 9H, 2J(PH) = 6 Hz, PMe3), 1.08 (s, 9H, p-(CH3)3C), 1.35 (s, 9H, p-(CH3)3C), 1.46 (s, 9H, o-(CH3)3C), 1.84 (s, 9H, o-(CH3)3C), 6.12 (s, 1H, CH), 6.93–8.41 (m, Ar, 18H); 31P NMR (C6D6, 283 K, ppm): 17.7 (bs, 2P, PPh2), −4.5 (t, 2J(PP) = 78 Hz, 2P, PCH3).

Synthesis of (POCH2OP)Ni(PMe3)2 (5)

(POCH2OP) (1) (0.57 g, 0.72 mmol) in 25 mL of THF was mixed with Ni(PMe3)4 (0.27 g, 0.72 mmol) in 25 mL of THF with stirring at room temperature for 24 h. The reaction mixture turned orange from yellow. After removal of the volatiles under reduced pressure, the residue was extracted with pentane and diethyl ether. Compound 5 (0.63 g, 0.62 mmol) was isolated as orange crystals in 87% yield from diethyl ether at 0 °C. Dec. >121 °C. Anal. calcd for C59H80NiO2P4 (1003.82 g mol−1): C, 70.59; H, 8.03. Found: C, 70.51; H, 8.11. IR (Nujol, cm−1): 3025 ν(ArH), 1580 ν(C[double bond, length as m-dash]C), 938 ρ(PMe3). 1H NMR (C6D6, 300 K, ppm): 1.10 (d, 18H, 2J(PH) = 3.0 Hz, PMe3), 1.28 (s, 18H, p-(CH3)3C), 1.45 (s, 18H, o-(CH3)3C), 6.49 (s, 2H, CH2), 7.16–7.91 (m, Ar, 24H); 31P NMR (C6D6, 300 K, ppm): 144.2 (dd, 2J(PP) = 44.8 Hz, 2P, PMe3), −16.4 (dt, 2J(PP) = 44.8 Hz, 2P, PPh2); 13C NMR (C6D6, 300 K, ppm): 23.8 (m, PMe3), 31.2 (s, p-(CH3)3C), 31.6 (s, o-(CH3)3C), 34.3 (s, p-(CH3)3C), 35.4 (s, o-(CH3)3C), 122.5–152.5 (m, aromatic-C). The reaction of NiMe2(PMe3)3 was carried out by a procedure similar to above in 89% yield.

General procedure for the catalytic hydrosilylation of aldehydes

To a 25 mL Schlenk tube containing a solution of 2 (10.0 mg, 0.01 mmol) in 1 mL of THF were added an aldehyde (1.0 mmol) and (EtO)3SiH (0.20 g, 1.2 mmol). The reaction mixture was stirred at 65 °C until there was no aldehyde left (monitored by TLC and GC-MS). The reaction was then quenched by MeOH (1 mL) and a 10% aqueous solution of NaOH (5 mL) with vigorous stirring at 50 °C for about 2 days. The organic product was extracted with Et2O, dried over anhydrous MgSO4, and concentrated under vacuum. The alcohol product was further purified using flash column chromatography. The 1H NMR and 13C{1H} NMR spectra of the primary alcohol products are provided in the ESI.

General procedure for the catalytic hydrosilylation of ketones

Ketones were reduced following a similar procedure to the one used for aldehydes except that 2 (20.0 mg, 0.02 mmol) in 2 mL of THF were added. The 1H NMR and 13C {1H} NMR spectra of the secondary alcohol products are provided in the ESI.

X-ray crystal structure determinations

The single crystals of all complexes for X-ray single crystal diffraction were obtained from their n-pentane solutions at low temperature. Diffraction data were collected on a Bruker SMART Apex II CCD diffractometer equipped with graphite monochromated Mo Kα radiation (λ = 0.71073 Å). During collection of the intensity data, no significant decay was observed. The intensities were corrected for Lorentz polarization effects and empirical absorption with the SADABS program.28 The structures were resolved by direct or Patterson methods with the SHELXS-97 program and were refined on F2 with SHELXTL.25 All non-hydrogen atoms were refined anisotropically. Hydrogen atoms were included in calculated positions and were refined using a riding model. A summary of crystal data, data collection parameters, and structure refinement details is given in Table 3.
Table 3 Crystallographic data for complexes 2, 3, 4 and 5
  2 3 4 5
Empirical formula C59H80FeO2P4 C56H70FeIO2P3 C59H79CoO2P4 C59H80NiO2P4
Fw 1000.96 1050.78 1003.03 1003.82
Cryst syst Monoclinic Monoclinic Triclinic Triclinic
Space group P2(1)/n P2(1)/n P[1 with combining macron] P[1 with combining macron]
a, Å 21.067(4) 16.196(3) 12.437(2) 14.2600(5)
b, Å 12.873(3) 12.997(3) 13.462(2) 14.5978(6)
c, Å 22.808(5) 30.608(6) 19.727(3) 15.3049(7)
R, deg 90.00 90.00 94.511(3) 96.364(3)
β, deg 115.18(3) 97.19(3) 104.832(2) 92.785(3)
γ, deg 90.00 90.00 91.585(3) 118.212(3)
V, Å3 5598.0(19) 6392(2) 3178.7(8) 2771.5(2)
Z 4 4 2 2
Dx, g cm−3 1.188 1.092 1.048 1.203
No. of rflns collected 31[thin space (1/6-em)]954 31[thin space (1/6-em)]275 16[thin space (1/6-em)]636 23[thin space (1/6-em)]118
No. of unique data 12[thin space (1/6-em)]629 11[thin space (1/6-em)]240 11[thin space (1/6-em)]687 10[thin space (1/6-em)]325
Rint 0.0793 0.0939 0.0694 0.0638
θmax, deg 27.560 25.000 25.500 25.688
R1 (I > 2σ(I)) 0.0569 0.0847 0.0535 0.0442
wR2 (all data) 0.1701 0.3013 0.1445 0.0845


Acknowledgements

We gratefully acknowledge the support by NSF China no. 21372143 and the Journal Grant for International Author of RSC. We also thank the kind assistance from Prof. Dieter Fenske and Dr Olaf Fuhr (Karlsruhe Nano-Micro Facility (KNMF), KIT) for the X-ray diffraction analysis.

References

  1. (a) L. V. Desai, K. L. Hull and M. S. Sanford, J. Am. Chem. Soc., 2004, 126, 9542–9543 CrossRef CAS PubMed; (b) V. G. Zaitsev, D. Shabashov and O. Daugulis, J. Am. Chem. Soc., 2005, 127, 13154–13155 CrossRef CAS PubMed; (c) Y. Ano, M. Tobisu and N. Chatani, J. Am. Chem. Soc., 2011, 133, 12984–12986 CrossRef CAS PubMed; (d) G. He, Y. Zhao, S. Y. Zhang, C. X. Lu and G. Chen, J. Am. Chem. Soc., 2012, 134, 3–6 CrossRef CAS PubMed; (e) J. He, M. Wasa, K. S. L. Chan and J. Q. Yu, J. Am. Chem. Soc., 2013, 135, 3387–3390 CrossRef CAS PubMed; (f) S. Y. Zhang, Q. Li, G. He, W. A. Nack and G. Chen, J. Am. Chem. Soc., 2013, 135, 12135–12141 CrossRef CAS PubMed; (g) R. Giri, N. Maugel, J. J. Li, D. H. Wang, S. P. Breazzano, L. B. Saunders and J. Q. Yu, J. Am. Chem. Soc., 2007, 129, 3510–3511 CrossRef CAS PubMed; (h) D. H. Wang, M. Wasa, R. Giri and J. Q. Yu, J. Am. Chem. Soc., 2008, 130, 7190–7191 CrossRef CAS PubMed; (i) M. Wasa, K. M. Engle and J. Q. Yu, J. Am. Chem. Soc., 2009, 131, 9886–9887 CrossRef CAS PubMed; (j) M. Wasa, K. M. Engle and J. Q. Yu, J. Am. Chem. Soc., 2010, 132, 3680–3681 CrossRef CAS PubMed; (k) T. M. Figg, M. Wasa, J. Q. Yu and D. G. Musaev, J. Am. Chem. Soc., 2013, 135, 14206–14214 CrossRef CAS PubMed.
  2. (a) N. Hasegawa, V. Charra, S. Inoue, Y. Fukumoto and N. Chatani, J. Am. Chem. Soc., 2011, 133, 8070–8073 CrossRef CAS PubMed; (b) N. Y. P. Kumar, R. Jeyachandran and L. Ackermann, J. Org. Chem., 2013, 78, 4145–4152 CrossRef PubMed.
  3. L. Shi, Y. Q. Tu, M. Wang, F. M. Zhang, C. A. Fan, Y. M. Zhao and W. J. Xia, J. Am. Chem. Soc., 2005, 127, 10836–10837 CrossRef CAS PubMed.
  4. (a) K. Tsuchikama, M. Kasagawa, K. Endo and T. Shibata, Org. Lett., 2009, 11, 1821–1823 CrossRef CAS PubMed; (b) S. G. Pan, K. Endo and T. Shibata, Org. Lett., 2011, 13, 4692–4695 CrossRef CAS PubMed.
  5. (a) N. Yoshikai, A. Mieczkowski, A. Matsumoto, L. Ilies and E. Nakamura, J. Am. Chem. Soc., 2010, 132, 5568–5569 CrossRef CAS PubMed; (b) Q. Q. Xia and W. J. Chen, J. Org. Chem., 2012, 77, 9366–9373 CrossRef CAS PubMed; (c) Z. Wang, Y. M. Zhang, H. Fu, Y. Y. Jiang and Y. F. Zhao, Org. Lett., 2008, 10, 1863–1866 CrossRef CAS PubMed; (d) R. Shang, L. Ilies, A. Matsumoto and E. Nakamura, J. Am. Chem. Soc., 2013, 135, 6030–6032 CrossRef CAS PubMed.
  6. H. J. Lu, Y. Hu, H. L. Jiang, L. Wojtas and X. P. Zhang, Org. Lett., 2012, 14, 5158–5161 CrossRef CAS PubMed.
  7. Y. Aihara and N. Chatani, J. Am. Chem. Soc., 2014, 136, 898–901 CrossRef CAS PubMed.
  8. (a) O. R. Allen, L. D. Field, M. A. Magill, K. Q. Vuong, M. M. Bhadbhade and S. J. Dalgarno, Organometallics, 2011, 30, 6433–6440 CrossRef CAS; (b) A. F. Hill and C. M. A. McQueen, Organometallics, 2012, 31, 8051–8054 CrossRef CAS; (c) C. Azerraf and D. Gelman, Chem.–Eur. J., 2008, 14, 10364–10368 CrossRef CAS PubMed; (d) R. J. Burford, W. E. Piers and M. Parvez, Organometallics, 2012, 31, 2949–2952 CrossRef CAS; (e) S. Sjövall, O. F. Wendt and C. Andersson, Dalton Trans., 2002, 1396–1400 RSC.
  9. T. R. Dugan, E. Bill, K. C. MacLeod, W. W. Brennessel and P. L. Holland, Inorg. Chem., 2014, 53, 2370–2380 CrossRef CAS PubMed.
  10. E. J. Daida and J. C. Peters, Inorg. Chem., 2004, 43, 7474–7485 CrossRef CAS PubMed.
  11. C. P. Casey and H. R. Guan, J. Am. Chem. Soc., 2007, 129, 5816–5817 CrossRef CAS PubMed.
  12. C. Bianchini, A. Meli, M. Peruzzini, P. Frediani, C. Bohanna, M. A. Esteruelas and L. A. Oro, Organometallics, 1992, 11, 138–145 CrossRef CAS.
  13. S. L. Zhou, S. Fleischer, K. Junge and M. Beller, Angew. Chem., Int. Ed., 2011, 50, 5120–5124 CrossRef CAS PubMed.
  14. P. Bhattacharya, J. A. Krause and H. R. Guan, Organometallics, 2011, 30, 4720–4729 CrossRef CAS.
  15. S. Wu, X. Li, Z. Xiong, W. Xu, Y. Lu and H. Sun, Organometallics, 2013, 32, 3227–3237 CrossRef CAS.
  16. C. Bianchini, E. Farnetti, M. Graziani, M. Peruzzini and A. Polot, Organometallics, 1993, 12, 3753–3761 CrossRef CAS.
  17. M. G. Coleman, A. N. Brown, B. A. Bolton and H. R. Guan, Adv. Synth. Catal., 2010, 352, 967–970 CrossRef CAS.
  18. G. Xu, H. Sun and X. Li, Organometallics, 2009, 28, 6090–6095 CrossRef CAS.
  19. G. Zhu, X. Li, G. Xu, L. Wang and H. Sun, Dalton Trans., 2014, 43, 8595–8598 RSC.
  20. H. Zhao, H. Sun and X. Li, Organometallics, 2014, 33, 3535–3539 CAS.
  21. K. J. Jonasson and O. F. Wendt, Chem.–Eur. J., 2014, 20, 11894–11902 CrossRef CAS PubMed and the references therein.
  22. W. Lesueur, E. Solari, C. Floriani, A. Chiesi-Villa and C. Rizzoli, Inorg. Chem., 1997, 36, 3354–3362 CrossRef CAS PubMed.
  23. Y. Ohki, T. Hatanaka and K. Tatsumi, J. Am. Chem. Soc., 2008, 130, 17174–17186 CrossRef CAS PubMed.
  24. H.-F. Klein, R. Beck, U. Flörke and H.-J. Haupt, Eur. J. Inorg. Chem., 2003, 5, 853–862 CrossRef.
  25. G. Sheldrick, Acta Crystallogr., 2008, 64, 112–122 CrossRef CAS PubMed.
  26. (a) Z. Zuo, H. Sun, L. Wang and X. Li, Dalton Trans., 2014, 43, 11716–11722 RSC; (b) E. Peterson, A. Y. Khalimon, R. Simionescu, L. G. Kuzmina, J. A. K. Howard and G. I. Nikonov, J. Am. Chem. Soc., 2009, 131, 908–909 CrossRef CAS PubMed; (c) S. Shambayati, W. E. Crowe and S. L. Schreiber, Angew. Chem., Int. Ed. Engl., 1990, 29, 256–272 CrossRef.
  27. (a) H.-F. Klein and H. H. Karsch, Chem. Ber., 1977, 110, 2699–2711 CrossRef; (b) H.-F. Klein and H. H. Karsch, Inorg. Chem., 1975, 14, 473–478 CrossRef CAS; (c) H.-F. Klein and H. H. Karsch, Chem. Ber., 1975, 108, 944–955 CrossRef CAS; (d) H.-F. Klein and H. H. Karsch, Chem. Ber., 1976, 109, 2515–2523 CrossRef CAS; (e) H.-F. Klein and H. H. Karsch, Chem. Ber., 1973, 106, 1433–1452 CrossRef CAS.
  28. G. M. Sheldrick, SADABS, Bruker AXS, Madison, WI, USA, 2004 Search PubMed.

Footnotes

Electronic supplementary information (ESI) available: Characterization of all compounds. CCDC 977103 and 980722–980724. For ESI and crystallographic data in CIF or other electronic format see DOI: 10.1039/c5ra00072f
The first two authors contributed to this paper equally.
