Suzuki–Miyaura reaction by heterogeneously supported Pd in water: recent studies

Abstract

This review summarizes the progress made essentially in the last fifteen years in the Suzuki–Miyaura coupling reaction by heterogeneous palladium catalysis in water as the sole solvent. The discussion focuses on the heterogenization of the palladium catalyst, efficiency and reusability of the heterogeneous catalysts as well as on the reaction conditions from a sustainable chemistry point of view.

---

Introduction

For the last few decades, palladium remains the most useful transition metal catalyst in the array of transformations in organic synthesis, in particular for carbon–carbon bond formations.¹ The unique nature of the palladium catalyst for selective reactions, easy tuning of the catalyst reactivity and selectivity by ligands or additives, and the high turnover numbers (TONs) and turnover frequencies (TOFs) using extremely small amounts of palladium (ppm or ppb levels) under milder conditions, are the main reasons for attracting researchers, and as a result of these facts a number of palladium catalysts are commercially available² and employed in many areas, including natural product syntheses.³ Among the different types of palladium-catalyzed reactions, the Suzuki–Miyaura reaction, which is the reaction between aryl halides and arylboronic acids, represents possibly the most important and widely used one.⁴

Suzuki–Miyaura reaction

The Suzuki–Miyaura reaction is characterised by the cross-coupling of two aryl subunits, one from an aryl boronic acid or its derivative and the other from an organohalide or -triflate, to give a biaryl motif.^1,5 The relative reactivity order is as follows: R–I > R-OTf > R–Br ≫ R–Cl. This reaction has become one of the most adaptable methods for the expansion of the carbon framework in organic molecules since its discovery in 1979.⁶ Amongst its wide applicability, the Suzuki–Miyaura reaction is particularly useful as a way of assembling conjugated diene and higher polyene systems of high stereoisomeric purity, as well as biaryl and related systems. Incredible progress has been made in the development of Suzuki–Miyaura coupling reactions of unactivated alkyl halides, enabling C(sp²)–C(sp³) and even C(sp³)–C(sp³) bond-forming processes.^1h,i,7 The non-toxicity and simplicity related to the preparation of organoboron compounds (e.g. aryl, vinyl, alkyl),^5b,c their relative stability to air and water, combined with relatively mild reaction conditions as well as the formation of nontoxic by-products, makes the Suzuki–Miyaura reaction an important method for enlarging the carbon skeleton.

The general and widely accepted mechanism of the Suzuki–Miyaura reaction is depicted in Fig. 1. The first step is the oxidative addition of palladium 1 to halide 2 to form the organopalladium species 3. Reaction of the organopalladium species with a base gives intermediate 4, which via transmetalation with boronate complex 6 forms the organopalladium species 8. Reductive elimination of the desired product 9 restores the original palladium catalyst 1.

Fig. 1 Schematic representation of the general mechanism of the Suzuki–Miyaura coupling reaction.

Water – a green reaction medium

From the academic as well as industrial viewpoints, alternative reaction media are of considerable concern at present for making this palladium catalyzed cross-coupling process “greener” by minimizing the use of organic solvents.⁸ Water is the obvious foremost choice in conjunction with cost, environmental benefits, and safety. The use of water in Pd-catalyzed cross coupling reactions dates back to the early development of the Suzuki–Miyaura coupling⁹ with the first example being reported by Calabrese and co-workers in 1990.¹⁰ Since then, a large number of water-soluble Pd catalysts bearing hydrophilic ligands have been reported, and several reviews have been devoted to this subject.¹¹ Attempts have been made for synthesizing water-soluble catalysts or water-soluble ligands,¹² adding surfactants or phase-transfer agents,¹³ using organic co-solvents or inorganic salts as a promoter,¹⁴ and utilizing microwave heating or ultrasonic irradiation.¹⁵ The use of water as reaction medium would be practically green and welcoming only when any traces of organics or metals can be fully removed from the water used for the reaction.¹⁶ For metal catalyzing reactions in which the catalysts are to some extent water soluble, heterogeneous catalysis could solve this issue using a water insoluble support or catalyst which can easily be removed from the medium by filtration. Moreover, for large scale processes, organic products can be separated by simple decantation.

Scope and limitations of heterogeneous catalysis

For the synthesis of symmetrical and nonsymmetrical biaryls the palladium-catalyzed carbon–carbon coupling reaction remains an important method, and a broad variety of homogeneous catalytic systems have been developed to achieve this transformation,¹⁷ mainly because homogeneous catalysts display high activity and are better defined and understood. Although homogeneous catalysts have many advantages, the complications regarding the separation and recovery of the catalyst, and product contamination with traces of heavy metals, could not be ignored, which limit their applications in chemical and pharmaceutical industries,¹⁸ and become an issue of great economic and environmental concern especially for expensive and/or toxic heavy metal complexes.¹⁹ These limitations of homogeneous catalysis have resulted in the progress of new strategies for transition-metal catalysis which facilitate catalyst recovery and recycling.²⁰ Recently, many recoverable, supported palladium catalysts have been reported to catalyze Suzuki–Miyaura coupling reactions such as polymers, biomaterials, porous silica, carbon nanotubes, polyurea, natural phosphates etc.²¹ However, some supported catalysts which are known as heterogeneous catalysts, often resulted in a significant loss of catalytic activity when reused and leaching of transition metal during the reaction,²² and the nature of the true catalyst is still unclear.

The problem of distinguishing homogeneous from heterogeneous catalysis is an important question that arises more and more often, in particular when heterogeneous systems are developed. Heterogeneous catalytic systems may partly dissolve to yield a homogeneous component which might be much more reactive than the parent metal surface. For this reason, in some cross-coupling reactions especially with facile substrates catalyzed by trace amounts of metal of various origins, checking is necessary for the genuine source of catalytic metal. Careful kinetic studies, filtration tests, selective poisons for catalysts in solid or soluble systems, and Rebek–Collman 3-phase tests are very helpful and informative to solve the question of heterogeneity.

Aim of the review

The aim of this review is to provide an overview of heterogeneous palladium chemistry for the Suzuki–Miyaura cross-coupling reaction in water as the sole reaction medium or solvent. Since water is genuinely useful for green chemistry as a solvent itself, only protocols carried out in water are covered. One review article²³ in this regard by Felpin and co-authors is worth mentioning. The reactions which are not mentioned in that article and the newer reports (up to September, 2014), including all the heterogeneous systems already mentioned by Felpin, are comprised in this review article. The reports consisting of semi-heterogeneous or quasi heterogeneous catalysts, reactions carried out by soluble supports and examples from the patent literature are discarded in this review.

Supports are mainly divided into three categories, viz. inorganic, organic and hybrid of inorganic–organic materials, and the discussion is again subdivided according to necessity and for lucidness.

Inorganic supports

Palladium supported on carbon. Bumagin and Bykov have reported the cross-coupling of water-soluble 3-bromobenzoic acid with tetraphenylborate in neat water using Pd(0)/C (Scheme 1).²⁴ This report is the first example of a Pd/C-catalyzed Suzuki–Miyaura reaction in neat water.

Scheme 1 Use of NaB(Ph)₄ as the phenylboronic acid substitute.

The coupling between iodophenols and boronic acids at room temperature (Scheme 2) could be performed using K₂CO₃ as the base with a lower loading of Pd/C (0.3 mol%).²⁵ The obtained yields were excellent and fairly independent of the nature of the boronic acid. The reactivity order decreased from iodophenol to bromophenol, and the successful reaction required higher temperatures. After completion of the reaction, the Pd/C catalyst was recovered by simple filtration and reused five times with only a slight decrease in activity.

Scheme 2 Cross-coupling of iodophenols with boronic acids.

For non-water-soluble aryl halides, a number of reports use surfactants as additives to increase the solubility. Arcadi and co-workers used cetyltrimethylammonium bromide (CTAB) for this purpose, which was found to be quite effective when combined with K₂CO₃ with a catalyst loading (Pd/C) of 5 mol% (Scheme 3).²⁶ Recycling of the filtered and used catalyst suffered from gradually diminished activity which raises the question of true heterogeneity.

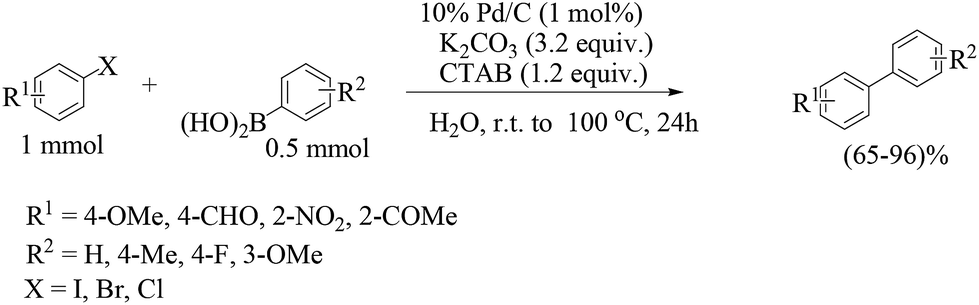

Scheme 3 Suzuki–Miyaura reactions using CTAB as a surfactant.

Xu and co-workers²⁷ (Scheme 4) established that water-soluble bromoarenes react efficiently with sodium tetraphenylborate in refluxing water even in the presence of 0.0025 mol% of Pd/C when the reaction time was prolonged from 1 to 7 h. Comparison of the inorganic bases utilized showed the suitability of sodium bases over potassium ones. The reusability of the catalyst showed capability over five cycles but with gradual loss of reactivity (Fig. 2).

Scheme 4 Suzuki–Miyaura reactions by Xu and co-workers.

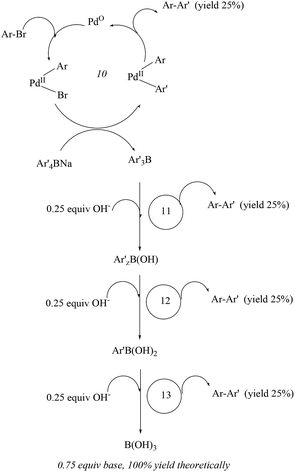

Fig. 2 Proposed mechanism of the Pd/C-catalysed cross-coupling of aryl bromide with sodium tetraarylborate by Xu and co-workers.

Coupling of aryl chlorides with aryl boronic acids using ligandless Pd/C in water has been described by Kohler and Lysen (Scheme 5).²⁸ All reactions were performed under an ambient atmosphere to reduce homocoupling. Activated aryl chlorides reacted at lower palladium concentrations (0.2–0.5 mol%) while deactivated chloroarenes required higher catalyst concentrations (2.0 mol%) and longer reaction times (six hours). Addition of TBAB was found to be essential, and NaOH was found to be the superior base among the several bases tested. Aryl iodides and bromides could also be completely converted to the corresponding biaryls by a small variation of the reaction conditions. Recovery of the catalyst was performed by simple filtration through celite or by centrifugation. Not only boronic acids but also boronate esters and potassium trifluoroborate salts were effective under the reaction conditions developed by these authors. The reactivation using iodine as the oxidizing agent [Pd(0) to Pd(II)] was necessary to improve the recycling ability of the catalyst, showing consistent activity over three cycles.

Scheme 5 Approach by Kohler and co-workers.

The beneficial effect of microwave heating was explored by Freundlich and Landis (Scheme 6)²⁹ for the coupling of boronic acids with bromophenols. A variety of boronic acids were coupled at 120 °C in aqueous potassium hydroxide for short reaction times (15 min). The reactions remained unsuccessful with the chloro substituent. The coupling of substituted bromophenol with potassium phenyl trifluoroborate salt was less efficient than with phenyl boronic acid under the optimized reaction conditions.

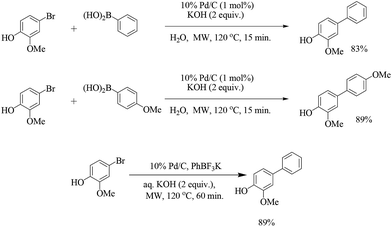

Scheme 6 Suzuki–Miyaura reactions using microwave irradiation by Freundlich and Landis.

Arvela and Leadbeater reported a combined TBAB and microwave activation procedure for the cross-coupling of aryl chlorides with boronic acids (Scheme 7).³⁰ For substrates bearing electron-withdrawing groups, the effects of simultaneous cooling on the product yield were not significant, attributed to the fact that the coupling reaction is faster than the decomposition of the chloride substrate, but with substrates bearing electron-neutral or electron-donating substituents, simultaneous cooling significantly increased the product yield. Very fast reaction rates were observed in only ten minutes and the method was found to be efficient for aryl chlorides containing electron-withdrawing groups.

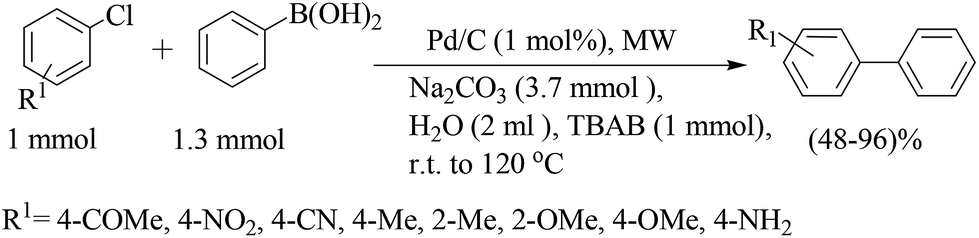

Scheme 7 Catalytic system developed by Leadbeater et al.

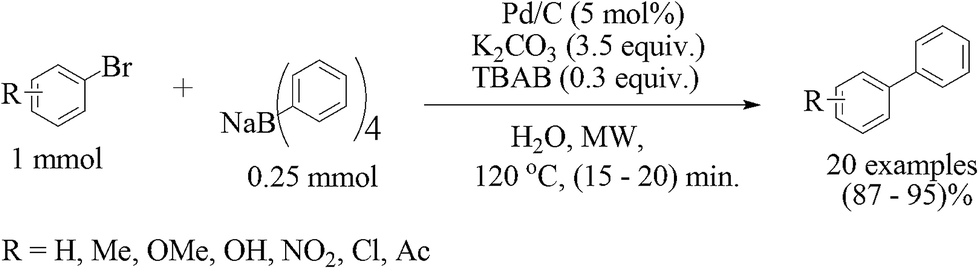

The coupling of bromoarenes with tetraphenylborate (Scheme 8) has been described by Bai using a similar catalytic system.³¹ Excellent yields were obtained in less than twenty minutes at 120 °C in the presence of K₂CO₃ as the base with a comparatively higher palladium loading (5 mol% Pd). The catalyst showed excellent recycling ability over more than five cycles.

Scheme 8 Coupling of bromoarenes with tetraphenylborate by Bai.

Modified multi-walled carbon nanotubes have been proposed as a support for palladium nanoparticles for the cross-coupling in neat water.³² 4-Dimethylaminopyridine (DMAP) stabilized palladium nanoparticles were prepared by mixing solutions of Na₂PdCl₄ and DMAP followed by the reduction with NaBH₄. Thiol-modified multi-walled carbon nanotubes (MWCNTs), prepared by a carbon arc discharge method, were functionalized via an amide coupling reaction followed by sequential treatment with HNO₃, KMnO₄, HClO₄, citric acid, DMAP and 1-(3-dimethylaminopropyl)-3-ethylcarbodiimide hydrochloride (EDAC) and 2-mercaptoethylamine hydrochloride (Fig. 3). Multi-walled carbon nanotube/DMAP-stabilized Pd nanoparticle composites (MWCNT/Pd–DMAP NP composites, catalyst 14) were prepared by the addition of a known amount of a DMAP-stabilized palladium nanoparticle dispersion to thiol-modified multi-walled carbon nanotubes under sonication. The 4-iodo-substituent gave 87% conversion within 10 min with 0.004 mol% of catalyst 14, while the bromo-substituent gave 53% conversion and the chloro-analogue gave 25% conversion with 0.024 mol% of catalyst 14 when refluxing for 6 h. The catalyst was recovered by filtration through a polycarbonate filter, and experimental studies showed good recyclability over six runs with leaching of the Pd species below the detection limit of AAS (Scheme 9).

Fig. 3 Schematic representation for the preparation of MWCNT/Pd–DMAP NP composites.

Scheme 9 Suzuki–Miyaura reaction of interest, using the MWCNT/Pd–DMAP NP composites, between phenylboronic acid and 4-halobenzoic acids.

Graphene modified with palladium nanoparticles by reducing palladium acetate [Pd(OAc)₂] in the presence of sodium dodecyl sulfate (SDS) was reported by Zhang and co-workers (Scheme 10)³³ (SDS is used as both surfactant and the reducing agent). The palladium nanoparticle–graphene hybrids (Pd–graphene hybrids, catalyst 15) were characterized by spectrometric methods, and HRTEM showed that the mean size of the Pd nanoparticles dispersed on the graphene sheets is about 4 nm. Catalyst 15 acted as an efficient catalyst for the Suzuki–Miyaura reaction under aqueous and aerobic conditions, with the reaction reaching completion within 5 min. Bromobenzene and allyl iodides were also employed in this coupling reaction but produced poor yields. The catalysts were recovered by simple centrifugation and reused successfully for ten consecutive runs.

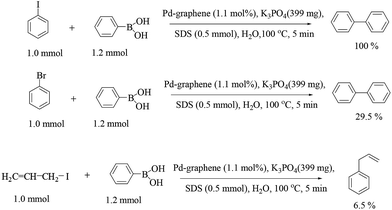

Scheme 10 Work by Zhang and co-workers.

Palladium supported on metal oxides. A sepiolite-supported palladium(II) catalyst (catalyst 16) has been prepared by mixing sepiolite with an aqueous solution of [Pd(NH₃)₄]Cl₂ at 298 K for 48 h, followed by centrifuging and washing with deionized water, and subsequent drying in vacuo at the same temperature. The prepared catalyst was successfully used for the cross-coupling of 4-bromophenol with phenylboronic acid or tetraphenylborate at room temperature (Scheme 11)³⁴ with a palladium loading of 0.1 mol%. The Pd(II)/sepiolite catalyst could be reused three times without any apparent deactivation. Successful reaction could be achieved by decreasing the catalyst loading to 0.0001 mol% but with higher temperatures.

Scheme 11 Example of a cross-coupling with an ultra low catalyst loading.

Highly basic nanocrystalline magnesium oxide (NAP-MgO) as a palladium nanoparticle support has been exploited for the Suzuki–Miyaura coupling reaction (Scheme 12).³⁵ Fig. 4 shows the schematic presentation for the preparation of Pd–NAP-MgO (catalyst 17). The cross-couplings of iodo- and bromoarenes with arylboronic acids were efficiently carried out in water, but the reactions involving chloroarenes were performed in DMA with catalyst 17. The cross-couplings were completed in only 5 to 6 h at room temperature at a quite low loading (0.5 mol%); an even lower loading as low as 0.01 mol% is also effective with longer reaction times (40 h). It is supposed that the high activity of the catalyst is due to the nanostructured MgO material that possesses a high surface area (∼600 m² g⁻¹) and a strong basicity. The catalyst was recyclable for all reactions up to five cycles with almost consistent activity.

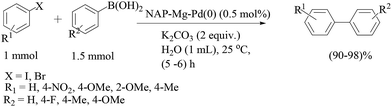

Scheme 12 Examples of cross couplings with NAP-MgO–Pd(0) as the catalyst.

Fig. 4 Preparation of the nanocrystalline MgO-stabilised palladium catalyst 17.

Artok and co-workers prepared a highly active catalyst (catalyst 18) by loading NaY zeolite with Pd(NH₃)₄Cl₂ (Scheme 13)³⁶ (NaY zeolite (SiO₂/Al₂O₃ molar ratio: 5.1)) by ion exchange, which gave good yields for the corresponding biphenyl compounds by cross-coupling soluble and insoluble aryl bromides with benzeneboronic acid with catalyst loadings of (0.01–0.001) mol% in water. Electron-rich bromoarenes were found to be much less reactive and required the use of surfactants such as TBAB or CTAB for better results. A possible instability of the catalytic system under localized heating was established by performing the reaction under microwave heating.

Scheme 13 Work by Artok and co-workers.

The Pd/ZrO₂ nanocatalyst formed by electrochemical impregnation of nanostructured tetragonal ZrO₂ with palladium nanoparticles (PdNPs/ZrO₂, catalyst 19) was demonstrated to be a very efficient catalyst in Suzuki–Miyaura reactions of aryl halides in water, by Nicola Cioffi and co-workers (Scheme 14).³⁷ The catalyst efficiency was attributed to the stabilization of Pd nanophases provided by tetra alkyl ammonium hydroxide, which behaved both as a base as well as a PTC (phase transfer catalyst) agent. The Suzuki–Miyaura cross-coupling reactions were carried out in water at 90 °C using aryl bromides and iodides as substrates and phenyl boronic acids. The supported catalyst could be recycled up to ten times without any appreciable loss of activity which was supported by an average yield of 83% for a number of aryl bromides, except for the less reactive electron-rich 4-bromoanisole.

Scheme 14 Suzuki–Miyaura reactions catalyzed by Pd-NPs/ZrO₂ (catalyst 19) in water.

Palladium supported on hydroxyapatite. Hydroxyapatite-supported palladium(0) (Pd/HAP, catalyst 20) was prepared by stirring a mixture of hydroxyapatite and Pd(OAc)₂ in ethanol followed by the dropwise addition of hydrazine hydrate (80%) under continuous stirring, and conditioning of the catalyst by refluxing for 6 h in each ethanol, toluene and acetonitrile. The conditioned catalyst was quite stable and could be used for several days. The TEM micrograph showed an average palladium particle diameter of about 20 nm on hydroxyapatite. Suzuki–Miyaura cross-couplings of bromoarenes with arylboronic acids were carried out with this catalyst in the presence of TBAB as a surfactant and K₂CO₃ as the base (Scheme 15).³⁸ Paul and co-workers obtained excellent yields for biphenyl compounds from facile substrates using the prepared catalyst 20 (0.33 mol% Pd/HAP). The stability of the hydroxyapatite supported palladium catalyst was demonstrated by the recycling ability studied for the coupling of 4-bromoacetophenone with benzeneboronic acid over five cycles with no apparent deactivation of the reused catalyst.

Scheme 15 Suzuki–Miyaura reactions using Pd/HAP as the catalyst.

Two types of these supported palladium catalyst, one by immobilization of [Pd(COD)Cl₂] (COD = 1,5-cyclooctadiene) on hydroxyapatite (catalyst 21) and another catalyst by subsequent reduction of the previous catalyst with sodium borohydride (catalyst 22), were prepared (Fig. 5) for the Suzuki–Miyaura coupling reaction in water.³⁹ The catalyst with Pd²⁺, was found to be almost five times more active than the reduced catalyst under similar reaction conditions. The best catalytic activities were observed in the presence of potassium carbonate as the base and tetrabutylammonium bromide as a promoter using the non-reduced catalyst and water as the solvent under aerobic conditions (Scheme 16). This catalyst system has been tested for different electronically neutral, electron-rich, electron-poor and sterically hindered aryl boronic acids, and several different aryl halides including aryl chlorides. More than one thousand turnovers and high selectivities toward the hetero-coupled products have been observed in most cases. A negligible drop in activity was observed over ten cycles.

Fig. 5 Synthetic outline for the synthesis of catalysts 21 and 21a.

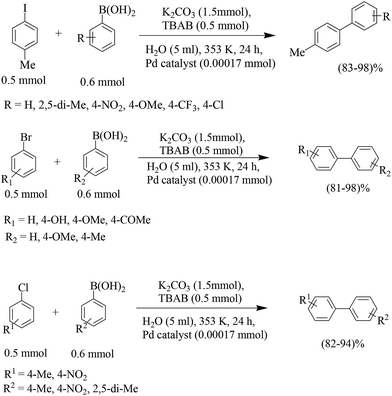

Scheme 16 Suzuki–Miyaura reactions using the Pd–HAP catalyst 21.

Palladium supported on mesoporous silica. Ordered mesoporous MCM-41 material has been used as a suitable support for uniformly sized palladium nanoparticles (Fig. 6, catalyst 22) by Sayari and Das, and has been explored in Suzuki–Miyaura reactions (Scheme 17).⁴⁰ Although the reactions were carried out in water, the recycling experiments and mechanistic considerations were evaluated in EtOH solvent. A truly heterogeneous mechanism was proven in EtOH.

Fig. 6 Schematic outline of the synthesis of catalyst 22 from pore-expanded MCM-41 and supported monodispersed Pd nanoparticles.

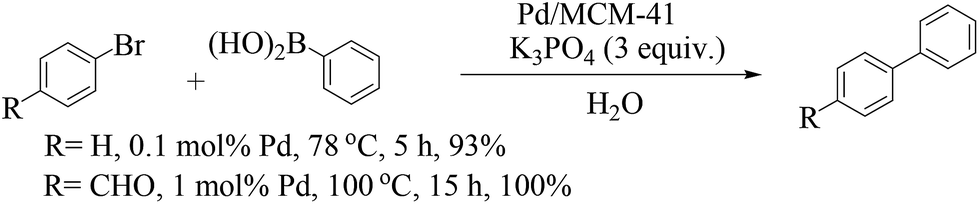

Scheme 17 Examples of Pd/MCM-41-catalyzed Suzuki–Miyaura reaction.

Palladium supported on hydrotalcite. Ruiz and co-workers opted for the use of a Mg/Al hydrotalcite-supported palladium(II) (catalyst 23) for a single example of the Suzuki–Miyaura cross-coupling reaction involving bromobenzene and phenylboronic acid at room temperature (Scheme 18).⁴¹ The supported catalyst was prepared by mixing appropriate amounts of palladium acetate, pyridine and hydrotalcite at 80 °C for 1 h, after which the solid was filtered off and washed with toluene. The catalyst thus obtained was named HT-Pd(AcO₂)Py₂ (catalyst 23). Only 52% conversion was obtained. Optimization studies showed that the use of sodium dodecyl sulphate as a surfactant was crucial for an acceptable conversion among those tested for this purpose, which included anionic, cationic and neutral surfactants.

Scheme 18 Suzuki–Miyaura cross-coupling by Ruiz and co-workers.

Palladium supported on porous glass. The catalytic activity of Pd supported on porous glass (catalyst 24) in the Suzuki–Miyaura reaction was studied by Ondruschka and co-workers under aerobic conditions (Scheme 19).⁴² The catalyst was prepared by dissolving Pd(OAc)₂ (20 mg, 0.09 mmol) in dichloromethane containing the porous glass support (1 g; TRISOPOR) followed by removal of the solvent in vacuo and calcination of the catalyst precursor for 2 h at 300 °C in a muffle furnace to obtain the catalyst with a Pd loading of 1 wt%. For varying catalyst loadings, different amounts of Pd were dissolved in dichloromethane (e.g. 10 mg for 0.5 wt% and 5 mg for 0.25 wt%). The reactions were carried out in water under microwave irradiation. The effects of the catalyst preparation process (calcination time and temperature), as well as the base, substrate, and boron compound used in the coupling reaction were investigated in relation to the reusability of the catalyst. Among the bases used to recalcinate the catalyst, HNEt₂ and NEt₃ were successful. Substitutions in the ortho, meta, or para positions of the aryl halide showed a negligible influence on the yield of the desired coupling product. Except for the phenol-type substrates, all other substrates required the addition of the phase-transfer catalyst tetra-n-butylammonium bromide (TBAB) to enhance their solubility in the solvent (deionized water). The classical order of reactivity of aryl iodides > bromides > chlorides was confirmed.

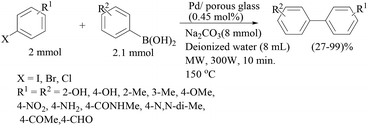

Scheme 19 Suzuki–Miyaura reactions by Ondruschka and co-workers.

Palladium supported on natural phosphate. F. Aziz and co-workers have reported a convenient method for the preparation of a recyclable and heterogeneous natural phosphate-supported palladium catalyst (catalyst 25) by treatment of natural phosphate (NP) with PdCl₂(PhCN)₂ in acetone and its application for the synthesis of biaryls via Suzuki–Miyaura couplings using water as solvent (Scheme 20).⁴³ Aryl bromides and heteroaryl bromides efficiently reacted with arylboronic acids providing a useful way for the synthesis of aryl-substituted nitrogen heterocycles. However, the coupling reaction of 2-bromothiophene and phenylboronic acid did not occur even with increased catalyst loading or reaction time. A considerable steric effect was observed when the reaction was carried out with sterically hindered 2-bromo-m-xylene and phenylboronic acid which led to the desired product in poor yields. Under identical conditions, the aryl chlorides bearing electron-withdrawing groups reacted in good yields, but no conversion was obtained in the coupling of aryl chlorides bearing electron-donating groups. Catalyst 25 was recovered by simple filtration and the product yields for the 2^nd and 3^rd cycle were nearly the same (93%) but reduced during the 4^th cycle (88%). No leaching of the catalyst to the organic layer was reported.

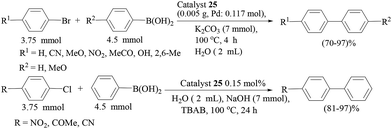

Scheme 20 Heterogeneous Suzuki–Miyaura couplings of aryl bromides and aryl chlorides with phenylboronic acid using PdNP.

Organic support

Palladium supported on polystyrene. Incorporation of nanosized Pd particles into a hyper-crosslinked polystyrene matrix by reduction was developed, and used for the Suzuki–Miyaura coupling reaction in water.⁴⁴ Catalyst 26 was prepared by mixing an acidic solution of PdCl₂ (PdCl₂ (83 mg), 2 ml of H₂O and 0.2 ml of concentrated HCl)) with a pre-washed and dried Macronet MN100 resin (950 mg of the MN100 resin in 10 ml flask). The resin was allowed to swell for 10 min in the mixture followed by the addition of sodium formate and sodium hydroxide. The resulting mixture was then heated for 10 min at 80 °C. The obtained grey beads were washed with water and MeOH, and dried in vacuo (1 mm Hg) under heating (90 °C). The average palladium content in the resin was found to be 3.75%. Electron microscopy analysis of the milled Pd catalyst showed an average size of the Pd nanoparticles almost equal to 12.5 nm. The catalyst was employed in the coupling of aryl bromides and chlorides (with greater amounts of the catalyst, viz. double of the amount used for the bromo substrates) with phenylboronic acid, with water being the preferred solvent (Scheme 21). The reuse of the polymer-supported Pd resin was performed analogously to the Suzuki–Miyaura procedure.

Scheme 21 Suzuki–Miyaura reactions of phenylboronic acid with arylbromides and an arylchloride.

Palladium nanoparticles stabilized onto linear polystyrene (catalyst 27) by thermal decomposition of Pd(OAc)₂ was examined in the Suzuki–Miyaura reaction in 1.5 M aqueous KOH solution (Scheme 22).⁴⁵ A fairly uniform particle size of 2.3 ± 0.3 nm was obtained and ICP-AES revealed that the catalyst contained an average of 2.5 mmol g⁻¹ of Pd. The immobilization degree of palladium was dependent on the molecular weight of polystyrene, while the size of the nanoparticles was not. The cross-coupling reaction of bromobenzene with p-methylphenylboronic acid proceeded efficiently to give 4-methylbiphenyl in 99% yield. Both electron-rich and electron-deficient aryl bromides were reactive under these reaction conditions, affording the desired coupling products in high yields. The catalyst could be recovered by simple filtration. The average yield of 4-methylbiphenyl from the 1^st through to the 10^th recovered catalysts was 99%. No leaching of palladium into the solution during the reaction was observed by ICP-AES. Worth mentioning is that the reaction proceeded well with aryl chloride and the catalyst could even be recycled.

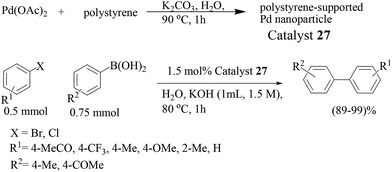

Scheme 22 Suzuki–Miyaura reactions using polystyrene stabilized Pd.

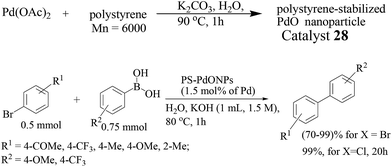

In a similar study, linear polystyrene-stabilized PdO nanoparticles (PS–PdONPs, catalyst 28) were prepared in water by thermal decomposition of Pd(OAc)₂ in the presence of polystyrene, and the Pd nanoparticles (PS–PdNPs) were also prepared using NaBH₄ and phenylboronic acid as reductants.⁴⁶ The catalytic activity of PS–PdONPs was found slightly higher than that of PS–PdNPs for the Suzuki–Miyaura coupling reaction in water probably due to the presence of oxygen and the size effect. The TEM image of catalyst 28 showed a uniform particle size of 2.3 ± 0.3 nm. Under optimized conditions, the Suzuki–Miyaura coupling reaction of bromobenzene with 4-methylphenylboronic acid in 1.5 M KOH aqueous solution at 80 °C for 1 h proceeded efficiently to give 4-methylbiphenyl in 99% yield (Scheme 23). Both electron-rich and electron-deficient aryl bromides were reactive, affording the desired coupling products in high yields. However, the reaction of chlorobenzene gave a lower yield. The catalyst was recovered by filtration and was recycled for 10 times without any loss of activity. No leaching of palladium into the reaction occurred during the reaction, as confirmed by ICP-AES.

Scheme 23 Suzuki–Miyaura reactions using PS–PdONPS.

Polypyrrole–palladium nanocomposite-coated cross-linked polystyrene latex particles (PS/PPy–Pd, catalyst 29) have been applied with an excellent catalytic activity to the Suzuki–Miyaura coupling reaction in water (Scheme 24).⁴⁷ The catalyst was prepared by adding an aqueous solution of PdCl₂ and NaCl to a premixed aqueous dispersion of pyrrole and polystyrene. The polymerization was allowed to proceed for 7 days at 200 rpm. The PS/PPy–Pd particles were subsequently purified by repeated centrifugation–redispersion cycles followed by freeze-drying overnight. The potency of the PS/PPy–Pd particles as a catalyst with low metal loading (0.03 mol% of Pd) was examined in the Suzuki–Miyaura coupling reaction of various aryl halides with arylboronic acids in 1.5 mol L⁻¹ aqueous potassium carbonate solution as test reactions. Steric hindrance did not matter as was observed from the high yield of 2,4-o-dimethylbiphenyl from the coupling reaction of 2-bromotoluene with 4-methylphenylboronic acid. ICP-AES analyses confirmed that both the aqueous phase and the organic phase contained barely detectable levels of palladium and that the Pd loading in the particles did not change even after the fifth run, which indicated that no/little Pd nanoparticles detached from the PS/PPy–Pd particles.

Scheme 24 Suzuki–Miyaura reactions using PS/PPy–Pd.

Palladium immobilized by polymer-supported phosphine ligands. Wang and co-workers reported an exceedingly straightforward and competent catalytic system for the coupling of aryl bromides with sodium tetraphenylborate in water under focused microwave conditions.⁴⁸ The coupling reaction was completed within 15 to 20 min under the applied reaction conditions involving 1 mol% of the catalyst. The heterogeneous palladium catalyst, consisting of a complex of PdCl₂ bonded to a polystyrene–diphenylphosphine ligand, is fairly stable for years at room temperature under aerobic conditions. Potassium carbonate was the choice as the base, and TBAB as the phase-transfer catalyst. Various aryl and heteroaryl bromides were successfully coupled to NaBPh₄ under microwave heating (Scheme 25). The heterogeneous palladium catalyst could be easily recovered by filtration and recycled at least ten times with unfailing activity.

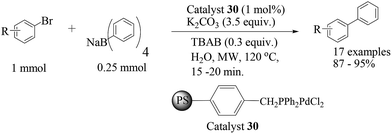

Scheme 25 Suzuki–Miyaura reactions by Wang et al.

An amphiphilic resin-supported triarylphosphine–palladium complex bound to a polyethylene glycol–polystyrene graft copolymer (PEG–PS resin) has been described for the cross-coupling of aryl iodides with boronic acids using KOH as the base.⁴⁹ The PEG–PS resin-supported palladium–monophosphine complex Pd–PEP (32) was readily prepared by treatment of the resin-supported phosphine (31) with an excess amount of di(μ-chloro)bis(η-allyl)dipalladium(II) ([PdCl(η³-C₃H₅)]₂) (Pd/P > 1/1) followed by the removal of not immobilized [PdCl-(η³-C₃H₅)]₂ by washing with chloroform (Scheme 26).

Scheme 26 Schematic diagram for the synthesis of the resin-supported triarylphosphine–palladium complex.

This catalytic system was found to be more active than the comparable usual homogeneous palladium–phosphine complexes under the same reaction conditions (Scheme 27). No examples with chloroarenes were reported but good yields were obtained with aryl iodides and bromides under mild conditions (25 °C).

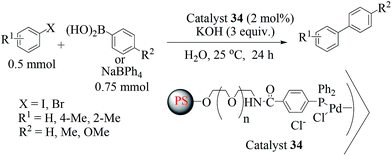

Scheme 27 Suzuki–Miyaura reactions by Uozumi et al.

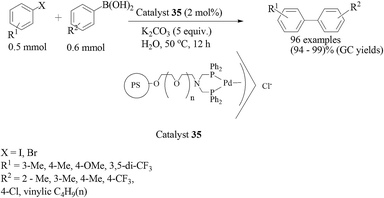

In another report, another resin-supported palladium catalyst (PS–PEG-adppp) for the Suzuki–Miyaura coupling reaction in water has been described by Uozumi and co-workers by merely changing the ligand.⁵⁰ The catalyst 35 was prepared by treatment of PSPEG–NH₂ with diphenylphosphinomethanol (Scheme 28) in toluene–MeOH at 25 °C for 3 h to give PS–PEG-adppp with a quantitative loading value of 0.32 mmol g⁻¹. The palladium complex of the bisphosphine ligand PS–PEG-adppp was prepared by mixing [PdCl(η³-C₃H₅)]₂ in toluene at 25 °C for 15 min to give [PS–PEG-adppp-Pd-(η³-C₃H₅)]Cl (catalyst 35) in a quantitative yield. Altogether, ninety six combinations of eight aromatic halides and twelve different boronic acids were reported from which a clear idea about the extremely efficient and stable heterogeneous catalyst 35 could be obtained. The reactions were carried out in aqueous K₂CO₃ at 85 °C (Scheme 29). Catalyst 35 can be recovered by simple filtration and reused without any loss of activity.

Scheme 28 Synthetic approach for catalyst 35.

Scheme 29 Suzuki–Miyaura reactions by Uozumi et al.

A similar strategy was followed by the same author to introduce the asymmetric Suzuki–Miyaura cross-coupling reaction,⁵¹ and achieved by anchoring chiral imidazoindolephosphine to an amphiphilic polystyrene–polyethylene glycol copolymer (PS–PEG) resin (Scheme 30). Excellent yields with very good enantioselectivities (88–99% ee) were obtained at room temperature in water with the aid of a large excess of TBAF (10 equiv.) and boronic acid (5 equiv.). A large amount (10 mol%) of the palladium catalyst was required, but it could be reused after simple filtration with consistent results.

Scheme 30 Selected examples of the asymmetric Suzuki–Miyaura reaction by Uozumi et al.

Ikegami and co-workers designed a self-assembled complex of palladium and a non-crosslinked amphiphilic polymer supported through phosphines (Scheme 31).⁵² The catalyst support was prepared by random polymerization of 4-diphenylstyrylphosphine (37) with 12 equiv. of N-isopropylacrylamide (38) in the presence of 4 mol% AIBN, which gave 39 in 89% yield. Catalyst 40 was prepared by self-assembly of 39 and (NH₄)₂PdCl₄. The catalytic activity of this palladium-network catalyst 40 has been investigated for Suzuki–Miyaura reaction in refluxing water where Na₂CO₃ was the ultimate choice as a base (Scheme 32). The protocol allowed the reaction of aryl bromides and aryl iodides as substrates, but aryl triflates remained unaffected.

Scheme 31 Preparation of the self-assembled catalyst 40.

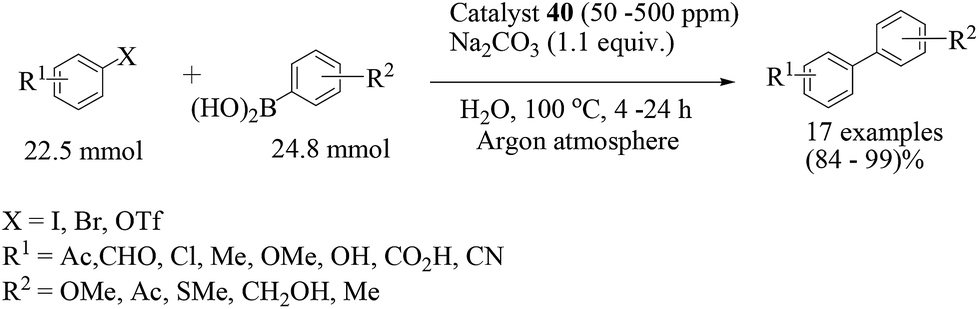

Scheme 32 Suzuki–Miyaura reactions with the network catalyst 40 by Ikegami et al.

Only trace amounts of the highly active palladium-network complex (50–500 ppm) were required for a successful reaction. The catalyst was found to achieve the coupling of unusual alkenyl halides and alkenylboronic acids at a low catalyst concentration (500 ppm). The recyclability of catalyst 40 was examined for the preparation of biphenyl for up to ten consecutive cycles with a consistent activity.

Uozumi and co-workers further developed the idea of a novel palladium complex embedded in a three-dimensional network complex (Scheme 33).⁵³ A novel 3D palladium-network complex catalyst 45 was obtained by self-assembly of PdCl₂ and C3-trisphosphine 44, which was prepared from the commercially available 2,4,6-tris-(bromomethyl)mesitylene (41) in four steps. Catalyst 45 showed a high catalytic efficiency at a low loading of 0.05 mol% palladium, and twenty seven examples of the Suzuki–Miyaura reaction in refluxing water with a variety of bromo- and iodoarenes were reported (Scheme 34). Finally, the catalytic complex displayed reusability properties over four successive cycles.

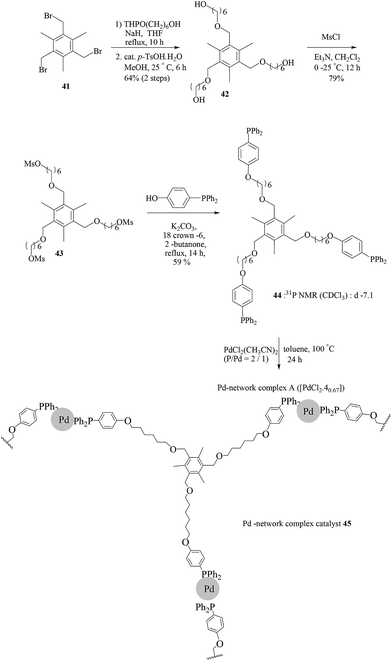

Scheme 33 Preparation of the palladium network complex catalyst 45.

Scheme 34 Suzuki–Miyaura reactions with the network complex 45 by Uozumi et al.

Polymer-supported oxime-based ligands. The group of Kirschning reported in 2004 an insoluble pyridine–aldoxime palladium catalyst active under microwave heating in Suzuki–Miyaura reactions in water (Scheme 35).⁵⁴ Although the exact structure of the catalyst was not elucidated, the absence of palladium–carbon bonds excluded any palladacycle-type structure. Experiments showed that under microwave activation water as the solvent turned out to be superior to toluene under the catalytic conditions. In the subsequent studies, in order to improve its lifetime the authors covered catalyst 46 (1 mol%) with an Irori Kan™. Under optimized conditions, catalyst 46 with K₂CO₃ as a base and TBAB as a phase-transfer agent showed good activity for the coupling of various substituted boronic acids with p-chloro-, p-bromo-, p-iodo- and p-trifluoromethylsulfonylacetophenone (Scheme 35). Catalyst 46 was reused for the coupling of 4-bromoacetophenone with benzeneboronic acid, and 93% conversion was observed after the 14^th run.

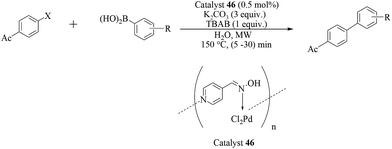

Scheme 35 Selected examples of cross-couplings using the catalyst 46.

Following their earlier studies, Kirschning et al. considered the aqueous Suzuki–Miyaura reactions of another closely related catalytic system prepared from a 2-pyridine aldoxime-based Pd(II) complex covalently anchored onto a glass–polymer composite material (catalyst 47).⁵⁵ Aryl and heteroaryl bromides were efficiently coupled with boronic acids at fairly low palladium loadings (0.7 mol%) with the aid of TBAB as the surfactant and KOH as the base, under both thermal (100 °C) or microwave heating (160 °C) conditions (Scheme 36). For chloroarenes, only the coupling of 4-chloroacetophenone has been reported. The catalyst could be reused at least seven times with consistent activity regardless of the source of heating.

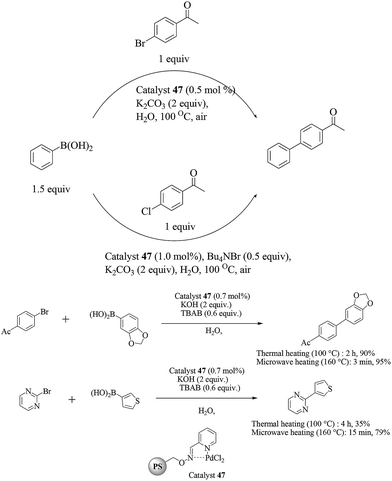

Scheme 36 Selected examples using the catalytic system developed by Kirchning et al.

In another report following the previous one, Kirschning and co-workers explored an alternative approach for immobilization of an oxime carbapalladacycle (48) onto polyvinylpyridine as the support (Scheme 37).⁵⁶ The polymeric phase was prepared from a heated solution (70 °C) of the monomers vinylpyridine and divinylbenzene with AIBN in a nonpolar solvent. While aryl chlorides were more efficiently coupled in water, aryl bromides were preferentially reacted with boronic acids in toluene under these catalytic conditions (Scheme 38). The protocol is associated with the use of TBAB (0.5 equiv.) and microwave activation. The protocol was equally applicable as a thermal, microwave or continuous flow method.

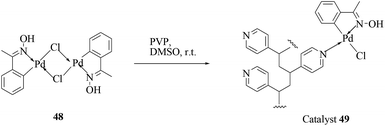

Scheme 37 Immobilization of the oxime carbapalladacycle onto polyvinylpyridine.

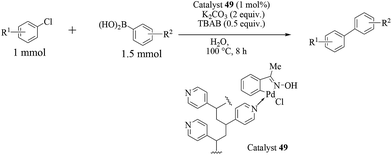

Scheme 38 Cross-coupling reactions developed by Kirschning et al.

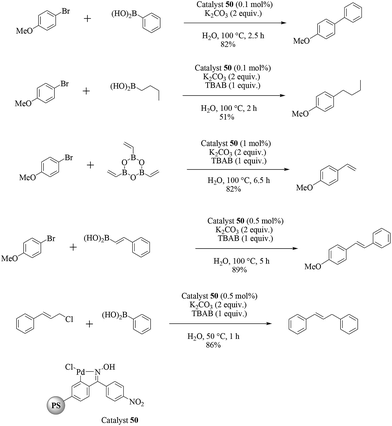

Taking advantage of a rich experience in oxime carbapalladacycle catalysts for cross-coupling reactions in organic and aqueous media,⁵⁷ Najera and co-workers prepared the palladated Kaiser oxime resin catalyst 50 as an active precatalyst for different types of the Suzuki–Miyaura reaction (Scheme 39).⁵⁸ Several examples were investigated involving the cross-coupling of aryl bromides, and allyl and benzyl chlorides with aryl-, alkyl- and alkenylboronic acids in neat water. Aryl bromides were efficiently cross-coupled with benzeneboronic acid, but aryl chlorides were poorly reactive. Alkylboronic acid, trivinylboroxine and trimethylboroxine reacted with aryl bromides in the presence of TBAB as an additive. Analysis of the solution showed moderate metal leaching which allowed the reuse of the recovered catalyst 50 with a gradually decreased catalytic activity.

Scheme 39 Selected examples from the work of Nájera and co-workers.

Polymer-supported pyridine ligands. Based on earlier studies⁵⁹ on dipyridyl based ligands for palladium complexation, showing good catalytic activity for C–C bond-forming reactions, Najera and co-workers explored a dipyridyl–palladium complex anchored to a styrene–maleic anhydride co-polymer (Scheme 40).⁶⁰ Only three haloarenes were examined for the coupling with benzeneboronic acid in the presence of K₂CO₃ as a base and the supported palladium catalyst 51 (Scheme 41). Although the activated 4-chloroacetophenone is reactive, compared to the bromides it requires a much higher palladium loading (4.5 mol% vs. 0.1 mol%) and TBAB as a phase-transfer agent. Microwave irradiation was found to be disadvantageous for the reaction. Recycling studies showed good yields for up to three or four cycles.

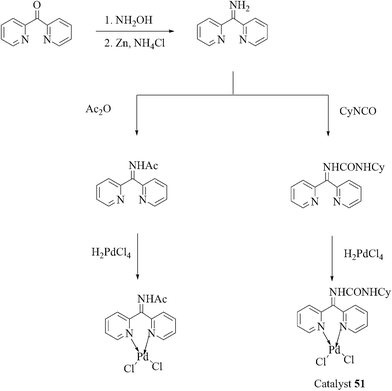

Scheme 40 Synthesis of dipyridylmethylamine-based palladium complex 51.

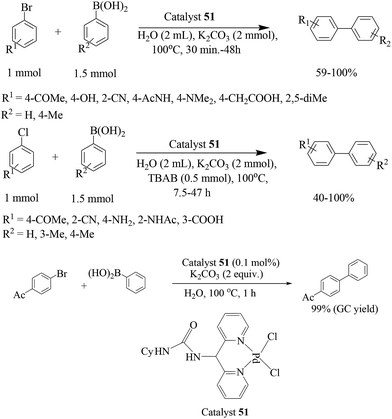

Scheme 41 Cross-coupling reactions according to the work of Najera and co-worker.

Palladium nanoparticles fixed in the layer of core–shell poly(styrene-co-4-vinylpyridine) microspheres (catalyst 52) were found to be catalytically active for Suzuki–Miyaura cross-couplings in water (Scheme 42).⁶¹ The supported catalyst was prepared by adding an aqueous solution of PdCl₂ into the colloidal dispersion of the core–shell PS-co-P4VP microspheres at room temperature followed by the dropwise addition of excess NaBH₄ aqueous solution. The resultant colloidal dispersion was purified by dialyzing against water at room temperature for 4 days. Transmission electron microscopy (TEM) analyses evidenced that the palladium nanoparticles were uniformly distributed with an average size of 4.4 nm on the polyvinylpyridine shell. Optimization studies revealed that hydrophobic reagents were best coupled with Et₃N as a base, while hydrophilic substrates preferably required K₂CO₃. The catalytic system was examined for the coupling of benzeneboronic acid with a range of unchallenging bromo- and iodoarenes. Chloroarenes, however, were almost unreactive under the same reaction conditions. Recycling studies carried out for the coupling of 4-bromoacetophenone with benzeneboronic acid showed 99% yield of the targeted biaryl compound throughout five consecutive runs. The average size of the palladium nanoparticles remained the same during recycling.

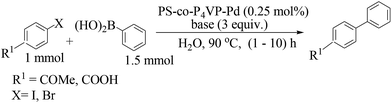

Scheme 42 Cross-coupling reactions developed by Zhang et al.

A novel heterogeneous transition-metal catalyst comprising a polymer-supported terpyridine palladium(II) complex (catalyst 53) was prepared (Scheme 43) and found to promote the Suzuki–Miyaura reaction in water under aerobic conditions with high to excellent yields.^62,63 The Suzuki–Miyaura cross-coupling reaction of iodobenzene with phenylboronic acid was carried out with K₂CO₃ (2 equiv.) in the presence of polymeric catalyst 53 (5 mol% Pd) in water to give biphenyl in 93% yield (Scheme 44). A variety of boronic acids and halo arenes with different types of substitution at different positions showed almost excellent yields, thereby proving that the substrate or reactant structures do not affect the reaction yield. The catalyst was recovered by simple filtration and directly reused several times without loss of catalytic activity (ICP-AES analysis (detection limit of Pd: <3 μg L⁻¹) from aqueous or organic filtrates).⁶³

Scheme 43 Preparation of the PS–PEG resin bound terpyridine palladium complex.

Scheme 44 Suzuki–Miyaura coupling reactions using polymeric catalyst 53 in water.

Polymer-supported salen ligands. A new polystyrene anchored Pd(II) azo complex (catalyst 54) has been synthesized (Scheme 45) and characterized by S. M. Islam et al., which acted as a efficient heterogeneous catalyst in the Suzuki–Miyaura coupling reaction in a water medium.⁶⁴ Aryl halides were coupled with phenylboronic acids smoothly to afford the corresponding cross coupling products in excellent yields (83–100%) under phosphine-free reaction conditions. Various substituted aryl iodides and bromides with deactivated (electron-rich) and activated (electron-poor) groups were efficiently converted to the desired products in good to excellent yields. The less reactive chlorobenzene showed moderate conversion. The sensitive heteroaryl halides bearing pyridyl or sterically hindered moieties reacted to the corresponding products in good yields. This polymer-supported Pd(II) catalyst could be easily recovered by simple filtration of the reaction mixture and reused for more than six consecutive trials without a significant loss of its catalytic activity.

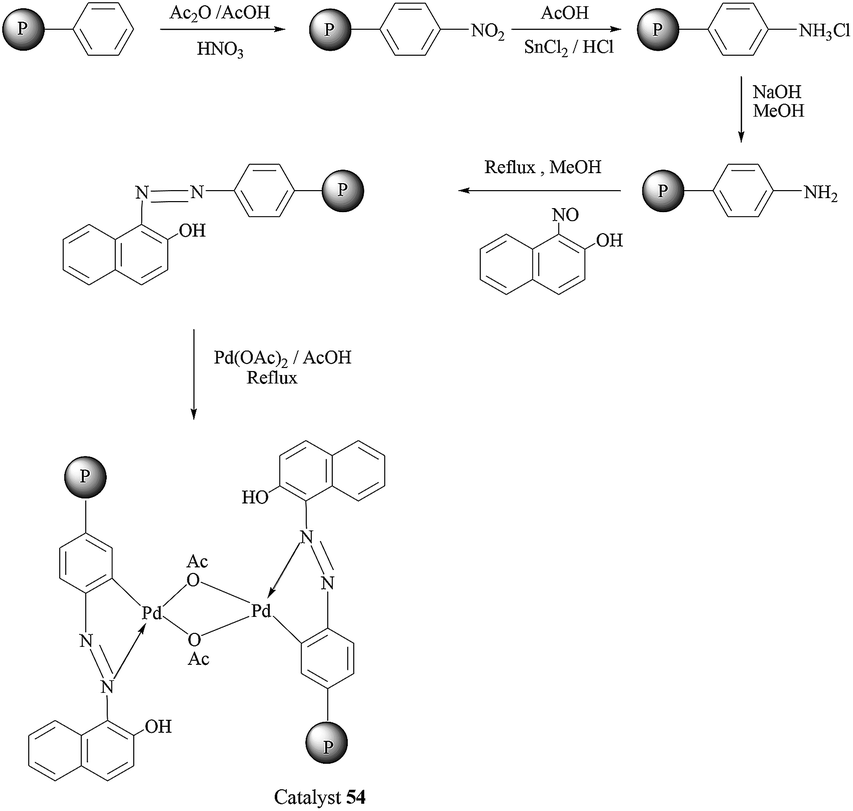

Scheme 45 Synthesis of the polystyrene anchored Pd(II) azo complex 54 by S. M. Islam et al.

A set of three new polymer-anchored palladium(II) Schiff base catalysts have been synthesized (Scheme 46), characterized and their catalytic activity was investigated in the Suzuki–Miyaura cross-coupling reaction between aryl halides and arylboronic acids in the presence of Cs₂CO₃ as the base.⁶⁵ They showed excellent catalytic activity in the coupling of aryl bromides or aryl iodides with phenylboronic acid under the optimized reaction conditions in water (Scheme 47). The polymer-anchored Pd(II) complexes provided turnover frequencies of 29 700 and 58 200 h⁻¹ in the Suzuki–Miyaura coupling reactions of phenylboronic acid with p-bromo acetophenone and p-iodobenzene, respectively, which are the highest values ever reported for the Suzuki–Miyaura coupling reaction in water as the sole solvent. The highest conversion reached was up to 45% in the presence of Cs₂CO₃ within 30 min in water at 100 °C, and longer reaction times did not yield any further conversion for aryl chlorides and phenyl boronic acids. Catalyst 55 maintained 97% of its initial catalytic activity at the end of the fifteen cycle.

Scheme 46 Polymer-anchored palladium(II) Schiff base catalysts.

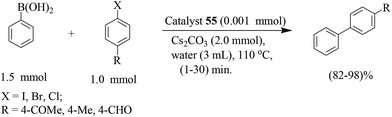

Scheme 47 Suzuki–Miyaura coupling reactions using the polymer-anchored palladium(II) Schiff base catalysts.

Polymer-supported triazole ligands. The triazole-functionalized polystyrene resin-supported Pd(II) [PS-tazo-Pd(II)] complex (catalyst 58) was prepared by stirring a suspension of PS-tazo in a solution of PdCl₂(PhCN)₂ in refluxing EtOH (Scheme 48).⁶⁶ The amount of palladium incorporated into the polymer was 0.28 mmol g⁻¹ of the heterogenized catalyst. The catalyst was air-stable, easily available and found to be an efficient catalyst in the palladium-catalyzed Suzuki–Miyaura Miyaura coupling reactions of aryl iodides and bromides (Scheme 49). Under the appropriate reaction conditions, all the reactions gave the desired products in moderate to excellent yields. The supported palladium catalyst was easily separated by filtration, and could be reused for several times without a significant loss of catalytic activity.

Scheme 48 Triazole-functionalized polystyrene resin-supported Pd(II) [PS-tazo-Pd(II)] complex (catalyst 58).

Scheme 49 Suzuki–Miyaura reaction of aryl halides with phenylboronic acid using PS-tazo-Pd(II) complex 58.

Polymer-supported N-heterocyclic carbene ligands. N-Heterocyclic carbenes have strong donor properties, and bind transition metals more strongly than phosphines. An amphiphilic polymer-supported N-heterocyclic carbene palladium complex (catalyst 61) has been prepared by anchoring a hydrophilic polyethylene glycol chain (PEG-200, PEG-600) to a polystyrene core, covalently bound to an N-heterocyclic carbene (Scheme 50) for Suzuki–Miyaura reactions in water with Cs₂CO₃ as the base at 50 °C (Scheme 51).⁶⁷ The methodology could be mainly applied to the cross-coupling of aryl iodides and to a lesser extent to aryl bromides. The catalytic system was reused with gradually decreasing activity up to five recycling runs.

Scheme 50 Immobilization of palladium on the PS–PEG–NHC precursor resin.

Scheme 51 Coupling reactions with the heterogeneous carbene complex catalyst 61 by Lee et al.

Oxime-thiosemicarbazone ligand. A palladium complex, 1-phenyl-1,2-propanedione-2-oxime thiosemicarbazone functionalized polystyrene resin-supported Pd(II) (catalyst 62), was found to be a highly active catalyst for the Suzuki–Miyaura reaction of phenylboronic acid with aryl iodides and bromides, giving excellent yields (Scheme 52).⁶⁸ The reactions were performed under phosphine-free conditions in an air atmosphere. The reaction was effectively carried out in the presence of a wide variety of functional groups on the aryl iodides and aryl bromides, giving good to excellent conversions to the corresponding products. 4-Nitro-iodobenzene and 3-nitro-iodobenzene were found to be the most reactive among the aryl iodides studied. The less reactive bromobenzene showed a lower yield. However, the activated aryl bromides, e.g. 4-bromobenzonitrile and 4-nitrobromobenzene, gave the corresponding products in excellent yields. The palladium catalyst was easily separated by centrifugation after completion of the reaction, and could be reused for several times, but the product yield decreased slightly over four recycling runs.

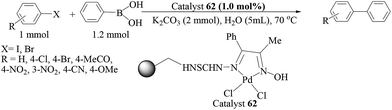

Scheme 52 Suzuki–Miyaura coupling reactions using the heterogeneous catalyst PS-ppdot-Pd(II).

Palladium supported on an ionic copolymer. Jun Huang and co-workers⁶⁹ demonstrated a facile one-step synthetic strategy for a catalyst system by immerging a porous ionic copolymer (PIC) (Scheme 53) into a Pd(OAc)₂ acetone solution. Acetone was then removed by evaporation to give the Pd catalyst Pd(OAc)₂/PIC. A high yield for 4-methoxybiphenyl was obtained in water under air or argon, and the addition of the phase-transfer agent TBAB enhanced the yield significantly (Scheme 54). Even with 10 ppm (0.001 mol%) loading of Pd, a high yield (95%) was obtained, which showed the extremely high activity of the Pd catalyst system. The coupling reaction of electron-poor aryl chlorides afforded the corresponding biphenyl compounds in excellent yields at 120 °C in 10 hours with 0.01 to 1% Pd loading. The deactivated aryl chloride, 4-chloroanisole, was also coupled with phenylboronic acid in a good yield but with higher Pd loading. Pd/PIC could be separated easily by filtration after one cycle of the reaction, and the Pd/PIC nanocatalyst was recyclable without loss of efficiency.

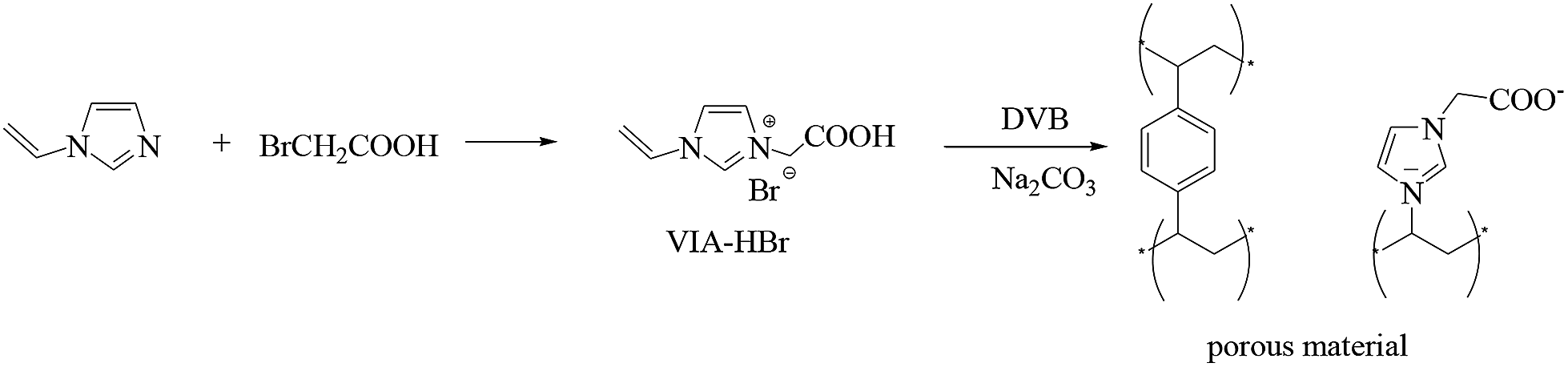

Scheme 53 Synthesis of PIC.

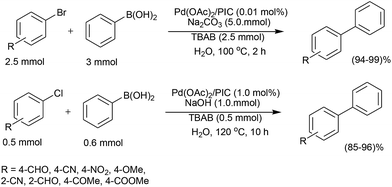

Scheme 54 Selected examples of the Suzuki–Miyaura coupling using Pd/PIC.

Pluronic F68 triblock copolymer. Palladium nanoparticles stabilized by the Pluronic F68 triblock copolymer were prepared by reduction of Na₂PdCl₄ in the presence of Pluronic F68 (catalyst 63).⁷⁰ TEM data showed that the catalyst contained mainly cubo-octahedral Pd NPs with an average diameter of 5.4 nm and with relatively low dispersion. The electron diffraction pattern indicated the crystalline nature of Pd NPs. Suzuki–Miyaura reactions were performed with phenylboronic acid and water-soluble aryl iodides and aryl bromides containing an electron-withdrawing or electron-donating substituent, in water in the presence of potassium hydroxide as the base (Scheme 55). The catalyst showed a high efficiency, and the reaction occurred at room temperature in the presence of an optimal amount of KOH (5 equiv.), and a palladium concentration of 1 mol%, and the reaction with m-iodobenzoic acid was almost complete within 0.5 h. The catalytic activity was found to depend on the size of the palladium nanoparticles and their morphology. In particular, the most active under the examined conditions were the trigonal Pd NPs.

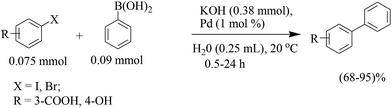

Scheme 55 Suzuki–Miyaura coupling reaction using the Pd–Pluronic F68 triblock copolymer catalyst 63.

Entrapped palladium with functionalized polymers. Entrapping of palladium by the immobilization of palladium acetate on a TentaGel resin has been reported by Bradley and co-workers for the Suzuki–Miyaura reaction.⁷¹ The cross-linked resin-captured palladium (XL-RC Pd, catalyst 64) was prepared by treating a mixture of aminomethylated TentaGel resin with palladium acetate (10 wt% of resin) in toluene at 80 °C for 10 min followed by stirring at room temperature for 2 h to afford brown colored resin-captured palladium acetate. The resin was filtrated and treated with 10% hydrazine hydrate in methanol to get Pd(0). The resulting resin was cross-linked with succinyl chloride to fix the captured palladium. TEM images showed Pd(0) nanoparticles with an average size of 7.4 nm. The catalytic system based on the loading of the complex catalyst 64 (10 mol%) and K₂CO₃ as a base in water at 80 °C, showed good activity for the reaction with aryl bromides, while aryl chlorides proved to be poorly reactive under these reaction conditions (Scheme 56). The coupling reaction required a short duration under microwave activation compared to that under thermal heating. The “three-phase test” showed the high stability of the catalyst. Simple filtration was sufficient for the recovery of the catalyst, which could be recycled at least six times without any decrease in activity.

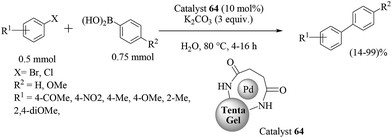

Scheme 56 Active, entrapped complex catalyst 64 in Suzuki–Miyaura reactions.

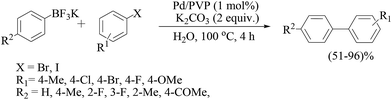

Poly(vinylpyrrolidone) support. In the absence of any ligand, a Suzuki–Miyaura reaction of aryl iodides and bromides with potassium aryltrifluoroborate catalyzed by recoverable palladium(0) on poly(vinylpyrrolidone) (PVP) was developed (Scheme 57).⁷² The optimized reaction conditions involved the use of Pd/PVP (106 mg of 1% Pd on PVP, 0.01 mmol of metal), K₂CO₃ (272 mg, 2.0 mmol), aryl halide (1.0 mmol), potassium organotrifluoroborate (1.0 mmol) and water (5 ml) refluxing at 100 °C. Bromoarenes and boronic acids were also reactive under the reaction conditions but produced the products in significantly lower yields. Palladium on PVP could be recycled at least eight times without loss of activity via a simple decantation procedure. No clues on the heterogeneous or homogeneous pathway for the catalysis were reported in this study.

Scheme 57 Poly(vinylpyrrolidone)-supported palladium catalyst in Suzuki–Miyaura reactions.

QuadraPure support. Cross-linked resin-captured palladium (XL-QPPd) was prepared⁷³ by treating a mixture of solid support QuadraPure with palladium acetate in toluene at 80 °C for 10 min. The resulting resin was then cross-linked with succinyl chloride and triethylamine in dry DMF solvent followed by the treatment with hydrazine hydrate in methanol (10%) at room temperature to get black resin palladium catalyst (1.5 mmol of Pd per g). TEM image and X-ray diffraction analysis revealed that the palladium nanoparticles were well dispersed with diameters ranging from 4–10 nm. The catalyst showed good catalytic activity in Suzuki–Miyaura cross-coupling reactions with various aryl halides and phenylboronic acid in the presence of the resin (5 mol% based on Pd content) for 10 min in water under aerobic and microwave conditions (120 °C, 100 W) (Scheme 58). Although the catalytic system performed well for aryl bromides and aryl iodides, the resin gave poor yields with aryl chlorides under the same reaction conditions. The resin could be recovered by simple filtration and showed consistent catalytic activity after 10 runs with no significant loss of activity. The leaching of Pd analyzed using ICP-MS was only 0.21 ppm.

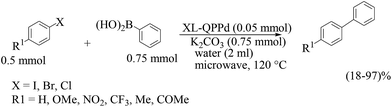

Scheme 58 Microwave-promoted Suzuki–Miyaura couplings of aryl halides with phenylboronic acid catalyzed by XL-QPPd nano.

Palladium supported by polyaniline. Diaconescu and co-workers⁷⁴ reported the preparation of biphenyls by polyaniline nanofiber-supported palladium nanoparticle-catalyzed cross coupling reactions of chloroarenes and boronic acids. Using a low loading of Pd/PANI (0.05 mol%) and NaOH as the base, activated and deactivated chloroarenes were coupled with boronic acids in the absence of an additive in refluxing water (Scheme 59). These results were reinforced by the good reusability of the catalyst for more than ten cycles.

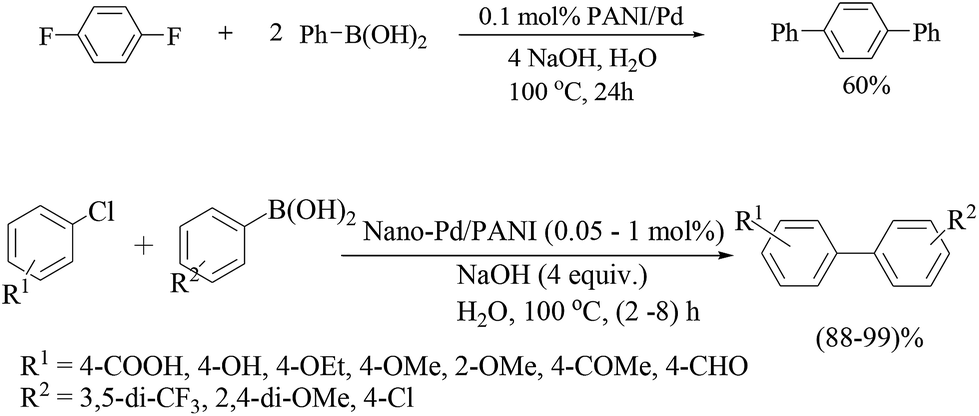

Scheme 59 Selected examples of the Suzuki–Miyaura reaction by Diaconescu et al.

Another report of polyaniline-supported palladium was by M. L. Kantam and co-workers.⁷⁵ Four types of catalyst were prepared from different palladium precursors and all the catalysts were tested in Suzuki–Miyaura couplings of bromo- and chloroarenes in water (Scheme 60), and the catalyst prepared from the PdCl₂ precursor was found to be the most effective catalyst. Cs₂CO₃ was found to be the best one though other inorganic bases like K₃PO₄ and KF were also found to be fairly active under these conditions in comparison to organic bases like Et₃N and Bu₃N. Bromoarenes with electron-withdrawing functionalities reacted at a faster rate than the bromoarenes bearing electron-donating functionalities. Arylboronic acids with an electron-withdrawing group required longer times than those with an electron-donating group. Sterically hindered arylbromides as well as arylboronic acids reacted sluggishly. The catalyst loading could be reduced to 0.5 and 0.1 mol% but longer reaction times were required for excellent yields. The catalyst was used for five consecutive cycles and the difference in palladium content between the fresh and used catalyst was ca. 2%.

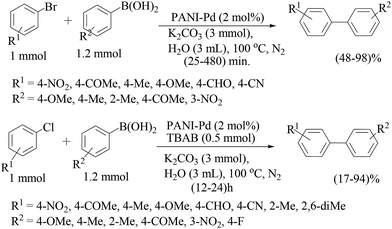

Scheme 60 Suzuki–Miyaura couplings using PANI–Pd by L. Kantam et al.

Palladium supported by a hydrogel. Ligand-free, palladium-supporting poly(N-isopropylacrylamide-co-potassium methacrylate) [poly(NIPA-co-PMA)] hydrogel nanocomposites with different co-monomer ratios were synthesized (Scheme 61)⁷⁶ and examined in Suzuki–Miyaura cross-coupling reactions of aryl halides with arylboronic acids in an aqueous medium (Scheme 62). The hydrogel with a co-monomer ratio of 8.8 : 1.6 mmol of NIPA : PMA exhibited optimum catalytic activity, and could effectively be reused 5–6 times without loss of catalytic activity. The study revealed that the hydrophilicity of the catalyst and its swelling in the water medium played a decisive role in determining the catalytic performance.

Scheme 61 Schematic representation of the synthesis process of the Pd@poly(NIPA-co-PMA) hydrogel catalyst.

Scheme 62 Suzuki–Miyaura cross-coupling reactions of aryl halides with arylboronic acids in water.

Palladium nanoparticles on a hydrogel (catalyst 66) prepared by Rhee and co-workers (Scheme 63)⁷⁷ showed high activity in Suzuki–Miyaura coupling reactions of arylboronic acids and aryl bromides with a wide range of functional groups, containing electron-donating and electron-withdrawing groups, in water and under mild reaction conditions (80 °C) (Scheme 64). The catalyst showed excellent activity for the first five runs, resulting in high yields above 90–95% in 40 min. After each run, the amount of Pd leaching was estimated by performing ICP measurements on the supernatant solutions. No significant Pd leaching (<0.5 ppm) was observed.

Scheme 63 (a) Preparation of the PNIPAM-co-4-VP co-polymers, and (b) preparation of Pd nanoparticles on the PNIPAM-co-4-VP co-polymer.

Scheme 64 Suzuki–Miyaura coupling reactions of arylboronic acids and aryl bromides using catalyst 66.

Natural source. Chitosan, a biopolymer composed of D-glucosamine and N-acetylglucosamine, has been considered as a suitable water-compatible solid support for palladium (Scheme 65) in the Suzuki–Miyaura reaction (Scheme 66).⁷⁸ The optimized reaction conditions involved TBAB as a phase-transfer agent and K₃PO₄ as a base in the presence of 0.5 mol% of the palladium catalyst (Pd/chitosan), which showed good activity under microwave activation for iodo- and bromoarenes while chloroarenes were much less reactive. The heterogeneous catalyst was reused for the reaction of 4-iodoacethophenone with phenylboronic acid with consistent activities over five cycles.

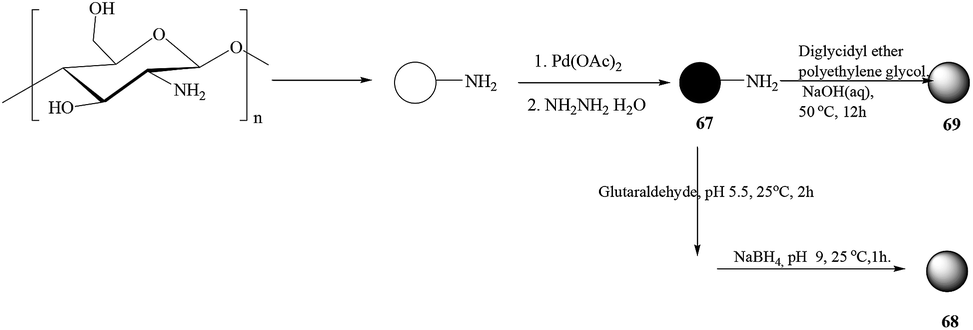

Scheme 65 Preparation of the chitosan-supported palladium(0) catalyst.

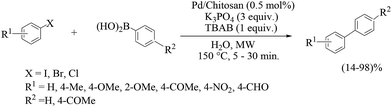

Scheme 66 Palladium supported on chitosan as a catalyst for Suzuki–Miyaura reactions.

Following the previous report, a chitosan-g-mTEG (methoxy triethylene glycol)- or -mPEG (methoxy polyethylene glycol)-supported palladium(0) catalyst (Scheme 67) for the Suzuki–Miyaura cross-coupling reaction in water has been demonstrated by the same author (Scheme 68).⁷⁹ The catalyst showed excellent catalytic activity in the Suzuki–Miyaura cross-coupling reaction without additional phase-transfer reagents due to the enhanced solubility of the organic substrate by PEG grafting. In addition, the catalyst could be reused up to five times with the catalytic activity being recovered easily after simple manipulations.

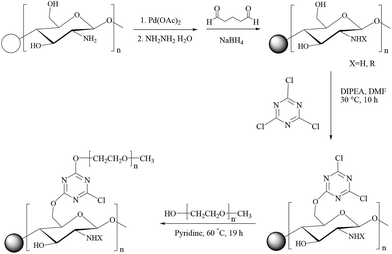

Scheme 67 Preparation of the CS-g-mTEG or -mPEG Pd(0) catalyst.

Scheme 68 Suzuki–Miyaura coupling using the CS-g-mTEG or -mPEG Pd(0) catalyst.

The activity of the g-mTEG or -mPEG Pd(0) catalyst was similar to the one of the CS–Pd(0) catalyst when TBAB was used as a phase-transfer reagent, but without TBAB, the activity of the CS-g-mPEG Pd(0) catalyst was superior to that of the CS–Pd(0) catalyst which demonstrated that grafted mTEG or mPEG worked as an effective phase-transfer reagent in the Suzuki–Miyaura cross-coupling reaction in water. Aryl iodides and bromides gave viable product yields while aryl chlorides gave comparatively lower yields. CS-g-mPEG Pd(0) showed better catalytic activity than the non-grafted CS–Pd(0) catalyst and was found to be effective for the coupling of aryl chloride in water. The CS-g-mPEGPd(0) catalyst was reused up to five times with gradually decreasing activity which might be due to the aggregation of palladium nanoparticles inside the chitosan beads, according to the authors.

Another report on chitosan-supported Palladium catalysts (Scheme 69) is by Pombeiro et al.⁸⁰ Pd-Chit 70 and Pd-Chit 71 (Fig. 7) have been exploited for model microwave-assisted Suzuki–Miyaura cross-coupling reactions in water to give excellent yields. The effects of catalyst loading, temperature, time, the phase-transfer agent tetrabutylammonium bromide (TBAB) and base were investigated. The catalytic reactions of the supported material proceeds heterogeneously as proven by activity studies and ICP-AES analyses on leaching. Although the presence of the phase-transfer agent TBAB favoured the reaction, its effect was less pronounced with the increase in temperature and become negligible at 160 °C. The presence of a base was fundamental and potassium carbonate was the best one among those screened. The chitosan-supported heterogeneous catalyst could be successfully recovered and reused up to seven times though with a gradual loss of catalytic activity.

Scheme 69 Synthesis of the fused bicyclic oxadiazoline A and ketoimine B palladium(II) complexes.

Fig. 7 Palladium catalysts by Pombeiro et al.

The use of palladium nanoparticles stabilized by natural beads made of an alginate/gellan mixture (Fig. 8, Scheme 70) in the Suzuki–Miyaura cross-coupling reaction of arenediazonium tetrafluoroborates with potassium aryltrifluoroborates (1 : 1 molar ratio) with a catalyst loading as low as 0.01–0.002 mol% under aerobic, and phosphine- and base-free conditions in water is described (Scheme 71).⁸¹ Good to high yields were obtained with arenediazonium tetrafluoroborates and potassium aryltrifluoroborates containing both electron-donating and electron-withdrawing substituents. However, a more severe steric congestion leads to trace amounts of the desired product. SEM analysis, at higher magnification, displayed aggregated nanoparticles and TEM measurements indicated that the catalyst system before use contained spheroidal palladium nanoparticles, whose average size was 3.4 ± 1.4 nm. The catalyst system could be reused several times without significant loss of activity. The material recovered after eight runs showed nanoparticles of about 3.6 ± 1.7 nm in diameter.

Fig. 8 Chemical structures of alginate (A) and gellan (G).

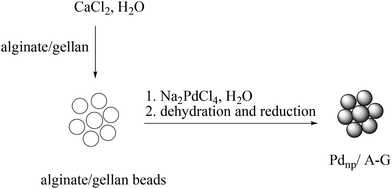

Scheme 70 Synthesis of Pd_np/A–G.

Scheme 71 Reaction of arenediazonium tetrafluoroborates with potassium aryltrifluoroborates catalyzed by Pd_np/A–G.

Biopolymer. A heterogeneous biopolymer complex wool–Pd catalyst (Fig. 9, catalyst 72) has been applied in water-mediated coupling reactions of aryl iodides and bromides with arylboronic acids (Scheme 72).⁸² The reaction could be conducted under atmospheric conditions without any specific protection and phase-transfer agent. The experimental observations showed that the catalytic system was applicable to various aryl iodides and bromides and tolerant to a broad range of functional groups, including H, NO₂, NH₂, OR, OH, COMe and CHO. The catalyst was reusable and easy to separate, and the product could be obtained by simple filtration.

Fig. 9 Wool-Pd catalyst 72.

Scheme 72 Suzuki–Miyaura coupling reactions using wool-Pd.

Hybrid organic–inorganic supports

Silica supported PEG. Cruden and co-workers reported a highly active and stable silica-supported palladium complex for the Suzuki–Miyaura reaction.⁸³ A variety of iodoarenes and bromoarenes were coupled with boronic acids in high yields with only 0.1 mol% palladium catalyst 73 loading with K₃PO₄ as a base (Scheme 73). Leaching of palladium into the extracted solvent was not observed and the aqueous suspension of the catalyst might be reused at least five times without noticeably decreasing activity. The remarkable stability of this palladium complex was demonstrated by the activity of the catalyst after six weeks of exposure to air.

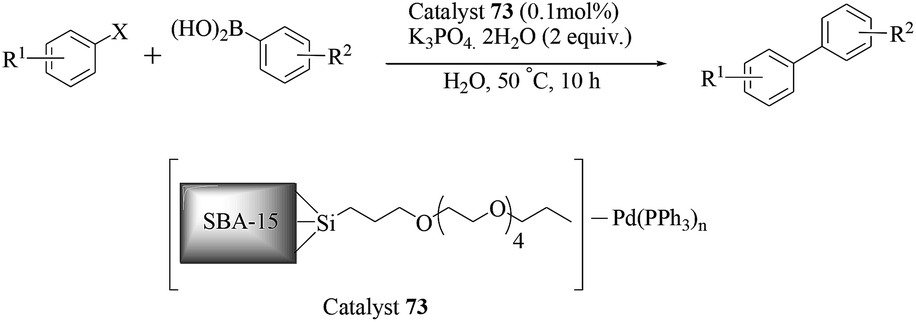

Scheme 73 Suzuki–Miyaura coupling reaction presented by Ma et al.

A highly active heterogeneous catalyst was prepared by Xiong et al. from coated mesoporous materials which contain a layer of readily available PEG (Scheme 74).⁸⁴ Suzuki–Miyaura coupling reactions in water were performed with this catalyst at 50 °C using K₃PO₄ as the base (Scheme 75). The presence of electron-donating or -withdrawing groups on aryl halides or aryl boronic acids as well as steric hindrance did not have any considerable effect on the product yield under these reaction conditions. In most cases, the reaction with 0.1 mol% catalyst could afford the products in fairly good yields; the catalyst loading could even be reduced to 0.01 or 0.001 mol%. The coupling reaction was found to be effective with phenyl bromide and with the very unreactive phenyl chloride. The catalyst was highly stable and remained catalytically active after exposure to air for up to 6 weeks. An aqueous suspension of the catalyst could be reused several times by simple extraction. No leaching of the catalyst to the organic layer was observed.

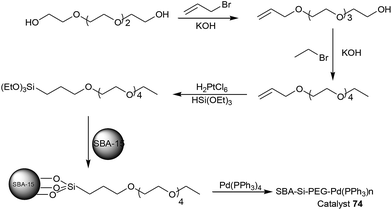

Scheme 74 Synthesis of the mesoporous silica-supported catalyst 74.

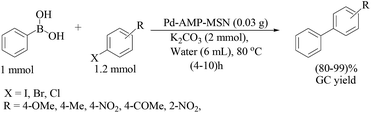

Scheme 75 Suzuki–Miyaura coupling reaction presented by Xiong et al.

Silica-supported ionic liquids. An efficient and reusable catalyst with PdEDTA immobilized on an ionic liquid brush (Scheme 76) and a green procedure have been developed for the coupling of aryl iodides and bromides with phenylboronic acid (Scheme 77).⁸⁵ For a smooth reaction, 1 mol% of the catalyst was sufficient, giving the desired coupling product in nearly quantitative yield without any detectable unwanted self-coupling product. Even with an amount as small as 0.5 mol%, the catalyst exhibited good performance. Aryl iodides were clearly more reactive and gave the coupling products in yields ranging from 90% to almost 100% for the examples screened. The yield gradually decreased for aryl bromides to aryl chlorides with longer reaction times. The catalyst also worked efficiently for heteroaryl halides. Electron-withdrawing and electron-donating substituents on either the aryl halide or phenylboronic acid did not have a detrimental effect on the ability of the catalyst. Couplings proceeded successfully to give the desired products in high yields even in the presence of sensitive groups such as MeCO, CO₂H, NH₂, CN, and OH, without any protection.

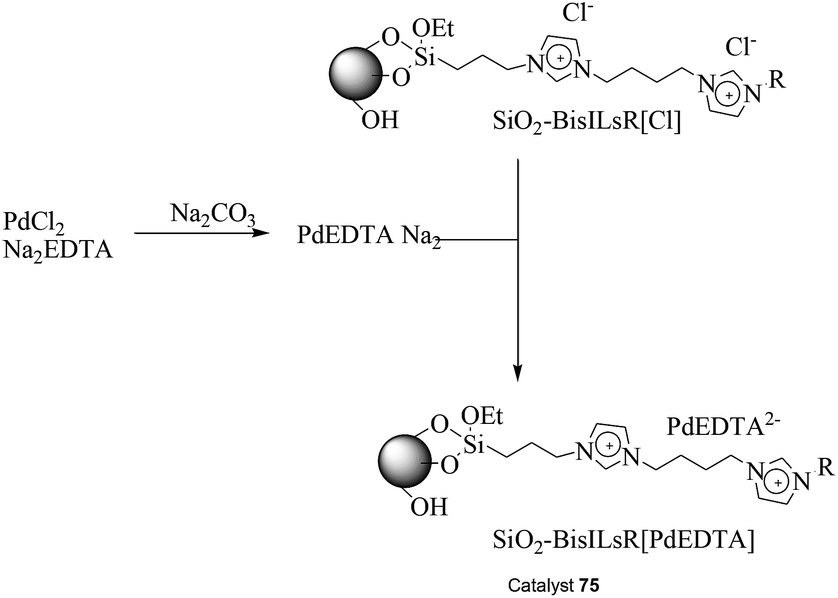

Scheme 76 Preparation of silica-immobilized ionic liquid brush catalysts.

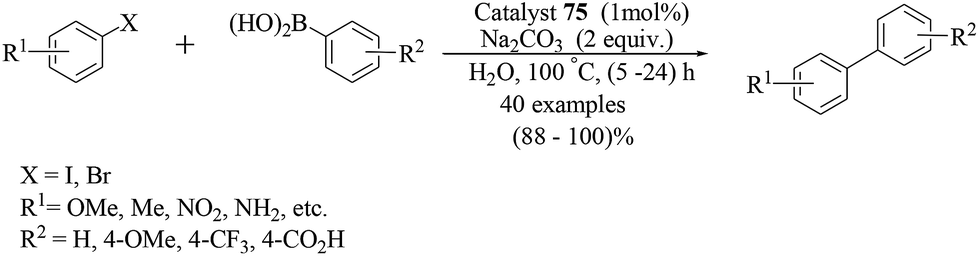

Scheme 77 Suzuki–Miyaura reactions with the complex catalyst by Wei et al.

The palladium-in-brush catalyst could be recovered by simple filtration. Ten consecutive preparations of 4-methoxybiphenyl showed no significant reduction in yield which was again supported by ICP-MS analyses showing low leaching of less than 0.5% of the initial palladium loading).

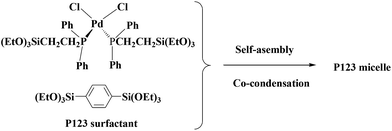

The parent ordered mesoporous organosilica with ionic liquid framework (PMO-IL) was synthesized by hydrolysis and co-condensation of 1,3-bis-(3-trimethoxysilylpropyl)imidazolium chloride and tetramethoxysilane in the presence of pluronic P123 as a template under acidic conditions. This nanostructured PMO-IL material was then reacted with a sub-stoichiometric amount of Pd(OAc)₂ to afford the corresponding palladium-containing periodic mesoporous organosilica (Pd@PMO-IL) catalyst (Fig. 10) (Scheme 78).⁸⁶ Pd@PMO-IL was established as an efficient and reusable catalyst for the Suzuki–Miyaura coupling reaction of various types of aryl iodides, bromides, and even deactivated chlorides in water (Scheme 79). It was also found that, although the PMO-IL nanostructure acted as a reservoir for soluble Pd species, it could also operate as a nanoscaffold to recapture Pd nanoparticles into the mesochannels thus preventing extensive agglomeration of Pd. Among the various bases screened, K₂CO₃ provided the highest cross-coupling yield. Highly deactivated heteroaromatic substrates led to the corresponding bis(aryl) products in excellent yields. The catalyst was also capable of activating chlorobenzene to produce the desired products in significant yields. Moreover, various functional groups, such as cyano, acyl, CHO, methyl and methoxy, were tolerated and the corresponding coupled products were obtained in good to excellent isolated yields. Surprisingly, hot filtration tests and selective catalyst poisons showed the presence of soluble Pd species during the reaction process but atomic spectroscopy and catalyst recovery studies illustrated no significant decrease in activity and metal content of recovered Pd@PMO-IL.

Fig. 10 Silica-immobilized PdEDTA^2- ionic liquid.

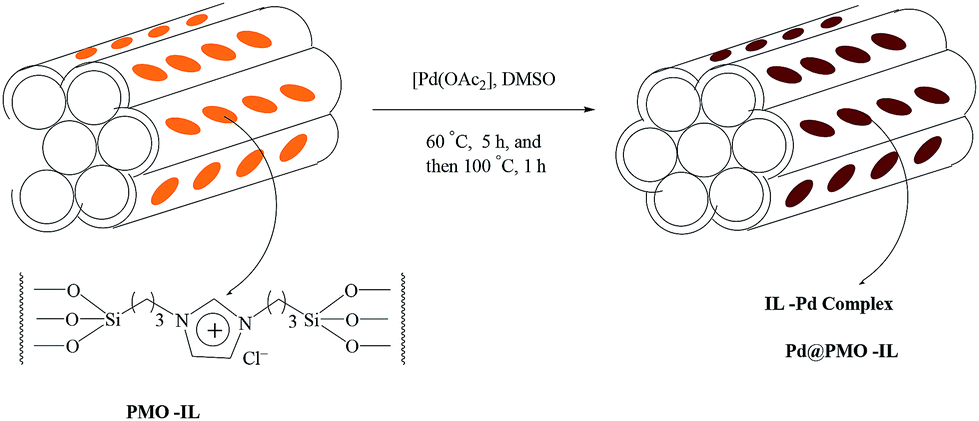

Scheme 78 Preparation of the Pd@PMO-IL catalyst.

Scheme 79 Suzuki–Miyaura cross-coupling of various aryl halides with ArB(OH)₂ in the presence of the Pd@PMO-IL catalyst in water.

Silica-supported oxime-based ligands. Corma and co-workers inspired by the studies of Najera and co-workers⁸⁷ described the use of an oxime palladacycle covalently anchored onto silica-based inorganic supports (Scheme 80) in the Suzuki–Miyaura reaction in water.⁸⁸ The oxime palladacycle was anchored either on amorphous silica (Pd/SiO₂, catalyst 76) or on MCM-41 (Pd/MCM-41), and the reactivities of the resulting catalysts were evaluated in parallel experiments. Although both catalysts were catalytically active, the Pd/SiO₂ catalyst 76 gave the best results with bromoarenes and activated chloroarenes at 5 mol% palladium loading with K₂CO₃ as the base (Scheme 81).

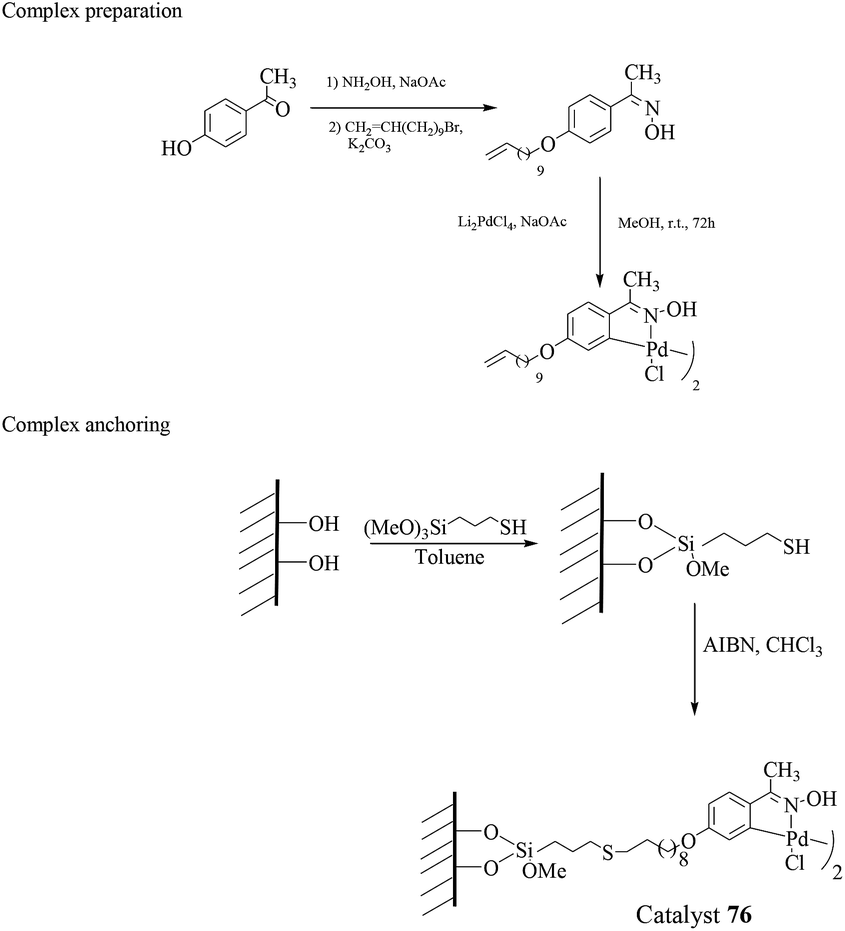

Scheme 80 Anchoring procedure of the oxime carbapalladacycle onto the mercaptopropyl-modified high surface silica.

Scheme 81 Selected examples described by Corma et al.

The use of an organic solvent such as 1,4-dioxane was detrimental for the successful reaction. Moreover, the same oxime palladacycle anchored onto polymeric supports, i.e. polystyrene and polyethylene glycol bis(methacrylate), gave low conversions for the coupling products. Recycling of the Pd/SiO₂ catalyst 76 was evaluated using 4-chloroacetophenone and phenylboronic acid as the substrates and indicated that eight consecutive reactions could be run without any decrease in activity. Leaching studies using the “three-phase test” were conclusive for a truly heterogeneous process with no detectable palladium species being released into the medium.

In a subsequent study, Corma and co-workers reported a related oxime palladacycle anchored onto a periodic mesoporous organosilica (PMO) (Scheme 82).⁸⁹ Although the results reported by Corma and co-workers were relevant for bromoarenes, the Pd/PMO catalyst was essentially unreactive for aryl chlorides. Moreover, the recycling of Pd/PMO was limited by a significant decrease in catalytic activity upon reuse. As a consequence, PMO did not convey any benefits over the only amorphous silica.

Scheme 82 Synthesis of catalyst 77.

Silica-supported mercaptopropyl ligands. Because of its high porosity and surface area, the mesoporous silicate SBA-15 was also exploited as a support with mercaptopropyl ligands by Crudden and co-workers.⁹⁰ Only three bromoarenes and a single chloroarene were studied in cross-coupling reactions with phenylboronic acid in water. Excellent catalytic activity was achieved for the mercaptopropyl-anchored SBA-15 palladium catalyst 78 (Scheme 83). Heterogeneity tests clearly indicated that the reaction occurred through a truly heterogeneous catalysis. Although the mercaptopropyl ligands, anchored to an amorphous silica support (SiO₂), showed a similar catalytic activity, the recycling ability was hampered by a noticeable loss of activity after the second cycle.

Scheme 83 Suzuki–Miyaura coupling reactions using the SBA-15 palladium catalyst 78.

Silica-supported phosphine ligands. A study describing the use of a fluorous reversed-phase silica gel as a support for the non-covalent immobilization of perfluoro-tagged palladium phosphine complexes has been described by the group of Bannwarth.⁹¹ Complex catalyst 80, immobilized on the fluorous-reversed silica gel 79 (Fig. 11) by a simple dispersion technique, gave the best results in the cross-couplings of water-soluble aryl bromides with arylboronic acids (Scheme 84), but less water-soluble substrates were essentially unreactive. The immobilization of triphenylphosphine–palladium complexes on normal silica gel led to a supported-catalyst having similar activity, however, significant palladium leaching was observed in the solvent (7.4%). In comparison, the fluorous complex appeared much more robust (0.8% leaching). The “three-phase test” was conclusive for a homogeneous catalysis operating likely by a “release and capture” mechanism. The low leaching observed with this catalytic system allowed the recycling of the complex for five runs with only limited and progressive deactivation.

Fig. 11 Structure of the fluorous silica-supported perfluoro-tagged phosphine palladium catalyst.

Scheme 84 Cross-coupling reactions according to the work of Bannwarth and co-workers.

Cai et al. also reported Suzuki–Miyaura cross-coupling reactions using perfluoro-tagged palladium nanoparticles on a fluorous silica gel (FSG) as the catalyst (Scheme 85), K₂CO₃ as the base and TBAB as an additive in H₂O, affording the corresponding biphenyls in moderate to high yields (Scheme 86).⁹² It was obvious from the TEM image that the spherical palladium nanoparticles were successfully dispersed in the silica matrix with an average size of 2–3 nm. The catalyst could be recovered by simple filtration and reused several times with a slight decrease in activity.

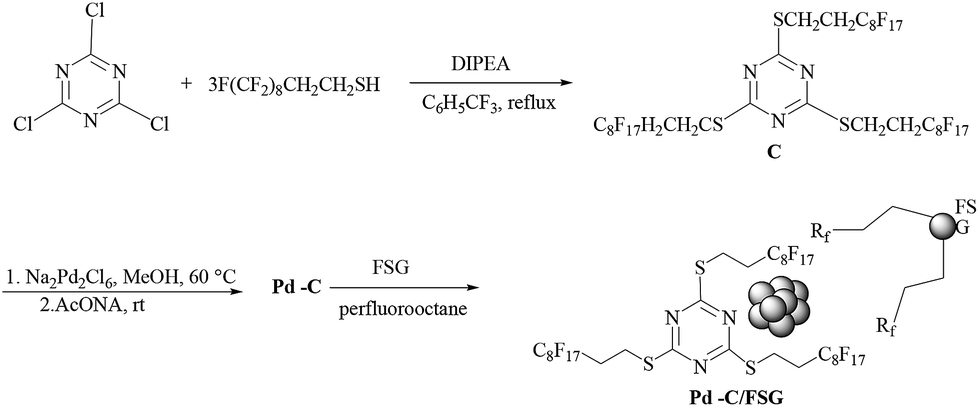

Scheme 85 Preparation of fluorous nanoparticle stabilizer and the fluorous silica gel-supported Pd catalyst.

Scheme 86 Pd–C/FSG-catalyzed Suzuki–Miyaura reactions.

Aryl bromides bearing either electron-donating or electron-withdrawing substituents in the ortho- and para-positions, afforded the corresponding biphenyls in good to excellent yields. Aryl trifluoromethanesulfonate and aryl perfluorooctanesulfonate were more active than bromobenzene in terms of yield as well as the time. However, chlorobenzene was not active in the reaction and only a moderate yield was obtained even when the catalyst was increased to up to 1 mol%. When activated aryl chloride was used, a relatively higher yield was obtained though the yield was still unsatisfactory. Recycling studies showed that the supported catalyst could be reused several times with a slight decrease in activity, and Pd leaching was less than 10 ppm.

A Pd(II) organometal catalyst with a three-dimensional (3D) cage-like Ia3d cubic mesoporous structure and a high surface area was prepared (Scheme 87).⁹³ In comparison with the corresponding catalyst with a two-dimensional (2D) P6mm hexagonal mesoporous structure, the as-prepared catalyst exhibited higher activities in water-medium Suzuki–Miyaura coupling reactions owing to the diminished diffusion limit. It showed comparable efficiencies with the Pd(PPh₃)₂Cl₂ homogeneous catalyst and could be easily recycled and reused for five times without significant loss of activity (Scheme 88).

Scheme 87 Illustration of preparing Pd(II)–PMO(Ph)-3D.

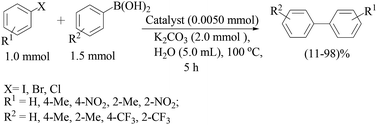

Scheme 88 Water-medium Suzuki–Miyaura reactions on the Pd(II)–PMO(Ph)-3D-2 catalyst.

Acetyl acetonate ligands. Supported Pd nanoparticles on an acetyl acetone modified silica gel (catalyst 81) were prepared (Scheme 89), and the catalytic application in the Suzuki–Miyaura reaction of various aryl halides with phenylboronic acid was investigated (Scheme 90).⁹⁴ The amount of Pd on the catalyst was 0.04 mmol g⁻¹ (4.26 mg g⁻¹) determined using AAS. The TEM image indicated the presence of palladium nanoparticles in the range of 6–12 nm.

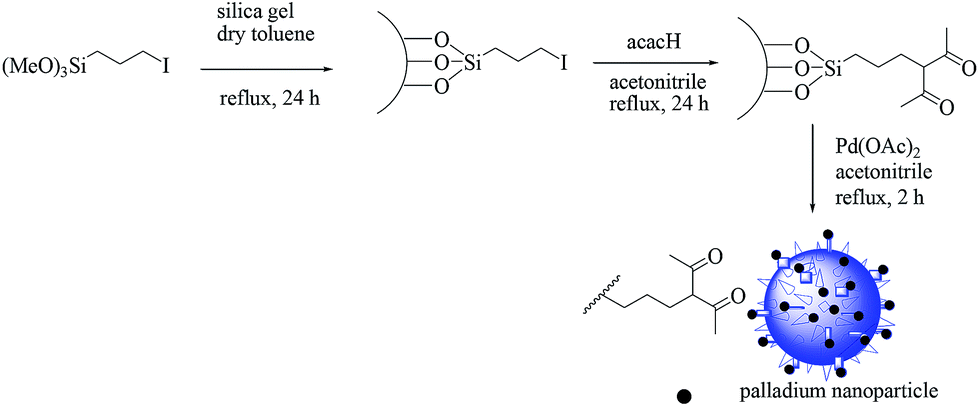

Scheme 89 Pd nanoparticles on an acetyl acetone modified silica gel (catalyst 81).

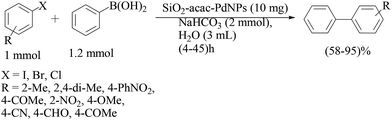

Scheme 90 Suzuki–Miyaura coupling reaction using Pd nanoparticles on an acetyl acetone modified silica gel.

Under optimized conditions, the reaction of 4-bromoacetophenone and phenylbronic acid using 10 mg (0.0004 mmol, 0.04 mol% Pd) of the catalyst and 2 equiv. of the base gave the best result. Water was the most efficient solvent and NaHCO₃ was chosen as the best base for this reaction. The catalyst could be used for cross-coupling reactions of aryl iodides, bromides and even less reactive aryl chlorides under the reflux temperature, which were transformed to the corresponding coupled products in good to excellent yields in short reaction times. However, aryl chlorides reacted more slowly in comparison to the iodide and bromide derivatives. The most hindered aryl halides usually produced the corresponding biaryls with longer reaction times and lower yields. The catalyst was recycled four times with essentially no loss of activity, even after recycling it six times, good product yields could still be obtained.

Amino pyridine linker. S. M. Islam et al.⁹⁵ have reported the synthesis and catalytic activity of a mesoporous silica nanosphere-supported palladium(II)–2-aminopyridine complex (Pd–AMP-MSN) (Scheme 91). FTIR spectroscopic analysis confirmed the presence of 2-aminopyridine functionalities inside the mesopores of Pd–AMP-MSN. FESEM and HRTEM results indeed showed the formation of nanospheres with mesoporous structures. This catalytic system exhibited excellent activity in Suzuki–Miyaura cross-coupling reactions of aryl iodides, aryl bromides and also aryl chlorides with phenylboronic acids in a water medium with high yields (Scheme 92). This Pd–AMP-MSN catalyst could be quantitatively recovered by simple filtration and was found to be highly active without any significant loss of catalytic activity after eight consecutive runs.

Scheme 91 Schematic illustration of the synthesis of the Pd–AMP-MSN catalyst.

Scheme 92 Suzuki-Miyaura cross-coupling reactions of phenyl bromide with ArB(OH)₂ using the Pd–AMP-MSN catalyst.

The catalytic efficiency was not significantly affected by the substituents on the aromatic ring of the halides. The Suzuki–Miyaura cross-coupling reaction of sterically hindered aryl halides could also proceed smoothly affording the desired coupled products in good yields. At the expense of time with up to 10 h, brominated heterocyclic derivatives afforded the products in good yields when treated with phenylboronic acid under the optimized conditions. The less reactive and less expensive phenyl chloride also showed moderate reactivity (yield 82–83%).

Zeolite-supported ionic liquids. Immobilization of palladium acetate with ionic liquids in the mesoporous channels of a hierarchically porous MFI zeolite (Scheme 93) has been envisaged as an active catalyst for Suzuki–Miyaura reactions under aqueous conditions.⁹⁶ The optimized catalytic system efficiently uses the heterogeneous palladium catalyst 82, in the presence of TBAB as the surfactant and K₃PO₄ as the base, for the preparation of various substituted biphenyls (Scheme 94). More than thirty examples showed that even very crowded bromoarenes could react smoothly at low catalyst loading (0.3 mol% Pd). In addition to this excellent catalytic activity, the heterogeneous palladium catalyst 82 was used in four consecutive runs with conserved efficiency (Fig. 12).

Scheme 93 Preparation of the MFI-supported Pd(OAc)₂–ionic liquid.

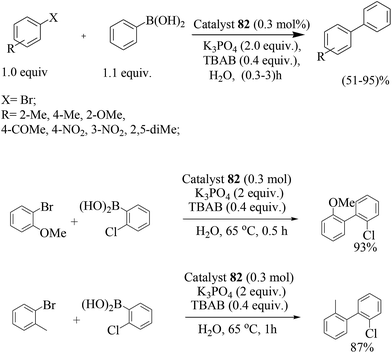

Scheme 94 Selected examples of the hindered biphenyl synthesis.

Fig. 12 Representation of catalyst 82.

Metal oxide-supported ionic liquids. Jin and co-workers described a very original approach based on a recoverable palladium supported magnetite Fe₃O₄–ionic liquid catalyst.⁹⁷ Due to the magnetic properties of nano-Fe₃O₄, the hybrid complex catalyst 83 (Scheme 95) could be separated from the reaction mixture by an external magnet avoiding the usual filtration or centrifugation process. The Pd–NHC/Fe₃O₄-IL catalyst 83 was evaluated for the Suzuki–Miyaura cross-coupling of bromoarenes with a variety of arylboronic acids. The catalyst system required K₃PO₄ as the base and TBAB as the phase-transfer agent in water at temperatures ranging from 40–85 °C. Numerous examples were reported with 0.5 mol% Pd indicating that the protocol was particularly efficient even in the presence of challenging substrates (Scheme 96). Recycling of 83 proved to be successful along five cycles. ICP analyses showed a palladium leaching after the first use of about 10 ppm which notably decreased upon subsequent reuses.

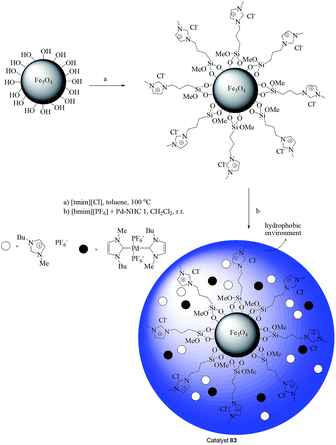

Scheme 95 Schematic representation for the synthesis of catalyst 83.

Scheme 96 Few examples of challenging couplings using catalyst 83.

Poly-vinyl-pyrolidone/KIT. The composite poly(N-vinyl-2-pyrrolidone)/KIT-5 (PVP/KIT-5) was prepared by an in situ polymerization method and used as a support for palladium nanoparticles obtained through the reduction of Pd(OAc)₂ by hydrazine hydrate.⁹⁸ The catalytic performance of this heterogeneous catalyst was determined in Suzuki–Miyaura cross-coupling reactions between aryl halides (X = I, Br, Cl) and phenylboronic acid in the presence of water at room temperature. The stability of the nanocomposite catalyst was excellent, and it could be reused eight times without much loss of activity. After completion of the reaction, the catalyst was recovered from the reaction mixture by simple filtration (Scheme 97).

Scheme 97 Suzuki–Miyaura reactions of aromatic aryl halides and phenylboronic acid catalyzed by Pd–PVP/KIT-5.

Following their previous work, a Pd nanoparticle–poly(2-hydroxyethyl methacrylate)/KIT-6 (Pd–PHEMA/KIT-6) composite was fabricated through an in situ polymerization method and was evaluated as a novel heterogeneous catalyst in Suzuki–Miyaura cross coupling reactions of aryl chlorides, bromides and iodides and phenylboronic acid under aerobic conditions in water by the same group of workers (Scheme 98).⁹⁹ The reactions were usually carried out at 40 °C for 1 h. Sometimes a higher temperature of 95 °C as well as longer reaction times were required for the reaction depending on the nature of the reactants. The Pd content of the catalyst estimated by ICP-AES was 0.956 mmol g⁻¹. The typical TEM micrographs showed a cubic Ia3d pore array structure for the Pd–PHEMA/KIT-6 nanocomposite. This heterogeneous catalyst could be reused at least nine times without any decrease in activity.

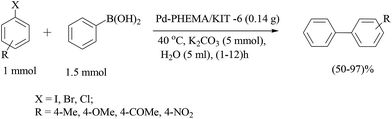

Scheme 98 Suzuki–Miyaura coupling reactions using Pd–PHEMA/KIT-6.

Metal Organic Framework (MOF). Water-mediated coupling reactions of aryl chlorides over heterogeneous palladium deposited on a zeolite-type MOF was reported.¹⁰⁰ This work represents the first example of an active catalyst, composed of a MOF as the support for metal NPs, for the coupling reactions of aryl chlorides (Scheme 99). The TEM image showed that the palladium NPs were highly dispersed, with a mean diameter of 1.9–0.7 nm, as estimated by the size distribution. The crystalline structure of the catalyst was mostly retained after five catalytic cycles. A very low amount of dissolved palladium (less than 0.2% of the total palladium) was detected in the solution at the end of the reaction.

Scheme 99 Suzuki–Miyaura coupling reactions of aryl chlorides over supported palladium catalysts.

Conclusions

The Suzuki–Miyaura cross-coupling reaction is a method for carbon–carbon bond formation, which is a highly useful and versatile method needed for the development of modern drug discovery and the synthesis of many natural products, polymers and other organic compounds of various importance. Tremendous effort has been put forward by chemists throughout the world for improving the Suzuki–Miyaura coupling reaction, keeping in mind the current need for greener reactions. The development of sustainable chemistry is a crucial area of research for the future advancement of our society. To cope with the growing demand for eco-friendly procedures, chemists have improved heterogeneous catalytic systems and moved to safer reaction media such as water. Although a considerable progress has been achieved for the Suzuki–Miyaura coupling reaction using palladium under heterogeneous conditions, the reaction pathway under heterogeneous conditions, the minimization of leaching of palladium after a few cycles, and the exploration of other eco-friendly metal catalysts for this reaction remain still to be investigated. Nevertheless, there are still many areas to explore in the area of eco-compatible chemical synthesis, and no doubt supported organometallic chemistry will lead the way along the path of progress.

Acknowledgements

SP thanks UGC for awarding DS Kothari a Post Doctoral Fellowship (no. F.4-2/2006 (BSR)/CH/13-14/0075). MMI acknowledges UGC, New Delhi, for awarding Maulana Azad a National Fellowship (F1-17.1/2013-14/MANF-2013-14-MUS-WES-24492/(SAIII). SMI acknowledges the Department of Science and Technology (DST) and Council of Scientific and Industrial Research (CSIR) New Delhi, India, for funding. We also acknowledge DST & UGC, Govt of India, for providing support to the Department of Chemistry, University of Kalyani, under the PURSE, FIST and SAP program.

Notes and references

1. For selected reviews, see: (a) V. Farina, Adv. Synth. Catal., 2004, 346, 1553; (b) H.-U. Blaser, A. Indolese, F. Naud, U. Nettekoven and A. Schnyder, Adv. Synth. Catal., 2004, 346, 1583; (c) A. Zapf and M. Beller, Chem. Commun., 2005, 431; (d) K. C. Nicolaou, P. G. Bulger and D. Sarlah, Angew. Chem., 2005, 117, 4516 (Angew. Chem., Int. Ed., 2005, 44, 4442); (e) G. Zeni and R. C. Larock, Chem. Rev., 2006, 106, 4644; (f) J.-L. Malleron, J.-C. Fiaud and J.-Y. Legros, Handbook of Palladium Catalyzed Organic Reactions: Synthetic Aspects and Catalytic Cycles, Academic Press, San Diego, 1997; (g) J. Tsuji, Palladium Reagents and Catalysts: Innovations in Organic Synthesis, Wiley, Chichester, 1995; (h) S. Budagumpi, R. A. Haque and A. W. Salman, Coord. Chem. Rev., 2012, 256, 1787; (i) E. A. B. Kantchev, C. J. O’Brien and M. G. Organ, Angew. Chem., Int. Ed., 2007, 46, 2768; (j) R. Stürmer, Angew. Chem., Int. Ed., 1999, 33, 3307.
2. J.-C. Hierso, M. Beauperin and P. Meunier, Eur. J. Inorg. Chem., 2007, 3760.
3. (a) G. Bringmann, R. Gotz, P. A. Keller, R. Walter, M. R. Boyd, F. Lang, A. Garcia, J. J. Walsh, I. Tellitu, K. V. Bhaskar and T. R. Kelly, J. Org. Chem., 1998, 63, 1090; (b) M. Vilaro, G. Arsequell, G. Valencia, A. Ballesteros and J. Barluenga, Org. Lett., 2008, 10, 3243; (c) J. K. Liu, Chem. Rev., 2006, 106, 2209.
4. (a) F. Alonso, I. P. Beletskaya and M. Yus, Tetrahedron, 2008, 64, 3047; (b) S. Kotha, K. Lahiri and D. Kashinath, Tetrahedron, 2002, 58, 9633; (c) N. T. S. Phan, M. Van Der Sluys and C. W. Jones, Adv. Synth. Catal., 2006, 348, 609; (d) A. Kumar, G. K. Rao, S. Kumar and A. K. Singh, Dalton Trans., 2013, 5200; (e) F. Bellina, A. Carpita and R. Rossi, Synthesis, 2004, 15, 2419; (f) D. A. Alonso and C. Nájera, Chem. Soc. Rev., 2010, 39, 2891; (g) B. Karimi and A. Zamani, Org. Biomol. Chem., 2012, 10, 4531.
5. (a) N. Miyaura and A. Suzuki, Chem. Rev., 1995, 95, 2457; (b) A. J. J. Lennox and G. C. Lloyd-Jones, Chem. Soc. Rev., 2014, 43, 412; (c) G. A. Molander and B. Canturk, Org. Lett., 2008, 10, 2135.
6. (a) N. Miyaura, K. Yamada and A. Suzuki, Tetrahedron Lett., 1979, 20, 3437; (b) N. Miyaura and A. Suzuki, J. Chem. Soc., Chem. Commun., 1979, 866.
7. For the first examples of alkyl–alkyl Suzuki-Miyaura cross-coupling reactions, see: (a) T. Ishiyama, S. Abe, N. Miyaura and A. Suzuki, Chem. Lett., 1992, 691; For more recent developments in Suzuki-Miyaura coupling reactions of alkyl halides, see: (b) J. Zhou and G. C. Fu, J. Am. Chem. Soc., 2004, 126, 1340; and references therein; for a review of catalysts for cross-coupling reactions with non-activated alkyl halides, see: (c) A. C. Frisch and M. Beller, Angew. Chem., 2005, 117, 680 (Angew. Chem., Int. Ed., 2005, 44, 674).
8. (a) D. W. Old, J. P. Wolfe and S. L. Buchwald, J. Am. Chem. Soc., 1998, 120, 9722; (b) A. F. Littke, C. Dai and G. C. Fu, J. Am. Chem. Soc., 2000, 122, 4020; (c) W. Dai, Y. Li, Y. Zhang, C. Yue and J. Wu, Chem.–Eur. J., 2008, 14, 5538; (d) A. M. Sajith and A. Muralidharan, Tetrahedron Lett., 2012, 53, 1036; (e) G. A. Molander, F. Beaumard and T. K. Niethamer, J. Org. Chem., 2011, 76, 8126.
9. N. Miyaura, K. Yamada, H. Suginome and A. Suzuki, J. Am. Chem. Soc., 1985, 107, 972.
10. A. L. Casalnuovo and J. C. Calabrese, J. Am. Chem. Soc., 1990, 112, 4324.
11. (a) M. Carril, R. SanMartin and E. Dominguez, Chem. Soc. Rev., 2008, 37, 639; (b) K. H. Shaughnessy, Eur. J. Org. Chem., 2006, 1827; (c) L. Bai and J. X. Wang, Curr. Org. Chem., 2005, 9, 535; (d) K. H. Shaughnessy and R. B. DeVasher, Curr. Org. Chem., 2005, 9, 585; (e) R. Franzen, Y. J. Can, J. Xu and C. Chim, Chem. Rev., 2005, 83, 266; (f) J. P. Genet and M. Savignac, J. Organomet. Chem., 1999, 576, 305.
12. (a) I. D. Kostas, A. G. Coutsolelos, G. Charalambidis and A. Skondra, Tetrahedron Lett., 2007, 48, 6688; (b) S. Gülcemal, I. Kani, F. Yilmaz and B. Cetinkaya, Tetrahedron, 2010, 66, 5602; (c) T. Tu, X. K. Feng and Z. X. Wang, Dalton Trans., 2010, 10598; (d) S. Q. Bai and T. S. A. Hor, Chem. Commun., 2008, 3172; (e) M. Beller, J. G. E. Krauter and A. Zapf, Angew. Chem., Int. Ed., 1997, 36, 772; (f) K. W. Anderson and S. L. Buchwald, Angew. Chem., Int. Ed., 2005, 44, 6173; (g) N. Liu, C. Liu and Z. L. Jin, Green Chem., 2012, 14, 592.
13. (a) J. Zhi, D. P. Song and Z. W. Li, Chem. Commun., 2011, 47, 10707; (b) B. H. Lipshutz, S. Ghorai, A. R. Abela, R. Moser, T. Nishikata, C. Duplais, A. Krasovskiy, R. D. Gaston and R. C. Gadwood, J. Org. Chem., 2011, 76, 4379; (c) A. Krasovskiy, I. Thomé, J. Graff, V. Krasovskaya, P. Konopelski, C. Duplais and B. H. Lipshutz, Tetrahedron Lett., 2011, 52, 2203; (d) M. J. Jin and D. H. Lee, Angew. Chem., Int. Ed., 2010, 49, 1119; (e) D. Zhang, C. S. Zhou and R. H. Wang, Catal. Commun., 2012, 22, 83.
14. (a) M. Mondal and U. Bora, Green Chem., 2012, 14, 1873; (b) J. Qiu, L. Wang, M. Liu, Q. Shen and J. Tang, Tetrahedron Lett., 2011, 52, 6489.
15. (a) A. L. De souza, F. L. C. da silva, B. L. Oliveira and O. A. C. Antunes, Tetrahedron Lett., 2008, 49, 3895; (b) D. Dallinger and C. O. Kappe, Chem. Rev., 2007, 107, 2563; (c) C. O. Kappe, Angew. Chem., Int. Ed., 2004, 43, 6250; (d) M. E. Hanhan, R. Martínez-Máñez and J. V. Ros-Lis, Tetrahedron Lett., 2012, 53, 2388.
16. D. G. Blackmond, A. Armstrong, V. Coombe and A. Wells, Angew. Chem., 2007, 119, 3872 (Angew. Chem., Int. Ed., 2007, 46, 3798).
17. (a) J. Tsuji, Palladium Reagents and Catalyst: Innovations in Organic Synthesis, John Wiley & Sons Ltd, Chichester, England, 1996; (b) T. Hayashi, J. Organomet. Chem., 2002, 653, 41; (c) I. Moreno, R. San Martin, M. T. Herrero and E. Dominguez, Curr. Top. Catal., 2009, 8, 91; (d) J. Dupont and F. R. Flores, Handbook of Green Chemistry, 2009, Wiley-VCH, Weinheim, Germany, p. 319.
18. (a) E. B. Mubofu, J. H. Clark and D. Macquarrie, Green Chem., 2001, 3, 23; (b) D. Rosario-Amorin, X. Wang, M. Gaboyard, R. Clérac, S. Nlate and K. Heuzé, Chem.–Eur. J., 2009, 15, 12636.
19. D. J. Cole-Hamilton, Science, 2003, 299, 1702.
20. (a) N. E. Leadbeater and M. Marco, Chem. Rev., 2002, 102, 3217; (b) T. J. Dickerson, N. N. Reed and K. D. Janda, Chem. Rev., 2002, 102, 3325; (c) Q.-H. Fan, Y.-M. Li and A. S. C. Chan, Chem. Rev., 2002, 102, 3385; (d) A. Molnár, Chem. Rev., 2011, 111, 2251; (e) I. T. Horváth and J. Rábai, Science, 1994, 266, 72.
21. (a) M. M Dell’Anna, M. Mali, P. Mastrorilli, A. Rizzuti, C. Ponzoni and C. Leonelli, J. Mol. Catal. A: Chem., 2013, 366, 186; (b) K. Bester, A. Bukowska and W. Bukowski, Appl. Catal., A, 2012, 443, 181; (c) S. E. S. Leonhardt, A. Stolle and B. Ondruschka, Appl. Catal., A, 2010, 379, 30; (d) V. Polshettiwar, C. Len and A. Fihri, Coord. Chem. Rev., 2009, 253, 2599; (e) Y. S. Chun, J. Y. Shin, C. E. Song and S. G. Lee, Chem. Commun., 2008, 942; (f) C. Ramarao, S. V. Ley, S. C. Smith, I. M. Shirley and N. DeAlmeida, Chem. Commun., 2002, 1132; (g) A. Hassine, S. Sebti and A. Solhy, Appl. Catal., A, 2013, 450, 13.
22. M. Sudip, R. Gadi, J. Ashutosh, B. Mubeen and S. Yoel, Adv. Synth. Catal., 2002, 344, 348.
23. M. Lamblin, L. Nassar-Hardy, J.-C. Hierso, E. Fouquet and F.-X. Felpin, Adv. Synth. Catal., 2010, 352, 33.
24. V. V. Bykov and N. A. Bumagin, Russ. Chem. Bull., 1997, 46, 1344.
25. H. Sakurai, T. Tsukuda and T. Hirao, J. Org. Chem., 2002, 67, 2721.
26. A. Arcadi, G. Cerichelli, M. Chiarini, M. Correa and D. Zorzan, Eur. J. Org. Chem., 2003, 4080.
27. G. Lu, R. Franzen, Q. Zhang and Y. Xu, Tetrahedron Lett., 2005, 46, 4255.
28. (a) M. Lysen and K. Kohler, Synlett, 2005, 1671; (b) M. Lysen and K. Kohler, Synthesis, 2006, 692.
29. J. S. Freundlich and H. E. Landis, Tetrahedron Lett., 2006, 47, 4275.
30. R. K. Arvela and N. E. Leadbeater, Org. Lett., 2005, 7, 2101.
31. L. Bai, Chin. Chem. Lett., 2009, 20, 158.
32. J. A. Sullivan, K. A. Flanagan and H. Hain, Catal. Today, 2009, 145, 108.
33. Y. Li, X. Fan, J. Qi, J. Ji, S. Wang, G. Zhang and F. Zhang, Nano. Res., 2010, 3, 429.
34. K. Shimizu, R. Maruyama, S. Komai, T. Kodoma and Y. Kitayama, J. Catal., 2004, 227, 202.
35. M. L. Kantam, S. Roy, M. Roy, B. Sreedhar and B. M. Choudary, Adv. Synth. Catal., 2005, 347, 2002.
36. G. Durgun, O. Aksin and L. Artok, J. Mol. Catal. A: Chem., 2007, 278, 189.
37. A. Monopoli, A. Nacci, V. Calò, F. Ciminale, P. Cotugno, A. Mangone, L. C. Giannossa, P. Azzone and N. Cioffi, Molecules, 2010, 15, 4511.
38. N. Jamwal, M. Gupta and S. Paul, Green Chem., 2008, 10, 999.
39. A. Indra, C. S. Gopinath, S. Bhaduri and G. K. Lahiri, Catal. Sci. Technol., 2013, 3, 1625.
40. D. D. Das and A. Sayari, J. Catal., 2007, 246, 60.
41. M. Mora, C. Jinez-Sanchidrin and J. R. Ruiz, J. Mol. Catal. A: Chem., 2008, 285, 79.
42. C. Schmçger, T. Szuppa, A. Tied, F. Schneider, A. Stolle and B. Ondruschka, ChemSusChem, 2008, 1, 339.
43. H. Ayoub, S. Saïd, A. Solhy, Z. Mohamed, L. Christophe, N. H. Mohamed and F. Aziz, Appl. Catal., A, 2013, 450, 13.
44. S. E. Lyubimov, A. A. Vasil’ev, A. A. Korlyukov, M. M. Ilyin, S. A. Pisarev, V. V. Matveev, A. E. Chalykh, S. G. Zlotin and V. A. Davankov, React. Funct. Polym., 2009, 69, 755.
45. A. Ohtaka, T. Teratani, R. Fujii, K. Ikeshita, O. Shimomura and R. Nomura, Chem. Commun., 2009, 7188.
46. A. Ohtaka, T. Teratani, R. Fujii, K. Ikeshita, T. Kawashima, K. Tatsumi, O. Shimomura and R. Nomura, J. Org. Chem., 2011, 76, 4052.
47. A. Ohtaka, Y. Kono, T. Teratani, S. Fujii, S. Matsuzawa, Y. Nakamura and R. Nomura, Catal. Lett., 2011, 141, 1097.
48. L. Bai and J.-X. Wang, Adv. Synth. Catal., 2008, 350, 315.
49. Y. Uozumi, H. Danjo and T. Hayashi, J. Org. Chem., 1999, 64, 3384.
50. Y. Uozumi and Y. Nakai, Org. Lett., 2002, 4, 2997.
51. Y. Uozumi, Y. Matsuura, T. Arakawa and Y. M. A. Yamada, Angew. Chem., 2009, 121, 2746 (Angew. Chem., Int. Ed., 2009, 48, 2708).
52. (a) Y. M. A. Yamada, K. Takeda, H. Takahashi and S. Ikegami, Org. Lett., 2002, 4, 3371; (b) Y. M. A. Yamada, K. Takeda, H. Takahashi and S. Ikegami, J. Org. Chem., 2003, 68, 7733.
53. Y. M. A. Yamada, Y. Maeda and Y. Uozumi, Org. Lett., 2006, 8, 4259.
54. W. Solodenko, U. Schon, J. Messinger, A. Glinschert and A. Kirschning, Synlett, 2004, 1699.
55. (a) K. M. Dawood and A. Kirschning, Tetrahedron, 2005, 61, 12121; (b) W. Solodenko, C. Brochwitz, R. Wartchow, M. A. Hashem, K. M. Dawood, M. Vaultier and A. Kirschning, Mol. Diversity, 2005, 9, 333.
56. W. Solodenko, K. Mennecke, C. Vogt, S. Gruhl and A. Kirschning, Synthesis, 2006, 1873.
57. (a) D. A. Alonso, C. Najera and M. C. Pacheco, Org. Lett., 2000, 2, 1823; (b) E. Alacid, D. A. Alonso, L. Botella, C. Najera and M. C. Pacheco, Chem. Rec., 2006, 6, 117; (c) E. Alacid and C. Najera, Org. Lett., 2008, 10, 5011; (d) E. Alacid and C. Najera, J. Org. Chem., 2009, 74, 2321.
58. E. Alacid and C. Najera, J. Organomet. Chem., 2009, 694, 1658.
59. (a) C. Najera, J. Gil-Molt, S. Karlstrçm and L. R. Falvello, Org. Lett., 2003, 5, 1451; (b) C. Najera, J. GilMolt and S. Karlstrom, Adv. Synth. Catal., 2004, 346, 1798; (c) J. Gil-Molt and C. Najera, Eur. J. Org. Chem., 2005, 4073.
60. J. Gil-Molt, S. Karlstrom and C. Najera, Tetrahedron, 2005, 61, 12168.
61. F. Wen, W. Zhang, G. Wei, Y. Wang, J. Zhang, M. Zhang and L. Shi, Chem. Mater., 2008, 20, 2144.
62. T. Suzuka, K. Kimura and T. Nagamine, Polymers, 2011, 3, 621.
63. T. Suzuka, T. Nagamine, K. Ogihara and M. Higa, Catal. Lett., 2010, 139, 85.
64. S. M. Islam, P. Mondal, A. S. Roy, S. Mondal and D. Hossain, Tetrahedron Lett., 2010, 51, 2067.
65. F. Siga, H. Temel, M. Aydemir, Y. S. Ocaka, S. Pasa and A. Baysal, Appl. Catal., A, 2012, 449, 172.
66. M. Bakherad, A. Keivanloo, B. Bahramian and S. Jajarmi, J. Organomet. Chem., 2013, 724, 206.
67. J.-W. Kim, J.-H. Kim, D.-H. Lee and Y.-S. Lee, Tetrahedron Lett., 2006, 47, 4745.
68. M. Bakherad, A. Keivanloo, A. H. Amin and S. Jajarmi, C. R. Chim., 2012, 15, 945.
69. Y. Yu, T. Hu, X. Chen, K. Xu, J. Zhang and J. Huang, Chem. Commun., 2011, 47, 3592.
70. A. N. Kashin and I. P. Beletskaya, Russ. J. Org. Chem., 2011, 47, 475.
71. J. K. Cho, R. Najman, T. W. Dean, O. Ichihara, C. Muller and M. Bradley, J. Am. Chem. Soc., 2006, 128, 6276.
72. L. Wang and P.-H. Li, Chin. J. Chem., 2006, 24, 770.
73. K. H. Liew, P. L. Loh, J. C. Juan, M. A. Yarmo and R. M. Yusop, The Scientific World, 2014, 796196,  DOI:10.1155/2014/796196.
74. B. J. Gallon, R. W. Kojima, R. B. Kaner and P. L. Diaconescu, Angew. Chem., 2007, 119, 7389 (Angew. Chem., Int. Ed., 2007, 46, 7251).
75. M. L. Kantam, M. Roy, S. Roy, B. Sreedhar, S. S. Madhavendra, B. M. Choudary and R. L. De, Tetrahedron, 2007, 63, 8002.
76. K. S. Sivudu, N. M. Reddy, M. N. Prasad, K. M. Raju, Y. M. Mohan, J. S. Yadav, G. Sabitha and D. Shailaja, J. Mol. Catal. A: Chem., 2008, 295, 10.
77. M. C. Hong, M. C. Choi, Y. W. Chang, Y. Lee, J. Kim and H. Rhee, Adv. Synth. Catal., 2012, 354, 1257.
78. S. S. Yi, D. H. Lee, E. Sin and Y. S. Lee, Tetrahedron Lett., 2007, 48, 6771.
79. E. Sin, S.-S. Yi and Y.-S. Lee, J. Mol. Catal. A: Chem., 2010, 315, 99.
80. J. Lasri, T. C. O. Mac Leod and A. J. L. Pombeiro, Appl. Catal., A, 2011, 397, 94.
81. S. Cacchi, E. Caponetti, M. A. Casadei, A. D. Giulio, G. Fabrizi, G. Forte, A. Goggiamani, S. Moreno, P. Paolicelli, F. Petrucci, A. Prastaro and M. L. Saladino, Green Chem., 2012, 14, 317.
82. H.-C. Ma, W. Cao, Z.-K. Bao and Z.-Q. Lei, Catal. Sci. Technol., 2012, 2, 2291.
83. C. M. Crudden, M. Sateesh and R. Lewis, J. Am. Chem. Soc., 2005, 127, 10045.
84. Q. Yang, S. Ma, J. Li, F. Xiao and H. Xiong, Chem. Commun., 2006, 2495.
85. J.-F. Wei, J. Jiao, J.-J. Feng, J. Lv, X.-R. Zhang, X.-Y. Shi and Z.-G. Chen, J. Org. Chem., 2009, 74, 6283.
86. B. Karimi, D. Elhamifar, J. H. Clark and A. J. Hunt, Chem.–Eur. J., 2010, 16, 8047.
87. (a) L. Botella and C. Najera, Angew. Chem., 2002, 114, 187 (Angew. Chem., Int. Ed., 2002, 41, 179); (b) D. A. Alonso, C. Najera and M. C. Pacheco, J. Org. Chem., 2002, 67, 5588; (c) L. Botella and C. Najera, J. Organomet. Chem., 2002, 663, 46; (d) D. A. Alonso, L. Botella, C. Najera and M. C. Pacheco, Synthesis, 2004, 1713.
88. (a) C. Baleizao, A. Corma, H. Garcia and A. Leyva, Chem. Commun., 2003, 606; (b) C. Baleizao, A. Corma, H. Garcia and A. Leyva, J. Org. Chem., 2004, 69, 439.
89. A. Corma, D. Das, H. Garca and A. Leyva, J. Catal., 2005, 229, 322.
90. C. M. Crudden, M. Sateesh and R. Lewis, J. Am. Chem. Soc., 2005, 127, 10045.
91. C. C. Tzschucke and W. Bannwarth, Helv. Chim. Acta, 2004, 87, 2882.
92. L. Wang and C. Cai, J. Mol. Catal. A: Chem., 2009, 306, 97.
93. Z. Fengxia and L. Hexing, Chin. J. Chem., 2012, 30, 2151.
94. A. R. Hajipour, Z. Shirdashtzade and G. Azizi, J. Chem. Sci., 2014, 126, 85.
95. P. Mondal, S. Banerjee, A. S. Roy, T. K. Mandal and S. M. Islam, J. Mater. Chem., 2012, 22, 20434.
96. M.-J. Jin, A. Taher, H.-J. Kang, M. Choi and R. Ryoo, Green Chem., 2009, 11, 309.
97. A. Taher, J.-B. Kim, J.-Y. Jung, W.-S. Ahn and M.-J. Jin, Synlett, 2009, 2477.
98. R. J. Kalbasi and N. Mosaddegh, J. Solid State Chem., 2011, 184, 3095.
99. R. J. Kalbasi and N. Mosaddegh, J. Inorg. Organomet. Polym., 2012, 22, 404.
100. B. Yuan, Y. Pan, Y. Li, B. Yin and H. Jiang, Angew. Chem., Int. Ed., 2010, 49, 4054.

---
