Polydopamine-derived porous nanofibers as host of ZnFe₂O₄ nanoneedles: towards high-performance anodes for lithium-ion batteries

Abstract

In this work, highly mesoporous carbon nanofibers in free-standing mat form are successfully fabricated by single-spinneret electrospinning of polystyrene (PS) followed by coating the porous PS nanofibers via in situ polymerization of dopamine and subsequent annealing. The pores inside the nanofibers are mainly in the range of 10–50 nm and interconnected to each other, forming nanochannels. ZnFe₂O₄ crystals can then be grown from the nanofibers via a solution route. Strikingly, ZnFe₂O₄ nanoneedles are formed, which have diameter and length of about 8 nm and 70 nm, respectively, and are located evenly not only on the surface of the nanofibers but also inside the nanochannels. The ZnFe₂O₄/carbon composite nanofibers exhibit excellent cyclability and rate performance as anodes of lithium ion batteries (LIBs), in which the ZnFe₂O₄ nanoneedles are the major active component with normalized capacity of 1000–1700 mA h g⁻¹ at 0.1 A g⁻¹ and 560 mA h g⁻¹ at 5 A g⁻¹, respectively. The excellent properties can be ascribed to the very small diameter of the nanoneedles that ensures complete conversion reactions and alloying/de-alloying between Zn and lithium, the good contact of the nanoneedles with polydopamine-derived N-doped graphitic carbon that offer efficient electrical conduction, and the nanochannels that allow facile transport of the electrolyte and lithium ions.

---

Introduction

Carbonaceous materials have been used as lithium-ion battery (LIB) anodes for a few decades.^1–4 Concerning energy storage for high-power tools and electrical vehicles, the relatively low theoretical specific capacity of the current commercial LIB anode material, graphite, is one of the key technical barriers.^5,6 Metal oxides, in particular binary/polynary ones such as Li₄Ti₅O₁₂,⁷ ZnM₂O₄ (M = Co, Mn, etc.),^8,9 and MFe₂O₄ (M = Cd, Ni, Co, Zn, etc.),^10–13 have emerged as promising alternatives due to their much higher theoretical capacities. Among these, zinc ferrite (ZnFe₂O₄) has received extensive attention due to its low cost and high safety,¹⁴ as well as the extra lithium uptake by Li–Zn alloy.^15,16 However, the poor electrical conductivity as well as large volume expansion-induced capacity decay hinders its practical applications as LIB anode materials. Many strategies have been developed to address these issues. Typical ones include fabricating nanometer-sized ZnFe₂O₄,^14,17,18 introducing pores into the electrodes,^19,20 and combining ZnFe₂O₄ with semiconductors,^21,22 metallic dopants,^23,24 or conductive phases, especially carbon.^25–28 Improved electrochemical performance was achieved compared with the raw, bulky ZnFe₂O₄. As typical examples, carbon-coated ZnFe₂O₄ nanoparticles show cycled capacity of 1000–1400 mA h g⁻¹ at 0.04 A g⁻¹ and about 500 mA h g⁻¹ at 3.89 A g⁻¹;²⁷ while yolk–shell structured ZnFe₂O₄ powders deliver cycled capacity of 700–900 mA h g⁻¹ at 0.5 A g⁻¹.¹⁸

The introduction of the high-capacity materials into carbon matrices, including carbon powder, nanospheres, nanofibers, nanotubes as well as graphene/graphite, indeed enhances cyclability and rate capacity of the anodes through strengthening charge conduction and stabilizing anode structures.^29–33 Besides, porous carbon^34,35 can provide additional benefits because the specific surface area of the porous carbon is larger than that of the solid ones, leading to larger contact area and hence potentially more efficient interactions between the electrodes and electrolytes, and the pores also provide open channels for transport of lithium ions through electrolyte. Porous carbon also allows the growth of micron- or nanometer-sized high-capacity materials inside the pores,³⁶ creating favorable interactions between the two phases.

To maximize the functions of porous carbon, its structures, such as the contents of graphitic carbon and heteroatom dopants, and morphology, such as the pore size and volume, need to be carefully controlled. In our previous publications, we have reported that polydopamine (PDA) is an excellent carbon source for LIB applications.^31,36,37 Carbonized PDA (C-PDA) has multi-layered graphene-like structure doped with high contents of pyridinic and pyrrolic N, and its in-plane and trough-plane electrical conductivities are comparable to that of multi-layered graphene.³⁷ Furthermore, PDA, a synthetic mimic of an essential component of mussel adhesive proteins, can well adhere to a wide variety of organic and inorganic surfaces.³⁸ Thus, by self-polymerization of dopamine in an alkaline aqueous solution, PDA can be facilely coated onto polymer nanofibers with controllable thickness. This opens up the possibility to use porous polymer nanofibers as the sacrificing template to create porous C-PDA nanofibers with tailored morphology, which can then act as a highly conductive host for nano-sized high-capacity materials. In this work, free-standing mesoporous carbon nanofibers with interpenetrating nanochannels were prepared by facile in situ coating of PDA on electrospun porous polystyrene nanofibers and subsequent carbonization. ZnFe₂O₄ nanoneedles were then grown from the mesoporous carbon nanofibers via a solution route. Herein we demonstrate that by synergistic combination of the unique C-PDA structures with the mesoporous morphology of the nanofibers and nanoneedle-like morphology of ZnFe₂O₄, the obtained nanocomposites exhibit excellent rate performance and cyclability as LIB anodes.

Experimental

Materials

Polystyrene (PS, M_w = 350 000), dopamine hydrochloride (DOPA), tris(hydroxymethyl)aminomethane (Tris) were purchased from Sigma-Aldrich Chemistry (USA). Zinc sulfate heptahydrate (ZnSO₄·7H₂O, ≥99.0%), iron sulfate heptahydrate (FeSO₄·7H₂O, ≥99.0%) and ammonium hydroxide (NH₃·H₂O, 28.0–30.0% NH₃ basis) were purchased from Aldrich (USA). Dimethylformamide (DMF) was purchased from Tedia Company Inc (USA). Ethanol was supplied by Merck KGaA (Germany). All materials were used without further purification.

Preparation of carbonized polydopamine (C-PDA) nanofibers

PS was firstly dissolved in DMF under magnetic stirring at 60 °C to form PS–DMF solution with PS concentration of 15 wt%. 2.5 mL PS–DMF solution was electrospun into PS nanofibers at the feeding rate of 0.5 mL h⁻¹ and under the working voltage of 12 kV. Ethanol was used as liquid collector as reported.³⁶ The PS nanofibers were then transferred into 600 g DOPA aqueous solution (0.3 mg mL⁻¹). The coating of PS nanofibers was carried out by triggering the in situ polymerization of DOPA via adding 0.73 g Tris into the above aqueous solution under continuous shaking. The coating time was 2 h. The above coating procedure was repeated for another 1–5 times using fresh DOPA solution to achieve a series of coating thickness. After being washed by de-ionized water (DI H₂O) and freeze-dried, the PDA-coated PS nanofibers were annealed in argon environment at 700 °C for 3 h. The annealed samples are denoted as PNFs-1, PNFs-2, PNFs-3, PNFs-4, PNFs-5 and PNFs-6, respectively, in which the number specifies how many times of PDA coating that have been conducted.

Growth of ZnFe₂O₄ nanoneedles in porous C-PDA nanofibers

The precursor solution was firstly prepared by dissolving ZnSO₄·7H₂O and FeSO₄·7H₂O into 100 mL DI H₂O with concentration of 0.1 mmol and 0.2 mmol, respectively. Two typical samples, PNFs-2 and PNFs-6, were chosen for hosting ZnFe₂O₄. Briefly, the sample was immersed in the precursor solution for 6 h and then horizontally suspended above 50 mL concentrated ammonium hydroxide for 24 h in a sealed glass bottle. The treated sample was washed by DI H₂O for 3 times, dried in vacuum at 60 °C and finally annealed. The annealing condition was as following: heating to 300 °C in atmosphere at the heating rate of 5 °C min⁻¹, keeping at 300 °C for 3 h, and then further heating to 600 °C in argon flow at the heating rate of 5 °C min⁻¹ and keeping at 600 °C for another 3 h. The annealed samples were denoted as ZnFe–PNFs-2 and ZnFe–PNFs-6, respectively.

Structural, morphological and electrochemical characterization

Morphologies of the samples were investigated using a field-emission scanning electron microscope (FESEM, JEOL-7600F) and a transmission electron microscope (TEM, JEOL-2100F). For cross-sectional observation, the samples were embedded into epoxy, cut into ultrathin slides using a TEM ultramicrotome and deposited onto copper grid. The Brunauer–Emmett–Teller (BET) specific surface area and Barrett–Joyner–Halenda (BJH) pore size of the samples were measured using a Micromeritics Tristar II-3020 nitrogen adsorption apparatus. The structure and composition of the nanocomposite samples were studied using an X-ray diffractometer (XRD, Bruker D8 Discover GADDS) and a thermogravimetric analyzer (TGA, Q500), respectively. Cyclic voltammetry (CV) tests were performed on an electrochemical workstation (Autolab, PGSTAT302). For battery tests, the free-standing mat of ZnFe–PNFs-6 (or PNFs-6) was used as the anode directly through punching into round shape of 10 mm in diameter, while lithium foil (Sigma Chemicals, USA) and 1 M LiPF₆ in the mixture of ethylene carbonate and dimethyl carbonate with 1/1 volumetric ratio (Charslton Technologies, Singapore) were used as the counter electrode and electrolyte, respectively. The three components were assembled into button cells (CR2032, ACME, Singapore) using a separator (Celgard2325, USA) as reported previously.³⁰ The cycled and rate capacity were measured using a battery test system (MACCOR, 4200).

Results and discussion

Preparation and morphology of the porous C-PDA nanofibers

The porous C-PDA nanofibers were prepared by coating PDA onto electrospun porous PS nanofibers followed by annealing in argon environment. Uniform PS nanofibers with average diameter of around 830 nm were achieved via electrospinning of PS–DMF solution (Fig. 1a). The pore structure of the electrospun nanofibers is crucially affected by the environmental humidity and solvent property.³⁹ Using DMF as the solvent in this case, the PS was electrospun into highly porous nanofibers (inset of Fig. 1a) under the environmental humidity of about 50%. The pores are created across each nanofiber, forming interconnected nanochannels (Fig. 1b).

Fig. 1 Morphology ((a) side view, (b) cross-sectional view) of porous polystyrene nanofibers by electrospinning of PS–DMF solution at environmental humidity of about 50%. The inset in (a) shows the surface feature of a single nanofiber.

PDA was coated onto the porous PS nanofibers via in situ polymerization of DOPA in slight alkaline environment. Owing to the good affinity of PDA to polystyrene,³⁸ the coating is uniformly formed on the PS nanofibers. A low concentration of DOPA, only 0.3 mg mL⁻¹, was used to, firstly, avoid the formation of free PDA particles, and secondly, to slow down the polymerization speed in order to deposit PDA on the surface of the pores located inside the PS nanofibers; this is possible because the dissolved DOPA can easily diffuse into the nanochannels through the open pores on the surface of the PS porous nanofibers. After annealing at 700 °C in argon flow, PS is fully removed via degradation,³⁶ while PDA is converted to carbon, as confirmed by TGA results (Fig. S1†). The derived carbon has layered structure and is doped nitrogen and possesses comparable electrical conductivity to that of multi-layered graphene.³⁷ C-PDA also contains ∼4.5% nitrogen (N), which is mainly composed of pyridinic (35.2%) and pyrrolic (52.4%) N. The heteroatoms lead to structural disorder and distortion that may favor reversible lithium storage, which will be further elaborated later. By controlling PDA coating thickness, two different types of porous morphologies, as shown in Scheme 1, are achieved after the annealing.

Scheme 1 A schematic showing cross-sectional views of C-PDA porous nanofibers with different morphologies.

The morphology of the porous carbon nanofibers was investigated using SEM and TEM. The nanofibrous morphology is well retained after removing the PS template regardless of the PDA coating thickness (Fig. 2a₁–f₁). The nanofibers are highly porous (Fig. 2a₃–f₃), resulting from the template effect of the porous nanofibers. From the high-magnification FESEM images (Fig. 2a₂–f₂), it can be seen that the surface of the C-PDA nanofibers becomes smoother with thicker coatings. The PDA coating thicknesses of PNFs-1, PNFs-2 and PNFs-3 are smaller than the size of the pores in the PS nanofibers. For instance, the final C-PDA wall thickness is only about 7 nm for PNFs-2 as measured from the TEM images (Fig. 2b₃), while the original pore openings on the porous PS nanofiber surface have diameter of tens of nanometers (Fig. 1a inset). Therefore the pore openings on the PS nanofiber surface are probably not completely blocked by the PDA coating, giving rough C-PDA surfaces after the removal of PS. In this case, the open pores would allow efficient medium exchange for further use (Fig. 2a₃–c₃). The C-PDA wall thickness is increased to around 27 nm for PNFs-6, implying that the much thicker PDA coating blocked the pore openings on the PS nanofiber surface and therefore giving smoother nanofiber surface after removing PS (Fig. 2d₃–f₃). The porosity as well as surface features of the nanofibers are further confirmed by TEM cross-sectional views (Fig. 2a₄–f₄), where rough surfaces with open channels can be clearly seen (indicated by the red dash arrows in Fig. 2a₄–c₄) for PNFs-1, PNFs-2 and PNFs-3, while relatively dense C-PDA shells are distinct for PNFs-5 and PNFs-6. PNFs-2 with obvious open pores on surface and PNFs-6 with a denser outer shell were taken as typical examples for BET measurements. Fig. 3 shows that the BET specific surface area of the two samples are about 306 m² g⁻¹ and 507 m² g⁻¹, respectively, while the BJH desorption pore size is mainly in the range of 10–50 nm for both. The increase of the surface area from PNFs-2 to PNFs-6 is probably due to the extra surface created by the formed continuous shell in PNFs-6 as well as the presence of more large pores of PNFs-2, which are beyond the measuring limit of the equipment.

Fig. 2 Porous C-PDA nanofibers with PDA coating time(s) of (a₁–a₄) 1 (PNFs-1), (b₁–b₄) 2 (PNFs-2), (c₁–c₄) 3 (PNFs-3), (d₁–d₄) 4 (PNFs-4), (e₁–e₄) 5 (PNFs-5) and (f₁–f₄) 6 (PNFs-6).

Fig. 3 (a) BET adsorption/desorption isotherm and (b) BJH desorption pore size distribution of C-PDA nanofibers (PNFs-2 and PNFs-6).

The highly porous C-PDA nanofibers obtained are ideal host for trapping/growth of other active materials due to their high porosity, proper pore size, stable carbonaceous microstructure and the free-standing nature of the nanofibrous mats, as well as high electrical conductivity of C-PDA.³⁷ In addition, by tailoring the surface feature of the nanofibers, the nanofibers may be used for different applications. Based on the microscopic studies, the porous C-PDA nanofibers are classified into two categories: the ones with obvious open pores on surface and that with relatively dense outer shells. The former offers numerous channels, including the open pores on the surface and at the two ends of the nanofibers, to facilitate fast mass/charge transport. Differently, the latter allows liquid medium infusion/diffusion/transport mainly from the two ends of the nanofibers since the surface does not have large open pores. In this case, the relatively dense shell may act as a barrier layer to slow down the leaching of the trapped fluids, facilitating the growth of crystals in the nanofibers.

Growth of ZnFe₂O₄ nanoneedles in porous C-PDA nanofibers

Two typical samples, PNFs-2 and PNFs-6, were used to host ZnFe₂O₄, which is a promising anode material for LIBs as mentioned in the introduction part. The introduction of ZnFe₂O₄ into the C-PDA porous nanofibers was achieved via a solution route (Scheme 2). After PNFs-2 and PNFs-6 being immersed into the aqueous solution of ZnSO₄·7H₂O–FeSO₄·7H₂O for a few hours and taken out, the precursors are trapped inside the nanofibers. The two hosts have different trapping capability due to their difference in morphology. For PNFs-2, the open pores on the surface do not effectively hold the precursor solution in the nanofibers, leading to very low ZnFe₂O₄ content in the final product (6.4 wt%, Fig. S2†). By contrast, the relatively dense shell of PNFs-6 effectively protects the infused precursor solution from outflowing. Additionally, some solution is also adsorbed onto the shell, forming a thin precursor layer on the outer surface. When the samples with the precursor are horizontally suspended above the concentrated NH₃·H₂O solution in an enclosed environment, the NH₃ steam diffuses into the C-PDA porous nanofibers and converts the trapped ZnSO₄·7H₂O and FeSO₄·7H₂O into zinc complexes with hydroxide or ammonia⁴⁰ and Fe(OH)₃, respectively, in the presence of oxygen. After being oxidized at 300 °C in air and further annealed in argon atmosphere at 600 °C, the intermediate is converted into ZnFe₂O₄. The formation of ZnFe₂O₄ is confirmed by the XRD pattern shown in Fig. 4a. The intensive peaks at around 25°, 18.5°, 30.3°, 35.5°, 38.0°, 43.5°, 51.4°, 57.4° and 63.0° can be assigned to diffraction plane [002] of graphitic C-PDA, and [111], [220], [311], [222], [400], [422], [333] and [440] plane of ZnFe₂O₄ in cubic structure, respectively, based on JCPDS no. 22-1012. No impurity peaks are observed. The existence of Zn and Fe in ZnFe₂O₄ is further confirmed by the STEM mapping results (Fig. 4b). The mapping results also show that the distributions of both Zn and Fe form nanoneedle shape, which will be elaborated later. The calculated inter-plane d spacings for [111], [220], [311], [222] and [400] of ZnFe₂O₄ are 0.48 nm, 0.29 nm, 0.25 nm, 0.24 nm and 0.21 nm, respectively. The content of ZnFe₂O₄ in ZnFe–PNFs-6 is about 33.2 wt% based on TGA (Fig. 4c).

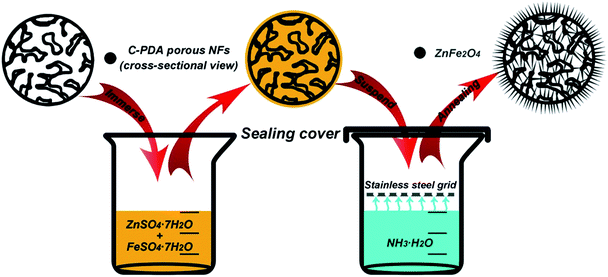

Scheme 2 A schematic showing preparation procedure for the growth of ZnFe₂O₄ nanoneedles in C-PDA porous nanofibers.

Fig. 4 (a) XRD pattern, (b₁–b₃) STEM elemental mapping results of Zn and Fe and (c) TGA curve of ZnFe–PNFs-6.

Instead of forming nanoparticles,^{13,17,25–27,41–44} ZnFe₂O₄ nanoneedles are formed uniformly on the surface of the C-PDA porous nanofibers (Fig. 5a and b). The morphological studies of the samples before annealing (Fig. S3†) reveal that the nanoneedles have already been formed after ammonia treatment. The ZnFe₂O₄ nanoneedles with length and diameter of about 70 nm and 8 nm, respectively, mainly align perpendicularly to the nanofibers surface (Fig. 5c). The alignment indicates that the nanoneedles are formed upon nucleation on the C-PDA surfaces. The size of the nucleation sites may be restricted by the mesoporous nature of the nanofibers, which is probably the reason for the very small lateral size of the ZnFe₂O₄ crystals. The growth direction, which is indicated by the green arrows in Fig. 5d₁ and d₂, is along [111] plane with inter-planar spacing of 0.48 nm. The high-resolution TEM image (Fig. 5d₂) also verify the single-crystalline nature of each individual nanoneedle, where the inter-planar spacing for plane [200], [311] and [222] is 0.41 nm, 0.25 nm and 0.24 nm, respectively.¹⁴ This is consistent with the calculated d spacings from XRD pattern shown above. The TEM cross-sectional images, as shown in Fig. 5e and f, indicate that the nanoneedles are formed not only on the surface of nanofibers but also inside the pores. Since the alignment is perpendicular to the surface as verified above, the length of these nanoneedles is restricted by the size of the pores that are in the ranges of 10–50 nm. This is also confirmed by the TEM image taken from the center area of the cross-section (Fig. 5f), where randomly aligned nanoneedles can be clearly observed.

Fig. 5 (a and b) The morphology of PNFs-6 after growth of ZnFe₂O₄ nanoneedles. (c) The morphology and (d) crystal structure of the ZnFe₂O₄ nanoneedles. The green arrows in image (d₁) and (d₂) indicate the growth (length) direction of the nanoneedles. (e and f) Cross-sectional views of a single porous nanofiber with the ZnFe₂O₄ nanoneedles.

Electrochemical performance of the porous composite nanofibers

The electrochemical properties of the free-standing ZnFe₂O₄ nanoneedles-in-C-PDA nanofibers, ZnFe–PNFs-6, as a LIB anode were investigated because it has higher ZnFe₂O₄ content than other samples. The CV curves for the 1^st–5^th cycle (Fig. 6a) show typical lithiation/de-lithiation behavior of carbon/ZnFe₂O₄-based composites. The weak cathodic peak at about 1.5 V in the 1^st cycle can be assigned to the irreversible reaction between lithium ions and electrolyte, forming solid electrolyte interface (SEI), and the peak disappears in the following cycles.⁴⁵ A weak shoulder at about 0.9 V and a intensive peak at 0.64 V on the 1^st cathodic curve are ascribed to the lithiation of ZnFe₂O₄ (eqn (1)), which gives metallic Zn and Fe irreversibly, as well as the formation of Li–Zn alloy (eqn (2)).¹⁶

ZnFe₂O₄ + 8Li⁺ + 8e⁻ → Zn + 2Fe + 4Li₂O (1)

Zn + Li⁺ + e⁻ → LiZn (2)

Fig. 6 (a) Cyclic voltammetry (CV) curves (1^st–5^th cycle, the inset shows the enlarged anodic profile), (b) discharge–charge curves (1^st–5^th cycle), (c) cycled capacity at 0.05 A g⁻¹ followed by 0.1 A g⁻¹, (d) rate capacity and (e) cycled capacity at 1 A g⁻¹ of ZnFe–PNFs-6. The blue and green lines in (c) and (d) show the cycled and rate capacity of pure PNFs-6 and the normalized cycled and rate capacity of pure ZnFe₂O₄ nanoneedles, respectively, indicating the contribution of pure PNFs-6 and ZnFe₂O₄ nanoneedles to the overall anode performance.

Noting that the carbon content in this nanostructure is as high as 66.8 wt%, and hence the porous C-PDA nanofibers may also contribute to the overall electrochemical performance of the anode. This is confirmed by the partially overlapped peak at 0.55 V and the sharp slop at less than 0.3 V, which are due to the lithiation of C-PDA,³⁶ and will be further clarified later. Several partially overlapped obvious humps (centred at about 0.4 V, 1.2 V and 1.6 V, respectively) within the range of 0.2–2.0 V on the 1^st anodic curve, which are also observed in the following anodic curves, correspond to the de-lithiation of C-PDA (around 1.2 V),³⁶ the de-alloying of LiZn (eqn (3))⁴⁶ and the oxidation of metallic Zn and Fe with formed Li₂O (eqn (4) and (5)).^13,17

LiZn → Zn + Li⁺ + e⁻ (around 0.4 V) (3)

Zn + Li₂O → ZnO + 2Li⁺ + 2e⁻ (around 1.6 V) (4)

2Fe + 3Li₂O → Fe₂O₃ + 6Li⁺ + 6e⁻ (around 1.6 V) (5)

In the subsequent cathodic cycles, the intensive peak at about 0.8 V is assigned to the reversible reduction of ZnO and Fe₂O₃ (in reverse direction of eqn (4) and (5)),¹³ while the slop that starts at around 0.6 V is relative to the Li–Zn alloying⁴⁶ followed by C-PDA lithiation.³⁶ Therefore the reversible capacity involves both the Zn–Li₂O–ZnO and Fe–Li₂O–Fe₂O₃ conversions as well as the Li–Zn alloying/de-alloying and C-PDA lithiation. The constant peak intensity from the 2^nd cycle onwards indicates that the capacity of the anode can be well maintained.

As shown in Fig. 6b, the anode delivers initial discharge and charge capacity of 1581 and 958 mA h g⁻¹, respectively, with initial coulombic efficiency of about 61% at specific current of 0.05 A g⁻¹ within 3.0–0.005 V. It is noted that the galvanostatic discharge–charge profiles are fairly similar to that of neat porous C-PDA nanofibers (PNFs-6, Fig. S4†) rather than ZnFe₂O₄.¹⁶ This is due to the higher content of carbon (66.8 wt%) than that of the ZnFe₂O₄ nanoneedles (33.2 wt%). The low initial coulombic efficiency is mainly due to the lithiation of ZnFe₂O₄ during the first discharge, as shown in eqn (1), that irreversibly consume extra lithium as well as the formation of SEI. The capacity quickly stabilizes in the subsequent cycles. At a higher specific current of 0.1 A g⁻¹, the capacity drops to around 700 mA h g⁻¹ initially, then gradually increases and stabilizes at about 900 mA h g⁻¹ (Fig. 6c, red line). Further increase of the specific current reduces the reversible capacity of the anode (Fig. 6d, red line). Nevertheless, at a high specific current of 5 A g⁻¹, a capacity value of about 300 mA h g⁻¹ can still be achieved. The capacity fully rebounds back to 900 mA h g⁻¹ when the specific current is reduced back to 0.1 A g⁻¹. The same battery was further cycled at 1 A g⁻¹ to test its lifetime. As shown in Fig. 6e, the reversible capacity stabilizes at around 700 mA h g⁻¹ for over 200 cycles, indicating the excellent cyclability and long lifetime of the composite nanofibers. The excellent electrochemical performance is ascribed to the integrated effect of both C-PDA porous nanofibers and ZnFe₂O₄ nanoneedles. In general the C-PDA porous nanofibers can ensure good charge conduction, resistance-free pathways for transport of ions and electrolyte, as well as provide some capacity, while the ZnFe₂O₄ nanoneedles with such a small diameter may be able to ensure complete conversions and alloying/de-alloying with lithium ions. In order to further clarify the role played by each component, the cycled and rate capacity of C-PDA porous nanofibers, PNFs-6, was measured under the same conditions as that of ZnFe–PNFs-6 and presented as blue lines in Fig. 6c and d. It is shown that PNFs-6 delivers reversible capacity of around 600 mA h g⁻¹ and 480 mA h g⁻¹ at 0.05 A g⁻¹ and 0.1 A g⁻¹, respectively. The capacity decreases to about 75 mA h g⁻¹ and 15 mA h g⁻¹ at high specific current of 5 A g⁻¹ and 10 A g⁻¹, respectively. Due to the considerable amount of doped pyridinic and pyrrolic N and induced defects, the major lithiation/de-lithiation process of C-PDA is metallic lithium plating that induced by defects instead of standard stage I formation/extraction of LiC₆ intercalates.^36,47,48 This is confirmed by its galvanostatic discharge–charge profiles (Fig. S4†). Assuming that the overall anode capacity is the sum of both C-PDA and ZnFe₂O₄, the contribution of ZnFe₂O₄ nanoneedles to the overall performance can be evaluated as normalized capacity of ZnFe₂O₄, which is calculated from the following formula:

Cap_ZnFe2O4 = (Cap_anode − Cap_carbon × C_carbon)/C_ZnFe2O4

where Cap_ZnFe2O4, Cap_anode and Cap_carbon represent normalized capacity of ZnFe₂O₄ nanoneedles, measured capacity of anode and porous carbon nanofibers (PNFs-6), respectively, while C_carbon and C_ZnFe2O4 are the contents of PNFs-6 (66.8 wt%) and ZnFe₂O₄ nanoneedles (33.2 wt%), respectively. As presented by the green lines in Fig. 6c and d, the ZnFe₂O₄ nanoneedles possess normalized cycled capacity of 1000–1700 mA h g⁻¹ at a specific current of 0.1 A g⁻¹. This suggests the full lithiation/de-lithiation of ZnFe₂O₄ nanoneedles during the cycling, taking note that the theoretical capacity of ZnFe₂O₄ is 1072 mA h g⁻¹.²² The normalized capacity at high specific current of 5 A g⁻¹ is still about 560 mA h g⁻¹, more than 50% of the theoretical value. The capacity performance of the ZnFe₂O₄ nanoneedles is comparable or even superior to that of reported ZnFe₂O₄-based anodes as presented in introduction section, indicating their significant contribution to the overall electrochemical performance of the composite nanofibers.

Conclusions

Highly mesoporous carbon nanofibers in free-standing mat form were successfully prepared by single-spinneret electrospinning of porous PS nanofibers followed by in situ polymerization of dopamine and annealing. The pores are mainly of 10–50 nm in size and interconnected to each other, forming nanochannels. The surface of the nanofibers has either open pores or be covered by a relatively dense shell, depending on the overall PDA coating thickness. ZnFe₂O₄ nanoneedles can grow from the mesoporous carbon nanofibers via the solution route. The ZnFe₂O₄ nanoneedles are located on the surface as well as inside the nanofibers. The nanoneedle-like morphology of ZnFe₂O₄, the efficient contact between the nanoneedles and highly conductive C-PDA matrix, and the facile diffusion/transport of electrolyte and charges in the nanochannels lead to excellent cyclability and rate capacity for the composite nanofiber anode, where the ZnFe₂O₄ nanoneedles are the major contributor to the overall performance.
