Evaluation and modeling of a newly designed impinging stream photoreactor equipped with a TiO₂ coated fiberglass cloth

Abstract

The photocatalytic degradation of p-nitrophenol (PNP) using TiO₂ particles immobilized on a fiberglass cloth was investigated in a novel design of a photo-impinging stream reactor. A spray painted method has been used for the coating process. The structural properties of the immobilized sample were examined using X-ray diffraction and a scanning electron microscope (SEM). The photocatalytic degradation results showed the good performance of the reactor. The flow regime within the reactor was characterized and modeled by applying a liquid residence time distribution. A compartment model consisting of four continuous stirred regions was assigned to describe the flow pattern in the reactor. A Langmuir–Hinshelwood kinetic scheme has been used to describe the degradation of p-nitrophenol and to examine the behavior of the reaction system. A comparison between the sum of the square errors of the experimental results and those predicted by the model for PNP degradation revealed that a good agreement exists between the two sets of data.

---

1. Introduction

P-Nitrophenol (PNP), having a high stability and solubility in water is one of the more hazardous organic substances present in industrial wastewater. This compound is involved in the synthesis of a wide range of products such as pesticides, pharmaceuticals, plastics, azo dyes, explosives and solvents.¹ PNP is known as a priority toxic pollutant by the United States Environmental Protection Agency (EPA) as it may cause blood disorders.^2,3 Hence, the removal of PNP from industrial effluents is an essential practical problem.

Among all wastewater treatment processes, heterogeneous photocatalytic oxidation with TiO₂ as a photocatalyst has drawn much attention in elimination of toxic organic compounds.⁴ The advantages of photocatalysis include low operation temperature, low cost and relatively low energy consumption. These parameters have led the relevant application of photocatalysis to the stage of commercialization.⁵

However, two major issues in photocatalytic processes are mass and photon transfer limitations.⁶ To overcome photon transfer limitations, various photoreactors, such as bubble column reactors, spinning disk reactors, rotating disk reactors, monolith reactors, and fluidized bed reactors have been applied.^7–11 An ideally intensified reactor, however, should be able to integrate both maximized light efficiency and minimized mass transfer resistance.

For this purpose, photo-impinging streams reactor configurations have attracted a number of studies in both academic and industrial areas.^6,12,13 In such configurations, normally oppositely directed fluid streams are made to impinge with in a relatively narrow zone with a high turbulence intensity and as such excellent conditions for enhancing interphase mass-transfer rates are provided.⁶ The essential phenomenon in solid–fluid systems is the penetration of particles into the opposite streams, creating a longer mean residence time and higher relative velocity. Consequently, the solid particles' flow pattern, mixing intensity, photon adsorption, and transport characteristics may be significantly improved within such reactors.¹⁴ Some of the practical difficulties in the use of suspended solid–fluid photocatalytic processes in impinging streams systems are limited penetration of the radiation in the suspension, fouling of UV source due to the deposition of catalyst particles and separation of the fine solid particles from liquid. Immobilization of the catalyst on an inert support could be an effective practical solution.¹⁵ Consequently, a number of research efforts have been dedicated to the development of immobilized systems following various synthesis routes and support materials.¹⁶ So far all investigations on photocatalytic processes carried out in impinging streams reactors available in the literature have been deal with slurry systems with catalyst particles in suspension.^12,14 Several materials as support for TiO₂ immobilization, including glass beads,¹⁷ glass tubes,¹⁸ fiberglass,¹⁹ quartz,²⁰ silica,²¹ activated carbon,²² aluminium,²³ pumice stone,²⁴ perlite granules,²⁵ and stainless steel²⁶ have been applied. As a promising support among these materials, fiberglass cloth (FGC) has become popular for its special characteristics such as lightweight, low cost, transparency for visible light and high stability against ultraviolet rays.²⁷ In addition, fiberglass cloth can be cut into different sizes, and folded into many shapes.

Photocatalytic reactors are often fundamentally different from conventional reactors.²⁸ Hence, determination of the residence time distributions (RTD) of materials and flow regimes within the reactor are some key information required for successful design, modelling and scale-up of the latter devices.^29,30 On the basis of RTD data, it may be possible to simulate non-ideal systems by a configuration of ideal regions such as ideal perfect mixed and/or ideal plug flow reactors.^14,28

Reactor modelling is sometimes performed based on certain flow regimes such as continuous stirred tank reactors in series.³¹ Evaluating reactor performance under conditions that mass and photon transfer limitations are not predominant, is an important requirement for the determination of intrinsic kinetic parameters independent from the reactor configuration.³² In order to provide a correlation between the predictions and the experimental data, an error function is required to enable the optimization procedure. The residual or sum of square error (SSE) of the estimate can be used to determine the goodness-of-fit.³³

In this study, a new photo-impinging streams reactor using TiO₂ coated fiberglass cloth was designed, constructed and modelled. The capability of the latter to degrade PNP in the liquid phase was assessed. X-ray diffraction (XRD) and scanning electron microscope (SEM) were used to examine the success of the procedure of the catalyst immobilization. In order to obtain a comprehensive insight into the reactor performance, effective control of the process and determination of the intrinsic kinetic coefficients independent from the reactor configuration, flow regime in photoreactor was characterized. In the first step, TiO₂ was coated on fiberglass cloth using spray painted method and the sample was placed in the impingement zone of the reactor. Effects of PNP initial concentration and liquid flow rate on the reactor's performance were examined. Residence time distribution (RTD) of the fluid in the reactor was determined to characterize the photoreactor hydrodynamic behaviour. The reactor was then modelled, applying a cascade of continuous stirred tank reactors (CSTRs). The data predicted from the proposed model were used to calculate the kinetic coefficients for degradation reaction.

2. Experimental

2.1. Materials

Aeroxide® P25-TiO₂ Powder (Evonik; BET surface area of 53.9 m² g⁻¹, pore volume of 0.172 m³ g⁻¹, 70% anatase/30% rutile) was purchased from Evonik (Germany). Diethanolamine, Ethanol and p-nitrophenol were obtained from Merck Co. and used without further purification. Fiberglass cloth (FGC) was delivered by Kripa Co., India, and used as a support for the photocatalyst with the single fiber diameter of about 15 μm.

2.2. Preparation of the immobilized TiO₂

The procedure for spray painting of TiO₂ has been described elsewhere.³⁴ 5 g of P25 was added to 25 mL of ethanol as the base medium of the slurry in which the titania powder can be properly dispersed. Subsequently, 5 mL of diethanolamine was added as a stabilizing agent to the slurry.³⁵ This emulsion was sprayed onto the fiberglass cloth with a spray gun after the air pressure, slurry flow rate and distance of the fiber and gun were fixed at 4 bar, 10 μL and 10 cm, respectively. Such a technique, known as spray painted method, has been used before with minor changes and is normally applied as a standard method of coating.^36,37 In order to achieve a controllable uniform immobilization, FGC was being moved in front of the spray gun by a linear step motor at the fixed speed of 1 cm s⁻¹. A picture of the coating process is shown in Fig. 1. The substrate was then dried using a blow drier. Finally, the as-obtained samples were calcined at 400 °C for 1 h to enhance the adhesion strength of the films.

Fig. 1 FGC coating set-up.

2.3. Photoreactor design and photocatalytic degradation conditions

A schematic diagram of the photo-impinging streams reactor used in this study is shown in Fig. 2. The apparatus consisted of a cylindrical vessel made of pyrex glass and equipped with six low-pressure mercury vapor lamps, with a dominant emission line at 253.7 nm (TUV 5W from Philips Co.) as irradiation sources. Two pressure nozzles were mounted on the same axis in front of each other, spraying two jets of wastewater. FGC (exposed area of 87.5 cm²) was positioned in the middle of the reactor (the impingement zone). To start the process a gear pump was first switched on and the PNP solution (pH = 5.1), after passing through the two nozzles, was irradiated with UV light and collided in the impingement zone on TiO₂ coated FGC. Before switching on the lamp, the process was being performed at dark for 30 min in order to reach adsorption/desorption equilibrium.

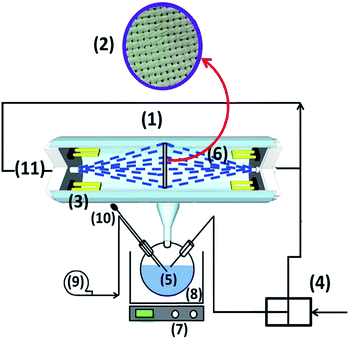

Fig. 2 Schematic diagram of the photoreactor: (1) photoreactor (2) fiberglass cloth (impingement zone) (3) pyrex cylindrical vessel (4) gear pump (5) feed reservoir (6) UV lamps (7) magnetic mixer (8) cooling system (9) air pump (10) temperature sensor (11) feed nozzle.

PNP degradation was followed using Perkin-Elmer Lambda2S spectrophotometer. The concentration of PNP was determined by measuring the absorbance at 410 nm wavelength. These samples were prepared by mixing of 1 mL effluent with 5 mL of 0.1 mol L⁻¹ NaOH and kept for 5 min.³⁸ The PNP degradation ratio was evaluated from the following equation:

where X_exp. is the experimental PNP degradation ratio (%), C₀ and C_t are the concentrations of the PNP solutions at time 0 and t, respectively.

2.4. Characterization of TiO₂ films

X-ray diffraction (XRD) analysis (INEL X-ray diffractometer, model EQuinox 3000, France) was used to detect and analyze the crystalline phases of the prepared samples using CuKα radiation in the 2θ range of 10° to 80°. The crystal size of TiO₂ was calculated from the Scherrer relation.³⁹ Scanning electron microscopy (SEM) measurements were performed with an ESEM XL30 Philips micro-scope, operating at 25 kV.

2.5. RTD measurement

To characterize the liquid flow pattern in the photoreactor, the liquid residence time distribution curve was determined at the flow rate of 550 mL min⁻¹. To generate a pulse function (Dirac delta function), a tracer (1 mL of 400 mg L⁻¹ Reactive Black 8 dye) at time t = 0 was injected instantly into the inflow stream, using a syringe. Samples were collected at the outlet of the photoreactor at regular time intervals (Fig. 3). The collected samples were analyzed by a UV-visible spectrophotometer to determine the concentration of dye. The RTD or exit age distribution function (E) is defined as follows:^40,41

Fig. 3 Schematic diagram of the photoreactor in the case of RTD. Study: (1) reaction vessel, (2) dye injection port, (3) UV lamps, (4) gear pump, (5) rotating disk for sampling, (6) power supplier.

3. Results and discussion

3.1. Characterization of the immobilized TiO₂ film on fiberglass

As shown in Fig. 4a, the FGC is made of woven fiberglass ribbons with of 15–20 μm width. The surface of the nude fiberglass is smooth. Fig. 4b–d displays the SEM images of the TiO₂ films on FGC calcined at 400 °C. After coating, the surface of the fiberglass becomes coarse, indicating that the TiO₂ has been successfully coated on the fiberglass cloth. It may be observed from images that the TiO₂ film with a uniform surface has been successfully coated on fiberglass by the spray painted method and that TiO₂ transformation into particles as a result of immobilization has been negligible.

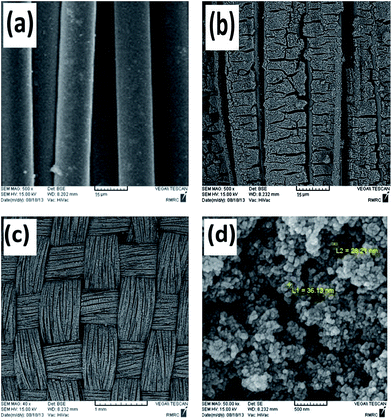

Fig. 4 SEM images of nude fiberglass cloth – 500× (a) and TiO₂ film coated on fiberglass cloth by spray painted method: (b) 500×, (c) 40×, (c) 5000× magnification.

X-ray diffraction was performed in order to examine the crystalline phases of the coated samples. Fig. 5 shows the XRD patterns of P25 coated onto FGC and calcined at 400 °C. The results showed the diffraction peaks of anatase and rutile phases. Three distinctive diffraction peaks of anatase in TiO₂ crystal structure are found mainly at 25.34°, 37.88°, and 48.10° corresponding to anatase (1 0 1), (0 0 4), and (2 0 0) crystal planes, respectively. The average crystallite size of TiO₂ particles was calculated according to Scherrer's equation from (1 0 1) diffraction peak of anatase and was ca. 23 nm at 400 °C.

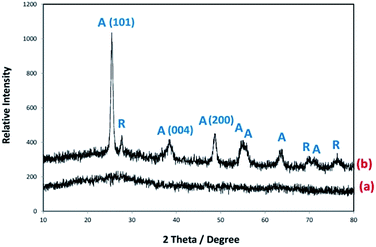

Fig. 5 X-ray diffraction spectra of un coated (a) and TiO₂ coated fiberglass cloth (b).

3.2. Photocatalytic degradation of p-nitrophenol

3.2.1. Effect of flow rate. To study the effect of flow rate on degradation ratio, a range of flow rates (300, 550 and 800 mL min⁻¹) with PNP initial concentration of 100 mg L⁻¹ were applied. Results presented in Fig. 6 shows that PNP degradation ratio has been enhanced by increasing the impinging streams flow rates. This is presumably due to the role of mass transfer phenomenon in impinging streams reactors. An increase in the relative velocity results in enhanced turbulency and reduced thickness of the mass boundary layer, and also favors surface renewing of the catalyst side. As a result, mass transfer resistance of the liquid side is reduced and the increased flow rate improves the photocatalytic reaction by increasing the diffusion between contaminants and TiO₂ coated catalyst.⁴²

Fig. 6 Effects of flow rate on the degradation ratio at constant PNP initial concentration of 100 mg L⁻¹.

3.2.2. Effect of initial PNP concentration. Fig. 7 shows the influence of PNP initial concentration (C₀) on the degradation ratio while maintaining the rest of factors invariant (pH = 5.1 and flow rate of 550 mL min⁻¹). It may be observed from the figure that the final PNP degradation ratio decreases from 85% to 47% as the PNP initial concentration has been increased from 20 to 100 mg L⁻¹.

Fig. 7 Effects of PNP initial on the degradation ratio in flow rate of 550 mL min⁻¹.

Three possible reasons can be provided to explain such an observation: First, at a high initial PNP concentration most active sites of the catalyst are occupied and fewer photons may reach the photocatalyst surface. In addition, a competition would be occurred between the contaminant and the rest molecules for adsorption at the active sites.⁴³ Second, while initial PNP concentration is increased, the reactive species (˙OH) required for the degradation are also increased. Hence, the number of OH radicals necessary for degradation would be inadequate at higher concentrations of PNP. Third, an increase in PNP inlet concentration may enhance generation of intermediates which could be adsorbed at the surface of the catalyst. This phenomenon may lead to deactivation of active sites.^44–47 Subsequently, PNP degradation rate is dropped as the inlet concentration of PNP is increased.

The absorption spectra obtained during the photocatalytic degradation of PNP (initial concentration of 20 mg L⁻¹) is shown in Fig. 8. This figure shows that the characteristic absorption of PNP disappeared rapidly and implies that PNP has been effectively removed from the reaction solution. In photocatalytic degradation mechanisms of PNP the following intermediates, namely 4-nitrocatechol, hydroquinone and benzoquinone have been observed in previous studies.^48,49 However, the absorbance peaks of these compounds have not been appeared in the absorption spectra. This could be related to the extremely low concentration of such intermediates.

Fig. 8 A typical absorption spectra of PNP degradation during the reaction in the photoreactor: C₀ = 20 mg L⁻¹, flow rate = 550 mL min⁻¹.

3.2.3. Effects of the number of reaction cycle on PNP degradation and catalyst falling off. In order to evaluate the adhesion of catalyst onto FGC, the coated samples were carefully weighted before and after each cycle taking 3 hours. As it is shown in Fig. 9, with increasing the flow rate, an increase in TiO₂ falling off can be observed. As it is evident, the catalyst falling off is less than 15% after four reaction cycles.

Fig. 9 Effects of numbers of reaction cycles on PNP degradation and catalyst falling off.

In addition, at each reaction cycle, PNP degradation was reported for three distinct flow rates. As it is observed, by increasing the number of reaction cycles, PNP degradation decreases under the same conditions. This effect may be attributed to the catalyst falling off at each cycle and hence reduction of active sites during the reaction time.

3.3. Photoreactor modeling

The RTD experiment was performed by measuring the concentration of tracer at one second time intervals using a flow rate of 550 mL min⁻¹. The RTD curve was plotted applying eqn (1) (Fig. 11). Since RTD data are normally known at a number of discrete time intervals, the mean residence time (t̄_m), the variance of the residence time data (σ²) and the dimensionless variance (σ_θ²) are all expressed by the following relations:²⁸

From eqn (3) and (5), mean residence time (t̄) and dimensionless variance (σ_θ²) were determined as 8.01 s and 0.264, respectively.

CSTRs in series model has been applied previously to simulate the non-ideal behavior of liquid streams in impinging steam reactors.^31,41 In such a model, the actual volume of a photoreactor is divided by N equal sized ideal CSTRs (Fig. 10). The number of tanks is calculated from eqn (6).³¹

Fig. 10 Cascade of CSTRs in series model for impinging zone.

The number of CSTRs (N) representing the flow (550 mL min⁻¹ flow rate) within the photoreactor in each cycle was obtained as 3.78 (≅4).

The expression for the theoretical RTD of this model can be predicted using Martin method via Gamma distribution function:⁵⁰

where E(t) is the residence time distribution, t̄_m is the mean residence time and N is total number of CSTRs. The predicted E(t) curve from the CSTRs in series model for a cascade of four tanks has been plotted in Fig. 11 and compared with the experimental data.

Fig. 11 Comparison between the residence time distribution E(t) of the photo-impinging streams reactor using fiberglass cloth and that predicted from tank in series model with N = 4.

The RTD is one of the major informative characteristics of the flow pattern in a chemical reactor. It provides information on the duration of stay of various elements within a system and allows comparison between systems having different configuration of reactors. It is evident that, the key phenomenon in impinging streams with fluid-solid flows is the penetration of particles into the opposite stream, creating a longer mean residence time. In Fig. 12, the experimental RTD data obtained for the impinging stream reactor with FGC placed at the impinging zone is compared with the experimental results determined without presence of FGC. As it may be observed from this figure, there is a notable difference between the two sets of RTD data. A comparison between the two mean residence times revealed that the reactor equipped with a fiberglass cloth has a longer mean residence time under identical operating conditions (flow rate of 550 mL min⁻¹). This may be due to the wetting properties of fiberglass warp and woofs leading to a longer traversal path and lower flow rates of liquid droplets. It may be concluded therefore, that presence of fiberglass clothes at the impinging zone of the reactors can increase the contact time of reactants with catalyst surface during each cycle. This advantage would somehow compensate the lower activity of immobilized catalysts in comparison with suspended systems.

Fig. 12 Comparison between the residence time distribution E(t) of the impinging streams reactor, equipped with a fiberglass cloth at the impinging zone (t̄_m = 8.01 s) and that with no fiberglass cloth (t̄_m = 7.14 s).

3.4. Degradation kinetic model

Kinetic experiments have been performed applying a liquid flow rate of 550 mL min⁻¹, pH value of 5.1 and initial PNP concentrations of 20, 60 and 100 mg L⁻¹. To describe the PNP degradation rate Langmuir–Hinshelwood (L–H) model has been applied. Langmuir–Hinshelwood model has been widely used for liquid and gas-phase photocatalysis.^51–53 This model explains the kinetic of reactions that occur between two adsorbed species (a free radical and an adsorbed substrate, or a surface-bound radical and a free substrate).⁵⁴ By application of L–H expression, the photocatalytic degradation rate (r) of PNP becomes:where K is the adsorption equilibrium constant (L mg⁻¹), C is the PNP concentration in the liquid phase (mg L⁻¹) and k_r is the reaction rate coefficient (mg min⁻¹ L⁻¹).

It may be assumed that the impingement zone acts as a cascade of four ideal CSTRs in series (Fig. 10). Evaluation of PNP concentrations in a system consisting of N CSTRs in series, is defined by a set of N mass balance expressions:⁴⁰

C_p^0,n = C_pr,in, C_p^4,n = C_pr,out

where, C_p^N−1 and C_p^N are phenol concentrations in inlet and outlet of the Nth reactor, respectively. A balance for PNP around the feed reservoir in Fig. 10 may be set up as follows:where V_F, is the volume of phenol solution in feed reservoir and Q_r is the volume flow rate of feed to the reactor, C_Pt is phenol concentration in feed reservoir and C_Pr,in and C_Pr,out are PNP concentrations in the inlet and outlet of the reactor, respectively. The above relation may be replaced by the appropriate finite difference form:where, t̄ is the mean residence time and .

Combining eqn (9) and (11):

To determine the kinetic coefficients, an optimization program was applied by which the sum of the square errors (SSE) for experimental and predicted degradation ratios is minimized:

where, n_exp. is the total number of experiments, X_exp. is the experimental degradation ratio (eqn (1)) and X_model is the model predictions for degradation ratio, calculated from eqn (16).

The kinetic parameters, experimental and predicted degradation ratios and SSEs for each run are presented in Table 1.

Table 1 Rate coefficients and degradation ratios (%) for CSTRs in series model

Time (min)	C0 = 100 mg L^−1		C0 = 60 mg L^−1		C0 = 20 mg L^−1
	Xexp.	Xmodel	Xexp.	Xmodel	Xexp.	Xmodel
0	0	0	0	0	0	0
10	3.8	4.6	6.0	7.0	9.6	10.5
20	8.7	9.1	13.9	14.1	18.9	20.0
30	13.2	13.5	20.9	20.5	28.4	28.6
40	17.2	17.8	26.2	26.6	36.7	36.3
50	20.9	21.9	31.7	32.4	42.5	43.2
60	27.7	25.9	38.7	37.7	50.6	49.4
kr (mg min^−1 L^−1)	0.033		0.058		0.123
K (L mg^−1)	0.0099		0.0063		0.0034
SSE	0.00051		0.00031		0.00040

---

As it may be observed from Table 1, SSEs of the experimental PNP conversions are close to the predicted values from CSTRs in series model. This could indicate that a satisfactory agreement exists between the model predictions and the experimental results.

4. Conclusion

Photocatalytic decomposition of p-nitrophenol in liquid phase was investigated in a new designed photo-impinging streams reactor using a fiberglass cloth coated with TiO₂ catalyst. The PNP initial concentration range was 20 to 100 mg L⁻¹ and the range of liquid flow rates was 300 to 800 mL min⁻¹. With lower PNP concentrations, higher degradation of the latter was observed. Increasing the liquid flow rate promotes the diffusion of PNP molecules within the catalyst leading to a decrease in PNP degradation ratio. RTD of fluid in photoreactor was obtained applying the impulse tracer method. The RTD data revealed that CSTRs in series model with a cascade of four ideal tanks was well correlated with the reactor behavior. The residence time of fluid in the reactor equipped with a fiberglass cloth was higher than that with no FGC operating under identical conditions. This could lead to higher degradation efficiency of the former configuration. The CSTRs in series model combined with PNP photo-degradation rate equation was used to predict the kinetic parameters. A good correlation observed between the predicted values from CSTRs in series model and those determined experimentally, indicating the validity of the selected model.

Nomenclature

E	Residence time distribution
t̄m	Mean liquid residence time (min)
σ^2	Variance of the residence time
σθ^2	Dimensionless variance
N	Number of equal sized ideal stirred tank reactors
K	Adsorption equilibrium constant (L mg^−1)
C	PNP concentration (mg L^−1)
C0	PNP initial concentration (mg L^−1)
kr	Apparent reaction rate coefficient (mg min^−1 L^−1)
SSE	Sum of the square errors
nexp.	Total number of experiments
Xexp.	Experimental degradation ratio (%)
Xmodel	Model degradation ratio (%)
CN−1	Inlet PNP concentrations from the Nth reactor (mg L^−1)
CN	Outlet PNP concentrations from the Nth reactor (mg L^−1)

Acknowledgements

The authors would like to thank Eng. M. Rezaei for his helpful comments and Evonik GmbH for kindly supplying Nano-sized TiO₂.
