Facile fabrication of boron nitride nanosheets–amorphous carbon hybrid film for optoelectronic applications

Shanhong Wan*a, Yuanlie Yu*b, Jibin Pua and Zhibin Lua
aState Key Laboratory of Solid Lubrication, Lanzhou Institute of Chemical Physics, Chinese Academy of Sciences, Lanzhou 730000, China. E-mail: shwan@licp.cas.cn; nano@licp.cas.cn; zblu@licp.cas.cn; Fax: +86 931 4968163; Tel: +86 931 4968080
bAdvanced Membrane and Porous Materials Center, Division of Chemical and Life Science and Engineering, King Abdullah University of Science and Technology, Thuwal, 23955-6900, Saudi Arabia. E-mail: yuanlie.yu@kaust.edu.sa

Received 27th October 2014 , Accepted 19th January 2015

First published on 19th January 2015


Abstract

A novel boron nitride nanosheets (BNNSs)–amorphous carbon (a-C) hybrid film has been deposited successfully on silicon substrates by simultaneous electrochemical deposition, and showed a good integrity of this B–C–N composite film by the interfacial bonding. This synthesis can potentially provide the facile control of the B–C–N composite film for the potential optoelectronic devices.


Two dimensional boron–carbon–nitrogen (B–C–N) ternary materials show a series of electronic properties from insulation to semi-metallic in terms of nanosheets, nanoribbons and films, and they show profound potential in optoelectronic devices, luminescent devices, transistors, and micro-electrical-mechanical system (MEMS).1–3 Techniques for the synthesis of a B–C–N ternary material are mostly chemical vapour deposition (CVD) and physical vapour deposition (PVD). As a result, a spectrum of polymorphic structures in such B–C–N systems are often obtained, which are associated with the homophilicity (C–C) or the heterophilicity (C–B, C–N and BN),4 making the precise control of their chemical stoichiometry and geometry a challenging problem. Essentially, the band-gap of the B–C–N system closely depends not only on the stoichiometry but also on the particular atomic arrangements,5 and it is thereby a challenging opportunity to obtain the appropriate structure and best performance of a well-mixed B–C–N system, which can be easily tuned by the complex variants during a facile film deposition.

Amorphous carbon (a-C), a wide-band gap and thin-film semiconductor, has been intensively studied for its application as the active layer in photodetectors, electroluminescent devices and field emission displays.6 In particular, by choosing different types and sizes of the doped component, one can obtain a nanocomposite carbon material with desired optoelectronic properties. Recent investigations on the structural similarity of graphene–h-BN hetero-junctions motivate the alloying of amorphous carbon and h-BN to achieve a novel ternary B–C–N hybrid film,7–9 e.g. nanoscale h-BN sheets doped into the a-C matrix of the promising optoelectronic layer.10 However, the precise intermixing of BNNSs in a-C matrix and the interface integrity between them in such ternary material is far from understood.

Herein, we report the fabrication of B–C–N ternary films by a facile electrochemical deposition, which allows us to easily control the precise stoichiometry of this type of B–C–N system and their electronic structure of the optoelectronic devices.

A schematic of the two-step synthesis of B–C–N ternary films is shown in Fig. 1. After ultrasonication, the obtained h-BNNSs in water (∼0.1 mg ml−1) show a milky white colour. This homogenous dispersion is stable, and only a small amount of precipitation can be observed over a few days, as shown in Fig. 1b. The corresponding characterizations of h-BNNSs can be found in the ESI. Two strong peaks at 1380 cm−1 and 810 cm−1 of the Fourier transform infrared spectroscopy (FTIR) are the in-plane stretching of the B–N rings and out-of-plane bending vibration of the B–N–B rings of sp2-hybridized, respectively, which are typical characteristics of h-BN.11 Furthermore, a peak of ∼3414 cm−1 is attributed to the stretching signal of O–H, indicating a number of hydroxyl groups on the BNNS's surface.12 The obtained h-BNNSs have an average grain size of around 100 nm, which is determined by transmission electron microscopy (TEM). The selected area electron diffraction (SAED) pattern corresponds to the (100) plane and the (002) plane of h-BN.12 The electrolysis of the BNNSs–methanol electrolyte is performed under the electric field of 2400 V cm−1 and at 60 ± 5 °C. Finally a uniformly grey film with a thickness of about 1000 nm is obtained on the silicon substrate, as shown in Fig. 1d.


image file: c4ra13268h-f1.tif

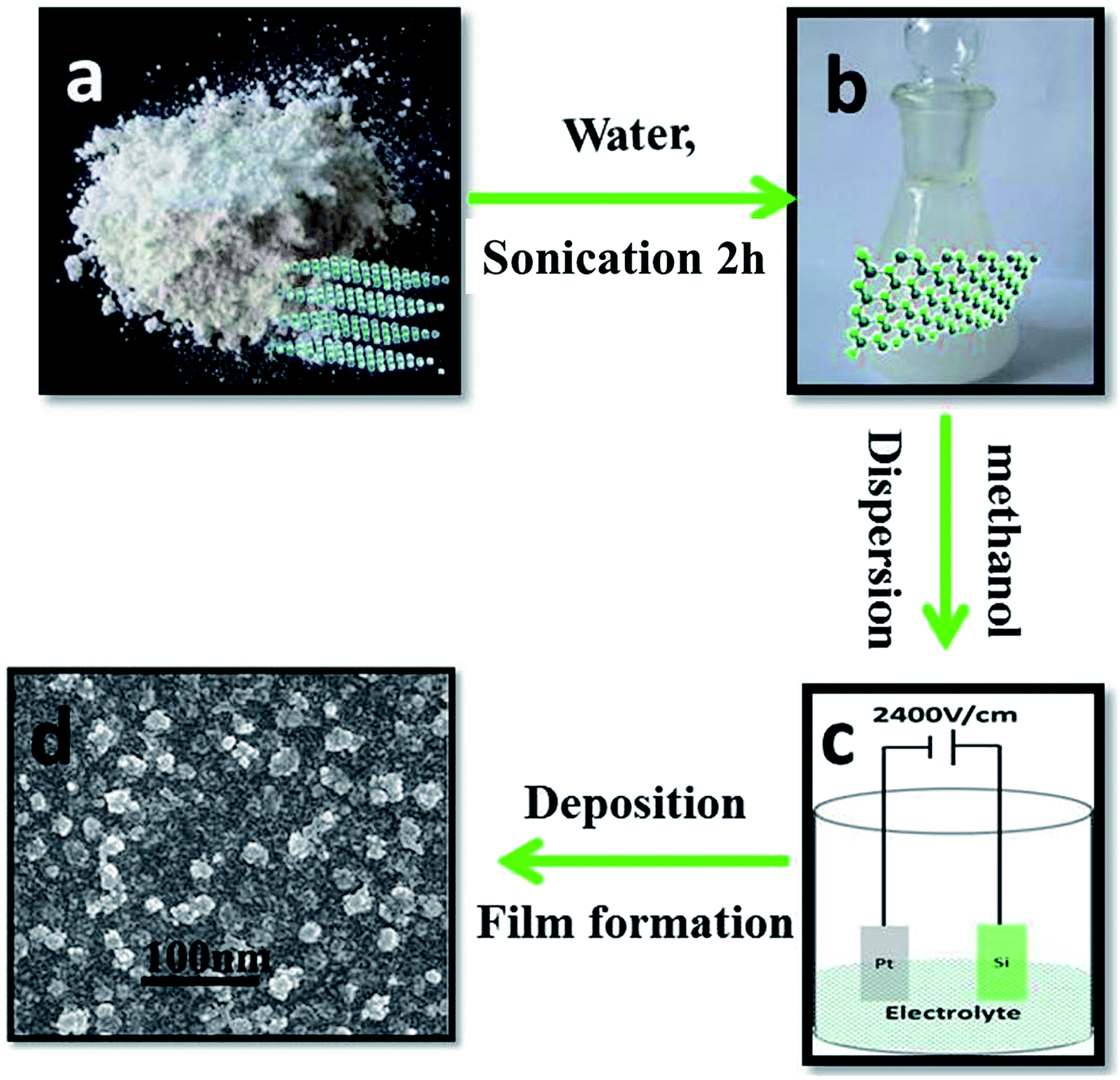

Fig. 1 Schematic of the two-step preparation of BNNSs–a-C hybrid film by sonication and electrolysis: commercially boron nitride powder (a), h-BNNSs in water after sonication (b), setup of electrolysis (c), and BNNSs–a-C hybrid film (d).

In Fig. 2, h-BNNSs are homogeneously dispersed in a-C matrix with a grain size of about 5 nm, and the adjacent nanocrystalline BNNSs are around 2 nm apart. Note that there is no clear crystalline boundary among the mixing hetero-structure interfaces. In other words, carbon atoms probably interact with B or N atoms of BNNSs under intensive electric field during the co-deposition process. The SAED pattern shows the asymmetric matrix spots with a d-spacing of 0.25 nm, which agrees well with h-BN. Moreover, three distinct absorption peaks can be identified at ∼188, ∼284, and ∼401 eV in the electron energy loss spectroscopy (EELS), which belongs to the K-shell ionization edges of B, C, and N, respectively.13 These values well support the sp2-hybridized bonding among B, C and N atoms, according to their sharp π*, forming the novel B–C–N structure of this hybrid film. In this study BNNSs–a-C composite film is easily obtained by the simple electrolysis of h-BNNSs–methanol dispersion as expected. However, the grain size of h-BNNS in a-C matrix is smaller than the obtained h-BNNS in water, and it can be explained that the smaller is the grain size of h-BNNS in the methanol electrolyte, the easier is the incorporation of h-BNNS into a-C matrix during the electrodepositing process.


image file: c4ra13268h-f2.tif

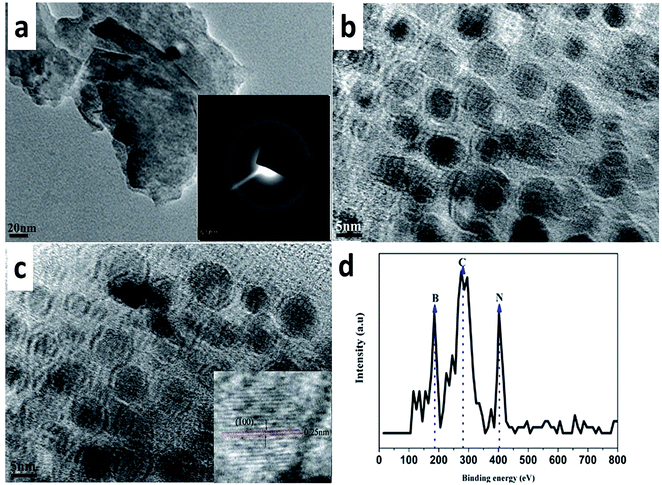

Fig. 2 Microstructure of the h-BNNSs–a-C film: HRTEM image (a–c), the corresponding SAED pattern (c, inset), and EELS spectrum of the film (d).

Quantitative XPS analysis shows the atomic concentration of B and N in a-C matrix is around 1.8 at%. In Fig. 3b, the B1s spectrum can be well fitted with a dominant peak at 189.6 eV, attributed to B[double bond, length as m-dash]N bonding in h-BNNSs, and one peak positioned at 191.0 eV assigned to the B–O bonding state.14 Because the electro-negativity of the C atom is lower than that of the N atom, the charge displacement from B to C is lower than that from B to N. The peak at ∼188.8 eV is possibly from the bonding configurations of B and C.15 From Fig. 3a, the sp2 B–N bonding in h-BN contributes to the peak at ∼397.5 eV, and the other one at ∼399.4 eV is in association with the C–N/C[double bond, length as m-dash]N bonding.14,15 The B1s and N1s spectra both signify the graphitic B–N bonding of h-BNNSs. A further illustration of carbon bonding is shown by the fitted C1s spectrum in Fig. 3c. A shoulder peak at ∼283.8 eV is attributed to B–C bonds, which is consistent with BCx compounds that show a peak at 283.0 eV for B4C.16 The binding energy of ∼284.5 eV can be assigned to C–C bonds, whereas the peak at ∼285.4 eV is a combined contribution of C[double bond, length as m-dash]C bonds and C[double bond, length as m-dash]N bonds because of the highly electronegative nitrogen atoms.17 For the peak at ∼288.8 eV, it is believed to be related to sp3 C–O bonding because some oxidation of the surface often occurs. It indicates that the interfacial bonding along the heterostructural boundary of the hybrid film happens. Furthermore, an increasing value of the sp2-C/sp3-C ratio from 0.8 to 1.0 identifies more graphitic phase in the hybrid film as compared to pure a-C film. As shown in Fig. 3d and e, two fitted peaks at ∼1361 and ∼1580 cm−1, an increasing intensity of D peak, and a simultaneous G peak narrowing can be found as well as an increasing ratio of ID/IG from 0.38 to 2.96, which confirms the amorphous nature of the film.10 Moreover, more graphitic carbon domains appear in the hybrid film as compared with pure a-C film.


image file: c4ra13268h-f3.tif

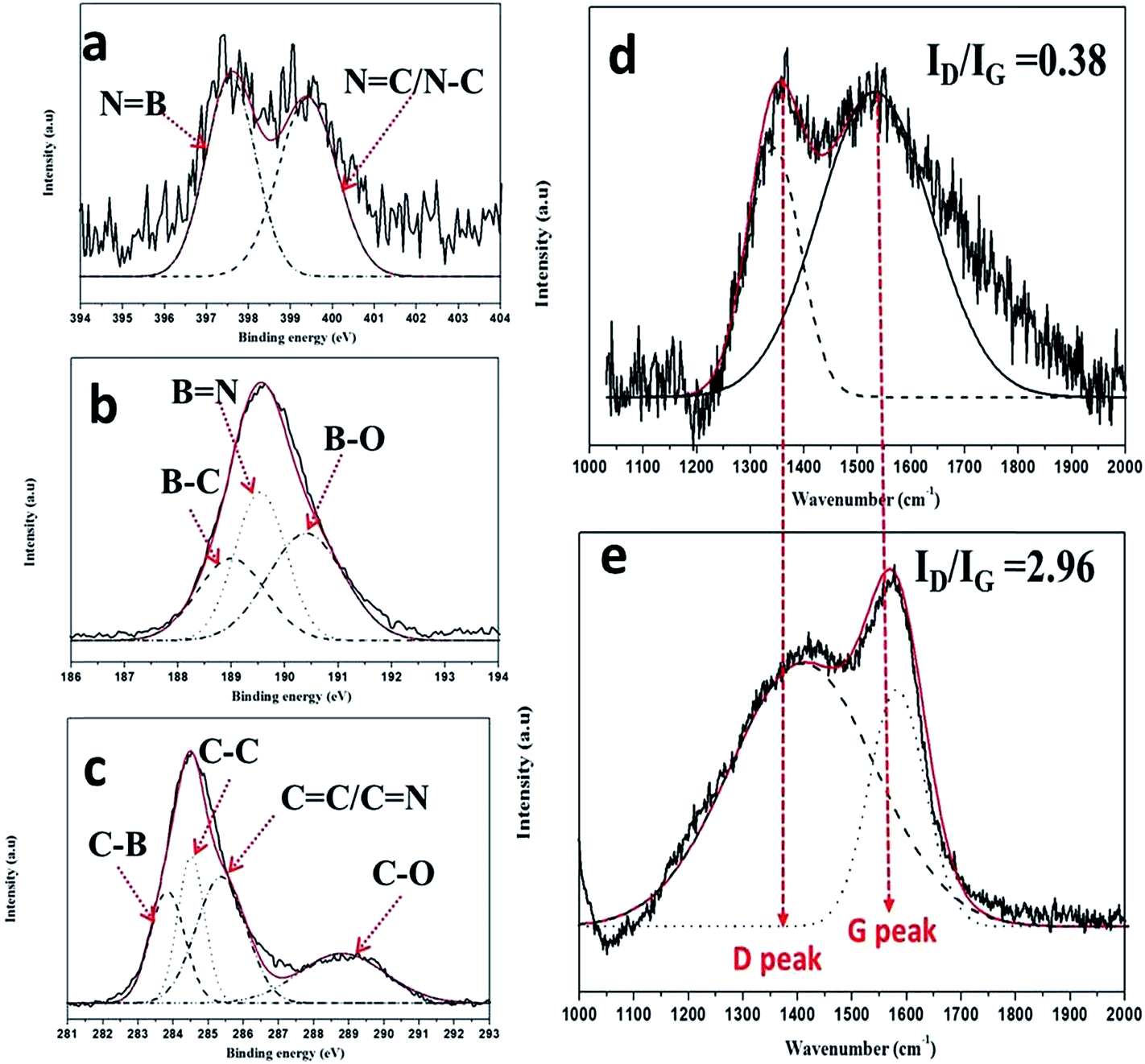

Fig. 3 XPS analysis of h-BNNSs–a-C film, the curve-fitted N1s spectrum (a), B1s spectrum (b), C1s spectrum (c). The curve-fitted Raman spectra of a-C (d) and h-BNNSs–a-C (e) films.

During electrolysis, the methanol electrolyte is broken down by the high electric field between electrodes, generating CH3+ ions, which will be absorbed on the negative electrode.18 Thus, there will be a bonding probability of methyl ions with B and N atoms in h-BN sheets during the simultaneous depositing process. A periodic DFT calculation using DMol3 code is further carried out to calculate the adsorption energy of the CH3+ ions perpendicular to the h-BN structure: on the top of boron and nitrogen atoms, as shown in Fig. 4. After the optimization, the shorter distance between the adsorbed CH3+ radical and the plane of h-BN sheet are obtained: 1.734 Å for CH3+–B (h-BN) and 1.559 Å for CH3+–N (h-BN). The calculated results shows that the absorption energy of CH3+ group to the B atom (CH3+–B (h-BN)) is around −1442.36 kJ mol−1, while the absorption energy of CH3+ group to the N atom (CH3+–N (h-BN)) is about −950.30 kJ mol−1, indicating the chemisorption of CH3+. Concerning the polarity, a charge transfer from methyl (cationic) to h-BN sheet takes place by the characteristic bending of the sheet, as shown in Fig. 4, inducing an increment in the polarity of the sheets. Furthermore, in the case of the dipolar moment, the values of the CH3+–BN structure go from 4.3 × 10−3 to 8.3 × 10−3 Debye obtained from the N, whereas 4.3 × 10−3 to 9.5 × 10−3 Debye from the B, which is in agreement with the investigation reported.19 These calculated results well supports the fact that CH3+ can be chemically absorbed on h-BNNSs, probably forming B–C and C[double bond, length as m-dash]N bonding.


image file: c4ra13268h-f4.tif
Fig. 4 The obtained configuration of CH3+ absorbed on h-BN sheet: perpendicular to the B atom (a), and perpendicular to the N atom (b).

As for the possibility of the co-deposition of h-BNNSs and a-C, it is undoubted that CH3+ ions are necessarily moved towards the silicon substrate of the cathode.17 Moreover, h-BNNSs will be polarized under the effect of the intensive electric field of 2400 V cm−1, and a charged density increases toward the longitudinal edges of h-BNNSs.20 Furthermore, it will be absorbed on the cathode surface, achieving the entrapment of h-BNNSs into the a-C matrix. As references say, h-BNNSs aligned themselves parallel to the electric field to minimize the electrostatic energy and to overcome the free energy of the system, which will play a template of the growth of graphitic carbon in a-C matrix.21,22 XPS and Raman analysis in this study well reveal the more graphitic carbon present in the hybrid film.

Especially, during the co-deposition process the interfacial interactions of the cationic CH3+ of methanol chemically bonded onto h-BNNSs greatly contributes to the good integrity of BNNSs–a-C hybrid film.23 Moreover, the filler of h-BNNSs in the nanoscale often has a wrinkled sheet topology obtained from the exfoliation process, which will improve the mechanical interlocking of BNNSs with the 3D cross-linked a-C matrix.23 In this study, the carbon atoms will bond with B, N atoms of h-BNNSs, forming C[double bond, length as m-dash]N and/or B–C bonds along the BNNSs–a-C interface.23 Note that considerable amounts of –OH groups are chemically anchored onto B atoms of h-BNNNs during the exfoliation process in water medium,24 thus making the h-BNNS's surface more hydrophilic. These abovementioned aspects greatly ensure the co-deposition of h-BNNNs and CH3+ species from the stable dispersion, and finally forms a homogeneous distribution of h-BNNs in a-C matrix, as shown in Fig. 2.

The integrity of the obtained B–C–N hybrid film can be identified by the improvement in the mechanical property of BNNSs–a-C hybrid films using a nanoindentation test. The increase in hardness from 2.35 GPa to 5.76 GPa and Young's modulus from 44.35 GPa to 105.90 GPa is achieved by the incorporation of h-BNNSs into a-C matrix, this improvement in mechanical property closely depends on a good integrity of the nanocrystalline/amorphous hybrid film.25,26

This remarkable heterostructure further allows us to readily modulate the electronic structure of BNNSs–a-C hybrid film and its optoelectronic property mainly by tuning the sheet or tube's concentration in the organic electrolyte. Moreover, some experiments have shown that the band gap of B–C–N thin films depends on the relative C and BN fractions; however, there has been a controversy concerning the structural properties of B–C–N thin films: some investigations indicate the partial segregation between C and BN,27 whereas others propose the models in which C, B, and N atoms are mixed.28 For instance, a considerable decrease of the band gap of BN nanomaterial can be tuned by 10% C doping.29,30

In conclusion, we synthesized a novel h-BNNSs–a-C hybrid film by a facile electrochemical deposition, which gives a new approach to the facile fabrication of B–C–N ternary system. The interfacial bonding between carbon and h-BNNSs contributes to the high integrity of this hybrid film. This graphite-like h-BNNSs–a-C hybrid film shows promising applications in optoelectronic devices.
