Structural modification by adding Li cations into Mg/Cs-TFSA molten salt facilitating Mg electrodeposition

Abstract

Liquid structures of Li/Mg/Cs-TFSA (TFSA: bis(trifluoromethylsulfonyl)amide, N(SO₂CF₃)₂⁻) molten-salt systems have been investigated by Raman spectroscopy and high-energy X-ray diffraction. The Raman spectroscopic measurements indicate that the cis-conformer of the TFSA anion is more favorable than the trans-conformer in the molten salts containing Li⁺ and/or Mg²⁺, whereas the latter is dominant for a pure Cs[TFSA] molten salt. The present reverse Monte Carlo (RMC) structural modelling suggests that the coordination number of the anion around Mg, N_Mg-anion, decreased in Li_0.1Mg_0.1Cs_0.8[TFSA]_1.1 molten salt compared to that in Mg_0.1Cs_0.9[TFSA]_1.1. The Mg-anion distance under the coexistence of Li⁺ is found to be about 10–15% longer than that without Li⁺ at around N_Mg-anion ∼ 1.5, which means the increase of free volume around Mg cations in the Li-contained molten salt. Thus, the electrodeposition of Mg in alkali-TFSA molten salts would be facilitated under the coexistence of Li cations.

---

Introduction

Molten salts consisting of alkali cations and halide anions are excellent candidates as safe electrolytes owing to their prominent properties, such as, low flammability, negligible vapour pressure, good thermal and electrochemical stability, and high ionic conductivity.¹ For the realisation of commercial products, room-temperature molten salts have been applied to lithium ion batteries.^2–6 Molten salts consisting of alkali cations and bis(trifluoromethylsulfonyl)amide (TFSA) anions have attracted attention^6–8 because of their high conductivity, and can be used as electrolytes at the intermediate temperature range (373 to 473 K).^9,10 Such moderate temperatures enable the application of the molten salts to battery electrolytes and are favorable for the durability of battery components, such as the current collector and case material, compared with those of high-temperature molten salts. To clarify the origin of the low melting point and the chemical stability, the structure and dynamics of the TFSA molten salts have been explored well.^11–14 Theoretical approaches to elucidate these characteristics are also reported.^15–21 Recently, the successful Mg electrodeposition by adding Li⁺ in the TFSA molten salt is reported as well as the high safety and the outstanding electrochemical characteristics of Mg ion batteries.^22,23 A plausible structure model is required to examine the structural modification by adding Li⁺ in alkali-TFSA molten salts, due to the lack of information on the coordination environment of Mg²⁺.

Diffraction experiments are powerful methods of analyzing the structure of not only crystalline materials but also disordered materials such as glass, liquids, and amorphous solids. X-ray and neutron diffractions have been widely used to determine coordination numbers and bond lengths. These can be obtained by Fourier transformation for a total structure factor to the real-space pair distribution function. A structural analysis for Li[TFSA] comprising a combination of high-energy X-ray diffraction and MD simulation was reported.¹⁷ The results suggest long-range anion–anion correlations caused by the formation of TFSA anion clusters around Li⁺ ions. The complexity of the molecular structure of the TFSA anion makes such diffraction analysis difficult. Furthermore, it is well known that two kinds of conformers exist for the TFSA anion in alkylimidazolium TFSA,²⁴ 1-butyl-3-methylimidazolium TFSA,²⁵ and 1-ethyl-3-methylimidazolium TFSA.²⁶ Raman spectroscopy is utilized as a complementary technique for structural analysis of the TFSA anion.

Reverse Monte Carlo (RMC) simulation is a convenient tool for modeling liquid structures obtained by diffraction techniques and makes it possible to generate a three-dimensional structural model for glass, liquids, and amorphous materials from diffraction data without using interatomic potentials.^27–30 However, a technical problem in RMC is how to constrain the intra-molecular configuration in complicated systems such as ionic liquids. Recently, new codes for RMC have been developed to solve this problem, wherein the dihedral potential can be treated restrictively,³¹ and to deal with the intra-molecular flexibility by molecular mechanics (RMC-MM).³² In the RMC-MM simulation, the intra-molecular structure is constrained by the MM, whereas the inter-molecular structure is modeled by the usual RMC simulation using the experimental diffraction data. Although an interaction has been suggested by structural models based on the molecular orbital calculation in many cases,^16,17,33,34 this method enables the structural refinement between ions of complicated molten salts on the basis of experimental diffractions on a much larger scale than in that in theoretical orbital calculation.

The final goal of our study is to understand the relationship between structural properties and physicochemical characteristics by revealing the interactions between ions, in order to contribute to the development of high-performance batteries. In this study, structural models with two kinds of conformers in the TFSA anion are demonstrated by RMC-MM simulation with the aid of Raman spectroscopy, which are more plausible structures than those obtained by X-ray diffraction only. We target Mg[TFSA]₂ – M[TFSA] (M = Cs, Li) molten salts in which the electrodeposition of Mg by adding Li⁺ (ref. 22 and 23) has been found, which is very important in understanding the relationship between liquid structure and electrodeposition of Mg. The structural modification in alkali molten salts containing Li⁺ and/or Mg²⁺ is evaluated from the structural model, reproducing the experimental results of Raman spectroscopy and high-energy X-ray diffraction well.

Results and discussion

To quantitatively reproduce cis- and trans-conformers of the TFSA anion, the Raman spectra of the alkali TFSA molten salts in the frequency range of 360–480 cm⁻¹ were obtained, as shown in Fig. 1. On the basis of the Raman spectra in 1-ethyl-3-methylimidazolium [EMI][TFSA], we assigned Raman bands at approximately 400 cm⁻¹ to cis- and trans-conformers for the TFSA anion.³⁴ The ratios of the cis- and trans-conformers were estimated and summarized in Table 1. It is quite obvious that the cis-conformers increase relatively to the trans-conformers in the alkali TFSA molten salts containing Li⁺ and/or Mg²⁺ ions, which is consistent with the results of Raman spectroscopy for 1-butyl-3-methylimidazolium TFSA ([C₄mIm]⁺[TFSA]⁻).^25,35 This increase of cis-conformers occurs with the reduction in the ionic radii of alkali metal ions in the salt. It is suggested that the cis-TFSA anion is favored in the first solvation sphere of the Li ion with a relatively small ionic radius.³⁵ Fujii et al. also reported that the dipole moment of the cis-conformer is significantly larger than that of the trans-one, implying that the cis geometry is preferred around the small cation.³⁶ Since Li⁺ and Mg²⁺ possess similar ionic radii, the surrounding TFSA anions take the cis-conformation as a result of the increase in Li[(cis-)TFSA] and Mg[(cis-)TFSA]₂ in this ternary system.

Fig. 1 Raman spectra in the range 360–480 cm⁻¹ for alkali TFSA molten salts. Black, blue, and red lines represent p, q, r = 0.0, 0.0, 1.0; 0.0, 0.1, 0.9 and 0.1, 0.1, 0.8 of Li_pMg_qCs_r[TFSA]_p+2q+r, respectively.

Table 1 Details of alkali TFSA molten salts; compositions, densities, atomic number densities, particle numbers for RMC simulation, and the ratios of cis- and trans-conformers

Li, Mg, Cs	0.0, 0.0, 1.0	0.0, 0.1, 0.9	0.1, 0.1, 0.8
Composition	[Cs^+]1.0[N(SO2CF3)2^−]1.0	[Mg^2+]0.1[Cs^+]0.9[N(SO2CF3)2^−]1.1	[Li^+]0.1[Mg^2+]0.1[Cs^+]0.8[N(SO2CF3)2^−]1.1
Density (g cm^−3)	2.39	2.33	2.25
Atomic number density (Å^−3)	0.0558	0.0571	0.0568
Ratio of cis and trans	20 : 80	66 : 34	79 : 21
Particle number	8000	8750	8750
Box length (Å^3)	52.35	53.52	53.61

---

Fig. 2 shows the structure factors, S(Q), for the alkali TFSA molten salts up to Q = 20 Å⁻¹. The oscillations remain to the high-Q region in all molten salts. Since the oscillations of the high-Q region are expressed for the correlation of the short distance, the structure contains many covalent bonds. This is often the case when ions such as TFSA anions exist in the system. The profile similarity in this region suggests that the intra-molecular structure of the molten salts is unchanged, as shown in an earlier study.³⁴ Furthermore, the oscillations of the low-Q region expressing the long-range correlations are also unchanged. The pre-peak at around Q = 0.6 Å⁻¹ already present in the pure Cs[TFSA], which suggests the correlation between same ionic species ions (i.e. between Cs ions) appear at a longer distance. The total pair distribution function, g(r), for the alkali TFSA molten salts derived by the Fourier transformation of the experimental S(Q), as shown in Fig. S1.† Here, we carried out the RMC-MM structural modeling for the observed S(Q), fixing the ratios of cis- and trans-conformers on the basis of Raman spectroscopy measurements to reproduce the plausible liquid structure.

Fig. 2 Total X-ray structure factors S(Q) at 438 K for alkali TFSA molten salts for the Q range of 0 < Q < 20. Circles, experimental data; lines, the RMC-MM models. Line colours correspond to those in Fig. 1.

The total structure factors S(Q) of the alkali TFSA molten salts derived from the RMC-MM model are shown in Fig. 2 as lines. It was confirmed that the RMC-MM models are consistent with the experimental data. The partial pair distribution functions (PDFs), g_ij(r), for the alkali TFSA molten salts were calculated from the RMC-MM models. Fig. S2† shows the intra-molecular g_ij(r) of the TFSA anion, which consists of the first neighbor covalent bond (see the schematic in Fig. S2(f)†). The restraint for cis- and trans-conformers is functioning well, as shown by the RMC-MM simulation. The slight difference is observed in Li_0.1Mg_0.1Cs_0.8[TFSA]_1.1. However, as mentioned above, the oscillations in the high-Q region remaining on the structure factors at all compositions indicate the contribution of the intra-molecular atom–atom correlations is not affected by the ratio of cations.

The three-dimensional structural model for the alkali TFSA molten salts is obtained by RMC-MM modeling. To evaluate this model in detail, we calculated PDFs for A–N (A; Li, Mg, Cs) as the general form of g(r) and show the results in Fig. 3. We assume the N to representative anion here. The g(r) for the Mg–N correlation, g_Mg–N(r), has a short correlation distance of 3.3 Å compared with those of g_Li–N(r) and g_Cs–N(r) (Fig. 3(a)–(c)). This means Mg²⁺ attracts the TFSA anion strongly compared with Cs⁺. The g_Mg–O(r) also shows this feature, whereas g_Mg–F(r) does not have the strong correlation (Fig. S4(d) and (g)†). Furthermore, the length of g_Cs–N(r) became short by adding Li⁺ or/and Mg²⁺, as shown in Fig. 3(c). This is consistent with the composition dependence of cis- and trans-conformers in the TFSA anion. Strangely, there was no characteristic peak in g_Li–N(r), as shown in Fig. 3(b), although we expected a strong correlation. Regarding g_Mg–N(r) shown in Fig. 3(a), it was confirmed that correlations become weak on introducing Li⁺. To understand the coordination environment of Mg in detail, we calculated the bond distance to the coordination number of the anion around Mg, N_Mg–N, as shown in Fig. 4(a). The maximum coordination number of 2.0 was determined from the valence of Mg. Intriguingly, the Mg–N distance in Li_0.1Mg_0.1Cs_0.8[TFSA]_1.1 is found to be approximately 10–15% longer than that in Mg_0.1Cs_0.9[TFSA]_1.1 at around N_Mg–N ∼ 1.5, which suggests that the free volume around Mg ions increases by adding Li⁺ in the system. Actually, the atomic number density of Li_0.1Mg_0.1Cs_0.8[TFSA]_1.1 (0.0568 Å⁻³) is smaller than that of Mg_0.1Cs_0.9[TFSA]_1.1 (0.0571 Å⁻³), as shown in Table 1. This may be closely related to the successful electrodeposition of Mg in the ternary Li_pMg_qCs_r[TFSA]_p+2q+r system.^22,23 To obtain statistical details regarding the distribution of the anion around Mg²⁺, the distributions of the Li–N and Mg–N correlations were calculated, as shown in Fig. 5. Since the integral maximum distance was set to 4.0 Å, the zero of the coordination number exists. As can be seen in this figure, the coordination number of Mg²⁺ decreases in Li_0.1Mg_0.1Cs_0.8[TFSA]_1.1 compared to that in Mg_0.1Cs_0.9[TFSA]_1.1; however it is still larger than that of Li⁺. This feature is consistent with the results in the previous study, which suggested the formation of clusters of two TFSA anions around Li⁺ ion.¹⁷ The distribution of the Cs–N correlation is unchanged in these compositions, as shown in Fig. S5.† Fig. 4(b) shows a schematic illustration of the coordination environment around Mg²⁺ in Mg_0.1Cs_0.9[TFSA]_1.1. The inside dashed line of 4.0 Å indicates the Mg–N distance at around N_Mg–N ∼ 1.5 in Mg_0.1Cs_0.9[TFSA]_1.1, whereas that in Li_0.1Mg_0.1Cs_0.8[TFSA]_1.1 becomes 4.4 Å, as shown in Fig. 4(c). It is worth mentioning that the free volume around Mg²⁺ is extended approximately 37.8% as the volume. Such increase of free volume around Mg²⁺ is induced by the addition of Li⁺. This suggests that the coexistence of Li⁺ facilitates the electrodeposition of Mg in alkali-TFSA molten salts. The small Li⁺ cations would attract TFSA anions strongly compared to large Cs⁺ cations due to their high surface density of charges, which may enlarge the free volume around Mg²⁺ cations. Thus, the coexistence of such cations of different ionic radii and charges would facilitate the magnesium electrodeposition, which contributes to the development of high-performance batteries.

Fig. 3 Pair distribution functions, g(r), for Mg–N (a), Li–N (b), and Cs–N (c) derived using the RMC-MM models for alkali TFSA molten salts. Line colours correspond to those in Fig. 1.

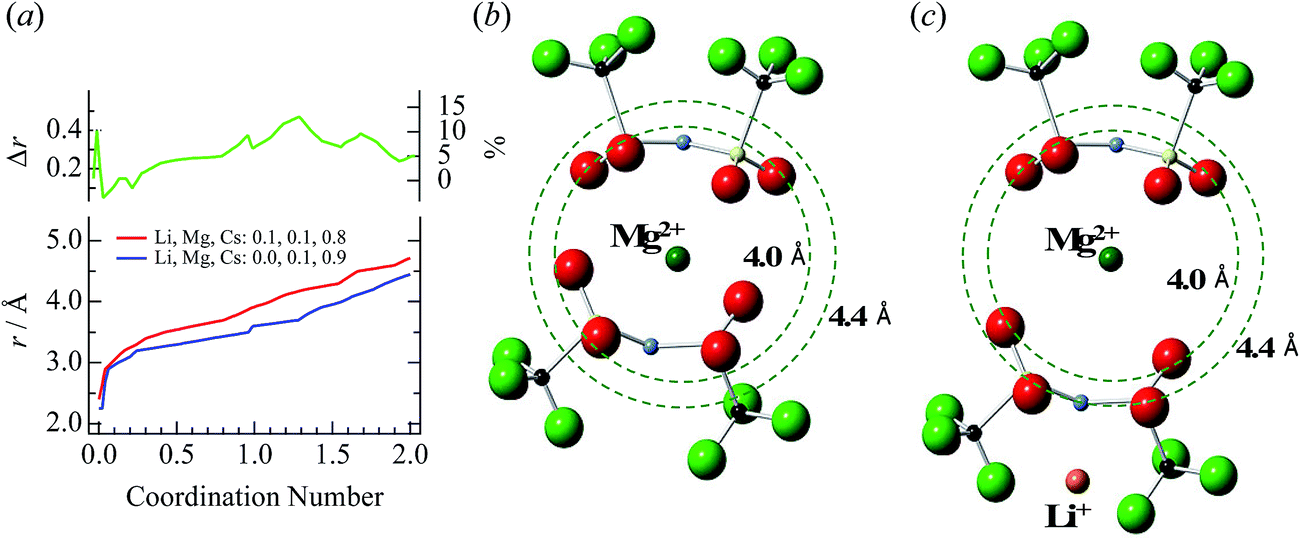

Fig. 4 Bond distances for the Mg–N correlation derived using the RMC-MM models based on the valence compensation of Mg²⁺, and their difference is shown to the upper part (a). Schematic illustrations of TFSA anions around Mg²⁺ for Mg_0.1Cs_0.9[TFSA]_1.1 (b) and Li_0.1Mg_0.1Cs_0.8[TFSA]_1.1 (c) which satisfied the coordination number of 1.5 for Mg–N correlation.

Fig. 5 Coordination number statistics for alkali TFSA molten salts obtained using the RMC-MM model. Normalized fractions of Li–N (a) and Mg–N (b) coordination numbers within 4.0 Å.

Conclusion

From the Raman spectroscopy measurement, the increase of the cis-TFSA anion is observed in Li_pMg_qCs_r[TFSA]_p+2q+r molten salts containing Li⁺ and/or Mg²⁺ ions, which is consistent with the earlier works.¹⁷ The present reverse Monte Carlo structural refinements using molecular mechanics (RMC-MM) simultaneously reproduce high-energy X-ray diffraction data and Raman spectroscopic results, quantitatively fixing two kinds (cis and trans) of conformers in the TFSA anion. The plausible RMC structures indicate the coordination number of the anion around Mg²⁺, N_Mg–N, decreased in Li_0.1Mg_0.1Cs_0.8[TFSA]_1.1 molten salt compared to that in Mg_0.1Cs_0.9[TFSA]_1.1. It is emphasized here that the Mg-anion distance under the coexistence of Li⁺ is approximately 10–15% longer than that without Li⁺ at around N_Mg–N ∼ 1.5, and thus the coexistence of Li⁺ can increase the free volume around Mg²⁺ in the TFSA molten salts, which would facilitate the Mg electrodeposition. Actually, it is already reported that Mg metal can be electrodeposited in the TFSA molten salts containing Li⁺ and/or Mg²⁺.^22,23 Therefore, our present finding is a considerably important concept in the TFSA molten salts, and would lead to further understanding of the correlation between their structures and electrochemical behaviors.

Experimental methods

Samples were prepared as described previously.⁹ Raman spectra were obtained at 443 K using the 633 nm line of a He–Ne laser as the excitation line (Nanofinder 30, Tokyo Instrument). The sample was loaded in a Ni open cell that was placed in an air tight heating stage (10042, Japan High Tech Co., Ltd.) under dry Ar atmosphere. On the basis of the previous work,^25,36 the ratio of cis- and trans-conformers in the TFSA anion was determined from the intensities of two peaks (cis- and trans-conformers correspond to the peaks at high and low frequencies, respectively) at approximately 400 cm⁻¹ in the observed Raman spectra. The Raman peaks were assumed to be represented as a Lorentzian function and their positions were not fixed during fitting.

The high-energy X-ray diffraction experiments for molten salts Li_pMg_qCs_r[TFSA]_p+2q+r (p, q, r: 0.0, 0.0, 1.0; 0.0, 0.1, 0.9 and 0.1, 0.1, 0.8) were carried out at 438 K within 5 K at the SPring-8 BL04B2 beamline using a two-axis diffractometer.³⁷ The incident X-ray energy obtained from a Si 111 crystal monochromator was 113 keV. The diffraction patterns of the sample and an empty capillary were measured in the transmission geometry. The intensity of incident X-ray was monitored in an ionization chamber filled with Ar gas and the scattered X-rays were detected by a Ge detector. A vacuum electric chamber was used to suppress air scattering around the sample. The collected datasets were corrected for the absorption, background, and polarization effects. The details of data correlation and normalization procedures are given in ref. 37.

Computational method

The molecular mechanics (MM) procedure was performed by employing the widely used TINKER code.^38–40 The total potential energy is given in the following equation as a sum of the potential energy of each molecule:

E_molecule = ∑E_bond + ∑E_angle + ∑E_torsion,

where E_bond is the bond energy, E_angle is the energy of the angle, and E_torsion is the energy of the torsion in the molecule. Before analyzing the inter-molecular correlations in detail, it is of primary importance to reproduce the intra-molecular geometries in the TFSA anion using the results of Raman spectroscopic results listed in Table 1. These geometries are realised by using the following equation of torsion energy:

E_torsion = K(1 + cos(nφ − φ₀)),

where K is the force constant, n is the number of the symmetry, φ is the dihedral angle, and φ₀ is the initial phase. We selected 2 and 90 for n and φ₀, respectively, which realise the dihedral angle of 0° and 180° for the cis- and trans-conformers, respectively, in the TFSA anion.

In our RMC-MM simulations, the total number of alkali TFSA molten salts was 500 cation–anion pairs. It was 8750 atoms when Mg²⁺ ion was present, and 8000 atoms when absent. To obtain a plausible structural model, we checked the densities (Fig. S6†). The initial configurations were prepared by arranging the cation–anion pairs randomly in a cubic box with corresponding densities as listed in Table 1. The cut-offs, i.e., the minimum allowed distances between atom pairs, were estimated from the experimental pair distribution function. The force-field parameters for the alkali TFSA molten salts were taken from the parameters given in ref. 41. The simulations were performed for four different initial configurations for each composition, and the validities were checked.

Author contributions

The manuscript was written through contributions of all authors; K.O., R.H., H.A., Y.Uc., and E.M. designed this research; S.O., Y.A. and Y.O. prepared samples; K.O., M.M., S.O., and M.O. performed high-energy X-ray measurements; K.M., Y.A., and T.N. performed Raman spectroscopic measurements; K.O. and M.M. carried out RMC-MM simulations; K.O., Y.Um., T.I. and K.M., analyzed the data; K.O., Y. Um. T.I. K.M., R.H. and E.M. contributed to discussions of the results; K.O., Y.Um., T.I., K.M., R.H., and H.A. wrote the paper with help from all authors.

Acknowledgements

The authors appreciate Dr Hidetoshi Morita, AdvanceSoft Corporation, for his kind assistance with the RMC-MM simulation. The authors are thankful to Dr Kenta Fujii, Yamaguchi University, for his dedicated support. This work was partially supported by the Research and Development Initiative for Scientific Innovation of New Generation Batteries (RISING) project of the New Energy and Industrial Technology Development Organization (NEDO) in Japan. The synchrotron radiation experiment was approved by the Japan Synchrotron Radiation Research Institute (proposals. 2012A1413, 2012A1669, 2012A1682, 2013A7600, and 2013B1009).
