Unexpected formation of [Ru(η⁵-C₅H₅)(PH{CH₂N(CH₂CH₂)₂O}₂)(PPh₃)₂]BF₄ – the first “piano-stool” ruthenium complex bearing a secondary aminomethylphosphane ligand

Abstract

In this paper we report the reaction of [Ru(η⁵-C₅H₅)Cl(PPh₃)₂] with P{CH₂N(CH₂CH₂)₂O}₃ in the presence of NaBF₄, in which, apart from the Cl⁻ substitution, an unexpected P–C bond cleavage in the tertiary phosphane is observed. It results in the formation of [Ru(η⁵-C₅H₅)(PH{CH₂N(CH₂CH₂)₂O}₂)(PPh₃)₂]BF₄ (1) – the first “piano-stool” ruthenium complex with a secondary aminomethylphosphane ligand.

---

Metal complexes have been investigated as potential chemotherapeutic agents during the past few decades.¹ The discovery of therapeutic activity of (ImH)[trans-RuCl₄(DMSO)Im] (NAMI-A) and (IndH)[trans-RuCl₄(Ind)₂] (KP1019) allowed the ruthenium complexes to achieve status of promising candidates for novel cancer therapy.² The ruthenium ion in both complexes has an oxidation state of +3. Nevertheless, it is suggested that reduction of Ru(III) to Ru(II) takes place inside the cell prior to DNA binding, which is known as the activation by reduction mechanism.³ The hypothesis that ruthenium(II) agents are much more active factors in biological system than their ruthenium(III) analogues caused that more attention has been paid in the investigations of Ru(II) coordination compounds. Nowadays, ruthenium(II) compounds, especially “piano-stool” [Ru(arene) (L₁)(L₂)(L₃)] complexes, are one of the most explored groups of potential drugs.⁴ Moreover, the easy introduction of different L ligands (e.g. halides, phosphanes or amines) enables significant modifications of not only stability and physicochemical properties but also biological activity of these compounds.

In recent years, we have been interested in photochemical and biological properties of ruthenium compounds.⁵ Currently, we are focused on the synthesis of novel “piano-stool” ruthenium complexes. Our preliminary goal was to substitute of triphenylphosphane molecules or chloride ion in [Ru(η⁵-C₅H₅)Cl(PPh₃)₂] complex, as it was shown by Ashby et al.⁶ For the Cl⁻ replacement we chose a method presented by Romerosa et al.⁷ involving the presence of sodium tetrafluoroborate. As the replacing ligands we decided to use tris(aminomethyl)phosphanes. These ligands are the large and interesting class of phosphanes for several reasons. Firstly, they are stable in water solution and, to some extent, in the presence of oxygen.⁸ Secondly, these ligands can be easily functionalised. For example, aminomethylphosphanes derived from amino acids⁹ or prepared from the highly water-soluble aliphatic secondary amines,¹⁰ seem to be interesting in terms of the formation of potential conjugates with a wide range of biomolecules. Moreover, in our previous papers we presented a group of copper(I) complexes with tris(aminomethyl)phosphanes derived from morpholine (P{CH₂N(CH₂CH₂)₂O}₃) or piperazine (P{CH₂–N(CH₂CH₂)₂N–R}₃).⁸ Promising in vitro cytotoxicity of these complexes encouraged us to extend our studies to ruthenium compounds.

Herein, we report the reaction of [Ru(η⁵-C₅H₅)Cl(PPh₃)₂] with P{CH₂N(CH₂CH₂)₂O}₃ (P(CH₂-morph)₃) in the presence of NaBF₄, which did not lead to a straightforward substitution of the Cl⁻ ion, but involved a simultaneous P–C bond cleavage in P(CH₂-morph)₃, resulting in formation of the secondary phosphane – PH(CH₂-morph)₂, which gave the [Ru(η⁵-C₅H₅){PH(CH₂-morph)₂}(PPh₃)₂]BF₄ complex (1) (Fig. 1).

Fig. 1 Two views of the crystal structure of complex 1 (30% probability ellipsoids). Selected bond distances (Å) and angles (°): Ru(1)–C(1) = 2.250(2), Ru(2)–C(2) = 2.238(2), Ru(1)–C(3) = 2.244(2), Ru(1)–C(4) = 2.255(2), Ru(1)–C(5) = 2.253(2), Ru(1)–Cg_Cp (cyclopentadienyl centre of gravity) = 1.894(2), Ru(1)–P(1) = 2.294(1), Ru(1)–P(2) = 2.366(1), Ru(1)–P(3) = 2.335(1), P(1)–Ru(1)–P(2) = 89.71(2), P(1)–Ru(1)–P(3) = 92.94(2), P(2)–Ru(1)–P(3) = 102.08(2), Cg_Cp–Ru(1)–P(1) = 126.54(3), Cg_Cp–Ru(1)–P(2) = 121.71(3), Cg_Cp–Ru(1)–P(3) = 117.14(3).

Addition of P(CH₂-morph)₃ to the orange suspension of [Ru(η⁵-C₅H₅)Cl(PPh₃)₂] and NaBF₄ led to the formation of yellow solution after 3 hours of reflux.‡³¹P{¹H} NMR spectrum of this solution (see ESI Fig. S3†) showed that the main product possess three phosphorus atoms – two equivalent atoms observed as a doublet and the other one, which is observed as a triplet. Such a spectrum could suggest a simple replacement of the chloride ion by the tris(aminomethyl)phosphane. However, the analysis of the crystal structure of this complex revealed that, in time of synthesis, tertiary phosphine P(CH₂-morph)₃ was rearranged to secondary PH(CH₂-morph)₂. 1 is therefore a “piano-stool” complex, in which chloride was substituted by the secondary aminomethylphosphane.

A large number of ruthenium complexes with secondary and/or primary phosphanes were synthesized until now.¹¹ However, the cleavage of the phosphane P–C bond during complex formation is unprecedented not only for the aminomethylphosphanes. A similar reaction was observed by Higham et al.¹² only for two hydroxymethylphosphanes. They reported analogous process when fourfold excess of P(CH₂OH)₃ or P(CH₂OH)₂Ph was mixed with RuCl₃·H₂O. As a result, they obtained the coordination compounds possessing two molecules of the tertiary phosphane and two molecules of the secondary one: [Ru{PPh(CH₂OH)₂}₂{PPh(CH₂OH)H}₂Cl₂] and [Ru{P(CH₂OH)₃}₂{P(CH₂OH)₂H}₂Cl₂].

The complex 1 crystallizes in tetragonal crystal system; space group I4₁/a. The asymmetric unit contains sixteen equivalent [Ru(η⁵-C₅H₅){PH(CH₂-morph)₂}(PPh₃)₂]⁺ cations and tetrafluoroborate anions. Replacement of chloride with the PH(CH₂-morph)₂ leads to a slight elongation of one of the Ru-PPh₃ bonds compared to the parent complex.¹³ The bond lengths are equal: Ru(1)–P(3) = 2.335(1) Å, Ru(1)–P(2) = 2.366(1) Å for 1 and Ru–P(1) = 2.337(1), Ru–P(2) = 2.335(1) Å for [Ru(η⁵-C₅H₅)Cl(PPh₃)₂]. Moreover, the average distance from the carbon atoms of C₅H₅⁻ ligand to Ru(1) central atom, equal to 2.248(2) Å, is also longer than for [Ru(η⁵-C₅H₅)Cl(PPh₃)₂] (2.207(3) Å). The angle between Ru–PPh₃ bonds found for 1 (P(2)–Ru(1)–P(3) = 102.08(2)°) is smaller than for [Ru(η⁵-C₅H₅)Cl(PPh₃)₂] (P(1)–Ru–P(2) = 103.99(4)°). Above data prove steric hindrances in 1 caused by the presence of PH(CH₂-morph)₂ ligand and may be related to a facilitation of the –CH₂-morph group release.

Measurement of ³¹P NMR spectrum confirmed the presence of the secondary phosphane. The upfield signal of PH(CH₂-morph)₂, which is observed as a triplet at −12.96 ppm (²J(P¹–P^2,3) = 41.2 Hz) in the proton-decoupled ³¹P{H} NMR spectrum, in ³¹P NMR spectrum appears as a doublet of triplets (Fig. 2). Appearance of a new, large coupling (338.6 Hz) proves that phosphorous atom is directly bound with hydrogen atom. Integration of the signals in the proton spectrum also confirms that aminomethylphosphane loses one –CH₂-morph moiety during of complex preparation. The PPh₃ part of the ¹³C{H} spectrum of 1, similarly to the spectrum of [Ru(η⁵-C₅H₅)Cl(PPh₃)₂], consists of four signals: the multiplet of the C^ipso atoms, the singlet of C^para atoms and two pseudotriplets of the C^orto and C^meta atoms (see ESI Fig. S6 and S8†). The latter signals arise from a second-order effect, referred to as “virtual coupling”,¹⁴ observed usually for the phosphanes in trans positions to one another. The PH(CH₂-morph)₂ part consists of a doublet of C11 carbon atoms with the ¹J(C–P) = 36.1 Hz – much larger than observed for the free P(CH₂-morph)₃ ligand, a doublet of C12 and a singlet of C13 atoms.

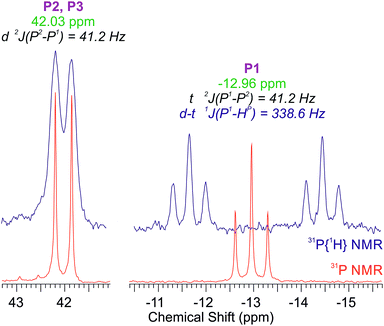

Fig. 2 Comparison of the ³¹P and ³¹P{¹H} NMR spectra (CDCl₃, 300 K) of complex 1.

The other data are fully consistent with the crystal structure of 1.‡ In the infrared spectrum the band assigned to P–H stretching is observed at 2346 cm⁻¹. The location of the band at lower wavenumber in comparison with that of [Ru{P(CH₂OH)₃}₂{PH(CH₂OH)₂}₂Cl₂] (2374 cm⁻¹)¹² suggests that P–H bond in 1 is noticeably weaker. It is worth to mention that 1 is stable under normal conditions (the air and the presence of moisture). Fragmentation of the [Ru(η⁵-C₅H₅){PH(CH₂-morph)}(PPh₃)₂]⁺ ion in ESI-MS takes place only in a small degree, even under acidic conditions. Among products of fragmentation it is possible to identify [Ru(η⁵-C₅H₅){PH₂(CH₂-morph)}(PPh₃)₂]⁺ and [Ru(η⁵-C₅H₅)(PPh₃)₂]⁺ ions. It suggests that –CH₂-morph moiety as well as secondary phosphane PH(CH₂-morph)₂ are more susceptible to elimination than triphenylphosphane parts of complex 1.

Conclusions

The synthesized complex, to the best of our knowledge, is a first metal complex bearing a secondary bis(aminomethyl)phosphane ligand. The presented formation of ruthenium(II) complex containing a reactive P–H bond, offers a great scope for further ligand functionalization. Moreover, our recent studies proved that discussed process is not an individual case. The preliminary experiments showed that similar reaction takes place in the case of other tris(aminomethyl)phosphanes as well as indenyl or pentamethylcyclopentadienyl “piano-stool” starting complexes. Now we are focused on elucidation of the mechanism of the phosphane P–C bond cleavage as well as the biological properties of the resulting complex.
