A simple non-isocyanate route for synthesizing aliphatic thermoplastic polyurethane-ureas (TPUUs) and thermoplastic polyureas (TPUreas) is presented. Melt transurethane polycondensation of isophorone diamine or diethylene glycol bis(3-aminopropyl) ether with bis(hydroxyethyl) hexanediurethane, bis(hydroxyethyl) isophoronediurethane or bis(hydroxyethyl) piperazinediurethane was conducted at 170 °C under a reduced pressure of 3 mmHg. A series of thermoplastic TPUUs and TPUreas were prepared, and were characterized by gel permeation chromatography, FT-IR, 1H-NMR, differential scanning calorimetry, thermogravimetric analysis, and tensile testing. The TPUUs and TPUreas have an Mn up to 14900 g mol−1, an Mw up to 43700 g mol−1, Tg between −18.6 °C and 116.8 °C, and an initial decomposition temperature of over 222.3 °C. A flexible TPUU exhibits a melting temperature of 77.7 °C, a tensile strength of 6.46 MPa, and an elongation at break of 180.20%.
Transurethane polycondensation of diurethanes has been developed to synthesize linear or thermoplastic polyurethanes (TPUs). Deepa et al. synthesized a series of amorphous TPUs from the transurethane polycondensation of dimethyl 1,6-hexamethylene dicarbamate and dimethyl isophorone dicarbamate with glycol oligomers, 1,4-cyclohexanedimethanol, 1,4-cyclohexanediol and isosorbide.26,27 Rokicki et al. synthesized two α,ω-bis(hydroxyethyloxy carbonyl amino)alkanes and studied their solution polycondensation with 1,6-hexanediol or 1,10-decanediol.28 Ochiai studied the self-polycondensation of 1,6-bis(hydroxyethyloxy carbonyl amino)hexane and used the obtained polyurethane to synthesize methacrylate macromolecular monomers.29 Sharma et al. synthesized a series of α-hydroxy-ω-amino-amides and transformed them into α-hydroxy-ω-O-phenyl urethanes or α-hydroxy-ω-O-hydroxyethyl urethanes, from which several alternating poly(amide urethane)s were prepared.30–32 In our previous work, we synthesized aliphatic thermoplastic poly(amide urethane)s having short nylon-6 segments,33 poly(ether amide urethane)s having short nylon-6 segments and poly(ethylene glycol) (PEG) sequences,34 and poly(ether urethane)s having short PEG segments.35 Meanwhile, Tang et al. synthesized thermoplastic polyureas (TPUreas) from solution polycondensation of the dimethyl dicarbamates, which contained different multi-urea segments, with amino-terminated poly(propylene glycol).36
In this paper, several aliphatic thermoplastic polyurethane-ureas (TPUUs) and TPUreas were directly prepared through the transurethane polycondensation of diamines with different diurethanediols. Melt transurethane polycondensation of isophorone diamine (IPDA) and diethylene glycol bis(3-aminopropyl) ether (DGBAE) with bis(hydroxyethyl) hexanediurethane (BHHDU), bis(hydroxyethyl) isophoronediurethane (BHIDU) or bis(hydroxyethyl) piperazinediurethane (BHPDU) were conducted at 170 °C under reduced pressure. The obtained TPUUs or TPUreas were characterized by gel permeation chromatography (GPC), FT-IR, 1H-NMR, differential scanning calorimetry (DSC), thermogravimetric analysis (TGA), and tensile test.
FT-IR, cm−1 (KBr): 3375.2 (–OH), 2876.2 (–CH2–), 1699.1 (–O–CO), 1661.7 (amide I), 1445.3 (–CH2–), 1243.9 (–C–O in carbamate group), 1075.2 (–C–O in –CH2–OH).

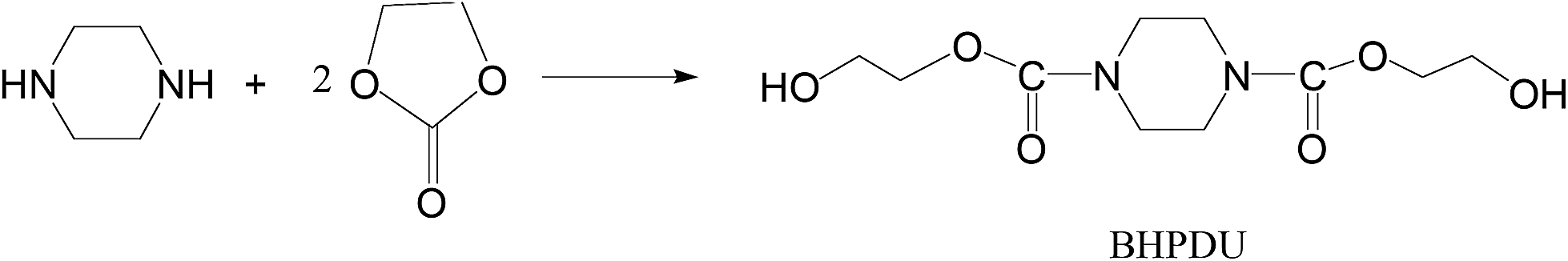

1H-NMR, ppm (400 MHz, DCCl3): 2.51 (2H, –OH), 3.52 (8H, 4 × ring CH2), 3.84 (4H, 2 × –CH2OH), 4.29 (4H, 2 × –OCH2).
Similarly, TPUU-2 and TPUU-3 were prepared from the melt polycondensation of IPDA with BHIDU and BHPDU at a diamine–diurethanediol molar ratio of 1:1, respectively. TPUU-4, TPUU-5 and TPUU-6 were prepared from the melt polycondensation of DGBAE with BHHDU, BHIDU or BHPDU at a diamine–diurethanediol molar ratio of 1:1.
Polymer samples for FT-IR and 1H-NMR characterization were purified thrice through dissolution–precipitation cycles by using 20 mL DMSO as solvent and 200 mL ether as non-solvent. FT-IR spectra were acquired on a NICOLET 60SXB FTIR spectrometer (Nicolet Analytical Instruments, USA). 1H-NMR spectra of the polymers were obtained in deuterated DMSO on a Bruker 400 AVANCE (Bruker Corporation, USA) by using tetramethylsilane as the internal standard.
The second heating DSC spectra were measured with a TA Q200 differential scanning calorimeter (TA Instruments, USA) in N2 atmosphere. Samples were first heated from room temperature to 200 °C at a heating rate of 40 °C min−1 and maintained for 5 min to eliminate thermal history. The samples were then cooled to −80 °C at a rate of 40 °C min−1 or 10 °C min−1. In the second heating scans, the samples were heated from −80 °C to 200 °C at a rate of 10 °C min−1. TGA was performed on a TGA Q50 analyzer (TA Instruments, USA) with a heating rate of 10 °C min−1 from 25 °C to 600 °C in N2 atmosphere.
Samples for tensile testing were processed by a heating compression molding method which was similar to that reported in the literature.6 Polymer films (50 mm × 50 mm × 1 mm) were prepared by using a 70911-24B powder press machine (Tianjin New Technical Instrument Co. Ltd., China). Samples were heated to temperature 30 °C higher than their Tg or Tm, maintained for 5 min under 10 MPa, naturally cooled to room temperature with the pressure unchanged, and then cut into dumbbell-shaped bars (50 mm × 4 mm × 1 mm). Mechanical analysis was conducted on a LLOYD LR30K tensile testing machine (Lloyd Materials Testing, UK) at a crosshead speed of 200 mm min−1 at 25 °C. Five measurements were performed for each sample, and the results were averaged to obtain a mean value.
TPUUsa | Diamine | Diurethanediol | Reaction timeb (h) | Mnc (g mol−1) (GPC) | Mwc (g mol−1) (GPC) | PDIc (GPC) | Tg (°C) | Ti (°C) |
---|---|---|---|---|---|---|---|---|
a Reaction conditions: diamine–diurethanediol = 1:1 (molar ratio); reaction temperature, 170 °C; 30 mmHg, 0.5 h.b Reaction time under a reduced pressure of 3 mmHg.c GPC data detected in DMF containing 10 mM LiBr with PS as the standard.d TPUU-4 is in solid state up to 220 °C and cannot dissolve in DMF. | ||||||||
TPUU-1 | IPDA | BHHDU | 5.0 | 6000 | 7100 | 1.17 | 75.3 | 222.3 |
TPUU-2 | BHIDU | 2.5 | 4800 | 5500 | 1.13 | 116.8 | 232.3 | |
TPUU-3 | BHPDU | 5.5 | 3300 | 4400 | 1.34 | 113.3 | 239.1 | |
TPUU-4d | DGBAE | BHHDU | 2.1 | — | — | — | — | — |
TPUU-5 | BHIDU | 2.5 | 14900 | 43700 | 2.93 | 51.5 | 297.6 | |
TPUU-6 | BHPDU | 11.0 | 12100 | 25000 | 2.07 | −18.6 | 274.0 |
TPUUs | νN–H | νC–H | νCO | δN–H | νC–O | νC–N | νC–O–C |
---|---|---|---|---|---|---|---|
a (sh) shoulder, (b) broad, (vs) very strong, (s) strong, (m) medium, (w) weak. | |||||||
TPUU-1 | 3340.3 (s, b) | 2931.1 (s), 2857.5 (s) | 1707.3 (s), 1627.4 (vs) | 1568.7 (vs) | 1253.2 (s) | 1143.9 (w) | — |
TPUU-2 | 3359.1 (s, b) | 2951.4 (s), 2915.3 (s) | 1702.0 (s), 1644.8 (s) | 1557.6 (vs) | 1242.5 (s) | 1143.9 (w) | — |
TPUU-3 | 3368.8 (s, b) | 2950.5 (s), 2914.4 (s) | 1643.6 (vs) | 1556.4 (vs) | 1241.1 (s) | 1132.8 (w) | — |
TPUU-5 | 3363.5 (s, b) | 2930.2 (s), 2868.7 (s) | 1639.6 (vs) | 1567.4 (vs) | 1253.0 (s) | — | 1113.1 (s) |
TPUU-6 | 3327.5 (s, b) | 2924.9 (sh), 2873.0 (s) | 1747.5 (m, sh), 1618.0 (vs) | 1566.1 (s) | 1261.4 (s) | — | 1118.3 (vs) |

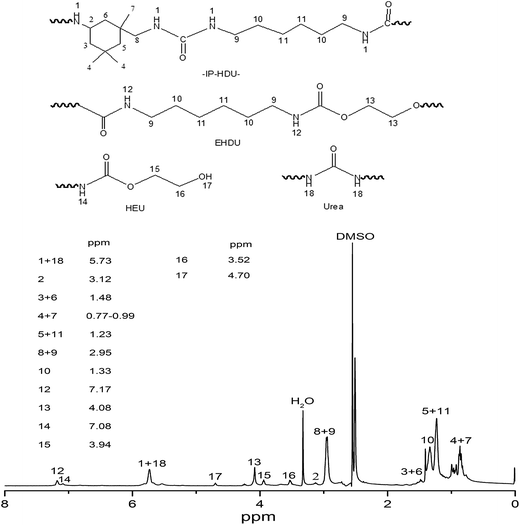

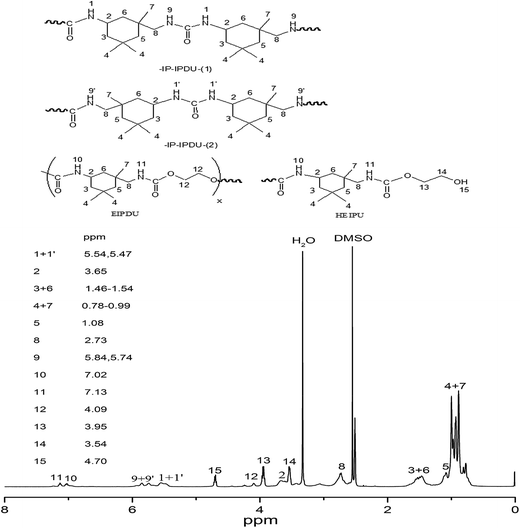

TPUU-2 shows almost the same intensities of FT-IR peaks at 1702.0 cm−1 and 1644.8 cm−1, which correspond to the CO stretching vibration of urethane groups and that of urea groups, respectively. The amount of urea groups is slightly higher. Combined the chemical shifts of different hydrogens in 1H-NMR spectrum (Fig. 2), the structure of TPUU-2 is described. TPUU-2 is constructed with isophorone isophorone diurea (-IP-IPDU-) segments and ethylene isophoronediurethane (-EIPDU-) segments, which were formed from the co-polycondensation of IPDA with BHIDU and the self-polycondensation of BHIDU. Large steric hindrance between IPDA and BHIDU leads to lower amount of urea linkages (i.e. -IP-IPDU- segments) formed than TPUU-1, because IPDA and BHIDU all contain bulky trimethyl-substituted cyclohexylene units. Self-polycondensation of BHIDU was little influenced because of lower steric interaction, with higher amount of urethane units (i.e. -EIPDU- segments) formed in TPUU-2 than in TPUU-1. Some hydroxyethyl isophorone urethane (HEIPU) groups were left as terminal groups due to low molecular weight of TPUU-2. The -IP-IPDU- segments may also contains -IP-IPDU-(1) and -IP-IPDU-(2) segments, which derive from different connections between IPDA with BHIDU, i.e. head-to-tail connections and head-to-head connections. As H2N– terminal groups are sensitive to the solvents used in NMR detection, and TPUU-2 has not very low molecular weight, the signal corresponding to H2N– terminal groups was not found in Fig. 2.

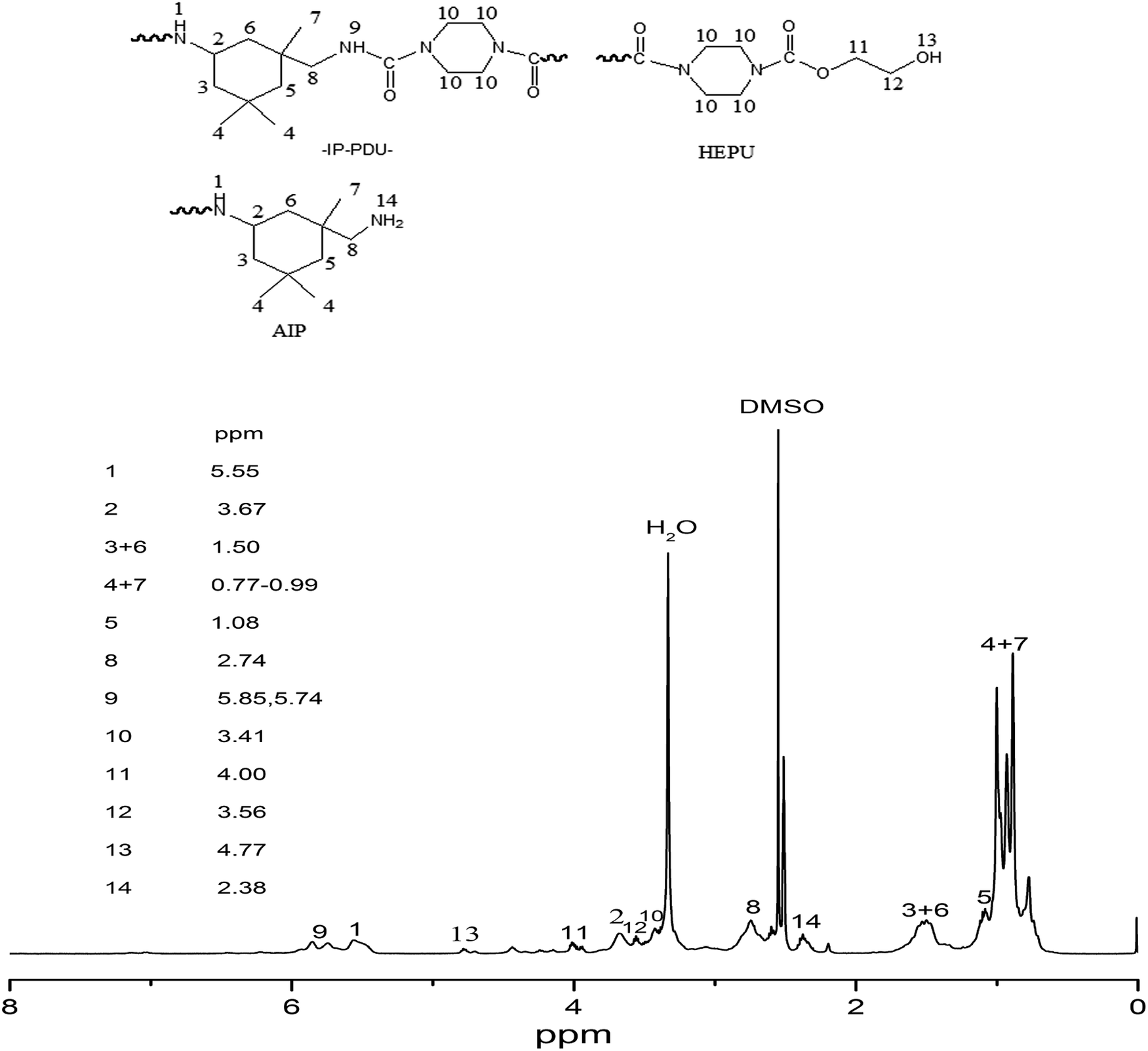

TPUU-3 exhibits a very strong peak corresponding to urea linkage at 1643.6 cm−1 in FT-IR spectrum. Fig. 3 shows the 1H-NMR spectrum, the chemical shifts of different hydrogen atoms, and the major structural units in TPUU-3. TPUU-3 is mainly constructed with isophorone piperazinediurea (-IP-PDU-) segments, because of less steric interaction in the co-polycondensation of IPDA with BHPDU. As TPUU-3 had very low molecular weight, some hydroxyethyl piperazine urethane (HEPU) groups and amino isophorone (AIP) groups were left as terminal groups.
TPUU-5 also merely shows a very strong peak corresponding to urea linkages at 1639.6 cm−1 in FT-IR spectrum. Based on the chemical shifts of different hydrogens in 1H-NMR spectrum, the structure of TPUU-5 is described in Fig. 4. TPUU-5 is mainly constructed with DGBAE isophorone diurea (-DGBAE-IPDU-) segments, which were formed from the co-polycondensation of DGBAE with BHIDU. Some HEIPU groups were left as terminal groups.
TPUU-6 shows a medium shoulder peak at 1747.5 cm−1 and a very strong peak at 1618.0 cm−1 in FT-IR spectrum, which correspond to the urethane groups and urea groups, respectively. Combined the chemical shifts in 1H-NMR spectrum, the structure TPUU-6 is described in Fig. 5. TPUU-6 is constructed with the major DGBAE piperazinediurea (-DGBAE-PDU-) segments and the minor ethylene piperazinediurethane (-EPDU-) segments, which were formed from the co-polycondensation of DGBAE with BHPDU and the self-polycondensation of BHPDU, respectively. Some HEPU groups derived from BHPDU and amino propyl (AP) groups from DGBAE were left as terminal groups.
Melt polycondensation of IPDA or DGBAE with BHHDU, BHIDU or BHPDU was conducted at a diamine–diurethanediol molar ratio of 1:1. In addition to the co-polycondensation between diamine and diurethanediol, which resulted in urea units, some self-polycondensation of diurethanediols also occurred, with some urethane units formed. Table 3 shows the urea/urethane ratios in TPUUs. The urea linkages are the major units, with urethane linkages ranging from 1.20% to 41.15% formed. Although the self-polycondensation of diurethanediols effects the stoichiometric reaction between diamines and diurethanediols, the molecular weight of TPUUs was not influenced, because the self-polycondensation of diurethanediols also results in high molecular polyurethanes.33,35 All polycondensations were conducted until Weissenberg effect took place, i.e. the polymers formed finally climbed onto the stirrer blades.
Table 4 shows the degree of polymerization (Xn) calculated based on structural units, and the extent of reaction (P) in TPUU synthesis. TPUUs with P of above 86.38% were prepared. From FT-IR and 1H-NMR characterization, the TPUU-1 and TPUU-2 are verified as polyurethane-ureas, and the TPUU-3, TPUU-5 and TPUU-6 are nearly polyureas. Polyurethane-ureas and polyureas are prepared directly through melt transurethane polycondensation of diamines with diurethanediols.
TPUUs | Peak | Area | Xna | Pb (%) | |
---|---|---|---|---|---|
Calculation equation | Value | ||||
a Degree of polymerization calculated based on structural units in TPUUs.b Extent of reaction in TPUU synthesis. | |||||
TPUU-1 | A17 | 1.00 | 24.58 | 95.93 | |
A10 | 25.49 | ||||
A4+7 | 53.26 | ||||
TPUU-2 | A15 | 1.00 | 7.92 | 87.37 | |
A4+7 | 35.66 | ||||
TPUU-3 | A13 | 1.00 | 7.34 | 86.38 | |
A4+7 | 103.92 | ||||
A10 | 7.53 | ||||
A14 | 4.81 | ||||
TPUU-5 | A18 | 1.00 | 61.34 | 98.37 | |
A4+7 | 146.58 | ||||
A11 | 57.53 | ||||
TPUU-6 | A10 | 1.00 | 56.73 | 98.24 | |
A7 | 5.91 | ||||
A2 | 37.38 | ||||
A11 | 0.74 |
TPUUs resist common organic solvents. They are soluble in high polar solvents like DMF or DMSO, and are insoluble in common solvents such as ether, alcohol, ethyl acetate, acetone, and tetrahydrofuran. TPUU-1, TPUU-2 and TPUU-3 are inert to water and dilute HCl solution or NaOH solution in short time because they contain hydrophobic alkylenes. Their surface did not change after contact with drops of water, 0.1 M HCl solution or 0.1 M NaOH solution for 48 h. Drops of water, 0.1 M HCl solution or 0.1 M NaOH solution on the surface of TPUU-5 or TPUU-6 were absorbed in 48 h, and the surface became viscous, maybe because some hydrolysis took place. TPUU-5 and TPUU-6 exhibit poor resistance to water and dilute HCl solution or NaOH solution, because they contain hydrophilic short PEG segments.

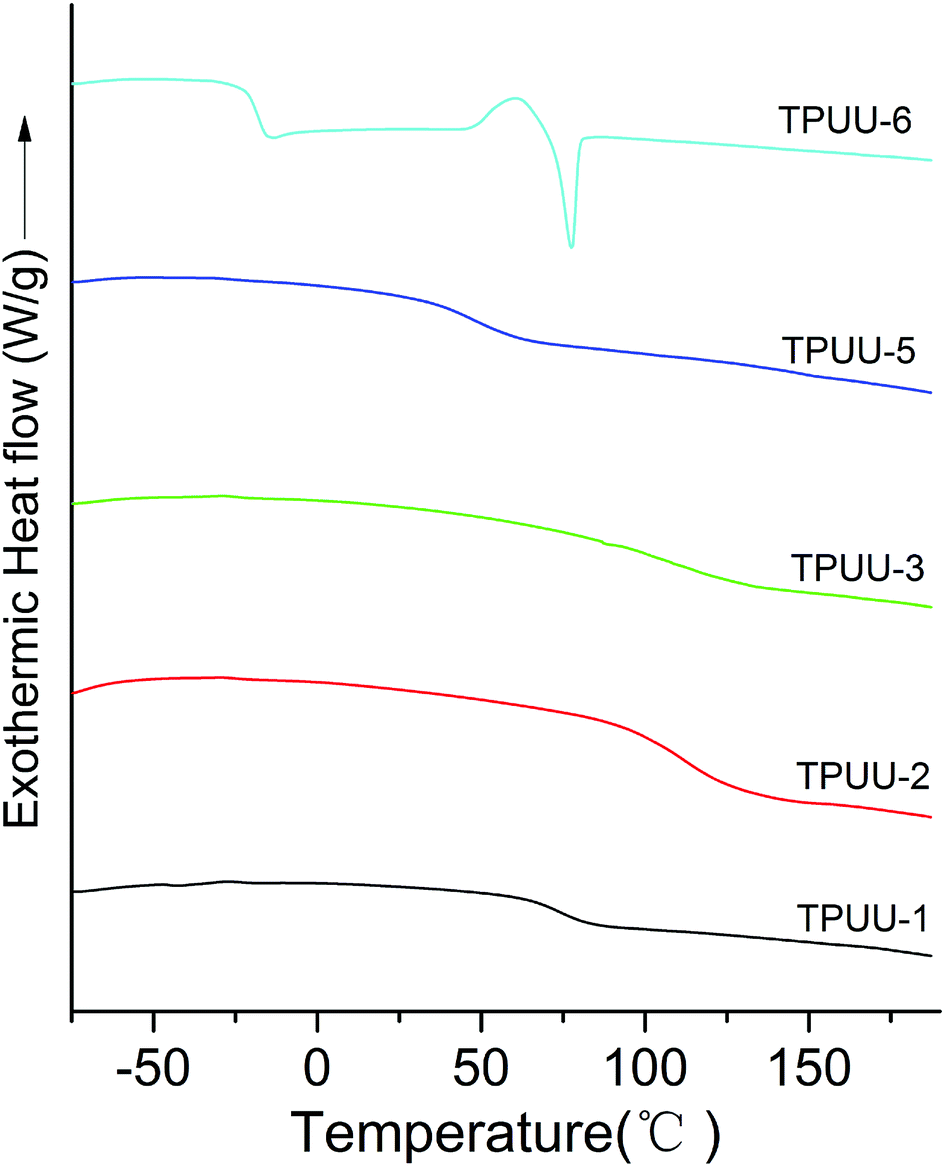

The second heating DSC scans in Fig. 6 were recorded via a heating–cooling–heating process: i.e. fast heating to 200 °C and maintaining for 5 min, fast cooling to −80 °C at a rate of 40 °C min−1, and slow heating to 200 °C at 10 °C min−1. Fast cooling in the second period is often adopted to evaluate the crystallization behavior of the crystallized polymers. If a polymer crystallizes very fast, its crystallization may have finished before the fast cooling period ends. A Tc of TPUU-6 in the second heating DSC curve meant that it did not crystallize fast enough and the crystallization did not finish after fast cooling. A slow cooling mode at 10 °C min−1 was also adopted, and the related second heating DSC curve of TPUU-6 is showed in Fig. 7(a). A weak Tc peak in this mode meant that the crystallization was nearly complete after the melt sample was cooled at a slow rate of 10 °C min−1.
Fig. 7 Second heating DSC scans of TPUU-6 detected after different cooling period (cooling rate: (a) 10 °C min−1; (b) 40 °C min−1) (heating rate: 10 °C min−1). |
The initial decomposition temperature (Ti) of TPUUs or TPUreas is summarized in Table 1. All TPUUs or TPUreas exhibit Ti above 222.3 °C (Fig. 8), which is not too high because carbamate and urea linkages are only moderately thermally stable. TPUUs are thermoplastics still suitable for processing with normal thermal processing machines. TPUU-1, TPUU-2, TPUU-3 and TPUU-5 are very brittle polymers, and their tensile testing cannot be conducted. They lack any flexibility and elasticity. TPUU-6 exhibits an elongation at break of 180.20% and a tensile strength of 6.46 MPa (Fig. 9). TPUU-6 is a thermoplastic polyurethane-urea with appropriate tensile strength and good flexibility, but it has no elasticity. TPUU-6 shows similar tensile strength and elongation at break to the TPUUs prepared from poly(oxytetramethylene) glycol with 1,6-hexanediisocyanate,5 but shows obviously lower tensile strength and elongation at break than the TPUUs prepared from polyester glycols with 1,6-hexanediisocyanate or 1,4-butane diisocyanate.2,6 Maybe TPUUs with high tensile strength and long elongation at break can be prepared through the copolymerization of diurethanediols with long polyester glycols.
TPUU-1, TPUU-2 and TPUU-3 have low molecular weight. Their strength, flexibility and elasticity are poor. These properties are also influenced by the structural units in their main chains. TPUU-5 and TPUU-6 have similar molecular weight. As TPUU-5 is constructed with irregular trimethyl-substituted cyclohexylene units, it is a brittle polymer, and its tensile strength cannot be detected. Otherwise, TPUU-6 is composed of symmetric structural units, it is a polyurethane-urea with appropriate tensile strength and good flexibility.
