Colorimetric “naked eye” detection of CN⁻, F⁻, CH₃COO⁻ and H₂PO₄⁻ ions by highly nonplanar electron deficient perhaloporphyrins

Abstract

Highly nonplanar perhaloporphyrin-based receptors have been synthesized and characterized by various spectroscopic techniques. Nonplanar and electron deficient nature was authenticated by electronic spectral, electrochemical redox and protonation–deprotonation studies. The colorimetric “naked eye” anion sensing ability of these sensors was probed by spectroscopic and electrochemical studies. These receptors were found to be highly selective and sensitive for the basic anions, such as CN⁻, F⁻, OAc⁻ and H₂PO₄⁻, over the tested anions and were able to detect these anions even at nanomolar concentrations via anion induced deprotonation. These perhaloporphyrin receptors have been recovered from receptor–anion host–guest complexes formed during sensing events by acid treatment and were reused for the detection of basic anions without loss of their sensing ability.

---

Introduction

Porphyrinoids are a class of tetrapyrrole pigments that widely occur in nature.^1a These pigments are highly coloured and exhibit varying degrees of π-conjugation leading to different nonplanar conformations of the porphyrin macrocycle, which are responsible for a variety of biological functions.¹ Inspired by nature's fundamental biological processes involving enzyme–substrate or host–guest interactions, which are regulated by light, ions and small molecule concentrations, the design of effective anion receptors containing responsive functional groups as an integral part of a host macrocyclic framework has been an active area of research.² Now-a-days the need for a suitable method of anion recognition, extraction and transportation is severely felt, and as a consequence, the field of anion supramolecular chemistry has grown rapidly over recent decades.³ In order to achieve an enhanced selectivity and sensitivity towards a particular anion, a fine tuning of binding sites is required, which is often difficult because of their wide range of geometries, larger size, high solvation energies and accessibility in a very narrow pH range as compared to their cationic counterparts.⁴ Cyanide is extremely toxic to living organisms; it binds strongly to iron in heme and the active site of cytochrome c, which completely stops the O₂ transport in the blood and the mitochondrial electron-transport chain, thus inhibiting cellular respiration.^5a The selective recognition of fluoride ions is of great importance for monitoring F⁻ ion metabolism in nature, the analysis of drinking water and in the treatment of osteoporosis.^5b,c Phosphate ions play a vital role in biological processes such as signalling, energy transduction, information storage and expression.^6a The acetate ions are the most common building blocks in biosynthesis and a critical component of numerous metabolic processes. The rate of OAc⁻ production and oxidation has been frequently used as an indicator of organic decomposition in marine sediments.^6b

Calixpyrroles,⁷ phlorins,^8a corroles,^8b,c sapphyrins,^8d,e N-confused porphyrins,^8f,g oxoporphyrinogens^8h,i and porphyrins^8j are excellent multifunctional candidates for a great variety of anion sensor applications via the NH groups of the pyrrole units. Several porphyrins bearing NH groups at the ortho-positions of the meso-aryl substituents have been utilized as effective anion sensors.^9a,b Recently, porphyrin bearing NH groups at the para-positions of the meso-phenyl ring have been demonstrated for H₂PO₄⁻ ion sensing.^9c Many transformations and modifications have been carried out on porphyrin macrocycles for selective ion recognition.^8j,9,10 The β-functionalisation of meso-tetraarylporphyrins is of great importance because the electronic properties of the porphyrin macrocycle can be altered by small changes in the substituents leading to larger steric and electronic effects on the porphyrin π-system^{1b,c,10a,b,11} than substituents at the meso-aryl positions. A few β- and meso-substituted porphyrins are known that utilize their protonated inner core as effective hydrogen bond makers for anion recognition.¹⁰ In most of the cases, planar porphyrins can recognize anions via peripheral functional groups,^9a,b in which inner core NH groups are less effectively available for H-bond formation due to tautomerism.^9c Recently, cyanide sensing through a chemodosimetric method by a new calix[4] pyrrole derivative,^12a Pd-calixphyrin,^12b and subphthalocyanine dye^12c have been reported. Moreover, metalloporphyrin-based cyanide ion sensors through coordinative interactions are known.^12d,e However, highly sensitive free base porphyrin-based chemosensors for CN⁻ ions with very low detection limits (in ppb range) are not reported. In general, acidic receptors can recognize basic anions through deprotonation and it is quite common in organic hosts,^13a–c whereas it is very difficult to deprotonate imino protons of planar porphyrins under ambient conditions.^13d,e Therefore, herein, we tried to make highly nonplanar electron deficient perhaloporphyrins (Chart 1), which can be utilized as anion sensors through pyrrolinic NH deprotonation as a detection mechanism for the first time in porphyrin chemistry.

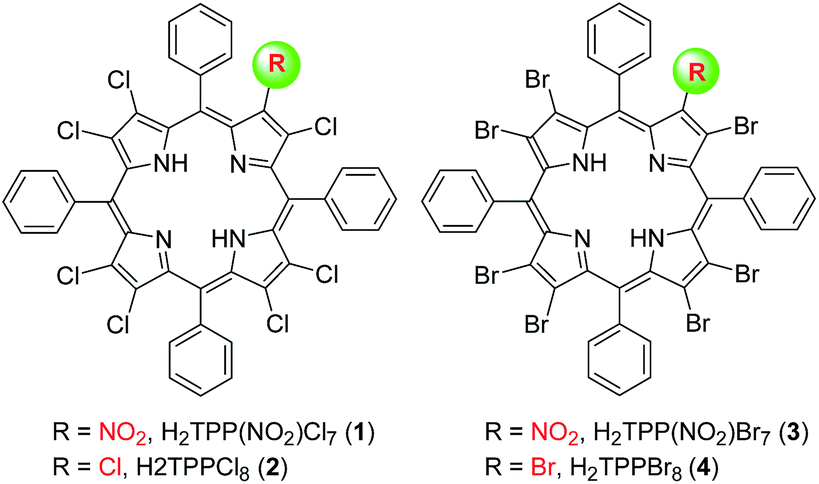

Chart 1 Molecular structures of synthesized porphyrins (1–4).

Results and discussion

Synthesis and characterization

Herein, we report a straightforward synthetic route for the preparation of 1 and 2, which gives the direct substitution at β-pyrrole position of the macrocycle (Scheme 1). 3 and 4, having idiosyncratic nature, have also been synthesized using modified previously reported methods.¹⁴

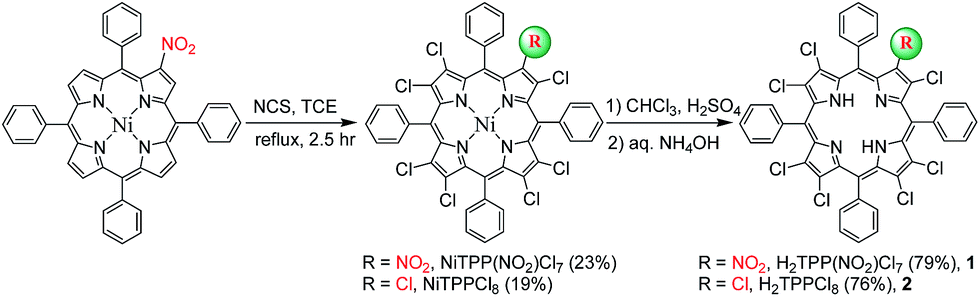

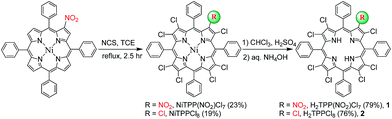

Scheme 1 Straightforward synthetic route for the preparation of 1 and 2 via direct β-substitution.

The representative UV-visible spectra of 1 and 3 are shown in toluene (Fig. S1, ESI†). The Table S1 in ESI† lists the electronic absorption spectral data of 1–4 in toluene at 298 K. 1 exhibited similar spectral features to 2 and showed red-shifted absorption in Soret (6 nm) and in the Q_x(0,0) band (12 nm) relative to 2 possibly due to the electron withdrawing nature of the nitro group and increased nonplanarity by mixed susbtitution.¹⁵ Interestingly, 3 has shown red-shifted absorption in B (12 nm) and the Q_x(0,0) band (17 nm) relative to 1 possibly due to increased nonplanarity produced by the larger size of bromo substituents. The B and Q_x(0,0) bands of 1–4 showed an interesting trend in red-shift and aligns in the following order: 2 < 1 < 4 < 3. In ¹H NMR of 1, the meso-o-phenyl protons showed an asymmetric multiplet (Fig. S2, ESI†) in contrast to 2, indicating the lower symmetry of the molecular structure. Fig. S3 in the ESI† shows the ¹H NMR spectra of imino proton region of 1–4 in CDCl₃ at 298 K. Interestingly, the downfield shift of NH or the acidity of imino-protons of 1–4 has shown the following order: 3 > 4 > 1 > 2, which readily reflects the extent of nonplanarity of the porphyrin core and electron withdrawing effect of the nitro substituent.¹⁶ The negative ion mode ESI mass spectrum of 1 is shown in Fig. S4 in ESI.†

The single crystals of 2 were obtained by vapour diffusion of CH₃CN into a toluene solution of 2. The crystallographic data of 2·2CH₃CN·2H₂O is listed in Table S2 in the ESI.† The top and side ORTEP views of 2 are shown in Fig. S5 in the ESI.† The nonplanarity of the porphyrin macrocycle is induced by the steric repulsion among the peripheral substituents, which enforces the relief of the strain through bond lengths and angles. The selected average bond lengths and bond angles of 2 are listed in Table S3 in ESI,† which are in accordance with the reported studies.^1b,c,15a,16 Notably, 2 has exhibited a severe nonplanar saddle-shape conformation (Fig. S5b in ESI†) with the displacement of the β-pyrrole carbons, (ΔC_β = ±1.21 Å) and 24 atoms core (Δ24 = 0.57 Å) from the porphyrin mean plane. This is further supported by the increment in C_β–C_α–C_m angle (∼129°) with concomitant decrement in the N–C_α–C_m angle (∼124°) along with larger C_β–C_β bond length (1.345(11) Å) as compared to reported planar porphyrins.^1c We have observed a higher ΔC_β for 2 than expected due to the strong hydrogen bonding interaction between solvate water molecules and the porphyrin core NH with a distance of 2.831 Å. It is known that 4 has a greater extent of nonplanarity (saddle-shape conformation) in comparison to 2 as evidenced from the single crystal X-ray structures.^1b,c,15a,16

The ground state geometry optimisation of H₂TPP(NO₂)Cl₇ (1) in gas phase was carried out by DFT calculations using B3LYP functional with a 6-311G(d,p) basis set. Fig. S6 in ESI† represents the fully optimised geometry of 1, which exhibits a severe nonplanar saddle-shape conformation as shown in Fig. S6b in ESI.† The selected average bond lengths and bond angles of 1 are listed in Table S4 in ESI.† The displacement of the β-pyrrole carbons, (ΔC_β = ±1.21 Å) and 24 atoms core (Δ24 = 0.52 Å) from the porphyrin mean plane of 1 authenticate the highly nonplanar conformation of the porphyrin core. This is further proven by the increment in the C_β–C_α–C_m angle with concomitant decrement in the N–C_α–C_m angle along with a larger C_β–C_β bond length. The observed higher ΔC_β and Δ24 values of 1 in the gas phase are possibly due to enhanced nonplanarity provided by mixed β-substitution. The pictorial representation of frontier orbitals of 1 is shown in Fig. S7 in ESI.† The HOMO and HOMO−1 orbitals are found to be a_2u and a_1u, respectively, as expected for electron withdrawing β-substituted porphyrins. The results obtained from single crystal structure and DFT calculations are in good agreement with electronic spectral and NMR studies.

A wide variety of perhaloporphyrins have been examined in non-aqueous media.^13e,17 Cyclic voltammograms and DPVs of 1–4 in CH₂Cl₂ containing TBAPF₆ as supporting electrolyte are shown in Fig. S8 in ESI† and the redox data is listed in Table S5 in ESI.† Interestingly, the mixed substituted porphyrins (1 and 3) exhibited a ∼200 mV anodic shift in the reduction as compared to homo substituted porphyrins (2 and 4), whereas in oxidation only a 60 mV anodic shift was observed. This can be attributed to the strong electron withdrawing nature of the nitro substituent. Notably, the bromoporphyrins (3 and 4) exhibited a 90 mV cathodic shift in the oxidation potentials relative to their corresponding chloroporphyrins (1 and 2) is ascribed to enhanced nonplanarity provided by bulkier bromo groups.^15,16

Protonation and deprotonation studies

To examine the effect of mixed substitution on nonplanarity, we have carried out protonation and deprotonation studies of 1–4 in toluene using trifluroacetic acid (TFA) and tetrabutylammonium hydroxide (TBAOH), respectively Fig. 1 shows the UV-visible spectral changes of 1 while increasing the conc. of TFA (20–60 μM) and TBAOH (0.07–11 μM). The protonation and deprotonation constants of 1–4 are calculated using Hill equation¹⁸ (Table 1). Fig. 1a represents the concomitant decrement in absorbance of 1 at 461 nm and rising of a new band at 490 nm upon increasing [TFA]. As protonation proceeds, the multiple Q bands are disappearing and a new single broad band rises at 752 nm accompanied with the red-shift of 22 nm in Q_x(0,0) band. In all cases, we have obtained diprotonated porphyrin species, which is further confirmed by Hill plot having the slope value of ∼2 as shown in Fig. 1a (inset) and S9 in ESI.† 4 has shown the highest protonation constant (log β₂) as compared to all the other porphyrins.^16b 3 and 4 have shown 15–18 times higher log β₂ values as compared to 1 and 2. The protonation constants of 1–4 showed the following order: 4 > 3 > 2 > 1, which reveals the extent of basicity of the inner core nitrogens. The deprotonation of free base porphyrin is influenced by the electronic nature of the substituents, the extent of nonplanarity of the porphyrin core and the basicity of the base employed. Fig. 1b shows the concomitant decrement in the absorbance of 1 at 461 nm while increasing [TBAOH] and the new band rises at 507 nm. During deprotonation, a new band grows at 721 nm with the disappearance of multiple Q bands of 1. The Fig. 1b (inset) and S10 in ESI† show the Hill plot with the slope value of 2, indicating the formation of dianionic species in all cases. 3 showed highest deprotonation constant (log β₂ = 11.6), which is 7 fold greater than 1 and is ascribed to the increased nonplanarity of the porphyrin macrocycle. The log β₂ values of 1–4 have shown the following order: 3 > 4 > 1 > 2, which suggests that porphyrins bearing mixed substitution with bulky bromo groups favour a high degree of deprotonation.

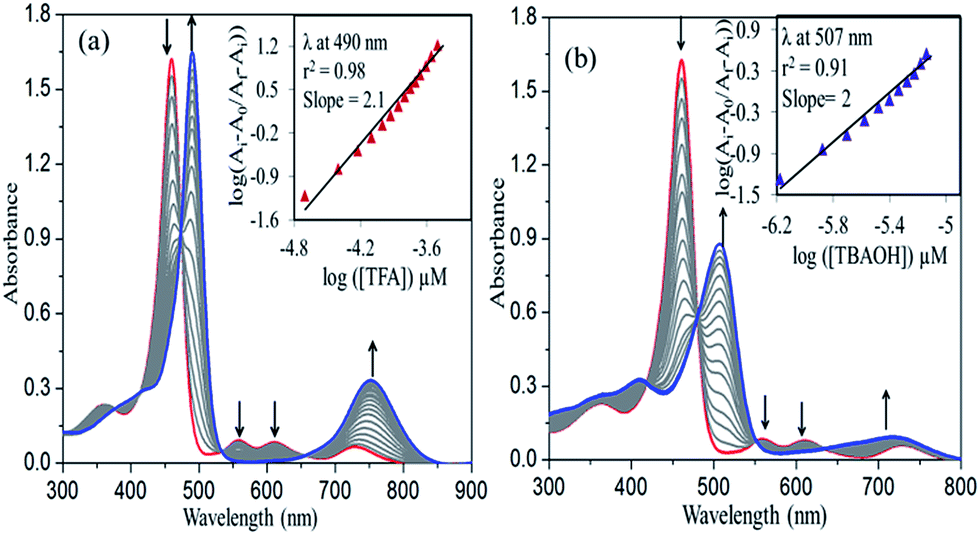

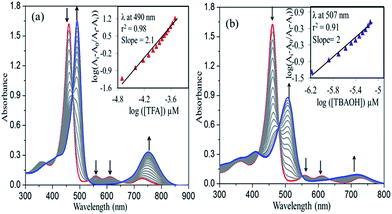

Fig. 1 UV-visible spectral titrations of 1 with TFA (a) and TBAOH (b) in toluene at 298 K. Insets shows the corresponding Hill plots.

Table 1 Protonation and deprotonation constants (β₂ and log β₂)^a of 1–4 in toluene at 298 K

Porphyrin	Protonation			Deprotonation
	log β2	β2	n^b	log β2	β2	n^b
a Within the error ±0.07 for log β2 and ±10% for β2.b n refers stoichiometry.
1	8.51	3.30 × 10^8	2.1	10.77	5.91 × 10^10	2.0
2	9.21	1.90 × 10^9	2.0	10.21	1.65 × 10^10	1.9
3	9.70	5.07 × 10^9	2.1	11.60	4.06 × 10^11	2.1
4	10.53	3.43 × 10^10	2.1	10.40	2.53 × 10^10	2.0

---

Anion sensing

The anion recognition properties of 1–4 were studied in toluene with different anions such as CN⁻, F⁻, Cl⁻, Br⁻, I⁻, NO₃⁻, HSO₄⁻, PF₆⁻, ClO₄⁻, BF₄⁻, CH₃COO⁻ and H₂PO₄⁻ ions using UV-visible spectroscopy with the addition of the aliquot anion in the form of TBA salt. Among all, CN⁻, F⁻, CH₃COO⁻ and H₂PO₄⁻ selectively interacted with 1–4 by showing a considerable red-shift (43–48 nm) in the UV-visible spectra, as shown in Fig. 2a and S11 in ESI,† whereas there were no shifts observed for the other anions. Interestingly, the green colour solution of 1 turned to dark pink upon addition of aliquots of CN⁻, F⁻, OAc⁻ and H₂PO₄⁻ solution, which enables the naked eye detection of these anions in solution (Fig. 2). The UV-visible spectra obtained for 1 with CN⁻, F⁻, OAc⁻ and H₂PO₄⁻ resemble the optical absorption spectrum of 1²⁻ obtained by the addition of TBAOH indicating the possibility of dianion formation during the addition of anions (Table S6 in ESI†).

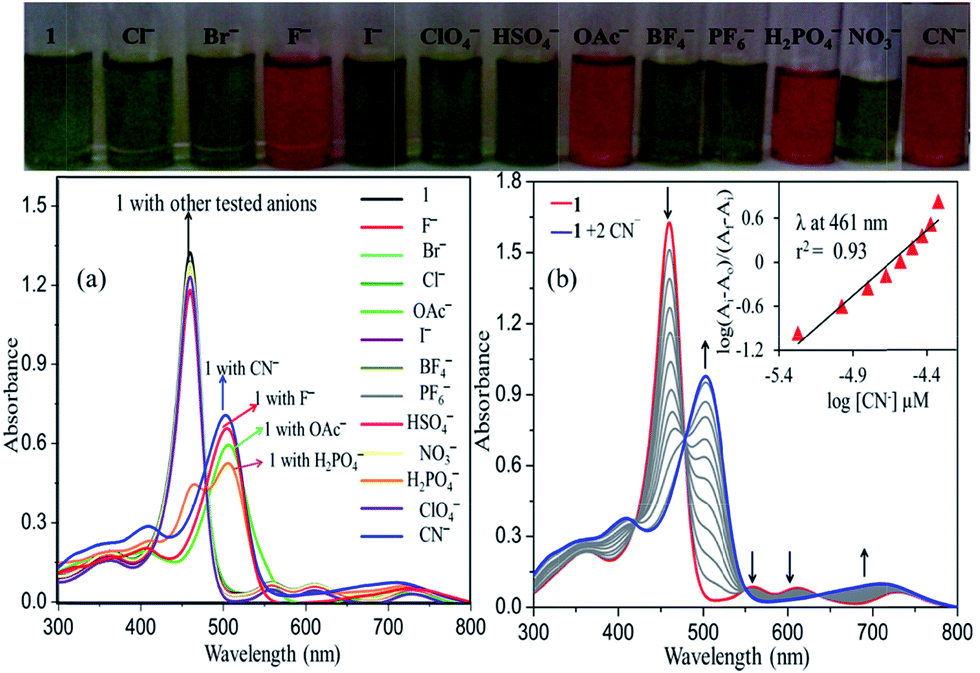

Fig. 2 Colorimetric response of 1 with various anions (top). Optical absorption spectra of 1 with tested anions (a) and UV-Visible spectral titration of 1 with CN⁻ ions (b) in toluene at 298 K. Inset shows the corresponding Hill plot.

The UV-visible spectrophotometric titration of 1 with CN⁻ ions is shown Fig. 2b. As we increased the concentration of CN⁻ ions, the decrement in the absorbance of 1 was observed at 461 nm, 559 nm and 612 nm and the concomitant increment at 503 and 711 nm with multiple isosbestic points. The Hill plot (Fig. 2b inset) shows a straight line between log[CN⁻] and log(A_i − A₀/A_f − A_i) having slope value ∼2, which indicates 1 : 2 (porphyrin-to-anion) stoichiometry. Moreover, the similar behaviour was observed for 2–4 with CN⁻ ions as shown in Fig. S12 in ESI.† Furthermore, we have performed the UV-visible spectral titrations for 1–4 with F⁻, OAc⁻ and H₂PO₄⁻ anions and were found to have almost similar spectral features with variation in the association constants (Fig. S13 to S15 in ESI†). Table 2 lists the association constants obtained for CN⁻, F⁻, OAc⁻ and H₂PO₄⁻ ions with 1–4 in toluene at 298 K. Each of the system studied displays higher β₂ values which are >10⁸ M⁻², establishing that these porphyrins (1–4) are capable of strongly interacting with 2 equiv. of CN⁻, F⁻, OAc⁻ and H₂PO₄⁻ ions.^7–12,13e Interestingly, 1–4 exhibited considerably higher association constants (log β₂ values ranges from 8.7 to 11.4) with anions such as CN⁻, F⁻, OAc⁻ and H₂PO₄⁻ ions as compared to other porphyrins known in the previous studies.^7–12,13e Notably, the β₂ values for 1 and 3 are ∼220 times higher than 2 and 4 for F⁻ ions, which is ascribed to strong electron withdrawing nature of the nitro substituent and the effect of mixed substitution. With CN⁻ ions, 3 and 4 showed two-to-six fold higher β₂ values as compared 1 and 2. This is ascribed to enhanced nonplanarity of the macrocycle due to bulkier bromo groups relative to their chloro substituents.¹⁶ The general trend in β₂ values for free base porphyrins with anions was found to be 3 > 1 > 4 > 2 (Table 2). Among the anions, the general trend in β₂ values was found to be CN⁻ > F⁻ > OAc⁻ > H₂PO₄⁻, which is slightly different from the expected trend (CN⁻ > OAc⁻ > F⁻ > H₂PO₄⁻) according to their pK_a values. The higher log β₂ values of F⁻ ions are possibly due to the smaller ionic size (1.3 Å) and high electronegativity (4.1) of F⁻ ions.

Table 2 Association constants^a of 1–4 with various anions in toluene

Por.	CN^−		F^−		OAc^−		H2PO4^−
	log β2	n^b	log β2	n^b	log β2	n^b	log β2	n^b
a Within the error ±0.06.b n refers to stoichiometry.
1	10.57	2.2	10.53	2.7	9.59	2	9.39	2
2	9.56	2.0	9.33	2.3	8.77	2	8.68	2
3	11.36	2.4	11.12	2.8	10.21	2	9.86	2
4	10.23	2.1	8.76	2.3	8.95	2	8.72	2

---

The detection limit (LOD) and quantification limit (LOQ) for CN⁻, F⁻, OAc⁻ and H₂PO₄⁻ ions were calculated in presence of 1–4 in toluene at 298 K (Table S7, ESI†). In all cases, the observed LOD (6–10 nM) and LOQ (18–31 nM) were found to be extremely low, which are in nanomolar scale. Hence these porphyrins 1–4 were highly sensitive to basic anions such as CN⁻, F⁻, OAc⁻ and H₂PO₄⁻ ions. 1–4 have shown positive cooperative binding as evidenced from the plot (Fig. 3 and S16 in ESI†), which indicates the interaction of first anion with N₄ core distorts the macrocycle ring intern that favours second anion binding. The detection of anions further supported by the fluorescence quenching of 1–4 with increasing [F⁻] in toluene (Fig. S17, ESI†). We have carried out the ¹H NMR studies for 1–4 in presence of F⁻ ions and observed that the disappearance of N–H peak, whereas increasing [F⁻] indicates the formation of dianionic species (Fig. S18, ESI†).

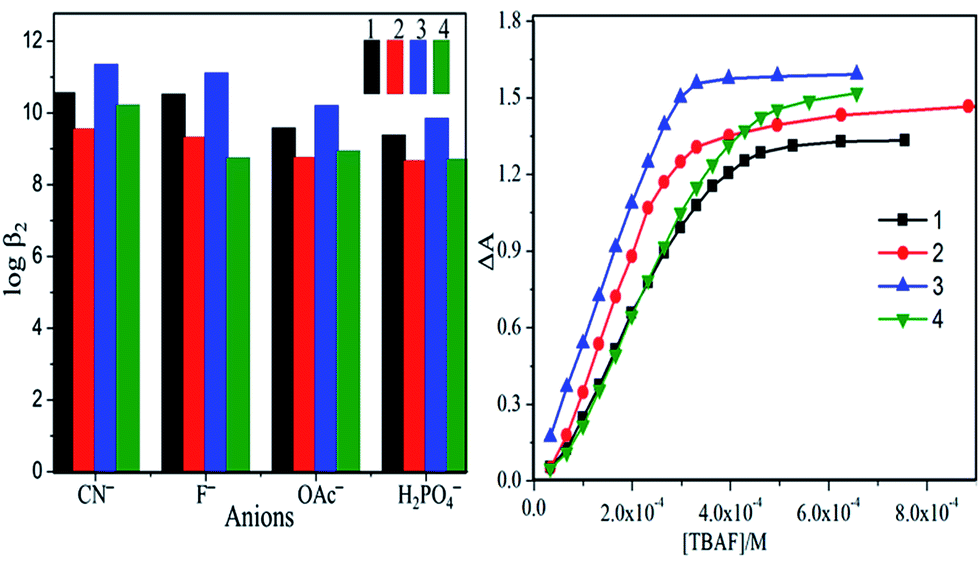

Fig. 3 Bar graph constructed log β₂ vs. [anions] for 1–4 in toluene at 298 K (left). Sigmoidal curve for 1–4, ΔA vs. [TBAF] indicating positive cooperative behaviour (right).

To probe further, we have carried out differential pulse voltammetric (DPV) studies of 1–4 with the excess addition of fluoride ions (Fig. S19, ESI†). The observed cathodic shift in oxidation (450–530 mV) and in reduction (230–360 mV) potentials after the addition of aliquots of F⁻ also supports the formation of dianionic species^13e (DPV titrations of 1–4 with F⁻ ions, Fig. 4 and S20 in ESI†), whereas the opposite trend (anodic shift) was observed for the protonation of free base dodecaphenylporphyrins.^10a,b The cation radicals of 1–4 formed after electrochemical oxidation are unstable and undergo disproportionation; hence, the peak currents for the anodic and cathodic processes are different.^10a,b Moreover, we have carried out UV-visible spectral titrations for some planar porphyrins (H₂TPP and H₂TPP(Ph)₄) and nonplanar porphyrins (H₂TPPBr₄ and H₂TPP(Ph)₈) with F⁻ ions (Fig. S21 in ESI†) and found no spectral changes were observed even at a high conc. of anions. which clearly suggests that the highly nonplanar conformation with electron withdrawing substituents is necessary for anion recognition.

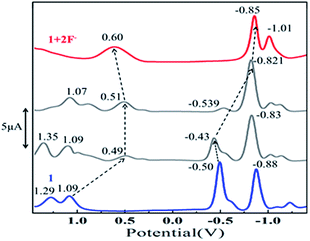

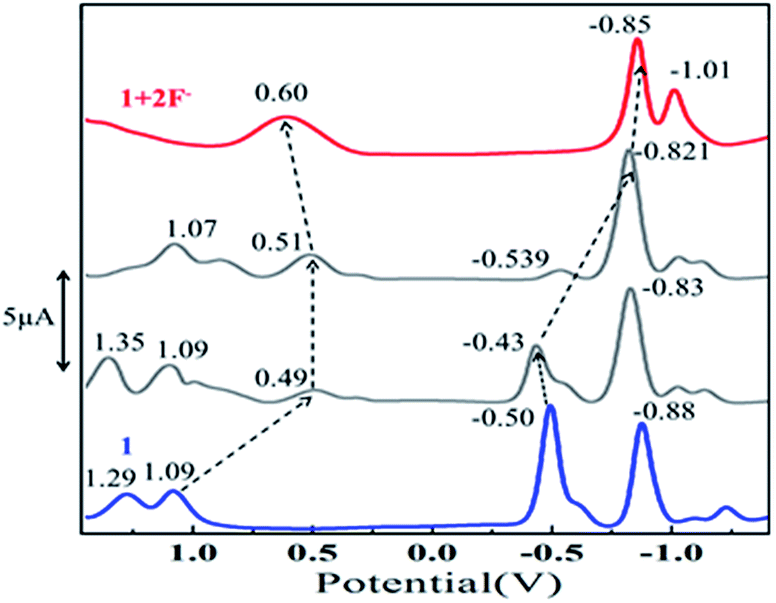

Fig. 4 DPV traces of 1 while increasing concentration of F⁻ ion in CH₂Cl₂ containing 0.1 M TBAPF₆ at 298 K.

It is known that the perhaloporphyrins, 2 and 4, hydrogen bonds with various polar solvents,^19a including Lewis bases, and forms a 1 : 1 host–guest complex^19b with very low binding constants (0.2–16 M⁻¹). In general, 1–4 with anions did not correspond to the 1 : 1 host–guest complex neither in the UV-visible spectral features (Fig. S22, ESI†) nor in binding constant values (very high log β₂ values ranges from 8.7 to 11.4) except for 3, which interacts with Cl⁻ ions through hydrogen bonding (Fig. S23, ESI†) with 1 : 1 stoichiometry having a lower binding constant (log β₂ = 3.82). Based on our experimental evidence, we are representing the plausible mechanism of anion recognition by 1–4 in Fig. 5.

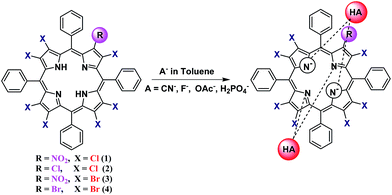

Fig. 5 Plausible mechanism for the detection of anions by 1–4.

Reversibility studies

Reversibility studies were carried out on these porphyrin–anion host–guest systems to acknowledge the range of their applicability.²⁰ The reversibility test of these sensors with cyanide ions was studied. For example, 1·2CN⁻ was prepared by adding 2 equivalents of cyanide ions to the solution of 1 in toluene, which led to the colour change from green to pink (Fig. 6). It was then treated with aliquots of 1 mM solution of TFA in toluene (Fig. S24a, ESI†). This led to a complete regeneration of 1, which can be visualized by colorimetric change from pink to green accompanied by UV-visible spectral changes as shown in Fig. 6. On this basis, we conclude that the formation and dissociation of 1·2CN⁻ is a reversible process. To confirm the regeneration, the resulting mixture was washed with water and dried over anhydrous Na₂SO₄. Then, the recovered 1 was treated with 2 equivalents of CN⁻ ions (Fig. S24b, ESI†), which exhibited similar binding constant as fresh solution of 1 with cyanide ions. The similar results were obtained for the receptors 2–4 with CN⁻ ions and TFA solution as shown in Fig. S25–S27 in ESI.† Notably, the receptors 1–4 have exhibited similar results with other anions such as F⁻, CH₃COO⁻ and H₂PO₄⁻ ions. These results clearly demonstrate that the receptors 1–4 can be recoverable and reusable for basic anion detection.

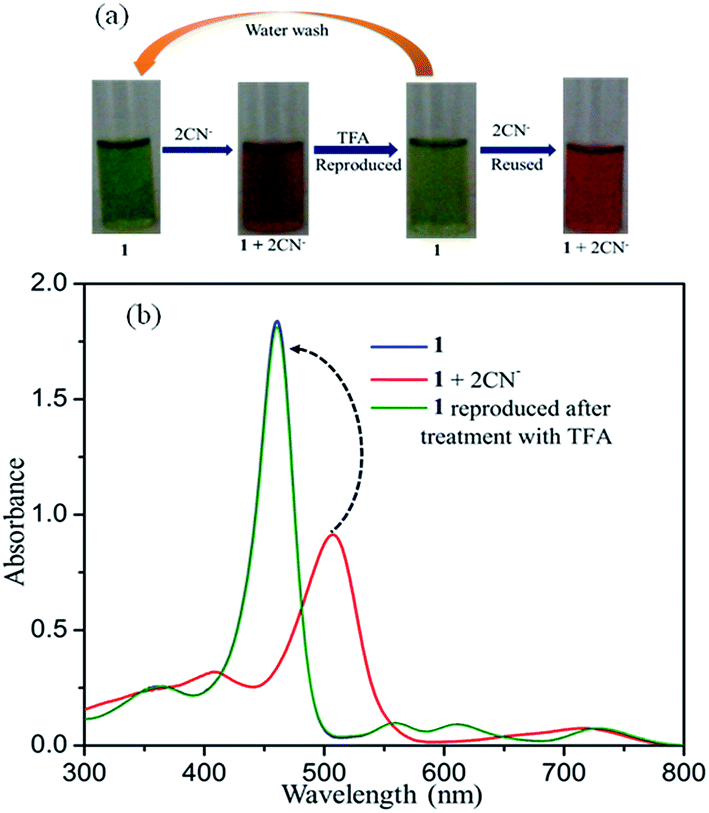

Fig. 6 (a) Colorimetric response of 1 for reversibility and reusability test with CN⁻; (b) reversibility test: treatment of the complex 1·2CN⁻ with a solution of TFA.

Conclusions

In conclusion, the perhaloporphyrins (1–4) were synthesised and exhibited colorimetric responses toward basic anions, such as CN⁻, F⁻, CH₃COO⁻ and H₂PO₄⁻ ions, and were able to detect these anions in nanomolar concentration. The red-shifted electronic spectral features, the higher β₂ values for deprotonation and anion recognition of 1–4 were interpreted in terms of enhanced nonplanarity and the electron withdrawing effect of NO₂ and/or halo substituents. The large anodic shift in voltammetric studies and disappearance of ¹H NMR signals for imino protons strongly supports the anion induced deprotonation. The spectroscopic studies and voltammetric titrations reveal that the formation of dianionic porphyrin species, which intern hydrogen bonded with protonated anions (HA). Our results clearly suggest that the highly nonplanar conformation with electron withdrawing substituents is necessary for anion recognition. The reversibility studies unambiguously demonstrated that these receptors 1–4 can be recoverable and reusable for basic anions detection without losing their sensing ability.

These results reported herein will provide a new standpoint to develop recyclable electron deficient nonplanar porphyrin-based anion sensors.

Experimental section

Materials

Pyrrole, C₆H₅CHO, N-chlorosuccinimide, Cu(NO₃)₂·3H₂O, Ni(OAc)₂·4H₂O, Na₂S₂O₄, TFA, TBAOH and NaHCO₃ were purchased from HiMedia, India, and used as received. All solvents employed in the present work were of analytical grade and distilled or dried before use. 1,1,2,2-Tetrachloroethane was purchased from Rankem and dried over molecular sieves (4 Å) before use. Silica gel (100–200 mesh) was purchased from Rankem and used as received. TBAPF₆ was recrystallised twice with ethanol and dried at 50 °C under vacuum for 2 days. The tetrabutylammonium salts (TBAX, X = CN⁻, F⁻, Cl⁻, Br⁻, I⁻, HSO₄⁻, BF₄⁻, OAc⁻, H₂PO₄⁻, ClO₄⁻, PF₆⁻ and NO₃⁻) were purchased from Alfa Aesar and used as received. Dry CH₂Cl₂ for CV analysis was distilled thrice from CaH₂ and the toluene (for UV-visible spectral studies) was dried and distilled from sodium–benzophenone mixture.

Instrumentation and methods

Optical absorption spectra were recorded using an Agilent Cary 100 spectrophotometer using a pair of quartz cells of 3.5 ml volume and 10 mm path length and fluorescence spectra were recorded using a Hitachi F-4600 spectrofluorometer using a quartz cell of 10 mm path length. ¹H NMR spectra were recorded using Bruker AVANCE 500 MHz and JEOL ECX 400 MHz spectrometers in CDCl₃ and elemental analyses were performed using an Elementar vario EL III instrument. ESI mass spectra were recorded using a Bruker Daltanics microTOF mass spectrometer in negative ion mode using CH₃CN as solvent. The X-ray quality single crystals of 2 were obtained by vapour diffusion of CH₃CN into the toluene solution of 2. Single-crystal XRD data of 2 was collected on a Bruker Apex-II CCD diffractometer equipped with a liquid cryostat. The ground state geometry optimisation of 1 in the gas phase was carried out by DFT calculations using B3LYP functional with a 6-311G(d,p) basis set. Electrochemical measurements were carried out using CH instrument (CH 620E). A three electrode assembly was used consisted of a platinum working electrode, Ag/AgCl as a reference electrode and a Pt-wire as a counter electrode. The concentration of 1–4 was maintained at ∼1 mM. All measurements were performed in triple distilled CH₂Cl₂ containing 0.1 M TBAPF₆ as supporting electrolyte, which was degassed by argon gas purging. Protonation, deprotonation and anion detection studies were carried out in distilled toluene at 298 K and the concentration of 1–4 were kept at ∼10–13 μM throughout the experiments, whereas the stock solution of anions were maintained from 0.003 to 0.05 M as per their need. The temperature inside the cell was 298 ± 0.2 K. The association constants (β₂) and stoichiometry for anion binding were calculated using Hill equation.¹⁸ We calculated the limit of detection (LOD) and limit of quantification (LOQ) for the anions in toluene by 1–4 using the formulae LOD = 3.3(SD/S) and LOQ = 10(SD/S), where SD stands for the standard deviation of the blank and S stands for the slope of the regression line.¹⁹

Synthetic procedures

NiTPP(NO₂) was prepared by nitration of NiTPP using copper nitrate in acetic anhydride as reported in literature.²¹

Synthesis of NiTPP(NO₂)Cl₇. NiTPP(NO₂) (0.2 g, 0.28 mmol) was dissolved in 70 ml of 1,1,2,2-tetrachloroethane (TCE) in a 100 ml RB flask. To this, 15 equiv. of N-chlorosuccinimide (0.56 g, 4.19 mmol) was added and then refluxed for 2.5 hours under an argon atmosphere. The solvent was removed under vacuum and the crude porphyrin was purified by silica gel column chromatography using CHCl₃/hexane mixture (1 : 1, v/v) as eluent. The desired product was eluted as second fraction and the yield was found to be 23% (0.062 g, 0.064 mmol). NiTPPCl₈ was collected as first fraction and the yield was found to be 19% (0.050 g, 0.053 mmol). The spectroscopic data of NiTPPCl₈ was in accordance with reported study.²²

NiTPP(NO₂)Cl₇. UV/Vis (CH₂Cl₂): λ_max in nm (log ε) 448(5.12), 562(4.04), 604(3.80). ¹H NMR in CDCl₃ (500 MH_Z): δ_H (ppm) 7.93–7.87 (m, 8H, meso-o-phenyl-H), 7.73–7.60 (m, 12H, meso-m,p-phenyl-H). ESI-MS (m/z): 987.82 [M·OCH₃]⁻ (calcd, 987.56). C₄₄H₂₀N₅O₂Cl₇Ni: C, 55.19%; H, 2.11%; N, 7.31%. Found: C, 55.45%; H, 2.44%; N, 7.57%.

Synthesis of H₂TPP(NO₂)Cl₇ (1). NiTPP(NO₂)Cl₇ (0.1 g, 0.10 mmol) was dissolved in 70 ml of distilled CHCl₃ in a 250 ml RB flask. To this, 8 ml of conc. H₂SO₄ was added drop wise and allowed to stir for 3 h at 0 °C. Then 100 ml of water was added and extracted into CHCl₃. The organic layer was washed with water (2 × 100 ml) and then neutralized with 100 ml of aq. NH₃ solution (10%). The excess ammonia was removed by washing with water and then dried over Na₂SO₄. The crude porphyrin was purified by silica gel column chromatography using CHCl₃ as eluent. The yield of 1 was found to be 79% (0.074 g, 0.082 mmol).

H₂TPP(NO₂)Cl₇. UV/Vis (CH₂Cl₂): λ_max in nm (log ε) 461(5.18), 562(3.88), 615(3.85), 732(3.78). ¹H NMR in CDCl₃ (500 MH_Z): δ_H (ppm) 8.23–8.15 (m, 8H, meso-o-phenyl-H), 7.82–7.72 (m, 12H, meso-m,p-phenyl-H). ESI-MS (m/z): 900.58 [M]⁻ (calcd, 900.86). C₄₄H₂₂N₅O₂Cl₇: C, 58.66%; H, 2.46%; N, 7.77%. Found: C, 58.37%; H, 2.62%; N, 7.56%.

The demetallation of NiTPPCl₈ was carried out using concentrated H₂SO₄ as per the reported procedure²³ and the spectroscopic data was in accordance with the proposed structure of 2.
