Xin
Huang
,
Can
Xue
,
Chunling
Fu
and
Shengming
Ma
*
Laboratory of Molecular Recognition and Synthesis, Department of Chemistry, Zhejiang University, Hangzhou 310027, Zhejiang, People's Republic of China. E-mail: masm@sioc.ac.cn
First published on 16th June 2015
The efficient construction of the axial chirality of allenes bearing a carbohydrate unit is challenging. Here we observed that the newly developed CuBr2 catalysis may smoothly catalyze the highly diastereoselective three-component reaction of carbohydrates bearing a terminal alkyne unit, aliphatic or aromatic aldehydes, and (R) or (S)-α,α-diphenylprolinol, affording carbohydrates bearing the chiral 1,3-substituted allene entity in very high de (94–99%). Synthetically attractive functionalities, such as hydroxyl, amide, malonate, and even tosylate, etc. could all be well tolerated. The role of the carbohydrate unit has been explored.
Fig. 1 Some typical natural or unnatural carbohydrates bearing an optically active allene unit with biopotential. |
We chose 2-propynyl 2,3,4,6-tetra-O-acetyl-β-D-glucopyranoside 1a5 as the model substrate. The recently developed ZnX2-mediated one-pot synthesis of optically active 1,3-disubstituted allenes from terminal alkynes with aldehydes and α,α-diphenylprolinol is straightforward.6,7 However, initial experiments showed that the reaction under our previously developed protocols with 0.75 equiv. of ZnBr2,6 or even CdI2,8 both failed to afford the expected product (Ra)-4aa (Scheme 1). Quite unexpectedly, we observed that the reaction using newly developed CuBr2 catalysis9 could solve this problem, affording the carbohydrates bearing an allene unit in decent yields with excellent diastereomeric excess!

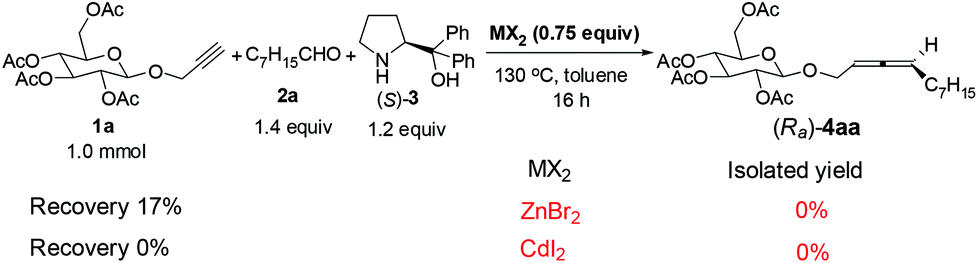

Scheme 1 Failed ZnBr2- or CdI2-mediated reaction of 1a with 2a in the presence of (S)-α,α-diphenylprolinol. |
Initially, we conducted the reaction of 1a with octanal 2a (1.4 equiv.) and (S)-α,α-diphenylprolinol (S)-3 (1.2 equiv.) under catalysis by CuBr2 (40 mol%) in 1,4-dioxane under reflux. Fortunately, after 16 h, the reaction succeeded to afford the expected product (Ra)-4aa in 59% yield with 94% de (entry 1, Table 1). As a comparison, when CuI10 was applied, the reaction afforded the expected product (Ra)-4aa in 67% yield, however, the diastereoselectivity is rather disappointing (29%) (entry 2, Table 1); compared with CuI, the reaction using CuBr gave (Ra)-4aa in the same yield, however, there is essentially no chiral induction for the allene axial chirality (entry 3, Table 1). The reaction in dioxane with ZnBr2 still failed, indicating the beauty of the Cu2+ catalyst for such a complicated coordination environment of carbohydrates (entry 4, Table 1). Furthermore, it is interesting to observe that both the yield and de depend on the loading of the catalyst (entries 5–8, Table 1): when reducing the loading of CuBr2 to 20 mol%, the diastereomeric excess was improved further to 98% (entry 5, Table 1). Control experiments show that the solvent effect is also striking: when we ran this reaction with CuBr2 (20 mol%) in toluene, the diastereoselectivity is only 86% with a yield of 41% (entry 9, Table 1).

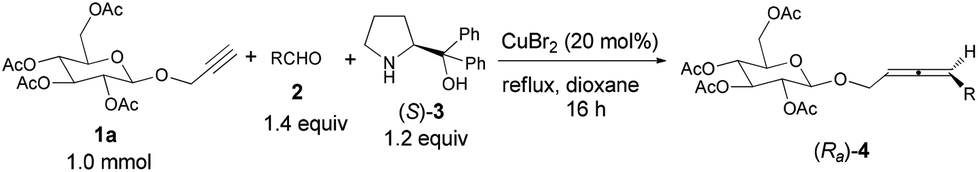

The scope of the aldehydes has been demonstrated by using 1a as the terminal alkyne with some of the typical results summarized in Table 1: both n-alkyl (entries 1–4, Table 2) and sec-alkyl (entries 5–6, Table 2) aldehydes, and even aromatic aldehydes 2g and 2h (at a much lower temperature) (entries 7–8, Table 2) may be used, affording the corresponding axially chiral allenyl glucopyranosides in decent yields with 97–99% de.
Entry | R | (Ra)-4 | |
---|---|---|---|
Isolated yield (%) | de (%) | ||
a The reaction was conducted at 70 °C for 24 h and 40 mol% of CuBr2 was used. | |||
1 | n-C7H15 (2a) | 49 ((Ra)-4aa) | 98 |
2 | Bn (2b) | 55 ((Ra)-4ab) | 97 |
3 | PhCH2CH2 (2c) | 50 ((Ra)-4ac) | 99 |
4 | i-Bu (2d) | 54 ((Ra)-4ad) | 97 |
5 | Cy (2e) | 57 ((Ra)-4ae) | 99 |
6 | i-Pr (2f) | 53 ((Ra)-4af) | 99 |
7a | p-ClC6H4 (2g) | 54 ((Ra)-4ag) | 99 |
8a | p-MeC6H4 (2h) | 50 ((Ra)-4ah) | 98 |
The absolute configuration of the allene unit was established by the X-ray single crystal diffraction study of (Ra)-4ae with the glucopyranoside as the reference (Fig. 2).11
The reaction is also general with other carbohydrate-based terminal alkynes bearing different synthetically attractive functionalities without protection: for propargyl β-D-glucopyranosides 1b–1d12 bearing –NHCOC7H15, –CH(CO2Me)2, even –OTs unit at the C-6 position, the reactions all afforded the corresponding axially chiral allenyl β-D-glucopyranosides (Ra)-4be–4de in moderate yields with 98–99% de. When propargyl galactopyranoside 1e5 was used, the reaction afforded (Ra)-4ee in 50% yield with 96% de. It is worthy of mention that even the propargyl β-D-glucopyranoside 1o with four free hydroxyl groups without protection could be converted to (Ra)-4ob in 47% yield with 94% de (Scheme 2).
Propargyl β-D-thioglucoside 1f13 could also be converted with 46% yield and 96% de to (Ra)-4fe, indicating that even the thio unit does not poison the Cu2+ catalyst (eqn (1)).
(1) |

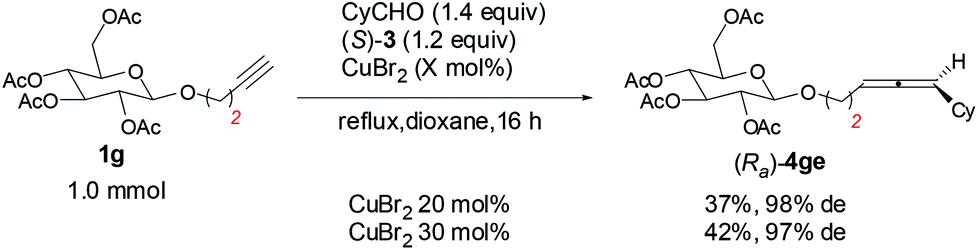

For homopropargyl β-D-glucopyranoside 1g,14 the expected product (Ra)-4ge was obtained in 37% yield with 98% de under catalysis with 20 mol% CuBr2. Increasing the amount of CuBr2 to 30 mol% could increase the yield to 42% with 97% de (Scheme 3).
This protocol is even suitable for the synthesis of more complex axially chiral allenyl disaccharides (Ra)-4he (48% yield, 98% de) and (Ra)-4ie (51% yield, 98% de) from 1h and 1i15 (Scheme 4).
When we used the glucopyranoside 1j bearing two terminal alkyne units at the O-2 and O-3 positions and a terminal allene unit, the reaction afforded the corresponding product (Ra,Ra)-4jb without touching the acetal and terminal allene units in 43% yield with 97% de (dr > 99/1), indicating that the axial allene chirality could be constructed at both α- and β-positions (eqn (2)).
(2) |
Moreover, this method could be extended to construct axially chiral 2,3-allenyl five-membered furanosides in moderate yields with 96–99% de. No reaction occurred at the acetal unit (Table 3).
The reaction may be easily conducted on a gram scale showing its practicality (eqn (3), Scheme 5). The diastereoisomer (Sa)-4aa could be prepared with the prolinol enantiomer (R)-3 with a similar level of de, indicating the absolute configuration of the allene axial chirality is determined by that of the amino alcohol 3, not the skeleton of the carbohydrate (eqn (4), Scheme 5). However, it is interesting to observe that under the same conditions the reaction of propargyl alcohol 1y afforded chiral 2,3-allenol (Ra)-4ya in only 39% yield with just 83% ee,9a indicating the unique role of the carbohydrate unit in both the yield and de – the sterically bulky carbohydrate unit ensures the stereoselectivity of the allene formation as a stereodictating protecting group (eqn (5), Scheme 5).6b
In conclusion, we have observed that CuBr2 may catalyze the 1,3-disubstituted allene unit bearing a carbohydrate unit from aldehydes and carbohydrates bearing a terminal alkyne unit with very high diastereoselectivity. The following advances have been realized: (1) CuBr2 has been identified as a catalyst compatible with the in situ generated water, the highly oxygenated nature of the carbohydrates, and the in situ generated imine; (2) the current method provides one-pot approach to chiral allenes with common functionalities such as hydroxyl, amide, malonate, even tosylate, enjoying a very wide scope. (3) The absolute configuration of the newly formed allene unit is determined by the absolute configuration of the readily available and cheap (S)- or (R)-α,α-diphenylprolinol,16 while the carbohydrate unit acts as a stereodictating group to improve the diastereomeric excess. This one-pot highly diastereoselective approach for the construction of the chiral allene unit will greatly stimulate interest in the science of allenes and carbohydrates for organic chemists and medicinal chemists. Further studies including the synthetic application are being pursued in this laboratory.
Footnote |
† Electronic supplementary information (ESI) available: Experimental section, characterization of all compounds, and copies of 1H and 13C NMR spectra of selected compounds. CCDC 1013803. For ESI and crystallographic data in CIF or other electronic format see DOI: 10.1039/c5qo00164a |
