Polyamide 6/silica hybrid materials by a coupled polymerization reaction

Abstract

Polyamide 6/SiO₂ hybrid materials were produced by a coupled polymerization reaction of three monomeric components namely 1,1′,1′′,1′′′-silanetetrayltetrakis-(azepan-2-one) (Si(ε-CL)₄), 6-aminocaproic acid (ε-ACA) and ε-caprolactam (ε-CL) within one process. Si(ε-CL)₄ together with ε-ACA has been found suitable as a precursor monomer for the silica and PA6 components. The accurate adjustment of the molar ratio of both components, as well as the combination of the overall process for producing the polyamide 6/SiO₂ hybrid material with the hydrolytic ring opening polymerization of ε-caprolactam is of great importance to achieve homogeneous products with a low extractable content. Water in comparison with ε-ACA has been found unsuitable as an oxygen source to produce uniformly distributed silica. The procedure was carried out in a commercial laboratory autoclave at 8 bar initial pressure. The molecular structure and morphology of the hybrid materials have been investigated by solid state ²⁹Si and ¹³C NMR spectroscopy, DSC and FTIR spectroscopy and electron microscopy measurements.

---

Introduction

Polyamide 6 (PA6) is one of the most important engineering plastics, due to the combination of high mechanical and thermal stability, chemical resistance and processability.¹ Its physical properties can be further improved by combination with other components, e.g. layered silicates,^2–4 glass or carbon fibres^5–8 and metal oxides,^9–12 to fabricate hybrid materials or composites. These materials are suitable for several applications, especially in the automobile industry, for example as the inlet for fuel systems, wheel trims and engine covers.¹³ PA6/silica hybrid materials are of special interest because incorporation of SiO₂ into PA6 improves mechanical properties such as hardness and elastic modulus.^14,15 Furthermore, silica is non-toxic and colorless and nanoparticles as well as hybrid materials could be obtained by the sol–gel process under mild reaction conditions.

Strategies for producing PA6/SiO₂ hybrid materials can be classified into different categories. In the simplest way, both components, the preformed SiO₂ and PA6, are mixed together by extrusion, melting or by another appropriate procedure.^16–21 More elegant ways use the in situ formation of the SiO₂ component, i.e. by sol–gel processing²² or the in situ polymerization of ε-caprolactam in the presence of preformed silica particles.^15,23–26 The grafting of PA6 on surface functionalized SiO₂ particles is also a suitable route to fabricate polymer/SiO₂ hybrid materials.^27,28 As an additional way, the simultaneous formation of both the polymer components within one procedure is known.^14,29 So far, there has been no report on the simultaneous synthesis of PA6 and SiO₂ from a combined monomer within one coupled polymerization reaction.

In the literature, the terms composite and hybrid material have been used in different ways for these types of materials.¹⁶ Composite materials are mixtures of both components on a length scale of 100 nm to 10 m, whereas inorganic/organic hybrid materials are combined at the molecular level up to several nm. The challenge is to create nanostructured hybrid materials, which show a stronger improvement in physical properties than macroscopic mixtures even at low filler contents of a few weight percent.

To achieve a nanostructured hybrid material, the simultaneous formation of both components in vicinity is required.³⁰ Therefore, monomers have been constructed in such a way that two polymers are formed from one single source monomer. This strategy has been established for monomers which contain two different moieties suitable for polymerization, one for chain polymerization and another one, i.e. for sol gel processes.^31–34 However, in this case both groups do polymerize independently of each other. For step-growth polymerization processes, the twin polymerization has been established as an elegant route to fabricate nanostructured inorganic/organic hybrid materials. The formation of both polymers occurs mechanistically coupled, which is the reason for the smooth nanostructure formation.^30,35,36 Monomers which are used in twin polymerization are called twin monomers.

The objective of this publication is the development of a coupled polymerization procedure for the synthesis of PA6/SiO₂ hybrid materials within one process. Therefore, three different reactants, namely 1,1′,1′′,1′′′-silanetetrayltetrakis-(azepan-2-one) (Si(ε-CL)₄), 6-aminocaproic acid (ε-ACA) and ε-caprolactam (ε-CL) are used in different ratios to adjust the amount of the formed silica. The combined monomer Si(ε-CL)₄1 which contains the ε-caprolactam moiety covalently bound via the N-atom to the silicon is used as a precursor for the formation of silica as well as polyamide 6. Basically for the purpose of PA6 production, cyclohexanone oxime (CHO) as an industrial precursor molecule for ε-CL also seems eligible as a component in monomer 2 Si(CHO)₄ (Scheme 1). However, in this case the BECKMANN rearrangement of this monomer would be an essential step before polymerization takes place.

Scheme 1 Molecular structures of silicon monomers derived from ε-caprolactam (monomer 1) and cyclohexanone oxime (monomer 2). For synthetic procedure see the Experimental part.

Both types of silicon monomers are investigated for PA6/SiO₂ hybrid material synthesis. It must be mentioned that the single polymerization of 1 or 2 is unsuitable to produce PA6/SiO₂ as the overall stoichiometry is not complied. Water is essential as a co-component (Scheme 2). Therefore, it must be emphasized that monomers 1 and 2 are not ideal twin monomers but they are related to deficient twin monomers due to the possible mechanistically coupled formation of the inorganic and organic polymers. The polymerization process as shown in Scheme 2 is related to the apparent twin polymerization.³⁷

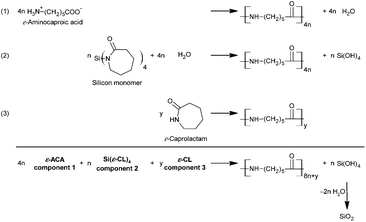

Scheme 2 Strategy for fabrication of PA6/SiO₂ hybrid materials by coupling the reaction of Si(ε-CL)₄1 with the polycondensation of ε-ACA and the hydrolytic ring opening polymerization of ε-CL.

The challenge of PA6/SiO₂ hybrid material synthesis according to Scheme 2 is the improvement of the operative coupling of several reactions. One crucial aspect is how the water equivalent can be realized among the occurring processes. Water can be used directly or from a suitable source like the polycondensation of 6-aminocaproic acid. ε-ACA seems to be eligible, because it polymerizes to PA6 and initiates hydrolytic lactam polymerization. The coupling of the water delivering and the water consuming reaction (eqn (1) and (2) in Scheme 2) to produce PA6/SiO₂ has been explored as a function of the ratio of 1 and ε-ACA. As a third reaction component ε-caprolactam has been found suitable for a good homogenization of the reaction melt (according to eqn (3) in Scheme 2). By variation of reactant concentrations different SiO₂ amounts are adjustable. The reactions have been carried out using a typical procedure, which is suitable to fabricate PA6 from ε-CL.

Experimental

Materials and methods

ε-Caprolactam (>99%) and silicon tetrachloride (99%) were purchased from Sigma Aldrich. 6-Aminocaproic acid (99%) was purchased from Alfa Aesar. Cyclohexanone oxime (97%) was purchased from Acros. Toluene was dried by standard methods and distilled before use under an argon atmosphere. CDCl₃ was dried with molecular sieves 4 Å and stored under argon.

Liquid state ¹H NMR (250.1 MHz), ¹³C NMR (62.9 MHz) and ²⁹Si NMR (49.7 MHz) spectra were recorded with a Bruker Avance 250 NMR spectrometer. The residual signal of the solvent CDCl₃ was used as an internal standard (δ = 7.26 ppm).

Solid state NMR spectra were recorded using a Bruker Digital Avance 400 spectrometer, equipped with double tuned probes capable of MAS (magic angle spinning). ¹³C{¹H}-CP-MAS NMR spectra were recorded at 100.6 MHz using 3.2 mm standard zirconium oxide rotors spinning at 15 kHz. ²⁹Si{¹H}-CP-MAS NMR spectra were recorded at 79.5 MHz with a sample spin rate of 12 kHz. Cross polarization with a contact time of 3 ms was used to enhance sensitivity. The recycle delay was 6 s. The spectra were referenced externally to tetrakis(trimethylsilyl)silane (¹H, δ = 0.27 ppm; ¹³C, δ = 3.55 ppm; ²⁹Si, δ = −9.5 ppm). The spectra were recorded by ¹H decoupling using the TPPM pulse sequence.

DSC measurements were performed by using a DSC 1 (Mettler Toledo). All measurements were performed in 40 μL aluminium pans and a N₂-flow of 50 mL min⁻¹ in a temperature range of 25–250 °C with a heating rate of 10 K min⁻¹. In cyclic measurements with two heating segments and one cooling segment, the highest, respectively lowest temperature was held for 2 min.

ATR-FTIR spectra were recorded with a Golden Gate ATR accessory from LOT-Oriel GmbH & Co. KG, Darmstadt, using a BioRad FT-IR 165 spectrometer (Bio-Rad Laboratories, Philadelphia, PA, USA).

The molecular weight distribution of PA6 was determined by SEC at BASF SE using an App_P apparatus with SDV as the stationary phase, and the column temperature was 65 °C. 1,1,1,3,3,3-Hexafluoro-2-propanol containing 0.05% of potassium trifluoroacetate was used as the eluent with an elution rate of 1 mL min⁻¹ and the sample concentration was 1.5 mg mL⁻¹. PMMAs of narrow and defined molecular weights were used as calibration standards.

The transmission electron microscopy (TEM) was carried out using the Libra 120 (120 kV) transmission electron microscope of Zeiss by TEM Laboratory, BASF SE. Before the measurements, ultrathin cuts were performed by using a Leica ultramicrotome EM UC7 and a cryogenic chamber Leica EM FC7 (80–120 nm).

Electron microscopy images were taken by using an instrument from type Nova NanoSEM 200 of FEI Company after sputtering with platinum (TU Chemnitz, Laboratory of Solid Surfaces Analysis).

Single crystal X-ray structural analyses were performed with an Oxford Gemini diffractometer with Cu-K_α-radiation (λ = 154.184 pm) at TU Chemnitz, Laboratories of Inorganic Chemistry.

Quantitative elemental analyses of the elements C, H und N were performed with varioMICRO CHNS from Elementar Analysensysteme GmbH (TU Chemnitz, Laboratory of Organic Chemistry).

Thermogravimetric measurements were realized on a Thermogravimetric Analyzer 7 (TGA 7), of Perkin Elmer Company (TU Chemnitz, Laboratory of Physical Chemistry). First the samples were heated from 30 to 700 °C with a heating rate of 20 K min⁻¹ under a constant helium flow. Upon further heating to 900 °C the gas flow switched to air. This temperature was held for another 30 min.

Synthesis of monomers 1 and 2

In a typical procedure, either ε-caprolactam or cyclohexanone oxime (20.0 g, 0.177 mol) was dissolved under stirring in anhydrous toluene (300 mL). Triethylamine (20.2 g, 0.200 mol) was added in slight excess in a single portion. This solution was cooled in a water bath and SiCl₄ (7.5 g, 0.044 mol), dissolved in 100 mL anhydrous toluene, was added slowly through a dropping funnel under vigorous stirring. Immediately a white precipitate from triethylammonium chloride was observed. Subsequently, the solution was stirred at room temperature for 16 h. Triethylammonium chloride was separated by filtration. After the removal of the solvent under vacuum, a white to beige solid was obtained.

1,1′,1′′,1′′′-Silanetetrayltetrakis(azepan-2-one) 1. Yield: 80%. δ_H/ppm (250 MHz; CDCl₃): 1.62–1.72 (24 H, m, 3-H–5-H), 2.44–2.45 (8 H, m, 1-H), 3.19 (8 H, m, 6-H). δ_C/ppm (63 MHz; CDCl₃): 23.6, 29.6, 30.3 (C-3–C-5), 38.3 (C-2), 46.1 (C-6), 183.9 (C-1). δ_Si/ppm (50 MHz; CDCl₃): −43.5. ν_max/cm⁻¹: 2915, 2857 (CH₂), 1638 (C=O), 922 (Si–N). Found: C, 60.17; H, 9.23; N, 11.64. Calc. C₂₄H₄₀N₄O₄Si: C, 60.47; H, 8.46; N, 11.75.

Cyclohexanone-O-tris(cyclohexylideneaminoxy)silyloxime 2. Yield: 82%. δ_H/ppm (250 MHz; CDCl₃): 1.61 (24 H, m, 3-H–5-H) 2.25 (8 H, t, ³J₅₆ = 8.0 Hz, 6-H), 2.60 (8 H, t, ³J₂₃ = 8.0 Hz, 2-H). δ_C/ppm (63 MHz; CDCl₃): 27.1, 25.9, 25.7 (C-2–C-5), 32.2 (C-6), 167.1 (C-1). δ_Si/ppm (50 MHz; CDCl₃): −73.7. ν_max/cm⁻¹: 2931–2857 (CH₂), 1638 (C=N), 1447 (CH₂), 940 (Si–O). Found: C, 59.51; H, 8.49; N, 11.53. Calc. C₂₄H₄₀N₄O₄Si: C, 60.47; H, 8.46; N, 11.75.

Synthesis of hybrid materials

Composites were synthesized using a high pressure lab autoclave of Berghof company. A Teflon beaker was used as an insert. Before heating to a reaction temperature of 230 °C, the reactants ε-ACA, ε-CL and 1 were filled in the autoclave in the specified molar ratios (Table 1) at room temperature and then it was purged with argon up to 8 bar and afterwards relaxed to atmospheric pressure thrice. The reaction took place under 8 bar initial pressure (argon) for at least 210 min, including a ca. 60 min heating phase. During the reaction, pressure increased to approximately 14 bar. 15 min before termination of the reaction time, pressure was released slowly to start the post-condensation phase. After cooling down to ambient temperature, the white to beige-colored monolithic samples were crushed into smaller pieces. To remove residual monomers or oligomers, the hybrid materials were purified by Soxhlet extraction for 48 h with methanol and then dried in a vacuum oven at 40 °C to a constant mass. The reference was synthesized according to the same polymerization procedure except for the addition of 1.

Table 1 Summary of the obtained samples with molar ratios of reactants used and the amount of extractables. The sample name gives information about the SiO₂ amount. For example, P1 stands for a hybrid material with 1 wt% of SiO₂. Furthermore, the endorsement P1_x means that a variation of molar ratios of reactants for the special SiO₂ content was chosen

No.	SiO2 amount	Molar ratios of reactants			Extractables (48 h, MeOH)
		ε-ACA	Si(ε-CL)41	ε-CL
R	Reference (pure PA6)	1	0	4.4	10.0%
P1_1	1 wt% SiO2	10	1	38.6	13.9%
P1_2	1 wt% SiO2	7.2	1	41.4	18.7%
P1_3	1 wt% SiO2	4	1	43.5	31.9%
P2	2 wt% SiO2	4.3	1	18	13.9%
P5_1	5 wt% SiO2	4	1	1.2	11.5%
P5_2	5 wt% SiO2	2.4	1	3.7	21.0%

---

To increase the average molecular weight, a post-condensation reaction can be carried out at 200 °C and 5 mbar for 12 h afterwards.

The hybrid material synthesis procedure is reproducible several times. For further information of the reproducibility by the example of P2, see the ESI† (Fig. S1 for ATR-FTIR spectra, Fig. S2 for DSC traces and Table S1 for the amount of extractables and quantitative elemental analysis).

Results and discussion

Both monomers 1 and 2 are not described accurately in the literature. 1 is only briefly mentioned in a patent.

The synthesis of 1 and 2 has been performed by the reaction of SiCl₄ with ε-CL or cyclohexanone oxime using an appropriate amine base to bind HCl (see the Experimental part). Both new monomers have been characterized by spectroscopic methods and single X-ray structure analysis. Fig. 1 shows the molecular structures of the synthesized monomers. For bond lengths and angles, as well as data acquisition details see the ESI† (Tables S2–S4). Both molecules have a S₄-symmetry with tetrahedral geometry at the silicon atom. Bonding to silicon causes planarization of the nitrogen atoms (sum of angles at the nitrogen atoms ∼359°).^38–41 Conspicuous in 1 is the small distance of 2.77 Å between silicon and oxygen in the solid state, which is shorter than the sum of the van der Waals radii of the Si and O atoms (3.62 Å).⁴² Comparable Si–O and Si–N distances were found by Rong and Wollenweber et al. who discussed comparable structures with tosyl groups as substituents at the nitrogen atoms in terms of a [4 + 4] octacoordination with a tetrahedral SiN₄ core and four oxygen atoms in the “outer sphere”, capping the tetrahedral planes.^43–45 The chemical shifts of the ²⁹Si NMR signals of monomer 1 in the solid state and the solution state are similar which indicates the same bonding motif (Fig. S3 in the ESI†). The solid state ²⁹Si NMR signal appears at δ = −43.0 ppm, which could be explained by the electron withdrawing effect of the carbonyl groups next to the nitrogen atom. Therefore, no strong effect of an octacoordination could be observed by ²⁹Si NMR spectroscopy. Consequently, it is unclear whether the short Si–O distances are due to an additional stabilization or just steric reasons.

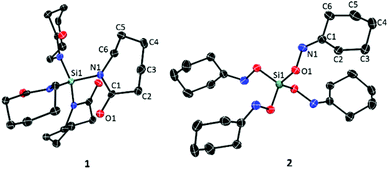

Fig. 1 ORTEP drawing of monomers 1 (left) and 2 (right), with ellipsoids drawn at the 50% probability level. Hydrogens are omitted for clarity.

All attempts to polymerize 2 to any PA6 hybrid materials failed. It remains intractable for BECKMANN rearrangement towards the ε-CL component. Neither acid treatment nor heating in different melt compositions have been successful (Table S5 in the ESI†). Therefore, solely 1 was further investigated for hybrid material synthesis.

In spite of the fact that water is suitable to induce the thermal polymerization of ε-CL, the use of free water as the source for the synthetic procedure was not favorable because of a lower conversion or discoloration of the products (Table S6 in the ESI†). The amino acid ε-ACA as a water source has been found to be the most convenient way.

In preliminary studies, the reaction of 1 with ε-ACA has been studied by DSC measurements to optimize the polymerization temperature for the overall process (Fig. 2). Monomer 1 shows a complex temperature dependence. Endothermic melting of ε-ACA and its polymerization under water release starts at temperatures above 209 °C. The combination of ε-ACA with 1 leads to a decrease of the polymerization temperature below 200 °C. In addition, an increasing ε-ACA amount requires a higher reaction temperature. In spite of the lower polymerization temperature in the mixture of ε-ACA with 1, a processing temperature of 230 °C was chosen for hybrid material synthesis because of the high melting point of PA6 (220 °C).

Fig. 2 DSC curves of mixtures of ε-ACA with 1 in different molar ratios at a heating rate of 10 K min⁻¹.

The overall process for synthesizing PA6/SiO₂ hybrid materials has been carried out in a high pressure autoclave suitable for PA6 synthesis (Experimental part). It must be mentioned that the order of reactant addition can be varied. Pre-polymerization of the reactants ε-ACA and ε-CL and the subsequent addition of 1 is possible, but the products show discoloration due to their contact with air while heating. Reaction time and polymerization temperature are important for homogeneity and extractable amounts, so that for a better comparability all experiments are performed under constant reaction conditions in an autoclave. All reactants are inserted at the beginning of the heating period and the reactions are performed under an inert atmosphere at a temperature of 230 °C for 3.5 h including the heating and post-condensation phases. For further information see Table S7 in the ESI†.

The observed extractables of the hybrid materials amount to 10–32% and depend on the molar ratios of reactants (Table 1). Particularly for the samples P1 and P5 a decreasing amount of extractables can be detected with a higher ε-ACA ratio.

The resulting PA6/SiO₂ hybrid materials are homogeneous solid materials (Fig. 3). Primary monolithic products were received but also granules can be fabricated. Furthermore, the resulting thermoplastic materials can be extruded to films.

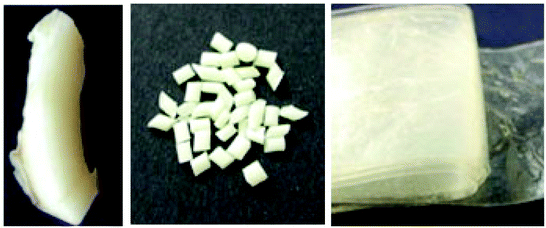

Fig. 3 Images of PA6/SiO₂ hybrid materials according to sample P2 (Experimental part, Table 1) as monolith, granules and film.

The TEM images of P2 show SiO₂ agglomerates with primary particles of 35–60 nm in size (Fig. 4).

Fig. 4 TEM images of a monolithic sample of P2 after freezing ultrathin cuts in different magnifications.

The homogeneity of samples as well as the agglomeration tendency are affected by the containing SiO₂ amount as can be seen from electron microscopy images (Table 2 and Fig. S4–S9 in the ESI†). The higher the SiO₂ content which is formed during polymerization, the more agglomeration of inorganic particles can be observed. The resulting SiO₂ agglomerates build particles with different shapes, for example up to 30 μm long needle-like (P1_2) or shell-like particles around hybrid materials (P5_1) but often spherical as can be seen from the other examples. With the highest SiO₂ content (P5_2) particles larger than 100 μm are obtained. Furthermore, the molar ratios of reactants seem to have an influence on the agglomeration tendency. Hence, for example, in an experiment with constant SiO₂ amounts (P1 and P5) an increasing ε-ACA ratio causes a decrease of the SiO₂ particle size. The obtained wide particle size distribution could have an influence on mechanical behavior but this is a part of further work.

Table 2 Electron microscopy images and EDX patterns of hybrid materials with 1, 2 and 5 wt% of SiO₂ in different magnifications; EDX showing the distribution of the elements nitrogen, oxygen, carbon and silicon

Sample (SiO2 amount)		Electron microscopy picture
a The obtained element fluorine is due to the mechanical crushing of the composite material after the polymerization process in the used Teflon beaker.
P1_1 (1 wt%)
Molar ratio
ε-ACA	Si(ε-CL)4
10	1
P1_2 (1 wt%)
Molar ratio
ε-ACA	Si(ε-CL)4
7.2	1
P1_3 (1 wt%)
Molar ratio
ε-ACA	Si(ε-CL)4
4	1
P2 (2 wt%)
Molar ratio
ε-ACA	Si(ε-CL)4
4.3	1
P5_1 (5 wt%)
Molar ratio
ε-ACA	Si(ε-CL)4
4	1
P5_2 (5 wt%)
Molar ratio
ε-ACA	Si(ε-CL)4
2.4	1

---

The solid state ¹³C and ²⁹Si NMR spectra of the hybrid material P2 evidence the molecular structure which relates to the PA6/SiO₂ (Fig. 5). The solid state ¹³C NMR spectrum is in agreement with the literature data of pure PA6 high in α-crystallinity.⁴⁶ The solid state ²⁹Si NMR spectrum of the hybrid material shows Q₃ and Q₄ signals, which indicate Si atoms bound to 3 or 4 other Si atoms over siloxane-bridges. It is not possible to distinguish if the Q₃ signal is caused by Si–OH or Si–OC groups. Therefore, bonding of carboxylic acid groups to silicon cannot be excluded.

Fig. 5 Solid state ¹³C{¹H}-CP-MAS (above) and ²⁹Si{¹H}-CP-MAS NMR spectra (below) of a 2 wt% SiO₂ sample P2.

DSC traces of the samples R, P1_2, P2 and P5_1 show the typical thermal behavior of thermoplastic PA6 with a melting point around 220 °C (Fig. 6).

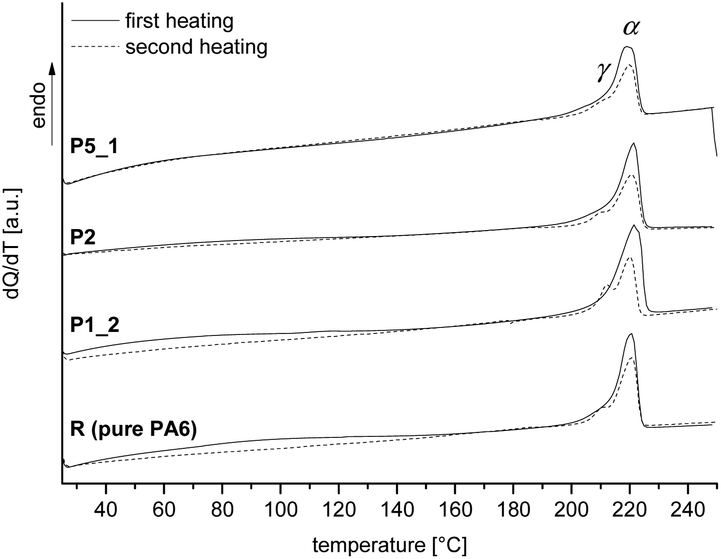

Fig. 6 First and second heating of a cyclic DSC measurement of pure polyamide 6 in comparison with hybrid materials with 1, 2 and 5 wt% of SiO₂ (extracted samples); signals of α- and γ-crystal modification are marked.

As already described for the solid state ¹³C NMR spectra, the crystallinity of PA6 is predominated by α-modification. Variation of the SiO₂ amount has no influence on the melting or crystallization temperature and the crystal modification. The degree of crystallization with values between 30 and 40% is independent of the SiO₂ content and indicates the presence of crystalline and amorphous regions in the organic polymer. For further information see Table S8 (ESI†). Independent of the SiO₂ amount, all samples show similar thermal decomposition behavior (thermogravimetric analysis, Fig. S10, ESI†).

In agreement with solid state ¹³C NMR and ²⁹Si spectra and DSC measurements, ATR-FTIR spectra indicate typical bands for the polyamide 6 like amide I band at 1636 cm⁻¹ and the amide II band at 1536 cm⁻¹ as well as N–H at 3295 cm⁻¹. Furthermore, the typical Si–O stretching vibration at 1073 cm⁻¹ for SiO₂ is observed (see Fig. 7). Additionally, the ATR-FTIR spectra give information about the crystallization behavior of PA6. The position of the amide V band at 690 cm⁻¹ and the amide VI band at 580 cm⁻¹ indicate crystallization mainly in α-modification as evidenced from DSC and solid state ¹³C NMR measurements, too. The amorphous polymer shows broad signals, which can also be observed. Crystallization in the γ-modification would induce bands at 712 cm⁻¹ and 625 cm⁻¹ for amides V and VI.^47–49

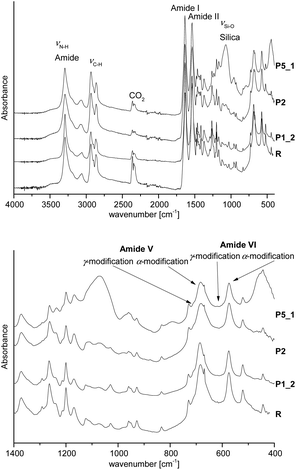

Fig. 7 ATR-FTIR spectra of hybrid materials with 1, 2 and 5 wt% of SiO₂ in comparison with pure polyamide 6 (extracted samples); above: full wavenumber range; below: fingerprint region.

For additional characterization of the obtained hybrid materials, the molar mass of the obtained PA6 and the influence of post-condensation on the molecular weights and the polydispersity index (PDI) were investigated by size exclusion chromatography (SEC, Table 3, Fig. 8 and S11 in the ESI†). All polymers show a monomodal distribution of the molar mass. The SiO₂ content seems to have a slight influence on the molecular weight and its distribution. Therefore, M_w as well as M_n and PDI increase with the increasing SiO₂ amount that occurs with an increasing ratio of ε-ACA in comparison with the other reactants, namely 1 and ε-caprolactam. Generally, high amino acid concentrations lead to an increasing reaction rate of polycondensation reaction and therefore higher chain lengths and higher conversion. For example, a decrease in the ε-ACA : 1 ratio for P1_1 to P1_3 causes a decrease in the obtained molar mass due to a reduced conversion of the reactants. A diametrical effect is determined for P5_1 and P5_2. It must be mentioned that for these cases a higher ε-ACA content leads to lower chain lengths due to a decrease of the ε-caprolactam unit amount and a higher concentration of amino or carboxylic acid end groups.

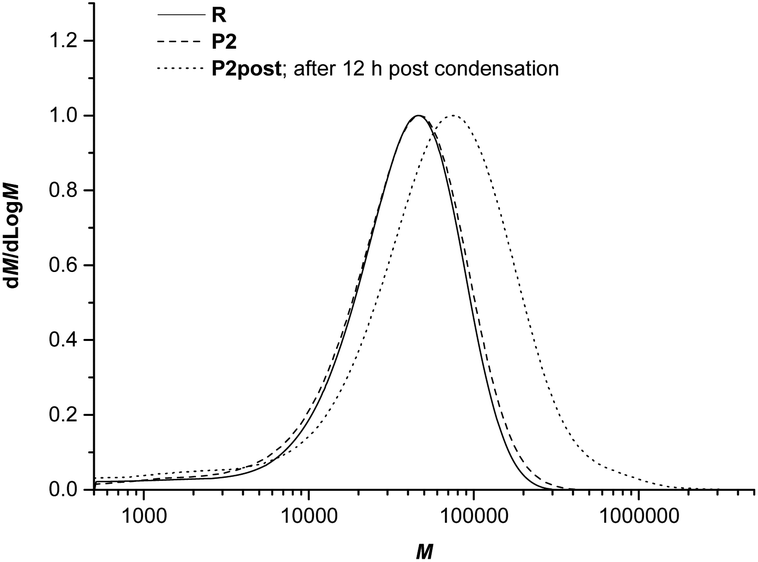

Fig. 8 SEC profiles of hybrid material P2 with 2 wt% of SiO₂ before and after post-condensation at 200 °C and 5 mbar for 12 h in comparison with PA6 as the reference; extracted samples (48 h, MeOH); normalized to peak height.

Table 3 SEC results of hybrid materials with 1 wt%, 2 wt% before and after post-condensation and 5 wt% of the SiO₂ content in comparison with PA6; extracted samples

Sample	M w	M n	PDI
Reference (pure PA6)	48 000	17 500	2.7
P1_1	54 000	18 900	2.9
P1_2	46 200	17 500	2.6
P1_3	35 800	14 400	2.5
P2; 2 wt% SiO2	49 700	17 400	2.8
Before post-condensation
P2post; 2 wt% SiO2	104 000	19 200	5.4
After post-condensation
P5_1	62 600	19 900	3.1
P5_2	80 100	22 900	3.5

---

As expected, the post-condensation reaction of P2 at 200 °C leads to a much higher M_w. Additionally, a broader distribution of the molar masses with a higher PDI after post-condensation is observed. This is due to the unreached equilibrium of the post-condensation reaction. Additionally, the water content in the polymer grains decreases from the inner to the outer sphere. Therefore a different molecular weight distribution over the polymer grain is ascertained.⁵⁰ In some cases, a microscopic nonuniformity of the solid polymers, especially a distribution of crystallite sizes, is discussed as a further reason.⁵¹

Kinetic and thermodynamic investigations of the presented polymerization type are still under study.

Conclusions

In this study, polyamide 6/SiO₂ hybrid materials were produced by a coupled polymerization reaction of three monomeric components namely 1,1′,1′′,1′′′-silanetetrayltetrakis-(azepan-2-one), 6-aminocaproic acid and ε-caprolactam within one process. The amount of SiO₂ is tunable by variation of the reactant stoichiometry, whereas the ratio of 1,1′,1′′,1′′′-silanetetrayltetrakis-(azepan-2-one) to 6-aminocaproic acid is of great importance for high conversion and homogeneity.

The investigations have shown that the filler has no significant effect on thermal properties. The average molecular weight slightly rises with the increasing SiO₂ content. Furthermore, the latter increased during the post-condensation reaction and, additionally, a broader PDI was determined. Examination of the crystallization behavior of the obtained PA6 by NMR as well as FTIR spectroscopy and DSC show a predominated α-crystallinity and amorphous regions. The unfavorable aspect is the increasing agglomeration tendency of the primary nanoparticles with higher SiO₂ amounts. In contrast to conventional in situ procedures or the compounding for the synthesis of PA6/filler hybrid materials, the preceding modification of the filler and negative effects of the modifier, like the thermal degradation,^52,53 can be omitted with the described method. Additionally, problems in terms of processing potential toxic nanoparticle powders are avoided.⁵⁴
