Kinetically-controlled growth of cubic and octahedral Rh–Pd alloy oxygen reduction electrocatalysts with high activity and durability

Abstract

Rh is a promising candidate as an indispensible component in bimetallic catalysts due to its unique capability to resist against the aggressive corrosion from the reaction medium. However, Rh has a very strong oxygen binding ability and is generally not suitable for the oxygen reduction reaction (ORR). Here, we have demonstrated shape-controlled synthesis of Rh–Pd alloy nanocrystals with high activity and durability for ORR by retarding the reaction kinetics at an ultra-slow injection rate of metal salts using a syringe pump. Under precise control of sluggish reaction kinetics, Pd followed a preferential overgrowth along the <100> direction, whereas the growth behavior of Rh was dominant along the <111> direction. These different kinetically-controlled growth behaviors associated with Rh and Pd were essential for achieving the shape transition between the cube and the octahedron of their alloys. The Rh₈Pd₉₂ alloy octahedra exhibited the highest mass activity with a value of 0.18 mA μg⁻¹ in terms of the equivalent Pt cost, and were two-fold higher than that of commercial Pt/C. Significantly, all Rh–Pd alloy nanocrystals were highly stable with only less than 25% loss in mass activity after 30 000 CV cycles in O₂ saturated acid solution compared to ∼56% loss of the commercial Pt/C (E-TEK). Indeed, the mass activity of Rh8Pd92 was 3.3 times higher than that of commercial Pt/C after the accelerated stability test (ADT). This improvement in activity and durability may arise possibly from synergistic effects between the facet and the surface composition.

---

Introduction

Many catalytic reactions are known to be very sensitive to the surface structure of noble-metal nanocrystals in a catalyst.^1–3 It is clear that the surface geometry of a noble-metal nanocrystal is strongly affected by its shape, which determines surface atoms at facets, edges, and corners.^4–7 As such, colloidal based shape control offers a powerful and versatile means to tailor the surface of noble-metal nanocrystals as well as its reactivity and selectivity for a rich variety of catalytic reactions such as the oxygen electro-reduction reaction (ORR). For example, it is demonstrated that the extended Pt₃Ni{111} surface exhibited over 8-fold more activity than its {100} surface in ORR specific activity.⁸ The improvement in ORR activity was also achieved in the Pt₃Ni octahedral nanocrystals enclosed by the {111} facets as compared with the corresponding cubes covered by the {100} facets.^9,10 This type of facet sensitivity has also received unremitting interest as an ideal platform and has been applied in various catalytic reactions over the last decade.^11–13 In general, a capping agent is commonly used for shape-controlled synthesis by changing surface energy via selective adsorption and their growth rates.^14,15 Thus, a capping agent could stabilize some specific facets during thermodynamically controlled crystal growth (e.g. PVP for Ag{100} and citrate for Ag{111} surface).^16–21 However, the use of different capping agents to control the shape of noble-metal nanocrystals severely interferes with the results of the structure-dependent properties due to the residual adsorbates with different chemical features on the surface of such nanocrystals.^22,23

Recently, kinetic control has emerged as a promising approach to shape-controlled synthesis of noble-metal nanocrystals in a solution.^24,25 In practice, several groups found that dramatically slowing down the growth rate of nanocrystals might substantially alter their original growth behavior, and thus control the shape for a given metal due to manipulation of its reaction kinetics.^26–28 For example, the formation of the PdBr₄²⁻ complex favored the formation of Pd{111} dominant shapes, including octahedron and plate, under kinetic control, although thermodynamically Br⁻ ions could stabilize the {100} facets serving as a capping agent.²⁹ Most recently, Xia et al. have further extended the capability of this approach to achieve nucleation and growth of Ag on one, three, and six of the equivalent {100} faces on a cubic Pd seed by manipulating the injection rate of AgNO₃.³⁰ Despite enormous success, maneuvering the shape of noble-metals by precisely controlling the reaction kinetics still remains a great challenge, especially for a system involving bimetallic alloys.

Here, we report a facile polyol approach to achieve shape and composition-controlled Rh–Pd alloy cubes and octahedra by simultaneously injecting Rh and Pd salt precursors at an extremely slow rate (e.g., 2 mL h⁻¹) using a syringe pump. We found that the different kinetically-controlled growth behaviors associated with Rh and Pd at an extremely slow feeding rate was essential for achieving this shape transition phenomenon. Shape controlled Pd-based alloys have been studied as alternative non-Pt ORR catalysts due to their relatively less price and more abundant reserve as well as similar electronic properties to Pt.^31–33 The incorporation of Rh with a unique capability to resist acid etching into Pd-based catalysts could enhance their activity and durability for ORR due to a possible synergistic effect between these two metals.^34–37

Experimental section

Chemicals and materials

Sodium hexachlororhodate (Na₃RhCl₆, Sigma-Aldrich, 97%), sodium tetrachloropalladate (Na₂PdCl₄, Sigma-Aldrich, 99.998%), potassium bromide (KBr, Sinopharm Chemical Reagent Co. Ltd), poly(vinyl pyrrolidone) (PVP, M_W ≈ 40 000, Sigma-Aldrich), ascorbic acid (AA, Sigma-Aldrich), ethylene glycol (EG), acetone, and ethanol (Sinopharm Chemical Reagent Co. Ltd) were all used as received. The type of syringe was plastic (10 mL, Hangzhou Longde Medical Apparatus Co., Ltd). All syntheses were carried out in glass vials (25 mL, Shuniu).

Synthesis of Rh–Pd cubes and octahedra

Rh–Pd cubes were synthesized by injecting a mixed EG solution of Na₃RhCl₆ and Na₂PdCl₄ into another EG solution containing PVP, AA and KBr using a syringe pump. In a standard synthesis, 6.0 mL of EG containing 111 mg PVP, 60 mg AA, and 500 mg KBr was added to a vial, and pre-heated to 110 °C in an oil bath under magnetic stirring for 30 min and then increased to 140 °C. Subsequently, 5.0 mL of EG containing 38 mg Na₃RhCl₆ and 30 mg Na₂PdCl₄ with a Rh/Pd molar ratio of 1 : 1 was injected simultaneously into the pre-heated vial through a syringe pump at an injection rate of 2 mL h⁻¹. The reaction was allowed to proceed for 2.5 h at 140 °C. The product was collected by centrifugation, washed three times with acetone to remove excess PVP, KBr, and AA, and re-dispersed in ethanol. In addition, Rh–Pd octahedra were synthesized by decreasing the temperature of the reaction to 120 °C with all other parameters being the same as in the standard procedure. We also systematically investigated the effects of the molar ratio (e.g., 4 : 1, 2 : 1, 2 : 1, 4 : 1) of Na₃RhCl₆ and Na₂PdCl₄ fed into the reaction, the duration of the reaction as well as the injection rate on the final morphology of the resulting Rh–Pd alloy nanocrystals at 140 and 120 °C, respectively.

Preparation of carbon-supported catalysts

Carbon black (Vulcan XC-72) was used as a support for making Rh–Pd catalysts (RhPd/C) according to a previous report with some minor modifications. In a standard preparation, carbon black particles were dispersed in ethanol and sonicated for 30 min. A designated amount of Rh–Pd alloy nanocrystals was added to this dispersion with a Rh–Pd/C mass ratio of 20 : 80. This mixture was further sonicated for 10 min and stirred for 12 h. The resulting solids were precipitated out by centrifugation with ethanol.

Morphological, structural, and elemental characterization

The obtained samples were characterized by X-ray powder diffraction (XRD) using a Rigaku D/max-ga X-ray diffractometer with graphite monochromatized Cu Kα radiation (λ = 1.54 178 Å). Transmission electron microscopy (TEM) images of the obtained samples were obtained using a Philips CM 200 microscope operated at 160 kV. High-resolution transmission electron microscopy (HRTEM) was performed using a FEI Tecnai F30 G2 microscope operated at 300 kV. High-angle annular dark-field scanning TEM (HAADF-STEM) and Energy dispersive X-ray (EDX) mapping analyses were performed on a Cs-corrected STEM (TitanG2 80-200 ChemiSTEM equipped with a Super-X EDX detector system), operated at 200 kV using a probe with 50 pA beam current and a converge angle of 21.4 mrad. X-Ray Photoelectron Spectrometry (XPS) was performed on an ESCALAB 250Xi (Thermo, UK).

Electrochemical measurements

A three-electrode cell was used to measure the electrochemical performances of Rh–Pd/C catalysts including the commercial Pt/C (ETEK). A glassy-carbon rotating disk electrode (RDE) was used as the working electrode (area: ∼0.196 cm²). A 1 cm² platinum foil and a HydroFlex hydrogen electrode were used as the counter electrode and the reference electrode, respectively. The reference electrode was placed in a separate compartment connected with the main cell via a salt bridge. The hydrogen reference electrode was calibrated before all the tests via the Hydrogen evolution reaction (HER). All potentials were referenced to the reversible hydrogen electrode (RHE). The electrolyte used for cyclic voltammetry (CV) measurements and the linear scan voltammetry (LSV) test for the oxygen reduction reaction (ORR) was 0.1 M HClO₄ solution, diluted from 70% double-distilled perchloric acid (GFS Chemicals, USA) with Millipore ultrapure water (18.2 MΩ). To make catalyst ink, 5 mg of Rh–Pd/C catalysts was dispersed in 10 mL of a mixed solvent and sonicated for 10 min. The solvent contained a mixture of de-ionized water, isopropanol, and 5% Nafion 117 solution at a volumetric ratio of 8 : 2 : 0.05. 40 μL of the catalyst ink was added onto the RDE and dried under the air flow for 30 min to make the working electrode. The loading amount of Rh–Pd alloy catalysts on the RDE was determined to be ∼20 μg_metal cm⁻². The electrochemical active surface area (ECSA) was determined from the CV curves, calculating the amount of charges by integrating the hydrogen desorption region after double layer correction. The CV measurement was carried out in an argon-saturated 0.1 M HClO₄ solution at room temperature with a scan rate of 50 mV s⁻¹. ORR LSV curves were measured at the rotating rate of 1600 rpm in a 0.1 M HClO₄ solution, which was purged with oxygen for 30 min prior to, and during testing. The scan rate for ORR measurements was set at 10 mV s⁻¹. Data were used without iR-drop correction. The accelerated stability test (ADT) was carried out between 0.6 V and 1.0 V at a scan rate of 100 mV s⁻¹ for 30 000 cycles in an oxygen saturated 0.1 M HClO₄ solution.

Results and discussion

This synthesis is based on a modified polyol process that involves the simultaneous injection of Na₃RhCl₆ and Na₂PdCl₄ using a syringe pump at a rate of 2 mL h⁻¹ into ethylene glycol (EG) with ascorbic acid (AA) and Br⁻ ions serving as reducing and capping agents, respectively. Using this strategy, Rh–Pd alloy cubes and octahedra with different compositions were successfully produced by varying the reaction temperature and molar ratios of Rh to Pd salt precursors fed into the reaction (see Fig. 1). From this schematic illustration, it is clear that the Rh-rich samples preferred to take a cubic shape, whereas the Pd-rich ones were dominated by a shape of octahedron despite different reaction temperatures (e.g., 140 and 120 °C). When the molar ratio of Rh to Pd precursors was kept at 1 : 1, however the reaction temperature had a great influence on the shape of the resulting Rh–Pd alloy nanocrystals. In this case, Rh–Pd alloy cubes and octahedra were successfully produced at 140 and 120 °C, respectively. This shape evolution with the molar ratio of Rh to Pd precursors and the reaction temperature can be attributed to different growth behavior associated with Rh and Pd at an extremely slow injection rate under kinetic control.

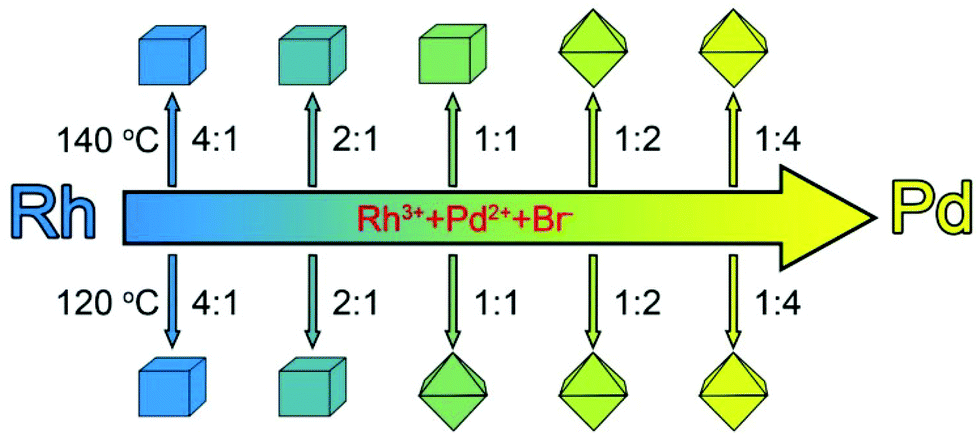

Fig. 1 Schematic illustration showing the shape evolution of Rh–Pd alloy cubes and octahedra with the molar ratio of Rh to Pd salt precursors supplied in the reaction at 140 and 120 °C, respectively.

We fully characterized the morphology, structure, and composition of these Rh–Pd alloy nanocrystals using various techniques. Fig. 2 shows transmission electron microscopy (TEM), high angle annular dark field scanning transmission electron microscopy (HAADF-STEM), energy dispersive X-ray (EDX), and high-resolution TEM (HRTEM) images of the Rh–Pd alloy nanocrystals that were prepared with a Rh/Pd molar ratio of 1 : 1 at an injection rate of 2 mL h⁻¹ and 140 °C (denoted as the standard procedure in ESI†). From the TEM image (Fig. 2A), most of the Rh–Pd nanocrystals (ca. 80%) exhibited a shape of cube with an edge length of about 15 nm. The magnified TEM image (inset of Fig. 2A) shows that the cube was slightly truncated at eight corners but mainly bounded by the {100} facets. The cubic shape of Rh–Pd nanocrystals was also revealed from the HAADF-STEM image (Fig. 2B). The representative HRTEM image (Fig. 2C) of an individual Rh–Pd cube recorded along the <001> zone axis (see FFT in Fig. S1†) clearly shows well-resolved, continuous fringes in the same orientation, indicating that the cube was a single crystal. The fringes with a lattice spacing of 0.196 nm can be indexed to the {200} planes of the face-centered cubic (fcc) Rh–Pd alloy. EDX mapping (Fig. 2D and S2A†) shows that both Rh and Pd were distributed evenly throughout each individual Rh–Pd cube, confirming its alloy structure. This alloy structure was also confirmed by the EDX compositional line-scan recorded through an individual cube (Fig. S2B†). In addition, the EDX quantitative analysis of hundreds of cubes (Fig. S2C†) indicates that the atomic ratio of Rh/Pd was about 46 : 54 (denoted as Rh₄₆Pd₅₄), which was close to the feeding ratio (1 : 1) of Rh to Pd salt precursors.

Fig. 2 Morphological, structural, and compositional characterization of Rh–Pd alloy cubes that were prepared by simultaneously injecting Na₃RhCl₆ and Na₂PdCl₄ with a molar ratio of 1 : 1 at a rate of 2 mL h⁻¹ using a syringe pump into ethylene glycol containing ascorbic acid and KBr at 140 °C: (A) TEM image, (B) HAADF-STEM image, (C) HRTEM image, and (D) EDX mapping. The insets in (A) and (B) show TEM and HAADF-STEM images of individual nanocrystals at a higher magnification. The red and green colors in (D) correspond to Rh and Pd elements, respectively. The scale bars in the insets are 5 nm.

Fig. 3 shows structural and compositional analyses of the Rh–Pd alloy nanocrystals prepared using the standard procedure except for the different reaction temperature at 120 °C. As revealed by the TEM image (Fig. 3A), most of the nanocrystals (ca. 82%) were dominated by the shape of octahedron with an average edge length of 13 nm. Careful observation (inset of Fig. 3A) shows that the octahedron was also slightly truncated at six corners but mainly covered by the {111} facets. The octahedral shape of the product was also clearly visualized in a HAADF-STEM image (Fig. 3B). An HRTEM image (Fig. 3C) obtained from an individual octahedron suggests that it was a single-crystal structure with its surface enclosed by the {111} facets, which was consistent with the d-spacing lattices of 2.27 Å with an angle of 70.5°. The elemental mapping analysis in Fig. 3D demonstrates that the octahedron was a binary alloy, with both Rh and Pd homogeneously distributed throughout the nanocrystal. This demonstration was also supported by the EDX mapping analysis for multiple octahedra and line-scan (Fig. S3A and B†). As revealed from the EDX spectrum (Fig. S3C†), the Rh/Pd atomic ratio of the octahedra was about 43 : 57 (denoted as Rh₄₃Pd₅₇). Taken together, Rh–Pd alloy cubes covered by the {100} facets and octahedra enclosed by the {111} facets were successfully generated by simultaneously injecting Rh and Pd precursors with a molar ratio of 1 : 1 at an extremely slow rate of 2 mL h⁻¹ performed at 140 and 120 °C, respectively.

Fig. 3 (A) TEM image, (B) HAADF-STEM image, (C) HRTEM image, and (D) EDX mapping of Rh–Pd alloy octahedra that were prepared by simultaneously injecting Na₃RhCl₆ and Na₂PdCl₄ with a molar ratio of 1 : 1 at a rate of 2 mL h⁻¹ using a syringe pump into ethylene glycol containing ascorbic acid and KBr at 120 °C. The insets in (A) and (B) show TEM and HAADF-STEM images of individual nanocrystals at a higher magnification. The red and green colors in (D) correspond to Rh and Pd elements, respectively. The scale bars in the insets are 5 nm.

The growth behaviors associated with Rh-rich and Pd-rich crystals were systematically investigated to understand their reaction kinetics. Fig. 4 shows TEM images of Rh–Pd alloy nanocrystals prepared using the standard procedure at 140 and 120 °C, respectively, except for the variation of the Rh/Pd molar ratios from 4 : 1 to 2 : 1, 1 : 2 and 1 : 4. From these TEM micrographs, it is clear that the Rh-rich samples (Fig. 4A, B, E and F) preferred to form cubic nanocrystals, whereas the Pd-rich ones (Fig. 4C, D, G and H) were dominated by octahedra regardless of different reaction temperatures (e.g., 140 and 120 °C). The productivity of these two shapes in the samples is shown in Table S1.† We believe that this morphology variation can be attributed to the different kinetically-controlled growth behavior associated with Rh and Pd at an extremely slow injection rate under this reaction condition.^29,38 Due to the difficulty in dissolving Rh, EDX instead of inductively coupled plasma mass spectrometry (ICP-MS) was employed to determine the composition of the Rh–Pd alloy nanocrystals. On the basis of EDX analysis (see Fig. S4A–D†), Rh₈₀Pd₂₀, Rh₆₄Pd₃₆, Rh₃₀Pd₇₀, and Rh₁₇Pd₈₃ alloy nanocrystals were obtained by varying the molar ratio of Rh to Pd salt precursors from 4 : 1 to 2 : 1, 1 : 2, and 1 : 4 added in the synthesis at 140 °C. The final composition of Rh–Pd nanocrystals is close to the feeding ratio of metal precursors. When decreasing the reaction temperature to 120 °C (see Fig. S4E–H†), Rh–Pd alloy nanocrystals with similar compositions were produced except for the sample (labeled as Rh₈Pd₉₂) prepared using a Rh/Pd molar ratio of 1 : 4. In addition, XPS analysis was further used to characterize the surface composition of these five samples prepared at 120 °C since this parameter plays a more important role in determining the catalytic performance (see Table S2 and Fig. S5†). From these data, we can conclude that the surface composition of the Rh–Pd alloy nanocrystals is almost the same as the feeding ratio of metal precursors. Fig. S6† shows XRD patterns of these ten samples with different compositions prepared at 140 and 120 °C, respectively. All the samples show four well-defined diffraction peaks that originated from a single fcc lattice. The patterns gradually shift to higher positions of 2θ with the increasing amount of Rh composition, implying the formation of an alloy structure with a wide range of compositions between Rh and Pd with small lattice mismatch.

Fig. 4 TEM images of Rh–Pd alloy nanocrystals that were obtained with an injection rate of 2 mL h⁻¹ at 140 (A–D) and 120 °C (E–H), respectively, by varying the Rh/Pd molar ratios: (A, E) 4 : 1, (B, F) 2 : 1, (C, G) 1 : 2, and (D, H) 1 : 4. The insets show TEM images of individual nanocrystals at a higher magnification. The scale bars in the insets are 5 nm.

In order to decipher the formation mechanism of the Rh–Pd alloy cubes and octahedra, the growth behaviors associated with pure Rh and Pd under kinetic control have been clarified separately. In our previous study, Rh nanocubes and concave nanocubes were eventually generated at different injection rates.³⁸ This demonstration was also confirmed by the control experiments, as shown in Fig. S7.† As observed, Rh concave nanocubes were generated at a slow injection rate (2 mL h⁻¹), while Rh conventional nanocubes were formed at a fast injection rate (2.5 mL s⁻¹). This result indicates that the injection rate has a great influence on the growth behavior of Rh nanocrystals, especially the preferential overgrowth along the <111> direction by retarding the reaction kinetics. For a system involving Pd, retarding the reaction kinetics has a great impact on the growth behavior and thus the final shape of the nanocrystals. Fig. S8A† shows the TEM image of Pd nanocrystals prepared by injecting Na₂PdCl₄ into the reaction at a rate of 2 mL h⁻¹ and 140 °C. Interestingly, a large number of Pd triangle plates, together with a small amount of Pd decahedra were mainly bounded by the {111} facets, indicating that the Pd<111> direction growth was eliminated under this reaction condition. These two shapes were confirmed from the HRTEM images (Fig. S8B and C†). When the Na₂PdCl₄ solution was rapidly injected into the reaction using a pipette (ca. 2.5 mL s⁻¹), most of the Pd nanocubes enclosed by the {100} facets were eventually formed (see Fig. S8D†). In this case, the preferential adsorption of Br⁻ ions serving as a capping agent on the Pd {100} facets led to the cubic shape, which was consistent with the conventional result under thermodynamic control.¹⁵ A similar growth behavior of Pd was also observed when the reaction was conducted at 120 °C (see Fig. S9†). Combined together, the reason why the shape evolution of Rh–Pd alloy nanocrystals from cube to octahedron with the variation of the molar ratio of the precursors from Rh rich to Pd rich can be attributed to their different growth behaviors under sluggish growth kinetics. This demonstration was further confirmed by the results that were obtained at a rapid injection rate (see Fig. S10†). When the reaction was conducted at a rapid injection rate (e.g., 0.5 mL min⁻¹), the cubic shape of the Pd rich samples was always generated due to the selective adsorption of Br⁻ ions on the {100} facets under thermodynamic control.

For a system involving Rh and Pd with a molar ratio of 1 : 1, we believed that the different reduction rate between Rh and Pd salt precursors would be responsible for the different outcomes obtained at 120 and 140 °C, respectively. For this purpose, we conducted a set of experiments by separately adding Na₃RhCl₆ and Na₂PdCl₄ into the reaction and allowing it to stand for 5 min to show the difference in the reduction rate of Rh and Pd salt precursors at the aforementioned temperatures (see Fig. S11†). The color of the solution associated with Rh at 120 °C immediately turned from rose pink (the original color) to dark brown (Fig. S11A†), indicating the formation of Rh nanocrystals due to the rapid reduction of Na₃RhCl₆ by AA.³⁸ For comparison, the Na₂PdCl₄ solution was light orange after 5 min at 120 °C owing to the [PdBr₄]²⁻ complex formation (Fig. S11B†).³⁹ As such, Rh rich nanocrystals were initially generated in the nucleation stage due to the much more rapid reduction rate of Na₃RhCl₆ than the [PdBr₄]²⁻ complex at this temperature. These nanocrystals then served as seeds in the subsequent growth process. In addition, the substantially large consumption of Na₃RhCl₆ for the formation of Rh rich seeds enabled the growth behavior of Rh–Pd alloy nanocrystals to adopt that of Pd due to the existence of a Pd rich reaction solution, leading to the Rh–Pd alloy octahedra. This demonstration was supported by the time-dependent TEM observation (Fig. S12†). From these TEM images, a large number of nanocubes of 3–4 nm in size were formed in the initial stage (Fig. S12A†). The formation of nanocubes can probably be attributed to the preferential chemisorption of Br⁻ ions on Rh-rich {100} rather than other facets.¹⁵ After that, these nanocubes evolved into cuboctahedra (Fig. S12B†), truncated octahedra (Fig. S12C†), and then octahedra (Fig. S12D†) by eliminating the growth along the <111> direction (i.e., the growth behavior of Pd under this condition) as the amount of the Rh and Pd precursors was slowly injected. When the reaction proceeded at 140 °C for 5 min, the color of both the Na₃RhCl₆ and Na₂PdCl₄ solution was dark brown (Fig. S11C and D†), indicating their similar reduction rate. In this case, the Rh–Pd alloy nanocubes of 5–6 nm size were also generated in the nucleation stage of the reaction due to the selective adsorption of Br⁻ ions on the Rh-rich {100} surface (Fig. S13A†). This growth behavior should be maintained during the overall reaction due to the almost constant molar ratio of Rh and Pd precursors in the solution. As such, the cubic shape of the Rh–Pd alloy nanocrystal was also kept intact with increasing sizes (Fig. S13B–D†).

The ORR performances of the Rh–Pd catalysts with well defined shapes, surfaces and compositions were measured on a rotating disk electrode (RDE) in 0.1 M HClO₄ solution (Fig. 5 and S14†). The ORR polarization curves of the five carbon supported Rh–Pd synthesized at 120 °C were quite different in terms of the onset potential, half wave potential and slope, because these parameters in ORR activity involved the multiple effects (e.g. compositions and facets). From Table S3,† which listed all the ORR parameters among the five samples, on the {100} facets of cube, oxygen reduction was much faster with the composition of Rh₈₀Pd₂₀ than that with Rh₆₂Pd₃₈, while the reversible trend was shown in the {111} planes of octahedron, that is the surface with higher Pd composition is more active than that with lower Pd atomic ratios in oxygen reduction. The facet dependence of ORR activity was also studied by comparing the Rh₄₃Pd₅₇ octahedra made at 120 °C and the Rh₄₆Pd₅₄ cubes synthesized at 140 °C with a similar composition (Fig. S15†). The ORR area activity of the Rh₄₃Pd₅₇ octahedra is 150% higher than that of the Rh₄₆Pd₅₄ cubes. The facet preferential ORR activity has been proven in the study of the Pt based single crystal surface, because the oxygen species adsorption on the closest packed {111} surface was weakened compared with that on {100}.^8,40 Therefore, the oxygen reduction kinetics was improved. Thus, these facet and composition dependences of ORR on Rh–Pd catalysts lead to a fact that the Rh₈Pd₉₂ octahedron is the most active among the five samples (Fig. 5B and Table S3†). The mass activity of the Rh₈Pd₉₂ octahedron is 0.10 mA μg_PGM⁻¹ or 0.18 mA μg_Pt⁻¹ at 0.9 V by converting the mass of Rh–Pd into Pt with an equivalent cost, which is two-fold higher than that of commercial Pt/C (see Fig. S16†). This activity of the Rh₈Pd₉₂ octahedron is almost equivalent to that of other Pd-based alloys (see Table S4†).

Fig. 5 (a) ORR polarization curves and (b) ORR mass activities at 0.9 V of Rh–Pd cubes and octahedra.

A rotating-disk-electrode (RDE)-based durability study was used to evaluate the durability of Rh–Pd catalysts by performing 30 000 potential cycles between 0.6 and 1.0 V in O₂ saturated 0.1 M HClO₄ solution. We performed 40 cycles in 0.1 M HClO₄ electrolyte before the ORR test to remove the residual surfactants on the metal surface. We found that both Rh–Pd cubes and octahedra were highly stable with only less than 25% loss in mass activity after 30 000 CV cycles with an O₂ flow (Fig. 6). However, by the comparison between Rh₈₀Pd₂₀, Rh₂₉Pd₇₁ and Rh₈Pd₉₂, there was still a slight difference among these three samples. The order of the mass activity loss is Rh₈₀Pd₂₀ (19.5%) < Rh₂₉Pd₇₁ (21.6%) < Rh₈Pd₉₂ (24.7%), which indicates that the ORR stability of Rh–Pd bimetallic catalysts could be improved with the increase of the Rh composition, although the high Rh composition might lead to the low ORR activity. The shift of the half wave potential shows the same trend and all the changes are within 7 mV (Fig. 6A–C). Indeed, Rh₈Pd₉₂ made at 120 °C shows ∼75% of the initial activity, a mass activity of 0.075 mA μg_PGM⁻¹, or 0.135 mA μg_Pt⁻¹, which is 3.3 times that of commercial Pt/C after the ADT test for 30 000 cycles (Fig. 6D and S16B†). Overall, Rh–Pd alloys show a substantially enhanced stability towards ORR in comparison with Pd or other Pd-based alloys (e.g., Pd–Co and Pd–Cu), which is essential for widespread applications.

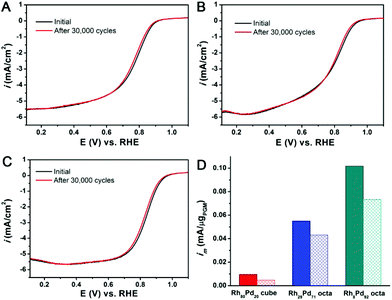

Fig. 6 ORR durability tests of (A) Rh₈₀Pd₂₀ cube, (B) Rh₂₉Pd₇₁ octahedron, (C) Rh₈Pd₉₂ octahedron, and (D) comparison of ORR mass activities at 0.9 V before (solid) and after (sparse) 30 000 CV cycles.

To further clarify the role of Rh in significantly improving the electrocatalytic stability of Rh–Pd alloy nanocrystals, Pd nanocubes of 10 nm in size were synthesized according to our previous report⁴¹ and then evaluated as electrocatalysts towards ORR (Fig. S17†). Fig. S17A and B† show CV curves and mass activities of Pd nanocubes before and after the ADT test for 30 000 cycles. It is clear that Pd nanocubes show poor ORR stability with more than 82% loss in mass activity after 30 000 cycles. TEM observation indicates that the morphology of the Pd nanocubes was completely destroyed after the ADT test (Fig. S17C and D†). For comparison, the octahedral morphology of Rh₈Pd₉₂ alloys almost remains intact after 30 000 CV cycles with an O₂ flow (Fig. S18†). As a result, these control experiments indicate that alloying Pd with Rh is crucial to improve the stability towards ORR. It is well-known that Rh is a chemically inert metal with a high resistance to the base and acid etching.³⁵ Our previous result also indicates that pure Rh shows the superior electrocatalytic stability towards ORR.³⁷ Due to the relatively lower redox potential of Rh ions than Pd ions (e.g., 0.915 V for Pd²⁺/Pd and 0.8 V for Rh³⁺/Rh versus RHE),⁴² Rh can be considered as a sacrificial electrode in Rh–Pd alloy nanocrystals during ORR to improve the stability. In addition, a significant electron coupling between Rh and Pd might account for the observed stabilization of Pd, which was also demonstrated in other systems involving Au and Pt.⁴³

Conclusions

We have developed a facile polyol approach to the synthesis of Rh–Pd alloy cubes and octahedra with different compositions in the presence of one capping agent (i.e., Br⁻ ions) by extremely slowing down the injection rate of the precursors to manipulate the growth kinetics. The key to the success of this synthesis is the different growth behavior of Rh and Pd under sluggish kinetic control. This shape control was eventually achieved by varying the molar ratios of the Rh to Pd precursors and the reaction temperature. The incorporation of Rh into Pd-based nanocrystals can substantially enhance the mass activity and durability towards ORR relative to commercial Pt/C, with the Rh₈Pd₉₂ alloy octahedra being the best catalysts due to the possible synergistic effects between the facet and the composition. This work provides an effective strategy to design faceted non-Pt ORR catalysts with enhanced ORR catalytic performance, especially durability.

Acknowledgements

The work on microscopy was carried out at the Center for Electron Microscopy of Zhejiang University. This work was financially supported by the National Science Foundation of China (51372222, 51222202), the National Basic Research Program of China (2014CB932500), the Program for Innovative Research Team in University of Ministry of Education of China (IRT13037) and the Fundamental Research Funds for the Central Universities (2014FZA4007, 2014XZZX003-07).

Notes and references

1. G. Somorjai and Y. Li, Proc. Natl. Acad. Sci. U. S. A., 2011, 108, 917–924.
2. R. Van Santen, Acc. Chem. Res., 2009, 42, 57–66.
3. M. Crespo-Quesada, A. Yarulin, M. Jin, Y. Xia and L. Kiwi-Minsker, J. Am. Chem. Soc., 2011, 133, 12787–12794.
4. A. Tao, S. Habas and P. Yang, Small, 2008, 4, 310–325.
5. J. Gu, Y. Zhang and F. Tao, Chem. Soc. Rev., 2012, 41, 8050–8065.
6. K. Zhou and Y. Li, Angew. Chem., Int. Ed., 2012, 51, 602–613.
7. Z. Quan, Y. Wang and J. Fang, Acc. Chem. Res., 2013, 46, 191–202.
8. V. Stamenkovic, B. Fowler, B. Mun, G. Wang, P. Ross, C. Lucas and N. Markovic, Science, 2007, 315, 493–497.
9. J. Wu, A. Gross and H. Yang, Nano Lett., 2011, 11, 798–802.
10. J. Zhang, H. Yang, J. Fang and S. Zou, Nano Lett., 2010, 10, 638–644.
11. X. Huang, Y. Li, Y. Li, H. Zhou, X. Duan and Y. Huang, Nano Lett., 2012, 12, 4265–4270.
12. Y. Wu, S. Cai, D. Wang, W. He and Y. Li, J. Am. Chem. Soc., 2012, 134, 8975–8981.
13. A. Yin, X. Min, Y. Zhang and C. Yan, J. Am. Chem. Soc., 2011, 133, 3816–3819.
14. M. Chen, B. Wu, J. Yang and N. Zheng, Adv. Mater., 2012, 24, 862–879.
15. B. Lim, M. Jiang, J. Tao, P. Camargo, Y. Zhu and Y. Xia, Adv. Funct. Mater., 2009, 19, 189–200.
16. J. Zeng, Y. Zheng, M. Rycenga, J. Tao, Z. Li, Q. Zhang, Y. Zhu and Y. Xia, J. Am. Chem. Soc., 2010, 132, 8552–8553.
17. B. Lim, Y. Xiong and Y. Xia, Angew. Chem., Int. Ed., 2007, 46, 9279–9282.
18. X. Huang, S. Tang, X. Mu, Y. Dai, G. Chen, Z. Zhou, F. Ruan, Z. Yang and N. Zheng, Nat. Nanotechnol., 2011, 6, 28–32.
19. C. Wang, H. Daimon, Y. Lee, J. Kim and S. Sun, J. Am. Chem. Soc., 2007, 129, 6974–6975.
20. Y. Zhang, M. Grass, J. Kuhn, F. Tao, S. Habas, W. Huang, P. Yang and G. Somorjai, J. Am. Chem. Soc., 2008, 130, 5868–5869.
21. J. Wu, L. Qi, H. You, A. Gross, J. Li and H. Yang, J. Am. Chem. Soc., 2012, 134, 11880–11883.
22. J. Park, C. Aliaga, J. Renzas, H. Lee and G. Somorjai, Catal. Lett., 2009, 129, 1–6.
23. M. Crespo-Quesada, J. Andanson, A. Yarulin, B. Lim, Y. Xia and L. Kiwi-Minsker, Langmuir, 2011, 27, 7909–7916.
24. Y. Xia, Y. Xiong, B. Lim and S. Skrabalak, Angew. Chem., Int. Ed., 2009, 48, 60–103.
25. A. Biacchi and R. Schaak, ACS Nano, 2011, 5, 8089–8099.
26. H. Zhang, M. Jin and Y. Xia, Angew. Chem., Int. Ed., 2012, 51, 7656–7673.
27. J. Chen, T. Herricks and Y. Xia, Angew. Chem., Int. Ed., 2005, 44, 2589–2592.
28. C. DeSantis, A. Peverly, D. Peters and S. Skrabalak, Nano Lett., 2011, 11, 2164–2168.
29. C. Zhu, J. Zeng, P. Lu, J. Liu, Z. Gu and Y. Xia, Chem. – Eur. J., 2013, 19, 5127–5133.
30. J. Zeng, C. Zhu, J. Tao, M. Jin, H. Zhang, Z. Li, Y. Zhu and Y. Xia, Angew. Chem., Int. Ed., 2012, 51, 2354–2358.
31. E. Antolini, Energy Environ. Sci., 2009, 2, 915–931.
32. B. Adams and A. Chen, Mater. Today, 2011, 14, 282–289.
33. M. Shao, J. Power Sources, 2011, 196, 2433–2444.
34. J. Handley, Platinum Met. Rev., 1989, 33, 64–72.
35. S. Xie, N. Lu, Z. Xie, J. Wang, M. Kim and Y. Xia, Angew. Chem., Int. Ed., 2012, 51, 10266–10270.
36. B. Sneed, C. Kuo, C. Brodsky and C. Tsung, J. Am. Chem. Soc., 2012, 134, 18417–18426.
37. Y. Qi, J. Wu, H. Zhang, Y. Jiang, C. Jin, M. Fu, H. Yang and D. Yang, Nanoscale, 2014, 6, 7012–7018.
38. H. Zhang, W. Li, M. Jin, J. Zeng, T. Yu, D. Yang and Y. Xia, Nano Lett., 2011, 11, 898–903.
39. M. Jin, H. Zhang, Z. Xie and Y. Xia, Angew. Chem., Int. Ed., 2011, 50, 7850–7854.
40. V. Stamenkovi, B. Mun, K. Mayrhofer, P. Ross, N. Markovic, J. Rossmeisl, J. Greeley and J. Nørskov, Angew. Chem., Int. Ed., 2006, 46, 2897–2901.
41. M. Jin, H. Liu, H. Zhang, Z. Xie, J. Liu and Y. Xia, Nano Res., 2011, 4, 83–91.
42. C. Zoski, Handbook of Electrochemistry, Elsevier, Oxford, 2006, vol. 18, p. 817.
43. J. Zhang, K. Sasaki, E. Sutter and R. Adzic, Science, 2007, 315, 220–222.

---

Footnotes

† Electronic supplementary information (ESI) available. See DOI: 10.1039/c4nr04942j

‡ These authors contributed equally to this work.

---
