Singlet oxygen generation from Li⁺@C₆₀ nano-aggregates dispersed by laser irradiation in aqueous solution

Abstract

Laser pulse irradiation of a deaerated aqueous solution containing the solid state lithium ion-encapsulated fullerene resulted in the formation of highly dispersed nano-aggregates (Li⁺@C₆₀)_n. Photoirradiation of an O₂-saturated D₂O solution containing (Li⁺@C₆₀)_n gave singlet oxygen with 55% quantum yield, leading to efficient double-stranded DNA cleavage.

---

Photodynamic therapy (PDT) has developed as a non-invasive clinical treatment of various dermatological, ophthalmic and cardiovascular diseases.^1–6 The tumour cell apoptosis in the PDT treatment is carried out by photoirradiation of the photosensitiser to generate the reactive oxygen species (ROS) such as singlet oxygen (¹O₂*) and superoxide (O₂˙⁻) in malignant tumour.^1–6 The requirements of an ideal photosensitiser are water solubility, low cytotoxicity in the dark, high stability against light, high tumour-specificity, high ability to produce ROS and rapid metabolism.^1–6

Fullerenes, especially [60]fullerene (C₆₀), are known as efficient photosensitisers to generate the triplet excited state and ROS with high quantum yields (Φ(³C₆₀*) = 0.98; Φ(¹O₂*) = 0.96 in C₆D₆).⁷ Additionally, fullerenes are remarkably photostable and non-toxic reagents.⁸ However, pristine C₆₀ is hardly soluble in water (0.4 μg mL⁻¹ at 298 K)⁹ and biological media to prevent expression of the photoactivity and PDT efficiency.^10,11 Therefore, various fullerene derivatives, such as C₆₀ with polyethyleneglycol,¹² and γ-cyclodextrin-,^13–15 lipid-membrane-¹⁶ and porous silicate-incorporated C₆₀,¹⁷ have been reported to improve water solubility.¹⁸ Introduction of water-soluble substituents has also been reported; however, molecular C₆₀ and substituted C₆₀ have no strong absorption around 600–800 nm. Fullerene dispersion suspended in water is also reported by reprecipitation, solvent replacement, ultrasonication and laser ablation methods.^19–22

Recently, a lithium ion-encapsulated fullerene hexafluorophosphate salt (Li⁺@C₆₀ PF₆⁻) has been reported as an efficient photosensitiser to form the long-lived triplet excited state, which is comparable to that of C₆₀.²³ However, neither solubilisation of Li⁺@C₆₀, C₆₀ or C₇₀ in water nor the photoinduced singlet oxygen generation efficiency has been studied. We report herein highly water-dispersed heterogeneous fullerene nano-aggregates composed of Li⁺@C₆₀, C₆₀, and C₇₀, which have absorption bands in the visible region as well as an efficient singlet oxygen generation properties.

The solubility of the Li⁺@C₆₀PF₆⁻ salt is extremely low in water as shown in the inset pictures in Fig. 1a, where the black powders are deposited at the bottom of the cuvette. Laser pulse irradiation (λ = 532 nm; 500 mW; 10 Hz, 60 min, i.d. = 8 mm) of a deaerated aqueous solution (2.5 mL) containing the dispersed Li⁺@C₆₀PF₆⁻ salt (1.0 mg) resulted in the formation of Li⁺@C₆₀ nano-aggregates [(Li⁺@C₆₀)_n]. A brown colour supernatant solution containing nano-aggregates was obtained after the centrifugation (15 000 rpm for 10 min) and decantation procedures. The UV-vis absorption spectra of nano-aggregates in water are shown in Fig. 1, exhibiting two characteristic absorption bands for (Li⁺@C₆₀)_n in water at 264 and 340 nm, which are red-shifted as compared to that in a dichloromethane solution (257 and 327 nm) by aggregation. A broad shoulder absorption band is also shown at around 400–600 nm, which is characteristic of an intermolecular charge-transfer (CT) transition between fullerenes in the nano-aggregates. A similar CT band was observed for (C₆₀)_n. Such a CT band has been reported in the case of a C₆₀ thin film.²⁴ The enhancement of solubility of (Li⁺@C₆₀)_n and (C₆₀)_n in water may be obtained by CT interactions.²⁵ The solubilisation of C₆₀ aggregates may occur without the substitution and decomposition of the fullerene cages, which was confirmed by MALDI-TOF-MS spectral measurements indicating the only peak due to non-substituted fullerene.

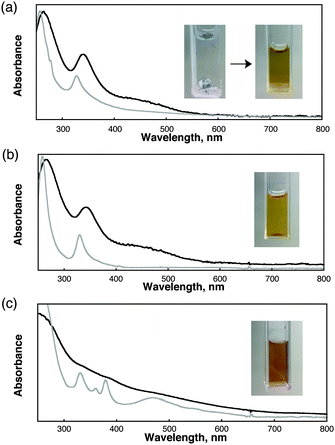

Fig. 1 Electronic absorption spectra of (a) (Li⁺@C₆₀)_n, (b) (C₆₀)_n and (c) (C₇₀)_n dispersed in distilled water at 298 K. Inset: pictures of (Li⁺@C₆₀)_n before and after laser light irradiation for 60 min and centrifugation. Absorption spectra in dichloromethane solutions are shown as grey lines.

The dynamic light scattering (DLS) measurements were performed to evaluate the size of (Li⁺@C₆₀)_n as shown in Fig. 2. The size of the nano-aggregates was significantly decreased to 30 nm by the laser pulse excitations. Thus, one nano-aggregate consists of ca. 30 000 Li⁺@C₆₀ molecules. When Li⁺@C₆₀PF₆⁻ was replaced by C₆₀ and C₇₀, the highly dispersed nano-aggregates were also obtained by laser pulse irradiation. The sizes of C₆₀ and C₇₀ nano-aggregates were estimated to be 52 and 64 nm, which are larger than (Li⁺@C₆₀)_n. Transmission electron microscopy (TEM) measurements of (Li⁺@C₆₀)_n were performed to evaluate the formation of nano-aggregates, indicating the grape bunch morphology of the nano-aggregates of 30–40 nm size (Fig. 3). The (Li⁺@C₆₀)_n solution was stable at room temperature for three days without re-aggregation.

Fig. 2 Particle size distributions determined by dynamic light scattering (DLS) of (a) (Li⁺@C₆₀)_n, (b) (C₆₀)_n and (c) (C₇₀)_n.

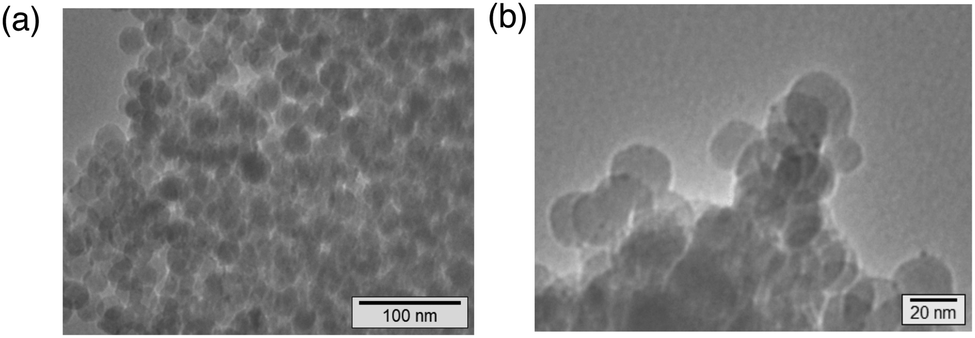

Fig. 3 TEM images of (Li⁺@C₆₀)_n. (a) Large scale and (b) detailed views.

Photoirradiation of an oxygen-saturated deuterated water (D₂O) solution of (Li⁺@C₆₀)_n results in the formation of singlet oxygen, which was detected by ¹O₂ phosphorescence at 1270 nm (Fig. 4).⁴ The quantum yields (Φ) of ¹O₂ generation were determined from the phosphorescence intensity, which was compared to the intensity obtained using rose bengal as a reference compound (Φ = 0.77).²⁶ Relatively high Φ values are obtained and the values are summarised in Table 1, in which the highest Φ value is 0.55 for (Li⁺@C₆₀)_n. The values of nano-aggregates are smaller than those of the corresponding fullerenes in C₆D₆/C₆H₅CN (1 : 1 v/v) probably because of excited state annihilation (vide infra).

Fig. 4 Emission spectra of ¹O₂ obtained by photoirradiation (λ = 532 nm) of O₂-saturated D₂O solutions containing (Li⁺@C₆₀)_n, (C₆₀)_n and (C₇₀)_n at 298 K.

Table 1 Quantum yields of singlet oxygen of molecular fullerene and their nano-aggregates

Fullerene	Φ	Fullerne aggregates	Φ
a Dissolved in C6D6/C6H5CN (1 : 1 v/v). Emission data are shown in Fig. S1 in the ESI. b Dispersed in D2O. c Taken from ref. 6.
Li^+@C60	0.83	(Li^+@C60)n	0.55
C60	0.96^c	(C60)n	0.30
C70	0.81^c	(C70)n	0.41

---

Femtosecond and nanosecond time-resolved transient absorption spectral measurements were performed to clarify the excited state dynamics and reaction mechanisms for the formation of singlet oxygen from (Li⁺@C₆₀)_n. Ultrafast photodynamics for intersystem crossing (ISC) from the singlet to the triplet excited state of (Li⁺@C₆₀)_n was observed by femtosecond laser flash photolysis. The transient absorption band at 960 nm taken at 10 ps after the femtosecond laser pulse excitation at 393 nm is assigned to the singlet excited state of Li⁺@C₆₀ [¹(Li⁺@C₆₀)*] in nano-aggregates (Fig. 5), which is relatively broadened as compared to the singlet–singlet absorption of Li⁺@C₆₀ in PhCN.²⁷ The decay of absorbance at 900 nm obeyed a two-exponential curve. The faster component could be assigned to the singlet–singlet annihilation in the (Li⁺@C₆₀)_n nano-aggregates because the ratio of the faster component increased with increasing the excitation laser power intensity without changing the rate constant (3.8 × 10¹² s⁻¹) (Fig. S2 in the ESI†). The residual absorption band at 900 nm slowly decayed with the appearance of the absorption band at 700 nm due to the triplet excited state of the Li⁺@C₆₀ dimer.²⁸ The decay rate constant of the slower part was determined to be 6.6 × 10⁸ s⁻¹, which is virtually the same as that of the formation of the triplet excited state of Li⁺@C₆₀ (7.0 × 10⁸ s⁻¹) (see Fig. S3 in the ESI†). This value is slightly slower than the value of homogeneous Li⁺@C₆₀ in PhCN (8.9 × 10⁸ s⁻¹).²⁷

Fig. 5 (a) Transient absorption spectra of (Li⁺@C₆₀)_n in deaerated distilled water obtained by femtosecond laser excitation at 393 nm. (b) Decay time profile at 900 nm with a single-exponential decay curve.

The triplet excited state of (Li⁺@C₆₀)_n is also detected by the transient absorption spectral measurements observed in a strictly deaerated aqueous solution after nanosecond laser excitation at 355 nm. The transient absorption band taken at 20 ns are due to the triplet–triplet (T–T) transition (see Fig. S3a in ESI†). The band is significantly broadened compared to the case of Li⁺@C₆₀ in PhCN. The T–T absorption maximum of (Li⁺@C₆₀)_n is virtually the same as that of Li⁺@C₆₀ (λ_max = 750 nm).²⁷ This suggests the aggregation with strong π stacking between the fullerene cages in (Li⁺@C₆₀)_n. The decay of T–T absorption obeyed the first-order kinetics. The lifetime of the transient species was determined to be 32 ns (Fig. S4 in the ESI†). There was no contribution of the T–T annihilation, because the triplet lifetime remained constant at different laser power intensities (Fig. S4b in ESI†). The short triplet lifetime may result from the strong π stacking between the fullerene cages in (Li⁺@C₆₀)_n. On the other hand, no T–T absorption spectrum was observed when (Li⁺@C₆₀)_n was replaced by (C₆₀)_n and (C₆₀)_n under otherwise the same experimental conditions.²⁸ The π stacking in (Li⁺@C₆₀)_n is much weaker than those of (C₆₀)_n and (C₆₀)_n because (Li⁺@C₆₀)_n contains equivalent number of PF₆⁻ counter anions in the nano-aggregates to avoid π–π interaction between the fullerene cages.²⁹

The triplet excited state of (Li⁺@C₆₀)_n can be an active species for formation of singlet oxygen by energy transfer with molecular O₂. We also examined the DNA-cleavage activity of (Li⁺@C₆₀)_n in the presence of O₂ using the widely used assay with the supercoiled double-stranded plasmid DNA, pBR322, because singlet oxygen is formed by the photoirradiation of (Li⁺@C₆₀)_n in aqueous solution. The agarose gel electrophoresis was performed after 10 h photoirradiation of pBR 322 with a xenon lamp (λ > 380 nm) in the presence of (Li⁺@C₆₀)_n in comparison with the control experiments as shown in Fig. 6a. Photoirradiation of (Li⁺@C₆₀)_n in the presence of O₂ is significantly effective for DNA cleavage due to the singlet oxygen generation due to the observation of a large amount of cleaved DNA (Form II). The DNA cleavage activity of (Li⁺@C₆₀)_n is much higher than that of (C₆₀)_n as shown in Fig. 6b, suggesting that a cationic (Li⁺@C₆₀)_n may electrostatically access the minor grove in the double-stranded DNA.

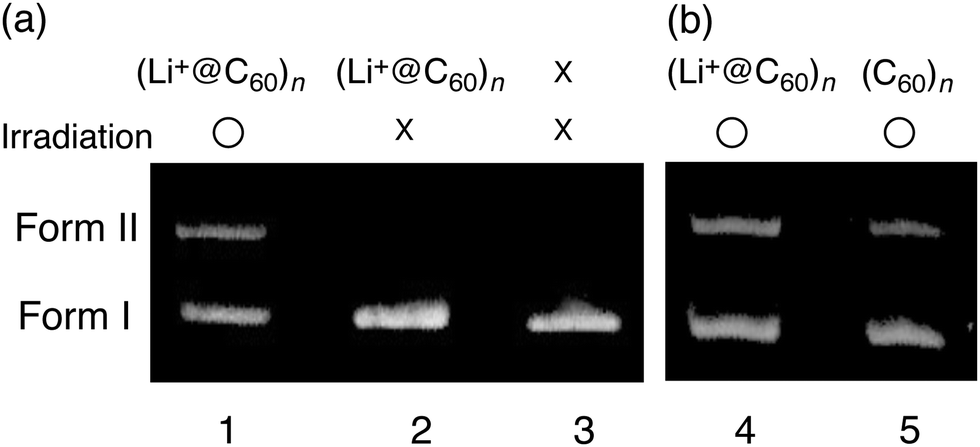

Fig. 6 Agarose gel electrophoresis of photoinduced cleavage of supercoiled pBR322 DNA (0.051 mg mL⁻¹) (a) (lane 1) with (Li⁺@C₆₀)_n after photoirradiation (lane 2) with (Li⁺@C₆₀)_n stored in the dark and (lane 3) without (Li⁺@C₆₀)_n (b) (lane 4) with (Li⁺@C₆₀)_n and (lane 5) (C₆₀)_n in O₂-saturated buffer solutions (pH 8.2).

In conclusion, highly dispersed (Li⁺@C₆₀)_n produced by laser irradiation of Li⁺@C₆₀ acts as an efficient photosensitiser for generation of singlet oxygen in aqueous solution. The excited states of (Li⁺@C₆₀)_n have been successfully detected by femto- and nanosecond transient absorption spectroscopies. We believe that water-soluble (Li⁺@C₆₀)_n can be employed as a convenient PDT photosensitiser in the near future.
