Mechanistic studies on lithium intercalation in a lithium-rich layered material using Li₂RuO₃ epitaxial film electrodes and in situ surface X-ray analysis

Abstract

The surface structure of a lithium-rich layered material and its relation to intercalation properties were investigated by synchrotron X-ray surface structural analyses using Li₂RuO₃ epitaxial-film model electrodes with different lattice planes of (010) and (001). Electrochemical charge–discharge measurements confirmed reversible lithium intercalation activity through both planes, corresponding to three-dimensional lithium diffusion within the Li₂RuO₃. The (001) plane exhibited higher discharge capacities compared to the (010) plane under high rate operation (over 5 C). Direct observations of surface structural changes by in situ surface X-ray diffraction (XRD) and surface X-ray absorption near edge structure (XANES) established that an irreversible phase change occurs at the (010) surface during the first (de)intercalation process, whereas reversible structural changes take place at the (001) surface. These experimental findings suggest that the surface reconstructed phase limits lithium intercalation between the electrode and the electrolyte, leading to the poor rate capability of the (010) film. Surface structural changes at the initial cycling therefore have a pronounced effect on the power characteristics and stability of lithium-rich layered materials during battery operation.

---

Introduction

Lithium-rich layered oxides, xLi₂MO₃-(1−x)LiMO₂ (M = 3d and/or 4d transition metal) have attracted significant attention as promising intercalation cathodes for use in lithium batteries, since they allow high discharge capacities over 200 mA h g⁻¹ and high operating voltages (over 3.5 V vs. Li/Li⁺ on average).^1–6 The discharge voltage of such cathodes, however, is gradually reduced during electrochemical cycling, resulting in the fading of energy density.^1,2,7,8 Another deficit is their poor rate capability compared to that obtainable with LiCoO₂.^9–11 These drawbacks make it difficult to consider lithium-rich layered oxides as viable candidates for the replacement of conventional layered rock salt cathodes (Li(Co, Ni, Mn)O₂). Structural observations of deteriorated electrodes have indicated that reductions in the reaction voltage are caused by a phase transition to form spinel and/or rock salt structures during the lithium (de)intercalation process.^12–14 A comprehensive understanding of changes in the crystal structure during the lithium intercalation reactions is therefore an essential step in elucidating the detailed reaction mechanisms of lithium-rich layered oxide electrodes.

The crystal structures of lithium-rich layered oxides are derived from rhombohedral α-NaFeO₂, which is composed of alternate layers of lithium and transition metal atoms, both occupying the octahedral sites of a cubic close packing of oxide ions. One-third of the positions in the transition metal plane are replaced by lithium to form an ordered Li_1/3Mn_2/3 slab.^7,15–17 During the intercalation process, lithium ions are believed to diffuse primarily through the infinite two-dimensional [LiO₆] layers in the ab plane by occupying tetrahedral sites.^18–20 Furthermore, it has been demonstrated that lithium ions diffuse through the lithium sites in the transition metal layer when lithium vacancies are formed in the transition metal layers during the deintercalation process,^21,22 leading to three-dimensional lithium diffusion.^23–26 The anisotropic lithium diffusion could be a factor in determining the stability and rate capability of the lithium-rich layered oxide electrodes.

Further to lithium diffusion in the bulk structure, electrochemically-driven lithium intercalation involves reaction processes at the electrode/electrolyte interface. These include adsorption of solvated lithium at the electrode surface, desolvation, surface diffusion, charge transfer and intercalation into the structure. Electrochemical and spectroscopic studies have emphasized the importance of surface reactions in terms of their effects on the power and calendar-life characteristics.^27–29 Although there have been several reports for layered and spinel type electrode materials that surface structure changes at the electrochemical interface are significantly different from the bulk structure changes,^30,31 no detailed information regarding the surface structures of lithium-rich layered oxide electrodes during battery operation is available.

Epitaxial film electrodes with a single orientation and an atomically small roughness of less than a few nanometers can simplify the surface reaction field, and thus are ideal models for clarifying crystal structures and lithium diffusion processes at the electrode surface.^30,32 Recently, epitaxial Li₂RuO₃(001) films having a lithium-rich layered structure have been successfully grown on Al₂O₃(0001) by pulsed laser deposition (PLD) followed by a post-annealing treatment.^25,26 In this study, we performed mechanistic studies concerning lithium intercalation in Li₂RuO₃ using epitaxial thin film electrodes as a model system of lithium-rich layered material. Lattice plane dependences of intercalation properties with lattice plane and surface structure changes were investigated by electrochemical measurements and surface X-ray structural analyses using the Li₂RuO₃ (010) and (001) planes. Based on the results, the effects of the stability of surface structures on intercalation processes are discussed.

Experimental

Epitaxial Li₂RuO₃ films were synthesized on 0.5% Nb-doped SrTiO₃ (111) and (110) single crystal substrates (10 × 10 × 0.5 mm, Crystal Base Co., Ltd.) using a pulsed laser deposition (PLD) method in conjunction with a post-annealing process. The PLD system consisted of 248 nm KrF excimer laser (Lambda Physik, COMPex102 and COMPex201) and vacuum chambers (PLAD131 and PLAD-312, AOV Inc.). Li_2.4RuO₃ was used as the target to compensate for any loss of lithium during the deposition process. The film fabrication conditions were as follows: temperature (T) = 500–550 °C, distance between substrate and target (d) = 7.0 cm, laser frequency (f) = 10 Hz, deposition time (t) = 10–30 min, laser energy (E) = 0.68–1.56 J cm⁻² and oxygen pressure (pO₂) = 3.3 Pa. Film deposition under these conditions was followed by annealing in air at 600 °C to improve crystallinity of the films. The orientation of each film was characterized by both out-of-plane and in-plane X-ray diffraction (XRD) measurements using a thin-film X-ray diffractometer (Rigaku ATX-G) with CuKα₁ radiation. The thickness, roughness and density values of the films were analysed using X-ray reflectivity curves collected using the thin-film X-ray diffractometer (see details in ESI†). Charge–discharge characteristics were examined using 2032-type coin cells assembled in an argon-filled glove box. The counter/reference electrode and electrolyte were lithium metal and 1 mol dm⁻³ LiPF₆ in a 3 : 7 mixture of ethylene carbonate (EC) and diethyl carbonate (DEC). The charge–discharge capacities of the cells were calculated using the area over which the film was deposited (10 × 8 mm), the film thickness and the theoretical density of Li₂RuO₃ (5.15 g cm⁻³).

Crystal structure changes during electrochemical reactions were investigated by in situ surface XRD analysis using a spectroelectrochemical cell.^33,34 The counter electrode of the electrochemical cell was made of lithium metal and the electrolyte solution consisted of 3 : 7 EC/DEC containing 1 mol dm⁻³ LiPF₆ or 1 mol dm⁻³ LiClO₄ when working with Li₂RuO₃ on SrTiO₃(111) or on SrTiO₃(110), respectively. The XRD patterns of Li₂RuO₃ on SrTiO₃(111) were acquired using a multi-axis diffractometer (HUBER) installed on the in-vacuum undulator beamline BL22XU at SPring-8. The X-rays were monochromated using a Si(111) double crystal system and focused via two Rh-coated bent mirrors. The details of the experimental conditions have been described elsewhere.^31,32 The XRD patterns of Li₂RuO₃ on SrTiO₃(110) were collected using a κ-type six-circle diffractometer (New Port) installed on the bending-magnet beamline BL14B1 at the synchrotron beam facilities SPring-8, Japan. An X-ray wavelength of 0.82518 Å (15 keV) was employed. The measurements were performed using reciprocal coordinate systems (H,K,L) with two components (H,K) lying parallel to the surface and a third (L) normal to the surface.³⁵ To investigate the surface structural changes, the in-plane XRDs were collected at the incident angle to the half value of the critical angle θ_c. The penetration depth of X-ray (15 keV) could be calculated to be 2.6 nm at 0.5θ_c (0.08°). Deintercalation and intercalation were induced by the potentiostatic method using a potentiostat (Ivium, Compactstat). The XRD patterns were observed in air, after the cell construction, at 4.0 V (vs. Li/Li⁺) after charging, and 3.0 V after discharging. The diffraction peaks during electrochemical cycling were indexed based on a monoclinic lattice.

In situ X-ray absorption near edge structure (XANES) measurements were performed in the fluorescence mode using a germanium single-element solid-state detector installed on beamline BL14B2 at SPring-8. The synchrotron radiation was monochromated by Si(111) double crystal system that was used as the crystal plane of the monochromator for Ru K-edge. XANES data were collected at an oblique angle of incidence (4°) and at a low glancing angle (0.1°) below the critical angle of Li₂RuO₃ using a θ–2θ stage mounted on the beamline. The penetration depths were calculated to be 2.80–2.85 nm in the range of X-ray energy used (21.8 to 23.4 keV). The XANES spectra collected at an incident angle of 4° correspond to the oxidation states of Ru ions throughout the films, while XANES spectra collected at a low glancing angle enhance the X-ray fluorescence of the top surface (the upper few nanometers) of the films, so as to investigate electronic structural changes in the electrode bulk and at the surface, respectively. The counter electrode of the electrochemical cell was lithium metal, and the electrolyte solution was 1 mol dm⁻³ LiClO₄ in 3 : 7 EC/DEC. The XANES spectra were observed, after the cell construction, at 3.5 V and 4.0 V at the first charging, and 3.4 and 3.0 V after the first discharging. Pre-edge background and post-edge normalization to unity of the Ru K-edge spectra were performed using the ATHENA,³⁶ and the adsorption edge E₀ was defined as an energy value of 0.5 in the normalized absorption spectra. The standard deviation was evaluated from the average for at least 5 times.

Results and discussion

Film orientation

Fig. 1 shows the XRD patterns of a Li₂RuO₃ film on a Nb:SrTiO₃(111) substrate. The pattern exhibits diffraction peaks at 18.2°, 37.2° and 78.6° along the out-of-plane [111] direction (Fig. 1a), which are attributed to the 00l diffraction peaks of Li₂RuO₃ with the C2/c space group.¹⁵ Along the in-plane [1−10] direction, the 020 and 060 diffraction peaks of Li₂RuO₃ are observed at 20.3° and 63.4°, respectively (Fig. 1b). The 020 peak is due to a superlattice structure resulting from a honeycomb-type ordering of Li/Ru in the transition metal layer.³⁷ This result indicates the formation of Li₂RuO₃ with a lithium-rich layered structure. The rocking curve of the 060 reflection indicates a six-fold symmetry at intervals of 60° (Fig. 1c). The 060 reflection should show two-fold symmetry and so the observed six-fold symmetry demonstrates that the Li₂RuO₃(001) film is composed of 60°-rotated domains: Li₂RuO₃[010]//SrTiO₃[1−10], Li₂RuO₃[010]//SrTiO₃[0−11] and Li₂RuO₃[010]//SrTiO₃[−101]. The cell parameters are a = 5.116(14) Å, b = 8.861(16) Å, c = 9.772(4) Å and β = 100.09(4)°.

Fig. 1 X-ray diffraction patterns of Li₂RuO₃ films deposited on the SrTiO₃(111) substrate. (a) 2θ/ω scan along the [111] direction of the SrTiO₃, (b) 2θχ/ϕ scan along the [1−10] direction of the SrTiO₃ and (c) ϕ scan of the 060 reflection at 2θχ = 63.4°.

Fig. 2 shows the XRD patterns of a Li₂RuO₃ film on the SrTiO₃(110) substrate. The film has 0k0 and h0h orientations along the out-of-plane [110] and in-plane [001] directions of the SrTiO₃ substrate, respectively (Fig. 2(a) and (b)). The rocking curve of the 202 reflection indicates two-fold symmetry at intervals of 180° (Fig. 2c), which is consistent with the lattice symmetry of Li₂RuO₃. The cell parameters are a = 5.07(17) Å, b = 8.82(3) Å, c = 9.77(2) Å and β = 99.7(2)°. These thin-film XRD results confirm the formation of epitaxial Li₂RuO₃ (010) and (001) films on the SrTiO₃ (110) and (111) substrates, respectively.

Fig. 2 X-ray diffraction patterns of Li₂RuO₃ films deposited on the SrTiO₃(110) substrate. (a) 2θ/ω scan along the [110] direction of the SrTiO₃, (b) 2θχ/ϕ scan along the [001] direction of the SrTiO₃ and (c) ϕ scan of the 202 reflection at 2θχ = 43.4°.

The thickness, roughness, and density of each film were analysed using X-ray reflectivity curves (see details in ESI†). The thicknesses of the films ranged from 25 to 65 nm, depending on the duration of the deposition. The cell parameters showed no dependence of the lattice orientations on the thicknesses of the films (ESI†). We therefore succeeded in controlling the Li₂RuO₃ film orientation without inducing any significant differences in cell parameters and surface roughness.

Electrochemical properties

Fig. 3(a) and (b) show the charge–discharge and differential capacity (dQ/dV) curves of 26.4 nm thick Li₂RuO₃(010) film over the potential range from 3.0 to 4.0 V. The (010) film exhibited first charge and discharge capacities of 150 and 120 mA h g⁻¹, respectively, with an irreversible capacity of 30 mA h g⁻¹. In the dQ/dV plots, two oxidation and reduction peaks were observed at 3.38 and 3.66 V and 3.30 and 3.60 V, respectively. These peak positions are in good agreement with those of polycrystalline Li₂RuO₃, as reported by Kobayashi et al.¹⁵ The lithium (de)intercalation proceeds by a two-phase reaction consisting of a phase transition from monoclinic Li₂RuO₃ to monoclinic Li_1.4RuO₃ around 3.4 V and a phase transition from monoclinic Li_1.4RuO₃ to rhombohedral Li_0.9RuO₃ in the vicinity of 3.6 V. The oxidation state of the Ru ions changes from Ru⁴⁺ to Ru⁵⁺, followed by the oxygen participating in the charge compensation process, when Ru ions are fully oxidized to pentavalent.³⁸ The discharge capacity gradually increased from the second to the fifth cycle with a concurrent decrease in the irreversible capacity, while no significant changes in the peak positions were observed in the dQ/dV plots. The discharge capacity was slightly less than that obtained from polycrystalline Li₂RuO₃ electrodes (160 mA h g⁻¹), since a secondary RuO₂ phase which has no electrochemical activity between 3.0 and 4.0 V (ref. 39) is present in the Li₂RuO₃ film electrodes. The 26.4 nm thick Li₂RuO₃(001) film exhibited first charge and discharge capacities of 134 and 105 mA h g⁻¹ (Fig. 3c). In the dQ/dV plots, two oxidation and reduction peaks are observed at 3.37 and 3.61 V and 3.30 and 3.55 V, respectively (Fig. 3d). The discharge capacity gradually increased from the second to the fifth cycle with a corresponding decrease in the irreversible capacity. The fifth discharge capacity of 113 mA h g⁻¹ is comparable to that of the (010) film (124 mA h g⁻¹). These results agree with a three-dimensional lithium diffusion in the Li₂RuO₃.²⁶

Fig. 3 Charge–discharge curves and differential capacity plots of 26.4 nm thick (a) and (b) Li₂RuO₃(010) and (c) and (d) Li₂RuO₃(001) films from the first to the fifth cycles. A current density of 91.9 mA g⁻¹ was applied.

Fig. 4 shows the discharge capacity retentions of Li₂RuO₃(010) and Li₂RuO₃(001) films depending on the cycle number and C rate. Both the (010) and (001) films showed high capacity retention (above 90%), indicating highly stable intercalation through the (010) and (001) planes. In contrast, the rate capability tests demonstrate anisotropic behavior at C rates from 5 to 20 C. The (001) film exhibits higher power characteristics than the (010) film during the discharge process. Based on structural considerations, the 〈010〉 direction along the ab plane is better suited to lithium diffusion than the 〈001〉 direction, due to the larger bottleneck size in Li₂RuO₃ (ref. 15) (see details in ESI†). The anisotropic activation energies of lithium diffusion through the lithium-rich layered material Li₂MnO₃, which has a similar crystal structure to Li₂RuO₃, has been determined using first principle calculations. The results of these calculations show that lithium diffusion along the ab plane is associated with a lower activation energy (0.61 eV) than diffusion along the c axis (0.73 eV).⁴⁰ These predictions based on the bulk structure, however, cannot explain the higher power characteristics of the (001) film observed in the present study. Therefore, to obtain a better understanding of the origin of the intercalation properties of Li₂RuO₃, surface structural changes of the Li₂RuO₃ electrodes were investigated by in situ X-ray diffraction and absorption techniques.

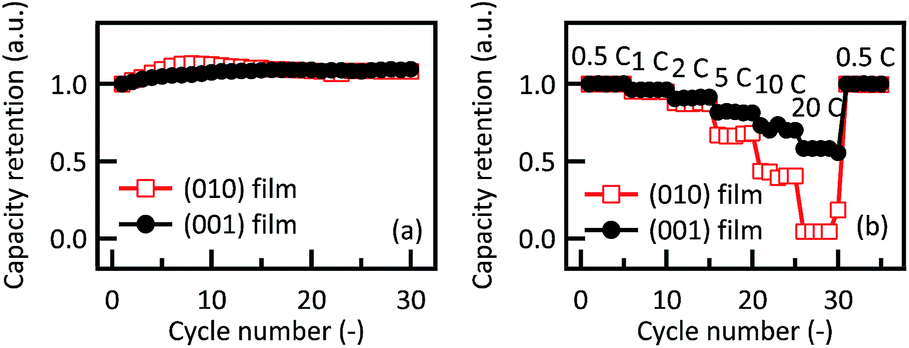

Fig. 4 Variations in discharge capacity retention of Li₂RuO₃(010) and Li₂RuO₃(001) films with (a) cycle number and (b) charge–discharge C rates.

Crystal structure changes during electrochemical cycling

Li₂RuO₃(010) film. Fig. 5 shows the in situ XRD patterns of the Li₂RuO₃(010) film in its pristine condition (Dry), after cell construction (OCV: 3.0 V) and during electrochemical processes. Whereas the out-of-plane XRDs corresponded to the crystal structure changes at the bulk region of the film, the in-plane XRDs collected at a low glancing angle corresponded to the structure changes in the surface region. Between the Dry and OCV conditions, the bulk 060 and 1−3−3 diffraction peaks show no significant changes in either position or intensity. In contrast, the surface 202 diffraction peak shifts slightly to lower d-values, accompanied by a decrease in the peak intensity and an increase in the half maximum full-width from 0.042 to 0.047. The 004 peak shows no shift, although a small shoulder appears at the lower d-value region. The surface structure at the (010) plane changes when the electrode is in contact with the electrolyte solution prior to the charge–discharge cycling.

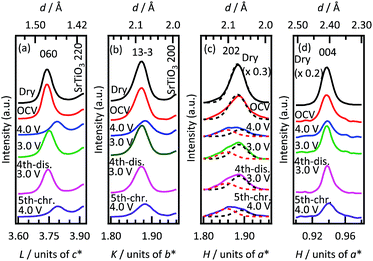

Fig. 5 In situ XRD patterns of 29.0 nm thick Li₂RuO₃(010) film along the out-of-plane (a) [0,0,L] and (b) [0,K,K] and the in-plane (c) [H,0] and (d) [H,−2H] directions of the SrTiO₃(110) substrate. Patterns were obtained in air (Dry), after cell construction (OCV) and during the charge–discharge process. The dark and red dashed lines in Fig. 5(c) correspond to the 202 diffraction peak of Li₂RuO₃ and a diffraction peak of the surface phase formed at the electrochemical process, respectively.

During the first charge from the OCV state to 4.0 V, the 060 and 1−3−3 peaks shift to higher angles with decreasing peak intensities, due to lattice contraction of the Li₂RuO₃(010) bulk on lithium deintercalation. It has been reported that the phase transition from monoclinic layered rock salt-type Li₂RuO₃ to hexagonal ilmenite-type Li_0.9RuO₃ occurs on applying a cell voltage from 3.0 to 4.0 V, due to lithium deintercalation from the lithium layer.¹⁵ This deintercalation induces a structural change from a cubic close-packed to a hexagonal close-packed oxide-ion array, which leads to the lattice contraction. As a result, the monoclinic 060 and 13−3 peaks shifted to higher angles. The lattice change of the Li₂RuO₃(010) film is therefore consistent with that of polycrystalline Li₂RuO₃. The 060 and 1−3−3 peaks shift reversibly with a decrease in cell voltage from 4.0 to 3.0 V, corresponding to reversible intercalation through the edge plane of the two-dimensional structure of the (010) film. The XRD patterns of the 060 and 1−3−3 peaks at the fourth discharging and at the fifth charging are similar to those at the first cycle, which indicates the high stability of the Li₂RuO₃(010) bulk during the (de)intercalation process. The 202 and 004 surface diffraction peaks slightly shift to higher and lower angles on the charging to 4.0 V and the discharging to 3.0 V compared to the out-of-plane diffraction peaks. The small lattice change is often observed for in-plane diffraction peaks of epitaxial film electrodes, because the lattice change is strongly constrained by the substrate lattice.^30–32 In the case of the 202 peak, the diffraction peak at H = 1.89 decreases in intensity on the initial charging to 4.0 V, and the intensity of the H = 1.89 peak is recovered on discharging to 3.0 V. During the subsequent cycles, the H = 1.89 peak changes reversibly, which corresponds to reversible structural changes during lithium (de)intercalation processes.

It is noteworthy that an additional peak appears at H = 1.86 on the initial charging to 4.0 V and remains stable after the first charging. The additional peak could not be detected in the in-plane XRD pattern collected using a higher incident angle than the critical angle (see details in ESI†). An irreversible transition therefore occurred at the top surface of the (010) plane during the first deintercalation process. The 004 surface diffraction peak shows a slight peak shift to a higher angle with the decrease in the peak intensity on the initial charging to 4.0 V, and the reversible peak shift and intensity changes are observed during the subsequent processes. No diffraction peak of the irreversible phase is observed along the SrTiO₃[H,−2H] direction, which confirms that the new phase has a crystal structure different from that of Li₂RuO₃. It has been reported that the electrode surfaces are reconstructed to form a stable structure at the electrode/organic electrolyte interface.^30,31 Thus, lithium intercalation proceeds between the Li₂RuO₃ and the electrolyte through the reconstructed surface phase.

Li₂RuO₃(001) film. Fig. 6 shows the in situ XRD patterns of the Li₂RuO₃(001) film in its pristine condition (Dry), after cell construction (OCV: 3.7 V) and during electrochemical processes. No peak shifts or intensity changes are observed in the out-of-plane 002 and 202 diffraction peaks on going from the Dry to OCV conditions. The in-plane 060 surface diffraction peak shows a decrease in intensity compared to the RuO₂ 002 peak, indicating that a structural change occurs at the surface when the electrode is in contact with the electrolyte solution. During the first charging, no changes in the positions or intensities of the diffraction peaks are observed upon applying voltage from the OCV state to 4.0 V, which is a different behavior from the (010) film. During the first discharge, the bulk 002 and 202 and 060 surface peaks shift to higher d-values with decreases in the peak intensities from 4.0 V and 3.0 V. The d values after the first discharge to 3.0 V are larger than those in the pristine condition. This result suggests that a larger amount of lithium was intercalated into the Li₂RuO₃ than was deintercalated during the first charging, which is consistent with formation of a lithium deficient phase in the pristine Li₂RuO₃. The peaks are observed to shift reversibly with potential changes over the following cycles, which is indicative of a reversible change of the Li₂RuO₃(001) lattice from the surface to bulk regions. This result demonstrates that lithium (de)intercalation takes place reversibly in the Li₂RuO₃(001) film within the two-dimensional [LiO₆]_∞ planes parallel to the electrolyte. No irreversible phase transition was detected at the (001) surface, indicating the greater stability of the (001) surface compared to the (010) surface.

Fig. 6 In situ XRD patterns of 61.6 nm thick Li₂RuO₃(001) film along out-of-plane (a) [0,0,L] and (b) [0,K,K] and in-plane (c) [2H,−K] directions of the SrTiO₃(111) substrate. Patterns were obtained in air (Dry), after cell construction (OCV) and during the charge–discharge process.

Electronic structure changes during electrochemical cycling

Fig. 7 shows the bulk and surface-enhanced XANES spectra at the Ru K-edge and K-edge adsorption energies of the Li₂RuO₃(010) film during the first cycle. In the bulk region, the absorption edge shifts to a higher energy during the charging process and then shifts reversibly to a lower energy during the discharge. These reversible changes in the electronic structures occur due to lithium (de)intercalation into the Li₂RuO₃(010) bulk. At the surface region, the absorption edge shifts to a lower energy on going from OCV to 3.5 V during the charging process, and no significant changes are observed during the following process. The electronic structure at the Li₂RuO₃(010) surface therefore changes irreversibly on the initial deintercalation, which is in agreement with the results of the surface XRD analyses.

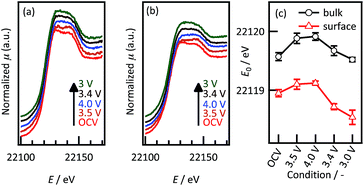

Fig. 7 In situ Ru-K edge XANES spectra of Li₂RuO₃(010) in (a) bulk and (b) surface regions and (c) K edge absorption energies during the first charging and discharging processes.

Fig. 8 presents the bulk and surface-enhanced XANES spectra and adsorption energies at the Ru K-edge of the Li₂RuO₃(001) film during the first cycle. In the bulk region, the absorption edge shifts to a higher energy during the charging process and then shifts reversibly to a lower energy during the discharge. A reversible shift of the absorption edge is also observed in the surface region, although the energies of the absorption edge are less than those of the bulk region. The (001) film thus exhibits reversible electronic structure changes in both the bulk and surface regions.

Fig. 8 In situ Ru-K edge XANES spectra of Li₂RuO₃(001) in (a) bulk and (b) surface regions and (c) K edge absorption energies during the first charging and discharging processes.

Electrode reactions of Li₂RuO₃

Fig. 9 shows schematic representations of the proposed reactions of the Li₂RuO₃ electrodes, based on our electrochemical, in situ XRD and in situ XAFS measurements. Within the Li₂RuO₃ structure, lithium ions can diffuse along the c-axis between neighboring two-dimensional lithium layers through the lithium sites in the transition metal layer.²⁶

Fig. 9 Schematic representations of lithium intercalation reactions in the Li₂RuO₃ films.

Thus, the intercalation and deintercalation of lithium ions proceed through both the (010) and (001) surfaces due to the three-dimensional lithium diffusion. No capacity fading was observed over the course of 30 cycles, which indicates highly stable (de)intercalation within the Li₂RuO₃ electrodes. In the bulk region, the crystal structure undergoes reversible changes with lithium (de)intercalation in the case of both the (010) and the (001) film, which is in agreement with the electrochemical results. Layered Li₂MO₃ electrodes based on 3d transition metals generally suffer from lowering of the reaction voltage due to a phase transition to the spinel and/or rock salt structures.^12–14 In such 3d transition metal systems, it has been reported that Li/M interlayer mixing and the occupation of Li ions at the tetrahedral sites in the Li layer leads to the phase transformation.⁴¹ In contrast, 4d metal ions form strong M–O bonds due to significant orbital hybridization.^42,43 These strong M–O bonds could stabilize the Li₂RuO₃ lattice during the lithium (de)intercalation reaction. Recently, Sathiya et al. reported that the substitution of Ru for Mn ions in Li₂MnO₃ improves the structural stability and facilitates electrochemical reactions of substituted compound.³⁸

In the surface region, the irreversible phase change occurs at the top surface of the (010) plane during the first deintercalation process, whereas reversible structural changes are observed at the (001) surface. It has been demonstrated that surface structure changes during the initial cycle may be attributed to surface reconstruction phenomena that are typically induced by instability of the termination structure.^31–33 Surface reconstruction accompanied by rearrangement of cations and anions could form a stable surface structure in response to changes in interfacial conditions during the (de)intercalation processes. No published results are available for the Li₂RuO₃ surface, but the surface energies of the (010) and (001) planes of Li(Li_0.17Ni_0.25Mn_0.58)O₂, which have a lithium-rich layered rock salt structure, have been investigated based on density functional theory (DFT).⁴⁴ The (010) plane of Li(Li_0.17Ni_0.25Mn_0.58)O₂ has a higher surface energy than the (001) plane, which suggests lower stability of the (010) surface. Assuming that the relative stabilities of the Li₂RuO₃ surfaces are similar to those of Li(Li_0.17Ni_0.25Mn_0.58)O₂, it is reasonable to suggest that significant structural change occurs at the less stable (010) surface during the reconstruction process. No substantial effects of the surface reconstructed phase on the discharge capacity were observed under low current density operation. In contrast, the discharge capacities of the (010) film decreased to a greater extent than those of the (001) film under high current density operation from 5 C to 20 C. First principle simulations indicate that bulk lithium diffusion in the 〈010〉 direction is more favourable to high rate operation than diffusion which proceeds along the 〈001〉 direction.⁴⁰ Hence, we conclude that the surface reconstructed phase limits the intercalation reaction through the (010) surface, likely as a result of high resistance to lithium ion diffusion and/or charge transfer reactions. Anisotropic properties such as those confirmed by our experimental results could be a common phenomenon in polycrystalline Li₂MO₃ electrodes containing 3d transition metals and intended for practical applications. The stabilization of the (010) surface is therefore a key issue with regard to improving the power characteristics of lithium-rich layered materials.

Conclusions

Epitaxial Li₂RuO₃ films with different lattice planes were successfully synthesized on SrTiO₃ single-crystal substrates by pulsed laser deposition. The Li₂RuO₃ films exhibited (010) and (001) orientations on Nb-doped SrTiO₃ (110) and (111) substrates, respectively. These films had similar cell parameters and surface roughness and provided a restricted reaction field suitable for mechanistic studies of lithium diffusion and interfacial reactions. The (010) and (001) films exhibited a first discharge capacity of 120 and 105 mA h g⁻¹ at 0.5 C rate, respectively. The (001) film, however, showed better rate capability than the (010) film, even though the structural features expect a superior Li diffusion along the 〈010〉 direction. In situ surface XRD and surface XANES analyses showed that an irreversible phase transition occurs at the (010) surface during the first deintercalation process, while the (001) surface undergoes reversible structural changes. The observed phase formation on the (010) surface might originate from the difference in surface energies between the (010) and (001) planes, resulting in anisotropic intercalation properties during high rate operation. The surface structures could therefore determine the power density and stability of lithium-rich layered material electrodes.

Acknowledgements

The author thanks Dr T. Honma and Dr H. Ofuchi of the Japan Synchrotron Radiation Research Institute (JASRI) for assistance with synchrotron XAFS experiments performed using the BL14B2 line at the SPring-8 facility at JASRI. This work was conducted in collaboration with the Genesis Research Institute. The research was also partially supported by a Grant-in-Aid for Scientific Research (A), a Grant-in-Aid for Young Scientists (B), and a Grant-in-Aid for Scientific Research on Innovative Areas “Exploration of nanostructure–property relationships for materials innovation” from the Japan Society for the Promotion of Science and a Grant-in-Aid from the Advanced Low Carbon Technology Research and Development Program (ALCA) of the JST. The synchrotron experiments were performed under the approval of the Japan Synchrotron Radiation Research Institute (JASRI) (proposals no. 2010A1742, 2010A3672 and 2011B3671).
