Au nanoparticles supported on magnetically separable Fe₂O₃–graphene oxide hybrid nanosheets for the catalytic reduction of 4-nitrophenol

Abstract

A one-pot hydrothermal synthesis approach was developed to prepare FeSO₄·(H₂O)–graphene oxide (GO) nanosheets. Au nanoparticles were immobilized onto this support, giving Au/Fe₂O₃–GO nanocomposites. Fe₂O₃–GO supports showed high surface area and thermal stability. The Au/Fe₂O₃–GO and synthesized Au/Fe₃O₄ nanocomposites exhibited high catalytic activity and recyclability for the reduction of 4-nitrophenol.

---

4-Nitrophenol is considered to be one of the most abundant refractory pollutants in wastewaters generated by agricultural and industrial sources.¹ Until now, there have been many reports about applications of Au nanoparticles (NPs) on various supports as catalysts for the reduction of 4-nitrophenol, since the reduction product, 4-aminophenol, is an important intermediate for the manufacture of many analgesic and antipyretic drugs.^2,3 Among these studies, those using water as a solvent under mild conditions have attracted much attention from the environmental viewpoint.

In recent years, various studies have been conducted into hybrid nanostructures in order to fabricate and synthesize multicomponent structures that can combine the physical and chemical properties of the individual components.^4,5 This enhanced functionality makes these hybrid nanostructures useful in many research fields such as magnetics, plasmonics, and semiconductors.⁶ Among various hybrid nanostructures, noble metal NPs with metal oxide supports and graphene oxide (GO) have been applied to organic reactions as catalysts.^7–9 For instance, Zhao and coworkers⁸ developed multi-functional mesoporous composite microspheres with well-designed nanostructures for an integrated catalyst system. Mülhaupt et al.⁹ reported Pd NPs on graphite oxide and their functionalized graphene derivatives with the aim of creating a hybrid catalytic system. These hybrid nanocatalysts have the advantages of higher catalytic activity and better recyclability than are offered by single metal nanoparticles, owing to electron transfer across the interface as well as their heterogeneous properties.^10,11 In a number of supports, iron oxide and GO are important since iron oxide can be separated by an external magnet and GO has high electrical conductivity. Even though iron oxide supports show high recyclability, they are unstable in air and easily aggregate.¹² Moreover, taking advantage of surface functional groups as well as the large surface area of GO nanosheets,¹³ they cannot be easily recycled by an external magnet; therefore, it is essential to combine advantages of iron oxide and GO.

Our ongoing interest in the iron oxide–GO support combining both advantages of iron oxide and GO motivated us to investigate iron oxide–GO supports by a facile approach. In this study, we synthesized FeSO₄·(H₂O)–GO nanosheets by a one-pot method and then Au NPs were immobilized onto this support. During the immobilization of the Au NPs in situ, FeSO₄·(H₂O) transformed into Fe₂O₃, resulting in superparamagnetic Au/Fe₂O₃–GO nanosheets. To the best of our knowledge, this is the first example of a versatile synthesis of Au/Fe₂O₃–GO nanosheets. Au/Fe₂O₃–GO nanosheets were then used as a catalyst for the reduction of 4-nitrophenol in water, and high catalytic activity and recyclability were achieved.

The Au/Fe₂O₃–GO nanosheets were synthesized via two steps from FeCl₃·6H₂O (Scheme 1). FeSO₄·(H₂O)–GO nanosheets were prepared by an in situ hydrothermal method.¹⁴ A gold precursor was subsequently injected to yield Au/Fe₂O₃–GO nanosheets. GO nanosheets were used as the precursor to prepare FeSO₄·(H₂O)–GO nanocomposites, which were synthesized from natural graphite powders by a modified Hummer's method.¹⁵ For comparison, Au/Fe₃O₄ microspheres were also synthesized.

Scheme 1 Synthetic scheme of Au/Fe₂O₃–GO hybrid nanosheets.

Transmission electron microscopy (TEM) images show the morphology of Au/Fe₃O₄ microspheres, FeSO₄·(H₂O)–GO and Au/Fe₂O₃–GO nanosheets (Fig. 1). Low-resolution TEM images of FeSO₄·(H₂O)–GO and Au/Fe₂O₃–GO nanosheets are shown in Fig. S1a and b (ESI†). Prior to the immobilization of the Au NPs onto the Fe₃O₄ microspheres, pretreatment procedures such as coating polymers or SiO₂ onto Fe₃O₄ were not required. In fact, the Au NPs were easily immobilized onto the surface of Fe₃O₄ in situ because of the interaction of the carboxyl groups of trisodium citrate with Au (Fig. 1a and d).¹⁶ Size distribution graphs of the Au NPs are shown in Fig. S1c (ESI†), indicating the average size of the Au NPs was 8.0 nm. The X-ray diffraction (XRD) pattern of the Au/Fe₃O₄ microspheres matched the cubic spinel structure of Fe₃O₄ (JCPDS no. 19-0629) and face-centered cubic structure of Au (JCPDS no. 04-0784) (Fig. 2a).

Fig. 1 TEM images of Au/Fe₃O₄ microspheres (a and d), FeSO₄·(H₂O)–GO (b and e) and Au/Fe₂O₃–GO nanosheets (c and f).

Fig. 2 (a) XRD graphs of FeSO₄·(H₂O)–GO, Au/Fe₂O₃–GO and Au/Fe₃O₄. (b and c) Nitrogen-adsorption/desorption isotherms and TGA data of FeSO₄·(H₂O)–GO, Fe₂O₃–GO and Au/Fe₂O₃–GO; for clarity, the isotherms of Fe₂O₃–GO and Au/Fe₂O₃–GO were shifted upwards by 50 and 110 cm³ g⁻¹, respectively.

The TEM images in Fig. 1b and e show FeSO₄·(H₂O)–GO nanocomposites. GO and FeSO₄·(H₂O)–GO were also imaged by non-tapping mode dynamic force microscope (DFM). Fig. S2 (ESI†) shows the DFM images of GO and FeSO₄·(H₂O)–GO, showing topology of nanocomposites. As shown in Fig. 2a, the XRD pattern shows anorthic FeSO₄·(H₂O) reflections (JCPDS no. 81-0019). Fourier-transform infrared (FT-IR) spectra were also measured to confirm the structure of GO and FeSO₄·(H₂O)–GO (Fig. 3). In the case of GO, the bands at ca. 1200 cm⁻¹, 1070 cm⁻¹, and 1720 cm⁻¹ are attributed to the C–O epoxy stretching, C–O alkoxy stretching, and C=O carbonyl stretching vibrations, respectively; the absorption band at ca. 3450 cm⁻¹ corresponds to O–H stretching.¹⁷ Additionally, FeSO₄·(H₂O)–GO shows strong bands corresponding to FeSO₄·(H₂O). The asymmetric bending mode of SO₄²⁻ is presented as triplet at 606, 625, and 667 cm⁻¹. The asymmetric bending mode of OH⁻ is located at 555 and 823 cm⁻¹. The symmetrical stretching mode of SO₄²⁻ is registered at 1020 cm⁻¹. The asymmetrical stretching mode of SO₄²⁻ is split into two peaks, due to lower symmetry: 1080 and 1130 cm⁻¹. The symmetric bending modes of the hydroxyl group and crystal water are registered at 1500 and 1650 cm⁻¹, respectively. The broad band of OH⁻ in the range 3000–3500 cm⁻¹ is associated with strong hydrogen bonds.¹⁸ Elemental analysis of FeSO₄·(H₂O)–GO was confirmed by using X-ray photoelectron spectroscopy (XPS). The Fe²⁺ 2p_3/2 peak of FeSO₄·(H₂O) is 710.9 eV; the binding energies of the doublet for S⁶⁺ 2p_1/2 (168.1 eV) and S⁶⁺ 2p_3/2 (168.6 eV) are shown in Fig. S3 (ESI†) and are consistent with the previously reported FeSO₄·(H₂O) data (Fig. S3a and c, ESI†).¹⁹ In the case of GO, curve fitting of the C 1s and O 1s spectra was conducted using a Gaussian–Lorentzian function following Shirley background correction. The binding energy of the C–C is assigned at 284.3 eV and shifts of +1.6 and +3.3 eV are typically assigned to the C–OH and C=O functional groups, respectively (Fig. S3b, ESI†).²⁰

Fig. 3 The FT-IR spectra of GO and FeSO₄·(H₂O)–GO nanosheets.

In order to immobilize the Au NPs onto the FeSO₄·(H₂O)–GO support, a method of exchanging sodium cations with noble metallic ions was applied.¹⁶ In alkaline aqueous solution, iron salts precipitate,²¹ leading to the oxidation of FeSO₄·(H₂O) to Fe₂O₃ during immobilization of the Au NPs, resulting in Au/Fe₂O₃–GO nanosheets. TEM images show highly monodisperse Au NPs immobilized onto Fe₂O₃–GO nanosheets (Fig. 1c and f). Size distribution graphs of the Au NPs are displayed in Fig. S1d (ESI†), showing the average size of the Au NPs was 7.6 nm. Since it was difficult to assign the crystal structure of Fe₂O₃ due to the low intensity in the XRD pattern (Fig. 2a), we confirmed the Fe₂O₃ structure by using the XPS technique. In the case of high-spin iron, the Fe 2p peak is always split into two due to spin–orbit coupling (Fe 2p_1/2, Fe 2p_3/2). In the oxidized state (Fig. S3d, ESI†), an additional satellite peak appears in between the Fe 2p_1/2 and Fe 2p_3/2 components: for the case of Fe₂O₃, the satellite occurs 8 eV above the Fe 2p_3/2 component.²² The binding energy of the C–C is also assigned at 284.3 eV and shifts of +1.5 and +3.8 eV are typically assigned for the C–OH and C=O functional groups, respectively (Fig. S3e, ESI†).²⁰ When the Au/Fe₂O₃–GO nanosheets were synthesized, GO was further oxidized. The binding energies of the doublet for Au 4f_7/2 (83.1 eV) and Au 4f_5/2 (87.0 eV) shown in Fig. S3f (ESI†) are characteristic of Au⁰.²³

As a control experiment, Fe₂O₃–GO nanosheets were also synthesized without addition of HAuCl₄·3H₂O. As shown in the N₂ adsorption/desorption isotherms (Fig. 2b), Fe₂O₃–GO and Au/Fe₂O₃–GO nanosheets showed typical IV isotherms, indicating the presence of mesopores (4.4 nm) and high surface area (292 m² g⁻¹). The textural characteristics of the corresponding samples are summarized in Table S1 (ESI†). Surprisingly, the surface area of FeSO₄·(H₂O)–GO was less than 20 m² g⁻¹ (Table S1, ESI†). Thermogravimetric analysis (TGA) was then used to characterize the thermal stability of the three samples (Fig. 2c). TGA data also showed a different tendency of weight loss (%) between FeSO₄·(H₂O)–GO and Fe₂O₃–GO nanocomposites. It is considered that the physical and chemical properties of FeSO₄·(H₂O)–GO were drastically changed in alkaline solution during the Au NP immobilization. The elemental compositions of the respective Au/Fe₃O₄, FeSO₄·(H₂O), Fe₂O₃–GO, and Au/Fe₂O₃–GO nanocomposites were obtained using energy-dispersive X-ray spectroscopy (EDS) (Fig. S4, ESI†). The superconducting quantum interference device (SQUID) data showed the magnetic curves as a function of the applied field at 300 K (Fig. S5, ESI†). The saturation magnetization value of Au/Fe₂O₃–GO nanocomposites was 8.92 emu g⁻¹, which was similar to that of the Fe₂O₃–GO (9.85 emu g⁻¹). Moreover, both the remanence (Mr) and coercivity (Hc) of nanocomposites were close to zero, indicating superparamagnetism.

As shown in Fig. 4a and b, the UV/vis spectrum of the reaction mixture was monitored with time during the catalytic reduction of 4-nitrophenol. Specifically, the absorption of 4-nitrophenol at 400 nm decreased rapidly with a concomitant increase in the peak at 300 nm, that can be attributed to the formation of the reduction product, 4-aminophenol. The reduction was complete in 12 min and 6 min when Au/Fe₂O₃–GO (5.0 mol%) and Au/Fe₃O₄ (2.5 mol%) was used as the catalyst, respectively (100 equiv. of NaBH₄ per equiv. substrate at 298 K) (Fig. 4a and b). The real experimental absorption capacity of 4-nitrophenol by Au/Fe₂O₃–GO is 1150 mg g⁻¹ at the concentration of 104 mg L⁻¹, resulting in high adsorption capacity at room temperature. As shown in Fig. 4c, the Au/Fe₃O₄ catalyst showed a higher reaction constant k (0.284 min⁻¹) than the respective catalyst, Au/Fe₂O₃–GO (0.212 min⁻¹) nanocomposites. Slightly higher catalytic activity of the Au/Fe₃O₄ catalyst is attributed to its better dispersion stability in water. Because Fe₃O₄ has many citrate groups and OH⁻ anions, the dispersion stability of Au/Fe₃O₄ in water is enhanced. As shown in Fig. 4d, the reaction rate constant k was also compared under different temperatures using 5.0 mol% of Au/Fe₂O₃–GO and 50 equiv. of NaBH₄. As expected, the highest catalytic efficiency (0.252 min⁻¹) was obtained at 35 °C.

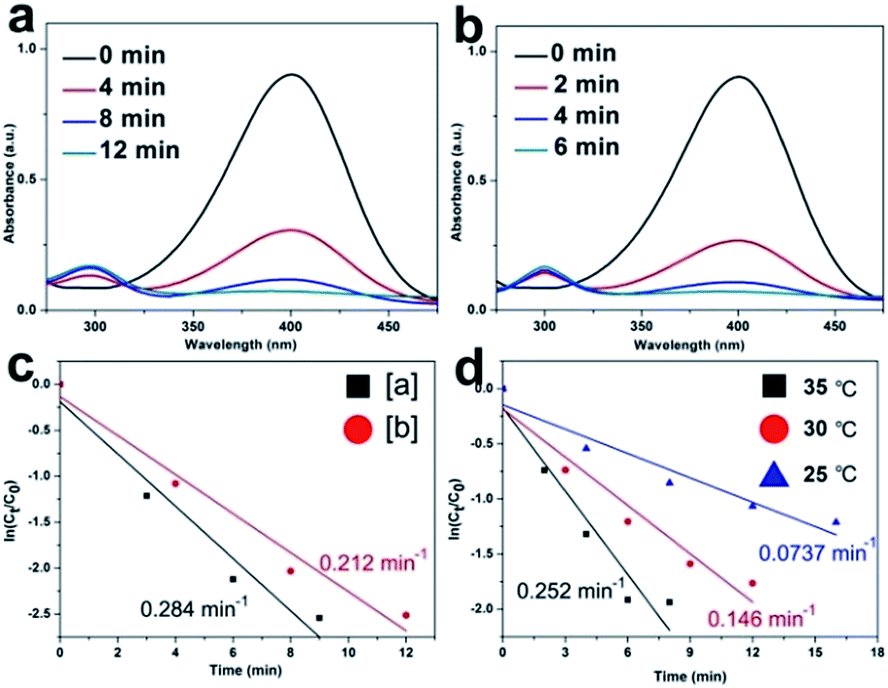

Fig. 4 Time-dependent UV/vis absorption spectra for the reduction of 4-nitrophenol over hybrid catalysts in aqueous media at 298 K. (a) Au/Fe₂O₃–GO (5.0 mol%). (b) Au/Fe₃O₄ (2.5 mol%). (c) Plot of ln(C_t/C₀) versus time with different catalysts. All catalysts are used at the same molar ratio of 5.0 mol% of catalyst and 100 equiv. of NaBH₄ for the reaction at R.T. [a] Au/Fe₃O₄ and [b] Au/Fe₂O₃–GO. (d) Plot of ln(C_t/C₀) versus time and the corresponding Arrhenius plot over Au/Fe₂O₃–GO catalysts under different temperatures at 5.0 mol% of catalyst and 50 equiv. of NaBH₄.

Both Au/Fe₃O₄ and Au/Fe₂O₃–GO catalysts exhibited superior catalytic activity relative to previously reported Au–Fe₃O₄ nanocomposites and Au–graphene nanosheets in terms of the reaction rate constant (k) value.^24,25 It is believed that the electronic structures of both the Au and the metal oxide components are modified by electron transfer across the interface of the Au–metal oxide hybrid NPs, giving rise to oxygen vacancies on the interfacial metal oxide that act as active sites for oxygen absorption and activation.^26,27 Thus, the hybrid NPs are catalytically more active than each individual component for the reduction of 4-nitrophenol.

Remarkably, after the reaction, the Au/Fe₂O₃–GO catalyst could be recovered from the reaction mixture by an external magnet and reused seven times with only slight loss of catalytic activity (Fig. 5a). Even though the Au/Fe₃O₄ catalyst showed higher catalytic activity than the Au/Fe₂O₃–GO catalyst, reusability of the Au/Fe₃O₄ catalyst was drastically decreased within four uses (Fig. 5b). As shown in Fig. S6 (ESI†), the structure of the Au NPs on the Fe₂O₃–GO nanosheets was slightly decomposed after the seven recycling reactions, demonstrating the recyclability of the catalyst.²⁸

Fig. 5 (a) TOF during seven times recycling runs. Reaction condition: Au/Fe₂O₃–GO catalyst (Au base: 5.0 mol%), 200 equiv. of NaBH₄ and 35 °C. (b) TOF during four times recycling runs. Reaction condition: Au/Fe₃O₄ catalyst (Au base: 5.0 mol%), 200 equiv. of NaBH₄ and 35 °C.

In conclusion, FeSO₄·(H₂O)–GO nanosheets were synthesized by a one-pot method and Au NPs were immobilized onto this support, giving an Au/Fe₂O₃–GO nanocomposite. A Fe₂O₃–GO support showed higher surface area and thermal stability. Both the Au/Fe₂O₃–GO and the Au/Fe₃O₄ nanocomposites exhibited higher catalytic activity and reusability for the reduction of 4-nitrophenol. The present findings may open up a new aspect in the development of high-performance metal/Fe₂O₃–GO nanocomposites, which will be useful in heterogeneous catalysis.
