Synthesis, crystal structure and photoluminescence of novel blue-emitting Eu²⁺-doped (SiC)_x–(AlN)_1−x phosphors by a nitriding combustion reaction

Abstract

Novel blue-emitting phosphors with the chemical composition of (SiC)_x–(AlN)_1−x:yEu²⁺ (x = 0.06–0.50, y = 0.001–0.01) were synthesized by a nitriding combustion reaction route, and the crystal structure, luminescence properties and thermal stability of the (SiC)_x–(AlN)_1−x:yEu²⁺ phosphors were investigated by theoretical and experimental approaches. First-principles calculation results prove that the solid solution of SiC with AlN promotes the doping of Eu²⁺ ions into the (SiC)_x–(AlN)_1−x host lattice, and Eu²⁺ ions tend to occupy Al sites of the host. The synthesized (SiC)_x–(AlN)_1−x:yEu²⁺ phosphors absorb light in the region of 250–425 nm and show a single and symmetric broadband emission centered at about 470 nm due to the 4f⁶5d–4f⁷ transitions of Eu²⁺. The luminescence intensity increases with the SiC content and reaches its maximum at x = 0.20. The critical quenching concentration of Eu²⁺ in the (SiC)_0.20–(AlN)_0.80:yEu²⁺ phosphor is about y = 0.006. The composition-optimized (SiC)_0.20–(AlN)_0.80:0.006Eu²⁺ phosphor shows a small thermal quenching, retaining the luminance of 91.1% at 150 °C. The CIE coordinates were measured as (0.135, 0.167) with high color purity. The above results indicate that (SiC)_x–(AlN)_1−x:yEu²⁺ is a promising candidate as a blue-emitting ultraviolet convertible phosphor for white LEDs, and the combustion reaction route is expected to be applicable to the synthesis of other kinds of nitride phosphors.

---

1. Introduction

White light emitting diodes (LEDs) have attracted increasing attention as a promising light source for solid state lighting due to their long lifetime, high luminous efficiency, energy saving, and environmentally friendly characteristics.^1–3 Typically, commercial white LEDs can be generated by the combination of a blue LED chip and the famous yellow phosphor, YAG:Ce³⁺.⁴ However, the disadvantages of this method are a low color-rendering index (CRI) and high correlated color temperature (CCT) due to red emission deficiency in the visible spectrum. During the last several years, white LEDs fabricated by using ultraviolet (UV)/near-ultraviolet (n-UV) chips coupled with blue, green and red phosphors have attracted much attention because of the advantageous of color stability and excellent color rending.^5–7 Therefore, the exploration of novel phosphors with strong absorption, desirable emission/excitation, and high efficiency under UV/n-UV excitation plays an important role in the development of white LEDs. Furthermore, low fabrication cost, low thermal quenching as well as high chemical stability are also required for the phosphors.

As a highly efficient activator with allowed 4f–5d transitions, Eu²⁺ ion has been widely investigated for the rare-earth-doped phosphors. Because the 4f–5d transition of Eu²⁺ is sensitive to the crystal field and covalency, the Eu²⁺-doped phosphors have strong absorption in the UV to the visible spectral region and exhibit broad emission bands from blue to red.⁸ Recently, Eu²⁺-doped nitride phosphors have gained great interest due to several merits, such as wide band gap, significant luminescence properties with high efficiency, and excellent thermal and chemical stabilities.⁷ Examples of these known nitride phosphors are, α-SiAlON:Eu²⁺,^9,10 β-SiAlON:Eu²⁺,^11,12 AlN:Eu²⁺,^13–15 MSi₂O₂N₂:Eu²⁺ (M = Ca, Sr, Ba),^16,17 CaAlSiN₃:Eu²⁺,^8,18,19 M₂Si₅N₈:Eu²⁺,^20–22 α-SrNCN:Eu²⁺,²³ and Ba₃Ga₃N₅:Eu²⁺.²⁴ In 1978, Cutler et al.²⁵ first reported that SiC and AlN can form a 2H solid solution (SiC–AlN ss) in overall compositions. Subsequently, Zangvil and Ruh²⁶ presented a tentative SiC–AlN phase diagram. Several researchers also reported that SiC–AlN ss has excellent mechanical properties (especially in high temperature), good chemical stability, high thermal conductivity, and adjustable semiconducting properties,^27–33 which indicates that SiC–AlN ss has great opportunities to be an excellent host for the phosphors. However, to the best of our knowledge, no details regarding the luminescence properties of rare earth-doped (SiC)_x–(AlN)_1−x crystalline material have been reported in the literature.

In this paper, we report the preparation of blue-emitting (SiC)_x–(AlN)_1−x:yEu²⁺ (x = 0.06–0.50, y = 0.001–0.01) phosphors by a combustion synthesis method, which involves the merits of simple processing, high energy efficiency and time saving. The crystal structure, luminescence properties and thermal stability of the (SiC)_x–(AlN)_1−x:yEu²⁺ phosphors were investigated in detail. It is believed that the novel (SiC)_x–(AlN)_1−x:yEu²⁺ phosphors can act as blue-emitting UV convertible phosphors for white LEDs.

2. Experimental

The powders with the composition of (SiC)_x–(AlN)_1−x:yEu²⁺ (0 ≤ x ≤ 0.50, 0.001 ≤ y ≤ 0.01) were fabricated by nitriding combustion synthesis method. The powder mixture of high-purity Al (>99.0%, 2–3 μm, Henan yuanyang aluminum industry Co. Ltd., Xinxiang, China), AlN (type H, >99.9%, ∼0.5 μm, Tokuyama K.K., Hino, Tokyo, Japan), β-SiC (99.09%, 40 nm, Kaier Nano. Co. Ltd., Hefei, China) and Eu₂O₃ (99.99%, Yuelong Nonferrous Metals Ltd., Shanghai, China) were ball-milled in alcohol using a planetary mill for 2 h. In the powder mixture, Al powder was used as a fuel, and both AlN and SiC powders can be seen as diluent for the complete nitridation of Al powder. After drying and sieving, 20 g of the mixed powder was put into a cylindrical porous graphite crucible (Ø 42 mm × 90 mm H) and ignited from the bottom by passing an electric current of 60 V × 24 A for 20 s through a carbon ribbon under 1.0 MPa N₂ atmosphere. Once the combustion reaction was triggered, the temperature increased drastically. A W-Re thermocouple protected by alumina tubes was inserted into the center of the mixture to record the temperature–time pattern of the combustion reaction. The whole combustion synthesis process completed within a few minutes (see ESI Fig. S1†). The products were ground into a powder for subsequent analysis.

The phase purity of the synthesized powders were examined by X-ray diffraction (XRD, JDX-3530, JEOL, Japan) with Cu Kα radiation at a scanning rate of 0.2° min⁻¹. Morphologies of the powders were observed using a field emission scanning electron microscopy (FESEM, S4800, Hitachi, Japan). High-resolution transmission electron microscopy (HRTEM; JEOL JEM-2100F) images were obtained on a JEM-2100F electron microscope (JEOL, Japan). Fourier-transform infrared spectra (FTIR) were recorded using a spectrophotometer (AVATAR 360 FTIR, Nicolet, USA) in the wavenumber range of 2000–400 cm⁻¹. The samples' spectra were recorded by transmission in dry air atmosphere through a pastille made of a few milligrams of sample materials mixed with KBr. Photoluminescence (PL) spectra were measured using a Hitachi F-7000 fluorescence spectrophotometer (Hitachi, Japan) at room temperature with a 200 W Xe lamp as the excitation source. The temperature-dependence PL properties were measured on the same spectrophotometer, which was combined with a self-made heating attachment and a computer-controlled electric furnace.

3. Results and discussion

Fig. 1 shows the typical SEM images for the microstructure of the (SiC)_x–(AlN)_1−x:0.006Eu²⁺ phosphors (x = 0.06, 0.20 and 0.50) synthesized at Al/(AlN + SiC) mole ratio of 5 : 5. The mole ratio of choice is the optimized parameter to synthesize the phosphor with higher purity and better luminescence properties according to the XRD patterns and PL spectra of the samples synthesized with the mole ratio ranging from 4 : 6 to 6 : 4 (see ESI Fig. S2 and S3,† respectively). It is observed from Fig. 1 that the particles coarsen with the x value increases. The particle size increases from 1–3 μm for (SiC)_0.06–(AlN)_0.94:0.006Eu²⁺ phosphor to 2–5 μm for (SiC)_0.20–(AlN)_0.80:0.006Eu²⁺ phosphor, and finally to 2–7 μm for (SiC)_0.50–(AlN)_0.50:0.006Eu²⁺ phosphor. In addition, the SiC content obviously affects the particle morphology of the phosphors. The particles exhibit an irregular morphology with x ≤ 0.20, whereas they show a plate-like shape and smooth surface when x = 0.50.

Fig. 1 SEM images of (SiC)_x–(AlN)_1−x:0.006Eu²⁺: (a) x = 0.06, (b) x = 0.20, (c) x = 0.50.

FTIR spectra are adopted to investigate the bonds and the inner fine microstructural changes of (SiC)_x–(AlN)_1−x:0.006Eu²⁺ phosphors. The results are shown in Fig. 2. In the spectrum of pure AlN powder (Fig. 2(a)), the peak centered at 720 cm⁻¹ corresponds to the Al–N bond of AlN crystal,³⁴ while the absorption bands of the phosphors become broader and weaker, indicating that lattice distortion and lattice imperfection were caused by Eu and/or SiC dissolved into the AlN lattice.^35–37 As shown in the FTIR spectrum of AlN:0.006Eu²⁺ phosphor (Fig. 2(b)), only one broader peak at 720 cm⁻¹ corresponds to the Al–N bond. For the (SiC)_0.20–(AlN)_0.80:0.006Eu²⁺ phosphor, three peaks at 740 cm⁻¹, 660 cm⁻¹ and 600 cm⁻¹ are observed, corresponding to Si–C, Al–N and Al–C lattice vibrations, respectively. These peaks are significantly shift to a low energy from those of pure Si–C (800 cm⁻¹) and pure Al–N,³⁷ implying the formation of SiC–AlN ss phase.

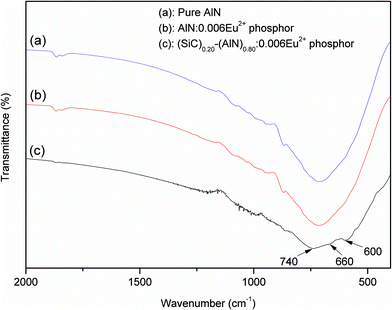

Fig. 2 FTIR spectra of (SiC)_x–(AlN)_1−x:0.006Eu²⁺ with x = 0 (b) and 0.20 (c). Pure AlN without dopants (a) is made as a reference.

Fig. 3(a) shows the XRD patterns for the (SiC)_x–(AlN)_1−x:0.006Eu²⁺ phosphors with the x value of 0, 0.06, 0.11, 0.20, 0.33 and 0.50. As seen, a single SiC–AlN ss phase with a 2H wurzite structure is obtained when x ≤ 0.06. The formation of SiC–AlN ss phase can be described as the following reaction:³⁸

(1 − x)Al_(s) + (1 − x)/2N_2(g) + xSiC_(s) → (SiC)_x–(AlN)_{1−x (s)} (1)

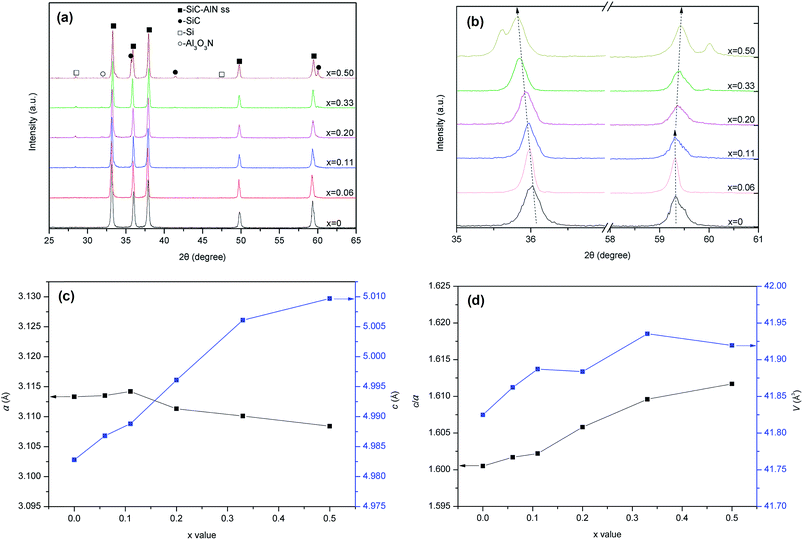

Fig. 3 (a) XRD patterns; (b) shift of diffraction peaks; (c and d) calculated crystal cell parameters (a and c, c/a and V, respectively) for (SiC)_x–(AlN)_1−x:0.006Eu²⁺ (x = 0, 0.06, 0.11, 0.20, 0.33 and 0.50).

The impurities of Si and Al₃O₃N appear when x ≥ 0.11 and their content rise with a further increase of x value, indicating that more and more Si is displaced from the oxide layer of SiC powder by Al according to the reaction (2), and the formed Al₂O₃ reacts with AlN to form Al₃O₃N by the reaction (3):

4Al_(s) + 3SiO_2(s) → 3Si_(s) + 2Al₂O_3(s) (2)

Al₂O_3(s) + AlN_(s) → Al₃O₃N_(s) (3)

When the x value further increases >0.20, another impurity of SiC is also detected, demonstrating that the SiC cannot dissolve in the AlN totally with it content >0.20 in present condition.

In order to investigate the effect of SiC content on the crystal cell parameters (a and c) of the SiC–AlN ss phase, the fine scans were carried out from 58 to 61° around the (110) peak for a,^38,39 and from 35 to 37° around the (002) peak for c.⁴⁰ The diffraction peaks at ∼36° shifts to a lower angle, and the peaks at ∼59.5° first decreases and then increase in a narrow range with the increase of SiC content, as shown in Fig. 3(b). The a and c were calculated by using a least-squares procedure with an XRD pattern processing computer program (JADE 5.0, Materials Data) for SiC–AlN ss phase. The results show that the c increases from 4.9748 Å to 5.0097 Å, and the a first increases from 3.1113 Å to 3.1142 Å (x = 0.11) and then decreases to 3.1084 Å, upon the increase of SiC content, as shown in Fig. 3(c). Therefore, the c/a and unit cell volume (V) values of the phosphors with different SiC content can be calculated, and the results are shown in Fig. 3(d). It can be clearly seen that the c/a and V values increase from 1.5989 to 1.6117 and from 41.7052 ų to 41.9195 ų respectively with the increasing of SiC content, indicating that the SiC–AlN unit cell becomes longer and larger when more and more SiC is solid-soluted in the AlN.

To observe the local crystalline structure of the (SiC)_x–(AlN)_1−x:yEu²⁺ phosphors, HRTEM measurements were employed. Fig. 4 shows the TEM and local HRTEM images of the selected samples of (SiC)_0.06–(AlN)_0.94:0.006Eu²⁺ and (SiC)_0.20–(AlN)_0.80:0.006Eu²⁺. In the HRTEM image of (SiC)_0.06–(AlN)_0.94:0.006Eu²⁺ (Fig. 4(b)), the spacing between the neighboring parallel fringes is measured to be 0.272 nm, corresponding to the (100) planes of 2H wurtzite SiC–AlN ss phase. In addition, some indistinct fringes parallel to the (100) planes (in the white line areas) are observed, indicating that the long range order has been lost. This should be caused by the large lattice deformation due to the dissolution of SiC and/or large Eu²⁺ ions in the host lattice. For the (SiC)_0.20–(AlN)_0.80:0.006Eu²⁺ sample, several lattice stripe areas and amorphous areas coexist in the HRTEM image (Fig. 4(d)), exhibiting much higher quantity of grain boundary and defect density in the sample with high content of SiC. However, it is difficult to observe the local environment of the Eu²⁺ occupation within the SiC–AlN host lattice due to the low resolution for accurate structural determination. In fact, an understanding of the doped Eu²⁺ in the structure of SiC–AlN host lattice is necessary to elucidate the luminescent behaviors.

Fig. 4 (a) TEM image of (SiC)_0.06–(AlN)_0.94:0.006Eu²⁺ and (b) HRTEM image of the selected area in (a); (c) TEM image of (SiC)_0.20–(AlN)_0.80:0.006Eu²⁺ and (d) HRTEM image of the selected area in (c).

In order to further clarify the Eu²⁺ ion site, we perform first-principles calculations of (SiC)_x–(AlN)_1−x:yEu²⁺ and investigate the site of the Eu²⁺ ion by comparing the theoretical and experimental results. Simulations are performed by the CASTEP software package⁴¹ based on density functional theory (DFT) with the generalized gradient approximation (GGA) of Perdew, Burke, and Ernzerhof (PBE) exchange–correlation functionals.⁴² Similar functions have been successfully used to study the structural and electronic properties of AlN (wurtzite structure).^43,44 We use a plane wave basis set for the expansion of the wave functions where the electron-ion interaction is described by ultrasoft pseudopotential, which is as soft as possible within the core region. Thus, the cutoff energy is dramatically reduced. With a cutoff energy of 480 eV and the k-points of 5 × 5 × 3, sufficient numbers of wave functions are included so as to obtain precise information about structure and electronic structure of the SiC–AlN host. The convergence tolerances are in energy of 1.0 × 10⁻⁵ eV per atom, maximum force of 0.03 eV per atom and maximum displacement of 0.05 eV per atom.

According to the results of FTIR and XRD analyses as shown in Fig. 2 and 3(a), the structure of (SiC)_x–(AlN)_1−x can be built up by the random substitution of Al–N pair by Si–C pair respectively in the hexagonal AlN (P6₃mc, space group 186),³⁷ and the unit cell containing 8 atoms exhibits a lattice constant a = 3.1113 Å, c = 4.9805 Å. In order that the Eu²⁺ concentration approaches close to the experimental results, we prepared the (SiC)_x–(AlN)_1−x host lattices with the k-points of 5 × 5 × 3 which contain 32, 64, and 128 atoms with a single Eu²⁺ ion. Considering the radius and charge properties of Eu²⁺ ions, three possible locations of Eu²⁺ ions in the (SiC)_x–(AlN)_1−x host lattice can be existed: (Structure 1) Eu²⁺ doped in the octahedral interstice of (SiC)_x–(AlN)_1−x; (Structure 2) Eu²⁺ occupied an Al site of (SiC)_x–(AlN)_1−x; (Structure 3) Eu²⁺ occupied a Si site of (SiC)_x–(AlN)_1−x, as shown in Fig. 5.

Fig. 5 Three possible locations of an Eu²⁺ ion in a 32-atom (SiC)_x–(AlN)_1−x host lattice: (Structure 1) Eu²⁺ doped in the octahedral interstice of (SiC)_x–(AlN)_1−x; (Structure 2) Eu²⁺ occupied an Al site of (SiC)_x–(AlN)_1−x; (Structure 3) Eu²⁺ occupied a Si site of (SiC)_x–(AlN)_1−x.

Table 1 shows the forming energies and lattice constants of the above doping structures ((SiC)_x–(AlN)_1−x:0.06Eu²⁺) from simulation, and the lattice constants of (SiC)_x–(AlN)_1−x:0.006Eu²⁺ obtained from the XRD results (Fig. 3(d)) are listed for comparation. It can be seen from Table 1 that the forming energy of Structures (2) and (3) are much lower than that of Structures (1), indicating that the Structure (2) and (3) are easier to form than the Structure (1). In other words, the Eu²⁺ ion is apt to occupy a cation site in the (SiC)_x–(AlN)_1−x host lattice. And according to the data of vacancy forming energy, we can find the vacancy forming energy of Al is lower than that of Si when x = 0–0.50, which means the formation of Al vacancy is easier than that of Si. At the same time, according to the forming energy for Structures (2) and (3), we can find the same results. Therefore, the Eu²⁺ ion tends to occupy an Al site of (SiC)_x–(AlN)_1−x to form Structure (2). Moreover, we can find the vacancy forming energy of Al decreases when x value increases, which indicates as the SiC content increases, the Eu²⁺ ion is easier doped into (SiC)_x–(AlN)_1−x host lattice. This phenomenon is identical to the experimental results reported by the fabrication of AlN:Eu²⁺ phosphors with SiC as an effective flux.^15,46 The same trendy has also been found from the results of calculation for the (SiC)_x–(AlN)_1−x:0.03Eu²⁺ and (SiC)_x–(AlN)_1−x:0.015Eu²⁺. Duo to simulation of (SiC)_x–(AlN)_1−x:0.006Eu²⁺ needs more than three hundreds atoms, it costs so much computation resource. We believe the prepared (SiC)_x–(AlN)_1−x:0.006Eu²⁺ has the same results with the simulated (SiC)_x–(AlN)_1−x:0.06Eu²⁺, (SiC)_x–(AlN)_1−x:0.03Eu²⁺ and (SiC)_x–(AlN)_1−x:0.015Eu²⁺ according to the simulations above.

Table 1 Forming energies and lattice constants of the doping structures ((SiC)_x–(AlN)_1−x:0.06Eu²⁺) obtained from simulation, and the lattice constants of (SiC)_x–(AlN)_1−x:0.006Eu²⁺ obtained from the XRD results for comparation^a

	x = 0	x = 0.06	x = 0.11	x = 0.20	x = 0.33	x = 0.50
a Data of lattice constants (AlN: c/a = 1.6003, V = 41.7448; SiC: c/a = 1.6409, V = 41.3721) are obtained from ref. 45.
Forming energy for Structure 1 (Eu doped in interstice site) (eV per atom)	14.0617	—	6.5961	6.8619	6.9114	7.1730
Vacancy forming energy (Al) (eV per atom)	8.6468	—	2.0445	2.0260	2.0154	1.9409
Vacancy forming energy (Si) (eV per atom)	—	—	3.6382	3.5744	3.5485	3.5539
Forming energy for Structure 2 (Eu occupied Al site) (eV per atom)	10.2764	—	1.8286	1.7985	1.7951	1.7902
Forming energy for Structure 3 (Eu occupied Si site) (eV per atom)	—	—	3.4630	3.4473	3.4327	3.4087
Simulated c/a of Structure 1	1.6007	—	1.6051	1.6083	1.6126	1.6144
Simulated V of Structure 1	41.9132	—	42.2625	42.3838	42.4254	42.4225
Simulated c/a of Structure 2 (Eu occupied Al site)	1.6008	—	1.6026	1.6060	1.6101	1.6124
Simulated V of Structure 2 (Eu occupied Al site)	41.7530	—	41.8927	41.8981	41.9383	41.9405
Simulated c/a of Structure 3 (Eu occupied Si site)	—	—	1.6018	1.6049	1.6085	1.6105
Simulated V of Structure 3 (Eu occupied Si site)	—	—	41.7628	41.7837	41.8258	41.8725
Experimental c/a for (SiC)x–(AlN)1−x:0.006Eu^2+	1.6005	1.6017	1.6022	1.6058	1.6096	1.6117
Experimental V for (SiC)x–(AlN)1−x:0.006Eu^2+	41.8247	41.8622	41.8871	41.8837	41.9352	41.9195

---

The lattice constants are also considered to further prove the Eu²⁺ ion site. According to the Table 1, we can find that both of the c/a and V of the prepared (SiC)_x–(AlN)_1−x:0.006Eu²⁺ phosphors increase as the x value increases, which is because the c/a of SiC is more than that of AlN⁴⁵ and the large Eu²⁺ ions are doped into the host lattice. Furthermore, based on the results of simulations, it can be found that the data of both c/a and V of the (SiC)_x–(AlN)_1−x:yEu²⁺ with different structures have similar varying tendency as those of the experimental results. However, the simulated results of Structure (2) are almost the same as the experimental results, which is agreement with the simulated results of forming energies above. Hence, we can understand that the Structure (2) is the most likely structure for the (SiC)_x–(AlN)_1−x:yEu²⁺ phosphors.

Fig. 6 shows the excitation and emission spectra of the (SiC)_x–(AlN)_1−x:0.006Eu²⁺ phosphors with different SiC content. The excitation spectrum for the sample without SiC has only one weak and broad band centered at 310 nm. However, for the samples added with SiC, the shapes of the excitation spectra have changed and show a broad band in the range of 250–425 nm, which consist of three bands centered at 285 nm, 330 nm and 360 nm, respectively. These three excitation bands correspond to the crystal-field splitting of the 5d level of the Eu²⁺ ions. The emission spectrum of the phosphor without SiC additive has two weak emission bands at 470 nm and 505 nm. The former band is attributed to 4f⁶5d–4f⁷ transitions of Eu²⁺,¹³ and the later should be ascribed to the higher electronegativity and nephelauxetic effect of N³⁻ ion than O²⁻ ion.⁴⁷ The green-yellow emission was also observed in the AlN:Eu²⁺ phosphor prepared by carbothermal reduction method,¹⁴ where the low oxygen content was gained by adding excess carbon. When the SiC is added, the phosphors show only one emission band centered at about 470 nm. The luminescence intensity increases with the SiC content and reaches its maximum at x = 0.20. The decrease of luminescence intensity with higher SiC content should be caused by the existence of impurity phases and incomplete solid-solution of SiC into the AlN matrix (see Fig. 3(a)).

Fig. 6 Excitation (λ_em = 470 nm) and emission spectra (λ_ex = 330 nm) of (SiC)_x–(AlN)_1−x:0.006Eu²⁺ (x = 0, 0.06, 0.11, 0.20, 0.33 and 0.50).

Fig. 7 exhibits the emission spectra of several (SiC)_0.20–(AlN)_0.80:yEu²⁺ (y = 0.001, 0.0024, 0.0048, 0.006, 0.0072, 0.0084 and 0.01) phosphors. We can observe clearly that all the phosphors show only one emission band centered at about 470 nm under 330 nm excitation. Meanwhile, the PL intensity exhibits an enhancement initially until y = 0.006, beyond which its intensity shows a drastic decrease (see the inset of Fig. 7). The decrease should be ascribed to the concentration quenching of activator ions. The appearance of concentration quenching is caused by nonradiative energy transfer between neighboring doped Eu²⁺ ions. The critical distance R_c can be calculated by utilizing the following equation by Blasse:⁴⁸

where V is the volume of the unit cell, X_c is the critical concentration of the activator ion, and N is the number of host cations in the unit cell. For the (SiC)_0.20–(AlN)_0.80 host, V, X_c and N are 41.88 ų, 0.006 and 2, respectively. Therefore, the critical distance is calculated to be 18.82 Å, which is close to the typical value of R_c (15 Å),⁴⁹ indicating that the incorporation of Eu²⁺ ions in the SiC–AlN host should be involve substitution of the ions of the host.

Fig. 7 Emission spectra of (SiC)_0.20–(AlN)_0.80:yEu²⁺ (y = 0.001, 0.0024, 0.0048, 0.006, 0.0072, 0.0084 and 0.01) phosphors under 330 nm excitation. The inset shows the dependence of the PL intensity on the Eu²⁺ concentration.

The dependence of the highest relative emission intensity and peak position of (SiC)_x–(AlN)_1−x:yEu²⁺ phosphors on the SiC content (x value) and corresponding Eu²⁺ concentration (y value) was investigated, as shown in Fig. S4.† It can be seen that the Eu²⁺ concentration for the highest emission intensity of the phosphors increases gradually from 0.0048 to 0.0072 with the increase of x values from 0.06 to 0.50, illustrating that the solid solution of SiC with AlN improves the solubility of Eu²⁺ ions in the SiC–AlN host lattice, which is in accordance with the results of first-principles calculations (Table 1). In addition, the relative intensity rapidly increases with the increase of x values from 0.06 to 0.20 (corresponding Eu²⁺ concentration increasing from 0.0048 to 0.006), and reaches a maximum at about x = 0.20. Above this content, the relative intensity decreases seriously. The reason for the decrease can be ascribed to the impurity phases, as has been explained in Fig. 6. Meanwhile, the peak position of (SiC)_x–(AlN)_1−x:yEu²⁺ phosphors shifts slightly from 470 to 478 nm by increasing the x value up to 0.50. As can be seen from Fig. 6, the shapes of the excitation spectra remains unchanged for the SiC added phosphors, indicating that the local environment of Eu²⁺ is similar. The redshifting behavior is therefore attributed to the increased Stokes shifts with the addition of SiC.

For the application of high power LEDs, the thermal stability of phosphor is one of important issues to be considered. Temperature dependence of emission spectra for the composition-optimized (SiC)_0.20–(AlN)_0.80:0.006Eu²⁺ phosphor under excitation at 330 nm is shown in Fig. 8(a). With increasing temperature, the PL intensities decrease while the peak positions almost keep still. Fig. 8(b) shows the temperature dependence of PL intensity of (SiC)_0.20–(AlN)_0.80:0.006Eu²⁺ together with the AlN:Eu²⁺,¹³ and the commercial BaMgAl₁₀O₁₇:Eu²⁺ (BAM:Eu²⁺) phosphors. It can be observed that the thermal stability of (SiC)_0.20–(AlN)_0.80:0.006Eu²⁺ phosphor is similar to that of the AlN:Eu²⁺ phosphor, and much more obvious than that of the BAM phosphor. The intensity at 150 °C (423 K) remains at about 91.1% of the initial intensity. The activation energy (ΔE) can be expressed by eqn (5):⁵⁰

where I₀ and I_T are the luminescence intensity of (SiC)_0.20–(AlN)_0.80:0.006Eu²⁺ at room temperature and testing temperature, respectively; c is a constant; and k is the Boltzmann constant (8.617 × 10⁻⁵ eV K⁻¹). In the inset of Fig. 9(b), the relationship between ln(I₀/I_T − 1) and 1/(kT) for the (SiC)_0.20–(AlN)_0.80:0.006Eu²⁺ sample is presented. On the basis of eqn (5), ΔE is determined to be 0.18 eV. This result further confirms the good thermal stability of the prepared (SiC)_0.20–(AlN)_0.80:0.006Eu²⁺ phosphor. The CIE chromaticity diagram of (SiC)_0.20–(AlN)_0.80:0.006Eu²⁺ phosphor is exhibited in Fig. 9. The color coordinate is shown as (0.135, 0.167), which means this phosphor can be used as a blue-emitting phosphor for white LEDs application. The inset of Fig. 9 also shows the digital photograph of (SiC)_0.20–(AlN)_0.80:0.006Eu²⁺ phosphor, and its intense blue emission can be clearly observed.

Fig. 8 (a) The temperature dependence of the emission spectra of (SiC)_0.20–(AlN)_0.80:0.006Eu²⁺ excited at 330 nm. (b) Temperature dependence of PL intensity of (SiC)_0.20–(AlN)_0.80:0.006Eu²⁺ together with the AlN:Eu²⁺ phosphor¹³ and the commercial BAM:Eu²⁺. The inset shows the relationship between ln(I₀/I_T − 1) and 1/(kT) for the (SiC)_0.20–(AlN)_0.80:0.006Eu²⁺ phosphor in the measured temperature range and calculated ΔE.

Fig. 9 Color coordinates of (SiC)_0.20–(AlN)_0.80:0.006Eu²⁺ in the CIE chromaticity diagram, and the inset shows (SiC)_0.20–(AlN)_0.80:0.006Eu²⁺ under 365 nm excitation in the UV box.

4. Conclusions

In summary, we have synthesized novel blue-emitting nitride phosphors with chemical composition (SiC)_x–(AlN)_1−x:yEu²⁺ (x = 0.06–0.50, y = 0.001–0.01) via a simple, facile nitriding combustion reaction method. First-principles calculations of (SiC)_x–(AlN)_1−x:yEu²⁺ were performed to investigate the forming energies and possible doping sites of the Eu²⁺ ions in the host lattice. The results prove that the solid solution of SiC with AlN promotes the doping of Eu²⁺ ions into the (SiC)_x–(AlN)_1−x host, and Eu²⁺ ions tend to occupy Al sites of the host. The composition-optimized (SiC)_0.20–(AlN)_0.80:0.006Eu²⁺ phosphor shows broad absorption bands in the UV range, and bright blue emissions peaking at 470 nm are obtained upon 330 nm excitation. Studies of the temperature-dependent luminescence properties indicate that the composition-optimized phosphor has a small thermal quenching, retaining its luminance of 91.1% at 150 °C. The CIE coordinates are (0.135, 0.167) with high color purity. This indicates a prospective for application of the present novel phosphors in white LEDs.

Acknowledgements

This work is supported by the National Natural Science Foundation of China (51002115 and 51471124), Program for New Century Excellent Talents in University (NCET–12–0454) and Program for Young Excellent Talents in Shaanxi Province (2013KJXX–50).
