Glycogen-graft-poly(2-alkyl-2-oxazolines) – the new versatile biopolymer-based thermoresponsive macromolecular toolbox

Abstract

This study is focused on thermoresponsive glycogen-graft-poly(2-alkyl-2-oxazolines), a new group of nanostructured hybrid dendrimeric stimuli-responsive polymers connecting the body’s own biodegradable polysaccharidic dendrimer glycogen with the widely tuneable thermoresponsive behavior of polypeptide-analogic poly(2-alkyl-2-oxazolines), which are known to be biocompatible. Glycogen-graft-poly(2-alkyl-2-oxazolines) were prepared by a simple one-pot two-step procedure involving cationic ring-opening polymerization of 2-alkyl-2-oxazolines followed by termination of the living cationic ends with sodium glycogenate. As confirmed by light and X-ray scattering, as well as cryo-transmission electron microscopy, the grafted dendrimer structure allows easy adjustment of the cloud point temperature, the concentration dependence and nanostructure of the self-assembled phase separated polymer by crosstalk during graft composition, the graft length and the grafting density, in a very wide range.

---

Introduction

Glycogen (GG) is the main storage polysaccharide in animals, and is mainly contained in the liver¹ and muscles.² The average content in a human is around 100 g.³ Glycogen is a hyperbranched poly (D-glucose¹) with D-glucose units connected by α(1 → 4) bonds, and branching occurring via α(1 → 6) bonds.⁴ It is a natural biodegradable dendrimer with a small protein core (glycogenin). It has a spherical shape with a diameter of ca. 50 nm, a narrow size distribution and a weight-average molecular weight (M_w) of several MDa depending on the source organism. Biosynthesis and degradation of glycogen in humans proceeds under physiological conditions only intracellularly and the glycogen is almost inert to amylases present in the bloodstream.^1,5 This means that glycogen should only be very slowly degraded after intravenous (i.v.) administration to the bloodstream (its molecular weight is well above the renal threshold, so it cannot be directly eliminated by the kidneys without previous biodegradation), but should be rapidly degraded to D-glucose after internalization by cells. Due to these properties, it is a very promising construction nanomaterial for biomedical materials.⁶

Highly defined or so-called precision polymers have been a hot topic in recent years and are particularly interesting for biomedical applications.^7–9 Poly(2-alkyl-2-oxazolines) (POXs) are a group of such biocompatible synthetic polymers with a polypeptide-isomeric structure. They are prepared by living cationic ring-opening polymerization,^7–9 which provides excellent control over the chain length, molar mass distribution and chain-end functionality and enables preparation of well-defined block copolymers. Thanks to the versatility of the monomers and the advantageous character of cationic polymerization, the preparation of polymers with various architectures is possible and enables easy tuning of the polymer properties. POXs may be tailored to be fully hydrophilic, thermoresponsive (with a lower critical solution temperature, LCST),¹⁰ hydrophobic or fluorophilic, depending on the alkyl moiety used. Due to the living nature of the polymerization the chain length may be precisely adjusted and an appropriate choice of monomer(s), initiator and termination agent enables us to functionalize the polymer at any position in a defined way.¹¹

Hybrid copolymers comprising natural and synthetic building blocks are becoming an increasingly important class of functional materials.^12–14 They combine the sustainable environment-friendly nature, biodegradability and structure of natural polymers with the processability, tailorability and economy of synthetic polymers. These materials are homogeneous on a macroscopic scale but can be designed to undergo micro- or nanophase separation/self-assembly, which generates materials that can be useful as, inter alia, delivery systems for bioactive species or tissue engineering scaffolds.^15–17

In this paper we describe a completely new concept of biocompatible hybrid copolymers based on glycogen-graft-poly(2-alkyl-2-oxazolines). Both glycogen and POXs are biocompatible and therefore their hybrid is expected to be biocompatible. The POXs were polymerized in a living manner with the initiating alkylating agent able to choose one end of the monomer and the molecular weight adjustable by altering the initiator : monomer ratio. The living cationic end after this polymerization was used to alkylate the alcoholate of glycogen, forming the glycogen-graft-poly(2-alkyl-2-oxazolines). This easy two-step one-pot synthesis creates a conceptually new, versatile, nanostructured platform of hybrid sphere-shaped biodegradable polysaccharide dendrimer-based copolymers, with a thermoresponsive behavior that is adjustable over a wide range by variation of the POXs chain length, grafting density and reactive chain ends. Special focus is therefore given to the in vitro temperature-dependent behavior of these materials in solution. Such thermoresponsive polymers are potentially suitable as drug releasing depots, self-organized nanostructured tissue engineering scaffolds or materials for injectable brachytherapy, where widely adjustable properties, temperature-responsivity, biodegradability and biocompatibility are advantageous.^15,18

Materials and methods

Materials

2-Butyl-2-oxazoline and 2-isopropyl-2-oxazoline were prepared according to ref. 19. Diethyl ether and sodium chloride were purchased from Lachner Ltd. (Neratovice, Czech Republic), all other chemicals were purchased from Sigma-Aldrich Ltd. (Prague, Czech Republic). The chemicals were used as provided unless stated otherwise.

Methods

Preparation of glycogen-graft-poly-(2-isopropyl-2-oxazoline), theoretical molecular weight of POX grafts M_n,graft ≈ 500 Da (see Table 1). The starting mixture contained 2-isopropyl-2-oxazoline (3.333 mL, 28.0 mmol) and allyl bromide (0.595 mL, 6.9 mmol). The starting mixture was mixed with anhydrous acetonitrile (5 mL) and the solution was polymerized overnight at 70 °C under an argon atmosphere.

Glycogen (type II from oysters, 3.5 g) was dissolved in anhydrous dimethyl sulfoxide (50.5 mL) and the solution was azeotropically dried using the addition (10 mL) and subsequent evaporation of anhydrous toluene. Sodium hydride (1.4 g of a 60% dispersion in mineral oil, 35 mmol) was added to the glycogen solution and the mixture was stirred at 70 °C until hydrogen gas evolved (ca. 2 h). The glycogen containing solution was split into dry flasks [30 g (GG-PIPO1, GG-PIPO21 and GG-PIBO1), 20 g (GG-PIPO2, GG-PIPO22 and GG-PIBO2) or 10 g (GG-PIPO3, GG-PIPO23 and GG-PIBO3), respectively] and the polyoxazoline polymerization mixture was added [1.17 g (GG-PIPO1, GG-PIPO21 and GG-PIBO1), 2.33 g (GG-PIPO2, GG-PIPO22 and GG-PIBO2) or 3.50 g (GG-PIPO3, GG-PIPO23 and GG-PIBO3), respectively]. Each resulting mixture was stirred for 3 h at 70 °C. Water (5 mL) was added, the solution was twice washed of the mineral oil using diethyl ether and then the aqueous layer was dialyzed against water for 72 h (molecular weight cut-off 6800, to remove unbound POX and other components from the reaction mixture) and freeze dried.

According to this procedure, we prepared three groups of glycogen-graft-polyoxazolines with different polyoxazoline graft properties, with three polymers in each group that varied in their theoretical content of polyoxazoline.

Yields: 670 mg (29%) of GG-PIPO1, 640 mg (27%) of GG-PIPO2 and 440 mg (19%) of GG-PIPO3. N: 1.09% (GG-PIPO1), 2.91% (GG-PIPO2) and 4.64% (GG-PIPO3). ¹H-NMR (300 MHz, D₂O), δ (ppm): 5.9 (m, POX: CH₂=CH–), 5.4 (s, glucose: H1), 5.3–5.0 (m, POX: CH₂=CH–), 4.1–3.5 (m, glucose: H2–H6, POX: –CH₂–), 2.9–2.7 (d, POX: –CH–(CH₃)₂), 1.1 (d, POX: –CH–(CH₃)₂).

The content of polyoxazoline w_ox (m/m) was calculated according to eqn (1):

where w_N is the content of nitrogen in the sample and w_N,ox is the calculated content of nitrogen in the polyoxazoline graft.

The content of polyoxazoline was found to be 10% (GG-PIPO1), 26% (GG-PIPO2) and 41% (GG-PIPO3).

Preparation of glycogen-graft-poly-(2-isopropyl-2-oxazoline), M_{n,theoretical} (POX) ≈ 5000 Da. See the Preparation of glycogen-graft-poly-(2-isopropyl-2-oxazoline), theoretical molecular weight of POX grafts M_n,graft ≈ 500 Da for the general procedure. Here, the starting mixture contained 2-isopropyl-2-oxazoline (4.110 mL, 34.6 mmol) and allyl bromide (68.1 μL, 0.8 mmol).

Yields: 1230 mg (53%) of GG-PIPO21, 1110 mg (48%) of GG-PIPO22 and 1270 mg (55%) of GG-PIPO23. N: 3.18% (GG-PIPO21), 5.39% (GG-PIPO22) and 7.96% (GG-PIPO23). ¹H-NMR (300 MHz, D₂O), δ (ppm): 5.4 (s, glucose: H1), 4.1–3.5 (m, glucose: H2–H6, POX: –CH₂–), 2.9–2.7 (d, POX: –CH–(CH₃)₂), 1.1 (d, POX: –CH–(CH₃)₂).

The content of polyoxazoline (m/m) was calculated according to eqn (1) and was found to be 25% (GG-PIPO21), 44% (GG-PIPO22) and 64% (GG-PIPO23).

Preparation of glycogen-graft-poly-(2-isopropyl-2-oxazoline-co-2-butyl-2-oxazoline), M_{n,theoretical} (POX) ≈ 2500 Da. See the Preparation of glycogen-graft-poly-(2-isopropyl-2-oxazoline), theoretical molecular weight of POX grafts M_n,graft ≈ 500 Da for the general procedure. Here, the starting mixture contained 2-isopropyl-2-oxazoline (3.111 mL, 27.5 mmol), 2-butyl-2-oxazoline (0.794 g, 6.3 mmol) and allyl bromide (124 μL, 1.6 mmol).

Yields: 1700 mg (73%) of GG-PIBO1, 900 mg (39%) of GG-PIBO2 and 600 mg (26%) of GG-PIBO3. N: 0.71% (GG-PIBO1), 3.52% (GG-PIBO2) and 5.32% (GG-PIBO3). ¹H-NMR (300 MHz, D₂O), δ (ppm): 5.4 (s, glucose: H1), 4.1–3.5 (m, glucose: H2–H6, POX: –CH₂–), 2.9–2.7 (d, POX: –CH–(CH₃)₂), 2.4 (t, POX: –CH₂–CH₂–CH₂–CH₃), 1.5 (m, POX: –CH₂–CH₂–CH₂–CH₃), 1.3 (m, POX: –CH₂–CH₂–CH₂–CH₃), 1.1 (d, POX: –CH–(CH₃)₂), 0.9 (t, POX: –CH₂–CH₂–CH₂–CH₃).

The content of polyoxazoline (m/m) was calculated according to eqn (1) and was found to be 6% (GG-PIBO1), 29% (GG-PIBO2) and 44% (GG-PIBO3).

The number-average (M_n) molecular weight of the graft was determined by gel permeation chromatography²⁰ of the polymerization mixture before the addition to glycogen and was found to be 428 Da for poly-(2-isopropyl-2-oxazoline) with M_{n,theoretical} = 500 Da, 5400 Da for poly-(2-isopropyl-2-oxazoline) with M_{n,theoretical} = 5000 Da and 2400 Da for poly-(2-isopropyl-2-oxazoline-co-2-butyl-2-oxazoline) with M_{n,theoretical} = 2500 Da, with the polydispersity I = M_w/M_n ∼ 1.2 in all cases. The absolute molecular weight distribution was calculated from a chromatogram by combination of the refraction index and multiangle light scattering (MALS) detector signals using Wyatt Technology ASTRA® 6 software (Wyatt Technology Co., Santa Barbara, CA, U.S.A.).

Cloud point temperature measurement. The cloud point temperature (CPT) was determined optically as the increase in turbidity (onset temperature of macroscopic phase separation) of the polymer solution of a given concentration in physiological saline solution.

Dynamic light scattering (DLS). The particle size distribution in solution was measured on an ALV instrument equipped with a 22 mW He–Ne laser at an angle of 90°. The correlation functions were analyzed by REPES, with analytical software²¹ providing the distribution function of the hydrodynamic radii, G(R_h). To account for the logarithmic scale on the R_h axis, all DLS distribution diagrams are shown in the equal area representation,²²R_hG(R_h). In all experiments, about 2 mL (c = 1.0 wt%) of the sample solution was filtered using a 0.22 μm PVDF filter and transferred to a sealed dust-free light-scattering cell. The temperature was controlled within 0.05 °C. The hydrodynamic radius of the nanoparticles, R_h, was calculated using the Stokes–Einstein equation.

Cloud point temperatures (CPTs) for each particular concentration in water, in addition to the CPT in physiological saline solution, were determined from the temperature dependences of the particle hydrodynamic radius, R_h, and the scattering intensity, I_s, that were measured at the scattering angle θ = 173° on a Zetasizer Nano-ZS, Model ZEN3600 (Malvern Instruments, UK). The DTS (Nano) program was used for data evaluation.

Small angle X-ray scattering (SAXS). Synchrotron SAXS experiments were performed on the EMBL beam line P12 (Petra III, Hamburg, Germany) using a pixel detector (2M PILATUS). The X-ray scattering images were recorded for a sample–detector distance of 3.1 m, using a monochromatic incident X-ray beam (λ = 0.125 nm) covering the range of momentum transfer 0.05 nm⁻¹ < q < 4.5 nm⁻¹ (q = 4π sin θ/λ, where 2θ is the scattering angle). Most of the samples had no detected measurable radiation damage, by comparison of twenty successive time frames with 50 ms exposures. In all of the cases reported in this paper, the two-dimensional scattering patterns were isotropic. They were azimuthally averaged to yield the dependence of the scattered intensity I_s(q) on the momentum transfer q. Prior to fitting analysis, the solvent scattering was subtracted.

All data manipulations were performed using PRIMUS software. The forward scattering I_s(q = 0), and the radius of gyration R_g were evaluated using the Guinier approximation. For further modeling, the data was brought to absolute scale by subtracting an empty cell measurement from a pure water measurement, and scaling by the ratio of the theoretical forward scattering of water and the experimental forward scattering intensity of water.

Isothermal titration calorimetry. Experiments were carried out using the isothermal titration calorimeter MicroCal ITC200 (GE Healthcare, USA). Glycogen solutions (0.14 μM) and GG-PIPO solutions (0.1 μM) in the calorimeter cell were titrated with bovine serum albumin (BSA) solution (15 μM) using 20 successive automatic injections of 2 μL each. The integration of the peak corresponding to each injection and correction for the baseline were carried out using Origin-based software provided by the manufacturer. A blank experiment, BSA titration of water, was also performed.

Transmission electron microscopy. Transmission electron microscopy (TEM) was performed on a FEI Titan microscope equipped with an aberration corrector and EDAX X-ray spectrometer, operated at 80 kV acceleration voltage. The polymer was stained with uranium salts to increase TEM contrast.

Results and discussion

All polymers were prepared by the cationic ring opening polymerization of 2-alkyl-2-oxazoline monomers using allyl bromide as the initiator. Using allyl bromide introduces a double bond at the chain end distant from glycogen, which allows further functionalization by, e.g., thiol-click chemistry or radical crosslinking/copolymerization. The living ends were terminated with sodium glycogenate. This procedure is illustrated in Fig. 1.

Fig. 1 The structure of natural glycogen and the general synthetic procedure for the glycogen-graft-poly(2-alkyl-2-oxazolines).

We successfully synthesized two groups of glycogen-graft-poly(2-isopropyl-2-oxazoline) polymers, which varied in the molar mass of the polyoxazoline graft (500 Da for GG-PIPO1, GG-PIPO2 and GG-PIPO3 and 5000 Da for GG-PIPO21, GG-PIPO22, GG-PIPO23, respectively), with three products in each group that varied in their POX content. This allowed us to follow the solution behavior as a function of temperature in the context of both graft length and the weight fraction of thermoresponsive polymer in the hybrid graft copolymer (theoretical content of thermoresponsive polymer 25 wt% for GG-PIPO1, GG-PIPO21 and GG-PIBO1, 50 wt% for GG-PIPO2, GG-PIPO22 and GG-PIBO2 and 75% for GG-PIPO3, GG-PIPO23 and GG-PIBO3). We characterized the polymers using ¹H NMR spectroscopy (confirming the formation of the hybrid), elemental analysis (CHN), TEM, small angle X-ray scattering (SAXS) and dynamic light scattering (DLS). We also prepared three glycogen-graft-poly(2-isopropyl-2-oxazoline-co-2-butyl-2-oxazolines) (GG-PIBO1, GG-PIBO2 and GG-PIBO3), where the 2-butyl-2-oxazoline hydrophobic moiety decreases the CPT below body temperature (37 °C), which is essential for future use in biomedical applications. An overview of the prepared polymers is shown in Table 1.

Table 1 The theoretical and experimentally found compositions of the graft copolymers; M_n,graft – molecular weight of the POX grafts, w_POX – weight fraction of POX in the hybrid copolymer

Full name	Theoretical (found) Mn,graft	Theoretical (found) wOX	Abbreviation
Glycogen-graft-poly-(isopropyloxazoline)	500 (428)	25% (10%)	GG-PIPO1
		50% (26%)	GG-PIPO2
		75% (41%)	GG-PIPO3
Glycogen-graft-poly-(isopropyloxazoline)	5000 (5400)	25% (25%)	GG-PIPO21
		50% (44%)	GG-PIPO22
		75% (64%)	GG-PIPO23
Glycogen-graft-poly-(isopropyloxazoline- co-butyloxazoline)	2500 (2400)	25% (6%)	GG-PIBO1
		50% (29%)	GG-PIBO2
		75% (44%)	GG-PIBO3

---

We calculated the obtained content of polyoxazoline using the elemental analysis of nitrogen, because glycogen contains almost no nitrogen (less than 0.1 wt%, glycogenin primer may be neglected) while the POX grafts contain a high amount of nitrogen. The grafts with M_{n,theoretical} = 5000 Da gave POX contents that were only slightly lower than the theoretical value – 25 wt% for GG-PIPO21, 44 wt% for GG-PIPO22 and 64 wt% for GG-PIPO23, the corresponding theoretical values are 25%, 50% and 75%, which shows a high grafting efficiency. In contrast to this, with the lower-molecular-weight grafts of M_{n,theoretical} = 500, the grafting yields were lower – 10% for GG-PIPO1, 26% for GG-PIPO2 and 41% for GG-PIPO3, the corresponding theoretical values are again 25%, 50% and 75%. This apparent paradox that smaller grafts offer lower grafting yields may be explained by the limited sterical accessibility of the D-glucose hydroxyl groups towards alkylation. There is obviously a limit in the number of chains per D-glucose unit; for grafts with M_{n,theoretical} = 500 the value of the POX content of 41 wt% (GG-PIPO3) means one graft per 4.44 D-glucose units, while for grafts with M_{n,theoretical} = 5000 the value of 64 wt% (GG-PIPO23) means one graft per 17.34 D-glucose units. To exclude the possibility of contamination of the hybrid copolymer with POX grafts unbound to glycogen, the solutions were dialysed using a membrane with a cutoff of 6800 Da, which is well above the molecular weight of the polymer grafts.

The limited conformational mobility and therefore also the sterical accessibility of the D-glucose units inside the hyperbranched coil was also confirmed by ¹H NMR, where the signals of the polysaccharide part are broad, which is especially obvious for the acetal hydrogen signal at 5.4 ppm (see Fig. 2 for spectra). Unfortunately this broadening makes a quantitative evaluation (integration of the ¹H NMR spectra) difficult in our case.

Fig. 2 ¹H NMR spectra of glycogen and of the glycogen-graft-poly(2-isopropyl-2-oxazoline) GG-PIPO3.

However, the POX grafts are probably not only on the surface of the glycogen unimolecular nanoparticle, as proven by TEM (see Fig. 3). One can clearly see that while below the cloud point temperature (Fig. 3a) the size of the spherical particles is ca. 70 nm, above the CPT the size of the particles in the aggregates is roughly around 17 nm (Fig. 3b), i.e. well below even the size of native unmodified glycogen (53.4 ± 0.2 nm); even the nanoparticle core must therefore shrink upon coil-to-globule transition and must be POX-modified. There is also visible phase separation and aggregation into a nanostructured material above the CPT (see Fig. 3).

Fig. 3 TEM image of a solution of polymer GG-PIBO3 in 0.9% aqueous NaCl at 20 °C ((a), below LCST) and at 37 °C ((b), body temperature). The small diffuse entities visible across the background are uranium salt particles.

We measured CPT as a function of the concentration in solution to obtain a complete phase diagram for the polymer solution (Fig. 4).

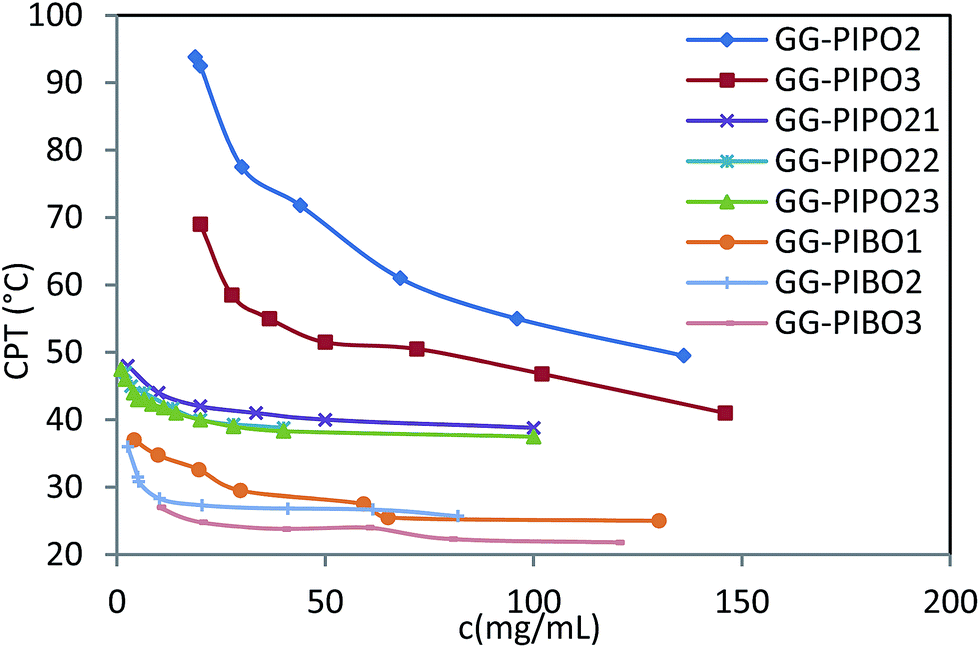

Fig. 4 Cloud point temperature (CPT) of the thermoresponsive GG-graft-polyoxazoline solutions in 0.9% NaCl as a function of concentration (c). Results for GG-PIPO1 are not displayed (as the CPT was not observed between 25 and 90 °C for polymer concentrations of 10–100 mg mL⁻¹).

As expected, the CPT of all of the glycogen-graft-poly(2-alkyl-2-oxazolines) (Fig. 4) rises with decreasing concentration, content of polyoxazoline, molar mass of the polyoxazoline graft and hydrophobicity of the alkyl groups.

The most significant influence on the CPT is from the graft length. For the shorter grafts [M_{n,theoretical} = 500, i.e. 4.42-mer for poly(2-isopropyl-2-oxazoline)], increasing the content of polymer graft significantly decreases the CPT (GG-PIPO1 (where CPT > 90 °C for any concentration) >GG-PIPO2 > GG-PIPO3). There is also a strong concentration dependence of the CPT for the graft copolymers with shorter grafts (the GG-PIPO polymers), which is strongest for the polymer with a lower POX content (GG-PIPO2). This is consistent with our previous observation²⁰ of multiblock poly(2-oxazolines), that for shorter chains, the total hydrophobicity of the molecule plays a more significant role than the cloud point temperature of POX itself, and the possibility of the POX chains getting close to each other (concentration dependence, content of POX in polymer) is obviously a key factor. This is also supported by the fact that for longer grafts [M_{n,theoretical} = 5000, i.e. 44.2-mer for poly(2-isopropyl-2-oxazoline)] both the effects of the polymer concentration in solution and the POX content in the graft copolymer are very low, much smaller than in the case of shorter grafts.

Copolymerization with the more hydrophobic comonomer 2-butyl-2-oxazoline (GG-PIBO1, GG-PIBO2 and GG-PIBO3) shifts the CPT to lower temperatures, which is consist with other poly(2-isopropyl-2-oxazoline) systems, to the desired region between room and body temperature that is useful for further biomedicinal applications. The trends in the concentration and POX content dependences of the CPT however remain the same for the POX copolymer graft polymer as for the poly(2-isopropyl-2-oxazoline) graft polymer. The 2400 Da grafts in the GG-PIBO polymers seem to be more similar in their influence on the CPT concentration dependence trends to the 5400 grafts in the GG-PIPO polymers than to the 428 Da grafts in the GG-PIPO polymers.

The solution properties of the solutions of glycogen conjugates in water were determined by DLS. Intensity weighted distribution functions for the solution of the G-PIPO21 conjugate (Fig. 5) show that the conjugate, with a R_h of 30 nm at 25 °C, has thermosensitive properties. The PIPO21 is shrinking with increasing temperature and this is manifested as a decrease in R_h, consistent with the cryo-TEM images (Fig. 3a and b). The decrease in the R_h values occurs for two reasons. The first reason is a coil-to-globule transition of the PIPO chains on the glycogen surface. The second reason is a finite concentration of the solutions. At c = 1.0 wt%, DLS measurements provide an apparent value of R_h, which is controlled by a k_D parameter – the concentration diffusion coefficient. It was shown²³ that in dilute solutions, the k_D parameter is related to the second viral coefficient A₂ and molecular weight M_w by the equation

k_D = 2A₂M_w − k_f − [small nu, Greek, macron]

here k_f and [small nu, Greek, macron] are the concentration friction coefficient and partial specific volume, respectively. In contrast to A₂, k_f is always positive. Therefore, in general, the case sign of k_D is determined by all three parameters – M_w, A₂ and k_f (the partial specific volume value can be neglected). At 45 °C, a new peak with a much higher R_h value starts to be dominant in the intensity weighted distribution function, implying the existence of large aggregates in solution, which corresponds to a phase-separated polymer.

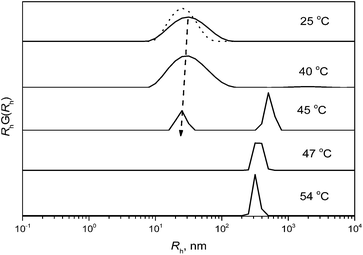

Fig. 5 The intensity weighted distribution function of the nanoparticles, obtained from DLS data for GG-PIPO21 at different temperatures; θ = 90°; polymer concentration (c) = 1.0 wt%. The dotted line represents unmodified glycogen.

To find the precise position of the CPT for each concentration, the dependence of the R_h and intensity was monitored as a function of temperature (Fig. 6 and 7). For polymers GG-PIPO1, GG-PIPO2 and GG-PIPO3, no divergence was observed as a function of temperature (Fig. 6).

Fig. 6 The temperature dependence of the R_h values obtained from the intensity weighted distribution functions for GG-PIPO1, GG-PIPO2, and GG-PIPO3; polymer concentration (c) = 1.0 wt%.

Fig. 7 The temperature dependence of the R_h values obtained from intensity weighted distribution functions for GG-PIPO21, GG-PIPO22, and GG-PIPO23; polymer concentration (c) = 1.0 wt%.

The lack of a cloud point temperature in the R_h temperature dependence results of GG-PIPO1, GG-PIPO2, and GG-PIPO3 (Fig. 6) results from a low concentration of the polymer solution (however, at higher concentrations a CPT exists, except for the most hydrophilic species PIPO1 (see Fig. 4)). In these cases the CPT is expected to be above 95 °C.

In contrast, for GG-PIPO21, GG-PIPO22 and GG-PIPO23, both the R_h and the intensity show divergence at a specific point that corresponds to the CPT (Fig. 7). It can be observed that with increasing temperature, large aggregates occur in the solution above the CPT. Such aggregates were witnessed by TEM, where entities with a size above 100 nm were present in the solution (Fig. 3B).

Next, the detailed structures of the modified and non-modified glycogens were investigated by SAXS. SAXS techniques have served as a powerful tool for analysing nanoparticle structures and suspensions of both concentrated and dilute polymer solutions.^24–26

All samples were measured at three temperatures: 25 °C, 35 °C, and 45 °C at a concentration of 1.0 wt% (Fig. 8A and B and Table 2). Predictably, no changes were observed for the unmodified glycogen with increasing temperature. The scattering profiles of the solutions of glycogen conjugates GG-PIPO1, GG-PIPO2, and GG-PIPO3 also show no temperature sensitivity at c = 1.0%, which is in agreement with DLS data (Fig. 8).

Fig. 8 SAXS curves for solutions of non-modified glycogen (A) and GG-PIPO1 (B), taken at T = 25, 35, and 45 °C; c = 1.0 wt%.

Table 2 The fitting parameters from SAXS at 25 °C (45 °C)^a

Sample	Oyster GG	GG-PIPO1	GG-PIPO2	GG-PIPO3	GG-PIPO21	GG-PIPO22	GG-PIPO23
a The bold values show the growth of the glycogen with modification.
R g, nm	13.6 (13.6)	11.9 (11.9)	12.0 (12.0)	12.2 (12.1)	11.7 (11.7)	12.3 (12.3)	12.7 (12.7)
α	0.48 (0.52)	0.27 (0.33)	0.33 (0.39)	0.22 (0.25)	0.24 (0.28)	0.79 (0.83)	0.31 (0.93)
ε	15.4 (15.4)	14.6 (14.9)	17.9 (18.1)	15.7 (15.6)	14.1 (14.7)	22.1 (22.4)	27.0 (30.6)
ν	0.36 (0.36)	0.39 (0.39)	0.39 (0.39)	0.39 (0.38)	0.37 (0.38)	0.37 (0.37)	0.41 (0.37)

---

Since glycogen has a hyperbranched structure, a Dozier model²⁷ was used to fit the scattering data of the oyster glycogen and its conjugates (Fig. 9).

Fig. 9 The structure of a Dozier star polymer.

For a star polymer Dozier developed a scattering function:

This model fitting provided the gyration radius (R_g), excluded volume parameter (ν), and scattered intensity extrapolated to zero q (Table 2). The excluded volume parameter ν varies in the range 0.33–1.0. The value of ν of 0.5 stands for the theta-solvent. α in this model is a scale parameter for the fractal term; ε is an exponential damping length in the mass fractal.

SAXS experiments indicate the conformation changes of the conjugates due to modification (Fig. 10, Table 1). Non-modified glycogen has the lowest polydispersity as could be witnessed by the presence of the second maximum on the scattering curve (Fig. 8A and B and Fig. 11). Another feature could be also noted: a substantial decrease with modification in the scattered intensity extrapolated to zero q (Fig. 10). We can assume that chemical modification distorts the spherical structure of non-modified glycogen. The R_g value increases with increasing grafting density in the series GG-PIPO1–GG-PIPO3 and GG-PIPO21–GG-PIPO23 (Table 2). This proves the successfulness of the modification. The exponential damping length value shows that the most significant changes with temperature occur for the GG-PIPO23 conjugate. For GG-PIPO23 (Fig. 11), the presence of large particles was also visible at a low q range. Such findings indicate the onset of aggregation at temperatures near the CPT. To conclude, the SAXS data support the successful chemical modification of glycogen. The size of the glycogen grows with an increase in the length and grafting density of the polyoxazoline. Nevertheless, only the sample with the highest PIPO grafting density and graft length (GG-PIPO23) revealed thermosensitivity, since the SAXS experiments were conducted within a smaller temperature range than for the the DLS.

Fig. 10 SAXS curves for the solutions of glycogen and glycogen conjugates at T = 25 °C (A) and T = 45 °C (B); c = 1.0 wt%.

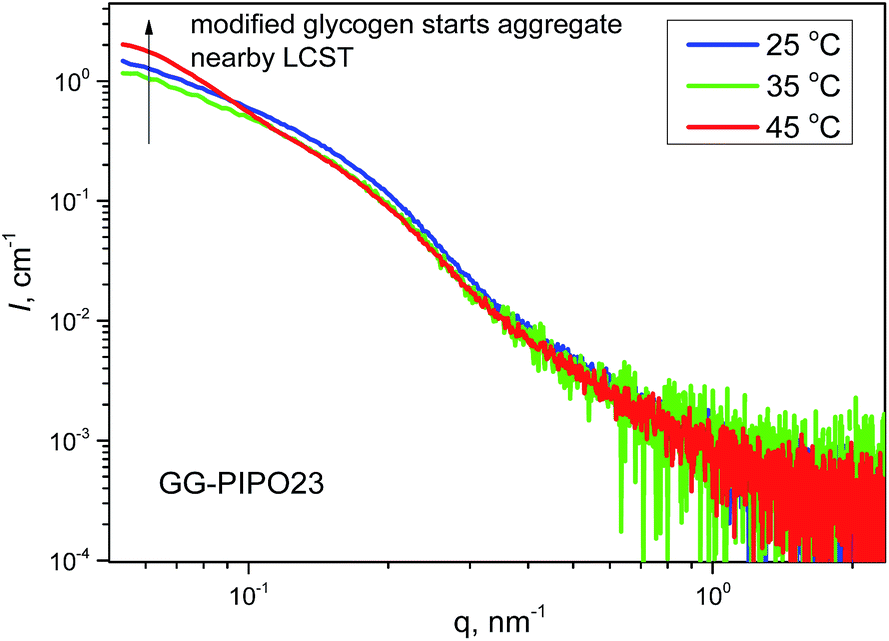

Fig. 11 SAXS curves for solutions of GG-PIPO23, taken at different temperatures; c = 1.0 wt%. The solid lines are fitted lines.

In the ITC experiment, a BSA solution was titrated into PBS buffer (Fig. 12). All integrated curves have the same behavior which shows that there are no interactions between BSA and the glycogens (the drop at molar ratio 2 is due to the heat of dilution of BSA).

Fig. 12 Isothermal titration calorimetry of PBS (blank) and a GG-PIPO22 solution in PBS.

Non-interaction with blood proteins is one of the prerequisites of biocompatibility for polymers to be used in solution, so we can expect a biocompatibility of the studied hybrid copolymers in this case.

In our previous work, we studied different thermoresponsive nanoparticle-forming poly[2-methyl-2-oxazoline-block-(2-isopropyl-2-oxazoline-co-2-butyl-2-oxazoline)-block-2-methyl-2-oxazoline]²⁰ ABA triblock copolymers as well as Pluronic F127 surfactant-stabilized poly(2-isopropyl-2-oxazoline-co-2-butyl-2-oxazoline) nanoparticles and free poly(2-isopropyl-2-oxazoline-co-2-butyl-2-oxazoline).²⁸ These are systems with the same thermoresponsive part but a different hydrophilic part and general polymer architecture. When compared to the system described in this paper, glycogen has less influence on the overall thermoresponsive behavior of the thermoresponsive grafts than the poly(2-methyl-2-oxazoline) block in the ABA triblock copolymers has if the thermoresponsive grafts are at least 2.5 kDa long. In this case, such a system is closer in its temperature-dependent solution behavior to the surfactant-stabilized nanoparticles or to free poly(2-isopropyl-2-oxazoline-co-2-butyl-2-oxazoline) than to the ABA triblock copolymers. On the other hand, for the shorter 500 Da grafts, the overall hydrophobicity/hydrophilicity of the whole system including glycogen plays a crucial role, as for the ABA triblock copolymers.

Conclusions

We describe a new platform of hybrid graft copolymers, glycogen-graft-thermoresponsive polyoxazoline. These polymers are easy-to-prepare and relatively inexpensive. The properties of these compounds can be easily modified by changes in the composition, molar mass and the content of polyoxazoline grafts. It was proven that all of the synthesized glycogen conjugates, except for the most hydrophilic conjugate PIPO1, possess a cloud point temperature. By simple variation of the polyoxazoline molecular weight, the solution properties including the LCST value could be easily tuned in a broad temperature range providing an ideal tool for the creation of thermosensitive polymers. The structure of the glycogen conjugate was described using a Dozier star model. The R_g value increases with increasing of the grafting density for the series GG-PIPO1–GG-PIPO3 and GG-PIPO21–GG-PIPO23, which proves the successfulness of the grafting.
