Metal-free n-Et₄NBr-catalyzed radical cyclization of disulfides and alkynes leading to benzothiophenes under mild conditions

Abstract

A novel n-Et₄NBr-catalyzed method for the synthesis of benzothiophene derivatives via cascade reactions of substituted disulfides with alkynes through S–S bond cleavage and alkenyl radical cyclization reactions has been developed. The reaction has a high functional-group tolerance. The new method is environmental and practical, and the starting materials are readily available. These advantages, relative to previous methods, provide an opportunity for the construction of diverse and useful benzothiophene motifs.

---

Introduction

Heterocycles widely occur in natural products and biologically active molecules. Especially, they have often been assigned as privileged structures in drug development. Consequently, developing new, versatile and efficient approaches for the synthesis of heterocycles is of high ongoing interest. Benzothiophene derivatives are important heterocycles which have attracted much attention for their frequent occurrence in natural products and their wide range of biological and physiological activities¹ and are also widespread in material chemistry.² For example, they are often used as antimitotic,³ antifungal agents (1)⁴ and they are also found in numerous clinically important drugs, such as clopidogrel,⁵ zileuton,⁶ arzoxifene⁷ and raloxifene⁸ (Scheme 1). Thus, development of novel and efficient methods for the synthesis of these compounds will be valuable for the screening of novel biologically active molecules. However, investigations on the synthetic methods for the formation of benzothiophene motifs are rather limited.⁹ The conventional methods for the synthesis of these important compounds typically involve two approaches. One is the electrophilic cyclization of o-alkynyl thioanisole.¹⁰ The second approach mainly involves transition-metal catalyzed or strong base enhanced cyclization of o-haloalkynylbenzenes with various thiol surrogates.¹¹ Despite some great advantages of these reactions, there are still certain limitations including harsh reaction conditions, the uneasily available precursors and metal salt catalytic conditions. In 1973, Undheim and Lie attempted the direct conversion of thiophenols and alkynes to benzothiophene motifs under metal-free conditions, unfortunately, long time (5–22 days) were required, and the resulting yields were low.¹² Very recently, Li and co-workers developed an elegant work for the synthesis of benzothiophenes via intermolecular oxidative cyclization between thiophenols and alkynes using Mn(OAc)₂ as the catalyst.¹³

Scheme 1 Popular drugs containing the benzothiophene motif.

Disulfides are very stable in air and easily prepared from readily available thiols.¹⁴ Recently, using disulfides as the starting materials to construct sulfur-based compounds via S–S bond cleavage have caught considerable attention.¹⁵ Moreover, there are increasing demands for metal-free reactions owing to trace-metal impurities can be avoided in the end products.¹⁶ In particular, direct and straightforward formation of various functional groups from inert C–H bonds meets the requirement of atom-economy and has emerged as a powerful tool for organic synthesis.¹⁷ In this respect, lots of examples of direct sp² C–H functionalization via the radical pathway for the synthesis of heterocycles have been significantly disclosed by us¹⁸ and other research groups.¹⁹ Herein, we report a simple and practical metal-free approach to benzothiophenes via alkenyl radical cyclization reactions under mild conditions (eqn (1)).

Results and discussion

We first chose 1,2-diphenyldisulfane 1a and dimethyl but-2-ynedioate 2a as the model substrates to optimize the catalysis conditions, which include oxidants, catalysts and solvents under nitrogen atmosphere. As shown in Table 1, several oxidants, PhI(OAc)₂, O₂, TBHP, H₂O₂ and K₂S₂O₈ (10 mol% catalytic amount relative to 1,2-diphenyldisulfane) were tested in DCE (entries 1–5) by using TEAB as the catalyst, and K₂S₂O₈ was the most effective oxidant. We attempted to use different catalysts, and TEAB was a suitable catalyst (entries 5–9 and 15). The effect of solvents (DCE, toluene, CH₃CN, 1,4-dioxane) was also investigated (entries 5, 10–12), DCE provided the highest yield. Reaction temperature was also investigated, and the yield of the target product reached maximum at 90 °C. After the optimization process for catalysts, oxidants, solvent and temperature, the following cyclization reactions were performed under our standard conditions: 10 mol% TEAB as the catalyst, 2.2 equiv. of K₂S₂O₈ as the oxidant and DCE as the solvent at 90 °C under nitrogen atmosphere.

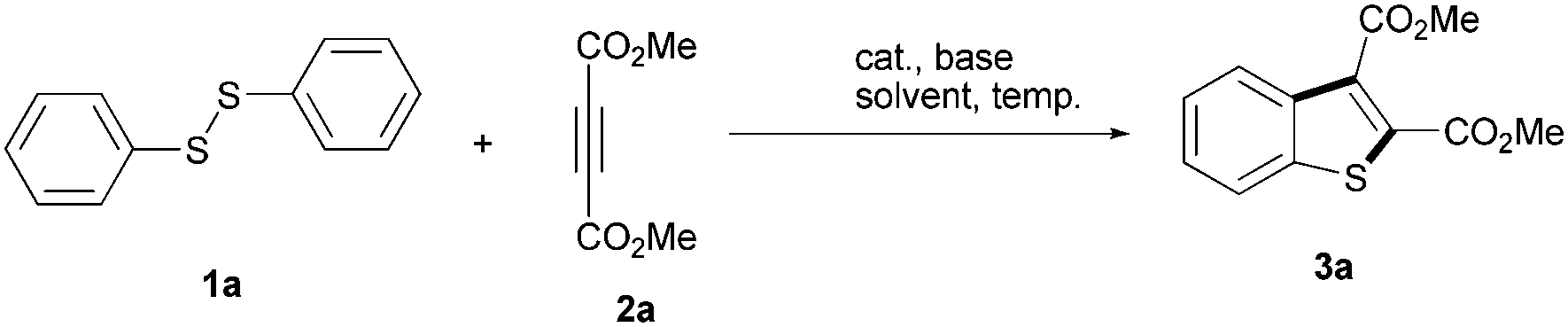

Table 1 Optimization of the reaction conditions^a

Entry	Catalyst	Oxidant	Solvent	Yield^b (%)
a Reaction conditions: under nitrogen atmosphere, 1a (0.5 mmol), 2a (1.7 mmol.), catalyst (0.05 mmol), oxidant (2.2 equiv.), solvent (1.5 mL), 90 °C and reaction time (24 h). TBAC = (n-Bu)4NCl; TBAB = (n-Bu)4NBr; TBAI = (n-Bu)4NI; TEAB = Et4NBr; TBHP = tert-butyl hydroperoxide solution 5.5 M in decane; DCE = 1,2-dichloroethane.b Isolated yield (based on the amount of 1a).c 50 °C.d 60 °C.e 80 °C.
1	TEAB	PhI(OAc)2	DCE	15
2	TEAB	O2	DCE	Trace
3	TEAB	TBHP	DCE	25
4	TEAB	H2O2	DCE	33
5	TEAB	K2S2O8	DCE	88
6	TBAB	K2S2O8	DCE	80
7	TBAI	K2S2O8	DCE	58
8	TBAC	K2S2O8	DCE	55
9	I2	K2S2O8	DCE	0
10	TEAB	K2S2O8	CH3CN	45
11	TEAB	K2S2O8	Toluene	40
12	TEAB	K2S2O8	1,4-Dioxane	38
13	TEAB	K2S2O8	DCE	40^c
14	TEAB	K2S2O8	DCE	62^d
15	TEAB	K2S2O8	DCE	81^e
16	None	K2S2O8	DCE	Trace

---

The scope of TEAB-catalyzed cascade reactions of the substituted disulfides with alkynes was investigated under the optimized conditions. As shown in Table 2, the radical cyclization reactions could be performed for all the substrates examined, and the desired benzothiophene derivatives were obtained in good isolated yields. For substituted disulfides the substrates containing electron-donating groups exhibited higher reactivity than the others (products 3c, 3d, 3e, 3f, 3s, 3t, 3u and 3v). For different alkynes, including symmetric or unsymmetrical alkynes their reactivity did not show obviously difference (products 3a–3r, 3s–3v), unfortunately, terminal alkyne, 1,2-diarylethyne and 1,2-dialkylethyne were the poor substrates in this transformation (products 3w–3z). As expected, meta-substituted substrates gave a mixture of two regioselective products (products 3m/3m′ and 3n/3n′), which suggested that the existence of possible steric hindrance arising from the presence of a meta-substituent “COOMe” (see Table 2, 3m′ and 3m′). Besides that, the more stability of intermediate C of 3m′ and 3n′ as shown in Scheme 5 can not be excluded. The metal-free TEAB-catalyzed radical cyclization reactions could tolerate some functional groups including esters (products 3a–3v), ethers (products 3c, 3d, 3m, 3o and 3t), C–Cl bond (products 3e, 3f and 3g) and C–Br bond (products 3q and 3r), which could be used for further modifications at the substituted positions. The structure of 3b was unambiguously confirmed by X-ray crystallographic analysis (Fig. 1) (see ESI for details†). Interestingly, treatment of benzenethiol (4a) with dimethyl but-2-ynedioate (2a) under the optimized conditions produced dimethyl benzo[b]thiophene-2,3-dicarboxylate (3a) in a moderate yield (Scheme 2).

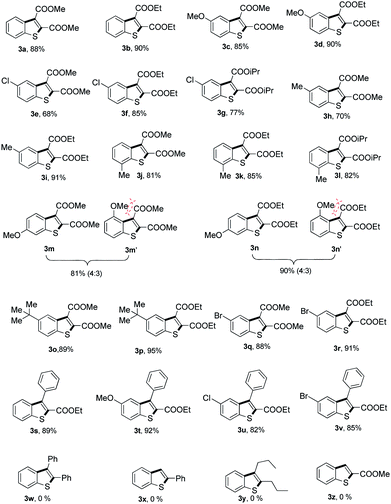

Table 2 TEAB-catalyzed synthesis of benzothiophene derivatives via radical cyclization of disulfides with alkynes^a,b,c

a Reaction conditions: under nitrogen atmosphere, substituted diphenyldisulfane (0.5 mmol), alkynes (1.7 mmol), TEAB (0.05 mmol), K₂S₂O₈ (1.1 mmol), DCE (1.5 mL).b Isolated yield (based on the amount of 1).c Reaction time (24 h).

---

Fig. 1 X-ray crystal structure of compound 3b.

Scheme 2 Synthesis of 3a using benzenethiol (4a) and dimethyl but-2-ynedioate (2a) as starting materials under standard conditions.

Further, we explored the synthetic applicability of the method. As shown in Scheme 3, the gram-scale reaction was performed in the usual laboratory setup with a one-neck round-bottomed flask fitted with a nitrogen balloon, and the reaction afforded 3a in 93% yield. This example clearly demonstrates the practical aspect of this newly developed method.

Scheme 3 Synthesis of 3b on gram scale.

To understand the mechanism further, the reaction of 1a was tested in the presence of TEMPO (2,2,6,6-tetramethylpiperidine 1-oxy, a well-known radical inhibitor) as a radical scavenger. The formation of 2a was completely inhibited in the reactions (eqn (1), Scheme 4), demonstrating that a radical process may be involved in this reaction. Moreover, control experiments were conducted to elucidate the mechanism of this radical cyclization reaction. The intermolecular kinetic isotope effects (KIE) were investigated, and no kinetic isotope effect (κ_H/κ_D = 1.0) was observed, which indicates that C–H bond cleavage might not be the rate-determining step (eqn (2), Scheme 4).

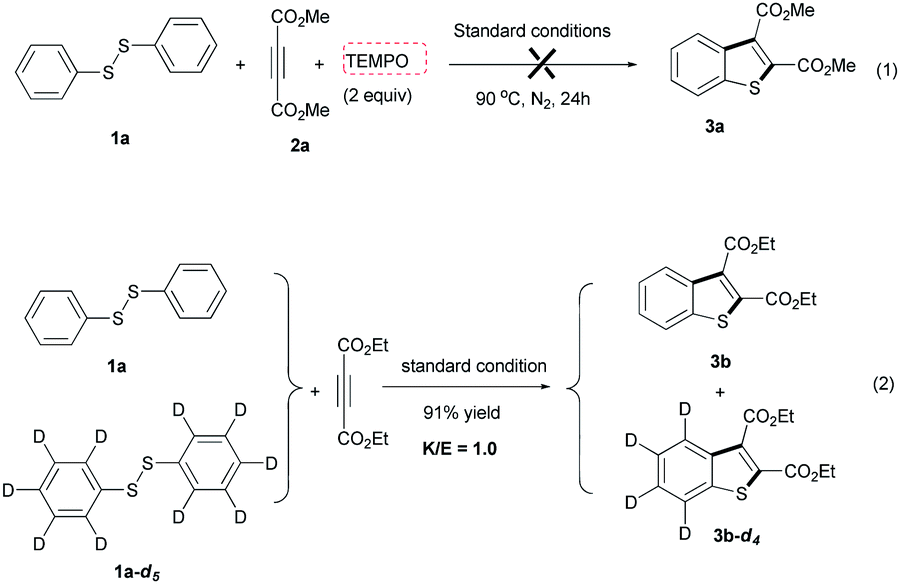

Scheme 4 Control experiments.

On the basis of these preliminary results and reports in the literature,²⁰ a possible mechanism for TEAB-catalyzed radical cyclization reactions for the synthesis of benzothiophene derivatives is suggested in Scheme 5. Reaction of tetra-ethylammonium bromide with peroxydisulfate produced tetraethylammonium sulfate radical anions,^15g then the tetraethylammonium sulfate radical reacts with the disulfides to form an thiyl radical A. The addition of thiyl radical A to alkyne 2a affords the alkenyl radical intermediate B,¹³ which further undergoes intramolecular radical substitution reaction to give intermediate C. Finally, hydrogen abstraction of radical intermediate C by tetraethylammonium sulfate radical anions leads to the benzothiophene derivatives. Further investigations on the more detailed mechanism are ongoing in our laboratory.

Scheme 5 A proposed mechanism for the direct transformation.

Experimental section

General experimental procedures

All reagents and solvents were obtained from commercial suppliers and used without further purification. Mass analyses and HRMS were obtained on a Finnigan-LCQDECA mass spectrometer. Flash chromatography was performed on silica gel (200–300 mesh). ¹H and ¹³C NMR data were recorded at 400 and 100 MHz on a BRUKER 400 spectrometer. Chemical shifts (δ) are expressed in parts per million (ppm) coupling constants (J) are in Hz. Proton and carbon magnetic resonance spectra (¹H NMR and ¹³C NMR) were recorded using tetramethylsilane (TMS) in the solvent of CDCl₃ as the internal standard (¹H NMR: TMS at 0.00 ppm, CDCl₃ at 7.28 ppm; ¹³C NMR: CDCl₃ at 77.0 ppm).

General procedure for synthesis of substituted benzothiophenes. A 25 mL Schlenk tube equipped with a magnetic stirring bar was charged with TEAB (10.5 mg), potassium persulfate (1.1 mmol), substituted various disulfides (1) (0.5 mmol) and alkynes (2) (1.7 mmol). The tube was evacuated twice and backfilled with nitrogen, and DCE (1.5 mL) was added to the tube under nitrogen atmosphere. The tube was sealed with a balloon and then the mixture was allowed to stir under nitrogen atmosphere at 90 °C for 24 h. After completion of the reaction, the resulting solution was cooled to room temperature, and the solvent was removed with the aid of a rotary evaporator. The residue was purified by column chromatography on silica gel using petroleum ether–ethyl acetate as eluent to provide the desired product (3).
Dimethyl benzo[b]thiophene-2,3-dicarboxylate (3a)²⁰. Eluent petroleum ether–ethyl acetate (30 : 1). White solid, mp 83–84 °C. ¹H NMR (CDCl₃, 400 MHz, ppm) δ 7.92 (d, 1H, J = 5.2 Hz), 7.84 (d, 1H, J = 5.6 Hz), 7.50–7.45 (m, 2H), 4.02 (s, 3H), 3.94 (s, 3H). ¹³C NMR (CDCl₃, 100 MHz, ppm) δ 164.9, 162.2, 140.3, 136.7, 133.2, 133.1, 127.5, 125.7, 124.5, 122.6, 53.0, 52.9. HRMS m/z calcd for C₁₂H₁₀O₄S [M + Na]⁺: 273.0197, found: 273.0191.
Diethyl benzo[b]thiophene-2,3-dicarboxylate (3b). Eluent petroleum ether–ethyl acetate (30 : 1). White solid, mp 62–64 °C. ¹H NMR (CDCl₃, 400 MHz, ppm) δ 7.95 (d, 1H, J = 6.0 Hz), 7.84 (d, 1H, J = 6.0 Hz), 7.48–7.45 (m, 2H), 4.52 (q, 2H, J = 7.2 Hz), 4.42 (q, 2H, J = 7.2 Hz), 1.45 (t, 3H, J = 8.0 Hz), 1.41 (t, 3H, J = 8.0 Hz). ¹³C NMR (CDCl₃, 100 MHz, ppm) δ 164.5, 161.8, 140.3, 136.9, 133.5, 133.3, 127.3, 125.6, 124.4, 122.5, 62.1, 14.17, 14.16. HRMS m/z calcd for C₁₄H₁₄O₄S [M + Na]⁺: 301.0510, found: 301.0511.
Dimethyl 5-methoxybenzo[b]thiophene-2,3-dicarboxylate (3c)¹³. Eluent petroleum ether–ethyl acetate (30 : 1). White solid, mp 98–100 °C. ¹H NMR (CDCl₃, 400 MHz, ppm) δ 7.71 (d, 1H, J = 8.8 Hz), 7.37 (s, 1H), 7.15 (d, 1H, J = 9.2 Hz), 4.10 (s, 3H), 3.95 (s, 3H), 3.89 (s, 3H). ¹³C NMR (CDCl₃, 100 MHz, ppm) δ 164.9, 162.8, 158.4, 137.9, 134.5, 132.9, 132.3, 123.2, 118.8, 105.3, 55.6, 53.0, 52.8. HRMS m/z calcd for C₁₃H₁₂O₅S [M + Na]⁺: 303.0303, found: 303.0303.
Diethyl 5-methoxybenzo[b]thiophene-2,3-dicarboxylate (3d). Eluent petroleum ether–ethyl acetate (30 : 1). White solid, mp 59–61 °C. ¹H NMR (CDCl₃, 400 MHz, ppm) δ 7.69 (d, 1H, J = 9.2 Hz), 7.38 (s, 1H), 7.13 (d, 1H, J = 9.2 Hz), 4.50 (q, 2H, J = 8.0 Hz), 4.41 (q, 2H, J = 8.0 Hz), 3.88 (s, 3H), 1.45 (t, 3H, J = 4.0 Hz), 1.40 (t, 3H, J = 4.0 Hz). ¹³C NMR (CDCl₃, 100 MHz, ppm) δ 164.5, 161.9, 158.3, 138.0, 134.9, 132.9, 132.3, 123.2, 118.6, 105.3, 62.1, 61.8, 55.5, 14.2, 14.1. HRMS m/z calcd for C₁₅H₁₆O₅S [M + Na]⁺: 331.0616, found: 331.0610.
Dimethyl 5-chlorobenzo[b]thiophene-2,3-dicarboxylate (3e). Eluent petroleum ether–ethyl acetate (30 : 1). White solid, mp 105–107 °C. ¹H NMR (CDCl₃, 400 MHz, ppm) δ 7.79 (s, 1H), 7.78 (d, 1H, J = 8.0 Hz), 7.45 (d, 1H, J = 8.0 Hz), 4.03 (s, 3H), 3.96 (s, 3H). ¹³C NMR (CDCl₃, 100 MHz, ppm) δ 164.2, 161.9, 138.2, 137.8, 135.6, 132.3, 131.9, 128.1, 124.2, 123.6, 53.2, 53.0. HRMS m/z calcd for C₁₂H₉ClO₄S [M + Na]⁺: 306.9808, found: 306.9815.
Diethyl 5-chlorobenzo[b]thiophene-2,3-dicarboxylate (3f). Eluent petroleum ether–ethyl acetate (30 : 1). White solid, mp 81–83 °C. ¹H NMR (CDCl₃, 400 MHz, ppm) δ 7.98 (s, 1H), 7.78 (d, 1H, J = 8.0 Hz), 7.45 (d, 1H, J = 8.0 Hz), 4.51 (q, 2H, J = 8.0 Hz), 4.41 (q, 2H, J = 8.0 Hz), 1.48–1.40 (m, 6H). ¹³C NMR (CDCl₃, 100 MHz, ppm) δ 163.8, 161.5, 138.2, 137.9, 135.9, 132.1, 131.9, 127.9, 124.1, 123.6, 62.4, 62.1, 14.1. HRMS m/z calcd for C₁₄H₁₃ClO₄S [M + Na]⁺: 335.0121, found: 335.0126.
Diisopropyl 5-chlorobenzo[b]thiophene-2,3-dicarboxylate (3g). Eluent petroleum ether–ethyl acetate (30 : 1). yellow oil. ¹H NMR (CDCl₃, 400 MHz, ppm) δ 7.93 (s, 1H), 7.75 (d, 1H, J = 8.8 Hz), 7.44 (d, 1H, J = 8.4 Hz), 5.43–5.37 (m, 1H), 5.30–5.24 (m, 1H), 1.46 (d, 6H, J = 8.4), 1.40 (d, 6H, J = 8.4). ¹³C NMR (CDCl₃, 100 MHz, ppm) δ 163.4, 160.9, 138.2, 137.9, 136.0, 132.3, 132.0, 127.8, 123.9, 123.6, 70.4, 70.0, 21.8, 21.7. HRMS m/z calcd for C₁₆H₁₇ClO₄S [M + Na]⁺: 363.0434, found: 363.0440.
Dimethyl 5-methylbenzo[b]thiophene-2,3-dicarboxylate (3h). Eluent petroleum ether–ethyl acetate (30 : 1). White solid, mp 83.7–85.2 °C. ¹H NMR (CDCl₃, 400 MHz, ppm) δ 7.75–7.72 (m, 2H), 7.33 (d, 1H, J = 8.0 Hz), 4.05 (s, 3H), 3.95 (s, 3H), 2.49 (s, 3H). ¹³C NMR (CDCl₃, 100 MHz, ppm) δ 165.4, 162.3, 137.7, 137.1, 135.7, 133.0, 129.5, 124.1, 122.2, 52.9, 52.8, 21.5. HRMS m/z calcd for C₁₃H₁₂O₄S [M + Na]⁺: 287.0354, found: 287.0359.
Diethyl 5-methylbenzo[b]thiophene-2,3-dicarboxylate (3i). Eluent petroleum ether–ethyl acetate (30 : 1). Pale yellow viscous liquid. ¹H NMR (CDCl₃, 400 MHz, ppm) δ 7.93 (s, 1H), 7.45–7.73 (m, 2H), 7.33 (d, 1H, J = 8.0 Hz), 4.52 (q, 2H, J = 7.2 Hz), 4.41 (q, 2H, J = 7.2 Hz), 2.50 (s, 3H), 1.46 (t, 3H, J = 8.0), 1.42 (t, 3H, J = 8.0). ¹³C NMR (CDCl₃, 100 MHz, ppm) δ 164.8, 161.9, 137.7, 137.2, 135.6, 133.3, 133.0, 129.3, 124.0, 122.1, 62.0, 61.9, 21.5, 14.17, 14.16. HRMS m/z calcd for C₁₅H₁₆O₄S [M + Na]⁺: 315.0667, found: 315.0663.
Dimethyl 7-methylbenzo[b]thiophene-2,3-dicarboxylate (3j). Eluent petroleum ether–ethyl acetate (30 : 1). White solid, mp 74–75 °C. ¹H NMR (CDCl₃, 400 MHz, ppm) δ 7.79 (d, 1H, J = 8.4 Hz), 7.41 (t, 1H, J = 7.2 Hz), 7.29 (d, 1H, J = 7.2 Hz), 4.04 (s, 3H), 3.97 (s, 3H), 2.58 (s, 3H). ¹³C NMR (CDCl₃, 100 MHz, ppm) δ 165.0, 162.3, 140.8, 136.7, 134.0, 132.5, 132.2, 127.5, 126.2, 122.1, 52.9, 52.8, 20.0. HRMS m/z calcd for C₁₃H₁₂O₄S [M + Na]⁺: 287.0354, found: 287.0359.
Diethyl 7-methylbenzo[b]thiophene-2,3-dicarboxylate (3k). Eluent petroleum ether–ethyl acetate (30 : 1). White solid, mp 76–77 °C. ¹H NMR (CDCl₃, 400 MHz, ppm) δ 7.78 (d, 1H, J = 8.0 Hz), 7.38 (t, 1H, J = 7.2 Hz), 7.28 (d, 1H, J = 7.2 Hz), 4.51 (q, 2H, J = 7.2 Hz), 4.42 (q, 2H, J = 7.2 Hz), 2.56 (s, 3H), 1.47–1.40 (m, 6H). ¹³C NMR (CDCl₃, 100 MHz, ppm) δ 164.7, 161.8, 140.7, 136.8, 134.1, 132.7, 132.1, 127.4, 125.1, 122.0, 62.0, 61.9, 20.0, 14.2. HRMS m/z calcd for C₁₅H₁₆O₄S [M + Na]⁺: 315.0667, found: 315.0663.
Diisopropyl 7-methylbenzo[b]thiophene-2,3-dicarboxylate (3l). Eluent petroleum ether–ethyl acetate (30 : 1). Pale yellow viscous liquid. ¹H NMR (CDCl₃, 400 MHz, ppm) δ 7.74 (d, 1H, J = 8.0 Hz), 7.39 (t, 1H, J = 8.0 Hz), 7.28 (d, 1H, J = 7.2 Hz), 5.42 (m, 1H), 5.28 (m, 1H), 2.57 (s, 3H), 1.46 (d, 6H, J = 4.0 Hz), 1.41 (d, 6H, J = 8.0 Hz). ¹³C NMR (CDCl₃, 100 MHz, ppm) δ 164.4, 161.3, 140.7, 136.8, 134.6, 132.6, 132.2, 127.3, 126.0, 121.8, 71.4, 70.0, 69.7, 21.9, 21.5, 20.4. HRMS m/z calcd for C₁₇H₂₀O₄S [M + Na]⁺: 343.0980, found: 343.0979.
Dimethyl 6-methoxybenzo[b]thiophene-2,3-dicarboxylate (3m). Eluent petroleum ether–ethyl acetate (40 : 1). White solid, mp 83–85 °C. ¹H NMR (CDCl₃, 400 MHz, ppm) δ 7.78 (d, 1H, J = 9.2 Hz), 7.27 (s, 1H), 7.88 (d, 1H, J = 9.2 Hz), 4.03 (s, 3H), 3.94 (s, 3H), 3.90 (s, 3H). ¹³C NMR (CDCl₃, 100 MHz, ppm) δ 165.1, 162.1, 159.8, 142.5, 133.4, 130.8, 129.8, 125.3, 116.6, 104.0, 55.6, 52.9, 52.8. HRMS m/z calcd for C₁₃H₁₂O₅S [M + Na]⁺: 303.0303, found: 303.0307.
Dimethyl 4-methoxybenzo[b]thiophene-2,3-dicarboxylate (3m′). Eluent petroleum ether–ethyl acetate (40 : 1). White solid, mp 118–119 °C. ¹H NMR (CDCl₃, 400 MHz, ppm) δ 7.45–7.40 (m, 2H), 6.78 (d, 2H, J = 6.0 Hz), 4.03 (s, 3H), 3.93 (s, 3H), 3.92 (s, 3H). ¹³C NMR (CDCl₃, 100 MHz, ppm) δ 166.7, 161.9, 156.0, 142.6, 131.1, 129.1, 128.2, 127.2, 114.9, 105.1, 56.1, 52.9, 52.8. HRMS m/z calcd for C₁₃H₁₂O₅S [M + Na]⁺: 303.0303, found: 303.0307.
Diethyl 6-methoxybenzo[b]thiophene-2,3-dicarboxylate (3n). Eluent petroleum ether–ethyl acetate (40 : 1). White solid, mp 115–116 °C. ¹H NMR (CDCl₃, 400 MHz, ppm) δ 7.79 (d, 1H, J = 8.8 Hz), 7.24 (s, 1H), 7.08 (d, 1H, J = 8.8 Hz), 4.50 (q, 2H, J = 7.2 Hz), 4.40 (q, 2H, J = 7.2 Hz), 3.90 (s, 3H), 1.47–1.28 (m, 6H). ¹³C NMR (CDCl₃, 100 MHz, ppm) δ 164.7, 161.7, 159.7, 142.4, 133.5, 131.0, 130.2, 125.2, 116.5, 104.1, 61.9, 61.8, 55.6, 14.19, 14.16. HRMS m/z calcd for C₁₅H₁₆O₅S [M + Na]⁺: 331.0616, found: 331.0615.
Diethyl 4-methoxybenzo[b]thiophene-2,3-dicarboxylate (3n′). Eluent petroleum ether–ethyl acetate (40 : 1). White solid, mp 68–69 °C. ¹H NMR (CDCl₃, 400 MHz, ppm) δ 7.42–7.41 (m, 2H), 6.78 (d, 1H, J = 5.6 Hz), 4.50 (q, 2H, J = 7.2 Hz), 4.39 (q, 2H, J = 7.2 Hz), 3.93 (s, 3H), 1.48–1.38 (m, 6H). ¹³C NMR (CDCl₃, 100 MHz, ppm) δ 166.2, 161.6, 156.0, 142.6, 134.1, 128.9, 128.8, 127.3, 114.8, 105.1, 61.9, 61.8, 55.8, 14.2, 14.1. HRMS m/z calcd for C₁₅H₁₆O₅S [M + Na]⁺: 331.0616, found: 331.0615.
Dimethyl 5-tert-butylbenzo[b]thiophene-2,3-dicarboxylate (3o). Eluent petroleum ether–ethyl acetate (30 : 1). Pale yellow viscous liquid. ¹H NMR (CDCl₃, 400 MHz, ppm) δ 7.77 (s, 1H), 7.67 (d, 1H, J = 8.8 Hz), 7.48 (d, 1H, J = 8.8 Hz), 3.95 (s, 3H), 3.84 (s, 3H), 1.28 (s, 9H). ¹³C NMR (CDCl₃, 100 MHz, ppm) δ 165.2, 162.3, 149.1, 137.8, 136.8, 133.5, 132.8, 126.3, 122.1, 120.1, 52.9, 52.8, 34.9, 31.4. HRMS m/z calcd for C₁₆H₁₈O₄S [M + Na]⁺: 329.0825, found: 329.0823.
Diethyl 5-tert-butylbenzo[b]thiophene-2,3-dicarboxylate (3p). Eluent petroleum ether–ethyl acetate (30 : 1). Pale yellow viscous liquid. ¹H NMR (CDCl₃, 400 MHz, ppm) δ 7.78 (s, 1H), 7.66 (d, 1H, J = 8.4 Hz), 7.46 (d, 1H, J = 8.8 Hz), 4.42 (q, 2H, J = 7.2 Hz), 4.30 (q, 2H, J = 7.2 Hz), 1.37–1.12 (m, 15H). ¹³C NMR (CDCl₃, 100 MHz, ppm) δ 164.7, 161.9, 149.0, 137.7, 136.9, 133.5, 133.3, 123.1, 122.1, 120.1, 62.0, 61.8, 31.3, 14.2. HRMS m/z calcd for C₁₈H₂₂O₄S [M + Na]⁺: 357.1136, found: 357.1137.
Dimethyl 5-bromobenzo[b]thiophene-2,3-dicarboxylate (3q). Eluent petroleum ether–ethyl acetate (30 : 1). White solid, mp 98–100 °C. ¹H NMR (CDCl₃, 400 MHz, ppm) δ 8.12 (s, 1H), 7.69 (d, 1H, J = 8.0 Hz), 7.56 (d, 1H, J = 8.0 Hz), 4.03 (s, 3H), 3.96 (s, 3H). ¹³C NMR (CDCl₃, 100 MHz, ppm) δ 164.1, 161.8, 138.6, 138.1, 135.4, 131.7, 130.6, 127.2, 123.8, 119.9, 53.1, 52.9. HRMS m/z calcd for C₁₂H₉BrO₄S [M + Na]⁺: 350.9303, found: 350.9302, 352.9275.
Diethyl 5-bromobenzo[b]thiophene-2,3-dicarboxylate (3r). Eluent petroleum ether–ethyl acetate (30 : 1). White solid, mp 96–97 °C. ¹H NMR (CDCl₃, 400 MHz, ppm) δ 8.14 (s, 1H), 7.72 (d, 1H, J = 8.0 Hz), 7.58 (d, 1H, J = 8.0 Hz), 4.51 (q, 2H, J = 8.0 Hz), 4.43 (q, 2H, J = 8.0 Hz), 1.47–1.40 (m, 6H). ¹³C NMR (CDCl₃, 100 MHz, ppm) δ 163.7, 161.4, 138.6, 138.3, 135.7, 131.8, 130.5, 127.2, 123.8, 119.8, 62.4, 62.1, 14.1 HRMS m/z calcd for C₁₄H₁₃BrO₄S [M + Na]⁺: 378.9616, found: 378.9615, 380.9588.
Ethyl 3-phenylbenzo[b]thiophene-2-carboxylate (3s). Eluent petroleum ether–ethyl acetate (30 : 1). Pale yellow viscous liquid ¹H NMR (CDCl₃, 400 MHz, ppm) δ 7.92 (d, 1H, J = 8.0 Hz), 7.58 (d, 1H, J = 8.0 Hz), 7.54–7.49 (m, 3H), 7.44 (d, 2H, J = 8.0 Hz), 7.38 (t, 1H, J = 8.0 Hz), 4.27 (q, 2H, J = 8.0 Hz), 1.24 (t, 3H, J = 8.0 Hz) (the ¹H NMR spectrum is in agreement with that of compound 3a in ref. 21). ¹³C NMR (CDCl₃, 100 MHz, ppm) δ 162.7, 143.8, 140.5, 140.2, 134.8, 129.7, 128.8, 128.0, 127.1, 125.3, 124.8, 122.5, 61.3, 14.0. HRMS m/z calcd for C₁₇H₁₄O₂S [M + Na]⁺: 305.0612, found: 305.0623.
Ethyl 5-methoxy-3-phenylbenzo[b]thiophene-2-carboxylate (3t). Eluent petroleum ether–ethyl acetate (25 : 1). Pale yellow viscous liquid ¹H NMR (CDCl₃, 400 MHz, ppm) δ 7.77 (d, 1H, J = 8.0 Hz), 7.54–7.47 (m, 3H), 7.43–7.40 (m, 2H), 7.16 (dd, 1H, J = 8.0 Hz), 6.95 (d, 1H, J = 4.0 Hz), 4.24 (q, 2H, J = 8.0 Hz), 3.78 (s, 3H), 1.21 (t, 3H, J = 8.0 Hz). ¹³C NMR (CDCl₃, 100 MHz, ppm) δ 162.6, 158.1, 143.4, 141.2, 134.8, 132.9, 130.1, 129.5, 128.1, 123.4, 118.4, 106.5, 60.9, 55.4, 13.5. HRMS m/z calcd for C₁₈H₁₆O₃S [M + Na]⁺: 335.0718, found: 335.0721.
Ethyl 5-chloro-3-phenylbenzo[b]thiophene-2-carboxylate (3u). Eluent petroleum ether–ethyl acetate (25 : 1). White solid, mp 86–88 °C. ¹H NMR (CDCl₃, 400 MHz, ppm) δ 7.82 (d, 1H, J = 8.0 Hz), 7.52–7.50 (m, 4H), 7.46 (dd, 1H, J = 8.0 Hz), 7.41–7.38 (m, 2H), 4.25 (q, 2H, J = 8.0 Hz), 1.21 (t, 3H, J = 8.0 Hz). ¹³C NMR (CDCl₃, 100 MHz, ppm) δ 162.3, 142.9, 141.4, 138.4, 134.1, 131.3, 130.6, 129.6, 128.3, 128.2, 127.7, 124.6, 123.6, 61.4, 13.9. HRMS m/z calcd for C₁₇H₁₃ClO₂S [M + Na]⁺: 339.0222, found: 339.0220.
Ethyl 5-bromo-3-phenylbenzo[b]thiophene-2-carboxylate (3v). Eluent petroleum ether–ethyl acetate (30 : 1). White solid, mp 79–81 °C. ¹H NMR (CDCl₃, 400 MHz, ppm) δ 7.78 (d, 1H, J = 8.0 Hz), 7.68 (d, 1H, J = 4.0 Hz), 7.59 (d, 1H, J = 8.0 Hz), 7.53–7.49 (m, 3H), 7.40 (dd, 2H, J = 8.0 Hz), 4.25 (q, 2H, J = 8.0 Hz), 1.21 (t, 3H, J = 8.0 Hz). ¹³C NMR (CDCl₃, 100 MHz, ppm) δ 162.2, 142.8, 141.8, 138.9, 134.1, 130.5, 130.3, 129.6, 128.3, 128.2, 127.7, 123.9, 119.0, 61.4, 13.9. HRMS m/z calcd for C₁₇H₁₃BrO₂S [M + Na]⁺: 382.9717, found: 382.9715, 384.9726.

Conclusions

In conclusion, we have developed a simple, green and efficient strategy for the synthesis of benzothiophene derivatives by metal-free intermolecular radical cyclization between readily available disulfides and alkynes through direct aryl C(sp²)–H functionalization. The process is of tolerance towards various functional groups in the substrates, and the synthesis of these compounds will attract much attention in academic and industrial research because of their wide applications in numerous pharmaceuticals, biologically active compounds as well as functional materials.
