A hexanuclear Cu(I) cluster supported by cuprophilic interaction: effects of aromatics on luminescence properties

Anindita Chakraborty a, Krishna Kumar Ramachandrana, Sharma S. R. K. C. Yamijalab, Swapan K. Patib and Tapas Kumar Maji*a
aMolecular Materials Laboratory, Chemistry and Physics of Materials Unit, Jawaharlal Nehru Centre for Advanced Scientific Research, Jakkur, Bangalore – 560 064, India. E-mail: tmaji@jncasr.ac.in
bTheoretical Science Unit, Jawaharlal Nehru Centre for Advanced Scientific research, Jakkur, Bangalore – 560 064, India

Received 24th June 2014 , Accepted 30th July 2014

First published on 30th July 2014


Abstract

A hexanuclear Cu(I) cluster {Cu3(L)2}2 (1) based on a novel tripodal linker (L) has been synthesized. 1 shows intense emission (λmax = 560 nm) with lifetime 〈τ〉 = 224 μs and quantum yield = 27.6%. The emission is highly sensitive towards different electron rich and electron deficient aromatics. DFT calculations were performed to understand the origin of emission and sensing properties.


Design and study of polynuclear coordination clusters is of paramount importance as these ensembles are potential candidates for catalysis,1 trapping molecules,2 sensing3 and specific guest encapsulation.4 Particularly, polynuclear Cu(I) compounds demand special attention because of their rich photoluminescent (PL) properties5a–d and possible applications as solar energy sensors.5f Cu(I) coordination compounds have also established their importance in biological processes.5e However, synthesis of such complexes remains as a great challenge because of the intrinsic instability of the Cu(I) state leading to facile oxidation to Cu(II).6 Cu(I) cluster based on chalcogenide, halide and pseudohalide7,8 have been widely studied, but studies pertaining to Cu(I) carboxylate complexes are still limited.9a–d The inadequate literature relates to the hardness of oxygen in carboxylate ligand, unlike halides or chalcogenides which can easily stabilize soft Cu(I) centre. Despite the synthetic challenges, study of Cu(I) carboxylate compound remains a fascinating research aspiration because excellent optoelectronic devices can be furnished. The ‘synsyn’ carboxylate binding can render a close proximity between metal centres and such arrangement leads to interactions between closed d10 shells10 which eventually ensue cuprophilic interaction. Such metal–metal interactions usher interesting PL behaviour,10c which can be further exploited for fast sensing of specific molecules. Specially, fluorescence-quenching based detection of nitroaromatics has become very important due to its significant applications in environmental cleaning, defence and security.11 Our group has been working on the fabrication of novel Cu(I)-coordination compounds.9c–e In present work, we focused on synthesis of Cu(I) cluster with interesting photophysical properties, fast sensing capability and investigate the underlying mechanism for the luminescence. To achieve desired Cu(I) cluster, it is necessary to conceive a rational approach based on the ligand binding mode. Here we have synthesized a new carboxylate based ligand 4,4′,4′′-[1,3,5-phenyl-tri(methoxy)]-tris-benzoic acid] (L) [Fig. 1] and envisioned that flexible backbone of L allows the formation of a novel complex based on its diverse binding mode. Here in this communication, we report synthesis and structural characterization of an unusual hexanuclear Cu(I) cluster {Cu3(L)2}2 (1), which shows intense yellow emission (λmax = 560 nm) with considerably high lifetime. The emission properties of 1 are further explored to sense electron rich and deficient solvent vapours including nitroaromatics. Cuprophilic interaction plays a crucial role for the luminescence behaviour, whereas sensing of different analyte vapours has been correlated with the electronic structures and the interactions in excited state which are further supported by density functional theory (DFT) based calculations.
image file: c4ra06183g-f1.tif

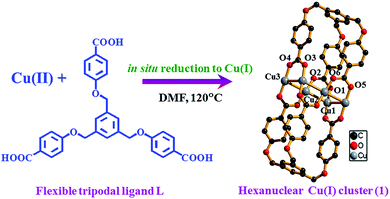

Fig. 1 Synthesis and structure of a hexanuclear complex {Cu3(L)2}2 (1) using a novel tripodal carboxylate linker.

Reaction between Cu(NO3)2·2.5H2O and L in DMF at solvothermal condition [see ESI] yields colourless crystal of 1 by in situ reduction of Cu(II) to Cu(I) during the reaction process. Single-crystal X-ray crystallographic studies (see ESI) revealed that a hexanuclear Cu(I) cluster is bridged by the tripodal ligand L (Fig. 1). In the asymmetric unit, there are three crystallographically independent Cu(I) centres and one L ligand. Each ligand binds six Cu(I) centres while each carboxylate group binds two Cu(I) centres in a bridging bidentate synsyn fashion. Cu1, Cu2 and Cu3 are connected to O1, O3; O2, O6 and O4, O5, respectively. The carboxylate groups control the Cu⋯Cu inter-ionic distance which eventually results the cuprophilic interactions. In the hexanuclear core, the nearest neighboring Cu(I) centers Cu1⋯Cu2, Cu2⋯Cu3, and Cu1⋯Cu3 are separated by distances 2.801 Å, 2.718 Å, and 2.696 Å respectively, which are in the required range for cuprophilic interaction (<2.8 Å).10 There is additional short Cu⋯Cu contact between the non-bridged metal centers, Cu1–Cu2 of 2.895 Å, Cu2–Cu2 of 2.994 Å and a longest distance of 4.793 Å between Cu2–Cu3. Cu(I) shows versatile coordination geometries because of the relatively small energy differences between various geometries like distorted trigonal pyramid, tetragonally elongated octahedral and see-saw geometries.12 For 1, Cu1 and Cu3 show see-saw coordination while Cu2 exhibits a square planar geometry (considering only adjacent Cu(I) metal centers). The tripodal ligand is flexible based on –O–ϕ–CO2 linkage to the benzoic acid part (ϕ) and all the three benzene carboxylate groups are oriented towards the same directions driven by the Cu(I) geometries. This leads to the formation of a unique hexanuclear cluster. Each cluster undergoes π–π interaction operating between the parallel faces of two clusters with a cg–cg distance of 3.677 Å. This helps in stacking the clusters in one-dimension (Fig. S4, ESI).

The emission spectra were recorded on solid crystalline sample at room temperature and it shows intense yellow emission with maximum at 560 nm when excited at 360 nm (Fig. 2). The ligand shows luminescence maxima at 380 nm (Fig. S6, ESI); hence the large stokes shifted emission can't be explained only in terms of metal to ligand charge transfer (MLCT) or ligand to metal charge transfer (LMCT). Time-resolved single-photon counting experiments (Fig. S9, ESI) showed a long-lived bi-exponential decay [τ1 = 272 μs τ2 = 21 μs, τavg = 224 μs] for 1. The quantum yield (Φ) of 1 is 27.6% and hence 1 can be suitable for fabricating organic light emitting diode etc.5c,f Neutral Cu(I) compounds can potentially show high quantum yield (Φ > 20%) and complexes with pyridyl-tetrazolate and phosphine ligands have been reported showing strong emission (Φ = 89%) from mixed MLCT and intraligand CT states.5c


image file: c4ra06183g-f2.tif

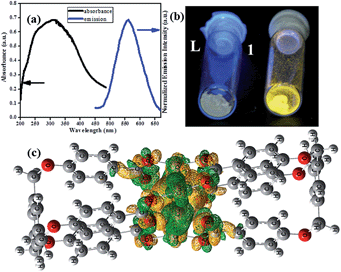

Fig. 2 (a) The UV-vis (black) and emission (blue) spectra of 1 (λem = 560 nm, λex = 360 nm). (b) The images of ligand L and 1 under UV light. (c) Electron density difference map between T and S states (at T state optimized geometry). Electron transferred from green region to orange region.

Though there are few reports on the PL study on Cu(I) carboxylate,9a,b to the best of our knowledge, there is no systematic study discussing the origin of PL and its dependence on the structural type. We have done DFT calculations (see ESI) to get insight of the PL properties of 1.

From the calculated UV-vis spectrum of 1, we observed transitions having higher oscillator strengths (OS) (Table S2, ESI) are mainly of hybrid character [mixture of LMCT, metal to metal charge transfer (MMCT) and ligand to ligand charge transfer (LLCT)]. To understand PL property precisely, we have optimized the H-atom positions of the experimental structure and found it to exist in a singlet ground state. We then optimized the structure considering triplet (T1) state as the initial state and found another single state (S1) at a lower energy in the same geometry of T1 state (see ESI for details). In fact, we find a number of singlet and other magnetic states, forming almost a band of energy spectrum, all with almost the same energy. Although we find a large band gap value, the emission occurs from one of such low-lying singlet sate. The energy difference13 between these states is ∼588 nm (Table S3, ESI), which is close to the experimental λmax value. The optical excitation once reaches the excited singlet state, juggles around the continuum of states including long lived triplet state, before emitting from an excited singlet state which has large OS. The experimental observations of high life time is probably due to the continuum of states together with large OS of excited single state and thus may be called as delayed fluorescence. Electron density difference map (EDDM) between the T1 and S1 states (Fig. 2c) clearly shows that the map is mainly cluster centred. As shown in the map, the electron transfer has occurred within the metal atoms and the COO groups suggesting the nature of emission as hybrid of LMCT and MMCT character, where the latter may be seen as cuprophilic interaction. Thus our results show that the luminescence of such clusters may have originated from cuprophilic interaction.

The effects of electron rich and electron donating aromatics on emission properties of 1 were further studied. Indeed, the study revealed that vapours of compounds containing electron deficient groups like nitrobenzene (NB), o-dinitrobenzene (o-DNB) and 2,4-dinitrotoluene (DNT) quench the emission of 1 (Fig. 3, S10–S12, ESI), while that of having electron donating groups like toluene, o-xylene and p-xylene show an enhancing ability (Fig. S13–S16, ESI). The capability of the complex to detect both the electron deficient and electron rich aromatic compounds is moderately fast, for e.g., the maximum quenching by NB is achieved within 15 minutes (Fig. 3a). The order of quenching efficiency is NB > o-DNB > DNT (Fig. 3b). Two factors such as electron availability and vapour pressure of the solvent affect the quenching or enhancement. The strongest quenching effect exhibited by NB is due to the strong electron withdrawing –NO2 group and the high vapor pressure (Table S1, ESI). Again DNT contains two strongly electron-withdrawing –NO2 groups, but because of its low vapor pressures at room temperature, its quenching ability is less than that of NB. Among the electron donating analytes, highest enhancement ability is shown by toluene (Fig. S16, ESI), which is attributed to its higher vapour pressure. Furthermore, we measured the lifetime of the NB and toluene vapour exposed samples, which come out to be 0.09 and 29.98% respectively, further proving the quenching and enhancement mechanism.


image file: c4ra06183g-f3.tif
Fig. 3 (a) Time dependent fluorescence quenching upon the exposure of NB vapour. (b) Reduction in fluorescence intensity observed upon the addition of different analytes.

The observed trend can be explained by the donor–acceptor electron transfer mechanism. In the case of an electron-withdrawing analyte, the lowest unoccupied MO (LUMO) is a low-lying π*-type orbital and its energy is below the LUMO of 1, while the LUMO of the electron donating analytes is above the LUMO of 1, as suggested by the DFT calculation (Fig. S17, ESI). Upon excitation, for the electron-withdrawing analytes, electrons are transferred from the LUMO of 1 to the LUMO of analyte resulting quenching effect. In the other case, electron can flow from LUMO of analytes to the LUMO of complex, resulting emission enhancement (Scheme 1). This mechanism is well established for conjugated polymers14 and has been observed in a recently reported Zn metal–organic framework.15 The proposed mechanism is consistent with the relative orbital energy levels of the cluster and analyte as obtained from DFT calculations. Interestingly, the quenching is negligible for nitromethane (Fig. S12, ESI), an aliphatic nitro containing compound. This reflects the selectivity of 1 towards aromatic nitro aromatics, which is attributed to the better interaction of 1 with the π orbitals with the aromatics, rather than the σ orbitals of aliphatic compounds.15


image file: c4ra06183g-s1.tif

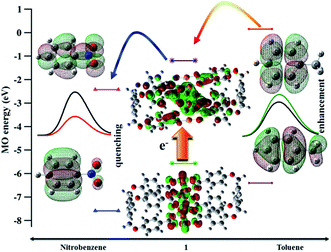

Scheme 1 Excited state electron migration mechanism (calculated energy levels for 1, NB and toluene are shown; for details see ESI).

Conclusions

We have synthesized a novel hexanuclear Cu(I) cluster, which shows interesting cluster-centred emission properties with unique sensing properties. Formation of such rare polynuclear cluster driven by metallophilic interaction can be achieved by judicious ligand design. We believe that cuprophilic interaction plays a pivotal role to usher novel PL properties of such compounds. So far such compounds are rarely investigated and they indeed demand detailed experimental and theoretical investigations. Hence, a library of such compounds has to be furnished and studied thoroughly, which we are pursuing in our lab.

Acknowledgements

Authors are thankful to Dr Sudip Malik and Ritesh Haldar for lifetime and quantum yield measurements. A.C. acknowledges JNCASR and DST for funding. SSRKCY acknowledges TUE-CMS, JNCASR for computational facilities.

Notes and references

  1. D. Fiedler, R. G. Bergman and K. N. Raymond, Angew. Chem., Int. Ed., 2004, 43, 6748 CrossRef CAS PubMed.
  2. A. Mueller, S. K. Das, S. Talismanov, S. Roy, E. Beckmann, H. Boegge, M. Schmidtmann, A. Merca, A. Berkle, L. Allouche, Y. Zhou and L. Zhang, Angew. Chem., Int. Ed., 2003, 42, 5039 CrossRef CAS PubMed.
  3. M.-L. Lehaire, R. Scopelliti, H. Piotrowski and K. Severin, Angew. Chem., Int. Ed., 2002, 41, 1419 CrossRef CAS.
  4. S. Freye, R. Michel, D. Stalke, M. Pawliczek, H. Frauendorf and G. H. Clever, J. Am. Chem. Soc., 2013, 135, 8476 CrossRef CAS PubMed.
  5. (a) E. Cariati, X. Bu and P. C. Ford, Chem. Mater., 2000, 12, 3385 CrossRef CAS; (b) T. Wen, D.-Xi. Zhang, J. Liu, R. Lin and J. Zhang, Chem. Commun., 2013, 49, 5660 RSC; (c) L. Bergmann, J. Friedrichs, M. Mydlak, T. Baumann, M. Nieger and S. Bräse, Chem. Commun., 2013, 49, 6501 RSC; (d) Q. Zhang, Q. Zhou, Y. Cheng, L. Wang, D. Ma, X. Jing and F. Wang, Adv. Mater., 2004, 16, 432 CrossRef CAS PubMed; (e) E. A. Lewis and W. B. Tolman, Chem. Rev., 2004, 104, 1047 CrossRef CAS PubMed; (f) C. W. Rogers and M. O. wolf, Coord. Chem. Rev., 2002, 233–234, 341 Search PubMed.
  6. W. Klaui, B. Lenders, B. Hessner and K. Evertz, Organometallics, 1988, 7, 1357 CrossRef.
  7. (a) V. W.-W. Yam, C. H. Lam, W. K. M. Fung and K. K. Cheung, Inorg. Chem., 2001, 40, 3435 CrossRef CAS PubMed; (b) V. W.-W. Yam, C.-H. Lam and K.-K. Cheung, Chem. Commun., 2001, 545 Search PubMed.
  8. E. Cariati, D. Roberto, R. Ugo, P. C. Ford, S. Galli and A. Sironi, Inorg. Chem., 2005, 44, 4077 CrossRef CAS PubMed.
  9. (a) Y. Sevryugina and M. A. Petrukhina, Eur. J. Inorg. Chem., 2008, 219 Search PubMed; (b) Y. Sevryugina, A. Y. Rogachev and M. A. Petrukhina, Inorg. Chem., 2007, 46, 7870 CrossRef CAS PubMed; (c) S. Mohapatra and T. K. Maji, Dalton Trans., 2010, 39, 3412 RSC; (d) S. Mohapatra, H. Sato, R. Matsuda, S. Kitagawa and T. K. Maji, CrystEngComm, 2012, 14, 4153 RSC; (e) T. K. Maji, D. Ghoshal, E. Zangrando, J. Ribas and N. R. Chaudhuri, CrystEngComm, 2004, 6, 623 RSC.
  10. (a) W.-F. Fu, X. Gan, C.-M. Che, Q.-Y. Cao, Z.-Y. Zhou and N. N.-Y. Zhu, Chem.–Eur. J., 2004, 10, 2228 CrossRef CAS PubMed; (b) S. Tashiro, J. Tanihira, M. Yamada and M. Shionoya, Sensors, 2013, 13, 5671 CrossRef CAS PubMed; (c) D. Braga, L. Maini, P. P. Mazzeo and B. Ventura, Chem.–Eur. J., 2010, 16, 1553 CrossRef CAS PubMed.
  11. (a) A. Rose, Z. Zhu, C. F. Madigan, T. M. Swager and V. Bulovic, Nature, 2005, 434, 876 Search PubMed; (b) B. Gole, A. K. Bar and P. S. Mukherjee, Chem. Commun., 2011, 47, 12137 RSC.
  12. (a) Y. Sevryugina, A. Y. Rogachev and M. A. Petrukhina, Inorg. Chem., 2007, 46, 7870 Search PubMed; (b) Y. Sevryugina, O. Hietsoi and M. A. Petrukhina, Chem. Commun., 2007, 3853 RSC.
  13. S. Perruchas, C. Tard, X. F. Le Goff, A. Fargues, A. Garcia, S. Kahlal, J.-Y. Saillard, T. Gacoin and J.-P. Boilot, Inorg. Chem., 2011, 50, 10682 CrossRef CAS PubMed.
  14. (a) S. J. Toal, J. C. Sanchez, R. E. Dugan and W. C. Trogler, J. Forensic Sci., 2007, 52, 79 Search PubMed; (b) S. J. Toal and W. C. Trogler, J. Mater. Chem., 2006, 16, 2871 RSC.
  15. S. Pramanik, C. Zheng, X. Zhang, T. J. Emge and J. Li, J. Am. Chem. Soc., 2011, 133, 4153 CrossRef CAS PubMed.

Footnotes

Electronic supplementary information (ESI) available: Physical measurements, experimental and computational details, detailed discussion on computational work, and additional figures. CCDC 983334. For ESI and crystallographic data in CIF or other electronic format see DOI: 10.1039/c4ra06183g
