Acidic ionic liquid supported on silica-coated magnetite nanoparticles as a green catalyst for one-pot diazotization–halogenation of the aromatic amines†
Received
13th June 2014
, Accepted 10th September 2014
First published on 15th September 2014
Abstract
Acidic ionic liquid was immobilized on silica-coated magnetite nanoparticles (Fe3O4@SILnP) and used as an efficient heterogeneous catalyst for the diazotization–iodination reaction of different aromatic amines under solvent-free conditions at room temperature. The diazonium salts that are formed by this catalyst are stable at room temperature and react rapidly with sodium iodide to produce aryl iodides in good to excellent yields. This method has some advantages such as low pollution, rapid access to products, simple work-up and easy separation of catalyst from the reaction mixture.
Introduction
The synthesis of azo compounds is highly important for different uses such as organic dyes,1–11 chemosensors,12–17 indicators,18 radical polymerization initiators,19 and photochemical switches.20,21 Azo dyes can be obtained via condensation of diazonium salts with a strong nucleophile. Diazonium salts are prepared by the reaction of nitrosonium ion (NO+) and aniline derivatives in low temperature (0–5 °C). NO+ ions are achieved via reaction of sodium nitrite and strong liquid acids such as silica sulfuric acid,22 sulfanilic acid,23 p-toluene sulfonic acid,24 potassium hydrogen sulfate under solvent free condition,25 nano sized iron-promoted,26 zinc and ammonium salts.27 Also, the azo compounds are prepared by the oxidation of hydrazines,28–30 reduction of azoxybenzenes,31–33 and reductive coupling of nitroaromatics.34–36 However, the most of these techniques have limitations such as long reaction time, toxic materials and tedious work-up.
On the other hand, the use of the ionic liquid as heterogeneous catalysts under solvent-free conditions is becoming very popular as it has many advantages such as reduced pollution, reusability, high selectivity, low cost, and simplicity in process and in handling. These factors are especially important in industry. These advantages led to the use of ionic liquids in the synthesis of azo dyes.37–39
In this sense, Brønsted acidic ionic liquids are important class of ionic liquids and form by the transfer of a proton between a Brønsted acid and a Brønsted bases. The key property of these ionic liquids is their Brønsted acidity, and much research has been conducted into this.40,41 They have been used as catalysts and/or media instead of inorganic acids in many conventional synthetic reactions. Since the most organic compounds can dissolve in ionic liquids, acidic ILs can be used both as reaction medium and solvent.42 Though ILs possessed such promising advantages, their widespread practical application was still hampered by several disadvantages, for examples (a) high viscosity, which resulted in only a minor part of ILs taking part in the catalyzed reaction for chemical production (b) homogeneous reaction, which was difficult for separation and reuse procedures (c) consequently high cost for the use of relatively large amounts of ILs as opposed to economic criteria.43,44
An approach to overcome these limitations is the development of supported ionic liquid catalysts (SILC) that requires smaller amounts of ionic liquid and simultaneously minimizes limitations associated to their viscosity, separation and corrosiveness. SILC combine attractive features of homogeneous catalysis such as the uniform nature of the catalytic centres, high specificity and selectivity of the catalyst, with important features of heterogeneous catalysts, such as high interfacial surface area, high system stability, reusability and potential use in fixed-bed reactor.45 SILC have been successfully used as catalysts in various organic reactions, for example hydroformylation,46,47 alkylations,48 and hydrogenation;49,50 reaction.
Recently, the functional silica and silica-coated magnetite nanoparticles are considered the most active research areas in advanced materials, they were used as a support for different application such as the dehydration of fructose to 5-hydroxymethylfurfural,51 and heavy metals chemosensing.52,53 Additionally, recent studies show that silica coated magnetite nanoparticles are excellent supports for catalysts.54 The supported catalysts proved to be effective and easily separated from the reaction media by applying an external magnetic field.
The main objective of the present study is the development of a new class of supported ionic liquid catalysts (SILC). An acid ionic liquid with catalytic activity based on N-propyl-2-pyrrolidonium hydrogen sulfate ([H-NMP]HSO4) moiety has been covalently bound to nano-sized silica-coated magnetite to produce supported Ionic liquid nanoparticles (Fe3O4@SILnP) as reported in the Fig. 1. In particular, these systems have been developed to acquire the advantages of heterogeneous catalytic systems and the large surface area that is conferred by the nanoparticles.
 |
| Fig. 1 General structure of the supported ionic liquid catalysts (Fe3O4@SILnP) based on N-propyl-2-pyrrolidonium hydrogen sulfate ([H-NPP]HSO4) bonded to nano-sized silica-coated magnetite. (a) H2O/EtOH/NH3 aq, sonication, TEOS, 12 h (b) toluene, reflux, 24 h. | |
To evaluate the size effects originating from the silica coated magnetite supports, particles with different sizes are evaluated on the catalytic performance in the diazotization reaction. The reusability of the Fe3O4@SILnP has been also investigated at the optimized reaction conditions reported in this work.
Results and discussion
Synthesis of N-(propyl-triethoxysilane)-2-pyrrolidone
The Scheme 1 reports the synthesis of N-(propyl-triethoxysilane)-2-pyrrolidone 3b from pyrrolidin-2-one 1 witch reacts with (3-chloropropyl)triethoxysilane 2 in dry toluene under reflux for 24 h followed by the treatment with sulfuric acid.
 |
| Scheme 1 Synthesis of N-(propyl-triethoxysilane)-2-pyrrolidone. Reagents and condition (a) dry toluene, reflux, 24 h (b) H2SO4, DCM, 0 °C to 60 °C, 12 h. | |
Synthesis and surface modification of silica-coated magnetite nanoparticle catalysts
The magnetite nanoparticles were prepared following the procedure reported in the literature.55 The coating magnetite nanoparticles with silica was carried out by using the sol–gel process, relies on the use of the of tetraethyl orthosilicate (TEOS) as the source of silica matrix. In this method, silica phase are formed on colloidal magnetic nanoparticles in a basic alcohol–water mixture of absolute EtOH, DIW, and 30% aq ammonia solution. After, the surface of the prepared silica nanoparticles was modified by the ionic liquid 3b containing the organosilane moiety.
Catalyst characterization
The structural information of the supported ionic liquid nano particles (Fe3O4@SILnP) was studied by solid-state characterization techniques such as TEM imaging, TGA, VSM and FTIR.
The TEM images of the magnetite, the silica coated magnetite, and the modified silica coated magnetite (Fe3O4@SILnP) nanoparticles used in this study are shown in Fig. 2.
 |
| Fig. 2 The micro-pictures of (A) naked Fe3O4 particles (TEM); (B) magnetic silica nanoparticles (TEM); (C) magnetic silica nanoparticles modified with ionic liquids. | |
The silica coated magnetite nanoparticles present a spherical shape with an average particle diameter of about 55 nm. When the silica coated magnetite nanoparticles were functionalized with the ionic liquid based on the N-(propyl-triethoxysilane)-2-pyrrolidone 3b, the obtained nanoparticles show a little aggregation comparing with the silica coated magnetite nanoparticles which might be because the layer of ionic liquids surrounding may interact with each other.
The magnetic properties of the synthesized nanoparticles were also studied by a vibrating-sample magnetometer VSM. Fig. 3 shows the hysteresis loops of the Fe3O4; silica coated Fe3O4 and supported ionic liquid nano particles (Fe3O4@SILnP) at room temperature. The saturation magnetization, Ms, of bulk magnetite (92 emu g−1) was reduced to 57 emu g−1 for magnetite nanoparticles. It is known that the magnetization of a magnetic particle in an external field is proportional to its size value. Therefore, a smaller saturation magnetization value for the magnetite nanoparticles compared to the bulk material is reasonable. The saturation magnetic moments of the silica coated Fe3O4 nanoparticles and the Fe3O4@SILnP reached to 48 emu g−1 and 41 emu g−1, respectively. This can be explained by considering the diamagnetic contribution of the silica shells surrounding the magnetite nanoparticles.
 |

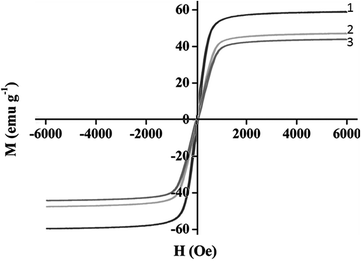

| Fig. 3 Magnetization curve of (1) magnetite nanoparticles (2) silica coated Fe3O4 and (3) magnetic silica nanoparticles modified with ionic liquids. | |
The thermal stability of samples was investigated by thermogravimetric analysis (TGA). TGA curves of the magnetite, silica coated magnetite and magnetic silica nanoparticles modified with ionic liquids are shown in Fig. 4. As shown in Fig. 4, the weight losses of the magnetic silica nanoparticles modified with ionic liquids Fe3O4@SILnP (curve 3) below 250 °C were resulted from the release of both the physisorbed and chemisorbed water on the surface of the Fe3O4@SILnP nanoparticles. And the breakout of the structured water in SILnP occurred above 600 °C. The organic compounds of Fe3O4@SILnP were decomposed in the temperature range of 250–600 °C. The major weight loss is attributed to the decomposition of fixed ionic liquid which is chemically bonded onto the surface of magnetite coated silica nanoparticles. The amount of organic compounds bound on the surface of the nanoparticles is estimated from the percentage of weight loss from the TGA curve. TGA of the in Fe3O4@SILnP indicated that the fixed ionic liquid content was about 12%.
 |
| Fig. 4 (A) Thermogravimetric (TG) curves for (a) magnetite (b) silica coated magnetite and (c) magnetic silica nanoparticles modified with ionic liquids (SILnP) and (B) TG-DTG of Fe3O4@SILnP. | |
The fixed ionic liquid started to decompose at about 250 °C and was completely burned out at about 595 °C. For the unmodified magnetite coated silica, no significant weight loss below 100 °C could be observed and only a small change in mass percentage could be seen in the temperature range of 100–250 °C. The weight loss recorded as 2 wt% in this temperature range mainly resulted from the release of water molecules bonded physically and chemically in the magnetite nanoparticles (Fig. 4A).
Meanwhile, the peak in the DTG curve (Fig. 4B) shows that the fastest loss of the IL occurred at 390 °C. Therefore, the Fe3O4@SILnP is stable around or below 250 °C. These TGA analyses indicated that the silica coated Fe3O4 particles were covered successfully by the coupling with the ionic liquid 3b.
In the FT-IR spectrum, of the silica coated Fe3O4 (Fig. 5a) show the stretching vibrations at 590, 950, 1090, 1630 and 3400 cm−1 corresponding to the Fe–O, Fe–O–Si, Si–O–Si, and water (free or adsorbed water that still remained in the sample) stretches respectively. However, in the case of the magnetic silica nanoparticles modified with ionic liquids (Fig. 5c), the characteristic peaks of the Fe3O4@SILnP around 1035 cm−1, 1180 cm−1 which were attributed to S
O asymmetric and symmetric stretching vibrations of the –SO3H group, and peaks around 1549 cm−1 and 1696 cm−1 correspond to the stretching vibrations of the amidic N–H and C
O groups respectively. The bands at 2995 cm−1 correspond to the carbon chain (CH2) of the pendant group attached to the inorganic matrix. Therefore, it indicated that the silica coated Fe3O4 were successfully coated with the ionic liquids.
 |
| Fig. 5 FT-IR Spectrum (a) silica coated Fe3O4, (b) [H-NPP]HSO4 ionic liquid and (c) magnetic silica nanoparticles modified with ionic liquids. | |
Catalytic activity of the catalyst
The catalytic activity of Fe3O4@SILnP was studied in the diazotization reaction of the aniline derivatives 4a–f to synthesis its corresponding aryl halide derivatives 5a–f by the treatment of the formed diazonium salts with NaI as reported in the Scheme 2.
 |

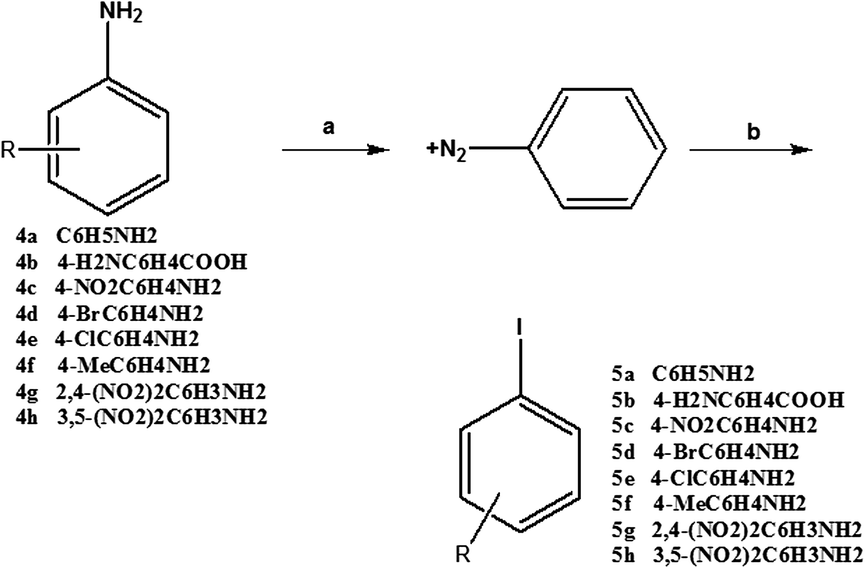

| Scheme 2 Synthesis of the aryl iodide 5a–f by using Fe3O4@SILnP as catalyst. Reagents and conditions (a) NaNO2, Fe3O4@SILnP, drops of H2O, 0 °C (b) NaI, 0 °C to RT. | |
Different aromatic amines possessing electron-withdrawing or electron-donating groups were transformed rapidly into the corresponding aryl iodides in good yields under solvent-free conditions as shown in Table 1. However, the weakly basic aromatic amines 2,4-dinitroaniline and 3,5-dinitroaniline were converted into the corresponding iodoarenes in moderate yields (Table 1, entries 7 and 8). An advantage of this procedure is that the corresponding phenol by-products were formed only in trace yields. The effect of the solvent on this reaction was also studied. The use of water as solvent, under the same conditions, led to lower yields of the expected iodoarenes whilst the yields of phenol by-products were higher. It should be noted that this reaction procedure requires the addition of a small amount of water to generate the wet Fe3O4@SILnP sulfuric acid, and must be carried out in a stepwise manner in order to obtain good yields.
Table 1 Iodination of aromatic amines with Fe3O4@SILnP/NaNO2/NaI/at 0 °C to room temperature
Entry |
Substrate |
Time diazotization–iodination |
Yield |
Mp (°C) |
Lit. mp (°C) |
1 |
C6H5NH2 |
6/6 |
73 |
Oil |
Oil56 |
2 |
4-H2NC6H4COOH |
8/6 |
95 |
268–270 |
269–270 (ref. 56) |
3 |
4-NO2C6H4NH2 |
10/4 |
83 |
171–172 |
172–173 (ref. 56) |
4 |
4-BrC6H4NH2 |
8/4 |
78 |
88–89 |
89–91 (ref. 56) |
5 |
4-ClC6H4NH2 |
8/4 |
82 |
55–56 |
55–56 (ref. 56) |
6 |
4-MeC6H4NH2 |
9/6 |
62 |
34–35 |
35–37 |
7 |
2,4-(NO2)2C6H3NH2 |
15/10 |
43 |
88–89 |
88.5–89.0 (ref. 56) |
8 |
3,5-(NO2)2C6H3NH2 |
15/10 |
51 |
97–99 |
99–100 (ref. 56) |
At the end of iodination reaction and the products had been isolated, the catalyst was magnetically separated and washed several times with water and methanol to ensure unreacted reactive does not remain on the surface of magnetic nanoparticles. It should be noted that the aryldiazonium salts supported on Fe3O4@SILnP were stable to be kept at room temperature and could be stored for 48 h in a desiccator without any loss of activity.
The investigation of a solvent-free diazotization–iodination reaction using Fe3O4@SILnP was repeated six times to evaluate the catalyst recyclability and stability (Fig. 6). After each run, the catalyst was separated from the reaction mixture by an applied magnetic field, washed with water and methanol and reused in the next cycle, which indicates the high stability of the catalyst under these reaction conditions.
 |
| Fig. 6 Reuse of Fe3O4@SILnP in the diazotization–iodination of 4-NO2C6H4NH2. | |
The recovered catalyst after six runs had no obvious change in structure, referring to the FT-IR spectra in comparison with the fresh one (Fig. 7a and b). A TEM observation of the recovered catalyst was also made, and there were no obvious changes in morphology and size (Fig. 7c and d). These results revealed that the catalyst was very stable and could endure these reaction conditions.
 |

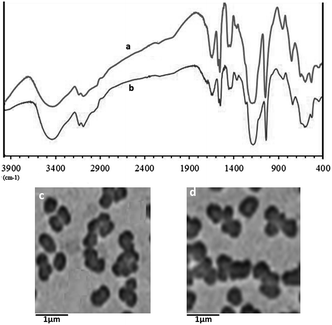

| Fig. 7 FT-IR spectra and the Transmission electron microscope (TEM) images of the fresh catalyst (a and c), and the used catalyst after 6 cycles (b and d). | |
Table 2 reports the efficiency comparison between our method for the diazotization–iodination of aromatic amines and others some others published works in literature. Each of these methods have their own advantages, but they often some limitations such as the use of organic solvent, necessity of temperature control (entries 1, 2 and 8), long reaction time (entries 2, 3, 5 and 6) and employ of non-recyclable catalyst (entry 4). The use of Fe3O4@SILnP as a catalyst in the diazotization–iodination of the different aromatic amines afford the corresponding iodide derivatives in high yield (about 80%) in a shorter reaction time (Table 1). This was presumed to occur due to the adsorption of reactants on the surface of the nano-support, increasing the local concentration of reactants around the active sites of the Fe3O4@SILnP and promotes the reaction effectively. In addition, this novel catalyst showed a higher yield in comparison with [H-NMP]HSO4@SiO2 (Table 2, entry 10), which indicated that the smaller particle mitigated more diffusion effects and then accelerated the reaction.
Table 2 Comparison of results using Fe3O4@SILnP/NaNO2/NaI with results obtained by other works for the diazotization–iodination of 4-nitro aniline
Entry |
Reagents |
Conditions |
Time (min) |
Yield |
Ref. |
Poly(4-vinylpyridine). |
1 |
HI/KNO2 |
DMSO/35 °C |
15 |
89 |
57 |
2 |
KI/NaNO2/PTSA |
MeCN/10–25 °C |
50 |
81 |
58 |
3 |
NaNO2/sulfonated-resin/KI |
H2O/RT |
90 |
71 |
59 |
4 |
PTSA/NaNO2/KI |
Water-paste form |
20–30 |
72 |
60 |
5 |
Wet SSA/NaNO2/KI |
Solvent free/RT |
30 |
83 |
61 |
6 |
Resin NO2−, p-TsOH, H2O |
KI/RT |
90 |
91 |
56 |
7 |
[H-NMP]HSO4, NaNO2, NaI |
Solvent-free/RT |
20–30 |
85 |
62 |
8 |
[P4-VP]aNO2/H2SO4/KI |
Water/0–60 °C |
100 |
74 |
63 |
9 |
Fe3O4@SILnP/NaNO2/NaI |
Solvent-free/RT |
14 |
82 |
This work |
10 |
[H-NMP]HSO4@SiO2 |
Water/RT |
14 |
59 |
This work |
When using a supported catalyst, there is a possibility that the active species might migrate from the solid support to the liquid phase, since the leached active ones become responsible for the good catalytic activity. In order to extend the use of our new catalyst based on Fe3O4@SILnP in the diazotization–iodination, other aromatic amines based on the pyrazolidine-3,5-dione 6a,b, and pyrazolin-5-one 8a–d were used to synthesis their corresponding halide derivatives 7a,b and 9a–d respectively, by the treatment of the formed diazonium salts with NaI as reported in the Scheme 3.
 |
| Scheme 3 Synthesis of the pyrazolidine-3,5-dione iodides 7a,b, and pyrazolin-5-one iodides 9a–d by using Fe3O4@SILnP as catalyst. Reagents and conditions (a) NaNO2, Fe3O4@SILnP, drops of H2O, 0 °C (b) NaI, 0 °C to RT. | |
Initially, to optimize the reaction conditions, the reaction of 6a, 8a and 8c (1 mmol) were studied as a simple model using different quantities of catalyst (Table 3). It was found that the best result was obtained when the reaction was carried out in the presence of 200 mg of catalyst (Table 3, Entry 3, 7, 11).
Table 3 Synthesis of 7a, 9a and 9c in the presence of various amount of Fe3O4@SILnP as catalyse at 0 °C to room temperature
Entry |
Substrate |
Time (min) |
Catalyst (mg) |
Yield % |
1 |
7a |
25 |
100 |
51 |
2 |
7a |
20 |
150 |
74 |
3 |
7a |
12 |
200 |
89 |
4 |
7a |
12 |
300 |
89 |
5 |
9a |
25 |
100 |
49 |
6 |
9a |
20 |
150 |
77 |
7 |
9a |
1 |
200 |
87 |
8 |
9a |
14 |
300 |
87 |
9 |
9c |
25 |
100 |
54 |
10 |
9c |
20 |
150 |
69 |
11 |
9c |
14 |
200 |
89 |
12 |
9c |
14 |
300 |
89 |
The different pyrazolidine-3,5-dione amines 6a,b, and pyrazolin-5-one amines 8a–d were transformed rapidly into the corresponding iodides derivatives in good yields under solvent-free conditions as reported in Table 4. However, the corresponding phenol by-products were formed only in trace yields. Also, the effect of the solvent on this reaction was also studied by using the water as solvent, under the same conditions, and the results show lower yields of the expected iodoarenes whilst the yields of phenol by-products were higher, which confirm the results obtained with the aniline derivatives 4a–f.
Table 4 Iodination of pyrazolidine-3,5-dione amines 6a,b, and pyrazolin-5-one amines 8a–d with Fe3O4@SILnP/NaNO2/NaI/at 0 °C to room temperature
Entry |
Substrate |
Time (min) diazotization–iodination |
Yield |
1 |
7a |
6/6 |
89 |
2 |
7b |
6/6 |
88 |
3 |
9a |
8/6 |
87 |
4 |
9b |
8/6 |
89 |
5 |
9c |
8/6 |
89 |
6 |
9d |
8/6 |
88 |
Experimental methods and characterization
Materials
All chemicals were reagent grade (Aldrich Chemical Co.) and were used as purchased without further purification. Thin layer chromatography (TLC) analysis was performed using Fluka aluminium foils coated with 25 mm particle size silica gel matrix F254. TLC development involved either UV (254 and 366 nm) or visible light inspection, followed by either treatment with an acid solution of p-anisaldehyde or a basic solution of KMnO4 and heating. Flash column chromatography was performed on Merck silica gel 60 (particle size 0.040–0.063 nm, 230–400 mesh ASTM) UV-vis spectra were recorded on a Cary-4000 Varian spectrophotometer, using either 0.1 or 1 cm quartz cuvettes. Infra-red spectra were recorded in KBr disk on a Perkin Elmer-Spectrum BX FTIR system. Absorptions are quoted in wavenumbers (cm−1). 1H and 13C NMR spectra were recorded at 200 MHz 1H (50.0 MHz 13C) on a Varian Gemini spectrometer. Spin resonances are reported as chemical shifts (δ) in parts per million (ppm) and referenced to the residual peak as an internal standard of the solvent employed, as follow: CDCl3 7.27 ppm (1H NMR), 77 ppm (13C NMR, central band), DMSOd6 2.50 ppm (1H NMR, central band), 39.5 ppm (13C NMR, central band). Spin multiplicity is showed by s = singlet, d = doublet, t = triplet, q = quartet, m = multiplet, br = broad. Coupling constants J are reported in Hertz. Mass spectra were recorded on a ThermoScientific LCQ-Fleet mass spectrometer under electrospray ionization (ESI, +c or −c technique). High Resolution Mass Spectra (HRMS) were recorded on an LTP Orbitrap mass spectrometer from Thermo Electron Corporation under ESI (+c) technique. Mass spectrometric analysis is quoted in the m/z form. Elemental analyses were recorded on a Perkin Elmer 240C Elemental Analyzer. Thermogravimetric analysis (TGA) of the samples was performed using a Perkin Elmer Diamond Thermogravimeter. Dried samples was placed in the TGA furnace and heated at a rate of 10 °C/inform room temperature to 700 °C in static air. The fluorescence spectra were measured by Hitachi F-4500 fluorescence spectrophotometer with a 1 cm quartz cell. Doubly distilled deionized water (DIW) was used for all experiments. In this study, only distilled water was used. The pyrazolidine-3,5-dione 6a,b, and pyrazolin-5-one 8a–d were prepared following our previous paper.64
Colloidal iron oxide nanoparticle synthesis
The magnetite nanoparticles were prepared by the conventional co-precipitation method with some modifications.65 FeCl3·6H2O (2.32 g) and FeCl2 ·4H2O (0.86 g) were dissolved in 20 mL of the deionized water under nitrogen gas with vigorous stirring at 85 °C. Then, ammoniac solution 25% (3 mL) was added to the solution. The color of bulk solution turned from orange to black immediately. The magnetite precipitates were washed twice with deionized water and once with sodium chloride (0.02 M). The final magnetite nanoparticles were precipitated by magnetic decantation.
Followed Stober method65 with some modification, coating magnetite nanoparticles with silica was carried out in basic alcohol–water mixture at room temperature by using magnetic fluids as seeds. First, magnetic fluid was diluted with water, alcohol and ammonia aqueous. Then this dispersion was homogenized by ultrasonic vibration in water bath. Finally, under continuous mechanical stirring, TEOS was slowly added to this dispersion, and after stirring for 12 h, silica was formed on the surface of magnetite nanoparticles through hydrolysis and condensation of TEOS.
Preparation of the acidic ionic liquid 3b
To a solution of pyrrolidin-2-one 1 (1.00 g, 11.76 mmol) in 15 mL dry toluene, (3-chloropropyl)triethoxysilane 2 (2.82 g, 11.76 mmol) was added and the resulting mixture was refluxed for 24 h. After, the solvent was removed under the reduce pressure and the crude product was washed with ether 3 times and dried in vacuum. The formed solid 3a (95% yield) was dissolved in 10 mL of DCM in a 50 mL round-bottom flask, and equimolar sulfuric acid was slowly added dropwise into the flask at 0 °C. After the dropwise addition was finished, the mixture was heated up to 60 °C gradually and then stirred for 12 h. Finally, the formed liquid was washed with ether 3 times and dried in vacuum at 50 °C for 5 h. 1H NMR (200 MHz, D2O): δ = 3.9 (6H, m, CH2), 3.34–3.22 (4H, m), 2.41–2.30 (4H, m), 1.83 (9H, m, CH3). 0.62 (2H, t, J = 6.4 Hz, SiCH2) ppm. 13C NMR (50 MHz, D2O): δ = 188.4, 52.5, 50.2, 41.1, 35.8, 18.4, 17.3, 11.6, 10.4 ppm.
Surface functionalization of silica coated Fe3O4 (M/SiNPs) with the ionic liquid 3b
In a round bottom flask, 400 mg of M/SiNPs were suspended in a solution of 30.0 mL of anhydrous toluene, and sonicated for 30 min at rt. The silane 3b (0.47 g; 0.68 mmol) was hydrolyzed in 25.0 mL of anhydrous toluene and 0.12 mL DIW for 15 min at rt then added to SiNPs suspension and sonicated again for 30 min. The reaction mixture was refluxed for 24 h without magnetic stirring. The magnetic silica nanoparticles modified with ionic liquids SILnP were separated and washed twice with 90% toluene/DIW and 80% EtOH/DIW using centrifugation (11
200g for 10 min) technique. Finally, the functionalized SILnP were dried under vacuum at 110 °C for 24 h before use.
General procedure for preparation of aryl iodides
To a solution of the aromatic amine (1 mmol) and Fe3O4@SILnP (200 mg) in a few drops of water, NaNO2 (2.5 mmol), was added at 0 °C and the resulting mixture was stirred at room temperature for few minutes. Then, NaI (2.5 mmol) was added to the formed diazonium salt, the iodination reaction began immediately after NaI addition, and the reaction mixture volume increased due to the evolution of nitrogen gas. This one-pot diazotization–iodination process takes about few minutes to complete. After, the reaction; the catalyst was magnetically separated and washed several times with water and methanol to ensure unreacted reactive does not remain on the surface of magnetic nanoparticles. The crude products were purified by recrystallization from ethanol. The recovered catalyst was dried and reused for subsequent runs.
4-Iodo-1-(3,4,5-trihydroxy-6-hydroxymethyl-tetrahydro-pyran-2-yl)-pyrazolidine-3,5-dione (7a)
The product 7a was prepared according to the general procedure in 89% as yield. 7a is obtained as a colored solid as a mixture of α and β pyranosic anomers. 1H NMR (200 MHz, Me2SO): δ = 5.52 (s, 1H), 5.28–5.22 (d, 1H), 3.82–3.61 (m, 4H), 3.47–3.31 (m, 2H) ppm. 13C NMR (50 MHz, Me2SO): see Table 5 in the ESI† for the glycidic part and δ = 170.3, 168.2, 54.5 ppm. MS (ESI): m/z = 389.13 [M + 1]+. C9H13IN2O7 (387.98): calcd C, 27.85; H, 3.38; N, 7.22 found: C, 27.97; H, 3.51; N, 7.38.
1-[3,4-Dihydroxy-6-hydroxymethyl-5-(3,4,5-trihydroxy-6-hydroxymethyl-tetrahydro-pyran-2-yloxy)-tetrahydro-pyran-2-yl]-4-iodo-pyrazolidine-3,5-dione (7b)
The product 7b was prepared according to the general procedure in 88% as yield. 7b is obtained as a colored solid as a mixture of α and β pyranosic anomers. 1H NMR (200 MHz, Me2SO): δ = 5.54 (s, 1H), 5.11–4.55 (m, 2H, both anomers), 4.30–4.15 (m, 4H, both anomers), 3.88–3.79 (m, 6H, both anomers), 3.45–3.42 (m, 2H, both anomers) ppm. 13C NMR (50 MHz, Me2SO): see Table 6 in the ESI† for the glycidic part and δ = 170.5, 168.6, 54.8 ppm. MS (ESI): m/z = 551.21 [M + 1]+. C15H23IN2O12 (550.04): calcd C, 32.74; H, 4.21; N, 5.09 found: C, 32.92; H, 4.43; N, 5.23.
2-(5-Hydroxy-4-iodo-3-methyl-pyrazole-1-yl)-6-hydroxymethyl-tetrahydro-pyran-3,4,5-triol (9a)
The product 9a was prepared according to the general procedure in 87% as yield. 9a is obtained as a colored solid as a mixture of α and β pyranosic anomers. 1H NMR (200 MHz, Me2SO): δ = 11.54 (s, 1H, OH), 5.29–5.21 (d, 1H), 3.81–3.61 (m, 4H), 3.47–3.30 (m, 2H), 2.71 (s, 3H, CH3, Pyr) ppm. 13C NMR (50 MHz, Me2SO): see Table 5 in the ESI† for the glycidic part and δ = 155.3, 138.9, 60.5, 12.8 ppm. MS (ESI): m/z = 387.23 [M + 1]+. C10H15IN2O6 (386.00): calcd C, 31.10; H, 3.92; N, 7.25 found: C, 31.23; H, 4.11; N, 7.39.
2-[4,5-Dihydroxy-6-(5-hydroxy-4-iodo-3-methyl-pyrazol-1-yl)-2-hydroxymethyl-tetrahydro-pyran-3-yloxy]-6-hydroxymethyl-tetrahydro-pyran-3,4,5-triol (9b)
The product 9b was prepared according to the general procedure in 88% as yield. 9b is obtained as a colored solid as a mixture of α and β pyranosic anomers. 1H NMR (200 MHz, Me2SO): δ = 11.58 (s, 1H, OH), 5.11–4.57 (m, 2H, both anomers), 4.31–4.13 (m, 4H, both anomers), 3.88–3.78 (m, 6H, both anomers), 3.44–3.41 (m, 2H, both anomers), 2.73 (s, 3H, CH3, Pyr) ppm. 13C NMR (50 MHz, Me2SO): see Table 6 in the ESI† for the glycidic part and δ = 155.7, 138.3, 60.2, 12.6 ppm. MS (ESI): m/z = 549.28 [M + 1]+. C16H25IN2O11 (548.05): calcd, 35.05; H, 4.60; N, 5.11 found: 35.23; H, 4.77; N, 5.24.
5-Hydroxy-4-iodo-1-(3,4,5-trihydroxy-6-hydroxymethyl-tetrahydro-pyran-2-yl)-1H-pyrazole-3-carboxylic acid ethyl ester (9c)
The product 9c was prepared according to the general procedure in 89% as yield. 9c is obtained as a colored solid as a mixture of α and β pyranosic anomers. 1H NMR (200 MHz, Me2SO): δ = 11.55 (s, 1H, OH), 5.28–5.21 (d, 1H), 4.25 (q, 2H, CH2), 3.82–3.60 (m, 4H), 3.48–3.31 (m, 2H), 1.33 (t, 3H, CH3) ppm. 13C NMR (50 MHz, Me2SO): see Table 5 in the ESI† for the glycidic part and δ = 159.6, 151.2, 62.1, 58.3, 13.7 ppm. MS (ESI): m/z = 445.23 [M + 1]+. C12H17IN2O8 (444.03): calcd C, 27.85; H, 3.38; N, 7.22; C, 32.45; H, 3.86; N, 6.31 found: C, 32.57; H, 3.98; N, 6.45.
1-[3,4-Dihydroxy-6-hydroxymethyl-5-(3,4,5-trihydroxy-6-hydroxymethyl-tetrahydro-pyran-2-yloxy)-tetrahydro-pyran-2-yl]-5-hydroxy-4-iodo-1H-pyrazole-3-carboxylic acid ethyl ester (9d)
The product 9d was prepared according to the general procedure in 88% as yield. 9d is obtained as a colored solid as a mixture of α and β pyranosic anomers. 1H NMR (200 MHz, Me2SO): δ = 11.56 (s, 1H, OH), 5.12–4.56 (m, 2H, both anomers), 4.31–4.12 (m, 6H, both anomers), 3.88–3.78 (m, 6H, both anomers), 3.46–3.41 (m, 2H, both anomers), 1.32 (t, 3H, CH3) ppm. 13C NMR (50 MHz, Me2SO): see Table 6 in the ESI† for the glycidic part and δ = 155.7, 138.3, 60.2, 12.9 ppm. MS (ESI): m/z = 549.28 [M + 1]+. C16H25IN2O11 (548.05): calcd, 35.05; H, 4.60; N, 5.11 found: 35.23; H, 4.77; N, 5.24.
Conclusions
In summary, we have developed an efficient and experimentally simple method for the diazotization–iodination of aromatic amines in the presence of N-propyl-2-pyrrolidonium hydrogen sulfate ([H-NPP]HSO4) supported on nano-sized silica-coated magnetite as acid catalyst under solvent-free conditions in good to excellent yields. The sequential diazotization–iodination take place in the presence of the acidic Fe3O4@SILnP as a mild and new proton source and the resulting diazonium salts are stable and react rapidly with potassium iodide to produce aryl iodides.
Acknowledgements
This work is financially supported by GEMTEX Laboratory France. We thank Mr Christian Catel (technician of GEMTEX laboratory) for its kind disponibility.
Notes and references
- K. Hunger, Industrial Dyes: Chemistry, Properties, Applications, Wiley-VCH, Weinheim, Germany, 2003 Search PubMed.
- A. Bafana, S. S. Devi and T. Chakrabarti, Environ. Rev., 2011, 19, 350 CrossRef CAS PubMed.
- R. Bianchini, G. Catelani, E. Frino, J. Isaad and M. Rolla, BioResources, 2007, 2, 630 CAS.
- R. Bianchini, G. Catelani, R. Cecconi, F. D'Andrea, L. Guazzelli, J. Isaad and M. Rolla, Eur. J. Org. Chem., 2008, 3, 444 CrossRef.
- R. Bianchini, G. Catelani, R. Cecconi, F. D'Andrea, E. Frino, J. Isaad and M. Rolla, Carbohydr. Res., 2008, 343, 2067 CrossRef CAS PubMed.
- J. Isaad, M. Rolla and R. Bianchini, Eur. J. Org. Chem., 2009, 2748 CrossRef CAS.
- J. Isaad, F. Malek and A. El Achari, Dyes Pigm., 2012, 92, 1212 CrossRef CAS PubMed.
- R. Bianchini, M. Rolla, J. Isaad, G. Catelani, L. Guazzelli, M. Corsi and M. Bonanni, Carbohydr. Res., 2012, 356, 104 CrossRef CAS PubMed.
- J. Isaad and A. Perwuelz, Tetrahedron Lett., 2010, 51, 5328 CrossRef CAS PubMed.
- V. Pasquet, N. Behary, A. Perwuelz and J. Isaad, Fibers Polym., 2013, 14, 1141 CrossRef CAS.
- J. Isaad, Tetrahedron, 2013, 69, 2239 CrossRef CAS PubMed.
- J. Isaad and F. salaun, Sens. Actuators, B, 2011, 157, 26 CrossRef CAS PubMed.
- J. Isaad and A. El achari, Anal. Chim. Acta, 2011, 694, 120 CrossRef CAS PubMed.
- J. Isaad and A. El Achari, Tetrahedron, 2011, 67, 4196 CrossRef CAS PubMed.
- J. Isaad and A. El Achari, Tetrahedron, 2011, 67, 4939 CrossRef CAS PubMed.
- J. Isaad and A. El achari, Tetrahedron, 2011, 67, 5678 CrossRef CAS PubMed.
- J. Isaad and A. Perwuelz, Tetrahedron Lett., 2010, 51, 5810 CrossRef CAS PubMed.
- J. Dakin and B. Culshaw, Optical Fiber Sensors, Artech House, Boston-London, 1997, vol. IV, ch. 8, pp. 53–107 Search PubMed.
- Z. Czech, A. Butwin, E. Herko, B. Hefczyc and J. Zawadiak, eXPRESS Polym. Lett., 2008, 12, 277 CrossRef.
- X. Tong, G. Wang and Y. Zhao, J. Am. Chem. Soc., 2006, 128, 8746 CrossRef CAS PubMed.
- H. Durr and H. Bouas-Laurent, Photochromism: Molecules and Systems, Elsevier, Amsterdam, 2003 Search PubMed.
- A. Zarei, A. R. Hajipour, L. Khazdooz, B. F. Mirjalili and R. A. Najafi, Dyes Pigm., 2009, 81, 240 CrossRef CAS PubMed.
- A. Morsy and M. El-Apasery, J. Appl. Polym. Sci., 2008, 109, 695 CrossRef.
- N. Noroozi-Pesyan, J. Khalafy and Z. Malekpoor, Progress in Color Colorants and Coatings, 2009, 1, 61 Search PubMed.
- N. Noroozi-Pesyan, J. Khalafy and Z. Malekpoor, J. Chin. Chem. Soc., 2009, 56, 1018 CAS.
- Y. Moglie, C. Vitale and G. Radivoy, Tetrahedron Lett., 2008, 49, 1828–1831 CrossRef CAS PubMed.
- F. Ahmed Khan, J. Dash, C. Sudheer and R. K. Gupta, Tetrahedron Lett., 2003, 44, 7783 CrossRef PubMed.
- B. J. P. Whalley, H. G. V. Evans and C. A. Winkler, Can. J. Chem., 1956, 34, 1154 CrossRef CAS.
- D. A. Blackadder and C. Hinshelwood, J. Chem. Soc., 1957, 2904 RSC.
- J. A. Hyatt, Tetrahedron Lett., 1977, 18, 141 CrossRef.
- T. Mukaiyama, H. Nambu and M. Okamoto, J. Org. Chem., 1962, 27, 3651 CrossRef CAS.
- G. A. Olah, B. G. Balaram Gupta and S. C. Narang, J. Org. Chem., 1978, 43, 4503 CrossRef CAS.
- R. Sanz, J. Escribano, Y. Fernandez, R. Aguado, M. R. Pedrosa and F. J. Arnaiz, Synlett, 2005, 1389 CrossRef CAS PubMed.
- T. F. Chung, Y. M. Wu and C. H. Cheng, J. Org. Chem., 1984, 49, 1215 CrossRef CAS.
- K. Ohe, S. Uemura, N. Sugita, H. Masuda and T. Taga, J. Org. Chem., 1989, 54, 4169 CrossRef CAS.
- S. Wada, M. Urano and H. Suzuki, J. Org. Chem., 2002, 67, 8254 CrossRef CAS PubMed.
- A. Lycka, A. Kolonicny, P. Simunek and V. Machacek, Dyes Pigm., 2007, 72, 208 CrossRef CAS PubMed.
- H. Valizadeh and A. Shomali, Dyes Pigm., 2012, 92, 1138 CrossRef CAS PubMed.
- D. L. Astolfi and F. C. Mayville, Tetrahedron Lett., 2003, 44, 9223 CrossRef CAS PubMed.
- A. R. Hajipour, A. Rajaei and A. E. Ruoho, Tetrahedron Lett., 2009, 50, 708 CrossRef CAS PubMed.
- A. R. Hajipour, L. Khazdooz and A. E. Ruoho, Catal. Commun., 2008, 9, 89 CrossRef CAS PubMed.
- M. J. Earle and K. R. Seddon, Pure Appl. Chem., 2000, 72, 1391 CrossRef CAS.
- A. C. Cole, J. L. Jensen, I. Ntai, K. L. T. Tran, K. J. Weaver, D. C. Forbes and J. H. Davis, J. Am. Chem. Soc., 2002, 124(21), 5962 CrossRef CAS PubMed.
- N. Yan, Y. Yuan, R. Dykeman, Y. Kou and P. J. Dyson, Angew. Chem., Int. Ed., 2010, 49, 5549 CrossRef CAS PubMed.
- A. Riisager, R. Fehrmann and M. Haumann, Top. Catal., 2006, 40, 91 CrossRef CAS PubMed.
- C. P. Mehnert, Chem.–Eur. J., 2005, 11, 50 CrossRef PubMed.
- C. P. Mehnert, R. A. Cook, N. C. Dispenzire and M. Afeworki, J. Am. Chem. Soc., 2002, 124, 12932 CrossRef CAS PubMed.
- M. H. Valkenberg, C. de Castro and W. F. H. Olderich, Top. Catal., 2001, 14, 139 CrossRef.
- A. Wolfson, I. F. J. Vankelecom and P. A. Jacobs, Tetrahedron Lett., 2003, 44, 1195 CrossRef CAS.
- J. Huang, T. Jiang, H. Gao, B. Han, Z. Liu, W. Wu, Y. Chang and G. Zhao, Angew. Chem., Int. Ed., 2004, 43, 1397 CrossRef CAS PubMed.
- B. Kalpesh, A. Sidhpuria, L. Daniel-da-Silva, T. Trindade and J. A. P. Coutinho, Green Chem., 2011, 13, 340 RSC.
- J. Isaad and A. El Achari, Dyes Pigm., 2013, 99, 878 CrossRef CAS PubMed.
- J. Isaad and A. El Achari, Tetrahedron, 2013, 69, 4866 CrossRef CAS PubMed.
- A. Hu, G. T. Yee and W. Lin, J. Am. Chem. Soc., 2005, 127, 12486 CrossRef CAS PubMed.
- Q. Chang, L. H. Zhu, C. Yu and H. Q. Tang, J. Lumin., 2008, 128, 1890 CrossRef CAS PubMed.
- A. Zarei, A. R. Hajipour and L. Khazdoozd, Synthesis, 2009, 6, 941–944 CrossRef PubMed.
- W. Baik, W. Luan, H. J. Lee, C. H. Yoon, S. Koo and B. H. Kim, Can. J. Chem., 2005, 83, 213–219 CrossRef CAS.
- E. A. Krasnokutskaya, N. I. Semenischeva, V. D. Filimonov and P. Knochel, Synthesis, 2007, 1, 81–84 CrossRef PubMed.
- V. D. Filimonov, N. I. Semenischeva, E. A. Krasnokutskaya, A. N. Tretyakov, H. Y. Hwang and K. W. Chi, Synthesis, 2008, 2, 185–187 CrossRef PubMed.
- D. A. Gorlushko, V. D. Filimonov, E. A. Krasnokutskaya, N. I. Semenischeva, B. S. Go, H. Y. Hwang, E. H. Cha and K.-W. Chi, Tetrahedron Lett., 2008, 49, 1080–1082 CrossRef CAS PubMed.
- H. Zollinger, in Diazo Chemistry I, Aromatic and Heteroaromatic Compounds, VCH, 1994, p. 25 Search PubMed.
- A. Hajipour and F. Mohammadsaleh, Iran. J. Chem. Chem. Eng., 2011, 30, 23–28 CAS.
- M. A. Karimi Zarchi and N. Ebrahimi, J. Appl. Polym. Sci., 2011, 121, 2621–2625 CrossRef.
- J. Isaad, Tetrahedron, 2013, 69, 2239–2250 CrossRef CAS PubMed.
- W. Stober, A. Fink and E. Bohn, J. Colloid Interface Sci., 1968, 26, 62 CrossRef.
Footnote |
† Electronic supplementary information (ESI) available. See DOI: 10.1039/c4ra05705h |
|
This journal is © The Royal Society of Chemistry 2014 |
Click here to see how this site uses Cookies. View our privacy policy here.
