Doping-induced evolutions of PbWO₄ mesocrystals and their optical properties

Abstract

Y-doped PbWO₄ mesocrystals with controllable morphologies, from convex quadrangle to concave erythrocyte, which exhibit tunable optical properties, are obtained by simply increasing the Y³⁺ doping concentrations. A doping-induced structural disorder mechanism was tentatively proposed to understand the evolutions of PbWO₄ mesocrystals.

---

Mesocrystals, novel hierarchical structures, are composed of individual nanoparticle building blocks via a non-classical particle-mediated crystallization pathway.¹ The appearance of the mesocrystals opens up the possibilities of designing and fabricating new materials and devices.² In the synthesis of most well-known mesocrystals, organic additives such as surfactants, polyelectrolytes and biomacromolecules have been employed as stabilizers or inducers.³ But it is an arduous work to elucidate the exact effects of these additives on the formation of mesocrystals. Moreover, the incorporation of these additives would not be beneficial to the optical or electric properties of mesocrystals.⁴ In this regard, to synthesize mesocrystals without the addition of organic matrices can provide new insights in understanding their formation mechanism and modifying their properties.

In recent years, intensive researches have revealed that impurity doping can not only tune electronic, magnetic and optical properties of colloidal nanocrystals, but also have significant impact on its nucleation and growth process.^5,6 The latter provided a convenient route to modify the phase structures, sizes and shapes. Doping-induced modification of surface charge density⁵ and generation of transient electric dipoles⁶ were successively proposed to shed some light on the possible mechanism. Nevertheless, all of above mentioned reports mainly focused on the issues how impurity doping modified colloidal nanocrystals' nucleation and growth process. Until now, the investigations on the effect of impurity doping on the mesocrystals formation, especially the mutual orientation between primary nanocrystals, is still lacking.

PbWO₄, an important member of tungstate family, exhibits high potential in various applications such as scintillator in high-energy physics, laser and stimulated-Raman-scattering active media.⁷ Several researches have recently shown that PbWO₄ synthesized through wet chemical method tends to form a highly ordered hierarchical or mesoscale structures.⁸ But it strongly relied on the kind of surfactants used and the formation mechanism about these structures were not completely clear and even contradictory. So far it is still a challenge to develop a facile approach without using surfactants to synthesize PbWO₄ mesocrystals with controllable morphology. In this communication, we show that in the synthesis of PbWO₄ mesocrystals, introduction of Y³⁺ dopants leads to dramatic morphological evolution. Depending on the relative concentrations of dopants, Y-doped PbWO₄ mesocrystals with well-defined shapes, from convex quadrangle and concave erythrocyte, were obtained through a simple and facile co-precipitation method. A doping-induced structural disorder hypothesis was proposed to understand the evolutions of PbWO₄ mesocrystals.

Low-magnification FESEM images (Fig. S1, ESI†) reveal all of PbWO₄ samples have a uniform shape. So high-magnification FESEM images in Fig. 1, recorded from a single product, represent the entire sample population. Without deliberately added Y³⁺ ions, the FESEM images (Fig. 1a and e) shows the products have convex and quadrangle shape, which are composed of densely packed nanocrystals and clear boundaries between nanocrystals can be seen. SAED pattern (Fig. 1i) consists of individual diffraction spots along the [001] axis-zone, suggesting a single-crystalline nature. This is further verified by fast Fourier transfer (FFT) diffractogram (the inset of Fig. 2a). Based on the aggregation-like morphology and single-crystalline diffraction, we therefore concluded the convex quadrangles to be mesocrystals, in which primary PbWO₄ nanocrystals was spontaneously aligned and oriented along the same crystallographic direction.^1,3 The fact that the nanocrystals in the vicinity of boundaries have the parallel lattice fringes with a spacing of 0.19 nm (Fig. 2a and b) also demonstrates the orientation feature in PbWO₄ mesocrystals.

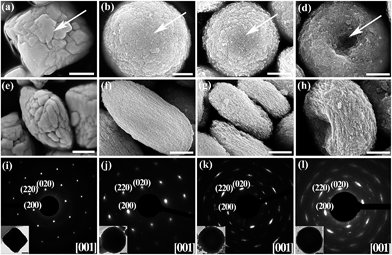

Fig. 1 Top- and side-view FESEM images and SAED patterns of a single Y-doped PbWO₄ mesocrystals. (a, e and i) 0 mol%; (b, f and j) 5 mol%; (c, g and k) 10 mol%; (d, h and l) 15 mol%. The scale bar in all images corresponds to 400 nm. All of SAED patterns were taken from an individual product shown in the inset.

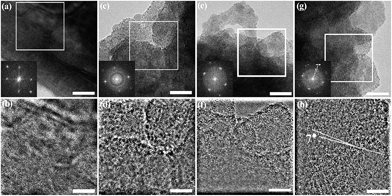

Fig. 2 HRTEM images and corresponding FFT diffractograms (the inset) as well as IFFT images of Y-doped PbWO₄ mesocrystals. (a and b) 0 mol%; (c and d) 5 mol%; (e and f) 10 mol%; (g and h) 15 mol%. FFT and IFFT obtained from the white-square area of HRTEM image.

XRD patterns of Y-doped PbWO₄ mesocrystals with different Y³⁺ concentrations reveal that all of products have pure tetragonal scheelite structure and the increase of Y³⁺ concentrations results in decreasing in crystallinity and grain size of primary PbWO₄ nanocrystals (Fig. S2 and Table S1, ESI†). With increasing Y³⁺ dopant concentrations, the shape of as-obtained PbWO₄ mesocrystals gradually transforms to round and concave, marked by white arrows in Fig. 1. In the presence of Y³⁺ dopant ions (15 mol%), novel erythrocyte-like shape can be obtained in PbWO₄ samples (Fig. 1d and 1h). Moreover, higher Y³⁺ doping concentration results in smaller nanocrystals in PbWO₄ samples, well consistent with the XRD results (Table S1, ESI†), and induces more distinct layered arrangement between these nanocrystals.

For PbWO₄ mesocrystals with 5 mol% Y³⁺ ions, SAED pattern still reveals a single crystalline nature (Fig. 1j), but the individual diffraction spots feature a slight deformation, indicating there may be slightly a small angle mismatch between adjacent primary nanocrystals. As shown in Fig. 2c and d, boundaries between adjacent nanocrystals become clearer due to the decrease in the grain size of primary PbWO₄ nanocrystals and the nanocrystals in the vicinity of boundaries also have parallel lattice fringes with a spacing of 0.27 nm. Further increasing in Y³⁺ doping concentrations, this orientation mismatch becomes more obvious (Fig. 1k and l), in which discontinuous diffraction rings can also be seen besides the bright, arc-shaped individual diffraction spots. This change in the orientation mismatch can also be found in the corresponding FFT diffractogram (Fig. 2e and g). More obviously, from the IFFT image in Fig. 2h, orientation mismatch about 7° between two adjacent nanocrystals can be directly observed. So, during the formation of PbWO₄ mesocrystals, Y³⁺ doping could obviously modify the mutual orientation process of primary nanocrystals.

The existence of a net magnetic or electric dipole, which, in the latter case, can often develop as a result of adsorption of additives onto specific faces of the primary nanocrystals, can act as a driving force for the mesocrystals formation.³ In the absence of any organic additives, PbWO₄ mesocrystals could be formed, as shown in Fig. 1. So there was reason to believe that the formation of PbWO₄ mesocrystals could possibly originate from the existence of intrinsic driving forces in PbWO₄ such as net electric dipoles. As shown in Fig. 3, the W⁶⁺ ion in the [WO₄] tetrahedron and the Pb²⁺ ion in the [PbO₈] pseudocube are always located at a same layer, from the point of crystallographic axis directions, and the adjacent layers containing metal ions are isolated by pure oxygen ions layers. This anisotropic ionic stacking feature further results in some specific planes consisted of either pure metal ions such as (004), (200) and (220) or pure oxygen ions such as (400).

Fig. 3 (Left) 1 × 1 × 1 unit cell of tetragonal PbWO₄ structure; (middle upper) [PbO₈] and [WO₄] polyhedrons; (middle bottom and right) 2D atomic configurations in the (004) and (200) planes. The blue, red and pink spheres represent lead, tungsten and oxygen atoms, respectively.

Due to the differences in ionic radius and valence, the substitution of Pb²⁺ by Y³⁺ ions could result in the deformation of [PbO₈] polyhedra and the existence of positively charged defects Y_Pb⁺, which further induced the distortion of adjacent [WO₄] tetrahedra and the appearance of negatively charge defects. These changes would become more obvious at higher Y³⁺ doping concentrations. These deformation and/or distortion as well as charged point defects could possibly induce the charge distributions' variation of these pure metal or oxygen crystallographic planes in primary PbWO₄ nanoparticles, and substantially modify the driving force (net electric dipoles) for their directional or oriented aggregation. Based on this speculation, it may seem reasonable that increasing in Y³⁺ doping concentrations resulted in the increase of orientation mismatch between primary PbWO₄ nanoparticles and the continuous morphological evolutions of PbWO₄ mesocrystals. More importantly, the similar doping-induced continuous morphological evolution in PbWO₄ mesocrystals could be also seen in other trivalent rare-earth doping ions such as La³⁺, Nd³⁺, and Gd³⁺, even in divalent alkaline-earth doping ions such as Sr²⁺, as shown in Fig. S3, ESI.† Nevertheless, owing to the differences in ionic radius, polarizability and valence of these dopant ions, there are some discrepancies in specific morphologies of as-obtained doped PbWO₄ mesocrystals,^6a and theoretical simulations about how impurity doping modify the charge distribution of special crystallographic planes and the further mesocrystals formation will be the focus of our following work.

According to previous reports, optical properties are very sensitive to local lattice symmetry and can be used as an intrinsic probe to map the structural variations in scheelite crystals.^9–11 In the case of undoped PbWO₄ mesocrystals (Fig. 4a), six Raman bands corresponding to the internal modes inside the [WO₄] molecular groups can be seen.^9b,10 However, with adding Y³⁺ doping ions, the Raman intensity decreases rapidly, indicating the increase in the imperfection of [WO₄] molecular groups.^9c,10c Moreover, two vibration bands at 354.6 and 764.4 cm⁻¹, corresponding to non-symmetrical bonding ν₄(B_g) and stretching ν₃(B_g), gradually decrease in intensities and are finally merged with the bonding ν₄(E_g) and ν₃(E_g) to form a broadband peak (the inset of Fig. 3a). It is likely that the merging of the E_g and B_g components is connected with the increase of the distortion of [WO₄] molecular groups with increasing Y³⁺ doping concentrations.^10c As a result, the change in Raman spectra strongly confirmed the above-mentioned doping-induced structural disorder speculation.

Fig. 4 Raman spectra (a) and UV-vis absorption spectra (b) of Y-doped PbWO₄ mesocrystals with different Y³⁺ doping concentrations. The inset of (b) is the normalized PL spectra.

In the UV-vis spectra (Fig. 4b), the optical gap energy (E_g) value of undoped PbWO₄ mesocrystals is about 3.85 eV. With increasing Y³⁺ concentrations, the E_g shifts gradually toward lower values, and in the case of 15 mol% Y³⁺ ions, it is only 3.63 eV. In theory, the decrease in the E_g value is associated with the existence of intermediary energy levels within the band gap due to impurity atoms and/or structural defects of host lattices. For the scheelite lead tungstate, a great number of theoretical calculations revealed that the band gap strongly relied on the O 2pπ states and W 5d states,¹¹ and a little displacement of W atoms and/or distortion of W–O bonds in [WO₄] molecular groups could induce a marked change of band gap.^10a,11 As a result, the continuous decrease in the E_g value as a function of Y³⁺ doping concentrations could be mainly attributed to the variation of state density distribution of O 2pπ and W 5d states in [WO₄] molecular groups, originating from the doping-dependent distortion of [WO₄] tetrahedron.

The doping-induced changes in energy level of band gap were also reflected on photoluminescence (PL) properties. As shown in the inset of Fig. 4b, all of PbWO₄ mesocrystals emit broad bands in the visible spectrum region and the maximum value of the broadband emission progressively shifts from 479 nm to 513 nm, with increasing Y³⁺ doping concentrations. These broadband emissions are typical of a multiphonon or multilevel process and can be well fitted into three Gaussian components (Fig. S4, ESI†), corresponding to the blue, green and yellow emissions, respectively. Interestingly, each Gaussian emission peak shifts toward high wavelength direction with increasing Y³⁺ concentration. This red-shift of blue, green and yellow emission as a function of Y³⁺ concentrations could be also considered as a concrete manifestation of doping-induced structure disorder.

In conclusion, we demonstrated the morphology and microstructure of PbWO₄ mesocrystals could be effectively modified by impurity doping of Y³⁺ ions. Based on the intrinsic anisotropic ionic stacking feature, a doping-induced structural disorder hypothesis was proposed to understand the underlying mechanism. A deeper understanding of the doping-induced mesocrystal evolutions may help us towards designing new synthesis strategies for other inorganic materials in future and extending the views about mesocrystal formation in a much broader.

Acknowledgements

This work was supported by the National Natural Science Foundation of China (Grant no. 11205127), NSAF (Grant no. U1330127 and 11176026), Youth Innovation Research Team of Sichuan for Carbon Nanomaterials (Grant no. 2011JTD0017), Open Foundation of State Key Laboratory Cultivation Base for Nonmetal Composites and Functional Materials (Grant no. 11zxfk26) and a scholarship under the State Scholarship Fund by the China Scholarship Council (2011851658).

Notes and references

1. R. Q. Song and H. Cölfen, Adv. Mater., 2010, 22, 1301–1330.
2. (a) X. L. Wu, S. J. Xiong, Z. Liu, J. Chen, J. C. Shen, T. H. Li, P. H. Wu and P. K. Chu, Nat. Nanotechnol., 2011, 6, 103–106; (b) S. Z. Deng, V. Tjoa, H. M. Fan, H. R. Tan, D. C. Sayle, M. Olivo, S. Mhaisalkar, J. Wei and C. H. Sow, J. Am. Chem. Soc., 2012, 134, 4905–4917.
3. (a) M. H. Liu, Y. H. Tseng, H. F. Greer, W. Zhou and C. Y. Mou, Chem.–Eur. J., 2012, 18, 16104–16113; (b) Z. Liu, X. D. Wen, X. L. Wu, Y. J. Gao, H. T. Chen, J. Zhu and P. K. Chu, J. Am. Chem. Soc., 2009, 131, 9405–9412.
4. Y. Jin, J. H. Zhang, S. Z. Lu, H. F. Zhao, X. Zhang and X. J. Wang, J. Phys. Chem. C, 2008, 112, 5860–5964.
5. (a) D. J. Norris, A. L. Efros and S. C. Erwin, Science, 2008, 319, 1776–1779; (b) D. Q. Chen and Y. S. Wang, Nanoscale, 2013, 5, 4621–4637; (c) X. D. Feng, D. C. Sayte, Z. L. Wang, M. S. Paras, B. Santora, A. C. Sutorik, T. X. Sayte, Y. Yang, Y. Ding, X. D. Wang and Y. S. He, Science, 2006, 312, 1504–1508; (d) Y. Ding, J. Gu, J. Ke, Y. W. Zhang and C. H. Yan, Angew. Chem., Int. Ed., 2011, 50, 12330–12334; (e) Y. F. Yang, Y. Z. Jin, H. P. He, Q. L. Wang, Y. Tu, H. M. Lu and Z. Z. Ye, J. Am. Chem. Soc., 2010, 132, 13381–13394.
6. (a) F. Wang, Y. Han, C. S. Lim, Y. H. Lu, J. Wang, J. Xu, H. Y. Chen, C. Zhang, M. H. Hong and X. G. Liu, Nature, 2010, 463, 1061–1065; (b) D. Q. Chen, Y. L. Yu, F. Huang, P. Huang, A. P. Yang and Y. S. Wang, J. Am. Chem. Soc., 2010, 132, 9976–9978; (c) H. L. Qiu, G. Y. Chen, R. W. Fan, C. Cheng, S. W. Hao, D. Y. Chen and C. H. Yang, Chem. Commun., 2011, 47, 9648–9650; (d) D. Q. Chen, P. Huang, Y. L. Yu, F. Huang, A. P. Yang and Y. S. Wang, Chem. Commun., 2011, 47, 5801–5803.
7. H. Tang, C. S. Li, H. J. Song, X. F. Yang and X. H. Yan, CrystEngComm, 2011, 13, 5119–5124.
8. (a) Q. Zhang, W. T. Yao, X. Y. Chen, L. W. Zhu, Y. B. Fu, G. B. Zhang, L. S. Sheng and S. H. Yu, J. Cryst. Growth, 2007, 7, 1423–1431; (b) F. Dong, Y. Huang, S. C. Zou, J. Liu and S. C. Lee, J. Phys. Chem. C, 2011, 115, 241–247; (c) C. L. Yu, F. F. Cao, X. Li, G. Li, Y. Xie, J. C. Yu, Q. Shu, Q. Z. Fan and J. C. Chen, Chem. Eng. J., 2013, 219, 86–95; (d) B. Liu, S. H. Yu, L. J. Li, Q. Zhang, F. Zhang and K. Jiang, Angew. Chem., Int. Ed., 2004, 43, 4745–4750; (e) X. H. Guo, J. P. Yang, Y. H. Deng, H. Wei and D. Y. Zhao, Eur. J. Inorg. Chem., 2010, 11, 1736–1742.
9. (a) T. T. Basiev, A. A. Sobol, Y. K. Voronko and P. G. Zverev, Opt. Mater., 2000, 15, 205–216; (b) L. S. Cavalcante, J. C. Sczancoski, V. C. Albarici, J. M. E. Matos, J. A. Varela and E. Longo, Mater. Sci. Eng., B, 2008, 150, 18–25; (c) M. Anicete-Santos, F. C. Picon, C. N. Alves, P. S. Pizani, J. A. Varela and E. Longo, J. Phys. Chem. C, 2011, 115, 12180–12186.
10. (a) L. S. Cavalcante, F. M. C. Batista, M. A. P. Almeida, A. C. Rabelo, L. C. Nogueira, N. C. Batista, J. A. Varela, M. R. M. C. Santos, E. Longo and M. Siu Li, RSC Adv., 2012, 2, 6438–6454; (b) J. Geng, J. J. Zhu, D. J. Lu and H. Y. Chen, Inorg. Chem., 2006, 45, 8403–8407; (c) L. S. Cavalcante, J. C. Sczancoski, L. F. Lima, Jr, J. W. M. Espinosa, P. S. Pizani, J. A. Varela and E. Longo, J. Cryst. Growth, 2009, 9, 1002–1012.
11. (a) M. Anicete-Santos, E. Orhan, M. A. M. A. de Maurera, L. G. P. Simões, A. G. Souza, P. S. Pizani, E. R. Leite, J. A. Varela, J. Andrés, A. Beltrán and E. Longo, Phys. Rev. B: Condens. Matter Mater. Phys., 2007, 75, 165105; (b) Y. Zhang, N. A. W. Holzwarth and R. T. Williams, Phys. Rev. B: Condens. Matter Mater. Phys., 1998, 57, 12738–12750; (c) L. S. Cavalcante, V. M. Longo, J. C. Sczancoski, M. A. P. Almeida, A. A. Batista, J. A. Varela and M. O. Orlandi, CrystEngComm, 2012, 14, 853–868.

---

Footnote

† Electronic supplementary information (ESI) available: Experimental details and Fig. S1–S4. See DOI: 10.1039/c4ra05450d

---
