Reactivity of nitric oxide with ruthenium complexes derived from bidentate ligands: structure of a ruthenium nitrosyl complex, photoinduced generation and estimation of nitric oxide

Abstract

Ruthenium complexes [Ru(L¹)(PPh₃)₂(CO)Cl] (1) [where L¹H is (E)-2-((naphthalen-1-ylimino)methyl)phenol] and [Ru(L²)(PPh₃)₂(CO)Cl] (2) [where L²H is (E)-1-((naphthalen-1-ylimino) methyl) naphthalene-2-ol] [H stands for dissociable proton] were synthesized and characterized by UV-Vis, IR and NMR spectral studies. Nitric oxide reactivity studies afforded ruthenium nitrosyl complexes [Ru(L¹)(PPh₃)(NO₂)(NO)Cl] (1a) and [Ru(L²)(PPh₃)(NO₂)(NO)Cl] (2a) from complexes 1 and 2, respectively. Complexes 1a and 2a were characterized by different spectroscopic studies. The molecular structure of complex 2a was determined by X-ray crystallography. The redox properties of all the complexes were investigated by cyclic voltammetry. Coordinated nitric oxide was found to be photolabile and photogenerated NO was trapped by reduced myoglobin and liberated NO was estimated by the Griess reaction.

---

Introduction

Nitric oxide (NO) has been recognized as a signaling molecule and a wide variety of physiological processes like neurotransmission, immune response, blood pressure control, and cellular apoptosis etc. are governed by this small paramagnetic molecule.¹ In biosystems, nitric oxide, a highly reactive radical molecule, is produced by an enzyme called nitric oxide synthase (NOS). In recent years there has been an upsurge of interest in the chemistry of nitric oxide and especially the synthesis of nitrosyl complexes that are capable of releasing NO upon irradiation with light.² Such types of photosensitive complexes are required for applications in photodynamic therapy (PDT).^3,4 We have been working in this area and revealed the role of the carbanion in ruthenium(III) cyclometallates.⁵ Moreover, we also investigated their nitric oxide reactivity and their photophysical properties in other complexes.⁶

This work originated from our recent reports on ruthenium(III) cyclometallates using LH₂.⁵ We designed and synthesized ligands L¹H [(E)-2-((naphthalen-1-ylimino)methyl)phenol] and L²H [(E)-1-((naphthalen-1-ylimino)methyl)naphthalene-2-ol] [where H is the dissociable proton] (shown in Scheme 1) with an intention of C–H bond activation (hydrogen of C8) of naphthyl group. Reactions of L¹H and L²H with [Ru(PPh₃)₃Cl₂] will be discussed and we report here the synthesis and characterization of ruthenium complexes [Ru(L¹)(PPh₃)₂(CO)Cl] (1), [Ru(L¹)(PPh₃)(NO₂)(NO)Cl] (1a), [Ru(L²)(PPh₃)₂(CO)Cl] (2) and [Ru(L²)(PPh₃)(NO₂)(NO)Cl] (2a) (Schemes 2 and 3). Molecular structure of complex 2a was determined by X-ray crystallography. Photolability of the coordinated NO was investigated upon illumination of visible as well as UV light. Estimation of photoreleased NO and trapping of nitric oxide were investigated.

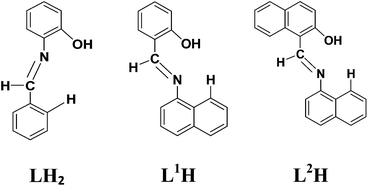

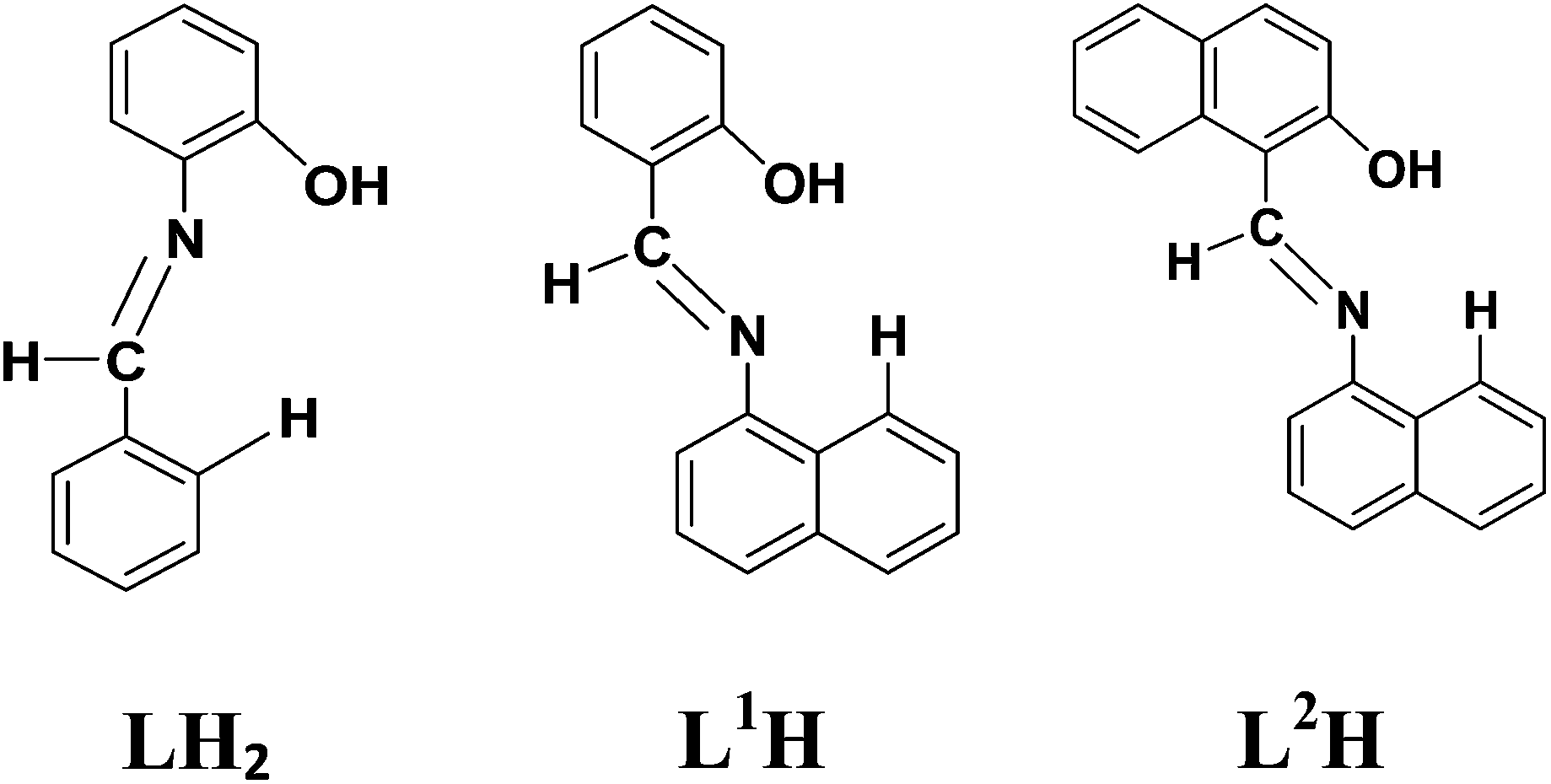

Scheme 1 Schematic drawing of ligands LH₂, L¹H and L²H.

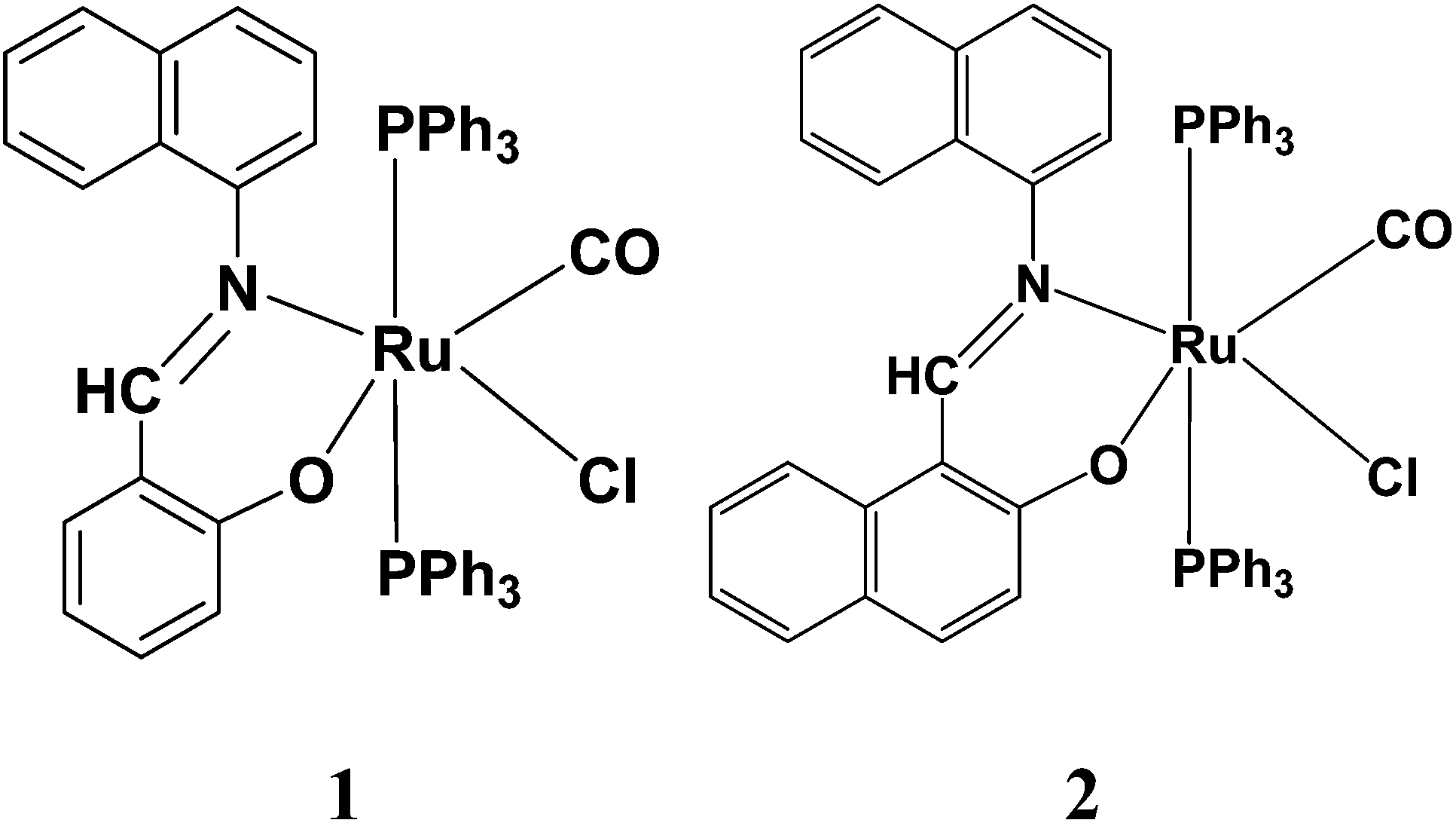

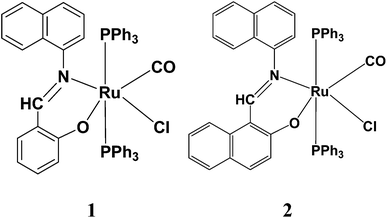

Scheme 2 Schematic drawing of carbonyl complexes 1 and 2.

Scheme 3 Schematic drawing of nitrosyl complexes 1a and 2a.

Experimental section

General procedures

All the chemicals used were of reagent grade. Analytical grade reagents naphthalene-1-amine, 2-hydroxybenzaldehyde, sulphanilamide, 2-hydroxy-1-naphthaldehyde, sodium nitrite, naphthylethylenediamine dihydrochloride (NED) (Himedia Laboratories Pvt. Ltd, Mumbai, India), RuCl₃·3H₂O, triphenylphosphine (SRL, Mumbai, India), disodium hydrogen phosphate anhydrous (RFCL Ltd New Delhi, India) and sodium dihydrogen phosphate (Chemport India Pvt. Ltd Mumbai, India) were used as obtained. Double distilled water was used in all the experiments. Equine skeletal muscle myoglobin was obtained from Sigma Aldrich, Steinheim, Germany.

¹H and ³¹P NMR spectra were recorded on Bruker AVANCE, 500.13 MHz spectrometer in the deuterated solvents. Electronic absorption spectra of all the ligands and metal complexes were recorded with Evolution 600, Thermo Scientific UV-Vis spectrophotometer. Infrared spectra were recorded on Thermo Nicolet Nexus FTIR spectrophotometer and were obtained in KBr pellets using 16 scans (in cm⁻¹). Cyclic voltammetric study was performed on a CH-600 electroanalyzer in dichloromethane solution with 0.1 M tetrabutylammonium perchlorate (TBAP) as supporting electrolyte. The working electrode, reference electrode and auxiliary electrode were glassy carbon electrode, Ag/AgCl electrode and Pt wire respectively. The concentration of the compound was ∼10⁻³ M. The ferrocene/ferrocenium couple appeared at E_1/2 = +0.50 V vs. Ag/AgCl (scan rate 0.1 V s⁻¹) in dichloromethane under the same experimental conditions. Chemical actinometry study (with ferrioxalate actinometer) was performed to determine the quantum yield of photoreleased NO.

Synthesis of ligands

Synthesis of 2-((naphthalen-1-ylimino)methyl)phenol (L¹H). A solution of 2-hydroxybenzaldehyde (244 mg, 2 mmol) in 5 mL of methanol was added to (286 mg, 2 mmol) of naphthalene-1-amine in 10 mL methanol with continuous stirring. After 1 h of stirring the reaction mixture was refluxed for 2 h and cooled at room temperature. This reaction mixture was kept at room temperature for overnight. Next day yellow crystals were found at the bottom of the round bottom flask which was filtered and washed with small amount of methanol and diethylether. Yield: 303.8 mg (62%). Selected IR data (KBr, ν_max/cm⁻¹): 1615 (ν_C=N), 1494, 1397, 1276, 1201, 1151, 975, 757 cm⁻¹. UV-Vis (CH₂Cl₂; λ_max, nm (ε, M⁻¹ cm⁻¹)): 262 (12 394), 352 (10 792). ¹H NMR (CDCl₃, 500 MHz): δ 13.14 (s, 1H), 8.99 (s, 1H), 8.18 (d, 1H), 7.96 (d, 1H), 7.85 (d, 1H), 7.74 (d, 1H), 7.60–7.54 (m, 3H), 7.46–7.39 (m, 2H), 7.06–7.01 (m, 2H).

Synthesis of 1-((naphthalen-1-ylimino)methyl)naphthalen-2-ol (L²H). Ligand L²H was synthesized from the reaction of 2-hydroxy-1-naphthaldehyde with naphthalene-1-amine by following the same procedure as for ligand L¹H. Yield: 395.1 mg (67%). Selected IR data (KBr, ν_max/cm⁻¹): 1615 (ν_C=N), 1450, 1400, 1303, 1204, 960, 829, 742 cm⁻¹. UV−Vis (CH₂Cl₂; λ_max, nm (ε, M⁻¹ cm⁻¹)): 320 (9878), 385 (12 376). ¹H NMR (CDCl₃, 500 MHz): δ 15.82 (s, 1H), 9.55 (d, 1H), 8.22 (d, 1H), 7.95–7.79 (m, 4H), 7.65–7.57 (m, 4H), 7.42–7.39 (m, 2H), 7.26–7.24 (m, 1H).

Synthesis of metal complexes

The precursor complex [Ru(PPh₃)₃Cl₂] was prepared by following the reported procedure.⁷

Synthesis of [Ru(L¹)(PPh₃)₂(CO)] (1). A batch of [Ru(PPh₃)₃Cl₂] (95.8 mg, 0.10 mmol) was added directly to a 30 mL solution of ligand L¹H (44.55 mg, 0.15 mmol) and triethylamine (20.20 mg, 0.20 mmol) in methanol. The color of solution changed from yellow to red-brown. This solution was refluxed for 4 h and the red-brown colored solid precipitated out, which was filtered and washed thoroughly with methanol and diethylether. Yield: 72.96 mg, (74%). IR (KBr disk, in cm⁻¹): 1920(ν_CO), 1598 (ν_C=N), 1481, 1456, 1434, 765, 696, 523 (ν_PPh3) cm⁻¹. UV-Vis (CH₂Cl₂; λ_max, nm (ε, M⁻¹ cm⁻¹)): 270 (29 990), 323 (12 658), 440 (4868). ¹H NMR ((CD₃)₂SO, 500 MHz): δ 7.745 (d, 1H), 7.601–7.347 (m, 8H), 7.215–7.081 (m, 27H), 6.804 (t, 1H), 6.735 (d, 1H), 6.541 (d, 1H), 6.441 (d, 1H), 6.081 (m, 2H).

Synthesis of [Ru(L²)(PPh₃)₂(CO)] (2). Complex [Ru(L²)(PPh₃)₂(CO)Cl] (2) was synthesized from the reaction of [Ru(PPh₃)₃Cl₂] with ligand L²H by following the same procedure as for 1. Yield: 74.23% (69.26 mg). IR (KBr disk, in cm⁻¹): 1920(ν_CO), 1598 (ν_C=N), 1524, 1428, 744, 691, 516 (ν_PPh3) cm⁻¹. UV-Vis (CH₂Cl₂; λ_max, nm (ε, M⁻¹ cm⁻¹)): 360 (9511), 440 (4450). ³¹P NMR (CDCl₃, 500 MHz): δ 41.10 ppm. ¹H NMR (CDCl₃, 500 MHz): δ 8.45 (d, 1H), 7.58 (d, 1H), 7.52 (d, 1H), 7.42–7.04 (m, 39H), 6.27–6.25 (m, 1H), 6.19 (d, 1H).

Synthesis of [Ru(L¹)(PPh₃)(NO₂)(NO)Cl] (1a). The complex 1 (0.03 g, 0.033 mmol) was dissolved in 30 mL of dichloromethane in a 100 mL round-bottom flask to give a reddish-brown solution. To the above solution was added sodium nitrite (0.3 g, 4.5 mmol) with acidified distilled water (20 mL), and the mixture was stirred at room temperature for 2 h to give a reddish yellow solution of complex 1a. The dichloromethane layer was separated out and the solvent was evaporated to give an reddish yellow solid. Yield: 52%. IR (KBr disk, cm⁻¹): 1835 (ν_NO), 1596 (ν_C=N), 1311 (ν_NO2), 751, 693, 523 (ν_PPh3) cm⁻¹. UV-Vis (CH₂Cl₂; λ_max, nm (ε, M⁻¹ cm⁻¹)): 275 (23 251), 375 (5380). ¹H NMR (CDCl₃, 500 MHz): δ 8.35 (d, 1H), 7.99–7.80 (m, 8H), 7.64–7.40 (m, 16H), 6.95 (s, 1H), 6.91 (d, 1H).

Synthesis of [Ru(L²)(PPh₃)(NO₂)(NO)Cl] (2a). The Complex 2a was synthesized from complex 2 by following the same procedure as for 1a. Yield: 62%. IR (KBr disk, cm⁻¹): 1880 (ν_NO), 1598 (ν_C=N), 1531, 1408, 1326 (ν_NO2), 751, 693, 523 (ν_PPh3) cm⁻¹. UV-Vis (CH₂Cl₂; λ_max, nm (ε, M⁻¹ cm⁻¹)): 312 (23 975), 387 (9940). ³¹P NMR (CDCl₃, 500 MHz): δ 20.92 ppm. ¹H NMR (CDCl₃, 500 MHz): δ 9.21 (d, 1H), 8.63 (d, 1H), 7.92–7.76 (m, 13H), 7.56–7.32 (m, 14H), 6.89 (d, 1H).

Griess reagent assay

Griess reagent was prepared by mixing equal volumes of 1% sulphanilamide in 5% orthophosphoric acid and 0.1% naphthylethylenediamine dihydrochloride (NED) in distilled water. The estimation of NO or nitrite (NO₂⁻) ion was measured by observing the increase in the absorbance near 538 nm due to the formation of azo dye. Aqueous solutions of sodium nitrite with different concentrations (5–50 μM) were used to prepare standard curve for the determination of nitrite.^5c

Quantum yield measurements

Standard ferrioxalate actinometer (0.006 M solution of potassium ferrioxalate in 0.1 N H₂SO₄) was used to determine the intensity of the UV light (λ_irr = 365 nm). Quantum yield (Φ_NO) of NO photorelease for complexes 1a and 2a were determined from the decrease in its absorption band with λ_max near 320 nm when irradiated with the light of a UV lamp (λ_irr = 365 nm) and was calculated by following the procedure reported earlier.^5c The cuvette was kept 3 cm away from the UV source to measure the quantum yields.

X-ray crystallography

Orange-red crystal of 2a was obtained by slow evaporation of solution from the complexes in a CH₂Cl₂–methanol mixture. The X-ray data collection and processing for complex was performed on a Bruker Kappa Apex-II CCD diffractometer by using graphite monochromated Mo-Kα radiation (λ = 0.71073 Å) at 296 K for 2a. Crystal structure was solved by direct method. Structure solutions, refinement and data output were carried out with the SHELXTL program.^8,9 All non-hydrogen atoms were refined anisotropically. Hydrogen atoms were placed in geometrically calculated positions and refined using a riding model. Images were created with the DIAMOND program.¹⁰

Preparation of phosphate buffer and myoglobin (Mb) stock solution

A 50 mM phosphate buffer solution of pH 6.8 was prepared by adding 0.4192 g of NaH₂PO₄·2H₂O and 0.3283 g of anhydrous Na₂HPO₄ to 50 mL of MilliQ water. The volume of the solution was made 100 mL in volumetric flask. Now to prepare myoglobin stock solution, 5 mg of equine skeletal muscle myoglobin was dissolved in 5 mL of buffer solution (vide infra). 100 μL of myoglobin stock solution was diluted to 1 mL in a quartz cuvette with an optical length of 1 cm and was sealed with a rubber septum.

Result and discussion

Syntheses

The complexes [Ru(L¹)(PPh₃)₂(CO)Cl] (1) and [Ru(L²)(PPh₃)₂(CO)Cl] (2) were synthesized (Scheme 4) by the reaction of [Ru(PPh₃)₃Cl₂] and Schiff base ligands L¹H and L²H in methanol with triethylamine (Scheme 1), respectively. Both Complexes 1 and 2 (Scheme 2) were red-brown in colour and isolated in good yield (∼74%). The solvent methanol used during the synthesis in all the reactions was the source of the carbonyl in these complexes.^11–13 Complexes 1 and 2 were highly soluble in dichloromethane, benzene, acetonitrile and dimethylformamide but less solubility was found in water. Complexes 1 and 2 were treated with in situ generated NO derived from an acidified nitrite (NaNO₂) solution with continuous stirring for 2 h in dichloromethane solution. During reaction, the reddish-brown colour of the solution was converted to a reddish-yellow coloured solution. Ruthenium nitrosyl complexes [Ru(L¹)(PPh₃)(NO₂)(NO)Cl] (1a) and [Ru(L²)(PPh₃)(NO₂)(NO)Cl] (2a) (Scheme 3) were isolated from reddish-yellow colored solution. Complexes 1a and 2a were highly soluble in organic solvents like dichloromethane, acetonitrile and dimethylformamide but less soluble in water.

Scheme 4 Synthetic routes for complexes 1, 2, 1a and 2a.

General properties

All the complexes 1, 1a, 2 and 2a were found to be diamagnetic which was confirmed by ¹H and ³¹P NMR spectral studies (Fig. S1–S6†). ¹H NMR spectra of complexes 1, 1a, 2 and 2a indicated their S = 0 ground state in all complexes. In ³¹P NMR spectrum of 2, we obtained a single peak near 41.11 ppm confirmed the presence of trans PPh₃ group¹³ (Fig. S3†). But in case of 2a, In ³¹P NMR spectrum we found a peak near 22.15 ppm due to the presence of only one PPh₃ group^6b (Fig. S6†). The UV-Vis spectra of red brown complexes 1 and 2 were displayed in Fig. S7.† In complexes 1 and 2, we found a common charge transfer band with λ_max near 440 nm. On the other hand, complex 1 gave rise to two absorption bands near 270 nm and 323 nm while complex 2 gave rise a absorption band near 360 nm. Both the nitrosyls complexes 1a and 2a were found reddish yellow in color and their electronic spectra were displayed in Fig. S8.† In the electronic spectra of complex 1a, we observed a absorption band near 275 and 365 nm while in case of complex 2a, we found two bands near 312 and 387 nm.

The C=O stretching frequencies (ν_CO) in the IR spectra were observed around 1920 cm⁻¹ which indicated the presence of CO group^12,13 in both the complexes 1 and 2 (Fig. S9 and S10†). In the complexes 1a and 2a, the N–O stretching frequencies (ν_NO) in the IR spectra were found around 1835 cm⁻¹ and 1880 cm⁻¹ respectively^5,6a–c (Fig. S11 and S12†) which are expected for {Ru–NO}⁶ species in nitrosyl complexes.^2a The value of ν_NO was in the range of 1820–1960 cm⁻¹ and a description of {Ru^II–NO⁺}⁶ was proposed for {Ru–NO}⁶ species^2a and these data were also supported by X-ray crystal structure (vide infra). The values of ν_PPh3 were observed near 750 cm⁻¹, 695 cm⁻¹ and 520 cm⁻¹ for both the complexes 1a and 2a.^5,6

Description of molecular structure

The molecular structure of complex [Ru(L²)(PPh₃)(NO₂)(NO)Cl] (2a) is depicted in Fig. 1. The matrix parameters of complex 2a are described in Table 1 and the selected bond lengths and bond angles are given in Table 2. In the molecular structure of [Ru(L²)(PPh₃)(NO₂)(NO)Cl] 2a, the phenolato oxygen (O(1)), NO, phosphine group (P(1)), and imine nitrogen (N(9)) constituted the equatorial plane, whereas the Cl(1) and NO₂ occupied the trans positions. So, the geometry around the metal centre is found to be distorted octahedral. In the nitrosyl complex 2a, Ru–N_NO distance [1.735(16)] was found to be closer to the reported value.^6b,14 The N–O distance (1.140) was found to be consistent with the values given in the literature.^6b,14b All these data along with Ru–N–O angles (≈177°) in 2a clearly show a {Ru^II–NO⁺}⁶ description of the {Ru–NO}⁶ moiety.¹⁴ Structure solution afforded several important features of this nitric oxide reactivity studies. First, we were unable to get ruthenium cyclometallate via naphthyl hydrogen activation. Second, CO was eliminated during NO coordination. Third, unlike our previous results^5,6 ligand nitration was not observed in activated benzene ring having phenolato function. Fourth, nitrite coordination was observed. Fifth, unlike our previous results⁵ NO was found to be trans to the phenolato function which is rare in the literature.¹⁵ Sixth, the PPh₃ group was found to be in the same plane of the ligand and NO, however, ³¹P NMR data clearly indicated trans disposition of PPh₃ ligands in complexes 1 and 2.

Fig. 1 ORTEP diagram (30% probability level) of the complex [Ru(L²)(PPh₃)(NO₂)(NO)Cl] (2a). Hydrogen atoms are not shown for clarity.

Table 1 Crystal data and structural refinement parameters for complex [Ru(L²)(PPh₃)(NO₂)(NO)Cl] (2a)

a GOF = [Σ[w(Fo^2 − Fc^2)^2]/M − N]^1/2 (M = number of reflections, N = number of parameters refined).b R1 = Σ||Fo| − |Fc||/Σ|Fo|.c wR2 = [Σ[w(Fo^2 − Fc^2)^2]/Σ[(Fo^2)^2]]^1/2.
Empirical formula	C39H29ClN3O4PRu
Formula weight	771.14
T(K)	296(2)
λ(A)(Mo-Kα)	0.71073
Crystal system	Triclinic
Space group	P1̄
a(Å)	9.136(4)
b(Å)	11.058(4)
c(Å)	18.192(7)
α(°)	102.36(2)
γ(°)	107.76(3)
β(°)	90.79(3)
V(Å^3)	1703.5(12)
Z	4
ρcalc (g cm^−3)	1.503
F(000)	784.0
Theta range(°)
Index ranges	−11 < h < 11, −13 < k < 13, −22 < l < 22
Data/restraints/parameters	6986/0/430
GOF^a on F^2	1.188
R1^b[I > 2σ(I)]	0.0750
R1[all data]	0.1384
wR2^c [I > 2σ(I)]	0.1828
wR2 [all data]	0.2123

---

Table 2 Selected bond lengths and bond angles of complex [Ru(L²)(PPh₃)(NO₂)(NO)Cl] (2a)

Bond lengths (Å)		Bond angles (°)
Ru(1)–Cl(1)	2.394(27)	Ru(1)–N(1)–O(2)	177.1(6)
Ru(1)–O(1)	1.965(4)	N(1)–Ru(1)–O(1)	175.70(21)
Ru(1)–N(1)	1.734(6)	N(1)–Ru(1)–N(9)	95.88(26)
Ru(1)–N(9)	2.078(7)	O(1)–Ru(1)–N(9)	87.47(21)
Ru(1)–N(17)	2.093(10)	N(1)–Ru(1)–N(17)	89.98(40)
Ru(1)–P(1)	2.399(2)	O(1)–Ru(1)–N(17)	87.25(37)
N(1)–O(2)	1.140(13)	N(9)–Ru(1)–P(1)	172.17(19)
N(17)–O(5)	1.076(22)	N(17)–Ru(1)–Cl(1)	178.14(32)
N(17)–O(6)	1.106(17)	O(1)–Ru(1)–P(1)	85.82(16)
		N(17)–Ru(1)–P(1)	92.47(29)

---

Electrochemistry

We have investigated the redox properties of ruthenium center in complexes 1, 2, 1a and 2a by examining their redox properties using cyclic voltammetric studies. The cyclic voltammogram of 1 showed a quasireversible redox couple with an E_1/2 value near +0.61 V vs. Ag/AgCl which was assigned to be Ru(II)/Ru(III) couple (Fig. 2(a), red line).^6d,16,17 In case of complex 2, we observed a quasireversible redox couple with an E_1/2 value of +0.81 V which was assigned to be Ru(II)/Ru(III) couple^6d,16,17 and we found also a quasireversible redox couple near −0.60 V vs. Ag/AgCl which was assigned to be Ru(II)/Ru(I) couple (Fig. 2(a), black line).¹⁷ We did not observe any redox couple in the case of complex 1a and 2a. Only we observed cathodic peaks and E_ca values are found to be at −1.05 V, −0.77 V (for 1a) and −0.92 V, −0.76 V (for 2a) vs. Ag/AgCl (Fig. 2(b)). In the negative potential quasireversible couples (Ru^III/Ru^II) for nitrosyl complexes were reported^18,19 by Mascharak and coworkers.

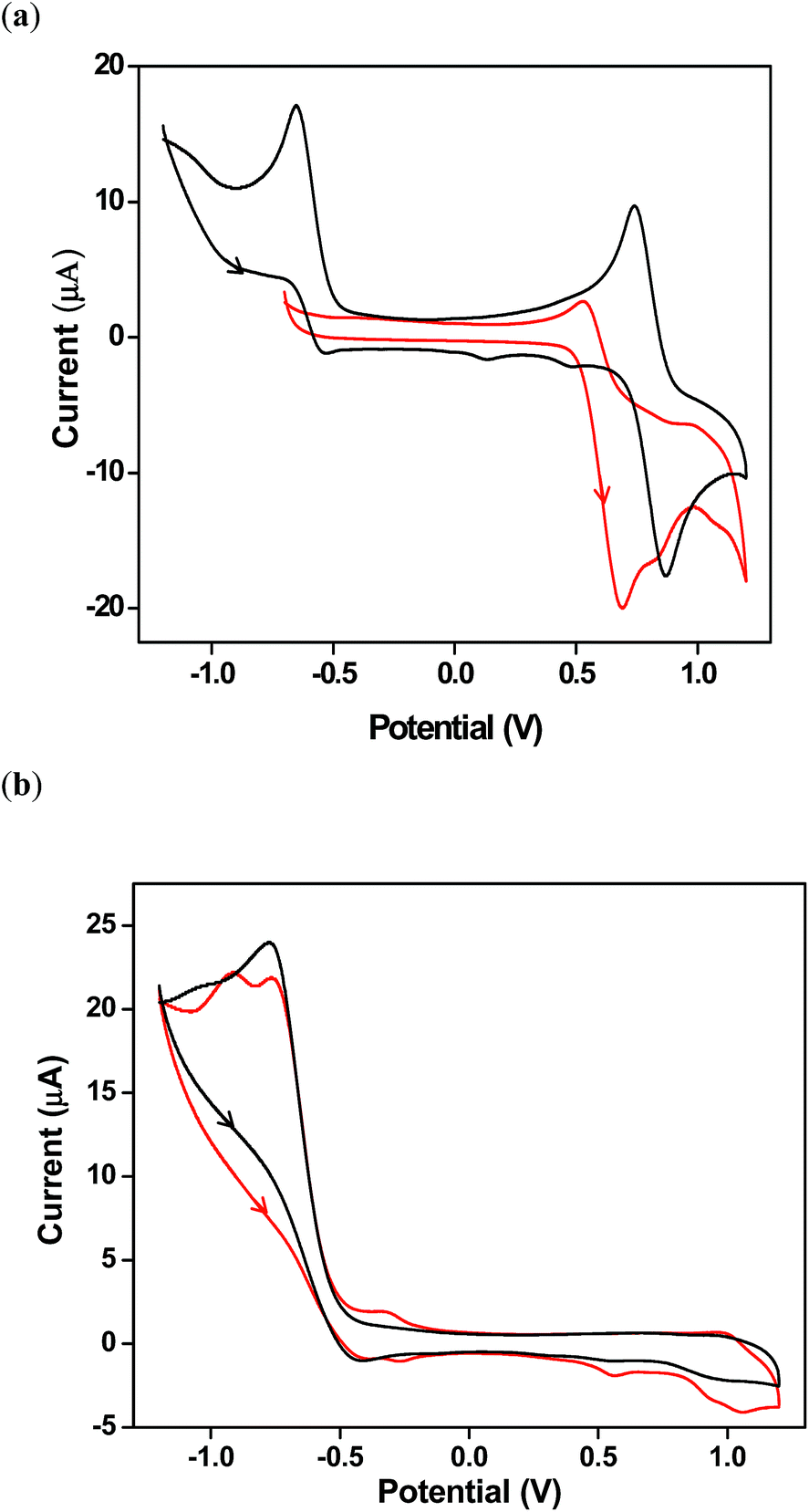

Fig. 2 Cyclic voltammograms of 10⁻³ M solutions of (a) complex 1 (red line) and complex 2 (black line). (b) Complex 1a (black line) and complex 2a (red line) in dichloromethane, in the presence of 0.1 M tetrabutylammonium perchlorate (TBAP), using a working electrode (glassy-carbon), reference electrode (Ag/AgCl) and auxiliary electrode (platinum wire), scan rate = 0.1 V s⁻¹.

Lahiri and coworkers described ligand (nitric oxide) centered reduction of (Ru^II–NO⁺)⁶ → (Ru^II–NO˙)⁷ and further is extended to the second one-electron reduction (Ru^II–NO˙)⁷ → (Ru^II–NO⁻)⁸ for the appearance of such two types peak at negative potentials.²⁰ The appearance of irreversible cathodic peak clearly expressed that NO-centered reduction to afford a complex having {RuNO}⁷ species is unfavorable.

Photolysis experiment for nitrosyl complexes

The photolability of coordinated (nitric oxide) NO of ruthenium nitrosyl complexes 1a and 2a was observed under visible as well as UV light in dichloromethane solutions. No change was observed in dark, however, we observed a change in color from reddish-yellow to red brown in the presence of visible light (100 W tungsten lamp) and UV light. Loss of NO was observed when a dichloromethane solutions of 1a and 2a were exposed to low intensity UV light (λ_max = 365 nm). In case of complex 1a, the peak intensity decreased near 275 nm and a new peak increased near 365 nm. We found a isobastic point near 332 nm (Fig. 3(a)). For complex 2a, we observed a decreased in peak intensity near 320 nm (Fig. 3(b)). Similarly, illumination of visible light (100 W tungsten lamp), there is a disappearance of peak at 275 nm as well as generation of a new peak near 365 nm for 1a and decreased a peak near 320 nm for 2a. However rapid spectral changes were observed when the solutions were exposed to low intensity light of the UV lamp (λ_max = 365 nm). Hence UV light was found to be more efficient in photolytic reaction. The quantum yield (ϕ) values by chemical actinometry for NO photorelease from complexes 1a and 2a (λ_irr = 365 nm) were found to be 0.003 ± 0.001 and 0.005 ± 0.001 respectively in dichloromethane solutions.

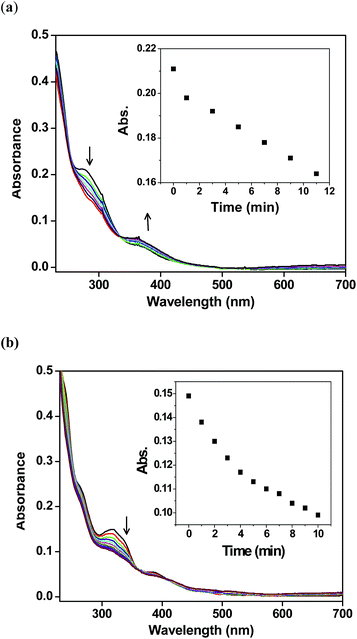

Fig. 3 Photodissociation of (a) complex 1a (∼9.10 × 10⁻⁶ M) and (b) complex 2a (∼6.21 × 10⁻⁶ M) in dichloromethane under illumination with UV light. Repetitive scans were taken at 2 min intervals for 1a and at 1 minute intervals for 2a. Inset: time-dependent changes in absorbance at λ = 275 nm and λ = 320 nm for 1a and 2a, respectively.

Griess reaction to estimate the photoreleased NO

We estimated the amount of photoreleased NO from nitrosyl complexes with the help of Griess reagent assay.^5c,6b–e The presence of photolabile NO in complexes 1a and 2a was observed by increasing in the optical density of the produced dye at ∼538 nm in the presence of visible light as well as ultraviolet light. When a solution of a Griess reagent with complexes 1a (50 μM) and 2a (50 μM) was illuminated with visible light (100 tungsten lamp) for 15 minutes then the amount of NO was released ∼3.0 μM and ∼5.0 μM respectively (Table 3). But exposure of UV light to 50 μM solutions of both the complexes 1a and 2a gave rise to ∼6.0 μM and ∼9.0 μM (Fig. 4 and Table 3) of dye formation respectively. The change in absorbance of azo dye produced from Griess reagent was found to be lower under visible light (100 W tungsten lamp). We have compared our data with the data obtained from sodium nitroprusside (SNP), a well known NO donor drug, under the same experimental conditions. In ultraviolet light, 50 μM solution of SNP provided ∼4.0 μM of nitric oxide^5c (Table 3). These data afforded the formation of NO in solution and the concentration of photoreleased NO in complex 1a was close to the amount of NO released by SNP however in case of complex 2a, the photorelease NO was found to be better in comparison with the NO released by SNP.

Table 3 Estimation of NO production from 1a, 2a and sodium nitroprusside (SNP) in Griess reagent assay

Complex	Complex conc.	NO produced^a (μM) Griess reaction
		Visible light (100 W)	UV light
a Average of three experiments.
1a	50 μM	2.8	5.8
2a	50 μM	4.8	8.5
SNP	50 μM	0.22	3.4

---

Fig. 4 Electronic spectra of the formation of dye when Griess reagent (100 μL) was treated with complexes (a) 1a (50 μM) and (b) 2a (50 μM) in presence of the light of UV lamp (λ_irr = 365 nm). Repetitive scans were taken in 1 minute intervals.

Comparing the data for the release of nitric oxide obtained from Griess reagent assay in this report and our other published results,^5c,6b,c,e we would like to mention here that complexes having Ru–C bond are better capable of delivering nitric oxide upon light illumination.

NO trapping by reduced myoglobin

The photoreleased NO from the nitrosyl complexes was transferred to the heme iron center of reduced myoglobin using low intensity light of UV lamp. Electronic absorption spectra were obtained in phosphate buffer (pH ∼6.8). For oxidized myoglobin (Mb), we observed an intense band near ∼409 nm (Soret band). The UV-Vis spectra of reduced myoglobin near 433 nm was obtained by addition of excess sodium dithionite to the same cuvette. When acetonitrile solutions of complexes were added to buffer solutions of reduced myoglobin under dark conditions, no reaction was observed. However when the same mixtures were taken under exposure to UV lamp (λ = 365 nm) for 2–3 minutes, the absorption spectra near 421 nm (for 1a, Fig. 5) and 422 nm (for 2a, Fig. S13†) showed the formation of myoglobin–NO adducts.^5,6a–c

Fig. 5 Electronic spectra of conversion of reduced myoglobin to Mb–NO adduct upon reaction with 1a in buffer solution (50 mM phosphate buffer, pH 6.8) under exposure of UV light. red line, Met Mb (intense band at 409 nm); green line, reduced Mb (near 433 nm, with excess of sodium dithionite); black line, Mb–NO adduct for 1a (∼8.17 × 10⁻⁶ M) at 421 nm when same solutions were exposed to UV light for 2–3 minutes.

Summary and conclusions

The following are the principal findings and conclusions of the present study.

(a) Complexes [Ru(L¹)(PPh₃)₂(CO)Cl] (1) and [Ru(L²)(PPh₃)₂(CO)Cl] (2) were synthesized from ligands L¹H and L²H respectively and the resultant complexes were devoid of Ru–C bond. Hence C–H activation in the naphthyl amine was not achieved.

(b) Reaction of nitric oxide with complexes 1 and 2 afforded ruthenium nitrosyl complexes. Structure solution by X-ray crystallography and spectroscopic data clearly expressed the presence of {Ru–NO}⁶ moiety and a description of {Ru^II–NO⁺}⁶ was proposed for both complexes 1a and 2a.

(c) Molecular structure revealed few interesting events which were contrary to our previous reports in this nitric oxide reactivity studies. Ligand nitration was not observed, phosphine group was coordinated to the ligand binding plane and nitrite coordination to the metal centre.

(d) Coordinated nitric oxide in complexes 1a and 2a was found to be photolabile under visible as well as low intensity UV light.

(e) Nitric oxide generated after photolytic cleavage of nitrosyl complexes was trapped by reduced myoglobin and the amount of liberated NO in this process was estimated by Griess reaction. Although there is no Ru–C bond in 1a and 2a we compared our data with published results. It has been found out that the ruthenium organometallics are more efficient in terms of photoinduced nitric oxide delivery.

Further experiments on naphthyl C–H bond activation and biological applications on ruthenium-nitrosyl complexes are under progress.
