Effective discrimination of GTP from ATP by a cationic tentacle porphyrin through “turn-on” fluorescence intensity

Suneesh C. Karunakarana, Albish K. Paula and Danaboyina Ramaiah*ab
aPhotosciences and Photonics, Chemical Sciences and Technology Division, CSIR-National Institute for Interdisciplinary Science and Technology (CSIR-NIIST), Trivandrum–695019, Kerala, India. E-mail: rama@niist.res.in; d.ramaiah@gmail.com
bCSIR-North East Institute of Science and Technology (CSIR-NEIST), Jorhat-785-006, Assam, India

Received 18th May 2014 , Accepted 1st July 2014

First published on 2nd July 2014


Abstract

A cationic tentacle porphyrin selectively recognises guanosine (G) based nucleotides and was effectively utilized as a fluorescence “turn-on” probe to discriminate GTP from ATP through fluorescence indicator displacement (FID) assay in an aqueous medium.


Selective recognition of nucleotides, especially in aqueous media, has gained immense attention, as they form the fundamental units of all life forms.1 Among the various nucleotides, the selective detection and quantification of the guanosine based nucleotides, especially guanosine-5′-triphosphate (GTP) (Chart 1) is vital due to its specific functions in various biological processes.2 For example, GTP is required for the synthesis of DNA, RNA, and proteins, and also in nutrient metabolism, and cell signalling.3 The abnormalities in the concentrations of ATP and GTP in the body due to the defect of purine salvage enzymes, particularly, adenosine phosphoribosyl transferase (APRTase) and hypoxanthine phosphoribosyl transferase (HPRTase), result in severe combined immuno-deficiency disorder (SCID) and Lesch–Nyhan syndrome (brain gout), respectively.4
image file: c4ra04672b-c1.tif

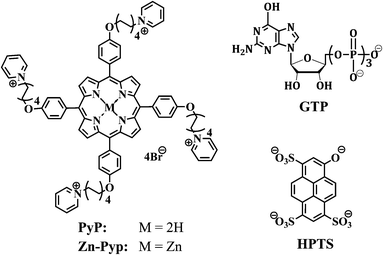

Chart 1

Most of the probes reported for the detection of nucleotides utilise complementary hydrogen bonding for the recognition. Such a recognition mechanism would be limited in the aqueous medium due to either involvement of competitive hydrogen bonding from the solvent5 or the presence of sugar moiety of the nucleosides and nucleotides.6 Therefore, the development of probes that are devoid of hydrogen bonding and selectively recognise nucleosides or nucleotides in the aqueous medium is quite challenging. In this context, we have synthesized a water soluble cationic porphyrin PyP and its zinc complex Zn-PyP (Chart 1), and have investigated their interactions with various nucleosides and nucleotides in phosphate buffer medium. Our results demonstrate that, the porphyrin PyP exhibits selective interactions with the guanosine (G) based nucleotides when compared to other nucleotides and nucleosides through changes in its fluorescence intensity. Uniquely, this system in combination with the fluorescence indicator displacement (FID) assay can be effectively utilized to develop a fluorescence “turn-on” probe for the selective detection of the G based nucleotides and also to discriminate GTP from ATP in the aqueous medium.

The pyridinium appended cationic porphyrin PyP was synthesized through the modified Lindsey's method,7 while its zinc complex, Zn-PyP was synthesized from 5,10,15,20-tetrakis[4-(8-bromooctyloxy)phenyl]porphyrin. Reaction of the starting bromoporphyrin derivative with zinc acetate in methanol at 25 °C gave the zinc complex in ca. 80% yield. Subsequently, it was substituted with pyridine by refluxing at 100 °C to give the pyridinium appended complex Zn-PyP in ca. 65% yield. The starting materials as well as the products PyP and Zn-PyP were purified through recrystallization and were characterized on the basis of spectral and analytical evidence (ESI). The free base PyP showed the characteristic porphyrin absorption in the region 419–654 nm, and fluorescence emission in the region 665–727 nm.8 Similarly, the zinc complex, Zn-PyP exhibited a bathochromically shifted (ca. 6 nm) Soret absorption at 425 nm and two Q-bands at 560 and 600 nm, while its emission spectrum showed two emission peaks centered at 615 and 655 nm (Fig. S1, ESI). The quantum yields of the fluorescence (ΦF) of these derivatives were calculated using tetraphenylporphyrin (TPP) as the reference (ΦF = 0.11 in toluene)9 and are found to be 0.10 and 0.03 ± 0.002, respectively for PyP and Zn-PyP in water.

To understand the ability of these cationic porphyrin systems as probes for the nucleotides, we have investigated their interactions through absorption and fluorescence spectroscopy. Addition of guanosine 5′-triphosphate (GTP) to a solution of PyP (5 μM) resulted in gradual decrease in the Soret band absorption at 419 nm (Fig. 1A). At ca. 450 μM of GTP, we observed ca. 66% hypochromicity along with 15 nm bathochromic shift in the absorption maximum of PyP. In the emission spectrum, we observed ca. 86% quenching of fluorescence intensity of PyP with the addition of 450 μM of GTP (Fig. 1B). Similar experiments were carried out with guanosine 5′-diphosphate (GDP) and guanosine 5′-monophosphate (GMP) under identical conditions. We observed ca. 37% hypochromicity with 10 nm bathochromic shift in the absorption and ca. 83% quenching in fluorescence intensity of PyP (Fig. S2, ESI) at 450 μM of GDP. Whereas with GMP under similar conditions, we observed ca. 16% hypochromicity with 4 nm bathochromic shift in absorption and ca. 16% quenching in the fluorescence intensity of PyP (Fig. S3, ESI). The Benesi–Hildebrand analysis of the absorption changes (inset of Fig. 1A) gave a 1[thin space (1/6-em)]:[thin space (1/6-em)]1 stoichiometry for the complex formed between PyP and GTP with a binding constant of Kass = 8.46 ± 0.2 × 103 M−1 in water, while relatively lower values of Kass = 6.75 and 4.13 ± 0.15 × 103 M−1 were observed for GDP and GMP, respectively.


image file: c4ra04672b-f1.tif
Fig. 1 Changes in the (A) absorption and (B) emission spectra of PyP (5 μM) with the addition of GTP in phosphate buffer (pH 7.4, 10 mM KH2PO4, 2 mM NaCl). [GTP], (a) 0 and (n) 450 μM. Inset shows Benesi–Hildebrand plot for the binding of GTP with PyP. λex, 430 nm.

To investigate the selectivity of the recognition, we have carried out the interactions of the probe PyP with other nucleotides such as adenosine 5′-monophosphate (AMP), adenosine 5′-diphosphate (ADP), adenosine 5′-triphosphate (ATP) (Fig. S4, ESI), cytidine 5′-triphosphate (CTP) and uridine-5′-triphosphate (UTP). Under similar experimental conditions and with the addition of these nucleotides, PyP showed negligible changes in its absorption and fluorescence properties. Fig. 2 shows the relative changes in the absorbance of PyP as a function of concentration of various nucleotides. It is evident from Fig. 2 that the porphyrin PyP shows selectivity towards the G-based nucleotides and in the order GTP > GDP > GMP. In contrast, all other nucleotides exhibited negligible interactions with PyP. Similarly, we have also investigated the potential of the zinc complex Zn-PyP as a probe for various nucleotides. We observed that Zn-PyP shows negligible selectivity and interactions with all the nucleotides tested under identical conditions (Fig. S5, ESI).


image file: c4ra04672b-f2.tif

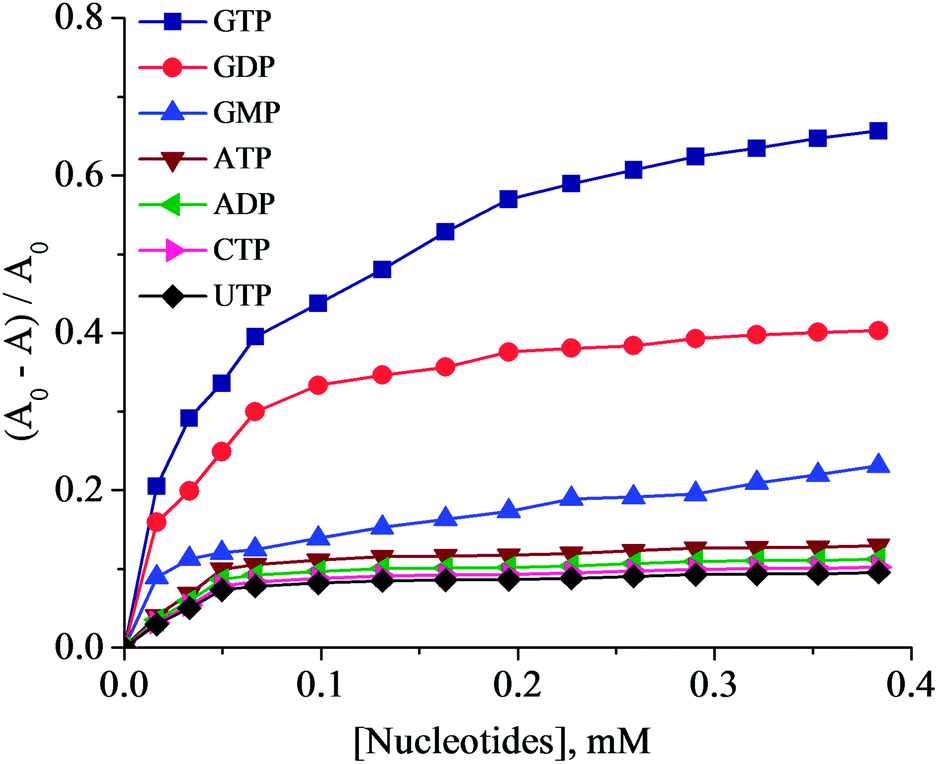

Fig. 2 Relative changes in the absorbance of the porphyrin derivative PyP (5 μM) in the presence of various nucleotides.

To understand the mode of binding of the G based nucleotides with PyP, we have investigated the effect of ionic strength of the buffer medium on the complexation process. The decrease in absorbance of PyP in the presence of these nucleotides was found to be less prominent as we increased the ionic strength of the buffer from 20 to 100 mM (Fig. S6, ESI). Based on the experimental evidence and literature reports,10 the mode of binding of PyP with the G based nucleotides could be attributed to the synergistic effects of both electrostatic and π–π stacking interactions. The aromatic guanine moiety of the nucleotides can undergo π-stacking interactions with the porphyrin phenyl ring, while the phosphate groups can involved in electrostatic interactions with the appended pyridinium groups.

To improve the sensitivity of detection of the G based nucleotides using PyP, we adopted a fluorescent indicator displacement (FID) assay11 using a highly fluorescent indicator, 8-hydroxy-1,3,6-pyrenetrisulfonate (HPTS; ΦF = 0.7). The FID assay involves the reversible binding of a fluorescence indicator with a receptor followed by a competitive binding of analyte with the receptor resulting in the displacement of the fluorescence indicator. The successive additions of the porphyrin PyP to a solution of HPTS (4.5 μM) in buffer resulted in a regular quenching of the fluorescence intensity of HPTS centered at 514 nm (Fig. 3A). At ca. 5.25 μM of PyP, we observed complete quenching in fluorescence intensity of HPTS. The changes in the optical properties of HPTS in the presence of the cationic porphyrins are indicative of the formation a stable complex between the negatively charged HPTS and positively charged appended pyridinium moieties of the porphyrin PyP. We have done Benesi–Hildebrand analysis of the emission data and which gave a 1[thin space (1/6-em)]:[thin space (1/6-em)]1 stoichiometry for the complex [PyP·HPTS], with an association constant (Kass) of 4.66 ± 0.2 × 104 M−1. The complexation between PyP and HPTS was further analyzed through the picosecond time-resolved fluorescence spectroscopy. For example, HPTS alone exhibited a single exponential fluorescence decay with a lifetime of 5.3 ns, whereas, we observed a biexponential decay with lifetimes of 2.2 ns (71%) and 5.5 ns (29%) in the presence of PyP (Fig. 3B).


image file: c4ra04672b-f3.tif

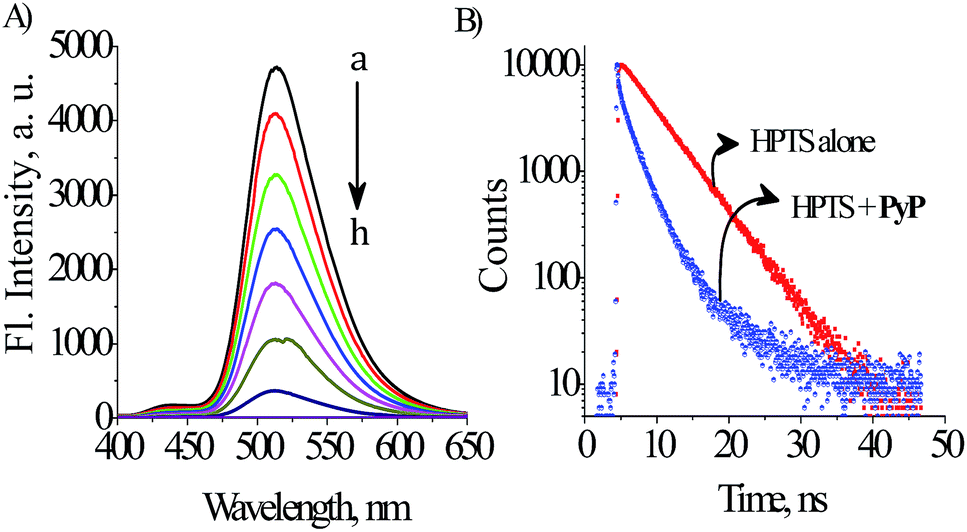

Fig. 3 (A) Changes in emission spectra of HPTS (4.5 μM) with gradual addition of PyP in phosphate buffer (pH 7.4, 10 mM KH2PO4, 2 mM NaCl). [PyP] (a) 0 and (h) 5.25 μM. λex, 364 nm. (B) Fluorescence decay profiles of HPTS (4.5 μM) and the complex [PyP·HPTS] collected at 515 nm. [PyP] 5.25 μM. λex, 375 nm.

To understand the nature and strength of the complex formed between PyP and HPTS, we have investigated the effects of ionic strength (Fig. S7, ESI) and temperature on the complexation process. For instance, the quenching of emission of HPTS by PyP was found to be less prominent as we increased the ionic strength of the buffer. We obtained a lower value of Kass = 1.9 × 104 M−1 at higher ionic strength of the buffer (1 M). These observations confirm that the pyridinium units of the porphyrin derivative PyP are shielded from the sulfonate groups of HPTS by Na+ ions, resulting in less favorable interactions between PyP and HPTS.

On the other hand, when the temperature of the complex [PyP·HPTS] was raised from 298 to 358 K, we observed negligible increase in the fluorescence intensity of HPTS, indicating thereby the stability of the complex [PyP·HPTS] at these temperatures.

The beneficial competitiveness of the FID assay was demonstrated by comparing the efficiency of fluorescence indicator displacement by various nucleotides. Fig. 4A shows regular release of HPTS from the complex [PyP·HPTS] by the addition of GTP. The successive additions of GTP resulted in a regular enhancement in the fluorescence intensity corresponding to HPTS at 512 nm. In buffer, ca. 350-fold enhancement was observed at 450 μM of GTP. Similar experiments were carried out with the additions of other G based nucleotides, GDP and GMP to a buffer solution of [PyP·HPTS]. Both these nucleotides were also found to induce the revival of the fluorescence intensity, corresponding to HPTS at 512 nm upon interaction. We observed ca. 300 and 210-fold enhancement in fluorescence intensity of [PyP·HPTS] with the addition of 450 μM of GDP and GMP, respectively, in buffer. In contrast, addition of other nucleotides such as ATP, ADP, AMP, CTP and UTP showed negligible enhancement in the fluorescence intensity of HPTS at 512 nm. Relative concentration dependent enhancement of the fluorescence intensity of [PyP·HPTS] by the addition of various nucleotides is shown in Fig. 4B. This selective interaction of PyP with guanosine based nucleotides was exploited for the development of a visual fluorescent system for the selective recognition of G-based nucleotides (inset of Fig. 4B) through a fluorescence “turn on” mechanism using FID assay. The sensitivity or limit of detection (LOD) of GTP by the [PyP–HPTS] system was calculated and is found to be 92 ppb (2.3 μM) in phosphate buffer (Fig. S8, ESI). As expected, Zn-PyP showed neither prominent enhancement in fluorescence intensity of [Zn-PyP·HPTS], nor exhibited selectivity towards G-based nucleotides Fig. S9, ESI.


image file: c4ra04672b-f4.tif

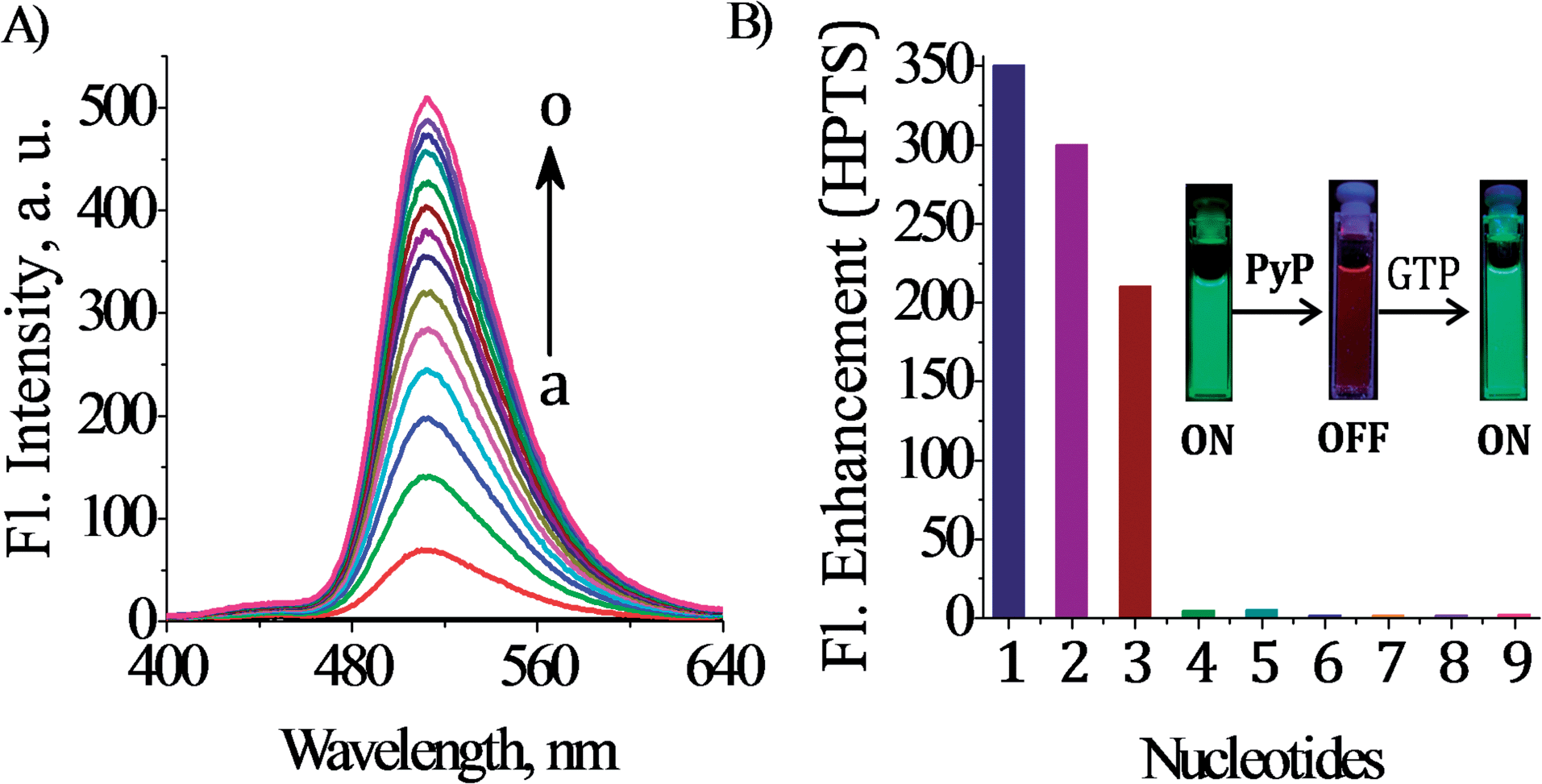

Fig. 4 (A) Fluorescence indicator displacement (FID) from the complex [PyP·HPTS] by GTP in buffer. [GTP], (a) 0 and (o) 450 μM. λex, 364 nm. (B) Relative concentration dependent enhancement of fluorescence intensity of [PyP·HPTS] complex by various nucleotides in phosphate buffer. Inset shows the visual observation of fluorescence intensity of HPTS alone, [PyP·HPTS] and [PyP·HPTS] in the presence of GTP in phosphate buffer. (1–9) GTP, GDP, GMP, ATP, ADP, AMP, CTP, TMP and UTP (450 μM).

The displacement of HPTS from the complex [PyP·HPTS] by G-based nucleotides was confirmed by the picosecond time-resolved fluorescence studies. When GTP was added to the complex [PyP·HPTS], we observed a biexponential decay with lifetimes 5.4 ns (98%) and 9.6 ns (2%) (Fig. S10, ESI). The former life time has been attributed to the free HPTS in solution. Similar observations were made with the addition of GDP and GMP. In contrast, negligible changes in the lifetime of the complex [PyP·HPTS] was observed with the addition of other nucleotides, which showed negligible affinity for the porphyrin PyP. The selectivity of the cationic porphyrin PyP for G-based nucleotides can be explained on the basis of their better electron cloud and low ionization potential when compared to other nucleotides, which facilitates the complex formation through synergistic electronic, π-stacking, and electrostatic interactions.

In conclusion, we investigated the biomolecular recognition properties of a novel cationic porphyrin having pyridinium substitution, PyP and its zinc complex Zn-PyP, in the aqueous medium. Interestingly, the free base porphyrin PyP showed selective interactions with the G-based nucleotides, even in the presence of other nucleotides, through the synergistic effects of both electrostatic and π–π stacking interactions. The unique property of PyP was effectively utilized to develop a fluorescence “turn on” probe for the selective recognition of G-based nucleotides as well as to discriminate GTP from ATP through the fluorescence indicator displacement assay using HPTS as the fluorescent indicator. To the best of our knowledge, this is the first report, which describes a cationic porphyrin which can be used as a probe for the on-site visual detection of G-based nucleotides in the aqueous medium.

Acknowledgements

This work was supported by CSIR, India (CSC-0134) and CSIR-National Institute for Interdisciplinary Science and Technology, Trivandrum. This is Contribution no. PPG-357 from CSIR-NIIST, Trivandrum.

Notes and references

  1. Y. Zhou, Z. Xu and J. Yoon, Chem. Soc. Rev., 2011, 40, 2222–2235 RSC; A. P. de Silva, H. Q. Gunaratne, T. Gunnlaugsson, A. J. Huxley, C. P. McCoy, J. T. Rademacher and T. E. Rice, Chem. Rev., 1997, 97, 1515–1566 CrossRef CAS PubMed; M. Strianese, S. Milione, A. Maranzana, A. Grassi and C. Pellecchia, Chem. Commun., 2012, 48, 11419–11421 RSC; L. E. Santos-Figueroa, M. E. Moragues, E. Climent, A. Agostini, R. Martinez-Manez and F. Sancenon, Chem. Soc. Rev., 2013, 42, 3489–3613 RSC; E. Kuruvila, J. Joseph and D. Ramaiah, J. Phys. Chem. B, 2005, 109, 21997–22002 CrossRef PubMed.
  2. N. Wu, J. Lan, L. Yan and J. You, Chem. Commun., 2014, 50, 4438–4441 RSC; P. P. Neelakandan, M. Hariharan and D. Ramaiah, Org. Lett., 2005, 7, 5765–5768 CrossRef CAS PubMed; P. P. Neelakandan, P. C. Nandajan, B. Subymol and D. Ramaiah, Org. Biomol. Chem., 2011, 9, 1021–1029 Search PubMed; E. Kuruvila and D. Ramiah, J. Phys. Chem. B, 2007, 111, 6549–6556 CrossRef PubMed; E. Kuruvila, P. C. Nandajan, G. B. Schuster and D. Ramaiah, Org. Lett., 2008, 10, 4295–4298 CrossRef PubMed.
  3. M. A. Moosavi, R. Yazdanparast and A. Lotfi, J. Biochem. Mol. Biol., 2006, 39, 492–501 CrossRef CAS; M. Ren, G. Drivas, P. D'Eustachio and M. G. Rush, J. Cell Biol., 1993, 120, 313–323 CrossRef.
  4. E. Messina, V. Micheli and A. Giacomello, Neurosci. Lett., 2005, 375, 97–100 CrossRef CAS PubMed; T. C. Pogson, Am. J. Clin. Nutr., 1974, 27, 380–402 Search PubMed; B. Ullman, M. A. Wormsted, M. B. Cohen and D. W. Martin Jr, Proc. Natl. Acad. Sci. U. S. A., 1982, 79, 5127–5131 CrossRef; R. W. E. Watts, Adv. Enzyme Regul., 1985, 23, 25–58 CrossRef.
  5. A. K. Nair, P. P. Neelakandan and D. Ramaiah, Chem. Commun., 2009, 6352–6354 RSC; J. Rebek Jr, Angew. Chem., Int. Ed. Engl., 1990, 29, 245–255 CrossRef CAS; J. L. Sessler, V. Krá, T. V. Shishkanova and P. A. Gale, Proc. Natl. Acad. Sci. U. S. A., 2002, 99, 4848–4853 CrossRef PubMed.
  6. M. Inouye, K. Kim and T. Kitao, J. Am. Chem. Soc., 1992, 114, 778–780 CrossRef CAS.
  7. J. S. Lindsey, H. C. Hsu and I. C. Schreiman, Tetrahedron Lett., 1986, 27, 4969–4970 CrossRef CAS; J. S. Lindsey, I. C. Schreiman, H. C. Hsu, P. C. Kearney and A. M. Marguerettaz, J. Org. Chem., 1987, 52, 827–836 CrossRef.
  8. C. S. Prasanth, S. C. Karunakaran, A. K. Paul, V. Kussovski, V. Mantareva, D. Ramaiah, L. Selvaraj, I. Angelov, L. Avramov, K. Nandakumar and N. Subhash, Photochem. Photobiol., 2014, 90, 628–640 CrossRef CAS PubMed.
  9. D. J. Quimby and F. R. Longo, J. Am. Chem. Soc., 1975, 97, 5111–5117 CrossRef CAS.
  10. Z. Kejik, K. Zaruba, D. Michalik, J. Sebek, J. Dian, S. Pataridis, K. Volka and V. Kral, Chem. Commun., 2006, 1533–1535 RSC.
  11. P. P. Neelakandan, M. Hariharan and D. Ramaiah, J. Am. Chem. Soc., 2006, 128, 11334–11335 CrossRef CAS PubMed; D. Ramaiah, P. P. Neelakandan, A. K. Nair and R. R. Avirah, Chem. Soc. Rev., 2010, 39, 4158–4168 RSC.

Footnote

Electronic supplementary information (ESI) available: Details of synthesis, calculations and Fig. S1–S9 showing changes in the photophysical properties of the cationic porphyrins in the presence of various nucleotides. See DOI: 10.1039/c4ra04672b
