Novel fabrication of highly fluorescent Pt nanoclusters and their applications in hypochlorite assay

Abstract

A simple and efficient method for the fabrication of highly fluorescent platinum nanoclusters (Pt NCs) has been reported in which bovine serum albumin (BSA) serves as a scaffold and NaBH₄ as a reductant. The BSA-stabilized Pt NCs possess uniform morphology with sub-nanometer size. In comparison with other reports for the synthesis of the Pt NCs, our method involves less time and very mild experimental conditions. Hypochlorite sensing has been achieved via examining the fluorescence intensity of the Pt NCs and the fluorescence quenching involves the oxidation of the Pt NCs. The proof-of-concept experiment demonstrates that Pt NCs could serve as a viable alternative for selective hypochlorite assay.

---

1. Introduction

Water-soluble noble metal nanoclusters (Cu,¹ Ag,² Au,³ and Pt NCs⁴) emit strong fluorescence, thus holding great potential for applications in chemical/biological sensing and cellular imaging. Typically, these NCs consist of several or tens of metal atoms with size close to the Fermi wavelength of an electron and their emission properties depend on the size quantization,⁵ surface ligands,⁶ and even the microenvironment around the NCs.⁷ The metal NCs have proven to be advantageous in that they are soluble, biocompatible, photostable, and possess high brightness.^1,3,7

Unlike other metal NCs, such as Cu,¹ Ag,² and Au NCs,³ the fluorescent Pt NCs are rather difficult to synthesize. For example, yellow-emitting Pt NCs have been constructed via etching Pt nanoparticles by glutathione and the most intense fluorescence was obtained at 65 °C after 6 days.⁸ In another report, poly(amidoamine) dendrimer (PAMAM) served as a template for the formation of Pt NCs by reducing H₂PtCl₆ with NaBH₄ and the reaction lasted for two weeks.⁴ Kim's group synthesized Pt NCs deposited on DNA–graphene oxide composite and the process required several days to complete.⁹ The phosphonate-functionalized Pt NCs were created at the oil-bath temperature of 120 °C after 6 h and their application in hydrogen peroxide sensing has been explored.¹⁰ These methods either involve long reaction time,^4,8,9 or relatively harsh experimental conditions.¹⁰

Hypochlorite ion is an important reactive oxygen species, serving as an essential antibacterial agent to life. Overproduction of hypochlorite can lead to a variety of diseases, such as atherosclerosis, arthritis, and cancers.^11–14 Hypochlorite ion is also used for drinking water disinfecting and household bleaching.¹⁵ Therefore, sensitive and selective detection of hypochlorite has been recently focused.^11,12,16,17 For example, organic fluorescent probes have been used for hypochlorite sensing.^11,12 However, the organic dyes are not bright or photostable enough and their synthesis is time-consuming.^18,19 CdSe–ZnS quantum dots (QDs) also served as a fluorescent probe for hypochlorite assay.¹⁶ The drawback of these QDs is that they are toxic and their surface modifications are rather complicated.

In this study, highly fluorescent BSA-templated Pt NCs have been facilely fabricated where BSA serves as a scaffold and NaBH₄ as a reductant. The synthesis of the Pt NCs requires less time (1 h) and does not involve harsh experimental conditions (under room temperature). Furthermore, the Pt NCs stabilized by BSA exhibits good water-solubility and stability. Without any surface functionalization, the BSA-stabilized Pt NCs act as an efficient fluorescent probe for hypochlorite sensing.

2. Experimental

2.1. Reagents and apparatus

Bovine serum albumin (BSA), chloroplatinic acid hexahydrate (H₂PtCl₆·6H₂O), sodium hypochlorite, and hydrogen peroxide were acquired from Sinopharm Chemical Reagent Co. Ltd. (Shanghai, China). Sodium borohydride (NaBH₄), sodium sulfide, the reduced form of glutathione (GSH) and cysteine were purchased from Sigma-Aldrich. Other reagents were all of analytical grade and used without further purification.

TEM measurement was carried out on a JEOL JEM-2100 transmission electron microscope (Tokyo, Japan). The oxidation state of the Pt NCs was characterized by XPS (K-Alpha 1063, Thermo Fisher Scientific). UV-vis absorption spectra and fluorescence spectra were recorded on a UV-vis spectrophotometer (Shimadzu, UV-2450) and a fluorescence spectrophotometer (Hitachi, F-4600), respectively. Dynamic light scattering (DLS) and zeta potential measurements were carried out on a Malvern Zetasizer Nano ZS. The circular dichroism (CD) spectra were recorded on a Jasco 815 spectropolarimeter. The composition of the Pt NCs was determined by inductively coupled plasma-atomic emission spectroscopy (ICP-AES) (PS-6, Baird, USA).

2.2. Formation and characterization of Pt NCs

The typical synthesis procedures involved the premixing of BSA (43 mg mL⁻¹), H₂PtCl₆ (8.2 mM), and NaOH (86 mM) under vigorous shaking, followed by addition of NaBH₄ (8.2 mM). After reaction for 1 h, the Pt NCs were produced and then purified by dialysis (membrane MWCO = 500 Da) for three times (0.5 h for each time). The dialysis was used to remove excess amounts of small molecules, such as H₂PtCl₆, NaOH, and NaBH₄.

The BSA-stabilized Pt NCs were subject to DLS, zeta potential, CD, and ICP-AES measurements.

2.3. Detection of hypochlorite

The 10-fold diluted Pt NCs were mixed with various concentrations of sodium hypochlorite in aqueous solutions, and the fluorescence of the mixture was measured.

3. Results and discussion

3.1. Spectral properties of Pt NCs

It is well known that BSA monomer contains 35 cysteine, 5 methionine and 2 tryptophan residues with a molecular weight of ca. 66 kDa and an isoelectric point of 4.7.^2,3,20 The functional residues and the unique spatial structure of serum albumin enable the formation of various metal nanoclusters, such as gold,³ silver,² and copper.¹ Typically, BSA serves as stabilizers and reductants in the formation of these NCs.^1,3 The synthesis of Cu and Au NCs via sequestration and reduction of Cu and Au precursors by BSA has been demonstrated.^1,3 However, under the similar experimental conditions, no fluorescent Pt NCs were produced when BSA was used to reduce H₂PtCl₆. As reported previously, the synthesis of Pt NCs is time-consuming and involves relatively harsh experimental conditions.^4,8,9 To circumvent these problems, one-pot synthesis of highly fluorescent Pt NCs was performed under the ambient conditions using NaBH₄ as a reductant and BSA as a scaffold. The excitation/emission spectra of the Pt NCs were displayed in Fig. 1A. Strong fluorescence emission of the nanoclusters was attained at 404 nm upon excitation at 330 nm. However, under the same experimental conditions, BSA or the mixture of BSA and H₂PtCl₆ did not fluoresce at 404 nm. It has been reported that BSA possesses weak intrinsic fluorescence at ca. 330 nm, which has been ascribed to the two tryptophan residues.²⁰ On the other hand, the UV-vis absorption in the region of 300–400 nm (solid curve in Fig. 1B) indicates the formation of BSA-templated Pt NCs. While no absorption of BSA was observed in the same region except the characteristic peak at 270 nm (dashed-dotted curve).

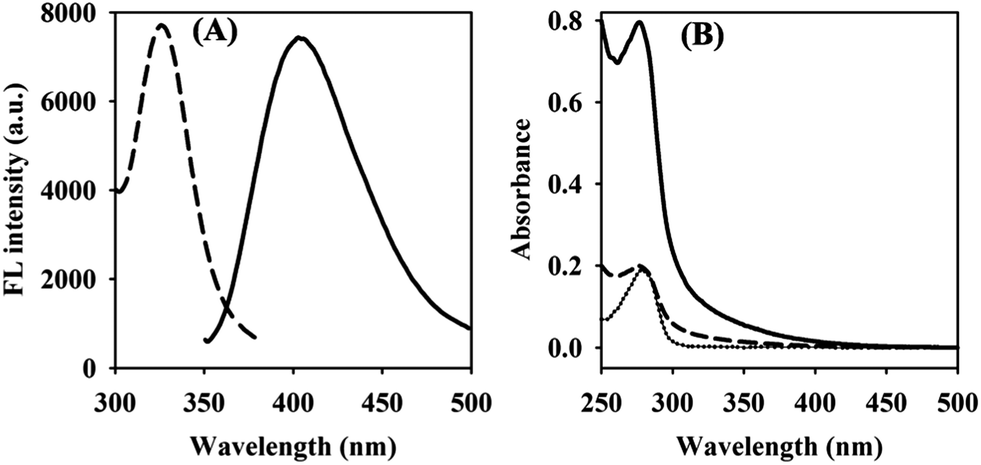

Fig. 1 (A) Excitation (dashed curve) and emission (solid curve) spectra of Pt NCs (4-fold dilution). (B) UV-vis absorption spectra of BSA-templated Pt NCs in the absence (solid curve) and presence (dashed curve) of hypochlorite. The absorption spectrum of BSA was also displayed (dashed-dotted curve).

The use of BSA as the capping agent favors the formation of the fluorescent Pt NCs. No fluorescence was obtained in the absence of BSA. However, the fluorescence of the Pt NCs increases with the BSA concentration and plateaus beyond 43 mg mL⁻¹. Thus, the concentration of BSA was fixed at 43 mg mL⁻¹. Without NaOH, very weak fluorescence was obtained, indicating that the alkali medium favors the formation of the highly fluorescent Pt NCs. Other NCs, such as BSA-stabilized Au NCs, were also created in the alkali medium.³ The appropriate NaOH concentration for higher fluorescence is ca. 86 mM. Furthermore, the use of the strong reducing agent NaBH₄ is responsible for the increased reaction speed. Our method thus provides a good alternative for facile and efficient synthesis of Pt NCs.

3.2. Characterizations of Pt NCs

As indicated in Fig. 2, the Pt NCs possess uniform morphology with sub-nanometer sizes. Due to the extremely small size of the nanoclusters, the image has relatively low contrast. The difficulty in obtaining high-resolution images was ascribed to the decomposition of the Pt NCs upon high-energy electron irradiation.

Fig. 2 TEM image of the Pt NCs. For clarity, the Pt NCs were marked with circles.

The analysis of the oxidation states of the Pt NCs was performed by X-ray photoelectron spectroscopy (XPS) (Fig. 3). The dried Pt NCs displayed a Pt 4f_7/2 peak at 71.5 eV, which is indicative of the reduced platinum Pt(0).^8,21 The S and Pt levels in the BSA-capped Pt NCs were determined to be 438 and 1344 mg L⁻¹ by ICP-AES, respectively. Because one BSA molecule contains 40 S atoms (35 cysteine and 5 methionine residues),² the composition of the Pt NCs was estimated to be ca. Pt₂₀/BSA.

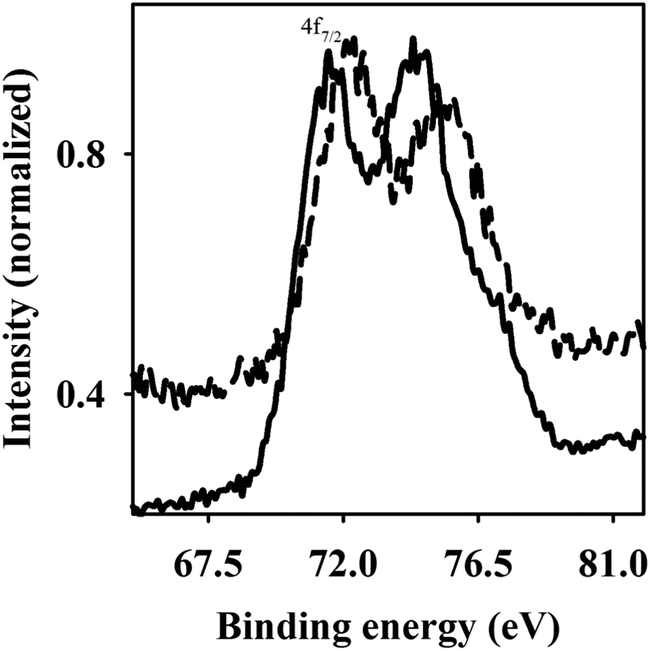

Fig. 3 (A) Normalized Pt 4f XPS spectra of the Pt NCs in the absence (solid curve) and presence (long-dashed curve) of hypochlorite.

The Pt NCs exerted a profound influence on the hydrodynamic diameter and secondary structure of the template BSA. As depicted by the solid curve in Fig. 4A, BSA existed in two forms, with hydrodynamic diameters centered at 6.5 and 250 nm. The formation of Pt NCs inside the BSA molecules increased the hydrodynamic diameter of BSA from 6.5 nm to 13.5 nm (long-dashed curve in Fig. 4A), suggesting the swelling of the protein.¹ Furthermore, the increased percentage of the form of BSA with hydrodynamic diameter of 250 nm (Fig. 4A) might indicate the aggregation of the protein.¹ The zeta potential of the Pt NCs in aqueous solutions was determined to be −25 ± 3.0 mV, which might be ascribed to the encapsulation of the Pt NCs by the negatively charged BSA molecules. The BSA molecules endow the Pt NCs with good water-solubility and stability. We found that the Pt NCs were stable for at least a week when stored in the dark.

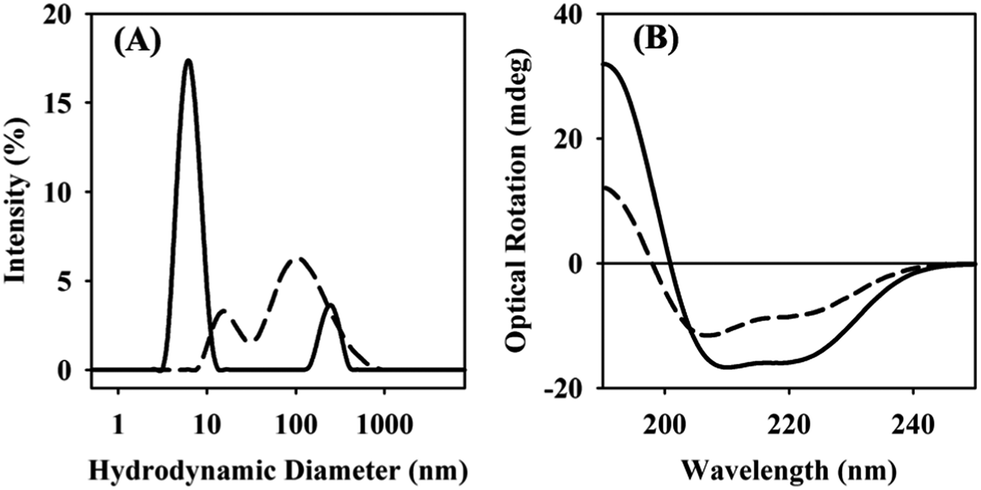

Fig. 4 (A) DLS spectra of BSA (solid curve, 10-fold dilution) and BSA-stabilized Pt NCs (long-dashed curve, 10-fold dilution). (B) CD spectra of BSA (solid curve, 400-fold dilution) and BSA-stabilized Pt NCs (long-dashed curve, 400-fold dilution). BSA, which was premixed with NaOH and then NaBH₄, followed by purification by dialysis, was used as a control.

We also performed CD measurements to reveal the conformational behavior of BSA before and after the formation of Pt NCs. As shown by the solid curve in Fig. 4B, BSA displayed CD features with negative absorption bands at 208 and 222 nm, which corresponds to the secondary structure of the protein.^1,22 However, after the formation of Pt NCs, the shift of the 208 nm peak to 204 nm (long-dashed curve in Fig. 4B) reveals a decrease of α-helical content and an increase of β-structural element.¹

3.3. Detection of hypochlorite

Although the Pt NCs or nanoparticles have been widely used in sensing applications relying on their catalytic activities,^23,24 few reports on the use of the Pt NCs as the fluorescent probe for chemical sensing have been documented. The feasibility of the method for the detection of hypochlorite has been demonstrated. In the presence of hypochlorite, the fluorescence of the Pt NCs was quenched remarkably (Fig. 5). The F₀/F (F₀ and F represent the fluorescence intensities in the absence and presence of hypochlorite, respectively) is linearly correlated with the concentration of hypochlorite ranging from 12 to 240 μM (inset of Fig. 5). The linear regression equation of F₀/F = 0.013C [μM] + 1.44 was obtained (R² = 0.98). As shown in Fig. 6, certain thiol compounds, S²⁻, common oxidants, and heavy metal ions exerted little influence on the fluorescence of Pt NCs. However, the interferents, such as H₂O₂, thiols, and S²⁻ were capable of quenching the emission of Au NCs,²⁵ Ag/Au NCs,²⁶ and Ag/Au NCs.²⁷

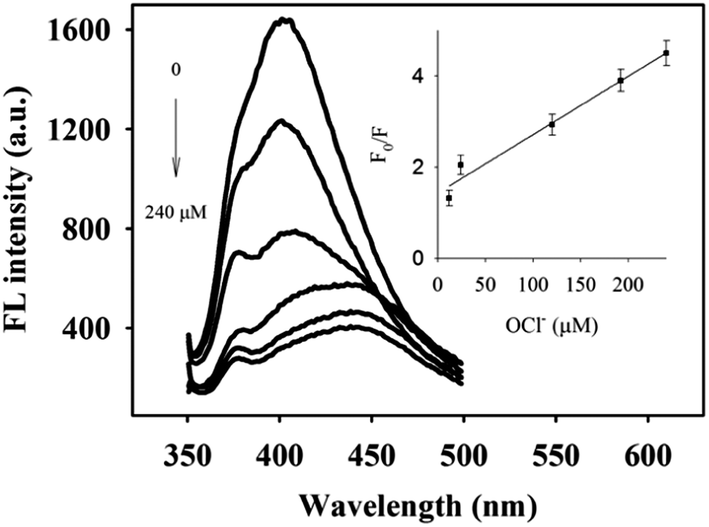

Fig. 5 Fluorescence responses of Pt NCs toward hypochlorite with concentrations of 0, 12, 24, 120, 192, and 240 μM. Inset: plot of F₀/F versus hypochlorite concentration ranging from 12 to 240 μM. Error bars were derived from three replicate measurements.

Fig. 6 Selectivity toward hypochlorite assay in which 10-fold diluted Pt NCs were used. The concentrations of hypochlorite and the interferences were all 120 μM. Error bars were derived from three replicate measurements.

The mechanism underlying the fluorescence quenching was further explored by XPS and UV-vis absorption spectroscopy. Upon incorporation of hypochlorite, the Pt 4f_7/2 peak shifted from 71.5 to 72.3 eV (Fig. 3), implying the oxidation of Pt NCs by hypochlorite.⁸ The significantly decreased UV-vis absorption of Pt NCs in the region of 300–400 nm and at 270 nm in the presence of hypochlorite (dashed curve in Fig. 1B) again supports the oxidation of Pt NCs. It is well-known that hypochlorite possesses higher oxidation ability than H₂O₂, thus the Pt NCs are stable toward H₂O₂. The higher stability of the nanoclusters is originated from the strong affinity between cysteine residues of BSA and noble metal ions. As a result, interferents, such as certain thiol compounds, S²⁻, common oxidants, and heavy metal ions exerted negligible influence on the fluorescence of Pt NCs. The proof-of-concept experiment demonstrates the potential of Pt NCs for selective detection of hypochlorite.

4. Conclusions

A rapid and facile method for the fabrication of highly fluorescent BSA-templated Pt NCs has been developed. The formation of Pt NCs inside the BSA molecules has a great influence on the hydrodynamic diameter and secondary structure of the template BSA. The composition of the Pt NCs was determined to be ca. Pt₂₀/BSA. The Pt NCs serve as an efficient probe for the detection of hypochlorite. The sensing mechanism involves the oxidation of Pt NCs by hypochlorite. The assay of hypochlorite is highly selective since the interferents investigated exerted negligible influence on the fluorescence of Pt NCs.
