A functional liquid-like multiwalled carbon nanotube derivative in the absence of solvent and its application in nanocomposites

Abstract

A multiwall carbon nanotube (MWCNT) derivative with liquid-like behaviour at room temperature was prepared by attaching Fe₃O₄ on the surface of MWCNT and employing tertiary amine terminated organosilanes as a corona and sulfonic-acid as a canopy. The MWCNT derivative is a Newtonian fluid at low shear rate. It has relative low viscosity at room temperature (3.87 Pa s at 25.7 °C). It shows good solubility in organic solvents such as ethanol, acetone and dichloroethane. Transmission electron microscopy (TEM) images confirmed the good dispersion of the MWCNT derivative in the solvent and the epoxy matrix. The MWCNT derivative is a super-paramagnetic material with a specific magnetization of 2.68 emu g⁻¹. According to the TEM image, the derivative can be aligned in the epoxy matrix under a magnetic field. The MWCNT derivative can improve the impact toughness of pure epoxy by 194% and the glass transition temperature (T_g) by 16.9 °C. The MWCNT derivative has many novel properties and can be used in nanocomposites.

---

Introduction

One of the major challenges for the application of multiwall carbon nanotube (MWCNT) is to disperse MWCNTs uniformly in solvent and polymer matrix.^1–7 Therefore, a versatile way was developed to keep nanoparticles isolated and uniformly dispersed in solvent and polymer matrix.⁸ By grafting a short oligomer onto the surface of the MWCNT, we can obtain a liquid-like MWCNT derivative in the absence of solvent, which can be dispersed well in solvent and polymer matrix.^9,10

Several studies have been reported in the field of liquid-like MWCNT derivatives. Chuanxi Xiong prepared PEG-functionalized CNTs (PEG-CNTs) with higher functional density and a smaller aspect ratio.¹¹ They found that the novel controllable rheology liquid-like MWCNT derivative could be achieved by controlling the oxidation time of carbon nanotubes. Notably, they also prepared 500 nm-long functional carbon nanotubes, which displayed liquid-like behaviour in the solvent-free system.¹² Robert prepared a MWCNT derivative by a radical-based reaction.¹³ In addition, a liquid-like MWCNT derivative could also be obtained through hydrogen bonds and the steric effect of a pluronic copolymer.¹⁴ The material was in waxy solid state at room temperature, which melted and behaved like a liquid at 45 °C. There are also many liquid-like derivatives, which are based on different materials like fullerenes and ZnO as a core.^15–18 Rodriguez¹⁹ reported a SiO₂ nanoparticle derivative based on 18 nm diameter silica nanoparticles as the core, sulfonic acid-terminated corona and tertiary amines as the canopy. The viscosity of the fluid can be controlled by varying the volume fraction of the core, the canopy geometry and molecular weight. Michinobu²⁰ prepared a solvent-free room temperature liquid-like fullerenes by attaching a single substituent of a 1,3,5-tris(alkyloxy)benzene unit to C₆₀ or C₇₀ under the Prato conditions. By attaching branched low-viscosity aliphatic chains to the anthracene core, Sukumaran Santhosh Babu²¹ reported nonvolatile, blue-emitting and highly stable liquid-like anthracenes at room temperature, in which acceptor dyes can be doped to tune the luminescence color. However, a liquid-like MWCNT/Fe₃O₄ derivative has not been attempted before. In this paper, we prepared a liquid-like derivative by attaching organosilane SID3392 and sulfonic-acid PEGS onto the surface of MWCNT//Fe₃O₄ (prepared by chemical co-precipitation).

Many scientists have explored the application of MWCNT in polymeric nanocomposites.^22,23 There are two common ways to disperse solid MWCNT uniformly in the polymer matrix. The first one is to use a solution processing technique. MWCNTs were dispersed in ethanol with an epoxy monomer and a curing agent by sonication and mechanically. After evaporation of the volatile solvent, the mixture was poured into molds and cured.²⁴ The second method is melt mixing. Jin²⁵ blended MWCNTs and PMMA in a laboratory mixing molder at a speed of 120 rpm (200 °C). The mixed samples were then compressed under pressure at 210 °C using a hydraulic press to yield composite films. However, both techniques have shortcomings. The melt compounding processing often yields a poor dispersion of MWCNTs since the viscosity of the MWCNT and the polymer mixture is very high.²⁶ The solution processing technique, with its expensive organic solvent and complex post-treatment, induces defects and hampers the mechanical property of composites.²⁷

Therefore, a new way to prepare a MWCNT/polymer nanocomposite was developed. Li²⁸ used a liquid-like MWCNT derivative to prepare liquid-like MWCNT/PA11 nanocomposites. The fracture elongation of the liquid-like MWCNT/PA11 nanocomposites maintained the range of 140–260%. The tensile modulus of the nanocomposite had increased by about 22% when the loading of liquid-like MWCNT was 0.8 wt%. Yang²⁹ reported that the liquid-like MWCNT derivative improved the tensile property of the epoxy. When liquid-like MWCNT derivative content was 0.5 wt%, the Young's modulus, tensile strength, failure strain and toughness of epoxy nanocomposites were increased by 28.4%, 22.9%, 24.1% and 66.1%, respectively. However, none of these papers ever discussed heat resistance of the nanocomposites and the effect of the MWCNT derivative on the curing process of the epoxy.

Several studies have been reported in the field of alignment of MWCNT in a polymer. Camponeschi's research showed that pristine MWCNT aligned in the epoxy matrix under a magnetic field of 17 T, the properties of the resultant composites are superior to those that were not exposed to a magnetic field.³⁰ Iron oxide decorated CNT can also be aligned under a magnetic field of 0.4 T.³¹ According to Abdalla's research,³² pristine MWCNTs were partially aligned in epoxy under a magnetic field of 9.4 T. The modulus parallel to the alignment direction, as measured by dynamic mechanical analysis showed significant anisotropy with 72% increase over the neat resin and 24% increase perpendicular to the alignment direction. Sharma³³ aligned SWCNT and MWCNT in the PC matrix by applying an external magnetic field of 1200 G. Magnetically aligned CNT/PC nanocomposites had better gas permeability than the randomly oriented CNT/PC nanocomposites. H₂ was found to be more selective than N₂ and CO₂. Although there are many works reported about alignment of solid MWCNT in the polymer matrix, alignment of a liquid-like MWCNT derivative has not been attempted before.

In this paper, we have prepared a liquid-like MWCNT derivative utilizing MWCNT/Fe₃O₄ as a core. The liquid-like MWCNT/Fe₃O₄ derivative was aligned in the epoxy matrix to prepare nanocomposites. The toughness, glass transition temperature and curing process were studied. The findings reported here can provide fundamental data about the structure control of the MWCNT-based derivative, and their output properties determined by their structure can also be tuned according to the structure-property relationship.

Experimental section

Materials and preparation

The MWCNTs (diameter 20–30 nm, length 5–15 μm) used in this study were synthesized by chemical vapor deposition (CVD) and provided by Chengdu organic chemicals Co., Ltd. FeCl₃·6H₂O (wt% > 99.0%) and FeCl₂·4H₂O (wt% > 99.7%) were obtained from Tianjing Organics. N,N-Didecyl-N-methyl-N-(3-trimethoxysilylpropyl) ammonium chloride (SID3392) was from Gelest. Inc. Poly(ethylene glycol)4-nonylphenyl-3-sulfopropyl ether and potassium salt (PEGS) were purchased from Aldrich. Methyl tetrahydrophthalic anhydride (METHPA) was from GuangZhou Weibo Chemistry Co. Ltd. 2,4,6-Tri(dimethylaminomethyl) phenol (DMP-30) was purchased from Aladdin Chemistry Co. Ltd. The epoxy resin (CYD-128) and curing agent 593 were from Yueyang Petrochemical Co. Ltd. Other analytical grade chemicals were H₂SO₄, HNO₃, NH₃·H₂O, ethanol, methanol, acetone, methylbenzene, tetrahydrofuran, dichloroethane and ether.

To begin with, MWCNTs were modified with H₂SO₄–HNO₃ (volume ratio 3 : 1) for three hours at 70 °C. The products were washed with the deionized water in order to remove residual acid and dried at 70 °C for 24 h. FeCl₂·4H₂O and FeCl₃·6H₂O with a molecule ratio of 1 : 1.75 were dissolved completely in de-ionized water. Subsequently, acid MWCNTs were added to the suspension, stirred, and sonicated for 2 h at 30 °C. Ammonia (5%) was added slowly into the solution and reacted for 30 min. MWCNT/Fe₃O₄ hybrids were deposited at the bottom of the beaker under a magnetic field. MWCNT/Fe₃O₄ hybrids were rinsed with de-ionized water until pH = 7, dried at 60 °C, and grinded to powder.

Then MWCNT/Fe₃O₄ hybrids (0.5 g) were mixed with 20 mL deionized water through ultrasound dispersion for 30 min. Ammonia (5%) was added into the mixture until the pH was 10. After that, SID3392 methanol solution (3 mL, weight fraction 40–42%) was added into the mixture dropwise. The black precipitate, which was formed immediately, was aged for 24 h at room temperature by shaking it intermittently. Then, the solvents were discarded and the solid was rinsed three times with water and ethanol. The solid was dispersed in tetramethylene oxide and upper layer solution was collected and dried at 50 °C.

At last, the product (1.2 g) was dispersed in 100 mL deionized water and PEGS ethanol solution (15 g, weight fraction 20%) was added into the solution. The reaction proceeded under mechanical stirring at 40 °C for 24 h, and the product was dried at 50 °C. The product was dissolved in acetone and centrifuged at 1000 rpm for 10 min. Solids on the surface of the tube were discarded. Finally, the supernatant liquid was collected, concentrated and dried at 50 °C.

Then, liquid-like derivative was aligned in the epoxy matrix, which was dispersed in the epoxy resin with sonication for 30 min at 60 °C. The curing agent 593 was added into the mixture and stirred slowly. The mixture were placed under vacuum at 36 °C to get rid of the bubbles. After that, the mixture was immediately poured into a mold, and a 3 T magnetic field was applied for 24 h. The liquid-like MWCNT derivative was added into the epoxy resin at 65 °C and sonicated for 30 min. The mixture was cured in the vacuum oven with METHPA as a curing agent and DMP-30 as an accelerating agent. The system was cured at 90 °C for 90 min, followed by 100 °C for 30 min, 110 °C for 30 min, 120 °C for 30 min and 140 °C for 90 min.

Finally, the liquid-like MWCNT derivative/epoxy nanocomposites were prepared, and the impact toughness and T_g of the liquid-like MWCNT derivative/epoxy nanocomposites were tested.

Characterization

The surface groups on the MWCNT derivative were investigated by Fourier transform infrared spectrometer (FTIR) (Mode: WQF-310) using KBr pellets. The product was characterized by X-ray diffraction (XRD, Rigaku, model D/max-2500 system). Transmission electron microscope (TEM) images of MWCNT, MWCNT/Fe₃O₄ and MWCNT derivative were obtained at an accelerating voltage of 100 kV using the JEM-2100 instrument after a few drops of sample/ethanol solution were placed on a copper grid and dried. X-ray photoelectron spectroscopy (XPS) was performed with the Kratos Axis Ultra DLD instrument after a few MWCNT/Fe₃O₄ nanoparticles were placed on a conductive blanket. The wide scan ranged from 0 eV to 760 eV. Differential scanning calorimetry (DSC) traces of the MWCNT derivative and nanocomposite were collected using a Q1000 TA instrument at a heating rate of 10 °C min⁻¹. Thermogravimetric analysis (TGA) measurements were performed under N₂ flow by using a TGAQ50 TA instrument. Rheological properties were studied by the rheometer of TA instrument (AR-2000). The cone-plate geometry with a cone diameter of 40 mm and a cone angle of 2° was used. A steady flow test was carried out at a temperature of 25 °C. Then, a temperature ramp test was carried out at 100 s⁻¹. After that, frequency sweep test was carried out at 20 °C and constant strain of 5%. Finally, the temperature sweep test was carried out at the frequency of 50 s⁻¹ and constant strain of 5%. Magnetic study was performed by a vibrating sample magnetometer (VSM, Riken Denshi, BHV-525). Impact toughness of the nanocomposites with different weight fraction of the MWCNT derivative was tested on the universal testing machine (CMT-5105), and the test followed standard GB/T 2567-2008.

Results and discussion

Characterization of the liquid-like MWCNT derivative

The liquid-like MWCNT derivative was synthesized through four reaction steps (Fig. 1). The product exhibits liquid-like behaviour in the absence of solvent (Fig. 2).

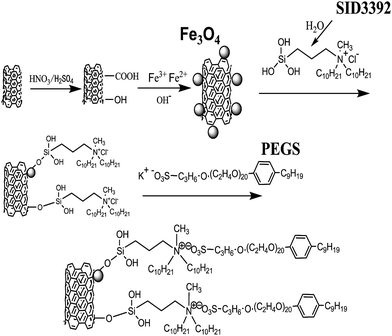

Fig. 1 Reaction scheme of the liquid-like MWCNT derivative.

Fig. 2 The picture of the liquid-like MWCNT derivative at room temperature.

The groups on the surface of these hybrids were studied by FTIR spectra (Fig. 3). For the FTIR spectra of carboxylic MWCNT (Fig. 3(b)), the absorption peak at 3310 cm⁻¹ is for hydrogen bonding of hydroxyl (–OH). The one at 1654 cm⁻¹ is related to the formation of hydrogen bonding between the carbonyl of carboxyl and the hydroxyl of another carboxyl. The absorption peak of the C–O bond is observed at 1392 cm⁻¹. These absorption peaks indicate that the carboxyl groups (–COOH) and hydroxyl groups (–OH) have been successfully decorated onto the surface of the MWCNT. For the FTIR curve of MWCNT/Fe₃O₄ (Fig. 3(c)), the absorption peak of Fe–O bond vibration at 570 cm⁻¹ confirmed that Fe₃O₄ has been attached onto the surface of MWCNT. As for the liquid-like MWCNT derivative (Fig. 3(d)), there are absorption peaks of Si–OH at 950 cm⁻¹ (ref. 34) and absorption peaks of Si–C at 840 cm⁻¹.³⁵ These absorption peaks indicate that SID3392 has been attached onto the surface of MWCNT/Fe₃O₄. Moreover, the absorption peak at 1112 cm⁻¹ is assigned to the asymmetric stretching vibration of –CH₂–O–CH₂, suggesting that PEGS has also been decorated. The peak at 1728 cm⁻¹ was assigned to the C=O stretching vibrations of the –COOH groups. Several absorption bands in the region of 1500–1200 cm⁻¹ were assigned to the O–H deformations of the C–OH groups and stretching vibrations. The absorption peaks at 720 and 1969 cm⁻¹ represent SO₃⁻ and R₃NH⁺, respectively.³⁶ Because the intensity of these polar groups is relatively strong, the Fe–O characteristic peak at 570 cm⁻¹ is covered up by other strong peaks in Fig. 3(d).

Fig. 3 FTIR curves of (a) pristine MWCNT, (b) carboxylic MWCNT (c) MWCNT/Fe₃O₄ (d) the liquid-like MWCNT derivative.

The XRD patterns of MWCNT and MWCNT/Fe₃O₄ are shown in Fig. 4. According to the MWCNT standard card (41-1487) and the Fe₃O₄ standard card (19-0629), it can be indicated that for MWCNT (Fig. 4(a)), the diffraction peaks at 2θ = 26.04°, 43.8° are assigned to (002), (100) planes of MWCNT. These two diffraction peaks are attributed to the graphitic structure of MWCNT.³⁷ For MWCNT/Fe₃O₄, the (220), (331), (222), (511), (440) planes of Fe₃O₄ were observed at 2θ = 30.06°, 35.36°, 43.14°, 57.2°, 62.72°, respectively. The characteristic peaks of MWCNT still exist in Fig. 4(b), indicating that the graphitic structure of MWCNT is not destroyed after MWCNTs are coated with Fe₃O₄ nanoparticles.

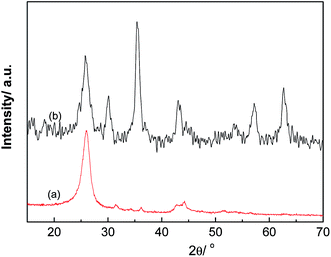

Fig. 4 XRD patterns of (a) pristine MWCNT (b) MWCNT/Fe₃O₄.

The TEM images of the liquid-like MWCNT derivative are shown in Fig. 5. Compared with the pristine MWCNTs (Fig. 5(a)), the carboxylic MWCNTs (Fig. 5(b)) are shorter, suggesting that the carboxylation procedure can incise the MWCNTs effectively. It can be observed that in the liquid-like MWCNT derivative, the Fe₃O₄ nanoparticles are attached onto the MWCNT effectively (Fig. 5(c) and (e)). The size of the Fe₃O₄ nanoparticles ranges from 8 to 12 nm.

Fig. 5 TEM pictures of (a) pristine MWCNT, (b) carboxylic MWCNT, (c and d) and (e) the liquid-like MWCNT derivative.

The XPS curve of MWCNT/Fe₃O₄ is shown in Fig. 6(a), in which there were different atoms, including the C1s photoelectron at 284 eV, the O1s photoelectron at 532 eV, the Fe2p photoelectron at 710 eV and the Fe2p_1/2 photoelectron at 723 eV. The XPS imaging for Fe is shown in Fig. 6(b). The small spot areas were Fe, which are distributed in the hybrid system. It can be seen that the MWCNT are encrusted with Fe₃O₄ nanoparticles.

Fig. 6 (a) XPS curve of MWCNT/Fe₃O₄ (b) XPS image for Fe.

TGA curves of the liquid-like MWCNT derivative (Fig. 7(b)) showed almost no weight loss at the temperature below 150 °C. This indicates that the sample is nearly void of any conventional solvent such as water and acetone. The weight loss above 150 °C is due to the decomposition of the surfactants. Decomposition of MWCNT starts from 580 °C (Fig. 8(a)). The content of the inorganic component (MWCNT and Fe₃O₄) in the liquid-like MWCNT derivative is about 15.09 wt%.

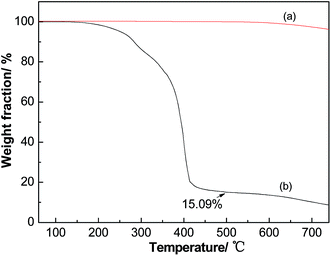

Fig. 7 The TGA curves of (a) pristine MWCNT, and (b) the liquid-like MWCNT derivative.

Fig. 8 DSC curves of (a) the liquid-like MWCNT derivative and (b) PEGS.

There are many –CH₂CH₂O– (EO) units in PEGS, which can crystallize at low temperature. The DSC trace (Fig. 8(b)) of the PEGS shows a large exotherm at −5.21 °C and a endotherm at 23.93 °C, corresponding to crystallization and melting of PEGS, respectively. As for the liquid-like MWCNT derivative, the crystallizing temperature decreases to −39.97 °C and the crystallization heat is 16.56 J g⁻¹. This indicates that crystallinity percentage decreases from 100% of PEGS to 55.1% of the liquid-like MWCNT derivative. The possible reason is that MWCNTs confine the crystal of the EO unit. Therefore, the crystalline structure of the MWCNT derivative is damaged, and the melting temperature of the MWCNT derivative decreases. Rodriguez³⁸ and Warren³⁹ reported a similar conclusion.

Rheological property of the liquid-like MWCNT derivative

The steady flow test result (Fig. 9) showed that the MWCNT derivative exhibited Newtonian behaviour. It agreed with the work of Chen and Prasher, which reported Newtonian behaviour of EG/TiO₂ (ref. 40) and propylene glycol/Al₂O₃ (ref. 41) nanoparticle-based fluids.

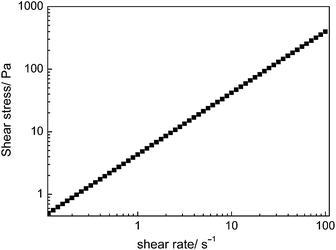

Fig. 9 Shear stress versus shear rate of the liquid-like MWCNT derivative at 25 °C.

The viscosity of the liquid-like MWCNT derivative decreased dramatically with the increasing temperature (Fig. 10). To be exact, the viscosity decreases from 3.87 Pa s (25.7 °C) to 0.37 Pa s (80 °C). This feature makes it possible for future application of the liquid-like MWCNT derivative in fabricating MWCNT/polymer nanocomposites. When the temperature is 60.7 °C, the viscosity of the liquid-like MWCNT derivative is 0.75 Pa s. However, this viscosity is so low that the liquid-like MWCNT derivative can disperse homogeneously in the polymer matrix. As a result, the processability of the nanocomposites is improved remarkably.

Fig. 10 Viscosity of the liquid-like MWCNT derivative versus temperature at 10 s⁻¹.

The storage modulus (G′) denotes the elastic behavior of materials, which is the driving force for molecule deformation. The loss modulus (G′′) represents the consumption energy of viscous deformation for materials. Because the liquid materials have permanent deformation due to flow and exhibit viscous behavior, G′′ is higher than G′. Fig. 11 shows that the liquid-like MWCNT derivative shared the same characteristic with liquid material since G′′ was always higher than G′ over the temperature range from 20 °C to 80 °C.

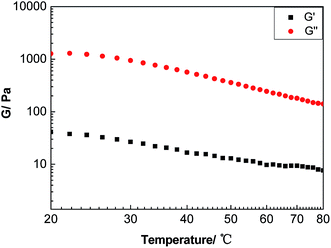

Fig. 11 The modulus of the liquid-like MWCNT derivative versus temperature at 50 s⁻¹.

By grafting organic materials onto the surface of the MWCNT/Fe₃O₄, the solubility characteristic of the MWCNT derivative was changed. Fig. 12 and 13 show the solubility of the liquid-like MWCNT derivative in solvent after stewing for 24 h and 10 days. The concentration of the solution is 10 mg mL⁻¹. Note that MWCNTs are nearly insoluble in all organic solvents. However, the liquid-like MWCNTs derivative is soluble in good solvent of PEGS such as acetone (Fig. 13(b)) and dichloroethane (Fig. 13(c)). The two solutions are quite stable. No large-scale agglomeration was observed after 10 days, and the derivative is slightly soluble in water (Fig. 13(a)). However, large-scale agglomeration was observed after 5 days, and unfortunately the derivative is still insoluble in ether (Fig. 12(g)) even in short term. Note that large-scale agglomeration was observed after 10 minutes probably because ether is not a good solvent for the surfactant that we used.

Fig. 12 Solubility of the liquid-like MWCNT derivative in (a) water, (b) acetone, (c) dichloroethane, (d) methanol, (e) tetrahydrofuran, (f) methylbenzene and (g) ether after 1 day.

Fig. 13 Solubility of the liquid-like MWCNT derivative in (a) water, (b) acetone, (c) dichloroethane, (d) methanol, (e) tetrahydrofuran, (f) methylbenzene and (g) ether after 10 days.

Dispersion of the liquid-like MWCNT derivative in solvent and polymer matrix

One of the crucial challenges for nanoparticle research is to improve the dispersion of nanoparticles in solvents and polymer matrix. Fig. 5(d) shows that the MWCNT derivative homogeneously disperses in ethanol. The weight fraction of the MWCNT derivative in the MWCNT derivative/ethanol solution is 1%. Moreover, TEM images of the MWCNT derivative/epoxy nanocomposite (Fig. 14) show that the MWCNT derivative disperse homogeneously in the epoxy matrix. The weight fraction of the liquid-like MWCNT derivative is 1% and the curing agent is METHPA.

Fig. 14 TEM images of the liquid-like MWCNT derivative/epoxy nanocomposite.

It is highly possible that the better dispersion of the liquid-like MWCNT derivative in epoxy is due to the long and flexible organic surfactant shell. The canopy of the liquid-like MWCNT derivative, which was made up by PEGS, consists of many EO units. These EO units can improve compatibility of the liquid-like MWCNT derivative in ethanol and the epoxy matrix. Moreover, the long and flexible organic surfactant shell can bridge MWCNTs and make it harder for MWCNTs to entangle.

Property of MWCNT derivative/epoxy nanocomposites

Since the MWCNT derivative can disperse well in the epoxy matrix, the mechanical and thermal property of MWCNT derivative/epoxy nanocomposites may improve significantly. Therefore, impact toughness and T_g of MWCNT derivative/epoxy nanocomposites were investigated. According to Fig. 15, when the content of the MWCNT derivative is 1 wt%, the liquid-like MWCNT derivative can improve the impact toughness of epoxy by 194%. However, for comparision, adding only solid MWCNT can improve the impact toughness of epoxy by 51.7%. The liquid-like MWCNT derivative has an organic shell that consists of a long flexible chain, which can act as plasticiser and improve compatibility of nanoparticles and the matrix.^42,43 The interfacial adhesion between the liquid-like MWCNT derivative and epoxy might be remarkably improved due to the organic shell, which has a hydrogen bond and reacts with the epoxy. Moreover, the dispersion of nanometer-sized particles in the polymer matrix has a significant impact on the mechanical properties of nanocomposites.⁴⁴ Therefore, better dispersion of MWCNTs in epoxy is one of the reasons why impact toughness of epoxy resin improved.

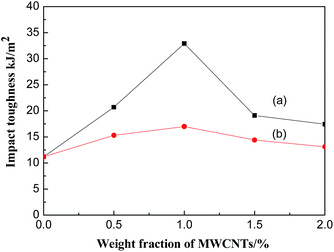

Fig. 15 Impact toughness of (a) the liquid-like MWCNT derivative/epoxy nanocomposites, (b) MWCNT/epoxy nanocomposites.

According to Fig. 16, the liquid-like MWCNT can improve the T_g of the epoxy by 16.9 °C. The result is quite impressive since traditional ways to improve toughness of a polymer (like adding plasticizer) can often deteriorate the thermal property of the polymer.⁴⁵ However, the MWCNT derivative can improve the impact toughness and T_g simultaneously. The possible reason is that nanoparticles may react with the epoxy matrix and act as chemical crosslinking points. The hydroxyl and carboxyl groups on the surface of MWCNT and Fe₃O₄ nanoparticles can react with the epoxy matrix. Therefore, chemical crosslinking was formed and crosslink density was increased; consequently, the T_g of epoxy was improved.⁴⁶

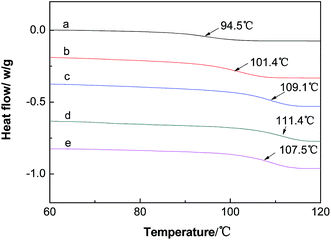

Fig. 16 The DSC curves of liquid-like MWCNT derivative/epoxy nanocomposites with a MWCNT derivative loading of (a) 0%. (b) 0.5%, (c) 1%, (d) 1.5%, (e) 2%.

Fig. 17 shows the DSC curve of the curing process of the nanocomposite. The curing temperature of the liquid-like MWCNT derivative/epoxy nanocomposite decreases slowly as the liquid-like MWCNT derivative loading increases. This is because there are a lot of hydroxyl groups in the derivative. The hydroxyl group can accelerate the curing process of epoxy. In this way, the liquid-like MWCNT derivative can act as an accelerant and decrease the curing temperature of the nanocomposite.

Fig. 17 DSC curves of the nanocomposite curing process. MWCNT derivative loading (a) 0%. (b) 0.5%, (c) 1%, (d) 1.5%.

Magnetic property of the liquid-like MWCNT derivative

According to Fig. 18, the MWCNT derivative is a typical super-paramagnetic material. The specific magnetization of the MWCNT derivative is 2.68 emu g⁻¹. This indicates that the MWCNT derivative can act as a special ferrofluid with PEGS as a carrier. The surfactant SID3392 is attached onto the surface of the MWCNT derivative through a covalent bond. There is electrostatic interaction between PEGS (carrier) and SID3392 (surfactant). The MWCNT derivative is quite stable, and no large scale agglomeration is observed after stewing for 3 months.

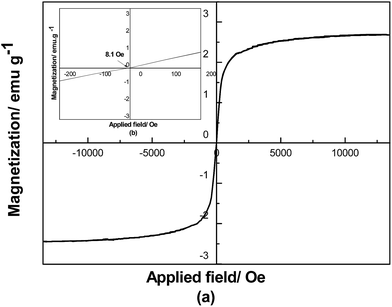

Fig. 18 The hysteresis cycle of the MWCNT derivative.

Alignment of the liquid-like MWCNT derivative in solvent and polymer matrix

Since the MWCNT derivative is a magnetic material, it may be aligned in a bulk composite under a magnetic field. Fig. 19 shows alignment of the MWCNT derivative in the epoxy matrix. In this picture, each MWCNT derivative is marked by a white arrow. The shape, diameter and length of each MWCNT derivatives are different. However, all MWCNT derivatives aligned in a similar direction and some MWCNT derivatives connected end-to-end. The matrix is epoxy and the curing agent is 593. In the MWCNT derivative, MWCNT formed a magnetic rod since Fe₃O₄ nanoparticles were attached onto the surface of MWCNT. Therefore, the MWCNT derivative can be easily aligned to the magnetic field direction. Due to their magnetic susceptibility, the north and south poles of the MWCNT derivative show linear arrangement, which results in the end-to-end connectivity.

Fig. 19 The alignment of the MWCNT derivative in the epoxy matrix.

Conclusions

A MWCNT derivative with liquid-like behaviour at room temperature was prepared by employing MWCNT/Fe₃O₄ as a core, tertiary amine-terminated organosilanes as a corona and sulfonic-acid as a canopy. The derivative was soluble in organic solvents and dispersed homogeneously in solvent and polymer matrix. Moreover, the derivative can improve impact toughness and heat resistance of epoxy simultaneously. Furthermore, the MWCNT derivative can be aligned in the epoxy matrix under a magnetic field. These advantages make it possible for us to develop a green and efficient route to fabricate high performance nanocomposite by using a liquid-like nanoparticle derivative. The super-paramagnetic nature of the MWCNT derivative may provide us a new way to manufacture ferrofluid. Our future study will focus on application of the liquid-like nanoparticle derivative in other promising fields like nanocatalysis and explore the fluidity mechanism of the liquid-like nanoparticle derivative.
