Efficient heterogeneous functionalized polymer ionic liquid catalyst for the synthesis of ethylene carbonate via the coupling of carbon dioxide with ethylene oxide

Abstract

A series of functionalized polymer ionic liquids (PILs) were synthesized and immobilized onto a 4 Å molecular sieve. The catalytic activity of the resulting heterogeneous catalyst toward the synthesis of ethylene carbonate (EC) via the cycloaddition reaction of ethylene oxide (EO) and CO₂ was studied. The effects of the reaction conditions such as reaction temperature, pressure, time, and the amount of catalyst used, were systematically investigated. A high yield of EC and excellent selectivity could be obtained under optimized conditions. The catalyst is thermally stable and shows good reusability. Based on the experimental results, a plausible reaction mechanism has been proposed for the catalytic reaction.

---

Introduction

Cyclic carbonates, e.g., ethylene carbonate (EC), are valuable chemical products that are used as polar aprotic solvents and electrolytic elements of lithium secondary batteries. Cyclic carbonates can serve as precursors for the formation of polycarbonates as well as intermediates in the production of pharmaceuticals, fine chemicals and agricultural chemicals.^1–3 One of the most effective routes for the synthesis of cyclic carbonates is the cycloaddition of CO₂ with epoxides.

A wide range of homogeneous catalysts such as alkali metal salts,⁴ organophosphorous compounds,⁵ organic bases,⁶ and organometallic compounds⁷ have been developed, and have exhibited excellent catalytic performance toward the coupling reaction. Unfortunately, those reactions were conducted in homogeneous catalytic systems, which suffer from poor catalyst recovery and product separation. Although heterogeneous catalysts (e.g., metal oxides,^8–10 molecular sieves,^11–13 and supported catalysts^14–16) have been explored, their application is limited because of low activity, and/or poor stability and reusability. Hence, it is crucial to identify more efficient heterogeneous catalysts.

Supported ionic liquids (ILs) are considered promising as efficient heterogeneous catalysts for the synthesis of cyclic carbonates, because they retain important physical and chemical features of ILs, such as nonvolatility, nonflammability, and good thermal stability, as well as high catalytic activity and selectivity. Compared to traditional ILs, the functionalized ionic liquids (e.g., those with hydroxyl or carboxyl groups) were found to show much better catalytic efficiency than single ILs toward the synthesis of cyclic carbonates.^17–19 For example, Sun et al. prepared a series of carboxyl IL catalysts containing Brønsted acidic sites and Lewis basic sites, and this type of catalysts showed high catalytic activity with no use of a cocatalyst and organic solvent.²⁰ The immobilization of hydroxyl- or carboxyl-functionalized ionic liquid on a solid support as effective heterogeneous catalysts for the synthesis of cyclic carbonate from the coupling of CO₂ with epoxides have exhibited excellent catalytic activity and selectivity.^21–24 The excellent catalytic performance can be ascribed to the synergetic effects among OH group (or COOH group) and the halide anions. For example, Han and co-workers²³ found that compared with silica-grafted imidazolium-based ILs with hydroxyl groups and with no functional group, carboxylic acid-functionalized imidazolium-based ILs immobilized on silica show the highest activity and selectivity for the synthesis of cyclic carbonates via the cycloaddition of epoxides with CO₂, since the –COOH group in the IL cation can greatly accelerate the reactions and showed a synergistic effect with the halide anions. Therefore, the incorporation of carboxylic acid and hydroxyl moieties into ILs could provide an effective alternative for improving the catalytic performance of ILs toward the cycloaddition of CO₂ and epoxides.

We synthesized a novel hydroxyl and carboxyl functionalized polymer ionic liquid (PIL) via copolymerization with 1-hydroxyethyl-3-vinyl imidazolium bromide, methyl acrylic acid, hydroxyethyl acrylate and styrene as monomers, and immobilized them onto a 4 Å molecular sieve surface, forming heterogeneous catalysts for the cycloaddition reaction of CO₂ and EO. The catalyst is active and selective for the reaction without any use of cocatalyst and organic solvent.

Experimental

Materials

4 Å molecular sieves, styrene, absolute ethanol, dodecyl sodium sulfate (SDS), ammonium persulfate, 1-vinylimidazole, methyl acrylic acid, hydroxyethyl acrylate, sodium hydroxide, 2-bromoethanol, 1-bromoethane, ethylene oxide and ZNX chain extender were purchased from the Sinopharm Chemical Reagent Co., Ltd. CO₂ (99.999%) was provided by Successful Gas Industry Co., Ltd. All chemicals were analytic grade and were used without further purification.

Preparation of functionalized PIL

The routes to synthesize the functionalized PILs are presented in Scheme 1. Firstly, 1-hydroxyethyl-3-vinyl imidazolium bromide was prepared according to literature.²⁵ 1-Vinylimidazole (9.41 g) and absolute ethanol (30 mL) were added to a three-necked flask equipped with a magnetic stirrer. The mixture was heated at 70 °C under a nitrogen atmosphere. A mixture of 2-bromoethanol (12.52 g) and absolute ethanol (20 mL) was dropped very slowly into the flask. The reactants were magnetically stirred for 24 h. Then, the reaction mixture was cooled down, and the unreacted starting materials were removed by distillation in vacuum. After drying under vacuum, 1-hydroxyethyl-3-vinyl imidazolium bromide was obtained. Following a similar procedure, 1-ethyl-3-vinyl imidazolium bromide was also synthesized using 1-bromoethane instead of 2-bromoethanol.

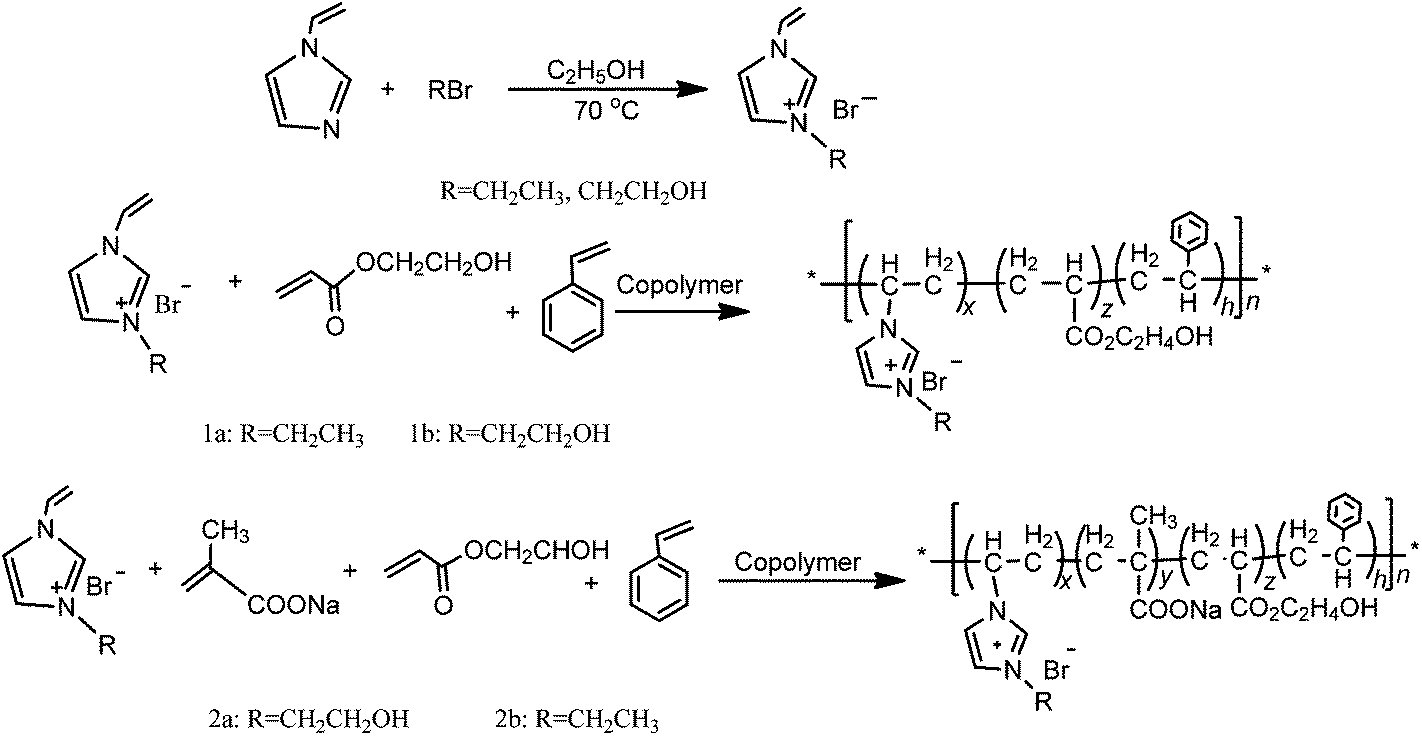

Scheme 1 Synthesis of the functionalized PILs.

The NMR data are as follow: 1-hydroxyethyl-3-vinyl imidazolium bromide: ¹H NMR (600 MHz, D₂O) δ: 3.84 (m, 2H), 4.26 (m, 2H), 5.32 (dd, 1H), 5.71 (dd, 1H), 7.05 (dd, 1H), 7.49 (s, 1H), 7.68 (s, 1H), 8.97 (s, 1H). 1-Ethyl-3-vinyl imidazolium bromide: ¹H NMR (600 MHz, DMSO-d₆): 1.48 (t, 3H); 4.25 (q, 2H); 5.42 (dd, 1H); 5.96 (dd, 1H); 7.31 (dd, 1H); 7.98 (s, 1H); 8.24 (s, 1H); 9.61 (s, 1H).

Secondly, the functionalized PILs were synthesized according to the procedures described in Scheme 1. In a typical reaction, methacrylic acid (5.0 g) was neutralized to pH 6 using 0.1 mol L⁻¹ NaOH, and then 1-hydroxyethyl-3-vinyl imidazolium bromide (10 g), hydroxyethyl acrylate (10 g), styrene (1.0 g) were dissolved in the above solution (called solution A). Ammonium persulfate (0.55 g) was dissolved in double-distilled water (10 mL) (called solution B). ZNX chain extender (0.054 g) and double-distilled water (10 mL) were added to a three-necked flask equipped with an electric stirrer, and heated at 80 °C. Solution A and solution B were added into the flask stepwise. Then, the reaction mixture was maintained at 80 °C for 2 h. Subsequently, the reaction mixture was cooled down, the product 2a as a light yellow foam was obtained and dialysed to remove low molecular weight components and other impurities. The obtained foam became solid after freeze-drying. Following a similar procedure, the other functionalized PILs were synthesized.

Synthesis of heterogeneous functionalized PILs

4 Å molecular sieve (10 g), functionalized PIL 2a (5 g) and double-distilled water (20 mL) were added to a three-necked flask under continuous shaking for 24 h at 30 °C followed by vaporization of the water under vacuum. The final product was dried in vacuum at 80 °C for 12 h, and the heterogeneous functionalized PIL 2a (HFPIL2a) was obtained. Following a similar procedure, a series of heterogeneous functionalized PILs (HFPIL1a, HFPIL1b and HFPIL2b) were immobilized onto 4 Å molecular sieve.

Cycloaddition reaction

EC was synthesized by a coupling reaction between EO and CO₂ in the presence of heterogeneous functionalized PILs. Reaction was performed in a 30 mL stainless-steel reactor with a magnetic stirrer. For a typical catalytic reaction, heterogeneous functionalized PIL (0.5 g) was added to the reactor without any co-solvent. EO (4.4 g) was introduced into the reactor by high-pressure liquid pump. The reactor was placed under a constant pressure of CO₂ and then heated to the required temperature. After the appropriate time, the reactor was cooled to room temperature, depressurized and the resulting reaction mixture was separated by filtration. For recycling studies the solid catalyst was washed with absolute ethanol (3 × 10 mL), and dried under vacuum. The products were analyzed on a gas chromatograph (Beifen Co., Ltd. Model, SP-3420) equipped with a capillary column (HP-5, 30 m × 0.32 mm × 0.5 μm) using a flame ionized detector (FID).

Characterization

Field emission scanning microscopy (FESEM) was taken with Hitachi S-4800 operating at 1.5 kV. Fourier transform infrared (FT-IR) spectra were collected on a FTIR EQUINO 55 apparatus using KBr pellets. X-ray photoelectron spectroscopy (XPS) spectra were obtained with a Perkin Elmer PHI-5000C ESCA system. The elemental analysis was carried out on a Vario EL III instrument. NMR measurements were conducted on Varian INOVA-400 spectrometer at room temperature. The thermogravimetric analysis was made in a Shimadzu TG-50, at a rate of 10 °C min⁻¹ from ambient temperature to 900 °C.

Results and discussion

Characterization of catalyst structure

To confirm the synthesis of the functionalized PIL 2a via copolymerization with 1-hydroxyethyl-3-vinyl imidazolium bromide, methyl acrylic acid, hydroxyethyl acrylate and styrene as monomers, FTIR a spectroscopic study was firstly carried out. The FTIR spectrum of the functionalized PIL (II) is demonstrated in Fig. 1. The functionalized PIL displays a typical strong peak corresponding to –OH stretching frequency centered at about 3380 cm⁻¹. The peaks at 3140, 2950 and 1080 cm⁻¹ are assigned to stretching vibrations of the C–H bonds in the imidazole ring, C–H bonds in alkane, and C–O bonds in monohydric alcohol, respectively. The peak at 1730 cm⁻¹ is related to the carboxyl groups. The characteristic peaks of the imidazole ring and the benzene ring are present at 1570, 1450 and 1400 cm⁻¹. The peaks at 1270 and 1170 cm⁻¹ belong to C–N stretching bands of imidazole ring. The out-of-plane bending vibration absorption peak of monosubstituted benzene derivatives appeared at 750 cm⁻¹. The above result is a clear indication that the functionalized PIL 2a has been synthesized successfully.

Fig. 1 FT-IR spectra of the functionalized PIL 2a.

The chemical compositions of the functionalized PIL 2a have been determined using XPS. The XPS spectrum of the functionalized PIL 2a (Fig. 2) shows the existence of carbon, nitrogen, oxygen, bromine and sodium, illustrating that the functionalized PIL 2a has been successfully synthesized by the four monomers. The above results correlate well with the normal FTIR spectra of the functionalized PIL 2a.

Fig. 2 The wide survey XPS spectrum of the functionalized PIL 2a.

Depicted in Fig. 3 is the TGA curve of the functionalized PIL 2a. It is clear that it is stable up to 250 °C. Upon heating to 700 °C, there is the pyrolysis and complete decomposition of PIL. The results show that the functionalized PIL 2a is thermally stable up to 250 °C.

Fig. 3 TGA curve of the functionalized PIL 2a.

The morphology and structure of the samples were investigated by FESEM micrograph (Fig. 4). The FESEM images in Fig. 4a and b reveal the morphology of 4 Å molecular sieves. Obviously, 4 Å molecular sieves have a rough surface with porous structure at the surface, suggesting that 4 Å molecular sieves have a relatively large adsorption capacity. The adsorption kinetics studies of functionalized PIL 2a onto 4 Å molecular sieves showed that the absorption equilibrium achieved after 24 h (ESI Fig. S1†), and the adsorption isotherms results obtained at various concentrations showed the adsorption reaches maximum at about 400 mg g⁻¹ when the equilibrium concentration is about 0.6 g mL⁻¹ (ESI Fig. S2†). The functionalized PIL 2a was adsorbed to the surfaces of 4 Å molecular sieves to form so-called heterogeneous functionalized PIL catalyst. In comparison to the original molecular sieves, irregular flakes occurred on the surface of them (Fig. 4c and d), suggesting that the ionic liquid has been successfully immobilized on the support.

Fig. 4 FESEM images of 4 Å molecular sieves (a and b) and heterogeneous functionalized PIL (c and d).

To further prove the presence of the functionalized PIL 2a on 4 Å molecular sieves surface, elemental analysis of the supported PIL catalyst were conducted by XPS (ESI Fig. S3†). The XPS spectrum shows the presence of carbon, nitrogen, oxygen, bromine, silicon and sodium, and the contents of them are 13.17%, 5.66%, 58.85%, 1.69%, 15.75% and 4.88%, respectively.

Catalytic performance

The reaction of EO with CO₂ to produce EC was choose as the model reaction to test the activity of the heterogeneous functionalized PILs, and the results are summarized in Table 1. It can be seen that 1-bromoethane, 1-vivylimidazole and 2-bromoethanol are ineffective catalyst for this reaction (Table 1, entries 1–3).

Table 1 Catalysts screening results for the conversion of CO₂ and EO into EC^a

Entry	Catalyst	EO conversion (%)	EC selectivity (%)
a Reaction conditions: EO 0.1 mol, catalyst 0.4 g, initial CO2 pressure 2.5 MPa, time 4 h, temperature 130 °C.
1	1-Bromoethane	Trace	—
2	1-Vinylimidazole	Trace	—
3	2-Bromoethanol	Trace	—
4	HFPIL1a	40	97
5	HFPIL1b	87	98
6	HFPIL2a	93	97
7	HFPIL2b	54	97

---

The activities of HFPIL2a with carboxyl and hydroxyl groups, HFPIL1b with hydroxyl but without carboxyl groups and HFPIL1a in the absence of functional groups were investigated (Table 1, entry 6 vs. 5 and 4). HFPIL2a showed higher activity than HFPIL1b and HFPIL1a. The better catalytic activity of HFPIL2a catalyst is most likely related to the abundant carboxyl and hydroxyl groups, which could provide efficient synergistic sites in accelerating the ring opening of epoxide.^17–24 Moreover, the HFPIL2b with carboxyl group but without hydroxyl group (Table 1, entry 7) exhibits higher catalytic activities than HFPIL1a in the absence of functional groups (Table 1, entry 4). It can be seen that the introduction of carboxylic acid moieties into the catalytic system can greatly enhance the catalytic performance of the heterogeneous functionalized PIL catalyst toward the cycloaddition reaction.

Catalytic performance

The catalytic performance of the heterogeneous functionalized PIL catalyst was evaluated for the synthesis of EC from EO and CO₂. Fig. 5 depicted the influence of different catalyst–ethylene oxide (EO) mass ratios on cycloaddition reaction of EO and CO₂. As shown in Fig. 5, when the amount of catalyst varied from 2% to 9%, conversion rate of EO significantly raised from 73% to 92% and selectivity of EC increased from 94% to 97%. However, the further increasing amount of the catalyst declined EO conversion rate and EC selectivity, which is because that the excess catalyst could not be well dispersed in the reaction mixture and limited the mass transfer between the active sites and reactants.^26,27 Consequently, the optimal catalyst amount is about 9%.

Fig. 5 Effect of catalyst amount on the cycloaddition reaction of EO. Reaction conditions: EO 0.1 mol, initial CO₂ pressure 2.5 MPa, time 4 h.

Subsequently, we investigated the effect of some parameters on the catalytic activity of the heterogeneous functionalized PIL catalyst. Almost all the reports on cyclic carbonate synthesis suggest that reaction temperature and CO₂ pressure are important parameters affecting the coupling of CO₂ and epoxides.^23,27,28 Fig. 6 illustrates the dependence of EO conversion rate and EC selectivity on reaction temperature. It was found that the reaction temperature dramatically affected the conversion rate of EO. The EO conversion increases sharply with increasing temperature from 100 °C to 130 °C. The continued increase of temperature beyond 130 °C up to 140 °C increases a little EO conversion. However, further increase in temperature causes a decrease of EO conversion and a slight decrease in EC selectivity, a minute amount of ethylene glycol generated from the hydrolysis of EO is detected as by-product owing to the higher temperature. Such an effect of the higher reaction temperature on catalytic activity has been observed in other catalytic systems.^21,27,29 Another reason is that the solubility of the CO₂ gas phase in the reaction system decreases with increasing temperature. Therefore, in reactions performed at temperatures greater than 140 °C, CO₂ solubility affects reactivity, leading to a decreased in EO conversion. Such an effect of reaction temperature on the synthesis of cyclic carbonates has been observed in the cycloaddition of various epoxides with CO₂.²⁸ Therefore, 130 °C is considered suitable for the target reaction.

Fig. 6 Influence of temperature on the catalytic activity Reaction conditions: EO 0.1 mol, catalyst 0.4 g, initial CO₂ pressure 2.5 MPa, time 4 h.

Fig. 7 depicts the influence of CO₂ pressure on the EO conversion rate and EC selectivity at 140 °C with a reaction time of 4 h. It is observed that PC selectivity is always above 90.0% and can be considered as being independent of CO₂ pressure. Interestingly, an increase in CO₂ pressure resulted in a moderate increase in EO conversion in the low-pressure region (1.0–2.5 MPa). However, when CO₂ pressure is above 2.5 MPa, there is significant decline in EO conversion. Such an effect of CO₂ pressure on catalytic activity has been observed in other catalytic systems.^5,21,30 For example, when immobilized ionic liquid/ZnCl₂ was used for the coupling of PO and CO₂, the best catalyst activity appeared at a CO₂ pressure of 1.5 MPa at 110 °C.³⁰ A possible explanation is that acidic CO₂ dissolves in basic epoxide and liquefies as a result of CO₂–epoxide complexing.^5,21,30 The high CO₂ pressure promotes this kind of CO₂–EO interaction rather than enhancing the interaction between EO and catalyst, thus leading to the low catalytic activity. It was also reported that too high CO₂ pressure may retard the interaction between the epoxides and the catalyst.^20,28,31 Therefore, high CO₂ pressure did not benefit the cycloaddition reaction catalyzed by the heterogeneous functionalized PIL catalyst.

Fig. 7 Influence of CO₂ pressure on the catalytic activity Reaction conditions: EO 0.1 mol, catalyst 0.4 g, initial CO₂ pressure 2.5 MPa, time 4 h, temperature 130 °C.

Additionally, the dependence of EO conversion and EC selectivity on reaction time was also evaluated. It was found that the reaction time had a remarkable influence on the reaction. As shown in Fig. 8, the EO conversion rate was faster in the initial stage and remained almost invariant after 4 h. The reaction time exhibited little influence on the selectivity of EC. Conclusively, a reaction time of 4 h was appropriate for the synthesis of EC in this study.

Fig. 8 Influence of reaction time on the catalytic activity. Reaction conditions: EO 0.1 mol, catalyst 0.4 g, initial CO₂ pressure 2.5 MPa, temperature 130 °C.

Experiments were also conducted to examine the recyclability of the heterogeneous functionalized PIL catalyst. In each cycle, the catalyst was recovered by filtration directly. After drying, the catalyst was reused for the next run. As shown in Fig. 9, the catalyst could be reused for six runs, and the EC yield still remained above 90%. Furthermore, it is noteworthy to mention that the EC yield was still remained above 80% after 10 runs, indicating that the catalyst is relatively stable and has excellent catalytic activity. Hence despite the decline after six runs, the catalyst can be considered as reusable. The decline of EC yield after six runs could be due to the functionalized PIL leaching. Poor reusability has been reported before over catalysts of similar kind.^22,30

Fig. 9 EC yield (Y) got with the catalyst of different recycling number.

Catalytic activity of the reaction of various epoxides with CO₂

Under the optimized conditions the cycloaddition of CO₂ to various epoxides using the heterogeneous functionalized PIL was conducted at 130 °C and 2.5 MPa CO₂ (Table 2). The results indicate that the catalytic system is applicable to coupling CO₂ with a variety of terminal epoxides with high yield and selectivity. Cyclohexene-oxide required a prolonged reaction time compared with the terminal epoxides (Table 2, entry 5) due to steric hindrance.^{21–24,27,28}

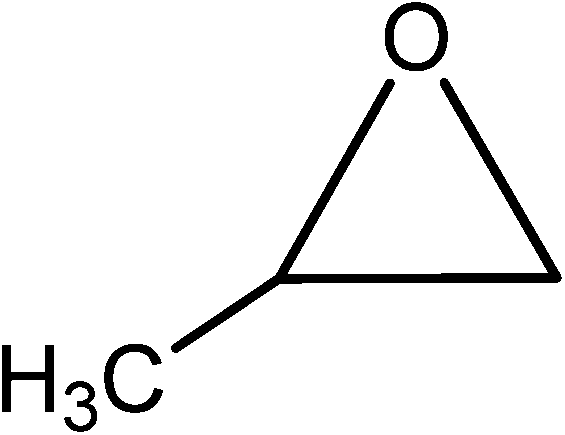

Table 2 Catalytic activity of the reaction of various epoxides with CO₂^a

Entry	Epoxide	Product	Results
			Yield (%)	Selectivity (%)
a Reaction conditions: epoxide 0.1 mol, catalyst 0.4 g, initial CO2 pressure 2.5 MPa, temperature 130 °C, reaction time 4 h.
1			93	97
2			90	98
3			90	94
4			82	97
5			31.2	97

---

Thermodynamic evaluation of the EC synthesis using EO and CO₂ as feedstocks

The thermodynamic phenomena describe how the systems respond to the changes in their surroundings through the effects of heat, work and energy on a system. Therefore, understanding the thermodynamics of EC formation using EO and CO₂ as feedstocks is highly important in seeking novel synthesis ideas both in academic investigations and in practical applications. The thermodynamic data of various substances such as ethylene oxide, carbon dioxide and ethylene carbonate are tabulated in Table 3.^32,33

Table 3 Standard thermodynamic data of various substances in the reaction (298.15 K, 101.325 kPa)

Substance	ΔfHm^θ (kJ mol^−1)	Sf^θ (J mol^−1 K^−1)	ΔfGm^θ (kJ mol^−1)	Cpm (J mol^−1 K^−1)
CO2	−393.509	213.74	−394.359	26.57 + 42.258 × 10^−3T − 14.25 × 10^−6T^2
EO	−52.63	242.53	−13.01	15.21 + 0.1104T
EC	−580.88	326.69	−96.127	−13.165 + 0.3114T − 0.9 × 10^−4T^2 − 0.3 × 10^−7T^3

---

The changes of enthalpy, entropy and Gibbs free energy at different temperatures in the process of the synthesis of EC have been calculated from the following formulas respectively³² and the results are given in Table 4.

Δ_rH_m = ΣH_f(products) − ΣH_f(reactants), Δ_rS_m = ΣS_f(products) − ΣS_f(reactants)

Δ_rG_m = ΣG_f(products) − ΣG_f(reactants), Δ_rC_pm = ΣC_pm(products) − ΣC_{pm(reactants)}

Δ_rG_T = Δ_rH_T − TΔ_rS_T, Δ_rG_T = −RT ln K_p

where K_p is the equilibrium constant of the reaction, the Δ_rH^θ and Δ_rS^θ are the standard enthalpy and standard entropy changes respectively, R is the universal gas constant, and T is the thermodynamic temperature.

Table 4 Thermodynamic properties of EC synthesis from EO and CO₂

T (K)	ΔrHm (kJ mol^−1)	ΔrSm (J mol^−1 K^−1)	ΔrGm (kJ mol^−1)	Kp
298.15	−239.631	−311.748	−146.731	5.1 × 10^25
383.15	−240.575	−314.580	−120.091	2.393 × 10^16
393.15	−240.642	−314.755	−116.943	3.497 × 10^15
403.15	−241.374	−314.902	−114.468	6.875 × 10^14
413.15	−240.750	−315.025	−110.645	9.873 × 10^13

---

It is obvious from Table 4 that the negative of free energy change (Δ_rG_m) is an indication of spontaneous nature of the EC synthesis from EO and CO₂. The negative values of enthalpy change (Δ_rH_m) for the intervals of temperatures showed the exothermic nature of the reaction. The negative values of Δ_rS_m, Δ_rH_m and Δ_rG_m for the corresponding temperature intervals further suggested low temperature condition is beneficial for the synthesis of EC from EO and CO₂, higher temperature is unfavorable for the forward reaction and may induce some side reactions which is consistent with Fig. 6.

The reaction equilibrium constant K_p (Table 4, column 5) within the temperature range from 298.15–413.15 K is very high, indicating that the reaction can not only occur but also be considered as practically irreversible.³⁴ Owing to exothermic reaction, the equilibrium constant K_p decreases with increasing temperature. However, it is noteworthy to mention that the values of K_p remained high in the temperature range of 298.15–413.15 K, and they are thermodynamically advantageous. Therefore, by altering the reaction temperature, the selectivity of the reaction couldn't be improved. Based on the above analysis, it is necessary to study reaction kinetics, thus significantly shortening the reaction time and improving the reaction selectivity and yield, suggesting that it should focus on development of high-activity and high-selectivity catalyst.

The kinetic study of the EC synthesis using EO and CO₂ as feedstocks

It has been verified that the synthesis of cyclic carbonate from CO₂ and epoxide obey first order kinetics, the reaction are first order in epoxide concentration.^35,36 Therefore, dynamic equation of the synthesis of ethylene carbonate from CO₂ and EO was established as described in eqn (1). Taking the logarithm of eqn (1) leads to eqn (2).

r = −d[EO]/dt = k[EO] (1)

ln[1/(1 − x)] = kt (2)

where x is conversion rate of EO, t is reaction time, k is reaction rate constant. Under the optimal reaction conditions, the conversion rates of EO at four temperatures between 110 °C and 140 °C are calculated, to get the values of ln[1/(1 − x)] and a plot of ln[1/(1 − x)] against t (Fig. 10). Linear fitting was performed using least square method on the plot of ln[1/(1 − x)] against t, and the reaction rate constant k and the correlation coefficient R are obtained (Table 5). The reaction is highly exothermic for ethylene carbonate, though the effect of raising the temperature has been ascribed to accelerating the rate of reaction (Table 5, column 5). The correlation coefficients R were close to 1 under the reaction conditions, indicating that the rate of the reaction was only dependent of the concentration of the ethylene oxide and fitted first order linear relation, which is agree with the kinetic equation from literature.^35,36

Fig. 10 Relationship of ln[1/(1 − x)] with t at different temperatures.

Table 5 Linear fitting results and reaction rate constants at different temperatures

T/K	TK^−1 × 10^3	Fitting equation	R	k/min^−1	ln k
383.15	2.61	y = 0.00759x	0.9993	0.00759	−4.88
393.15	2.54	y = 0.01339x	0.9996	0.01339	−4.31
403.15	2.48	y = 0.01899x	0.9982	0.01899	−3.96
413.15	2.42	y = 0.02495x	0.9998	0.02495	−3.69

---

Reaction activation energy

Fig. 11 is the plots of ln k vs. 1/T. Obviously, there is a good linear relations between the logarithm of k and 1/T.

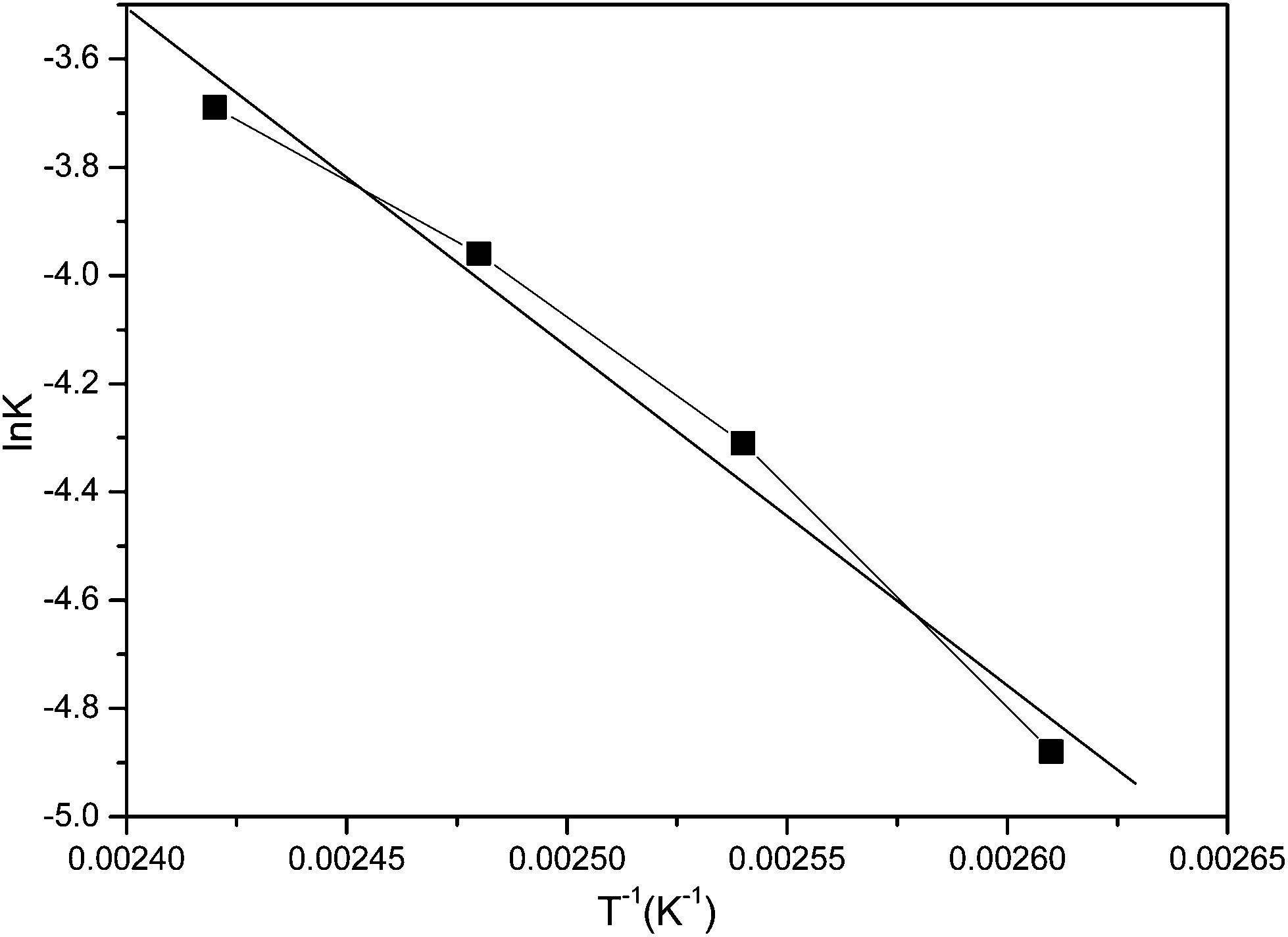

Fig. 11 Logarithm of the reaction rate constant versus the reciprocal of the reaction temperature.

According to the Arrhenius equation,

ln k = ln k₀ − E_a/RT

where k is the reaction rate constant, k₀ is the exponential factor, E_a is the activation energy, R is the gas constant and T is the reaction temperature.

Therefore, the exponential factor k₀ and activation energy E_a were obtained as k₀ = 98 715.8 and E_a = 51.9965 kJ mol⁻¹. Thus, the kinetic equation of this reaction is r = −dC_EO/dt = 98 715.8e^{−51.9965/RT}C_EO.

Proposed mechanism of coupling reaction

Previous research suggested that Brønsted acids can accelerate the ring-opening reaction of epoxides by forming hydrogen bonds.³⁷ In our current study, functionalized PIL with carboxyl and hydroxyl functional groups exhibits excellent catalytic activity (Table 1 and Fig.5), which is consistent with literature reports.^17–24 Based on our results and those of previous reports, the proposed mechanism is shown in Scheme 2.

Scheme 2 The proposed reaction mechanism for cycloaddition of EO and CO₂ catalyzed by heterogeneous functionalized PIL.

The coordination of the H atom of carboxyl and hydroxyl groups of the catalyst with the O atom of EO though hydrogen bonding results in the formation of intermediate. Due to the polarization of the epoxide C–O bonds, the bromide anion (Lewis base) makes a nucleophilic attack on one of the carbon atoms of EO. Simultaneously, there is ring opening of epoxy and generation of an oxy anion. The insertion of CO₂ into the haloalkoxy species would result in the formation of a linear halocarbonate that transforms into ethylene carbonate through intramolecular substitution of the halide and regenerates the catalyst. Thus, in our current catalyst system, the coexistence of hydrogen bond donors (–OH and –COOH) and halide anion showed the synergistic effect of promoting the coupling reaction. This effect might be the main contribution to their high catalytic activity and selectivity.

Conclusions

The functionalized PIL with carboxyl and hydroxyl functional groups has been demonstrated as effective catalyst for the synthesis of EC via the cycloaddition of EO with CO₂. The functionalized PIL immobilized on the molecular sieve show excellent catalytic activity and selectivity, since the –COOH and –OH groups in the PIL can accelerate the reaction and showed the synergistic effects with the halide anion. Moreover, the heterogeneous catalyst can be easily separated from the products and reused. Based on thermodynamic and kinetic analysis, the reaction is pseudo-first order reaction within the temperature range from 298–413 K.
